DS2761

High-Precision Li+ Battery Monito

FEATURES

§ Lithium-Ion (Li+) Safety Circuit

- Overvoltage Protection

- Overcurrent/Short-Circuit Protection

- Undervoltage Protection

§ Zero Volt Battery Recovery Charge

§ Available in Two Configurations:

- Internal 25mW Sense Resistor

- External User-Selectable Sense Resistor

§ Current Measurement

- 12-Bit Bidirectional Measurement

- Internal Sense Resistor Configuration:

0.625mA LSB and ±1.9A Dynamic Range

- External Sense Resistor Configuration:

15.625mV LSB and ±64mV Dynamic
Range

§ Current Accumulation:

- Internal Sense Resistor: 0.25mAhr LSB

- External Sense Resistor: 6.25mVhr LSB

§ Voltage Measurement with 4.88mV

Resolution

§ Temperature Measurement Using Integrated

Sensor with 0.125°C Resolution

§ System Power Management and Control

Feature Support

§ 32 Bytes of Lockable EEPROM

§ 16 Bytes of General-Purpose SRAM

§ Dallas 1-Wire

Device Address

§ Low Power Consumption:

- Active Current: 60mA typ, 90mA max

- Sleep Current: 1mA typ, 2mA max

®

Interface with Unique 64-bit

PIN CONFIGURATION

1 2 3 4

DS2761

16

15

14

13

12

11

10

IN

V

DD

PIO

V

SS

V

SS

V

SS

PS

9

IS1

PLS DC DQ

CC IS2

VIN IS1

VDD PIO PS

Flip-Chip Packaging*

SNS
Probe

VSS
Probe

DS2761

Top View

SNS

VSS

CC V

1

1

2

PLS

2

3

2

DC

SNS

SNS

SNS

4

5

6

7

DQ

8

IS2

16-Pin TSSOP Package

PIN DESCRIPTION

- Charge Control Output

CC

- Discharge Control Output

DC

DQ - Data Input/Output
PIO - Programmable I/O Pin
PLS - Battery Pack Positive Terminal Input

- Power Switch Sense Input

PS

VIN- Voltage-Sense Input
VDD- Power-Supply Input (2.5V to 5.5V)
VSS- Device Ground
SNS - Sense Resistor Connection
IS1 - Current-Sense Input
IS2 - Current-Sense Input
SNS Probe - Do Not Connect

Probe - Do Not Connect

V

SS

A

B

C

D

E

F

* Mechanical drawing for the 16-pin TSSOP and DS2761 flip-chip package can be found at:

http://pdfserv.maxim-ic.com/arpdf/Packages/16tssop.pdf
http://pdfserv.maxim-ic.com/arpdf/Packages/chips/2761x.pdf

1-Wire is a registered trademark of Dallas Semiconductor.

1 of 24 072303

DS2761

ORDERING INFORMATION

PART MARKING DESCRIPTION

DS2761AE D2761EA TSSOP, External Sense Resistor, 4.275V V
DS2761BE D2761EB TSSOP, External Sense Resistor, 4.35V V

OV

OV

DS2761AE/T&R D2761EA DS2761AE on Tape-and-Reel
DS2761BE/T&R D2761EB DS2761BE on Tape-and-Reel
DS2761AE-025 2761A25 TSSOP, 25mW Sense Resistor, 4.275V V
DS2761BE-025 2761B25 TSSOP, 25mW Sense Resistor, 4.35V V

OV

OV

DS2761AE-025/T&R 2761A25 DS2761AE-025 in Tape-and-Reel
DS2761BE-025/T&R 2761B25 DS2761BE-025 in Tape-and-Reel
DS2761AX-025/T&R DS2761AR Flip-Chip, 25mW Sense Resistor, Tape-and-Reel, 4.275V V
DS2761BX-025/T&R DS2761BR Flip-Chip, 25mW Sense Resistor, Tape-and-Reel, 4.35V V
DS2761AX/T&R DS2761A Flip-Chip, External Sense Resistor, Tape-and-Reel, 4.275V V
DS2761BX/T&R DS2761B Flip-Chip, External Sense Resistor, Tape-and-Reel, 4.35V V

Note: Additional VOV options are available, contact Maxim/Dallas Semiconductor sales.

OV

OV

OV

OV

DESCRIPTION

The DS2761 high-precision Li+ battery monitor is a data-acquisition, information-storage, and safety­protection device tailored for cost-sensitive battery pack applications. This low-power device integrates
precise temperature, voltage, and current measurement, nonvolatile (NV) data storage, and Li+ protection
into the small footprint of either a TSSOP package or flip-chip package. The DS2761 is a key component
in applications including remaining capacity estimation, safety monitoring, and battery-specific data
storage.

Through its 1-Wire interface, the DS2761 gives the host system read/write access to status and control
registers, instrumentation registers, and general-purpose data storage. Each device has a unique factory­programmed 64-bit net address that allows it to be individually addressed by the host system, supporting
multibattery operation.

The DS2761 is capable of performing temperature, voltage, and current measurement to a resolution
sufficient to support process monitoring applications such as battery charge control, remaining capacity
estimation, and safety monitoring. Temperature is measured using an on-chip sensor, eliminating the need
for a separate thermistor. Bidirectional current measurement and accumulation are accomplished using
either an internal 25mW sense resistor or an external device. The DS2761 also features a programmable
I/O pin that allows the host system to sense and control other electronics in the pack, including switches,
vibration motors, speakers, and LEDs.

Three types of memory are provided on the DS2761 for battery information storage: EEPROM, lockable
EEPROM, and SRAM. EEPROM memory saves important battery data in true NV memory that is
unaffected by severe battery depletion, accidental shorts, or ESD events. Lockable EEPROM becomes
ROM when locked to provide additional security for unchanging battery data. SRAM provides
inexpensive storage for temporary data.

2 of 24

Figure 1. BLOCK DIAGRAM

Y

SS

DS2761

DQ

V

IS1

IS2

PLS

PS

SNS

IN

THERMAL

SENSE

+

1-WIRE

INTERFACE

ADDRESS

MUX

-

REGISTERS AND

AND

VOLTAGE

REFERENCE

ADC

INTERNAL SENSE RESISTOR CONFIGURATION ONLY

25mW

USER MEMOR

LOCKABLE EEPROM

SRAM

TEMPERATURE

VOLTAGE

CURRENT

ACCUM. CURRENT

STATUS / CONTROL

LI-ION PROTECTION

CHIP GROUND

TIMEBASE

PIO

CC

DC

V

IS2 IS1

TEST CURRENT AND RECOVERY CHARGE DETAIL

PLS

I

RC

V

DD

I

TST

I

TST

V

SS

3 of 24

Table 1. DETAILED PIN DESCRIPTION

SYMBOL TSSOP FLIP

CHIP

DS2761

DESCRIPTION

CC

1C1Charge Protection Control Output. Controls an external p-channel

high-side charge protection FET.

DC

3B2Discharge Protection Control Output. Controls an external p-channel

high-side discharge protection FET.

DQ 7 B4 Data Input/Out. 1-Wire data line. Open-drain output driver. Connect

this pin to the DATA terminal of the battery pack. Pin has an internal
1mA pull-down for sensing disconnection.

PIO

14 E2 Programmable I/O Pin. Used to control and monitor user-defined

external circuitry. Open drain to VSS.

PLS 2 B1 Battery Pack Positive Terminal Input. The DS2761 monitors the pack

plus terminal through PLS to detect overcurrent and overload conditions,
as well as the presence of a charge source. Additionally, a charge path to
recover a deeply depleted cell is provided from PLS to V

. In sleep

DD

mode (with SWEN = 0), any capacitance or voltage source connected to
PLS is discharged internally to VSS through 200mA (nominal) to assure
reliable detection of a valid charge source. For details of other internal
connections to PLS and associated conditions see the Li+ Protection

Circuitry section.

PS

10 E4 Power Switch Sense Input. The device wakes up from Sleep Mode

when it senses the closure of a switch to VSS on this pin. Pin has an
internal 1mA pull-up to VDD.

VIN 16 D1 Voltage Sense Input. The voltage of the Li+ cell is monitored via this

input pin. This pin has a weak pullup to VDD.

V

DD

15 E1 Power Supply Input. Connect to the positive terminal of the Li+ cell

through a decoupling network.

VSS

13,14,

15

F3 Device Ground. Connect directly to the negative terminal of the Li+ cell.

For the external sense resistor configuration, connect the sense resistor
between VSS and SNS.

SNS 4,5,6 A3 Sense Resistor Connection. Connect to the negative terminal of the

battery pack. In the internal sense resistor configuration, the sense resistor
is connected between VSS and SNS.

IS1 9 D4

Current Sense Input. This pin is internally connected to VSS through a

4.7kW resistor. Connect a 0.1mF capacitor between IS1 and IS2 to
complete a low-pass input filter.

IS2 8 C4

Current Sense Input. This pin is internally connected to SNS through a

4.7kW resistor.

SNS

N/A C2

Do Not Connect.

Probe

VSS

N/A D2

Do Not Connect.

Probe

4 of 24

Figure 2. APPLICATION EXAMPLE

(1)

(2)

102 x 2

DS2761

PACK+

DATA

PACK-

102

1kW

150

150W

W

1kW

CC
PLS
DC
SNS
SNS
SNS
DQ
IS2

DS2761

V

V

DD

PIO

V

SS

V

SS

V

SS

PS

IS1

104

BAT+

1kW

IN

150W

104

PS

4.7k

W

BAT-

R

SNS

R

SNS-INT

SNS

R

KS

4.7KW

IS2 IS1

voltage

V

SS

R

KS

4.7KW

sense

DS2761

1) R

2) R

is present for external sense resistor configurations only.

SNS

SNS-INT

is present for internal sense resistor configurations only.

5 of 24

DS2761

POWER MODES

The DS2761 has two power modes: active and sleep. While in active mode, the DS2761 continually
measures current, voltage, and temperature to provide data to the host system and to support current
accumulation and Li+ safety monitoring. In sleep mode, the DS2761 ceases these activities. The DS2761
enters sleep mode when any of the following conditions occurs:

§ The PMOD bit in the Status Register has been set to 1 and the DQ line is low for longer than

2s (pack disconnection)

§ The voltage on VIN drops below undervoltage threshold VUV for t

§ The pack is disabled through the issuance of a SWAP command (SWEN bit = 1)

The DS2761 returns to active mode when any of the following occurs:

§ The PMOD bit has been set to 1 and the SWEN bit is set to 0 and the DQ line is pulled high

(pack connection)

§ The PS pin is pulled low (power switch)

§ The voltage on PLS becomes greater than the voltage on V

(charger connection) with the SWEN bit

IN

set to 0

§ The pack is enabled through the issuance of a SWAP command (SWEN bit = 1)

The DS2761 defaults to sleep mode when power is first applied.

(cell depletion)

UVD

Li+ PROTECTION CIRCUITRY

During active mode, the DS2761 constantly monitors cell voltage and current to protect the battery from
overcharge (overvoltage), overdischarge (undervoltage), and excessive charge and discharge currents
(overcurrent, short circuit). Conditions and DS2761 responses are described in the sections below and
summarized in Table 2 and Figure 3.

Table 2. Li+ PROTECTION CONDITIONS AND DS2761 RESPONSES

ACTIVATIONCONDITION

NAME

Overvoltage V

Undervoltage V

THRESHOLD DELAY RESPONSE

IN

IN

> V

< V

OV

UV

t

OVD

t

UVD

high

CC

CC, DC

high,

Sleep Mode

Overcurrent, Charge V
Overcurrent, Discharge V
Short Circuit V

VIS = V
delivered from pin SNS.

1)

If V

For the internal sense resistor configuration, the overcurrent thresholds are expressed in terms of current: I

2)

3)

With test current I

4)

With test current I

- V

IS1

allows V

charge direction and I

. Logic high = V

IS2

< 2.2V, release is delayed until the recovery charge current (IRC) passed from PLS to VDD charges the battery and

DD

to exceed 2.2V.

DD

< -IOC for discharge direction

SNS

flowing from PLS to VSS (pulldown on PLS)

TST

flowing from VDD to PLS (pullup on PLS)

TST

IS

< -V

IS

SNS

for CC and VDD for

PLS

> V

> V

OC

OC

(2)

SC

(2)

t

OCD

t

OCD

t

SCD

All voltages are with respect to VSS. I

DC

.

CC, DC

DC

DC

high

high
high

RELEASE

THRESHOLD

V

< VCE, or

IN

VIS ≤ -2mV

V

> VDD

PLS

(1)

(charger connected)

V

< VDD - V

PLS

V

> VDD - V

PLS

V

> VDD - V

PLS

references current

SNS

SNS

(3)

TP

(4)

TP

(4)

TP

> IOC for

Overvoltage. If the cell voltage on VIN exceeds the overvoltage threshold, VOV, for a period longer than
overvoltage delay, t
protection register. When the cell voltage falls below charge enable threshold V

, the DS2761 shuts off the external charge FET and sets the OV flag in the

OVD

, the DS2761 turns the

CE

6 of 24

DS2761

SC

OC

U

charge FET back on (unless another protection condition prevents it). Discharging remains enabled
during overvoltage, and the DS2761 re-enables the charge FET before VIN < VCE if a discharge current of

-80mA (VIS ≤ -2mV) or less is detected.

Undervoltage. If the voltage of the cell drops below undervoltage threshold VUV for a period longer than
undervoltage delay t

, the DS2761 shuts off the charge and discharge FETs, sets the UV flag in the

UVD

protection register, and enters sleep mode. The DS2761 provides a current-limited recovery charge path
from PLS to V

to gently charge severely depleted cells during sleep mode.

DD

Overcurrent, Charge Direction. The voltage difference between the IS1 pin and the IS2 pin (V
V

) is the filtered voltage drop across the current-sense resistor. If VIS exceeds overcurrent threshold

IS2

VOC for a period longer than overcurrent delay t

, the DS2761 shuts off both external FETs and sets the

OCD

IS

= V

COC flag in the protection register. The charge current path is not re-established until the voltage on the
PLS pin drops below VDD - VTP. The DS2761 provides a test current of value I

from PLS to VSS to pull

TST

PLS down in order to detect the removal of the offending charge current source.

Overcurrent, Discharge Direction. If VIS is less than -VOC for a period longer than t

, the DS2761

OCD

shuts off the external discharge FET and sets the DOC flag in the protection register. The discharge
current path is not re-established until the voltage on PLS rises above VDD - VTP. The DS2761 provides a
test current of value I

from VDD to PLS to pull PLS up in order to detect the removal of the offending

TST

low-impedance load.

Short Circuit. If the voltage on the SNS pin with respect to VSS exceeds short-circuit threshold VSC for a
period longer than short-circuit delay t

, the DS2761 shuts off the external discharge FET and sets the

SCD

DOC flag in the protection register. The discharge current path is not re-established until the voltage on
PLS rises above VDD - VTP. The DS2761 provides a test current of value I

from VDD to PLS to pull

TST

PLS up in order to detect the removal of the short circuit.

Figure 3. Li+ PROTECTION CIRCUITRY EXAMPLE WAVEFORMS

V

OV

V

CELL

CHARGE

V

DISCHARGE

CC

IS

(1)

t

OVD

t

OVD

t

OCD

V

V

V
0

-V

-V

V

V

CE

UV

OC

OC

SC

PLS

SS

IS1

-

DC

t

D

t

D

t

VD

SLEEP

MODE

(1) To allow the device to react quickly to short circuits, detection occurs on the SNS pin rather than on the

filtered IS1 and IS2 pins. The actual short-circuit detect condition is V

SNS

> VSC.

7 of 24

V

DD

V

SS

ACTIVE

INACTIVE

DS2761

r

r

Summary. All of the protection conditions described above are OR'ed together to affect the CC and

DC

outputs.

= (Undervoltage) or (Overcurrent, Either Direction) or (Short Circuit) or

DC

(Protection Register Bit DE = 0) or (Sleep Mode)

= (Overvoltage) or (Undervoltage) or (Overcurrent, Charge Direction) or (Protection Register

CC

bit CE = 0) or (Sleep Mode)

CURRENT MEASUREMENT

In the active mode of operation, the DS2761 continually measures the current flow into and out of the
battery by measuring the voltage drop across a current-sense resistor. The DS2761 is available in two
configurations: 1) internal 25mW current-sense resistor, and 2) external user-selectable sense resistor. In
either configuration, the DS2761 considers the voltage difference between pins IS1 and IS2 (V
V

) to be the filtered voltage drop across the sense resistor. A positive VIS value indicates current is

IS2

flowing into the battery (charging), while a negative VIS value indicates current is flowing out of the
battery (discharging).

VIS is measured with a signed resolution of 12-bits. The current register is updated in two’s-complement
format every 88ms (128/fsample) with an average of 128 readings. Currents outside the range of the
register are reported at the limit of the range. The format of the current register is shown in Figure 4.

= V

IS

IS1

-

For the internal sense resistor configuration, the DS2761 maintains the current register in units of amps,
with a resolution of 0.625mA and full-scale range of no less than ±1.9A (see Note 7 on IFS spec for more
details). The DS2761 automatically compensates for internal sense resistor process variations and
temperature effects when reporting current.

For the external sense resistor configuration, the DS2761 writes the measured VIS voltage to the current
register, with a resolution of 15.625mV and a full-scale range of ±64mV.

Figure 4. CURRENT REGISTER FORMAT

MSB—Address 0E LSB—Address 0F

1121029

S2

2827262

5

2423222120XXX

MSb LSb MSb LSb

Units: 0.625mA for Internal Sense Resisto

15.625mV for External Sense Resisto

CURRENT ACCUMULATOR

The current accumulator facilitates remaining capacity estimation by tracking the net current flow into
and out of the battery. Current flow into the battery increments the current accumulator while current
flow out of the battery decrements it. Data is maintained in the current accumulator in two’s-complement
format. The format of the current accumulator is shown in Figure 5.

8 of 24

DS2761

r

r

r

r

When the internal sense resistor is used, the DS2761 maintains the current accumulator in units of amp­hours, with a resolution of 0.25mAhrs and full-scale range of ±8.2Ahrs. When using an external sense
resistor, the DS2761 maintains the current accumulator in units of volt-hours, with a resolution of

6.25mVhrs and a full scale range of ±205mVhrs.

The current accumulator is a read/write register that can be altered by the host system as needed.

Figure 5. CURRENT ACCUMULATOR FORMAT

MSB—Address 10 LSB—Address 11

S2142132122112

1029

8

2

272625242322212

0

MSb LSb MSb LSb

Units: 0.25mAhrs for Internal Sense Resisto

6.25mVhrs for External Sense Resisto

CURRENT OFFSET COMPENSATION

Current measurement and current accumulation are both internally compensated for offset on a continual
basis minimizing error resulting from variations in device temperature and voltage. Additionally, a
constant bias can be utilized to alter any other sources of offset. This bias resides in EEPROM address
33h in two’s-complement format and is subtracted from each current measurement. The current offset
bias is applied to both the internal and external sense resistor configurations. The factory default for the
current offset bias is a value of 0.

Figure 6. CURRENT OFFSET BIAS

Address 33

S2625242322212

MSb LSb

Units: 0.625mA for Internal Sense Resisto

15.625mV for External Sense Resisto

0

VOLTAGE MEASUREMENT

The DS2761 continually measures the voltage between pins VIN and V
voltage register is updated in two’s-complement format every 3.4ms with a resolution of 4.88mV.
Voltages above the maximum register value are reported as the maximum value. The voltage register
format is shown in Figure 7.

9 of 24

over a range of 0 to 4.75V. The

SS

Figure 7. VOLTAGE REGISTER FORMAT

MSB—Address 0C LSB—Address 0D

DS2761

S2928272625242

3

222120XXXXX

MSb LSb MSb LSb

Units: 4.88mV

TEMPERATURE MEASUREMENT

The DS2761 uses an integrated temperature sensor to continually measure battery temperature.
Temperature measurements are placed in the temperature register every 220ms in two’s-complement
format with a resolution of 0.125°C over a range of ±127°C. The temperature register format is shown in
Figure 8.

Figure 8. TEMPERATURE REGISTER FORMAT

MSB—Address 18 LSB—Address 19

S2928272625242

3

222120XXXXX

MSb LSb MSb LSb

Units: 0.125°C

PROGRAMMABLE I/O

To use the PIO pin as an output, write the desired output value to the PIO bit in the special feature
register. Writing a 0 to the PIO bit enables the PIO output driver, pulling the PIO pin to VSS. Writing a 1
to the PIO bit disables the output driver, allowing the PIO pin to be pulled high or used as an input. To
sense the value on the PIO pin, read the PIO bit. The DS2761 turns off the PIO output driver and sets the
PIO bit high when in sleep mode or when DQ is low for more than 2s, regardless of the state of the
PMOD bit.

POWER SWITCH INPUT

The DS2761 provides a power control function that uses the discharge protection FET to gate battery
power to the system. The
monitored for a low-impedance connection to V
on the PS pin causes the device to transition into active mode, turning on the discharge FET. If the
DS2761 is already in active mode, activity on PS has no effect other than the latching of its logic low
level in the PS bit in the special feature register. The reading of a 0 in the PS bit should be immediately
followed by writing a 1 to the PS bit to ensure that a subsequent low forced on the PS pin is latched into
the PS bit.

pin, internally pulled to VDD through a 1mA current source, is continuously

PS

. If the DS2761 is in sleep mode, the detection of a low

SS

10 of 24

DS2761

MEMORY

The DS2761 has a 256-byte linear address space with registers for instrumentation, status, and control in
the lower 32 bytes, with lockable EEPROM and SRAM memory occupying portions of the remaining
address space. All EEPROM and SRAM memory is general purpose except addresses 30h, 31h, and 33h,
which should be written with the default values for the protection register, status register, and current
offset register, respectively. When the MSB of any two-byte register is read, both the MSB and LSB are
latched and held for the duration of the read data command to prevent updates during the read and ensure
synchronization between the two register bytes. For consistent results, always read the MSB and the LSB
of a two-byte register during the same read data command sequence.

EEPROM memory is shadowed by RAM to eliminate programming delays between writes and to allow
the data to be verified by the host system before being copied to EEPROM. All reads and writes to/from
EEPROM memory actually access the shadow RAM. In unlocked EEPROM blocks, the write data
command updates shadow RAM. In locked EEPROM blocks, the write data command is ignored. The
copy data command copies the contents of shadow RAM to EEPROM in an unlocked block of EEPROM
but has no effect on locked blocks. The recall data command copies the contents of a block of EEPROM
to shadow RAM regardless of whether the block is locked or not.

Table 3. MEMORY MAP

ADDRESS (HEX) DESCRIPTION READ/WRITE

00 Protection Register R/W
01 Status Register R

02–06 Reserved

07 EEPROM Register R/W
08 Special Feature Register R/W

09–0B Reserved

0C Voltage Register MSB R
0D Voltage Register LSB R
0E Current Register MSB R

0F Current Register LSB R
10 Accumulated Current Register MSB R/W
11 Accumulated Current Register LSB R/W

12–17 Reserved

18 Temperature Register MSB R
19 Temperature Register LSB R

1A–1F Reserved

20–2F EEPROM, block 0 R/W*
30–3F EEPROM, block 1 R/W*
40–7F Reserved
80–8F SRAM R/W

90–FF Reserved

* Each EEPROM block is read/write until locked by the LOCK command, after which it is read-only.

11 of 24

DS2761

PROTECTION REGISTER

The protection register consists of flags that indicate protection circuit status and switches that give
conditional control over the charging and discharging paths. Bits OV, UV, COC, and DOC are set when
corresponding protection conditions occur and remain set until cleared by the host system. The default
values of the CE and DE bits of the protection register are stored in lockable EEPROM in the
corresponding bits in address 30h. A recall data command for EEPROM block 1 recalls the default values
into CE and DE. The format of the protection register is shown in Figure 9. The function of each bit is
described in detail in the following paragraphs.

Figure 9. PROTECTION REGISTER FORMAT

Address 00

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

OV UV COC DOC

CC

DC

CE DE

OV—Overvoltage Flag. When set to 1, this bit indicates the battery pack has experienced an overvoltage
condition. This bit must be reset by the host system.

UV—Undervoltage Flag. When set to 1, this bit indicates the battery pack has experienced an
undervoltage condition. This bit must be reset by the host system.

COC—Charge Overcurrent Flag. When set to 1, this bit indicates the battery pack has experienced a
charge-direction overcurrent condition. This bit must be reset by the host system.

DOC—Discharge Overcurrent Flag. When set to 1, this bit indicates the battery pack has experienced a
discharge-direction overcurrent condition. This bit must be reset by the host system.

CC — CC Pin Mirror. This read-only bit mirrors the state of the CC output pin.

DC — DC Pin Mirror. This read-only bit mirrors the state of the DC output pin.

CE—Charge Enable. Writing a 0 to this bit disables charging (

CC output high, external charge FET off)

regardless of cell or pack conditions. Writing a 1 to this bit enables charging, subject to override by the
presence of any protection conditions. The DS2761 automatically sets this bit to 1 when it transitions
from sleep mode to active mode.

DE—Discharge Enable. Writing a 0 to this bit disables discharging (

DC output high, external discharge
FET off) regardless of cell or pack conditions. Writing a 1 to this bit enables discharging, subject to
override by the presence of any protection conditions. The DS2761 automatically sets this bit to 1 when it
transitions from sleep mode to active mode.

STATUS REGISTER

The default values for the status register bits are stored in lockable EEPROM in the corresponding bits of
address 31h. A recall data command for EEPROM block 1 recalls the default values into the status
register bits. The format of the status register is shown in Figure 10. The function of each bit is described
in detail in the following paragraphs.

12 of 24

DS2761

Figure 10. STATUS REGISTER FORMAT

Address 01

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

X X PMOD RNAOP SWEN X X X

PMOD—Sleep Mode Enable. A value of 1 in this bit enables the DS2761 to enter sleep mode when the
DQ line goes low for greater than 2s and to leave sleep mode when the DQ line goes high. A value of 0
disables DQ-related transitions into and out of sleep mode. This bit is read-only. The desired default value
should be set in bit 5 of address 31h. The factory default is 0.

RNAOP—Read Net Address Opcode. A value of 0 in this bit sets the opcode for the read net address
command to 33h, while a 1 sets the opcode to 39h. This bit is read-only. The desired default value should
be set in bit 4 of address 31h. The factory default is 0.

SWEN—SWAP Command Enable. A value of 1 in this bit location enables the recognition of a SWAP
command. If set to 0, SWAP commands are ignored. The desired default value should be set in bit 3 of
address 31h. This bit is read-only. The factory default is 0.

X—Reserved Bits.

EEPROM REGISTER

The format of the EEPROM register is shown in Figure 11. The function of each bit is described in detail
in the following paragraphs.

Figure 11. EEPROM REGISTER FORMAT

Address 07

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

EEC LOCK X X X X BL1 BL0

EEC—EEPROM Copy Flag. A 1 in this read-only bit indicates that a copy data command is in progress.
While this bit is high, writes to EEPROM addresses are ignored. A 0 in this bit indicates that data may be
written to unlocked EEPROM blocks.

LOCK—EEPROM Lock Enable. When this bit is 0, the lock command is ignored. Writing a 1 to this bit
enables the lock command. After the lock command is executed, the LOCK bit is reset to 0. The factory
default is 0.

BL1—EEPROM Block 1 Lock Flag. A 1 in this read-only bit indicates that EEPROM block 1 (addresses
30 to 3F) is locked (read-only) while a 0 indicates block 1 is unlocked (read/write).

BL0—EEPROM Block 0 Lock Flag. A 1 in this read-only bit indicates that EEPROM block 0 (addresses
20 to 2F) is locked (read-only) while a 0 indicates block 0 is unlocked (read/write).

X—Reserved Bits.

13 of 24

DS2761

SPECIAL FEATURE REGISTER

The format of the special feature register is shown in Figure 12. The function of each bit is described in
detail in the following paragraphs.

Figure 12. SPECIAL FEATURE REGISTER FORMAT

Address 08

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

PS

PIO MSTR X X X X X

PS — PS Pin Latch. This bit latches a low state on the PS pin, and is cleared only by writing a 1 to this

location. Writing this bit to a 1 immediately upon reading of a 0 value is recommended.

PIO—PIO Pin Sense and Control. See the

Programmable I/O section for details on this read/write bit.

MSTR—SWAP Master Status Bit. This bit indicates whether a device has been selected through the
SWAP command. Selection of this device through the SWAP command and the appropriate net address
results in setting this bit, indicating that this device is the master. A 0 signifies that this device is not the
master.

X—Reserved Bits.

1-WIRE BUS SYSTEM

The 1-Wire bus is a system that has a single bus master and one or more slaves. A multidrop bus is a 1­Wire bus with multiple slaves. A single-drop bus has only one slave device. In all instances, the DS2761
is a slave device. The bus master is typically a microprocessor in the host system. The discussion of this
bus system consists of four topics: 64-bit net address, hardware configuration, transaction sequence, and
1-Wire signaling.

64-BIT NET ADDRESS

Each DS2761 has a unique, factory-programmed 1-Wire net address that is 64 bits in length. The first
eight bits are the 1-Wire family code (30h for DS2761). The next 48 bits are a unique serial number. The
last eight bits are a cyclic redundancy check (CRC) of the first 56 bits (see Figure 13). The 64-bit net
address and the 1-Wire I/O circuitry built into the device enable the DS2761 to communicate through the
1-Wire protocol detailed in the

1-Wire Bus System section of this data sheet.

Figure 13. 1-WIRE NET ADDRESS FORMAT

8-BIT CRC 48-BIT SERIAL NUMBER 8-BIT FAMILY

CODE (30H)

MSb LSb

CRC GENERATION

The DS2761 has an 8-bit CRC stored in the most significant byte of its 1-Wire net address. To ensure
error-free transmission of the address, the host system can compute a CRC value from the first 56 bits of
the address and compare it to the CRC from the DS2761. The host system is responsible for verifying the
CRC value and taking action as a result. The DS2761 does not compare CRC values and does not prevent

14 of 24

DS2761

a command sequence from proceeding as a result of a CRC mismatch. Proper use of the CRC can result
in a communication channel with a very high level of integrity.

The CRC can be generated by the host using a circuit consisting of a shift register and XOR gates as
shown in Figure 10, or it can be generated in software. Additional information about the Dallas 1-Wire
CRC is available in Application Note 27,

Understanding and Using Cyclic Redundancy Checks with

Dallas Semiconductor Touch Memory Products. (This application not can be found on the Maxim/Dallas

Semiconductor website at www.maxim-ic.com).

In the circuit in Figure 14, the shift register bits are initialized to 0. Then, starting with the least
significant bit of the family code, one bit at a time is shifted in. After the 8th bit of the family code has
been entered, then the serial number is entered. After the 48th bit of the serial number has been entered,
the shift register contains the CRC value.

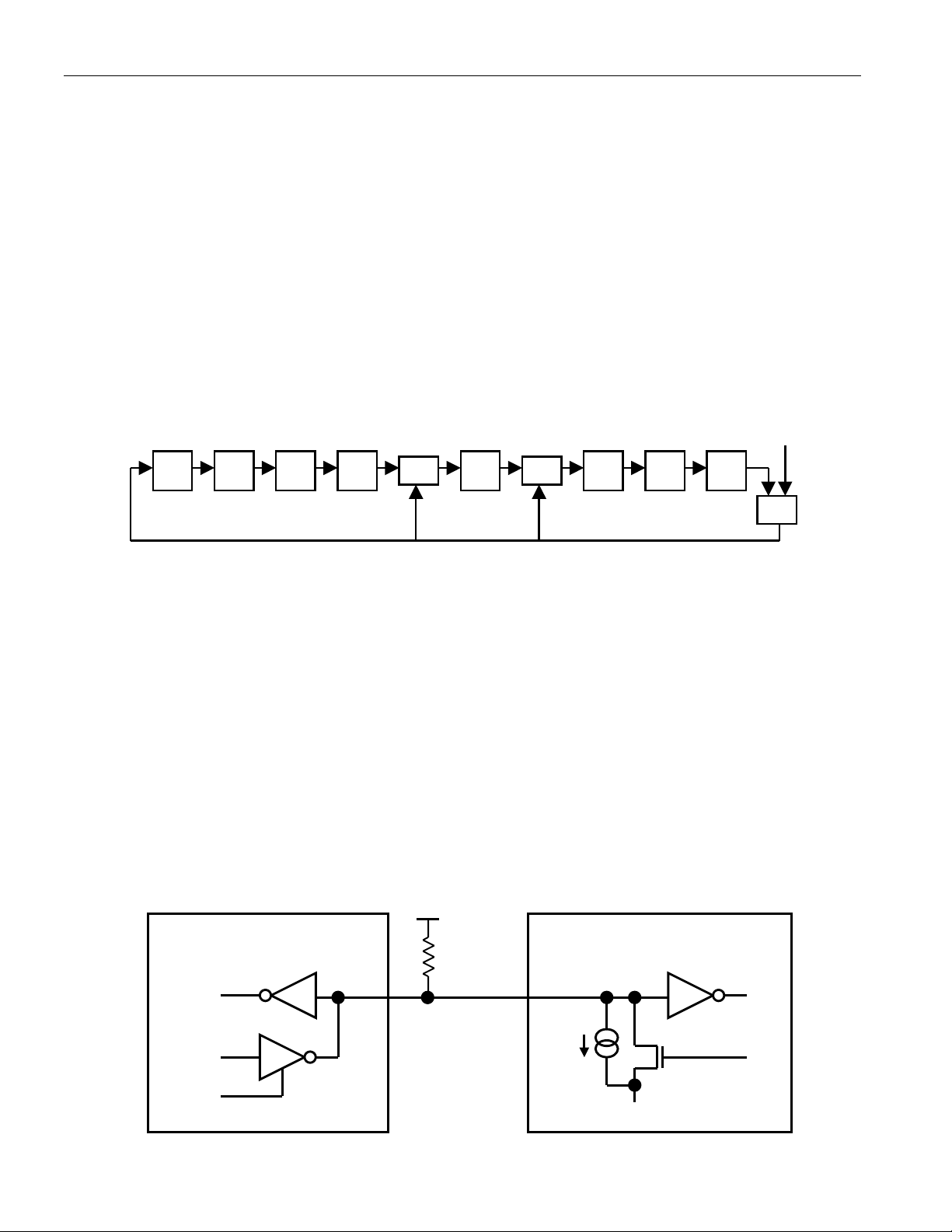

Figure 14. 1-WIRE CRC GENERATION BLOCK DIAGRAM

INPUT

MSb

XOR XOR

LSb

XOR

HARDWARE CONFIGURATION

Because the 1-Wire bus has only a single line, it is important that each device on the bus be able to drive
it at the appropriate time. To facilitate this, each device attached to the 1-Wire bus must connect to the
bus with open-drain or tri-state output drivers. The DS2761 used an open-drain output driver as part of
the bidirectional interface circuitry shown in Figure 15. If a bidirectional pin is not available on the bus
master, separate output and input pins can be connected together.

The 1-Wire bus must have a pullup resistor at the bus-master end of the bus. For short line lengths, the
value of this resistor should be approximately 5k

W. The idle state for the 1-Wire bus is high. If, for any

reason, a bus transaction must be suspended, the bus must be left in the idle state in order to properly
resume the transaction later. If the bus is left low for more than 120

ms, slave devices on the bus begin to

interpret the low period as a reset pulse, effectively terminating the transaction.

Figure 15. 1-WIRE BUS INTERFACE CIRCUITRY

BUS MASTER DS2761 1-WIRE PORT

Vpullup
(2.0V to 5.5V)

Tx

W

4.7k

Rx = RECEIVE
Tx = TRANSMIT

15 of 24

1mA
(typ)

W

100
MOSFET

RxRx

Tx

DS2761

TRANSACTION SEQUENCE

The protocol for accessing the DS2761 through the 1-Wire port is as follows:

§ Initialization

§ Net Address Command

§ Function Command

§ Transaction/Data

The sections that follow describe each of these steps in detail.

All transactions of the 1-Wire bus begin with an initialization sequence consisting of a reset pulse
transmitted by the bus master followed by a presence pulse simultaneously transmitted by the DS2761
and any other slaves on the bus. The presence pulse tells the bus master that one or more devices are on
the bus and ready to operate. For more details, see the

1-Wire Signaling section.

NET ADDRESS COMMANDS

Once the bus master has detected the presence of one or more slaves, it can issue one of the net address
commands described in the following paragraphs. The name of each ROM command is followed by the
8-bit opcode for that command in square brackets. Figure 16 presents a transaction flowchart of the net
address commands.

Read Net Address [33h or 39h]. This command allows the bus master to read the DS2761’s 1-Wire net
address. This command can only be used if there is a single slave on the bus. If more than one slave is
present, a data collision occurs when all slaves try to transmit at the same time (open drain produces a
wired-AND result). The RNAOP bit in the status register selects the opcode for this command, with
RNAOP = 0 indicating 33h, and RNAOP = 1 indicating 39h.

Match Net Address [55h]. This command allows the bus master to specifically address one DS2761 on
the 1-Wire bus. Only the addressed DS2761 responds to any subsequent function command. All other
slave devices ignore the function command and wait for a reset pulse. This command can be used with
one or more slave devices on the bus.

Skip Net Address [CCh]. This command saves time when there is only one DS2761 on the bus by
allowing the bus master to issue a function command without specifying the address of the slave. If more
than one slave device is present on the bus, a subsequent function command can cause a data collision
when all slaves transmit data at the same time.

Search Net Address [F0h]. This command allows the bus master to use a process of elimination to
identify the 1-Wire net addresses of all slave devices on the bus. The search process involves the
repetition of a simple three-step routine: read a bit, read the complement of the bit, then write the desired
value of that bit. The bus master performs this simple three-step routine on each bit location of the net
address. After one complete pass through all 64 bits, the bus master knows the address of one device. The
remaining devices can then be identified on additional iterations of the process. See Chapter 5 of the

of DS19xx iButton® Standards for a comprehensive discussion of a net address search, including an actual

Book

example. (This publication can be found on the Maxim/Dallas Semiconductor website at www.maxim­ic.com).

16 of 24

DS2761

SWAP [AAh]. SWAP is a ROM level command specifically intended to aid in distributed multiplexing
applications and is described specifically with regards to power control using the 27xx series of products.
The term power control refers to the ability of the DS2761 to control the flow of power into or out the

battery pack using control pins

DC and CC . The SWAP command is issued followed by the net address.
The effect is to cause the addressed device to enable power to or from the system while simultaneously
(break-before-make) deselecting and powering down (SLEEP) all other packs. This switching sequence is
controlled by a timing pulse issued on the DQ line following the net address. The falling edge of the pulse
is used to disable power with the rising edge enabling power flow by the selected device. The DS2761
recognizes a SWAP command, device address, and timing pulse only if the SWEN bit is set.

FUNCTION COMMANDS

After successfully completing one of the net address commands, the bus master can access the features of
the DS2761 with any of the function commands described in the following paragraphs and summarized in
Table 4. The name of each function is followed by the 8-bit opcode for that command in square brackets.

Read Data [69h, XX]. This command reads data from the DS2761 starting at memory address XX. The
LSb of the data in address XX is available to be read immediately after the MSb of the address has been
entered. Because the address is automatically incremented after the MSb of each byte is received, the LSb
of the data at address XX + 1 is available to be read immediately after the MSb of the data at address XX.
If the bus master continues to read beyond address FFh, the DS2761 outputs logic 1 until a reset pulse
occurs. Addresses labeled “Reserved” in the memory map contain undefined data. The read data
command can be terminated by the bus master with a reset pulse at any bit boundary.

Write Data [6Ch, XX]. This command writes data to the DS2761 starting at memory address XX. The
LSb of the data to be stored at address XX can be written immediately after the MSb of address has been
entered. Because the address is automatically incremented after the MSb of each byte is written, the LSb
to be stored at address XX + 1 can be written immediately after the MSb to be stored at address XX. If
the bus master continues to write beyond address FFh, the DS2761 ignores the data. Writes to read-only
addresses, reserved addresses and locked EEPROM blocks are ignored. Incomplete bytes are not written.
Writes to unlocked EEPROM blocks are to shadow RAM rather than EEPROM. See the
for more details.

Memory section

Copy Data [48h, XX]. This command copies the contents of shadow RAM to EEPROM for the 16-byte
EEPROM block containing address XX. Copy data commands that address locked blocks are ignored.
While the copy data command is executing, the EEC bit in the EEPROM register is set to 1 and writes to
EEPROM addresses are ignored. Reads and writes to non-EEPROM addresses can still occur while the
copy is in progress. The copy data command execution time, t

, is 2ms typical and starts after the last

EEC

address bit is transmitted.

Recall Data [B8h, XX]. This command recalls the contents of the 16-byte EEPROM block containing
address XX to shadow RAM.

Lock [6Ah, XX]. This command locks (write-protects) the 16-byte block of EEPROM memory
containing memory address XX. The LOCK bit in the EEPROM register must be set to l before the lock
command is executed. If the LOCK bit is 0, the lock command has no effect. The lock command is
permanent; a locked block can never be written again.

17 of 24

Table 4. FUNCTION COMMANDS

COMMAND DESCRIPTION

Reads data from

Read Data

Write Data

Copy Data

Recall Data

Lock

memory starting at

address XX

Writes data to memory

starting at address XX

Copies shadow RAM

data to EEPROM block

containing address XX

Recalls EEPROM block

containing address XX

to shadow RAM

Permanently locks the

block of EEPROM

containing address XX

COMMAND

PROTOCOL

BUS STATE AFTER

COMMAND

BUS DATA

PROTOCOL

69h, XX Master Rx

6Ch, XX Master Tx

Up to 256 bytes

Up to 256 bytes

48h, XX Bus idle None

B8h, XX Bus idle None

6Ah, XX Bus idle None

DS2761

of data

of data

18 of 24

Figure 16. NET ADDRESS COMMAND FLOW CHART

MASTER Tx

RESET PULSE

DS2761 Tx

PRESENCE PULSE

MASTER Tx

NET ADDRESS

COMMAND

DS2761

33h / 39h

READ

DS2761 Tx

FAMILY CODE

1 BYTE

DS2761 Tx

SERIAL NUMBER

6 BYTES

DS2761 Tx

CRC

1 BYTE

NO NO NO

55h

MATCH

MASTER Tx

BIT 0

BIT 0

MATCH ?

MASTER Tx

BIT 1

BIT 1

MATCH ?

NO NO

NO NO

F0h

SEARCH

YESYESYES

DS2761 Tx BIT 0

DS2761 Tx BIT 0

MASTER Tx BIT 0

BIT 0

MATCH ?

YESYES

DS2761 Tx BIT 1

DS2761 Tx BIT 1

MASTER Tx BIT 1

BIT 1

MATCH ?

YESYES

NO

NO

AAh

SWAP

YES

MASTER Tx

BIT 0

BIT 0

MATCH ?

YES

MASTER Tx

BIT 1

BIT 1

MATCH ?

YES

NO

CCh

SKIP

YES

MASTER Tx

FUNCTION

COMMAND

NO

MASTER Tx

FUNCTION
COMMAND

YES

MASTER Tx

BIT 63

BIT 63

MATCH ?

NO

DS2761 Tx BIT 63

DS2761 Tx BIT 63

MASTER Tx BIT 63

19 of 24

NO

FALLING EDGE

OF DQ

DS2761 TO

SLEEP MODE

MASTER Tx

BIT 63

BIT 63

MATCH ?

YES

RISING EDGE

OF DQ

DS2761 TO

ACTIVE MODE

DS2761

I/O SIGNALING

The 1-Wire bus requires strict signaling protocols to insure data integrity. The four protocols used by the
DS2761 are as follows: the initialization sequence (reset pulse followed by presence pulse), write 0, write
1, and read data. All of these types of signaling except the presence pulse are initiated by the bus master.

The initialization sequence required to begin any communication with the DS2761 is shown in Figure 17.
A presence pulse following a reset pulse indicates that the DS2761 is ready to accept a net address
command. The bus master transmits (Tx) a reset pulse for t

. The bus master then releases the line and

RSTL

goes into receive mode (Rx). The 1-Wire bus line is then pulled high by the pullup resistor. After
detecting the rising edge on the DQ pin, the DS2761 waits for t
for t

PDL

.

and then transmits the presence pulse

PDH

Figure 17. 1-WIRE INITIALIZATION SEQUENCE

DQ

t

RSTL

LINE TYPE LEGEND:

BOTH BUS MASTER AND
DS2761 ACTIVE LOW

t

PDH

t

PDL

t

RSTH

PACK+

PACK-

WRITE-TIME SLOTS

A write-time slot is initiated when the bus master pulls the 1-Wire bus from a logic-high (inactive) level
to a logic-low level. There are two types of write-time slots: write 1 and write 0. All write-time slots must
be t
DS2761 samples the 1-Wire bus line between 15
sampled, a write 1 occurs. If the line is low when sampled, a write 0 occurs (see Figure 18). For the bus
master to generate a write 1 time slot, the bus line must be pulled low and then released, allowing the line
to be pulled high within 15
slot, the bus line must be pulled low and held low for the duration of the write-time slot.

(60ms to 120ms) in duration with a 1ms minimum recovery time, t

SLOT

ms and 60ms after the line falls. If the line is high when

ms after the start of the write time slot. For the host to generate a write 0 time

, between cycles. The

REC

READ-TIME SLOTS

A read-time slot is initiated when the bus master pulls the 1-Wire bus line from a logic-high level to a
logic-low level. The bus master must keep the bus line low for at least 1
DS2761 to present valid data. The bus master can then sample the data t
read-time slot. By the end of the read-time slot, the DS2761 releases the bus line and allows it to be
pulled high by the external pullup resistor. All read-time slots must be t
with a 1

ms minimum recovery time, t

, between cycles. See Figure 18 for more information.

REC

20 of 24

ms and then release it to allow the

(15ms) from the start of the

RDV

(60ms to 120ms) in duration

SLOT

Figure 18. 1-WIRE WRITE- AND READ-TIME SLOTS

SLO

SLO

0

C

SLO

SLO

C

WRITE 0 SLOT WRITE 1 SLOT

t

DQ

t

LOW

T

t

RE

t

LOW1

DS2761

t

T

PACK+

PACK-

DQ

t

RDV

DS2761 SAMPLE WINDOW

15ms15ms 30ms

READ 0 SLOT READ 1 SLOT

t

T

MASTER SAMPLE WINDOW

LINE TYPE LEGEND:

BOTH BUS MASTER AND
DS2761 ACTIVE LOW

>1ms

>1ms

t

t

RE

RDV

DS2761 SAMPLE WINDOW

15ms15ms 30ms

t

T

PACK+

PACK–

Figure 19. SWAP COMMAND TIMING

t

SWL

DQ

t

SWOFF

CC , DC

CC , DC

21 of 24

t

SWON

ABSOLUTE MAXIMUM RATINGS*

DS2761

Voltage on PLS and CC Pin, Relative to V
Voltage on PIO Pin, Relative to V
Voltage on VIN and

PS, Relative to V

Voltage on any Other Pin, Relative to V

SS

SS

SS

Continuous Internal Sense Resistor Current
Pulsed Internal Sense Resistor Current

SS

-0.3V to +18V

-0.3V to +12V

-0.3V to VDD + 0.3

-0.3V to +6V

±2.5A
±50A for <100µs/sec, <1000 pulses

Operating Temperature Range -40°C to +85°C
Storage Temperature Range -55°C to +125°C
Soldering Temperature See IPC/JEDECJ-STD-020A

* This is a stress rating only and functional operation of the device at these or any other conditions above
those indicated in the operation sections of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods of time may affect reliability.

RECOMMENDED DC
OPERATING CONDITIONS (-20°C to +70°C, 2.5V £ V

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS NOTES

Supply Voltage V

DD

Data Pin DQ -0.3 +5.5 V 1

2.5 5.5 V 1

£ 5.5V)

DD

DC ELECTRICAL CHARACTERISTICS (-20°C to +70°C, 2.5V £ VDD £ 5.5V)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS NOTES

Active Current I

ACTIVE

Sleep Mode Current I

Input Logic High:
DQ, PIO

Input Logic High:

PS

Input Logic Low:
DQ, PIO

Input Logic Low:

PS

Output Logic High:

CC

Output Logic High:

DC

Output Logic Low:

CC , DC
Output Logic Low:
DQ, PIO
DQ Pulldown Current I
Input Resistance: V
Internal Current-Sense

IN

R
Resistor
DQ Low to Sleep time t

SLEEP

V

IH

V

IH

V

IL

V

IL

V

OH

V

OH

V

OL

V

OL

PD

R

IN

SNS

SLEEP

DQ = VDD,

60 90

mA

norm. operation

DQ = 0V,

12

mA

no activity,

floating

PS

1.5 V 1

V

-

DD

0.2V

0.4 V 1

0.2 V 1

I

= -0.1mA V

OH

PLS

-

0.4V

I

= -0.1mA V

OH

DD

-

0.4V

I

= 0.1mA 0.4 V 1

OL

I

= 4mA 0.4 V 1

OL

+25°C

1

5

20 25 30

mA

M

mW

2.1 s

22 of 24

V1

V1

V1

W

ELECTRICAL CHARACTERISTICS:

DS2761

PROTECTION CIRCUITRY (0°C to +50°C, 2.5V £ V

PARAMETER SYMBOL MIN TYP MAX UNITS NOTES

Overvoltage Detect V

Charge Enable V
Undervoltage Detect V
Overcurrent Detect I
Overcurrent Detect V
Short-Circuit Detect I
Short-Circuit Detect V
Overvoltage Delay t
Undervoltage Delay t
Overcurrent Delay t
Short-Circuit Delay t
Test Threshold V
Test Current I
Recovery Charge Current I

OV

CE

UV

OC

OC

SC

SC

OVD

UVD

OCD

SCD

TP

TST

RC

4.325

4.250

4.350

4.275

4.375

4.300

V1, 2

4.10 4.15 4.20 V 1

2.5 2.6 2.7 V 1

1.8 1.9 2.0 A 3
45 47.5 50 mV 1, 4

5.0 8.0 11 A 3

150 200 250 mV 1

0.811.2sec
90 100 110 ms

51020ms

80 100 120 ms

0.5 1.0 1.5 V
10 20 40

0.5 1 2

mA

mA

ELECTRICAL CHARACTERISTICS:
TEMPERATURE, VOLTAGE, CURRENT (-20°C to +50°C, 2.5V £ V

PARAMETER SYMBOL MIN TYP MAX UNITS NOTES

Temperature Resolution T
Temperature Full-Scale

Magnitude
Temperature Error T
Voltage Resolution V
Voltage Full-Scale
Magnitude
Voltage Offset Error V
Voltage Gain Error V
Current Resolution I

Current Full-Scale
Magnitude
Current Offset Error I
Current Gain Error I

Accumulated Current
Resolution
Current Sampling

f
Frequency
Internal Timebase Accuracy t

LSB

T

FS

ERR

LSB

V

FS

OERR

GERR

LSB

I

FS

OERR

GERR

q

CA

SAMP

ERR

127

4.75 V

1.9 2.56

0.125

±3 °C

4.88 mV

1LSB6
5%

0.625

15.625

64

1LSB8
3
1

0.25

6.25

mAhr

µVhr

1456 Hz

±1 ±3

°C
°C

mA

mV

A

mV

%3, 9

%10

£ 5.5V)

DD

13

£ 5.5V)

DD

3, 4

5

3
4

7

4
3
4

23 of 24

ELECTRICAL CHARACTERISTICS:

DS2761

1-WIRE INTERFACE (-20°C to +70°C, 2.5V £ V

£ 5.5V)

DD

PARAMETER SYMBOL MIN TYP MAX UNITS NOTES

Time Slot t
Recovery Time t
Write 0 Low Time t
Write 1 Low Time t
Read Data Valid t
Reset Time High t
Reset Time Low t
Presence Detect High t
Presence Detect Low t
SWAP Timing Pulse Width t
SWAP Timing Pulse Falling

Edge to

DC Release

SWAP Timing Pulse Rising Edge

to

DC Engage

t

SWOFF

t

DQ Capacitance C

SLOT

REC

LOW0

LOW1

RDV

RSTH

RSTL

PDH

PDL

SWL

SWON

DQ

60 120 ms

1 ms

60 120 ms

115ms

15 ms
480 ms
480 960 ms

15 60 ms
60 240 ms

0.2 120 ms
01

01

ms

ms

60 pF

12

12

EEPROM RELIABILITY SPECIFICATION (-20°C to +70°C, 2.5V £ VDD £ 5.5V)

PARAMETER SYMBOL MIN TYP MAX UNITS NOTES

Copy to EEPROM Time t
EEPROM Copy Endurance N

EEC

EEC

25000 cycles 11

210 ms

NOTES

1) All voltages are referenced to VSS.

2) See the

3) Internal current-sense resistor configuration.

4) External current-sense resistor configuration.

5) Self-heating due to output pin loading and sense resistor power dissipation can alter the reading from

ambient conditions.

6) Voltage offset measurement is with respect to V

7) The current register supports measurement magnitudes up to 2.56A using the internal sense resistor

option and 64mV with the external resistor option. Compensation of the internal sense resistor value
for process and temperature variation can reduce the maximum reportable magnitude to 1.9A.

8) Current offset error null to ±1LSB typically requires 3.5s in-system calibration by user.

9) Current gain error specification applies to gain error in converting the voltage difference at IS1 and

IS2, and excludes any error remaining after the DS2761 compensates for the internal sense resistor’s
temperature coefficient of 3700ppm/
compensate for external sense resistor characteristics, and any error terms arising from the use of an
external sense resistor should be taken into account when calculating total current measurement error.

10) Typical value for t

11) Four year data retention at +70

Ordering Information section to determine the corresponding part number for each V

at +25°C.

OV

°C to an accuracy of ±500ppm/°C. The DS2761 does not

is at 3.6V and +25°C.

ERR

°C.

value.

OV

12) Typical load capacitance on

13) Test conditions are PLS = 4.1V, V

V

= 0V is 10mA.

DD

DC and CC is 1000pF.

= 2.5V. Maximum current for conditions of PLS = 15V,

DD

24 of 24
