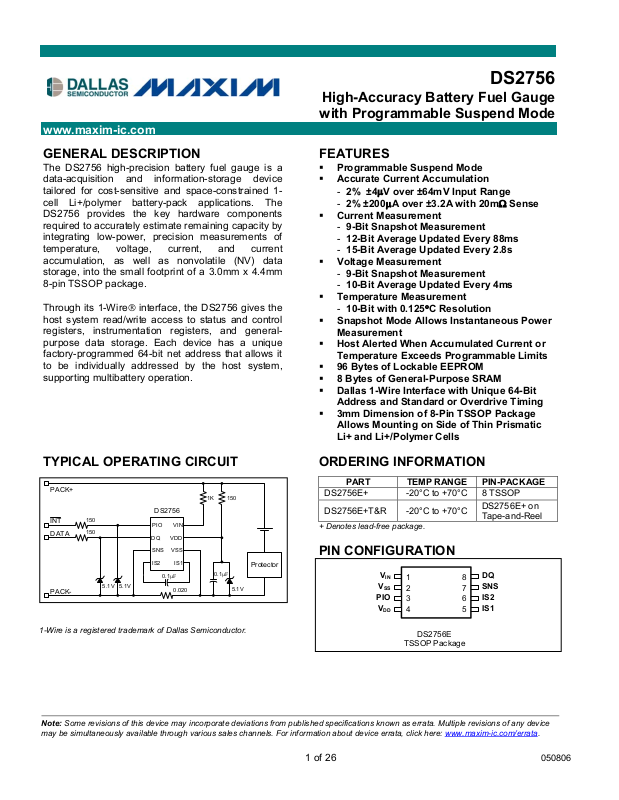

g
www.maxim-ic.com
GENERAL DESCRIPTION
The DS2756 high-precision battery fuel gauge is a
data-acquisition and information-storage device
tailored for cost-sensitive and space-constrained 1cell Li+/polymer battery-pack applications. The
DS2756 provides the key hardware components
required to accurately estimate remaining capacity by
integrating low-power, precision measurements of
temperature, voltage, current, and current
accumulation, as well as nonvolatile (NV) data
storage, into the small footprint of a 3.0mm x 4.4mm
8-pin TSSOP package.
Through its 1-WireÒ interface, the DS2756 gives the
host system read/write access to status and control
registers, instrumentation registers, and generalpurpose data storage. Each device has a unique
factory-programmed 64-bit net address that allows it
to be individually addressed by the host system,
supporting multibattery operation.
TYPICAL OPERATING CIRCUIT
PACK+
INT
DATA
PACK-
150
150
DS2756
PIO
VIN
DQ
VDD
VSS
SNS
IS1
IS2
0.1µF
5.1V5.1V
0.020
150
1K
0.1µF
Protector
5.1V
DS2756
High-Accuracy Battery Fuel Gauge
with Programmable Suspend Mode
FEATURES
§ Programmable Suspend Mode
§ Accurate Current Accumulation
- 2% ±4mV over ±64mV Input Range
- 2% ±200mA over ±3.2A with 20mW Sense
§ Current Measurement
- 9-Bit Snapshot Measurement
- 12-Bit Average Updated Every 88ms
- 15-Bit Average Updated Every 2.8s
§ Voltage Measurement
- 9-Bit Snapshot Measurement
- 10-Bit Average Updated Every 4ms
§ Temperature Measurement
- 10-Bit with 0.125°C Resolution
§ Snapshot Mode Allows Instantaneous Power
Measurement
§ Host Alerted When Accumulated Current or
Temperature Exceeds Programmable Limits
§ 96 Bytes of Lockable EEPROM
§ 8 Bytes of General-Purpose SRAM
§ Dallas 1-Wire Interface with Unique 64-Bit
Address and Standard or Overdrive Timing
§ 3mm Dimension of 8-Pin TSSOP Package
Allows Mounting on Side of Thin Prismatic
Li+ and Li+/Polymer Cells
ORDERING INFORMATION
PART TEMP RANGE PIN-PACKAGE
DS2756E+ -20°C to +70°C 8 TSSOP
DS2756E+T&R -20°C to +70°C
+ Denotes lead-free package.
PIN CONFIGURATION
V
IN
1 8
1
V
SS
2
2
PIO
3
2
V
DD
4
DS2756E+ on
Tape-and-Reel
DQ
SNS
7
IS2
6
IS1
5
1-Wire is a registered trademark of Dallas Semiconductor.
DS2756E
TSSOP Packa
e
Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here: www.maxim-ic.com/errata
1 of 26
.
050806
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
ABSOLUTE MAXIMUM RATINGS
Voltage on PIO Pin, Relative to VSS -0.3V to +12V
Voltage on All Other Pins, Relative to V
-0.3V to +6V
SS
Continuous Sink Current, DQ, PIO 12mA
Operating Temperature Range -40°C to +85°C
Storage Temperature Range -55°C to +125°C
Soldering Temperature See J-STD-020A Specification
This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation
sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.
RECOMMENDED DC OPERATING CONDITIONS
(3.0V £ V
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage VDD (Note 1) 3.0 5.5 V
Data Pin DQ (Note 1) -0.3 +5.5 V
V
Pin VIN (Note 1) -0.3 +5.5 V
IN
£ 5.5V, TA = -20°C to +70°C.)
DD
DC ELECTRICAL CHARACTERISTICS
(3.0V £ V
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
£ 5.5V, TA = -20°C to +70°C.)
DD
DQ = VDD, EEC bit = 0,
Active Mode
Supply Current
I
ACTIVE
3.0V < VDD < 4.2V
DQ = V
Sleep Mode
Supply Current
Suspend Mode
Supply Current
Current Measurement Input
Range
Current Register Offset
Error
Current Gain Error I
24 Hour Accumulated
Current Error
Current Sampling
Frequency
IS1-VSS, IS2-SNS Filter
Resistors
Input Resistance: VIN R
Voltage Offset Error V
Voltage Gain Error V
Temperature Error T
DQ = 0V, PIE = 00b 1 3
I
SLEEP
I
SUSPEND
V
IS1-IS2
I
OERR
GERR
q
CA
f
SAMP
R
KS
IN
OERR
GERR
ERR
DQ = 0V, PIE ≠ 00b
(Note 11)
(Note 2)
(Note 4) ±7.813
(Notes 2, 5)
V
IS1-IS2
(Notes 2, 3, 6)
1456 Hz
+25°C
VIN = VDD 5
(Note 7)
(Note 8)
EEC bit = 0 120
DD,
= 0, OBEN set,
75 100
mA
mA
1.5 4
±64
mV
mA
mV/R
±1
%
reading
-200 -100 0 µVhr/R
10
kW
MW
±5
±2
mV
%V
reading
±3 °C
Input Logic High: DQ, PIO VIH (Note 1) 1.5 V
Input Logic Low: DQ, PIO VIL (Note 1) 0.4 V
Output Logic Low: DQ, PIO V
OL
DQ Pulldown Current IPD 1
I
= 4mA (Note 1) 0.4 V
OL
mA
DQ Capacitance CDQ 60 pF
DQ Low-to-Sleep Time t
Suspend Period Accuracy t
Minimum Active Mode t
SLEEP
SUS_ERR
ACT_MIN
2.1 s
0
±30
%
87 90 93 ms
2 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Period
Undervoltage Detect VUV
Undervoltage Delay t
Internal Timebase
Accuracy
UVD
t
ERR
2.4V < V
79 82 85 ms
(Note 9)
< 5.5V (Note 1)
DD
2.45 2.5 2.55 V
±1 ±2
%
ELECTRICAL CHARACTERISTICS—1-WIRE INTERFACE
(3.0V £ V
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Snapshot Trigger 0 t
Snapshot Delay t
STANDARD TIMING
Time Slot t
Recovery Time t
Write-0 Low Time t
Write-1 Low Time t
Read Data Valid t
Reset Time High t
Reset Time Low t
Presence-Detect High t
Presence-Detect Low t
Interrupt Time Low tIL 480 1920
OVERDRIVE TIMING
Time Slot t
Recovery Time t
Write-0 Low Time t
Write-1 Low Time t
Read Data Valid t
Reset Time High t
Reset Time Low t
Presence-Detect High t
Presence-Detect Low t
Interrupt Time Low tIL 48 192
£ 5.5V, TA = -20°C to +70°C.)
DD
1 16
SWL
80 100 120
SDLY
60 120
SLOT
1
REC
60 119
LOW0
1 15
LOW1
15
RDV
480
RSTH
480 960
RSTL
15 60
PDH
60 240
PDL
6 16
SLOT
1
REC
6 16
LOW0
1 2
LOW1
2
RDV
48
RSTH
48 80
RSTL
2 6
PDH
8 24
PDL
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
ms
EEPROM RELIABILITY SPECIFICATION
(3.0V £ V
Copy to EEPROM Time t
EEPROM Copy Endurance N
Note 1:
Note 2:
Note 3:
Note 4:
Note 5:
Note 6:
Note 7:
Note 8:
Note 9:
Note 10:
Note 11:
£ 5.5V, TA = -20°C to +70°C.)
DD
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
EEC
EEC
All voltages are referenced to V
Specifications relative to V
Summation of worst case time base and current measurement sampling errors.
Continuous offset cancellation corrects offset errors in the current measurement system. Individual values reported by the
Current register have a maximum offset of ±0.5 LSb’s (±7.8125mV). Individual values reported in the Average Current register
have a maximum offset of ±2 LSb’s (±7.8125mV).
Current Gain Error specifies the gain error in the Current register value compared to a reference voltage between IS1 and IS2.
The DS2756 does not compensate for sense resistor characteristics, and any error terms arising from the sense resistor should
be taken into account when calculating total current measurement error.
Achieving the 24 Hour Accumulated Current Error assumes positive offset accumulation blanking is enabled (OBEN bit set) and
can require a one time 3.5s in-system calibration after mounting to the printed circuit board. Variations in temperature and supply
voltage are compensated for by periodic offset corrections performed automatically during Active mode operation.
Voltage offset measurement is with respect to 4.2V at +25°C.
Self heating due to output pin loading and sense resistor power dissipation can alter the Temperature reading from ambient
conditions.
Typical value for t
Interface timings and t
Four year data retention at +50°C.
Measured during the Suspend Timeout. Does not include active period of suspend cycle.
valid at 3.7V and +25°C. t
ERR
SUS_ERR
SS
- V
IS1
IS2
.
(Note 10) 50,000 cycles
.
.
ERR
2 10 ms
applies to all internal timings (ex. f
SAMP
, t
SLEEP
, t
) except for the 1-Wire
UVD
3 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
DETAILED DESCRIPTION
The DS2756 performs temperature, voltage, and current measurement to a resolution sufficient to support processmonitoring applications such as battery charge control and remaining capacity estimation. Temperature is
measured using an on-chip sensor, eliminating the need for a separate thermistor. Bidirectional current
measurement supporting current accumulation (coulomb counting) is accomplished using an external current
sense resistor.
The host system can configure the DS2756 to signal critical conditions to reduce polling overhead. The alarm
interrupt fires when programmable upper and lower thresholds of temperature or coulomb count are crossed. The
user can select either the DQ pin or PIO pin as the alarm interrupt signal.
PIO can also function as a Suspend mode interrupt output to reduce idle current drain within a battery pack. In
Suspend mode, the DS2756 cycles between Active and Suspend power modes to reduce DS2756 supply current
and the PIO pin can be used to wake up a microcontroller or other pack circuitry if current flowing through the pack
exceeds programmable charge and discharge thresholds (See Figure 12). The interval between current
measurements can be programmed to achieve an average current as low as 10mA (See Table 3).
As a general purpose I/O pin, PIO allows the host system to sense and control other electronics in the pack,
including switches, vibration motors, speakers, and LEDs.
Three types of memory are provided on the DS2756 for battery information storage: EEPROM, lockable EEPROM,
and SRAM. EEPROM memory saves important battery data in true NV memory that is unaffected by severe battery
depletion, accidental shorts, or ESD events. Lockable EEPROM becomes ROM when locked to provide additional
security for unchanging battery data. SRAM provides inexpensive storage for temporary data.
Figure 1. Application Example with Microcontroller in Pack
PACK+
DATA
PACK-
I
DD_MCU
UART
3.3V
Reg
VDD
µP
[Data I /O]
[Pul l -up Contr ol ]
VSS
INT\
GPIO
GPIO
4.7K
4.7K
PIO
DQ
SNS
1 K 150
VIN
DS2756
IS 2 IS 1
0.1 µF
0 .020
VDD
Protector
VSS
0.1 µF
5.1 V
4 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Figure 2. Functional Diagram
1-W IRE
DQ
THERMAL
SENSE
VIN
INTERFACE
AND
ROM ID
M
U
X
VOLTAGE
REFERENCE
ADC
LOCKABLE EEPROM
BLOCKS
SRAM
TEMPERATURE
VOLTAGE
CURRENT
ACCUM. CURRENT
COMPARATORS
VDD
BIAS
PRECISION
TIMEBASE
Low Power
Oscillator
STATUS / CONTROL
+-
IS2
10KW 10KW
SNS
S
DETAILED PIN DESCRIPTION
Pin Name Description
1 VIN
2 VSS
3 PIO General-Purpose Programmable I/O Pin or Optional Interrupt Output
4 VDD
Battery Voltage-Sense Input. Voltage measurement performed on V
in Voltage Register.
Device Ground and Current-Sense Resistor Connection. V
sense resistor.
Input Supply: +3.0V to +5.5V Input Range. Bypass V
to VSS with 0.1mF.
DD
chip ground
input and displayed
IN
attaches to battery end of
SS
PIO
IS1
VSS
5 IS1 Current-Sense Filter Input 1
6 IS2 Current-Sense Filter Input 2
7 SNS Sense Resistor Connection. SNS attaches to pack end of current sense resistor.
8 DQ
Serial Interface Data I/O Pin. Bidirection data transmit and receive at 16kbps or 143kbps.
Optional interrupt output.
5 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
POWER MODES
The DS2756 has three power modes: Active, Suspend and Sleep. While in Active mode, the DS2756 continuously
measures voltage, temperature, current, accumulated current, and monitors for an under voltage condition. In
Suspend and Sleep modes, the DS2756 ceases these activities. During Suspend, the DQ input buffer is active and
a low power oscillator runs. In Sleep mode, only the DQ input buffer is active.
The DS2756 enters Suspend mode when PMOD = 1 AND all of the following conditions are true:
§ the DQ line is low for longer than t
SLEEP
§ the Programmable Interval Enable (PIE) bits in the Status Register are set to a non-zero value
(PIE =01b, 10b or 11b)
§ Current register value is less than the Charge Suspend Threshold AND greater than the Discharge
Suspend Threshold
Periodically, when a Suspend Period time out occurs, the DS2756 temporarily cycles from Suspend to Active mode
in order to measure current. When the current measurement completes, the result is evaluated against the user
programmed Charge and Discharge Suspend Thresholds. If the Current measurement result does not cross either
threshold, the DS2756 transitions back to Suspend. If the measurement shows that more current is flowing than the
level of either threshold, the DS2756 signals a suspend interrupt by driving the PIO pin low, then remains in Active
mode continuing normal Active mode operation.
The DS2756 enters Sleep mode when PMOD = 1 AND either of the following conditions are true:
§ the DQ line is low for longer than t
§ the UVEN bit in the Status Register is set to 1 AND the voltage on V
V
UV
for t
(VIN measurement and comparison to VUV, and t
UVD
(minimum 2.1s) AND PIE = 00b
SLEEP
drops below undervoltage threshold
IN
timeout occur in normal Active mode and
UVD
temporary Active mode cycle from Suspend mode)
The DS2756 returns to Active mode from Suspend or Sleep mode whenever the DQ line is pulled from a low-tohigh state.
The factory default for the DS2756 is UVEN = 0, PMOD = 0 and PIE = 00b. The DS2756 defaults to Active mode
when power is first applied.
CURRENT MEASUREMENT AND ACCUMULATION
The DS2756 current measurement system is designed to provide timely data on charge and discharge current at a
moderate resolution level while simultaneously accumulating high resolution average data to support accurate
coulomb counting. Current is measured with an Analog-to-Digital Converter (ADC) by sampling the voltage drop
across a series sense resistor, R
687ms (1456
-1
Hz). Multiple samples are averaged to report Current and Average Current values, and accumulated
, connected between SNS and VSS. Individual current samples are taken every
SNS
for coulomb counting.
Current Measurement
The voltage signal developed across the sense resistor (between SNS and VSS) is differentially sampled by the
ADC inputs through internal 10kΩ resistors connected between V
inputs (IS1 and IS2 pins) from the sense resistor with 10kW facilitates the use of an RC filter by adding a single
external capacitor. The RC filter extends the input range beyond ±64mV in pulse load or pulse charge applications.
The ADC accurately measures large peak signals as long as the differential signal level at IS1 and IS2 does not
exceed ±64mV.
The Current register operates in two modes, normal and snapshot. In normal mode, the Current register reports the
average of 128 individual current samples every 88ms. The reported value represents the average current during
the 88ms measurement period. The Average Current register reports the average of 4096 current samples and is
updated every 2.8s.
In snapshot mode, the Current register holds the current measured immediately following the snapshot trigger.
Current measurements resume immediately after the snapshot value is obtained, however, the SNAP bit must be
cleared to re-enable normal mode current reporting in the Current register. The Average Current register continues
to be updated while the SNAP bit is set. Current accumulation also continues while SNAP is set. Although a small
6 of 26
and IS1, and SNS and IS2. Isolating the ADC
SS
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
error is introduced into both the Average Current and Accumulated Current values by the current sample timing
discontinuity introduced with each trigger of the Snapshot mode, use of Snapshot once every 5s does not produce
a significant error.
The following register formats specify the update interval and units for the Current and Average Current registers.
Values are posted in two’s complement format. Positive values represent charge currents (V
> V
values represent discharge currents (V
IS2
). Positive currents above the maximum register value are reported
IS1
IS1
> V
) and negative
IS2
at the maximum value, 0x7FFF. Negative currents below the minimum register value are reported at the minimum
value, 0x8000.
Figure 3. Current Register Format
12-bit + sign resolution (13-bit), 88ms update interval
MSB-Address 0Eh LSB-Address 0Fh
11
S 2
210 29 28 27 26 25 24 23 22 21 20 X X X
MSb LSb MSb LSb
Units:2
“S”: sign bit(s)
15.625mV/Rsns
0
=
Figure 4. Average Current Register Format
15-bit + sign resolution (16-bit), 2.8s update interval
MSB-Address 1Ah LSB-Address 1Bh
14
S 2
MSb LSb MSb LSb
“S”: sign bit(s)
213 212 211 210 29 28 27 26 25 24 23 22 21 20
Units: 2
0
= 1.953mV/R
SNS
CURRENT OFFSET CORRECTION
Continuous offset cancellation is performed automatically to correct for offsets in the current measurement system.
Individual values reported by the Current register have a maximum offset of ±0.5 LSb’s (±7.8125mV). Individual
values reported in the Average Current register have a maximum offset of ±2 LSb’s (±7.8125mV).
CURRENT ACCUMULATION
The DS2756 measures current for coulomb counting purposes, with an accuracy of ±2% (±3.9mV) over a range of
±64mV. Using a 20mW sense resistor, current accumulation is performed over a range of ±3.2A while measuring
standby currents with an accuracy of ±195mA. Current measurements are internally summed, or accumulated, with
the results displayed in the Accumulated Current Register (ACR). The accuracy of the ACR is dependent on both
the current measurement and the accumulation timebase. The 16-bit ACR has a range of ±204.8mVh with an LSb
of 6.25mVh. Accumulation of charge current above the maximum register value is reported at the maximum value;
conversely, accumulation of discharge current below the minimum register value is reported at the minimum value.
Read and write access is allowed to the ACR. The ACR must be written MSB first then LSB. Whenever the ACR is
written, internal fractional accumulation result bits are cleared. In order to preserve the ACR value in case of power
loss, the ACR MSB and LSB are automatically backed up to EEPROM after incrementing or decrementing by
100mVh (5.0mAh for R
= 20mW). The ACR value is recovered from EEPROM on power-up or by a Recall Data
SNS
7 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
command targeting the ACR register address. A write to the ACR results in an automatic copy of the new value to
EEPROM.
Figure 5. Accumulated Current Register Format
MSB-Address 10h LSB-Address 11h
14
S 2
MSb LSb MSb LSb
213 212 211 210 29 28 27 26 25 24 23 22 21 20
Units: 6.25mVh/R
SNS
ACR LSB
R
V
- V
IS2
20mW 15mW 10mW 5mW
IS1
SNS
6.25mVh 312.5mAh 416.7mAh 625mAh
1.250mAh
ACR RANGE
R
V
- V
IS2
20mW 15mW 10mW 5mW
IS1
SNS
±204.8mVh ±10.24Ah ±13.65Ah ±20.48Ah ±40.96Ah
OFFSET ACCUMULATION BLANKING
In order to avoid the accumulation of small positive offset errors over long periods, an offset blanking filter is
provided. The blanking filter is enabled by setting the OBEN bit in the Status Register. When OBEN is set, charge
currents (positive Current register values) between 15.625mV and 62.5mV are not accumulated in the ACR.
Therefore, with R
the ACR.
ACCUMULATION BIAS
Systematic errors or an application preference can require the application of an arbitrary bias to the current
accumulation process. The Accumulation Bias register is provided to allow a user programmed constant positive or
negative polarity bias to the current accumulation process. The Accumulation Bias value can be used to estimate
battery currents that do not flow through the sense resistor, estimate battery self-discharge, or correct for offset
error in the Current register and ACR register. The user programmed two’s complement value in the Accumulation
Bias register is added to the Current Register once per current sample. The register format supports the
accumulation bias to be applied in 1.95mV increments over a ±250mV range. When using a 20mW sense resistor,
the bias control is 100mA over a ±12.5mA range.
The Accumulation Bias register is directly read and write accessible. The user value is made non-volatile with a
Copy Data command targeting EEPROM block 0. The Accumulation Bias register is loaded from EEPROM
memory on power up and a transition from Sleep to Active mode.
= 0.020W, positive currents between 0.78mA and 3.125mA are blanked from accumulation in
SNS
8 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Figure 6. Accumulation Bias Register Format
Address 33h
S 2
MSb LSb
“S”: sign bit 1.95mV/R
6
25 24 23 22 21 20
SNS
VOLTAGE MEASUREMENT
The voltage register operates in two modes, normal and snapshot. In normal mode, the DS2756 continually
measures the voltage between pins V
two’s-complement format every 3.4ms with a resolution of 4.88mV.
In snapshot mode, the Voltage register holds the voltage measured immediately following the snapshot trigger.
Normal voltage measurements resume after the snapshot value is obtained, however, the SNAP bit must be
cleared to re-enable normal mode reporting of voltage measurement to the Voltage register.
Voltages above the maximum register value are reported as the maximum value.
and VSS over a 0 to 4.75V range, and the Voltage Register is updated in
IN
Figure 7. Voltage Register Format
MSB-Address 0Ch LSB-Address 0Dh
9
S 2
MSb LSb MSb LSb
28 27 26 25 24 23 22 21 20 X X X X X
Units: 4.88 mV
TEMPERATURE MEASUREMENT
The DS2756 uses an integrated temperature sensor to continually measure battery temperature. Temperature
measurements are updated in the Temperature Register every 220ms in two’s-complement format with a resolution
of 0.125°C over a ±127°C range. The Temperature Register format is shown in Figure 8.
Figure 8. Temperature Register Format
MSB-Address 18h LSB-Address 19h
9
S 2
MSb LSb MSb LSb
28 27 26 25 24 23 22 21 20 X X X X X
9 of 26
Units: 0.125°C
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
PROGRAMMABLE I/O
The PIO pin can be configured as a general purpose programmable I/O pin, or as an interrupt output. To use the
PIO pin in the programmable I/O mode described in this section, the PIO interrupt method must not be enabled.
See the Interrupt Signaling section for information on disabling interrupts.
As a programmable I/O pin, PIO provides a digital input or an open drain digital output. Writing a 1 to the PIO bit in
the Special Feature Register disables the output driver. With the PIO pin Hi-Z, it can be used as an input. The logic
level of the PIO pin is reported in the Special Feature Register through the serial interface.
To use the PIO pin as an output, write the desired output value to the PIO bit in the Special Feature Register.
Writing a 0 to the PIO bit enables the PIO output driver, pulling the PIO pin to V
. As stated above, writing a 1 to
SS
the PIO bit forces the pin to a Hi-Z state. A pullup resistor or current source must be provided to force the pin high.
The PIO pin can be biased several volts above VDD allowing inter-operation with a system voltage which is higher
than the battery voltage. Consult the Absolute Maximum Ratings table when operating the PIO pin significantly
above VDD. The DS2756 turns off the PIO output driver and sets the PIO bit high when in Sleep mode or when DQ
is low for more than t
, regardless of the state of the PMOD bit.
SLEEP
INTERRUPT SIGNALING
The DS2756 interrupt can be configured as the Suspend interrupt that is signaled on the PIO pin, or as an Alarm
Comparator interrupt (based on Current Accumulator and Temperature Alarm Comparator thresholds) that is
signaled on either the PIO pin or DQ pin.
The Suspend interrupt is used to signal that the current level is greater than the user programmable Charge
Suspend Threshold or less than (more negative) than the Discharge Suspend Threshold. The Suspend interrupt is
enabled by setting one or both of the PIE bits in the Status Register. The PIE bits select one of three intervals for
the Suspend Period, t
event is signaled by internally clearing the PIO bit in the SFR in order to force the PIO output from high to low. The
PIO output remains low in Active mode until the PIO bit in the SFR is written to a 1 by the host to disable the PIO
output. Note that the PIO output is disabled in Suspend mode, allowing the PIO pin to be pulled high and ensuring
the DS2756 can always signal a Suspend interrupt with a high to low transition.
The Temperature and ACR Alarm Comparator interrupt is enabled by setting the Interrupt Enable (IE) bit in the
Special Feature Register with PIE cleared. When IE is set and both PIE bits are cleared, an interrupt will be
signaled if the Alarm Comparator thresholds are crossed. A 1-Wire RESET always clears the IE bit. The host must
re-enable interrupts by setting IE in the last transaction on the bus. Note that when either PIE bit is set, the state of
IE has no effect.
The interrupt signal pin for the Alarm Comparator interrupt is selected by setting or clearing the Interrupt Output
Select (IOS) bit in the Status Register. When IOS is set, the DQ pin performs Alarm Comparator interrupt signaling,
when IOS is cleared, the PIO pin performs Alarm Comparator interrupt signaling. Note that when either PIE bit is
set, the state of IOS has no effect.
DQ signals an Alarm Comparator interrupt condition by driving the 1-Wire bus low for t
1-Wire devices present on the bus interpret this signal as a 1-Wire RESET. A Presence Pulse should be expected
from all 1-Wire devices, including the DS2756 following the alarm interrupt signal. The host system can sense the
alarm interrupt signal on the falling or rising edge of either the RESET or Presence Pulse.
PIO signals an Alarm Comparator interrupt by driving low. PIO remains low until the host clears the condition by
writing a 1 to the PIO bit (bit 6 in the Special Feature Register). A pullup resistor or current source must be
provided to force the pin high. The host must sense the alarm interrupt on the falling edge of PIO.
. If either PIE bit is set, the Alarm Comparator interrupt is disabled. The Suspend interrupt
SUS
. The DS2756 and all other
IL
10 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Table 1. PIO/DQ Pin Function
REGISTER BIT SETTING PIO/DQ PIN FUNCTION
PIE IOS IE PIO
xx x x 0
00 x 0 1
PIO pin: GPIO¾Output LOW
PIO pin: GPIO¾Output High-Z, Input mode
00 0 1 1 PIO pin: Alarm Comparator Interrupt Output
00 1 1 0
00 1 1 1
DQ pin: Alarm Comparator Interrupt Output (low for t
PIO pin: GPIO¾Output LOW
DQ pin: Alarm Comparator Interrupt Output (low for t
PIO pin: GPIO¾Output High-Z, Input mode
)
IL
)
IL
01
10
x x 1 PIO pin: Suspend Interrupt Output
11
x¾Don’t care.
SUSPEND THRESHOLDS
The suspend thresholds set the current level to enter and exit Suspend mode. The threshold levels are
programmable with a magnitude range of 0 to 4mV, and are compared against the value in the Current register.
Values are programmed in two’s complement format with an implied sign bit in a virtual 9
th
bit position. The Charge
Suspend Threshold register is always a positive value. The Discharge Suspend Threshold register is always a
negative value.
The thresholds define an inclusive, continuous range of currents in which the DS2756 enters or re-enters Suspend
mode from Active mode. The Charge Suspend Threshold represents the minimum measured charge current which
will cause the DS2756 to transition modes. The Discharge Suspend Threshold represents the minimum discharge
current which will cause the DS2756 to transition modes.
The user values of the suspend thresholds are programmed into two bytes located within EEPROM block 0. These
memory locations serve as current threshold values only when either PIE bit is set, and can be used as general
purpose EEPROM if PIE = 00b. A copy command is required to save the byte values to EEPROM. See the
Memory section for information on copying shadow RAM to EEPROM.
Figure 9. Charge Suspend Threshold Format
Address 35h
7
2
26 25 24 23 22 21 20
MSb LSb
15.625mV/R
Figure 10. Discharge Suspend Threshold Format
Address 34h
7
2
MSb LSb
15.625mV/R
11 of 26
26 25 24 23 22 21 20
SNS
SNS
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
ALARM COMPARATORS AND INTERRUPT THRESHOLDS
Alarm interrupt threshold values can be programmed by the user in the designated SRAM memory registers in the
formats and locations found in Figure 11. Since these thresholds are located in SRAM memory, they must be
reprogrammed if a loss of power to the DS2756 occurs. The DS2756 generates an alarm interrupt to indicate that
one of the following events has occurred:
§ Accumulated Current ³ Current Accumulator Interrupt High Threshold
§ Accumulated Current £ Current Accumulator Interrupt Low Threshold
§ Temperature ³ Temperature Interrupt High Threshold
§ Temperature £ Temperature Interrupt Low Threshold
The host may then poll the DS2756 to determine which threshold has been met or exceeded.
12 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Figure 11. Alarm Interrupt Threshold Register Formats
Current Accumulator Interrupt High Threshold
MSB-Address 80h LSB-Address 81h
14
S 2
MSb LSb MSb LSb
Current Accumulator Interrupt Low Threshold
MSB-Address 82h LSB-Address 83h
S 2
MSb LSb MSb LSb
Temperature Interrupt High Threshold
213 212 211 210 29 28 27 26 25 24 23 22 21 20
14
213 212 211 210 29 28 27 26 25 24 23 22 21 20
Units: 6.25mVhrs
Units: 6.25mVhrs
Address 84h
6
S 2
MSb LSb
25 24 23 22 21 20
Units: 1.0°C
Temperature Interrupt Low Threshold
Address 85h
6
S 2
MSb LSb
25 24 23 22 21 20
Units: 1.0°C
13 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Figure 12. Alarm And Suspend Mode Operating Diagram
Interr upt Enable
IE
PIE
Programmable
Interr upt Enable
Charge Suspend
Interrupt Threshold
CURRENT
Discharge Suspend
Interrupt Threshold
High Temperature
Interrupt Threshold
TEMPERATURE
Low Temper ature
Interrupt Threshold
High Accumulator
Interrupt Threshold
00b
≠ 00b
Note 1
ACR
Low Accumulator
Interrupt Threshold
DEVICE
STATE
PIO
(IOS = 0)
Note 1.
Note 2.
Note 3.
Note 4.
Note 5.
Note 5
Note 3
ACTIVE ACTIVESUSPEND SUSPEND
Note 4
Note 2
Threshold violations do not generate alarm interrupts until the Interrupt Enable (IE) bit is set.
PIO Interrupts are cleared by resetting the PIO bit in the Special Feature Register .
SUSPEND state shown in this timing diagram refers to the DS2756 cycling between Active
and Suspend mode at a rate determined by the PIE bit settings . Suspend state is entered
by setting PIE bits to a non-zero value, setting PMOD=1, and then driving DQ low for longer
than 2s.
Interrupts on PIO not reset by software are automatically cleared when entering suspend
mode.
Alarm threshold violations do not generate interrupts if Suspend mode is enabled
(PIE ≠ 00b).
14 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
SNAPSHOT MODE
Measurement of the current and voltage can be synchronized to a system event with the Snapshot mode.
Triggering a Snapshot event causes the ADC to abandon the current conversion and capture one current and one
voltage sample. The Snapshot results are reported in the Current and Voltage registers for retrieval by the host.
Normal current, voltage and temperature measurements and current accumulation resume immediately following a
Snapshot event, though the Snapshot current and voltage values persist until the host system writes the SNAP bit
in the Special Function Register to a 0. Since the snapshot mode disrupts the continuity of the coulomb counting
process, it should be used sparingly.
The Sync Function Command [D2h] signals the ADC control to expect a Snapshot trigger on DQ. Following the
Sync command, the host can trigger a Snapshot event by toggling the DQ line. Synchronization occurs on the
rising edge of the DQ high to low to high pulse. The Snapshot mode can be abandoned by sending a 1-Wire Reset
instead of the synchronization pulse. The rising edge DQ trigger is formed by the first data bit after issuing the Sync
Function command. A full byte can be issued, but the rising edge of the first bit sets the trigger point. The SNAP bit
is set after the rising edge trigger. Timing is not critical and could be several 100ms later since it cannot be read
quickly via 1-Wire. If a 1-Wire reset is issued instead of a data bit, then the Snapshot is abandoned (SNAP bit not
set).
The Snapshot Synchronization Timing in Figure 13 illustrates the timing of the Snapshot current and voltage
sample apertures relative to the DQ rising edge trigger and one timeslot GSM power amp load pulse. In the
diagram, t
a single GSM timeslot.
SAMP
= 1/ f
= 1456-1 = 687ms. The current and voltage measurements are taken 343ms apart but within
SAMP
Figure 13. Snapshot Synchronization Timing
Current
Sample
Voltage
Sample
GSM
Load
Pulse
DQ
t
SWL
t
SAMP
t
SDLY
/2
t
577ms
SAMP
15 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
MEMORY
The DS2756 has a 256-byte linear address space with registers for instrumentation, status, and control in the lower
32 bytes, with lockable EEPROM and SRAM memory occupying portions of the remaining address space. All
EEPROM and SRAM memory is general-purpose except addresses 31h, 33h, 34h and 35h, which should be
written with the default values for the Status Register, Accumulation Bias Register, Charge Suspend Threshold and
Discharge Suspend Threshold, respectively. If the Suspend interrupt is not used, addresses 34h and 35h can be
used as general-purpose EEPROM. When the MSB of any two-byte register is read, the MSB and LSB values are
latched and held for the duration of the Read Data command. This prevents updates during the read to ensure
synchronization between the two register bytes. For consistent results, always read the MSB and the LSB of a twobyte register during the same Read Data command sequence. In describing register control and status bits, the
terms set and clear refer to internal operations which manipulate bit values. The terms read and write refer to 1Wire access to the bit values. Several bits are set internally but require the host system to write them to a 0 value.
EEPROM memory is shadowed by RAM to eliminate programming delays between writes and to allow the data to
be verified by the host system before being copied to EEPROM. The Read Data and Write Data protocols to/from
EEPROM memory addresses access the shadow RAM. The Recall Data function command transfers data from the
EEPROM to the shadow RAM. The Copy Data function command transfers data from the shadow RAM to the
EEPROM and requires t
data updates shadow RAM. In locked EEPROM blocks, the Write Data command is ignored. The Copy Data
function command copies the contents of shadow RAM to EEPROM in an unlocked block of EEPROM but has no
effect on locked blocks. The Recall Data function command copies the contents of a block of EEPROM to shadow
RAM regardless of whether the block is locked or not.
to complete programming of the EEPROM cells. In unlocked EEPROM blocks, writing
EEC
Figure 14. EEPROM Access via Shadow RAM
Copy
EEPROM
Serial
Interface
Read
Write
Shadow RAM
Recall
16 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Table 2. Memory Map
ADDRESS (HEX) DESCRIPTION READ/WRITE
00 Reserved
01 Status Register R
02 to 06 Reserved
07 EEPROM Register R/W
08 Special Feature Register R/W
09 to 0B Reserved
0C Voltage Register MSB R
0D Voltage Register LSB R
0E Current Register MSB R
0F Current Register LSB R
10 Accumulated Current Register MSB R/W
11 Accumulated Current Register LSB R/W
12 to 17 Reserved
18 Temperature Register MSB R
19 Temperature Register LSB R
1A Average Current Register MSB R
1B Average Current Register LSB R
1C to 1F Reserved
20 to 3F EEPROM, block 0 R/W*
40 to 5F EEPROM, block 1 R/W*
60 to 7F EEPROM, block 2 R/W*
80 to 8F SRAM R/W
90 to FF Reserved
*Each EEPROM block is read/write until locked by the LOCK command, after which it is read-only.
STATUS REGISTER
The default values for the Status Register bits are stored in lockable EEPROM in the corresponding bits of address
31h. A Recall Data command for EEPROM block 1 recalls the default values into the Status Register bits. The
format of the Status Register is shown in Figure 15. The function of each bit is described in detail in the following
paragraphs. Note that all bits are Read Only.
Figure 15. STATUS REGISTER FORMAT
Address 01h
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0
PIE1 PIE0 PMOD RNAOP UVEN IOS OBEN OVD
PIE1, PIE0—Programmable Suspend Interrupt Enable. A non zero value in these bits enables the DS2756 to enter
Suspend mode, and sets the Suspend Period (t
DS2756 from entering Suspend mode and allows the DS2756 to enter Sleep mode.
) for the low power oscillator timeout. A value of 00b disables the
SUS
17 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Table 3. SUMMARY OF SUSPEND MODES
PIE1 PIE0
0 0 Suspend mode disabled Suspend mode disabled
SAMPLE RATE WHILE IN
SUSPEND MODE
AVERAGE IDD WHILE IN SUSPEND MODE
0 1 2.0Hz
1 0 1.0Hz
1 1 0.5Hz
(500ms × I
(1000ms × I
(2000ms × I
SUSPEND
590ms
SUSPEND
1090ms
SUSPEND
2090ms
) + (90ms × I
) + (90ms × I
) + (90ms × I
ACTIVE
ACTIVE
ACTIVE
)
)
)
The desired default value should be set in bit 6 and bit 7 of address 31h. The factory default is 00b.
PMOD—Power Mode Enable. A value of 1 in this bit enables the DS2756 to enter Sleep mode or Suspend mode.
A value of 0 disables the DS2756 from entering the Sleep or Suspend mode. When PMOD is 0, only Active mode
operation is allowed. The desired default value must be set in bit 5 of address 31h. The factory default is 0.
RNAOP—Read Net Address Opcode. A value of 0 in this bit sets the opcode for the Read Net Address command
to 33h, while a 1 sets the opcode to 39h. This bit is read-only. The desired default value should be set in bit 4 of
address 31h. The factory default is 0.
UVEN—Undervoltage Sleep Enable. A value of 1 in UVEN along with a value of 1 in PMOD enables the DS2756 to
enter Sleep mode when the voltage on V
drops below undervoltage threshold VUV for t
IN
(cell depletion). A value
UVD
of 0 disables the DS2756 from entering the Sleep mode due to undervoltage events. The desired default value
must be set in bit 3 of address 31h. The factory default is 0.
IOS—Interrupt output select. IOS set to a 1 selects the DQ alarm interrupt signaling method for the Alarm
Comparator interrupt. IOS cleared to 0 selects the PIO alarm interrupt signaling method. The IE bit must be set and
PIE bits cleared to signal an Alarm Comparator interrupt using either method. The desired default value must be
set in bit 2 of address 31h. The factory default is 0.
OBEN—Offset Blanking Enable. A value of 1 in this bit location enables the offset blanking function described in
the Current Accumulation section. If set to 0, the offset blanking function is disabled. The desired default value
must be set in bit 1 of address 31h. The factory default is 0.
OVD—Overdrive Timing Enable. A value of 1 in this bit location enables the Overdrive 1-Wire timings. If set to 0,
the Regular mode timings are enabled. The desired bit value must be written to bit 1 of address 31h, (an EEPROM
block 0 location), then recalled before any change to the 1-Wire speed becomes effective. A power-on reset forces
a recall of settings from EEPROM block 0. The factory default in bit 1 of address 31h is 0 (Standard 1-Wire timing).
X—Reserved Bits.
EEPROM REGISTER
The format of the EEPROM Register is shown in Figure 16. The function of each bit is described in detail in the
following paragraphs.
Figure 16. EEPROM Register Format
Address 07h
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0
EEC LOCK X X X BL2 BL1 BL0
18 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
EEC—EEPROM Copy Flag. A 1 in this read-only bit indicates that a Copy Data command is in progress. While this
bit is high, writes to EEPROM addresses are ignored. A 0 in this bit indicates that data can be written to unlocked
EEPROM blocks.
LOCK—EEPROM Lock Enable. When this bit is 0, the Lock command is ignored. Writing a 1 to this bit enables the
Lock command. After the Lock command is executed, the LOCK bit is reset to 0. The factory default is 0.
BL2—EEPROM Block 2 Lock Flag. A 1 in this read-only bit indicates that EEPROM block 2 (addresses 60h to 7Fh)
is locked (read-only), while a 0 indicates block 1 is unlocked (read/write).
BL1—EEPROM Block 1 Lock Flag. A 1 in this read-only bit indicates that EEPROM block 1 (addresses 40h to 5Fh)
is locked (read-only), while a 0 indicates block 1 is unlocked (read/write).
BL0—EEPROM Block 0 Lock Flag. A 1 in this read-only bit indicates that EEPROM block 0 (addresses 20h to 3Fh)
is locked (read-only), while a 0 indicates block 0 is unlocked (read/write).
X—Reserved Bits.
SPECIAL FEATURE REGISTER
The format of the Special Feature Register is shown in Figure 17. The function of each bit is described in detail in
the following paragraphs.
Figure 17. Special Feature Register Format
Address 08h
bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0
POR PIO X X X IE X SNAP
POR—POR Indicator bit. This bit is set to a 1 when the DS2756 experiences a power-on-reset (POR) event. To
use the POR bit to detect a power-on-reset, the POR bit must be set to a 0 by the host system upon power-up and
after each subsequent occurrence of a POR. This bit is read/write to 0.
PIO—PIO Pin Sense and Control. See the Programmable I/O section for details on this read/write bit.
IE—Interrupt Enable. A value of 1 in this bit location enables Alarm Comparator interrupt signaling to the host
system. When IE is 0, Alarm Comparator interrupt signaling is disabled and the alarm comparator registers are
available as SRAM and have no effect on device operation. IE bit is read/write to 1. IE is cleared to 0 by a 1-Wire
RESET on DQ.
SNAP—Snapshot Control. This bit is set to a 1 immediately after the DS2756 executes a Snapshot conversion
pair. SNAP = 1 indicates that the Current and Voltage registers contain Snapshot results. While SNAP = 1, the
Snapshot results persist in the Current and Voltage registers until the SNAP bit is written to a 0 by the host system.
This bit is read/write to 0.
X—Reserved Bits.
19 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
1-Wire BUS SYSTEM
The 1-Wire bus is a system that has a single bus master and one or more slaves. A multidrop bus is a 1-Wire bus
with multiple slaves. A single-drop bus has only one slave device. In all instances, the DS2756 is a slave device.
The bus master is typically a microprocessor in the host system. The discussion of this bus system consists of four
topics: 64-Bit Net Address, Hardware Configuration, Transaction Sequence, and 1-Wire Signaling.
64-BIT NET ADDRESS
Each DS2756 has a unique, factory-programmed 1-Wire net address that is 64 bits in length. The first 8 bits are the
1-Wire family code (35h for DS2756). The next 48 bits are a unique serial number. The last 8 bits are a CRC of the
first 56 bits (see Figure 18). The 64-bit net address and the 1-Wire I/O circuitry built into the device enable the
DS2756 to communicate through the 1-Wire protocol detailed in the 1-Wire Bus System section of this data sheet.
Figure 18. 1-Wire Net Address Format
8-Bit CRC 48-Bit Serial Number
MSb LSb
8-Bit Family
Code (35h)
CRC GENERATION
The DS2756 has an 8-bit CRC stored in the most significant byte of its 1-Wire net address. To ensure error-free
transmission of the address, the host system can compute a CRC value from the first 56 bits of the address and
compare it to the CRC from the DS2756. The host system is responsible for verifying the CRC value and taking
action as a result. The DS2756 does not compare CRC values and does not prevent a command sequence from
proceeding as a result of a CRC mismatch. Proper use of the CRC can result in a communication channel with a
very high level of integrity.
The CRC can be generated by the host using a circuit consisting of a Shift Register and XOR gates as shown in
Figure 19, or it can be generated in software. Additional information about the Dallas 1-Wire CRC is available in
Application Note 27: Understanding and Using Cyclic Redundancy Checks with Dallas Semiconductor i
Products.
ButtonÒ
Figure 19. 1-Wire CRC Generation Block Diagram
MSb
XOR
XOR
LSb
INPUT
XOR
In the circuit in Figure 19, the shift bits are initialized to 0. Then, starting with the least significant bit of the family
code, one bit at a time is shifted in. After the 8th bit of the family code has been entered, then the serial number is
entered. After the 48th bit of the serial number has been entered, the Shift Register contains the CRC value.
HARDWARE CONFIGURATION
Because the 1-Wire bus has only a single line, it is important that each device on the bus be able to drive it at the
appropriate time. To facilitate this, each device attached to the 1-Wire bus must connect to the bus with open-drain
or tri-state output drivers. The DS2756 uses an open-drain output driver as part of the bidirectional interface
circuitry shown in Figure 20. If a bidirectional pin is not available on the bus master, separate output, and input pins
can be connected together.
The 1-Wire bus must have a pullup resistor at the bus-master end of the bus. For short line lengths, the value of
this resistor should be approximately 5kW. The idle state for the 1-Wire bus is high. If, for any reason, a bus
transaction must be suspended, the bus must be left in the idle state in order to properly resume the transaction
iButton is a registered trademark of Dallas Semiconductor.
20 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
later. If the bus is left low for more than 120ms, slave devices on the bus begin to interpret the low period as a reset
pulse, effectively terminating the transaction.
Figure 20. Typical 1-Wire Bus Interface Circuitry
BUS MASTER DS275x 1-WIRE PORT
Rx
Tx
The pullup must be disabled to allow the DS2756 to enter Suspend mode. The internal pulldown on the DS2756
DQ input ensures that DQ will be pulled to a logic low when the pullup is simply disconnected. With a
microcontroller, the pullup resistor can be connected between a general purpose port pin and the DS2756 DQ
terminal as shown in Figure 1. The GPIO pin, labeled Pullup Control, can be driven high for Active mode. The pin
labeled Data I/O is used bidirectionally for serial communication. When Standby mode is desired, the Pullup
Control pin can be driven low or floated in the high-Z state. If the current reading falls within the range of the
suspend thresholds, the DS2756 will enter Suspend if configured to do so (PMOD = 1 and PIE ≠ 00).
V
(2.0V to 5.5V)
PULLUP
4.7kW
Rx =
Receive
Tx = TRANSMIT
1mA
Typ.
Rx
Tx
100W
MOSFET
TRANSACTION SEQUENCE
The protocol for accessing the DS2756 through the 1-Wire port is as follows:
§ Initialization
§ Net Address Command
§ Function Command
§ Transaction/Data
The sections that follow describe each of these steps in detail.
All transactions of the 1-Wire bus begin with an initialization sequence consisting of a reset pulse transmitted by the
bus master followed by a presence pulse simultaneously transmitted by the DS2756 and any other slaves on the
bus. The presence pulse tells the bus master that one or more devices are on the bus and ready to operate. For
more details, see the I/O Signaling section.
NET ADDRESS COMMANDS
Once the bus master has detected the presence of one or more slaves, it can issue one of the net address
commands described in the following paragraphs. The name of each command is followed by the 8-bit opcode for
that command in square brackets. Figure 21 presents a transaction flowchart of the net address commands.
Read Net Address [33h or 39h]. This command allows the bus master to read the DS2756’s 1-Wire net address.
This command can only be used if there is a single slave on the bus. If more than one slave is present, a data
collision occurs when all slaves try to transmit at the same time (open drain produces a wired-AND result). The
RNAOP bit in the Status Register selects the opcode for this command, with RNAOP = 0 indicating 33h and
RNAOP = 1 indicating 39h.
Match Net Address [55h]. This command allows the bus master to specifically address one DS2756 on the 1-Wire
bus. Only the addressed DS2756 responds to any subsequent function command. All other slave devices ignore
21 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
the function command and wait for a reset pulse. This command can be used with one or more slave devices on
the bus.
Skip Net Address [CCh]. This command saves time when there is only one DS2756 on the bus by allowing the
bus master to issue a function command without specifying the address of the slave. If more than one slave device
is present on the bus, a subsequent function command can cause a data collision when all slaves transmit data at
the same time.
Search Net Address [F0h]. This command allows the bus master to use a process of elimination to identify the 1Wire net addresses of all slave devices on the bus. The search process involves the repetition of a simple threestep routine: read a bit, read the complement of the bit, then write the desired value of that bit. The bus master
performs this simple three-step routine on each bit location of the net address. After one complete pass through all
64 bits, the bus master knows the address of one device. The remaining devices can then be identified on
additional iterations of the process. See Chapter 5 of the Book of DS19xx i
discussion of a net address search, including an actual example. This publication can be found on the
Maxim/Dallas website at www.maxim-ic.com
.
Button Standards for a comprehensive
FUNCTION COMMANDS
After successfully completing one of the net address commands, the bus master can access the features of the
DS2756 with any of the function commands described in the following paragraphs. The name of each function is
followed by the 8-bit opcode for that command in square brackets.
Read Data [69h, XX]. This command reads data from the DS2756 starting at memory address XX. The LSb of the
data in address XX is available to be read immediately after the MSb of the address has been entered. Because
the address is automatically incremented after the MSb of each byte is received, the LSb of the data at address XX
+ 1 is available to be read immediately after the MSb of the data at address XX. If the bus master continues to read
beyond address FFh, the DS2756 outputs logic 1 until a reset pulse occurs. Addresses labeled “reserved” in the
memory map contain undefined data. The Read Data command can be terminated by the bus master with a reset
pulse at any bit boundary.
Write Data [6Ch, XX]. This command writes data to the DS2756 starting at memory address XX. The LSb of the
data to be stored at address XX can be written immediately after the MSb of the address has been entered.
Because the address is automatically incremented after the MSb of each byte is written, the LSb to be stored at
address XX + 1 can be written immediately after the MSb to be stored at address XX. If the bus master continues
to write beyond address FFh, the DS2756 ignores the data. Writes to read-only addresses, reserved addresses
and locked EEPROM blocks are ignored. Incomplete bytes are not written. Writes to unlocked EEPROM blocks are
to shadow RAM rather than EEPROM. See the Memory section for more details.
Copy Data [48h, XX]. This command copies the contents of shadow RAM to EEPROM for the 32-byte EEPROM
block containing address XX. Copy Data commands that address locked blocks are ignored. While the Copy Data
command is executing, the EEC bit in the EEPROM Register is set to 1 and writes to EEPROM addresses are
ignored. Reads and writes to non-EEPROM addresses can still occur while the copy is in progress. The Copy Data
command execution time, t
Recall Data [B8h, XX]. This command recalls the contents of the 32-byte EEPROM block containing address XX
to shadow RAM.
Lock [6Ah, XX]. This command locks (write-protects) the 32-byte block of EEPROM memory containing memory
address XX. The LOCK bit in the EEPROM Register must be set to l before the Lock command is executed. If the
LOCK bit is 0, the Lock command has no effect. The Lock command is permanent; a locked block can never be
written again.
Sync [D2h, XX]. This command allows the bus to be used to trigger current and voltage Snapshot readings.
Following the issue of the Sync command, the bus returns to the idle state awaiting the measurement trigger.
When the bus transitions high to low and then low to high on the first data bit issued after the command byte, the
Snapshot measurements are performed. Only one bit of the data byte is required to trigger the Snapshot
measurements. One Snapshot command must be issued for each Snapshot trigger event.
, is 2ms typical and starts after the last address bit is transmitted.
EEC
22 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Table 4. FUNCTION COMMANDS
COMMAND DESCRIPTION
Read Data
Write Data
Copy Data
Recall Data
Lock
Sync
Reads data from memory
starting at address XX
Writes data to memory
starting at address XX
Copies shadow RAM data to
EEPROM block containing
address XX
Recalls EEPROM block
containing address XX to
shadow RAM
Permanently locks the block
of EEPROM
containing address XX
Arms the Snapshot
Measurement Mode
COMMAND
PROTOCOL
69h, XX Master Rx
6Ch, XX Master Tx
48h, XX Bus idle None
B8h, XX Bus idle None
6Ah, XX Bus idle None
D2h, XX Bus idle None
BUS STATE AFTER
COMMAND PROTOCOL
BUS DATA
Up to 256
bytes of data
Up to 256
bytes of data
23 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode

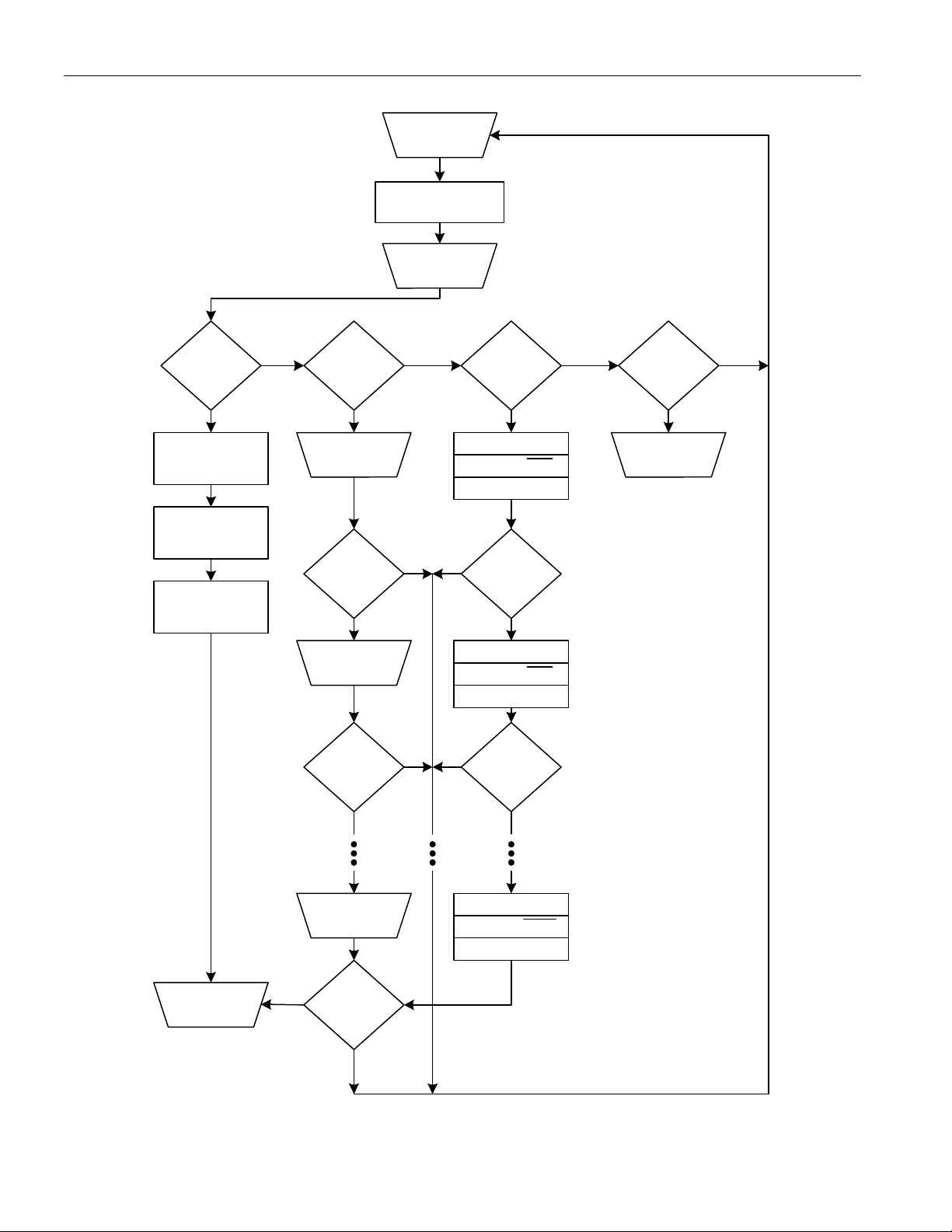

Figure 21. Net Address Command Flow Chart
MASTER T x
RESET PULSE
DS2756 Tx
PRESENCE PULSE
MASTER Tx
NET ADDRESS
COMMAND
33h/39h
READ
DS2756 Tx
FAMILY CODE
1 BYTE
DS2756 Tx
SERIAL NUMBER
6 BYTES
DS2756 Tx
CRC
1 BYTE
NO
55h
MATCH
YES
MASTER T x
BIT 0
BIT 0
MATCH?
YES
MASTER T x
BIT 1
BIT 1
MATCH?
NO NO NO
F0h
SEARCH
YESYES
DS2756 Tx BI T 0
DS2756 Tx BI T 0
MASTER Tx BI T 0
NO
NO
BIT 0
CCh
SKIP
YES
MASTER T x
NET ADDRESS
COMMAND
MATCH?
DS2756 Tx BI T 1
DS2756 Tx BI T 1
MASTER Tx BI T 1
NO NO
BIT 1
MATCH?
YES
DS2756 Tx BIT 63
DS2756 Tx BIT 63
MASTER T x BI T 63
MASTER Tx
NET ADD RESS
COMMAND
YES
MASTER T x
BIT 63
BIT 63
MATCH?
NO
24 of 26
YES
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
I/O SIGNALING
The 1-Wire bus requires strict signaling protocols to ensure data integrity. The four protocols or signaling types
used are:
1) Initialization sequence (Reset Pulse followed by Presence Pulse)
2) Write 0
3) Write 1
4) Read Data
All signaling is initiated by the bus master. Except for the Presence Pulse, all falling edges are created by the bus
master. The initialization sequence required to begin communication with the DS2756 is shown in Figure 22. A
presence pulse following a reset pulse indicates the DS2756 is ready to accept a net address command. The bus
master transmits (Tx) a reset pulse for t
. The bus master then releases the line and goes into receive mode
RSTL
(Rx). The 1-Wire bus line is then pulled high by the pullup resistor. After detecting the rising edge on the DQ pin,
the DS2756 waits for t
and then transmits the Presence Pulse for t
PDH
PDL
.
Figure 22. 1-Wire Initialization Sequence
DQ
t
t
PDH
t
PDL
t
PACK
LINE TYPE LEGEND:
BUS MASTER ACTIVE LOW
BOTH BUS MASTER AND
DS2756 ACTIVE LOW
RESISTOR PULLUP
PACK
WRITE-TIME SLOTS
A write-time slot is initiated when the bus master pulls the 1-Wire bus from a logic-high (inactive) level to a logic-low
level. There are two types of write-time slots: write 1 and write 0. All write-time slots must be t
1ms minimum recovery time, t
The bus master generates a write 1 time slot by pulling 1-Wire bus line low for t
, between cycles.
REC
and then releasing it. The bus
LOW1
in duration with a
SLOT
must be pulled high within 15ms in Standard mode or 2ms in Overdrive mode after the start of the write-time slot.
The bus master generates a write 0 time slot by pulling 1-Wire bus line low and then holding it low for t
LOW0
, or up to
the end of the write-time slot.
The DS2756 samples the 1-Wire bus after the line falls, sampling occurs between 15ms and 60ms in Standard
mode and between 2ms and 6ms in Overdrive mode. If the line is high when sampled by the DS2756, a write 1
occurs, that is, the DS2756 accepts the bit value to be a 1. If the line is low when sampled, a write 0 occurs, that is,
the DS2756 accepts the bit value to be a 0. See Figure 23 for more information.
READ-TIME SLOTS
A read-time slot is initiated when the bus master pulls the 1-Wire bus line from a logic-high level to a logic-low level.
The bus master generated read-time slot results in a read 1 and read 0 depending on the data presented by the
DS2756. All read-time slots must be t
The bus master initiates a read-time slot by pulling the bus line low for at least 1ms and then releasing it to allow the
DS2756 to present valid data. The DS2756 generates a read 0 by holding the line low. The line is held low for at
least the Read Data Valid time (t
allows it to be pulled high by
RDV
the external pullup resistor some time after t
slot. A read 1 is generated by not holding the line low after the time slot is initiated by the master. The line is
allowing it to be pulled high as soon as it is released by the master. The bus master must sample the bus after
initializing the time slot and before t
as close to t
as possible to allow for the rise time of the passive pullup 1-Wire bus. See Figure 23 for more
RDV
information.
in duration with a 1ms minimum recovery time, t
SLOT
, between cycles.
REC
) from the start of the read-time slot. The DS2756 releases the bus line and
but before the end of the read-time
RDV
to read the data value transmitted by the DS2756. Sampling should occur
RDV
25 of 26
DS2756: High-Accuracy Battery Fuel Gauge with Programmable Suspend Mode
Figure 23. 1-Wire Write- And Read-Time Slots
V
PULLUP
WRITE 0 SLOT WRITE 1 SLOT
t
SLOT
t
LOW0
t
REC
t
LOW1
t
SLOT
GND
Mode
Standard
15ms
DS2756 Sample Window
MIN TYP MAX
15ms
30ms
>1ms
DS2755 Sample Window
MIN TYP MAX
15ms15ms 30ms
Overdrive
2ms
1ms
3ms 1ms2ms 3ms
READ 0 SLOT
t
SLOT
READ 1 SLOT
t
SLOT
t
V
PULLUP
REC
GND
>1ms
t
RDV
t
RDV
LINE TYPE LEGEND:
BUS MASTER ACTIVE LOW DS2756 ACTIVE LOW
BOTH BUS MASTER AND
DS2756 ACTIVE LOW
RESISTOR PULLUP
PACKAGE INFORMATION
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to
www.maxim-ic.com/DallasPackInfo
.)
26 of 26
