DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
________________________________________________________________ Maxim Integrated Products 1
19-2170; Rev 0; 10/01
General Description
The DG417L/DG418L/DG419L precision, CMOS analog switches feature low on-resistance (RON= 35Ω),
guaranteed RONmatching between switches (3Ω
max), and guaranteed RONflatness over the signal
range (4Ω max). These switches are +3V logic-compatible when powered from ±15V or ±12V supplies.
The switches conduct equally well in either direction,
and feature low charge injection and low power consumption. The DG417L/DG418L/DG419L also offer low
off-leakage current over temperature (less than 5nA at
+85°C).
The DG417L/DG418L are single-pole/single-throw
(SPST) switches. The DG417L is normally closed, and
the DG418L is normally open. The DG419L is singlepole/double-throw (SPDT) with one normally closed
switch and one normally open switch. Switching times
are less than 175ns for tONand less than 185ns for
t
OFF
. These devices operate with a single +9V to +36V
or bipolar ±4.5V to ±20V supplies.
The digital input has a +0.8V logic-low threshold and a
+2.0V logic-high threshold, ensuring +3V TTL and
CMOS-logic compatibility. The DG417L/DG418L/
DG419L are available in a tiny 8-pin µMAX, 8-pin SO,
or convenient 8-pin plastic DIP. All products are rated
at the extended temperature range of -40°C to +85°C.
________________________Applications
Sample-and-Hold Circuits Communications Systems
Test Equipment Battery-Operated Systems
Modems Fax Machines
Guidance and Control Systems PBX, PABX
Audio Signal Routing Military Radios
____________________________Features
♦ +3V Logic-Compatible Digital Inputs
VIH= 2.0V
VIL= 0.8V
♦ Plug-In Upgrades for Industry-Standard
DG417/DG418/DG419 and
MAX317/MAX318/MAX319
♦ Power-Supply Sequencing-Free Operation
♦ Low On-Resistance (35Ω max)
♦ Guaranteed Matched On-Resistance Between
Channels (3Ω max)
♦ Guaranteed On-Resistance Flatness (4Ω max)
♦ Single-Supply Operation +9V to +36V
Dual-Supply Operation ±4.5V to ±20V
♦ Guaranteed Off-Leakage Current Over
Temperature (<5nA at +85°C)
♦ Rail-to-Rail Analog Signal Handling Capability
♦ Tiny 8-Pin µMAX Package
TOP VIEW
1
2
3
4
8
7
6
5
NO
V-
IN
N.C.
V+
GND
N.C.
COM
DIP/SO/µMAX
1
2
3
4
8
7
6
5
NC
V-
IN
N.C.
V+
GND
N.C.
COM
DIP/SO/µMAX
1
2
3
4
8
7
6
5
NO
V-
IN
N.C.
V+
GND
NC
COM
DIP/SO/µMAX
LOGIC SWITCH
0
1
ON
OFF
SWITCHES SHOWN FOR LOGIC "0" INPUT
LOGIC SWITCH
0
1
OFF
ON
LOGIC NC
0
1
ON
OFF
NO
OFF
ON
DG417L DG418L
DG419L
N.C. = NO CONNECT
NC = NORMALLY CLOSED
DG417L
DG419L
DG418L
Pin Configurations/Functional Diagrams/Truth Tables
PART
DG417LEUA
-40°C to +85°C
TEMP. RANGE PIN-PACKAGE
8 µMAX
Ordering Information
Ordering Information continued at end of data sheet.
Rail-to-Rail is a registered trademark of Nippon Motorola, Inc.
DG417LDY -40°C to +85°C 8 SO
DG417LDJ -40°C to +85°C 8 Plastic DIP
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
2 _______________________________________________________________________________________
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS—Dual ±15V Supplies
(V+ = +15V, V- = -15V, VIH= 2.0V, VIL= 0.8V, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Notes 2, 3)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
Voltage referenced to V-
V+ ..........................................................................................44V
GND.......................................................................................25V
IN ...........................................................................-0.3V to +44V
COM, NC, NO (Note 1) ........................(V- - 0.3V) to (V+ + 0.3V)
Continuous Current (any terminal) (Note 1).....................±30mA
Peak Current, COM, NO, NC (pulsed at 1ms,
10% duty cycle max) .................................................±100mA
Continuous Power Dissipation (T
A
= +70°C)
8-Pin µMAX (derate 4.5mW/°C above +70°C) ............362mW
8-Pin SO (derate 5.9mW/°C above +70°C) .................471mW
8-Pin Plastic DIP (derate 9.1mW/°C above +70°C).....727mW
Operating Temperature Range...........................-40°C to +85°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10s) ................................+300°C
Note 1: Signals on COM, NO, or NC exceeding V+ or V- are clamped by internal diodes. Limit forward current to maximum current
ratings.
)
)
(
)
(
)
PARAMETER SYMBOL CONDITIONS T
ANALOG SWITCH
V
, V
NO
Analog Signal Range
On-Resistance R
V
NC
COM
ON
On-Resistance Matching
Between Channels
∆R
ON
(DG419L only)
On-Resistance Flatness
(Note 4)
NC or NO Off-Leakage Current
(Note 5)
R
FLAT (ON
I
N C / N O( OFF )
V+ = +13.5V, V- = -13.5V
I
= 10mA
COM
or V
V
NO
NC
= ±10V
V+ = +15V, V- = -15V
= 10mA
I
COM
V
or VNC = ±10V
NO
V+ = +15V, V- = -15V
I
= 10mA
COM
or V
V
NO
= -5V, 0, +5V
NC
V+ = +16.5V, V- = -16.5V
= ±15.5V
V
COM
V
(NC or NO)
= +15.5V
A
+25°C1735
T
to T
MIN
MAX
+25°C 0.1 3
T
to T
MIN
MAX
+25°C 0.5 4
T
to T
MIN
MAX
+25°C -0.25 0.01 0.25
to T
T
MIN
MAX
MIN TYP MAX UNITS
V- V+ V
45
4
6
-5 5
Ω
Ω
Ω
nA
COM Off-Leakage Current
(Note 5)
COM On-Leakage Current
(Note 5)
I
COM(OFF
I
COM(ON
V+ = +16.5V
V- = -16.5V
V
= ±15.5V
COM
V
N C or N O)
= +15.5V
V+ = +16.5V
V- = -16.5V
V
= ±15.5V
COM
V
NC or NO
= ±15.5V
DG417L
DG418L
DG417L
DG418L
DG419L
+25°C -0.25 0.01 0.25
T
MIN
to T
MAX
-5 5
+25°C -0.4 0.01 0.4
T
MIN
to T
-10 10
MAX
+25°C -0.75 0.75
T
MIN
to T
-10 10
MAX
nA
nA
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
_______________________________________________________________________________________ 3
ELECTRICAL CHARACTERISTICS—Dual ±15V Supplies (continued)
(V+ = +15V, V- = -15V, VIH= 2.0V, VIL= 0.8V, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Notes 2, 3)
)
)
)
PARAMETER SYMBOL CONDITIONS T
DYNAMIC
Turn-On Time t
Turn-Off Time t
Transition Time t
Break-Before-Make Delay
(Note 6)
ON
OFF
TRANS
t
D
Charge Injection Q
Off-Isolation (Note 7) V
ISO
V
N O
R
= 300Ω
L
C
L
or V
= ± 10V
N C
= 35pF
Figure 1
V
or V
N O
R
= 300Ω
L
= 35pF
C
L
= ± 10V
N C
Figure 1
VNO = ±10V
V
= +10V
NC
= 300Ω
R
L
C
= 35pF
L
Figure 2
V
or V
N O
= 300Ω
R
L
C
= 35pF
L
= + 10V
N C
Figure 3
= 0, R
V
GEN
C
= 1nF, Figure 4
L
GEN
= 0,
f = 1MHz, RL = 50Ω,
C
= 5pF,
L
Figure 5
DG417L
DG418L
DG417L
DG418L
DG419L
DG419L
A
MIN TYP MAX UNITS
+25°C 110 175
T
to T
MIN
MAX
+25°C 105 185
T
to T
MIN
MAX
+25°C 105 185
to T
T
MIN
MAX
+25°C525
T
MIN
to T
MAX
1
ns
250
ns
210
ns
250
ns
15 pC
-90 dB
Crosstalk (Note 8) V
CT
Total Harmonic Distortion THD
C
NO or NC Off-Capacitance
COM Off-Capacitance C
COM On-Capacitance C
NO(OFF
C
NC(OFF
C OM( OFF)
COM(ON
f = 1MHz,
= 50Ω,
R
L
C
L
= 5pF,
D G419L -86 dB
Figure 6
f = 20Hz to 20kHz, 5Vp-p
= 600Ω
R
L
0.002 %
f = 1MHz, Figure 7 8 pF
f = 1MHz, Figure 7 8 pF
f = 1MHz,
Figure 8
DG417L
DG418L
DG419L 35
30
pF
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
4 _______________________________________________________________________________________
ELECTRICAL CHARACTERISTICS—Dual ±15V Supplies (continued)
(V+ = +15V, V- = -15V, VIH= 2.0V, VIL= 0.8V, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Notes 2, 3)
ELECTRICAL CHARACTERISTICS—Single +12V Supply
(V+ = +12V, V- = 0, VIH= 2.0V, VIL= 0.8V, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Notes 2, 3)
)
PARAMETER SYMBOL CONDITIONS T
DIGITAL I/O
Input Logic High Voltage V
Input Logic Low Voltage V
Logic Input Current
(Input Voltage Low)
Logic Input Current
(Input Voltage High)
I
I
INH
IH
IL
INL
POWER SUPPLY
Power-Supply Range V
S
Positive Supply Current I+
Negative Supply Current I-
Ground Current I
GND
A
VIN = 0.8V 0.001 1 µA
VIN = 2.0V 0.001 1 µA
Dual supplies ±4.5 ±20 V
V+ = +16.5V, V- = -16.5V,
= 5V
V
IN
V+ = +16.5V, V- = -16.5V,
= 0 or V+
V
IN
V+ = +16.5V, V- = -16.5V,
= 0, 5V, V+
V
IN
V+ = +16.5V, V- = -16.5V,
= 5V
V
IN
V+ = +16.5V, V- = -16.5V,
= 0 or V+
V
IN
+25°C2675
T
to T
MIN
MAX
+25°C 0.01 1
T
to T
MIN
MAX
+25°C 0.01 1
T
to T
MIN
MAX
+25°C2675
T
to T
MIN
MAX
+25°C 0.01 1
T
to T
MIN
MAX
MIN TYP MAX UNITS
2.0 V
0.8 V
125
µA
10
10
125
µA
µA
10
PARAMETER SYMBOL CONDITIONS T
ANALOG SWITCH
V
Analog Signal Range
NO
V
COM
On-Resistance R
On-Resistance Matching
Between Channels
∆R
(DG419L Only)
On-Resistance Flatness
(Note 4)
R
FLAT (ON
, V
ON
ON
NC
A
MIN TYP MAX UNITS
V- V+ V
V+ = +10.8V,
= 10mA,
I
COM
VNO or V
NC
V+ = +10.8V,
= 10mA,
I
COM
VNO or V
NC
V+ = +12V,
I
= 10mA
COM
or V
V
NO
NC
= +3.8V
= +3.8V
= 2V, 6V, 10V
+25°C 31 100
T
to T
MIN
MAX
+25°C 0.05 4
T
to T
MIN
MAX
+25°C49
to T
T
MIN
MAX
125
Ω
Ω
6
Ω
13
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
_______________________________________________________________________________________ 5
Note 2: The algebraic convention is used in this data sheet; the most negative value is shown in the minimum column.
Note 3: -40°C specifications are guaranteed by design.
Note 4: Flatness is defined as the difference between the maximum and the minimum value of on-resistance as measured at the
extremes of the specified analog range.
Note 5: Leakage parameters are 100% tested at maximum rated hot temperature and guaranteed by correlation at T
A
= +25°C.
Note 6: Guaranteed by design.
Note 7: Off-isolation = 20log10 [V
COM
/ (VNCor VNO)], V
COM
= output, VNCor VNO= input to off switch.
Note 8: Between Switches
ELECTRICAL CHARACTERISTICS—Single +12V Supply (continued)
(V+ = +12V, V- = 0, VIH= 2.0V, VIL= 0.8V, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Notes 2, 3)
PARAMETER SYMBOL CONDITIONS T
DYNAMIC
Turn-On Time t
Turn-Off Time t
Transition Time t
ON
OFF
TRANS
Break-Before-Make Delay
(Note 6)
Charge Injection Q
POWER SUPPLY
Power-Supply Range V
Positive Supply Current I+
t
D
S
V
or V
N C
= +10V
N O
R
= 300Ω
L
= 35pF
C
L
Figure 1
V
or V
N C
= +10V
N O
R
L
C
L
= 300Ω
= 35pF
Figure 1
V
= 0, 10V
NO
= 10V, 0
V
NC
R
= 300Ω
L
= 35pF
C
L
Figure 2
VNO, VNC = +10V
= 300Ω
R
L
C
= 35pF
L
Figure 3
V
= 0, R
GEN
= 1nF, Figure 4
C
L
GEN
DG417L
DG418L
DG417L
DG418L
DG419L
DG419L
= 0,
A
+25°C 150 300
T
to T
MIN
+25°C 110 210
to T
T
MIN
+25°C 150 300
T
to T
MIN
+25°C530
to T
T
MIN
MIN TYP MAX UNITS
MAX
MAX
MAX
MAX
1
Single supply 9 36 V
V+ = +13.2V
V
= 0 or V+
IN
V+ = +13.2V
= 5V
V
IN
+25°C 0.01 1
to T
T
MIN
MAX
+25°C1560
to T
T
MIN
MAX
ns
400
ns
310
ns
400
ns
2.5 pC
10
µA
110
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
6 _______________________________________________________________________________________
__________________________________________Typical Operating Characteristics
(TA = +25°C, unless otherwise noted.)
0
10
51520
25
30
35 40 45
TURN-ON/TURN-OFF TIME
VS. SINGLE SUPPLY VOLTAGE
DG417L-19L toc07
POWER SUPPLY VOLTAGES (V)
SWITCHING TIME (ns)
0
250
100
50
300
350
450
400
650
200
150
500
550
600
t
OFF
t
ON
40
320
280
240
200
160
120
80
400
360
480
440
520
560
600
TURN-ON/TURN-OFF TIME
VS. TEMPERATURE
DG417L-19L toc08
TEMPERATURE (°C)
TIME (ns)
-50 10
-30
30
50
90
-10
70
A: V+ = +15V
V- = -15V
B: V+ = +5V
V- = -5V
B, t
OFF
B, t
ON
A, t
OFF
C, t
OFF
C, t
ON
A, t
ON
C: V+ = +12V
V- = 0
0.001
0.01
1
0.1
10
-40 -20 -10-30 0 10 20 30 40 50 60 70 80 90
ON-LEAKAGE CURRENTS
vs. TEMPERATURE
DG417/18/19L toc09
TEMPERATURE (°C)
ON-LEAKAGE (nA)
V+ = 16.5V
V- = -16.5V
V
COM
= ±15V
V+ = +36V
V- = 0
V
COM
= +35V
A:
B:
A
B
0
5
10
15
20
25
30
35
40
042681012
ON-RESISTANCE
VS. V
COM
AND TEMPERATURE
DG417L-19L toc04
V
COM
(V)
R
ON
(Ω)
TA = +85°C
TA = +0°C
TA = -40°C
V+ = +12V
V- = 0
0
10
5
25
20
15
40
35
30
45
-20 -5 0-15 -10 5 10 15 20
CHARGE INJECTION VS.
V
COM
DG417L-19L toc05
V
COM
(V)
Q (pC)
V+ = +12V
V- = 0
V+ = +15V
V- = -15V
0
250
100
50
300
350
450
400
650
0
5
200
150
500
550
600
15
20
25
TURN-ON/TURN-OFF TIME VS.
DUAL SUPPLY VOLTAGE
DG417L-19L toc06
POWER SUPPLY VOLTAGES (V)
SWITCHING TIME (ns)
10
t
OFF
t
ON
0
10
15
20
25
30
35
40
45
-20 -10 0 10 20
ON-RESISTANCE
VS. V
COM
(DUAL SUPPLIES)
DG417L-19L toc01
V
COM
(V)
R
ON
(Ω)
5
A
B
C
D
E
A: V = ±5V
B: V = ±10V
C: V = ±12V
D: V = ±15V
E: V = ±20V
0
10
30
20
40
50
010155 2025303540
ON-RESISTANCE
VS. V
COM
(SINGLE SUPPLY)
DG417L-19L toc02
V
COM
(V)
R
ON
(Ω)
A
B
C
D
E
A: V = +9V
B: V = +12V
C: V = +24V
D: V = +36V
E: V = +40V
0
10
5
20
15
25
30
ON-RESISTANCE
VS. V
COM
AND TEMPERATURE
DG417L-19L toc03
V
COM
(V)
R
ON
(Ω)
-15 -5 0-10 5 10 15
TA = +85°C
TA = 0°C
TA = -40°C
V+ = +15V
V- = -15V
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
_______________________________________________________________________________________ 7
____________________________Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
OFF-LEAKAGE CURRENTS
vs. TEMPERATURE
1
A:
V+ = 16.5V
V- = -16.5V
= ±15V
V
COM
V+ = +36V
B:
V- = 0
0.1
OFF-LEAKAGE (nA)
0.01
0.001
= +35V
V
COM
-40 -20 -10-30 0 10 20 30 40 50 60 70 80 90
TEMPERATURE (°C)
SUPPLY CURRENT vs. V
50.00
40.00
30.00
20.00
10.00
SUPPLY CURRENT (µA)
0
-10.00
0 5 10 15
A
B
VIN (V)
B
A
V+ = +15V
A:
V- = -15V
B:
V+ = +12V
V- = 0
LOGIC THRESHOLD
2.0
vs. SUPPLY VOLTAGE
A: DUAL SUPPLIES
1.9
B: SINGLE SUPPLY
1.8
DG417/18/19L toc10
1.7
1.6
1.5
1.4
LOGIC THRESHOLD (V)
1.3
1.2
1.1
1.0
0 5 10 15 20 25 30 35
SUPPLY VOLTAGE (V)
IN
DG417/18/19L toc13
0
-10
-20
-30
-40
-50
LOSS (dB)
-60
-70
-80
-90
-100
1M 10M 100M 1G
FREQUENCY REPONSE
ON RESPONSE
CROSSTALK
FREQUENCY (Hz)
B
A
OFF-ISOLATION
DG417/18/19L toc11
I+, I- (nA)
DG417/18/19L toc14
THD (%)
0.001
8
7
6
5
4
3
2
1
0
-40 -20 -10-30 0 102030405060708090
0.1
0.01
10 1k100 10k 100k
SUPPLY CURRENT
vs. TEMPERATURE
V+ = 15V
V- = -15V
= 0, V+
V
IN
I+
I-
TEMPERATURE (°C)
TOTAL HARMONIC DISTORTION
vs. FREQUENCY
RL = 600Ω
FREQUENCY (Hz)
DG417/18/19L toc12
DG417/18/19L toc15
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
8 _______________________________________________________________________________________
______________________________________________________________Pin Description
_____________________________________________________Test Circuits/Timing Diagrams
Figure 1. DG417L/DG418L Switching Time
Figure 2. DG419L Transition Time
DG417L DG418L DG419L
PIN
NAME FUNCTION
1 1 1 COM Analog Switch Common Terminal
2, 5 2, 5 5 N.C. No Connection. Not internally connected.
3 3 3 GND Logic Ground
4 4 4 V+ Analog Signal Positive Supply Input
6 6 6 IN Logic-Level Input
7 7 7 V- Analog Signal Negative Supply Input
8 — 2 NC Analog Switch Normally Closed Terminal
— 8 8 NO Analog Switch Normally Open Terminal
DG417L
+3V
LOGIC
INPUT
SWITCH
OUTPUT
0
0
50%
V
OUT
0.9 x V
OUT
t
ON
tR < 20ns
t
< 20ns
F
t
OFF
0.9 x V
OUT
LOGIC
INPUT
SWITCH
INPUT
N.C.
COM
IN
GND
V+
DG418L
SWITCH
NC
V+
OR NO
V-
V-
R
L
300Ω
OUTPUT
C
L
35pF
V
OUT
C
LOGIC INPUT WAVEFORMS INVERTED FOR SWITCHES
THAT HAVE THE OPPOSITE LOGIC SENSE.
INCLUDES FIXTURE AND STRAY CAPACITANCE.
L
V
R
= V
OUT
D (
RL + R
L
DS(ON
)
)
COM
DG419L
R
L
300Ω
LOGIC
INPUT
SWITCH
OUTPUT
V+
V+
NC
NO
IN
GND
C
INCLUDES FIXTURE AND STRAY CAPACITANCE.
L
N.C.
V-
V-
t
TRANS
0.8 x V
OUT2
tR < 20ns
t
< 20ns
F
OUT1
LOGIC
INPUT
+3V
0
V
OUT1
50%
t
TRANS
V
OUT2
0.8 x V
V
OUT
C
L
35pF
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
_______________________________________________________________________________________ 9
Applications Information
Power-Supply
Sequencing-Free Operation
Most CMOS switches require specific power-supply
sequencing in order to prevent device latchup. The
older DG417/DG418/DG419 devices require a proper
power-supply sequence of V+, VL, then V-. Otherwise,
it is necessary to add signal diodes to the circuit in
order to prevent potential latchups. The new
DG417L/DG418L/DG419L devices eliminate the need
for a V
L
input and allow any power-up sequence. Do
not exceed the absolute maximum ratings because
stresses beyond the listed ratings may cause permanent damage to the devices.
Figure 4. Charge Injection
Figure 3. DG419L Break-Before-Make Interval
______________________________________Test Circuits/Timing Diagrams (continued)
LOGIC
INPUT
+3V
0
+10V
0.9 x V
OUT
V
COM
t
D
LOGIC
INPUT
NC
NO
IN
GND
INCLUDES FIXTURE AND STRAY CAPACITANCE.
C
L
V+
V+
DG419L
V-
V-
COM
R
L
300Ω
V
C
L
35pF
OUT
V
OUT
IN
OFF
OFF
IN
IN DEPENDS ON SWITCH CONFIGURATION;
INPUT POLARITY DETERMINED BY SENSE OF SWITCH.
Q = ∆V
ON
ON
OUT
x C
L
∆V
OUT
N.C.
COM
OFF
OFF
V
GEN
GND
V+
V+
V-
V-
= +3V
V
IN
NC OR
NO
DG417L
DG418L
DG419L
C
L
1nF
V
OUT
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
10 ______________________________________________________________________________________
Figure 5. Off-Isolation Figure 6. DG419L Crosstalk
Figure 7. Channel Off-Capacitance
Figure 8. Channel On-Capacitance
Test Circuits/Timing Diagrams (continued)
PART TEMP. RANGE PIN-PACKAGE
DG418LEUA
-40°C to +85°C
8 µMAX
DG418LDY -40°C to +85°C 8 SO
8 Plastic DIP-40°C to +85°CDG418LDJ
DG419LEUA
-40°C to +85°C
8 µMAX
8 SO-40°C to +85°CDG419LDY
DG419LDJ -40°C to +85°C 8 Plastic DIP
Ordering Information (continued)
______________________Chip Information
TRANSISTOR COUNT: 40
PROCESS: CMOS
10nF
SIGNAL
GENERATOR 0dBm
NETWORK
ANALYZER
C
L
V+
10nF
V+
COM
NC OR
NO
R
L
GND
N.C.
V-
V-
DG417L
DG418L
DG419L
IN
10nF
0 or
2.4V
SIGNAL
GENERATOR 0dBm
0 or 2.4V
NETWORK
ANALYZER
R
L
COM
IN
NO
V+
V+
GND
N.C.
DG419L
NC
COM
V-
V-
50Ω
10nF
10nF
V+
DG417L
DG418L
IN
DG419L
0 or
2.4V
10nF
CAPACITANCE
METER
f = 1MHz
COM
NC OR
NO
V+
GND
N.C.
V-
V-
10nF
V+
DG417L
DG418L
DG419L
CAPACITANCE
METER
f = 1MHz
COM
NC OR
NO
V+
GND
N.C.
V-
V-
IN
0 or
2.4V
10nF
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
______________________________________________________________________________________ 11

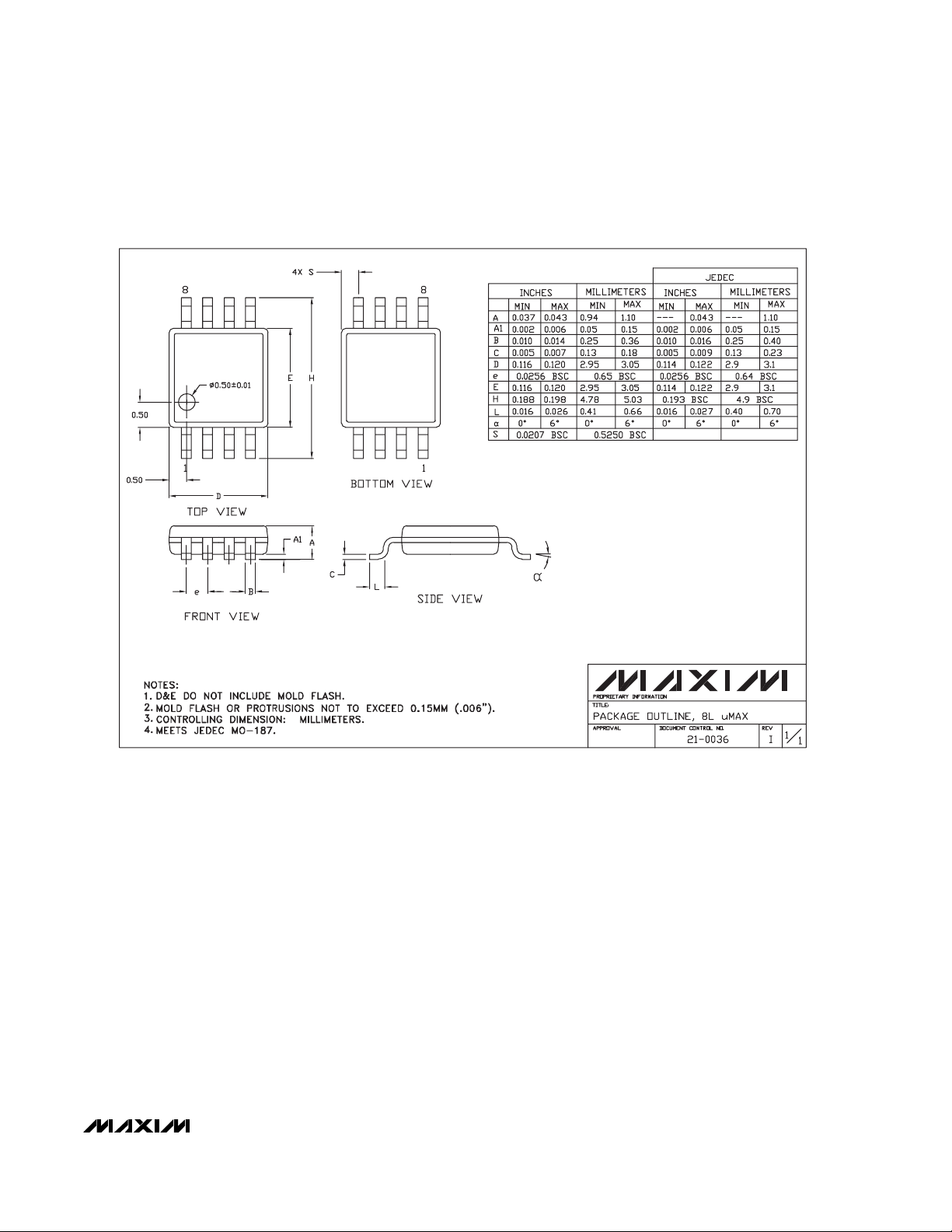

________________________________________________________Package Information
8LUMAXD.EPS
DG417L/DG418L/DG419L
35Ω, SPST/SPDT, +3V
Logic-Compatible Analog Switches
12 ______________________________________________________________________________________
___________________________________________Package Information (continued)
SOICN.EPS
35Ω, SPST/SPDT, +3V
Logic Compatible Analog Switches
DG417L/DG418L/DG419L
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
13 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2001 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
___________________________________________Package Information (continued)
PDIPN.EPS
Loading...
