General Description
The DG201A and DG211 are normally closed, quad
single-pole single-throw (SPST) analog switches. These
CMOS switches can be continuously operated with
power supplies ranging from ±4.5V to ±18V. Maxim
guarantees that these switches will not latch up if the
power supplies are disconnected with input signals still
connected.
Both devices have guaranteed break-before-make
switching. The DG201A differs from the DG211 primarily in switching speeds. The DG201A has a maximum
turn-off time of 450ns and a maximum turn-on time of
600ns. The DG211 has a maximum turn-off time of
500ns and a maximum turn-on time of 1000ns.
Compared to the original manufacturer’s products,
Maxim’s DG201A and DG211 consume significantly
lower power making them better suited for portable
applications. Maxim has also eliminated the need for
the third (VL) power supply that is required for the operation of the original manufacturer’s DG211.
Applications
Winchester Disk Drives
Test Equipment
Communications Systems
PBX, PABX
Guidance and Control Systems
Head Up Displays
Military Radios
Features
♦ Guaranteed ±4.5V to ±18V Operation
♦ No V
L
Supply Required
♦ Nonlatching with Supplies Turned Off and Input
Signals Present
♦ CMOS and TTL Logic Compatible
♦ Monolithic, Low-Power CMOS Design
DG201A/DG211
Quad SPST CMOS Analog Switches
________________________________________________________________ Maxim Integrated Products 1
TOP VIEW
DIP/SO/TSSOP
LOGIC SWITCH
0
1
ON
OFF
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
IN2
D2
S2
V+
V-
S1
D1
IN1
DG201A
DG211
N.C.
S3
D3
IN3
IN4
D4
S4
GND
Pin Configurations
Ordering Information
19-3959; Rev 2; 5/06
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
PART TEMP RANGE PIN-PACKAGE
DG201ACUE
0°C to +70°C 16 TSSOP
DG201ACSE 0°C to +70°C 16 SO
DG201ACJ 0°C to +70°C 16 Plastic DIP
DG201C/D 0°C to +70°C Dice
DG201AEGE -40°C to +85°C 16 QFN (5 ✕ 5)
DG201AEUE -40°C to +85°C 16 TSSOP
DG201ADY -40°C to +85°C 16 SO
DG201ADJ -40°C to +85°C 16 Plastic DIP
DG201AAK -55°C to +125°C 16 CERDIP
DG201ABK -25°C to +85°C 16 CERDIP
DG211CUE
0°C to +70°C 16 TSSOP
DG211CSE 0°C to +70°C 16 SO
DG211CJ 0°C to +70°C 16 Plastic DIP
DG211C/D 0°C to +70°C
Dice
DG211EGE
-40°C to +85°C 16 QFN (5
✕ 5)
DG211EUE
-40°C to +85°C
16 TSSOP
DG211DY -40°C to +85°C 16 SO
DG211DJ -40°C to +85°C 16 Plastic DIP
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
+15V
DG201A
DG211
-15V
VIN x 10V
*
*
*
*
5kΩ
10kΩ
40kΩ
20kΩ
5kΩ
V
OUT
PROGRAMMABLE GAIN AMPLIFIER
NOTE: *PINS 1, 8, 9, AND 16 ARE LOGIC CONTROL INPUTS
Typical Operating Circuit
Pin Configurations continued at end of data sheet.
DG201A/DG211
Quad SPST CMOS Analog Switches
2 _______________________________________________________________________________________
ABSOLUTE MAXIMUM RATINGS (DG211)
ELECTRICAL CHARACTERISTICS (DG211)
(V+ = +15V, V- = -15V, GND = 0, TA= +25°C, unless otherwise noted.) (For more information on TYP values see Note 2.)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
V+ to V-………………………………….............……………….44V
V
IN
to Ground…………………………..................…. ……...V-, V+
V
L
to Ground………....................……………………….-0.3V, 25V
V
S
or VDto V+……...........................………………………0, -40V
V
S
or VDto V-……………........................…………………..0, 40V
V+ to Ground…………………...................................………...25V
V- to Ground…………………………………….................…...-25V
Current, Any Terminal Except S or D……….............……...30mA
Continuous Current, S or D……………………..............…...20mA
Peak Current, S or D
(pulsed at 1ms 10% duty cycle max)…..........................70mA
Storage Temperature Range……………..……..-65°C to +125°C
Operating Temperature Range
DG211C................................……………...……...0°C to +70°C
DG211D/E .........................……………...……...-40°C to +85°C
Power Dissipation (T
A
= +70°C) (Note 1)
16-Pin Plastic Dip (derate 10.5mW/°C above +70°C) ..842mW
16-Pin Narrow SO (derate 8.3mW/°C above+70°C). ....696mW
16-Pin TSSOP (derate 9.4mW/°C above +70°C) ..........755mW
16-Pin QFN (5
✕ 5)
(derate 19.2mW/°C above +70°C).........................1538mW
PARAMETER
CONDITIONS MIN TYP
UNITS
SWITCH
Analog Signal Range
-15 15 V
Drain-Source ON-Resistance
)
VD = ±10V, VIN = 0.8V, IS = 1mA 115 175 Ω
VS = 14V, VD = -14V 0.01 5.0
Source OFF-Leakage Current
)
VS = -14V, VD = 14V -5.0 -0.02
VS = 14V, VD = -14V 0.01 5.0
Drain OFF-Leakage Current
)
VS = -14V, VD = 14V -5.0 -0.02
VS = VD = -14V 0.1 5.0
Drain ON-Leakage Current
(Note 3)
I
D (ON)
VS = VD = -14V -5.0 -0.15
nA
INPUT
V
IN
= 2.4V -1.0
Input Current with Input Voltage
High
I
INH
VIN = 15V
1.0
Input Current with Input Voltage
Low
I
INL
V
IN
= 0 -1.0
µA
DYNAMIC
Turn-ON Time t
ON
460
t
OFF1
360 500
Turn-OFF Time
t
OFF2
See Switching Time
Test Circuit
V
S
= 2V, RL = 1kΩ, CL = 35pF
450
ns
Source OFF-Capacitance
)
VS = 0, VIN = 5V, f = 1MHz 5
Drain OFF-Capacitance
)
VD = 0, VIN = 5V, f = 1MHz 5
Channel ON-Capacitance
)
VD = VS = 0, V
IN
= 0, f = 1MHz 16
pF
OFF-Isolation (Note 4) OIRR 70
Crosstalk
(Channel to Channel)
CCRR
V
IN
= 5V, RL = 1kΩ, CL = 15pF,
V
S
= 1VRMS, f = 100kHz
90
dB
Note 1: Device mounted with all leads soldered to PC board.
SYMBOL
MAX
V
ANALOG
R
DS (ON
I
S (OFF
I
D (OFF
VIN = 2.4V
VIN = 2.4V
VIN = 0.8V
C
S (OFF
C
D (OFF
C
D + S (ON
-0.0004
0.003
-0.0004
1000
DG201A/DG211
Quad SPST CMOS Analog Switches
_______________________________________________________________________________________ 3
ABSOLUTE MAXIMUM RATINGS (DG201A)
Voltages Reference to V-
V+………………………………………………..……………..44V
GND……………………………………………..……….…….25V
Digital Inputs (Note 1), V
S
, VD............................-2V to (V+ + 2V)
or 20mA, whichever occurs first
Current, Any Terminal Except S or D………..….…………...30mA
Continuous Current, S or D…………………………………...20mA
Peak Current, S or D
(pulsed at 1ms 10% duty cycle max)…………………….70mA
Operating Temperature Range
DG201AA.............…………........………..…...-55°C to +125°C
DG201AD/E .........………………….....…..….…-40°C to +85°C
DG201AC .............………........................…….…0°C to +70°C
Storage Temperature Range………………..…..-65°C to +150°C
Power Dissipation (Note 2)
16-Pin Plastic Dip (derate 10.5mW/°C above +70°C) ...842mW
16-Pin SO (derate 8.7mW/°C above +70°C) .................696mW
16-Pin TSSOP (derate 9.4mW/°C above +70°C) ...........755mW
16-Pin QFN (5
✕ 5)
(derate 19.2mW/°C above +70°C)...........................1538mW
16-Pin CERDIP (derate 10.0mW/°C above +70°C)......800mW
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
DG201AA DG201AC, D, E
PARAMETER
CONDITIONS
UNITS
SWITCH
Analog Signal Range
V
Drain-Source ON Resistance
)
VD = ±10V, VIN = 0.8V, IS = 1mA
Ω
Source OFF-Leakage Current
)
Drain OFF-Leakage Current
)
VS = -14V
Drain ON-Leakage Current
(Note 4)
)
VS = 14V
nA
ELECTRICAL CHARACTERISTICS (DG201A)
(V+ = +15V, V- = -15V, GND = 0, TA= +25°C, unless otherwise noted.) (For more information on TYP values see Note 3.)
ELECTRICAL CHARACTERISTICS (DG211) (continued)
(V+ = +15V, V- = -15V, GND = 0, TA= +25°C, unless otherwise noted.) (For more information on TYP values see Note 2.)
PARAMETER
SYMBOL
CONDITIONS MIN TYP
MAX
UNITS
SUPPLY
Positive Supply Current I
+
0.02 0.4
Negative Supply Current I
-
0.01 0.4
Logic Supply Current I
L
VIN = 0 and 2.4V (all)
00
mA
Power-Supply Range
for Continous Operation
V
OP
±4.5 ±18 V
Note 1: Signals on S_, D_, or IN_exceeding V+or V-on Maxim’s DG201A will be clamped by internal diodes, and are also internally cur-
rent limited to 25mA.
Note 2: Device mounted with all leads soldered to PC board.
Note 2: Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
Note 3: I
D(ON)
is leakage from driver into “ON” switch.
Note 4: OFF-Isolation = 20 log V
S/VD
, VS= input to OFF switch, VD= output.
SYMBOL
V
ANALOG
R
DS (ON
I
S (OFF
I
D (OFF
I
D (ON
VIN = 2.4V
VIN = 2.4V
VIN = 0.8V
MIN TYP MAX MIN TYP MAX
-15 15 -15 15
115 175 115 200
VS = 14V, VD = -14V 0.01 1.0 0.01 5.0
= -14V, VD = 14V -1.0 -0.02 -5.0 -0.02
V
S
VS = 14V, VD = -14V 0.01 1.0 0.01 5.0
= -14V, VD = 14V -1.0 -0.02 -5.0 -0.02
V
S
0.1 1.0 0.1 1.0
-1.0 -1.0
DG201A/DG211
Quad SPST CMOS Analog Switches
4 _______________________________________________________________________________________
Note 3: Typical values are for DESIGN AID ONLY, not guaranteed nor subject to production testing.
Note 4: I
D (ON)
is leakage from driver into “ON” switch.
DG201AA DG201AC, D, E
PARAMETER
CONDITIONS
UNITS
INPUT
VIN = 2.4V
Input Current with Input
Voltage High
I
INH
VIN = 15V
Input Current with Input
Voltage Low
I
INL
VIN = 0+
µA
DYNAMIC
Turn-ON Time t
ON
Turn-OFF Time t
OFF1
See Figure 1 Switching Time
Test Circuit
ns
Charge Injection Q
C
L
= 1000pF, V
GEN
= 0,
R
GEN
= 0
pC
Source OFF-Capacitance
)
55
Drain OFF-Capacitance
)
VS = 0,
V
IN
= 5V
55
Channel ON-Capacitance
)
)
VD = VS = 0,
V
IN
= 0
f = 140kHz
pF
OFF-Isolation VIN = 5V, ZL = 75Ω
Crosstalk
(Channel to Channel)
V
S
= 2.0V, f = 100kHz
dB
SUPPLY
Positive Supply Current I
+
All channels ON or OFF
mA
Negative Supply Current I
-
All channels ON or OFF
Power-Supply Range for
Continuous Operation
V
OP
V
ELECTRICAL CHARACTERISTICS (DG201A) (continued)
(V+ = +15V, V- = -15V, GND = 0, TA= +25°C, unless otherwise noted.) (For more information on TYP values see Note 3.)
SYMBOL
C
S (OFF
C
D (OFF
C
D (ON
+ C
S (ON
MIN TYP MAX MIN TYP MAX
-1.0 -1.0
1.0 1.0
-1.0 -1.0
480 600 480 600
370 450 370 450
20 20
16 16
70 70
90 90
0.02 0.1 0.02 0.1
-0.1 -0.01 -0.1 -0.01
±4.5 ±18 ±4.5 ±18
_______________________________________________________________________________________ 5
DG201A/DG211
Quad SPST CMOS Analog Switches
ELECTRICAL CHARACTERISTICS (DG201A)
(V+ = +15V, V- = -15V, GND = 0, TA= full opearting temperature range, unless otherwise noted.) (For more information on TYP
values see Note 3.)
DG201AA DG201AC, D, E
PARAMETER
SYMBOL
CONDITIONS
UNITS
SWITCH
Analog Signal Range
V
D r ai n- S our ce ON Resi stance
( N ote 5)
)
VD = ±10V, VIN = 0.8V, IS = 1mA
Ω
Source OFF Leakage Current
)
Drain OFF Leakage Current
)
VS = -14V
Drain ON Leakage
Current (Note 6)
)
VD = 14V
nA
INPUT
V
IN
= 2.4V
Input Current with Input
Voltage High
I
INH
VIN = 15V
Input Current with Input
Voltage Low
I
INL
V
IN
= 0
µA
Note 5: Electrical characteristics, such as ON-Resistance, will change when power supplies other than ±15V, are used.
Note 6: I
D (ON)
is leakage from driver into “ON” switch.
PIN
DIP/SO/TSSOP
QFN
NAME FUNCTION
1, 16, 9, 8 15, 14, 7, 6
Input
2, 15, 10, 7 16, 13, 8, 5 D1–D4 Analog Switch Drain Terminal
3, 14, 11, 6 1, 12, 9, 4 S1–S4 Analog Switch Source Terminal
42V- Negative-Supply Voltage Input
53GND Ground
12 10 N.C. No Connection
13 11 V+ Positive-Supply Voltage Input—Connected to Substrate
Pin Description
Switching Time Test Circuit
Switch output waveform shown for VS= constant with
logic input waveform as shown. Note that VSmay be
+ve or -ve as per switching times test circuit. VOis the
steady state output with switch on. Feedthrough via
gate capacitance may result in spikes at leading and
trailing edge of output waveform.
MIN TYP MAX MIN TYP MAX
V
ANALOG
R
DS (ON
I
S (OFF
I
D (OFF
I
D (ON
VIN = 2.4V
VIN = 2.4V
VIN = 0.8V
VS = 14V, VD = -14V 100 100
= -14V, VD = 14V -100 -100
V
S
VS = 14V, VD = -14V 100 100
= -14V, VD = 14V -100 -100
V
S
-15 15 -15 15
250 250
200 200
-200 -200
-1.0 -1.0
1.0 1.0
-1.0 -1.0
IN1–IN4
DG201A/DG211
Quad SPST CMOS Analog Switches
6 _______________________________________________________________________________________
R
DS(ON)
AT ANALOG SIGNAL LEVEL
POWER SUPPLIES
-5V +5V -10V +10V -15V +15V
±5V 350Ω 380Ω ————
±10V — — 165Ω 250Ω ——
±15V — — 125Ω 160Ω 135Ω 155Ω
Typical R
DS(ON)
vs. Power Supplies for Maxim’s DG201A, and DG211
Protecting Against Fault
Conditions
Fault conditions occur when power supplies are turned
off when input signals are still present, or when overvoltages occur at the inputs during normal operation. In
either case, source-to-body diodes can be forward
biased and conduct current from the signal source. If
this current is required to be kept to low (µA) levels
then the addition of external protection diodes is recommended.
To provide protection for overvoltages up to 20V above
the supplies, a 1N4001 or 1N914 type diode should be
placed in series with the positive and negative supplies
as shown in Figure 2. The addition of these diodes will
reduce the analog signal range to 1V below the positive supply and 1V above the negative supply.
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
DG201A
DG211
IN4001
-15V
IN4001
+15V
Figure 2. Protection against Fault Conditions
LOGIC "0" - SW ON
3V
V
S
0
LOGIC
INPUT
t
f
< 20ns
t
r
< 20ns
SWITCH
INPUT
SWITCH
OUTPUT
50%
0
V
0
0.9
t
ON
V
0
V
0
0.9
0.1
t
off1
t
off2
Ω
SWITCH
INPUT
S
1
VS = +2V
IN
1
LOGIC
INPUT
GND
0
V-
-15V
+15V
V
+
D
1
R
L
1kΩ
C
L
35pF
V
0
SWITCH
OUTPUT
(REPEAT TEST FOR IN
2
, IN3, AND IN4)
V0 = V
S
R
L
RL + R
DS(ON)
Pin Configurations (continued)
Figure 1. Switching Time
TOP VIEW
GND
D1 IN1 IN2 D2
16 15 14 13
S1
1
V-
2
3
S4
4
DG201A
DG211
678
5
D4 IN4 IN3 D3
QFN*
12
S2
11
V+
N.C.
10
S3
9
DG201A/DG211
Quad SPST CMOS Analog Switches
_______________________________________________________________________________________ 7
SOICN .EPS
PACKAGE OUTLINE, .150" SOIC
1
1
21-0041
B
REV.DOCUMENT CONTROL NO.APPROVAL
PROPRIETARY INFORMATION
TITLE:
TOP VIEW
FRONT VIEW
MAX
0.010
0.069
0.019
0.157
0.010
INCHES
0.150
0.007
E
C
DIM
0.014
0.004
B
A1
MIN
0.053A
0.19
3.80 4.00
0.25
MILLIMETERS
0.10
0.35
1.35
MIN
0.49
0.25
MAX
1.75
0.050
0.016L
0.40 1.27
0.3940.386D
D
MINDIM
D
INCHES
MAX
9.80 10.00
MILLIMETERS
MIN
MAX
16
AC
0.337 0.344 AB8.758.55 14
0.189 0.197 AA5.004.80 8
N MS012
N
SIDE VIEW
H 0.2440.228 5.80 6.20
e 0.050 BSC 1.27 BSC
C
HE
e
B
A1
A
D
0∞-8∞
L
1
VARIATIONS:
Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages
.)
DG201A/DG211
Quad SPST CMOS Analog Switches
8 _______________________________________________________________________________________
PDIPN.EPS
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages
.)
DG201A/DG211
Quad SPST CMOS Analog Switches
_______________________________________________________________________________________ 9
CDIPS.EPS
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages
.)
DG201A/DG211
Quad SPST CMOS Analog Switches
10 ______________________________________________________________________________________
TSSOP4.40mm.EPS
PACKAGE OUTLINE, TSSOP 4.40mm BODY
21-0066
1
1
G
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages
.)
DG201A/DG211
Quad SPST CMOS Analog Switches
______________________________________________________________________________________ 11

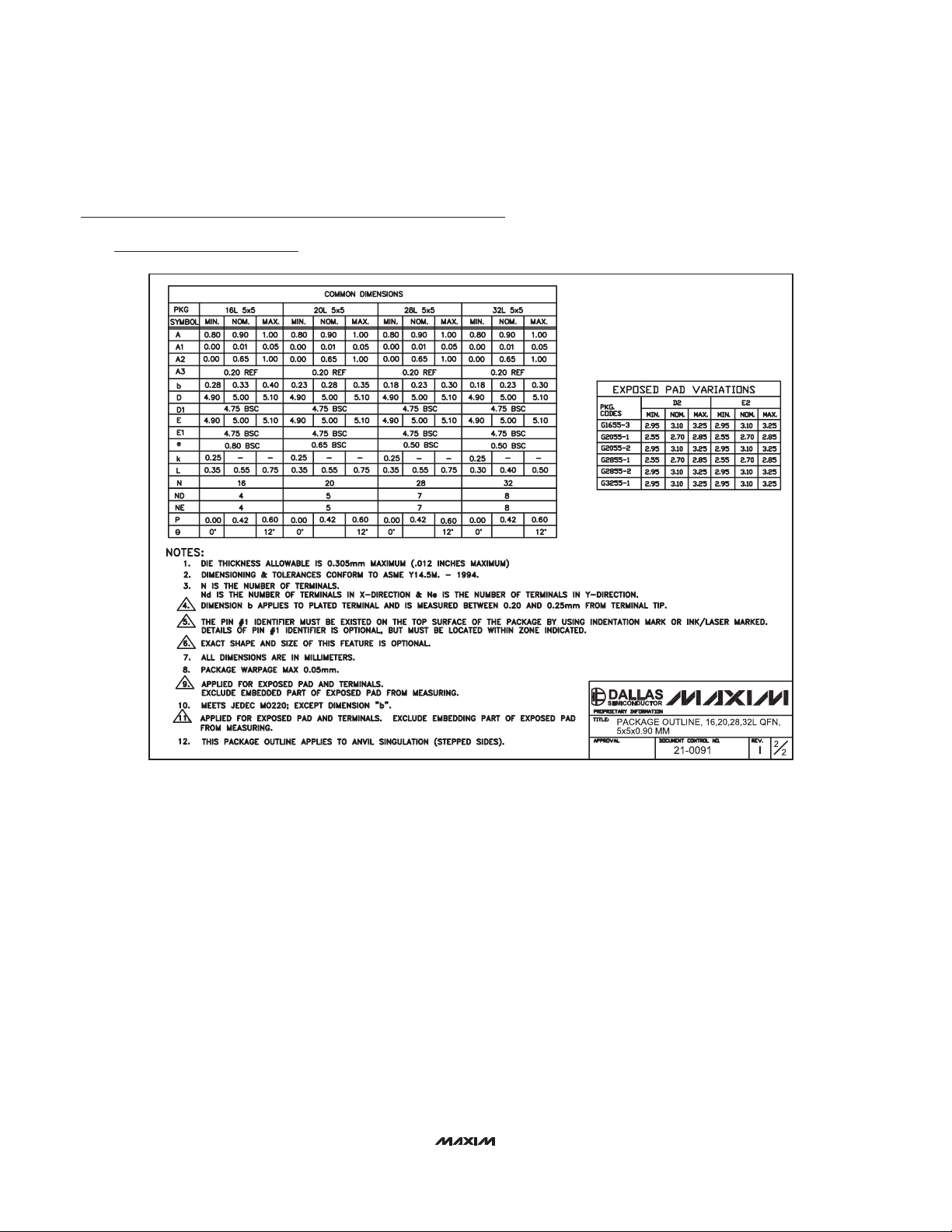

32L QFN.EPS
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages
.)
DG201A/DG211
Quad SPST CMOS Analog Switches
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
12 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2006 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.
Package Information (continued)
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information,
go to www.maxim-ic.com/packages
.)
Loading...
