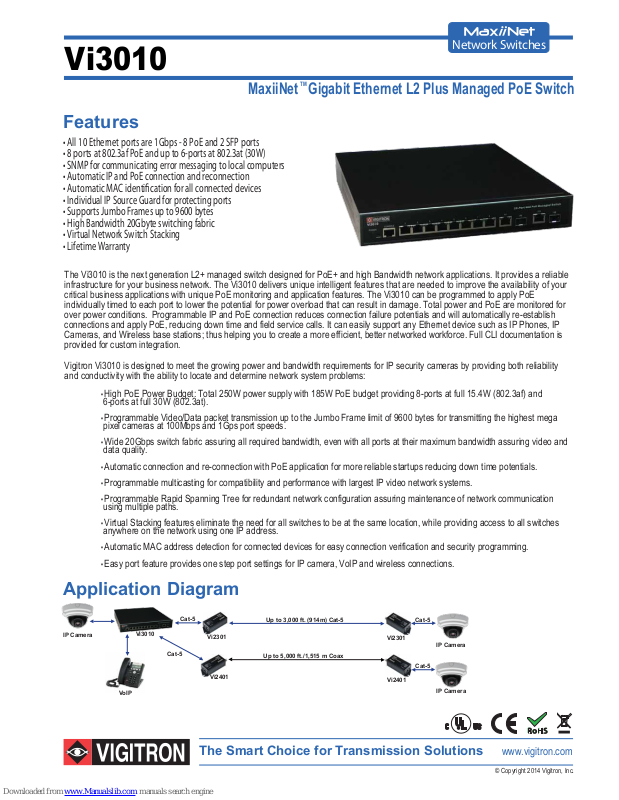

Network Switches

Vi3010

MaxiiNet Gigabit Ethernet L2 Plus Managed PoE Switch

Features

• All 10 Ethernet ports are 1Gbps - 8 PoE and 2 SFP ports

• 8 ports at 802.3af PoE and up to 6-ports at 802.3at (30W)

• SNMP for communicating error messaging to local computers

• Automatic IP and PoE connection and reconnection

• Automatic MAC identication for all connected devices

• Individual IP Source Guard for protecting ports

• Supports Jumbo Frames up to 9600 bytes

• High Bandwidth 20Gbyte switching fabric

• Virtual Network Switch Stacking

• Lifetime Warranty

The Vi3010 is the next generation L2+ managed switch designed for PoE+ and high Bandwidth network applications. It provides a reliable infrastructure for your business network. The Vi3010 delivers unique intelligent features that are needed to improve the availability of your critical business applications with unique PoE monitoring and application features. The Vi3010 can be programmed to apply PoE individually timed to each port to lower the potential for power overload that can result in damage. Total power and PoE are monitored for over power conditions. Programmable IP and PoE connection reduces connection failure potentials and will automatically re-establish connections and apply PoE, reducing down time and field service calls. It can easily support any Ethernet device such as IP Phones, IP Cameras, and Wireless base stations; thus helping you to create a more efficient, better networked workforce. Full CLI documentation is provided for custom integration.

Vigitron Vi3010 is designed to meet the growing power and bandwidth requirements for IP security cameras by providing both reliability and conductivity with the ability to locate and determine network system problems:

•

High PoE Power Budget: Total 250W power supply with 185W PoE budget providing 8-ports at full 15.4W (802.3af) and

6-ports at full 30W (802.3at).

•

Programmable Video/Data packet transmission up to the Jumbo Frame limit of 9600 bytes for transmitting the highest mega

pixel cameras at 100Mbps and 1Gps port speeds.

•

Wide 20Gbps switch fabric assuring all required bandwidth, even with all ports at their maximum bandwidth assuring video and

data quality.

•

Automatic connection and re-connection with PoE application for more reliable startups reducing down time potentials.

Programmable multicasting for compatibility and performance with largest IP video network systems.

Programmable Rapid Spanning Tree for redundant network configuration assuring maintenance of network communication

using multiple paths.

•

Virtual Stacking features eliminate the need for all switches to be at the same location, while providing access to all switches

anywhere on the network using one IP address.

•

Automatic MAC address detection for connected devices for easy connection verification and security programming.

Easy port feature provides one step port settings for IP camera, VoIP and wireless connections.

Application Diagram

IP Camera

VoIP

Vi3010

Cat-5

Vi2301

Cat-5

Vi2401

Up to 3,000 ft. (914m) Cat-5

Up to 5,000 ft./1,515 m Coax

Vi2301

Vi2401

Cat-5

IP Camera

Cat-5

IP Camera

The Smart Choice for Transmission Solutions www.vigitron.com

RoHS

Page 2

Technical Specifications

Electrical

Ethernet Interface RJ-45 10/100Mbps/ 1Gbps port

Throughput 95.232Mbps

Power 100-240 VAC 50~60 Hz, internal, universal

Status LEDs Power, traffic, link, and PoE

Switch Capacity 35.712 MPPS, 20 Gbps

Ports Total System Ports: 10, 1Gbps RJ-45 Ports: 10 GbE RJ-45/SFP(100/1G) Combo: 2

PoE Compatibility IEEE 802.3af, IEEE 802.3at Supports per port PoE configuration function Supports per port PoE scheduling to turn on/off the PoE

Jumbo Frame Support Yes

Mac Table Up to 8K MAC addresses

Regulatory

FCC Part 15, Class A

Safety CE, UL, cUL

Environmental WEEE/RoHS

Environmental

Humidity 0 to 95%, non-condensing

Temperature Operating: 32° to 104° F; 0° to 40° C

Storage: -4° to 158° F; -20° to 70°C

Operating Humidity 10% to 90%, relative, noncondensing

Mechanical

Dimensions 44mm x 208mm x 166mm;

1.75” x 8.2” x 6.5” (HxWxL)

Weight 2.97lbs / 1.35kg

Material Extruded Aluminum

Product

Vi3010

Ordering Information

Part No. Description

Vi3010 8 port - 10/100/1000Base -T + 2 Combo RJ-45/SFP PoE L2 Plus Managed Switch

Compatiable ANSI/IEEE

Standards

Compatiable IEEE/ANSI Standard

IEEE 802,3 IEEE 802.3u IEEE 802.3ab IEEE802.3z IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.1q IEEE 802.1p IEEE 802.1x IEEE 802.1d IEEE 802.1w IEEE 802.1s IEEE 802.1ad IEEE 802.1AB IEEE 802.3az IEEE 802.3ad IEEE 802.1Q ANSI/IEEE 802.3

Ethernet 10baseT UTP Fast Ethernet 1000baseTX UTP Ethernet 1000baseTX UTP Ethernet 1000baseX Power over Ethernet Power over Ethernet; Type 1 and Type 2 Flow control Capability VLAN Class of Service Access Control Spanning Tree Rapid Spanning Tree Multiple Spanning Tree Link Aggregation Control Protocol (LACP) Link Layer Discovery Protocol (LLDP) Energy Efficient Ethernet Task Trunking Tag Based VLAN Auto – negotiation

Accessories

• Switch

• Power Cord

• Mounting Kit

• Console Cable

• CD-ROM includes: Operations Manual, CLI Document, Quick Install Guide, and Quick Set-Up Guide

Minimum Requirements

• Web browser: Mozilla Firefox version 2.5 or later, Microsoft Internet Explorer version 6 or later

• Category 5 Ethernet network cable

• TCP/IP, network adapter, and network operating system

(such as Microsoft Windows or Linux) installed on each computer in network.

TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205

7810 Trade Street, Suite 100, San Diego, CA 92121, USA • [email protected] • www.vigitron.com

Page 3

Technical Specifications

Layer 2 Plus

Spanning Tree Standard Spanning Tree 802.1d Protocol (STP) Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s

Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad

● Up to 13 groups

● Up to 16 ports per group

VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)

● Port-based VLAN

● 802.1Q tag-based VLAN

● MAC-based VLAN

● Management VLAN

● Private VLAN Edge (PVE)

Easy Port Voice or IP video is automatically assigned to specific VLANS with appropriates levels of QoS.

Generic VLAN Protocol for automatically propagating and configuring VLANs in a bridged domain. Registration (GVRP)

DHCP Relay Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82. (Layer 2)

IGMP v1/v2/v3 IGMP limits bandwidth-intensive multicast traffic to only the requesters.

Snooping

IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router.

IGMP Proxy Supports IGMP Proxy

MLD v1/v2 Delivers IPv6 multicast packets only to the required receivers.

Snooping

Security

Secure Shell SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported. (SSH)

Secure Sockets SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch.

Layer (SSL)

IEEE 802.1X IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions.

Supports IGMP-RADIUS based 802.1X

Dynamic VLAN assignment

Layer 2 isolation PVE (also knows as protected ports) provides L2 isolation between clients in the same VLAN. Private VLAN Supports multiple uplinks. Edge (PVE)

Port Security Locks MAC Addresses to ports and limits the number of learned MAC addresses.

IP Source Guard Prevents datagram with spoofed addresses from being in the network.

Radius/ Tacacs+ Supports RADIUS and TACACS+ authentication. Switch as a client.

Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port.

ACLs Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control

Message Protocol (ICMP) packets, IGMP packets, TCP flag. Supports up to 256 entries.

TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205 7810 Trade Street, Suite 100, San Diego, CA 92121, USA • [email protected] • www.vigitron.com

Page 4

Technical Specifications

Quality of Service

Hardware Supports 8 hardware queues. Priority Queue

Scheduling Strict priority and weighted round-robin (WRR). Queue assignment based on DSCP and class of service (802.1p/ CoS).

Classification Port based; 802.1p VLAN priority based; IPv4/IPv6 precedence/ type of service (ToS) / DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS.

Rate Limiting Ingress policer; egress shaping and rate control; per VLAN, per port and flow based.

IPv6/IPv4 Web/ SSL, Telnet/ SSH, Png, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, Applications Syslog, DNS Client, Protocol-based VLANs.

Management

Web GUI Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs).

Interface Supports configuration, system dashboard, maintenance, and monitoring.

Dual Image Dual image provides independent primary and secondary OS files for backup while upgrading.

SNMP SNMP version1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM).

(RMON) Remote Embedded RMON software agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) Monitoring

for enhanced traffic management, monitoring and analysis.

IPv4 and IPv6 Coexistence of both protocol stacks to migration.

dual stack

•

Firmware Upgrade

Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1

(N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.

Easy Port Easily to configure of clients’ QoS and security capabilities. Configuration

Other Single IP Management; HTTP/HTTPs; SSH; RADIUS; DHCP Client/ DHCPv6 Client; SNTP; Cable Diagnostics; Ping;

Syslog; Telnet Client (SSH secure support).

s-Flow The industry standard technology for monitoring high speed switched networks. It gives complete visibility into the use of

networks enabling performance optimization, accounting/billing for usage, and defense against security threats.

UPnP The Universal Plug-and-Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug-and-Play.

•

Web browser upgrade (HTTP/ HTTPs) and TFTP. Upgrade through console port as well.

Green Ethernet

Link Compliant with IEEE802.3az Energy Efficient Ethernet Task Force. Automatically turns off power on Gigabit Ethernet RJ-45

Detection port when detecting if the link is down or if the client is idle. Active mode is resumed without loss of any packets when the switch detects the link up.

Discovery

Link Layer Used by network devices for advertising their identities, capabilities, and neighbors on a IEEE 802 local area network, Discovery principally wired Ethernet. Protocol (LLDP)

TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205 7810 Trade Street, Suite 100, San Diego, CA 92121, USA • [email protected] • www.vigitron.com

Page 5

Notes

Benefits

The Vi3010 provides security, performance, quality of services, central management, and other network control capabilities. Optimized and customized design, and affordable pricing, it best fit for SMB or entry-level enterprise solution. It provides:

•

Excellent performance and reliability: The Vi3010 passed the rigorously testing to deliver excellent performance. As a managed switching solution, it also provides the flexibility to manage and prioritize suitable-bandwidth traffic and PoE for IP Cameras and Voice.

•

Easy, simple deployment and configuration: The device manager software provides an intuitive, web-based interface to simplify deployment, advanced security (ACLs, IP Source guard, VLAN…etc), and quality of service (QoS) traffic prioritization. This switch uses IEEE802.1AB LLDP to automatically discover all the devices (those support LLDP) connected to the network. For more advanced capabilities and easy-to-use graphical tools, such as EPC (Easy-Port-Configuration), it provides preset options for easily configuring each port of the switch. It will make setup easy when operating with IP phones, IP cameras or Wifi APs.

•

Strong security: The switch provides an advanced security and gives you tight control to safeguard the network from unauthorized users. Advanced security features include:

•

each session.

•

Video and Voice support: The switch can be easily configured with the specific VLAN and QoS parameters to prioritize IP Cameras and voice traffic whereas ensure consistent network performance for all services.

Secure remote management by supporting SSH, SSL, and SNMPv3 connection which encrypt the packet content at

•

Extensive access control lists (ACLs) to restrict sensitive portions of the network from unauthorized users or guests.

•

Guest virtual LANs (VLANs) provide Internet connectivity to guests while isolating critical traffic from guest traffic.

•

IP Source Guard to prevent datagrams with spoofed addresses from being in the network.

•

IEEE802.1X port security to tightly limit access to specific segments of network.

•

Advanced network management capabilities: As a managed switch, it helps you to use a variety of advanced managing features to manage traffic over your network. Features include:

•

version of the Internet Protocol, as well as the previous IPv4 standard. As the result, you have the ability to move up to the next generation of networking applications without an extensive equipment upgrade.

•

manage Vi3010 and other Vigitron switches in the network remotely, instead of having to directly connect to them.

•

Energy efficiency: Vi3010 is designed to comply with IEEE802.3az, energy efficient Ethernet protocol, reducing energy costs

without compromising performance. Power-saving features include:

•

thinner, more efficient designs.

•

Expansion ports: All 10 Ethernet ports on the Vi3010 are 1Gbps. It also offers a RJ-45/SFP combo. 8 ports provide PoE and 2 100/1G SFP ports for uplinks to Fast Ethernet or Gigabit Ethernet fiber optic networks.

Disclaimer

No liability is assumed for any misprint or technical change in this document. Pricing and specifications are subject to change without notice. All brand names and trademarks are registered property of Vigitron.
