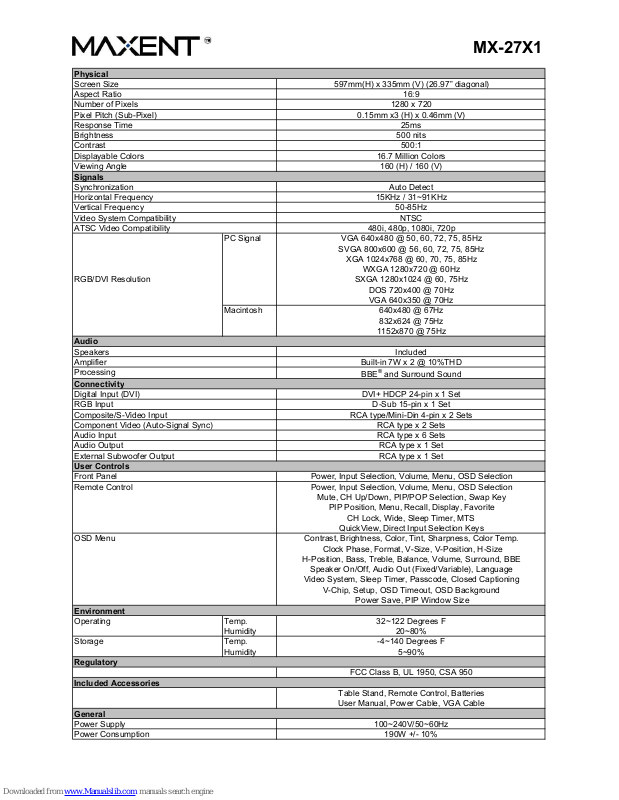

MX-27X1
g
d
y
t
g
y
s
Physical
Screen Size 597mm(H) x 335mm (V) (26.97” diagonal)
Aspect Ratio 16:9
Number of Pixels 1280 x 720
Pixel Pitch (Sub-Pixel) 0.15mm x3 (H) x 0.46mm (V)
Response Time 25ms
Brightness 500 nits
Contrast 500:1
Displayable Colors 16.7 Million Colors
Viewing Angle 160 (H) / 160 (V)
nals
Si
Synchronization Auto Detect
Horizontal Frequency 15KHz / 31~91KHz
Vertical Frequency 50-85Hz
Video System Compatibility NTSC
ATSC Video Compatibility 480i, 480p, 1080i, 720p
PC Signal VGA 640x480 @ 50, 60, 72, 75, 85Hz
SVGA 800x600 @ 56, 60, 72, 75, 85Hz
XGA 1024x768 @ 60, 70, 75, 85Hz
WXGA 1280x720 @ 60Hz
RGB/DVI Resolution
Macintosh 640x480 @ 67Hz
Audio
Speakers Included
Amplifier Built-in 7W x 2 @ 10%THD
Processing
Connectivit
Digital Input (DVI) DVI+ HDCP 24-pin x 1 Set
RGB Input D-Sub 15-pin x 1 Set
Composite/S-Video Input RCA type/Mini-Din 4-pin x 2 Sets
Component Video (Auto-Signal Sync) RCA type x 2 Sets
Audio Input RCA type x 6 Sets
Audio Output RCA type x 1 Set
External Subwoofer Output RCA type x 1 Set
User Controls
Front Panel Power, Input Selection, Volume, Menu, OSD Selection
Remote Control Power, Input Selection, Volume, Menu, OSD Selection
Mute, CH Up/Down, PIP/POP Selection, Swap Key
OSD Menu Contrast, Brightness, Color, Tint, Sharpness, Color Temp.
Clock Phase, Format, V-Size, V-Position, H-Size
H-Position, Bass, Treble, Balance, Volume, Surround, BBE
Speaker On/Off, Audio Out (Fixed/Variable), Language
Video System, Sleep Timer, Passcode, Closed Captioning
V-Chip, Setup, OSD Timeout, OSD Background
Environmen
Operating Temp. 32~122 Degrees F
Humidity 20~80%
Storage Temp. -4~140 Degrees F
Humidity 5~90%
ulator
Re
Included Accessorie
General
Power Supply 100~240V/50~60Hz
Power Consumption 190W +/- 10%
SXGA 1280x1024 @ 60, 75Hz
DOS 720x400 @ 70Hz
VGA 640x350 @ 70Hz
832x624 @ 75Hz
1152x870 @ 75Hz
®
and Surround Soun
BBE
PIP Position, Menu, Recall, Display, Favorite
CH Lock, Wide, Sleep Timer, MTS
QuickView, Direct Input Selection Keys
Power Save, PIP Window Size
FCC Class B, UL 1950, CSA 950
Table Stand, Remote Control, Batteries
User Manual, Power Cable, VGA Cable
