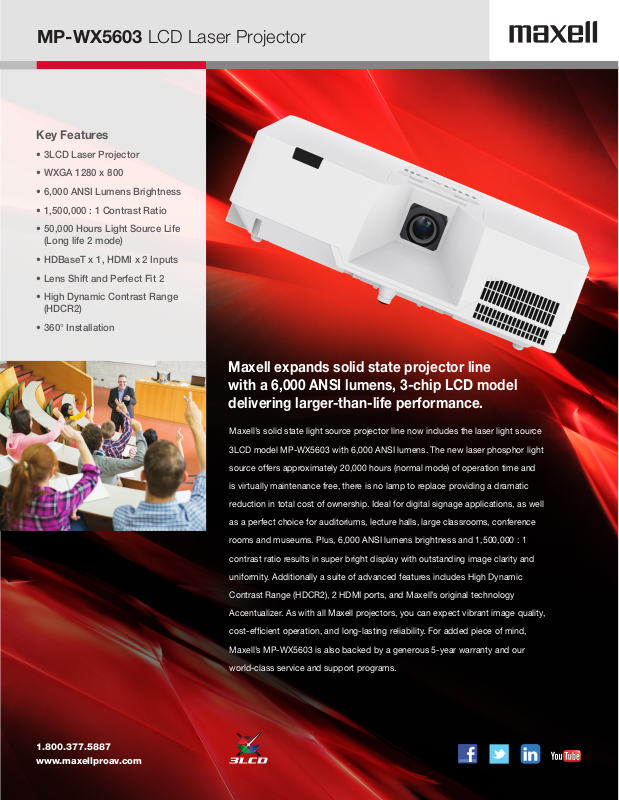

Maxell MP-WX5603 Product Sheet

MP-WX5603 LCD Laser Projector

Key Features

• 3LCD Laser Projector

• WXGA 1280 x 800

• 6,000 ANSI Lumens Brightness

• 1, 500,000 : 1 Contrast Ratio

• 50,000 Hours Light Source Life
(Long life 2 mode)

• HDBaseT x 1, HDMI x 2 Inputs

• Lens Shift and Perfect Fit 2

• High Dynamic Contrast Range
(HDCR2)

• 360° Installation

Maxell expands solid state projector line
with a 6,000 ANSI lumens, 3-chip LCD model
delivering larger-than-life performance.

Maxell’s solid state light source projector line now includes the laser light source

3LCD model MP-WX5603 with 6,000 ANSI lumens. The new laser phosphor light

source offers approximately 20,000 hours (normal mode) of operation time and

is virtually maintenance free, there is no lamp to replace providing a dramatic

reduction in total cost of ownership. Ideal for digital signage applications, as well

as a perfect choice for auditoriums, lecture halls, large classrooms, conference

rooms and museums. Plus, 6,000 ANSI lumens brightness and 1,500,000 : 1

contrast ratio results in super bright display with outstanding image clarity and

uniformity. Additionally a suite of advanced features includes High Dynamic

Contrast Range (HDCR2), 2 HDMI ports, and Maxell’s original technology

Accentualizer. As with all Maxell projectors, you can expect vibrant image quality,

cost-efcient operation, and long-lasting reliability. For added piece of mind,

Maxell’s MP-WX5603 is also backed by a generous 5-year warranty and our

1.800.377.5887

www.maxellproav.com

world-class service and support programs.

MP-WX5603 LCD Laser Projector

settings

Long Life 20,000 Hours Laser Light Source

Light source combines blue laser diodes and phosphor which can achieve
over 6,000 lumens. The projection image is bright and clear, with vivid colors.
Since lamp replacement is unnecessary, maintenance cost is reduced and by
not using mercury lamps, the projectors are eco-friendly.

Plus, Maxell’s unique cooling system can achieve a low noise level of 27dB
in whisper mode. The life of the light source is approximately 20,000 hours
at normal mode but by using other modes which reduce the brightness or
operation period, its life can be extended up to 50,000 hours. These mode
settings can be used for different purposes depending on the application of
the projector.

UNIQUE FEATURES

Accentualizer

Maxell original technology makes pictures look more real by enhancing
sharpness, gloss and shade to make pictures as clear as pictures on a
flat-panel device. You can also adjust the effects by three levels according
to your surroundings so that the colors of projected images are the actual
colors of the
objects they
represent.

Sharpness Gloss Shade

Aspect Zoom

Aspect Zoom makes the maximum
image size on the screen while
keeping the aspect of the image.

Auto Power On

When the projector is in standby mode and
detects the video signal input from an external
device, this function starts up the projector to
display the image automatically on the screen.
This makes the time to start up the projector
and begin presenting quicker and easier.

• This function is unavailable when STANDBY MODE is set to NETWORK(WOL) or SAVING.

• This function may work unintentionally by connected external device.

HDCR2 (High Dynamic Contrast Range)

When average projectors are used in bright rooms, the darker colors of an
image deteriorate and images become unclear. Using this function, blurred
images caused by room lighting or outside light sources are corrected, and
an effect similar to increasing contrast occurs. The recent enhancement
to HDCR2 achieves not only auto tone enhancement but also auto color
enhancement. This results in clear and vivid images even in bright rooms.

Cloning Function

settings

Copy setting data from one projector to others of the same
model via the Projector Data Cloning Application. Cloning
not only saves almost all PJ settings such as gamma and
keystone, it saves countless hours in setup and installation.

Perfect Fit 2

Enables the user to adjust individual corners and sides
independent of one another. Perfect Fit 2 provides vertical
and horizontal digital correction of either barrel or pin
cushion distortions. This feature helps correct geometric and
complicated distortions. Perfect Fit 2 allows the projected
image to fit correctly to the screen quickly and easily.

Projector Quick Connection App For Mobile Devices

Our iOS and Android applications offers projector control
and also provides the capability to display photos, document
files and web site contents. Available for iPad®, iPhone® and
Android devices. Works over your LAN via your RJ-45 port or
via an optional USBWL5G wireless adapter.

STANDARD FEATURES

Input Source Naming

Users can name input sources in simple language instead of
factory default names.

Lens Shift

Lens shift can adjust the position of image on the screen by
turning the adjusters manually. This adjustment is useful to fit
the image to the position without causing keystone distortion.

Network Control, Maintenance and Security

Embedded networking gives you the ability to manage and
control multiple projectors over your LAN. Features include
scheduling of events, centralized reporting, image transfer and
e-mail alerts for reactive and routine maintenance.

Picture By Picture

Enables the content from two input sources to be displayed
simultaneously, side by side on one screen. You can use two
sources including 2 HDMI, with both images sharing equal screen
size. The feature is ideal for teleconferencing applications.

Picture In Picture

Enables you to display one image inside another image using
two sources including 2 HDMI.

PIN Lock / MyScreen / MyText

PIN lock protection can limit projector users. MyScreen PIN
lock keeps captured images on the startup screen. Users can
set any name logo to MyScreen, clearly identifying ownership.
MyText provides the ability to write text on the startup screen
such as model name, serial number or location.

DICOM® Simulation Mode

Images in DICOM (Digital Imaging and Communications in
Medicine) Mode are reproduced with an advanced grayscale
level. This mode is ideal for viewing grayscale medical images
such as X-rays, and for training and educational purposes.

These projectors are not approved medical devices. They should not be used for
actual medical diagnosis.

Wireless Presentation Compatible

Connect the projector to a a computer or your network using
the optional USB wireless adapter (part number USBWL5G).
The adapter supports IEEE802.11 a/b/g/n/ac.

360º Rotation/Portrait Projection

Display rotation of 360º and portrait projection for creative
applications and greater installation flexibility.

Maxell Corporation of America

Toll Free: 1.800.377.5887
Web: www.maxellproav.com

MP-WX5603 LCD Laser Projector

Enhance the experience with
Maxell’s MP-WX5603.

The MP-WX5603 LCD Laser projector from Maxell is
specifically designed to enhance the visual experience
— from the audience to presenters. Vivid colors. Bold
graphics. Crisp text. The MP-WX5603 does it all in
environments of all sizes. With 6,000 ANSI lumens
of brightness and WXGA 1280 x 800 resolution, the
MP-WX5603 provides the perfect compatible solution.

It also features a high contrast ratio, long life, cloning
function enabling you to copy settings data from one
projector to others of the same model, and is wireless
presentation ready. Plus, embedded networking gives
you the ability to manage and control multiple projec­tors over your LAN (scheduling of events, centralized
reporting, image transfer, and email alerts). Best of all,
the high performance MP-WX5603 is exceptionally
reliable and offers a very low cost of ownership.

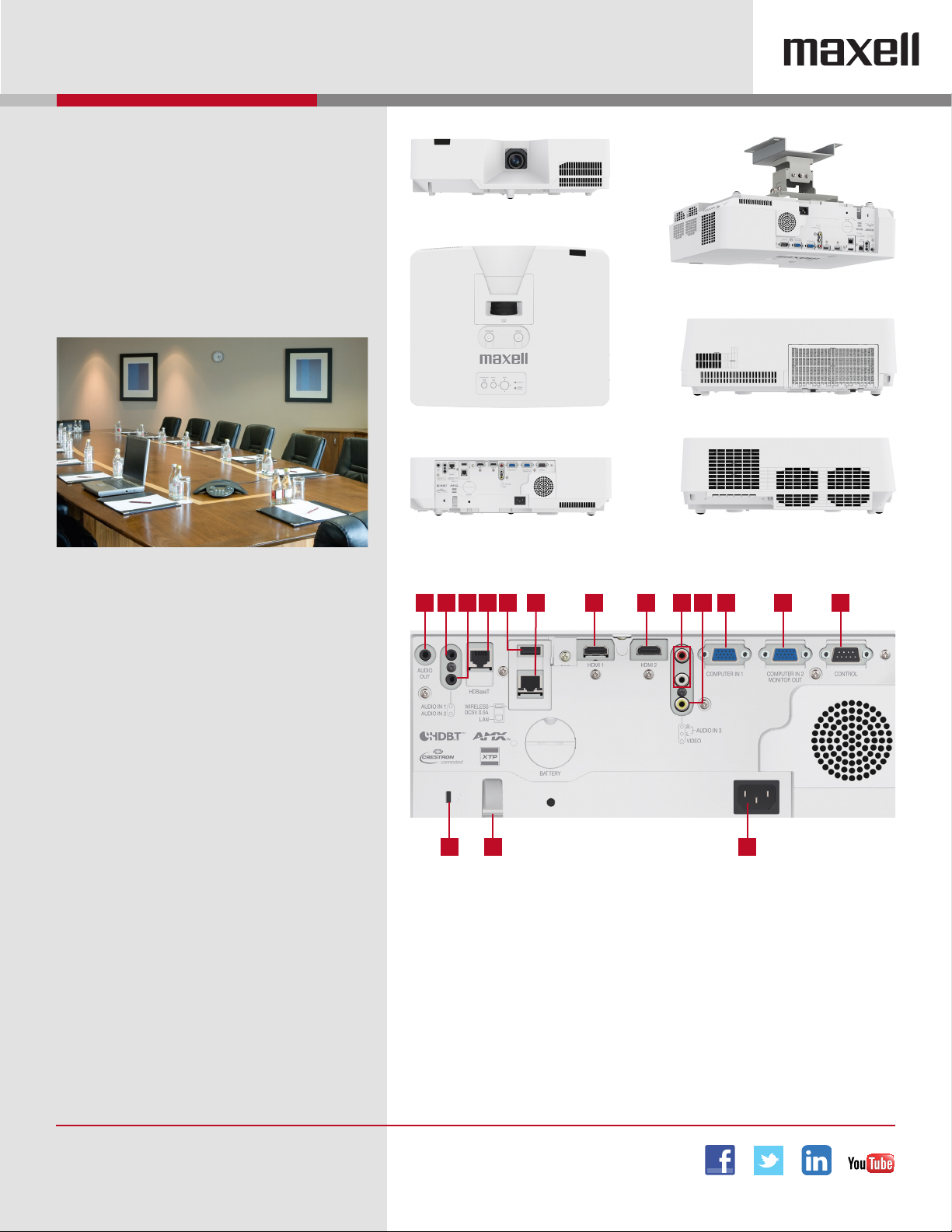

Front View

Top View

Rear View

Ceiling Mount

Side Left

Side Right

Input/Outputs

135 6 7 8 9 10 11 121 42 3

Maxell Corporation of America

Toll Free: 1.800.377.5887
Web: www.maxellproav.com

1. Audio Out

2. Audio In 1

3. Audio In 2

4. HDBaseT

1416 15

5. Wireless

DC5V 0.5A

6. LAN

7. HDMI 1

8. HDMI 2

9. Audio In 3 L/R

10. Video

11. Computer In 1

12. Computer In 2/

Monitor Out

13. Control (RS-232C)

14. AC Power

15. Security Bar

16. Kensington Lock

MP-WX5603

MP-WX5603 LCD Laser Projector

Accessories and Lenses

Supplied
Accessories

Optional
Accessories

Optional
Lenses

Remote control, power cord, computer
cable, A A batteries x 2, security label,
lens cover, Hook metal, HDMI cable
holder, cable tie for HDMI x 2, cable tie
for power x 1, user's manual (concise)

USBWL5G wireless adapter

N/A

Replacement Parts

Lamp Lamp free

Remote Control HL03037

Filter UX43581

Projection Throw Chart (In inches)

Screen Size 16:10

Diagonal Width Minimum Maximum

30 25

60 51

80 68 83 137

100 85 10 5 173

200 170 217 354

300 254 328 534

Throw Ratio: (distance : width)

1.3 - 2.1 : 1

HI0637-Rev.2-03/19
All specifications subject to change without notice.
DLP and the DLP logo are registered trademarks of Texas Instruments. Crestron® and Crestron
RoomView® are registered trademarks of Crestron Electronics, Inc. in the United States and
other countries. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC in the United States and other countries.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
©2019 Maxell Corporation of America. All Rights Reserved.

27

60

47

101

Specifications

Projection Technology 3 LCD, 3 chip technology

Resolution WXGA 1280 x 800

Brightness 6,000 ANSI lumens

Colors 1.07 billion colors

Aspect Ratio Native 16:10, 4:3, 16:9, 14:9 and zoom compatible

Contrast Ratio 1,500,000 : 1 (Dynamic Black on)

Display

Throw Ratio

(distance : width)

Focus Distance 27" - 534"

Display Size 30" - 300"

Lens f = 18.2 - 29.2 mm, x 1.6 manual zoom, focus and lens shift

Lens Shift Manual (V: 0 ~ 56.5%, H: +/- 4.6%)

Expected Light Sourc e
Life*

Expected Filter LIfe** Approx. 20,000 hours

Operation

Speaker Output 16W

Keystone H and V +/- 30º

Computer VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/

H-Sync 15 kHz - 106 kHz

V-Sy nc 50 Hz - 120 Hz

Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM

Component Video 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Compatibility

Digital Input HDBaseT x 1, HDMI x 2 (HDCP Compliant)

Computer Input 1 15-pin mini D-sub x 1

Computer Input 2 15-pin mini D-sub x 1

Computer Monitor Output 15-pin mini D-sub x 1 (shared with Computer In 2)

Video Input

Composite Video RCA jack x 1

Component Video 15-pin mini D-sub x 2 (shared with computer in 1/2)

Audio Input 3.5 mm stereo mini jack x 2, RCA jack (L/R) x 1

Audio Output 3.5 mm stereo mini jack x 1

Connectors

Network LAN Wired RJ-45 port (10 base-T / 100 base-TX)

Network LAN Wireless USB-A, IEEE802.11 a/b/g/n/ac - optional wireless adapter required

HDBaseT RJ-45 port x 1

USB Type A x 1 (Wireless adapter), Type B x 1 (Service)

Control Terminals 9-pin D-sub x 1 (RS-232 control)

Power Supply AC100-120V / AC220-240V, 50/60Hz

Power Consumption 360W/350W

Operating Temperature 32° - 104° (0°C - 40°C) under 5,250 ft.

Dimensions (W x D x H) 19.9" x 16.7" x 5.3" (excluding protrusions)

Weight Approximately 18.1 lbs.

Approvals UL 60950-1 / cUL, FCC part 15 subpart B Class A

Ratings & Warranty

Warranty 5-year or 20,000 hour s (whichever occurs first) limited warranty

* Actual light source life will vary by individual light source based on environmental conditions, selected operating mode, user settings and usage.

Hours of average light source life specified are not guaranteed and do not constitute part of the product or light source warranty.
Light source brightness decreases over time.

** Actual filter life will vary by individual filter based on environmental conditions, selected operating mode, user settings and usage. Hours of expected filter

life specified are not guaranteed and do not constitute part of the product warranty.

1.3 - 2.1 : 1

Approx. 20,000 hours (Normal and whisper modes), 30,000 hours
(Long life 1 mode), 50,000 hours (Long life 2 mode)

WSXGA+/HD/UXG A/Mac 16

Computer signal TMDS clock 25 MHz - 162 MHz
4K (3840 x 2160p@24/25/30, 4096 x 2160p@24)*
*HDMI1 and HDBaseT only

32° - 95° (0°C - 35°C) 5,250 ft. - 10,000 ft.

Maxell Corporation of America

Toll Free: 1.800.377.5887
Web: www.maxellproav.com
