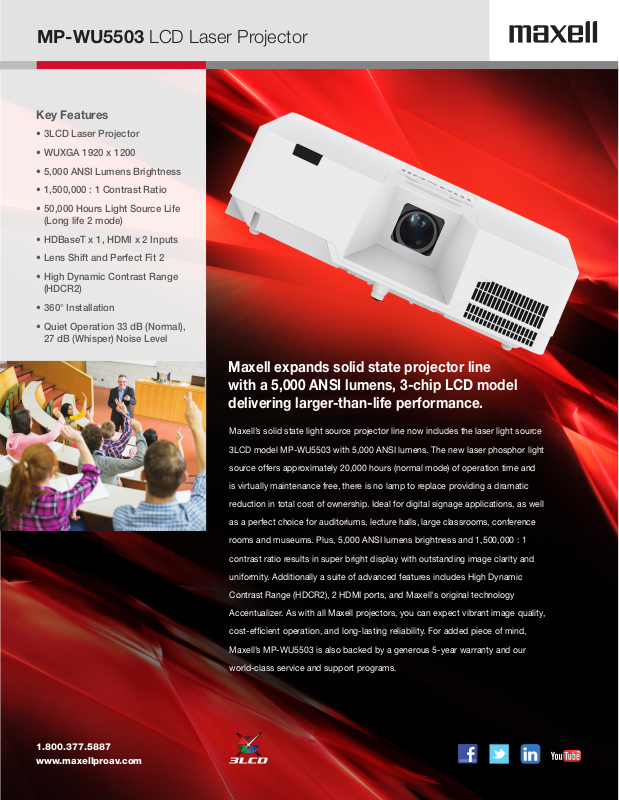

Maxell MP-WU5503 Product Sheet
MP-WU5503 LCD Laser Projector
Key Features
• 3LCD Laser Projector
• WUXGA 1920 x 1200
• 5,000 ANSI Lumens Brightness
• 1,500,000 : 1 Contrast Ratio
• 50,000 Hours Light Source Life
(Long life 2 mode)
• HDBaseT x 1, HDMI x 2 Inputs
• Lens Shift and Perfect Fit 2
• High Dynamic Contrast Range
(HDCR2)
• 360° Installation
• Quiet Operation 33 dB (Normal),
27 dB (Whisper) Noise Level
Maxell expands solid state projector line
with a 5,000 ANSI lumens, 3-chip LCD model
delivering larger-than-life performance.
Maxell’s solid state light source projector line now includes the laser light source
3LCD model MP-WU5503 with 5,000 ANSI lumens. The new laser phosphor light
source offers approximately 20,000 hours (normal mode) of operation time and
is virtually maintenance free, there is no lamp to replace providing a dramatic
reduction in total cost of ownership. Ideal for digital signage applications, as well
as a perfect choice for auditoriums, lecture halls, large classrooms, conference
rooms and museums. Plus, 5,000 ANSI lumens brightness and 1,500,000 : 1
contrast ratio results in super bright display with outstanding image clarity and
uniformity. Additionally a suite of advanced features includes High Dynamic
Contrast Range (HDCR2), 2 HDMI ports, and Maxell's original technology
Accentualizer. As with all Maxell projectors, you can expect vibrant image quality,
cost-efcient operation, and long-lasting reliability. For added piece of mind,
Maxell’s MP-WU5503 is also backed by a generous 5-year warranty and our
1.800.377.5887
www.maxellproav.com
world-class service and support programs.
MP-WU5503 LCD Laser Projector
settings
settings
Long Life 20,000 Hours Laser Light Source
Light source combines blue laser diodes and phosphor which can achieve
over 5,000 lumens. The projection image is bright and clear, with vivid colors.
Since lamp replacement is unnecessary, maintenance cost is reduced and by
not using mercury lamps, the projectors are eco-friendly.
Plus, Maxell’s unique cooling system can achieve a low noise level of 27dB
in whisper mode. The life of the light source is approximately 20,000 hours
at normal mode but by using other modes which reduce the brightness or
operation period, its life can be extended up to 50,000 hours. These mode
settings can be used for different purposes depending on the application of
the projector.
UNIQUE FEATURES
Accentualizer
Maxell original technology makes pictures look more real by enhancing
sharpness, gloss and shade to make pictures as clear as pictures on a
flat-panel device. You can also adjust the effects by three levels according
to your surroundings so that the colors of projected images are the actual
colors of the
objects they
represent.
Sharpness Gloss Shade
Aspect Zoom
Aspect Zoom makes the maximum
image size on the screen while
keeping the aspect of the image.
Auto Power On
When the projector is in standby mode and
detects the video signal input from an external
device, this function starts up the projector to
display the image automatically on the screen.
This makes the time to start up the projector
and begin presenting quicker and easier.
• This function is unavailable when STANDBY MODE is set to NETWORK(WOL) or SAVING.
• This function may work unintentionally by connected external device.
Cloning Function
Copy setting data from one projector to others of the same
model via the Projector Data Cloning Application. Cloning
not only saves almost all PJ settings such as gamma and
keystone, it saves countless hours in setup and installation.
HDCR2 (High Dynamic Contrast Range)
When average projectors are used in bright rooms, the darker colors of an
image deteriorate and images become unclear. Using this function, blurred
images caused by room lighting or outside light sources are corrected, and
an effect similar to increasing contrast occurs. The recent enhancement
to HDCR2 achieves not only auto tone enhancement but also auto color
enhancement. This results in clear and vivid images even in bright rooms.
High Performance Lens
Featuring performance lens with a powerful 1.7 x zoom features
Extra Low Dispersion with over 2.0 refractive index, which
reduces distortion and resolution drop caused by Chroma
aberration.
Perfect Fit 2
Enables the user to adjust individual corners and sides
independent of one another. Perfect Fit 2 provides vertical
and horizontal digital correction of either barrel or pin
cushion distortions. This feature helps correct geometric and
complicated distortions. Perfect Fit 2 allows the projected
image to fit correctly to the screen quickly and easily.
Projector Quick Connection App For Mobile Devices
Our iOS and Android applications offers projector control
and also provides the capability to display photos, document
files and web site contents. Available for iPad®, iPhone® and
Android devices. Works over your LAN via your RJ-45 port or
via an optional USBWL5G wireless adapter.
STANDARD FEATURES
Input Source Naming
Users can name input sources in simple language instead of
factory default names.
Lens Shift
Lens shift can adjust the position of image on the screen by
turning the adjusters manually. This adjustment is useful to fit
the image to the position without causing keystone distortion.
Network Control, Maintenance and Security
Embedded networking gives you the ability to manage and
control multiple projectors over your LAN. Features include
scheduling of events, centralized reporting, image transfer and
e-mail alerts for reactive and routine maintenance.
Picture By Picture
Enables the content from two input sources to be displayed
simultaneously, side by side on one screen. You can use two
sources including 2 HDMI, with both images sharing equal screen
size. The feature is ideal for teleconferencing applications.
Picture In Picture
Enables you to display one image inside another image using
two sources including 2 HDMI.
PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users. MyScreen PIN
lock keeps captured images on the startup screen. Users can
set any name logo to MyScreen, clearly identifying ownership.
MyText provides the ability to write text on the startup screen
such as model name, serial number or location.
Wireless Presentation Compatible
Connect the projector to a a computer or your network using
the optional USB wireless adapter (part number USBWL5G).
The adapter supports IEEE802.11 a/b/g/n/ac.
360º Rotation/Portrait Projection
Display rotation of 360º and portrait projection for creative
applications and greater installation flexibility.
