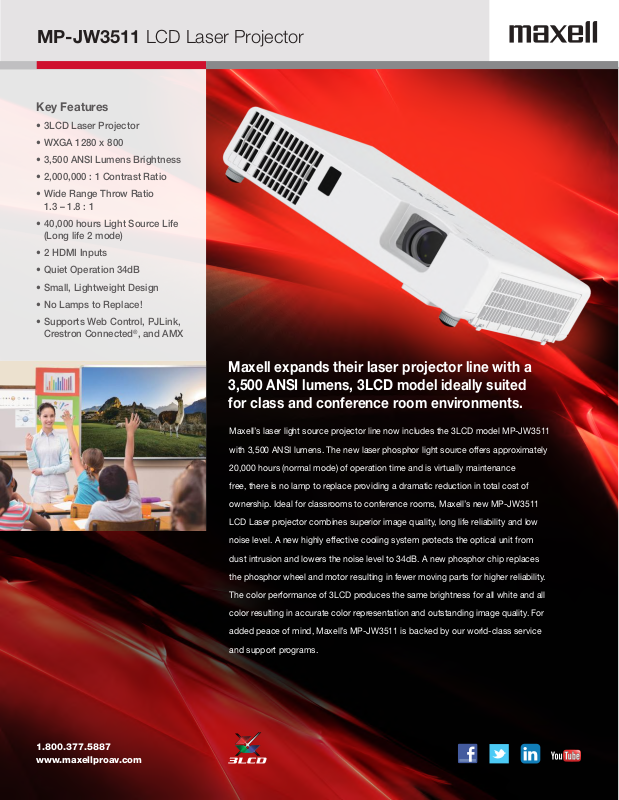

MP-JW3511 LCD Laser Projector
Key Features
• 3LCD Laser Projector
• WXGA 1280 x 800
• 3,500 ANSI Lumens Brightness
• 2,000,000 : 1 Contrast Ratio
• Wide Range Throw Ratio
1.3 – 1.8 : 1
• 40,000 hours Light Source Life
(Long life 2 mode)
• 2 HDMI Inputs
• Quiet Operation 34dB
• Small, Lightweight Design
• No Lamps to Replace!
• Supports Web Control, PJLink,
Crestron Connected®, and AMX
Maxell expands their laser projector line with a
3,500 ANSI lumens, 3LCD model ideally suited
for class and conference room environments.
Maxell’s laser light source projector line now includes the 3LCD model MP-JW3511
with 3,500 ANSI lumens. The new laser phosphor light source offers approximately
20,000 hours (normal mode) of operation time and is virtually maintenance
free, there is no lamp to replace providing a dramatic reduction in total cost of
ownership. Ideal for classrooms to conference rooms, Maxell’s new MP-JW3511
LCD Laser projector combines superior image quality, long life reliability and low
noise level. A new highly effective cooling system protects the optical unit from
dust intrusion and lowers the noise level to 34dB. A new phosphor chip replaces
the phosphor wheel and motor resulting in fewer moving parts for higher reliability.
The color performance of 3LCD produces the same brightness for all white and all
color resulting in accurate color representation and outstanding image quality. For
added peace of mind, Maxell’s MP-JW3511 is backed by our world-class service
and support programs.
1.800.377.5887
www.maxellproav.com
MP-JW3511 LCD Laser Projector
Serial #
settings
settings
Long Life 20,000 Hours Laser Light Source
The J series models have a new phosphor technology with a ceramic
phosphor chip. This decreases the amount of moving and magnetic parts for
stable performance, higher reliability and a lower noise level.
UNIQUE FEATURES
360º Rotation/Portrait Projection
Display rotation of 360º and portrait projection for creative applications
and greater
installation
flexibility.
360º
projection
Portrait
projection
Cloning Function
Copy configuration settings from one projector to others of the
same model via USB memory. Cloning can save almost all PJ
settings such as gamma and keystone via USB memory.
Perfect Fit 2
Enables the user to adjust individual corners and sides
independent of one another. Perfect Fit 2 provides vertical
and horizontal digital correction of either barrel or pin
cushion distortions. This feature helps correct geometric and
complicated distortions. Perfect Fit 2 allows the projected
image to fit correctly to the screen quickly and easily.
Projector Quick Connection App For Mobile Devices
Our iOS application offers full projector control and also
provides the capability to display photos, document files and
web site contents. Available for iPad®, iPhone® and Android
devices. Works over your LAN via your RJ-45 port or via an
optional USBWL5G wireless adapter.
Replacement (Vendor Command)
The new J Series Lineup can support specific control
commands (RS-232C and LAN) of several other projector
brands to make replacement easy. Supported functions:
Power ON/OFF, Input Source, Volume Control, Mute (Picture/
Audio/Shutter).
Timer
The timer function can be used for count up or count down,
perfect for use in classrooms or conference rooms.
STANDARD FEATURES
Input Source Naming
Input Source Naming
Users can rename input sources in more descriptive terms
Users can rename input sources in more descriptive terms
instead of the factory default names.
instead of the factory default names.
Network Control, Maintenance and Security
Embedded networking gives you the ability to manage and
control multiple projectors over your LAN. Features include
scheduling of events, centralized reporting, image transfer
and e-mail alerts for reactive and routine maintenance.
PC-Less Presentation
By using a USB memory stick or other storage device, you can
use the projector without a computer. Menus are easy to see
with a thumbnail display. There is also a slideshow function.
This feature also supports the following file types: JPG, PNG,
BMP, and GIF.
PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users. MyScreen PIN
lock keeps captured images on the startup screen. Users can
set any name logo to MyScreen, clearly identifying ownership.
MyText provides the ability to write text on the startup screen
such as model name, serial number or location.
PJMessenger
PJMessenger function allows you to send and display text
messages and audio alerts on your networked projectors. It
is an easy and efficient way to send announcements out to
multiple units.
Present Content via LAN
Maxell’s suite of networking software allows you to easily send
content directly from your PC to the projector via your LAN
connection.
Serial Number and Media Access Control Label
A label is affixed to side of projector to more easily access
and read the model name, serial number and MAC address
while mounted in ceiling use. This is a convenience for
installers, end users and auditors for instant accessibility.
Wireless Presentation Compatible
Connect the projector to a computer or your network using
the optional USB wireless adapter (part number USBWL5G).
The adapter supports IEEE802.11 a/b/g/n/ac.
WiFi Solutions
MX0716-Rev.1-08/20
All specifications subject to change without notice.
©2020 Maxell Corporation of America. All Rights Reserved
Maxell Corporation of America
Toll Free: 1.800.377.5887
Web: www.maxellproav.com
Supply DC 5V 2.0A power to streaming devices through USB.
Supports popular streaming devices such as Amazon Fire TV
2nd and 3rd generations, Google Chromecast 3rd generation
and Ultra, EZCast Pro2, Barco ClickShare C SE-200,
wePresent, and QuattroPod.
.
