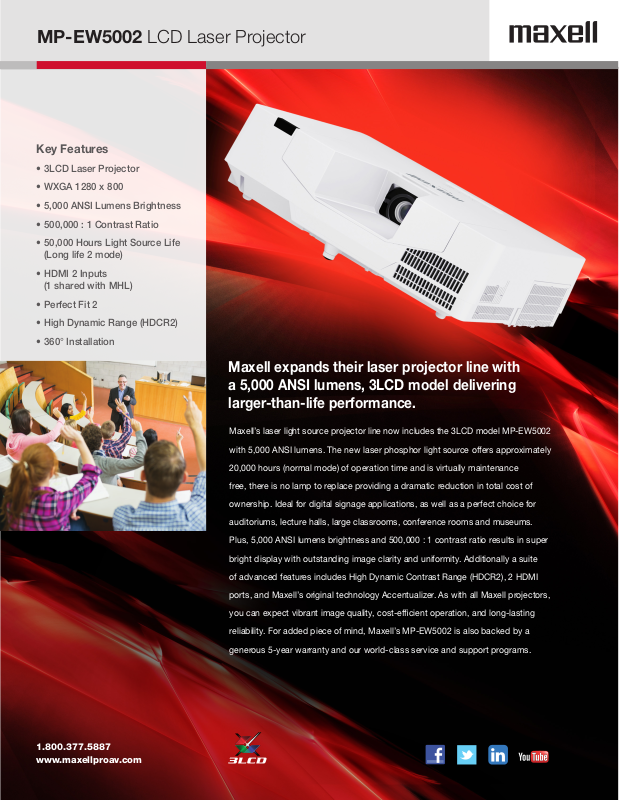

Page 1

MP-EW5002 LCD Laser Projector

Key Features

• 3LCD Laser Projector

• WXGA 1280 x 800

• 5,000 ANSI Lumens Brightness

• 500,000 : 1 Contrast Ratio

• 50,000 Hours Light Source Life (Long life 2 mode)

• HDMI 2 Inputs (1 shared with MHL)

• Perfect Fit 2

• High Dynamic Range (HDCR2)

• 360° Installation

Maxell expands their laser projector line with a 5,000 ANSI lumens, 3LCD model delivering larger-than-life performance.

Maxell’s laser light source projector line now includes the 3LCD model MP-EW5002

with 5,000 ANSI lumens. The new laser phosphor light source offers approximately

20,000 hours (normal mode) of operation time and is virtually maintenance

free, there is no lamp to replace providing a dramatic reduction in total cost of

ownership. Ideal for digital signage applications, as well as a perfect choice for

auditoriums, lecture halls, large classrooms, conference rooms and museums.

Plus, 5,000 ANSI lumens brightness and 500,000 : 1 contrast ratio results in super

bright display with outstanding image clarity and uniformity. Additionally a suite

of advanced features includes High Dynamic Contrast Range (HDCR2), 2 HDMI

ports, and Maxell’s original technology Accentualizer. As with all Maxell projectors,

you can expect vibrant image quality, cost-efcient operation, and long-lasting

reliability. For added piece of mind, Maxell’s MP-EW5002 is also backed by a

1.800.377.5887

www.maxellproav.com

generous 5-year warranty and our world-class service and support programs.

Page 2

MP-EW5002 LCD Laser Projector

settings

Long Life 20,000 Hours Laser Light Source

Light source combines blue laser diodes and phosphor which can achieve over 5,000 lumens. The projection image is bright and clear, with vivid colors. Since lamp replacement is unnecessary, maintenance cost is reduced and by not using mercury lamps, the projectors are eco-friendly.

Plus, Maxell’s unique cooling system can achieve a low noise level of 34 dB. The life of the light source is approximately 20,000 hours at normal mode but by using other modes which reduce the brightness or operation period, its life can be extended up to 50,000 hours. These mode settings can be used for different purposes depending on the application of the projector.

UNIQUE FEATURES

Accentualizer

Maxell original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a ﬂat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.

Sharpness Gloss Shade

Aspect Zoom

Aspect Zoom makes the maximum image size on the screen while keeping the aspect of the image.

HDCR2 (High Dynamic Contrast Range)

When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto color enhancement. This results in clear and vivid images even in bright rooms.

Cloning Function

Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation.

MHL™

MHL (Mobile High-Deﬁnition) allows users to mirror their phone/tablet screen with the projector display. It is compatible with any and all apps.

Perfect Fit 2

Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to ﬁt correctly to the screen quickly and easily.

Projector Quick Connection App For Mobile Devices

Our iOS and Android applications offers projector control and also provides the capability to display photos, document ﬁles and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.

STANDARD FEATURES

Input Source Naming

Users can name input sources in simple language instead of factory default names.

Network Control, Maintenance and Security

Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.

PC-Less Presentation

By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow and video function.

PIN Lock / MyScreen / MyText

PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.

DICOM® Simulation Mode

Images in DICOM (Digital Imaging and Communications in Medicine) Mode are reproduced with an advanced grayscale level. This mode is ideal for viewing grayscale medical images such as X-rays, and for training and educational purposes.

These projectors are not approved medical devices. They should not be used for actual medical diagnosis.

Wireless Presentation Compatible

Connect the projector to a a computer or your network using the optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11 a/b/g/n/ac.

360º Rotation/Portrait Projection

Display rotation of 360º and portrait projection for creative applications and greater installation ﬂexibility.

Maxell Corporation of America

Toll Free: 1.800.377.5887 Web: www.maxellproav.com

Page 3

MP-EW5002 LCD Laser Projector

Enhance the experience with Maxell’s MP-EW5002.

The MP-EW5002 LCD Laser projector from Maxell is speciﬁcally designed to enhance the visual experience — from the audience to presenters. Vivid colors. Bold graphics. Crisp text. The MP-EW5002 does it all in environments of all sizes. With 5,000 ANSI lumens of brightness and WXGA 1280 x 800 resolution, the MP-EW5002 provides the perfect compatible solution.

Front View

Top View

Ceiling Mount

Side Left

It also features a high contrast ratio, long life, cloning function enabling you to copy settings data from one projector to others of the same model, and is wireless presentation ready. Plus, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralized reporting, image transfer, and email alerts). Best of all, the high performance MP-EW5002 is exceptionally reliable and offers a very low cost of ownership.

Rear View

1. Audio Out

2. Audio In 1

3. Audio In 2

4. USB Type A

DC5V 0.5A

Input/Outputs

5. LAN

6. USB Type B

7. HDMI 1

8. HDMI 2/ MHL

9. Audio In 3 L/R

Side Right

1416 15

10. Video

11. Computer In 1

12. Computer In 2/

Monitor Out

13. Control (RS-232C)

134 5 6 7 8 9 10 11 121 2 3

14. AC Power

15. Security Bar

16. Kensington Lock

Maxell Corporation of America

Toll Free: 1.800.377.5887 Web: www.maxellproav.com

MP-EW5002

Page 4

OneVision Kids

MP-EW5002 LCD Laser Projector

Accessories and Lenses

Supplied Accessories

Optional Accessories

Optional Lenses

Remote control, power cord, computer cable, A A batteries x 2,hook metal, adapter cover, HDMI cable holder x 2, cable tie, Ferrite core, security label, user's manual (concise)

USBWL5G wireless adapter

N/A

Replacement Parts

Lamp Lamp free

Remote Control HL03037

Filter UX 4 3171

Projection Throw Chart (In inches)

Screen Size 16:10

Diagonal Width Minimum Miximum

30 25

40 34

50 42

60 51

70 59

80 68 89 148

90 76 101 168

100 85 11 3 187

120 102 137 226

150 127 174 284

200 170 234 382

250 212 294 479

300 254 354 576

Throw Ratio: (distance : width)

1.4 - 2.3 : 1

MX0644-Rev.1-03/19 All speciﬁcations subject to change without notice. DLP and the DLP logo are registered trademarks of Texas Instruments. Crestron® and Crestron RoomView® are registered trademarks of Crestron Electronics, Inc. in the United States and other countries. HDMI, the HDMI Logo, and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. ©2019 Maxell Corporation of America. All Rights Reserved

109

129

Speciﬁcations

Projection Technology 3 LCD, 3 chip technology

Resolution WXGA 1280 x 800

Brightness 5,000 ANSI lumens

Colors 16.7 million colors

Aspect Ratio Native 16:10, 4:3, 16:9, 14:9 and zoom compatible

Contrast Ratio 500,000 : 1 (Dynamic Black on)

Display

Throw Ratio

(distance : width)

Focus Distance 29" - 576"

Display Size 30" - 300"

Lens f = 18.2 - 29.4 mm, x 1.6 manual zoom and focus

Expected Light Sourc e Life*

Expected Filter LIfe** Approx. 20,000 hours

Operation

Speaker Output 16W

Keystone H and V +/- 30º

Computer VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/

H-Sync 15 kHz - 106 kHz

V-Sy nc 50 Hz - 120 Hz

Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM

Component Video 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Compatibility

MHL 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Digital Input HDMI x 1, HDMI/MHL x 1 (HDCP compliant)

Computer Input 1 15-pin mini D-sub x 1

Computer Input 2 15-pin mini D-sub x 1

Computer Monitor Output 15-pin mini D-sub x 1 (shared with Computer In 2)

Video Input

Composite Video RCA jack x 1

Component Video 15-pin mini D-sub x 2 (shared with computer in 1/2)

Audio Input 3.5 mm stereo mini jack x 2, RCA jack (L/R) x 1

Connectors

Audio Output 3.5 mm stereo mini jack x 1

Network LAN Wired RJ-45 por t (10 base-T / 100 base-TX)

Network LAN Wireless USB-A, IEEE802.11 a /b/g/n/ac - optional wireless adapter required

USB Type A x 2 (PC less Presentation or wireless network)

Control Terminals 9-pin D-sub x 1 (RS-232 control)

Power Supply AC100-120V / AC220-240V, 50/60Hz

Power Consumption 360W/350W

Operating Temperature 32° - 104° (0°C - 40°C) under 5,250 ft.

Dimensions (W x D x H) 19.9" x 16.7" x 5.3" (excluding protrusions)

Weight Approximately 16.8 lbs.

Approvals UL 60950-1 / cUL, FCC part 15 subpart B Class B

Ratings & Warranty

Warranty 5-year or 20,000 hour s (whichever occurs ﬁrst) limited warranty

* Actual light source life will vary by individual light source based on environmental conditions, selected operating mode, user settings and usage.

Hours of average light source life speciﬁed are not guaranteed and do not constitute part of the product or light source warranty. Light source brightness decreases over time.

** Actual ﬁlter life will vary by individual ﬁlter based on environmental conditions, selected operating mode, user settings and usage. Hours of expected ﬁlter

life speciﬁed are not guaranteed and do not constitute part of the product warranty.

1.4 - 2.3 : 1

Approx. 20,000 hours (Normal), 30,000 hours (Long life 1), 50,000 hours (Long life 2)

WSXGA+/HD/UXG A/Mac 16

Computer signal TMDS clock 25 MHz - 162 MHz

Computer signal TMDS clock 25 MHz - 75 MHz

Type B x 1 (USB display or USB mouse control)

32° - 95° (0°C - 35°C) 5,250 ft. - 10,000 ft.
