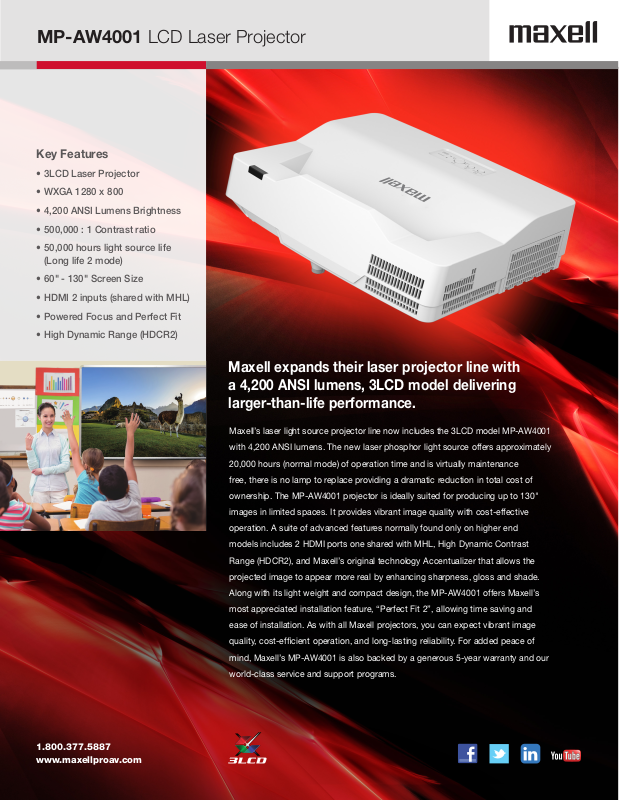

MP-AW4001 LCD Laser Projector

Key Features

• 3LCD Laser Projector

• WXGA 1280 x 800

• 4,200 ANSI Lumens Brightness

• 500,000 : 1 Contrast ratio

• 50,000 hours light source life (Long life 2 mode)

• 60" - 130" Screen Size

• HDMI 2 inputs (shared with MHL)

• Powered Focus and Perfect Fit

• High Dynamic Range (HDCR2)

Maxell expands their laser projector line with a 4,200 ANSI lumens, 3LCD model delivering larger-than-life performance.

Maxell’s laser light source projector line now includes the 3LCD model MP-AW4001

with 4,200 ANSI lumens. The new laser phosphor light source offers approximately

20,000 hours (normal mode) of operation time and is virtually maintenance

free, there is no lamp to replace providing a dramatic reduction in total cost of

ownership. The MP-AW4001 projector is ideally suited for producing up to 130"

images in limited spaces. It provides vibrant image quality with cost-effective

operation. A suite of advanced features normally found only on higher end

models includes 2 HDMI ports one shared with MHL, High Dynamic Contrast

Range (HDCR2), and Maxell’s original technology Accentualizer that allows the

projected image to appear more real by enhancing sharpness, gloss and shade.

Along with its light weight and compact design, the MP-AW4001 offers Maxell’s

most appreciated installation feature, “Perfect Fit 2”, allowing time saving and

ease of installation. As with all Maxell projectors, you can expect vibrant image

quality, cost-efcient operation, and long-lasting reliability. For added peace of

mind, Maxell’s MP-AW4001 is also backed by a generous 5-year warranty and our

world-class service and support programs.

1.800.377.5887

www.maxellproav.com

Page 2

MP-AW4001 LCD Laser Projector

settings

UNIQUE FEATURES

Accentualizer

Maxell original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a ﬂat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.

Sharpness Gloss Shade

Aspect Zoom

Aspect Zoom makes the maximum image size on the screen while keeping the aspect of the image.

HDCR2 (High Dynamic Contrast Range)

When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto color enhancement. This results in clear and vivid images even in bright rooms.

Cloning Function

Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ

settings

settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation.

MHL™

MHL (Mobile High-Deﬁnition) allows users to mirror their phone/tablet screen with the projector display. It is compatible with any and all apps.

Perfect Fit 2

Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to ﬁt correctly to the screen quickly and easily.

Projector Quick Connection App For Mobile Devices

Our iOS and Android applications offers projector control and also provides the capability to display photos, document ﬁles and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.

STANDARD FEATURES

Input Source Naming

Users can name input sources in simple language instead of factory default names.

Network Control, Maintenance and Security

Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.

PC-Less Presentation

By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow and video function.

PIN Lock / MyScreen / MyText

PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.

PJMessenger

PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efﬁcient way to send announcements out to multiple units.

Present Content via LAN

Maxell’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.

Template Function

Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates to choose from.

Wireless Presentation Compatible

Connect the projector to a a computer or your network using the optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11 a/b/g/n/ac.

Maxell Corporation of America

Toll Free: 1.800.377.5887 Web: www.maxellproav.com

Page 3

MP-AW4001 LCD Laser Projector

Enhance the experience with Maxell’s MP-AW4001.

The MP-AW4001 ultra short throw LCD Laser projector from Maxell is speciﬁcally designed to enhance the visual experience — from the audience to presenters. Vivid colors. Bold graphics. Crisp text. The MP-AW4001 does it all in environments of all sizes. With 4,200 ANSI lumens of brightness and WXGA 1280 x 800 resolution, the MP-AW4001 provides the

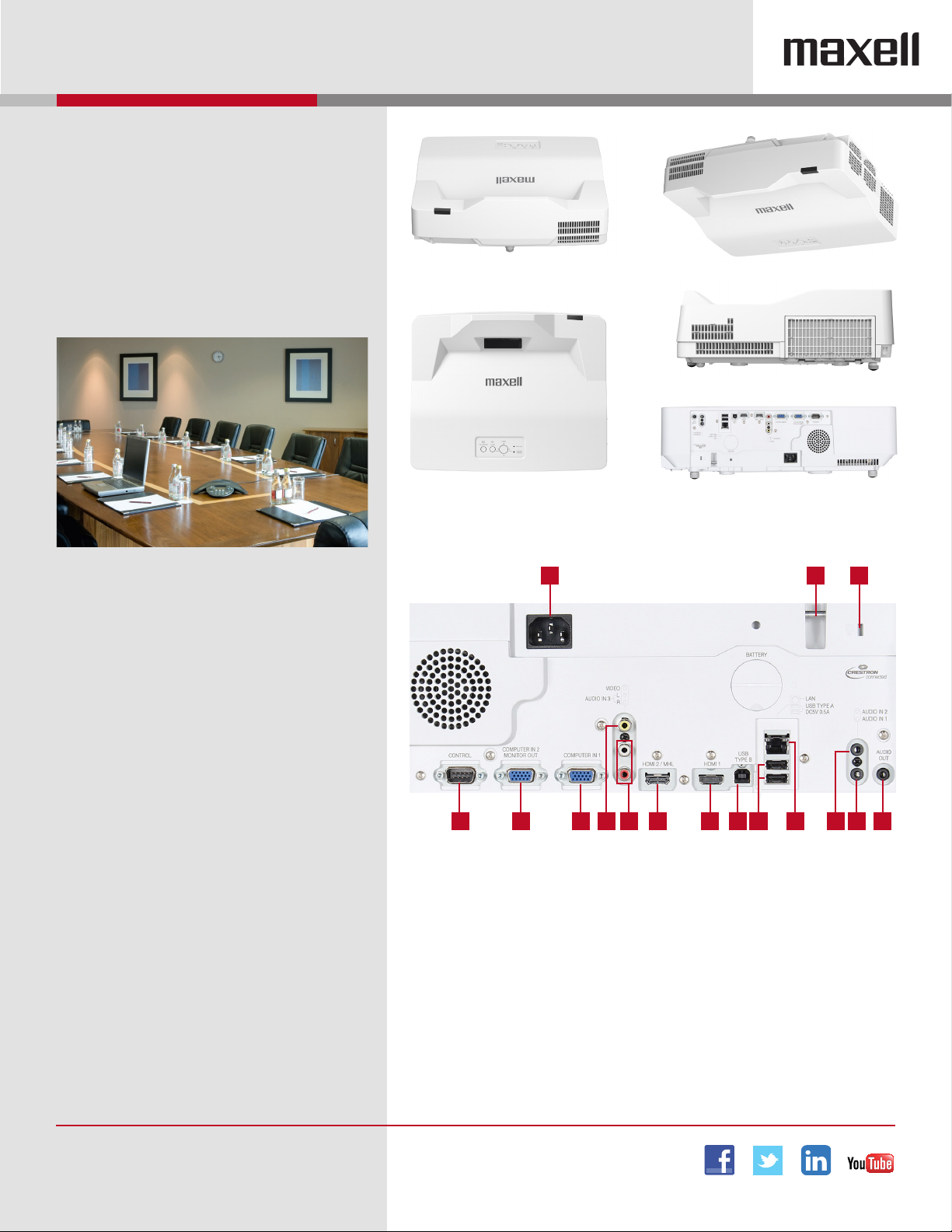

Front View

Ceiling Mount

Side Left

perfect compatible solution. It also features a high contrast ratio, long life, cloning function enabling you to copy settings data from one projector to others of the same model, and is wireless presentation ready. Plus, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralized reporting, image transfer, and email alerts). Best of all, the high performance MP-AW4001 is exceptionally reliable and offers a very low cost of ownership.

Top View

1. AC

2. Security Bar

3. Kensington Lock

4. Audio Out

Input/Outputs

5. Audio In 1

6. Audio In 2

7. LAN

8. USB Type A

DC5V 0.5A

9. USB Type B

10. HDMI 1

11. HDMI 2/MHL

12. Audio In L/R

13. Video

Back

321

689 710111213 451416 15

14. Computer In 1

15. Computer In 2/

Monitior Out

16. Control (RS-232C)

Maxell Corporation of America

Toll Free: 1.800.377.5887 Web: www.maxellproav.com

MP-AW4001

Page 4

OneVision Kids

MP-AW4001 LCD Laser Projector

Accessories and Lenses

Supplied Accessories

Optional Accessories

Optional Lenses

Remote control, power cord, computer cable, A A batteries x 2, hook metal, adapter cover, HDMI cable holder x 2, cable tie, Ferrite core, security label, user's manual (concise)

HAS-WM0 6 wall mount (Supports display size 70" - 110"), USBWL5G wireless adapter

N/A

Replacement Parts

Lamp Lamp free

Remote Control HL03037

Filter UX 43 251

Projection Throw Chart (In inches)

Screen Size 16:10

Diagonal Distance from

60 3.1 16.3

70 5.9 19

80 8.6 21.8

90 11.4 24.5

100 14.1 27.3

130 22.4 35.5

edge of projector

to screen

Throw Ratio: (distance : width)

0.1 : 1 from edge of projector

0.3 : 1 from center of mirror

Distance from

center of mirror

to screen

Speciﬁcations

Projection Technology 3 LCD, 3 chip technology

Resolution WXGA 1280 x 800

Brightness 4,200 ANSI lumens

Colors 16.7 million colors

Aspect Ratio Native 16:10, 4:3, 16:9, 14:9 and zoom compatible

Contrast Ratio 500,000 : 1 (Dynamic Black on)

Display

Throw Ratio

(distance : width)

Focus Distance 16" - 35" (From center of mirror to screen)

Display Size 60" - 130"

Lens f = 4.21 mm, Digital zoom x 1.35, powered focus

Expected Light Sourc e Life*

Expected Filter LIfe** Approx. 20,000 hours

Operation

Speaker Output 16W

Keystone H and V +/- 5º

Computer VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA, Mac 16"

H-Sync 15 kHz - 106 kHz

V-Sy nc 50 Hz - 120 Hz

Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM

Component Video 480i, 480p, 576i, 576p, 1080i, 1080p

Compatibility

HDMI 480i, 480p, 576i, 576p, 1080i, 1080p

Digital Input HDMI x 1, HDMI/MHL x 1 (HDCP compliant)

Computer Input 1 15-pin mini D-sub x 1

Computer Input 2 15-pin mini D-sub x 1

Computer Monitor Output 15-pin mini D-sub x 1 (shared with Computer In 2)

Video Input

Composite Video RJ-45 jack x 1

Component Video 15-pin mini D-sub x 2 (shared with analog computer in 1/2)

Audio Input 3.5 mm stereo mini jack x 1, RCA jack (L/R) x 1

Connectors

Audio Output 3.5 mm stereo mini jack x 1

Network LAN Wired RJ-45 por t (10 base-T / 100 base-TX)

Network LAN Wireless USB-A, IEEE802.11 a/b/g/n/ac - optional wireless adapter required

USB Type A x 2 (PC less Presentation or wireless network)

Control Terminals 9-pin D-sub x1 (RS-232 control)

Power Supply AC100-120V / AC220-240V, 50/60Hz

Power Consumption 360W/350W

Operating Temperature 32°F - 104°F (0°C-40°C)

Dimensions (W x D x H) 19.9" x 16.7" x 5.5"

Weight Approximately 16.8 lbs.

Approvals UL 60950-1 / cUL, FCC part 15 subpart B Class B

Ratings & Warranty

Warranty 5-year or 20,000 hour s (whichever occurs ﬁrst) limited warranty

* Actual light source life will vary by individual light source based on environmental conditions, selected operating mode, user settings and usage.

Hours of average light source life speciﬁed are not guaranteed and do not constitute part of the product or light source warranty. Light source brightness decreases over time.

** Actual ﬁlter life will vary by individual ﬁlter based on environmental conditions, selected operating mode, user settings and usage. Hours of expected ﬁlter

life speciﬁed are not guaranteed and do not constitute part of the product warranty.

0.3 : 1 (From center of mirror to screen)

Approx. 20,000 hours (Normal), 30,000 hours (Long life 1), 50,000 hours (Long life 2)

Computer signal TMDS clock 25 MHz - 162 MHz

Type B x 1 (Remote control mouse or PC screen diplay)
