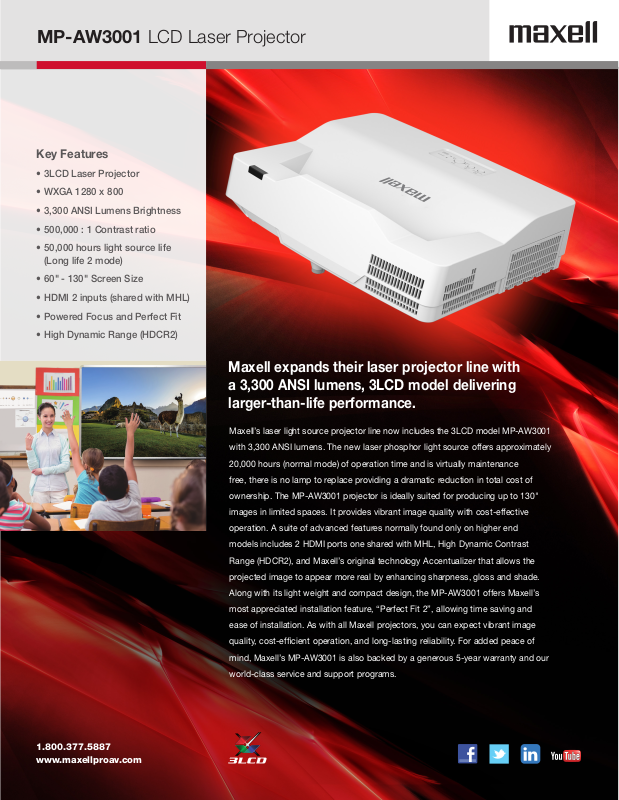

Maxell MP-AW3001 Product Sheet

MP-AW3001 LCD Laser Projector

Key Features

• 3LCD Laser Projector

• WXGA 1280 x 800

• 3,300 ANSI Lumens Brightness

• 500,000 : 1 Contrast ratio

• 50,000 hours light source life
(Long life 2 mode)

• 60" - 130" Screen Size

• HDMI 2 inputs (shared with MHL)

• Powered Focus and Perfect Fit

• High Dynamic Range (HDCR2)

Maxell expands their laser projector line with
a 3,300 ANSI lumens, 3LCD model delivering
larger-than-life performance.

Maxell’s laser light source projector line now includes the 3LCD model MP-AW3001

with 3,300 ANSI lumens. The new laser phosphor light source offers approximately

20,000 hours (normal mode) of operation time and is virtually maintenance

free, there is no lamp to replace providing a dramatic reduction in total cost of

ownership. The MP-AW3001 projector is ideally suited for producing up to 130"

images in limited spaces. It provides vibrant image quality with cost-effective

operation. A suite of advanced features normally found only on higher end

models includes 2 HDMI ports one shared with MHL, High Dynamic Contrast

Range (HDCR2), and Maxell’s original technology Accentualizer that allows the

projected image to appear more real by enhancing sharpness, gloss and shade.

Along with its light weight and compact design, the MP-AW3001 offers Maxell’s

most appreciated installation feature, “Perfect Fit 2”, allowing time saving and

ease of installation. As with all Maxell projectors, you can expect vibrant image

quality, cost-efcient operation, and long-lasting reliability. For added peace of

mind, Maxell’s MP-AW3001 is also backed by a generous 5-year warranty and our

world-class service and support programs.

1.800.377.5887

www.maxellproav.com

MP-AW3001 LCD Laser Projector

settings

UNIQUE FEATURES

Accentualizer

Maxell original technology makes pictures look more real by enhancing
sharpness, gloss and shade to make pictures as clear as pictures on a
flat-panel device. You can also adjust the effects by three levels according
to your surroundings so that the colors of projected images are the actual
colors of the
objects they
represent.

Sharpness Gloss Shade

Aspect Zoom

Aspect Zoom makes the maximum
image size on the screen while
keeping the aspect of the image.

HDCR2 (High Dynamic Contrast Range)

When average projectors are used in bright rooms, the darker colors of an
image deteriorate and images become unclear. Using this function, blurred
images caused by room lighting or outside light sources are corrected, and
an effect similar to increasing contrast occurs. The recent enhancement
to HDCR2 achieves not only auto tone enhancement but also auto color
enhancement. This results in clear and vivid images even in bright rooms.

Cloning Function

Copy setting data from one projector to others of the same
model via USB memory. Cloning not only saves almost all PJ

settings

settings such as gamma and keystone via USB memory, it
saves countless hours in setup and installation.

MHL™

MHL (Mobile High-Definition) allows users to mirror their
phone/tablet screen with the projector display.
It is compatible with any and all apps.

Perfect Fit 2

Enables the user to adjust individual corners and sides
independent of one another. Perfect Fit 2 provides vertical
and horizontal digital correction of either barrel or pin
cushion distortions. This feature helps correct geometric and
complicated distortions. Perfect Fit 2 allows the projected
image to fit correctly to the screen quickly and easily.

Projector Quick Connection App For Mobile Devices

Our iOS and Android applications offers projector control
and also provides the capability to display photos, document
files and web site contents. Available for iPad®, iPhone® and
Android devices. Works over your LAN via your RJ-45 port or
via an optional USBWL5G wireless adapter.

STANDARD FEATURES

Input Source Naming

Users can name input sources in simple language instead of
factory default names.

Network Control, Maintenance and Security

Embedded networking gives you the ability to manage and
control multiple projectors over your LAN. Features include
scheduling of events, centralized reporting, image transfer and
e-mail alerts for reactive and routine maintenance.

PC-Less Presentation

By using a USB memory stick or other storage device, you
can use the projector without a computer. Menus are easy
to see with a thumbnail display. Additionally there is also a
slideshow and video function.

PIN Lock / MyScreen / MyText

PIN lock protection can limit projector users. MyScreen PIN
lock keeps captured images on the startup screen. Users can
set any name logo to MyScreen, clearly identifying ownership.
MyText provides the ability to write text on the startup screen
such as model name, serial number or location.

PJMessenger

PJMessenger function allows you to send and display text
messages and audio alerts on your networked projectors. It
is an easy and efficient way to send announcements out to
multiple units.

Present Content via LAN

Maxell’s suite of networking software allows you to easily send
content directly from your PC to the projector via your LAN
connection.

Template Function

Line templates in the projector menu can help when writing
on a whiteboard. There are four types of line templates to
choose from.

Wireless Presentation Compatible

Connect the projector to a a computer or your network using
the optional USB wireless adapter (part number USBWL5G).
The adapter supports IEEE802.11 a/b/g/n/ac.

MX0652-Rev.2-08/19
All specifications subject to change without notice.
©2019 Maxell Corporation of America. All Rights Reserved
