Page 1
LCD Projector
MC-WU5505/MC-WU5501/MC-WX5505 MC-WX5501/MC-X5555/MC-X5551
User's Manual (detailed) Operating Guide – Technical
Resolution (H x V) Signal mode H. frequency
(kHz) 720 x 400 TEXT 37.9 85 VESA 640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA VGA (75Hz) 37.5 75 VESA VGA (85Hz) 43.3 85 VESA
800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA SVGA (72Hz) 48.1 72.2 VESA SVGA (75Hz) 46.9 75 VESA SVGA (85Hz) 53.7 85.1 VESA
832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA 1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA 1280 x 768 W-XGA (60Hz) 47.7 60 VESA 1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
*1) 1366 x 768 WXGA (60Hz) 47.7 59.8 VESA
1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA 1600 x 900 WXGA++ (60Hz) 60 60 VESA
*2) 1400 x 1050 SXGA+ (60Hz) 65.2 60 VESA *3) 1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA
1600 x 1200 UXGA (60Hz) 75 60 VESA 1920 x 1080 Full HD (60Hz) 67.5 60 VESA
*4) 1920 x 1200 W-UXGA (60Hz)
Reduced Blanking
74 60 VESA
V. frequency
(Hz)
Rating
*1) Supported except for [WUXGA Model] *2) Only for [XGA Model] *3) Only for [WXGA Model], [WUXGA Model] *4) Only for [WUXGA Model]
(continued on next page)
1
QM00112-1
Page 2
Supported signals
Supported signals for HDMI / HDBaseT
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720 x 400 TEXT 37.9 85 VESA 640 x 480 VGA (60Hz) 31.5 59.9 VESA
VGA (72Hz) 37.9 72.8 VESA
VGA (75Hz) 37.5 75 VESA
VGA (85Hz) 43.3 85 VESA 800 x 600 SVGA (56Hz) 35.2 56.3 VESA
SVGA (60Hz) 37.9 60.3 VESA
SVGA (72Hz) 48.1 72.2 VESA
SVGA (75Hz) 46.9 75 VESA
SVGA (85Hz) 53.7 85.1 VESA 832 x 624 Mac 16” mode 49.7 74.5
1024 x 768 XGA (60Hz) 48.4 60 VESA
XGA (70Hz) 56.5 70.1 VESA
XGA (75Hz) 60 75 VESA
XGA (85Hz) 68.7 85 VESA
1152 x 864 1152 x 864 (75Hz) 67.5 75 VESA 1280 x 768 W-XGA (60Hz) 47.7 60 VESA 1280 x 800 1280 x 800 (60Hz) 49.7 60 VESA
1280 x 1024 SXGA (60Hz) 64 60 VESA
SXGA (75Hz) 80 75 VESA
SXGA (85Hz) 91.1 85 VESA
1366 x 768 WXGA (60Hz) 47.7 59.8 VESA 1440 x 900 WXGA+ (60Hz) 55.9 59.9 VESA
1600 x 900 WXGA++ (60Hz) 60 60 VESA 1400 x 1050 SXGA+ (60Hz) 65.2 60 VESA 1680 x 1050 WSXGA+ (60Hz) 65.3 60 VESA 1600 x 1200 UXGA (60Hz) 75 60 VESA
*1) 1920 x 1200 W-UXGA (60Hz)
74 60 VESA
Reduced Blanking
*1) Only for [WUXGA Model]
(continued on next page)
2
QM00112-1
Page 3
Supported signals
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
720(1440) x 480i 480i 15.7 60 CEA 720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA
720 x 576p 576p 31.3 50 CEA 1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (50Hz) 56.3 50 CEA
1080p (60Hz) 67.5 60 CEA
(continued on next page)
3
QM00112-1
Page 4
Supported signals
Supported signals for MHL
Resolution (H x V) Signal mode H. frequency
(kHz)
V. frequency
(Hz)
Rating
640 x 480 VGA (60Hz) 31.5 59.9 VESA 720(1440) x 480i 480i 15.7 60 CEA 720(1440) x 576i 576i 15.6 50 CEA
720 x 480p 480p 31.5 60 CEA 720 x 576p 576p 31.3 50 CEA
1280 x 720p 720p (50Hz) 37.5 50 CEA
720p (60Hz) 45 60 CEA
1920 x 1080i 1080i (50Hz) 28.1 50 CEA
1080i (60Hz) 33.8 60 CEA
1920 x 1080p 1080p (25Hz) 28.13 25 CEA
1080p (30Hz) 33.75 30 CEA
NOTE • Be sure to check jack type, signal level, timing and resolution
before connecting this projector to a PC.
• Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
• The signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.
• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.
4
QM00112-1
Page 5
Connection to the ports
Connection to the ports
NOTICE
Ź8VHWKHFDEOHVZLWKVWUDLJKWSOXJVQRW/VKDSHGRQHVDVWKH
input ports of the projector are recessed.
Ź2QO\WKHVLJQDOWKDWLVLQSXWIURPWKHCOMPUTER IN can be output from the MONITOR OUT port.
MC-WU5505/MC-WX5505/ MC-X5555
A
MC-WU5501/MC-WX5501/ MC-X5551
A
B
B
A
COMPUTER IN, BMONITOR OUT
D-sub 15pin mini shrink jack
⑪⑮⑭⑬⑫
⑥⑩⑨⑧⑦
①⑤④③②
<Computer signal>
9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍWHUPLQDWHGSRVLWLYH
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level
<Component video signal>
9LGHRVLJQDO<ZLWKFRPSRVLWHV\QF$QDORJ9SSȍWHUPLQDWHG
&E3E$QDORJ9SSȍWHUPLQDWHG &U3U$QDORJ9SSȍWHUPLQDWHG
• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60
Pin Signal Pin Signal
1 Video Red, Cr/Pr 9 (No connection)
2 Video Green, Y 10 Ground
3 Video Blue, Cb/Pb 11 (No connection)
4 (No connection) 12
A
: SDA (DDC data)
B
: (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red, Ground Cr/Pr 14 V. sync.
7 Ground Green, Ground Y
15
A
: SCL (DDC clock)
B
8 Ground Blue, Ground Cb/Pb
5
: (No connection)
QM00112-1
Page 6
Connection to the ports (continued)
MC-WU5505/MC-WX5505/ MC-X5555
C
MC-WU5501/MC-WX5501/ MC-X5551
F
D
E
C
HDBaseT
RJ-45 jack
F
D
E
④
②⑥⑧
①⑤
③
Pin Signal Pin Signal Pin Signal
1 HDBaseT0+ 4 HDBaseT2+ 7 HDBaseT3+
2 HDBaseT0- 5 HDBaseT2-
8 HDBaseT3-
3 HDBaseT1+ 6 HDBaseT1-
D
HDMI 1 / MHL, EHDMI 2,
F
HDMI OUT
• Type :Digital audio/video connector
• Audio signal: Linear PCM (Sampling rate; 32/44.1/48 kHz)
⑦
④③②⑥⑩
①⑤
⑭⑬⑫⑲⑱⑰⑯
⑨⑧⑦⑪⑮
Pin Signal Pin Signal Pin Signal
T.M.D.S. Data2 +
1
N.C. T.M.D.S. Data2 Shield
2
CD_SENSE T.M.D.S. Data2 -
3
N.C. T.M.D.S. Data1 +
4
N.C. T.M.D.S. Data1 Shield
5
TMDS_GND T.M.D.S. Data1 -
6
N.C. T.M.D.S. Data0 +
7
MHL+
T.M.D.S. Data0 Shield
8
MHL_Shield T.M.D.S. Data0 -
9
MHL­T.M.D.S. Clock +
10
N.C. T.M.D.S. Clock Shield
11
TMDS_GND T.M.D.S. Clock -
12
N.C. CEC
13
N.C. Reserved (N.C. on device)
14
N.C.
SCL
15
CD_PULLUP SDA
16
N.C. DDC/CEC Ground
17
VBUS_CBUS_GND +5V Power
18
VBUS Hot Plug Detect
19
CBUS
6
QM00112-1
Page 7
MC-WU5505/MC-WX5505/ MC-X5555
Connection to the ports (continued)
H
G
I
J
L
MC-WU5501/MC-WX5501/ MC-X5551
H
L
G
VIDEO
G
I
J
RCA jack
&RPSRVLWHYLGHRVLJQDO$QDORJ9SSȍWHUPLQDWRU
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
H
AUDIO IN1
K
K
Ø3.5 stereo mini jack
•
$QDORJNLQSXWLPSHGDQFH
AUDIO IN2 IL, JR
RCA jack x2
•
$QDORJNLQSXWLPSHGDQFH
AUDIO OUT
Ø3.5 stereo mini jack
$QDORJNRXWSXWLPSHGDQFH
•
L
CONTROL
D-sub 9pin plug
* About the details of RS-232C communication,
please refer to the next section.
Pin Signal Pin Signal Pin Signal
K
⑤④③
⑥⑦⑧⑨
①②
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
7
QM00112-1
Page 8
Connection to the ports (continued)
MC-WU5505/MC-WX5505/ MC-X5555
MC-WU5501/MC-WX5501/ MC-X5551
M
LAN
O
O
N
M
P
N
M
P
RJ-45 jack
②⑥⑧
①⑤
③
* About the details of network communication,
please refer to the Network Guide.
Pin Signal Pin Signal Pin Signal
1TX+ 4- 7-
2TX- 5-
8-
3RX+ 6RX-
N
WIRELESS
①④③②
Only for USB wireless adapter.
Pin Signal
1+5V
2 - Data
3 + Data
4 Ground
④
⑦
REMOTE CONTROL OIN, POUT
Ø3.5 stereo mini jack
8
QM00112-1
Page 9
RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network command table (
18).
Connection
Turn off the projector and the computer.
1.
Connect the projector's CONTROL port and the computer's RS-232C port
2.
ZLWKD56&FDEOHFURVV8VHWKHFDEOHWKDWIXO¿OOVWKHVSHFL¿FDWLRQ
VKRZQLQ¿JXUH
Turn the computer on, and after the computer has started up turn the projector
3.
on. Set the COMMUNICATION TYPE to OFF in the COMMUNICATION menu of the
4.
OPTION - SERVICE menu.
RS-232C
RS-232C Cable
(cross)
RS-232C port
of the computer
1
5432
9876
9876
1
5432
CD (1) (1) RD(2) (2) RD TD (3) (3) TD DTR (4) (4) GND (5) (5) GND DSR (6) (6) RTS (7) (7) RTS CTS (8) (8) CTS RI (9) (9)
CONTROL
CONTROL port
of the projector
⑥⑦⑧⑨
⑤④③
①②
ٕ
ٕ
ٕ
ٕ
9
QM00112-1
Page 10
RS-232C Communication (continued)
Communication settings
1. Protocol
19200bps, 8N1
2. Command format
Byte Number
Command
Action
<SET> desired value [(cL)(cH)] by [(bL)(bH)].
<GET> internal setup value [(bL) (bH)] .
<INCREMENT> Increment setup value [(bL)(bH)] by 1.
<DECREMENT> Decrement setup value [(bL)(bH)] by 1.
Change setting to
Read projector
01 2 3456
Header
code
LH LHLHLHLHLH
BEh EFh 03h 06h 00h
("h" shows hexadecimal)
Header Data
Packet
Data
size
CRC
ÀDJ
(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)
(aL) (aH) 02h 00h (bL) (bH) 00h 00h
(aL) (aH) 04h 00h (bL) (bH) 00h 00h
(aL) (aH) 05h 00h (bL) (bH) 00h 00h
789101112
Action Type
Setting
code
<EXECUTE> Run a command [(bL)(bH)].
(aL) (aH) 06h 00h (bL) (bH) 00h 00h
[Header code] [Packet] [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 to 4.
>&5&ÀDJ@
For byte number
table
(18).
5, 6,
refer to
RS-232C Communication / Network command
[Action]
Set functional code to byte number 7, 8. <SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h] <DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h] Refer to the Communication command table
above).
(
>7\SH@>6HWWLQJFRGH@
For byte number 9 to 12, refer to
18).
command table
(
RS-232C Communication / Network
10
QM00112-1
Page 11
RS-232C Communication (continued)
3. Response code / Error code
("h" shows hexadecimal)
(1) ACK reply: 06h
When the projector receives the Set, Increment, Decrement or Execute
FRPPDQGFRUUHFWO\WKHSURMHFWRUFKDQJHVWKHVHWWLQJGDWDIRUWKHVSHFL¿HG
item by [Type], and it returns the code.
(2) NAK reply: 15h
When the projector cannot understand the received command, the projector returns the error code. In such a case, check the sending code and send the same command again.
(3) Error reply: 1Ch + 0000h
When the projector cannot execute the received command for any reasons, the projector returns the error code. In such a case, check the sending code and the setting status of the projector.
(4) Data reply: 1Dh + xxxxh
When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.
NOTE • For connecting the projector to your devices, please read the manual
for each devices, and connect them correctly with suitable cables.
2SHUDWLRQFDQQRWEHJXDUDQWHHGZKHQWKHSURMHFWRUUHFHLYHVDQXQGH¿QHG
command or data.
• Provide an interval of at least 40ms between the response code and any other code.
• The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error
code to the computer.
11
QM00112-1
Page 12
Command Control via the Network
Command Control via the Network
When the projector connects network, the projector can be controlled with RS­232C commands from the computer with web browser.
For details of RS-232C commands, refer to RS-232C Communication / Network command table
(18).
NOTE •
projector may not be able to process the data correctly.
If data is transferred via wireless and wired LAN at the same time, the
Connection
Turn off the projector and the computer.
1.
If you use wired LAN, connect the projector's LAN or HDBaseTTM port to
2.
the computer's LAN or HDBaseT port with a LAN cable. Use the cable that
IXO¿OOVWKHVSHFL¿FDWLRQVKRZQLQ¿JXUH,I\RXXVHZLUHOHVV/$1LQVHUWWKH86%
wireless adapter into the WIRELESS port of the projector.
Turn the computer on, and after the computer has started up turn the
3.
projector on.
USB wireless adapter
LAN
• LAN cable (CAT-5e or greater) or
• For HDBaseT connection
- CAT-5e or greater
- shielded type (connectors included)
- straight cable
- single cable
WIRELESS port
LAN or
HDBaseT port
12
QM00112-1
Page 13
Command Control via the Network
Communication Port
The following two ports are assigned for the command control.
TCP #23 TCP #9715
&RQ¿JXUHWKHIROORZLQJLWHPVIURPDZHEEURZVHUZKHQFRPPDQGFRQWUROLVXVHG
3RUW6HWWLQJV
Click the [Enable] check box to open [Network
Port open
Network Control Port1 (Port: 23)
Authentication
Control Port1 (Port: 23)] to use TCP #23. Default setting is "Enable".
Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is "Disable".
Click the [Enable] check box to open [Network
Port open
Network Control Port2 (Port: 9715)
Authentication
Control Port2 (Port: 9715)] to use TCP #9715. Default setting is "Enable".
Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is "Enable".
When the authentication setting is enabled, the following settings are required.
6HFXULW\6HWWLQJV
Network Control
Authentication Password
Re-enter Authentication Password
Enter the desired authentication password.
&RQ¿UPWKLVVHWWLQJZLOOEHWKHVDPHIRU
[Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)].
Default setting is blank.
13
QM00112-1
Page 14
Command Control via the Network (continued)
Command control settings
[TCP #23]
1. Command format
Same as RS-232C communication, refer to RS-232C Communication command format.
Response code / Error code
2.
Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)~(4). One authentication error reply (5) is added.
(1) ACK reply : 06h
Refer to RS-232C communication
(2) NAK reply : 15h
Refer to RS-232C communication
(3) Error reply : 1Ch + 0000h
Refer to RS-232C communication
(4) Data reply : 1Dh + xxxxh
Refer to RS-232C communication
("h" shows hexadecimal)
9).
(
9).
(
9).
(
9).
(
(5) Authentication error reply : 1Fh + 0400h
When authentication error occurred, the projector returns the error code.
[TCP #9715]
1. Command format
The commands some datum are added to the head and the end of the ones of TCP#9715 are used.
Header Data length RS-232C command Check sum Connection ID
0×02 0×0D 13 bytes 1 byte 1 byte
[Header] 02, Fixed
>'DWD/HQJWK@
RS-232C commands byte length (0×0D, Fixed) [RS-232C commands] Refer to RS-232C Communication command format [Check Sum] This is the value to make zero on the addition of the lower 8 bits from the header
to the checksum.
10).
(
[Connection ID] Random value from 0 to 255 (This value is attached to the reply data).
NOTE • Operation cannot be guaranteed when the projector receives an
XQGH¿QHGFRPPDQGRUGDWD
• Provide an interval of at least 40ms between the response code and any other code.
• Commands are not accepted during warm-up.
14
QM00112-1
Page 15
Command Control via the Network (continued)
2. Response code / Error code ("h" shows hexadecimal)
The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.
(1) ACK reply: 06h + ××h (××h : connection ID) (2) NAK reply: 15h + ××h (3) Error reply: 1Ch + 0000h + ××h (4) Data reply: 1Dh + xxxxh + ××h (5) Authentication error reply: 1Fh + 0400h + ××h (6) Projector busy reply: 1Fh + ××××h + ××h
When the projector is too busy to receive the command, the projector returns the error code. In such a case, check the sending code and send the same command again.
Automatic Connection Break
The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.
Authentication
The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is connected to a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password, and digest the data with the MD5 algorithm, and add it in front of the commands to send. The following is a sample of authentication process. Authentication password: password (example) Random 8 bytes: a572f60c (example)
1) Select a projector and receive the random 8 bytes from the projector.
Î “a572f60c”
2) Bind the random 8 bytes and the authentication password.
Î “a572f60cpassword”
3) Digest this bound with MD5 algorithm.
Î “e3d97429adffa11bce1f7275813d4bde”
4) Add this code in front of the commands and send the data.
Î “e3d97429adffa11bce1f7275813d4bde” + [command].
5) When the sent data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.
NOTE • As for the transmission of the second or subsequent commands, the
authentication data can be omitted for the same connection.
15
QM00112-1
Page 16

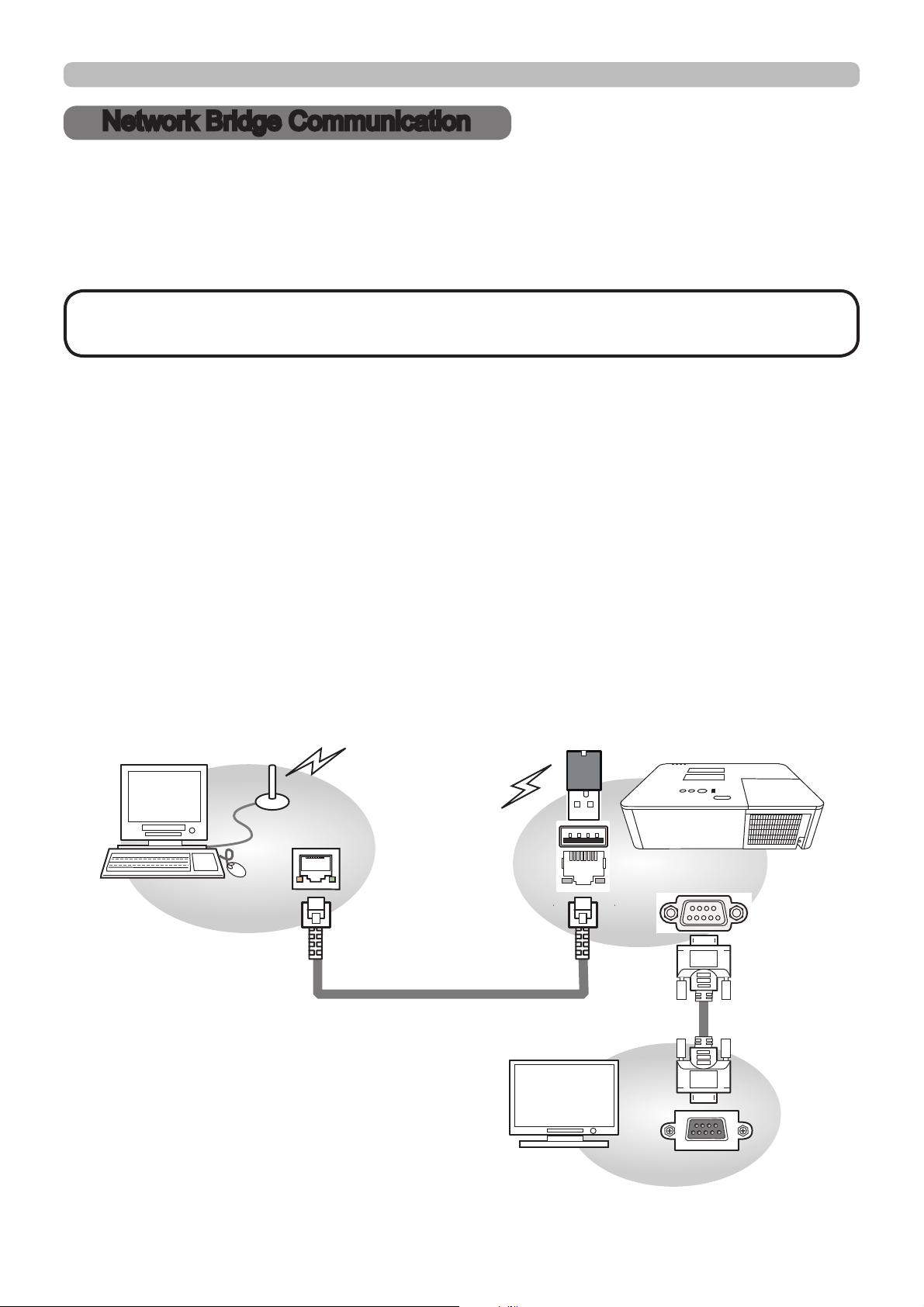

Network Bridge Communication
Network Bridge Communication
This projector is equipped with NETWORK BRIDGE function.
When the projector connects to the computer by wired or wireless LAN communication, an external device connected with this projector by RS-232C communication can be controlled from the computer as a network terminal.
For details, see the 1HWZRUN%ULGJH function in the Network Guide.
NOTE • If data is transferred via wireless and wired LAN at the same time,
the projector may not be able to process the data correctly.
Connection
If you use wired LAN, connect the computer's LAN port and the projector's
1.
LANSRUWZLWKD/$1FDEOH8VHWKHFDEOHWKDWIXO¿OOVWKHVSHFL¿FDWLRQVKRZQ
LQ¿JXUH,I\RXXVHZLUHOHVV/$1LQVHUWWKH86%ZLUHOHVVDGDSWHULQWRWKH
projector's LAN port.
Connect the projector's CONTROL port and the RS-232C port of the devices
2.
that you want to control with a RS-232C cable.
Turn the computer on, and after the computer has started up turn the
3.
projector on. Set the COMMUNICATION TYPE to NETWORK BRIDGE in the
4.
COMMUNICATION menu of the OPTION - SERVICE menu.
USB wireless adapter
LAN
WIRELESS port
LAN or
HDBaseT port
CONTROL
• LAN cable (CAT-5e or greater)
16
RS-232C
QM00112-1
Page 17
Network Bridge Communication
Communication settings
For communication setting, use the COMMUNICATION menu in the OPTION ­SERVICE menu
Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length ELW¿[HG
PARITY NONE/ODD/EVEN
Start bit ELW¿[HG
Stop bit ELW¿[HG
Transmission method HALF-DUPLEX/FULL-DUPLEX
NOTE •
For connecting the projector to your devices, please read the manual
for each devices, and connect them correctly with suitable cables.
• Turn off the power and unplug both the projector and other devices before connecting them.
• For details of Transmission method, refer to 7.4 Transmission method in the Network Guide.
17
QM00112-1
Page 18
RS-232C Communication / Network command table
RS-232C Communication / Network command table
Names Operation Type Header
Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00 Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
BE EF 03 06 00 19 D3 02 00 00 60 00 00
Get
COMPUTER IN BE EF 03 06 00 FE D2 01 00 00 20 00 00
LAN BE EF 03 06 00 CE D5 01 00 00 20 0B 00
HDMI 1 / MHL BE EF 03 06 00 0E D2 01 00 00 20 03 00
HDMI 2 BE EF 03 06 00 6E D6 01 00 00 20 0D 00
HDBaseT * BE EF 03 06 00 AE DE 01 00 00 20 11 00
VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00
Get BE EF 03 06 00 CD D2 02 00 00 20 00 00
Get
Get BE EF 03 06 00 7C D2 02 00 07 30 00 00
Increment BE EF 03 06 00 1A D2 04 00 07 30 00 00
Decrement BE EF 03 06 00 CB D3 05 00 07 30 00 00
Get BE EF 03 06 00 C8 D7 02 00 10 30 00 00
Increment BE EF 03 06 00 AE D7 04 00 10 30 00 00
Decrement BE EF 03 06 00 7F D6 05 00 10 30 00 00
Get BE EF 03 06 00 34 D6 02 00 11 30 00 00
Increment BE EF 03 06 00 52 D6 04 00 11 30 00 00
Decrement BE EF 03 06 00 83 D7 05 00 11 30 00 00
NORMAL BE EF 03 06 00 83 D2 01 00 02 30 00 00
FREEZE BE EF 03 06 00 13 D3 01 00 02 30 01 00 Get BE EF 03 06 00 B0 D2 02 00 02 30 00 00
OFF BE EF 03 06 00 F3 93 01 00 05 24 00 00
ON BE EF 03 06 00 63 92 01 00 05 24 01 00
Get BE EF 03 06 00 C0 93 02 00 05 24 00 00
OFF BE EF 03 06 00 3E 26 01 00 10 23 00 00
PbyP BE EF 03 06 00 AE 27 01 00 10 23 01 00
PinP BE EF 03 06 00 5E 27 01 00 10 23 02 00
Get BE EF 03 06 00 0D 26 02 00 10 23 00 00
SMALL BE EF 03 06 00 F2 07 01 00 11 23 7F 00
MIDDLE BE EF 03 06 00 02 46 01 00 11 23 80 00
LARGE BE EF 03 06 00 92 47 01 00 11 23 81 00
Get BE EF 03 06 00 F1 27 02 00 11 23 00 00
[Example return] 00 00 01 00 02 00
[Off] [On] [Cool down]
BE EF 03 06 00 D9 D8 02 00 20 60 00 00 [Example return] 00 00 01 00 02 00 03 00
[Normal] [Cover error] [Fan error] [Lamp error] 04 00 05 00 07 00 08 00
>7HPSHUURU@ >$LUÀRZHUURU@ >&ROGHUURU@ >)LOWHUHUURU@
0F 00 60 00 [Shade error] [AC blackout error]
Power
Input Source
Error Status
MAGNIFY
MAGNIFY Position H
MAGNIFY
Position V
FREEZE
SHADE
PbyP/PinP
PbyP
MAIN SIZE
Set
Set
Set
Set
Set
Set
CRC
Command Data
Action Type Setting code
*
Only for MC-WU5505/MC-WX5505/MC-X5555
18
QM00112-1
Page 19
RS-232C Communication / Network command table (continued)
Names Operation Type Header
COMPUTER IN BE EF 03 06 00 86 27 01 00 12 23 00 00
HDMI 1 / MHL BE EF 03 06 00 76 27 01 00 12 23 03 00
PbyP
RIGHT SOURCE
PbyP
MAIN AREA
PbyP
LEFT SOURCE
PinP POSITION
PinP
MAIN AREA
PinP PRIMARY
SOURCE
PinP
SECONDARY
SOURCE
PbyP SWAP
PbyP / PinP
FRAME LOCK
Set
Set
Set
Set
Set
Set
Set
Set
HDMI 2 BE EF 03 06 00 16 23 01 00 12 23 0D 00
HDBaseT * BE EF 03 06 00 D6 2B 01 00 12 23 11 00
VIDEO BE EF 03 06 00 16 26 01 00 12 23 01 00
Get BE EF 03 06 00 B5 27 02 00 12 23 00 00
LEFT BE EF 03 06 00 7A 26 01 00 13 23 00 00
RIGHT BE EF 03 06 00 EA 27 01 00 13 23 01 00
Get BE EF 03 06 00 49 26 02 00 13 23 00 00
COMPUTER IN BE EF 03 06 00 F2 26 01 00 15 23 00 00
HDMI 1 / MHL BE EF 03 06 00 02 26 01 00 15 23 03 00
HDMI 2 BE EF 03 06 00 62 22 01 00 15 23 0D 00
HDBaseT * BE EF 03 06 00 A2 2A 01 00 15 23 11 00
VIDEO BE EF 03 06 00 62 27 01 00 15 23 01 00
Get BE EF 03 06 00 C1 26 02 00 15 23 00 00
TOP LEFT BE EF 03 06 00 02 23 01 00 01 23 00 00
TOP RIGHT BE EF 03 06 00 92 22 01 00 01 23 01 00
BOTTOM LEFT BE EF 03 06 00 62 22 01 00 01 23 02 00
BOTTOM RIGHT BE EF 03 06 00 F2 23 01 00 01 23 03 00
Get BE EF 03 06 00 31 23 02 00 01 23 00 00
PRIMARY BE EF 03 06 00 32 22 01 00 05 23 00 00
SECONDARY BE EF 03 06 00 A2 23 01 00 05 23 01 00
Get BE EF 03 06 00 01 22 02 00 05 23 00 00
COMPUTER IN BE EF 03 06 00 CE 23 01 00 04 23 00 00
HDMI 1 / MHL BE EF 03 06 00 3E 23 01 00 04 23 03 00
HDMI 2 BE EF 03 06 00 5E 27 01 00 04 23 0D 00
HDBaseT * BE EF 03 06 00 9E 2F 01 00 04 23 11 00
VIDEO BE EF 03 06 00 5E 22 01 00 04 23 01 00
Get BE EF 03 06 00 FD 23 02 00 04 23 00 00
COMPUTER IN BE EF 03 06 00 46 23 01 00 02 23 00 00
HDMI 1 / MHL BE EF 03 06 00 B6 23 01 00 02 23 03 00
HDMI 2 BE EF 03 06 00 D6 27 01 00 02 23 0D 00
HDBaseT * BE EF 03 06 00 16 2F 01 00 02 23 11 00
VIDEO BE EF 03 06 00 D6 22 01 00 02 23 01 00
Get BE EF 03 06 00 75 23 02 00 02 23 00 00
Execute BE EF 03 06 00 01 27 06 00 16 23 00 00
LEFT / PRIMARY BE EF 03 06 00 4A 27 01 00 17 23 00 00
RIGHT / SECONDARY
Get BE EF 03 06 00 79 27 02 00 17 23 00 00
BE EF 03 06 00 DA 26 01 00 17 23 01 00
CRC
Command Data
Action Type Setting code
*
Only for MC-WU5505/MC-WX5505/MC-X5555
19
QM00112-1
Page 20
RS-232C Communication / Network command table (continued)
Names Operation Type Header
STANDARD BE EF 03 06 00 83 F5 01 00 BA 30 06 00
NATURAL BE EF 03 06 00 23 F6 01 00 BA 30 00 00
CINEMA BE EF 03 06 00 B3 F7 01 00 BA 30 01 00
DYNAMIC BE EF 03 06 00 E3 F4 01 00 BA 30 04 00
BOARD(BLACK) BE EF 03 06 00 E3 EF 01 00 BA 30 20 00
BOARD(GREEN) BE EF 03 06 00 73 EE 01 00 BA 30 21 00
MODE
BRIGHTNESS
BRIGHTNESS
Reset
CONTRAST
Set
WHITEBOARD BE EF 03 06 00 83 EE 01 00 BA 30 22 00
DAYTIME BE EF 03 06 00 E3 C7 01 00 BA 30 40 00
DICOM SIM. BE EF 03 06 00 73 C6 01 00 BA 30 41 00
USER-1 BE EF 03 06 00 E3 FB 01 00 BA 30 10 00 USER-2 BE EF 03 06 00 73 FA 01 00 BA 30 11 00
USER-3 BE EF 03 06 00 83 FA 01 00 BA 30 12 00 Get BE EF 03 06 00 10 F6 02 00 BA 30 00 00 Get BE EF 03 06 00 89 D2 02 00 03 20 00 00
Increment BE EF 03 06 00 EF D2 04 00 03 20 00 00
Decrement BE EF 03 06 00 3E D3 05 00 03 20 00 00
Execute BE EF 03 06 00 58 D3 06 00 00 70 00 00
Get BE EF 03 06 00 FD D3 02 00 04 20 00 00
Increment BE EF 03 06 00 9B D3 04 00 04 20 00 00
Decrement BE EF 03 06 00 4A D2 05 00 04 20 00 00
CRC
Command Data
Action Type Setting code
CONTRAST
Reset
GAMMA
Set
Execute BE EF 03 06 00 A4 D2 06 00 01 70 00 00
1 DEFAULT BE EF 03 06 00 07 E9 01 00 A1 30 20 00 1 CUSTOM BE EF 03 06 00 07 FD 01 00 A1 30 10 00 2 DEFAULT BE EF 03 06 00 97 E8 01 00 A1 30 21 00 2 CUSTOM BE EF 03 06 00 97 FC 01 00 A1 30 11 00 3 DEFAULT BE EF 03 06 00 67 E8 01 00 A1 30 22 00 3 CUSTOM BE EF 03 06 00 67 FC 01 00 A1 30 12 00 4 DEFAULT BE EF 03 06 00 F7 E9 01 00 A1 30 23 00 4 CUSTOM BE EF 03 06 00 F7 FD 01 00 A1 30 13 00 5 DEFAULT BE EF 03 06 00 C7 EB 01 00 A1 30 24 00 5 CUSTOM BE EF 03 06 00 C7 FF 01 00 A1 30 14 00 6 DEFAULT BE EF 03 06 00 57 EA 01 00 A1 30 25 00 6 CUSTOM BE EF 03 06 00 57 FE 01 00 A1 30 15 00 7 DEFAULT BE EF 03 06 00 A7 EA 01 00 A1 30 26 00 7 CUSTOM BE EF 03 06 00 A7 FE 01 00 A1 30 16 00 8 DEFAULT BE EF 03 06 00 37 EB 01 00 A1 30 27 00 8 CUSTOM BE EF 03 06 00 37 FF 01 00 A1 30 17 00
Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00
20
QM00112-1
Page 21
RS-232C Communication / Network command table (continued)
Names Operation Type Header
User GAMMA
Point 1
User GAMMA Point 1 Reset
User GAMMA
Point 2
User GAMMA Point 2 Reset
User GAMMA
Point 3
User GAMMA Point 3 Reset
User GAMMA
Point 4
Get BE EF 03 06 00 08 FE 02 00 90 30 00 00
Increment BE EF 03 06 00 6E FE 04 00 90 30 00 00
Decrement BE EF 03 06 00 BF FF 05 00 90 30 00 00
Execute BE EF 03 06 00 58 C2 06 00 50 70 00 00
Get BE EF 03 06 00 F4 FF 02 00 91 30 00 00
Increment BE EF 03 06 00 92 FF 04 00 91 30 00 00
Decrement BE EF 03 06 00 43 FE 05 00 91 30 00 00
Execute BE EF 03 06 00 A4 C3 06 00 51 70 00 00
Get BE EF 03 06 00 B0 FF 02 00 92 30 00 00
Increment BE EF 03 06 00 D6 FF 04 00 92 30 00 00
Decrement BE EF 03 06 00 07 FE 05 00 92 30 00 00
Execute BE EF 03 06 00 E0 C3 06 00 52 70 00 00
Get BE EF 03 06 00 4C FE 02 00 93 30 00 00
Increment BE EF 03 06 00 2A FE 04 00 93 30 00 00
Decrement BE EF 03 06 00 FB FF 05 00 93 30 00 00
CRC
Command Data
Action Type Setting code
User GAMMA Point 4 Reset
User GAMMA
Point 5
User GAMMA Point 5 Reset
User GAMMA
Point 6
User GAMMA Point 6 Reset
User GAMMA
Point 7
User GAMMA Point 7 Reset
User GAMMA
Point 8
User GAMMA Point 8 Reset
Execute BE EF 03 06 00 1C C2 06 00 53 70 00 00
Get BE EF 03 06 00 38 FF 02 00 94 30 00 00
Increment BE EF 03 06 00 5E FF 04 00 94 30 00 00
Decrement BE EF 03 06 00 8F FE 05 00 94 30 00 00
Execute BE EF 03 06 00 68 C3 06 00 54 70 00 00
Get BE EF 03 06 00 C4 FE 02 00 95 30 00 00
Increment BE EF 03 06 00 A2 FE 04 00 95 30 00 00
Decrement BE EF 03 06 00 73 FF 05 00 95 30 00 00
Execute BE EF 03 06 00 94 C2 06 00 55 70 00 00
Get BE EF 03 06 00 80 FE 02 00 96 30 00 00
Increment BE EF 03 06 00 E6 FE 04 00 96 30 00 00
Decrement BE EF 03 06 00 37 FF 05 00 96 30 00 00
Execute BE EF 03 06 00 D0 C2 06 00 56 70 00 00
Get BE EF 03 06 00 7C FF 02 00 97 30 00 00
Increment BE EF 03 06 00 1A FF 04 00 97 30 00 00
Decrement BE EF 03 06 00 CB FE 05 00 97 30 00 00
Execute BE EF 03 06 00 2C C3 06 00 57 70 00 00
21
QM00112-1
Page 22
RS-232C Communication / Network command table (continued)
Names Operation Type Header
1 HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00
COLOR TEMP
COLOR TEMP
GAIN R
1 CUSTOM
(HIGH)
2 MID-1 BE EF 03 06 00 9B F4 01 00 B0 30 02 00
2 CUSTOM
(MID-1)
3 MID-2 BE EF 03 06 00 3B F7 01 00 B0 30 04 00
3 CUSTOM
Set
(MID-2)
3 LOW BE EF 03 06 00 6B F4 01 00 B0 30 01 00
4 CUSTOM(LOW) BE EF 03 06 00 AB F9 01 00 B0 30 11 00
4 Hi-BRIGHT-1 BE EF 03 06 00 3B F2 01 00 B0 30 08 00
5 CUSTOM BE EF 03 06 00 FB FF 01 00 B0 30 18 00
5 Hi-BRIGHT-2 BE EF 03 06 00 AB F3 01 00 B0 30 09 00
6 CUSTOM BE EF 03 06 00 6B FE 01 00 B0 30 19 00
6 Hi-BRIGHT-3 BE EF 03 06 00 5B F3 01 00 B0 30 0A 00
7 CUSTOM BE EF 03 06 00 9B FE 01 00 B0 30 1A 00
Get BE EF 03 06 00 C8 F5 02 00 B0 30 00 00 Get BE EF 03 06 00 34 F4 02 00 B1 30 00 00
Increment BE EF 03 06 00 52 F4 04 00 B1 30 00 00
Decrement BE EF 03 06 00 83 F5 05 00 B1 30 00 00
BE EF 03 06 00 CB F8 01 00 B0 30 13 00
BE EF 03 06 00 5B F9 01 00 B0 30 12 00
BE EF 03 06 00 FB FA 01 00 B0 30 14 00
CRC
Command Data
Action Type Setting code
COLOR TEMP
GAIN R Reset
COLOR TEMP
GAIN G
COLOR TEMP
GAIN G Reset
COLOR TEMP
GAIN B
COLOR TEMP
GAIN B Reset
COLOR TEMP
OFFSET R
COLOR TEMP
OFFSET R Reset
COLOR TEMP
OFFSET G
COLOR TEMP
OFFSET G Reset
COLOR TEMP
OFFSET B
Execute BE EF 03 06 00 10 C6 06 00 46 70 00 00
Get BE EF 03 06 00 70 F4 02 00 B2 30 00 00
Increment BE EF 03 06 00 16 F4 04 00 B2 30 00 00
Decrement BE EF 03 06 00 C7 F5 05 00 B2 30 00 00
Execute BE EF 03 06 00 EC C7 06 00 47 70 00 00
Get BE EF 03 06 00 8C F5 02 00 B3 30 00 00
Increment BE EF 03 06 00 EA F5 04 00 B3 30 00 00
Decrement BE EF 03 06 00 3B F4 05 00 B3 30 00 00
Execute BE EF 03 06 00 F8 C4 06 00 48 70 00 00
Get BE EF 03 06 00 04 F5 02 00 B5 30 00 00
Increment BE EF 03 06 00 62 F5 04 00 B5 30 00 00
Decrement BE EF 03 06 00 B3 F4 05 00 B5 30 00 00
Execute BE EF 03 06 00 40 C5 06 00 4A 70 00 00
Get BE EF 03 06 00 40 F5 02 00 B6 30 00 00
Increment BE EF 03 06 00 26 F5 04 00 B6 30 00 00
Decrement BE EF 03 06 00 F7 F4 05 00 B6 30 00 00
Execute BE EF 03 06 00 BC C4 06 00 4B 70 00 00
Get BE EF 03 06 00 BC F4 02 00 B7 30 00 00
Increment BE EF 03 06 00 DA F4 04 00 B7 30 00 00
Decrement BE EF 03 06 00 0B F5 05 00 B7 30 00 00
COLOR TEMP
OFFSET B Reset
Execute BE EF 03 06 00 C8 C5 06 00 4C 70 00 00
22
QM00112-1
Page 23
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Get BE EF 03 06 00 B5 72 02 00 02 22 00 00
COLOR
COLOR Reset
TINT
TINT Reset
SHARPNESS
SHARPNESS
Reset
ACCENTUALIZER
ACCENTUALIZER
Reset
HDCR
HDCR Reset
ACTIVE IRIS
Set
MY MEMORY
Load
MY MEMORY
Save
Set
Set
Set
ASPECT
OVER SCAN
Increment BE EF 03 06 00 D3 72 04 00 02 22 00 00
Decrement BE EF 03 06 00 02 73 05 00 02 22 00 00
Execute BE EF 03 06 00 80 D0 06 00 0A 70 00 00
Get BE EF 03 06 00 49 73 02 00 03 22 00 00
Increment BE EF 03 06 00 2F 73 04 00 03 22 00 00
Decrement BE EF 03 06 00 FE 72 05 00 03 22 00 00
Execute BE EF 03 06 00 7C D1 06 00 0B 70 00 00
Get BE EF 03 06 00 F1 72 02 00 01 22 00 00
Increment BE EF 03 06 00 97 72 04 00 01 22 00 00
Decrement BE EF 03 06 00 46 73 05 00 01 22 00 00
Execute BE EF 03 06 00 C4 D0 06 00 09 70 00 00
Get BE EF 03 06 00 5D 70 02 00 0C 22 00 00
Increment BE EF 03 06 00 3B 70 04 00 0C 22 00 00
Decrement BE EF 03 06 00 EA 71 05 00 0C 22 00 00
Execute BE EF 03 06 00 C8 DB 06 00 2C 70 00 00
Get BE EF 03 06 00 A1 71 02 00 0D 22 00 00
Increment BE EF 03 06 00 C7 71 04 00 0D 22 00 00
Decrement BE EF 03 06 00 16 70 05 00 0D 22 00 00
Execute BE EF 03 06 00 34 DA 06 00 2D 70 00 00
OFF BE EF 03 06 00 0B 22 01 00 04 33 00 00
THEATER BE EF 03 06 00 CB 2F 01 00 04 33 10 00
PRESENTATION BE EF 03 06 00 5B 2E 01 00 04 33 11 00
Get BE EF 03 06 00 38 22 02 00 04 33 00 00
1 BE EF 03 06 00 0E D7 01 00 14 20 00 00 2 BE EF 03 06 00 9E D6 01 00 14 20 01 00 3 BE EF 03 06 00 6E D6 01 00 14 20 02 00 4 BE EF 03 06 00 FE D7 01 00 14 20 03 00 1 BE EF 03 06 00 F2 D6 01 00 15 20 00 00 2 BE EF 03 06 00 62 D7 01 00 15 20 01 00 3 BE EF 03 06 00 92 D7 01 00 15 20 02 00 4 BE EF 03 06 00 02 D6 01 00 15 20 03 00
NORMAL BE EF 03 06 00 5E DD 01 00 08 20 10 00
4:3 BE EF 03 06 00 9E D0 01 00 08 20 00 00
16:9 BE EF 03 06 00 0E D1 01 00 08 20 01 00
16:10 BE EF 03 06 00 3E D6 01 00 08 20 0A 00
14:9 BE EF 03 06 00 CE D6 01 00 08 20 09 00
NATIVE * BE EF 03 06 00 5E D7 01 00 08 20 08 00
ZOOM BE EF 03 06 00 9E C4 01 00 08 20 30 00 Get BE EF 03 06 00 AD D0 02 00 08 20 00 00 Get BE EF 03 06 00 91 70 02 00 09 22 00 00
Increment BE EF 03 06 00 F7 70 04 00 09 22 00 00
Decrement BE EF 03 06 00 26 71 05 00 09 22 00 00
CRC
Command Data
Action Type Setting code
OVER SCAN
Reset
Execute BE EF 03 06 00 EC D9 06 00 27 70 00 00
* Only for MC-WU5505/MC-WX5505/MC-WU5501/MC-WX5501
23
QM00112-1
Page 24
RS-232C Communication / Network command table (continued)
Names Operation Type Header
Get BE EF 03 06 00 0D 83 02 00 00 21 00 00
V POSITION
V POSITION
Reset
H POSITION
H POSITION
Reset
H PHASE
H SIZE
H SIZE Reset
AUTO ADJUST
EXECUTE
PROGRESSIVE
VIDEO NR
COLOR SPACE
C-VIDEO FORMAT
HDMI 1 / MHL
FORMAT
HDMI 2
FORMAT
Set
Set
Set
Set
Set
Set
Increment BE EF 03 06 00 6B 83 04 00 00 21 00 00
Decrement BE EF 03 06 00 BA 82 05 00 00 21 00 00
Execute BE EF 03 06 00 E0 D2 06 00 02 70 00 00
Get BE EF 03 06 00 F1 82 02 00 01 21 00 00
Increment BE EF 03 06 00 97 82 04 00 01 21 00 00
Decrement BE EF 03 06 00 46 83 05 00 01 21 00 00
Execute BE EF 03 06 00 1C D3 06 00 03 70 00 00
Get BE EF 03 06 00 49 83 02 00 03 21 00 00
Increment BE EF 03 06 00 2F 83 04 00 03 21 00 00
Decrement BE EF 03 06 00 FE 82 05 00 03 21 00 00
Get BE EF 03 06 00 B5 82 02 00 02 21 00 00
Increment BE EF 03 06 00 D3 82 04 00 02 21 00 00
Decrement BE EF 03 06 00 02 83 05 00 02 21 00 00
Execute BE EF 03 06 00 68 D2 06 00 04 70 00 00
Execute BE EF 03 06 00 91 D0 06 00 0A 20 00 00
OFF BE EF 03 06 00 4A 72 01 00 07 22 00 00
TV BE EF 03 06 00 DA 73 01 00 07 22 01 00
FILM BE EF 03 06 00 2A 73 01 00 07 22 02 00
Get BE EF 03 06 00 79 72 02 00 07 22 00 00
LOW BE EF 03 06 00 26 72 01 00 06 22 01 00
MID BE EF 03 06 00 D6 72 01 00 06 22 02 00
HIGH BE EF 03 06 00 46 73 01 00 06 22 03 00
Get BE EF 03 06 00 85 73 02 00 06 22 00 00
AUTO BE EF 03 06 00 0E 72 01 00 04 22 00 00
RGB BE EF 03 06 00 9E 73 01 00 04 22 01 00
SMPTE240 BE EF 03 06 00 6E 73 01 00 04 22 02 00
REC709 BE EF 03 06 00 FE 72 01 00 04 22 03 00 REC601 BE EF 03 06 00 CE 70 01 00 04 22 04 00 Get BE EF 03 06 00 3D 72 02 00 04 22 00 00
AUTO BE EF 03 06 00 A2 70 01 00 11 22 0A 00
NTSC BE EF 03 06 00 C2 74 01 00 11 22 04 00
PAL BE EF 03 06 00 52 75 01 00 11 22 05 00
SECAM BE EF 03 06 00 52 70 01 00 11 22 09 00
NTSC4.43 BE EF 03 06 00 62 77 01 00 11 22 02 00
M-PAL BE EF 03 06 00 C2 71 01 00 11 22 08 00 N-PAL BE EF 03 06 00 32 74 01 00 11 22 07 00
Get BE EF 03 06 00 31 76 02 00 11 22 00 00
AUTO BE EF 03 06 00 BA 77 01 00 13 22 00 00
VIDEO BE EF 03 06 00 2A 76 01 00 13 22 01 00
COMPUTER BE EF 03 06 00 DA 76 01 00 13 22 02 00
Get BE EF 03 06 00 89 77 02 00 13 22 00 00
AUTO BE EF 03 06 00 52 75 01 00 1D 22 00 00
VIDEO BE EF 03 06 00 C2 74 01 00 1D 22 01 00
COMPUTER BE EF 03 06 00 32 74 01 00 1D 22 02 00
Get BE EF 03 06 00 61 75 02 00 1D 22 00 00
CRC
Command Data
Action Type Setting code
24
QM00112-1
Page 25
RS-232C Communication / Network command table (continued)
Names Operation Type Header
AUTO BE EF 03 06 00 7A EA 01 00 D3 20 00 00
HDBaseT
FORMAT *
HDMI 1 / MHL
RANGE
HDMI 2
RANGE
HDBaseT
RANGE *
COMPUTER IN
FRAME LOCK ­COMPUTER IN
FRAME LOCK -
HDMI 1 / MHL
FRAME LOCK -
HDMI 2
FRAME LOCK -
HDBaseT *
MHL STANDBY
POWER
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
VIDEO BE EF 03 06 00 EA EB 01 00 D3 20 01 00
COMPUTER BE EF 03 06 00 1A EB 01 00 D3 20 02 00
Get BE EF 03 06 00 49 EA 02 00 D3 20 00 00
AUTO BE EF 03 06 00 86 D8 01 00 22 20 00 00
NORMAL BE EF 03 06 00 16 D9 01 00 22 20 01 00
ENHANCED BE EF 03 06 00 E6 D9 01 00 22 20 02 00
Get BE EF 03 06 00 B5 D8 02 00 22 20 00 00
AUTO BE EF 03 06 00 7A D9 01 00 23 20 00 00
NORMAL BE EF 03 06 00 EA D8 01 00 23 20 01 00
ENHANCED BE EF 03 06 00 1A D8 01 00 23 20 02 00
Get BE EF 03 06 00 49 D9 02 00 23 20 00 00
AUTO BE EF 03 06 00 86 EB 01 00 D2 20 00 00
NORMAL BE EF 03 06 00 16 EA 01 00 D2 20 01 00
ENHANCED BE EF 03 06 00 E6 EA 01 00 D2 20 02 00
Get BE EF 03 06 00 B5 EB 02 00 D2 20 00 00
AUTO BE EF 03 06 00 CE D6 01 00 10 20 03 00
SYNC ON G OFF BE EF 03 06 00 5E D7 01 00 10 20 02 00
Get BE EF 03 06 00 0D D6 02 00 10 20 00 00
OFF BE EF 03 06 00 3B C2 01 00 50 30 00 00
ON BE EF 03 06 00 AB C3 01 00 50 30 01 00
Get BE EF 03 06 00 08 C2 02 00 50 30 00 00
OFF BE EF 03 06 00 7F C2 01 00 53 30 00 00
ON BE EF 03 06 00 EF C3 01 00 53 30 01 00
Get BE EF 03 06 00 4C C2 02 00 53 30 00 00
OFF BE EF 03 06 00 97 C0 01 00 5D 30 00 00
ON BE EF 03 06 00 07 C1 01 00 5D 30 01 00
Get BE EF 03 06 00 A4 C0 02 00 5D 30 00 00
OFF BE EF 03 06 00 C2 EB 01 00 D1 20 00 00
ON BE EF 03 06 00 52 EA 01 00 D1 20 01 00
Get BE EF 03 06 00 F1 EB 02 00 D1 20 00 00
OFF BE EF 03 06 00 FE 2D 01 00 30 23 00 00
ON BE EF 03 06 00 6E 2C 01 00 30 23 01 00
Get BE EF 03 06 00 CD 2D 02 00 30 23 00 00
CRC
Command Data
Action Type Setting code
*
Only for MC-WU5505/MC-WX5505/MC-X5555
25
QM00112-1
Page 26
RS-232C Communication / Network command table (continued)
Names Operation Type Header
TOP BE EF 03 06 00 02 D0 01 00 09 20 02 00
POSITION V
POSITION H
GEOMETRIC
MODE
KEYSTONE V
KEYSTONE V
Reset
KEYSTONE H
Set
Set
Set
MIDDLE BE EF 03 06 00 62 D1 01 00 09 20 00 00
BOTTOM BE EF 03 06 00 F2 D0 01 00 09 20 01 00
Get BE EF 03 06 00 51 D1 02 00 09 20 00 00
RIGHT BE EF 03 06 00 46 D5 01 00 1E 20 01 00
MIDDLE BE EF 03 06 00 D6 D4 01 00 1E 20 00 00
LEFT BE EF 03 06 00 B6 D5 01 00 1E 20 02 00
Get BE EF 03 06 00 E5 D4 02 00 1E 20 00 00
KEYSTONE
PERFECT FIT BE EF 03 06 00 9B 8C 01 00 30 31 02 00
WARPING
Get BE EF 03 06 00 C8 8D 02 00 30 31 00 00 Get BE EF 03 06 00 B9 D3 02 00 07 20 00 00
Increment BE EF 03 06 00 DF D3 04 00 07 20 00 00
Decrement BE EF 03 06 00 0E D2 05 00 07 20 00 00
Execute BE EF 03 06 00 08 D0 06 00 0C 70 00 00
Get BE EF 03 06 00 E9 D0 02 00 0B 20 00 00
Increment BE EF 03 06 00 8F D0 04 00 0B 20 00 00
Decrement BE EF 03 06 00 5E D1 05 00 0B 20 00 00
BE EF 03 06 00 6B 8C 01 00 30 31 01 00
BE EF 03 06 00 3B 8F 01 00 30 31 04 00
CRC
Command Data
Action Type Setting code
KEYSTONE H
Reset
PERFECT FIT
Left Top - H
PERFECT FIT
Left Top - V
PERFECT FIT
Right Top - H
PERFECT FIT
Right Top - V
Execute BE EF 03 06 00 98 D8 06 00 20 70 00 00
Get BE EF 03 06 00 31 89 02 00 21 21 00 00
Increment BE EF 03 06 00 57 89 04 00 21 21 00 00
Decrement BE EF 03 06 00 86 88 05 00 21 21 00 00
Get BE EF 03 06 00 75 89 02 00 22 21 00 00
Increment BE EF 03 06 00 13 89 04 00 22 21 00 00
Decrement BE EF 03 06 00 C2 88 05 00 22 21 00 00
Get BE EF 03 06 00 89 88 02 00 23 21 00 00
Increment BE EF 03 06 00 EF 88 04 00 23 21 00 00
Decrement BE EF 03 06 00 3E 89 05 00 23 21 00 00
Get BE EF 03 06 00 FD 89 02 00 24 21 00 00
Increment BE EF 03 06 00 9B 89 04 00 24 21 00 00
Decrement BE EF 03 06 00 4A 88 05 00 24 21 00 00
26
QM00112-1
Page 27
RS-232C Communication / Network command table (continued)
Names Operation Type Header
PERFECT FIT
Left Bottom - H
PERFECT FIT
Left Bottom - V
PERFECT FIT
Right Bottom - H
PERFECT FIT
Right Bottom - V
PERFECT FIT
All Corners Reset
PERFECT FIT
Left Side
Distortion
PERFECT FIT
Right Side
Distortion
PERFECT FIT
Top Side
Distortion
PERFECT FIT
Bottom Side
Distortion
Get BE EF 03 06 00 01 88 02 00 25 21 00 00
Increment BE EF 03 06 00 67 88 04 00 25 21 00 00
Decrement BE EF 03 06 00 B6 89 05 00 25 21 00 00
Get BE EF 03 06 00 45 88 02 00 26 21 00 00
Increment BE EF 03 06 00 23 88 04 00 26 21 00 00
Decrement BE EF 03 06 00 F2 89 05 00 26 21 00 00
Get BE EF 03 06 00 B9 89 02 00 27 21 00 00
Increment BE EF 03 06 00 DF 89 04 00 27 21 00 00
Decrement BE EF 03 06 00 0E 88 05 00 27 21 00 00
Get BE EF 03 06 00 AD 8A 02 00 28 21 00 00
Increment BE EF 03 06 00 CB 8A 04 00 28 21 00 00
Decrement BE EF 03 06 00 1A 8B 05 00 28 21 00 00
Execute BE EF 03 06 00 D5 8A 06 00 29 21 00 00
Get BE EF 03 06 00 31 97 02 00 41 21 00 00
Increment BE EF 03 06 00 57 97 04 00 41 21 00 00
Decrement BE EF 03 06 00 86 96 05 00 41 21 00 00
Get BE EF 03 06 00 75 97 02 00 42 21 00 00
Increment BE EF 03 06 00 13 97 04 00 42 21 00 00
Decrement BE EF 03 06 00 C2 96 05 00 42 21 00 00
Get BE EF 03 06 00 FD 97 02 00 44 21 00 00
Increment BE EF 03 06 00 9B 97 04 00 44 21 00 00
Decrement BE EF 03 06 00 4A 96 05 00 44 21 00 00
Get BE EF 03 06 00 01 96 02 00 45 21 00 00
Increment BE EF 03 06 00 67 96 04 00 45 21 00 00
Decrement BE EF 03 06 00 B6 97 05 00 45 21 00 00
CRC
Command Data
Action Type Setting code
PERFECT FIT All Sides Reset
PERFECT FIT
Memory Save-1
PERFECT FIT
Memory Save-2
PERFECT FIT
Memory Save-3
PERFECT FIT
Memory Load-1
PERFECT FIT
Memory Load-2
PERFECT FIT
Memory Load-3
Execute BE EF 03 06 00 3D 96 06 00 47 21 00 00
Execute BE EF 03 06 00 29 95 06 00 48 21 00 00
Execute BE EF 03 06 00 D5 94 06 00 49 21 00 00
Execute BE EF 03 06 00 91 94 06 00 4A 21 00 00
Execute BE EF 03 06 00 6D 95 06 00 4B 21 00 00
Execute BE EF 03 06 00 19 94 06 00 4C 21 00 00
Execute BE EF 03 06 00 E5 95 06 00 4D 21 00 00
27
QM00112-1
Page 28
RS-232C Communication / Network command table (continued)
Names Operation Type Header
EDGE
BLENDING
MODE
EDGE BLENDING
REGION Reset
EDGE BLENDING
LEVEL
EDGE BLENDING
LEFT
EDGE BLENDING
RIGHT
EDGE BLENDING
TOP
EDGE BLENDING
BOTTOM
CROPPING
MODE
CROPPING
SETUP X
CROPPING
SETUP Y
CROPPING
SETUP W
CROPPING
SETUP H
CROPPING Apply
CROPPING Reset
WARPING
MODE
DIMMING
LEVEL
OFF BE EF 03 06 00 6B 94 01 00 4C 31 00 00
Set
MANUAL BE EF 03 06 00 FB 95 01 00 4C 31 01 00
Get BE EF 03 06 00 58 94 02 00 4C 31 00 00
Execute BE EF 03 06 00 8C 96 06 00 40 31 00 00
Increment BE EF 03 06 00 92 96 04 00 41 31 00 00
Decrement BE EF 03 06 00 43 97 05 00 41 31 00 00
Get BE EF 03 06 00 F4 96 02 00 41 31 00 00 Get BE EF 03 06 00 68 95 02 00 48 31 00 00
Increment BE EF 03 06 00 0E 95 04 00 48 31 00 00
Decrement BE EF 03 06 00 DF 94 05 00 48 31 00 00
Get BE EF 03 06 00 94 94 02 00 49 31 00 00
Increment BE EF 03 06 00 F2 94 04 00 49 31 00 00
Decrement BE EF 03 06 00 23 95 05 00 49 31 00 00
Get BE EF 03 06 00 D0 94 02 00 4A 31 00 00
Increment BE EF 03 06 00 B6 94 04 00 4A 31 00 00
Decrement BE EF 03 06 00 67 95 05 00 4A 31 00 00
Get BE EF 03 06 00 2C 95 02 00 4B 31 00 00
Increment BE EF 03 06 00 4A 95 04 00 4B 31 00 00
Decrement BE EF 03 06 00 9B 94 05 00 4B 31 00 00
Set
Set
OFF BE EF 03 06 00 FB 93 01 00 50 31 00 00
ON BE EF 03 06 00 6B 92 01 00 50 31 01 00 Get BE EF 03 06 00 C8 93 02 00 50 31 00 00 Get BE EF 03 06 00 A8 91 02 00 58 31 00 00
Increment BE EF 03 06 00 CE 91 04 00 58 31 00 00
Decrement BE EF 03 06 00 1F 90 05 00 58 31 00 00
Get BE EF 03 06 00 54 90 02 00 59 31 00 00
Increment BE EF 03 06 00 32 90 04 00 59 31 00 00
Decrement BE EF 03 06 00 E3 91 05 00 59 31 00 00
Get BE EF 03 06 00 10 90 02 00 5A 31 00 00
Increment BE EF 03 06 00 76 90 04 00 5A 31 00 00
Decrement BE EF 03 06 00 A7 91 05 00 5A 31 00 00
Get BE EF 03 06 00 EC 91 02 00 5B 31 00 00
Increment BE EF 03 06 00 8A 91 04 00 5B 31 00 00
Decrement BE EF 03 06 00 5B 90 05 00 5B 31 00 00
Execute BE EF 03 06 00 B0 93 06 00 51 31 00 00
Execute BE EF 03 06 00 F4 93 06 00 52 31 00 00
OFF BE EF 03 06 00 FB 9C 01 00 60 31 00 00 MODE-1 BE EF 03 06 00 6B 9D 01 00 60 31 01 00 MODE-2 BE EF 03 06 00 9B 9D 01 00 60 31 02 00 MODE-3 BE EF 03 06 00 0B 9C 01 00 60 31 03 00
Get BE EF 03 06 00 C8 9C 02 00 60 31 00 00 Get BE EF 03 06 00 7C 22 02 00 07 33 00 00
Increment BE EF 03 06 00 1A 22 04 00 07 33 00 00
Decrement BE EF 03 06 00 CB 23 05 00 07 33 00 00
CRC
Command Data
Action Type Setting code
28
QM00112-1
Page 29
RS-232C Communication / Network command table (continued)
Names Operation Type Header
WHITE
BALANCE
OFFSET R
Get BE EF 03 06 00 0C 72 02 00 50 27 00 00
Increment BE EF 03 06 00 6A 72 04 00 50 27 00 00
Decrement BE EF 03 06 00 BB 73 05 00 50 27 00 00
WHITE
BALANCE
OFFSET R
Execute BE EF 03 06 00 38 E2 06 00 F8 70 00 00
Reset
WHITE
BALANCE
OFFSET G
Get BE EF 03 06 00 F0 73 02 00 51 27 00 00
Increment BE EF 03 06 00 96 73 04 00 51 27 00 00
Decrement BE EF 03 06 00 47 72 05 00 51 27 00 00
WHITE
BALANCE
OFFSET G
Execute BE EF 03 06 00 C4 E3 06 00 F9 70 00 00
REset
WHITE
BALANCE
OFFSET B
Get BE EF 03 06 00 B4 73 02 00 52 27 00 00
Increment BE EF 03 06 00 D2 73 04 00 52 27 00 00
Decrement BE EF 03 06 00 03 72 05 00 52 27 00 00
WHITE
BALANCE
OFFSET B
Execute BE EF 03 06 00 80 E3 06 00 FA 70 00 00
Reset
WHITE
BALANCE GAIN
R
Get BE EF 03 06 00 3C 73 02 00 54 27 00 00
Increment BE EF 03 06 00 5A 73 04 00 54 27 00 00
Decrement BE EF 03 06 00 8B 72 05 00 54 27 00 00
CRC
Command Data
Action Type Setting code
WHITE
BALANCE GAIN
R Reset
WHITE
BALANCE GAIN
G
WHITE
BALANCE GAIN
G Reset
WHITE
BALANCE GAIN
B
WHITE
BALANCE GAIN
B Reset
Execute BE EF 03 06 00 08 E3 06 00 FC 70 00 00
Get BE EF 03 06 00 C0 72 02 00 55 27 00 00
Increment BE EF 03 06 00 A6 72 04 00 55 27 00 00
Decrement BE EF 03 06 00 77 73 05 00 55 27 00 00
Execute BE EF 03 06 00 F4 E2 06 00 FD 70 00 00
Get BE EF 03 06 00 84 72 02 00 56 27 00 00
Increment BE EF 03 06 00 E2 72 04 00 56 27 00 00
Decrement BE EF 03 06 00 33 73 05 00 56 27 00 00
Execute BE EF 03 06 00 B0 E2 06 00 FE 70 00 00
29
QM00112-1
Page 30
RS-232C Communication / Network command table (continued)
Names Operation Type Header
OPTIMIZER
ECO MODE
INSTALLATION
STANDBY
MODE
COLOR
UNIFORMITY
LEVEL
COLOR
UNIFORMITY
AREA
COLOR
UNIFORMITY R
Set
Set
FRONT / DESKTOP
REAR / DESKTOP
Set
FRONT / CEILING
Set
Set
Set
OFF BE EF 03 06 00 D6 71 01 00 0E 22 00 00
ON BE EF 03 06 00 46 70 01 00 0E 22 01 00
Get BE EF 03 06 00 E5 71 02 00 0E 22 00 00
NORMAL BE EF 03 06 00 3B 23 01 00 00 33 00 00
ECO BE EF 03 06 00 AB 22 01 00 00 33 01 00
Get BE EF 03 06 00 08 23 02 00 00 33 00 00
BE EF 03 06 00 C7 D2 01 00 01 30 00 00 BE EF 03 06 00 57 D3 01 00 01 30 01 00
REAR / CEILING
Get BE EF 03 06 00 F4 D2 02 00 01 30 00 00
NORMAL BE EF 03 06 00 D6 D2 01 00 01 60 00 00
SAVING BE EF 03 06 00 46 D3 01 00 01 60 01 00 Get BE EF 03 06 00 E5 D2 02 00 01 60 00 00
1 2 3 4
Get BE EF 03 06 00 0C 6C 02 00 30 27 00 00
Top Left
To p
Top Right
Left
All
Right
Bottom Left
Bottom
Bottom Right
Get BE EF 03 06 00 F0 6D 02 00 31 27 00 00 Get BE EF 03 06 00 B4 6D 02 00 32 27 00 00
Increment BE EF 03 06 00 D2 6D 04 00 32 27 00 00
Decrement BE EF 03 06 00 03 6C 05 00 32 27 00 00
BE EF 03 06 00 A7 D3 01 00 01 30 02 00 BE EF 03 06 00 37 D2 01 00 01 30 03 00
BE EF 03 06 00 AF 6D 01 00 30 27 01 00 BE EF 03 06 00 5F 6D 01 00 30 27 02 00 BE EF 03 06 00 CF 6C 01 00 30 27 03 00 BE EF 03 06 00 FF 6E 01 00 30 27 04 00
BE EF 03 06 00 C3 6D 01 00 31 27 00 00 BE EF 03 06 00 53 6C 01 00 31 27 01 00
BE EF 03 06 00 A3 6C 01 00 31 27 02 00
BE EF 03 06 00 03 AC 01 00 31 27 00 01
BE EF 03 06 00 93 AD 01 00 31 27 01 01
BE EF 03 06 00 63 AD 01 00 31 27 02 01
BE EF 03 06 00 02 EC 01 00 31 27 00 02
BE EF 03 06 00 92 ED 01 00 31 27 01 02 BE EF 03 06 00 62 ED 01 00 31 27 02 02
CRC
Command Data
Action Type Setting code
COLOR UNIFORMITY
R Reset
COLOR
UNIFORMITY G
COLOR UNIFORMITY
G Reset
COLOR
UNIFORMITY B
COLOR UNIFORMITY
B Reset
Execute BE EF 03 06 00 58 E0 06 00 F0 70 00 00
Get BE EF 03 06 00 48 6C 02 00 33 27 00 00
Increment BE EF 03 06 00 2E 6C 04 00 33 27 00 00
Decrement BE EF 03 06 00 FF 6D 05 00 33 27 00 00
Execute BE EF 03 06 00 A4 E1 06 00 F1 70 00 00
Get BE EF 03 06 00 3C 6D 02 00 34 27 00 00
Increment BE EF 03 06 00 5A 6D 04 00 34 27 00 00
Decrement BE EF 03 06 00 8B 6C 05 00 34 27 00 00
Execute BE EF 03 06 00 E0 E1 06 00 F2 70 00 00
30
QM00112-1
Page 31
RS-232C Communication / Network command table (continued)
RS-232C Communication / Network command table (continued)
Names Operation Type Header
COLOR UNIFORMITY
ALL Reset
COLOR UNIFORMITY
PATTERN
VOLUME -
COMPUTER IN
VOLUME - LAN
VOLUME -
HDMI 1 / MHL
VOLUME -
HDMI 2
VOLUME -
HDBaseT *
VOLUME -
VIDEO
VOLUME -
STANDBY
VOLUME - ALL
MUTE
AV MUTE
SPEAKER
Set
Set
Set
Set
Execute BE EF 03 06 00 1C E0 06 00 F3 70 00 00
OFF BE EF 03 06 00 B7 6C 01 00 36 27 00 00
ON BE EF 03 06 00 27 6D 01 00 36 27 01 00
Get BE EF 03 06 00 84 6C 02 00 36 27 00 00 Get BE EF 03 06 00 CD CC 02 00 60 20 00 00
Increment BE EF 03 06 00 AB CC 04 00 60 20 00 00
Decrement BE EF 03 06 00 7A CD 05 00 60 20 00 00
Get BE EF 03 06 00 E9 CE 02 00 6B 20 00 00
Increment BE EF 03 06 00 8F CE 04 00 6B 20 00 00
Decrement BE EF 03 06 00 5E CF 05 00 6B 20 00 00
Get BE EF 03 06 00 89 CC 02 00 63 20 00 00
Increment BE EF 03 06 00 EF CC 04 00 63 20 00 00
Decrement BE EF 03 06 00 3E CD 05 00 63 20 00 00
Get BE EF 03 06 00 61 CE 02 00 6D 20 00 00
Increment BE EF 03 06 00 07 CE 04 00 6D 20 00 00
Decrement BE EF 03 06 00 D6 CF 05 00 6D 20 00 00
Get BE EF 03 06 00 C1 EA 02 00 D5 20 00 00
Increment BE EF 03 06 00 A7 EA 04 00 D5 20 00 00
Decrement BE EF 03 06 00 76 EB 05 00 D5 20 00 00
Get BE EF 03 06 00 31 CD 02 00 61 20 00 00
Increment BE EF 03 06 00 57 CD 04 00 61 20 00 00
Decrement BE EF 03 06 00 86 CC 05 00 61 20 00 00
Get BE EF 03 06 00 D9 CF 02 00 6F 20 00 00
Increment BE EF 03 06 00 BF CF 04 00 6F 20 00 00
Decrement BE EF 03 06 00 6E CE 05 00 6F 20 00 00
Get BE EF 03 06 00 CD C3 02 00 50 20 00 00
Increment BE EF 03 06 00 AB C3 04 00 50 20 00 00
Decrement BE EF 03 06 00 7A C2 05 00 50 20 00 00
OFF BE EF 03 06 00 46 D3 01 00 02 20 00 00
ON BE EF 03 06 00 D6 D2 01 00 02 20 01 00
Get BE EF 03 06 00 75 D3 02 00 02 20 00 00
OFF BE EF 03 06 00 FE F0 01 00 A0 20 00 00
ON BE EF 03 06 00 6E F1 01 00 A0 20 01 00
Get BE EF 03 06 00 CD F0 02 00 A0 20 00 00
OFF BE EF 03 06 00 6E D5 01 00 1C 20 00 00
ON BE EF 03 06 00 FE D4 01 00 1C 20 01 00
Get BE EF 03 06 00 5D D5 02 00 1C 20 00 00
CRC
Command Data
Action Type Setting code
*
Only for MC-WU5505/MC-WX5505/MC-X5555
31
QM00112-1
Page 32
RS-232C Communication / Network command table (continued)
RS-232C Communication / Network command table (continued)
Names Operation Type Header
AUDIO
SOURCE -
COMPUTER IN
AUDIO
SOURCE -
LAN
AUDIO
SOURCE -
HDMI 1 / MHL
AUDIO
SOURCE -
HDMI 2
AUDIO SOURCE ­HDBaseT *
AUDIO SOURCE -
VIDEO
LAN SOUND
ENABLE
Set
Set
Set
Set
Set
Set
Set
AUDIO IN1 BE EF 03 06 00 6E DC 01 00 30 20 01 00 AUDIO IN2 BE EF 03 06 00 9E DC 01 00 30 20 02 00
OFF BE EF 03 06 00 FE DD 01 00 30 20 00 00
Get BE EF 03 06 00 CD DD 02 00 30 20 00 00 AUDIO IN1 BE EF 03 06 00 4A DE 01 00 3B 20 01 00 AUDIO IN2 BE EF 03 06 00 BA DE 01 00 3B 20 02 00
AUDIO LAN BE EF 03 06 00 8A D3 01 00 3B 20 11 00
OFF BE EF 03 06 00 DA DF 01 00 3B 20 00 00
Get BE EF 03 06 00 E9 DF 02 00 3B 20 00 00 AUDIO IN1 BE EF 03 06 00 2A DC 01 00 33 20 01 00 AUDIO IN2 BE EF 03 06 00 DA DC 01 00 33 20 02 00
AUDIO HDMI 1 /
MHL
OFF BE EF 03 06 00 BA DD 01 00 33 20 00 00
Get BE EF 03 06 00 89 DD 02 00 33 20 00 00 AUDIO IN1 BE EF 03 06 00 C2 DE 01 00 3D 20 01 00 AUDIO IN2 BE EF 03 06 00 32 DE 01 00 3D 20 02 00
AUDIO HDMI 2 BE EF 03 06 00 02 C7 01 00 3D 20 21 00
OFF BE EF 03 06 00 52 DF 01 00 3D 20 00 00
Get BE EF 03 06 00 61 DF 02 00 3D 20 00 00 AUDIO IN1 BE EF 03 06 00 9E EA 01 00 D4 20 01 00 AUDIO IN2 BE EF 03 06 00 6E EA 01 00 D4 20 02 00
AUDIO HDBaseT BE EF 03 06 00 0E F0 01 00 D4 20 24 00
OFF BE EF 03 06 00 0E EB 01 00 D4 20 00 00
Get BE EF 03 06 00 3D EB 02 00 D4 20 00 00 AUDIO IN1 BE EF 03 06 00 92 DD 01 00 31 20 01 00 AUDIO IN2 BE EF 03 06 00 62 DD 01 00 31 20 02 00
OFF BE EF 03 06 00 02 DC 01 00 31 20 00 00
Get BE EF 03 06 00 31 DC 02 00 31 20 00 00
Disable BE EF 03 06 00 BA F0 01 00 A3 20 00 00
Enable BE EF 03 06 00 2A F1 01 00 A3 20 01 00
Get BE EF 03 06 00 89 F0 02 00 A3 20 00 00
BE EF 03 06 00 7A C4 01 00 33 20 20 00
CRC
Command Data
Action Type Setting code
*
Only for MC-WU5505/MC-WX5505/MC-X5555
32
QM00112-1
Page 33
RS-232C Communication / Network command table (continued)
Names Operation Type Header
ENGLISH BE EF 03 06 00 F7 D3 01 00 05 30 00 00
FRANÇAIS BE EF 03 06 00 67 D2 01 00 05 30 01 00
DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00
ESPAÑOL BE EF 03 06 00 07 D3 01 00 05 30 03 00
ITALIANO BE EF 03 06 00 37 D1 01 00 05 30 04 00
NORSK BE EF 03 06 00 A7 D0 01 00 05 30 05 00
NEDERLANDS BE EF 03 06 00 57 D0 01 00 05 30 06 00
PORTUGUÊS BE EF 03 06 00 C7 D1 01 00 05 30 07 00
BE EF 03 06 00 37 D4 01 00 05 30 08 00 BE EF 03 06 00 A7 D5 01 00 05 30 09 00 BE EF 03 06 00 37 DE 01 00 05 30 10 00 BE EF 03 06 00 57 D5 01 00 05 30 0A 00
SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00
3ɍ&&.ɂɃ BE EF 03 06 00 F7 D6 01 00 05 30 0C 00
SUOMI BE EF 03 06 00 67 D7 01 00 05 30 0D 00
POLSKI BE EF 03 06 00 97 D7 01 00 05 30 0E 00
LANGUAGE
Set
TÜRKÇE BE EF 03 06 00 07 D6 01 00 05 30 0F 00
DANSK BE EF 03 06 00 A7 DF 01 00 05 30 11 00
ý(6.< BE EF 03 06 00 57 DF 01 00 05 30 12 00
0$*<$5 BE EF 03 06 00 C7 DE 01 00 05 30 13 00
520Æ1Ă BE EF 03 06 00 F7 DC 01 00 05 30 14 00
SLOVENSKI BE EF 03 06 00 67 DD 01 00 05 30 15 00
HRVATSKI BE EF 03 06 00 97 DD 01 00 05 30 16 00
ǼȁȁǾȃǿȀǹ BE EF 03 06 00 07 DC 01 00 05 30 17 00
/,(789,Ǐ BE EF 03 06 00 F7 D9 01 00 05 30 18 00
EESTI BE EF 03 06 00 67 D8 01 00 05 30 19 00
LATVIEŠU BE EF 03 06 00 97 D8 01 00 05 30 1A 00
ѳъѕ
΍ϝϝύΓ΍ϝωέΏΓ
ϑ΍έαϯ˪
PORTUGUÊS BRA BE EF 03 06 00 57 DA 01 00 05 30 1E 00
BAHASA IND
TIENG VIET BE EF 03 06 00 37 CA 01 00 05 30 20 00
Get BE EF 03 06 00 C4 D3 02 00 05 30 00 00
BE EF 03 06 00 07 D9 01 00 05 30 1B 00 BE EF 03 06 00 37 DB 01 00 05 30 1C 00 BE EF 03 06 00 A7 DA 01 00 05 30 1D 00
BE EF 03 06 00 C7 DB 01 00 05 30 1F 00
CRC
Command Data
Action Type Setting code
33
QM00112-1
Page 34
RS-232C Communication / Network command table (continued)
Names Operation Type Header
MENU
POSITION V
Get BE EF 03 06 00 40 D7 02 00 16 30 00 00
Increment BE EF 03 06 00 26 D7 04 00 16 30 00 00
Decrement BE EF 03 06 00 F7 D6 05 00 16 30 00 00
MENU
POSITION V
Execute BE EF 03 06 00 A8 C7 06 00 44 70 00 00
Reset
MENU
POSITION H
Get BE EF 03 06 00 04 D7 02 00 15 30 00 00
Increment BE EF 03 06 00 62 D7 04 00 15 30 00 00
Decrement BE EF 03 06 00 B3 D6 05 00 15 30 00 00
MENU
POSITION H
Execute BE EF 03 06 00 DC C6 06 00 43 70 00 00
Reset
MyScreen BE EF 03 06 00 FB CA 01 00 00 30 20 00
ORIGINAL BE EF 03 06 00 FB E2 01 00 00 30 40 00
BLANK
BLANK On/Off
AUTO BLANK
START UP
MyScreen Lock
OSD MESSAGE
TEMPLATE
Set
Set
Set
Set
Set
Set
Set
BLUE BE EF 03 06 00 CB D3 01 00 00 30 03 00
WHITE BE EF 03 06 00 6B D0 01 00 00 30 05 00
BLACK BE EF 03 06 00 9B D0 01 00 00 30 06 00
Get BE EF 03 06 00 08 D3 02 00 00 30 00 00
OFF BE EF 03 06 00 FB D8 01 00 20 30 00 00
ON BE EF 03 06 00 6B D9 01 00 20 30 01 00
Get BE EF 03 06 00 C8 D8 02 00 20 30 00 00
BLUE BE EF 03 06 00 67 D1 01 00 0D 30 03 00
WHITE BE EF 03 06 00 C7 D2 01 00 0D 30 05 00
BLACK BE EF 03 06 00 37 D2 01 00 0D 30 06 00
Get BE EF 03 06 00 A4 D1 02 00 0D 30 00 00
MyScreen BE EF 03 06 00 CB CB 01 00 04 30 20 00
ORIGINAL BE EF 03 06 00 0B D2 01 00 04 30 00 00
OFF BE EF 03 06 00 9B D3 01 00 04 30 01 00
Get BE EF 03 06 00 38 D2 02 00 04 30 00 00
OFF BE EF 03 06 00 3B EF 01 00 C0 30 00 00
ON BE EF 03 06 00 AB EE 01 00 C0 30 01 00
Get BE EF 03 06 00 08 EF 02 00 C0 30 00 00
SILENT BE EF 03 06 00 8F D6 01 00 17 30 00 00
NORMAL BE EF 03 06 00 1F D7 01 00 17 30 01 00
INHIBIT BE EF 03 06 00 EF D7 01 00 17 30 02 00
Get BE EF 03 06 00 BC D6 02 00 17 30 00 00
TEST PATTERN BE EF 03 06 00 43 D9 01 00 22 30 00 00
DOT-LINE 1 BE EF 03 06 00 D3 D8 01 00 22 30 01 00 DOT-LINE 2 BE EF 03 06 00 23 D8 01 00 22 30 02 00 DOT-LINE 3 BE EF 03 06 00 B3 D9 01 00 22 30 03 00 DOT-LINE 4 BE EF 03 06 00 83 DB 01 00 22 30 04 00
CIRCLE 1 BE EF 03 06 00 13 DA 01 00 22 30 05 00 CIRCLE 2 BE EF 03 06 00 E3 DA 01 00 22 30 06 00
MAP 1 BE EF 03 06 00 83 D4 01 00 22 30 10 00 MAP 2 BE EF 03 06 00 13 D5 01 00 22 30 11 00
STACK BE EF 03 06 00 83 C0 01 00 22 30 20 00
Get BE EF 03 06 00 70 D9 02 00 22 30 00 00
CRC
Command Data
Action Type Setting code
34
QM00112-1
Page 35
RS-232C Communication / Network command table (continued)
Names Operation Type Header
TEMPLATE
On/Off
C.C. - DISPLAY
C.C. - MODE
C.C. - CHANNEL
SOURCE SKIP -
COMPUTER IN
SOURCE SKIP -
LAN
SOURCE SKIP -
HDMI 1 / MHL
SOURCE SKIP -
HDMI 2
SOURCE SKIP -
HDBaseT *
SOURCE SKIP -
VIDEO
AUTO SEARCH
DIRECT
POWER ON
AUTO POWER
OFF
SHADE TIMER
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
OFF BE EF 03 06 00 BF D8 01 00 23 30 00 00
ON BE EF 03 06 00 2F D9 01 00 23 30 01 00
Get BE EF 03 06 00 8C D8 02 00 23 30 00 00
OFF BE EF 03 06 00 FA 62 01 00 00 37 00 00
ON BE EF 03 06 00 6A 63 01 00 00 37 01 00
AUTO BE EF 03 06 00 9A 63 01 00 00 37 02 00
Get BE EF 03 06 00 C9 62 02 00 00 37 00 00
CAPTIONS BE EF 03 06 00 06 63 01 00 01 37 00 00
TEXT BE EF 03 06 00 96 62 01 00 01 37 01 00
Get BE EF 03 06 00 35 63 02 00 01 37 00 00
1 BE EF 03 06 00 D2 62 01 00 02 37 01 00 2 BE EF 03 06 00 22 62 01 00 02 37 02 00 3 BE EF 03 06 00 B2 63 01 00 02 37 03 00 4 BE EF 03 06 00 82 61 01 00 02 37 04 00
Get BE EF 03 06 00 71 63 02 00 02 37 00 00
NORMAL BE EF 03 06 00 FE 78 01 00 20 22 00 00
SKIP BE EF 03 06 00 6E 79 01 00 20 22 01 00
Get BE EF 03 06 00 CD 78 02 00 20 22 00 00
NORMAL BE EF 03 06 00 DA 7A 01 00 2B 22 00 00
SKIP BE EF 03 06 00 4A 7B 01 00 2B 22 01 00
Get BE EF 03 06 00 E9 7A 02 00 2B 22 00 00
NORMAL BE EF 03 06 00 BA 78 01 00 23 22 00 00
SKIP BE EF 03 06 00 2A 79 01 00 23 22 01 00
Get BE EF 03 06 00 89 78 02 00 23 22 00 00
NORMAL BE EF 03 06 00 52 7A 01 00 2D 22 00 00
SKIP BE EF 03 06 00 C2 7B 01 00 2D 22 01 00
Get BE EF 03 06 00 61 7A 02 00 2D 22 00 00
NORMAL BE EF 03 06 00 B6 EA 01 00 D6 20 00 00
SKIP BE EF 03 06 00 26 EB 01 00 D6 20 01 00
Get BE EF 03 06 00 85 EA 02 00 D6 20 00 00
NORMAL BE EF 03 06 00 02 79 01 00 21 22 00 00
SKIP BE EF 03 06 00 92 78 01 00 21 22 01 00
Get BE EF 03 06 00 31 79 02 00 21 22 00 00
OFF BE EF 03 06 00 B6 D6 01 00 16 20 00 00
ON BE EF 03 06 00 26 D7 01 00 16 20 01 00
Get BE EF 03 06 00 85 D6 02 00 16 20 00 00
OFF BE EF 03 06 00 3B 89 01 00 20 31 00 00
ON BE EF 03 06 00 AB 88 01 00 20 31 01 00 Get BE EF 03 06 00 08 89 02 00 20 31 00 00 Get BE EF 03 06 00 08 86 02 00 10 31 00 00
Increment BE EF 03 06 00 6E 86 04 00 10 31 00 00
Decrement BE EF 03 06 00 BF 87 05 00 10 31 00 00
1h BE EF 03 06 00 27 92 01 00 06 24 01 00 3h BE EF 03 06 00 47 93 01 00 06 24 03 00 6h BE EF 03 06 00 17 90 01 00 06 24 06 00
Get BE EF 03 06 00 84 93 02 00 06 24 00 00
CRC
Command Data
Action Type Setting code
*
Only for MC-WU5505/MC-WX5505/MC-X5555
35
QM00112-1
Page 36
RS-232C Communication / Network command table (continued)
Names Operation Type Header
LAMP TIME
Lower Bytes
LAMP TIME
Higher Bytes
LAMP TIME
Reset
FILTER TIME
Lower Bytes
FILTER TIME
Higher Bytes
FILTER TIME
Reset
Set
MY BUTTON-1
Set
MY BUTTON-2
Get BE EF 03 06 00 C2 FF 02 00 90 10 00 00
Get BE EF 03 06 00 2A FD 02 00 9E 10 00 00
Execute BE EF 03 06 00 58 DC 06 00 30 70 00 00
Get BE EF 03 06 00 C2 F0 02 00 A0 10 00 00
Get BE EF 03 06 00 D6 FC 02 00 9F 10 00 00
Execute BE EF 03 06 00 98 C6 06 00 40 70 00 00
MY IMAGE BE EF 03 06 00 5A 3D 01 00 00 36 16 00
MESSENGER BE EF 03 06 00 AA 29 01 00 00 36 25 00
SHADE BE EF 03 06 00 5A 26 01 00 00 36 32 00
INFORMATION BE EF 03 06 00 FA 3E 01 00 00 36 10 00
MY MEMORY BE EF 03 06 00 9A 3F 01 00 00 36 12 00
ACTIVE IRIS BE EF 03 06 00 AA 3D 01 00 00 36 15 00
PICTURE MODE BE EF 03 06 00 0A 3E 01 00 00 36 13 00
FILTER RESET BE EF 03 06 00 3A 3C 01 00 00 36 14 00
TEMPLATE BE EF 03 06 00 CA 39 01 00 00 36 1B 00
MUTE BE EF 03 06 00 FA 20 01 00 00 36 38 00
PbyP/PinP SWAP BE EF 03 06 00 5A 38 01 00 00 36 1A 00
PinP POSITION BE EF 03 06 00 3A 22 01 00 00 36 3C 00
BLANK BE EF 03 06 00 FA 02 01 00 00 36 40 00
RESOLUTION BE EF 03 06 00 9A 3A 01 00 00 36 1E 00
ECO MODE BE EF 03 06 00 0A 25 01 00 00 36 37 00
ACCENTUALIZER BE EF 03 06 00 9A 21 01 00 00 36 3A 00
HDCR BE EF 03 06 00 5A 23 01 00 00 36 3E 00
Get BE EF 03 06 00 09 33 02 00 00 36 00 00
MY IMAGE BE EF 03 06 00 A6 3C 01 00 01 36 16 00
MESSENGER BE EF 03 06 00 56 28 01 00 01 36 25 00
SHADE BE EF 03 06 00 A6 27 01 00 01 36 32 00
INFORMATION BE EF 03 06 00 06 3F 01 00 01 36 10 00
MY MEMORY BE EF 03 06 00 66 3E 01 00 01 36 12 00
ACTIVE IRIS BE EF 03 06 00 56 3C 01 00 01 36 15 00
PICTURE MODE BE EF 03 06 00 F6 3F 01 00 01 36 13 00
FILTER RESET BE EF 03 06 00 C6 3D 01 00 01 36 14 00
TEMPLATE BE EF 03 06 00 36 38 01 00 01 36 1B 00
MUTE BE EF 03 06 00 06 21 01 00 01 36 38 00
PbyP/PinP SWAP BE EF 03 06 00 A6 39 01 00 01 36 1A 00
PinP POSITION BE EF 03 06 00 C6 23 01 00 01 36 3C 00
BLANK BE EF 03 06 00 06 03 01 00 01 36 40 00
RESOLUTION BE EF 03 06 00 66 3B 01 00 01 36 1E 00
ECO MODE BE EF 03 06 00 F6 24 01 00 01 36 37 00
ACCENTUALIZER BE EF 03 06 00 66 20 01 00 01 36 3A 00
HDCR BE EF 03 06 00 A6 22 01 00 01 36 3E 00
Get BE EF 03 06 00 F5 32 02 00 01 36 00 00
CRC
Command Data
Action Type Setting code
36
QM00112-1
Page 37
RS-232C Communication / Network command table (continued)
Names Operation Type Header
MY IMAGE BE EF 03 06 00 E2 3C 01 00 02 36 16 00
MESSENGER BE EF 03 06 00 12 28 01 00 02 36 25 00
SHADE BE EF 03 06 00 E2 27 01 00 02 36 32 00
INFORMATION BE EF 03 06 00 42 3F 01 00 02 36 10 00
MY MEMORY BE EF 03 06 00 22 3E 01 00 02 36 12 00
ACTIVE IRIS BE EF 03 06 00 12 3C 01 00 02 36 15 00
PICTURE MODE BE EF 03 06 00 B2 3F 01 00 02 36 13 00
FILTER RESET BE EF 03 06 00 82 3D 01 00 02 36 14 00
MY BUTTON-3
Set
Set
MY BUTTON-4
TEMPLATE BE EF 03 06 00 72 38 01 00 02 36 1B 00
MUTE BE EF 03 06 00 42 21 01 00 02 36 38 00
PbyP/PinP SWAP BE EF 03 06 00 E2 39 01 00 02 36 1A 00
PinP POSITION BE EF 03 06 00 82 23 01 00 02 36 3C 00
BLANK BE EF 03 06 00 42 03 01 00 02 36 40 00
RESOLUTION BE EF 03 06 00 22 3B 01 00 02 36 1E 00
ECO MODE BE EF 03 06 00 B2 24 01 00 02 36 37 00
ACCENTUALIZER BE EF 03 06 00 22 20 01 00 02 36 3A 00
HDCR BE EF 03 06 00 E2 22 01 00 02 36 3E 00
Get BE EF 03 06 00 B1 32 02 00 02 36 00 00
MY IMAGE BE EF 03 06 00 1E 3D 01 00 03 36 16 00
MESSENGER BE EF 03 06 00 EE 29 01 00 03 36 25 00
SHADE BE EF 03 06 00 1E 26 01 00 03 36 32 00
INFORMATION BE EF 03 06 00 BE 3E 01 00 03 36 10 00
MY MEMORY BE EF 03 06 00 DE 3F 01 00 03 36 12 00
ACTIVE IRIS BE EF 03 06 00 EE 3D 01 00 03 36 15 00
PICTURE MODE BE EF 03 06 00 4E 3E 01 00 03 36 13 00
FILTER RESET BE EF 03 06 00 7E 3C 01 00 03 36 14 00
TEMPLATE BE EF 03 06 00 8E 39 01 00 03 36 1B 00
MUTE BE EF 03 06 00 BE 20 01 00 03 36 38 00
PbyP/PinP SWAP BE EF 03 06 00 1E 38 01 00 03 36 1A 00
PinP POSITION BE EF 03 06 00 7E 22 01 00 03 36 3C 00
BLANK BE EF 03 06 00 BE 02 01 00 03 36 40 00
RESOLUTION BE EF 03 06 00 DE 3A 01 00 03 36 1E 00
ECO MODE BE EF 03 06 00 4E 25 01 00 03 36 37 00
ACCENTUALIZER BE EF 03 06 00 DE 21 01 00 03 36 3A 00
HDCR BE EF 03 06 00 1E 23 01 00 03 36 3E 00
Get BE EF 03 06 00 4D 33 02 00 03 36 00 00
CRC
Command Data
Action Type Setting code
37
QM00112-1
Page 38
RS-232C Communication / Network command table (continued)
Names Operation Type Header
REMOTE
RECEIV.
HDBaseT *
REMOTE FREQ.
NORMAL
REMOTE FREQ.
HIGH
REMOTE ID
MY IMAGE
Set
Set
Set
Set
Set
OFF BE EF 03 06 00 BB 32 01 00 03 26 00 00
ON BE EF 03 06 00 2B 33 01 00 03 26 01 00 Get BE EF 03 06 00 88 32 02 00 03 26 00 00
OFF BE EF 03 06 00 FF 3D 01 00 30 26 00 00
ON BE EF 03 06 00 6F 3C 01 00 30 26 01 00 Get BE EF 03 06 00 CC 3D 02 00 30 26 00 00
OFF BE EF 03 06 00 03 3C 01 00 31 26 00 00
ON BE EF 03 06 00 93 3D 01 00 31 26 01 00 Get BE EF 03 06 00 30 3C 02 00 31 26 00 00
ALL BE EF 03 06 00 9F 30 01 00 08 26 00 00
1 BE EF 03 06 00 0F 31 01 00 08 26 01 00 2 BE EF 03 06 00 FF 31 01 00 08 26 02 00 3 BE EF 03 06 00 6F 30 01 00 08 26 03 00 4 BE EF 03 06 00 5F 32 01 00 08 26 04 00
Get BE EF 03 06 00 AC 30 02 00 08 26 00 00
OFF BE EF 03 06 00 3A C3 01 00 00 35 00 00 IMAGE-1 BE EF 03 06 00 AA C2 01 00 00 35 01 00 IMAGE-2 BE EF 03 06 00 5A C2 01 00 00 35 02 00 IMAGE-3 BE EF 03 06 00 CA C3 01 00 00 35 03 00 IMAGE-4 BE EF 03 06 00 FA C1 01 00 00 35 04 00
Get BE EF 03 06 00 09 C3 02 00 00 35 00 00
CRC
Command Data
Action Type Setting code
MY IMAGE
IMAGE-1 Delete
MY IMAGE
IMAGE-2 Delete
MY IMAGE
IMAGE-3 Delete
MY IMAGE
IMAGE-4 Delete
AMX for LAN
Set
CRESTRON
Set
EXTRON for
Set
HDBaseT *
*
Only for MC-WU5505/MC-WX5505/MC-X5555
Execute BE EF 03 06 00 71 C3 06 00 01 35 00 00
Execute BE EF 03 06 00 35 C3 06 00 02 35 00 00
Execute BE EF 03 06 00 C9 C2 06 00 03 35 00 00
Execute BE EF 03 06 00 BD C3 06 00 04 35 00 00
OFF BE EF 03 06 00 33 AC 01 00 30 1B 00 00
ON BE EF 03 06 00 A3 AD 01 00 30 1B 01 00
Get BE EF 03 06 00 00 AC 02 00 30 1B 00 00
OFF BE EF 03 06 00 33 B2 01 00 50 1B 00 00
ON BE EF 03 06 00 A3 B3 01 00 50 1B 01 00
Get BE EF 03 06 00 00 B2 02 00 50 1B 00 00
OFF BE EF 03 06 00 33 BD 01 00 60 1B 00 00
ON BE EF 03 06 00 A3 BC 01 00 60 1B 01 00
Get BE EF 03 06 00 00 BD 02 00 60 1B 00 00
38
QM00112-1
Page 39
RS-232C Communication / Network command table (continued)
Names Operation Type Header
HDMI OUT
RESOLUTION
STANDBY OUTPUT -
AUDIO OUT
STANDBY OUTPUT -
MONITOR OUT
STANDBY OUTPUT -
HDMI OUT
HDMI OUTPUT
Enable
HDMI OUTPUT -
COMPUTER IN
*
HDMI OUTPUT -
*
VIDEO
EXTERNAL
Set
Set
Set
Set
Set
Set
Set
DEVICE
PROJECTOR BE EF 03 06 00 D6 EE 01 00 C2 20 01 00
Get BE EF 03 06 00 75 EF 02 00 C2 20 00 00
OFF BE EF 03 06 00 EA DE 01 00 3F 20 00 00 AUDIO IN1 BE EF 03 06 00 7A DF 01 00 3F 20 01 00 AUDIO IN2 BE EF 03 06 00 8A DF 01 00 3F 20 02 00
HDMI 1 / MHL BE EF 03 06 00 2A C7 01 00 3F 20 20 00
HDMI 2 BE EF 03 06 00 BA C6 01 00 3F 20 21 00
HDBaseT * BE EF 03 06 00 EA C5 01 00 3F 20 24 00
Get BE EF 03 06 00 D9 DE 02 00 3F 20 00 00
COMPUTER IN BE EF 03 06 00 2A F7 01 00 BF 20 00 00
OFF BE EF 03 06 00 DA B6 01 00 BF 20 FF 00
Get BE EF 03 06 00 19 F7 02 00 BF 20 00 00
HDMI 1 / MHL BE EF 03 06 00 F2 EF 01 00 C1 20 03 00
HDBaseT * BE EF 03 06 00 52 E3 01 00 C1 20 11 00
OFF BE EF 03 06 00 F2 AE 01 00 C1 20 FF 00
Get BE EF 03 06 00 31 EF 02 00 C1 20 00 00
OFF BE EF 03 06 00 02 2C 01 00 31 23 00 00
ON BE EF 03 06 00 92 2D 01 00 31 23 01 00
Get BE EF 03 06 00 31 2C 02 00 31 23 00 00
HDMI 1 / MHL BE EF 03 06 00 CE 37 01 00 40 23 03 00
HDBaseT BE EF 03 06 00 6E 3B 01 00 40 23 11 00 Get BE EF 03 06 00 0D 37 02 00 40 23 00 00
HDMI 1 / MHL BE EF 03 06 00 32 36 01 00 41 23 03 00
HDBaseT BE EF 03 06 00 92 3A 01 00 41 23 11 00
Get BE EF 03 06 00 F1 36 02 00 41 23 00 00
BE EF 03 06 00 46 EF 01 00 C2 20 00 00
CRC
Command Data
Action Type Setting code
HDMI OUTPUT -
HDMI 1 / MHL
HDMI OUTPUT -
LAN
HDMI OUTPUT -
HDMI 2
*
Set
*
Set
*
HDMI OUTPUT -
HDBaseT
*
Only for MC-WU5505/MC-WX5505/MC-X5555
*
Get BE EF 03 06 00 49 37 02 00 43 23 00 00
HDMI 1 / MHL BE EF 03 06 00 EA 35 01 00 4B 23 03 00
HDBaseT BE EF 03 06 00 4A 39 01 00 4B 23 11 00
Get BE EF 03 06 00 29 35 02 00 4B 23 00 00
HDMI 1 / MHL BE EF 03 06 00 62 35 01 00 4D 23 03 00
HDBaseT BE EF 03 06 00 C2 39 01 00 4D 23 11 00
Get BE EF 03 06 00 A1 35 02 00 4D 23 00 00
Get BE EF 03 06 00 31 32 02 00 51 23 00 00
39
QM00112-1
Page 40
PJLink command
PJLink command
Commands Control Description Parameter or Response
POWR Power Control
POWR ? Power Status inquiry
INPT
(MC-WU5505/
MC-WX5505/
Input Source selection
MC-X5555)
INPT ?
(MC-WU5505/
MC-WX5505/
Input Source inquiry
MC-X5555)
INPT
(MC-WU5501/
MC-WX5501/
Input Source selection
MC-X5551)
INPT ?
(MC-WU5501/
MC-WX5501/
Input Source inquiry
MC-X5551)
AVMT AV Mute
AVMT ? AV Mute inquiry
0 = Standby 1 = Power On 0 = Standby 1 = Power On 2 = Cool Down 11 = COMPUTER IN 23 = VIDEO 31 = HDMI 1 / MHL 33 = HDMI 2 36 = HDBaseT 51 = LAN 11 = COMPUTER IN 23 = VIDEO 31 = HDMI 1 / MHL 33 = HDMI 2 36 = HDBaseT 51 = LAN 11 = COMPUTER IN 23 = VIDEO 31 = HDMI 1 / MHL 33 = HDMI 2 51 = LAN 11 = COMPUTER IN 23 = VIDEO 31 = HDMI 1 / MHL 33 = HDMI 2 51 = LAN 10 = BLANK off 11 = BLANK on 20 = Mute off 21 = Mute on 30 = AV Mute off 31 = AV Mute on 10 = BLANK off 11 = BLANK on 20 = Mute off 21 = Mute on 30 = AV Mute off 31 = AV Mute on
(continued on next page)
40
QM00112-1
Page 41
PJLink command (continued)
Commands Control Description Parameter or Response
1st byte: Refers to Fan error; one of 0 to 2 2nd byte: Refers to Lamp error; one of 0 to 2 3rd byte: Refers to Temperature error; one of 0 to 2 4th byte: Refers to Cover error; one of 0 to 2
ERST ? Error Status inquiry
5th byte: Refers to Filter error; one of 0 to 2 6th byte: Refers to Other error; one of 0 to 2
The meaning of 0 to 2 is as given below 0 = Error is not detected;
1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry
1st number (digits 1 to 5): Lamp Time 2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 23 31 33 36* 51
Responds with the name set in the item
NAME ? Projector Name inquiry
PROJECTOR NAME of the NETWORK ­NETWORK SETUP menu
INF1 ? Brand Name inquiry MAXELL
MC-WU5501 MC-WX5501 MC-X5551
INF2 ? Model Name inquiry
MC-WU5505 MC-WX5505 MC-X5555
INFO ? Other Information inquiry
Responds with the factory information and so on
CLSS ? Class Information inquiry 1
*
Only for MC-WU5505/MC-WX5505/MC-X5555
NOTE
• The password used in PJLink
in the Web Control. To use PJLink
TM
TM
is the same as the password set
without authentication, do not set any
password in Web Browser Control.
)RUVSHFL¿FDWLRQVRI3-/LQN
TM
, see the web site of the Japan Business
Machine and Information System Industries Association.
URL: http://pjlink.jbmia.or.jp/
•
Trademark PJLink is a trademark applied for trademark rights in
Japan, the United States of America and other countries and areas.
41
QM00112-1
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
