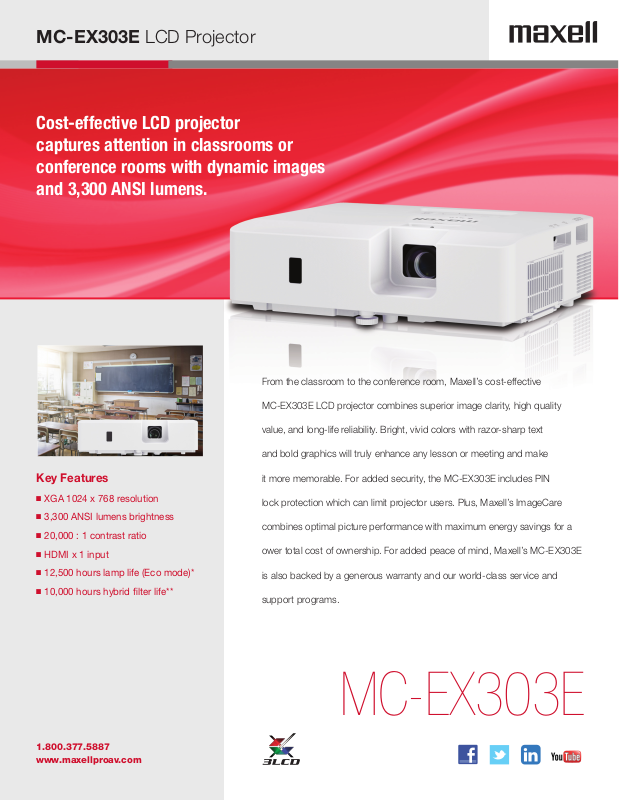

Page 1
MC-EX303E LCD Projector
Cost-effective LCD projector
captures attention in classrooms or
conference rooms with dynamic images
and 3,300 ANSI lumens.
Key Features
■
XGA 1024 x 768 resolution
■
3,300 ANSI lumens brightness
■
20,000 : 1 contrast ratio
■
HDMI x 1 input
■
12,500 hours lamp life (Eco mode)*
■
10,000 hours hybrid lter life**
From the classroom to the conference room, Maxell’s cost-effective
MC-EX303E LCD projector combines superior image clarity, high quality
value, and long-life reliability. Bright, vivid colors with razor-sharp text
and bold graphics will truly enhance any lesson or meeting and make
it more memorable. For added security, the MC-EX303E includes PIN
lock protection which can limit projector users. Plus, Maxell’s ImageCare
combines optimal picture performance with maximum energy savings for a
ower total cost of ownership. For added peace of mind, Maxell’s MC-EX303E
is also backed by a generous warranty and our world-class service and
support programs.
1.800.377.5887
www.maxellproav.com
MC-EX303E
Page 2
MC-EX303E LCD Projector
FEATURES
ImageCare Technology
ImageCare is a lamp power control function
that combines optimal picture performance
with maximum energy savings by decreasing
energy usage, improving contrast ratio and
lengthening lamp life. The result is a lower
total cost of ownership and decreased
maintenance cost.
PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users.
MyScreen PIN lock keeps captured images
on the startup screen. Users can set any
name logo to MyScreen, clearly identifying
ownership. MyText provides the ability to
write text on the startup screen such as
model name, serial number or location.
Saver Modes
Automatically changes the brightness of
the lamp if there is no change in the screen
image. Using ImageCare technology, these
features give optimal picture performance
with maximum energy savings.
Front View
Top View
3
54
Ceiling Mount
Right Profile
1 2
Left Profile
Input/Outputs
6 7
Maxell Corporation of America
Toll Free: 1.800.377.5887
Web: www.maxellproav.com
Left Side:
1. Audio Out
2. Computer In 2
Monitor Out
910 8
Rear:
3. Coumputer In 1
4. Video
5. Audio In (L/R)
6. Control (RS-232C)
7. HDMI
8. AC
9. Security Bar
10. Kensington Lock
MC-EX303E
Page 3
MC-EX303E LCD Projector
Accessories and Lenses
Supplied
Accessories
Optional
Accessories
Optional Lenses NA
Remote control, power cord, computer
cable, A A batteries x 2, securit y label,
user’s manual (concise)
N/A
Replacement Parts
Lamp DT020 81
Remote Control HL03037
Filter UX39 561
Projection Throw Chart
Screen Size 16:10 Throw Distance
Diagonal
30 24 33 40
60 48 69 83
80 64 93 112
100 80 116 140
200 160 236 284
300 240 355 427
Throw Ratio: 1.5 - 1.8 : 1 (distance : width)
Screen size and throw distance are meas ured in inches.
Width Min Max
Specifications
Projection Technology 3LCD, 3 chip technology
Resolution XGA - 1024 x 768
White Light Output 3,300 ANSI lumens
Color Light Output 3,300 ANSI lumens
Colors 16.7 million colors
Aspect Ratio Native 4:3 and 16:9 / 16:10 / 14:9 zoom compatible
Display
Contrast Ratio 20,000 : 1 (using active IRIS)
Throw Ratio
(distance : width)
Focus Distance 33" - 427"
Display Size 30" - 300"
Lens f = 19 - 23 mm, x 1.2 manual zoom and focus
Lamp Wa ttage 230W
Expected Lamp Life* Approximately 6,000 hours (standard mode)
Expected Filter Life** Approximately 10,000 hours
Speaker Output 1W
Lens & Operation
Keystone V: +/- 30º
Computer
H-Sync 15 kHz - 106 kHz
V-Sy nc 50 Hz - 120 Hz
Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Compatibility
HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Digital Input HDMI x 1 (HDCP compliant)
Computer Input 1 15-pin mini D-sub x 1 (shared with analog component video input)
Computer Input 2 15-pin mini D-sub x 1 (shared with analog component video input
Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2 and analog
Video Input
Composite Video RCA jack x 1
Component Video 15-pin mini D-sub x 2 (shared with computer in 1, in 2/monitor out)
Audio Input RCA jack (L /R) x 1
Connectors
Audio Output 3.5mm stereo mini jack x 1
Network LAN Wired N/A
Network LAN Wireless N/A
USB N/A
Control Terminals 9-pin D-sub x 1 (RS-232 control)
Power Supply AC100-120V / AC220-240V, 50/60Hz
Power Consumption 290W / 280W
Operating Temperature 32°F - 95°F (0°C - 35°C)
Dimensio ns (W x D x H) 13.7" x 10.4" x 3.5" (excluding protrusions)
Weight Approximately 7.7 lbs.
Approvals UL 60950-1 / cUL FCC Part 15 subpart B class B
Warranty 3-year limited parts and labor
Ratings & Warranty
* Actual lamp life will vary by individual lamp based on environmental conditions, selected operating mode, user settings and usage. Hours of average lamp
llife specified are not guaranteed and do not constitute part of the product or lamp warranty. Lamp brightness decreases over time.
** Actual filter life will vary by individual filter based on environmental conditions, selected operating mode, user settings and usage. Hours of average filter
life specifiedare not guaranteed and do not constitute part of the product.
1.5 - 1.8 : 1
12,500 hours (eco mode)
VGA, SVGA, XGA, WXGA/SXGA/SXGA+/HD/UXGA (compressed)
Ma c 16"
Computer signal TMDS Clock 25 MHz - 162 MHz
and monitor out)
component video input 2)
Extended Service Contract available (additional cost)
,
MX0645-02/19
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2019 Maxell Corporation of America. All Rights Reserved
.
