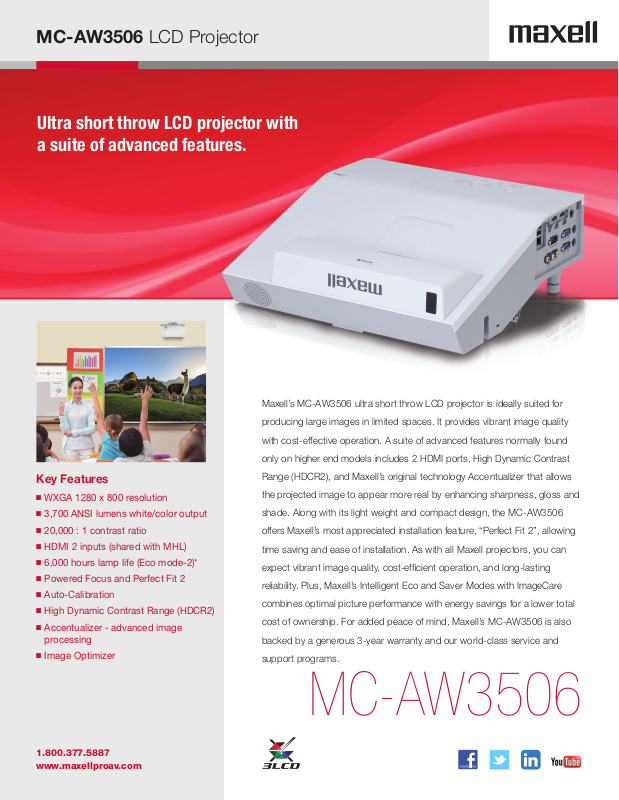

MC-AW3506 LCD Projector
Ultra short throw LCD projector with
a suite of advanced features.
Key Features
■
WXGA 1280 x 800 resolution
■
3,700 ANSI lumens white/color output
■
20,000 : 1 contrast ratio
■
HDMI 2 inputs (shared with MHL)
■
6,000 hours lamp life (Eco mode-2)*
■
Powered Focus and Perfect Fit 2
■
Auto-Calibration
■
High Dynamic Contrast Range (HDCR2)
■
Accentualizer - advanced image
processing
■
Image Optimizer
Maxell’s MC-AW3506 ultra short throw LCD projector is ideally suited for
producing large images in limited spaces. It provides vibrant image quality
with cost-effective operation. A suite of advanced features normally found
only on higher end models includes 2 HDMI ports, High Dynamic Contrast
Range (HDCR2), and Maxell’s original technology Accentualizer that allows
the projected image to appear more real by enhancing sharpness, gloss and
shade. Along with its light weight and compact design, the MC-AW3506
offers Maxell’s most appreciated installation feature, “Perfect Fit 2”, allowing
time saving and ease of installation. As with all Maxell projectors, you can
expect vibrant image quality, cost-efficient operation, and long-lasting
reliability. Plus, Maxell’s Intelligent Eco and Saver Modes with ImageCare
combines optimal picture performance with energy savings for a lower total
cost of ownership. For added peace of mind, Maxell’s MC-AW3506 is also
backed by a generous 3-year warranty and our world-class service and
support programs.
1.800.377.5887
www.maxellproav.com
MC-AW3506
MC-AW3506 LCD Projector
settings
settings
UNIQUE FEATURES
Accentualizer
Maxell original technology makes pictures look more real by enhancing
sharpness, gloss and shade to make pictures as clear as pictures on a
flat-panel device. You can also adjust the effects by three levels according
to your surroundings so that the colors of projected images are the actual
colors of the
objects they
represent.
Sharpness Gloss Shade
HDCR2 (High Dynamic Contrast Range)
When average projectors are used in bright rooms, the darker colors of an
image deteriorate and images become unclear. Using this function, blurred
images caused by room lighting or outside light sources are corrected, and
an effect similar to increasing contrast occurs. The recent enhancement
to HDCR2 achieves not only auto tone enhancement but also auto color
enhancement. This results in clear and vivid images even in bright rooms.
Cloning Function
Copy setting data from one projector to others of the same
model via USB memory. Cloning not only saves almost all PJ
settings such as gamma and keystone via USB memory, it
saves countless hours in setup and installation.
ImageCare Technology
ImageCare is a lamp power control function that combines
optimal picture performance with maximum energy savings
by decreasing energy usage, improving contrast ratio and
lengthening lamp life. The result is a lower total cost of
ownership and decreased maintenance cost.
Intelligent Eco and Saver Modes
Automatically changes the brightness of the lamp according to
the brightness level of the screen. Also, automatically changes
the brightness of the lamp if there is no change in the screen
image. Using ImageCare technology, these features give
optimal picture performance with maximum energy savings.
Perfect Fit 2
Enables the user to adjust individual corners and sides
independent of one another. Perfect Fit 2 provides vertical
and horizontal digital correction of either barrel or pin
cushion distortions. This feature helps correct geometric and
complicated distortions. Perfect Fit 2 allows the projected
image to fit correctly to the screen quickly and easily.
Projector Quick Connection App For Mobile Devices
Our iOS and Android applications offers projector control
and also provides the capability to display photos, document
files and web site contents. Available for iPad®, iPhone® and
Android devices. Works over your LAN via your RJ-45 port or
via an optional USBWL11N wireless adapter.
Tabletop Presentation
Make any tabletop a projection screen using the optional
tabletop stand. Ideal for a small group environment or in a
room with limited space.
STANDARD FEATURES
Input Source Naming
Users can name input sources in simple language instead of
factory default names.
Microphone Input
A microphone can be used via the jack located on the
input panel. Allows for more dynamic presentations even in
standby mode.
Network Control, Maintenance and Security
Embedded networking gives you the ability to manage and
control multiple projectors over your LAN. Features include
scheduling of events, centralized reporting, image transfer and
e-mail alerts for reactive and routine maintenance.
PC-Less Presentation
By using a USB memory stick or other storage device, you
can use the projector without a computer. Menus are easy
to see with a thumbnail display. Additionally there is also a
slideshow and video function.
PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users. MyScreen PIN
lock keeps captured images on the startup screen. Users can
set any name logo to MyScreen, clearly identifying ownership.
MyText provides the ability to write text on the startup screen
such as model name, serial number or location.
PJMessenger
PJMessenger function allows you to send and display text
messages and audio alerts on your networked projectors. It
is an easy and efficient way to send announcements out to
multiple units.
Present Content via LAN
Maxell’s suite of networking software allows you to easily send
content directly from your PC to the projector via your LAN
connection.
Template Function
Line templates in the projector menu can help when writing
on a whiteboard. There are four types of line templates to
choose from.
Wireless Presentation Compatible
Connect the projector to a a computer or your network using
the optional USB wireless adapter (part number USBWL11N).
The adapter supports IEEE802.11n.
MX0655-02/19
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2019 Maxell Corporation of America. All Rights Reserved
Maxell Corporation of America
Toll Free: 1.800.377.5887
Web: www.maxellproav.com
* Actual lamp life will vary by individual lamp based on environmental conditions, selected operating mode, user settings
and usage. Hours of average lamp life specified are not guaranteed and do not constitute part of the product or lamp
.
warranty. Lamp brightness decreases over time.
MC-AW3506 LCD Projector
Enhance the experience with
Maxell’s MC-AW3506.
The MC-AW3506 ultra short throw LCD projector from
Maxell is specifically designed to enhance the visual
experience — from the audience to presenters. Vivid
colors. Bold graphics. Crisp text. The MC-AW3506
does it all in environments of all sizes. With 3,700
ANSI lumens of brightness and WXGA 1280 x 800
3/4 View
(with cable cover)
Front View (with cable cover)
Ceiling/Wall Mounted
(with cable cover)
resolution, the MC-AW3506 provides the perfect
compatible solution. It also features a high contrast
ratio, long lamp life, cloning function enabling you to
copy settings data from one projector to others of
the same model, and is wireless presentation ready.
Plus, embedded networking gives you the ability to
manage and control multiple projectors over your
LAN (scheduling of events, centralized reporting,
image transfer, and email alerts). Best of all, the high
performance MC-AW3506 is exceptionally reliable and
offers a very low cost of ownership.
Top View (with cable cover)
1. LAN
2. USB Type A x 2
3. USB Type B
4. HDMI 1
5. Control (RS-232C)
6. HDMI 2
Input/Outputs
7. Microphone Input
8. Audio in
9. Audio out
10. Computer in 2/
Monitor out
11. Computer in 1
1 2133
4115
1215 1416
12. Video in
13. Audio in 2
14. AC in (located on back
side of the projector)
15. Kensington lock
16. Security bar
697
10
8
MX0655-02/19
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2019 Maxell Corporation of America. All Rights Reserved
Maxell Corporation of America
Toll Free: 1.800.377.5887
Web: www.maxellproav.com
.
MC-AW3506
MC-AW3506 LCD Projector
Accessories
Supplied
Accessories
Optional
Accessories
Remote control, AA batteries x 2, power
cord (4.5m) x 1, computer c able, cable
cover, adapter cover, PIN code sticker,
user’s manuals and CD, application CD
Wirele ss adapter (USBWL11N ), wall
mount (HAS-WM05), Table Stand kit
(TT-03), Apple TV bracket (HAS-RB01)
Replacement Parts
Lamp DT01411 with filter
Remote Control HL03033
Filter UX37191
Projection Throw Chart (In inches)
Screen Size 16:10
Diagonal Distance from
60 5.0 16.1
70 7.8 18.9
80 10.5 21.6
90 13.3 24.4
100 16.1 27.1
edge of projector
to screen
Throw Ratio: (distance : width)
0.2 : 1 from edge of projector
0.3 : 1 from mirror cover
Distance from
mirror cover
to screen
Specifications
Projection Technology 3LCD, 3 chip technology
Resolution WXGA 1280 x 800
White Light Output 3,700 ANSI lumens
Color Light Output 3,700 ANSI lumens
Colors 16.7 million colors
Aspect Ratio Native 16:10, 4:3, 16:9, 14:9 and zoom compatible
Display
Contrast Ratio 20,000 : 1 (using active IRIS)
Throw Ratio
(distance : width)
Focus Distance 16" - 27" from mirror cover to screen
Display Size 60" - 100"
Lens f = 4.21 mm, digital zoom x 1.35, powered focus
Lamp Wa ttage 250W
Expected Lamp Life* Approximately 4,000 hours (standard mode)
Expected Filter Life** Approximately 4,000 hours
Speaker Output 16W x 1
Lens & Operation
Keystone H and V: +/- 5º
Computer VGA, SVGA, WXGA, W XGA+, SXGA, SXGA+, UXGA (compressed),
H-Sync 15 kHz - 106 kHz
V-Sy nc 50 Hz - 120 Hz
Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video 480i, 480p, 576i, 720p, 1080i, 1080p
Compatibility
HDMI 480i, 480p, 576i, 720p, 1080i, 1080p,
Digital Input HDMI x 2 (HDCP compliant)
HDMI IN HDMI Connector x 2 (HDCP compliant)
Computer Input 1 15-pin mini D-sub x 1 (shared with analog component video input)
Computer Input 2 15-pin mini D-sub x 1 (shared with component video input and
Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2)
Video Input
Composite Video RCA jack x 1
Component Video 15 -pin mini D-sub x 2 (shared with computer in 1/2)
Audio Input 3.5 mm stereo mini jack x 1, RCA jack (L/R) x 1,
Connectors
Audio Output 3.5 mm stereo mini jack x 1
Network LAN Wired RJ-45 port (10 base-T / 100 base-TX)
Network LAN Wireless USB-A, IEEE802.11 b/g/n - optional wireless adapter required
USB Type A x 2 (PC-less presentation or wireless network)
Microphone In 3.5mm mini jack x 1
Control Terminals 9-pin D-sub x 1 (RS-232 control)
Power Supply AC100-120V / AC220-240V, 50/60Hz
Power Consumption 360W/350W
Operating Temperature 32ºF - 104ºF (0ºC - 40º C)
Dimensions (W x D x H) 14.8" x 14.2" x 5.4" (excluding protruding parts)
Weight Approximately 9.7 lbs
Approvals UL 60950-1 / cUL, FCC part 15 subpart B Class B
Warranty 3-year limited parts and labor
Ratings & Warranty
* Actual lamp life will vary by individual lamp based on environmental conditions, selected operating mode, user settings and usage. Hours of average lamp
life specified are not guaranteed and do not constitute part of the product or lamp warranty. Lamp brightness decreases over time.
** Actual filter life will vary by individual filter based on environmental conditions, selected operating mode, user settings and usage. Hours of average filter
life specified are not guaranteed and do not constitute part of the product warranty.
0.2 : 1 from edge of projector to screen
0.3 : 1 from mirror cover to screen
6,000 hours (Eco-2 mode)
MAC 16"
computer signal TMDS clock 27 MHz - 150 MHz
monitor out)
Type B x 1 (Remote control mouse or PC screen diplay)
Extended Service Contract available (additional cost)
MX0655-02/19
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2019 Maxell Corporation of America. All Rights Reserved
.
Maxell Corporation of America
Toll Free: 1.800.377.5887
Web: www.maxellproav.com
Loading...
