MAXDATA PC (ATX)

User's Manual

PCATXUK1.1

3

Table of Contents

Introduction 5

Technical Specifications ..................................................................................................... 6

Note ................................................................................................................................... 7

User note ...................................................................................................................... 7

Laser (safety information) ............................................................................................. 7

Use ............................................................................................................................... 8

Environmentally sound PC system ............................................................................... 8

Device Durability ........................................................................................................... 8

Take Back Guarantee ..................................................................................................... 8

Recyclable Device Construction .................................................................................... 8

Material Requirements for Plastic Cases and Case Parts ............................................. 9

Material Requirements for Printed Circuit Boards ........................................................ 9

Marking of Plastic Materials.......................................................................................... 9

Noise Emission ............................................................................................................. 9

Batteries ........................................................................................................................ 9

Information on the return of electrical and electronic waste in EU countries ..............10

Energy Consumption ...................................................................................................11

Definition of the MAXDATA warranty .............................................................................. 12

MAXDATA warranty period ......................................................................................... 12

Scope of the MAXDATA warranty ............................................................................... 12

Exclusions from the MAXDATA warranty .................................................................... 13

MAXDATA restriction to liability .................................................................................. 14

Governing law ............................................................................................................. 14

Data Backup ................................................................................................................ 15

Wireless LAN .................................................................................................................. 16

Additional safety notes for units with wireless LAN ........................................................17

CE-labelling for units with wireless LAN ..................................................................... 18

Restrictions ..................................................................................................................... 19

France ......................................................................................................................... 19

Italy ............................................................................................................................. 19

Netherlands ................................................................................................................ 19

Radio frequencies for units with wireless LAN ............................................................... 20

Frequencies ................................................................................................................ 20

Legal requirements - exception clauses...................................................................... 21

Before Getting Started .................................................................................................... 22

Before Initial Operation 23

Contents .......................................................................................................................... 23

Positioning the Computer ................................................................................................ 23

Temperature and humidity .......................................................................................... 23

Connecting the computer ........................................................................................... 23

Avoiding risk of stumbling ........................................................................................... 23

Data storage media ..................................................................................................... 24

Avoid jarring ................................................................................................................ 24

Allow for ventilation .................................................................................................... 24

Servicing / Maintenance / Cleaning ................................................................................. 24

4

The PC in Detail 25

Elements of the PC ......................................................................................................... 25

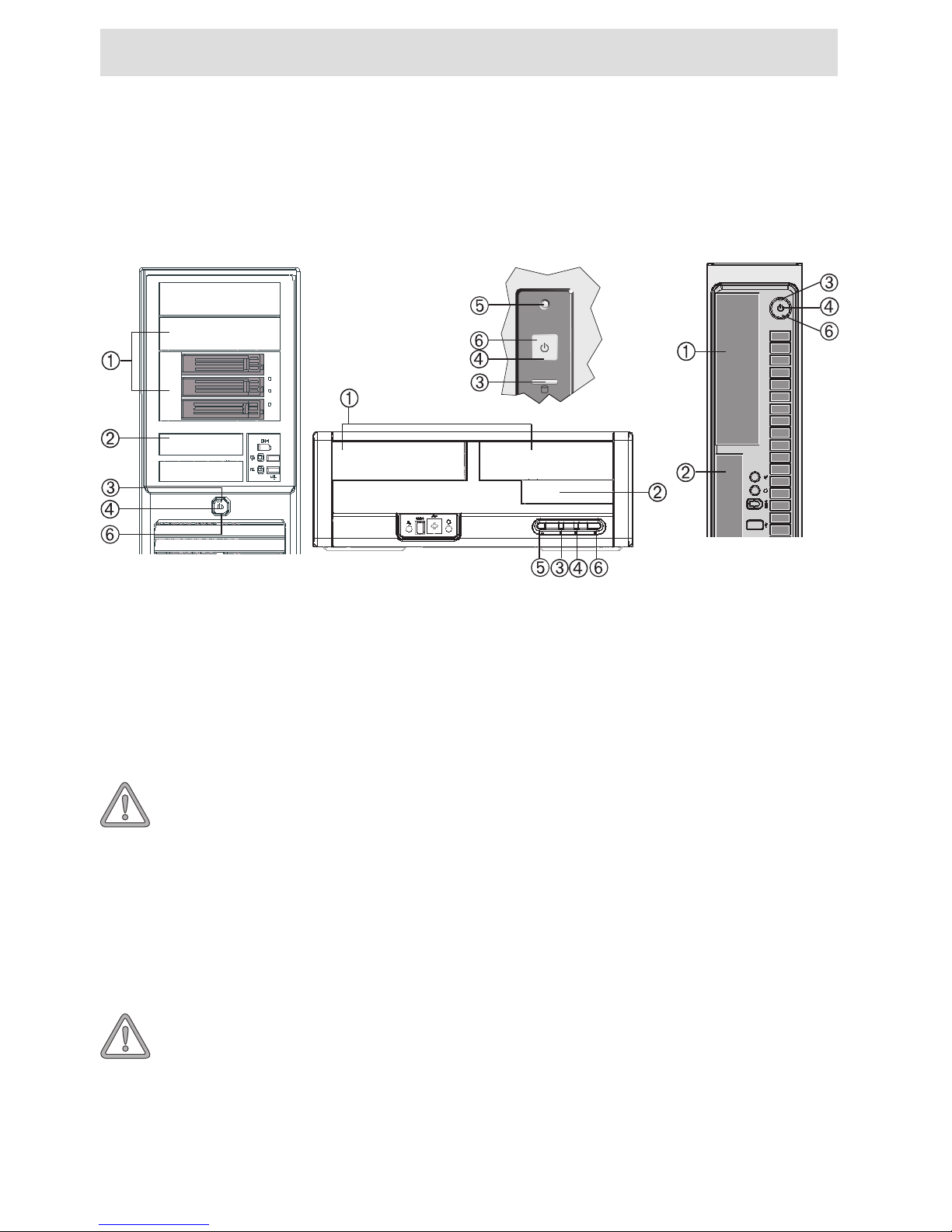

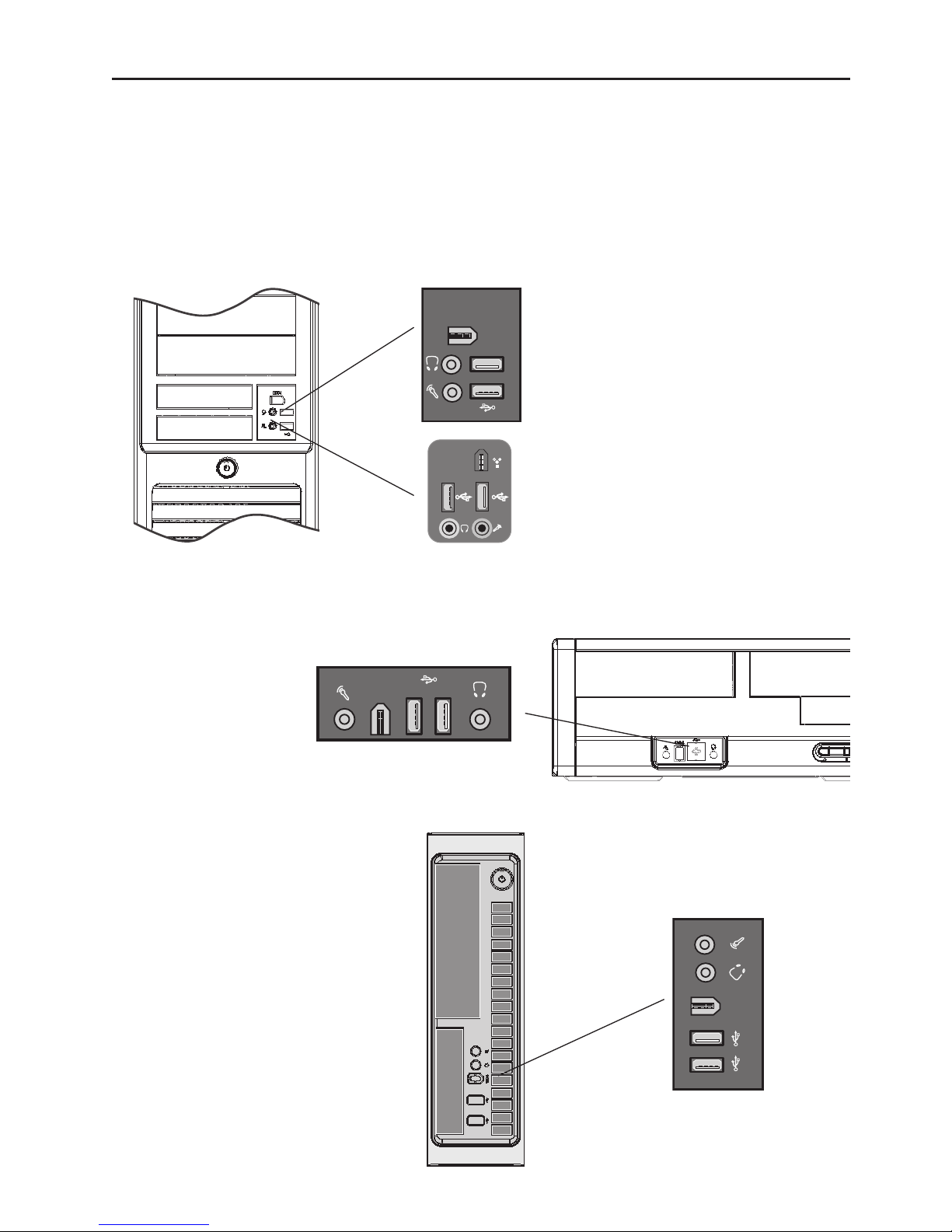

Front Panel Components ............................................................................................ 25

Optional extras ............................................................................................................ 26

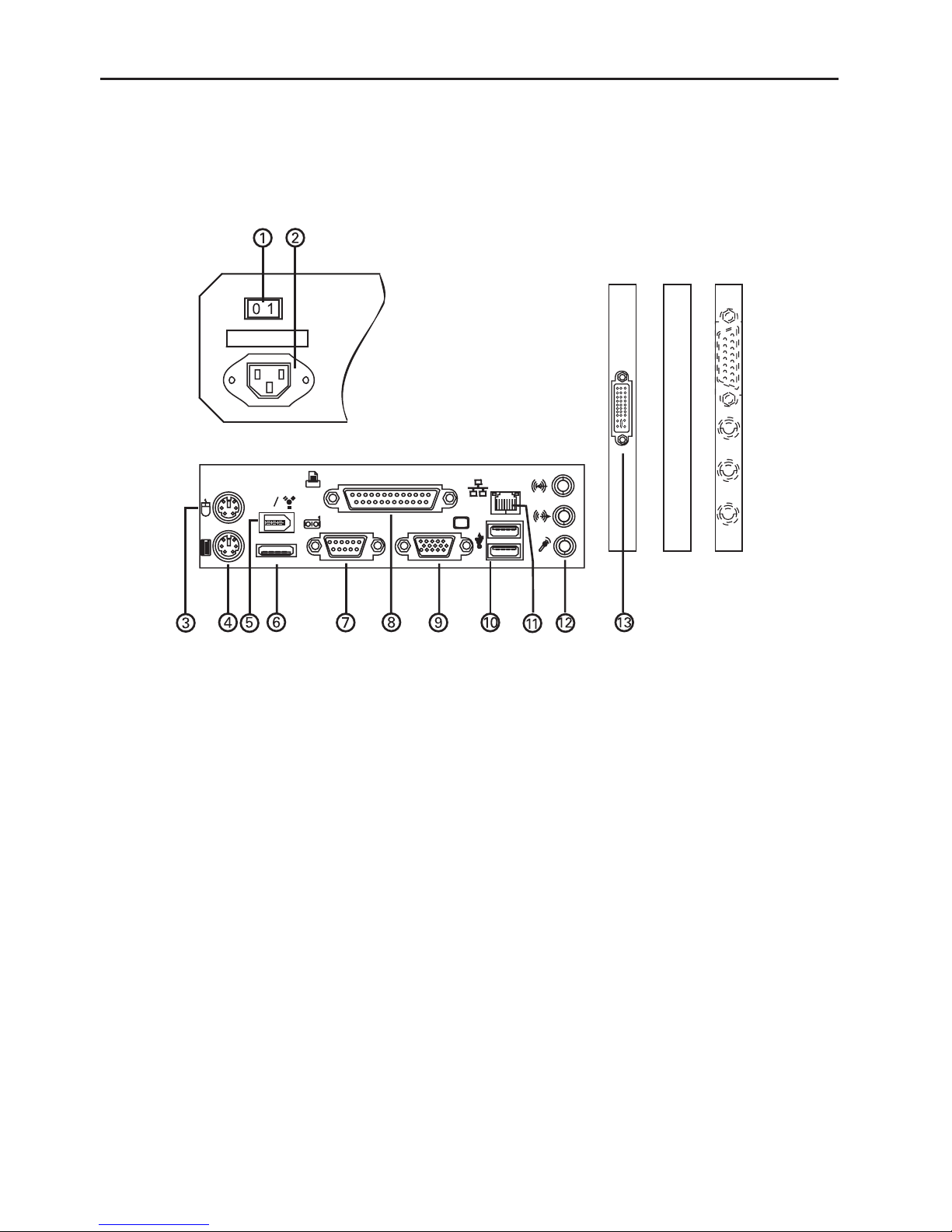

The Rear View ............................................................................................................. 27

Connecting Peripheral Devices ........................................................................................ 29

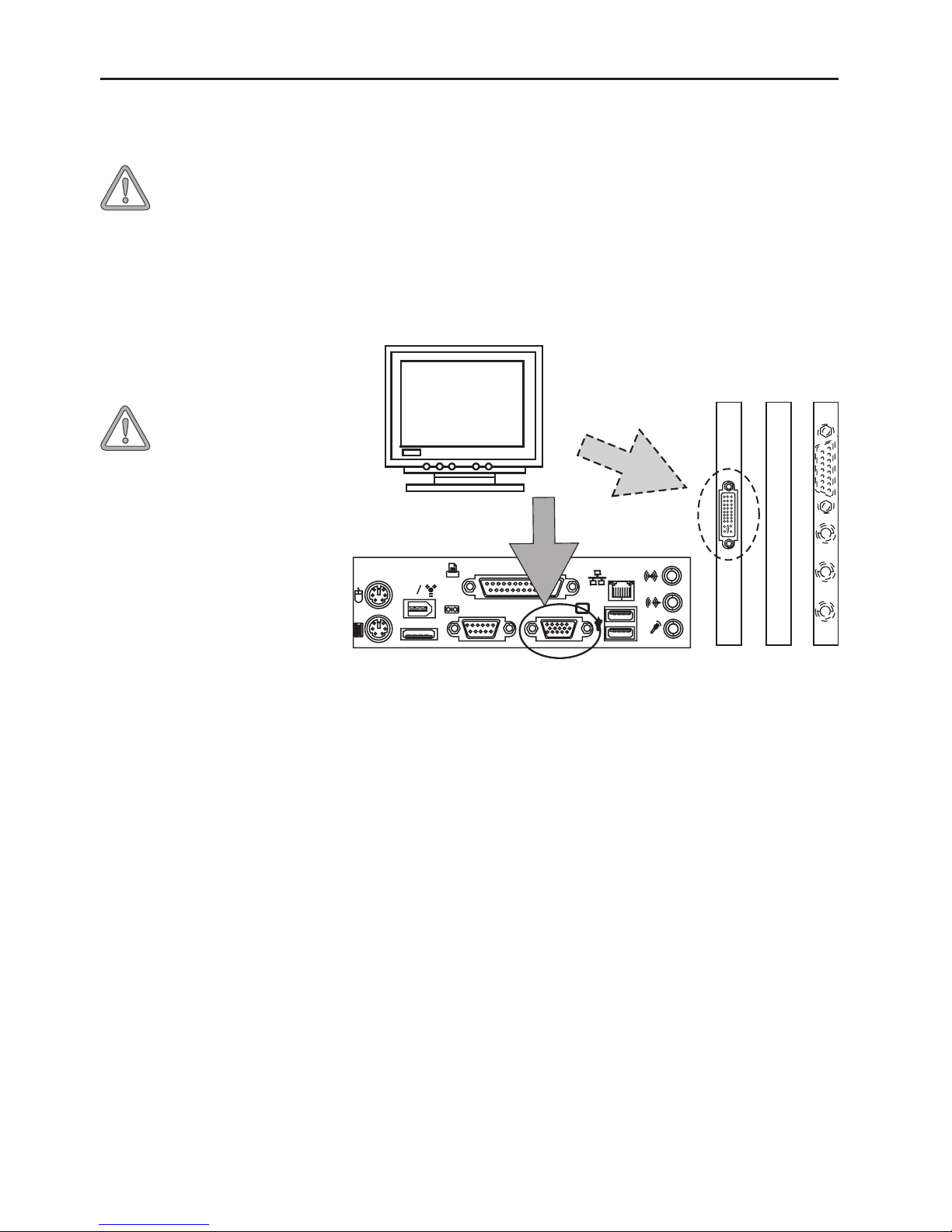

Connecting a Monitor ................................................................................................. 29

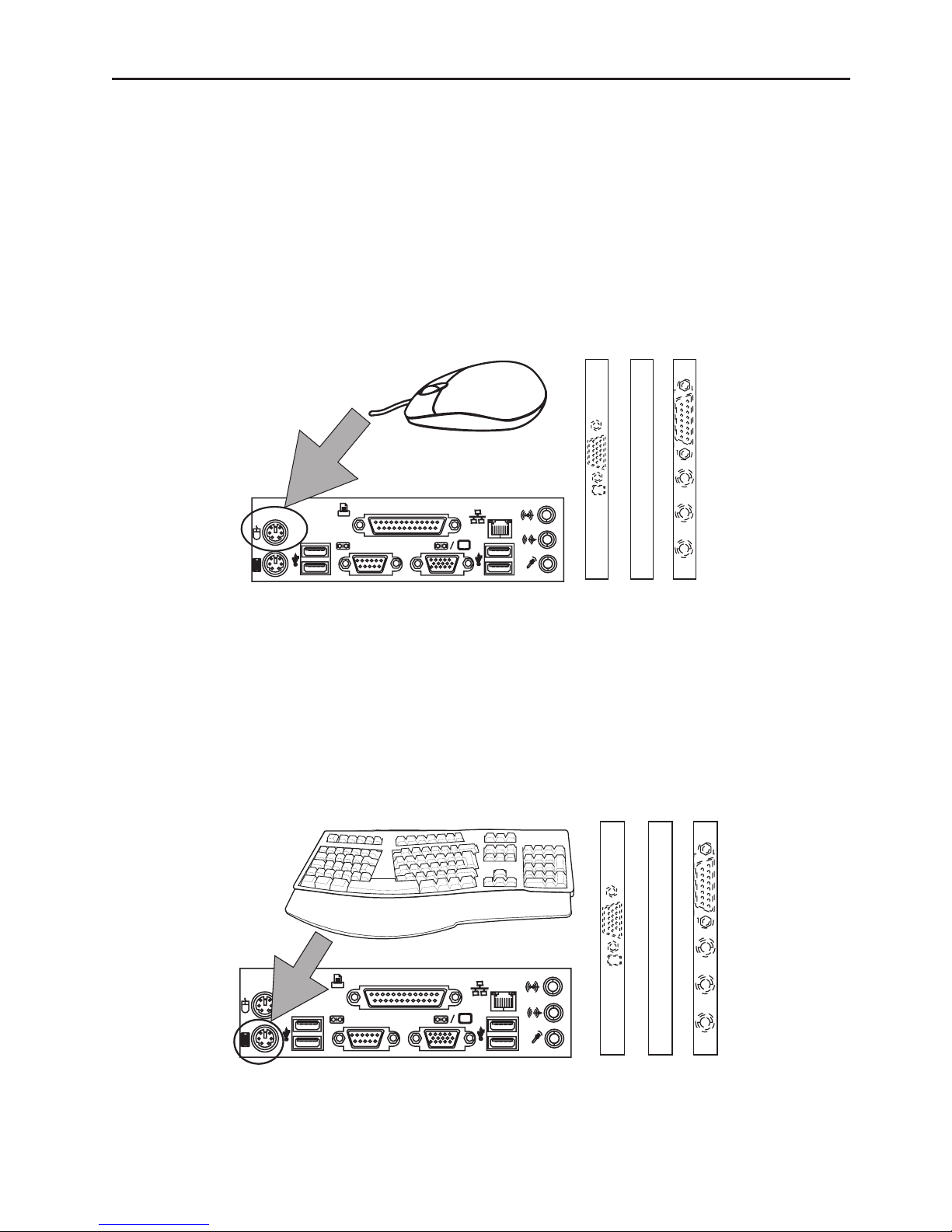

Connecting a Mouse ................................................................................................... 30

Connecting the Keyboard ............................................................................................ 30

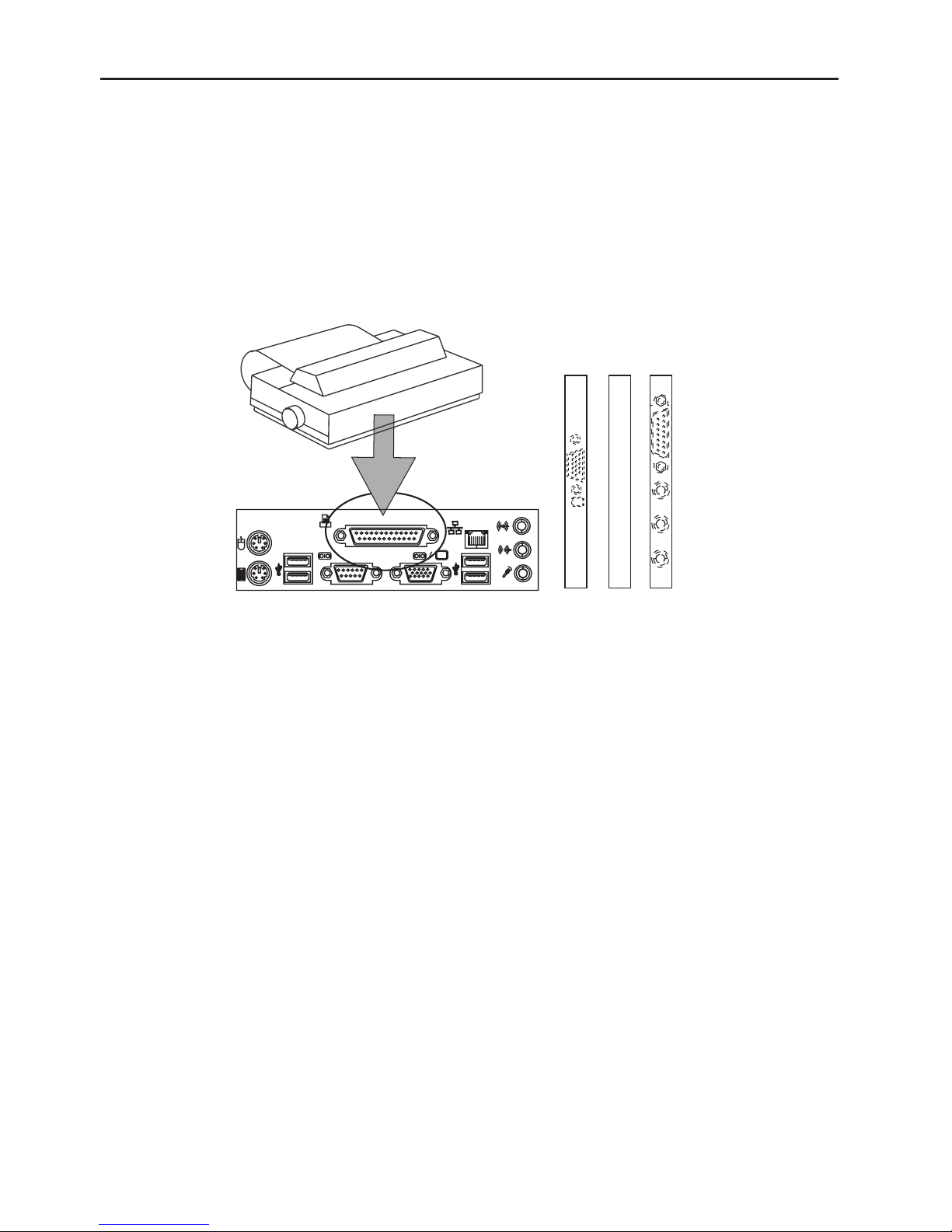

Connecting a Printer ................................................................................................... 31

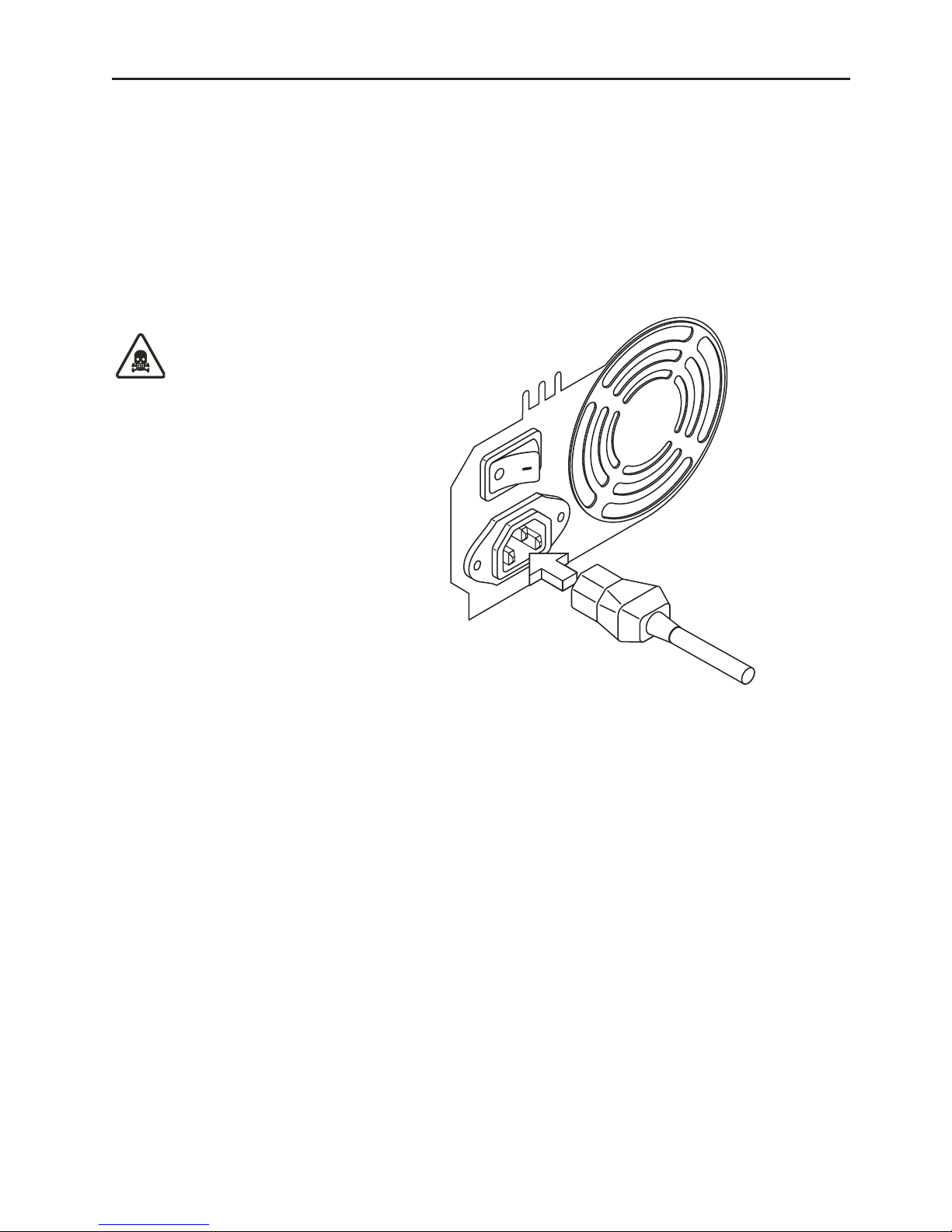

Connecting the Power Cable ........................................................................................... 32

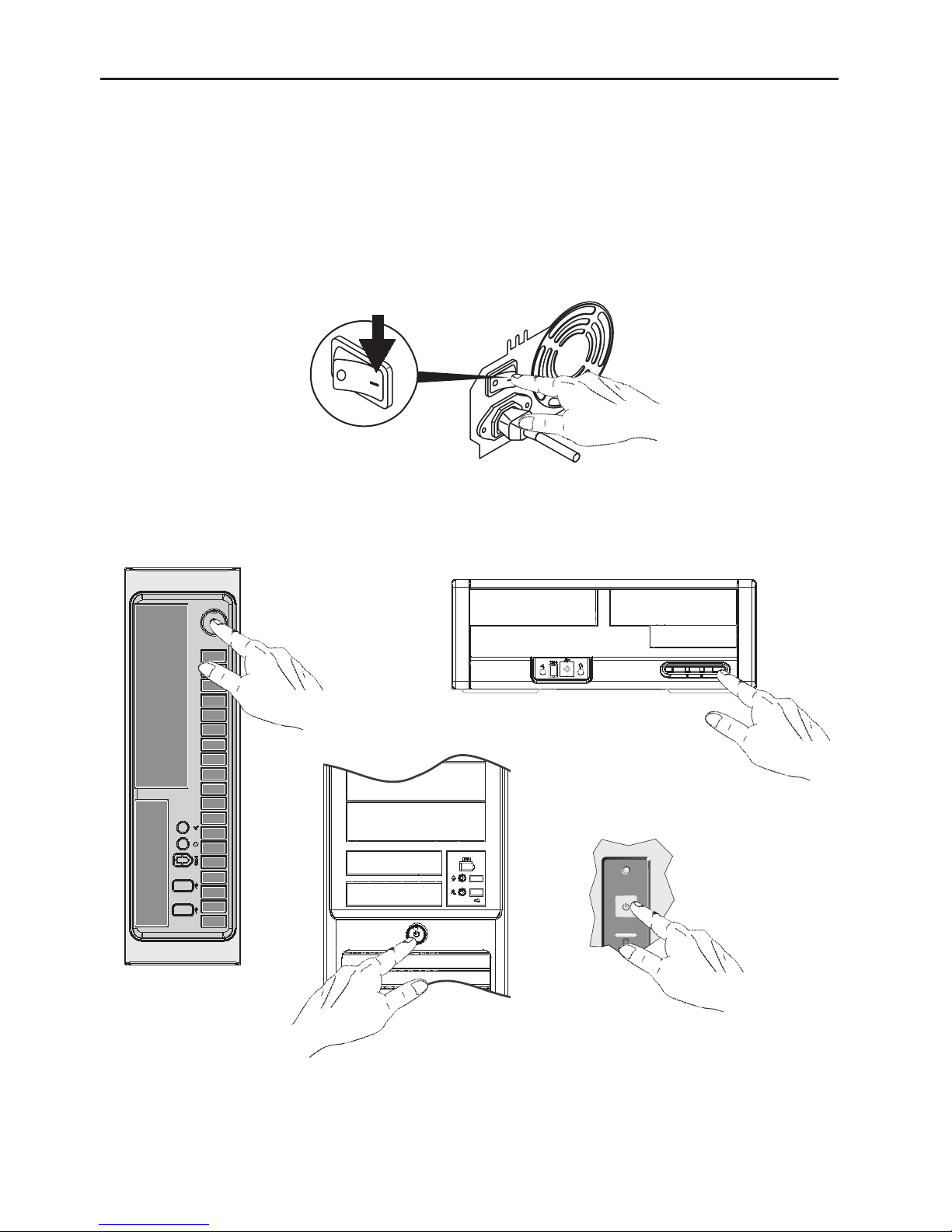

Switching the PC On ....................................................................................................... 33

Switching the System Off ................................................................................................ 34

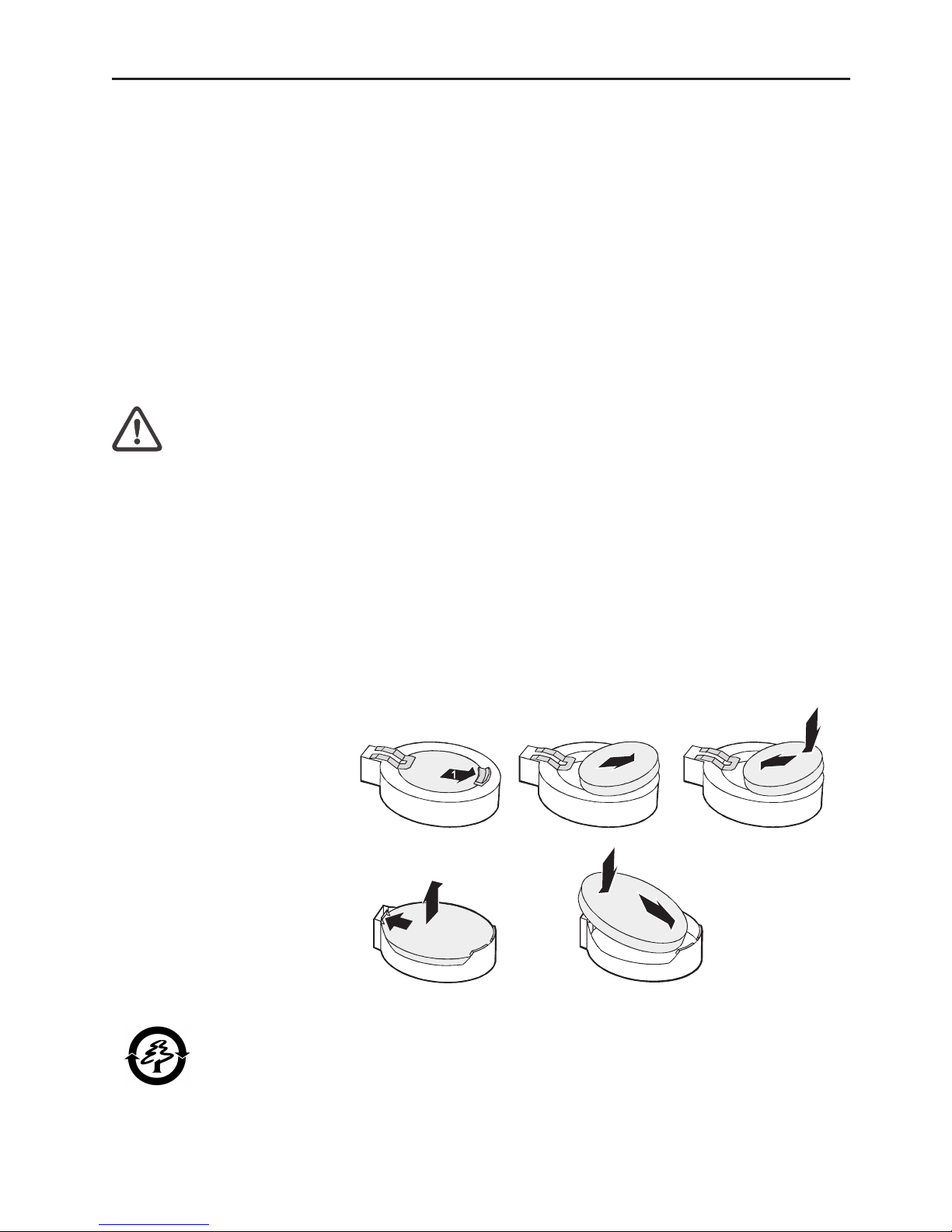

The CMOS Battery .......................................................................................................... 34

Components of the PC 35

The Floppy Disc Drive ...................................................................................................... 35

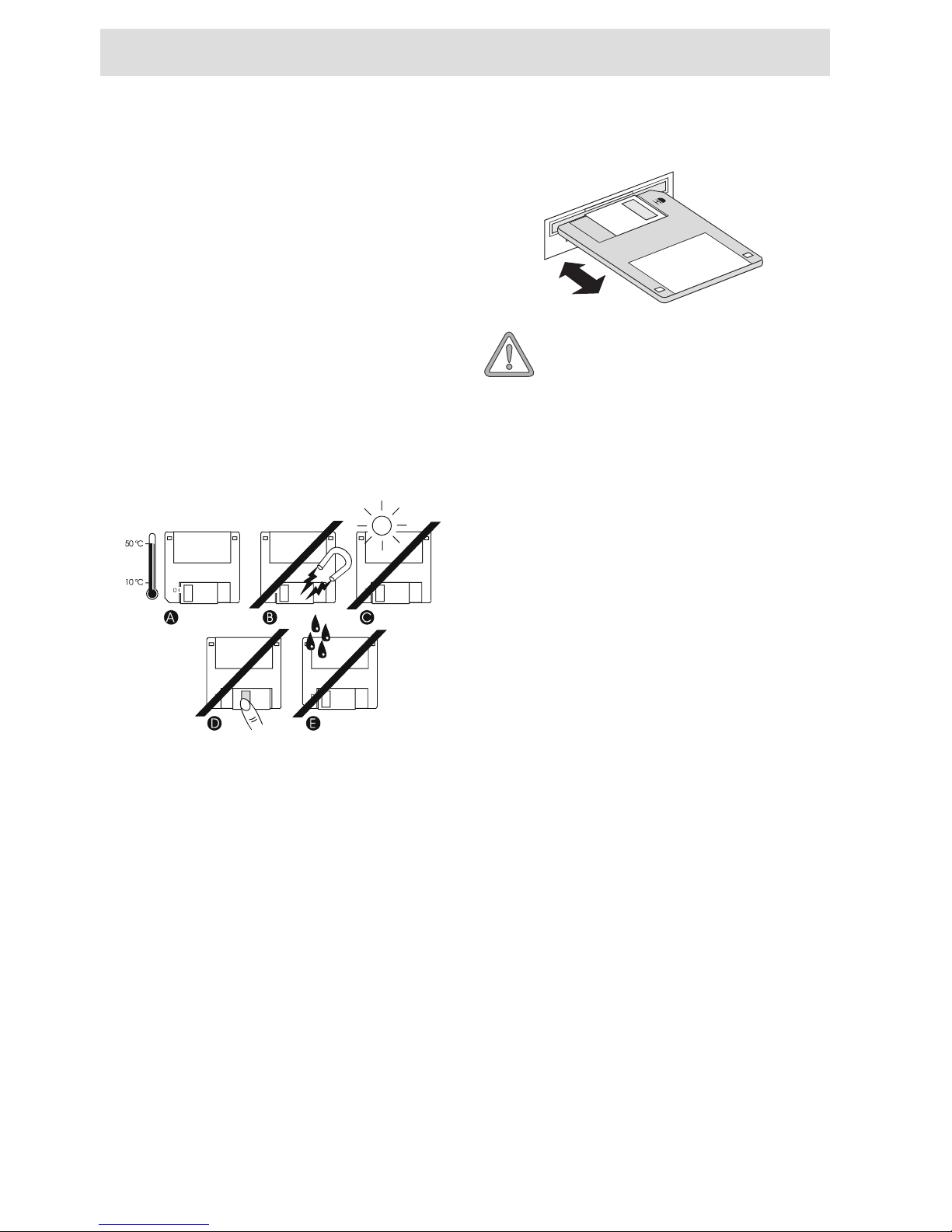

Use and Care of Floppy Disks ..................................................................................... 35

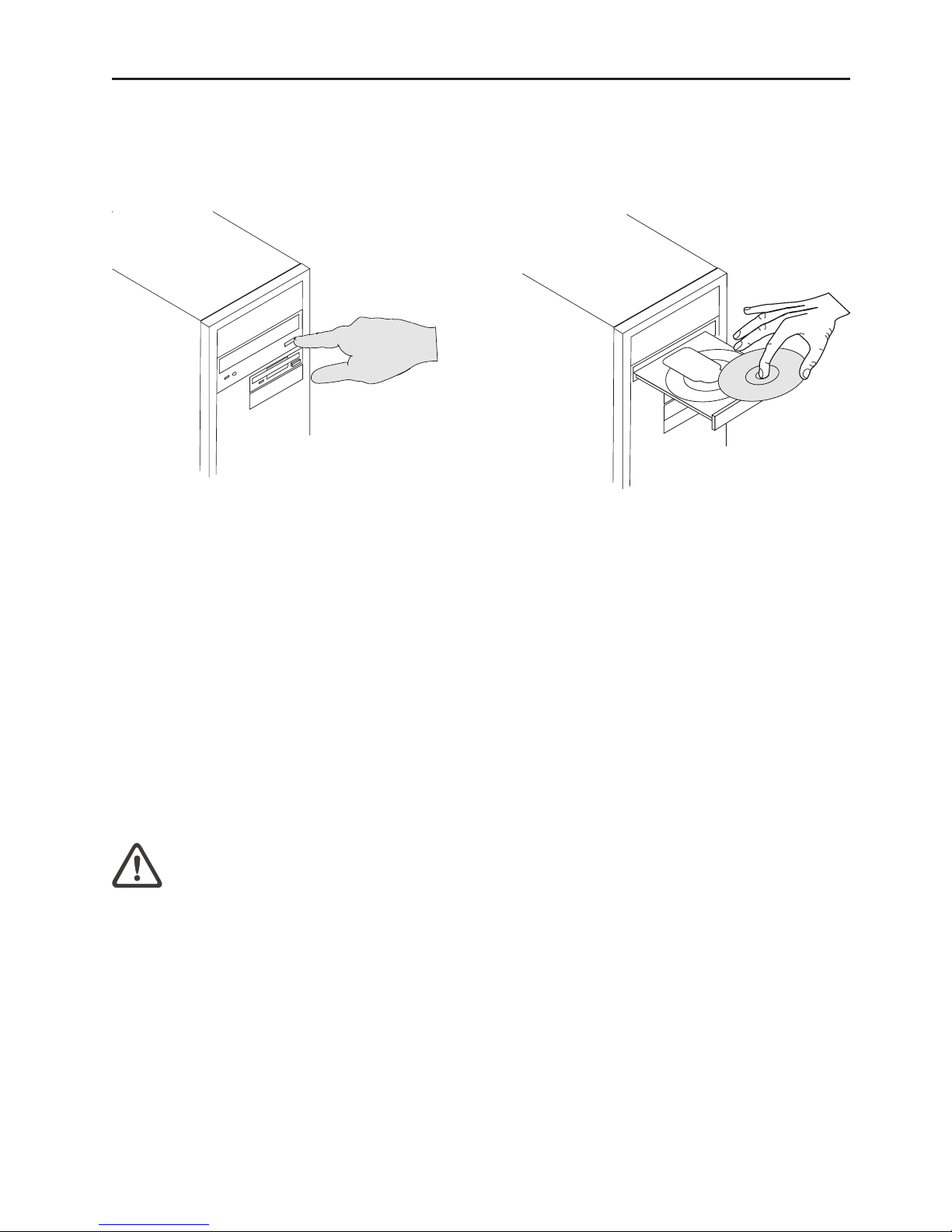

The optical drive .............................................................................................................. 36

Troubleshooting 37

Index 3

9

Table of Contents

5

Introduction

Congratulations on your purchase of the MAXDATA personal computer! We are confident
that it will meet your high expectations. This manual will familiarize you with your MAXDATA
PC’s components and features. We have taken all possible care to ensure that this manual
contains correct, accurate information. However, we cannot assume liability for any pos­sible errors. Please refer to your dealer for reporting errors or comments. We appreciate
all feedback and are eager to incorporate any useful suggestions and improvements. All
rights reserved. No part of this manual may be reproduced, processed or distributed in any
form (print, photocopy, microfilm or any other process) or processed by an electronic sys­tem without prior written permission of MAXDATA. Other brand names may be registered
trademarks and must be treated as such.

© Copyright 2008 MAXDATA International GmbH, Marl

6

Technical Specifications

Your PC requires alternating current at 50/60 Hz. To connect the device to the power supply,
plug in the power cable. To disconnect it from the power supply, pull out the power cable.
Utilize an easily accessible grounded outlet.
The input voltage is: 200 - 240 V~.

Operating environment:
Temperature : 10°C - 35°C
Humidity : 30% - 70% relative humidity
(non-condensing)

Dimensions: Width / mm Height / mm Depth / mm
Top tower: 198 440 500
Micro tower: 198 378 410
Micro tower: 190 365 420
Micro desktop: 360 134 420
Small desktop: 325 96 435

Please refer to the box label for more detailed information on the system’s specifications
(motherboard, graphics, sound etc.).

Introduction

7

Note

This device meets the EN 55022 and EN 61000-3-2 standards for interference emissions,
the EN 55024 standard for interference, and the EN 60950 electrical safety standard. Any
change made to this device without approval by the manufacturer voids any guarantee of
meeting these standards. In order to assure EMC compliance (electromagnetic compat­ibility), please follow the corresponding guidelines in this manual.

User note

This device was carefully designed and tested to prevent radio interference. However, you
should note the following for external data cables: If you need to replace any of the data
cables specified by the manufacturer, be sure that the replacement cables have the same
shielding specifications as the original cable to prevent interference. Always use shielded
power lines and only use external devices that are CE certified.
No guarantee for meeting these standards can be maintained if you do not conform to the
above guidelines.

Laser (safety information)

Caution!
Laser radiation when the cover is open!
This laser radiation is contained in the optical drives. When dismantling and/or opening this
drive, be careful:

• not to look into the beam, not even with optical instruments

• not to expose yourself to the beam

• to avoid eyes or skin being exposed to direct or scattered beam.

Failure to observe these guidelines can in the worst case lead to permanent blindness.
The built-in optical drives contain no user-serviceable or reparable parts. Optical drives are
to be repaired solely by the manufacturer. Laser products of laser classes 1 to 3B may be
used in the product. When the housing is unopened the device meets the requirements of
laser class 1. By opening the device, laser devices up to laser class 3B may be accessible.
The built-in optical drives contain no user-serviceable or reparable parts. Optical drives are
to be repaired by authorized technicians.

8

Use

This product is not intended for medical, life saving or life sustaining usage.

Environmentally sound PC system

This system was constructed to be environmentally safe, which can be seen in its durability,
enhancement possibilities and recyclability. For devices featuring the ‘Blue Angel’ environ­mental label, details regarding disposal, recycling, power consumption and noise emissions
can be found on www.maxdata.com.

Device Durability

This PC is a modular system. The components used can be easily exchanged or removed.
The devices have been built in such a way that the following enhancements are always
possible:

• Processor upgrade

• Adding or replacing memory modules

• Adding, changing, enhancing or connecting further mass

storage devices

• Upgrading the

graphics capabilities

• Free slots for individual upgrading

Please consult the enclosed warranty documentation for the warranty conditions.

Take Back Guarantee

We offer a take back guarantee for all our products, if the device shows signs of normal use.
Returned devices are re-used or scrapped in an environmentally safe way. You can return
your device to your local dealer.

Recyclable Device Construction

This device conforms with the principals of VDI guideline 2243 on “Construction of recyclable
technical products”. This guideline in detail embodies:

• Avoid non detachable connections (e.g. gluing or welding) between different materi

-

als.

• Mechanical connections must be easily detachable;

• Avoid covered parts or composite materials;

• The device must be easily dismantlable, also for a simple repair;

• Reduction of the use of multiple materials.

• Reduction of the use of multiple plastics for case parts

• Nearly all plastic case parts are made from the same, recyclable material.

Introduction

9

Material Requirements for Plastic Cases and Case Parts

• All plastics used for the case are manufactured without the use of dioxins and furans.

• An independent testing laboratory in Germany has

tested and approved the character-

istics of the plastics used.

Material Requirements for Printed Circuit Boards

• All our suppliers have ensured us that their circuit boards do not contain PCB (poly­bromite biphenyl), PBDE (polybromite diphenylether) or chlorinated paraffin.

Marking of Plastic Materials

• All plastic parts of this device are marked in accordance with ISO 11469. This ensures
a problem free separation of the different materials when recycling.

Noise Emission

This PC meets the requirements for noise emissions according to EN 27779 and falls below
the following values:

Operation mode Sound power level LW (dB(A))

(according to ISO 9296))

Idle < 48

Drive operation < 55

Batteries

This device does not contain batteries containing heavy metals. The lithium batteries used
have an extremely long life span (> 10 years). Please consult the notes in the manual con­cerning servicing, replacement or disposal of the battery.

10

Information on the return of electrical and electronic waste
in EU countries according to Directive 2002/96/EC, and its im­plementation in respective national regulations

a) Reason and Purpose of Separate Collection

Users of electrical and electronic equipment are required to dispose of used devices sepa­rately. Electrical and electronic equipment must not be disposed of together with unsorted
municipal solid waste (domestic refuse), as it contains a range of dangerous elements that
cause problems for waste management. Separate collection from regular municipal waste
is a prerequisite for the special treatment and appropriate recycling of electrical and elec­tronic waste. This is essential, as many components of electrical and electronic devices are
damaging to the environment if they are not disposed of professionally. Disposing of the
devices along with unsorted municipal waste can cause harmful substances to enter the
waste flow. The consequence would be a considerable burden on the environment.

b) Significance the ‘Crossed-Out Wheelie Bin’

The crossed-out wheelie bin is the symbol for separate collection.
Electrical and electronic equipment marked with this symbol must not be
disposed of to-gether with municipal sorted waste (domestic refuse). Such
items can be handed in free of charge at public collection points.

c) Reuse, Recycling and Recovery

Electrical and electronic waste contains valuable raw materials such as iron, aluminum
and copper. These components must be treated selectively. A separate collection and a
selec-tive treatment are the basis for environmentally-friendly disposal and protection of
human health.
According to the particular terms, manufacturers are obligated to assume the costs associ­ated with disposing of these devices as well as other obligations. This is to promote the
chief objectives of reuse and recycling. For this to be possible, consumers must dispose of
used devices that are no longer needed at communal collection points. Actively using these
return and collection systems contributes to the reuse, recycling and recovery of electrical
and electronic equipment and protects the environment.

d) Weight

Information on the weight of the acquired product can be found on the item list as well as
on the packaging.

Introduction

11

Energy Consumption

Our PC systems have excellent energy saving features. The data on the type plate of the
system applies to the maximum power consumption of the system, when the system is
fully upgraded and the power supply is at 100% of its maximum output.
The devices can be separated from an external power source for at least 4 weeks, without
losing any functionality.
You can specify the settings for the energy saving mode in the BIOS setup. Please refer to
the user guide for your mainboard for information on the appropriate procedure.
The system only consumes no energy at all when the mains plug is disconnected.

12

Definition of the MAXDATA warranty

The MAXDATA warranty covers all failures resulting from defective components and manu­facturing defects that occur within the product specific warranty period. The warranty period
begins on the date of purchase (date of original customer invoice).
Please be aware that in order to maintain your warranty claim the product concerned has
to be received by MAXDATA together with the serial number and a copy of the original
customer invoice within the warranty period.
MAXDATA‘s obligation under the warranty is restricted to repairing or exchanging defective
components.
Defective components removed during repair process become the property of MAXDATA.
Components replaced within warranty coverage assume the remaining valid warranty period
of the system.
Please refer to www.maxdata.com for the applicable MAXDATA warranty conditions.

MAXDATA warranty period

The type of standard warranty varies with the product and can be seen in detail in the de­scription of warranty types and the warranty summary. It is possible to extend the standard
warranty to include additional service packages.

Scope of the MAXDATA warranty

Scope of warranty for Belinea monitors

MAXDATA‘s obligation under the warranty is limited to failures resulting from defective
components and manufacturing defects, defects in the CRT, panel and background lighting
for electrical errors (please also refer to the term definition and liability restriction).

Scope of the warranty for MAXDATA Notebooks/PCs/Workstations/Thin
Clients/PLATINUM Servers

MAXDATA‘s obligation under the warranty is restricted to MAXDATA‘s choice of either the re­pair or replacement by similar or better components of parts determined to be defective.

Scope of warranty for peripheral devices

MAXDATA has no warranty obligation for these products; instead there are product-specific
manufacturer warranties. The terms of these manufacturer warranties are at least 12 months,
starting from the time MAXDATA delivers them to the specialist reseller. The manufacturer
guarantees the presence of the features described in the product documentation and that
the materials and processing will be free of defects for the stated period.

Scope of warranty for spare parts

MAXDATA has no warranty obligation for these products, but product-specific warranty
obligations of the manufacturer. The terms of these manufacturer warranties can be asked
for at the manufacturer concerned.

Introduction

13

Exclusions from the MAXDATA warranty

The MAXDATA warranty does not cover damage of any kind that results
from:

• The use of peripheral devices

• Improper use/operating faults

• Non-adherence to the user instructions

• Attempted

repairs by the customer or third-parties without authorisation by

MAXDATA

• Defective maintenance by third parties

• Device defects due to power failure, heat losses, missing EMC (electro-magnetic
compatibility) cabling or similar reasons

• Accidents, storms, lightening, fire, water/other liquids, other natural catastrophes,
theft, riots, plundering, the effects of war or other instances of acts of god

• The use of third-party

components

• Non-authorised system changes

• BIOS versions/firmware updates/programmes to remove defects of all kinds (e.g.
service packs, bug-fixes, hot-fixes)

• Resetting safety functions, deletion of passwords etc.

• Loss of customer-specific data or software from repair and installation processes

• Improper use of machine capacity or output

• Inappropriate customer operating environment

The MAXDATA warranty also does not cover the following:

• MAXDATA products from which the category plates, serial numbers, part numbers on
the machine of machine parts have been removed or changed

• Decline in rechargeable battery capacity after the end of the 6 month warranty period

• The provision and installation of

BIOS, driver or software updates/upgrades

• The new installation of software/

operating systems that are no longer able to run (e.g.
because of the deletion of system-relevant files, incorrect system settings or self­copying programs, e.g. computer viruses)

14

• Wear and tear on data storage media, LCD background lighting, CRTs on CRT moni­tors, picture tube burn-in or loss of brightness

• MAXDATA products for which the warranty seal has been broken by entities other
than MAXDATA or those authorised by MAXDATA

• Breaks and scratches on TFT panels and CRT displays

• Damage through use of force and external impact respectively

• Spots on the panel caused by external impacts

• Colour spots resulting from falls

• Error class 2 pixel errors (please note the information on ISO 13406-2 on the website
of the MAXDATA subsidiary concerned).

If the device received by MAXDATA demonstrates two defects and only one of these is
covered by the MAXDATA warranty claim, the customer only has the right to repair for the
damage to his device covered by the warranty.
In this case MAXDATA reserves the right to offer the customer several options on resolution
in the form of a quotation and to charge the relevant processing costs.
This also applies to those devices for which upon receipt, it is found that they are not covered
by the warranty. In these cases, MAXDATA reserves ownership of the exchange device
provided and is entitled to demand its return.
MAXDATA reserves the right to charge costs incurred for unsuccessful attempts to collect
a device that has been registered as defective from the customer.
If an exchange device is not provided in spite of a period having been set, MAXDATA is entitled
to charge the net sales price as per the current price list plus the processing costs incurred.
The customer has the right to provide evidence for the existence of lower damages.

MAXDATA restriction to liability

MAXDATA expressly excludes customer claims that go beyond the warranty conditions if
there is no obligation of liability imposed on MAXDATA by the laws of the country where
the device was bought. This also applies in particular with regard to claims for damages as
a result of default, damages for claims arising as a result of defects, loss of profit, transport
damage that was not registered within a period of 6 days after receipt of the goods, loss
of data or information through repair processes or damage resulting from interruption to
operations.

Governing law

All rights and duties are subject to the law of the country in which the MAXDATA product
was purchased. The Agreement on Contracts for the International Sale of Goods (CISG) is
not applicable.

Introduction

15

Data Backup

The responsibility for complete data backups, including of applications and operating system
software remains exclusively with the customer. The data must be backed up before the
warranty claim is made. MAXDATA excludes liability for any data or information lost for this
reason during a warranty claim.
Please refer to www.maxdata.com for the applicable MAXDATA warranty conditions.

16

Wireless LAN

(wireless network - abbreviation = WLAN)
Your PC may contain a wireless LAN module (optional). This module allows you to set up a
wireless-based network, and to connect to an existing wireless network. It works according
to the IEEE802.11a+b+g standard.

WLAN technology allows users to set up wireless connections inside a local area (e.g. in
a company or campus building, or in a public building such as an airport). WLANs can be
used in temporary offices, in locations where it is not possible to set up extensive cable
installations, or to extend an existing LAN so that users in different parts of a building can
work at different times.

There are two different ways to operate a WLAN:
In fixed WLANs, wireless stations (devices with radio network cards or external modems)
set up connections with wireless access points, which act as bridges between the stations
and the existing network backbones.
In Peer-to-Peer (ad hoc) WLANs several users can set up a temporary network within a
limited area such as a conference room, without using access points, and providing there
is no need to use network resources.

In 1997 the IEEE confirmed the standard 802.11 for WLANs; this set a data transfer rate
of from 1 to 2 Mbit/s (Megabits per second). Under 802.11a+b+g, the new governing
standard, the maximum data transfer rate is 54 Mbit/s over a frequency band of 2.4 or 5
GHz (Gigahertz).

Introduction

17

Additional safety notes for units with wireless LAN

If a wireless LAN module is integrated in your PC, it is essential
that you observe the following safety information when using your
PC:

• Switch off the PC when you are in an aircraft or while driving a car.

• If you are in a hospital, an operating room or close to an electronic
medical system, switch off the wireless components in the PC! The
radio waves which are transmitted could disrupt the working of the
medical equipment.

• Keep the PC at least 20 cm away from a heart pacemaker, other

­wise there is a risk that the radio waves could disrupt the normal
working of the pacemaker.

• The

radio waves which are transmitted could give rise to interfer-

ence noise in hearing aids.

• When its radio components are switched on, do not place the PC
close to inflammable gases or in an

environment which could be at
risk of explosion (e.g. paint shop), since the radio waves which are
transmitted could set of a fire or an explosion.

• The range of the wireless connection depends on the environmen

-

tal and other ambient conditions.

• When transferring data over a wireless connection, unauthorized
Third Parties can also receive the data.

18

MAXDATA International GmbH is not responsible for disruptions to radio or television recep­tion which are caused by unauthorized alterations to this unit. MAXDATA also accepts no
responsibility for the replacement or the exchange of connecting cables and units which
were not specified by MAXDATA International GmbH. The user alone is responsible for the
elimination of disruptions caused by this type of unauthorized alteration; he is also respon­sible for the replacement or the exchange of the units.

CE-labelling for units with wireless LAN

As delivered, this device complies with the requirements of the Guideline 1999/5/EG of the
European Parliament and of the Council dated the 9. March 1999 concerning radio equipment
and telecommunications facilities, and the mutual recognition of conformity.
This PC may be used in Belgium, Denmark, Germany, Finland, France, Greece, Great Britain,
Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal, Sweden, Switzerland, Spain,
Iceland, Liechtenstein and Norway.
Current information on any possible restrictions in its operation can be obtained from the
appropriate authorities in each country. If your country is not included in the above list, then
please contact the appropriate supervising authority, in order to check whether the use of
this product is permitted in your country.

Belgium - www.bipt.be
Denmark - www.tst.dk
Germany - www.regtp.de
Finland - www.ficora.fi
France - www.art-telecom.fr
Greece - www.eett.gr
England - www.oftel.gov.uk
Ireland - www.comreg.ie
Italy - www.agcom.it
Luxembourg - www.etat.lu/ILT

Netherlands - www.opta.nl
Austria - www.rtr.at
Portugal - www.urt.gov.pt
Sweden - www.pts.se
Switzerland - www.bakom.ch
Spain - www.cmt.es
Iceland - www.pta.is
Liechtenstein - www.ak.li
Norway - www.npt.no

Introduction

19

Restrictions

France

Restricted frequency range: In France, you may only use channels 10 to 11 (2457 MHz or
2462 MHz). It is forbidden to use the unit outside of enclosed areas.

Info: www.art-telecom.fr

Italy

An official authorization is also required to use the unit in internal areas. For more detailed
information about the necessary procedure to do this, please contact your provider. It is
forbidden to use the unit outside of enclosed areas.

Info: www.agcom.it

Netherlands

A licence is required to use the unit in the open. For more detailed information about the
procedure to be followed for this, please contact your provider.

Info: www.opta.nl

20

Radio frequencies for units with wireless LAN

The following information was correct at January 2002. You can obtain current information
from the appropriate authorities in your country (e.g. www.regtp.de).

Frequencies

Radio network cards and adapters are designed in accordance with IEEE-Standard 802.11b+g
for use in the ISM frequency band (Industrial, Scientific, Medical) between 2.4 and 2.4835
GHz. Because of the DSSS-procedure (Direct Sequence Spread Spectrum), each of the 11
usable radio channels takes up a width of 22 MHz; this means that up to three, independent
channels are available (e.g. 3, 8 and 11). The following table lists the authorised channels
in your country:

Channel MHz Europe, R&TTE France, R&TTE

1 2412 X

2 2417 X

3 2422 X

4 2427 X

5 2432 X

6 2437 X

7 2442 X

8 2447 X

9 2452 X

10 2457 X X

11 2462 X X

In addition, the integrated radio network card supports the standard 802.11a. For more
information regarding 5 GHz band frequencies authorized in your country, please contact
your respective appropriate authority.

Introduction

21

Legal requirements - exception clauses

Exception Clauses For Units With Wireless LAN

The installation and use of an unit with Wireless LAN may only take place when in accordance
with the instructions contained in the user documents. The user documents are included
in the material supplied with the product. All alterations or modifications made to this unit
which are not expressly authorised by the manufacturer may lead to cancellation of the right
of the user to operate the unit. The manufacturer is not liable for radio disruptions during
the reception of radio and television signals which are due to non-authorised alterations
to the unit or to the exchange or connection of cables and accessories, where these are
not in accordance with the recommendations of the manufacturer. It is the responsibility
of the user to remove any interference which may arise as a result of any non-authorised
alterations, or the addition or replacement of components. Neither the manufacturer nor
his authorised dealer and wholesaler are liable for damages or breaches of legal regulations
which result from an infringement of these guidelines.

22

Before Getting Started

This manual uses some symbols to facilitate the user’s orientation and to highlight points
of importance.

Degree of
danger

Damage to
persons

Damage to
property

Use with:

×

Immediate threat of danger;possible
consequences: death or life-threaten­ing injury.

×

Potentially dangerous situation; pos­sible consequences: light or moder­ate injury.

×

Potentially harmful situation; pos­sible consequences: the product or
anything nearby may be damaged.

/

Useful information and recommen­dations that may make using your
system easier.

Introduction

23

Before Initial Operation

Contents

Before you begin the installation of your PC, make sure that you have all the parts. If
anything is missing from the listed and illustrated packing list, please contact your dealer
immediately.

• System unit

•

Keyboard (optional)

•

Mouse (optional)

•

Power cable

•

Operating system

•

Software

• User’s manual/Quick start guide (optional)

Depending on your system model, your PC may be different than the ones shown in this
manual. When the differences are significant, the various options will be shown.

Positioning the Computer

Please take note of the following criteria for creating a practical and safe workplace when
setting up your computer:

Temperature and humidity

The computer can be used anywhere the temperature is suitable for people. However,
rooms with humidity over 70%, and dusty or dirty areas are not appropriate. In addition, do
not expose the PC to temperatures over +35°C or under +10°C.
Make sure that you avoid temperature changes that could lead to condensation. If moisture
has accumulated on the surface of your computer, wait until the moisture has dried com­pletely (approximately one to two hours), before you switch the device on.
The operational reliability of a device that has been exposed to condensation cannot be
guaranteed.

Connecting the computer

Make sure that the cables connecting the PC to peripheral devices are not under tension.

Avoiding risk of stumbling

Make sure that all power and connection cables are positioned so that they are not trip
hazards.

24 Before Initial Operation

Data storage media

When you save data to your PC’s hard disk or to a floppy disk, it is stored as magnetic
information on the medium. Make sure that data is not damaged by magnetic or electro­magnetic fields.

Avoid jarring

Because the electronics in your computer can be damaged by jarring, no mechanical devices
should be placed on the same surface as the PC. This is especially important for impact
printers whose vibrations could damage the hard disk.

Allow for ventilation

There is a fan on the back of the PC that maintains the proper temperature inside the case.
In order for it to function properly, the ventilation slots must not be blocked. Blocking them
would cause the inner components to be damaged by high temperatures. That is why it is
not appropriate to install the PC in a shelf unit or drawer.

Servicing / Maintenance / Cleaning

Please ensure that the device is unplugged before commencing any
cleaning, servicing or maintenance tasks.

25

All data that has not been saved will be lost.

The behavior of the on/ off button and the LED operation display de­pends on the BIOS settings and the operating system. In case of queries
refer to the user guide for your operating system (energy options) or to
the mainboard handbook.

1.

Optical disk drive / backplane (optional).

2.

Floppy disk drive/memory

card slot (optional).

3. The

LED hard disk indicator display lights up when the hard disk is accessed.

4. The power LED indicator display lights up when the computer is switched on.

5. The reset button. If the system no longer reacts, you can restart the computer with
this button.

The PC in Detail

Elements of the PC

All components necessary to operate your PC system are located on the front panel.

Front Panel Components

/

All data that has not been saved will be lost.

6. The on/ off button. This

button has several functions:

a. Pressing this button switches the computer on.

b. If you briefly press the button while the computer is switched on, current

operating

systems shut the computer down.

c. Pressing the button for longer than four seconds switches the computer off.

RESET

26 The PC in Detail

2 × USB
Loudspeaker
Microphone
FireWire (optional)

Optional extras

The following additional ports are available depending on the housing model and the system
configuration. The following illustration shows which options may apply to your system.

Tower models

Desktop model

2 × USB
Loudspeaker
Microphone
FireWire (optional)

1394

1394

Small desktop

1394

2 × USB
Loudspeaker
Microphone
FireWire (optional)

27

The Rear View

The ports on the rear side of the tower, desktop or small desktop devices can vary in detail
depending on the system configuration. Because of the wide product range, the usual port
options are shown here.

1. The

power switch (optional). Here you can switch off the device when it will not be
used for an extended period. If you want to avoid using any power whatever, you have
to disconnect the mains plug.

2. Mains connection socket. The power cable is inserted here.

3.

Mouse connection socket. The PS/2 mouse is connected here.

4.

Keyboard connection socket. The PS/2 keyboard is connected here.

5. FireWire port (IEEE 1394). Devices such as cameras, hard disk drives, etc. are con

-

nected here.

6.

eSATA port. External SATA hard disk drives can be connected here.

7. The

serial COM1 interface. Serial peripheral equipment such as a serial mouse, exter­nal modems, etc. can be connected here.

8.

Parallel LPT1 interface. This interface is a 25-pin socket. Here you can connect a
printer.

9. 15-pin

graphics card port. The monitor is connected here. This socket may also be

located on an expansion card (13) depending on the system configuration.

1394

eSATA

28

10. Rear USB connection sockets. USB peripheral equipment such as joysticks, mouse
devices, scanners, printers or digital cameras are connected here.

11.

Network connection socket (optional – dependent on the system configuration). The
built-in network adapter enables your computer to connect to the Internet via a net­work or DSL. The connection is made via an Ethernet network cable and RJ45 con­nectors. These are inserted on the back of the computer and into an available network
hub or DSL socket.

12.

Sound module. Here you can connect loudspeakers ( ), microphones ( ) and an
external sound source ( ) such as a portable CD player or the output of a radio card.
This module may also be located on an expansion card (12) depending on the system
configuration. The analog (15-pin) connection for joysticks which may still be present
here is increasingly being replaced by the USB port.

13.

DVI port. An LCD monitor with DVI input can be digitally connected here.

The PC in Detail

29

Connecting a Monitor

Any monitor which complies with the VGA graphics standard
can be connected to your PC. The connection socket for the
monitor is located on the rear side of your PC and is marked
with a monitor symbol.
If you use an older monitor, carefully compare the technical
data of the monitor and the graphics card.

The computer and the monitor must be switched off when
being connected, as otherwise the hardware may be dam­aged.
Connect the plug from your monitor to the 15-pin VGA con­nector of the graphics card of your PC.
Connect the monitor power cable to a grounded outlet.

Connecting Peripheral Devices

Don’t use force when
connecting plugs
– otherwise you may
damage the plugs or
connectors.

If the monitor is not
able to process the
frequencies from the
graphics card, it could
be destroyed!

1394

eSATA

30

In addition to the PS/2 port there are USB ports and a serial mouse port (COM1) on the
rear side of the computer.
Depending on the type of mouse plug you can attach the mouse to the PS/2 port, to the
USB port or to the serial interface. It is recommended to connect the mouse directly or by
means of an adapter to the PS/2 socket with the mouse symbol.
In this way you can use the USB and serial ports for other peripheral equipment.

Connecting the Keyboard

The PS/2 socket for connecting the keyboard is located on the rear side of the device. Con­nect the keyboard plug to the PC via the correspondingly marked socket. Always connect
plugs to the PC carefully and without forcing.

Connecting a Mouse

The PC in Detail

31

Connecting a Printer

Printers are normally distinguished by two different types of connection: parallel or USB
interfaces. Many printers feature both options. It is recommended to connect the printer
to the parallel interface. This retains your USB connection which you can use for a range
of other devices.
When connecting the printer to the parallel port of the computer, both devices must be
switched off.

The printer is connected to your PC by a printer cable (not included). The parallel printer in­terface has 25 pins. It is located on the back of your computer and is marked accordingly.

Connect the printer cable to the parallel port of your PC (see figure 2-6). Plug the other end
of the cable into the port of your printer.

/ If your printer has a USB plug, it is essential to read the operating

instructions BEFORE connection. For example, you will often have to
install the driver first. Note that before you use the printer for the first
time, you must remove the transport protection and insert the ink or
toner cartridge. See the user guide for the printer for further informa­tion. Frequently, you must also install the appropriate printer driver.
You can find the necessary information in the printer user guides.

32

The PC has a power adapter, which can be operated with 200 – 240 V AC. For Europe, it
is always set at the factory to 200 – 240 V AC.
Ensure that the switch on the power adapter is set to “0”.
Insert the power cable into the socket on the power adapter.
Connect the mains plug with a properly earthed shock-proof socket.

Connecting the Power Cable

The power adapter
contains no service­able parts. Never open
the power adapter
– risk to life!

You could receive a
deadly electric shock.

The PC in Detail

33

Before starting the computer, you should switch on the monitor, printer, modem etc. This
ensures that the operating system recognizes the connected devices and integrates them
accordingly.

Switch the power adapter switch from “0“ to “1“.

Switching the PC On

Turn on your PC by briefly pressing the ON/OFF button on the front.

The PC carries out an internal self-test. If errors are detected during this test, these are
displayed on the screen if possible. After successful completion of the PC self-test, the
operating system (if installed) is started.

RESET

34

There is a special type of memory on the motherboard of your
PC which must not be erased, in contrast to the normal RAM.
This memory is called CMOS RAM. It stores the internal con­figuration settings of BIOS, as well as important parameters
for the system clock and calendar. In order to maintain the
contents of CMOS RAM even when the PC is turned off, it
is constantly supplied power from a battery.

Replace the CMOS battery as follows:

1. Slide the safety latch to the side.

2. Lift and pull the battery from the holder.

3. Insert the new battery.

4. Lock the battery in place.

Don‘t dispose of batteries in a fire – they may explode. Batter­ies and rechargeable batteries do not belong in the household
garbage. They are accepted free of charge by manufacturers,
dealers or their representatives for recycling or disposal.

Switching the System Off

The CMOS Battery

The switch off procedure of the system depends on its operating system.
Some operating systems shut down the PC completely and switch it off.
If your OS does not support this function, please press and hold the ON/OFF switch for longer
than 4 seconds in order to switch the system off. In case you are not going to use the system
for an extended period, please unplug the power cable at the back of your system.

When changing the
battery it must not
be allowed to short
circuit or be inserted
with reversed polar­ity. A battery which is
inserted with reversed
polarity may explode
or cause damage to
the electronics on the
motherboard.

Only use the battery
type recommended by
the manufacturer. You
can purchase new bat­teries from your dealer.

The PC in Detail

2

3

1

2

3

4

4

35

Components of the PC

The Floppy Disc Drive

Fully insert a formatted disk into the disk
drive until the eject button pops out. You can
then access the data and/or write data to
the disk.
To eject the disk from the disk drive, push the
eject button.

Never eject a disk from the disk drive
when the disk is being accessed.

Data loss and damage to the
disk

Use and Care of Floppy Disks

The following care should be given to floppy
disks:

•

Temperatures over +50 °C and under
+10 °C have a negative impact on data
security.

• Protect them from magnetic or electro

-

magnetic influences.

• Do not place them in direct sunlight.

• Do not touch the magnetic disk.

• Do not expose the floppy disks to water
(like rain etc.).

36

The optical drive

While the computer is running, press the eject button of the optical drive as shown in the
illustration. The compartment will slide open.

Place an optical disk into the depression of the tray with the printed side facing up. Try to
avoid touching the underside of the disk with your fingers (see illustration).
To close the compartment, press the eject button of the optical drive once more.
Within a few seconds you will be able to access the data on the disk.
To remove the disk, repeat the above steps in reverse order.

Never use force to open the optical disk dive. Should the compartment
fail to open, shut down the computer and activate the manual emergency
release. Please consult your optical drive’s manual for more information.
Never place any objects on top of the tray.
Never place more than one optical disk in the compartment at a given time.

The built-in optical drive is a class 1 laser product. Do not open the de­vice and do not look into the laser beam, even when using optical instru­ments.
Always keep the compartment closed when not in use in order to avoid
excessive dust collection in the drive.

Components of the PC

/

37

Troubleshooting

In the following section you will find solutions for different kinds of problems. Please check
the following list before you call technical support.

Screen is blank.

• Make sure your PC is not in standby mode – press any key to wake up.

• Make sure the monitor power

switch is in the ON position.

• Make sure the

power cable is connected to a live outlet.

• Check the contrast and brightness settings on your

monitor.

The PC worked perfectly until new software was installed.

• Use a virus scanner to see if your PC is infected.

• Check the “readme” files for

software incompatibility.

An error message appears on the monitor when accessing the floppy disk drive.

• You are using floppy disks that do not have the appropriate capacity.

• The floppy

disk is defective.

Some keys do not work correctly.

• You have probably installed the wrong (or no)

keyboard driver. Restart your operating

system and make sure that the correct keyboard driver is indicated.

The printer won’t print.

• Make sure that the cable between the PC and printer is correctly connected.

• Make sure that your

printer is online (see your printer manual).

The mouse is correctly connected, but isn’t responding.

• Make sure that the

mouse is correctly configured in your software. Refer to your

mouse documentation.

If none of these suggestions help to fix the problem, please have the device repaired at
your certified service partner.
Please refrain from attempting to repair the device on your own.

38

39

B

Battery ................................................9, 34

BIOS ..................................... 11, 13, 25, 34

Button ...............................................25, 33

C

CMOS .....................................................34

COM1 ............................................... 27, 30

Components ................. 5, 8, 12, 13, 24, 25

Connecting .......................................30, 31

Connection .......................................28, 29

D

Data storage media ..........................14, 24

Dimensions ...............................................6

Disk .......................................24, 25, 35, 37

DVI port ..................................................28

E

Energy Consumption .............................. 11

Environment .......................................8, 17

eSATA port ..............................................27

Ethernet ..................................................28

Expansion card ................................. 27, 28

F

FireWire ..................................................26

G

Graphics ....................................................8

Graphics card .................................... 27, 29

Guarantee ............................................. 7, 8

H

Hard disk ...........................................24, 25

Humidity .............................................6, 23

I

Ink ...........................................................31

Input voltage .............................................6

Interface ..................................... 27, 30, 31

Index

J

Jarring .....................................................24

Joystick ...................................................28

K

Keyboard ............................... 23, 27, 30, 37

L

Laser .........................................................7

LED .........................................................25

Liability ................................... 5, 12, 14, 15

Loudspeaker .....................................26, 28

LPT1 .......................................................27

M

Memory ..................................................34

Microphone ......................................26, 28

Modem ....................................... 16, 27, 33

Monitor ........................... 12, 27, 29, 33, 37

Mouse .................................. 23, 27, 30, 37

N

Network ............................................16, 28

O

Operating system ..... 13, 15, 23, 25, 33, 34

Optical disk drive ....................................25

P

Parallel .............................................. 27, 31

Peripheral ...................12, 13, 23, 27, 29, 30

Ports ................................................. 27, 30

Port options ............................................27

Power adapter ........................................32

Power cable ..........................23, 29, 32, 37

Power supply .......................................... 11

Power switch ..........................................27

Printer ...................................28, 31, 33, 37

PS/2 .................................................. 27, 30

40

R

Radio ................................16, 17, 18, 20, 21

RAM .......................................................34

Repair ......................................7, 12, 13, 14

S

Screen ....................................................33

Self-test ..................................................33

Serial ................................................. 27, 30

Software ............................... 13, 15, 23, 37

Sound .................................................6, 28

Standards .................................................7

Storage .....................................................8

Switch ...............................................34, 37

Symbol ..............................................22, 29

T

Temperature ...........................6, 23, 24, 35

Test .....................................................9, 33

Toner .......................................................31

Transport ...........................................14, 31

U

USB ............................................28, 30, 31

V

VGA .........................................................29

W

Warranty ..................................... 12, 13, 14

Wireless LAN ..................16, 17, 18, 20, 21

Austria
MAXDATA Computer GmbH

Ignaz-Köck-Straße 9
A-1210 Wien
Phone: [phone]

Benelux
MAXDATA Benelux B.V.

Bredaseweg 115
NL-4872 LA Etten-Leur
Phone: [phone]

France
MAXDATA S.A.R.L.

7 avenue du Général de Gaulle,
Bâtiment 4,
F-91090 Lisses
Phone: [phone]

Germany
MAXDATA Computer GmbH

Elbestraße 16
D-45768 Marl
Phone: [phone]

Italy
MAXDATA Italia S.r.l.

Strada 1, Palazzo F1
I-20090 Milanofiori, Assago (MI)
Phone: [phone]

Poland
MAXDATA Sp. z.o.o

Ursynów Business Park
ul. Pu�awska 303
PL-02-785 Warszawa
Phone: [phone]

Spain . Portugal
MAXDATA Iberia s.l.

c/Colquide, 6
Edificio Prisma – Portal 1-B-Pta. 1a
E-28230 Las Rozas (Madrid)
Phone: [phone]

Switzerland
MAXDATA Computer AG

Haldenstraße 5
CH-6340 Baar
Phone: [phone]

United Kingdom
MAXDATA UK Limited

The MAXDATA Centre, Downmill Road
Bracknell, Berkshire, RG12 1QS, UK
Phone: [phone]
