Page 1
Service Manual
Model: Belinea 101705
Art. No. 111723
MAXDATA Systeme GmbH
Elbestr. 12-16
45768 Marl / Germany
Page 2
Belinea 101705 (111723) Service Manual
1. PRECAUTION AND NOTICES------------------------------------------------------------------------------------- 1
1.1. SAFETY PRECAUTIONS ---------------------------------------------------------------------------------------- 1
1.2. PRODUCT SAFETY NOTICE----------------------------------------------------------------------------------- 1
1.3. SERVICE NOTES-------------------------------------------------------------------------------------------------- 1
SERVICE TOOL & EQUIPMENT REQUIRED
2.
3. SPECIFICATIONS----------------------------------------------------------------------------------------------------- 2~3
PRODUCT SPECIFICATIONS
3.1.
FACTORY SUPPORTING MODES
3.2.
3.3. D-SUB CONNECTOR -------------------------------------------------------------------------------------------- 3
4. EXPLODED VIEW AND PARTS LIST --------------------------------------------------------------------------- 4~5
4.1. EXPLODED VIEW------------------------------------------------------------------------------------------------ 4
4.2. EXPLODED VIEW PARTS LIST-------------------------------------------------------------------------------- 5
5. BLOCK DIAGRAM---------------------------------------------------------------------------------------------------- 6

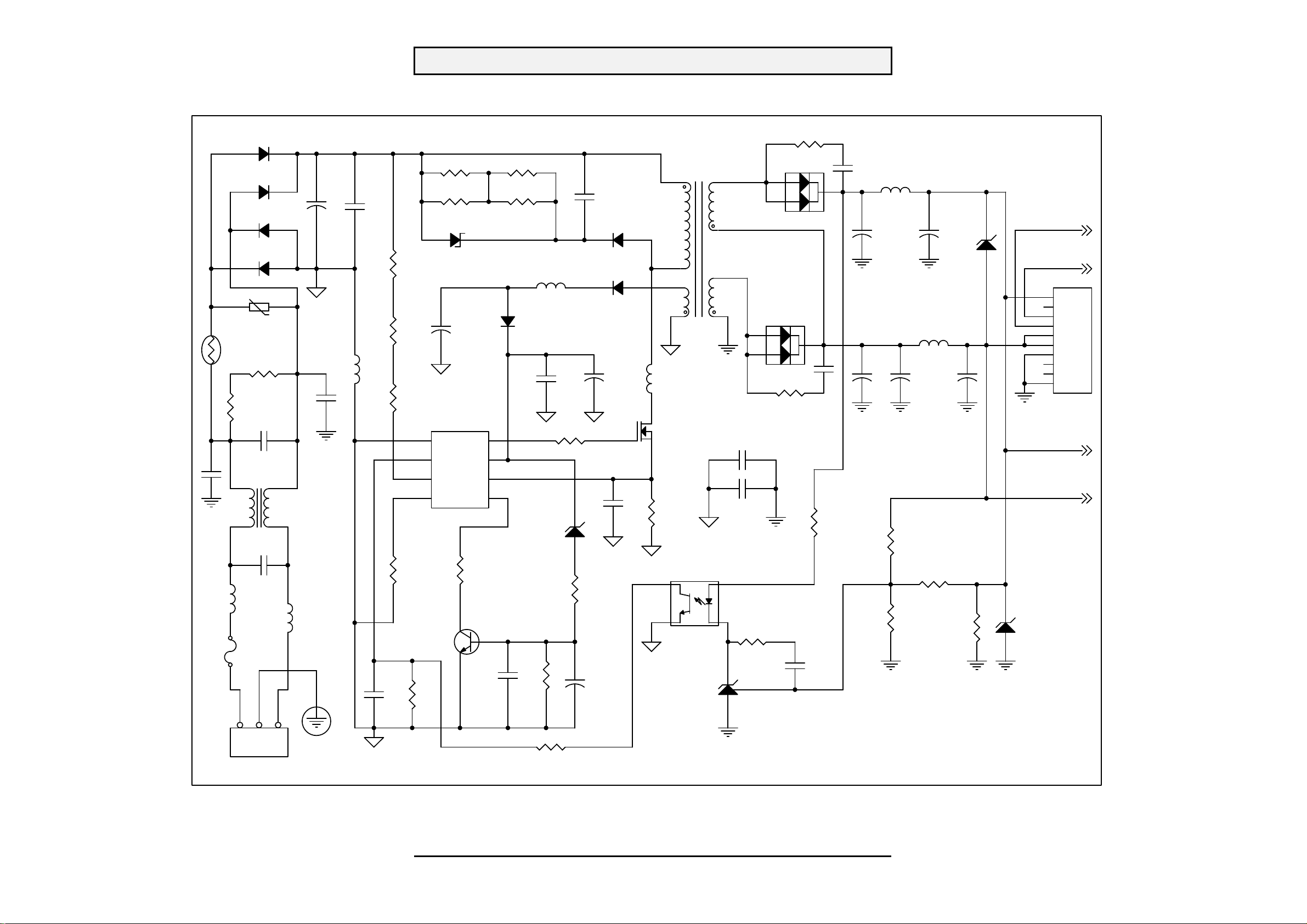

6. SCHEMATIC DIAGRAM -------------------------------------------------------------------------------------------- 7~14
6.1. Power --------------------------------------------------------------------------------------------------------------- 7
6.2. Input----------------------------------------------------------------------------------------------------------------- 8
6.3. Scaler----------------------------------------------------------------------------------------------------------------9
6.4. Panel Interface-----------------------------------------------------------------------------------------------------10

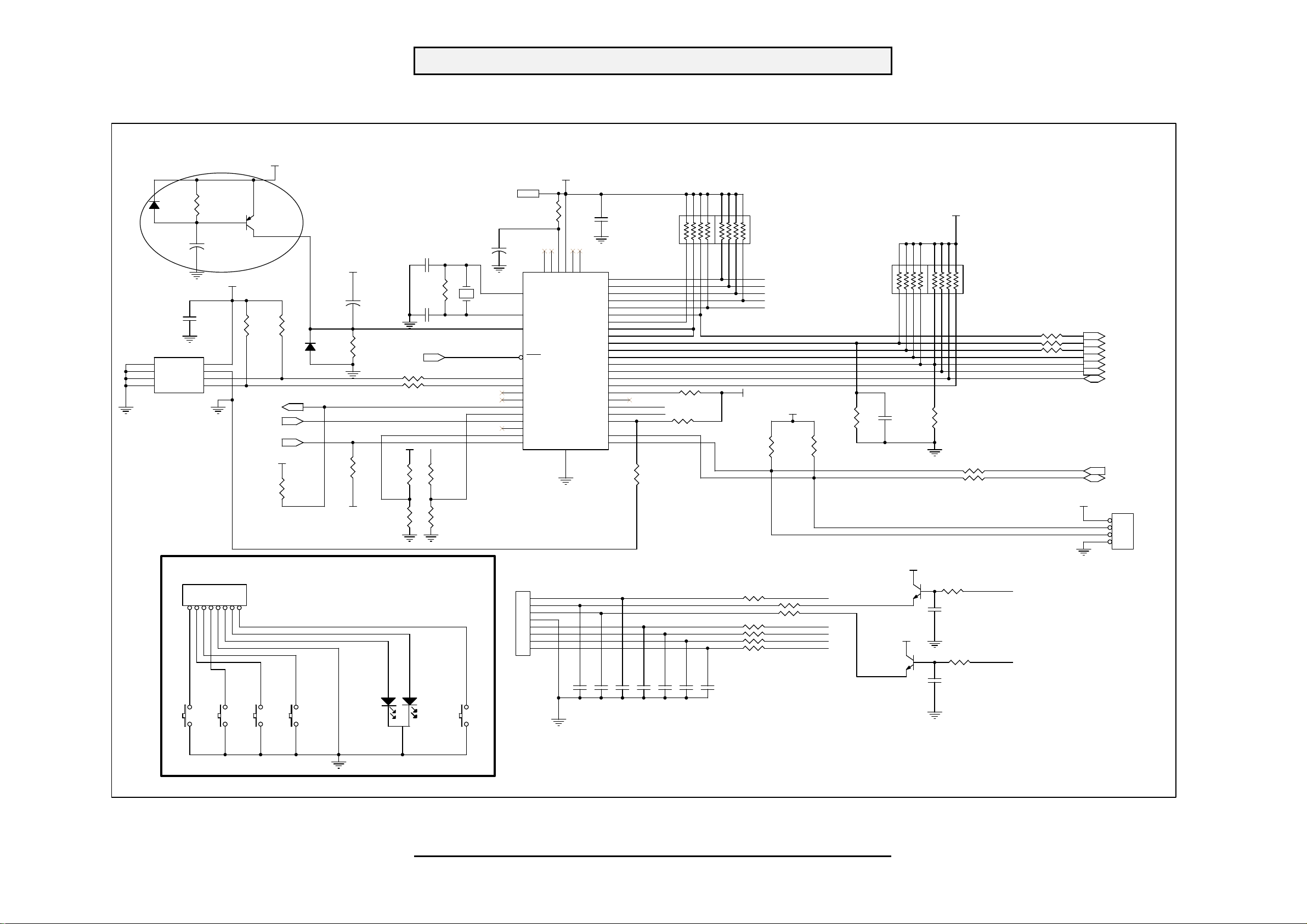

6.5. MCU-----------------------------------------------------------------------------------------------------------------11

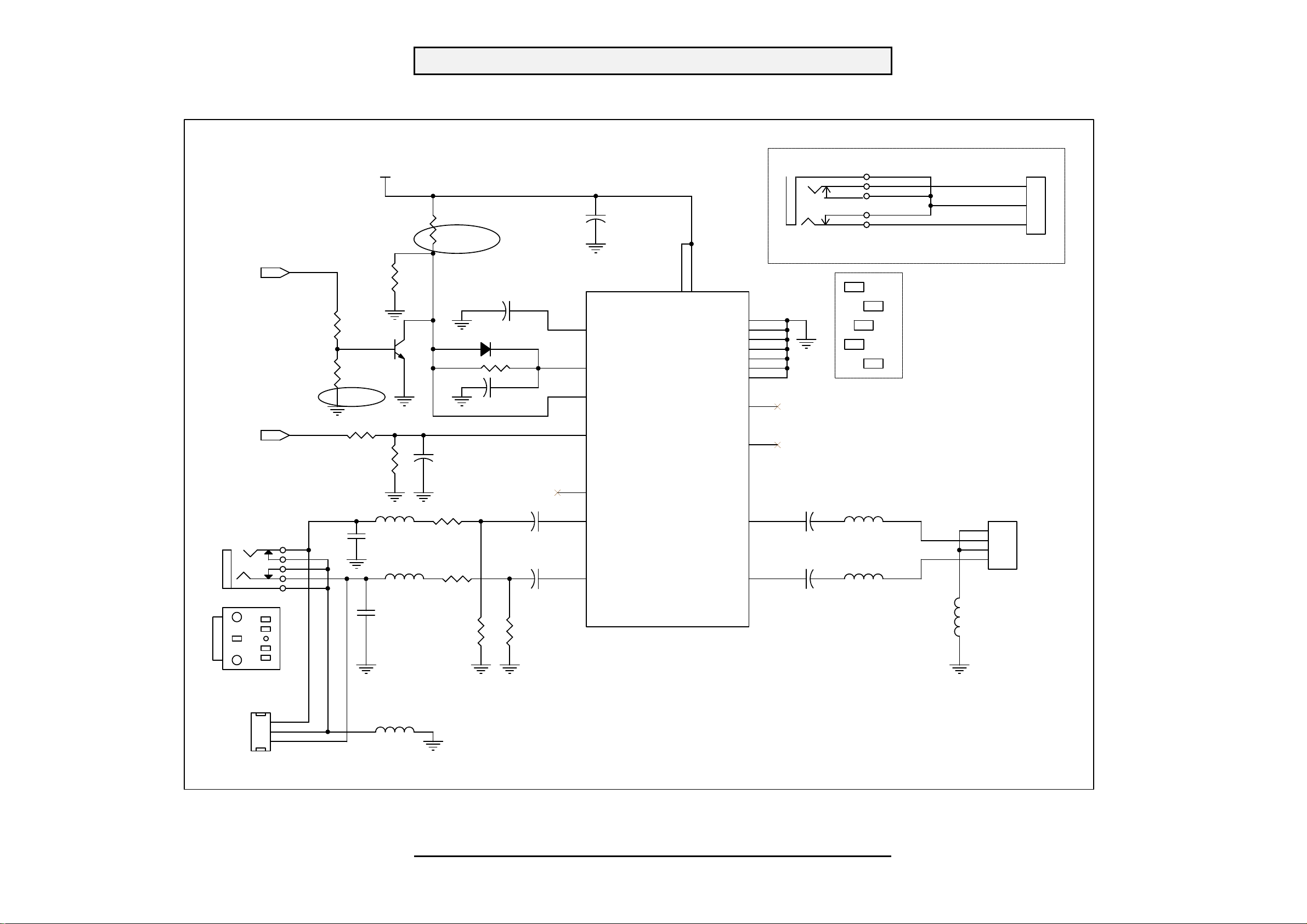

6.6. Audio ---------------------------------------------------------------------------------------------------------------- 12

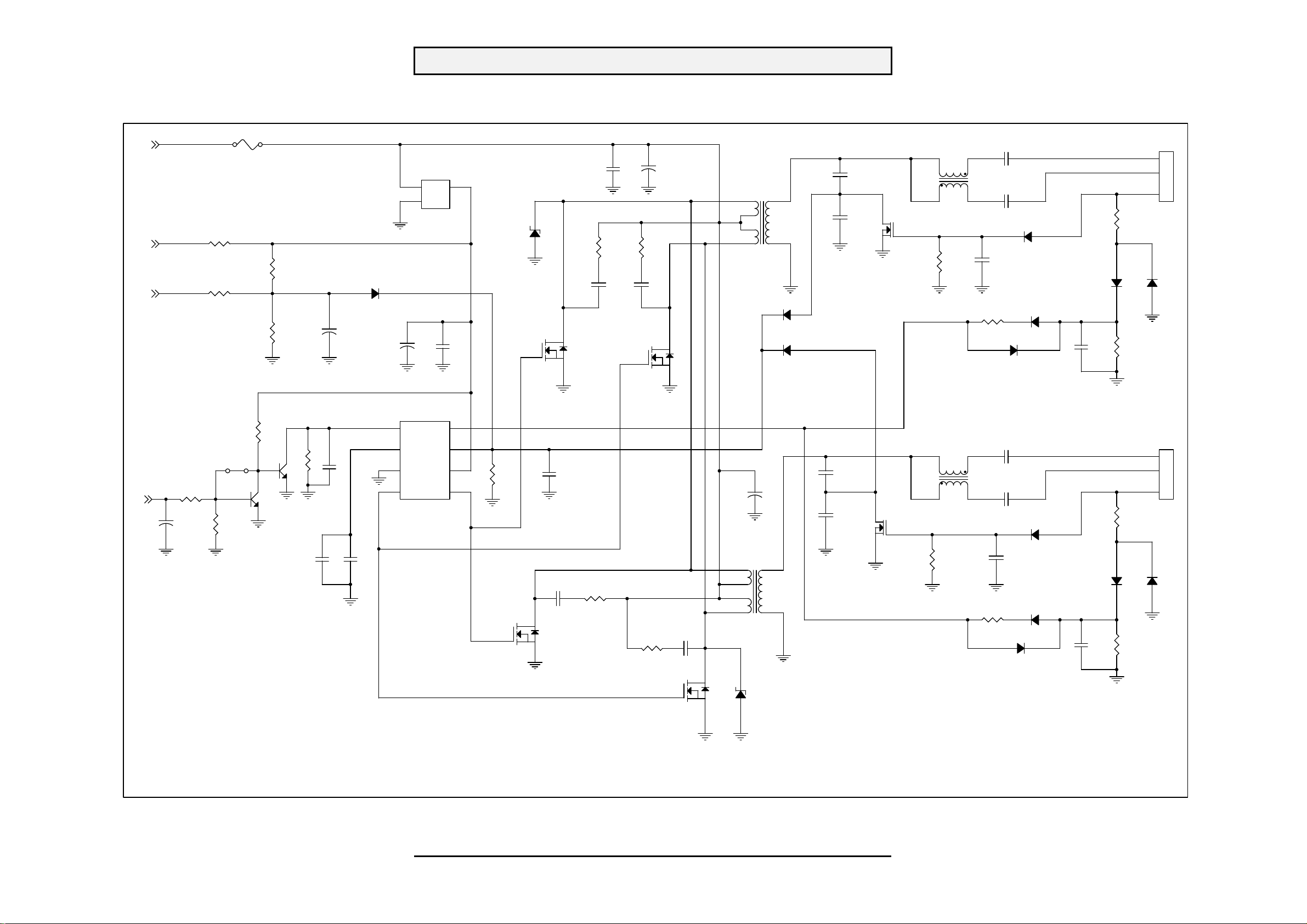

6.7. Inverter-------------------------------------------------------------------------------------------------------------- 13
6.8. A/D power ---------------------------------------------------------------------------------------------------------- 14
7. WORKING THEOREM----------------------------------------------------------------------------------------------- 15~17

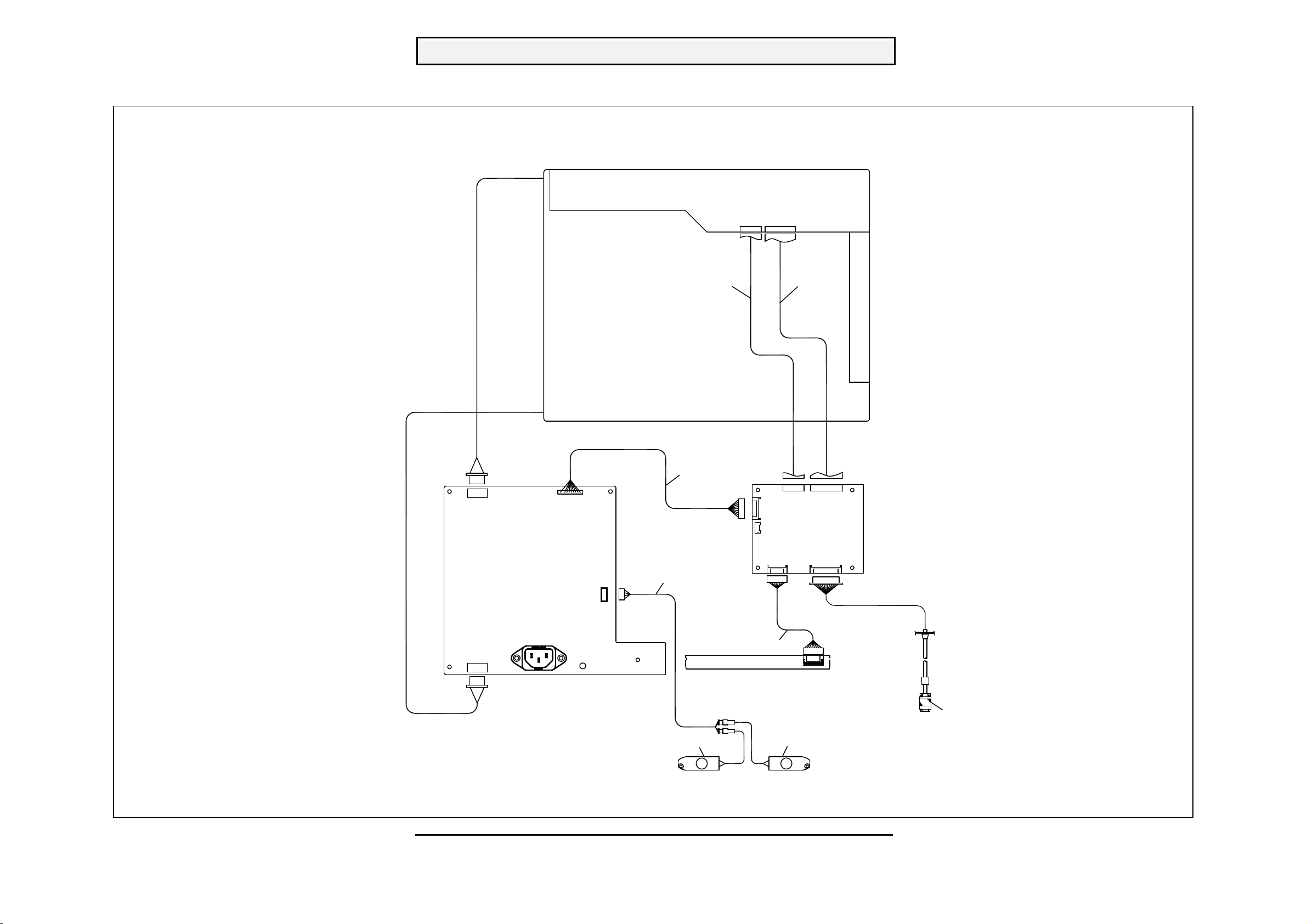

8. WIRING DIAGRAM--------------------------------------------------------------------------------------------------- 18

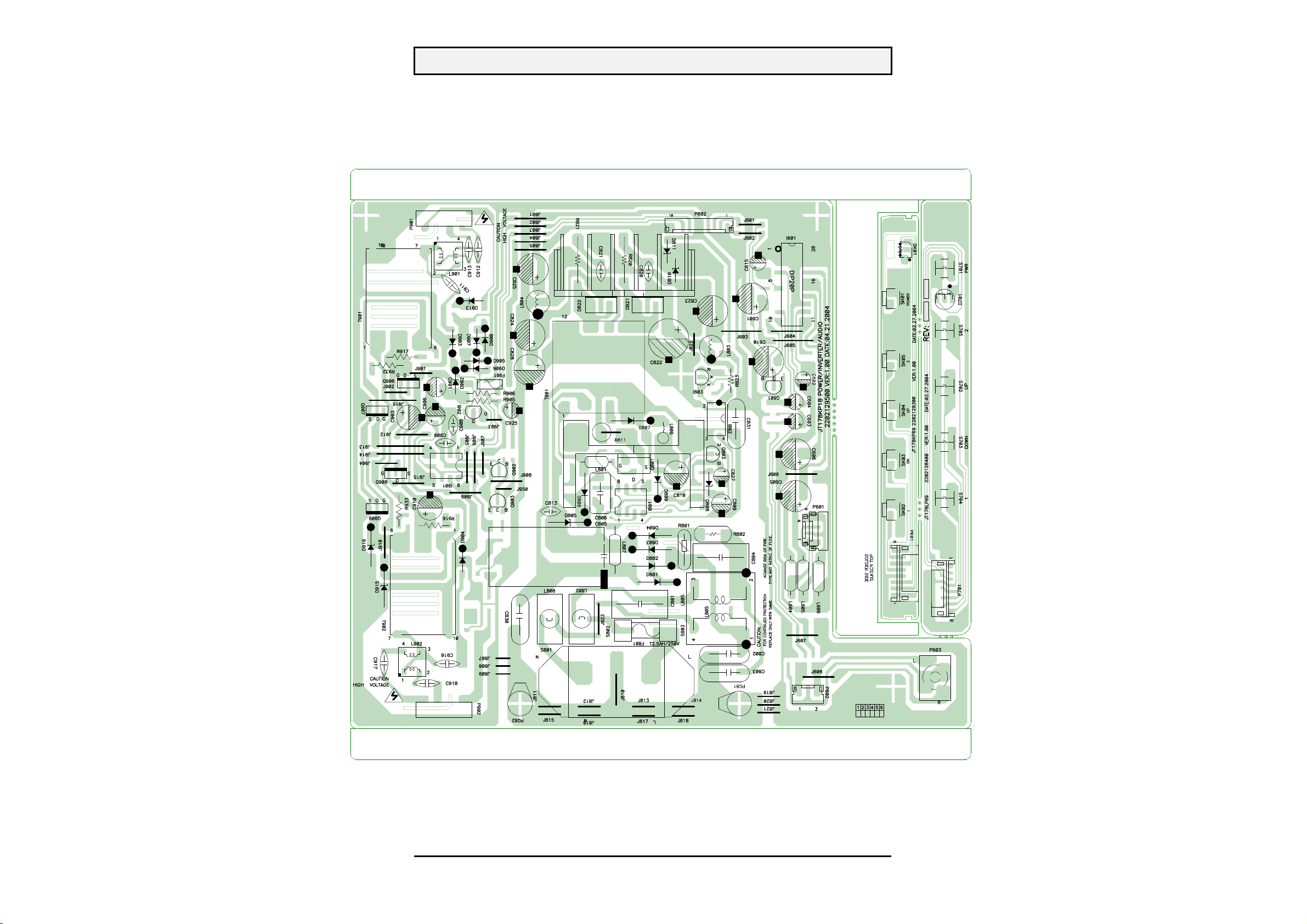

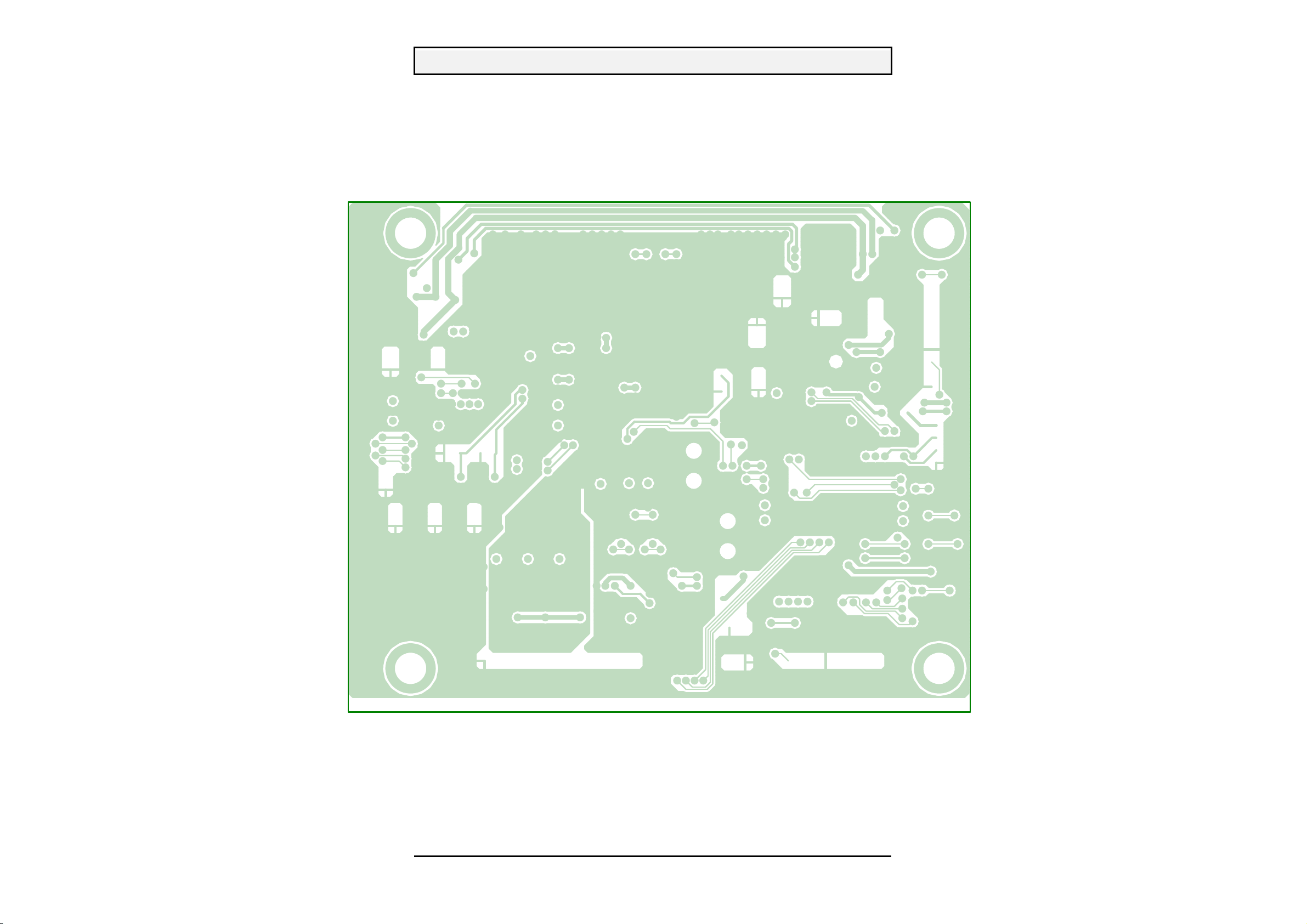

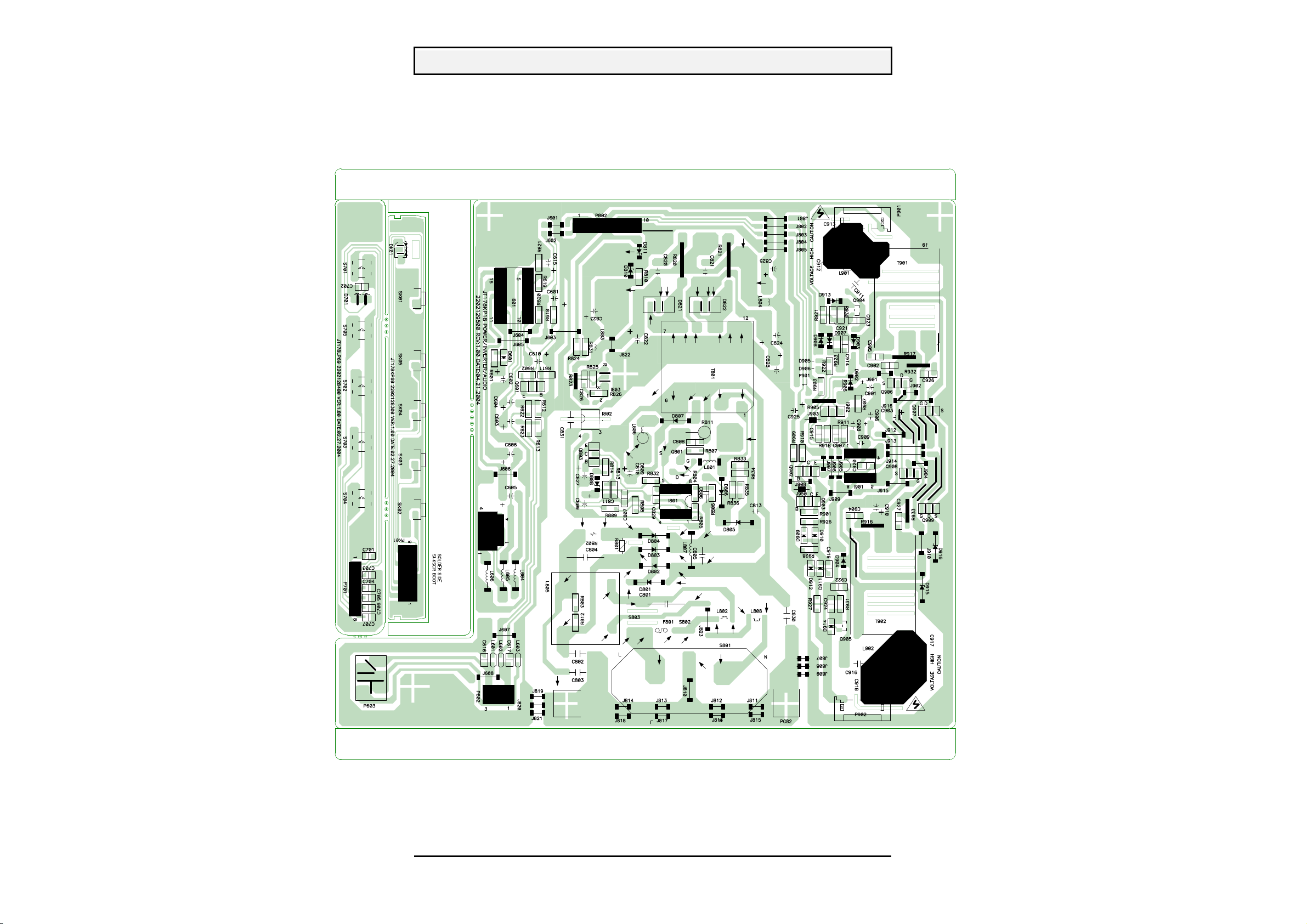

9. PCB LAYOUT----------------------------------------------------------------------------------------------------------- 19~22

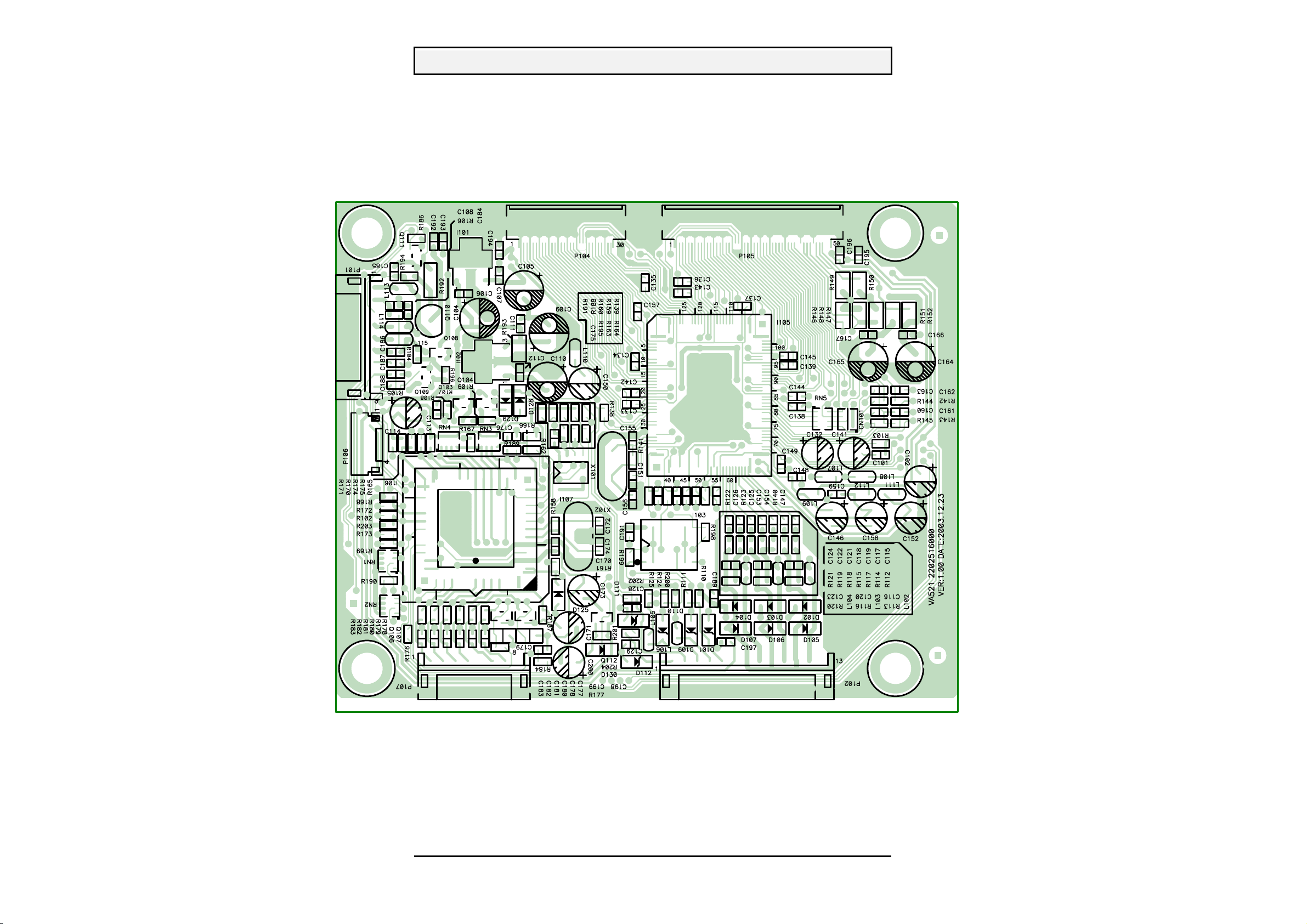

9.1. MAIN PCB TOP VIEW ------------------------------------------------------------------------------------------- 19
9.2. MAIN PCB BOTTOM VIEW------------------------------------------------------------------------------------- 20
9.3. CON & POWER PCB TOP VIEW-------------------------------------------------------------------------------21
9.4. CON & POWER PCB BOTTOM VIEW------------------------------------------------------------------------ 22

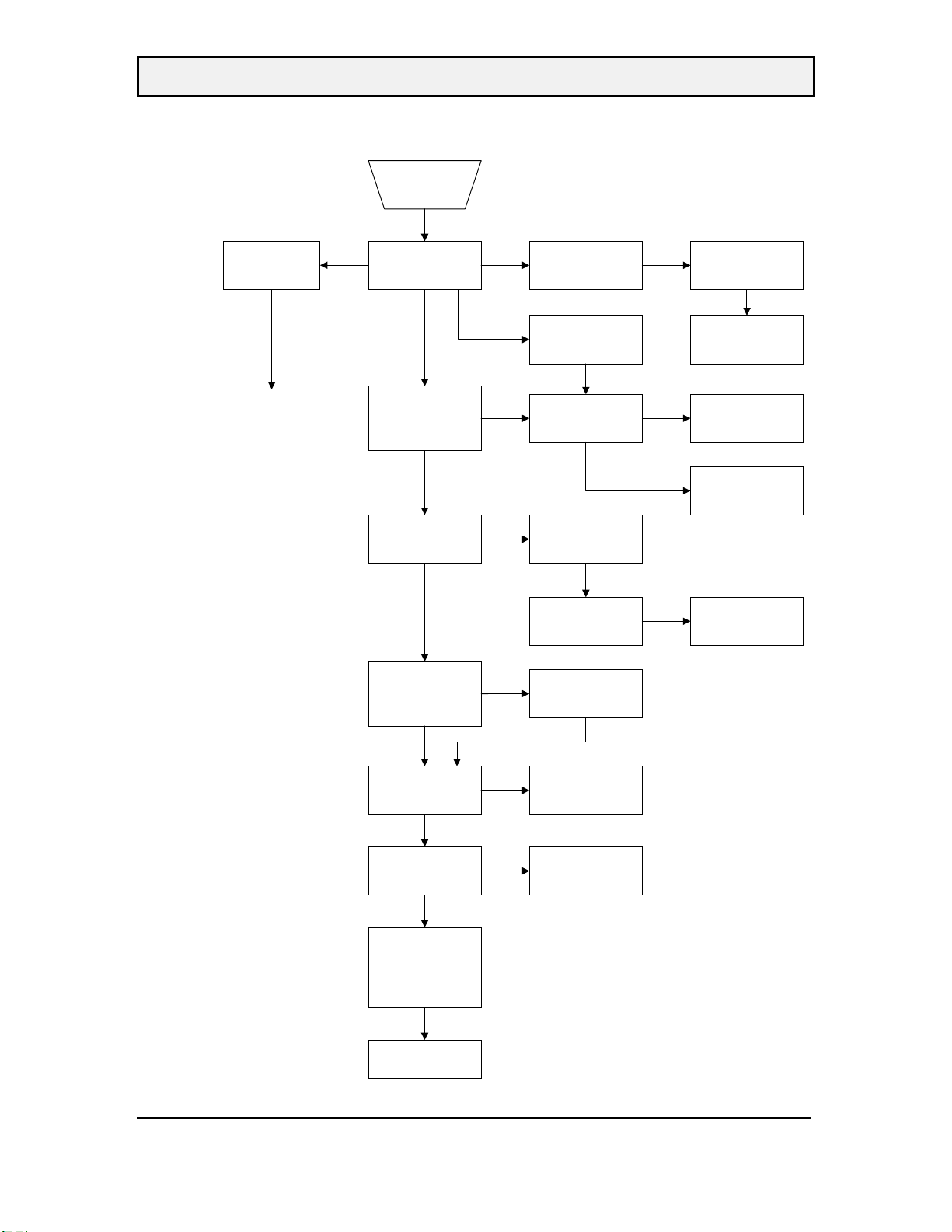

10. TROUBLE SHOOTING FLOW CHART ------------------------------------------------------------------------- 23~25
10.1. NO POWER -------------------------------------------------------------------------------------------------------- 23
10.2. NO DISPLAY------------------------------------------------------------------------------------------------------- 24
10.3. NO SOUND -------------------------------------------------------------------------------------------------------- 25

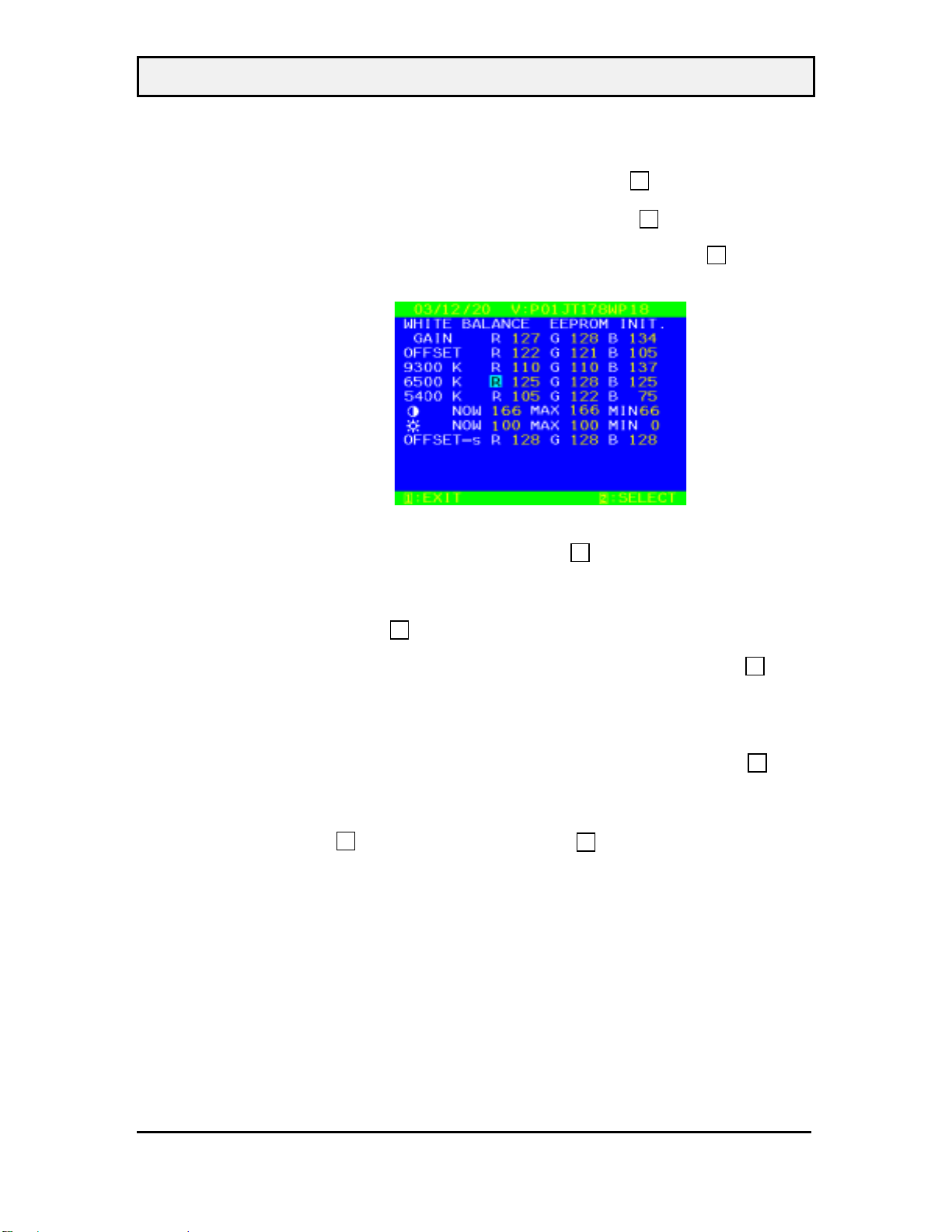

11. ADJUSTMENT---------------------------------------------------------------------------------------------------------- 26~27
11.1. ADJUSTMENT CONDITIONS AND PRECAUTIONS------------------------------------------------------- 26
11.2. MAIN ADJUSTMENTS ------------------------------------------------------------------------------------------- 26

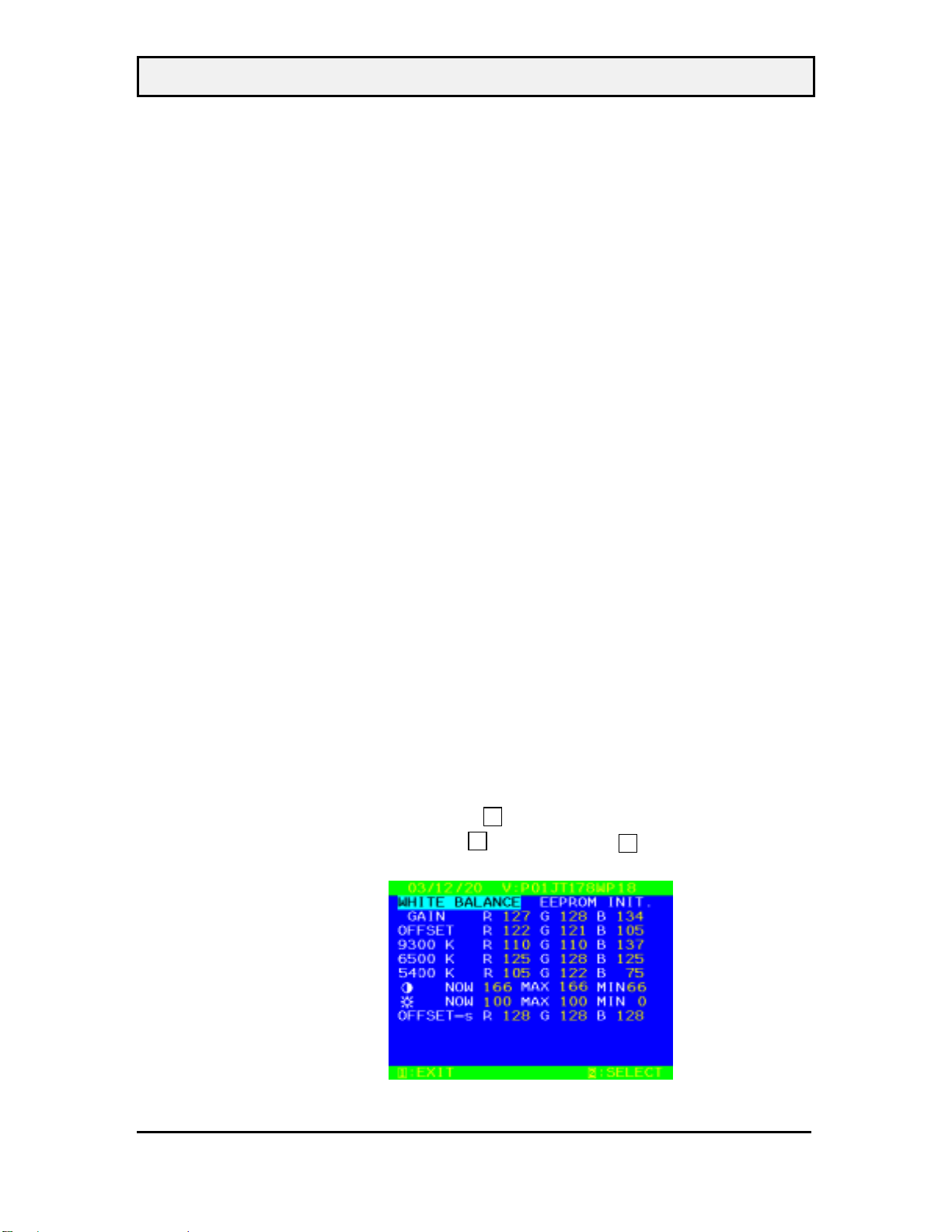

11.3. ALIGNMENT PROCEDURES----------------------------------------------------------------------------------- 26
12. ELECTRICAL PARTS LIST ---------------------------------------------------------------------------------------- 28~35
TABLE OF CONTENTS
---------------------------------------------------------- 2
------------------------------------------------------------------------------ 2
------------------------------------------------------------------------ 3
PAGE
4/22/2004
Page 3
Belinea 101705 (111723) Service Manual
1. PRECAUTION AND NOTICES
1.1. SAFETY PRECAUTIONS
This monitor is manufactured and tested on a ground principle that a user's safety comes first.
However, improper use or installation may cause damage to the monitor as well as to the user.
Carefully go over the following WARNINGS before installing and keep this guide handy.
WARNINGS:
This monitor should be operated only at the correct power sources indicated on the label on
!
the rear end of the monitor. If you're unsure of the power supply in your residence, consult
your local dealer or power company.
Use only the special power adapter that comes with this monitor for power input.
!
Do not try to repair the monitor your self as it contains no user-serviceable parts. This
!
monitor should only be repaired by a qualified technician.
Do not remove the monitor cabinet. There is high-voltage parts inside that may cause
!
electric shock to human bodies, even when the power cord is unplugged.
Stop using the monitor if the cabinet is damaged. Have it checked by a service technician.
!
Put your monitor only in a clean, dry environment. If it gets wet, unplug the power cable
!
immediately and consult your service technician.
Always unplug the monitor before cleaning it. Clean the cabinet with a clean, dry cloth.
!
Apply non-ammonia based cleaner onto the cloth, not directly onto the glass screen.
Keep the monitor away from magnetic objects, motors, TV sets, and transformer.
!
Do not place heavy objects on the monitor or power cord.
!
1.2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have special safety visual inspections and the
protection afforded by them cannot necessarily be obtained by using replacement components
rated for higher voltages, wattage, etc. Before replacing any of these components read the parts
list in this manual carefully. The use of substitute replacement parts which do not have the same
safety characteristics as specified in the parts list may create shock, fire, or other hazards.
1.3. SERVICE NOTES
1. When replacing parts or circuit boards, clamp the lead wires around terminals before
soldering.
2. When replacing a high wattage resistor (more than 1W of metal oxide film resistor) in circuit
board, keep the resistor about 5mm away from circuit board.
3. Keep wires away from high voltage, high temperature components and sharp edges.
4. Keep wires in their original position so as to reduce interference.
5. Usage of this product please refer to also user's manual.
-1-
4/22/2004
Page 4
Belinea 101705 (111723) Service Manual
2. SERVICE TOOL & EQUIPMENT REQUIRED
1. SIGNAL GEN.
2. MULTIMETER
3. OSCILLOSCOPE
4. SCREW DRIVER
5. IRON
6. ABSORBER
7. SOLDER
8. DUMMY LOAD (5ohm/200W)
3. SPECIFICATIONS
3.1. PRODUCT SPECIFICATIONS
LCD Panel 17.0" TFT
Power Management Energy Star compliant V ESA
DPMS compatible
< 2W
Displayable Resolution SXGA 1280× 1024 (max.)
Pixel Dimension 0.264(H)× 0.264(V)mm
LCD Display Color 16,2mio Color (FRC)
Viewing Angle CR≧10
Horizontal: 140 deg (typ.)
Vertical: 130 deg (typ.)
Contrast Ratio 450 : 1 (typ.) / 360 : 1(min.)
Brightness 300 cd/ m
260 cd/m2 (min.)
Response Time Tr: 9 ms Tf: 16ms (typ.)
Tr: 16 ms Tf: 32 ms (max.)
Active Display Area 337.9mm(H)× 270.3mm(V)
Temperature Operating: 0°C ~ +40°C
Storage: -20°C ~ +60°C
Compliance UL, CUL, TÜV, CE, FCC, VCCI, BSMI,CCC, Energy Star.
Power Input Voltage: 100~240 Vac
Consumption: 45 Watts (Max.)
Audio 1Watt(L) + 1Watt(R)
2
(typ.)
-2-
4/22/2004
Page 5
Belinea 101705 (111723) Service Manual
3.2. FACTORY SUPPORTING MODES
Primary Preset: VESA 1280 x 1024 @ 60Hz
Lookup timing table: 1.VGA 720× 400 (70Hz) mode
2.VGA 640× 480 (60Hz) mode
3.VESA 640× 480 (72Hz) mode
4.VESA 640× 480 (75Hz) mode
5.VESA 800× 600 (56Hz) mode
6.VESA 800× 600 (60Hz) mode
7.VESA 800× 600 (72Hz) mode
8.VESA 800× 600 (75Hz) mode
9.VESA 1024× 768 (60Hz) mode
10.VESA 1024× 768 (70Hz) mode
11.VESA 1024× 768 (75Hz) mode
12.VESA 1280× 1024 (60Hz) mode
13.VESA 1280× 1024 (75Hz) mode
14.VESA 1152× 864 (75Hz) mode
15.MAC 640× 480 (67Hz) mode
16.MAC 832× 624 (74.5Hz) mode
17.MAC 1152× 870 (75Hz) mode
3.3. D-SUB CONNECTOR
D-SUB 15 PIN CONNECTOR
12345
678910
11 12 13 14 15
SIGNAL LEVEL
CONNECTOR SIGNAL DESCRIPTION
R RED 0.7vp-p(VIDEO)
G GREEN 0.7vp-p(VIDEO)
B BLUE 0.7vp-p(VIDEO)
H H/SYNC TTL positive or negative
V V/SYNC TTL positive or negative
SDA DDC1/2B TTL
SCL DDC1/2B TTL
1.R 6.GND 11.NC
2.G 7.GND 12.SDA
3.B 8.GND 13.H.SYNC
4.NC 9. +5V 14.V.SYNC
5.GND 10.GND 15.SCL
-3-
4/22/2004
Page 6
FIG.1
4.1. Exploded View
4
Belinea 101705 (111723) Service Manual
2C21
1F02
CON PCB ASS'Y
1F03
1F01
V901
1F11
1F12
X2
MAIN PCB ASS'Y
1F25
X4
1F21
1F22
FIG.3
5B06
2C25
2C22
5B10
FIG.2
5B01
5B09
5B07
X4
5B03
X4
2C24
5B08
X42C26
5B04
X5
FIG.3
2C23
X4
P986
5B05
X6
TO: MAIN PCB
P102
1F15
1F12
X2
1F16
I/O Cable
A
FIG.2
5B02
1F13
POWER PCB ASS'Y
2C01
FIG.1
1F30
A
X51F23
1F31
X21F17
X2
5B11
W601
W602
5B12
X2
-4-
4/22/200
Page 7
Belinea 101705 (111723) Service Manual
4.2. EXPLODED VIEW PARTS LIST
Ref. No. Source Part No. DESCRIPTION SPECIFICATION Q‘TY REMARK
1F01 2024264203 FRONT BEZEL BAYER PC+ABS FR2000 7035 1
1F02 2044263905 FUNCTION KEY PC+ABS BAYER FR2000 877U 1
1F03 2053752901 LED INDIC.-PWR JT166K/JT178K-PMMA 94HB 1
1F11 2071970700 METAL FITTG JT178K /SECC T=0.8 PANEL V-8 1
1F12 2080002200 SCREW,SPE L355 M3x6 DH NICKEL-PLATED 4
1F13 2071966200 METAL FITTG JT178K77 SECC T=1.0MM(I/0) 1
1F15 2080003700 SCREW,SPE 1SZZTER001A M3*6L
1F16 2072458000 INSULATOR MYLAR BLACK 94V0 T=0.5MM 1
1F17 2082630062 SCREW M3X6 P=0.5 2
1F21 2071668600 SHIELD PLATE JT178L/K SPTE T=0.3 MAIN BOARD 1
1F22 2082630062 SCREW M3X6 P=0.5 1
1F23 2082630062 SCREW M3X6 P=0.5 5
1F25 2080003700 SCREW,SPE 1SZZTER001A M3*6L
1F30 2071669000 SHIELD PLATE JT178L/K SPTE T=0.3 INVERTER 1
1F31 2082630062 SCREW M3X6 P=0.5 1
2C01 2022260903 CABI BACK BAYER PC+ABS FR2000 7035 1
2C21 2027257004 DUST COVER BAYER PC+ABS FR2000 7035 1
2C22 2027257104 DUST COVER BAYER PC+ABS FR2000 7035 1
2C23 2085740122 SCREW,B OTW+ SCREW B OTW+ M4X12 4
2C24 2028552503 NECK BAYER PC+ABS FR2000 7035 1
2C25 2028552603 NECK BAYER PC+ABS FR2000 7035 1
2C26 2082630062 SCREW M3X6 P=0.5 4
5B01 2028256503 STAND BAYER PC+ABS FR2000 7035 1
5B02 2028256404 STAND BAYER PC+ABS FR2000 7035 1
5B03 2071863500 BRACKET,FIX JT178K77 SECC T=2.0MM 1
5B04 2083740082 SCREW,BND T+ M4*8(BND T+) 5
5B05 2039802301 FOOT PAD
5B06 2106655300 HINGE JT178KP TRIPLE PIVOT ROTATE 1
5B07 2027257204 DUST COVER BAYER PC+ABS FR2000 7035 1
5B08 2027257304 DUST COVER BAYER PC+ABS FR2000 7035 1
5B09 2087340066 SCREW,B SPW+ SCREW, B SPW+ 4
5B10 2084730082 SCREW,BND T+ M3X8(BND T+) 4
5B11 2061252400 SPONGE 36X23X3t EVA 2
5B12 2084730082 SCREW,BND T+ M3X8(BND T+) 2
5B13 2074160900 HOLDER JP166K NYLON 66 UL94-V2 2
CR 420xφ16.5x5.8
MSWR17/FZMY1
MSWR17/FZMY1
1
4
6
-5-
4/22/2004
Page 8
L
12V
INT
CSZ
G
SCL
H-Sync
B
R
V-Sync
3V3/5V
3V3
2V5
DDC-SDA
SCL
HW RESET
ONBACKLITE
3V3/5V
SPEAKER
ONBACKLI
TE
RLR
PANEL POWER
5. BLOCK DIAGRAM
4
Belinea 101705 (111723) Service Manual
I105
MST8116A
SXGA
RSDS
SCALAR
I101,I102
DC / DC
AC 100~240V
INPUT
ADJBACKLITE
GBO [0,4] OSP,ESP,0INV
SWITCHING
POWER SUPPLY
I901 OZ9RR
INVERTER
PA [0,19]
PB [0,19]
LCD PANEL
I107
24LC16
EEPROM
I106
MTV312M64
KEY- PAD LED
VOLUME CONTROL
MUTE
12V
P601
I601 TDA7496L
AUDIO AMP
(OPTION)
P603
AUDIO IN
-6-
4/22/200
Page 9
6. SCHEMATIC DIAGRAM
6.1. Power
Belinea 101705 (111723) Service Manual
onPANEL_3.3V
P101
1
2
3
4
5
6
7
8
9
CON9
6
C184
.1uF
L113 200R
L114 200R
L115 200R
C187
C188
.1uF
.1uF
R104
R105
NC
3.3VPANEL
10K
Q108
AP2305
C185
.1uF
12V
3V3
R102 1K8
C186
.1uF
R196
220
Q109
MMBT3904
5.0V
(AU)
MUTE
Volume
VLCD
onPANEL_12V
6
C102
22uF/16V
Q110
R186
NC
R194
4K7
1K 1210
C108
.1uF
C101
.1uF
2SA1020
R192
Q111
MMBT3904
R106 100
R103 1K
VLCD_12V
Q110, Q111, R194, R192, R186 NC (AU )
3V3
C104
47uF/16V
onBACKLITE 6
AdjBACKLITE 4
+
C106
.1uF
SOT-223
I101
VOUTVIN
2
ADJ
CM2860-2.5V
31
C105
47uF/16V
VCC2V5
VCC2.5 4
+
C107
.1uF
12V3.3VPANEL
+
3V3
R107
10K
R109
1K
Q103
MMBT3906
R108
2K7
L113, L114, L115 BEAD 2A.
VCPU 6
C113
.1uF
Q104
MMBT3906
D129
1N4148
C114
22uF/16V
D128
1N4148
PC5V
D128,D129 0 OHM 1206 (AU)
PC5V 3
C109
47uF/16V
3V3
R193 NC (AU)
R193 0 ohm 1/8W
GNDINVO
NC
I102
VO
4
2
C110
47uF/16V
+
C112
.1uF
3
+
C111
.1uF
1
I102 RC1117/3.3 (AU)
VCC3V3
VCC3V3 4
VAA1
VAA1 4
VAA2
VAA2 4
VAA3
VAA3 4
VAA4
VAA4 4
-7-
4/22/2004
Page 10
6.2. Input
P102
13
12
11
10
9
8
7
6
5
4
3
2
1
CON13
RED+
REDGREEN+
GREENBLUE+
BLUEPC5V
VGA_CON
H Sync
V Sync
SDA_VGA
SCL_VGA
C197
V_PORT 47C
D102
IN4148
D105
IN4148
R110
NC
D101
1206 0
3.3V
R111 0
D103
IN4148
D106
IN4148
3.3V
V Sync
D104
IN4148
D107
IN4148
L105 120 R
L106 120 R
Belinea 101705 (111723) Service Manual
C189
.1uF
ST_DET1 6
L102 0 ohm
L103 0 ohm
L104 0 ohm
R113
75 1%
R116
75 1%
R120
75 1%
C116
NC
C120
NC
C123
NC
R112 100
R114 100
R115 100
R117 NC
R118 100
R119 100
R121 100
C115 47nF
C117 47nF
C118 47nF
C119 NC
C121 47nF
C122 47nF
C124 47nF
RIN 4
GNDR 4
GIN 4
SOG 4
GNDG 4
BIN 4
GNDB 4
D109
5V6
D110
5V6
R124
2K2
R125
2K2
I103A
14
1 2
7
74LVC14
SO-14
R200 NC
I103C
14
5 6
7
74LVC14
SO-14
R199 0
R198 0
I103F
14
13 12
7
74LVC14
SO-14
C191
0.1U
0603
I103D
14
9 8
7
74LVC14
SO-14
3.3V
R123
R122
100
SCL_VGA
12
12
C128
47PF
C129
47PF
C125
47P
0603
C126
0603
D112
5V6
HSYNC 4
VSYNC 4
47P
D111
5V6
100
R201 0
R202 0
DDC_CLK 4,6
DDC_DAT 4,6
-8-
4/22/2004
Page 11
6.3. Scaler
Belinea 101705 (111723) Service Manual
VAA1
VAA2
VAA3
L108 2A
L108
200R
C141
10uF/50V
L109
200R
C146
10uF/50V
L110
200R
C150
10uF/50V
L111
200R
C152
10uF/50V
L112
200R
C158
10uF/50V
VAD
VPLL
VDVI
VDPLLVAA4
C142
.1uF
C159
C147
.1uF
C151
.1uF
C153
.1uF
.1uF
C143
.1uF
C144
.1uF
C148
.1uF
C154
.1uF
C145
.1uF
VCC3.3 VPO VDDVCC2.5
VCC3.3
VAD VDVIVPLL VDPLL
55
35
45351
I105
MST8116A
RIN3
GNDR3
GIN3
GNDG3
SOG3
BIN3
GNDB3
VDVI
HSYNC3
VSYNC3
R140 390/1%
CSZ6
SCL6
SDA6
HWRESET6
AdjBACKLITE2
C155 22pF
14.318MHZ
C156 22pF
C157 .1uF
C149
.1u
INT6
X101
R141
1M
DDC_CLK3
DDC_DAT3,6
R138 NC
R139 NC
65
AVDD
63
62
60
59
61
58
57
37
38
29
28
40
41
43
44
46
47
49
50
52
66
67
69
71
70
32
72
30
31
73
74
33
34
AVDD
RIN0
RIN0M
GIN0
GIN0M
SOGIN0
BIN0
BIN0M
HSYNC0
VSYNC0
DDC1_CLK/GPO8
DDC1_DAT/GPO7
R+
RG+
GB+
BCK+
CKREXT
REFP
REFM
CSZ
SCL
SDA
HWRESETZ
INT
DDCROM_CLK/GPO6
DDCROM_DAT/GPO5
PWM0
PWM1
XIN
XOUT
BYPASS
AVSS_LPLL
AVDD_MPLL
53
AVDD_DVI
AVDD_DVI
AVDD_PLL
11218494104
VDDP
VDDP
VDDP
VDDP
114
VDDP
VDDVPO
126188797117
VDDP
VDDP
VDDC
VDDC
NC/CLKBP
NC/CLKBN
VDDC
VDDC
RA1P
RA1N
RA2P
RA2N
RA3P
RA3N
GA1P
GA1N
GA2P
GA2N
GA3P
GA3N
BA1P
BA1N
BA2P
BA2N
BA3P
BA3N
CLKAP
CLKAN
NC/RB1P
NC/RB1N
NC/RB2P
NC/RB2N
NC/RB3P
NC/RB3N
NC/GB1P
NC/GB1N
NC/GB2P
NC/GB2N
NC/GB3P
NC/GB3N
NC/BB1P
NC/BB1N
NC/BB2P
NC/BB2N
NC/BB3P
NC/BB3N
NC/ESP
OSP
NC/EINV
OINV
GPO0
GPO1
GPO2
GPO3
GPO4
108
109
110
111
112
113
98
99
100
101
102
103
88
89
90
91
92
93
118
119
16
17
22
23
24
25
8
9
12
13
14
15
124
125
128
1
4
5
120
121
75
76
77
78
83
82
81
80
79
PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PA8
PA9
PA10
PA11
PA12
PA13
PA14
PA15
PA16
PA17
PA18
PA19
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
PB10
PB11
PB12
PB13
PB14
PB15
PB16
PB17
PB18
PB19
ESP
OSP
OINV
GPO0
GPO1
GPO2
GPO3
GPO4
L107
200R
C132
10uF/50V
PA[0..5]
PA[6..11]
PA[12..19]
PB[0..5]
PB[6..11]
PB[12..19]
GPO[0..4]
C133
.1uF
C134
.1uF
C135
.1uF
PA[0..5] 5
PA[6..11] 5
PA[12..19] 5
PB[0..5] 5
PB[6..11] 5
PB[12..19] 5
OSP 5
ESP 5
OINV 5
GPO[0..4] 5
C136
.1uF
C137
.1uF
C138
.1uF
C139
.1uF
VCC2.52
VAA1
VAA2
VAA3
VAA4
AVSS_MPLL
AVSS_PLL
36254
AVSS_DVI
AVSS_DVI
AVSS_DVI
GNDP
39
4210208595
GNDP
GNDP
GNDP
GNDP
105
GNDP
GNDP
115
1271986
GNDC
GNDC
GNDC
96
GNDC
116
-9-
4/22/2004
AVSS
AVSS
AVSS
56
644868
Page 12
6.4. Panel Interface
Belinea 101705 (111723) Service Manual
PA[0..5]4
PA[6..11]4
PA[12..19]4 PB[12..19]4
GPO[0..4]4
PA[0..5]
PA[6..11]
PA[12..19]
GPO[0..4]
GPO0
GPO1
GPO2
GPO3
GPO4
RA1P
PA0
PA1 RA1N
PA2 RA2P
PA3 RA2N
PA4 RA3P
PA5 RA3N
GA1PPA6
GA1NPA7
PA8
GA2P
PA9
GA2N
GA3PPA10
GA3NPA11
PA12
BA1P
BA1NPA13
BA2PPA14
BA2NPA15
PA16
BA3P
PA17
BA3N
CLKAPPA18
CLKANPA19
RN5
33 ohm X 4
1
2
3
4
R144 33
8
7
6
5
C163
NC
5
4
PB[0..5]
PB[6..11]
PB[12..19]
GPOO0
GPOO1
GPOO2
GPOO3
GPOO4
CN101
NC
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PB8
PB9
PB10
PB11
PB12
PB13
PB14
PB15
PB16
PB17
PB18
PB19
RB1PPB0
RB1N
RB2P
RB2N
RB3P
RB3N
GB1P
GB1N
GB2P
GB2N
GB3P
GB3N
BB1P
BB1N
BB2P
BB2N
BB3P
BB3N
CLKBP
CLKBN
OSP
ESP
R143 0
OINV
R145 NC
R142 0
C160
NC
VLCD
2
VLCD2
VLCD_12V
VLCD_12V
C162
NC
C166
.1uF
+
C164
47uF/16V
C167
.1uF
ESPO
OINVO
C165
100uF/16V
OSP4
ESP4
OINV4
+
RA1P
R146 0 0805
R148 NC 0805
R147 0 0805
R149 NC 0805
R150 0 0805
R151 NC 0805
R152 0 0805
FB0NRA3N
FB0PRA3P
FB1NRA2N
FB1PRA2P
FB2NRA1N
FB2P
FG0NGA3N
FG0PGA3P
FG1NGA2N
FG1PGA2P
FG2NGA1N
FG2PGA1P
FCLKNCLKAN
FCLKPCLKAP
FR0NBA3N
FR0PBA3P
FR1NBA2N
FR1PBA2P
FR2NBA1N
FR2PBA1P
FXDIOOSPO
XSTBGPOO1
POLGPOO0
YCLKGPOO3
YDIOGPOO2
YOEGPOO4
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
P105
CON50p
RB3N
RB3P
RB2N
RB2P
RB1N
RB1P
GB3N
GB3P
B0N
B0P
B1N
B1P
B2N
B2P
BG0N
BG0P
BG1NGB2N
BG1PGB2P
BG2NGB1N
BG2PGB1P
BCLKNCLKBN
BCLKPCLKBP
BR0NBB3N
BR0PBB3P
BR1NBB2N
BR1PBB2P
BR2NBB1N
BR2PBB1P
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
P104
1
2
3
4
5
6
7
8
9
CON30p
PB[0..5]4
PB[6..11]4
6
8
1
3
2 7
CPT QDI R152, R150, R147, R146 0 0805
AU R151, R149, R148 0 0805
-10-
4/22/2004
Page 13
6.5. MCU
Belinea 101705 (111723) Service Manual
option
D130
1N4148
C175
0.1uF
I107
1
A0
2
3
4 5
24C16
VCC
A1
WP
A2
SCL
GND SDA
P701
8 HEADER 2mm
2
8
DOWN
R204
10K
C200
10uF/50V
8
7
6
UP
1
VCPU
3V3
Q112
MMBT3906
R187 NC (AU)
C171 10UF (AU)
R159,R160 2K2 (AU)
VCPU2
R170,R171 2K2 (AU)
X102
12MHz
C171
NC
12
11
7
19
14
13
27
26
16
9
30
31
32
33
MTV312M64
I106
P107
CON8
C172
VCPU
C173
R203
NC
VCPU
2.2uF/50V
R161
22K
NC / 0 ohm
MUTE
Volume2
R191
10K
VCPU
R160
4K7
D125
1N4148
R159
4K7
2
ST_DET13
22pF
R158
C174
22pF
INT
4
R163 100
R164 100
VCPU
R168
4K7
R172
1M
12V
R169
9K09 1%
R173
3K32 1%
Contral_key_pad
1234567
PWR/SW
ORANGEGREEN
S701
PWR/LED
PSM/LED
R187
Ω
0
5
6
NC
NC
X1
X2
RESET
INT0/P3.2
ISCL/P3.5/T1
ISDA/P3.4/T0
P6.0/AD0
P6.1/AD1
P6.2
P6.3
P6.4
P6.5
P6.6
P6.7
8
7
6
5
4
3
2
1
VCPU
810
4
43
VCCVSS
VDD3
DA8/HLFHO
DA9/HALFV
C177
NC
44
P5.0
P5.1
P5.2
VSYNC
HSYNC
P5.3
P5.4
P5.5
P5.6
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
DA7
P4.0
P4.1
P4.2
P3.1/TXD
P3.0/RXD
C178
NC
C170
.1uF
3
2
1
42
41
40
34
39
38
17
18
20
21
22
23
24
25
35
36
37
15
28
29
R195
NC
C179
NC
RN1
10K X4
LED_G
LED_O
WP
C181NCC182NCC183
C180
NC
3 6
4 5
R165 NC
R188 NC
2 7
NC
1 8
1 8
2 7
3 6
4 5
1
UP
DOWN
2
power
VCPU
R184 100
R180 100
R181 100
R182 100
R183 100
RN2
10K X4
R170
2K2
power
R178 100
R179 100
UP
DOWN
VCPU
1
2
R171
2K2
NC
RN3
10K X4
R166
ORG
GREEN
3 6
4 5
C176
NC(47nF)
VCPU
SST3904
VCPU
Q107
SST3904
2 7
Q106
VCPU
RN4
10K X4
1 8
3 6
4 5
R167
NC
R177
4K7
1 8
2 7
R174 100
R175 100
C199
NC
R176
4K7
C198
NC
LED_O
LED_G
R190 1K
R162 100
R189 1K
VCPU
onPANEL_12V 2
HWRESET 4
onPANEL_3.3V 2
onBACKLITE 2
CSZ 4
SCL 4
SDA 4
DDC_CLK 3
DDC_DAT 3,4
P106
1
2
3
4
NC(HEADER 4)
S705 S704
S703
S702
D701
-11-
4/22/2004
Page 14
6.6. Audio
Belinea 101705 (111723) Service Manual
MUTE
Volume
P603
AUDIO INPUT (GREEN)
5
1
4
MUTE
Volume
L
5
LS
4
RS
3
R
2
S
1
DC12_AUDIO
R610
10K
Q601
2SC945
R611
10K
R619 0
R621
2.2K
C616
1n
L601
Bead 0805
L602
Bead 0805
C617
1n
R602
3K9
R620
4K7
D601 1N4148
R601 100K
C615
+
10uF/50V
R622
100
R623
100
C610 220uF/16V
+
C602
10uF/50V
C604
1uF/50V
+
1uF/50V
+
R61210K
R61310K
+
C601
470U/16V
I601
TDA7496L
10
SVR
12 19
MUTE GND6
11
STBY
6
VOLUME
8
NC
4
INL
C603
9
INR
161415
VP2
VP1
VAROUT_L
VAROUT_R
GND1
GND2
GND3
GND4
GND5
GND7
OUTL
OUTR
1
2
3
13
18
20
5
7
17
C605
+
470U/16V
C606
+
470U/16V
1
3
5
4
2
P601
P_JACK
2
1
3
COMPONENT
SIDE
L604 Bead
L605 Bead
4
5
AUDIO IN PCB
L_OUT
R_OUT
R-in
L-in
pitch=2mm
P601
4
L-
3
L+
2
R-
1
R+
SOCKET
TO SPEAER
L606
Bead
P603
3
2
1
3
2
SOLDER
SIDE
P602
3
3
2
2
1
1
L603 Bead 0805
-12-
4/22/2004
Page 15
6.7. Inverter
Belinea 101705 (111723) Service Manual
VCC12V
5V
Brightness
ON/OFF
C925
NC
R909 100
+
10K 1%(3.3V)
27K 1%(5V)
R901
10K
R903
10 (5V)
NC(3.3V)
R906
J950
JUMPER
F901 7A
R907
18K 1%
R910
NC
Q903
NC
R905
22K 1%
Q902
2SC945
C908
47PF
R911
5.1M
C907
0.047uF
+
C901
22uF 50V
D902
1N4148
C909
330PF
I902
78L05(3.3V)
NC(5V)
OutIN
GND
+
C906
22uF/50V
1
2
3
4 5
C920
0.1uF
I901 OZ9RR
SST
ISEN
CT
DIM
GNDA
VDDA
DRV2 DRV1
C912
L901
+
Q907
AP9960J
R933
10
C903
470uF 16V
C927
6800PF
Q909
AP9960J
T901
4
3
EEL-19
+
C910
470uF 16V
T902
4
3
EEL-19
81
96
81
96
D903
1N4148
D904
1N4148
0.015uF
C916
15P,3KV
C922
0.015uF
C911
15pF/3KV
C923
Q904
2N7002K
SOT-23
Q905
2N7002K
SOT-23
C902
0.1uF
D915
P6KE30A
Q906
AP9960J
8
7
6
R918
1M
Q908
AP9960J
C915
0.01uF
C904
6800PF
R932
10
C926
6800PF
R916
10
R917
10
C905
6800PF
EE-8.3
3
1
R930
1M
L902
EE-8.3
3
1
R931
1M
39pF/3KV
4
C913
2
39pF/3KV
C921
0.1uF
R922 5.1K
D906 1N4148
C917 39pF/3KV
4
2
C918 39pF/3KV
R926 5.1K
D913
1N4148
D905 1N4148
D914 1N4148
C924
0.1uF
D909 1N4148
D910 1N4148
D907
1N4148
C914
0.047uF
D911
1N4148
C919
0.047uF
R921
392 1%
R923
221 1%
R927
392 1%
R928
221 1%
4
3
1
4
3
1
P901
H
H
L
D908
1N4148
P902
H
H
L
D912
1N4148
D916
P6KE30A
-13-
4/22/2004
Page 16
6.8. A/D power
Belinea 101705 (111723) Service Manual
C803
4700pF
D804 2A07
D803 2A07
+
D802 2A07
D801 2A07 R806
R801 NA
R802
10 3A
R812 470K
R803
470K
C804
0.22uF
L805
ET-20
C801
0.22uF
L802
250uH
F801
T2.5A/250V
C805
100uF
400V
C802
4700pF
L808
250uH
C813
1000pF
1KV
L807
3.5X9
R833 470K
D805 P6KE130A
510K
R804
510K
R805
510K
I801 SG6841
1
2
3
4
R808
22.1K 1%
R834
470K
+
C810
100uF/35V
GND
FB
VIN
RI
Driver
VDD
Sense
RT
R832
10
2SC945
R835 470K
8
7
6
5
Q803
R836
470K
3.5X9(5V)
3.5X4.5(3.3V)
D809
SB140(3.3V)
1N4148(5V)
D808
20-2V(3.3V)
22-2V(5V)
L806
C807
0.1uF
R807 10
R814
470
C806
0.01uF/250V
D806
BYV26C
D807
1U4G
+
C809
22uF/50V
C808
0.1uF
3
1
4
5
T801
ER28
L801
BEAD
Q801
AP09N701-A
R811
0.47 / 2W
4
3
I802
TLP621
7,8
9
10
11,12
C831
4700PF
C830
4700PF
1
2
R820 22
D821 FCH20A15
D822
FCQ30A06
R821
22
R826
100
C821
220PF
R823
1K
C820
220PF
+
C822
1500uF/16V
+
C824
1500UF
10V
R825
10K 1%
L803
5.2uH
1500uF/16V
L804 5.2UH
+
C828
1500UF
10V
R824
22.1K 1%(5V)
6.81K 1% (3.3V)
82.5K (3.3V)
+
C823
R831
68K 1%
9C1
D811
(3.3V)
C825
1000uF
10V
Brightness
ON/OFF
10
12V
9
NC
8
ON/OFF
7
DIM
6
5V/3.3V
5
5V/3.3V
4
GND
3
+
2
1
Mute
Volume
GND
P802
12V
5V / 3.3V
D810
12B1(5V)
C826
+
C811
0.1uF
S801
C812
NC
L
FG
N
R815
NC
AC IN 100~240V
R813
3K3
R809
1
C827
1uF/50V
-14-
I803
TL431D
0.1UF
4/22/2004
R810
1.82K 1%
Page 17
Belinea 101705 (111723) Service Manual
7. WORKING THEOREM
A. Scaling controller
The ADC is to convert RGB analog signal to digital signal that scaling chip can acknowledge.
The HSYNC input receives a logic signal and provides the frequency reference for pixel clock
generation.
The scaling IC is to converts the input signal ranging from VGA to SXGA into SXGA resolution
that panel can acknowledge.
GENERAL DESCRIPTION
The MST8116A is a high performance, and fully integrated graphics processing IC solution for
LCD monitors with resolutions up to SXGA. It is configured with an integrated triple-ADC/PLL, a
high quality scaling engine, an on-screen display controller, a built-in output clock generator, a
panel timing controller (TCON), and RSDS display interface. To further reduce system costs, the
MST8116A also integrates intelligent power management control capability for green-mode
requirements and spread-spectrum support for EMI management.
PIN DESCRIPTION
CPU Interface
Pin Name Pin Type Function Pin
HWRESET Schmitt Trigger Input
w/ 5V-tolerant Hardware reset; active high 32
CS Input w/ 5V-tolerant 3 Wire Serial Bus Chip Select; active high 69
SDA I/O w/ 5V-tolerant 3 Wire Serial Bus Data; 4mA driving strength 70
SCL Input w/ 5V-tolerant 3 Wire Serial Bus Clock 71
INT Output CPU interrupt; 4mA driving strength 72
Analog Interface
Pin Name Pin Type Function Pin
HSYNC0 Schmitt Trigger Input
w/ 5V-tolerant Analog HSYNC input 37
VSYNC0 Schmitt Trigger Input
w/ 5V-tolerant Analog VSYNC input 38
REFP Internal ADC top de-coupling pin 66
REFM Internal ADC bottom de-coupling pin 67
RIN0 Analog Input Analog red input 63
RIN0M Analog Input Reference ground for analog red input 62
SOGIN0 Analog Input Sync-on-green input 61
GIN0 Analog Input Analog green input 60
GIN0M Analog Input Reference ground for analog green input 59
BIN0 Analog Input Analog blue input 58
BIN0M Analog Input Reference ground for analog blue input 57
REXT External resistor 390 ohm to AVDD 52
RSDS Interface
Pin Name Pin Type Function Pin
CLKAP Output A-Link Positive RSDS Differential Clock Output from“Odd” Channel 118
CLKAN Output A-Link Negative RSDS Differential Clock Output from“Odd” Channel 119
CLKBP Output B-Link Positive RSDS Differential Clock Output from“Even” Channel 120
CLKBN Output B-Link Negative RSDS Differential Clock Output from“Even” Channel 121
BA[3:1]P Output A-Link Positive RSDS Differential Data Output from“Odd” Channel 92, 90, 88
BA[3:1]N Output A-Link Negative RSDS Differential Data Output from“Odd” Channel 93, 91, 89
GA[3:1]P Output A-Link Positive RSDS Differential Data Output from“Odd” Channel 102, 100, 98
GA[3:1]N Output A-Link Negative RSDS Differential Data Output from“Odd” Channel103, 101,99
RA[3:1]P Output A-Link Positive RSDS Differential Data Output from“Odd” Channel 112, 110, 108
RA[3:1]N Output A-Link Negative RSDS Differential Data Output from“Odd” Channel 113, 111, 109
BB[3:1]P Output B-Link Positive RSDS Differential Data Output from“Even” Channel 4, 128, 124
BB[3:1]N Output B-Link Negative RSDS Differential Data Output from“Even” Channel 5, 1, 125
GB[3:1]P Output B-Link Positive RSDS Differential Data Output from“Even” Channel 14, 12, 8
GB[3:1]N Output B-Link Ne gative RSDS Differential Data Output from“Even” Channel 15, 13, 9
RB[3:1]P Output B-Link Positive RSDS Differential Data Output from“Even” Channel 24, 22, 16
RB[3:1]N Output B-Link Negative RSDS Differential Data Output from“Even” Channel 25, 23, 17
GPO[8:5] Output TCON GPO[8:5]; 4mA driving strength 29, 28, 30,31
GPO[4:0] Output w/ Pull-down TCON GPO[4:0]; 4~12mA driving strength programmable 79-83
OINV Output w/ Pull-down Resistor TCON “Odd” Channel Inversion; 4~12mA driving strength
programmable 78
-15-
4/22/2004
Page 18
Belinea 101705 (111723) Service Manual
EINV Output w/ Pull-down Resistor TCON “Even” Channel Inversion; 4~12mA driving strength
programmable 77
OSP Output w/ Pull-down Resistor TCON “Odd” Channel Start Pulse; 4~12mA driving strength
programmable 76
ESP Output w/ Pull-down Resistor TCON “Even” Channel Start Pulse; 4~12mA driving strength
programmable 75
GPIO Interface
Pin Name Pin Type Function Pin
GOUT1/PWM1 Output GOUT1/PWM1; 4mA driving strength 74
GOUT0/PWM0 Output GOUT0/PWM0; 4mA driving strength 73
Misc. Interface
Pin Name Pin Type Function Pin
BYPASS For External Bypass Capacitor 3
XIN Crystal Oscillator Input Xin 33
XOUT Crystal Oscillator Output Xout 34
Power Pins
Pin Name Pin Type Function Pin
AVDD 3.3V Power ADC Power 45, 51, 55, 65
AVSS Ground ADC Ground 39, 42, 48, 56,
64, 68
AVDD_PLL 3.3V Power PLL Power 53
AVSS_PLL Ground PLL Ground 54
AVDD_MPLL 3.3V Power MPLL Power 35
AVSS_MPLL Ground MPLL Ground 2, 36
VDDP 3.3V Power Digital Output Power 11, 21, 84, 94,
104, 114, 126
GNDP Ground Digital Output Ground 10, 20, 85, 95,
105, 115, 127
VDDC 2.5V Power Digital Core Power 18, 87, 97, 117
GNDC Ground Digital Core Ground 19, 86, 96, 116
No Connects
Pin Name Pin Type Function Pin
NC No Connect. Leave These Pins Floating.
6, 7, 26, 27, 40,
41, 43, 44, 46,
47, 49, 50, 106,
107, 122, 123
Resolution 8 Bits
DC ACCURACY
Differential Nonlinearity ± 0.5 +1.50/-1.0 LSB
Integral Nonlinearity ± 1 LSB
No Missing Codes Guaranteed
ANALOG INPUT
Input Voltage Range
Minimum 0.5 V p-p
Maximum 1.0 V p-p
Input Bias Current 1 uA
Input Full-Scale Matching 1.5 %FS
Brightness Level Adjustment 62 %FS
SWITCHING PERFORMANCE
Maximum Conversion Rate 165 MSPS
Minimum Conversion Rate 20 MSPS
HSYNC Input Frequency 15 200 kHz
PLL Clock Rate 20 162.5 MHz
PLL Jitter 500 ps p-p
Sampling Phase Tempco TBD ps/°C
DIGITAL INPUTS
Input Voltage, High (VIH) 2.5 V
Input Voltage, Low (VIL) 0.8 V
Input Current, High (IIH) -1.0 uA
Input Current, Low (IIL) 1.0 uA
Input Capacitance 5 pF
DIGITAL OUTPUTS
Output Voltage, High (VOH) VDDP-0.1 V
Output Voltage, Low (VOL) 0.1 V
DYNAMIC PERFORMANCE
-16-
4/22/2004
Page 19
Analog Bandwidth, Full Power 250 MHz
Channel to Channel Matching 0.5% Full-Scale
3.3V Supply Voltages VVDD_33 -0.3 3.6 V
2.5V Supply Voltages VVDD_25 -0.3 2.75 V
Input Voltage (5V tolerant inputs) VIN5Vtol -0.3 5.0 V
Input Voltage (non 5V tolerant inputs) VIN -0.3 VVDD_33 V
B. MTV312M64
The MTV312M micro-controller is an 8051 CPU core embedded device especially tailored for CRT/LCD
Monitor applications. It includes an 8051 CPU core, 1024-byte SRAM, 14 built-in PWM DACs, VESA DDC interface,
4-channel A/D converter, and a 64K-byte internal program Flash-ROM.
A “CMOS output pin” means it can sink and drive at least 4mA current. It is not recommended to use such
pin as input function.
A “open drain pin” means it can sink at least 4mA current but only drive 10~20uA to VDD. It can be used as input or
output function and needs an external pull up resistor.
A “8051 standard pin” is a pseudo open drain pin. It can sink at least 4mA current when output is at low level, and drives at
least 4mA current for 160nS when output transits from low to high, then keeps driving at 100uA to maintain the pin at high
level. It can be used as input or output function. It needs an external pull up resistor when driving heavy load device.
POWER CONFIGURATION
The MTV312M can work on 5V or 3.3V power supply system.
In 5V power system, the VDD pin is connected to 5V power and the VDD3 needs an external capacitor, all
output pins can swing from 0~5V, input pins can accept 0~5V input range.
And ADC conversion range is 5V. However, X1 and X2 pins must be kept below 3.3V.
In 3.3V power system, the VDD and VDD3 are connected to 3.3V power, all output pins swing from 0~3.3V, HSYNC,
VSYNC and open drain pin can accept 0~5V input range, other pins must be kept below 3.3V. And the ADC conversion
range is 3.3V.
C. INVERTER
In order to drive the CCFLs embedded in the panel module, there is a half bridge inverter to convert by the controller.
The input 12V up to hundreds of AC voltage output.
The inverter is formed by symmetric in order to drive t he separate lamp modules.
The input st age consist s of a PWM controller, ha lf bridge invert er, and switching MO SFET to convert DC input into AC
output.
The output sta ge consists of a tuning capacitor, coupli ng capacitor, transformer, push-pull MOSFET pai r to boost AC
output up to hundreds of voltage.
And one resister is serial to lamp for output voltage feedback.
There are two signal to control the inverter which come from system.
Logic “high” level which send to I901 is turn on the inverter.
BRI signal control brightness by DC level which was integral from PWM signal.
D. AUDIO
The TDA7496L is a stereo 2W+2W class AB
power amplifier assembled in the @ Powerdip
14+3+3 package, specially designed for high
quality sound, TV and Monitor applic at i ons.
Features of the TDA7496L include linear vol ume
control, Stand-by and mute functions
Ipeak Output Peak Current (int ernal l y l i mited) 0.7 0.9 A
Vin Input Signal 2.8 Vrms
GV Closed Loop Gain Vol Ctrl > 4.5V 28.5 30 31.5 dB
GvLine Monitor Out Gain Vol Ctrl > 4.5V; Zload > 30KΩ -1.5 0 1.5 dB
AMin VOL Attenuation at Minimum Volume Vol Ctrl < 0.5V 80 dB
BW 0.6 MHz
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
VS DC Supply Voltage 26 V
VIN Maximum Input Voltage 8 Vpp
Ptot Total Power Dissipation (Tcase = 60°C) 6 W
Tamb Ambient Operating Temperature 0 to 70 °C
Tstg, Tj Storage and Junction Temperature -40 to 150 °C
V6 Volume CTRL DC voltage 7 V
0 4 8 12 Area(cm2)
Belinea 101705 (111723) Service Manual
-17-
4/22/2004
Page 20
8. WIRING DIAGRAM
Belinea 101705 (111723) Service Manual
LCD PANEL
P901
P802
POWER PCB
P988
P802
P980
P981
P104 P105
P101
MAIN PCB
P107
P102
P601
P701
P902
P701
KEYPAD PCB
P961
I/O CABLE
W602
SPK(L)
-18-
W601
SPK(R)
4/22/2004
Page 21
9. PCB LAYOUT
4
9.1. MAIN PCB TOP VIEW
Belinea 101705 (111723) Service Manual
-19-
4/22/200
Page 22
9.2. MAIN PCB BOTTOM VIEW
4
Belinea 101705 (111723) Service Manual
-20-
4/22/200
Page 23
4
9.3. CON & POWER PCB TOP VIEW
Belinea 101705 (111723) Service Manual
-21-
4/22/200
Page 24
4
9.4. CON & POWER PCB BOTTOM VIEW
Belinea 101705 (111723) Service Manual
-22-
4/22/200
Page 25
Belinea 101705 (111723) Service Manual
10. TROUBLE SHOOTING FLOW CHART
10.1. NO POWER
POWER
STAR
Check
12V O/P
C823
Check F801
D801~D804
Check
I801
,Q801
STAR
12V
Check
3.3V O/P
C825
Check
D822
I802,I803
P802 5,6 PIN
3.3V
12V
Check
Check
P901,P902
Check I901
L901,L903
T901,T902
Q904,Q905
Check
I901
MAIN PCB
PANEL
CHECK
MAIN PCB
5V OK?
Y
3.3V OK?
Y
1.8V OK?
N
N
SUROUND CAP
N
SUROUND CAP
CHECK
POWER PCB
OK?
CHECK
I103,
BEAD OK?
CHECK
I104,
BEAD OK?
CHECK
I106,I107
SUROUND CAP
OK?
CHECK
I101,
SUROUND CAP
BEAD OK?
-23-
4/22/2004
Page 26
Belinea 101705 (111723) Service Manual
10.2. NO DISPLAY
Check Power
region
Refer to NO POWER
trouble shoot flow char
No
Display
Check LED Color
Green
Press Power key
ON/OFF is OK ?
(See LED is green or
dark.)
Yes
Press "1" key if OSD
menu is on display ?
AmberDark
Amber & Green
Check IO cable is
Check X102 Crystal
12MHz is working?
No
No
connect OK ?
Check uP I106
Reset is Ok ?
Check Keypad
Yes
pcb is OK ?
Yes
No
Yes
Yes
Check I/P signal is in
pwr saving state?
No
Check I106 is OK ?
Change
I106
Check Reset circuit
C173,D125
Yes
Check I105
MST8016 if HWRST
Pin#32 have
reset pulse ?
Yes
Check X101 Crystal
12MHz is working ?
Yes
Check I105
Pin#70,71 data bus
have signal
Yes
Check panel Powers
VLCD_3V3
VLCD_12V
correct
Yes
Change LCD panel
No
Yes
No
No
Check if
Inverter is Ok ?
Check uP I106
pin#17 send reset
pulse ?
Change X101
Change I105 LCD
controller IC
No
Check Power region
with no backlight
-24-
4/22/2004
Page 27
Belinea 101705 (111723) Service Manual
10.3. NO SOUND
Speaker
No
Sound
Check volume
control voltage on
I601 Pin6
Change I601
TDA7496L
No
Adjust OSD Volume
control to Max and
Check Pin6 Voltage
>0.02V
YesYes
Check OSD MUTE
function was disable
if yes, Check
Q601,D601,C602 fail
or not
Yes
No
Yes
Check R619 has
PWM output ?
Yes
Check P601
connected or not
Check if Speaker is
OK ?
Yes
-25-
4/22/2004
Page 28
Belinea 101705 (111723) Service Manual
11. ADJUSTMENT
11.1. ADJUSTMENT CONDITIONS AND PRECAUTIONS
1. Approximately 30 minutes should be allowed for warm up before proceeding.
2. Adjustments should be undertaken only on those necessary elements since most of them
have been carefully preset at the factory.
3. ESD protection is needed before adjustment.
11.2. MAIN ADJUSTMENTS
1. WHITE BALANCE FUNCTION KEY
2. GEOMETRY FUNCTION KEY
NO. FUNCTION DESIGNATION
11.3. ALIGNMENT PROCEDURES
Adjustment Conditions and Precautions:
(A). Power supply voltage:
AC 110/120V±10% 60 Hz±5%, AC 220/240V±10% 50 Hz±5%.
(B). Warm up time:
The display must be power ON for at least 30 minutes at full white pattern before
starting alignments.
This is especially critical in color temperature and white balance adjustments.
(C). Signals: reference the front detail specifications and timing table.
Video : reference the front detail specifications.
1. Adjustment of White Balance:
A. TIMING: 1280x1024 64KHz/60Hz.
B. PATTERN: 5 Blocks.
C. LCD MONITOR set to 1280x1024 80K/75Hz BURN IN and warm up over 30 minutes.
D. CA110 color analizer at the center of screen and along a perpendicular to the screen at
20cm from the display.
E. Power turn off, Press
LED ison, release
(Fig.1)
“▼” and “ ”
“▲” and “ ”
2
2
key, Then press “ ” key go to factory mode.
(Fig.1)
-26-
and turn on power at the same time after power
1
4/22/2004
Page 29
Belinea 101705 (111723) Service Manual
F. Adjust Color Temperature:
(1) EEPROM INIT (5 BLOCKS):
Press “▼” key move cursor to EEPROM INIT, Press key then monitor will
INIT ADC value.
(2) Press “▲” key move cursor to “White Balance”, Press key do white balance
adjustment.
(3) Press “▼” key move cursor to “Color Temerature Adjust”, Press key, Then
OSD will display Fig.2
(4) 9300K verify: move cursor to 9300K Press key.
Press “▼” ,“▲” key adjust R.G.B value
≧
240 cd/m
±
0.03
±
0.03
1
±
0.03
±
0.03
2
±
0.03
±
0.03
±
0.03 y=0.298 ±0.03
±
0.03 y=0.329 ±0.03 Y≧200 cd/m
±
0.03 y=0.348 ±0.03
-27-
x=0.283
y=0.298
Press key return to Fig.2
(5) 6500K verify: Repeat (4) press “▼” ,“▲” move cursor to 6500K press key
x=0.313
y=0.329
Y
(6) 5400K verify: Repeat (4) press “▼” ,“▲” move cursor to 5400K press key
x=0.332
y=0.348
(7) Press key go back to Fig.2, Then press key return to Fig.1, Power key
OFF/ON quit factory mode.
G. Color Temperature & Luminance Verify:
BRIGHTNESS MAX, CONTRAST MAX
9300K: x=0.283
6500K: x=0.313
5400K: x=0.332
2. Geometry:
(a). Set cross-hatch pattern and preset timing as timing table listed.
(b). Change to each mode in turn and wait for the monitor finish auto-alignment and save
process before change to next mode.
(c). Until all of modes are agjusted, exit OSD menu and press PWR OFF to exit factory
mode.
1
(Fig.2)
2
1
2
2
2
2
2
2
4/22/2004
Page 30
Belinea 101705 (111723) Service Manual
12. ELECTRICAL PARTS LIST
When you place a parts order, be sure to indicate the following data on the order:
! Location No.
! Parts No.
!
Description
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
MAIN P.C.BOARD
C101 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C102 2336322613 CAP,MINI ELE 105'C EC 22u/ 16V 4*7 P=2.5
C104 2336347613 CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5
C105 2336347613 CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5
C106 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C107 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C108 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C109 2336347613 CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5
C110 2336347613 CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5
C111 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C112 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C113 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C114 2336322613 CAP,MINI ELE 105'C EC 22u/ 16V 4*7 P=2.5
C115 RA 2346147396 CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K
C115 RB 2346247396 CAP,CHIP 125'C CS 0603/X7R/25V 0.047u K
C117 RA 2346147396 CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K
C117 RB 2346247396 CAP,CHIP 125'C CS 0603/X7R/25V 0.047u K
C118 RA 2346147396 CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K
C118 RB 2346247396 CAP,CHIP 125'C CS 0603/X7R/25V 0.047u K
C121 RA 2346147396 CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K
C121 RB 2346247396 CAP,CHIP 125'C CS 0603/X7R/25V 0.047u K
C122 RA 2346147396 CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K
C122 RB 2346247396 CAP,CHIP 125'C CS 0603/X7R/25V 0.047u K
C124 RA 2346147396 CAP,CHIP 125'C CS 0603/X7R/50V 0.047u K
C124 RB 2346247396 CAP,CHIP 125'C CS 0603/X7R/25V 0.047u K
C125 2341147096 CAP,CHIP 125'C CS 0603/COG/50V 47p J
C126 2341147096 CAP,CHIP 125'C CS 0603/COG/50V 47p J
C128 2341147096 CAP,CHIP 125'C CS 0603/COG/50V 47p J
C129 2341147096 CAP,CHIP 125'C CS 0603/COG/50V 47p J
C132 2336610613 CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5
C133 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C134 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C135 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C136 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C137 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C138 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C139 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C141 2336610613 CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5
C142 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C143 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C144 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C145 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C146 2336610613 CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5
C147 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C148 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C149 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C150 2336610613 CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5
C151 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C152 2336610613 CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5
C153 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C154 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C155 2341122096 CAP,CHIP 125'C CS 0603/COG/50V 22p J
C156 2341122096 CAP,CHIP 125'C CS 0603/COG/50V 22p J
C157 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C158 2336610613 CAP,MINI ELE 105'C EC 10u/ 50V 5*7 P=2.5
-28-
4/22/2004
Page 31
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
C159 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C164 2336347613 CAP,MINI ELE 105'C EC 47u/ 16V 5*7 P=2.5
C165 2336310713 CAP,MINI ELE 105'C EC 100u/ 16V 6.3*7 P=2.5
C166 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C167 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C170 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C172 2341122096 CAP,CHIP 125'C CS 0603/COG/50V 22p J
C173 2336622513 CAP,MINI ELE 105'C EC 2.2u/ 50V 4*7 P=2.5
C174 2341122096 CAP,CHIP 125'C CS 0603/COG/50V 22p J
C175 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C184 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C185 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C186 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C187 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C188 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C189 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C191 2346410496 CAP,CHIP 85'C CS 0603/Y5V/50V 0.1u Z
C197 2349901096 CAP,CHIP SPEC AC0603470A 47P ± 10% INPAQ
D101 2253400096 RES,CHIP 1/4 RC 1206 1/4 W 0ohm J
D102 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D102 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D103 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D103 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D104 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D104 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D105 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D105 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D106 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D106 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D107 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D107 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D109 2364503996 DIODE,ZENER SMD BZV55-C5V6 PHILIPS
D110 2364503996 DIODE,ZENER SMD BZV55-C5V6 PHILIPS
D111 2364503996 DIODE,ZENER SMD BZV55-C5V6 PHILIPS
D112 2364503996 DIODE,ZENER SMD BZV55-C5V6 PHILIPS
D125 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D125 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D128 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D128 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D129 RA 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D129 RB 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
I101 RA 2365812696 IC,LINEAR(SMD) CM2860K1M223 SOT-223 CHAMPION
I101 RB 2365813196 IC,LINEAR(SMD) AME8805DEGT SOT-223 AME
I105 2365929896 IC,DIGITAL SMD MST8116A PQFP-128 Mstar
I106 2365929996 IC,DIGITAL SMD MTV312M64-AJ PLCC44 MYSON
I107 RA 2365915896 IC,DIGITAL SMD 24LC16B/SN MICROCHIP SO08
I107 RB 2365100996 IC,MEMORY AT24C16AN-10SI-2.7 SOIC8 ATMEL
L102 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
L103 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
L104 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
L105 2379312196 BEAD,HI-IMPEDANCE Z= 120ohm(100MHZ~) 0603 200mA
L106 2379312196 BEAD,HI-IMPEDANCE Z= 120ohm(100MHZ~) 0603 200mA
L107 2379820196 BEAD,HI-IMPEDANCE Z= 200ohm(100MHZ~) 0805 200mA
L108 2379520196 BEAT,HI-CURRENT Z= 200ohm 0805 I=2.0A
L109 2379820196 BEAD,HI-IMPEDANCE Z= 200ohm(100MHZ~) 0805 200mA
L110 2379820196 BEAD,HI-IMPEDANCE Z= 200ohm(100MHZ~) 0805 200mA
L111 2379820196 BEAD,HI-IMPEDANCE Z= 200ohm(100MHZ~) 0805 200mA
L112 2379820196 BEAD,HI-IMPEDANCE Z= 200ohm(100MHZ~) 0805 200mA
L113 2379520196 BEAT,HI-CURRENT Z= 200ohm 0805 I=2.0A
L114 2379520196 BEAT,HI-CURRENT Z= 200ohm 0805 I=2.0A
L115 2379520196 BEAT,HI-CURRENT Z= 200ohm 0805 I=2.0A
P101 2404371008 CONNECTOR JST PH 9P TOP P=2.0 OR EQUAL
P102 2404371012 CONNECTOR JST PH 13P TOP P=2.0 OR EQUAL
P104 RA 2407630230 SOCKET,SMD 6240-30-OR5P 0.5*30P KYOCERA
P104 RB 2407630330 SOCKET,SMD 2206BL11230RLP 0.5*30P FRANCON
-29-
4/22/2004
Page 32
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
P105 RA 2407630250 SOCKET,SMD 6240-50-OR5P 0.5*50P KYOCERA
P105 RB 2407630350 SOCKET,SMD 2206BL11250RLP 0.5*50P FRANCON
P107 2404371007 CONNECTOR JST PH 8P TOP P=2.0 OR EQUAL
Q103 RA 2360100696 XISTOR,PNP R SMD PMBS3906 SOT-23 PHILIPS
Q103 RB 2360100796 XISTOR,PNP R SMD MMBT3906 SOT-23 DIODES
Q104 RA 2360100696 XISTOR,PNP R SMD PMBS3906 SOT-23 PHILIPS
Q104 RB 2360100796 XISTOR,PNP R SMD MMBT3906 SOT-23 DIODES
Q106 RA 2360301696 XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS
Q106 RB 2360301296 XISTOR,NPN R SMD MMBT3904 SOT-23 DIODES
Q107 RA 2360301696 XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS
Q107 RB 2360301296 XISTOR,NPN R SMD MMBT3904 SOT-23 DIODES
Q108 RA 2360501396 FET,P-CH SMD AP2305N SOT-23 APEC
Q108 RB 2360501296 FET,P-CH SMD AO3411 SOT-23 ALPHA
Q109 RA 2360301696 XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS
Q109 RB 2360301296 XISTOR,NPN R SMD MMBT3904 SOT-23 DIODES
Q110 2361111191 XISTOR,PNP R 2SA1020(Y) TO-92 TOSHIBA
Q111 RA 2360301696 XISTOR,NPN R SMD PMBS3904 SOT-23 PHILIPS
Q111 RB 2360301296 XISTOR,NPN R SMD MMBT3904 SOT-23 DIODES
R102 2253218296 RES,CHIP 1/10W RC 0603 1/10W 1.8Kohm J
R103 2253210296 RES,CHIP 1/10W RC 0603 1/10W 1Kohm J
R104 2253210396 RES,CHIP 1/10W RC 0603 1/10W 10Kohm J
R106 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R107 2253210396 RES,CHIP 1/10W RC 0603 1/10W 10Kohm J
R108 2253227296 RES,CHIP 1/10W RC 0603 1/10W 2.7Kohm J
R109 2253210296 RES,CHIP 1/10W RC 0603 1/10W 1Kohm J
R111 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R112 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R113 2251275096 RES,CHIP 1/10 RC 0603 1/10W 75 ohm F
R114 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R115 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R116 2251275096 RES,CHIP 1/10 RC 0603 1/10W 75 ohm F
R118 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R119 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R120 2251275096 RES,CHIP 1/10 RC 0603 1/10W 75 ohm F
R121 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R122 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R123 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R124 2253222296 RES,CHIP 1/10W RC 0603 1/10W 2.2Kohm J
R125 2253222296 RES,CHIP 1/10W RC 0603 1/10W 2.2Kohm J
R140 2251239006 RES,CHIP 1/10 RC 0603 1/10W 390 ohm F
R141 2253210596 RES,CHIP 1/10W RC 0603 1/10W 1Mohm J
R142 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R143 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R144 2253233096 RES,CHIP 1/10W RC 0603 1/10W 33 ohm J
R146 2253300096 RES,CHIP 1/8 RC 0805 1/8 W 0ohm J
R147 2253300096 RES,CHIP 1/8 RC 0805 1/8 W 0ohm J
R150 2253300096 RES,CHIP 1/8 RC 0805 1/8 W 0ohm J
R152 2253300096 RES,CHIP 1/8 RC 0805 1/8 W 0ohm J
R158 2253210596 RES,CHIP 1/10W RC 0603 1/10W 1Mohm J
R159 2253247296 RES,CHIP 1/10W RC 0603 1/10W 4.7Kohm J
R160 2253247296 RES,CHIP 1/10W RC 0603 1/10W 4.7Kohm J
R161 2253222396 RES,CHIP 1/10W RC 0603 1/10W 22Kohm J
R162 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R163 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R164 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R168 2253247296 RES,CHIP 1/10W RC 0603 1/10W 4.7Kohm J
R169 2251290916 RES,CHIP 1/10 RC 0603 1/10W 9.09Kohm F
R170 2253222296 RES,CHIP 1/10W RC 0603 1/10W 2.2Kohm J
R171 2253222296 RES,CHIP 1/10W RC 0603 1/10W 2.2Kohm J
R172 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R173 2251233216 RES,CHIP 1/10 RC 0603 1/10W 3.32Kohm F
R174 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R175 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R176 2253247296 RES,CHIP 1/10W RC 0603 1/10W 4.7Kohm J
R177 2253247296 RES,CHIP 1/10W RC 0603 1/10W 4.7Kohm J
-30-
4/22/2004
Page 33
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
R178 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R179 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R180 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R181 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R182 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R183 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R184 2253210196 RES,CHIP 1/10W RC 0603 1/10W 100 ohm J
R187 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R189 2253210296 RES,CHIP 1/10W RC 0603 1/10W 1Kohm J
R190 2253210296 RES,CHIP 1/10W RC 0603 1/10W 1Kohm J
R191 2253210396 RES,CHIP 1/10W RC 0603 1/10W 10Kohm J
R192 2253510296 RES,CHIP 1/2 RC 1210 1/3 W 1Kohm J
R193 2253300096 RES,CHIP 1/8 RC 0805 1/8 W 0ohm J
R194 2253247296 RES,CHIP 1/10W RC 0603 1/10W 4.7Kohm J
R196 2253222196 RES,CHIP 1/10W RC 0603 1/10W 220 ohm J
R198 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R199 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R201 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
R202 2253200096 RES,CHIP 1/10W RC 0603 1/10W 0 ohm J
RN1 2259210308 RES,CHIP NETWORKS 8P4R 1/16W 10Kohm J P=0.8
RN2 2259210308 RES,CHIP NETWORKS 8P4R 1/16W 10Kohm J P=0.8
RN3 2259210308 RES,CHIP NETWORKS 8P4R 1/16W 10Kohm J P=0.8
RN4 2259210308 RES,CHIP NETWORKS 8P4R 1/16W 10Kohm J P=0.8
RN5 2259233008 RES,CHIP NETWORKS 8P4R 1/16W 33ohm J P=0.8
U101 2202516000 PCB MULTILAYER VA521 M/B FR4*2 100*82 V1.00
X101 2369102901 XTAL,OSC 14.31818MHZ/49US
X102 2369103601 XTAL,OSC 12.000MHZ/49US
CON P.C.BOARD
D701 2363700001 LED YL-319GYW-C-Q1-04A YIOW CHIE
P701 2427408202 WIRE HARNESS 8P H/B 1061#26 L=200mm P=2.0
S701 2403700600 SWITCH,PU-TC SKHHLH1520-SV
S702 2403700600 SWITCH,PU-TC SKHHLH1520-SV
S703 2403700600 SWITCH,PU-TC SKHHLH1520-SV
S704 2403700600 SWITCH,PU-TC SKHHLH1520-SV
S705 2403700600 SWITCH,PU-TC SKHHLH1520-SV
U701 2202128300 PC BOARD JT178KP69 K/B CEM1 11.9*130
POWER P.C.BOARD
C601 2333347791 CAP,ELE 105'C EC 470u/ 16V 10*12.5 P=5.0
C602 2333622691 CAP,ELE 105'C EC 22u/ 50V 5*11 P=5.0
C603 2333610591 CAP,ELE 105'C EC 1u/ 50V 5*11 P=5.0
C604 2333610591 CAP,ELE 105'C EC 1u/ 50V 5*11 P=5.0
C605 2333347791 CAP,ELE 105'C EC 470u/ 16V 10*12.5 P=5.0
C606 2333347791 CAP,ELE 105'C EC 470u/ 16V 10*12.5 P=5.0
C610 2333322791 CAP,ELE 105'C EC 220u/ 16V 8*11 P=5.0
C615 2333610691 CAP,ELE 105'C EC 10u/ 50V 5*11 P=5.0
C616 2342110296 CAP,CHIP 125'C CS 0805/COG/50V 1000p J
C617 2342110296 CAP,CHIP 125'C CS 0805/COG/50V 1000p J
C801 2300922401 CAP MTL MINI X2 0.22u/275V P=15.0 M
C802 2287247212 CAP,CER Y2 4700p/250V Y5V P=10.0 M
C803 2287247212 CAP,CER Y2 4700p/250V Y5V P=10.0 M
C804 2300922401 CAP MTL MINI X2 0.22u/275V P=15.0 M
C805 2357510708 EC HI-RIPPLE 105C EC 100u/400V 18*32 P=7.5
C806 2303210312 CAP,MTL CF93M 0.010UF 250V K
C807 2349410496 CAP,CHIP 85'C CS 1206/Y5V/50V 0.1u Z
C808 2349110496 CAP,CHIP 125'C CS 1206/X7R/50V 0.1u K
C809 2333622691 CAP,ELE 105'C EC 22u/ 50V 5*11 P=5.0
C810 2333510791 CAP,ELE 105'C EC 100u/ 35V 8*11 P=5.0
C811 2349410496 CAP,CHIP 85'C CS 1206/Y5V/50V 0.1u Z
C813 2285110291 CAP,CER CC 1000P/1KV Y5P P=5.0 K
C820 2286222112 CAP,CER 125'C CK45BN 220.000PF 2KV K
C821 2286222112 CAP,CER 125'C CK45BN 220.000PF 2KV K
-31-
4/22/2004
Page 34
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
C822 2330005801 CAP,MINI ELE EC 1500u/ 16V 10*20 P=5.0
C823 2330005801 CAP,MINI ELE EC 1500u/ 16V 10*20 P=5.0
C824 RA 2330006312 CAP ELE(3000HR) EC 1500u/ 10V 10*20 P=5.0
C824 RB 2335215862 CAP,ELE Low Esr 105'C EC 1500u/ 10V 10*20 P=5.0
C825 2335210811 CAP,ELE Low Esr 105'C EC 1000u/ 10V 8*16 P=3.5
C826 2349110496 CAP,CHIP 125'C CS 1206/X7R/50V 0.1u K
C827 2333610591 CAP,ELE 105'C EC 1u/ 50V 5*11 P=5.0
C828 RA 2330006312 CAP ELE(3000HR) EC 1500u/ 10V 10*20 P=5.0
C828 RB 2335215862 CAP,ELE Low Esr 105'C EC 1500u/ 10V 10*20 P=5.0
C829 2349110296 CAP,CHIP 125'C CS 1206/X7R/50V 1000p K
C830 2287247212 CAP,CER Y2 4700p/250V Y5V P=10.0 M
C831 2287247212 CAP,CER Y2 4700p/250V Y5V P=10.0 M
C901 2333622691 CAP,ELE 105'C EC 22u/ 50V 5*11 P=5.0
C902 2349410496 CAP,CHIP 85'C CS 1206/Y5V/50V 0.1u Z
C903 2335347713 CAP,ELE Low Esr 105'C EC 470u/ 16V 8*12 P=5.0
C904 2349168296 CAP,CHIP 125'C CS 1206/X7R/50V 6800p K
C905 2349168296 CAP,CHIP 125'C CS 1206/X7R/50V 6800p K
C906 2333622691 CAP,ELE 105'C EC 22u/ 50V 5*11 P=5.0
C907 2349147396 CAP,CHIP 125'C CS 1206/X7R/50V 0.047u K
C908 2272147091 CAP,CER TC 47p/50V CH P=5.0 J
C909 2272133191 CAP,CER TC 330p/50V CH P=5.0 J
C910 2335347713 CAP,ELE Low Esr 105'C EC 470u/ 16V 8*12 P=5.0
C911 2275415001 CAP,CER TC 15p/3KV SL P=7.5 J
C912 2275439001 CAP,CER TC 39p/3KV SL P=7.5 J
C913 2275439001 CAP,CER TC 39p/3KV SL P=7.5 J
C914 2349147396 CAP,CHIP 125'C CS 1206/X7R/50V 0.047u K
C915 2349110396 CAP,CHIP 125'C CS 1206/X7R/50V 0.01u K
C916 2275415001 CAP,CER TC 15p/3KV SL P=7.5 J
C917 2275439001 CAP,CER TC 39p/3KV SL P=7.5 J
C918 2275439001 CAP,CER TC 39p/3KV SL P=7.5 J
C919 2349147396 CAP,CHIP 125'C CS 1206/X7R/50V 0.047u K
C920 2349410496 CAP,CHIP 85'C CS 1206/Y5V/50V 0.1u Z
C921 2349410496 CAP,CHIP 85'C CS 1206/Y5V/50V 0.1u Z
C922 2349115396 CAP,CHIP 125'C CS 1206/X7R/50V 0.015u K
C923 2349115396 CAP,CHIP 125'C CS 1206/X7R/50V 0.015u K
C924 2349410496 CAP,CHIP 85'C CS 1206/Y5V/50V 0.1u Z
C926 2349168296 CAP,CHIP 125'C CS 1206/X7R/50V 6800p K
C927 2349168296 CAP,CHIP 125'C CS 1206/X7R/50V 6800p K
D601 RA 2364200896 DIODE,RECT(SMD) BAS32L SOD80C PHILIPS
D601 RB 2364600196 DIODE,SWITCH SMD LL4148 3.5X1.5φ TEMIC GS08
D801 RA 2363227295 DIODE,RECT 2A07 TSC
D801 RB 2363221195 DIODE,RECT PG208 PEC
D801 RC 2363224295 DIODE,RECT 20KDA60 INTER
D801 RD 2363233795 DIODE,RECT PS2010 2A/1000V DO-15 PEC
D802 RA 2363227295 DIODE,RECT 2A07 TSC
D802 RB 2363221195 DIODE,RECT PG208 PEC
D802 RC 2363224295 DIODE,RECT 20KDA60 INTER
D802 RD 2363233795 DIODE,RECT PS2010 2A/1000V DO-15 PEC
D803 RA 2363227295 DIODE,RECT 2A07 TSC
D803 RB 2363221195 DIODE,RECT PG208 PEC
D803 RC 2363224295 DIODE,RECT 20KDA60 INTER
D803 RD 2363233795 DIODE,RECT PS2010 2A/1000V DO-15 PEC
D804 RA 2363227295 DIODE,RECT 2A07 TSC
D804 RB 2363221195 DIODE,RECT PG208 PEC
D804 RC 2363224295 DIODE,RECT 20KDA60 INTER
D804 RD 2363233795 DIODE,RECT PS2010 2A/1000V DO-15 PEC
D805 RA 2362900395 TRAN V SUPPRESSOR P6KE130A DO-15 PEC
D805 RB 2362900895 TRAN V SUPPRESSOR P6KE130A DO-15 WILLAS
D806 RA 2363215495 DIODE,RECT BYV26C PHILIPS
D806 RB 2363231995 DIODE,RECT UF4007 PEC
D806 RC 2363223195 DIODE,RECT UF4007 GS
D807 RA 2363230795 DIODE,RECT 1H5G WILLAS
D807 RB 2363601395 DIODE,SWITCH 1U4G 1A/400V PEC
D808 2363514895 DIODE,ZENER HZ20-2 19.5-20.4V 0.5W HITACHI
D809 2363222195 DIODE,RECT SB140 PEC
-32-
4/22/2004
Page 35
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
D811 2363510895 DIODE,ZENER HZ9C-1 8.9-9.3V 0.5W HITACHI
D821 RA 2363300300 DIODE,SCHOTTKY FCH20A15 20A/150V NI
D821 RB 2363301900 DIODE,SCHOTTKY SRF20150 ITO-220 MOSPEC
D821 RC 2363302000 DIODE,SCHOTTKY GMR20H150C TO-220FPAB GAMMA
D822 RA 2363301000 DIODE,SCHOTTKY FCQ30A06 30A/60V (TO-220AB) NI
D822 RB 2363302400 DIODE,SCHOTTKY GMR3060CTBF3T TO-220FPAB GAMMA
D902 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D903 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D904 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D905 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D906 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D907 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D908 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D909 RA 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D909 RB 2363600696 DIODE,SWITCH 1N4148 SMD
D910 RA 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D910 RB 2363600696 DIODE,SWITCH 1N4148 SMD
D911 RA 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D911 RB 2363600696 DIODE,SWITCH 1N4148 SMD
D912 RA 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D912 RB 2363600696 DIODE,SWITCH 1N4148 SMD
D913 2363600195 DIODE,SWITCH 1N4148 DO-35 T
D914 RA 2364600396 DIODE,SWITCH SMD LL4148 DIODES MINIMELF
D914 RB 2363600696 DIODE,SWITCH 1N4148 SMD
D915 RA 2362900695 TRAN V SUPPRESSOR P6KE30A DO-15 PEC
D915 RB 2362900795 TRAN V SUPPRESSOR P6KE30A DO-15 WILLAS
D916 RA 2362900695 TRAN V SUPPRESSOR P6KE30A DO-15 PEC
D916 RB 2362900795 TRAN V SUPPRESSOR P6KE30A DO-15 WILLAS
F801 RA 2213125207 FUSE FUSE 2.5A/250V 21502.5 LITTEL
F801 RB 2213125211 FUSE FUSE 2.5A/250V SG501302.5 PICO
F901 RA 2213270295 FUSE MICRO 20N7000FS 7A/125V PICO
F901 RB 2213270205 FUSE MICRO R251007 7A/125V(T52) LITTEL
I601 2365329700 IC,LINEAR TDA7496L DIP-20P SGS
I801 2365330300 IC,LINEAR SG6841D DIP-8 SG
I802 RA 2362401800 PHOTO COUPLR TLP621(D4-GR-LF2) TOSHIBA
I802 RB 2362401600 PHOTO COUPLR TLP721F(D4-GR) TOSHIBA
I803 RA 2365328191 IC,LINEAR AP431VA TO-92 ATC
I803 RB 2365327691 IC,LINEAR CM431BCN CHAMPION
I803 RC 2365321991 IC,LINEAR KA431AZTA TO-92 FAIRCHILD
I803 RD 2365319391 IC,LINEAR TL431CLP TI
I901 2365330200 IC,LINEAR OZ9RRD PDIP-8 MICRO
I902 RA 2365330291 IC,LINEAR KA78L05AZ TO-92 FAIRCHILD
I902 RB 2365330491 IC,LINEAR HC78L05 TO-92 HC-SEMI
I902 RC 2365330591 IC,LINEAR L78L05ACZ TO-92 ST
L601 2379822106 BEAD,HI-IMPEDANCE Z= 220ohm(200MHZ~) 0805 200mA
L602 2379822106 BEAD,HI-IMPEDANCE Z= 220ohm(200MHZ~) 0805 200mA
L603 2379822106 BEAD,HI-IMPEDANCE Z= 220ohm(200MHZ~) 0805 200mA
L604 2379101495 FERRITE CORE 3.5X9X0.8
L605 2379101495 FERRITE CORE 3.5X9X0.8
L606 2379101495 FERRITE CORE 3.5X9X0.8
L801 2379101595 FERRITE CORE 3.5X4.5X0.8
L802 2371111900 COIL,CHOKE 250uH +-7%
L803 2371154600 COIL,CHOKE JD176 5.2UH 15.5T(REF)
L804 2371154600 COIL,CHOKE JD176 5.2UH 15.5T(REF)
L805 2371121301 COIL,CHOKE ET-20 0.32mm*35Ts 21mH
L806 2379103500 FERRITE CORE 0.5φ3T 680 OHM MINAT 100MHZ
L807 2379101495 FERRITE CORE 3.5X9X0.8
L808 2371111900 COIL,CHOKE 250uH +-7%
L901 2371140401 COIL,CHOKE 300mH/300mH (0.05mm/410Ts)*2
L902 2371140401 COIL,CHOKE 300mH/300mH (0.05mm/410Ts)*2
P601 2404301003 CONNECTOR JST XH 4P SIDE P=2.5 OR EQUAL
P603 2408200400 PIN JACK,2P 3.5 PHONE JACK 2SJ-0540SINGATR
P802 2427410121 WIRE HARNESS 10P H/B 1061#24 L=120mm P=2.0
P901 RA 2404380403 CONNECTOR 88227-032X 4.0mm ACE
P901 RB 2404380503 CONNECTOR CP044AP1HT1-P3 CVILUX
-33-
4/22/2004
Page 36
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
P902 RA 2404380403 CONNECTOR 88227-032X 4.0mm ACE
P902 RB 2404380503 CONNECTOR CP044AP1HT1-P3 CVILUX
Q601 RA 2361316191 XISTOR,NPN R 2PC945P PHILIPS
Q601 RB 2361302591 XISTOR,NPN R 2SC945(P) TO-92 NEC
Q801 2361610000 FET,N-CH APO9N701-A TO-220CMF APEC
Q803 RA 2361316191 XISTOR,NPN R 2PC945P PHILIPS
Q803 RB 2361313691 XISTOR,NPN R KSC945C-G FAIRCHILD
Q803 RC 2361302591 XISTOR,NPN R 2SC945(P) TO-92 NEC
Q902 RA 2361316191 XISTOR,NPN R 2PC945P PHILIPS
Q902 RB 2361313691 XISTOR,NPN R KSC945C-G FAIRCHILD
Q902 RC 2361302591 XISTOR,NPN R 2SC945(P) TO-92 NEC
Q904 2360608496 FET,N-CH(SMD) 2N7002K SOT-23 VISHAY
Q905 2360608496 FET,N-CH(SMD) 2N7002K SOT-23 VISHAY
Q906 RA 2361610800 FET,N-CH AP9960J TO-251(T-TYPE) APEC
Q906 RB 2361610810 FET,N-CH AP9960J TO-251(W-TYPE) APEC
Q907 RA 2361610800 FET,N-CH AP9960J TO-251(T-TYPE) APEC
Q907 RB 2361610810 FET,N-CH AP9960J TO-251(W-TYPE) APEC
Q908 RA 2361610800 FET,N-CH AP9960J TO-251(T-TYPE) APEC
Q908 RB 2361610810 FET,N-CH AP9960J TO-251(W-TYPE) APEC
Q909 RA 2361610800 FET,N-CH AP9960J TO-251(T-TYPE) APEC
Q909 RB 2361610810 FET,N-CH AP9960J TO-251(W-TYPE) APEC
R601 2253410496 RES,CHIP 1/4 RC 1206 1/4 W 100Kohm J
R602 2253439296 RES,CHIP 1/4 RC 1206 1/4 W 3.9Kohm J
R610 2253410396 RES,CHIP 1/4 RC 1206 1/4 W 10Kohm J
R611 2253410396 RES,CHIP 1/4 RC 1206 1/4 W 10Kohm J
R612 2253410396 RES,CHIP 1/4 RC 1206 1/4 W 10Kohm J
R613 2253410396 RES,CHIP 1/4 RC 1206 1/4 W 10Kohm J
R619 2253400096 RES,CHIP 1/4 RC 1206 1/4 W 0ohm J
R620 2253447296 RES,CHIP 1/4 RC 1206 1/4 W 4.7Kohm J
R621 2253422296 RES,CHIP 1/4 RC 1206 1/4 W 2.2Kohm J
R622 2253410196 RES,CHIP 1/4 RC 1206 1/4 W 100ohm J
R623 2253410196 RES,CHIP 1/4 RC 1206 1/4 W 100ohm J
R802 2229201212 THERMISTOR,PTH SCK-103 10+-20% 3A THINKING
R803 2253447496 RES,CHIP 1/4 RC 1206 1/4 W 470Kohm J
R804 2253451496 RES,CHIP 1/4 RC 1206 1/4 W 510Kohm J
R805 2253451496 RES,CHIP 1/4 RC 1206 1/4 W 510Kohm J
R806 2253451496 RES,CHIP 1/4 RC 1206 1/4 W 510Kohm J
R807 2253410096 RES,CHIP 1/4 RC 1206 1/4 W 10ohm J
R808 2251422126 RES,CHIP 1/4 RC 1206 1/4 W 22.1Kohm F
R809 2253410996 RES,CHIP 1/4 RC 1206 1/4 W 1ohm J
R810 2251418216 RES,CHIP 1/4 RC 1206 1/4 W 1.82Kohm F
R811 2241247816 RES,WIR 2 RW 2WS 0.47 ohm P=7.0 J
R812 2253447496 RES,CHIP 1/4 RC 1206 1/4 W 470Kohm J
R813 2253433296 RES,CHIP 1/4 RC 1206 1/4 W 3.3Kohm J
R814 2253447196 RES,CHIP 1/4 RC 1206 1/4 W 470ohm J
R820 2232422095 RES,CBN 1/4 RD 1/4W 22.00 J
R821 2232422095 RES,CBN 1/4 RD 1/4W 22.00 J
R823 2233410295 RES,CBN 1/4 S RD 1/4WS 1.00K J
R824 2251468116 RES,CHIP 1/4 RC 1206 1/4 W 6.81Kohm F
R825 2251410026 RES,CHIP 1/4 RC 1206 1/4 W 10Kohm F
R826 2253410196 RES,CHIP 1/4 RC 1206 1/4 W 100ohm J
R831 2251482526 RES,CHIP 1/4 RC 1206 1/4 W 82.5Kohm F
R832 2253410096 RES,CHIP 1/4 RC 1206 1/4 W 10ohm J
R833 2253447496 RES,CHIP 1/4 RC 1206 1/4 W 470Kohm J
R834 2253447496 RES,CHIP 1/4 RC 1206 1/4 W 470Kohm J
R835 2253447496 RES,CHIP 1/4 RC 1206 1/4 W 470Kohm J
R836 2253447496 RES,CHIP 1/4 RC 1206 1/4 W 470Kohm J
R901 2253410396 RES,CHIP 1/4 RC 1206 1/4 W 10Kohm J
R905 2239222025 RES,PRE 1/4 S RN 1/4WS 22.00K F
R906 2239210025 RES,PRE 1/4 S RN 1/4WS 10.00K F
R907 2251418026 RES,CHIP 1/4 RC 1206 1/4 W 18Kohm F
R909 2253410196 RES,CHIP 1/4 RC 1206 1/4 W 100ohm J
R911 2253451596 RES,CHIP 1/4 RC 1206 1/4 W 5.1Mohm J
R916 2232410095 RES,CBN 1/4 RD 1/4W 10 ohm J
R917 2232410095 RES,CBN 1/4 RD 1/4W 10 ohm J
-34-
4/22/2004
Page 37
Belinea 101705 (111723) Service Manual
LOC NO. SOURCE PART NO. DESCRIPTION SPECIFICATION REMARK
R918 2253410596 RES,CHIP 1/4 RC 3216 1/4W 1.00M J
R921 2251439206 RES,CHIP 1/4 RC 1206 1/4 W 392 ohm F
R922 2253451296 RES,CHIP 1/4 RC 1206 1/4W 5.1Kohm J
R923 2251422106 RES,CHIP 1/4 RC 1206 1/4 W 221 ohm F
R926 2253451296 RES,CHIP 1/4 RC 1206 1/4W 5.1Kohm J
R927 2251439206 RES,CHIP 1/4 RC 1206 1/4 W 392 ohm F
R928 2251422106 RES,CHIP 1/4 RC 1206 1/4 W 221 ohm F
R930 2253410596 RES,CHIP 1/4 RC 3216 1/4W 1.00M J
R931 2253410596 RES,CHIP 1/4 RC 3216 1/4W 1.00M J
R932 2232410095 RES,CBN 1/4 RD 1/4W 10 ohm J
R933 2232410095 RES,CBN 1/4 RD 1/4W 10 ohm J
S801 2407412800 SOCKET (AC INLET) 0707-0001 INALWAYS
S802 RA 2407200991 HOLDER,FUSE CQ-05T (5mm DIA FUSE)
S802 RB 2407200791 HOLDER,FUSE FC-05C
S803 RA 2407200991 HOLDER,FUSE CQ-05T (5mm DIA FUSE)
S803 RB 2407200791 HOLDER,FUSE FC-05C
T801 2374228002 XFORMER,POWR ER-28 750uH 40/40Ts/0.36mm
T901 2374300500 XFORMER INVERTER EEL-19 20/2000Ts 0.1*20/0.06mm
T902 2374300500 XFORMER INVERTER EEL-19 20/2000Ts 0.1*20/0.06mm
U801 2202129500 PC BOARD T178KP18 P/B CEM1 199*170
OTHERS
P951 2427130055 POWER CORD GERMAN WALL 1.83M GE96750
P961 2427501173 I/O CABLE D15/C13 20276(3+6) 1.83M 96750
P962 2427700015 CABLE EAR 3.5(577C) 1.83M GE96750
P980 2420308002 FFC CABLE FFC 30P*0.5*L80mm
P981 2420308001 FFC CABLE FFC 50P*0.5*L80mm
P986 2427307250 LUG W/WIRE φ4.3/3.2 1007#18 BLK 250mm
P988 2427404452 WIRE HARNESS 4/2+2P H/A 2651#28 L=450 P=2.5
V901 2212005201 LCD PANEL CLAA170EA03 CPT
W601 2391301081 SPEAKER ASS'Y 1W 8ohm 52*19.5*14 (R)
W602 2391301082 SPEAKER ASS'Y 1W 8ohm 52*19.5*14 (L)
-35-
4/22/2004
Loading...
