MOBILE PHONE
The Set Includes
If there is any technical assistance required,
please call the
hotline at (+48) 32 325 07 00,
or email us at serwis@maxcom.pl
Our website:
http://www.maxcom.pl/
GSM Mobile Phone
Charger
USB Cable
2000mAh Battery
Headset
User Manual
Quick User Guide
Keeping the original package is
recommended as it might be used for
transport.
Keep the receipt as it is necessary for
warranty.
Important – The telephone works in the GSM
900/1800, WCDMA 1/8, LTE 1/3/5/7/8/20/38. Prior
to switching on the phone, a SIM Card should be
inserted.
Model number: MK241
1
Mobile phone GSM 900/1800, WCDMA 1/8, LTE
1/3/5/7/8/20/38.
• VoLTE and VoWiFi support (depends on
operator)
• Wi-Fi
• Calendar with online synchronization
• KaiStore
• Partner applications including Google Search,
Google Maps, YouTube, Google Assistant and
Facebook
• Anti-theft function
• Web browser
• Backlighted keys
• Colour screen 320x240 px
• Cameras: 2MPix and VGA
• microSD card support up to 32 GB
• Loudspeaker
• Phonebook
• Loud ringing
• Bluetooth 4.1
• Radio FM
• Tor c h
• Calculator
• Unit converter
• Alarm clock
• Battery 2000 mAh
• Standby time: up to 900 hours*
• Talk time: up to 10 hours*
*depends on signal strength.
2
1. Safety Precautions
electronic devices including medical
Reading the guidelines below will minimize the risk
of misusing the phone.
• USING – The telephone emits electromagnetic
field that might negatively interfere with other
equipment.
• Never use the phone wherever such use is
prohibited, in hospitals, airplanes, refuelling
points or at proximity to flammable materials.
Using the phone in such places might expose
others to danger.
• Never use the phone without a headset while
driving.
• A device and its accessories might contain
small parts. Keep the phone and all parts out
of reach of children.
• SERVICE - Never repair nor modify the phone
on your own; all repairs should be made by
authorized service only.
• CLEANING - Never cl ean the phone with any
chemicals or corrosives.
• TORCH – Never look directly into the beam of
light.
• HEARIN G AID – If you have a hearing aid, the
phone volume should be carefully adjusted in
line with the hearing aid sensitivity.
• ELECTRONIC MEDICAL EQUIPMENT – Yo u r
phone is a radio transmitter, that might interfere
with the performance of electronic medical
equipment or implants, heart pace makers,
insulin pumps, etc. Keeping a distance no
shorter than 15 cm between the phone and the
implant is recommended. To learn more about
it, contact your health care provider or
manufacturers of such medical equipment.
3
• WATERPROOF – The phone is NOT
ear, while using a
volume prior to using
waterproof. Keep it dry at all times.
• DUSTPROOF – The phone is NOT dustproof,
never use the phone in the area with increased
level of dust. Protect the phone against metal
chips, that might cause the device to
malfunction.
• DISPLAY SCREEN – Avoid pressing too hard
on the LCD display screen and using sharp
tools; otherwise the display screen might be
damaged. • Never use any metal objects to
press the battery contacts together as doing so
might cause an explosion.
• Never expose the phone to either low or high
temperature, direct sunlight, and high humidity.
Never place the phone next to heating devices
such as radiators, heaters, ovens, furnaces,
camp fires, barbeque, etc.
• PROTECT YOUR HEARING! Prolonged
exposure to sounds of high volume might
damage your hearing. Listen to music at a
moderate level, and do not
keep the phone too close to an
speakerphone. Lower the
headphones.
4
2. Installation
Before turning on the phone the SIM card should be
installed. Please pay attention not to damage SIM
card when inserting into slot. SIM cards should be
kept out of child reach.
SIM card, memory card and battery
installation

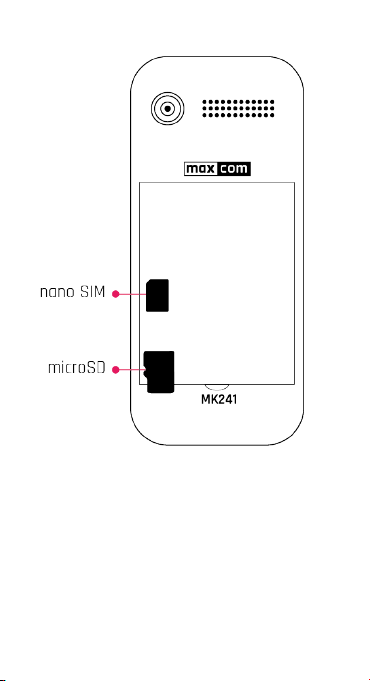

Phone is equipped with nanoSIM slot. If you have
different size of S IM card without possibility to
change the size yourself, please contact your
operator who should provide you with correct SIM
card.
In order to insert SIM card please follow these
steps:
• When phone is turned off, open the battery
cover. Start by lifting the bottom corner
• Take out batter y
• Slide down metal cover of SIM card slot
• Place nanoSIM in the slot according to
drawing. Make sure that notch is facing
upwards
• Close metal cover of SIM card slot and slide it
up to secure SIM card in place
• Memory card microSD can be inserted
similarly to SIM card. Memory card slot is
placed towards the back of the phone.
5
Be careful while using memory cards especially
while inserting and removing the card. Some
memory cards must be formatted on a computer
before the first use. Regularly make backup copies
of data stored on cards used in other devices, if you
use SD Cards! Misuse or other factors might
damage the card or make the card lose its content
• Insert the battery so that the contacts +/- will
go to the front of the phone.
6
• After placing the battery close the battery
cover carefully and make sure you heard
“click” sound
Charging
Never use a charger or battery that is damaged or
not manufactured by the Manufacturer. Accessories
of different type or modifications might damage the
phone and might give basis for violation of
regulations pertaining to radio devices, and might
void the warranty.
When the battery is discharged, there will be an
icon of the empty battery displayed on the screen.
To charge the battery, plug the charger to the power
outlet and to the phone. The battery icon will show
little bolt symbol as long as the battery is being
charged. Important! While charging, the air
temperature must be between 0°C and +40°C. After
certain time, batteries wear out; therefore, their
performance time will get shorter and shorter over
time.
In order to charge phone:
1. Plug charger into power outlet
2. Plug charger cable into charging port at the
bottom of the phone. On battery icon you will
be able to see little bolt symbol
3. When phone will be fully charged unplug
charger from power outlet and cable from
phone
Attention:
• Before starting charging make sure the
battery is properly installed
• During charging do not take out battery
7
• If battery voltage is too low, phone will turn off
automatically.
• If the battery it completely flat, you will have to
charge it for several minutes before you are
able to turn on the phone
8
3. Phone description
9
4. Using the phone
Warning:
Turning on the phone
Press and hold Red button to turn on the phone
You might be asked to insert PIN code. You will find
it in the SIM starting set from your Operator.
After typing the code confirm it with OK button.
If PIN & PUK codes were not provided
along with the SIM Card, contact your
service provider.
If the PIN has been inserted incorrectly 3
times, the SIM will be locked, and
On the first launch of the phone with selected SIM
card (or after restoring factory settings) you will be
asked several confi guration questions.
First please choose language that you would like to
use on the phone. At this step you can also turn on
text-to-speech settings.
In the second step you can choose to login to one
of available WiFi networks.
Next you will be asked if you agree to participate in
anonymous data gathering in order to improve your
experience. If you don’t agree, please uncheck
“Yes, I want to help”.
Finally you will have to accept Kaiostech Inc. terms
and conditions to use the phone.
.
10
Turning off and restarting
In order to turn off the phone press and hold Red
button and choose whether you want to turn off or
restart the phone.
Standby mode
When phone is turned on and no actions are taken
it is in the standby mode. You are able to see
current time and date.
Screen description
11
Icons on the screen:
Number of notifications
Roaming
No service
No SIM card/SIM card error
Only vibrations
Turned off sounds
Battery empty
Battery low
Battery full
Charging
Battery full and connected to charger
2G coverage
GPRS coverage
4G coverage
VoLTE coverage
VoWiFi coverage
Data transfer
Downloading file
12
WiFi turned on
WiFi connected
Bluetooth turned on
Bluetooth connected
GPS turned on
GPS connected
Data roaming
Airplane mode
Alarm turned on
Hotspot turned on
Hotspot turned off
Earphone set connected
Wireless earphone set connected
Call forwarding
Call over Wifi
13
Connected via USB
Keyboard lock
In order to lock keyboard in the standby mode press
and hold “*“ key. You do not have to unlock the
keyboard to answer a call. In phone setting you can
change after what time the keyboard should lock
automatically.
14
5. Main Menu
In order to enter main menu, press H OME
navigation key when in Standby mode. Use
UP/DOWN/LEFT/RIGHT navigation keys to move
around the menu. To confirm choice please press
OK (HOME) key. To go back please press Red
button.
6. Searching contacts
1. Enter MENU and choose Contacts or in the
standby mode press DOWN key.
2. Start typing name of the contact you are
looking for
3. Phone will jump to contacts starting with the
latter you typed. Use UP/DOWN key to
choose desired contact
By pressing “#” key you can change the input
method
15
7. Calling
While entering foreign numbers, always
actual number.
Calling a number
1. Input the number you want to call
2. Press Green button or HOME button to start
the call
3. To hang up press Red button.
enter “+”(instead of “00”) prior to entering the
Choosing number from phonebook or
last calls
In the standby mode please press DOWN key to
enter phonebook. Using UP/DOWN keys choose
desired contact. Press Green key to call the
number.
In the standby mode please press Green key to
enter call log.
Receiving calls
In order to pick up incoming call press Green key.
In order to reject incoming call please press Red
key.
16
8. SMS and MMS messages
Writing and sending texts
1. Enter MENU and choose Messages -> New to
open editor.
2. Enter message and choose to who do you
want to send the message by choosing
contact from list or typing number directly.
Changing input method. In order to change input
method(numbers, small/capital letter/Predictive
mode) keep pressing „#” key. To change the
language press and hold „#” key.
By holding “#” key you can change input language.
First you need to select what languages you would
like to use. You can do it in the main setting of the
phone.
Reading and replying to texts.
When unread message icon will display on the
screen or you want to check previous messages in
MENU choose Messages and navigate to desired
thread. You will be able to read the whole message
history with chosen contact and well as perform
additional actions.
17
9. KaiStore
In the KaiStore you can find many useful apps and
games. The database of available apps is
constantly growing so we encourage you to check it
from time to time to see what is new.
After downloading any app it will appear in the main
menu.
Internet connection is necessary to operate
KaiStore.
10. Camera
To take a picture in the default settings turn on
camera application and press HOME key. In order
to zoom in/zoom out use UP/DOW N keys.
Immediately after you take the picture you can jump
to gallery where you can edit the picture, share it
with friends or set as wallpaper.
By pressing „Options” in the camera mode you can
switch between main camera and front camera or
change mode to video recording.
11. Web browser
To use internet open the browser app.
By default you can navigate page with clickable
arrow pointer.
In order to switch to smooth scrolling mode press
“2” and then use “1” or “3” keys to zoom in/zoom
out.
By pressing options you can change volume,
refresh page or manage bookmarks.
18
12. Calendar
After opening the calendar app you will see today’s
date. Press HOME screen again to display full
calendar. Using navigation keys you can move
between date and times. When you choose desired
time and date press “Add” to add event to calendar.
By pressing “Option” yo u can switch between
Week/Month/Day view.
In calendar settings you can set up synchronization
with i.e. Google Calendar and choose how often
synchronization should occur.
13. Music
Music app allows to play music stored in the phone
memory or on the memory card. This application
can also run in the background allowing you to
listen to music and use other apps at the same
time.
14. FM Radio
In order to use FM Radio you have to plug in
headset included in the set.
After Radio app is launched for the first time phone
will ask you to search for available stations.
This application can also run in the background
allowing you to listen to the radio and use other
apps at the same time.
15. E-mail
E-mail app allows to use any email service provider.
In order to properly configure email account please
refer to provider of your email account.
19
16. Change language
If you accidently change language go to standby
mode and press following combination of keys:
• HOME
• Right (x2)
• Down ( x7)
• HOME
• Right
• Down (5x)
• HOME (2x)
Choose language from list.
17. Memory
In the Memory tab in the Main Settings you will find
USB memory settings. If you want to access your
phone memory from computer via USB cable you
have to switch USB Memory to ON.
18. Account
In the Account tab in the Main Settings you can
manage your KaiOS account and turn on Antitheft
feature.
After you create KaiOS account and turn on
antitheft function go to website
https://services.kaiostech.com/antitheft/
remotely lock your phone or turn on ringing.
19. Safe use
Please read the following rules. Noncompliance
with such regulations might be dangerous or illegal.
in order to
20
Read the entire User Manual to get more
information.
• Switch off the phone in proximity to chemical
plants, refueling points, and other places that
might store explosives.
• Devices and accessories might contain small
parts. Keep the phone away from children.
• Use a headset while driving, for your safety.
• Switch off the phone prior to boarding an
aircraft. Keep it off while in the air.
• Be careful while using the phone in proximity
to devices such as heart pace makers,
hearing aids and other medical equipment if
their work might be interfered by the phone.
• Only original accessories are covered under
warranty.
• Never attempt to disassemble the phone on
your own. For any problems related to the
device, contact the Manufacturer.
• Never charge the phone if the battery is not in
place. For your safety, never talk on the
phone while charging.
• Charge the phone in well ventilated areas;
keep the device away from flammable and
explosive materials.
• To prevent demagnetizing, keep the phone
away from any item containing magnet such
as credit card or magnetic discs.
• Keep the phone dry at all times. If wet or
eroded, contact the Manufacturer.
• Avoid using the phone in too low or high
temperature or exposing the device to direct
sunlight. Never place the phone next to
heating devices such as radiators, heaters,
ovens, furnaces, camp fire, barbeques, etc.
Never expose the phone to sun, high humidity
or dusted air. Keep it away from metal chips
21
that might cause the phone to malfunction.
• Do not use liquids or rags soaked in
detergents to clean the phone.
• Wireless phones might be easy to catch
interferences that might impact their
performance.
• Use ONLY accessories and batteries
recommended by the Manufacturer. Never
use incompatible accessories nor batteries.
• The product shall only be connected to a USB
interface of version USB 2.0
• Adapter shall be installed near the equipment
and shall be easil y accessible.
• The plug considered as disconnect device of
adapter
• The device complies with RF specifications
when the device used at 5mm form your body.
20. Battery information
There is a battery in the phone. The battery can be
recharged using a charger that is included in the
set.
The battery life depends on conditions in which the
phone is used. Your distance from a relay
transmitter, number and the length of phone calls
significantly Reduce the battery life. While on the
go, the phone switches between relay transmitters
and such switching also significantly affects the
battery life.
After multiple charges and discharges, it is natural
for the battery to eventually lose its ability to hold
charge. Get a new battery if you notice a significant
drop in the battery performance.
Use only batteries recommended by the
Manufacturer.
22
Never leave the charger connected l onger than 2-3
days.
Never keep the phone in excessively hot places.
battery installation for proper polarization.
Leaving the battery in excessively hot or cold places
will Reduce the battery life. The recommended
storage temperature range is between 15°C and
25°C. Installing a cold battery into the phone might
cause the phone to malfunction and might damage
the phone.
CAUTION : RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE. DISPOSE
OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
21. SAR information
Information about the impact of radio waves and
Specific Absorption Rate [SAR]. This phone model
has been designed to meet all international
standards pertaining to the impact of radio waves as
recommended by international guidelines. These
guidelines were developed by the International
Commission on Non-Ionizing Radiation Protection
(ICNIRP), an independent scientific organization with
a safety margin to protect all people regardless their
age and health condition. Such guidelines use a unit
of measurement called Specific Absorption Rate
(SAR) – actual absorption.
High temperatures might
negatively impact both the
battery and the phone.
Never use a battery that is
clearly damaged. Doing so might
cause a short circuit, and might
damage the phone. Check
23
As recommended by ICNIRP, the border value of
Highest value of SAR
SAR for portable equipment is 2,0 watts per kilogram
(W/kg), and it is an average value per 10g of tissue.
SAR value is determined at the maximum transmit
power and in the full spectrum of frequencies
covered by research; the actual SAR value while the
product is working might be much lower than the
maximum level. Such discrepancies result from
automatic changes in device power necessary to
ensure that the device operates at a minimum power
level required to be connected with network.
This device was tested for typical body-worn
operations. To comply with RF exposure
requirements, a minimum separation distance of
5mm must be maintained between the user’s body
and the handset, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by
this device should not contain any metallic
components. Bod y-worn accessories that do not
meet these requirements may not comply with RF
exposure requirements and should be avoided. Use
only the supplied or an approved antenna.
In case of this model, the highest SAR value in tests
is:
GSM 900 1,42 1,514
GSM 1800 0,443 1,453
WCDMA 8 0,744 0,924
24
Device
next to
head
Device next to
body
WCDMA 1 0,646 1,661
LTE 20 0,424 0,62
LTE 8 0,664 0,739
LTE 3 0,564 1,65
LTE 1 0,434 1,021
LTE 7 0,217 1,427
LTE 38 0,099 0,388
WLAN 2.4G 0,43 0,272
SAR values might also vary due to various reporting
and testing requirements in different countries as
well as to different frequencies in a certain network.
25
22. RF specification
power:
~1880MHz
Max RF
Function Operation Frequency
BT(BLE) 2402MHz~2480MHz -0.03dBm 20 dBm
BT
(BR+EDR)
Wi-Fi
(802.11b/g/n
20)
GSM/GPRS/
EGPRS 900
GSM/GPRS/
EGPRS
1800
2402MHz~2480MHz 5.26 dBm 20 dBm
802.11b/g/n20: 2412MH
z~2472MHz;
Tx(Uplink):
880MHz~915MHz;
Rx(Downlink):
925MHz~960MHz
Tx(Uplink): 1710MHz~17
85MHz;
Rx(Downlink): 1805MHz
Limit
output
17.8dBm 20 dBm
class4
32.86dBm
(33±3dBm)
Class1
30.75dBm
(30±3dBm)
WCDMA
Band 1
WCDMA
Band 8
26
Tx(Uplink):
1920MHz~1980MHz;
Rx(Downlink):
2110MHz~2170MHz
Tx(Uplink):
1920MHz~1980MHz;
22.37dBm
22.37dBm
Class3 24
(dBm) +1,7/-
3,7 (dB)
Class3 24
(dBm) +1,7/-
3,7 (dB)
FDD-LTE
791MHz~821MHz
Band 1
FDD-LTE
Band 3
FDD-LTE
Band 7
FDD-LTE
Band 8
FDD-LTE
Band 20
Rx(Downlink):
2110MHz~2170MHz
Tx(Uplink):
1920MHz~1980MHz;
Rx(Downlink):
2110MHz~2170MHz
Tx(Uplink): 1710MHz~17
85MHz;
Rx(Downlink): 1805MHz
~1880MHz
Tx(Uplink):
2500MHz~2570MHz;
Rx(Downlink):
2620MHz~2690MHz
Tx(Uplink):
880MHz~915MHz;
Rx(Downlink):
925MHz~960MHz
Tx(Uplink):
832MHz~862MHz;
Rx(Downlink):
22.93dBm
22.19dBm
21.93dBm
23.46dBm
23.95dBm
Class3 23
(dBm)+2/-
2(dB)
Class3 23
(dBm)+2/-
2(dB)
Class3 23
(dBm)+2/-
2(dB)
Class3 23
(dBm)+2/-
2(dB)
Class3 23
(dBm)+2/-
2(dB)
TDD-LTE
Band 38
Tx(Uplink):
2570MHz~2620MHz;
22.66dBm
Class3 23
(dBm)+2/-
2(dB)
27
Rx(Downlink):
2570MHz~2620MHz
This product can be used across EU member
states
.
23. Protect your Environment
Important: The phone is marked in compliance with
the European Directive of 2012/19/EU and the Polish
Act on Waste Electrical and Electronic Equipment,
and with the symbol of waste electricals. Such a
symbol tells us that the device, after use, must not be
disposed of in the normal household waste stream.
Important: Never throw the phone nor accessories
to municipal solid waste!!! The product should be
utilized in authorized places only
As the product contains hazardous components,
improper storage and use of such equipment might
lead to serious consequences harmful for both
people and natural environment. To avoid such
consequences, proper handling of waste electrical
and electronic equipment is essential.
To recycle materials used to produce the phone
packaging, follow the local recycling regulations in
your area. The set contains a Li-ion battery. Old
batteries pose environmental risks.
They should be disposed of at a
special place in a special container in
compliance with current regulations.
Never throw old batteries or chargers
28
to municipal solid waste, they should be collected for
disposal.
NEVER PUT BATTERIES AND CHARGERS INTO
FIRE!
24. Terms of warranty
The phone is covered under the warranty; proof of
purchase is necessary to use such warranty. There
is a charge for repair of phones damaged due to
misuse, electrostatic discharge or lightning strike.
Any attempts to fix or modify the phone by the User
will void the warranty!
The above information is presented for information
purposes only.
This Manual is for information purposes only. Some
features and options presented in this Manual might
vary depending on software installed and the
country. If any technical assistance is required, we
strongly encourage you to contact the technical
department at +48 32 325 07 00 or via email at
serwis@maxcom.pl
Our website: http://www.maxcom.pl/
Important: The battery performance depends on
local network environment, SIM Cards, and the
conditions in which the phone has been used. The
Manufacturer shall not be liable for any problems or
issues arising from misuse, abuse, or using the
phone in violation of this User Manual.
Important: The Manufacturer reserves his right to
make updates or modification without prior
notification. Trademarks mentioned or used in this
material remain a sole property of their owners
29
25. Simplified Declaration of EU Conformity
Maxcom S.A. hereby declares that radio equipment:
mobile phone MAXCOM MK241 is in line with
directive 2014/53/EU and with directive 2011/65/EU
(RoHS). All essential radio test suites have been
carried out.
Full text of EU Decl aration of Conformity is available
on website: www.maxcom.pl
available on demand.
or can be make
30
Operating Temperature: 0° C to +35° C
MK241 15.11.2018 AW
Manufacturer's Name: Maxcom S.A.
Address: Towarowa 23a, Tychy, Poland, 43-100
tel. (+48) 32 327 70 89
fax (+48) 32 327 78 60
www.maxcom.pl
office@maxcom.pl
31
32
Loading...
