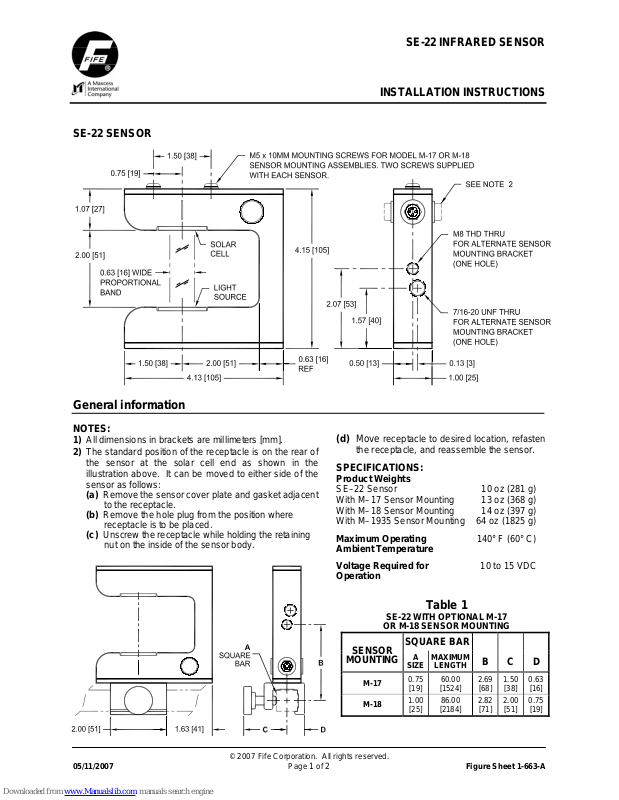

SE-22 SENSOR
General information
NOTES:
1) All dimensions in brackets are millimeters [mm].
2) The standard position of the receptacle is on the rear of
the sensor at the solar cell end as shown in the
illustration above. It can be moved to either side of the
sensor as follows:
(a) Remove the sensor cover plate and gasket adjacent
to the receptacle.
(b) Remove the hole plug from the position where
receptacle is to be placed.
(c) Unscrew the receptacle while holding the retaining
nut on the inside of the sensor body.
SE-22 INFRARED SENSOR
INSTALLATION INSTRUCTIONS
(d) Move receptacle to desired location, refasten
the receptacle, and reassemble the senso
r.
SPECIFICATIONS:
Product Weights
SE–22 Sensor 10 oz (281 g)
With M–17 Sensor Mounting 13 oz (368 g)
With M–18 Sensor Mounting 14 oz (397 g)
With M–1935 Sensor Mounting 64 oz (1825 g)
Maximum Operating 140° F (60° C)
Ambient Temperature
Voltage Required for 10 to 15 VDC
Operation
Table 1

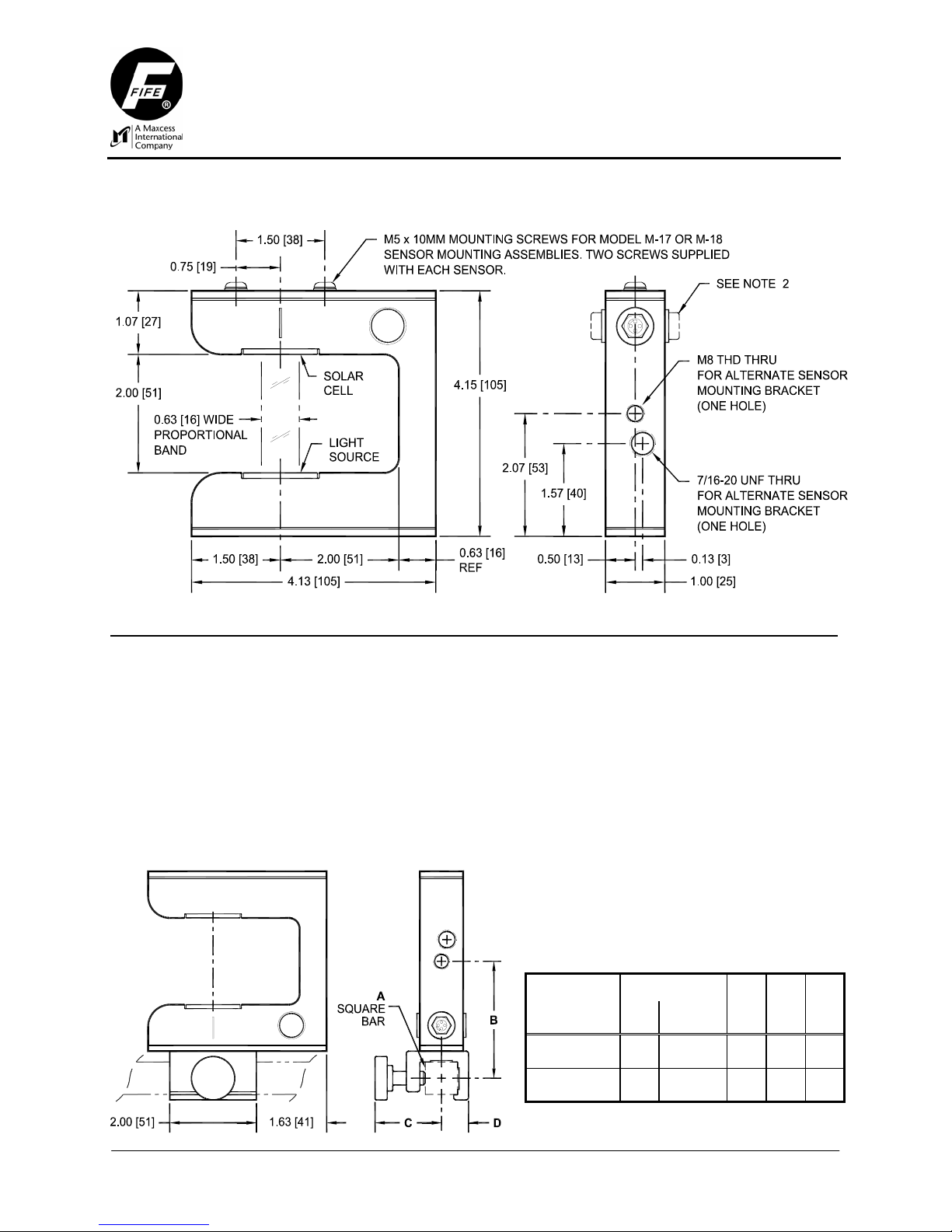

SE-22 WITH OPTIONAL M-17
OR M-18 SENSOR MOUNTING
C
D
0.63
[16]
0.75
[19]
SENSOR
MOUNTING
M-17
M-18
SQUARE BAR
A
MAXIMUM
SIZE
LENGTH
0.75
[19]
1.00
[25]
60.00
[1524]
86.00
[2184]
B
2.69
[68]
2.82
[71]
1.50
[38]
2.00
[51]
05/11/2007 Page
© 2007 Fife Corporation. All rights reserved.
1 of 2 Figure Sheet 1-663-A
Page 2
SENSOR
MOUNTING
SE-22 INFRARED SENSOR
INSTALLATION INSTRUCTIONS
Table 2

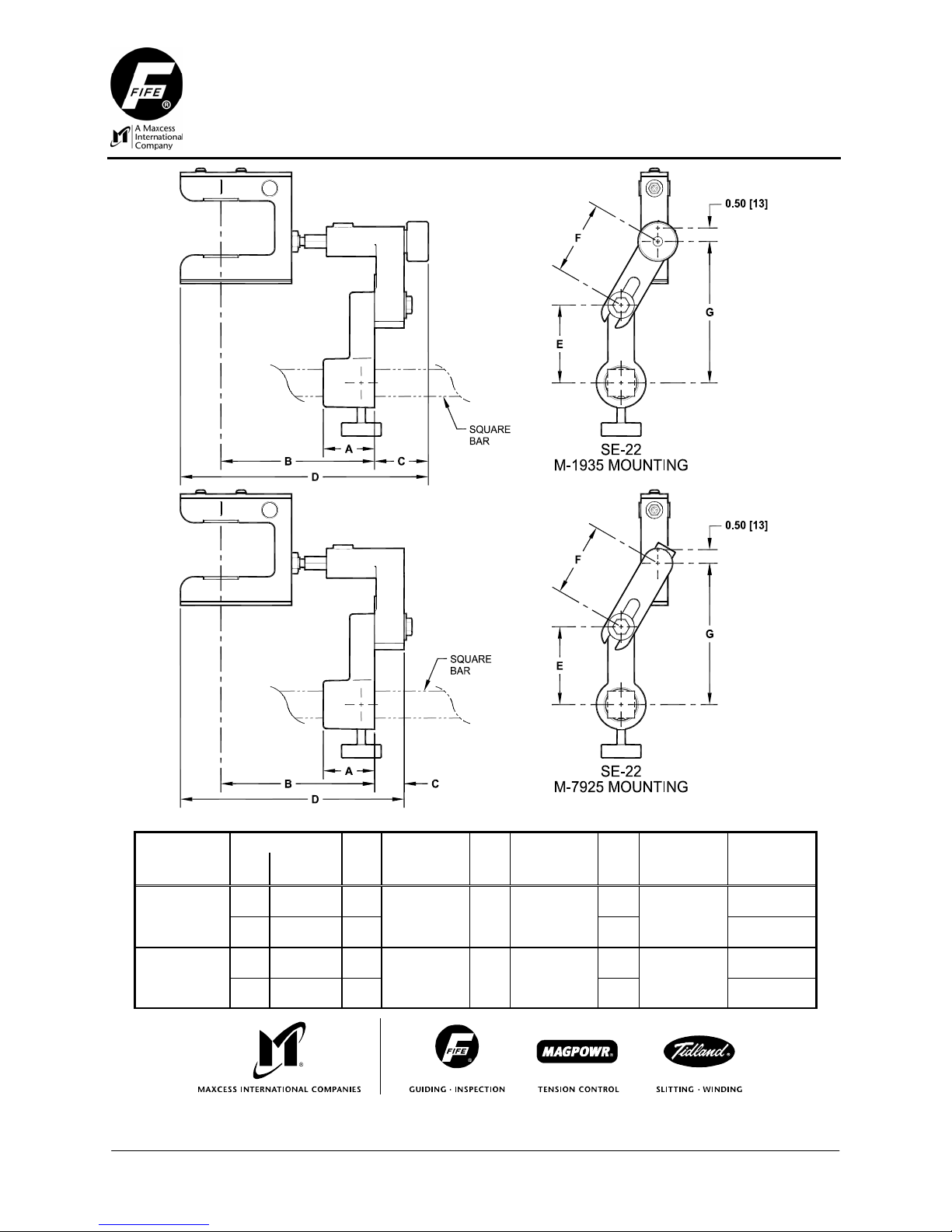

SE-22 WITH OPTIONAL M-1935 OR M-7925 SENSOR MOUNTING
M-1935
M-7925
222 W. Memorial Road, Oklahoma City, OK 73114-2317, USA / Post Office Box 26508, Oklahoma City, OK 73126-0508, USA
SQUARE BAR
SIZE MAXIMUM
Phone: 405.755.1600 / 800.639.3433 / Fax: 405.755.8425 / E-mail: [email protected] / Web: www.fife.com
1.00
[25]
1.25
[32]
1.00
[25]
1.25
[32]
LENGTH
86.00
[2184]
96.00
[2438]
86.00
[2184]
96.00
[2438]
A
2.00
[51]
2.50
[64]
2.00
[51]
2.50
[64]
B
ADJUSTABLE
5.13-6.25
[130-159]
4.88-6.38
[124-162]
FIFE CORPORATION
C
2.00
[51]
1.12
[28]
D
ADJUSTABLE
8.63-9.75
[219-248]
7.50-9.00
[191-229]
E
2.94
[75]
4.50
[114]
2.94
[75]
4.50
[114]
F
ADJUSTABLE
1.81-3.06
[46-78]
1.81-3.06
[46-78]
ADJUSTABLE
1.00-6.00
1.00-7.00
1.00-6.00
1.00-7.00
G
[25-152]
[25-178]
[25-152]
[25-178]
05/11/2007 Page
© 2007 Fife Corporation. All rights reserved.
2 of 2 Figure Sheet 1-663-A
