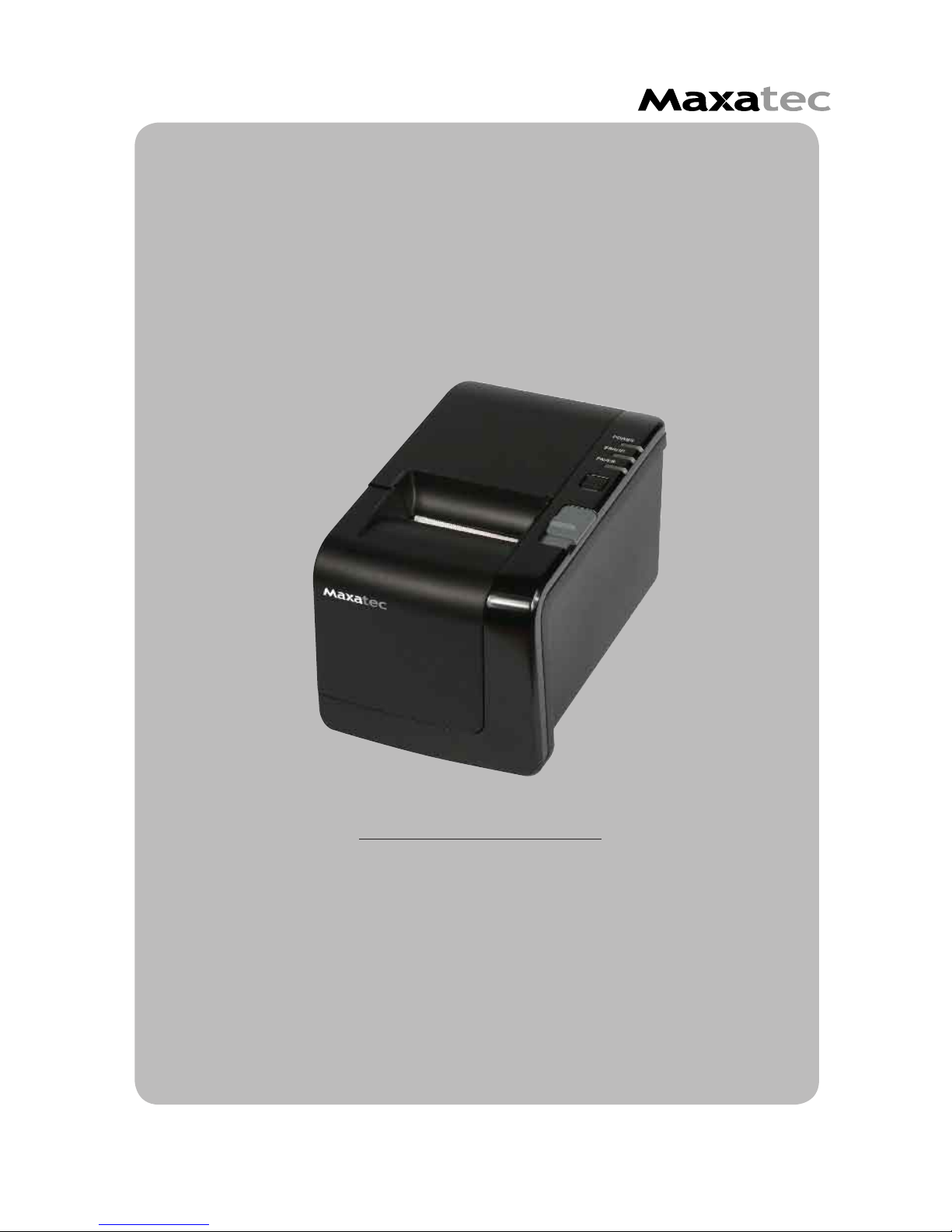

Receipt Printer User’s Manual

MODEL : MT-41

Page 2

Page 3

PERIPHERAL DRIVE CONNECTOR

INTERFA ORCE CONNECT

INTERFA OR(USB)CE CONNECT

POWER CONNECTOR

1. Parts Identiﬁcations 3

2. Setting up the printer 4

2.1 Unpacking 4

2.2 Connecting the cables 5

2.3 Loading the roll paper

2.4 Dip switch setting 10

3. Control panel and other functions

3.1 Control panel

3.2 Error Indicating

4. Self Test

5. Hexadecimal Dump 15

6. Speciﬁcations

6.1. General Speciﬁcations

6.2. Auto Cutter Speciﬁcations

6.3. Interface

6.4. Electrical Characteristics 18

6.5. Environmental Requirements

6.6. Reliability 19

6.7. Certiﬁcation

7. Command List 20

Table of Contents

1. Parts Identifications

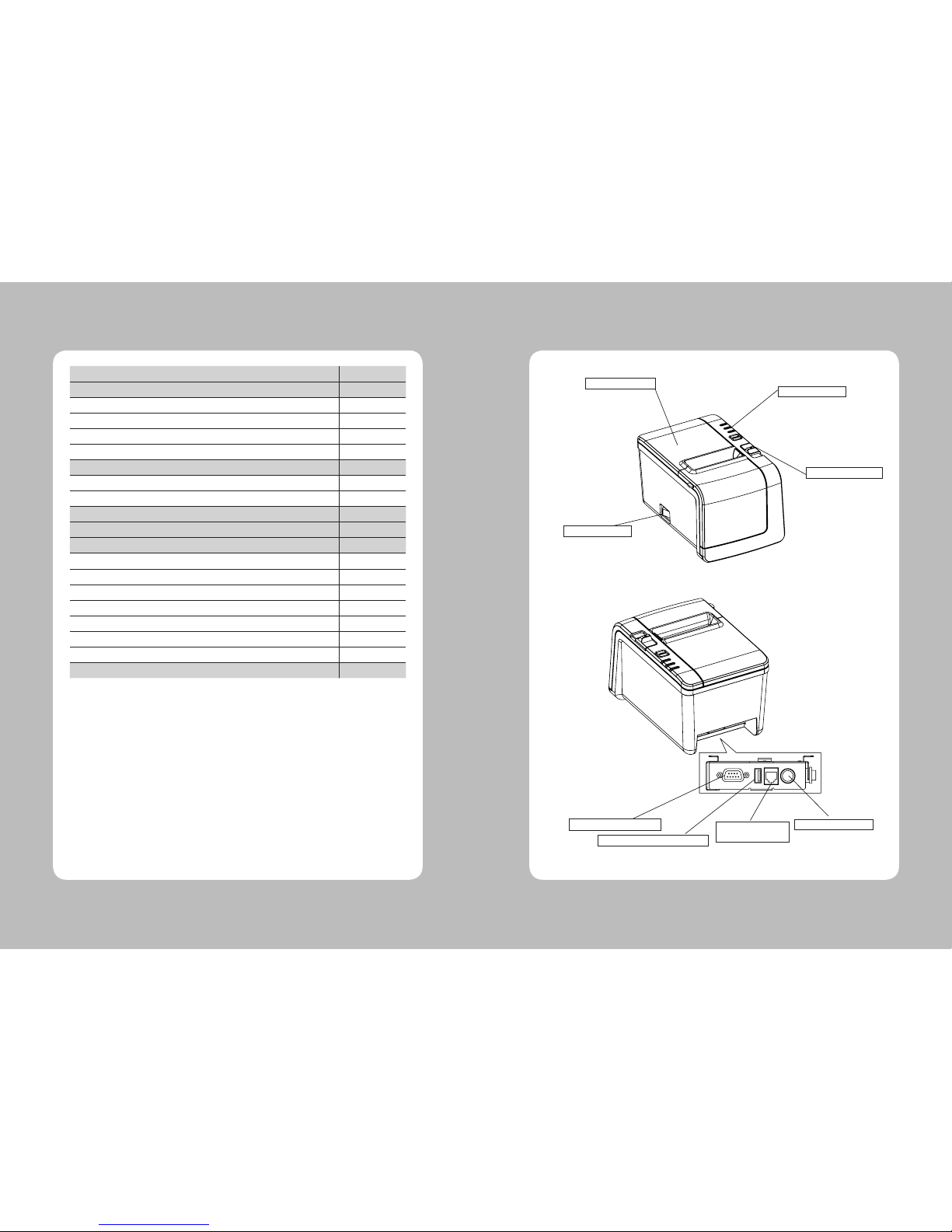

PRINTER COVER

Open this cover is load or replace paper

CONTROL PANEL

Features LED indicators to indicate printer status and switches to operat

the printer.

COVER OPEN BUTTON

Pull down this button to open the printer cover

POWER SWITCH

Used to turn on/off power to the printer.

Page 4

INTERFACE CONNECTOR(Serial)

PERIPHERAL DRIVE CONNECTOR POWER CONNECTO

For connection to a host computer

INTERFACE CONNECTOR(USB)

For connection to a host computer

Connects to peripheral units such as cas

h drawers, etc. Do not connect this to a telephone.

For connection of the AC adapter. Never unplug the AC adapte

while the printer is on.

2-2. Connecting the Cables

You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below :

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

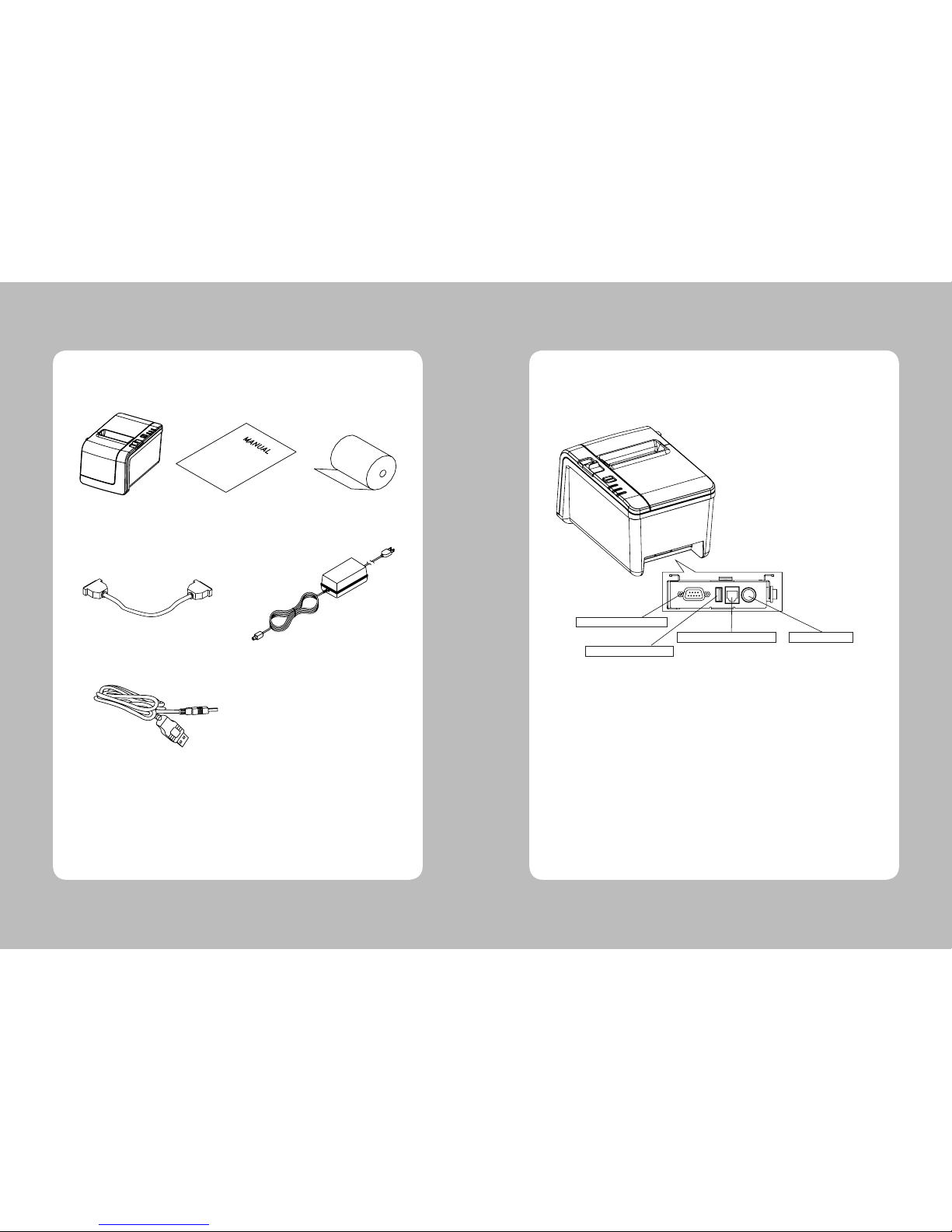

2-1. Unpacking

Your printer box should be included these items. If any items are damaged or missing, please contact your dealer for assistance.

The Printer User's Manual Roll Paper

Interface Cable(optional) Adaptor(optional)

Interface Cable USB (optional)

2. Setting Up the Printer

Page 5

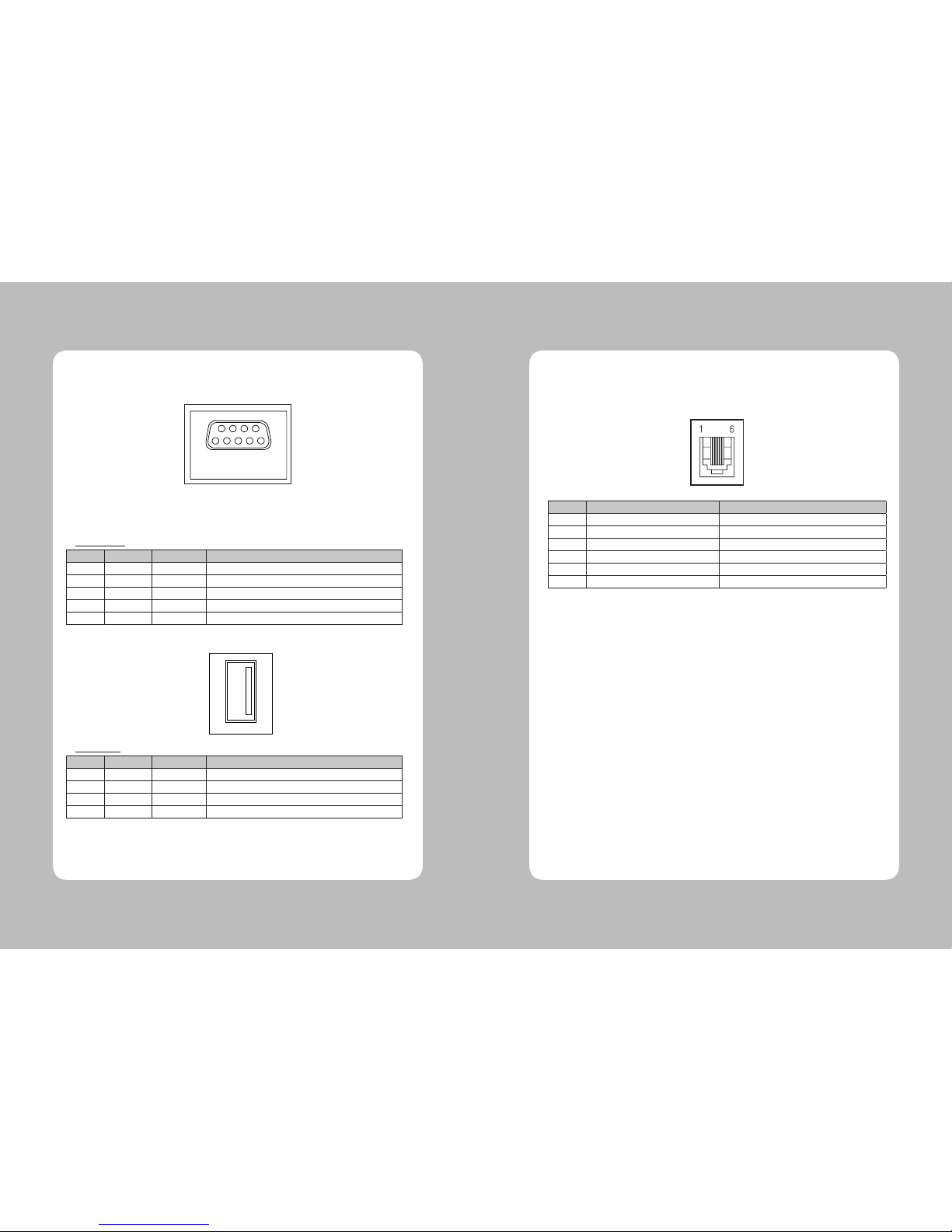

2-2-1. Interface Connector

Serial Interface

PIN SIGNAL I/O DESCRIPTION 3 TXD Output Printer transmit data line RS-232C level 2 RXD Input Printer receive data line RS-232C level 4, 7

DTR Output Printer handshake to host line RS-232C level 6 DSR Input Data Send Ready 5 GND - System Ground

USB Interface

PIN SIGNAL I/O DESCRIPTION 1 +5V - +5V 2 DATA- - Printer transmit data line 3 DATA+ - Printer transmit data line 4 GND - System Ground

RS-232

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing.

PIN SIGNAL DESCRIPTION

1 Signal GND 2 Drawer kick-out drive signal 1 Output 3 Drawer open/close signal Input 4 +24V 5 Drawer kick-out drive signal 2 Output 6 Signal GND -

Caution : To avoid an overcurrent, the resistance of the drawer kick-out solenoid must be 24 Ω or more.

<USB>

Page 6

2-3. Loading the Roll Paper

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the paper glued to the core because the printer cannot detect the paper end correctly.

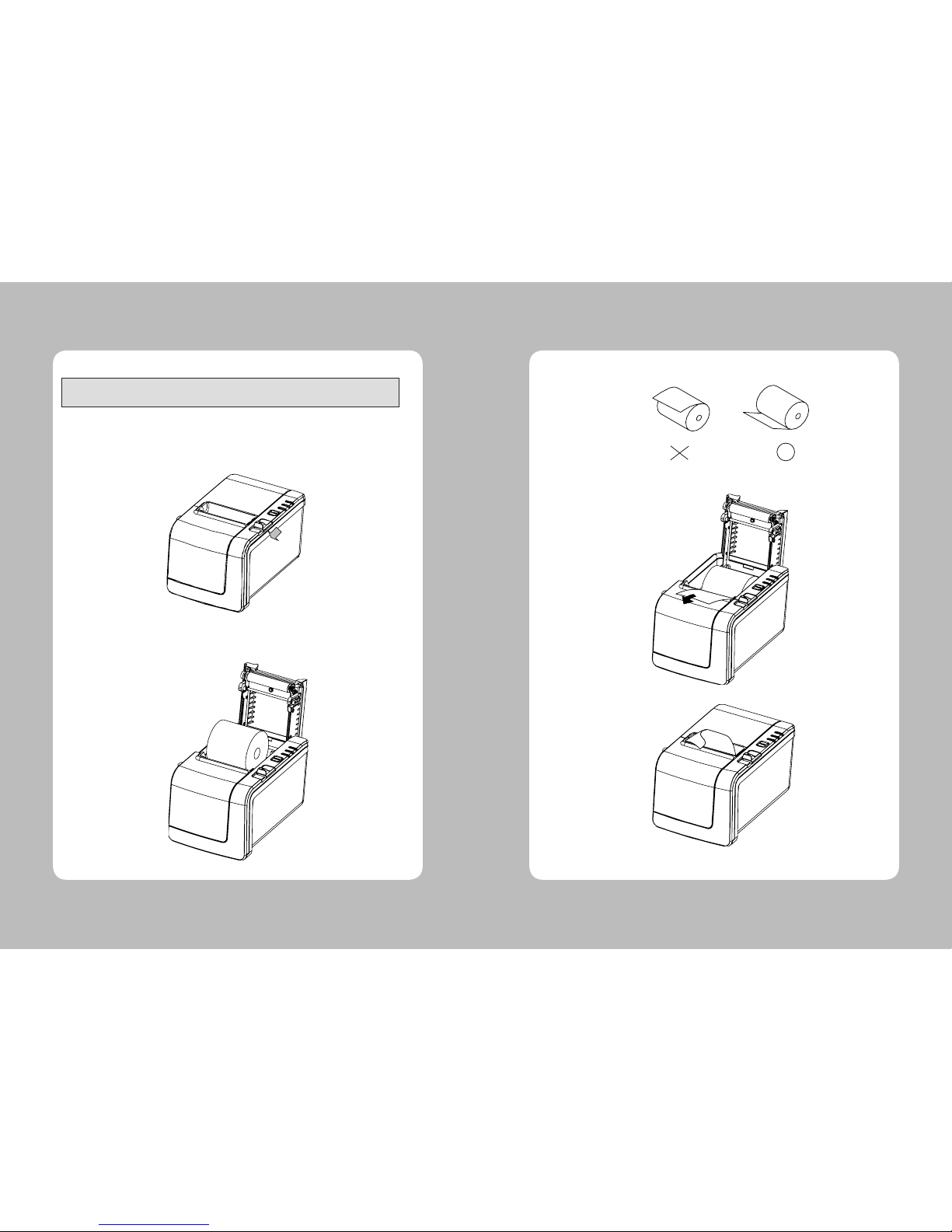

2-3-1. Turn off power switch

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pushing down the cover open button.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.

5. Be sure to note the correct direction that the paper comes off the roll.

6. Pull out a small amount of paper, as shown. Then, close the cover.

Page 7

2-4. Dip Switch Setting

The printer is set up at the factory to be appropriate for almost all users. On the other hand, offers some more settings for users with special requirements. It has DIP switches that allow you to change communication setting, such as handshaking and parity check, as well as print density. The functions of the dip switche is shown in the following tables.

♣Note : Power off. And open the cover of Dip Switch and change setting.

2-4-1. Serial Interface Specification

DIP Switch Functions 1

SW FUNCTION ON OFF DEFAULT

2 Hexadecimal HEXDUMP NORMAL OFF 3 Hand Shaking XON/XOFF DTR/DSR OFF

DIP Switch Functions 2(Baudrate selection)

Transmission speed SW-7 SW-8

11520 bps ON ON

9600 bps OFF ON 19200 bps ON OFF 38400 bps OFF OFF

DIP Switch Functions 3

Print Density

Print Density SW-5 SW-6

Low Power

ON ON Normal OFF ON Normal ON OFF

Dark OFF OFF

Emulation

FUNCTION SW-4

ESC Pos

OFF

♣CAUTION:

Turn off the printer while removing the DIP switch cover to prevent an electric short, which can damage the printer.

1. Make sure the printer is turned off.

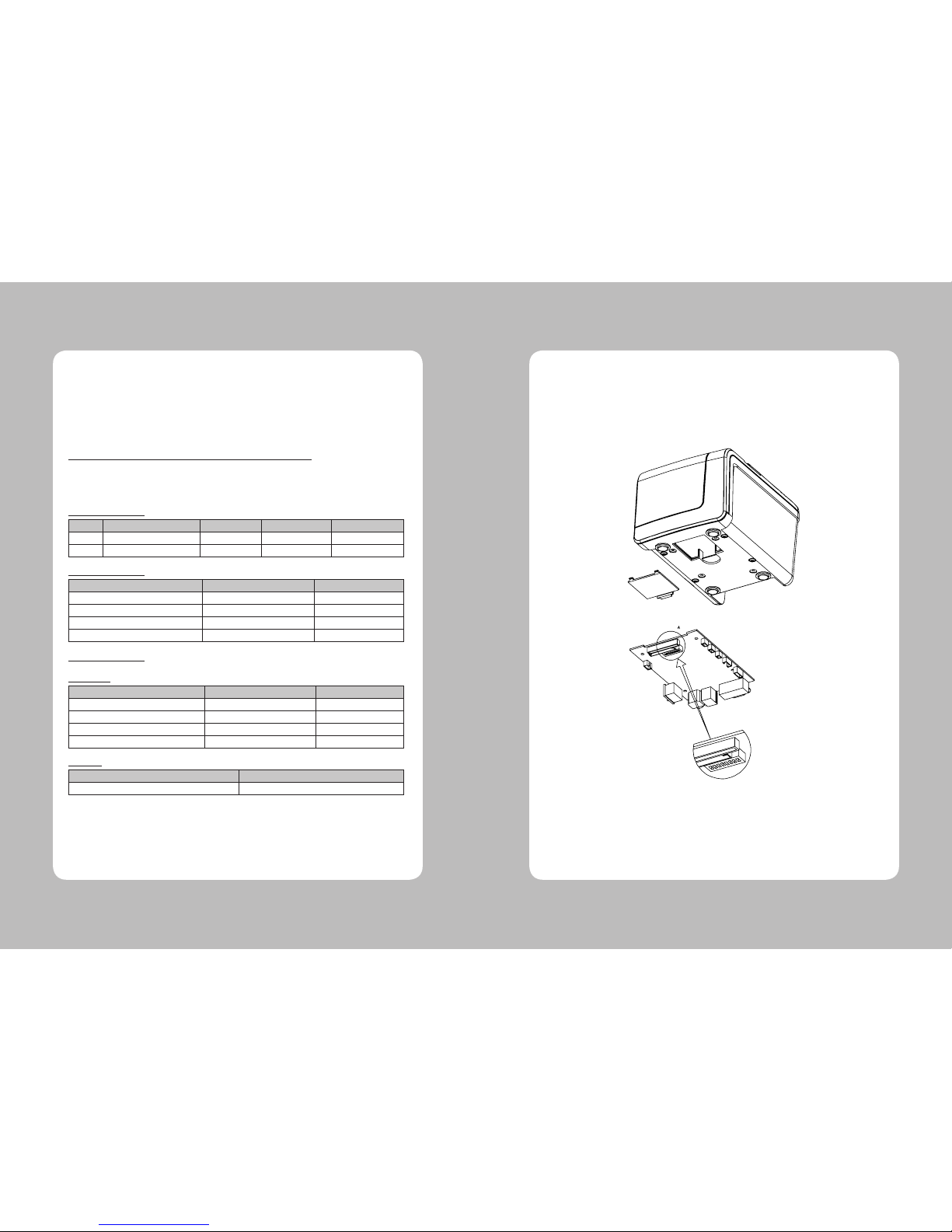

2. Remove the screw from the DIP switch cover. Then, take off the DIP switch cover as shown in the illustration below.

3. Set the switches using a pointed tool, such as tweezers or a small screwdriver.

4. Replace the DIP switch cover.

The new settings take effect when you turn on the printer.

DETAIL A SCALE 2:

Page 8

♣CAUTION:

When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming.

1. Make sure the printer is turned off.

2. Remove the screw from the DIP switch cover. Then, take off the DIP switch cover as shown in the illustration below.

3. Turn screw with drivers to a direction until paper is released from the cutter.

3-1. Control panel

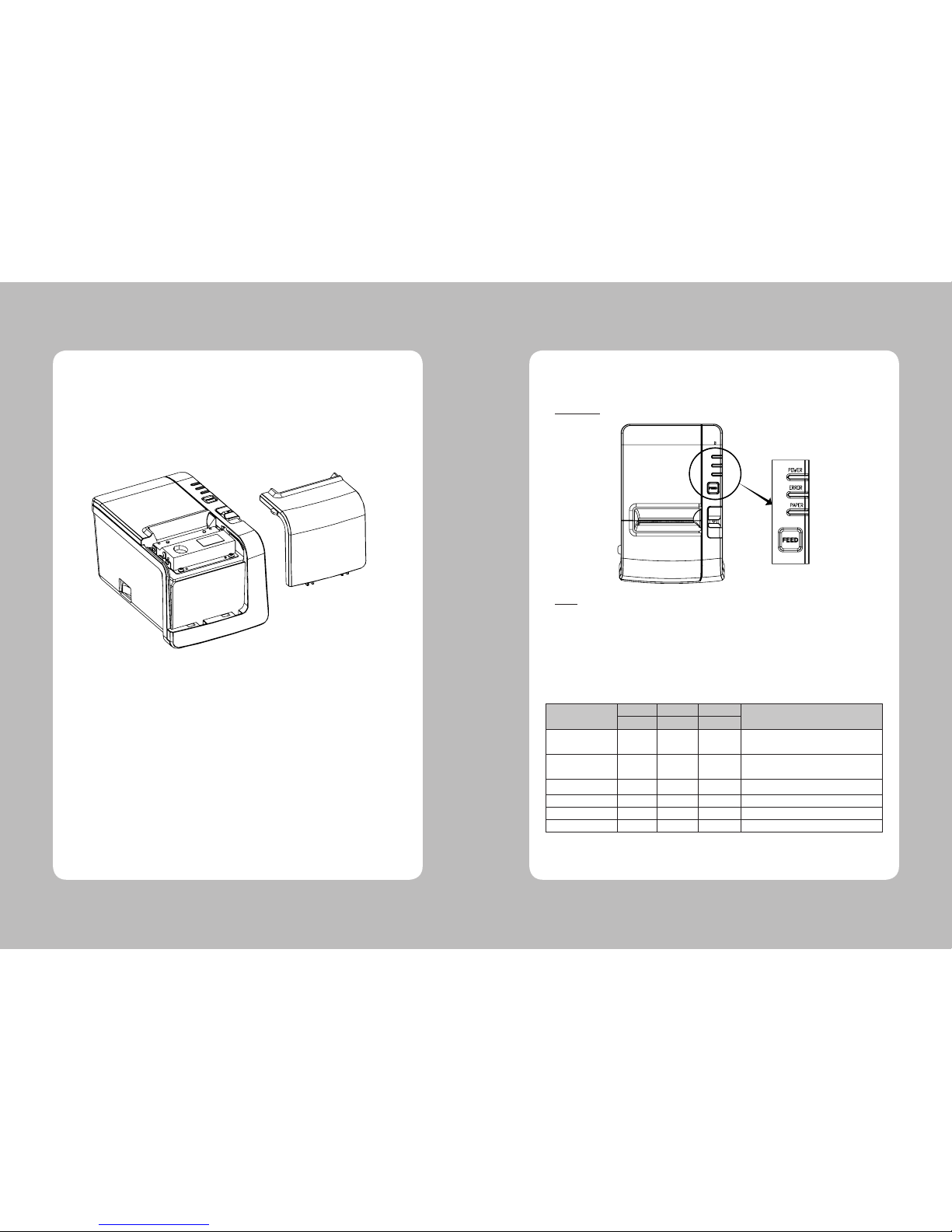

You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’s status.

Control Panel

Button

The button can be disabled by the ESC c 5 command.

Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed paper continuously.

3-2. Error indicators

This section explains the different patterns signaled by the three LED indicators located on the top cover of the printer.

STATUS

PAPER

ERROR POWER

REMARKS

RED RED GREEN

Power off

OFF OFF OFF

Normal power is not supplied to the printer

Power on

OFF OFF ON

Normal power is supplied to the printer

On line OFF OFF ON Normal error-free mode

Cover open ON ON ON Close cover Paper empty

ON ON ON Insert new paper roll

Test mode

OFF OFF ON Ignored error led

3. Control panel and other functions

Page 9

The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings. This test is independent of any other equipment or software.

Running the self test

1. Make sure the printer is turned off and the printer cover is closed properly.

2. While holding down the FEED button, turn on the printer using the switch on the front of the printer to begin the self-test. The Self Test prints the printer settings and then prints the following, Cuts the paper, and pauses. (Error LED On)

Self-test printing

Please press the PAPER FEED button.

3. Press the FEED button to continue printing. The printer prints a pattern using the built-in character set.

4. The self test automatically ends and cuts the paper after printing the following.

*** Completed ***

The printer is ready to receive data as soon as it completes the self-test.

This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you turn on the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

To use the hex dump feature, follow these steps

1. After you make sure that the printer is off and Dip s/w 1-2 is ON, turn on the printer.

2. Run any software program that sends data to the printer. The printer prints “Hexadecimal Dump” and then all the codes it receives in a two-column format. The first column contains the hexadecimal codes and the second column gives the ASC

Ⅱ characters that correspond to the codes.

Hexadecimal Dump 1B 21 00 1B 26 02 40 40 .!..& . @ @ 1B 25 01 1B 63 34 00 1B .%.. c4 .. 41 42 43 44 45 46 47 48 ABCDEFGH □ A period (.) is printed for each code that has no ASCⅡequivalent.

3. Turn off the printer, and make sure that Dip sw 1-2 off.

4. Turn on the printer.

4. Self Test

5. Hexadecimal Dump

Page 10

Important!

When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A. Be careful about installing the printer in an area where there is noise. Take the appropriate measure to protect against electrostatic AC line noise, etc.

6-1. General Specifications

(1) Printing Method Direct line thermal printing.

(2) Print speed 140mm/sec.

(3) Dot density

203 DPI (Hor / Ver) 203 / 203 (0.125mm / 0.125mm dot)

(4) Printing Width

203 DPI Max 54mm (432 dots)

(5) Number of print columns. No. of columns

Font “A” Font “B”

203 DPI 36 48

(6) Roll paper Refer to chapter 2 for details on the recommended roll Paper. Paper width : 58.5mm~59.5mm Roll diameter : Max. Ø60mm

(7) Weight 3.75 lbs (1.7Kg)

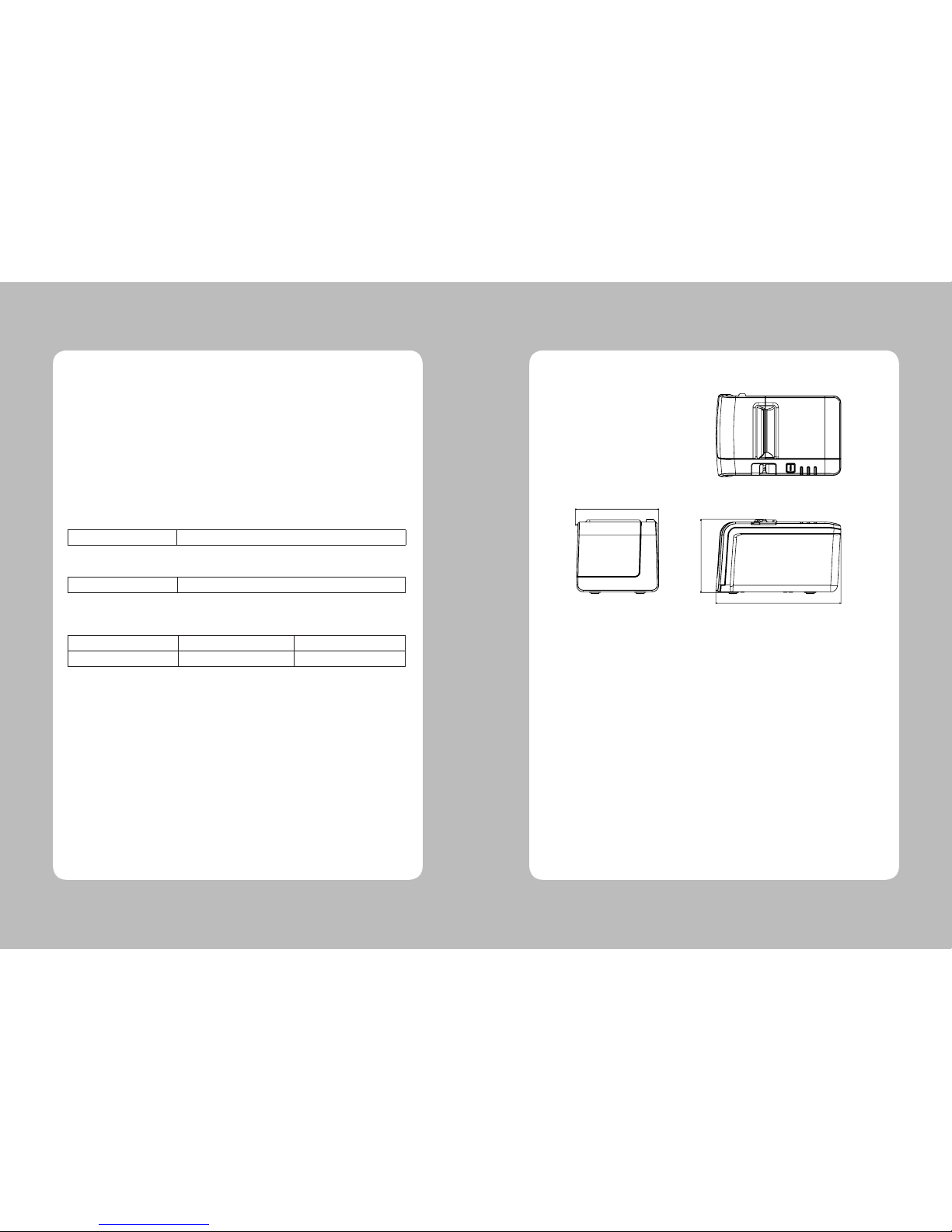

(8) Overall dimension

6. Specifications

121.46

107.01

181.58

Page 11

6-2. Auto Cutter Specifications

(1) Cutting Frequency Max. 30 cuts per minute

(2) Thickness of paper 0.065 ~ 0.1mm

(3) Cutter Life 1.0 million cuttings (if the paper thickness is between 65µm and100µm)

6-3. Interface

RS232C Serial Interface Only

6-4. Electrical Characteristics

(1) Input Voltage DC 24V ± 10%

(2) Current Consumption Operating: Approx. 1.5 A (at ASC

∥printing)

Peak : Approx. 10 A (at print duty 100%, For 10 seconds or less) Stand-by : Approx. 0.15 A (3) Power Connector

♣Important!

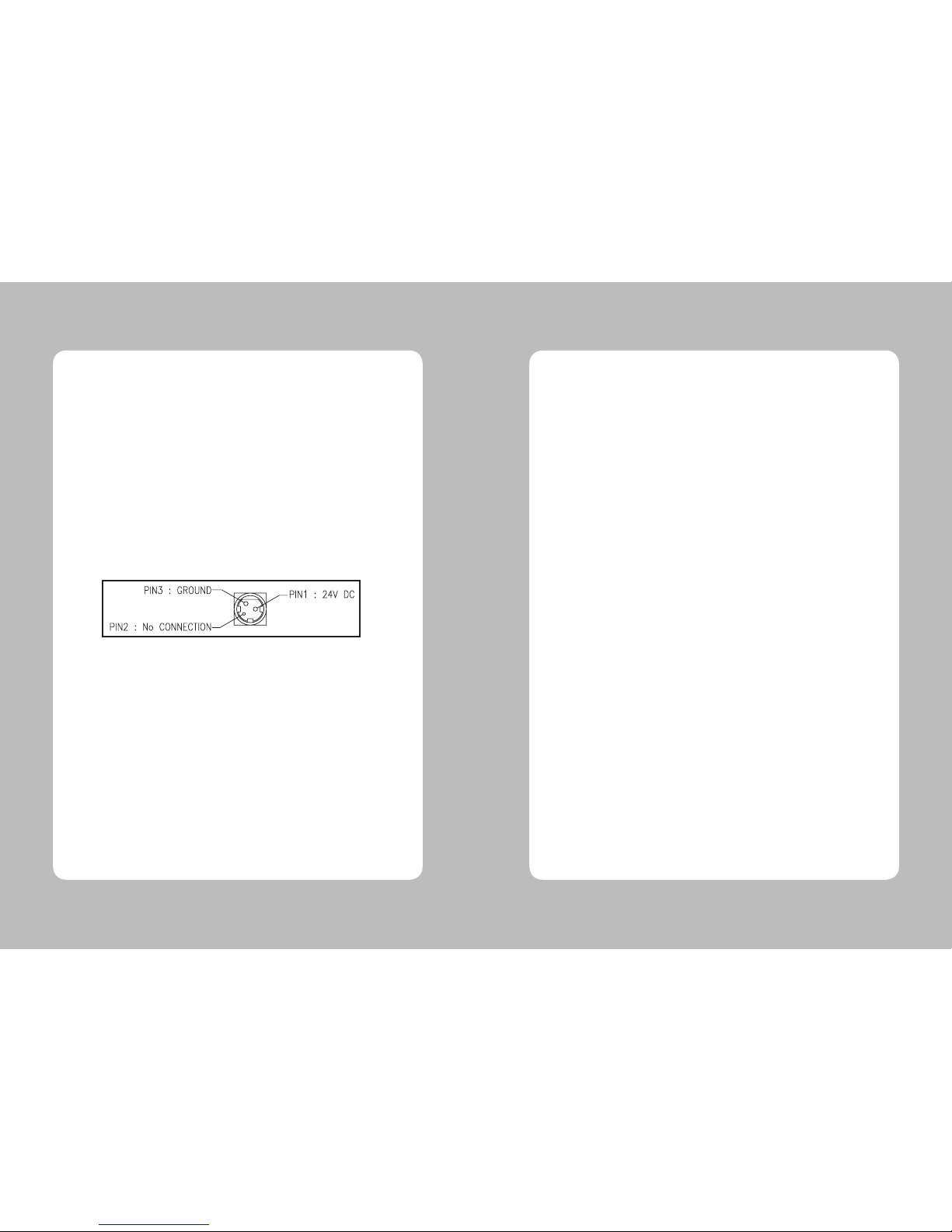

When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. (1) Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A. (2) Be careful about installing the printer in an area where there is noise. (3) Take the appropriate measure to protect against electrostatic AC line noise, etc.

6-5. Environmental Requirements

(1) Operating Temperature 5°C to 40°C Humidity 10% to 90% RH (without condensation)

(2) Transport/Storage (except paper) Temperature -20°C to 60°C Humidity 10% to 90% RH (without condensation)

6-6. Reliability

(1) MCBF 50 million lines (based on an average printing rate of 12.5% with paper thickness in the range 65µm to 75µm) 35 million lines (based on an average printing rate of 12.5% with paper thickness in the range 76µm to 150µm)

(2) Head Life 200 million pulses, 200Km

(3) Cutter Life 1.0 million cuttings (if the paper thickness is between 65µm and 100µm)

6-7. Certification

(1)FCC PART15 CLASS A (2)CE EMCD/LVD (3)TUV RoHS

Page 12

No. Command Function REMARKS 1 HT Horizontal tab 2 LF Print and line feed 3 CR Print and carriage return 4 FF Print and return to standard mode(in page mode) 5 CAN Cancel print data in page mode 6 DLE EOT Real-time status transmission 7 DLE ENQ Real-time request to printer 8 DLE DC4 Generate pulse at real-time 9 ESC FF Print data in page mode 10 ESC SP Set right-side character spacing 11 ESC ! Select print mode(s) 12 ESC $ Set absolute print position 13 ESC % Select/cancel user-defined character set 14 ESC & Define user-defined characters 15 ESC * Set bit-image mode 16 ESC - Turn underline mode on/off 17 ESC 2 Select default line spacing 18 ESC 3 Set line spacing 19 ESC = Select peripheral device 20 ESC ? Cancel user-defined characters 21 ESC @ Initialize printer 22 ESC D Set horizontal tab positions 23 ESC E Turn emphasized mode on/off 24 ESC G Turn double-strike mode on/off 25 ESC J Print and feed paper using minimum units 26 ESC L Select page mode 27 ESC M Select character font 28 ESC R Select an international character set 29 ESC S Select standard mode 30 ESC T Select print direction in page mode 31 ESC V Turn 90° clockwise rotation mode on/off 32 ESC W Set printing area in page mode 33 ESC ＼ Set relative print position 34 ESC a Select justification 35 ESC c 3 Select paper sensor(s) to output paper-end signals 36 ESC c 4 Select paper sensor(s) to stop printing 37 ESC c 5 Enable/disable panel buttons 38 ESC d Print and feed paper n lines 39 ESC p General pulse

7. Command List

No. Command Function REMARKS 40 ESC t Select character code table 41 ESC { Turn upside-down printing mode on/off 42 FS p Print NV bit image 43 FS q Define NV bit image 44 GS ! Select character size 45 GS $ Set absolute vertical print position in page mode 46 GS * Define downloaded bit image 47 GS / Print downloaded bit image 48 GS B Turn white/black reverse printing mode on/off 49 GS H Select printing position of HRI characters 50 GS I Transmit printer ID 51 GS L Set left margin 52 GS P Set horizontal and vertical motion units 53 GS V Select cut mode and cut paper 54 GS W Set printing area width 55 GS ＼ Set relative vertical print position in page mode 56 GS a Enable/disable Automatic Status Back(ASB) 57 GS f Select font for HRI characters 58 GS h Set bar code height 59 GS k Print bar code 60 GS r Transmit status 61 GS v 0 Print raster bit image 62 GS w Set bar code width

< Add > 1 ESC i Full cut 2 ESC m Partial cut 3 FS ! Set print mode(s) for Kanji characters 4 FS & Select Kanji character mode 5 FS - Turn underline mode on/off for Kanji character 6 FS . Cancel Kanji character mode

7 FS 2 c1 d1…dk Define user-defined Kanji characters

8 FS C Select Kanji character code system 9 FS S 1 2 Set Kanji character spacing 10 FS W Turn quadruple-size mode on/off for Kanji character 11 RS Beep Sound

Page 13

Page 14

Rev. 1.0
