PNEUMATIC STAPLER
OPERATING and MAINTENANCE MANUAL
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND
INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
WARNING
2
DEFINITIONS OF SIGNAL WORDS
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
NOTE: Emphasizes essential information.
ENGLISH Page 3 to 14 Page
INDEX
3
OPERATING and MAINTENANCE MANUAL
INDEX
1. SAFETY INSTRUCTIONS
……………………………………………
3
2. SPECIFICATIONS & TECHNICAL DATA
………………………………
7
3. AIR SUPPLY AND CONNECTIONS
……………………………………
8
4. INSTRUCTIONS FOR OPERATION
……………………………………
10
5. MAINTAIN FOR PERFORMANCE
……………………………………
14
6. STORING
………………………………………………………………
14
7. TROUBLESHOOTING/REPAIRS
………………………………………
14
BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE
SAFETY WARNING AND INSTRUCTIONS.
KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE.
1. SAFETY INSTRUCTIONS
TO AVOID SEVERE PERSONAL INJURY OR
PROPERTY DAMAGE
BEFORE USING THE TOOL, READ
CAREFULLY AND UNDERSTAND THE
FOLLOWING “SAFETY INSTRUCTIONS”.
FAILURE TO FOLLOW WARNINGS COULD
RESULT IN DEATH OR SERIOUS INJURY.
1. WEAR SAFETY GLASSES OR GOGGLES
Danger to the eyes always exists due to the
possibility of dust being blown up by the
exhausted air or of a fastener flying up due to
the improper handling of the tool. For these
reasons, safety glasses or goggles shall
always be worn when operating the tool.
The employer and/or user must ensure that
proper eye protection is worn. Eye protection
equipment must conform to the requirements
of the American National Standards Institute,
ANSI Z87.1 (Council Directive 89/686/EEC of
21 DEC. 1989) and provide both frontal and
side protection.
The employer is responsible to enforce the
use of eye protection equipment by the tool
operator and all other personnel in the work
area.
NOTE: Non-side shielded spectacles and
face shields alone do not provide adequate
protection.
ENGLISH
PRECAUTIONS ON USING THE TOOL
WARNING
WARNING
ENGLISH
4
2. EAR PROTECTION MAY BE REQUIRED IN
SOME ENVIRONMENTS
As the working condition may include
exposure to high noise levels which can lead
to hearing damage, the employer and user
should ensure that any necessary hearing
protection is provided and used by the
operator and others in the work area.
3. DO NOT USE ANY POWER SOURCE
EXCEPT AN AIR COMPRESSOR
The tool is designed to operate on
compressed air. Do not operate the tool on
any other highpressure gas, combustible
gases (e.g., oxygen, acetylene, etc.) since
there is the danger of an explosion. For this
reason, absolutely do not use anything other
than an air compressor to operate the tool.
4. OPERATE WITHIN THE PROPER AIR
PRESSURE RANGE
The tool is designed to operate within an air
pressure range of 70 to 100 p.s.i. (5 to 7 bar).
The pressure should be adjusted to the type
of the work being fastened. The tool shall
never be operated when the operating
pressure exceeds 120 p.s.i. (8 bar).
Never connect the tool to air pressure which
potentially exceeds 200 p.s.i. (14 bar) as the
tool can burst.
5. DO NOT OPERATE THE TOOL NEAR A
FLAMMABLE SUBSTANCE
Never operate the tool near a flammable
substance (e.g., thinner, gasoline, etc.).
Volatile fumes from these substances could
be drawn into the compressor and
compressed together with the air and this
could result in an explosion.
6. DO NOT USE A WRONG FITTINGS
The connector on the tool must not hold
pressure when air supply is disconnected. If a
wrong fitting is used, the tool can remain
charged with air after disconnecting and thus
will be able to drive a fastener even after the
air line is disconnected, possibly causing
injury.
7. DISCONNECT THE AIR SUPPLY AND
EMPTY THE MAGAZINE WHEN THE TOOL
IS NOT IN USE
Always disconnect the air supply from the tool
and empty the magazine when operation has
been completed or suspended, when
unattended, moving to a different work area,
adjusting, disassembling, or repairing the tool,
and when clearing a jammed fastener.
5
7
70
100
Thinner
Gasoline
ENGLISH
5
11. USE SPECIFIED FASTENERS
(SEE PAGE 7)
The use of fasteners other than specified
fasteners will cause the tool malfunction. Be
sure to use only specified fasteners when
operating the tool.
12. PLACE THE DISCHARGE OUTLET ON THE
WORK SURFACE PROPERLY
Failure to place the discharge outlet of the
nose in a proper manner can result in a
fastener flying up and is extremely
dangerous.
13. KEEP HANDS AND BODY AWAY FROM
THE DISCHARGE OUTLET
When loading and using the tool, never place
a hand or any part of body in fastener
discharge area of the tool. It is very
dangerous to hit the hands or body by
mistake.
14. DO NOT DRIVE FASTENERS CLOSE TO
THE EDGE AND CORNER OF THE WORK
AND THIN MATE RIAL
The workpiece is likely to split and the
fastener could fly free and hit someone.
8. INSPECT SCREW TIGHTNESS
Loose or improperly installed screws or bolts
cause accidents and tool damage when the
tool is put into operation. Inspect to confirm
that all screws and bolts are tight and
properly installed prior to operating the tool.
9. DO NOT TOUCH THE TRIGGER UNLESS
YOU INTEND TO DRIVE A FASTENER
Whenever the air supply is connected to the
tool, never touch the trigger unless you intend
to drive a fastener into the work. It is
dangerous to walk around carrying the tool
with the trigger pulled, and this and similar
actions should be avoided.
10. NEVER POINT THE DISCHARGE OUTLET
TOWARD YOURSELF AND OTHER
PERSONNEL
If the discharge outlet is pointed toward
people, serious accidents may be caused
when misfiring. Be sure the discharge outlet
is not pointed toward people when connecting
and disconnecting the hose, loading and
unloading the fasteners or similar operations.
ENGLISH
6
19. NEVER USE THE TOOL IF ANY PORTION
OF THE TOOL CONTROLS (e.g., TRIGGER,
CONTACT ARM) IS INOPERABLE,
DISCONNECTED, ALTERED OR NOT
WOKING PROPERLY
20. NEVER ACTUATE THE TOOL INTO FREE
SPACE
This will avoid any hazard caused by free
flying fasteners and excessive strain of the
tool.
21. ALWAYS ASSUME THAT THE TOOL
CONTAINS FASTENERS
22. RESPECT THE TOOL AS A WORKING
IMPLEMENT
23. NO HORSEPLAY
24. NEVER LOAD THE TOOL WITH
FASTENERS WHEN ANY ONE OF THE
OPERATING CONTROLS (e.g., TRIGGER,
CONTACT ARM) IS ACTIVATED
OBSERVE THE FOLLOWING GENERAL
CAUTION IN ADDITION TO THE OTHER
WARNINGS CONTAINED IN THIS
MANUAL
• Do not use the tool as a hammer.
• Always carry the tool by the handle, never
carry the tool by the air hose.
• The tool must be used only for the purpose
it was designed.
• Never remove, tamper with the operating
controls (e.g., TRIGGER, CONTACT ARM)
• Keep the tool in a dry place out of reach of
children when not in use.
• Do not use the tool without Safety Warning
label.
• Do not modify the tool from original design
or function without approval by MAX CO.,
LTD.
15. DO NOT DRIVE FASTENERS ON TOP OF
OTHER FASTENERS
Driving fasteners of the top of other fasteners
may cause deflection fasteners which could
cause injury.
16. REMOVING THE FASTENERS AFTER
COMPLETING OPERATION
If fasteners are left in the magazine after the
completion of operation, there is the danger
of a serious accident occurring prior to the
resumption of operation, should the tool be
handled carelessly, or when connecting the
air fitting. For this reason, always remove all
fasteners remaining in the magazine after
completion of the operation.
17. CHECK OPERATION OF THE CONTACT
TRIP MECHANISM FREQUENTLY IN CASE
OF USING A CONTACT TRIP TYPE TOOL
Do not use the tool if the trip is not working
correctly as accidental driving of a fastener
may result. Do not interfere with the proper
operation of the contact trip mechanism.
18. WHEN USING THE TOOL OUTSIDE OR
ELEVATED PLACE
When fastening roofs or similar slanted
surface, start fastening at the lower part and
gradually work your way up. Fastening
backward is dangerous as you may loose
your foot place.
Secure the hose at a point close to the area
you are going to drive fasteners. Accidents
may be caused due to the hose being pulled
inadvertently or getting caught.
ENGLISH
7
1. NAME OF PARTS
2. TOOL SPECIFICATIONS
3. FASTENER SPECIFICATIONS
o
yiu
w
q
r
e
t!0
!1
q
Frame
w
Cylinder Cap
e
Contact Arm
r
Nose
t
Magazine
y
Trigger
u
Grip
i
Trigger Lock Dial
o
Staple Removal Lever
!0
Pusher
!1
Click Lever
2. SPECIFICATIONS AND TECHNICAL DATA
CROWN
THICKNESS WIDTH
LENGTH
PRODUCT NO. TA551A/16-11
HEIGHT 11-3/8” (288.5 mm)
WIDTH 3-1/4” (84 mm)
LENGTH 14” (356 mm)
WEIGHT 4.9 lbs. (2.2 kg)
RECOMMENDED
70 to 100 p.s.i. (5 to 7 bar)
OPERATING PRESSURE
LOADING CAPACITY 157 Staples
AIR CONSUMPTION
0.039 ft
3
(1.1R) at 100 p.s.i. (7 bar)
operating pressure
PRODUCT NO. TA551A/16-11
CROWN 7/16” (11 mm)
LENGTH 1˝ to 2” (25 to 51 mm)
WIDTH 0.062” (1.57 mm)
THICKNESS 0.055” (1.40 mm)
GAUGE 16
ENGLISH
8
TOOL AIR FITTINGS:
This tool uses a 1/4˝ N.P.T. male plug. The inside
diameter should be .28” (7mm) or larger. The
fitting must be capable of discharging tool air
pressure when disconnected from the air supply.
RECOMMENDED OPERATING
PRESSURE:
70 to 100 p.s.i. (5 to 7 bar). Select the operating
air pressure within this range for best fastener
performance.
DO NOT EXCEED 120 p.s.i. (8 bar).
5. APPLICATIONS
＊General constuction works including siding,
decking, panel sheathing
＊Crating
＊Making wooden pallets
4. TECHNICAL DATA
q NOISE
A-weighted single-event sound power level
------ LWA, 1s, d 97.44 dB
A-weighted single-event emission sound
pressure level at work station
------- LpA, 1s, d 86.64 dB
These values are determined and documented
in accordance to EN12549 : 1999.
w VIBRATION
Vibration characteristic value ＝ 3.8 m/s
2
These values are determined and documented
in accordance to ISO 8662-11.
This value is a tool-related characteristic value
and does not represent the influence to the
hand-arm-system when using the tool. An
influence to the hand-arm-system when using
the tool will for example depend on the
gripping force, the contact pressure force, the
working direction, the adjustment of mains
supply, the workpiece, the workpiece support.
3. AIR SUPPLY AND
CONNECTIONS
Read section titled “SAFETY
INSTRUCTIONS”.

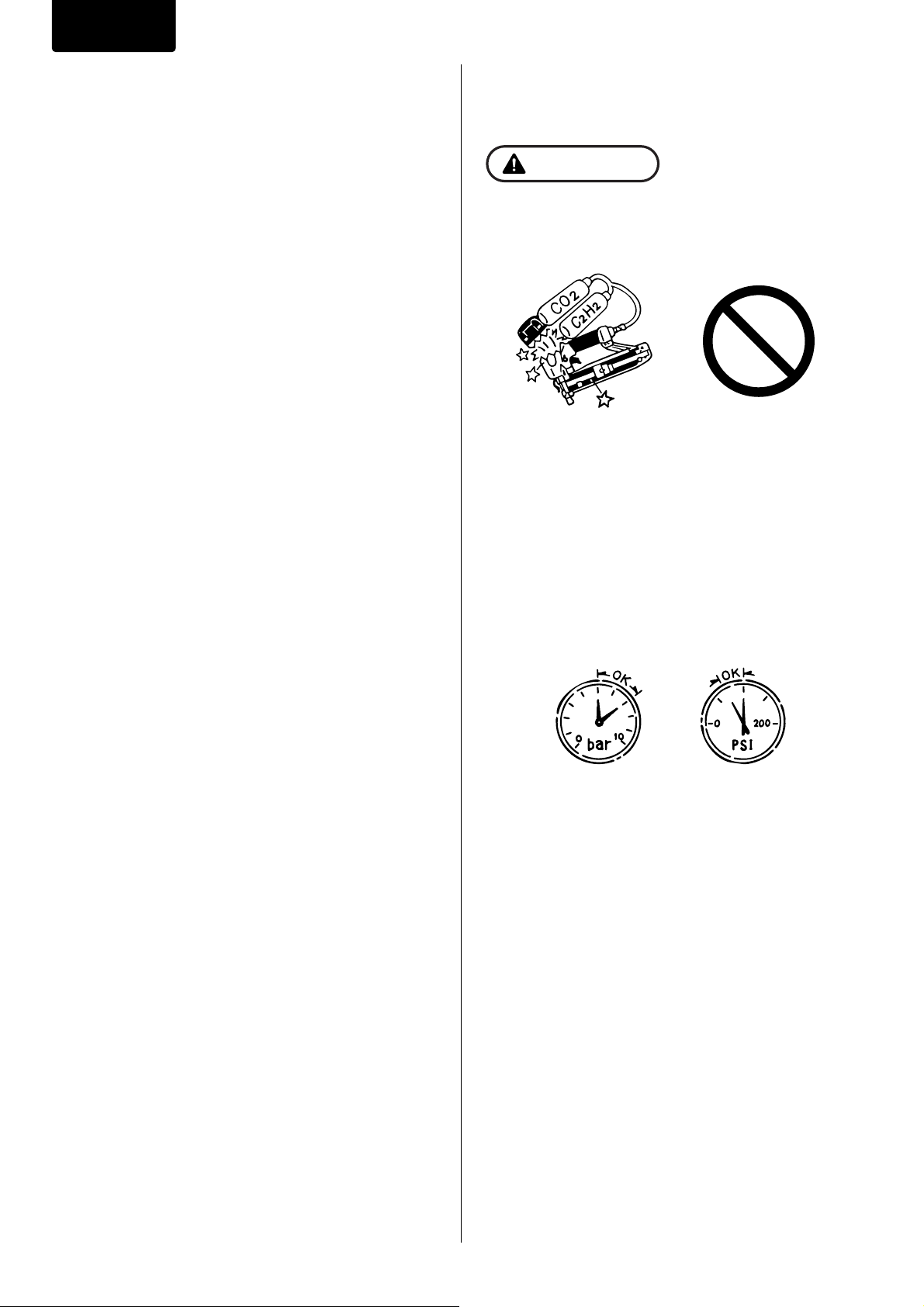

DO NOT USE ANY POWER SOURCE EXCEPT
AN AIR COMPRESSOR
The tool is designed to operate on compressed
air. Do not operate the tool on any other
highpressure gas, combustible gases (e.g.,
oxygen, acetylene, etc.) since there is the danger
of an explosion. For this reason, absolutely do not
use anything other than an air compressor to
operate the tool.
OPERATE WITHIN THE PROPER AIR
PRESSURE RANGE
The tool designed to operate within an air
pressure range of 70 to 100 p.s.i. (5 to 7 bar).
The pressure should be adjusted to the type of
the work being fastened. The tool shall never be
operated when the operating pressure exceeds
120 p.s.i. (8 bar).
5
7
70
100
WARNING
ENGLISH
9
DO NOT OPERATE THE TOOL NEAR A
FLAMMABLE SUBSTANCE
Never operate the tool near a flammable
substance (e.g., thinner, gasoline, etc.). Volatile
fumes from these substances could be drawn into
the compressor and compressed together with
the air and this could result in an explosion.
DO NOT USE A WRONG FITTINGS
The connector on the tool must not hold pressure
when air supply is disconnected. If a wrong fitting
is used, the tool can remain charged with air after
disconnecting and thus will be able to drive a
fastener even after the air line is disconnected,
possibly causing injury.
DISCONNECT THE AIR SUPPLY AND EMPTY
THE MAGAZINE WHEN THE TOOL IS NOT IN
USE
Always disconnect the air supply from the tool
and empty the magazine when operation has
been completed or suspended, when unattended,
moving to a different work area, adjusting,
disassembling, or repairing the tool, and when
clearing a jammed fastener.
FITTINGS: Install a male plug on the tool which is
free flowing and which will release air pressure
from the tool when disconnected from the supply
source.
HOSES: Hose has a min. ID of 1/4” (6 mm) and
max. length of no more than 17” (5 meters).
The supply hose should contain a fitting that will
provide “quick disconnecting” from the male plug
on the tool.
SUPPLY SOURCE: Use only clean regulated
compressed air as a power source for the tool.
3-PIECE AIRSET (Air filter, Regulator, Oiler):
Refer to TOOL SPECIFICATIONS for setting the
correct operating pressure for the tool.
NOTE:
A filter will help to get the best performance and
minimum wear from the tool because dirt and
water in the air supply are major causes of wear
in the tool.
Frequent, but not excessive, lubrication is
required for the best performance. Oil added thru
the air line connection will lubricate the internal
parts.
Thinner
Gasoline
[
[
AIR SUPPLY & CONNECTIONS
AIR SUPPLY & CONNECTIONS
Air compressor
Air hose
Used at 70 to 100 p.s.i. (5 to 7 bar)
Air filter
]
]
Regulator
Oiler
3-piece airset
ENGLISH
10
4. INSTRUCTIONS FOR
OPERATION
Read section titled “SAFETY
INSTRUCTIONS”.
1. BEFORE OPERATION
q
Wear Safety Glasses or Goggles.
w
Do not connect the air supply.
e
Inspect screw tightness.
r
Check operation of the contact arm & trigger if
moving smoothly.
t
Connect the air supply.
y
Check the air-leakage. (The Tool must not
have the air-leakage.)
u
Hold the Tool with finger-off the trigger, then
push the contact arm against the work-piece.
(The tool must not operate.)
i
Hold the Tool with contact arm free from workpiece and pull the trigger. (The Tool must not
operate.)
o
Disconnect the air supply.
2. OPERATION
Wear safety glasses or goggles danger to the
eyes always exists due to the possibility of dust
being blown up by the exhausted air or of a
fastener flying up due to the improper handling of
the tool. For these reasons, safety glasses or
goggles shall always be worn when operating the
tool.
The employer and/or user must ensure that
proper eye protection is worn. Eye protection
equipment must conform to the requirements of
the American National Standards Institute, ANSI
Z87.1 (Council Directive 89/686/EEC of 21 DEC.
1989) and provide both frontal and side
protection.
The employer is responsible to enforce the use of
eye protection equipment by the tool operator and
all other personnel in the work area.
NOTE: Non-side shielded spectacles and face
shields alone do not provide adequate protection.
Keep hands and body away from the discharge
outlet when driving the fasteners because of
dangerous of hitting the hands or body by
mistake.
Pusher
Magazine
Staples
STAPLE LOADING
q
Pull pusher back into “locked” position.
w
Insert the staples into the magazine.
WARNING
WARNING
ENGLISH
11
e
Hold the click lever and put back the pusher.
Click lever
TEST OPERATION
q
Adjust the air pressure at 70 p.s.i. (5 bar) and
connect the air supply.
w
Without touching the trigger, depress the
contact arm against the work-piece.
Pull the trigger. (The tool must fire the
fastener.)
e
With the tool off the work-piece, pull the
trigger.
Then depress the contact arm against the
work-piece. (The tool must fire the fastener.)
r
Adjust the air pressure as much as the lowest
possible according the length of fastener and
the hardness of work-piece.
MODEL IDENTIFICATION
CONTACT TRIP
The common operating procedure on “Contact
Trip” tools is for the operator to contact the work
to actuate the trip mechanism while keeping the
trigger pulled, thus driving a fastener each time
the work is contacted. This will allow rapid
fastener placement on many jobs, such as
sheathing, decking and pallet assembly.
All pneumatic tools are subject to recoil when
driving fasteners. The tool may bounce, releasing
the trip, and if unintentionally allowed to recontact
the work surface with the trigger still actuated
(finger still holding trigger pulled) an unwanted
second fastener will be driven.
CONTACT TRIP
Identified by BLACK TRIGGER.
SEQUENTIAL TRIP
The Sequential Trip requires the operator to hold
the tool against the work before pulling the trigger.
This makes accurate fastener placement easier,
for instance on framing, toe nailing and crating
applications. The Sequential Trip allows exact
fastener location without the possibility of driving
a second fastener on recoil, as described under
“Contact Trip”.
The Sequential Trip Tool has a positive safety
advantage because it will not accidentally drive a
fastener if the tool is contacted against the workor anything else-while the operator is holding the
trigger pulled.
SEQUENTIAL TRIP
Identified by ORANGE TRIGGER.
ENGLISH
12
DRIVING FASTENERS
CONTACT FIRE OPERATION
(CONTACT TRIP)
For contact fire operation, hold the trigger and
depress the contact arm against the work surface.
PROCEDURE
q
Hold the trigger.
w
Depress the contact arm.
SINGLE FIRE OPERATION
(ANTI-DOUBLE FIRE MECHANISM AND
SEQUENTIAL TRIP)
For single fire operation, depress the contact arm
against the work surface and pull the trigger. Tool
can not fire a second fastener until the trigger is
released and tool can cycle.
PROCEDURE
q
Depress the contact arm.
w
Pull the trigger.
Screw M5×6
Up
Down
Contact arm “B”
Hex. bar wrench
DRIVING DEPTH ADJUSTMENT
ALWAYS disconnect air supply before making
adjustment.
The driving depth adjustment is made by
adjusting the contact arm “B”.
q
With air pressure set, drive a few staples into a
representative material sample to determine if
adjustment is necessary.
w
If adjustment is required, disconnect air
supply.
e
Take off hex. bar wrench set in the magazine.
The screw M5×6 is loosened to allow the
contact arm “B” to be moved up or down.
If the tool is “OVER DRIVING” (the staples is
driven below the work surface), the contact
arm “B” should be moved down slightly.
If staples “STICKING-OUT” (the staples is not
flush with the work surface), the contact arm
“B” should be moved up slightly.
Tighten screw M5×6.
r
Reconnect air supply.
WARNING
1
2
2
1
ENGLISH
13
Trigger lock
dial
Trigger
(LOCK)
(UNLOCK)
TRIGGER LOCK MECHANISM
The tool is equipped with a trigger lock
mechanism. Push and rotate the trigger LOCK to
the trigger UNLOCK position before driving
staples.
CLEARING JAMMED STAPLES
ALWAYS disconnect air supply before
clearing jammed fastener.
Staple removal lever
q
Take out the staples from the inside of the
magazine.
w
Release the staple removal lever and open the
door.
e
Remove staples that are jammed inside the
nose by using a punch or slotted screw driver.
r
After removing the staples. Close the door and
the staple removal lever.
WARNING
ENGLISH
14
5. MAINTAIN FOR
PERFORMANCE
q
DO NOT FIRE THE STAPLER WHEN IT IS
EMPTY
w
USE A 3-PIECE AIRSET
Failure to use a 3-piece airset allows the
moisture and dirt inside compressor to pass
into the tool directly. This causes rust and
wear, and results in a poor operating
performance. The hose length between airset
and tool should be no longer than 5 m since a
longer length results in a reduction in air
pressure.
e
USE RECOMMENDED OIL
The velocite or turbine oil should be used to
lubricate the tool. Upon completion of
operations, place 2 or 3 drops of oil into the air
plug inlet with the jet oiler. (Recommended Oil
: ISO VG32)
r
INSPECT AND MAINTAIN DAILY OR
BEFORE OPERATION
Disconnect air supply and empty the
magazine when inspecting or maintaining the
tool.
(1) Drain air line filter and compressor
(2) Keep lubricator filled in air 3-pieces set
(3) Clean filter element of air 3-pieces set
(4) Tighten all screws
(5) Keep contact arm moving smoothly
6. STORING
q
When not in use for an extended period, apply
a thin coat of the lubricant to the steel parts to
avoid rust.
w
Do not store the tool in a cold weather
environment. Keep the tool in a warm area.
e
When not in use, the tool should be stored in a
warm and dry place. Keep out of reach of
children.
r
All quality tools will eventually require servicing
or replacement of parts because of wear from
the normal use.
7. TROUBLE
SHOOTING/REPAIRS
The troubleshooting and/or repairs shall be
carried out only by the MAX CO., LTD. authorised
distributors or by other specialists.
Supplement to the operating instruction
According to the European Norm EN 792-13 the
regulation is valid from 01.01.2001 that all
fastener driving tools with contact actuation must
be marked with the symbol “Do not use on
scaffoldings, ladders” and they shall not be used
for specific application for example:
＊when changing one driving location to another
involves the use of scaffoldings, stairs, ladders
or ladder alike constructions e.g. roof laths,
＊closing boxes or crates,
＊fitting transportation safety systems e.g. on
vehicles and wagons.
WARNING
• The content of this manual might be changed without notice for improvement.
Recycled paper is used for this manual and its recyclable.
www.maxusacorp.com (USA Site)
★
071205-00/00
257 E 2nd St
Mineola, NY 11501
TEL: 1-800-223-4293
FAX: (516)741-3272
PRINTED IN JAPAN
Loading...
