Maverick MK2 Wash Quick Reference Manual
Quick Reference Guide
English EN
Español ES
Français FR
Nederlands NL
Maverick MK2 Wash QRG EN
About This
The Maverick MK2 Wash Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
• DO NOT open this product. It contains no user-servi ceable par ts.
use completely disconnect the product from power via breaker or by unplugging
form on the internal electronics of the product . To avoid causing a failure, allow
product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your
UK, Ireland,
Mexico, or Benelux, use the infor mation in Conta ct Us at the end of this QRG.
What Is
• Maverick MK 2 W ash
• 2 Omega brackets with mounting hardware
• Warranty Card
AC Power
This product has an auto-ranging power supply that can work with an input voltage
range of 100–240 VAC, 50/60 Hz.
To eliminate unnecessary wear and improve its lifespan, during periods of non-
power via breaker or by
Power Linking
You can link up to 2 Maverick MK2 Wash products at 120 V, 4 products at 208 V,
products at 230 V. Never exceed this number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
Guide
Download the User Manual from www.chauvetprofessional.com for more details.
• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-
it.
• CAUTION: When transferring product from extreme temperature
environments, (e.g., cold truck to warm humid ballroom) condensation may
product to fully acclimate to the surroundin g environment before conn ec ting it
to power.
• CAUTION: This product’s housing may be hot when lights ar e operating.
• Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50 cm of this product while
operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive
heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the hous ing, lenses, or cables appear damaged.
• DO NOT conne ct this product to a dimmer or rheostat.
• ONLY connect this produ ct to a grounded and protected circuit.
• ONLY use the mounting brackets or the handles to ca r ry this product. Do not
carry by the moving head.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this
distributor to request support or return a product. From the U.S.,
Included
• Seetronic P o werkon power cord
use completely disconnect the product from
unplugging it.
or 5
2
• Quick Reference Guide
Maverick MK2 Wash QRG EN
Replacing The
Fuse
1. Disconnect this product from power.
4. Screw the fuse holder cap b ack in place an d reconnect power.
Signal
You can link the Maverick MK2 Wash to a controller or con troller sof t war e u si n g a
,
, you can control
each individuall y on a single networ k. See the User Man ual for information about
how to connect and configure the product for these signals.
Control
The Maverick MK2 Wash uses DMX, Art-Net™, sACN, WDMX, and Kling-Net
for its control personalities:
Single Control
Dual Control Movement
Dual Control Pixel
Tour (146-channel)
Tour (146-channel)
Tour (146-channel)
Advanced (122-channel)
Advanced (26-channel)
Advanced (96-channel)
Standard (68-channel)
Standard (20-channel)
Standard (48-channel)
Basic (20-channel)
Basic (8-channel)
Basic (36-channel)
Uses DMX, Art-Net™,
sACN, or WDMX
Uses DMX, Art-Net™, or
sACN
Uses DMX, Art-Net™,
sACN, or Kling-Net
DMX Connection
The Maverick MK2 Wash will work with a DMX controller using a 3- or 5-pin
DMX data connection. A DMX Primer is available from
www.chauvetprofessional.com.
Art-Net™
Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount
Neutrik® etherCON® RJ45 connection over a large
Net™ protocol document is available from
Chauvet Professional recommends using unicast
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the
layering and forma ttin g of Archi tecture f or Cont rol Net works t o tran sport DMX512
data over IP or any other ACN compatible network. ACN is maintained by the
Professional Lighting and Sound Associa tion (PLASA).
Kling-Net
Kling-Net is a network protocol that allows auto configuration of display devices
using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos
software manual for detailed instructions on programming this product.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
Connections
Personalities
Connection
Connection
DMX connection, an Ethern et c onnect ion , or bot h. If using other Art-Net™, sACN
or Klin g-Net -compatible products with the Maverick MK2 Wash
of DMX512 data using a
network. An Art-
www.chauvetprofessional.com.
Art-Net™ for best res ults.
For smooth-running operation, ArKaos Kling-Net requires a gi g ab it (1000
Mbps) Ethernet card and network router.
ArKaos Kling-Net will only run Standard Pixel or Basic Pixel modes.
3
Maverick MK2 Wash QRG EN
Mounting
Before mounting t his product, read the Sa fety Notes. Use at least two mounting
per product. Make sure the mounting clamps are capable of supporting the
o to
http://trusst.com/products/.
Touchscreen
The Maverick MK2 Wash has a touchscreen display as well as 6 control buttons.
options in the
menu.
Control Panel
Button
Function
Navigates upwards through the menu list or increases the
numeric value when in a function
Exits from the current menu or function
Navigates downwards through the menu list or decreases the
numeric value when in a function
Navigates leftwards through the menu list
Enables the currently displayed menu or sets the currently
selected value into the selected function
Navigates rightwards through the menu list

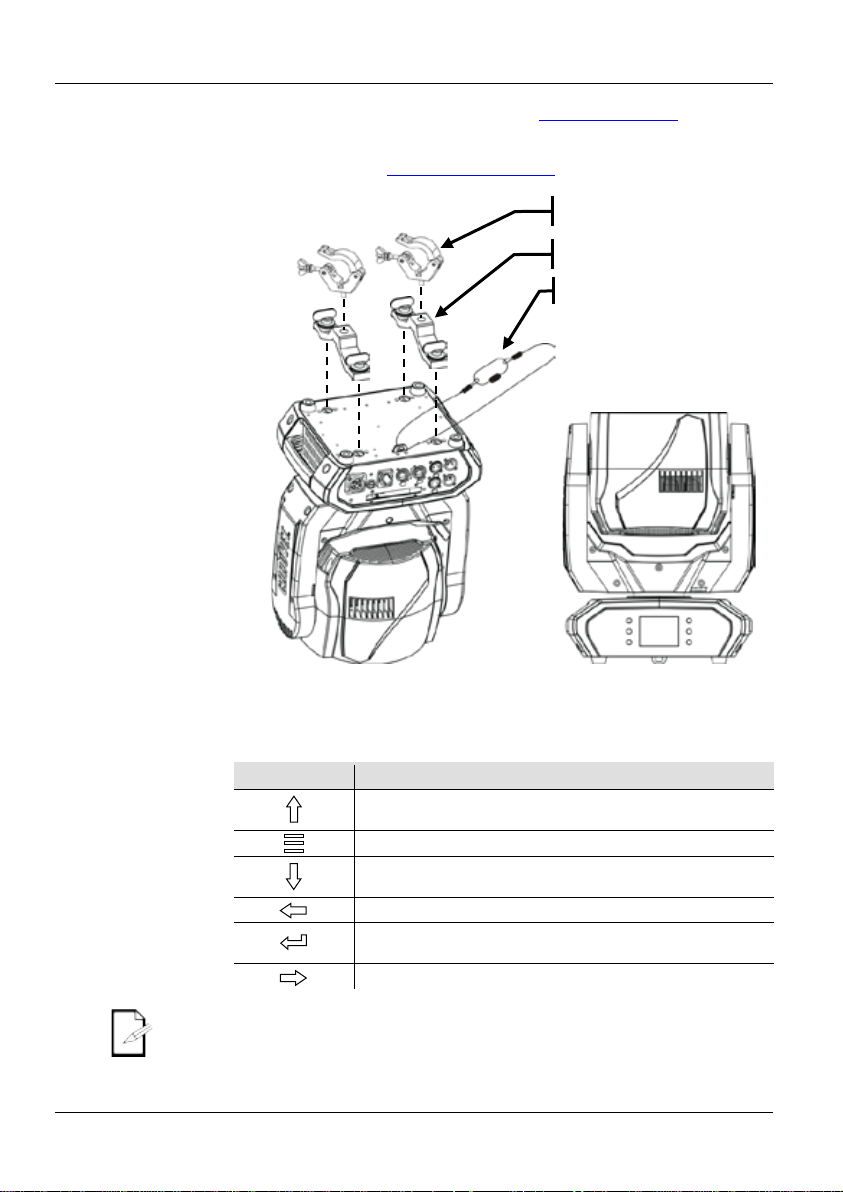

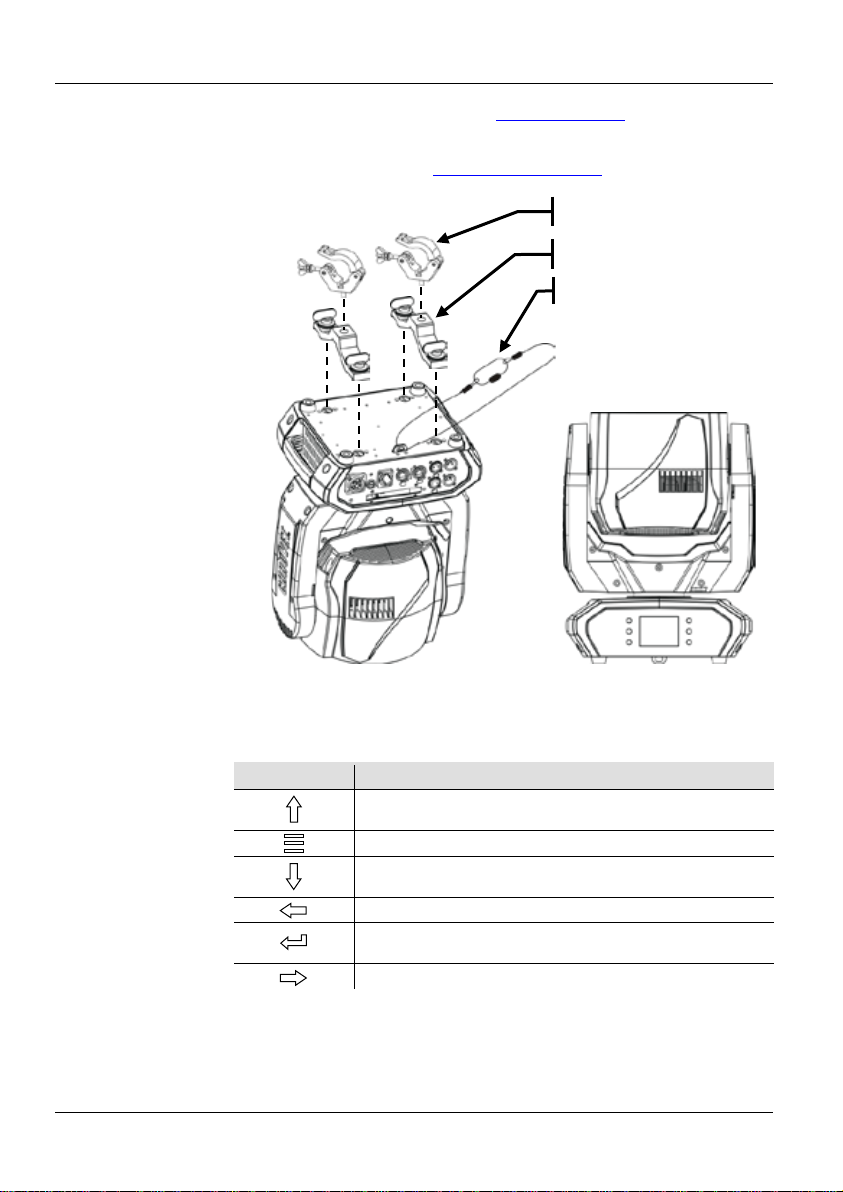

Overhead Mounting
Floor Mounting
Mounting
Safety Cable
Omega Bracket
< >
< >
< >
< >
< >
< >
points
weight of the product. For our Chauvet line of mounting clamps, g
Product
Mounting
Diagram
Control Panel
The touchsc reen can be locked and calibrated through the Setup
Clamp
Description
In Dual Control mode, the movement protocol and the pixel protocol cannot be the same.
4
Maverick MK2 Wash QRG EN
Programming Levels
Description
Control Settings
Control Settings Main Level
Control Settings
Basic
Standard
Advanced
Tour
Start Address
001–512
Sets the DMX starting address
Basic
Standard
Advanced
Tour
Start Address
001–512
Sets the Art-Net™ starting address
Universe
0–254
Sets the Art-Net™ universe
Basic
Standard
Advanced
Tour
Start Address
001–512
Sets the sACN starting address
Universe
0–255
Sets the sACN universe
Basic
Standard
Advanced
Tour
Start Address
001–512
Sets the WDMX starting address
Basic
Standard
Advanced
Tour
Start
Address
Basic
Standard
Advanced
Tour
Start
Address
Universe
0–254
Sets the Art-Net™ universe
Basic
Standard
Advanced
Tour
Start
Address
Universe
0–255
Sets the sACN universe
Basic
Standard
Advanced
Tour
Start
Address
Basic
Standard
Advanced
Tour
Menu Map
DMX
ArtNet
Single
Control
sACN
WDMX
Movement
Personality
Personality
Personality
Personality
Personality
DMX
001–512
Personality
ArtNet
001–512
Sets the DMX personality, from
Basic (20CH), Standard (68CH),
Advanced (122CH) or Tour (146CH)
Sets the Art-Net™ personality, from
Basic (20C H ), Standard ( 68CH),
Advance d (122CH) or Tour (146CH)
Sets the sACN personality, from
Basic (20C H ), Standard ( 68CH),
Advance d (122CH) or Tour (146CH)
Sets the WDMX personality, from
Basic (20C H ), Standard ( 68CH),
Advance d (122CH) or Tour (146CH)
Sets the DMX personality, from
Basic (8CH), Standard (20CH),
Advance d (26CH) or Tour (146CH)
Sets the DMX starting address
Sets the Art-Net™ personality, from
Basic (8CH), Standard (20CH),
Advance d (26CH) or Tour (146CH)
Sets the Art-Net™ starting address
Dual
Control
Pixels
Personality
sACN
DMX
ArtNet Personality
Personality
5
001–512
001–512
Sets the sACN personality, from
Basic (8CH), Standard (20CH),
Advance d (26CH) or Tour (146CH)
Sets the sACN starting address
Sets the DMX personality, from
Basic (36C H ), Standard ( 48CH),
Advance d (96CH) or Tour (146CH)
Sets the DMX starting address
Sets the Art-Net™ personality, from
Basic (36C H ), Standard ( 48CH),
Advance d (96CH) or Tour (146CH)
Maverick MK2 Wash QRG EN
Programming Levels
Description
Control Settings
Start
Address
Universe
0–254
Sets the Art-Net™ universe
Basic
Standard
Tour
Advanced
Start
Address
Universe
0–255
Sets the sACN universe
Basic
Sets the Kling-Net personality, from
Basic (36CH) or Standard (48CH)
Standard
Test Mode
Test Mode Main Level
Test Mode
Auto test
Auto test all functions
Pan
Tilt
P/T Speed
Red
Green
Blue
White
CTC
Color
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fade
Background
Background Dim.
Dimmer
Shutter
Function
Zoom
Setup
Setup Main Level
Setup
NO
Do not con ve rt etherne t i n to DMX
YES
Convert ethernet in to DMX out
Manual
Manually set IP address
DHCP
Network sets IP address
Static
Product sets IP address
IP
xxx.xxx.xxx.xxx
Set IP address in Manual mode
SubMask
xxx.xxx.xxx.xxx
Set Subnet Mask in Manual mode
NO
Normal pan
YES
Reversed pan
NO
Normal tilt
YES
Reversed tilt
NO
Normal Z oom
YES
Reversed Zoom
NO
Normal display
YES
Inverted display
AUTO
Automatic display orientation
540
540° pan range
360
360° pan range
180
180° pan range
Menu Map (cont.)
Dual
Control
(cont.)
Manual test
Pixels
(cont.)
ArtNet
(cont.)
Personality
sACN
KlingNet Personality
001–512
001–512
000–255
Sets the Art-Net™ starting address
Sets the sACN personality, from
Basic (36CH), Standard (48CH),
Advanced (96CH) or Tour (146CH)
Sets the sACN starting address
Manually control and test all
settings through the control panel
Network Settings
Pan Reverse
Tilt Reverse
Zoom Reverse
Screen Reverse
Pan Angle
Ethernet To DMX
IP Mode
6
Maverick MK2 Wash QRG EN
Programming Levels
Description
Setup (cont.)
Setup Main Level (cont.)
Setup (cont.)
540
540° tilt range
270
270° tilt range
180
180° tilt range
NO
Do not black out while pan/tilt
YES
Blackout while pan/tilt
NO
Keep current settings
YES
Calibrate touchscreen
NO
Displa y responds t o t ouch
YES
Display does not respond to touch
NO
Lock the buttons and touch screen
Passcode: 0920
YES
NO
Do not swap pan and tilt
YES
Pan contro ls tilt, tilt controls pan
Slow
Slow pan and tilt
Fast
Fast pan and tilt
NO
Do not reset WDMX
YES
Reset WDMX
30S
Display turns off after 30 seconds
1M
Display turns off after 1 minute
5M
Display turns off after 5 minutes
ON
Display stays on
Hold
Holds last signal received
Close
Blacks out fixture
Fan speed according to product
temperature
Full
Fan speed set on high
ECO
Quiet mode
RGBW
Additive color mixing (0–100%)
CMY
Subtractive color mixing (100%–0)
Linear
Square
I Squa
SCurve
Smooth
Fast
Red
Sets red LED maximum value
Green
Sets green LED maximum value
Blue
Sets blue LED maximum value
White
Sets white LED maximum value
NO
YES
NO
YES
NO
YES
NO
YES
Menu Map (cont.)
Tilt Angle
BL. O. P/T Move
Calibration
Touchscreen Lock
Lock Screen
Swap XY
XY Mode
WDMX Reset
Backlight Timer
Loss of Data
Fans
C Mixing Mode
Dimmer Curve
Dimmer Speed
Color Balance
Reset Function
Factory Settings
Pan
Tilt
All
Auto
Set the dimmer curve
Change the dimmer speed
100–255
Reset individual functions or all
function s from start-up
Reset to factory default settings
7
Maverick MK2 Wash QRG EN
Programming Levels
Description
Sys Info
Sys Info Main Level
Sys Info
Ver
VX
Shows firmware version
Running Mode
Xxx
Shows current running mode
Address
xxx
Shows current starting address
Shows current product
temperature in °C
Shows number of hours product
has been powered on
IP
xxx.xxx.xxx.xxx
Shows current IP address
SubMask
xxx.xxx.xxx.xxx
Shows current Subnet Mask
MAC
xx.xx.xx.xx.xx.xx
Shows current MAC address
Head Fan1 Speed
xxxx
Head Fan2 Speed
xxxx
Error Information
No Error!*
Shows any errors, or No Error!
Frequency
Pan
Pan Fine
Tilt
Tilt Fine
CTC
Color
Pattern
LED Macro
LED Ma. Speed
LED Ma. Fade
Background
Background Dim.
Bg. Dim. Fine
Dimmer
Dimmer Fine
Shutter
Zoom
Function
Red (all, 1–12)
Red Fine (all, 1–12)
Green (all, 1–12)
Green Fine (all, 1–12)
Blue (all, 1–12)
Blue Fine (all, 1–12)
White (all, 1–12)
White Fine (all, 1–12)
Pixel
1
2
3 4 5 6 7 8 9
10
11
12
Menu Map (cont.)
Fixture Information
Fan Information
Channel
Information
Temperature
Fixture Hours
xx
xxxxx
xxx
Shows speed of head fans in rpm
Shows all curre nt values from
input signals, 000–255

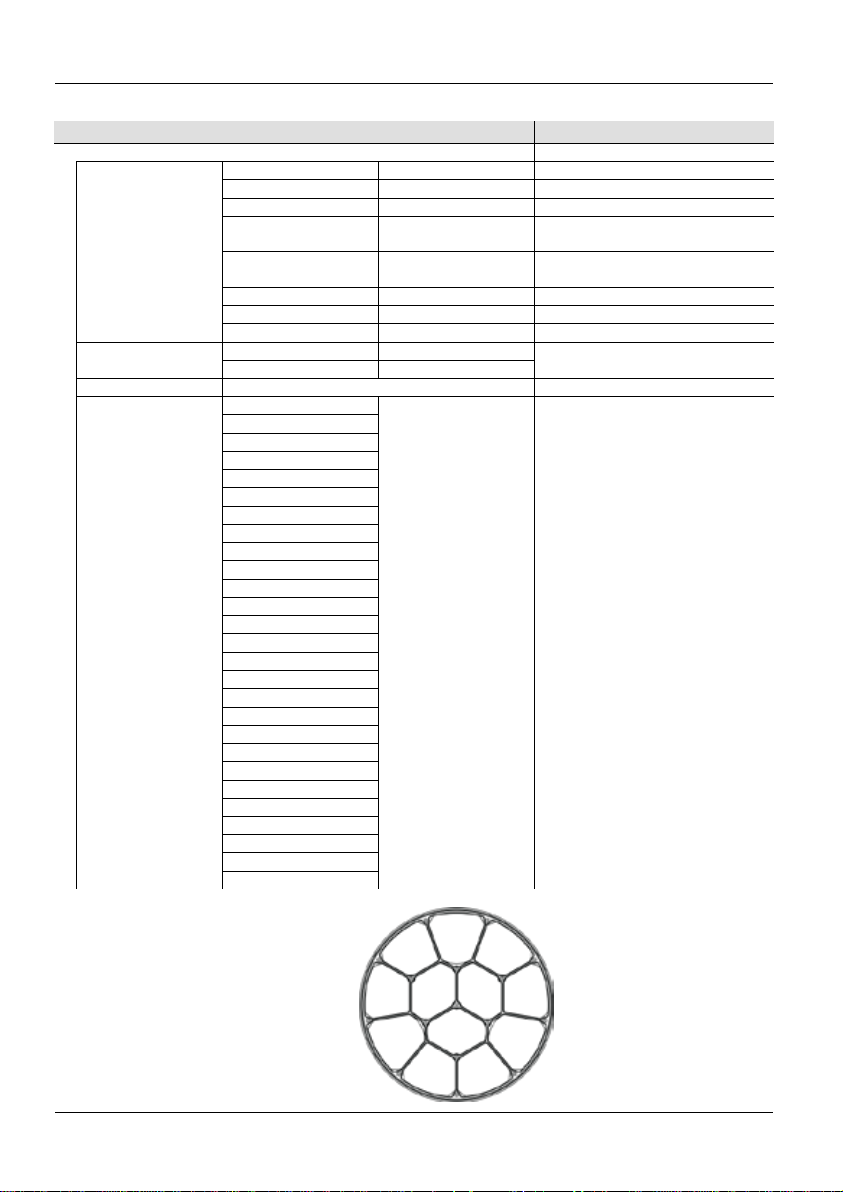

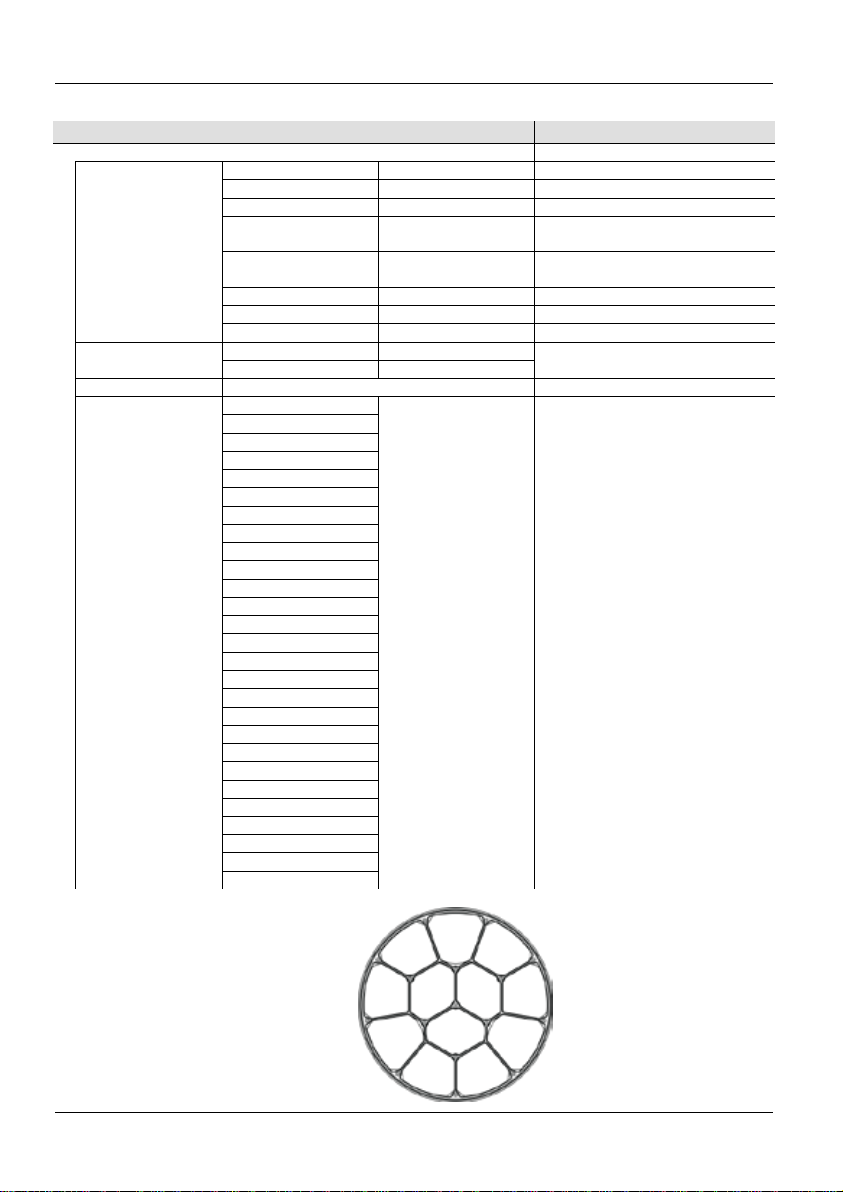

Zones For
Control
8
Maverick MK2 Wash QRG EN
Single Control Values
Tour Mode
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Pan Fine
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Tilt Fine
000ó255
0–100%
000
No Function
001ó255
Color Temperature 19000K – 2700K
000
No Function
001ó255
Color Macros
000ó009
No function
010ó255
On/Off presets (Indexed)
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED built-in delay
000ó255
Fast to slow
000
No function
001ó002
white 2700K(R=156，G=118，B=0，W=63)
003ó004
white 3200K(R=156，G=141，B=5，W=89)
005ó006
white 4200K(R=156，G=141，B=14，W=255)
007ó008
white 5600K(R=156，G=207，B=54，W=255)
009ó010
white 8000K(R=130，G=255，B=96，W=255)
011
blue（R=0，G=0，B=255，W=0）
012ó048
R=0，G+，B=255，W=0
049
cyan（R=0，G=255，B=255，W=0）
050ó086
R=0，G=255，B-，W=0
087
green（R=0，G=255，B=0，W=0）
088ó124
R+，G=255，B=0，W=0
125
yellow（R=255，G=255，B=0，W=0）
126ó162
R=255，G-，B=0，W=0
163
red（R=255，G=0，B=0，W=0）
164ó200
R=255，G=0，B+，W=0
201
magenta（R=255，G=0，B=255，W=0）
202ó238
R+，G=0，B=255，W=0
239
blue（R=0，G=0，B=255，W=0）
240ó247
Color change, fast to slow
248ó255
Color jump, fast to slow
12
BC Dimmer
000ó255
0–100%
13
BC Fine Dimmer
000ó255
0–100%
14
Main Dimm er
000ó255
0–100%
15
Fine Main Dimmer
000ó255
0–100%
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
(Advanced)
(146CH)
5 CTC
6 Color
7 On/Off Preset
LED Macro /
8
Auto Program
LED Macro / Auto
9
Program Speed
11 Background Color
16 Shutter
9
Maverick MK2 Wash QRG EN
Tour Mode
Channel
Function
Value
Percent/Setting
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
17
Zoom
000ó255
Narrow to wide
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
19
R (C) Main
000ó255
0–100%
20
R (C) Main Fine
000ó255
0–100%
21
G (M) Main
000ó255
0–100%
22
G (M) Main Fine
000ó255
0–100%
23
B (Y) Main
000ó255
0–100%
24
B (Y)Main Fine
000ó255
0–100%
25
W Main
000ó255
0–100%
26
W Main Fine
000ó255
0–100%
27
Dimmer 1
000ó255
0–100%
28
Dimmer 1 Fine
000ó255
0–100%
29
R (C) 1
000ó255
0–100%
30
R (C) 1 Fine
000ó255
0–100%
31
G (M) 1
000ó255
0–100%
32
G (M) 1 Fine
000ó255
0–100%
33
B (Y) 1
000ó255
0–100%
18 Control
10
Maverick MK2 Wash QRG EN
Tour Mode
Channel
Function
Value
Percent/Setting
34
B (Y)1 Fine
000ó255
0–100%
35
W 1
000ó255
0–100%
36
W 1 Fine
000ó255
0–100%
37
Dimmer 2
000ó255
0–100%
38
Dimmer 2 Fine
000ó255
0–100%
39
R (C) 2
000ó255
0–100%
40
R (C) 2 Fine
000ó255
0–100%
41
G (M) 2
000ó255
0–100%
42
G (M) 2 Fine
000ó255
0–100%
43
B (Y) 2
000ó255
0–100%
44
B (Y)2 Fine
000ó255
0–100%
45
W 2
000ó255
0–100%
46
W 2 Fine
000ó255
0–100%
47
Dimmer 2
000ó255
0–100%
48
Dimmer 2 Fine
000ó255
0–100%
49
R (C) 2
000ó255
0–100%
50
R (C) 2 Fine
000ó255
0–100%
51
G (M) 2
000ó255
0–100%
52
G (M) 2 Fine
000ó255
0–100%
53
B (Y) 2
000ó255
0–100%
54
B (Y)2 Fine
000ó255
0–100%
55
W 2
000ó255
0–100%
56
W 2 Fine
000ó255
0–100%
57
Dimmer 2
000ó255
0–100%
58
Dimmer 2 Fine
000ó255
0–100%
59
R (C) 2
000ó255
0–100%
60
R (C) 2 Fine
000ó255
0–100%
61
G (M) 2
000ó255
0–100%
62
G (M) 2 Fine
000ó255
0–100%
63
B (Y) 2
000ó255
0–100%
64
B (Y)2 Fine
000ó255
0–100%
65
W 2
000ó255
0–100%
66
W 2 Fine
000ó255
0–100%
67
Dimmer 2
000ó255
0–100%
68
Dimmer 2 Fine
000ó255
0–100%
69
R (C) 2
000ó255
0–100%
70
R (C) 2 Fine
000ó255
0–100%
71
G (M) 2
000ó255
0–100%
72
G (M) 2 Fine
000ó255
0–100%
73
B (Y) 2
000ó255
0–100%
74
B (Y)2 Fine
000ó255
0–100%
75
W 2
000ó255
0–100%
76
W 2 Fine
000ó255
0–100%
77
Dimmer 2
000ó255
0–100%
78
Dimmer 2 Fine
000ó255
0–100%
79
R (C) 2
000ó255
0–100%
80
R (C) 2 Fine
000ó255
0–100%
81
G (M) 2
000ó255
0–100%
82
G (M) 2 Fine
000ó255
0–100%
83
B (Y) 2
000ó255
0–100%
11
Maverick MK2 Wash QRG EN
Tour Mode
Channel
Function
Value
Percent/Setting
84
B (Y)2 Fine
000ó255
0–100%
85
W 2
000ó255
0–100%
86
W 2 Fine
000ó255
0–100%
87
Dimmer 2
000ó255
0–100%
88
Dimmer 2 Fine
000ó255
0–100%
89
R (C) 2
000ó255
0–100%
90
R (C) 2 Fine
000ó255
0–100%
91
G (M) 2
000ó255
0–100%
92
G (M) 2 Fine
000ó255
0–100%
93
B (Y) 2
000ó255
0–100%
94
B (Y)2 Fine
000ó255
0–100%
95
W 2
000ó255
0–100%
96
W 2 Fine
000ó255
0–100%
97
Dimmer 2
000ó255
0–100%
98
Dimmer 2 Fine
000ó255
0–100%
99
R (C) 2
000ó255
0–100%
100
R (C) 2 Fine
000ó255
0–100%
101
G (M) 2
000ó255
0–100%
102
G (M) 2 Fine
000ó255
0–100%
103
B (Y) 2
000ó255
0–100%
104
B (Y)2 Fine
000ó255
0–100%
105
W 2
000ó255
0–100%
106
W 2 Fine
000ó255
0–100%
107
Dimmer 2
000ó255
0–100%
108
Dimmer 2 Fine
000ó255
0–100%
109
R (C) 2
000ó255
0–100%
110
R (C) 2 Fine
000ó255
0–100%
111
G (M) 2
000ó255
0–100%
112
G (M) 2 Fine
000ó255
0–100%
113
B (Y) 2
000ó255
0–100%
114
B (Y)2 Fine
000ó255
0–100%
115
W 2
000ó255
0–100%
116
W 2 Fine
000ó255
0–100%
117
Dimmer 2
000ó255
0–100%
118
Dimmer 2 Fine
000ó255
0–100%
119
R (C) 2
000ó255
0–100%
120
R (C) 2 Fine
000ó255
0–100%
121
G (M) 2
000ó255
0–100%
122
G (M) 2 Fine
000ó255
0–100%
123
B (Y) 2
000ó255
0–100%
124
B (Y)2 Fine
000ó255
0–100%
125
W 2
000ó255
0–100%
126
W 2 Fine
000ó255
0–100%
127
Dimmer 2
000ó255
0–100%
128
Dimmer 2 Fine
000ó255
0–100%
129
R (C) 2
000ó255
0–100%
130
R (C) 2 Fine
000ó255
0–100%
131
G (M) 2
000ó255
0–100%
132
G (M) 2 Fine
000ó255
0–100%
133
B (Y) 2
000ó255
0–100%
12
Maverick MK2 Wash QRG EN
Tour Mode
Channel
Function
Value
Percent/Setting
134
B (Y)2 Fine
000ó255
0–100%
135
W 2
000ó255
0–100%
136
W 2 Fine
000ó255
0–100%
137
Dimmer 12
000ó255
0–100%
138
Dimmer 12 Fine
000ó255
0–100%
139
R (C) 12
000ó255
0–100%
140
R (C) 12 Fine
000ó255
0–100%
141
G (M) 12
000ó255
0–100%
142
G (M) 12 Fine
000ó255
0–100%
143
B (Y) 12
000ó255
0–100%
144
B (Y) 12 Fine
000ó255
0–100%
145
W 12
000ó255
0–100%
146
W 12 Fine
000ó255
0–100%
Advanced
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
000
No function
001ó255
Color temperature 1900K to 2700K
000
No function
001ó255
Color macros
000ó009
No function
010ó255
On/Off presets
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
Background Color
Macro
000
No function
001ó255
Background color macros
Background
Dimmer
Background Fine
Dimmer
14
Main Dimm er
000ó255
0–100%
15
Main Fine Dimmer
000ó255
0–100%
Mode
(122CH)
5 CTC
6 Color Macro
7 On/Off Preset
LED Macro /
8
Auto Program
9
11
12
13
LED Macro / Auto
Program Speed
000ó255 0–100%
000ó255 0–100%
13
Maverick MK2 Wash QRG EN
Advanced
Mode
(122CH
Channel
Function
Value
Percent/Setting
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pu lse) fast t o s low
245ó255
On
17
Zoom
000ó255
Narrow to wide
Advanced
Mode
CH
Channel
Function
Value
Percent/Setting
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
19
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main Red Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Main Green Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
Main Blue Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
cont.)
16 Shutter
(122
cont.)
18 Control
14
Maverick MK2 Wash QRG EN
Advanced
Channel
Function
Value
Percent/Setting
26
Main White Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
Red Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Green Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
Blue Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
White 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
White Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
Red Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Green Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
Blue Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
41
White 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
White Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
Red Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
45
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Green Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
48
Blue Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
49
White 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
50
White Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
51
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
52
Red Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
53
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
54
Green Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
55
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
56
Blue Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
57
White 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
58
White Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
59
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
60
Red Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
61
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
62
Green Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
63
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
64
Blue Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
65
White 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
66
White Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
67
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
68
Red Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
69
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
70
Green Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
71
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
72
Blue Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
73
White 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
74
White Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
75
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
15
Maverick MK2 Wash QRG EN
Advanced
Channel
Function
Value
Percent/Setting
76
Red Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
77
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
78
Green Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
79
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
80
Blue Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
81
White 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
82
White Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
83
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
84
Red Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
85
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
86
Green Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
87
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
88
Blue Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
89
White 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
90
White Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
91
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
92
Red Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
93
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
94
Green Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
95
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
96
Blue Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
97
White 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
98
White Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
99
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
100
Red Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
101
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
102
Green Fi n e 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
103
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
104
Blue Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
105
White 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
106
White Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
107
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
108
Red Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
109
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
110
Green Fi n e 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
111
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
112
Blue Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
113
White 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
114
White Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
115
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
116
Red Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
117
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
118
Green Fi n e 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
119
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
120
Blue Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
121
White 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
122
White Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
16
Maverick MK2 Wash QRG EN
Standard
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
000
No function
001ó255
Color temperature 1900K to 2700K
000
No function
001ó255
Color macros
000ó009
No function
010ó255
On/Off presets
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
Background Color
Macro
000
No function
001ó255
Background color macros
Background
Dimmer
13
Main Dimm er
000ó255
0–100%
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pu lse) fast t o s low
245ó255
On
15
Zoom
000ó255
Narrow to wide
Mode
(68CH)
5 CTC
6 Color Macro
7 On/Off Preset
LED Macro /
8
Auto Program
LED Macro / Auto
9
Program Speed
11
12
14 Shutter
000ó255 0–100%
17
Maverick MK2 Wash QRG EN
Standard
Mode
CH
Channel
Function
Value
Percent/Setting
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
17
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
White 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
White 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
White 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
White 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
White 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
41
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
White 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
(68
cont.)
16 Control
18
Maverick MK2 Wash QRG EN
Standard
Mode
CH
Channel
Function
Value
Percent/Setting
45
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
48
White 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
49
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
50
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
51
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
52
White 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
53
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
54
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
55
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
56
White 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
57
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
58
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
59
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
60
White 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
61
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
62
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
63
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
64
White 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
65
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
66
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
67
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
68
White 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Basic Mode
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
000
No function
001ó255
Color temperature 1900K to 2700K
000
No function
001ó255
Color macros
000ó009
No function
010ó255
On/Off presets
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
Background Color
Macro
000
No function
001ó255
Background color macros
Background
Dimmer
13
Main Dimmer
000ó255
0–100%
(68
cont.)
(20CH)
5 CTC
6 Color Macro
7 On/Off Preset
LED Macro /
8
Auto Program
LED Macro / Auto
9
Program Speed
11
12
000ó255 0–100%
19
Maverick MK2 Wash QRG EN
Basic Mode
(20CH
Channel
Function
Value
Percent/Setting
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pu lse) fast t o s low
245ó255
On
15
Zoom
000ó255
Narrow to wide
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
17
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
cont.)
14 Shutter
16 Control
20
Maverick MK2 Wash QRG EN
Dual Control Movement Values
Advanced
Movement
Mode
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
000
No function
001ó255
Color temperature 1900K to 2700K
000
No function
001ó255
Color macros
000ó009
No function
010ó255
On/Off presets
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
Background Color
Macro
000
No function
001ó255
Background color macros
Background
Dimmer
Background Fine
Dimmer
14
Main Dimm er
000ó255
0–100%
15
Main Fine Dimmer
000ó255
0–100%
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pu lse) fast t o s low
245ó255
On
17
Zoom
000ó255
Narrow to wide
(26CH)
5 CTC
6 Color Macro
7 On/Off Preset
LED Macro /
8
Auto Program
LED Macro / Auto
9
Program Speed
11
12
13
16 Shutter
000ó255 0–100%
000ó255 0–100%
21
Maverick MK2 Wash QRG EN
Advanced
Movement
Mode
Channel
Function
Value
Percent/Setting
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
19
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main Red Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Main Green Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
Main Blue Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Main White Fine
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Standard
Movement
Mode
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
000
No function
001ó255
Color temperature 1900K to 2700K
000
No function
001ó255
Color macros
000ó009
No function
010ó255
On/Off presets
000ó015
No function
016ó135
LED macros
136ó255
Auto programs
000ó127
Fast to slow
128
Hold
129ó255
Slow to fast
10
LED Macro Fade
000ó255
Fast to slow
Background Color
Macro
000
No function
001ó255
Background color macros
Background
Dimmer
(26CH
cont.)
18 Control
(20CH)
5 CTC
6 Color Macro
7 On/Off Preset
LED Macro /
8
Auto Program
LED Macro / Auto
9
Program Speed
11
12
000ó255 0–100%
22
Maverick MK2 Wash QRG EN
Standard
Movement
(20CH
Channel
Function
Value
Percent/Setting
13
Main Dimm er
000ó255
0–100%
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fast to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pulse) fast to slow
245ó255
On
15
Zoom
000ó255
Narrow to wide
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
17
Main Red
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Main Green
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Main Blue
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Main White
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Mode
cont.)
14 Shutter
16 Control
23
Maverick MK2 Wash QRG EN
Basic
Movement
Channel
Function
Value
Percent/Setting
1
Pan
000ó255
0–100%
2
Fine Pan
000ó255
0–100%
3
Tilt
000ó255
0–100%
4
Fine Tilt
000ó255
0–100%
5
Main Dimm er
000ó255
0–100%
000ó019
Off
020ó024
On
025ó064
Strobe 1, fast to slow
065ó069
On
070ó084
Strobe 2 (Fast on, slow off) fast to slow
085ó089
On
090ó104
Strobe 3 (Slow on, fast off) fast to slow
105ó109
On
110ó124
Strobe 4 (Random) fast to slow
125ó129
On
130ó144
Strobe 5 (Random fast on, slow off) fa st to slow
145ó149
On
150ó164
Strobe 6 (Random slow on, fast off) fast to slow
165ó169
On
170ó184
Strobe 7 (Pulse) fast to slow
185ó189
On
190ó204
Strobe 8 (Random pulse) fast to slow
205ó209
On
210ó224
Strobe 9 (Fade in, fade out) fast to slow
225ó229
On
230ó244
Strobe 10 (Random pu lse) fast t o s low
245ó255
On
7
Zoom
000ó255
Narrow to wide
000ó009
No function
010ó014
Pan/tilt blackout
015ó019
No function (reserved for future use)
020ó024
RGBW color mixing mode (additive)
025ó029
CMY color mixing mode (subtractive)
030ó049
No function (reserved for future use)
050ó054
Pan reset
055ó059
Tilt reset
060ó064
Zoom reset
065ó069
No function (reserved for future use)
070ó074
Reset all
075ó109
No function (reserved for future use)
110ó114
Pan/tilt speed fast
115ó119
Pan/tilt speed slow
120ó124
Fan mode slow
125ó129
Fan mode full
130ó134
Fan mode auto
135ó139
Dimmer mode fast
140ó144
Dimmer mode slow
145ó255
No function (reserved for future use)
Mode (8CH)
6 Shutter
8 Control
24
Maverick MK2 Wash QRG EN
Dual Control Pixel Values
Advanced
Channel
Function
Value
Percent/Setting
1
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
2
Red Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
3
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
4
Green Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
5
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
6
Blue Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
7
White 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
8
White Fine 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
9
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
10
Red Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
11
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
12
Green Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
13
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
14
Blue Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
15
White 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
16
White Fine 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
17
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Red Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Green Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Blue Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
White 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
White Fine 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Red Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
Green Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Blue Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
White 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
White Fine 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Red Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
Green Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Blue Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
White 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
White Fine 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
41
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
Red Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
Green Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
45
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Blue Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
White 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
48
White Fine 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Pixel Mode
(96CH)
25
Maverick MK2 Wash QRG EN
Advanced
Mode
(96CH
Channel
Function
Value
Percent/Setting
49
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
50
Red Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
51
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
52
Green Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
53
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
54
Blue Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
55
White 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
56
White Fine 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
57
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
58
Red Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
59
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
60
Green Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
61
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
62
Blue Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
63
White 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
64
White Fine 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
65
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
66
Red Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
67
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
68
Green Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
69
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
70
Blue Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
71
White 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
72
White Fine 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
73
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
74
Red Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
75
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
76
Green Fi n e 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
77
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
78
Blue Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
79
White 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
80
White Fine 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
81
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
82
Red Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
83
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
84
Green Fi n e 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
85
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
86
Blue Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
87
White 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
88
White Fine 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
89
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
90
Red Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
91
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
92
Green Fi n e 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
93
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
94
Blue Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
95
White 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
96
White Fine 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Pixel
cont.)
26
Maverick MK2 Wash QRG EN
Standard
Channel
Function
Value
Percent/Setting
1
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
2
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
3
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
4
White 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
5
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
6
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
7
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
8
White 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
9
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
10
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
11
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
12
White 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
13
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
14
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
15
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
16
White 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
17
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
White 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
White 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
White 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
White 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
White 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
37
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
38
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
39
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
40
White 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
41
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
42
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
43
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
44
White 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
45
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
46
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
47
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
48
White 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Pixel Mode
(48CH)
27
Maverick MK2 Wash QRG EN
Basic Pixel
Channel
Function
Value
Percent/Setting
1
Red 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
2
Green 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
3
Blue 1
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
4
Red 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
5
Green 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
6
Blue 2
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
7
Red 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
8
Green 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
9
Blue 3
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
10
Red 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
11
Green 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
12
Blue 4
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
13
Red 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
14
Green 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
15
Blue 5
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
16
Red 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
17
Green 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
18
Blue 6
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
19
Red 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
20
Green 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
21
Blue 7
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
22
Red 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
23
Green 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
24
Blue 8
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
25
Red 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
26
Green 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
27
Blue 9
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
28
Red 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
29
Green 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
30
Blue 10
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
31
Red 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
32
Green 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
33
Blue 11
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
34
Red 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
35
Green 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
36
Blue 12
000ó255
RGBW mode: 0–100% / CMY mode: 100%–0
Mode
(36CH)
28
Maverick MK2 Wash GRR ES
Acerca de esta
La Guía de Refer encia Rápid a (GRR) del MK2 Wash contiene info rmación bás ica
opciones de menú y valores DMX.
para
información más detal l ad a.
Exención de
Responsabilidad
La información y especificaciones contenidas en esta GRR están sujetas a cambio
Notas de
• NO abra este producto. No contiene piezas reparables por el usuario.
producto a temperat uras más alt as.
Contacto
Fuera de EE.UU., Reino Unido, Irlanda, México, o Benelux póngase en contacto
con su distribuidor para solicitar asistencia o devolver el producto. Desde dentro de
Contact
Us del fina l de esta GRR.
Qué va
• Maverick MK 2 W ash
2 soportes Omega con material de montaje
• Tarjeta de garantía
Corriente alterna
Este producto tiene una fuente de alimentación con detección automática que puede
funcionar con un rango de tensión de entrada de 100–240 VCA, 50/60 Hz.
Para evitar un desgaste innecesario y alargar su vida útil, desconecte
complemente el producto de la alimentación, mediante el interruptor o
Alimentación en
Puede enlazar hasta 2 productos Maverick MK2 Wash a 120 V, 4 productos a 208 V
productos a 230 V. Nunca sobrepase este número. Los cables de alimentación en
cadena se pueden adquirir por separado.
sobre el producto, como conexión, montaje,
Guía
Descargue el Manual de Usuario de www.chauvetprofessional.com
sin previo aviso.
Seguridad
• NO mire a la fuente de luz cuando el producto esté encendido.
• Para evitar un desgaste innecesario y alargar su vida útil, desconecte
complemente el producto de la alimentación, med i ante el interruptor o
desenchufándolo, durante los periodos en los que no se use.
• CUIDADO: cu ando transfiera el producto desde ambientes con tem peratura
extrema (p. ej., del remolque frío de un camión a una sala de baile con calor y
humedad), puede formarse condensación en la electrónica interna del producto.
Para evitar que se produzca una avería, deje que el pr o ducto se aclimate
completamente al ambien te antes de conectar la al imentación.
• CUIDADO: La carcasa de est e producto puede estar ca liente cuando las luces
están en funcionamiento.
• Monte este product o en una ubicación con ventilación adecuada, al menos a 20''
(50 cm) de superficies adyacentes.
• NO deje ningún material inflamable a menos de 50 cm de este prod ucto
mientras esté funcion an do o conectado a la alimentación.
• USE un cable d e seguridad cuando monte este product o en lo alto.
• NO ponga en funcionamiento este producto e n el exterior o en cualquier u bi c a c ió n
en la que el polvo, calor e x c e s ivo, agua o humedad puedan afec tar lo. (IP20)
• NO ponga en funcionamiento este producto si sospecha que la carcasa, lentes o
cables están dañados.
• NO conecte este produ cto a un atenuador o reostat o.
• Conecte este producto SOLO a un circuito con toma de tierra y protegido.
• Use SOLAMENTE los soportes de montaj e o las asas para mover este
producto. NO lo transporte agarrando por la cabeza móvil.
• En caso de un pr o blema grave de funcionamiento , deje de usarl o inm ediatamente.
• La temperatura ambiente máxima es de 113 °F (45 °C). No haga funciona r es te
EE.UU., Reino Unido, Irlanda, México o Benelux, utilice la información de
Incluido
Cadena
• Cable de alimentación Seetronic Power kon
•
desenchufándolo, durante los periodos en los que no se use.
o 5
29
• Guía de Refer encia Rápid a
Maverick MK2 Wash GRR ES
Enchufe CA
Conexión
Cable (EE.UU.)
Cable (Europa)
Color del tornillo
CA Cargado
Negro
Marrón
Amarillo/Latón
CA Neutro
Blanco
Azul
Plata
CA Tierra
Verde/Amarillo
Verde/Amarillo
Verde
Sustitución del
1. Desconecte este producto de la alimentación.
alimentación.
Conexiones de
Puede enlazar el Maverick MK2 Wash a un controlador o software controlador
usando una conexi ón DMX, una conexión Ethernet o amb as. Si está usando ot ros
Netcon, el Maverick MK2
Wash puede controlar cada uno individualmente en una sola red. Consulte el
usuario para obtener información sobre cómo conectar y configurar el
producto para estas señales.
Personalidades de
El Maverick MK2 Wash utiliza DMX, Art-Net™, sACN, WDMX y Kling-Net pa ra
sus personalidades de control:
Single Control
Dual Control Movement
Dual Control Pixel
Tour (146-canal)
Tour (146-canal)
Tour (146-canal)
Advanced (122-canal)
Advanced (26-canal)
Advanced (96-canal)
Standard (68-canal)
Standard (20-canal)
Standard (48-canal)
Basic (20-canal)
Basic (8-canal)
Basic (36-canal)
Utiliza DMX, Art-Net™,
sACN o WDMX
Utiliza DMX, Art-Net™ o
sACN
Utiliza DMX, Art-Net™,
sACN o Kling-Net
Conexión DMX
El Maverick MK2 Wash funcionará con un cont rolad or DMX usand o una conexión
www.chauvetprofessional.com.
Conexión
Art-Net™ es un protocolo Ethernet que utiliza TCP/IP para transferir gran cantidad
a red de gran
Chauvet Professional recomienda la utilización de
Art-Net™ diseñado y copyright por Artistic Licence Holdings Ltd.
Conexión sACN
También cono c ido c o m o A NSI E1.31, el stream ing ACN es un protoc o lo Ethernet que
(arquitectura para redes
de control) para transportar datos DMX512 sobre IP o cualquier otra red compatible
con ACN. El mantenimiento de ACN corre a cargo de la Professional Lighting and
Sound Asso ci ation (Asociació n de Sonido e Iluminación Pro f esional, PLASA).
Conexión
Kling-Net es un protocolo de red que permite la autoconfiguración de los dispositivos
de imagen usando una conexión Ethernet etherCON RJ45. Consulte el manual del
software ArKaos para instrucc io ne s de tal l adas s o bre la programació n de este producto .
Net precisa una tarjeta Ethernet
Fusible
señal
control
Art-Net™
2. Utilizando un destornillador plano, desatornille la tapa del portafusibles de la carcasa.
3. Quite el fu sible fundido del portafusibles y sustitúyalo con uno nuevo del
mismo tipo y categoría.
4. Vuelva a atornillar la tapa del portafusibles en su sitio y conecte de nuevo la
productos compatibles con Art-Net ™, sACN o Kli ng-
Manual de
de datos DMX de 3 o 5 pines. Hay un Manual DMX disponible en
de datos DMX512 usando una conexión etherCON RJ45 sobre un
tamaño. Hay disponible un documento sobre el protocolo Art-Net™ desde
www.chauvetprofessional.com.
modo Unicast para mejores resultados.
usa las capas y formato de Architecture for Control Networks
Kling-Net
Para un funcionamiento fluido, ArKaos Klinga gigabit (1000 Mbps) y un router de red.
ArKaos Kling-Net solo ejecutará los modos Píxel estándar o Píxel básico.
30
Loading...
