Maurey Power Transmission positive drive pulleys Catalog Page

Download
TYPE C TYPE D TYPE E TYPE M
TYPE CF TYPE DF TYPE EF TYPE MF
Part Number Explanation
18 H 100 - QD
Requires QD Bushing Width Pitch Number of Grooves
Part
Number
Pitch
Outside Diameter
Weight
Number
of
Diameter
Bush
Type
Lbs
Grooves
Pulley
Flange
ELMKHFMin
Max
(Approx.)
14H100MPB
14
2.228
2.174
2-3/8*M1F
5/8
1-15/16
1-1/2
1-5/16
5/811.4
14H100QD 14 2.228 2.174 2-3/8 JAr E1F 3/4 1 7/16 1-5/16 1/2 1-3/16 1.0 16H100MPB 16 2.546 2.492 2-3/4 * M1F 11/16 2 2 1-5/16 5/8 1-1/4 2.0 16H100QD 16 2.546 2.492 2-3/4 JAr E1F 3/4 1 7/16 1-5/16 1/2 1-3/16 1.5 17H100MPB 17 2.706 2.652 3 * M1F 11/16 2 2 1-5/16 5/8 1-1/4 2.6
18H100MPB 18 2.865 2.811 3-1/4 * M1F 11/16 2 2-1/4 1-5/16 5/8 1-1/2 2.8 18H100QD 18 2.865 2.811 3-1/4 SH E1F 9/16 1-1/4 1/2 1-5/16 1/2 1-5/8 1.2 19H100MPB 19 3.024 2.970 3-1/4 * M1F 13/16 2-1/8 2-1/4 1-5/16 5/8 1-9/16 2.9 20H100MPB 20 3.183 3.129 3-5/16 * M1F 7/8 2-3/16 2-1/2 1-5/16 5/8 1-5/8 3.4 20H100QD 20 3.183 3.129 3-5/16 SH E1F 9/16 1-1/4 1/2 1-5/16 1/2 1-5/8 1.2
21H100MPB 21 3.342 3.288 3-9/16 * M1F 1 2-5/16 2-1/2 1-5/16 3/4 1-11/16 3.8 22H100MPB 22 3.501 3.447 3-3/4 * M1F 1 2-5/16 2-7/8 1-5/16 3/4 1-7/8 4.3 22H100QD 22 3.501 3.447 3-3/4 SDS E1F 9/16 1-5/16 9/16 1-5/16 1/2 1-15/16 1.4 24H100MPB 24 3.820 3.766 4 * M1F 1 2-5/16 3-1/8 1-5/16 3/4 2-1/8 5.3 24H100QD 24 3.820 3.766 4 SDS E1F 9/16 1-5/16 9/16 1-5/16 1/2 1-15/16 1.7
26H100MPB 26 4.138 4.084 4-3/8 * M1F 1-1/8 2-7/16 3-1/2 1-5/16 3/4 2-1/2 6.7 26H100QD 26 4.138 4.084 4-3/8 SDS D1F 1/16 1-5/16 9/16 1/2 1-5/16 1/2 1-15/16 2.0 28H100MPB 28 4.456 4.402 4-11/16 * M1F 1-1/8 2-7/16 3-5/8 1-5/16 3/4 2-5/8 8.0 28H100QD 28 4.456 4.402 4-11/16 SDS D1F 1/16 1-5/16 1/16 1/2 1-5/16 1/2 1-15/16 2.6 30H100QD 30 4.775 4.721 5 SD D1F 9/16 1-13/16 1/16 0 1-5/16 1/2 1-15/16 3.0
32H100QD 32 5.093 5.039 5-5/16 SK D1F 5/8 1-7/8 1/16 0 1-5/16 1/2 2-1/2 4.9 36H100QD 36 5.730 5.678 5-61/64 SK D1F 5/8 1-7/8 1/16 0 1-5/16 1/2 2-1/2 3.6 40H100QD 40 6.366 6.312 6-9/16 SK D1F 5/8 1-7/8 1/16 0 1-5/16 1/2 2-1/2 8.2 44H100QD 44 7.003 6.953 7-1/4 SK D1F 5/8 1-7/8 1/16 0 1-5/16 1/2 2-1/2 10.0 48H100QD 48 7.639 7.585 7-7/8 SK D2F 5/8 1-7/8 1/16 0 1-5/16 1/2 2-1/2 12.5
60H100QD 60 9.549 9.495 SF C3 5/8 2 1/16 0 1-5/16 1/2 2-3/4 10.9 72H100QD 72 11.459 11.405 SF C3 5/8 2 1/16 0 1-5/16 1/2 2-3/4 14.7 84H100QD 84 13.369 13.315 SF C3 5/8 2 1/16 0 1-5/16 1/2 2-3/4 18.0 96H100QD 96 15.279 15.225 SF C3 5/8 2 1/16 0 1-5/16 1/2 2-3/4 22.0 120H100QD 120 19.099 19.045 SF C3 5/8 2 1/16 0 1-5/16 1/2 2-3/4 30.5
*Bored to suit construction (Type M) minimum plain bore only carried in stock Weight shown is for pulley without bushing "r" = Reverse mount only h
Maximum bore without keyway

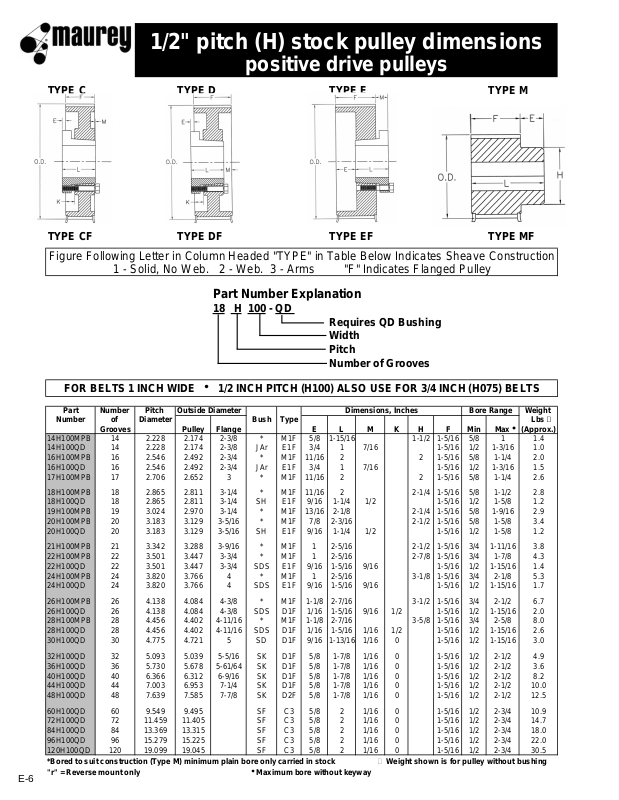

1/2" pitch (H) stock pulley dimensions
positive drive pulleys
Dimensions, Inches
Bore Range
FOR BELTS 1 INCH WIDE h 1/2 INCH PITCH (H100) ALSO USE FOR 3/4 INCH (H075) BELTS
Figure Following Letter in Column Headed "TYPE" in Table Below Indicates Sheave Construction
1 - Solid, No Web. 2 - Web. 3 - Arms "F" Indicates Flanged Pulley
E6
TYPE C TYPE D TYPE E TYPE M
TYPE CF TYPE DF TYPE EF TYPE MF
Part Number Explanation
18 H 150 - QD
Requires QD Bushing Width Pitch Number of Grooves
Part
Number
Pitch
Outside Diameter
Weight
Number
of
Diameter
Bush
Type
Lbs
Grooves
Pulley
Flange
ELMKHFMin
Max
(Approx.)
14H150MPB
14
2.228
2.174
2-3/8*M1F
5/8
2-7/16
1-1/2
1-13/16
3/411.8
14H150QD 14 2.228 2.174 2-3/8 JAr E1F 1-1/4 1 7/16 1-13/16 1/2 1-3/16 1.5 16H150MPB 16 2.546 2.492 2-3/4 * M1F 3/4 2-9/16 2 1-13/16 3/4 1-1/4 2.5 16H150QD 16 2.546 2.492 2-3/4 JAr E1F 1-1/4 1 7/16 1-13/16 1/2 1-3/16 2.0 17H150MPB 17 2.706 2.652 3 * M1F 3/4 2-9/16 2 1-13/16 3/4 1-1/4 2.8
18H150MPB 18 2.865 2.811 3-1/4 * M1F 3/4 2-9/16 2-1/4 1-13/16 3/4 1-1/2 3.3 18H150QD 18 2.865 2.811 3-1/4 SHr E1F 1-1/16 1-1/4 1/2 1-13/16 1/2 1-5/8 1.3 19H150MPB 19 3.024 2.970 3-1/4 * M1F 7/8 2-5/8 2-1/4 1-13/16 3/4 1-9/16 3.9 20H150MPB 20 3.183 3.129 3-5/16 * M1F 7/8 2-11/16 2-1/2 1-13/16 3/4 1-5/8 4.3 20H150QD 20 3.183 3.129 3-5/16 SHr E1F 1-1/16 1-1/4 1/2 1-13/16 1/2 1-5/8 1.8
21H150MPB 21 3.342 3.288 3-9/16 * M1F 15/16 2-3/4 2-1/2 1-13/16 3/4 1-11/16 5.3 22H150MPB 22 3.501 3.447 3-3/4 * M1F 1 2-13/16 2-7/8 1-13/16 3/4 1-7/8 5.4 22H150QD 22 3.501 3.447 3-3/4 SDr E1F 9/16 1-13/16 9/16 1-13/16 1/2 1-15/16 2.0 24H150MPB 24 3.820 3.766 4 * M1F 1 2-13/16 3-1/8 1-13/16 3/4 2-1/8 6.5 24H150QD 24 3.820 3.766 4 SDr E1F 9/16 1-13/16 1-13/16 1/2 1-15/16 2.6
26H150MPB 26 4.138 4.084 4-3/8 * M1F 1 2-13/16 3-1/2 1-13/16 3/4 2-1/2 8.4 26H150QD 26 4.138 4.084 4-3/8 SD D1F 1/16 1-13/16 1/16 1/2 1-13/16 1/2 1-15/16 3.0 28H150MPB 28 4.456 4.402 4-11/16 * M1F 1-1/8 2-15/16 3-5/8 1-13/16 3/4 2-5/8 9.3 28H150QD 28 4.456 4.402 4-11/16 SD D1F 1/16 1-13/16 1/16 1/2 1-13/16 1/2 1-15/16 4.0 30H150QD 30 4.775 4.721 5 SD D1F 1/16 1-13/16 1/16 1/2 1-13/16 1/2 1-15/16 4.9
32H150QD 32 5.093 5.039 5-5/16 SK C1F 1/16 1-7/8 0 9/16 1-13/16 1/2 2-1/2 5.8 36H150QD 36 5.730 5.678 5-61/64 SK C1F 1/16 1-7/8 0 9/16 1-13/16 1/2 2-1/2 7.0 40H150QD 40 6.366 6.312 6-9/16 SK C1F 1/16 1-7/8 0 9/16 1-13/16 1/2 2-1/2 9.2 44H150QD 44 7.003 6.953 7-1/4 SK C1F 1/16 1-7/8 0 9/16 1-13/16 1/2 2-1/2 11.0 48H150QD 48 7.639 7.585 7-7/8 SK C2F 1/16 1-7/8 0 9/16 1-13/16 1/2 2-1/2 13.7
60H150QD 60 9.549 9.495 SF D3 3/8 2 3/16 1/4 1-13/16 1/2 2-3/4 12.5 72H150QD 72 11.459 11.405 SF D3 3/8 2 3/16 1/4 1-13/16 1/2 2-3/4 16.7 84H150QD 84 13.369 13.315 SF D3 3/8 2 3/16 1/4 1-13/16 1/2 2-3/4 20.8 96H150QD 96 15.279 15.225 SF D3 3/8 2 3/16 1/4 1-13/16 1/2 2-3/4 25.0 120H150QD 120 19.099 19.045 SF D3 3/8 2 3/16 1/4 1-13/16 1/2 2-3/4 34.5
*Bored to suit construction (Type M) minimum plain bore only carried in stock Weight shown is for pulley without bushing "r" = Reverse mount only hMaximum bore without keyway
1/2" pitch (H) stock pulley dimensions
positive drive pulleys
Dimensions, Inches
Bore Range
FOR BELTS 1-1/2 INCH WIDE h 1/2 INCH PITCH (H150)
Figure Following Letter in Column Headed "TYPE" in Table Below Indicates Sheave Construction
1 - Solid, No Web. 2 - Web. 3 - Arms "F" Indicates Flanged Pulley
E7
TYPE A TYPE D TYPE E TYPE M
TYPE AF TYPE DF TYPE EF TYPE MF
Part Number Explanation
22 H 200 - QD
Requires QD Bushing Width Pitch Number of Grooves
Part
Number
Pitch
Outside Diameter
Weight
Number
of
Diameter
Bush
Type
Lbs
Grooves
Pulley
Flange
ELMKHFMin
Max
(Approx.)
14H200MPB
14
2.228
2.174
2-3/8*M1F
5/8
2-31/32
1-1/2
2-11/32
3/412.2
14H200QD 14 2.228 2.174 2-3/8 JAr E1F 1-25/32 1 7/16 2-11/32 5/8 1-3/16 2.0 16H200MPB 16 2.546 2.492 2-3/4 * M1F 3/4 3-3/32 2 2-11/32 3/4 1-1/4 3.1 16H200QD 16 2.546 2.492 2-3/4 JAr E1F 1-25/32 1 7/16 2-11/32 5/8 1-3/16 2.6 17H200MPB 17 2.706 2.652 3 * M1F 3/4 3-3/32 2 2-11/32 3/4 1-1/4 3.4
18H200MPB 18 2.865 2.811 3-1/4 * M1F 3/4 3-3/32 2-1/4 2-11/32 3/4 1-1/2 3.7 18H200QD 18 2.865 2.811 3-1/4 SHr E1F 1-19/32 1-1/4 1/2 2-11/32 1/2 1-5/8 1.6 19H200MPB 19 3.024 2.970 3-1/4 * M1F 7/8 3-5/32 2-1/4 2-11/32 3/4 1-9/16 3.9 20H200MPB 20 3.183 3.129 3-5/16 * M1F 7/8 3-5/32 2-1/2 2-11/32 3/4 1-5/8 4.9 20H200QD 20 3.183 3.129 3-5/16 SHr E1F 1-19/32 1-1/4 1/2 2-11/32 1/2 1-5/8 2.2
21H200MPB 21 3.342 3.288 3-9/16 * M1F 7/8 3-5/32 2-1/4 2-11/32 1 1-11/16 6.1 22H200MPB 22 3.501 3.447 3-3/4 * M1F 1 3-11/32 2-7/8 2-11/32 1 1-7/8 6.3 22H200QD 22 3.501 3.447 3-3/4 SDr E1F 1-3/32 1-13/16 9/16 2-11/32 1/2 1-15/16 2.5 24H200MPB 24 3.820 3.766 4 * M1F 1 3-11/32 3-1/8 2-11/32 1 2-1/8 7.5 24H200QD 24 3.820 3.766 4 SDr E1F 1-3/32 1-13/16 9/16 2-11/32 1/2 1-15/16 3.0
26H200MPB 26 4.138 4.084 4-3/8 * M1F 1-1/8 3-15/32 3-1/2 2-11/32 1 2-1/2 9.5 26H200QD 26 4.138 4.084 4-3/8 SD A1F 1/16 1-13/16 15/32 5/8 2-11/32 1/2 1-15/16 3.9 28H200MPB 28 4.456 4.402 4-11/16 * M1F 1-1/8 3-15/32 3-5/8 2-11/32 1 2-5/8 11.0 28H200QD 28 4.456 4.402 4-11/16 SD A1F 1/16 1-13/16 15/32 5/8 2-11/32 1/2 1-15/16 4.7 30H200QD 30 4.775 4.721 5 SD D1F 1/16 1-13/16 19/32 1/2 2-11/32 1/2 1-15/16 5.7
32H200QD 32 5.093 5.039 5-5/16 SK D1F 1/8 1-7/8 19/32 1/2 2-11/32 1/2 2-1/2 6.7 36H200QD 36 5.730 5.678 5-61/64 SK D1F 1/8 1-7/8 19/32 1/2 2-11/32 1/2 2-1/2 8.0 40H200QD 40 6.366 6.312 6-9/16 SK D1F 1/8 1-7/8 19/32 1/2 2-11/32 1/2 2-1/2 10.2 44H200QD 44 7.003 6.953 7-1/4 SK D1F 1/8 1-7/8 19/32 1/2 2-11/32 1/2 2-1/2 12.5 48H200QD 48 7.639 7.585 7-7/8 SF D1F 1/8 2 15/32 1/2 2-11/32 1/2 2-3/4 14.1
60H200QD 60 9.549 9.495 SF D3 1/8 2 15/32 1/2 2-11/32 1/2 2-3/4 14.6 72H200QD 72 11.459 11.405 SF D3 1/8 2 15/32 1/2 2-11/32 1/2 2-3/4 19.4 84H200QD 84 13.369 13.315 SF D3 1/8 2 15/32 1/2 2-11/32 1/2 2-3/4 24.2 96H200QD 96 15.279 15.225 E D3 3/8 2-5/8 3/32 1/2 2-11/32 7/8 3-7/16 32.0 120H200QD 120 19.099 19.045 E D3 3/8 2-5/8 3/32 1/2 2-11/32 7/8 3-7/16 43.0
*Bored to suit construction (Type M) minimum plain bore only carried in stock Weight shown is for pulley without bushing "r" = Reverse mount only hMaximum bore without keyway
1/2" pitch (H) stock pulley dimensions
positive drive pulleys
Dimensions, Inches
Bore Range
FOR BELTS 2 INCH WIDE h 1/2 INCH PITCH (H200)
Figure Following Letter in Column Headed "TYPE" in Table Below Indicates Sheave Construction
1 - Solid, No Web. 2 - Web. 3 - Arms "F" Indicates Flanged Pulley
E8
TYPE A TYPE D TYPE E TYPE M
TYPE AF TYPE DF TYPE EF TYPE MF
Part Number Explanation
22 H 300 - QD
Requires QD Bushing Width Pitch Number of Grooves
Part
Number
Pitch
Weight
Number
of
Diameter
Bush
Type
Lbs
Grooves
Pulley
Flange
ELMKHFMin
Max
(Approx.)
16H300MPB 16 2.546 2.492 2-3/4 * M1F 3/4 4-1/8 2 3-3/8 3/4 1-1/4 4.2 17H300MPB 17 2.706 2.652 3 * M1F 3/4 4-1/8 2 3-3/8 3/4 1-1/4 4.3 18H300MPB 18 2.865 2.811 3-1/4 * M1F 3/4 4-1/8 2-1/4 3-3/8 3/4 1-1/2 4.4 19H300MPB 19 3.024 2.970 3-1/4 * M1F 7/8 4-1/4 2-1/4 3-3/8 3/4 1-9/16 5.0
20H300MPB 20 3.183 3.129 3-5/16 * M1F 7/8 4-1/4 2-1/2 3-3/8 3/4 1-5/8 7.4 21H300MPB 21 3.342 3.288 3-9/16 * M1F 15/16 4-15/16 2-1/2 3-3/8 1 1-5/8 8.2 22H300MPB 22 3.501 3.447 3-3/4 * M1F 1 4-3/8 2-7/8 3-3/8 1-1/8 1-7/8 8.7 22H300QD 22 3.501 3.447 3-3/4 SDr E1F 2-1/8 1-13/16 9/16 3-3/8 1/2 1-15/16 4.1 24H300MPB 24 3.820 3.766 4 * M1F 1 4-3/8 3-1/8 3-3/8 1-1/8 2-1/8 10.0
24H300QD 24 3.820 3.766 4 SDr E1F 2-1/8 1-13/16 9/16 3-3/8 1/2 1-15/16 4.1 26H300MPB 26 4.138 4.084 4-3/8 * M1F 1-1/8 4-1/2 3-1/2 3-3/8 1-1/8 2-1/2 12.3 26H300QD 26 4.138 4.084 4-3/8 SD A1F 1/16 1-13/16 1-1/2 5/8 3-3/8 1/2 1-15/16 5.0 28H300MPB 28 4.456 4.402 4-11/16 * M1F 1-1/8 4-1/2 3-5/8 3-3/8 1-1/8 2-5/8 15.0
28H300QD 28 4.456 4.402 4-11/16 SD A1F 1/16 1-13/16 1-1/2 5/8 3-3/8 1/2 1-15/16 6.0 30H300QD 30 4.775 4.721 5 SD A1F 7/16 1-13/16 1-1/8 1 3-3/8 1/2 1-15/16 7.2 32H300QD 32 5.093 5.039 5-5/16 SK A1F 3/8 1-7/8 1-1/8 1 3-3/8 1/2 2-1/2 8.4 36H300QD 36 5.730 5.678 5-61/64 SK A1F 3/8 1-7/8 1-1/8 1 3-3/8 1/2 2-1/2 10.0 40H300QD 40 6.366 6.312 6-9/16 SK A1F 3/8 1-7/8 1-1/8 1 3-3/8 1/2 2-1/2 12.2
44H300QD 44 7.003 6.953 7-1/4 SK A1F 3/8 1-7/8 1-1/8 1 3-3/8 1/2 2-1/2 15.5 48H300QD 48 7.639 7.585 7-7/8 SF A1F 3/8 2 1 1 3-3/8 1/2 2-3/4 16.6 60H300QD 60 9.549 9.495 SF A3 3/8 2 1 1 3-3/8 1/2 2-3/4 17.9 72H300QD 72 11.459 11.405 SF A3 3/8 2 1 1 3-3/8 1/2 2-3/4 23.5 84H300QD 84 13.369 13.315 SF A3 3/8 2 1 1 3-3/8 1/2 2-3/4 29.0
96H300QD 96 15.279 15.225 E D3 1/8 2-5/8 7/8 3/4 3-3/8 7/8 3-7/16 38.0 120H300QD 120 19.099 19.045 E D3 1/8 2-5/8 7/8 3/4 3-3/8 7/8 3-7/16 51.0
*Bored to suit construction (Type M) minimum plain bore only carried in stock Weight shown is for pulley without bushing "r" = Reverse mount only h
Maximum bore without keyway
1/2" pitch (H) stock pulley dimensions
positive drive pulleys
Outside Diameter
Dimensions, Inches
Bore Range
FOR BELTS 3 INCH WIDE h 1/2 INCH PITCH (H300)
Figure Following Letter in Column Headed "TYPE" in Table Below Indicates Sheave Construction
1 - Solid, No Web. 2 - Web. 3 - Arms "F" Indicates Flanged Pulley
E9
