mATX AIMB-562 User Manual

User’s Manual

Intel® Core® 2 Duo / Pentium® D / Pentium® 4 / Celeron®
mATX Main Board

mATX

Ver. 1.00

AIMB-562 Series

ii

Contents

Notices ...........................................................................................................v

Safety information .........................................................................................

vi

About this guide ............................................................................................ vi

i

How this guide is organized ............................................................. vi

i

Where to find more information .......................................................vi

i

Conventions used in this guide ........................................................ vi

i

Typography .................................................................................................. vii

i

AIMB-562 specifications summary ...............................................................

ix

Chapter 1: Product introduction

1.1 Welcome! ....................................................................................... 1-2

1.2 Package contents .......................................................................... 1-

2

1.3 Special features ............................................................................. 1-

2

1.3.1 Product highlights ........................................................... 1-

2

1.4 Before you proceed ....................................................................... 1-

5

1.5 Motherboard overview ................................................................... 1-

6

1.5.1 Placement direction ........................................................ 1-

6

1.5.2 Screw holes .................................................................... 1-

6

1.5.3 Motherboard layout ......................................................... 1-

7

1.6 Central Processing Unit (CPU) ...................................................... 1-

8

1.6.1 Installing the CPU ........................................................... 1-

8

1.6.2 Installing the CPU heatsink and fan ..............................1-1

1

1.6.3 Uninstalling the CPU heatsink and fan ..........................1-1

3

1.7 System memory ............................................................................1-1

5

1.7.1 Overview ........................................................................1-1

5

1.7.2 Memory Configurations .................................................1-1

5

1.7.3 DDR2 Qualified Vendors List ........................................1-1

6

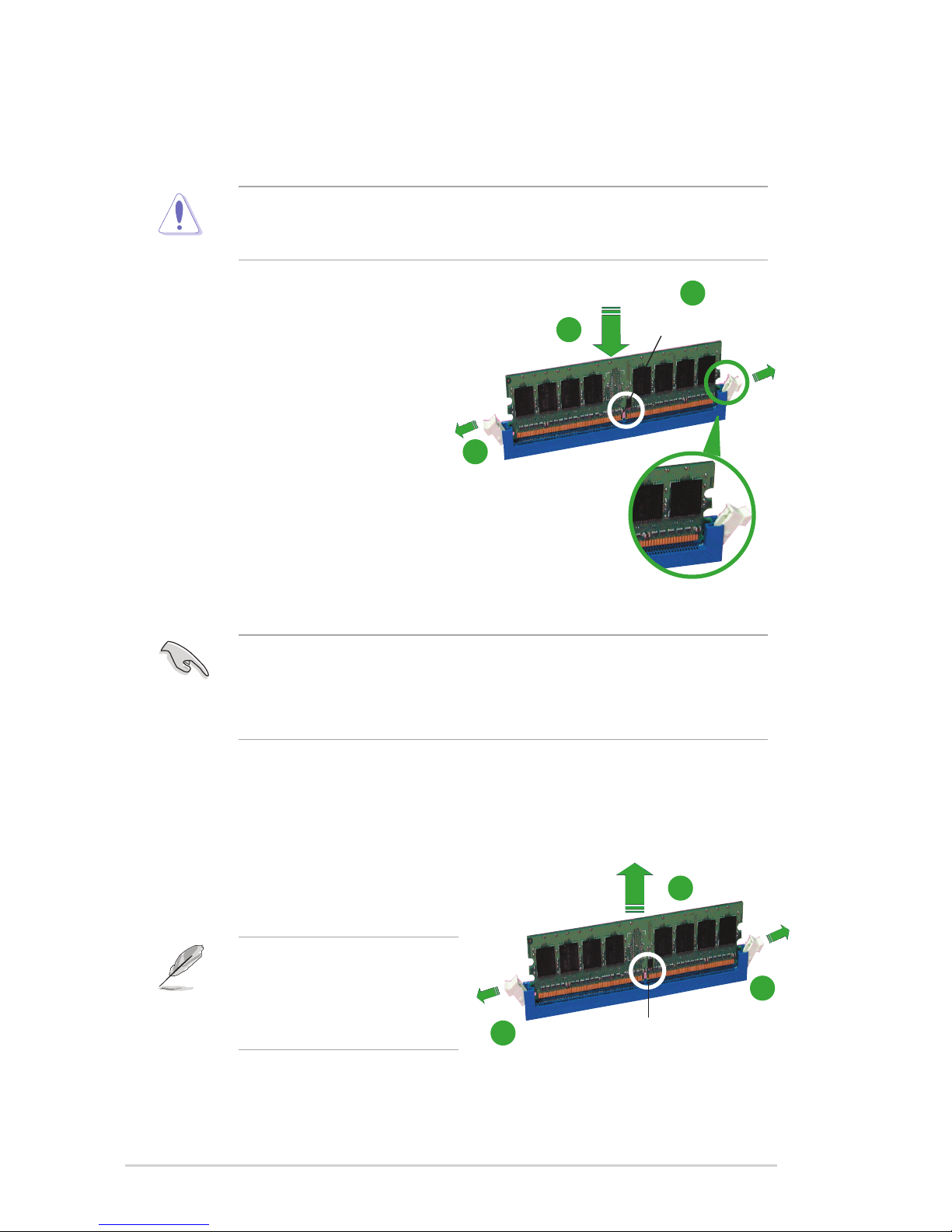

1.7.4 Installing a DIMM ...........................................................1-1

8

1.7.5 Removing a DIMM .........................................................1-1

8

1.8 Expansion slots .............................................................................1-1

9

1.8.1 Installing an expansion card ..........................................1-1

9

1.8.2 Configuring an expansion card ......................................1-1

9

1.8.3 Interrupt assignments ................................................... 1-2

0

1.8.4 PCI slots ....................................................................... 1-2

1

1.8.6 PCI Express x1 ............................................................ 1-2

1

iii

Contents

1.8.5 PCI Express x16 .......................................................... 1-21

1.9 Jumpers ....................................................................................... 1-2

2

1.10 Connectors .................................................................................. 1-2

3

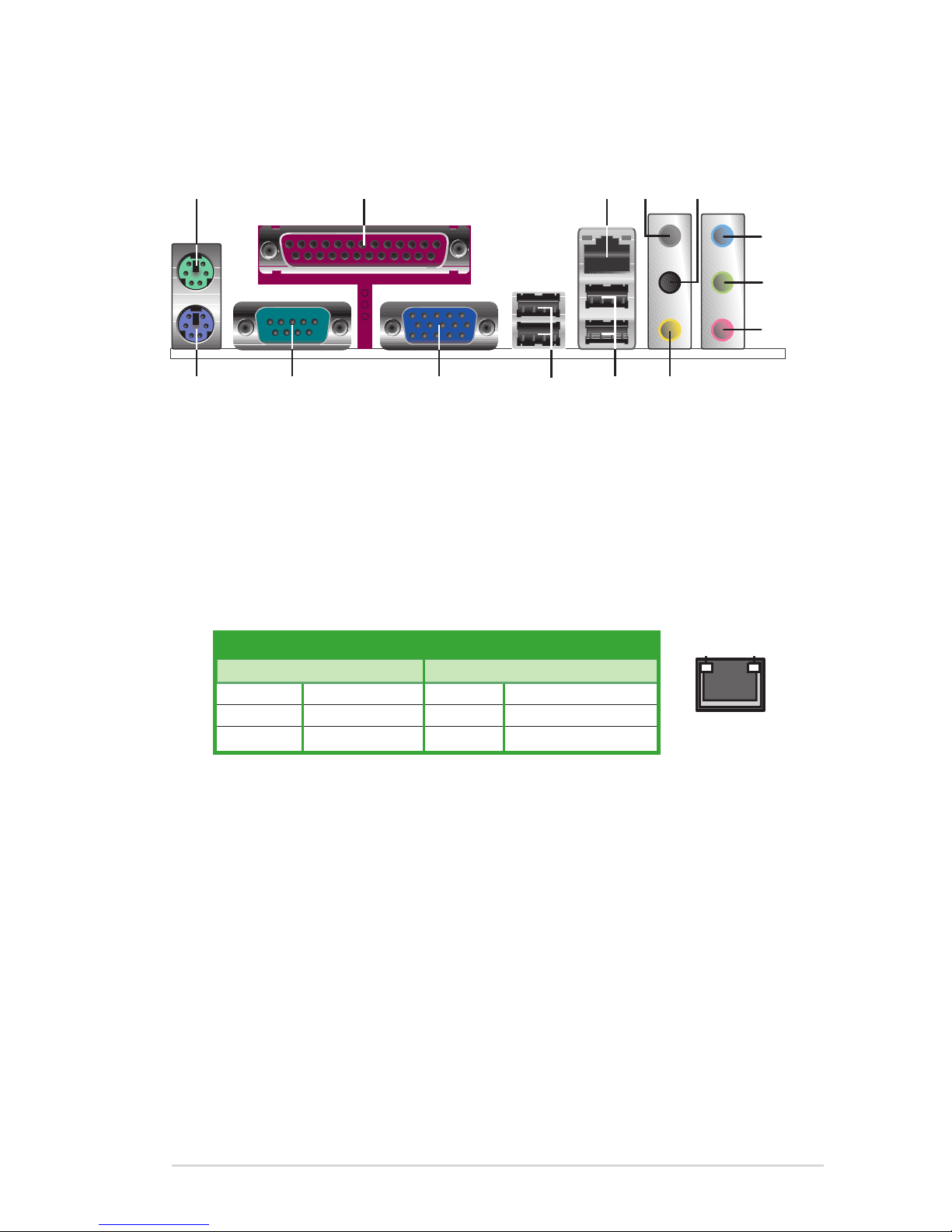

1.10.1 Rear panel connectors ................................................. 1-2

3

1.10.2 Internal connectors ....................................................... 1-2

5

Chapter 2: BIOS setup

2.1 Managing and updating your BIOS ............................................... 2-2

2.1.1 Creating a bootable floppy disk ...................................... 2-

2

2.2 BIOS setup program ...................................................................... 2-

3

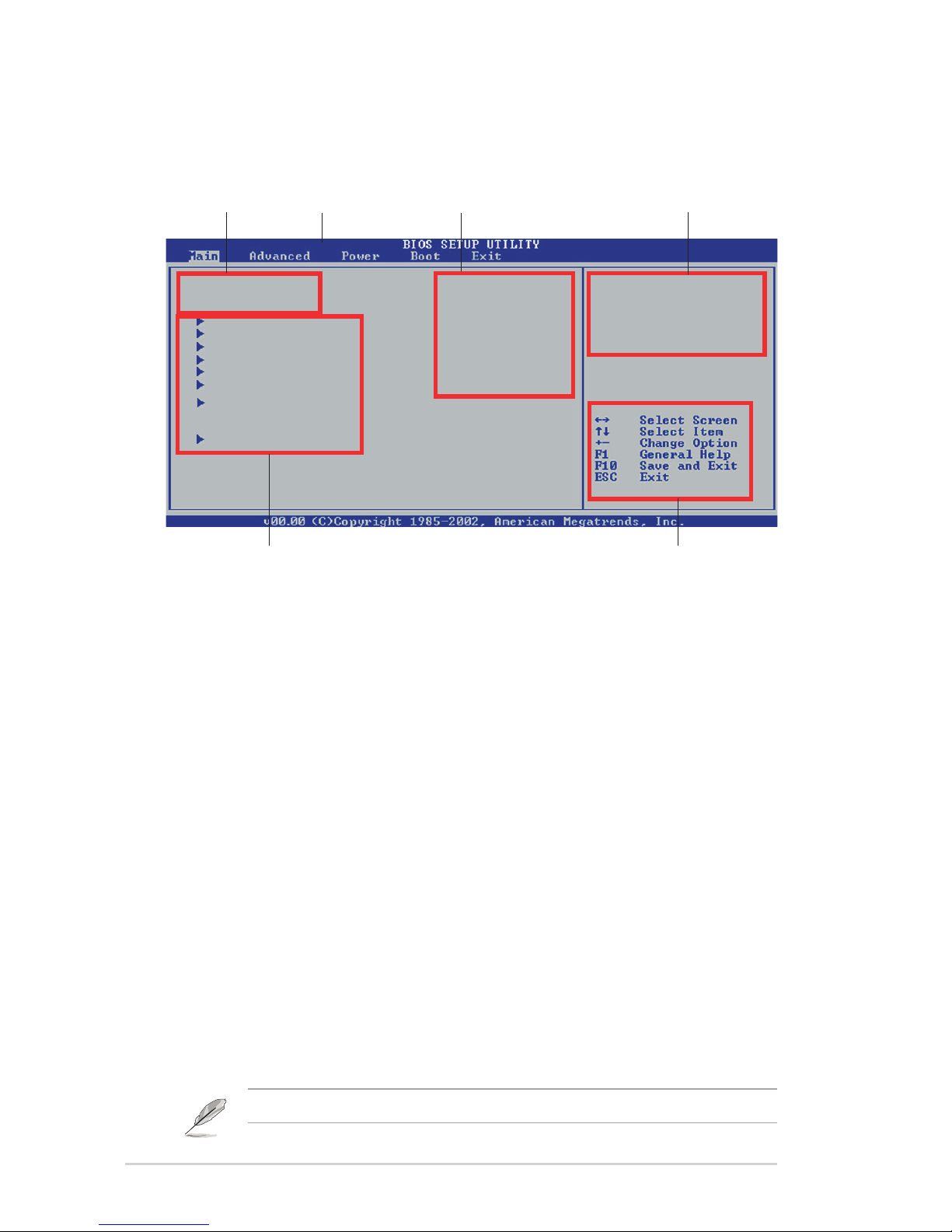

2.2.1 BIOS menu screen ......................................................... 2-

4

2.2.2 Menu bar ......................................................................... 2-

4

2.2.3 Navigation keys ............................................................... 2-

4

2.2.4 Menu items ..................................................................... 2-

5

2.2.5 Sub-menu items ............................................................. 2-

5

2.2.6 Configuration fields ......................................................... 2-

5

2.2.7 Pop-up window ............................................................... 2-

5

2.2.8 Scroll bar ......................................................................... 2-

5

2.2.9 General help ................................................................... 2-

5

2.3 Main menu .....................................................................................2-

6

2.3.1 System Time [xx:xx:xx] ................................................... 2-

6

2.3.2 System Date [Day xx/xx/xxxx] ....................................... 2-

6

2.3.3 Legacy Diskette A [1.44M, 3.5 in.] .................................. 2-

6

2.3.4 Primary, Third and Fourth IDE Master/Slave ................. 2-

7

2.3.5 IDE Configuration ...........................................................2-

8

2.3.6 System Information ........................................................2-1

0

2.4 Advanced menu ............................................................................2-1

1

2.4.1 JumperFree Configuration .............................................2-1

1

2.4.2 USB Configuration .........................................................2-1

4

2.4.3 Chipset ...........................................................................2-1

5

2.4.4 Onboard Devices Configuration ....................................2-1

6

2.4.5 PCI PnP .........................................................................2-1

8

2.5 Power menu ..................................................................................2-1

9

2.5.1 Suspend Mode [Auto] ....................................................2-1

9

2.5.2 Repost Video on S3 Resume [No] ................................2-1

9

iv

Contents

2.5.3 ACPI 2.0 Support [No] ...................................................2-19

2.5.4 ACPI APIC Support [Enabled] .......................................2-1

9

2.5.5 APM Configuration ....................................................... 2-2

0

2.5.6 Hardware Monitor ......................................................... 2-2

2

2.5.7 Energy Lake Feature [Enabled] .................................... 2-2

3

2.6 Boot menu .................................................................................... 2-2

4

2.6.1 Boot Device Priority ...................................................... 2-2

4

2.6.2 Boot Settings Configuration .......................................... 2-2

5

2.6.3 Security ......................................................................... 2-2

6

2.7 Exit menu ..................................................................................... 2-2

8

v

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that
may cause undesired operation.

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.

This class B digital apparatus complies with Canadian
ICES-003.

The use of shielded cables for connection of the monitor to the graphics
card is required to assure compliance with FCC regulations. Changes or
modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.

vi

Safety information

Electrical safety

•

To prevent electrical shock hazard, disconnect the power cable from the
electrical outlet before relocating the system.

•

When adding or removing devices to or from the system, ensure that the
power cables for the devices are unplugged before the signal cables are
connected. If possible, disconnect all power cables from the existing system
before you add a device.

•

Before connecting or removing signal cables from the motherboard, ensure
that all power cables are unplugged.

•

Seek professional assistance before using an adapter or extension cord.
These devices could interrupt the grounding circuit.

•

Make sure that your power supply is set to the correct voltage in your area.
If you are not sure about the voltage of the electrical outlet you are using,
contact your local power company.

•

If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all
the manuals that came with the package.

•

Before using the product, make sure all cables are correctly connected and
the power cables are not damaged. If you detect any damage, contact your
dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from
connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in
any area where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualified
service technician or your retailer.

The symbol of the crossed out wheeled bin indicates that the product
(electrical and electronic equipment) should not be placed in municipal waste.
Check local regulations for disposal of electronic products.

vii

About this guide

This user guide contains the information you need when installing and configuring
the motherboard.

How this guide is organized

This manual contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new
technology it supports. This chapter also lists the hardware setup
procedures that you have to perform when installing system components. It
includes description of the jumpers and connectors on the motherboard.

• Chapter 2: BIOS setup

This chapter tells how to change system settings through the BIOS Setup
menus. Detailed descriptions of the BIOS parameters are also provided.

Where to find more information

Refer to the following sources for additional information and for product and
software updates.

1. Advantech websites

The Advantech website provides updated information on Advantech
hardware and software products. Refer to the Advantech contact
information.

2. Optional documentation

Your product package may include optional documentation, such as
warranty flyers, that may have been added by your dealer. These documents
are not part of the standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following
symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself

when trying to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

NOTE: Tips and additional information to help you complete a

task.

IMPORTANT: Instructions that you MUST follow to complete a

task.

viii

Typography

Bold text Indicates a menu or an item to select

Italics

Used to emphasize a word or a phrase

<Key> Keys enclosed in the less-than and greater-than sign means
that you must press the enclosed key

Example: <Enter> means that you must press the Enter or
Return key

<Key1>+<Key2>+< Key3> If you must press two or more keys simultaneously, the

key names are linked with a plus sign (+)

Example: <Ctrl>+<Alt>+<D>

Command

Means that you must type the command exactly as shown,
then supply the required item or value enclosed in
brackets

Example: At the DOS prompt, type the command line:
afudos /i[filename]

afudos /iP5P800VM.ROM

ix

AIMB-562 specifications summary

(

continued on the next page

)

CPU LGA775 socket for Intel® Core

®

2 Duo / Pentium® D /

Pentium

®

4 / Celeron® processor

Compatible with the Intel

®

05B/05A and 04B/ 04A
processors
Supports Intel

®

Enhanced Memory 64 Technology
(EM64T)
Supports Enhanced Intel

®

SpeedStep® Technology (EIST)

Supports Intel

®

Hyper-Threading Technology

Chipset Northbridge: Intel® 945G

Southbridge: Intel® ICH7

Front Side Bus 1066/800/533 MHz

Memory Dual-channel memory architecture

4 x 240-pin DIMM sockets support up to 4GB of
unbufferred non-ECC 667/533 MHz DDR2 DIMMs

Integrated Graphics Integrated Intel® Graphics Media Accelerator 950

Expansion slots 1 x PCI Express x16 slot for discrete graphics cards

1 x PCI Express x1
2 x PCI slots

Storage Intel(R) ICH7 South Bridge supports:

- 1 x Ultra DMA 100/66/33

- 4 x Serial ATA 3Gb/s ports
ITE IDE controller supoorts (optional):

- 1 x UltraDMA 133/100

Audio Realtek® ALC882 8-channel High-Definition aduio CODEC

S/PDIF out interface support
Universal Audio Jack (UAJ (R)) Sensing Technology
support

LAN Intel® Gigabit LAN controller

USB Supports up to 8 USB 2.0 ports

Rear panel 1 x Parallel port

1 x IEEE1394a port (optional)
1 x LAN (RJ-45) port
4 x USB 2.0 ports
1 x Serial port (COM)
1 x VGA port
1 x PS/2 keyboard port
1 x PS/2 mouse port
8-channel high-definition Audio I/O ports

x

*

Specifications are subject to change without notice.

AIMB-562 specifications summary

BIOS features 4 Mb Flash ROM, AMI BIOS, PnP, WfM2.0, DMI2.0, SM

BIOS 2.3

Industry standard PCI 2.2, USB 2.0

Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, Chassis

Intrusion

Internal connectors 2 x USB 2.0 connectors for 4 additional USB 2.0 ports

1 x CPU fan connector
1 x Chassis fan connector
1 x Power fan connector
1 x 24-pin EATX power connector
1 x 4-pin ATX 12 V power connector
1 x CD in connector
1 x Front panel high-definition audio connector
1 x S/PDIF out connector
1 x TPM connector
1 x COM port (COM2)
1 x 3-pin Power LED connector (PLED)
1 x IEEE 1394a connector (optional)

Power Requirement ATX power supply (with 20-pin and 4-pin 12 V plugs)

Form Factor Micro-ATX form factor: 9.6 in x 9.6 in

Support CD contents Device drivers

1

Product

introduction

This chapter de s c ribes t h e m otherbo a r d
f e a t u r e s a n d t h e n e w t e c h n o l o g i e s
it supports.

1-2 Chapter 1: Product introduction

1.1 Welcome!

Thank you for buying an ® AIMB-562 motherboard!

The motherboard delivers a host of new features and latest technologies, making
it another standout in the long line of quality motherboards!

Before you start installing the motherboard, and hardware devices on it, check the
items in your package with the list below.

1.2 Package contents

Check your motherboard package for the following items.

Motherboard AIMB-562 motherboard

Cables 1 x Serial ATA signal cable

1 x Serial ATA power cable
1 x Ultra DMA 133 cable
1 x Floppy disk drive cable

Accessories I/O shield

Application CDs motherboard support CD

Documentation User guide

If any of the above items is damaged or missing, contact your retailer.

1.3 Special features

1.3.1 Product highlights

Latest processor technology

The mot h e r board c omes w i t h a 775 -pi n s urf a c e mount L a nd Gr i d A rray
(LGA) socket designed for the Intel® Core

®

2 Duo / Pentium

®

D / Pentium

®

4 / C e l e r o n® p ro c e s s o r in th e 77 5 -l an d pa c k a g e . Th e m ot he r b o a r d

s u p p o r t s th e I n t e l

®

Pe n t i u m® 4 or Int e l® P e nt i um® D pr o c e s s o r wi t h
1066/ 8 0 0 /533 MHz Front Side Bus (FSB). The motherboard also supports
the Intel

®

Hyper-Threading Technology and is fully compatible with Intel® PCG

04B/04A and 05B/05A processors. See page 1-9 for details.

Intel® 65nm Dual-Core Technology CPU support

This motherboard supports Intel® Pentium® D/Pentium® 4/Celeron® dual-core
processors built on the 65-nanometer (nm) process technology with copper
interconnect.

AIMB-562 1-3

Intel® 945G chipset

The Intel® 945G graphics memory controller hub (GMCH) and the ICH7 DH
I/O controller hub provide the vital interfaces for the motherboard. The GMCH
features the Intel® Graphics Media Accelerator 950, an integrated graphics engine
for enhanced 3D, 2D, and video capabilities. The GMCH provides the interface for
a processor in the 775-land package with 533/800/1066 MHz front side bus (FSB),
dual channel DDR2 at speeds of up to 667 MHz, and PCI Express x16 graphics
card.

The Intel

®

ICH7 DH Southbridge represents the seventh generation I/O controller
hub that provides the interface for PCI Express and 8-channel high definition
audio.

Intel® Viiv™ Technology support

Intel® Viiv™ Technology transforms your PC into an entertainment center, allowing
you to enjoy and share digital multi-media content like never before. With Intel

®

Viiv™ Technology-based computers, you can record, playback, organize, and
edit digital media content easily. Enjoy the entertainment experience even more
with sharp graphics, flawless video playback, and support for up to 7.1 channel
surround sound. To enable Intel

®

Viiv™ Technology, make sure you enable the

Quick Resume function called Energy Lake in the BIOS. Refer to the BIOS
screen on page 2-33. You also need to install the Intel

®

Viiv™ Technology driver

and software. See pages 3-4 and 3-5 for details.

Enabling Intel Viiv platform also requires:

- Intel

®

Pentium® D processor or Intel® Pentium® processor Extreme Edition

- Native Command Queuing (NCQ) SATA hard drive

- Microsoft Windows XP Media Center Edition Update Rollup 2 Refer to www.Intel.
com for more information.

DDR2 memory support

The motherboard supports DDR2 memory which features data transfer rates of
600 MHz (FSB 800) or 533 MHz (FSB 1066/800) to meet the higher bandwidth
requirements of the latest 3D graphics, multimedia, and Internet applications. The
dual-channel DDR2 architecture doubles the bandwidth of your system memory to
boost system performance, eliminating bottlenecks with peak bandwidths of up to

8.5 GB/s. See pages 1-16 to 1-18 for details.

Dual-core processors contain two physical CPU cores with dedicated L2 caches
to meet demands for more powerful processing. Intel

®

’s 65nm process is the most
advanced chip manufacturing technology, delivering breakthrough performance,
enhanced media experience, and low power consumption. Intel

®

65nm dual-core
processors utilize the latest package technologies for a thinner, lighter design
without compromising performance.

1-4 Chapter 1: Product introduction

PCI Express™ interface

The motherboard fully supports PCI Express, the latest I/O interconnect technology
that s p eeds u p the PCI bu s . P CI E xpre s s feat u r es p o i nt-to -p o int se r ial
interconnections between devices and allows higher clockspeeds by carrying data
in packets. This high speed interface is software compatible with existing PCI
specifications. See page 1-22 for details.

64-bit CPU support

The motherboard supports 64-bit processors that provides high-performance
computing and faster memory access required for memory and data intensive
applications.

Serial ATA technology

The motherboard supports the Serial ATA technology through the Serial ATA
interfaces and the Intel

®

ICH7 DH chipset. The SATA specification allows for
thinner, more flexible cables with lower pin count, reduced voltage requirement,
and up to 300 MB/s data transfer rate.

8-channel high definition audio

The onboard Realtek® ALC882 8-channel high-definition audio CODEC provides
192 KHz/ 24-bit audio output, jack-sensing and restasking functions. With the
8-channel audio ports and S/PDIF interfaces, you can connect your computer to
home theater decoders to produce crystal-clear digital audio.

S/PDIF digital sound ready

The motherboard supports the S/PDIF Out function through the S/PDIF interfaces at
midboard. The S/PDIF technology turns your computer into a high-end entertainment
system with digital connectivity to powerful audio and speaker systems. See page
1-31 for details.

Temperature, fan, and voltage monitoring

The CPU temperature is monitored by the ASIC (integrated in the Winbond Super
I/O) to prevent overheating and damage. The system fan rotations per minute
(RPM) is monitored for timely failure detection. The ASIC monitors the voltage
levels to ensure stable supply of current for critical components. See pages 2-32
and 2-33 for details.

AIMB-562 1-5

Onboard LED

The motherboard comes with a standby power LED that lights up to indicate
that the system is ON, in sleep mode, or in soft-off mode. This is a reminder
that you should shut down the system and unplug the power cable before
removing or plugging in any motherboard component. The illustration below
shows the location of the onboard LED.

1.4 Before you proceed

Take note of the following precautions before you install motherboard components
or change any motherboard settings.

• Unplug the p o we r c o r d from the wall s o c k et b ef o r e t o u c h i n g a n y
component.

• Use a grounded wrist strap or touch a safely grounded object or a metal
object, such as the power supply case, before handling components to
avoid damaging them due to static electricity

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic
pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX

power supply is switched off or the power cord is detached from
the power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

Onboard LED

SB_PWR

ON

Standby

Power

OFF

Powered

Off

1-6 Chapter 1: Product introduction

1.5 Motherboard overview

Before you install the motherboard, study the configuration of your chassis to
ensure that the motherboard fits into it.

Make sure t o unplu g the powe r cord bef o r e instal l ing or r emoving t he
motherboard. Failure to do so can cause you physical injury and damage
motherboard components.

Do not overtighten the screws! Doing so can damage the motherboard.

1.5.1 Placement direction

When installing the motherboard, make sure that you place it into the chassis in
the correct orientation. The edge with external ports goes to the rear part of the
chassis as indicated in the image below.

1.5.2 Screw holes

Place eight (8) screws into the holes indicated by circles to secure the
motherboard to the chassis.

Place this side towards
the rear of the chassis

AIMB-562 1-7

1.5.3 Motherboard layout

1-8 Chapter 1: Product introduction

1.6.1 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

1.6 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA775 socket designed for the
Intel

®

Pentium® 4 processor in the 775-land package.

•

Your boxed Intel® Pentium® 4 LGA775 processor package should
come with installation instructions for the CPU, fan and heatsink assembly.
If the instructions in this section do not match the CPU documentation,
follow the latter.

• Upon purchase of the motherboard, make sure that the PnP cap is on the
socket and the socket pins are not bent. Contact your retailer immediately
if the PnP cap is missing, or if you see any damage to the PnP cap/socket
pins/motherboard components. Advantech will shoulder the cost of repair
only if the damage is shipment/transit-related.

• Keep the cap after installing the motherboard. Advantech will process
Return Merchandise Authorization (RMA) requests only if the motherboard
comes with the cap on the LGA775 socket.

•

The product warranty does not cover damage to the socket pins resulting
from incorrect CPU installation/removal, or misplacement/loss/incorrect
removal of the PnP cap.

Before installing the CPU, make sure that the socket box is facing towards you
and the load lever is on your left.

CPU Socket 775

AIMB-562 1-9

3. Lift the load lever in the direction of
the arrow to a 135º angle.

4. Lift the load plate with your thumb
and forefinger to a 100º angle (A),
then push the PnP cap from the load
plate window to remove (B).

To prevent damage to the socket pins, do not remove the PnP cap unless you
are installing a CPU.

5. P o s i t i o n t h e C P U ov e r
the s oc ket , maki n g sur e
th a t t h e g o ld tr ia ng l e i s
on the bot tom-lef t c orner
of the socket. The socket
alignment key should fit into
the CPU notch.

2. Press the load lever with your thumb (A) and move it to the left (B) until it is
released from the retention tab.

Retention tab

Load lever

This side of the cam box
should face you.

PnP Cap

A

B

Load plate

A

B

Alignment key

Gold triangle mark

1-10 Chapter 1: Product introduction

The CPU fits in only one correct orientation. DO NOT force the CPU into the
socket to prevent bending the connectors on the socket and damaging the
CPU!

6. Close the load plate (A), then push
the load lever (B) until it snaps into
the retention tab.

A

B

The motherboard supports Intel® Pentium® D or Intel® Pentium® 4 LGA775
pr ocess ors w ith t he I nte l® Enhanced Memor y 6 4 Tech nolo gy (EM 6 4T),
Enhanced I ntel SpeedSt ep® Te c hnology ( EIST), and Hyp e r-Threa ding
Tec hnolo gy. Re fer to the Appendix for m ore info r mati on on thes e CPU
features.

AIMB-562 1-11

1.6.2 Installing the CPU heatsink and fan

The Intel® Pentium® 4 LGA775 processor requires a specially designed heatsink
and fan assembly to ensure optimum thermal condition and performance.

• Install the motherboard to the chassis before you install the CPU fan and
heatsink assembly

• When y o u buy a boxe d I ntel

®

P e ntium® 4 p r o c e s s o r, t h e p a c k age
includes the CPU fan and heatsink assembly. If you buy a CPU separately,
make sure that you use only Intel

®

-certified multi-directional heatsink and

fan.

• Your Intel

®

Pentium® 4 LGA775 heatsink and fan assembly comes in a

push-pin design and requires no tool to install.

If you purchased a separate CPU heatsink and fan assembly, make sure that
a Thermal Interface Material is properly applied to the CPU heatsink or CPU
before you install the heatsink and fan assembly.

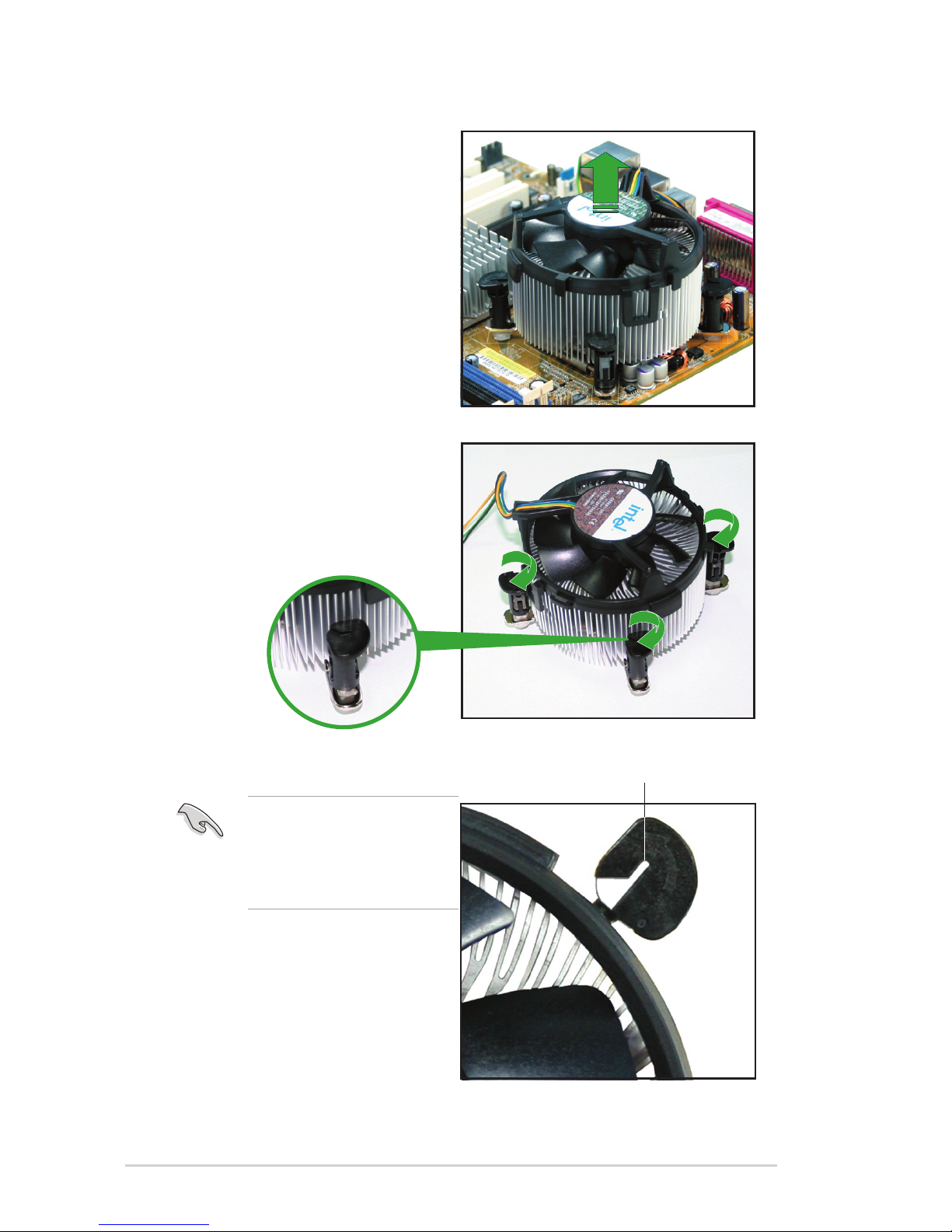

To install the CPU heatsink and fan:

1. Place the heatsink on top of the
installed CPU, making sure that the
four fasteners match the holes on
the motherboard.

Fastener

Motherboard hole

Make sure each fastener is oriented as shown, with the narrow groove directed
outward.

1-12 Chapter 1: Product introduction

Do not forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.

3. When the fan and heatsink assembly is in place, connect the CPU fan cable
to the connector on the motherboard labeled CPU_FAN.

2. Push down two fasteners at a time
in a diagonal sequence to secure
the heatsink and fan assembly in
place.

A

A

B

B

B

B

A

A

CPU_FAN

GND

CPU FAN PWR

CPU FAN IN

CPU F

AN PWM

CPU fan connector
