Connect-EV
Electric Vehicle
Charger Isolation Unit
Installation Manual
V1.0 Feb 2019
Connect-
Contents
Product Description 3
Warning Notice 3
Safety Advice 3
Introduction 4
Typical Installation Diagram 4
Dimensions & Mounting the unit 5
Electrical Connections 7
Specifications 9
Warranty 9
EV
PRODUCT ADVISORY NOTICE
This product must be installed by a competent person in accordance with the IEE
Wiring Regulations, BS7671 (18th Edition or later) and current Building
Regulations.
Ensure the electrical supply is disconnected before installation or removing the
covers of the Connect-EV.
2 |
P a g e
Once installed, the unit has a Live Mains Supply
has been isolated or disconnected.
Connect-
EV
Product Description
The matt:e Connect-EV is designed for use in domestic and light commercial / retail
applications where an Electric Vehicle charger is installed.
The unit is not intended for any purpose other than that defined within this document.
WARNINGS
Please read and observe the following notices carefully. These warnings must be
observed when installing and operating the Connect-EV.
All relevant supplies must be isolated or disconnected before commencing any work.
This product must be installed by a competent person in accordance with the IEE
Wiring Regulations, BS7671 (18th Edition or later) and any relevant Building
Regulations.
(230v or higher) within the enclosure. The covers
must not be removed until the supply to the unit
Safety Advice
The unit must be installed in a well ventilated location; it must never be covered or
have restricted ventilation.
The unit is rated for a maximum 32A.
For any information not contained within this document, please contact our
technical support team on 01543 227290.
3 |
P a g e
Connect-
Introduction
The matt:e Connect-EV is a single phase solation solution designed to facilitate the
installation of an electric vehicle charging systems.
EV
Rated at 32A, the unit is suitable for single phase EV charger systems up to 7kW. It is
essential to check the rating of the EV charger system is compatible with the unit
before installing.
The unit is designed to be installed between the EV charger and the consumer unit or
the incoming supply via Henley type blocks.
The installation location should be clean and well ventilated.
4 |
P a g e
Connect-
EV

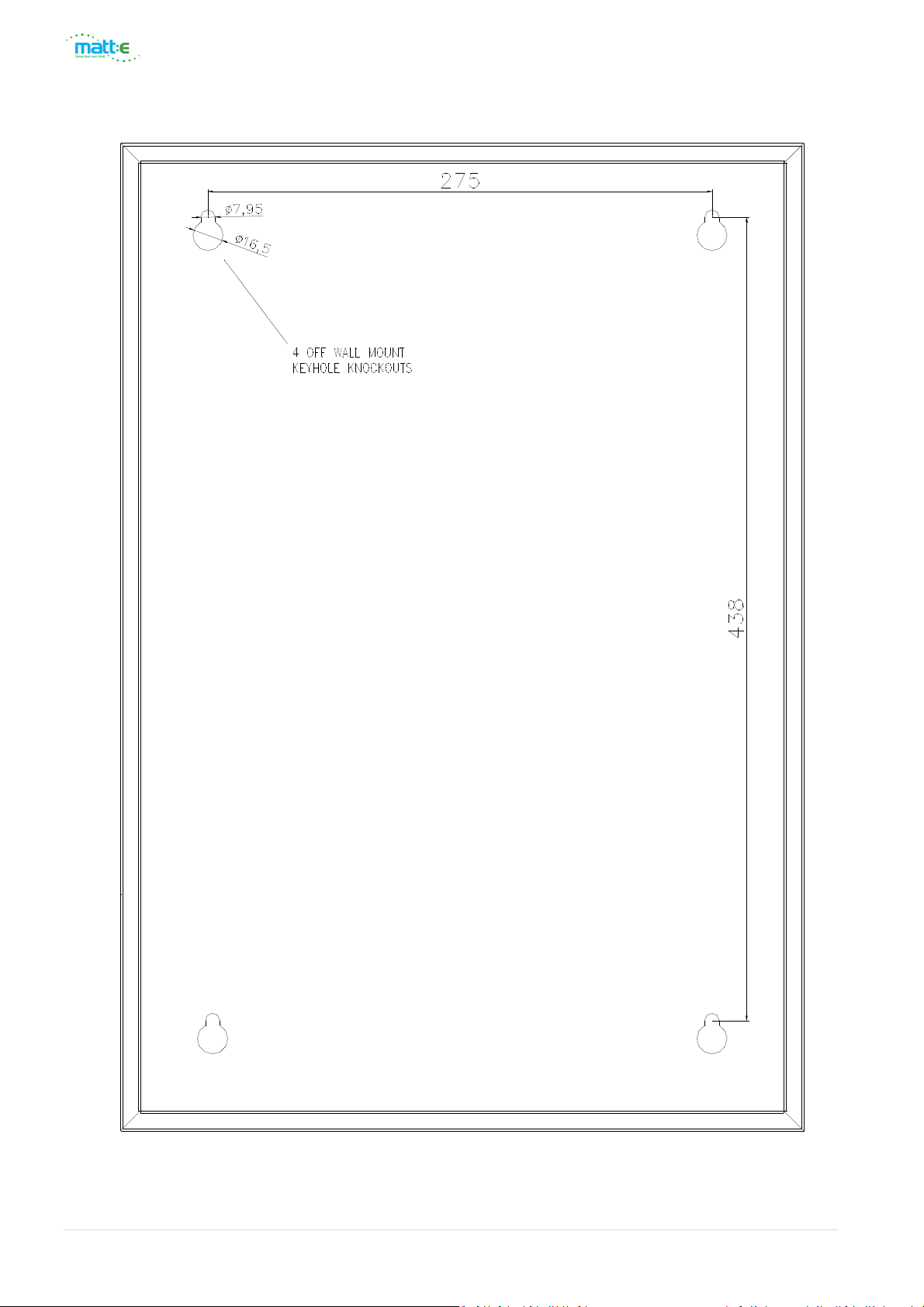

Please refer to the following diagrams for the dimensions and mounting arrangements
of the unit.
5 |
P a g e
Connect-
EV
6 |
P a g e
Connect-
Electrical Connections

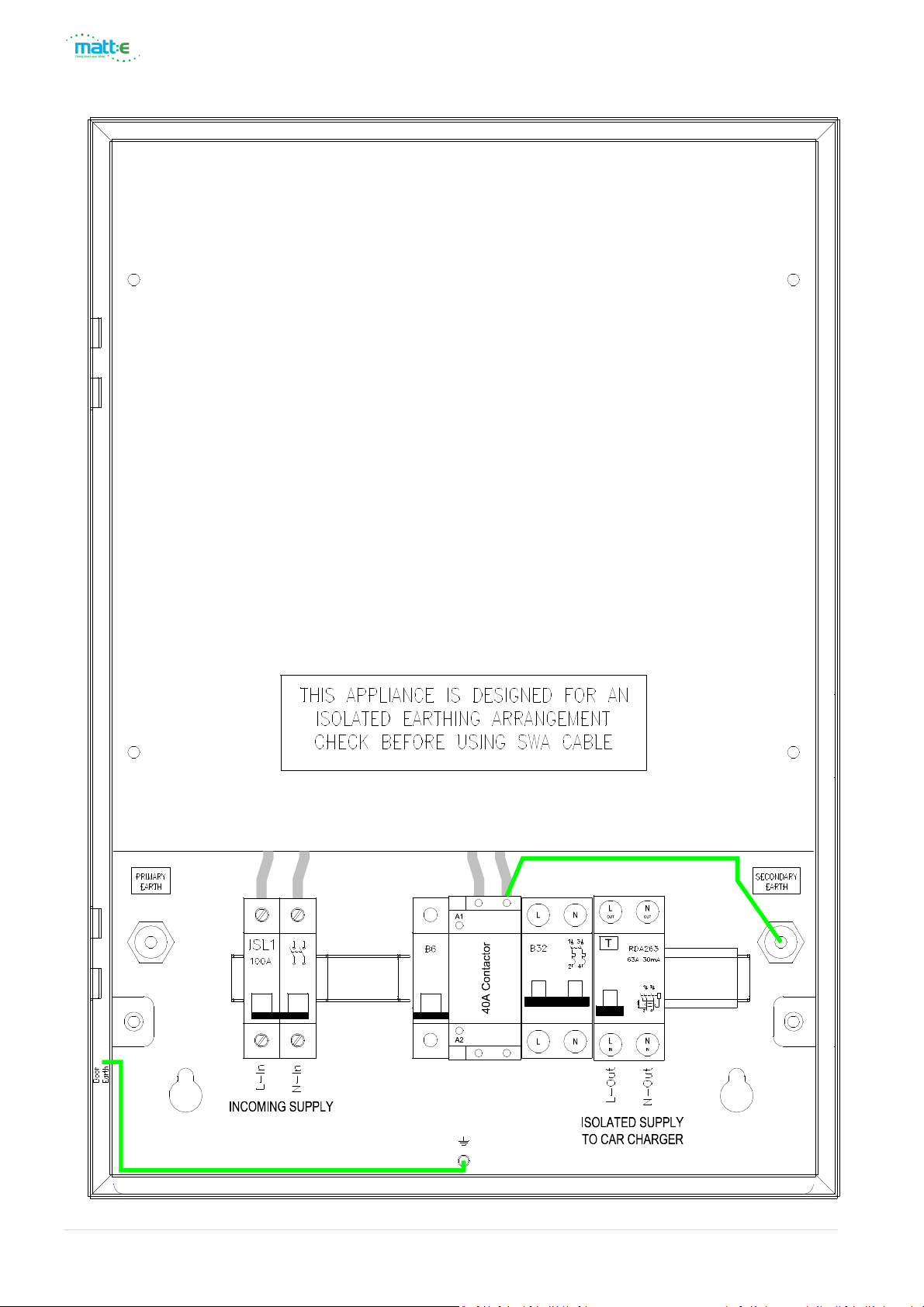

The user wiring connections are indicated in the diagram below.
Connect the incoming (live) cable from the consumer unit to the isolator.
Connect the outgoing cable to the RCDA.
Use of SWA cable may compromise the earthing arrangement. Please check before
using SWA cable
On completion of installation the tightness of all electrical connections should be
checked before energising the unit.
EV
7 |
P a g e
Connect-
EV
8 |
P a g e
Connect-
Specifications
Description Connect-EV - EV Charge Isolation Unit
Input (Volts) Nominal input voltage 230v, 50Hz, Single Phase AC
Max Load 32A
Dimensions 540mm x 375mm x 155mm
Weight Approximately 45 kg
Operating
-5°C to +40°C
Temperature
Terminal
Capacity
Incoming Live = 10mm2
Incoming Neutral = 10mm2
Outgoing Live = 10mm2
EV
Outgoing Neutral = 10mm2
Enclosure Mild Steel Powder Coated
Ingress
IP44
Protection
Document
V1.0 Feb 2019
Revision
Warranty
The Connect-EV is guaranteed for a period of 12 months from the date of
manufacture.
This warranty is limited to the replacement of faulty components only.
matt:e Ltd, Unit 5 Common Barn Farm, Tamworth Road, Lichfield WS14 9PX
9 |
P a g e
