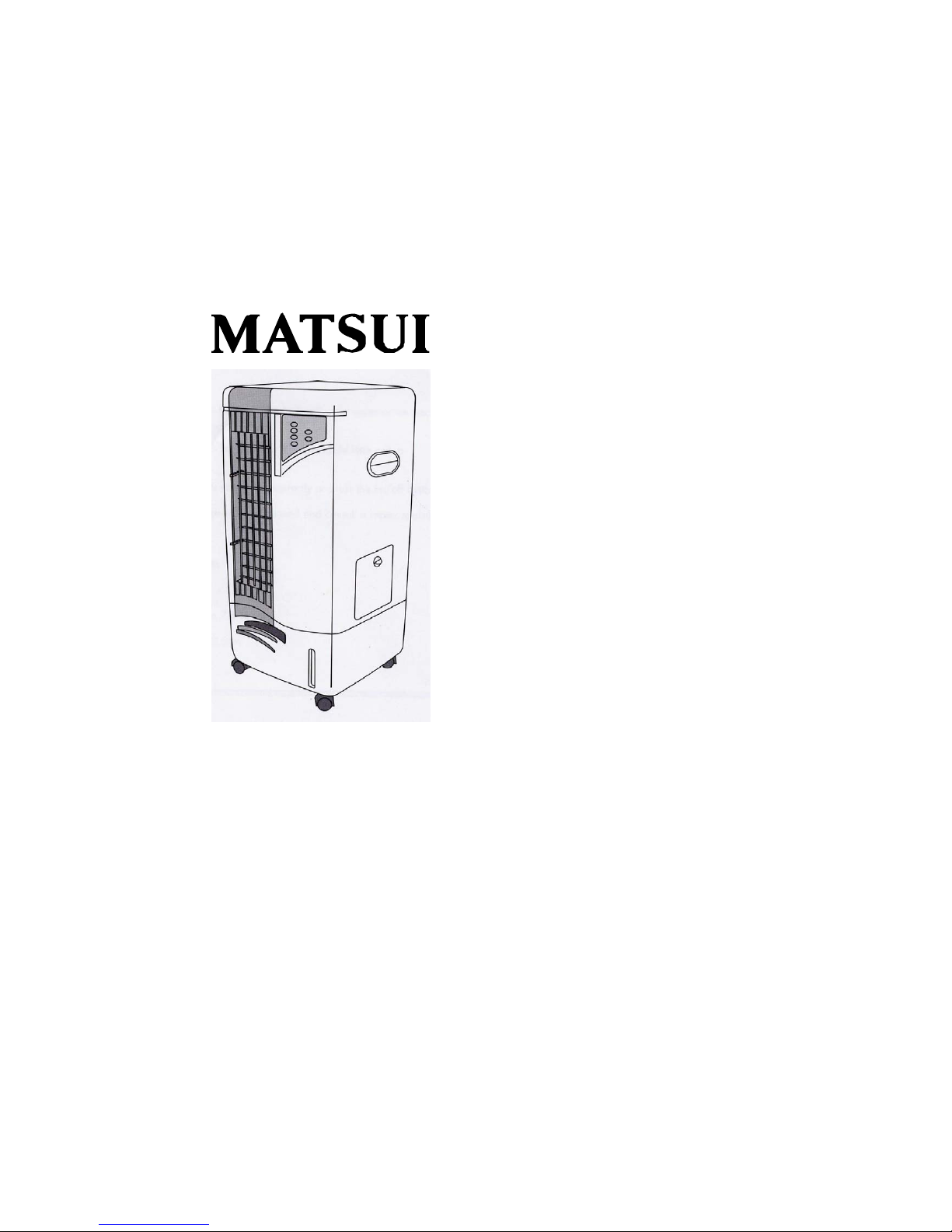

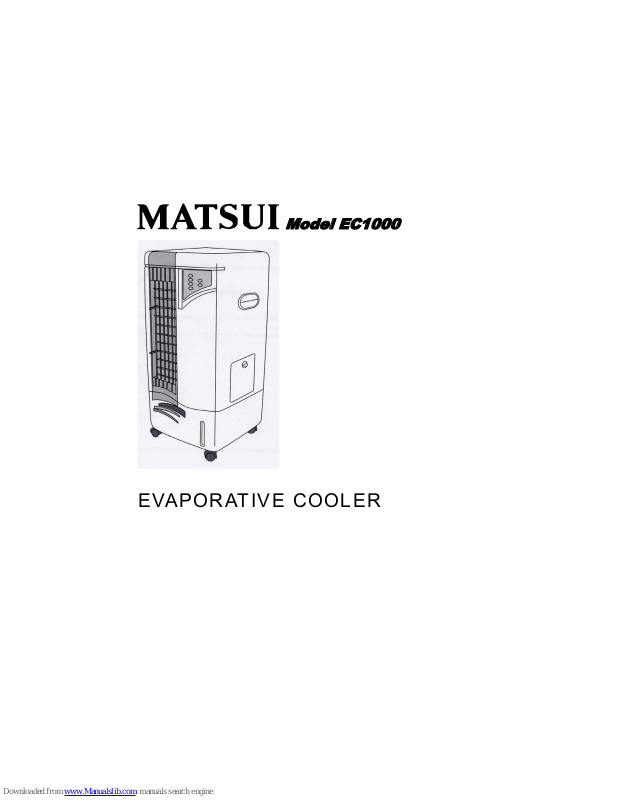

Matsui EC1000 User Manual

Model EC1000

EVAPORATIVE COOLER

Know your evaporative cooler

Please read these instructions before using your evaporative cooler.

Information

1. Air vents

2. Vertical angle levers

3. Horizontal angle
strips

4. Control panel

5. Water level indicator

6. Water inlet

7. Filter cover

8. Filter

9. Rubber stopper

10. Power Cord

11. Water conveyor belt

12. Ice blocks

i

Information and advice Safety first!

• Your evaporative cooler should be used in such a way that it
is protected from moisture. e.g. condensation, splashed
water etc.

• Do not place or store your evaporative cooler where it
can fall or be pulled into water or any other liquid.

Unplug immediately.

• Stand your evaporative cooler on a stable, level surface
during use. Do not allow your evaporative cooler to sit
on top of the mains lead.

• Do not remove any fixed covers. Never use this
appliance if it is not working properly, or if it has been
dropped or damaged. Always contact a qualified person
to carry out repairs. If the supply cord is damaged it
must be repaired by a qualified repairer.

• Do not allow children to operate your evaporative cooler.

• Do not overfill the water in the water tank.

• Do not immerse the unit in water as it may cause

damage to electrical parts.

•

Do not press the buttons on the control panel with anything

other than your fingers.

• Please unplug the power cord from the socket before
discharging the water. Pull the rubber stopper to remove any
water from inside the tank if your are going to store the
evaporative cooler for a long period of time.

• If the evaporative cooler is knocked over during use, turn off
the unit and unplug from the mains supply immediately.

• Do not use hazardous chemicals to clean or come into
contact with the evaporative cooler.

• Do not use your evaporative cooler without the removable
filter fitted.

• Rinse the filter to remove any loose dust and dry thoroughly
before replacing.

• Do not place any objects on the product.

• Do not use the product in a wet room such as a bathroom or

laundry room.

Important information:
To prevent the build up of bacteria in the water tank, empty the water container after each use by placing the appliance outside or in a
bath tub and removing the drain plug. Before storing the appliance or leaving for long periods, clean the inside of the water tank with
soap or mild detergent and rinse clean.

Keep the ice blocks out of the reach of children. If the contents of the ice blocks are swallowed, drink plenty of water as they
contain harmful liquids. If any liquid from the ice blocks gets into your eyes, rinse thoroughly with water.

Using your evaporative cooler

Do not use your cooler in hazardous areas.

Before you do anything make
sure that the rubber plug is firmly in
place.

Freeze your ice blocks until they
are solid if you intend to use them
in your evaporative cooler.

If you wish to use the ice blocks,
put them into the water inlet and
top up with water ensuring it does
not exceed the red arrow indicator.

DO NOT OVERFILL THE
WATER INLET.

Close the water inlet lid, connect
the power cord to a wall socket and
switch on. Press the on/off button
on the control panel to turn the unit
on.

Information

If you overfill the water
tank, place in an empty
bath and remove the
rubber stopper to
discharge excess
water.

i

TIMER SWITCH – Each
press operates the cooler
for thirty minute intervals
up to a maximum of 7
hours 30 minutes.

COOLER BUTTON – The
water conveyor belt will roll
smoothly and breeze will be
sent out from the cooler.

SWING SWITCH – The air
vent will swing vertically to
spread the air flow.

MODE SWITCH – The red
and green modes allow the
air to be circulated in
intervals of high, medium
and low.

SPEED SWITCH – You can
choose between low,
medium and high speed
settings.

Information

You can also use the
units as just a fan if
you turn the cool
switch off.

i

Troubleshooting and Specifications

Problems and possible solutions

There is no cool air coming out of the cooler – Fill the water tank with cold water or ice packs or re-freeze
the ice packs.

The force of air coming from the unit is weak – Try washing the removable filter with warm water.
The unit does not work – Check that the plug is connected correctly or press the on / off button.
Other abnormal conditions – Disconnect the cooler from the wall and consult a repair specialist.

Specifications

Power supply : 230V ~ 50Hz
Power : 60W
Water inlet tank capacity : 7.5L
Speed switch : High, medium, low
Timer : 30 minutes to 7.5 hours
Weight : 6.6 Kgs
External dimensions : 30 x 30 x 62.5 cm

We continually strive to improve our products, specifications may change without notice.

This symbol on the product or in the instructions means that

your electrical and electronic equipment should be disposed at the end o

f

its life separately from your household waste. There are separate

collection systems for recycling in the EU. For more information, please

contact the local authority or your retailer where you purchased the

Cleaning

Use a soft, damp
cloth to wipe the
outer body of the
unit. Never
completely cover
the unit with water
or use chemicals
or any detergents
since they may
cause damage to
the unit and/or the
filters.

i
