Matsonic MS9007C user guide

Preface

Copyright

This publication, including all photographs, illustrations and software,
is protected under international copyright laws, with all rights re­served. Neither this manual, nor any of the material contained herein,
may be reproduced without written consent of the author.

Version 1.0

Disclaimer

The information in this document is subject to change without notice.
The manufacturer makes no representations or warranties with re­spect to the contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose.
The manufacturer reserves the right to revise this publication and to
make changes from time to time in the content hereof without obliga­tion of the manufacturer to notify any person of such revision or
changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Mi­crosoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, P4/Northwood, Celeron are
registered trademarks of Intel Corporation.

Other product names used in this manual are the properties of their
respective owners and are acknowledged.

Copyright © 2001

All Rights Reserved

MS9007C, V1.0

I82845/Aug 2001

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment gen­erates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

− Reorient or relocate the receiving antenna.

− Increase the separation between the equipment and the

receiver.

− Connect the equipment onto an outlet on a circuit different
from that to which the receiver is connected.

− Consult the dealer or an experienced radio/TV technician
for help.

Shielded interconnect cables and a shielded AC power cable must
be employed with this equipment to ensure compliance with the per­tinent RF emission limits governing this device. Changes or
modifications not expressly approved by the system's manufacturer
could void the user's authorit y to operate the equipment.

ii

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:

− This device may not cause harmful interference, and

− This device must accept any interference received, in-

cluding interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadi­an Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences
du Réglement sur le matériel brouilieur du Canada.

iii

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard

Chapter 2

Installing the Mainboard

Chapter 3

Using BIOS

Chapter 4

Using the Mainboard Software

Appendix A

Setting Jumpers

Describes features of the main­board, and provides a shipping
checklist.

Go to

⇒

page 1

Describes installation of main­board components.

Go to

⇒

page 8

Provides information on using
the BIOS Setup Utility.

Go to

⇒

page 37

Describes the mainboard soft­ware.

Go to

⇒

page 67

Provides a reference to the
jumpers on the mainboard.

Go to

⇒

page 71

iv

T

AABBLLEE OOFF

T

Preface i

C

OONNTTEENNTTS

C

S

CHAPTER 1 1

Introducing the Mainboard 1

Introduction ..................................................................................... 1

Checklist.......................................................................................... 1

Standard Items .....................................................................................1

Features.......................................................................................... 2

Mainboard Components.................................................................. 4

Choosing a Computer Case............................................................ 7

CHAPTER 2 8

Installing the Mainboa r d 8

Safety Precautions.......................................................................... 8

Quick Guide .................................................................................... 9

Checking Jumper Settings ............................................................ 10

Setting Jumpers.................................................................................. 10

Checking Jumper Settings..................................................................11

Jumper Settings.................................................................................. 11

Installing the Mainboard in a Case................................................ 13

Connecting Case Components..................................................... 14

The PANEL1 and LPANEL1 Connectors..........................................15

Installing Hardware ....................................................................... 17

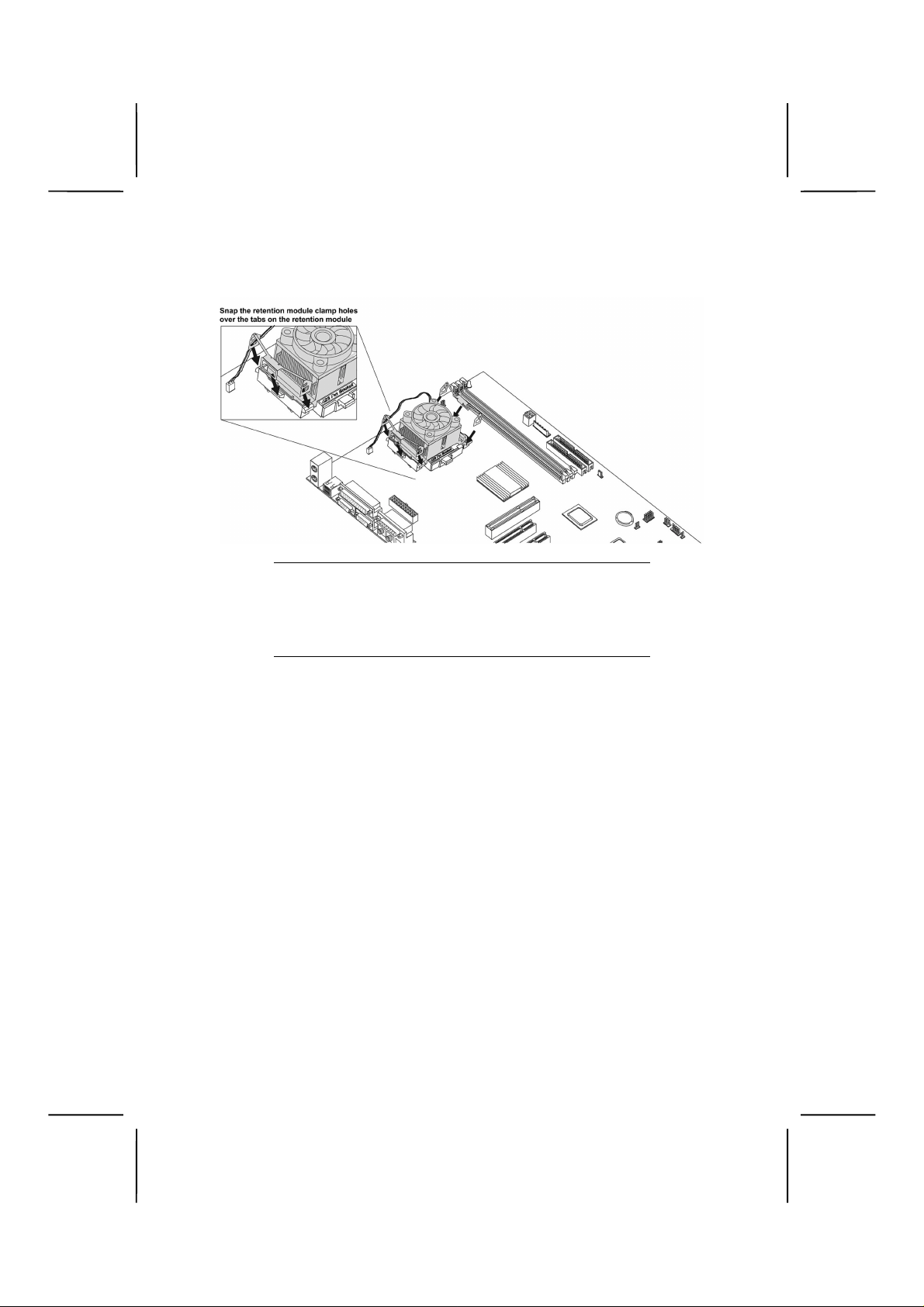

Installing the Processor......................................................................17

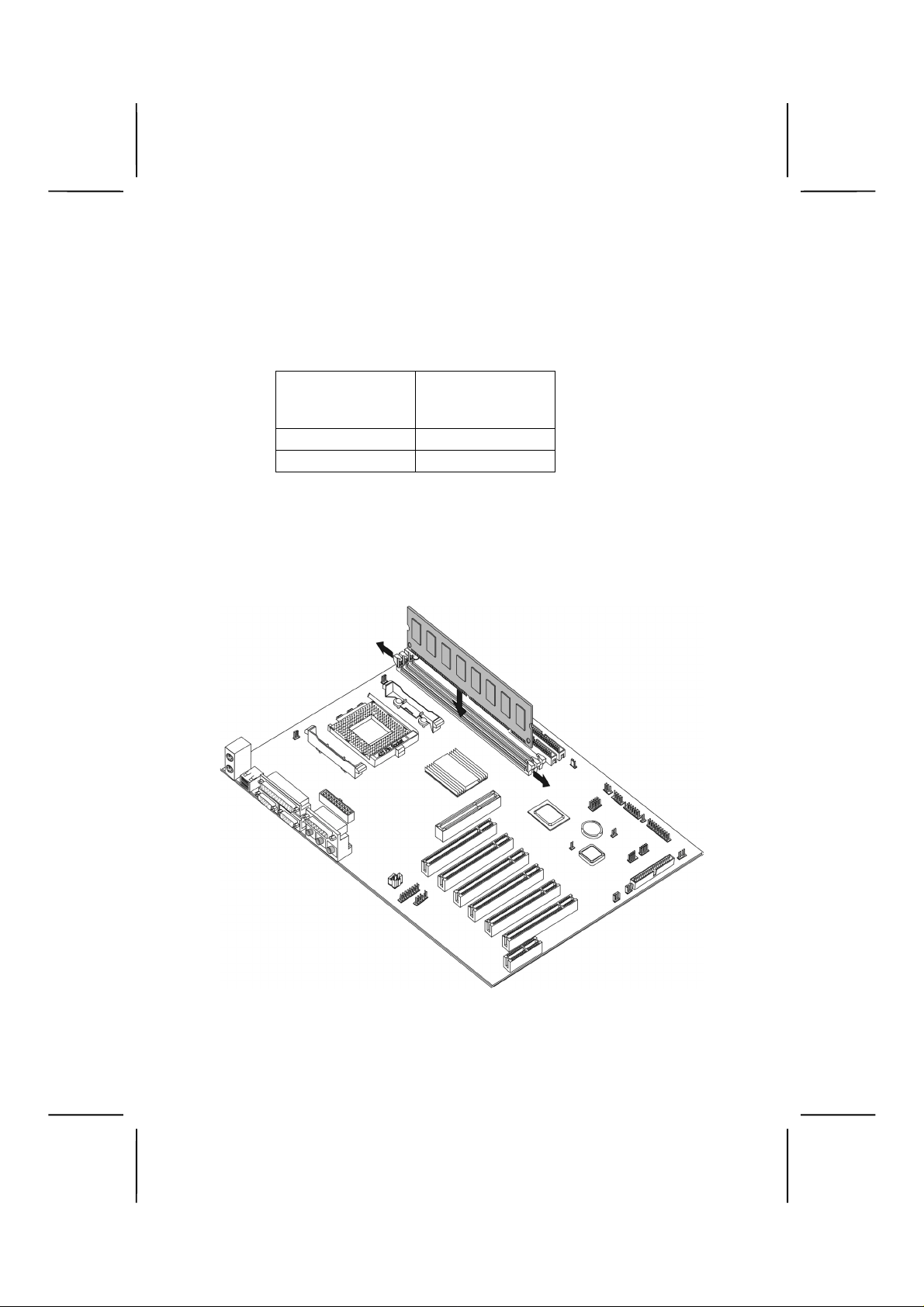

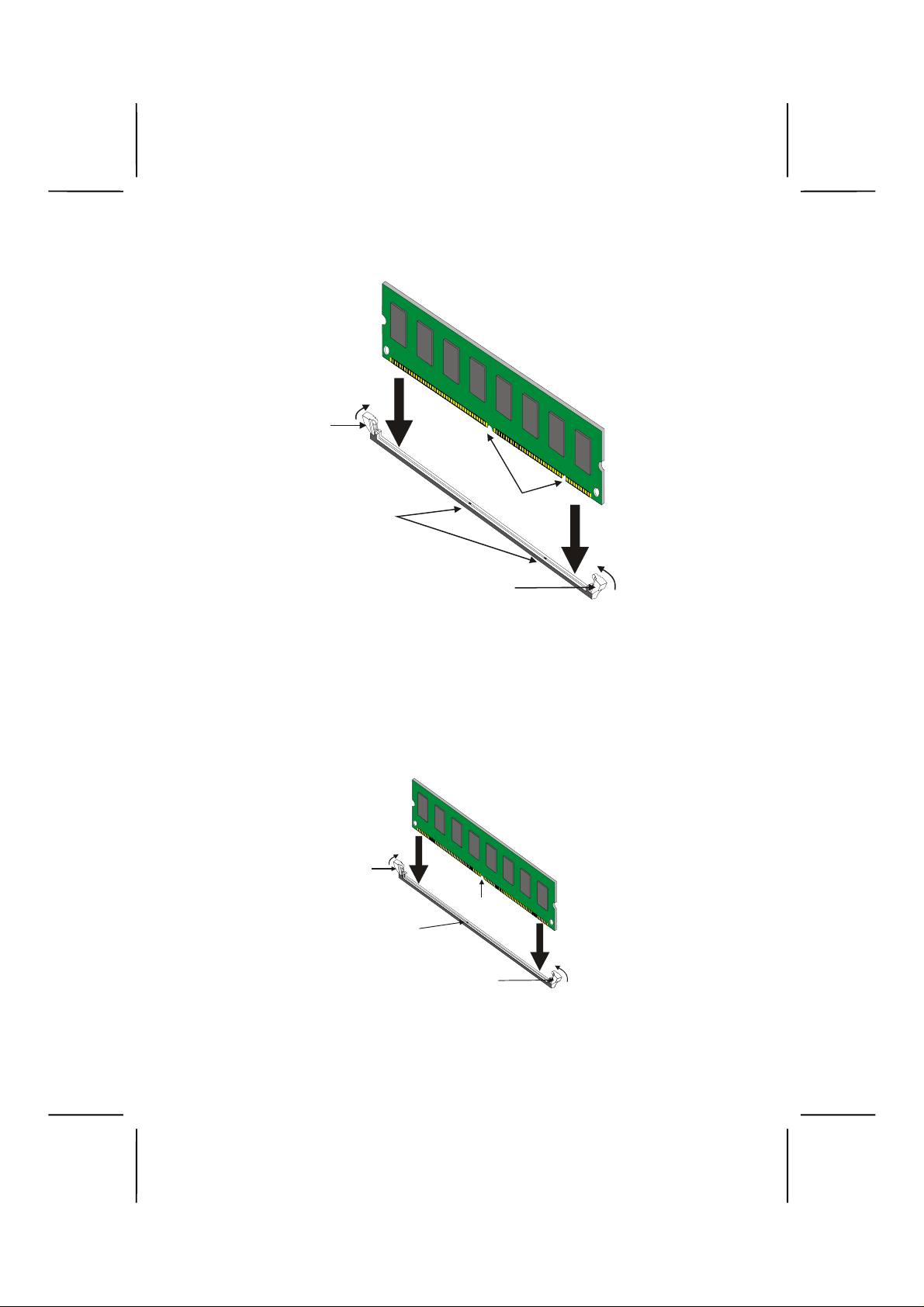

Installing Memory Modules...............................................................21

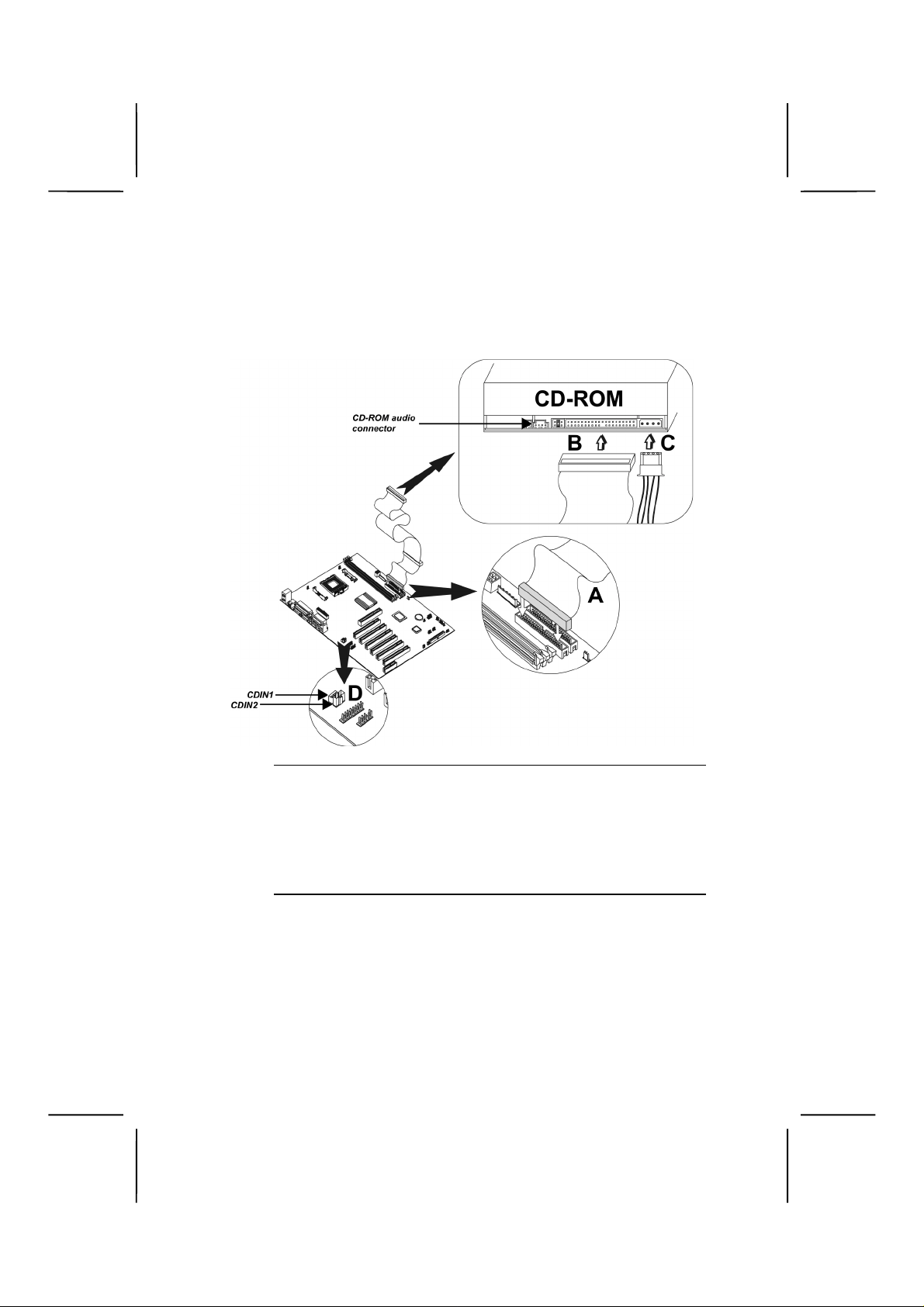

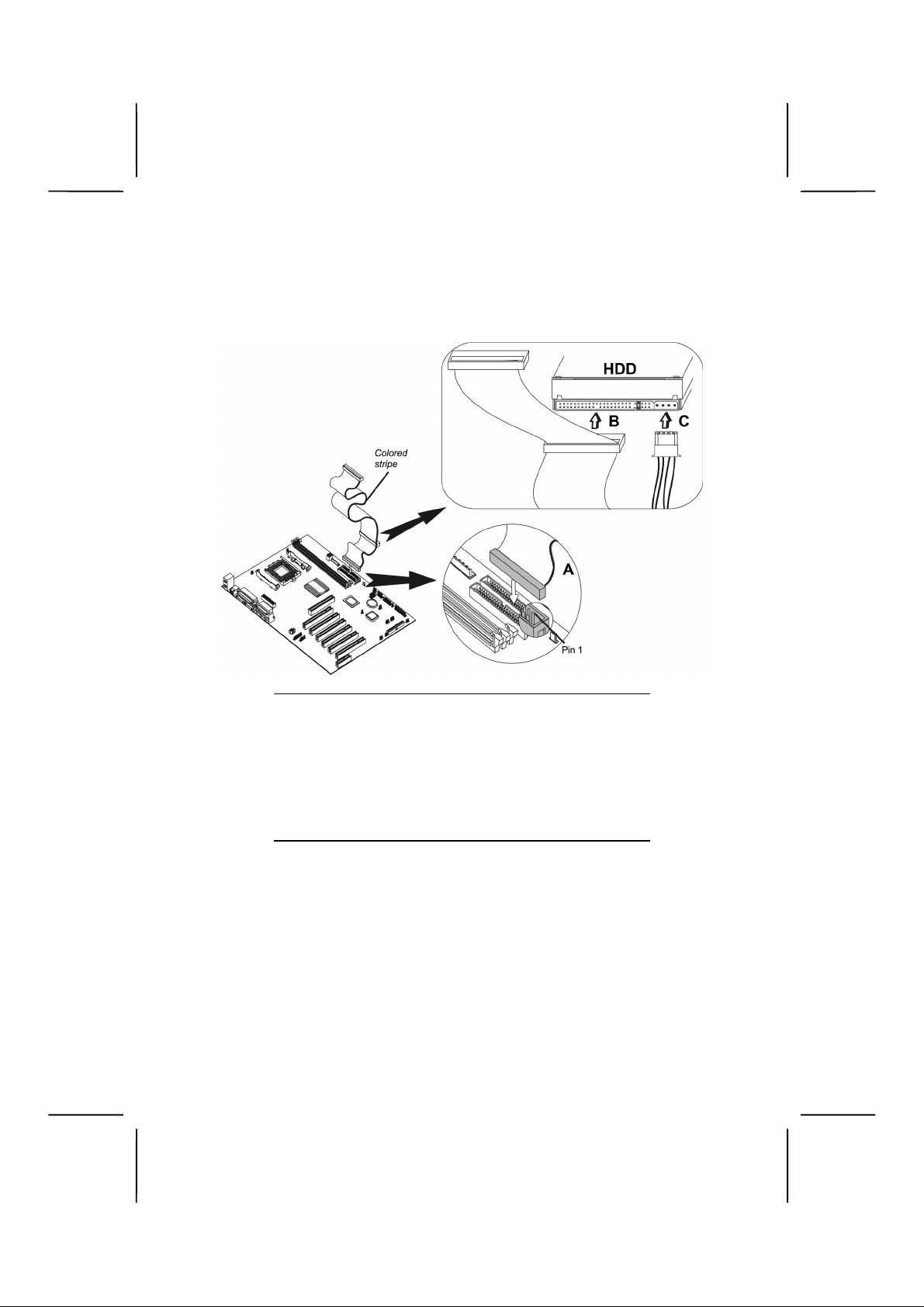

Installing a Hard Disk Drive/CD-ROM.............................................23

Installing a Floppy Diskette Drive.....................................................26

Installing Add-on Cards.....................................................................28

Connecting Optional Devices............................................................30

Connecting I/O Devices ................................................................ 35

External Connector Color Coding......................................................36

CHAPTER 3 37

Using BIOS 37

About the Setup Utility .................................................................. 37

The Standard Configuration...............................................................38

Entering the Setup Utility ..................................................................39

Updating the BIOS.............................................................................40

Using BIOS ................................................................................... 42

v

Standard CMOS Features...................................................................42

Advanced BIOS Setup Option........................................................... 45

Advanced Chipset Features Option....................................................48

Integrated Peripherals Option............................................................51

Power Management Setup Option.....................................................55

PNP/PCI Configuration Option .........................................................60

PCI Health Status Option................................................................... 62

Frequency/Voltage Control................................................................63

Load Fail-Safe Defaults Option......................................................... 65

Load Optimized Defaults Option ....................................................... 65

Set Supervisor and User Passwords Options......................................65

Save & Exit Setup Option..................................................................66

Exit Without Saving...........................................................................66

CHAPTER 4 67

Using the Mainboard Software 67

About the Software CD-ROM........................................................ 67

Folders for this Mainboard............................................................ 66

Running the Support CD-ROM..................................................... 67

Utility Folder Installation Notes ..................................................... 67

Mainboard(MS9007C) Installation Notes...................................... 69

APPENDIX A 70

Setting Jumpers 71

Jumper Settings.................................................................................. 71

The PANEL1 and LPANEL1 Connectors..........................................72

vi

CChhaapptteerr 1

Introducing the Mainboard

1

IInnttrroodduuccttiioon

Congratulations on purchasing the MS 9007C mainboard. The
MS9007C mainboard is an ATX mainboard that uses a 4-layer
printed circuit board a nd measures 305 mm x 244 m m. The
mainboard features a Socket 423 that accommodates Intel
Pentium 4 processors supporting system bus (FSB) speeds
up to 400 MHz and data bus bandwidths up to 3.2 GB/s

The MS9007C incorporates the Intel i82845 (MCH) and the
Intel 82801BA (ICH2) chipsets, which supports 3.3V DIMM
DRAM, 2X/4X AGP (1.5V only), and the AC 97 codec.

CChheecckklliisst

Compare the mainboar d ’s p ackage contents with the f o llo win g
checklist:

n

t

Standard Items

• One mainboard

• One diskette drive ribbon cable and bracket

• One IDE drive ribbon cable and bracket

• One auto-install software support CD

• Retention modules (already mounted on the board)

• One retention clip

• This user’s manual

FFeeaattuurrees

s

Processor

Chipset

Memory

VGA

The MS9007C mainboard uses a PGA Socket
423 that has the following features:

• Accommodates Intel Pentium 4 CPUs

• Supports a system bus of 400 MHz

• Supports 3.2 GB/s data bus bandwidth

Intel’s innovative i82845 (MCH) and 82801BA
(ICH2) chipsets are based on an innovative and
scalable architecture with proven reliability and
performance. A few of the advanced features of
the chipsets are:

• Host interface controller supports 400 MHz
frontside (system) bus frequency

• Supports up to 3 GB of DRAM

• Supports a maximum memory bandwidth of 1

GB/s

• AGP controller is AGP 2.0 compliant and sup-
ports 2x/4x Fast Write Protocol (1.5V only)

• PCI IDE controller supports PCI bus master-
ing, PIO modes 0~4, and UDMA 33/66/100

• Four USB 1.1 ports for serial transfer at 1.2 or

1.5 Mbit/sec.

• Integrated AC 97 audio that supports full sur-
round sound with up to six channels

Additional key features include suppo rt for an AC 97
link for audio and modem, h ardware monit oring, and
ACPI/OnNow powe r manag e ment.

The mainboard can accommodate 3.3V, unbuf­fered, 168 pin DIMM DRAM with a total capacity
of 3 GB.

The MS9007C include s a 4 xAGP slot t hat p rovide s
four times the b andw id th o f t he o riginal A GP speci fi ­cation. AGP technology provides a direct connection
between the graphics sub-system and the processor
so that the graphics do not have to compete for
processor time with other devices on the PCI bus.

2

AC 97 Audio
Codec

Expansion
Options

Integrated I/O

BIOS
Firmware

The AC 97 Audio codec is compliant with the AC
97 2.2 specification, and supports 18-bit ADC
(Analog Digital Converter) and DAC (Digital
Analog Converter) resolution as well as 18-bit
stereo full-duplex codec with independent and
variable sampling rates.

The mainboard comes with the following expan­sion options:

• Six 32-bit PCI slots

• One 4xAGP slot

• One Communications Network Riser (CNR)

slot

• Two IDE channels and a floppy disk drive in-
terface

• One Onboard LAN chip and LAN port on top
of the USB port (optional)

The MS9007C supports Ultra DMA bus mastering
with transfer rates of 33/66/100 MB/sec.

The mainboard has a full set of I/O ports and con­nectors:

• Two PS/2 ports for mouse and keyboard

• Two serial ports

• One parallel port

• One MIDI/game port

• Two USB ports

• One LAN port (optional)

• Audio jacks for microphone, line-in and line-out

This mainboard uses Award BIOS that ena bl es
users to configure many system features including
the following:

• Power management

• Wake-up alarms

• CPU parameters and memory timing

• CPU and memory timing

The firmware can also be used to set parameters
for different processor clock speeds.

3

MMaaiinnbbooaarrdd CCoommppoonneenntts

s

4

Table of Mainboard Components

Label Component

AGP1 Accelerated Graphics Port
ATX1 Standard 20-pin ATX power connect or
ATX2 Aux Vcc and Vcc3 6-pin ATX power connector
ATX3 +12 VDC 2 x 2 ATX power connector
AUDIO1 Microphone and speaker-out header
BAT1 Three volt realtime clock battery
CASFAN1 Case Fan
CDIN1 CD-in connector (Panasonic)
CDIN2 CD-in connector (Sony)
CNR1 Communications Networking Riser slot
CPU Socket CPU socket (mPGA423)
CPUFAN1 Cooling fan for CPU
DIMM1 ~ DIMM3 Three 168-pin DIMM sockets 3.3 volt
FDD1 Floppy disk drive connector
IDE 1 Primary IDE channel
IDE 2 Secondary IDE channel
IR1 IR connector
J1 ExtSMI connector
J2 Smart I/O
JP1 Clear CMOS jumper
JP2 BIOS flash protection jumper
LED1 LED status indicator connector
LAUDIO1 Front panel audio header 2
LPANEL1 Front panel connector 2
LUSB1 USB panel connector 2
PANEL1 Front panel connectors for suspend LED, HDD

LED, power switch and H/W reset.
PCI1 ~ PCI6 Six 32-bit add-on card slots
PWRFAN1 Power fan connector
SPEAKER1 Speaker connector
USB2 Front panel USB headers
VID0-VID4 Core voltage selector jumpers
WOL1 Wake On LAN wakeup connector
WOR1 Wake On Ring wakeup connector
USB2 Front panel USB headers
VID0-VID4 Core voltage selector jumpers

5

Label Component

WOL1 Wake On LAN wakeup connector
WOR1 Wake On Ring wakeup connector

LED1 – This red indicator warns you that the com-

Note:

puter is still powered on and you should not i nstall
or uninstall memory modules.

6

CChhoooossiinngg aa CCoommppuutteerr CCaasse

There are many types of computer cas es on the market. T he
mainboard complies with the specifications for the ATX sys­tem case. Some f eatures on the mainb oard are implem ented
by cabling connectors on the mainboard to indicators and
switches on the s ystem case. Ensure that your case supports
all the features required. The mainboard can support one
floppy diskette drives and four enhanced IDE drives. Ensure
that your case has sufficient power and space for all the
drives that you intend to install.

Most cases have a choice of I/O tem plates in the rear panel.
Make sure that the I/O template in the case matches the I/O
ports installed on the rear edge of the mainboard.

This mainboard has a ATX form factor of 305 mm x 244 mm.
Choose a case that accommodates this form factor.

This concludes Chapter 1. T he next chapter explains how to
install the mainboard.

e

7

CChhaapptteerr 2

Installing the Mainboard

2

SSaaffeettyy PPrreeccaauuttiioonns

Follow these safety precautions when installing the mainboard:

• Wear a grounding strap attached to a grounded device
to avoid damage from static electricity.

• Discharge static electricity by touching the metal case
of a safely grounded object before working on the
mainboard.

• Leave components in the static-proof bags they came
in.

• Hold all circuit boards by the edges. Do not bend cir-
cuit boards.

s

QQuuiicckk GGuuiidde

This Quick Guide suggests the steps you can tak e to assem­ble your system with the mainboard.

The following table pro vides a reference for installing specific
components:

e

Locating Mainboard Components
Setting Jumpers
Installing the Mainboard in a Case
Installing Case Components
Installing the CPU
Installing Memory
Installing an HDD and CD-ROM Drive
Installing an FDD
Installing Add-on Cards
Connecting Options
Connecting Peripheral (I/O) Devices

The appendix provides a quick reference for jumper

Note:

settings.

Go to page 4
Go to page 10
Go to page 13
Go to page 14
Go to page 17
Go to page 21
Go to page 23
Go to page 26
Go to page 28
Go to page 30
Go to page 35

9

CChheecckkiinngg JJuummppeerr SSeettttiinnggs

This section explains how to set jumpers for correct configu­ration of the mainboard.

s

Setting Jumpers

Use the mainboard jumpers to set system configuration op­tions. Jumpers with m ore than one pin are num bered. When
setting the jumpers, ensure that the jumper caps are placed
on the correct pins.

This illustration shows a 2-pin
jumper. When the jumper cap is
placed on both pins, the jumper is
SHORT. If you remove the jumper
cap, or place the jumper cap on

Short Open

just one pin, the jumper is OPEN.

This illustration shows a 3-pin
jumper. Pins 1 and 2 are SHORT.

1

2

3

10

Checking Jumper Settings

The following illustr ation shows the location of the mainboard
jumpers. Pin 1 is labeled.

Jumper Settings

Jumper Type Description Setting (

JP1 3-pin Clear CMOS

JP2 2-pin BIOS Protect

1-2: Normal

2-3: Clear

Open: Disable

Short: Enable

11

default

1

)

JP1

JP2

JP1

– Enables you to clear the BIO S. Refer to the following instr uc-

tions:

1. Turn the system off.

2. Remove all ATX power connectors.

3. Short pins 2 and 3 on JP1.

4. Return the jumper to the normal setting.

5. Plug in all ATX power connectors.

JP2

– Enables and disables the BIO S from being update d (flashed).

Set the jumper to enabled if you are going to update your
BIOS. After updating the BIOS, return it to the disabled setting.
For instructions on updating the BIOS refer to Chapter 3.

12

IInnssttaalllliinngg tthhee MMaaiinnbbooaarrdd iinn aa CCaasse

Refer to the following illus tration and instructions for installing
the mainboard in a case:

e

This illustration shows
an example of a main­board being installed in
a tower-type case:

Do not over-

Note:

tighten the
screws as this
can stress the
mainboard.

Most system cases have
mounting brackets in­stalled in the case,
which correspond to the
holes in the mainboard.
Place the mainboard
over the mounting
brackets and secure the
mainboard onto the
mounting brackets with
screws.

Ensure that your c ase has an I/O tem plate that supports the
I/O ports and expansion slots on your mainboard.

2. Secure the mainboard with
screws where appropriate.

1. Place the mainboard
over the mounting brack ets.

13

CCoonnnneeccttiinngg CCaassee CCoommppoonneenntts

After you have installed the m ainboard into a case, you can
begin connecting the mainboard components.

s

1. Supply power to the mainboard using the three ATX
connectors.

• Connect the 20-pin power supply connector to

ATX1 (connection is required).

: When the system is he avily loaded, you should

Note

install, at a minimum, an ATX power supply
with a 300W capacity.

2. Connect the CPU cooling fan cable to CPUFAN1.

3. Connect the case cooling fan connector to CASFAN1.

14

4. Connect the auxiliary power supply cooling fan con­nector to PWRFAN1.

5. See below for PAN EL1 and L PAN EL 1 p in desc riptions.

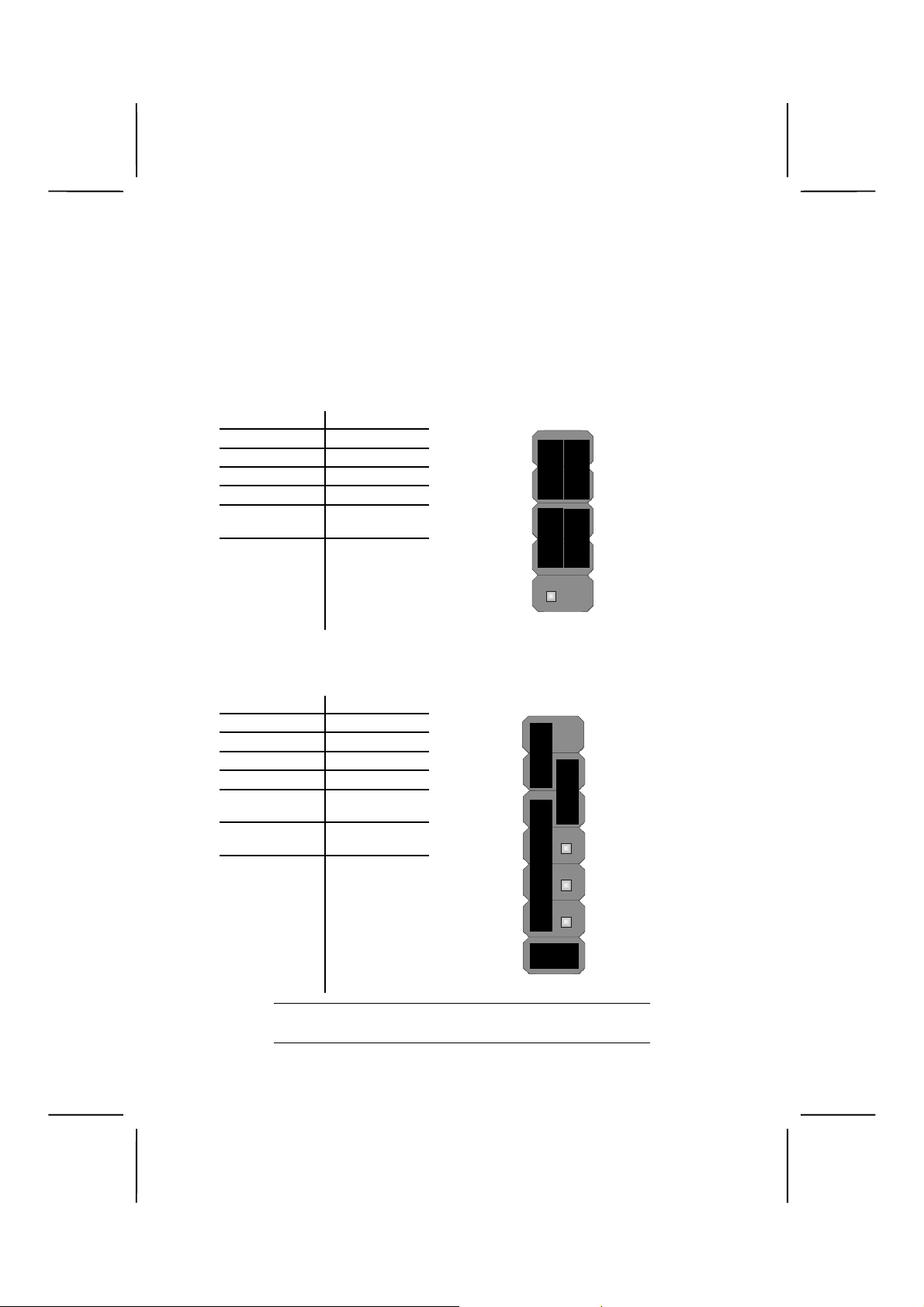

The PANEL1 and LPANEL1 Connectors

The panel connector provides a set of switch and LED con­nectors comm only found on ATX or Mic ro ATX cases . Select
one from the two t ypes of panel connector supported by this
mainboard.

PANEL1

Device Pins

Empty 10

N/C 9

Power

6, 8

ON/OFF

Reset

5, 7

Switch

Green LED

2, 4

Indicator

HDD LED +1, -3

HDD LED
(Pins 1, 3)

Reset Switch
(Pins 5, 7)

1 2

Green LED
(Pins 2, 4)

Power Switch
(Pins 6, 8)

N/C
(Pin 9)

15

Empty
(Pin 10)

9 10

LPANEL1

Device Pins

Reset

Switch

Case

Speaker

Power

Switch

Power LED +4

Green Pow-

er LED

Yellow

Power LED

HDD LED +1, -8

Note:

13, 14

9 ~ 12

5, 6

The plus sign (+ ) indicates a pin which must be con-

nected to a positive voltage.

-3

-2

Reset Swit c h
(Pins 13, 14)

Case Spea ker
(Pins 9 ~ 12)

14 7

8 1

Empty
(Pin 7)

Power Switch
(Pin 5, 6)

Power LED
(Pin 4)

Green Power LED
(Pin 3)

Yellow Power LED
(Pin 2)

HDD LED
(Pins 1, 8)

16

IInnssttaalllliinngg HHaarrddwwaarre

e

Installing the Processor

Caution:

make sure that you DO NOT scratch the mainboard or any
of the surface-mount resistors with the clip of the cooling
fan. If the clip of the cooling fan scrapes across the main­board, you may cause serious damage to both the
mainboard or its components.

On most mainboards, there are small surface-mount resis­tors near the processor socket, which may be damaged if
the cooling fan is carelessly install ed.

Avoid using cooling fans with sharp edges on the fan casing
and the clips. Also, install the cooling fan in a well-lit work
area so that you can clearly see the mainboard and proces­sor socket .

When installing a CPU heatsink and cooling fan

Before installing the Processor

This mainboard autom atically determines the CPU clock fre­quency and system bus frequenc y for the process or. You m ay
be able to change th ese sett ings t hroug h the B IOS Setu p Ut il­ity. We strongly recommend that you do not overclock
processors or other com ponents to run faster than their rated
speed.

Warning:

the reliability of the system and introduce errors into your
system. Overclocking can permanently damage the main­board by generating excess heat in components that are
run beyond the rated limits.

Overclocking components can adversely affect

17

This mainboard has a Socket 423 processor socket. When
choosing a process or, consider the perform anc e requirem ents
of the system. Per f orm anc e is bas ed on the processor desi gn,
the clock speed and system bus frequency of the processor,
and the quantity of inter nal cach e m em ory and ex terna l c ache
memory.

CPU Installation Procedure

The following illustration shows CPU installation components:

Follow these instructions to install the CPU:

1. Pull the CPU socket locking lever away from the sock­et to unhook it and raise the locking lever to the upright
position.

2. Identify the pin-1 corner on the CPU socket and the
pin-1 corner on the processor.

3. Match the pin-1 corners and insert the processor into
the socket. Do not use force.

18

4. Swing the locking lever down and hook it under the
latch on the edge of the socket.

5. Apply thermal grease to the top of the CPU.

6. Insert the CPU cooling fan/heatsink assembly.

7. Plug the CPU fan cable connector into the CPU cool­ing fan power supply on the mainboard (CFAN1).

19

8. Insert the retention module clips over the edge of the
CPU fan/heatsink assembly:

After you have assembled the system, yo u must set

Note:

the correct clock speed and frontside bus (FSB)
speed. Check the jumper section in Appendix A and
refer to Chapter 3 “Frequency Voltage Control” for
more information.

20

Installing Memory Modules

For this mainboard, you must use 168 -pin 3.3V non-buffered Du­al In-line Memory Modules (DIMMs). The memory chips are
standard SDRAM (Synchronous Dynamic Random Access
Memory). The table below show s the suppo rted freque nci es.

Frontside Bus

(FSB)

Frequency

100 MHz 100 MHz
100 MHz 133 MHz

System Memory

Bus (SMB)
Frequency

Installation Procedure

The mainboard accommodates three memory modules. You
must install at le ast one module in an y of the thr ee s lots. Each
module can be installed with 64 MB to 512 MB of memory.
Total capacity is 3GB.

1. Align the memory module with the slot. The DIMM
slots are keyed with notches and the DIMMs are keyed
with cutouts so that they can only be installed correctly.

21

Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot:

Latch

Notches

Cutouts

Latch

2. Push the latches on each side of the DIMM slot down.

3. Install the DIMM module into the slot and press it firmly
down so that it seats correctly. The slot latches are
levered upwards and latch on to the edges of the
DIMM when it is installed correctly.

Latch

Cutout

Notch

Latch

22

Installing a Hard Disk Drive/CD-ROM

This section describes how to install IDE devices such as a
hard disk drive and a CD-ROM drive.

About IDE Devices

Your mainboard has a primary and secondary IDE channel in­terface (IDE1 and IDE2 ). An IDE ribbon cabl e suppor ting two IDE
devices is bundled with t he mainbo a rd.

If you want to install m or e than two I DE de vices, get a se cond
IDE cable and you can add two more devices to the secon­dary IDE channel.

IDE devices have jumpers or switches tha t are used to s et the
IDE device as MASTER or SLAVE. Refer to the IDE device
user’s manual. When installing two IDE d evices on one cab le,
ensure that one device is set to MASTER and the other de­vice is set to S LAVE. The documentation of your IDE device
explains how to do this.

About UltraDMA

This mainboard supports UltraDMA 33/66/100. UDMA is a
technology that accelerat es the perf ormance of devices in th e
IDE channel. To maximize performance, install IDE devices
that support UDMA and use 80-pin IDE cables that support
UDMA 66/100.

23

Installing a Hard Disk Drive

1. Install the hard disk drive into the drive cage in your
Micro ATX system case.

2. Plug the IDE cable into IDE1 (A):

The ribbon cable connectors are keyed so that they

Note:

can only be installed correctly on the device con­nector. If the connector is not keyed, make sure that
you match the pin-1 side of the cable connector with
the pin-1 side of the device connector. Each con­nector has the pin-1 side clearly marked. The pin-1
side of each ribbon cable is always marked with a
colored stripe on the cable.

3. Plug an IDE cable connector into the hard disk drive
IDE connector (B). It doesn't matter which connector
on the cable you use.

4. Plug a power cable from the case power supply into
the power connector on the hard disk drive (C).

When you first start up your system, the BIOS should auto­matically detect your hard disk drive. If it doesn’t, enter the
Setup Utility and use the IDE Har d D isk Auto Detect feature to
configure the har d disk drive that you have installed. See IDE
HDD Auto-Detection on page 43 for more information.

24

Installing a CD-ROM/DVD Drive

1. Install the CD-ROM/DVD drive into the drive cage in
your Micro ATX system case.

2. Plug the IDE cable into IDE1 (A). If you have already
installed an HDD, use the other connector on the IDE
cable.

The ribbon cable connectors are keyed so that they can only

Note:

be installed correctly on the device connector. If the connec­tor is not ke yed, make sure that you match the pin-1 sid e of
the cable connector with the pin-1 side of the device con­nector. Each connector has the pin-1 side clearly marked.
The pin-1 side of each ribbon cable is always marked with a
colored stripe on the cable.

3. Plug an IDE cable connector into the CD-ROM/DVD
drive IDE connector (B). It doesn't matter which con­nector on the cable you use.

4. Plug a power cable from the case power supply into
the power connector on the CD-ROM/DVD drive (C).

5. Use the audio cable provided with the CD-ROM/DVD
drive to connect to the mainboard CD-in connector
CDIN1 or CDIN2 (D).

25

When you first start up your system, the BIOS should auto­matically detect your CD-ROM/ DVD drive. If it doesn’t, enter
the Setup Utility and configure the CD-ROM/DVD drive that
you have install ed. See IDE Prim ary/Secondary Mast er/Slave
(Auto)on page 44 for more information.

Installing a Floppy Diskette Drive

The mainboard has a floppy diskette drive (FDD) interface
and ships with a diskette dr ive ribbon cable that s upports o ne
or two floppy diskette drives . You can i nstall a 5.25-inch drive
and a 3.5-inch drive with various c apacities. The floppy disk­ette drive cable has one type of connector for a 5.25-inch
drive and another type of connector for a 3.5-inch drive.

1. Install the FDD into the drive cage in your Micro ATX
system case.

2. Plug the FDD cable into FLOPPY1 (A):

26

27

The ribbon cable connectors are keyed so that they

Note:

can only be installed correctly on the device con­nector. If the connector is not keyed, make sure that
you match the pin-1 side of the cable connector with
the pin-1 side of the device connector. Each con­nector has the pin-1 side clearly marked. The pin-1
side of each ribbon cable is always marked with a
colored stripe on the cable.

3. Plug the correct connector on the FDD cable for the

5.25-inch or 3.5-inch drive into the FDD connector (B).

4. Plug a power cable from the case power supply into
the power connector on the FDD (C).

When you first start up your system, go immediately to the
Setup Utility to configure the floppy diskette drives that you
have installed. See Standard CMO S Features on page 42 f or
more information.

Installing Add-on Cards

This mainboard has six 32-bit PCI (Peripheral Components
Interconnect) expansion slots, one 4xAGP slot, and one
Communications and Networking Riser (CNR) slot.

4xAGP Slot

PCI Slots

CNR Slot

The 4xAGP slot is used to install a graph­ics adapter that supports the 4xAGP
specification and has a 4xAGP edge con­nector. The 4xAGP slot only supports 1.5V
4xAGP and 2xAGP cards.

PCI slots are used to install expansion
cards that have the 32-bit PCI interface.

This slot is used to insert CNR cards in­cluding LAN, Modem, and Audio functions.

28

Before installing an add-on card, check the docu-

Note:

mentation for the card carefully. If the card is not
Plug and Play, yo u may ha ve to ma n ual l y con fi gur e
the card before installation.

1. Remove a blanking plate from the system case corre­sponding to the slot you are going to use.

2. Install the edge connector of the add-on card into the
expansion slot. Ensure that the edge connector is cor­rectly seate d in the slot.

3. Secure the metal bracket of the card to the system
case with a screw.

For some add-on cards, for example graphics adapters

Note:

and network adapters, you have to install drivers and
software before you can begin using the add-on card.

29

Connecting Optional Devices

Refer to the following for inf ormation on connectin g the main­board’s optional device s:

AUDIO1: Front panel audio header

This mainboard supports front panel m icrophone and spe aker
out ports. If your computer case has these ports, connect
them to AUDIO1.

Pin Signal Name Pin Signal Name

1 MICIN 2 AGND
3 MICBIAS 4 5V
5SPKOUTR 6XSPKOUTR
7EMPTY 8KEY
9 SPKOUTL 10 XSPKOUTL

30

WOL1/WOR1: Wake On LAN/Wake On Modem

If you have installed a LAN card, use the c able provided with
the card to plug into t he m ainbo ard W O L1 connector. This en­ables the Wake On LAN (WOL) feature. W hen your s ystem is
in a power-saving mode, any LAN signal automatically re­sumes the system . You must enable this item us ing the Power
Management page of the Setup Utility.

Pin Signal Name

1

5VSB

2

Ground

3

SENSE

If you have installed a modem, use the cable provided with
the modem to plug into th e mainboar d W OM1 connector. This
enables the Wake On Modem (WOR) feature.

When your system is in a power-saving mode, any modem
signal automatically resumes the system. You must enable
this item using the Power Management page of the Setup
Utility. See Chapter 3 for more information.

IR1: Infrared data port connector

The mainboard supp orts an infrared data port. Inf rared ports
allow the wireless exchange of information between your
computer and similarly equipped devices such as printers,
laptops, Personal Digital Assistants (PDAs), and other com­puters.

Pin Signal Name Pin Signal Name

1NC 2Key
3 +5VDC 4 Ground
5 IR transmit 6 IR receive

31

USB2: On board USB port

The mainboard has USB ports installed on the rear edge I/O port
array (see page 35). However, some computer cases have a
special module that mounts USB ports at the front of the case. If
you have this kind of case, use auxiliary USB connector USB1 to
connect the front-mount ed ports to the main board.

Pin Signal Name Pin Signal Name

VCC

1
3
5
7
9

VCC
USBP2-N
USBP2-P
GND
Key

2
4
6
8

10

USBP3-N
USBP3-P
GND
OC#

J1: ExtSMI connector

The ExtSMI connec tor is for use with SMI hard ware interrupt
power management.

Pin Signal Name

1

EXTSMI

2

GND

SPEAKER1: Internal speaker

Connect the internal speaker connector to this header.

Pin Signal Name

1

External speaker

2

Onboard buzzer

3

NC

4

VCC

32

J2: Smart I/O

This connector is for use with media storage devices using the
LPC interface.

Pin Signal Name Pin Signal Name

VCC3

1
2
3
4
5
6
7
8
9

10

PCICLK
SERIRQ
LFRAME#
LDRQ#
LAD0
LAD1
LAD2
LAD3
PCIRST#
PME#

11

VCC3

12

GND

13

GND

14

5VSB

15

GND

16

GND

17

RESERVED(GND)

18

VCC5

19

VCC5

20

LAUDIO1: Front Panel Audio header 2

This panel connector which is specially designed for OEM
customers provides a s et of fr ont pane l microphone & speak er
out ports using the OEM specification.

Pin Signal Name Pin Signal Name

1
3
5
7
9

11
13
15

ALOR
AGND
Ground
+12V
MIC
SPKOUTR
SPKOUTL
AGND

2
4
6

8
10
12
14
16

ALOL
AGND
Ground
Empty
AGND
XSPKOUTR
XSPKOUTL
Empty

33

LUSB1: USB panel connector 2

This USB panel connector which is specially designed for OEM
customers connects to the front panel or case USB ports that
comply with th e OEM spe ci fic ati on s.

Pin Signal Name Pin Signal Name

Ground

1
3
5
7
9

USBPWR
USBPP2­USBPP2+
Ground
Ground

2

4

6

8
10

Ground
USBPP3+
USBPP3­USBPWR2

34

CCoonnnneeccttiinngg II//OO DDeevviiccees

s

The backplane of the mainboard has the following I/O ports:

PS/2

mouse

PS/2

keyboard

LAN
port

USB

ports

PS/2 Mouse

PS/2 Keyboard

LAN Port

USB Ports

LPT1

COM1/2

Pa rallel port (LPT1)

Serial port

COM 1

Serial port

COM 2

Game port

Microphone
Line-in

Line-out

Use the upper PS/2 port to connect a
PS/2 pointing device.

Use the lower PS/2 port to connect a
PS/2 keyboard.

If your mainboard comes with the LAN
option, you can connect an RJ-45 ca­ble to the LAN port.

Use the USB ports to connect USB
devices.

Use LPT1 to connect printers or other
parallel communications devices.

Use the COM ports to connect serial
devices such as mice or fax/modems.
COM1 is identified by the system as
COM1/3. COM2 is identified by the
system as COM2/4.

Game Port

Audio Ports

Use the game port to connect a joy­stick or a MIDI device.

Use the three audio ports to connect
audio devices. The left side jack is for
a stereo line-out signal. The middle
jack is for a stereo line-in signal. The
right side jack is for a microphone.

35

External Connector Color Coding

Many connectors now use standard colors as shown in the
table below.

Connector Color

Analog VGA Blue
Audio line-in Light blue

Audio line-out Lime

Digital monitor/flat panel White

IEEE 1394 Grey

Microphone Pink

MIDI/game Gold

Parallel Burgundy

PS/2-compatible keyboard Purple

PS/2-compatible mouse Green

Serial Teal or Turquoise

Speaker out/subwoofer Orange

Right-to-left speaker Brown

USB Black

Video out Yellow

SCSI, network, telephone,

modem

None

This concludes Chapter 2. The next chapter covers the BIOS.

36

CChhaapptteerr 3

Using BIOS

3

AAbboouutt tthhee SSeettuupp UUttiilliitty

The computer uses the latest Award BIOS with support for
Windows Plug and Play. The CMOS chip on the mainboard
contains the ROM setup instructions f or configuring th e main­board BIOS.

The BIOS (Basic Input and Output System) Setup Uti lity dis­plays the system's configuration status a nd provides you with
options to set system parameters. T he parameters are s tored
in battery-backed-up CMOS RAM that saves this inform ation
when the power is turn ed off . When the s ystem is turned back
on, the system is configured with the values you stored in
CMOS.

The BIOS Setup Utility enables you to configure:

• Hard drives, diskette drives, and periphera ls

• Video display type and display options

• Password protection from unauthorized use

• Power management features

The settings made in the Se tup Uti li t y aff ect how th e computer
performs. Befor e using the Setup Utility, ensure that you un­derstand the Setup Utility options .

This chapter provides explanations for Setup Utility options.

y

The Standard Configuration

A standard configuration has already been set in the Setup
Utility. However, we recomm end that you read this chapt er in
case you need to make any changes in the future.

This Setu p Utility should be used:

• when changing the system configuration

• when a configuration error is detected and you are

prompted to make changes to the Setup Utility

• when trying to resolve IRQ conflicts

• when making changes to the Power Management con-

figuration

• when changing the password or making other changes
to the Security Setup

38

Entering the Setup Utility

When you power on the s ystem, BIOS enters the Power-On
Self Test (POST) routines. POST is a series of built-in diag­nostics perform ed by the BIOS. After the POST routi nes are
completed, the following message appears:

Press DEL to enter SETUP

Pressing the delete ke y accesses the Award BIOS Setup
Utility:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Standard CMOS Features
Advanced BIO S Features
Advanced Chi pset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
PC Health Stat us

Esc : Quit
F10 : Save & Exit Setup

Time, Date, Hard Disk Type . . .

BIOS Navigation Keys

The BIOS navigation keys are listed below:

Key Function

Esc

←↑↓→

+/–

/PU/PD

F10

F1

F5
F6

F7

Exits the current menu
Scrolls through the items on a menu
Modifies the selected field's values

Saves the current configuration and exits setup
Displays a screen that describes all key func-

tions
Loads previously saved values to CMOS
Loads a minimum configuration for trouble-

shooting.
Loads an optimum set of values for peak per-

formance

Frequency/Voltage Control
Load Fail-Safe Def aul ts
Load Optimized Defa ul ts
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

↑↑↑↑ ↓↓↓↓ →→→→

←←←←

: Select Item

39

Updating the BIOS

You can download and install updated BIOS for this main­board from the m anufacturer's Web site. New BIO S provides
support for new peripher als, im provem ents in perf orm ance, or
fixes for known bugs.

Award Flash Memory Utility

This utility lets you eras e the system BIOS store d on a Flash
Memory chip on the mainbo ard, a nd lets you cop y an update d
version of the BIOS to the chip. Proceed with caution when
using this program. If you erase the current B IOS and fail to
write a new BIOS, or wr ite a new BIOS that is incorrect, your
system will malfunction. Refer to Chapter 3, Using BIOS for
more information.

For this mainboard, use AWD8XX.EXE to flash the BIOS
(where 8XX is th e version number). You can use a ny versi on,
but we suggest you us e the latest version. To use the util ity,
you must be in real-m ode DOS (n ot the DO S box that is a vail­able in Windows 98/95/NT). If you are using WINDOWS 98/95,
shut down your computer and select the option Restart in
DOS in the shutdo wn dialog box. If you are runn ing W indows
NT, shut do wn your computer and boot from a DOS diskette
temporarily in order to run the flash memory utility.

40

Install new BIOS as follows:

1. If your mainboard has a BIOS protection jumper,
change the setting to allow BIOS flashing. (Refer to
Appendix A for jumper settings.)

2. If your mainbo ard has an item called Fi rmware Write
Protect in Advanced BIOS features, disable it. (Firmware
Write Protect prevents BIOS from being overwritten.)

3. Create a bootable system disk. (Refer to Windows on­line help for information on creating a bootable system
disk.)

4. Download the Flash Utility and new BIOS file from the
manufacturer's Web site. Copy these files to the sys­tem diskette you created in Step 3.

5. Turn off y our comput er and inser t the syste m diskett e in
your computer's diske tte drive. (You might need to run
the Setup Utility and change the boot priority items on the
Advanced BIOS Features Setup page, to force your
computer to boot fro m the floppy diskette drive fi rst.)

6. At the A:\ prompt, type the Flash Utility program name
and press <Enter>. You see a screen similar to the
following:

(C) Award Software 1999 All Rights Reserved

For (MAINBOARD NAME) DATE: 10/26/2000
Flash Type
File Name to Program :____________________

Error Message

FLASH MEMORY WRITER V7.33

7. Type the filename of the new BIOS in the “File Name
to Program” text box. Follow the onscreen directions to
update the mainboard BIOS.

8. When the installation is complete, remove the floppy
diskette from the diskette drive and restart your com­puter. If your mainboard has a Flash BIOS jumper,
reset the jumper to protect the newly installed BIOS
from being overwritten.

41

UUssiinngg BBIIOOS

S

When you start the Setup Uti lity, the main menu appears. The
main menu of the Setup Utility displays a list of the options
that are available. A highlight indicates which option is cur­rently selected. Use the cursor arrow keys to move the
highlight to other opt ions. When an option is highlig hted, ex­ecute the option by pressing <Enter>.

Some options lead to pop- up dialog boxes tha t prompt you to
verify that you wish to exec ute that opt ion. Oth er options lead
to dialog boxes that prompt you for information.

Some options (marked with a triangle

) lead to submenus
that enable you to change the values for the option. Use the
cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis.
Submenu items are denoted by a triangle

.

Standard CMOS Features

This option displays a tab le of item s defining basic i nfor m ation
about your system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Date (mm:dd:yy) Tue, July 11 2001
Time (hh:mm:ss) 12 : 8 : 59

IDE Primary Master
IDE Primary Slave
IDE Secondar y Master
IDE Secondary Slave

Drive A [1.44M, 3.5 in.]
Drive B [None]
Floppy 3 Mode Support [Disabled]

Video [EGA/VGA]
Halt On [All Errors]

Base Memory 640K
Extended Memory 64512K
Total Memory 65536K

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Standard CMOS Features

Menu Level
Change the da y, month,

year and century.

Item Help

42

Date and Time

The Date and Time items show the curren t date and time on
the computer. If you are running a Windows OS, these items
are automaticall y upda ted wh e ne ver you make changes to the
Windows Date and Time Properties utility.

IDE Devices (None)

Your computer has two IDE channels (Primary and Secondary)
and each channel can be installed with one or two devices
(Master and Slave). Use these it ems to configure eac h device
on the IDE channel.

Press <Enter> to display the IDE submenu:

CMOS Setup Utility – Copyright © 1984 – 2001 Award Software

IDE Primary Master

IDE HDD Auto-Detection Press Enter
IDE Primary Master [Auto]

Access Mode [Auto]

Capacity 0 MB
Cylinder 0

Head 0
Precomp 0
Landing Zone 0
Sector 0

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level
To auto-detect the

HDD’s size, head . . . on
this channel

IDE HDD Auto-Detection

Press <Enter> while th is it em is high lighte d to pr om pt the Set­up Utility to automatic ally detect and configure an ID E device
on the IDE channel.

If you are setting up a new hard disk drive that sup-

Note:

ports LBA mode, more than one line will appear in
the parameter box. Choose the line that lists LBA
for an LBA drive.

Item Help

43

IDE Primary/Secondary Master/Slave (Auto)

Leave this item at Auto to enable the system to automatically
detect and c onf ig ur e IDE dev ic es on th e ch ann el. If it f ails to f ind
a device, change the value to Manual and then manually config­ure the drive by entering the characteristics of the drive in the
items described below.

Refer to your drive's docum ent at i on or look on t h e drive cas i n g if
you need to obtain this information. If no device is installed,
change the value to None.

Before attempting to configure a hard disk drive,

Note:

ensure that you have the configuration infor mation
supplied by the manufacturer of your hard drive. In­correct settings can result in your system not
recognizing the installe d hard disk.

Access Mode (Auto)

This item defines ways that can be used to access IDE hard
disks such as LBA (Large Block Addressing). L ea ve t his value
at Auto and the system will automatically decide the fastest
way to access the hard disk drive.

Press <Esc> to return to the Standard CMOS Features page.

Drive A/Drive B (1.44M, 3.5 in./None)

These items define the characteristics of any diskette drive
attached to the system . You can con nect one or two diskette
drives.

Floppy 3 Mode Support (Disabled)

Floppy 3 mode refer s to a 3.5-inch diskette with a c apacity of

1.2 MB. Floppy 3 mode is sometimes used in Japan.

44

Video (EGA/VGA)

This item defines the video mode of the system. T his main­board has a built-in VG A gr a ph ics s ystem; you must leave this
item at the default value.

Halt On (All Errors)

This item defines the operation of the system POST (Power
On Self Test) routine. You can use this item to select which
types of errors in the POST are sufficient to halt the system.

Base Memory, Extended Memory, and Total Memory

These items are autom atically detecte d by the s ystem at star t
up time. These are display-only fields. You cannot make
changes to these fields.

Advanced BIOS Setup Option

This option displays advanced information about your system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Advanced BIO S Features

Anti-virus Protection [Disabled]
CPU L1 & L2 Cach e [Enabled]
Quick Power On Self Test [Enabled]
First Boot Device [Floppy]
Second Boot D evice [HDD-0]
Third Boot Device [LS120]
Boot Other Device [Enabled]
Swap Floppy Drive [Disabled]
Boot Up Floppy Seek [Enabled]
Boot Up NumLock Statu s [On]
Gate A20 Option [Fast]

ATA 66/100 Cable MSG [Enabled]

Typematic Rate Setting [Disabled]

x Typematic Rate (Chars/Sec) 6
x Typematic Delay (Msec) 250

Security Option [Setup]

APIC Mode [Enabled]

OS Select For DRAM > 64MB [Non-OS2]

HDD S.M.A.R.T Capability [Disabled]

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level
Allows you to choose

the VIRUS warni ng
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled
and someone attempts
to write data into this
area, BIOS will show a
warning message on
screen and alarm beep

45

Item Help

Anti-virus Protection (Disabled)

When enabled, this item provides protection against viruses
that try to write to the boot sector and partit ion table of your
hard disk drive. You need to disable this item when installing
an operating system. We recommend that you enable this
item as soon as you have installed an operating system.

For complete protection against viruses, install viru s

Note:

software in your operating system and update the vi­rus definitions regularly.

CPU L1 & L2 Cache (Enabled)

All processors that can be installed in th is mainboard use in­ternal level 1 (L1) and external level 2 (L2) cache mem ory to
improve perform ance. Leave this item at the default va lue for
better performance.

Quick Power On Self Test (Enabled)

Enable this item to shorten the power on testing (POST) and
have your system start up faster. You might like to enable this
item after you are confide nt that your system hardware is op­erating smoothly.

First/Second/Third Boot Device (Floppy/HDD-0/LS120)

Use these three items to select the priority and order of the
devices that your system searches for an operating s ystem at
start-up time.

Boot Other Device (Enabled)

When enabled, the system searches all other possible loca­tions for an operating system if it fails to find one in the
devices specified under th e First, Second, and Third boo t de­vices.

Swap Floppy Drive (Disabled)

If you have two flopp y disk ette drives i n your s ystem , this item
allows you to swap the ass igned drive letters so that drive A
becomes drive B, and drive B becomes drive A.

46

Boot Up Floppy Seek (Enabled)

If this item is enabled, it checks the size of the floppy disk
drives at start-up time. You don't need to enable this item un­less you have a legacy diskette drive with 360K capacity.

Boot Up NumLock Status (On)

This item defines if the keyboard Num Lock key is active when
your system is started.

Gate A20 Option (Fast)

This item defines how the system handles legacy software
that was written for an ear lier g eneratio n of process ors. Le ave
this item at the default value.

ATA 66/100 Cable MSG (Enabled)

Enables or disables the display of the ATA 66/100 Cable MSG.

Typematic Rate Setting (Disabled)

If this item is enabled, you can use the followin g two items to
set the typematic rate and the typematic delay settings for
your keyboard.

Typematic Rate (Chars/Sec):

•
how many characters per second are generated by a
held-down key.

Typematic Delay (Msec):

•
many milliseconds must elapse before a held-down
key begins generating repeat characters.

Use this item to define

Use this item to define how

Security Option (Setup)

If you have installe d password protection, this it em defines if
the password is require d at system star t up, or if it is onl y re­quired when a user tries to enter the Setup Utility.

APIC Mode (Enabled)

This option enables /disables APIC (Advance d Programmable
Interrupt Controller) functionality. The APIC is an Intel chip
that provides symmetric multiprocessing (SMP) for its Pentium
systems.

47

OS Select For DRAM > 64 MB (Non-OS2)

This item is only requir ed if you have installed more than 64
MB of memory and you are runni ng the OS/2 operating sys­tem. Otherwise, leave this item at the default.

HDD S.M.A.R.T Capability (Disabled)

The S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting
Tec hnology) system is a diagnos tics technology tha t monitors
and predicts device per form ance. S.M.A.R.T. software resides
on both the disk drive and the host computer.

Report No FDD For WIN 95 (Yes)

Set this item to the defaul t if you are r unnin g a s ystem with no
floppy drive and using W indows 95; this ensures compatibilit y
with the Windows 95 logo certificat ion .

Small Logo (EPA) Show (Enabled)

Enables or disables the display of the EPA logo during boot.

Advanced Chipset Features Option

These items define critical timing parameters of the main­board. Yo u sh ould l eave t he item s on this p age at t heir defau lt
values unless you are very familiar with the technical s pecifi­cations of your system hardware. If you change the values
incorrectly, you may introduce fatal errors or recur ring inst abil­ity into your system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

DRAM Timing Selectable [By Manual]
CAS Latency Time [ 3]
Active to Prec harge Delay [7]
DRAM RAS# to CA S# Delay [3]
DRAM RAS# Prec harge [3]
DRAM Data Integrity Mode [Non-ECC]
Memory Frequency For [PC133]
System BIOS Cacheable [Disabled]
Video RAM Cacheable [Disabled]
Memory Hole At 15M-16M [Disabled]
Delayed Transaction [Enabled]
AGP Aperture Si ze (MB) [64]
Delay Prior to Thermal [16 Min]

Advanced Chi pset Features

Item Help

Menu Level

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

48

DRAM Timing Selectable (By Manual)

The value in this f ield d epends on per form ance param eters of
the installed m emory chips (DRAM). Do not change the va lue
from the factory setting unless you install new memory that
has a different performance rating than the original DRAMs.

CAS Latency Time: (3)

When sync hronous DRAM is installed, t he number of cl ock cy­cles of CA S latenc y depe nds on the DR AM tim ing. D o not res et
this field from the default value specified by the system designer.

Active to Precharge Delay (7)

The precharge time is the num ber of cycles it tak es for DRAM
to accumulate its charge before refresh.

DRAM RAS# to CAS# Delay (3)

This field lets you insert a timing dela y between the CAS and
RAS strobe signals, used when DRAM is written to, read from,
or refreshed. Disabled g ives faster performanc e; and Enabled
gives more stable performance.

DRAM RAS# Precharge (3)

Select the number of CPU clocks allocated for the Row Ad­dress Strobe (RAS#) signal to accumulate its charge before
the DRAM is refres hed. If insufficient tim e is allowed, refresh
may be incomplete and data lost.

DRAM Data Integrity Mode (Non-ECC)

Select Parity or ECC (error-c orrecting code), acc ording to the
type of installed DRAM.

Memory Frequency For (Auto)

This item sets the main m emory frequenc y. When you use an
external graphics card, you can adjust this to enable the best
performance for your system.

49

System BIOS Cacheable (Disabled)

This item allo ws the system to be cac h ed in memor y for faster
execution. Enable this item for better performance.

Video RAM Cacheable (Disabled)

These items allo w the video BIOS and R AM to be cached in
memory for faster execution. Enable these items for better
performance.

Memory Hole At 15M-16M (Disabled)

Yo u can reserve this area of system memor y for ISA adapter
ROM. When this area is reserved, it cannot be cached. The
user information of peripherals that need to use this area of
system memory usually discusses their memory requirements.

Delayed Transaction (Enabled)

The chipset has an embedded 32-bit posted write buffer to
support delayed transaction cycles. Enable this item to sup­port compliance with PCI specification version 2.1.

AGP Aperture Size (64 MB)

This item defines the size of the aperture if you use an AGP
graphics adapter. The AGP aperture ref ers to a s ection of the
PCI memory address range used for graphics memory. We
recommend that you leave this item at the default value.

Delay Prior to Thermal (16 Min)

Enables you to set the delay tim e before the CPU enters auto
thermal mode.

50

Integrated Peripherals Option

These items def ine the oper at io n of per ipher a l components on
the system's input/output ports.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Integrated Peripherals

On-Chip Primary PCI IDE [Enabled]
IDE Primary Master PIO [Auto]
IDE Primary Sl ave PIO [Auto]
IDE Primary Master UDMA [Auto]
IDE Primary Slave UDMA [Auto]
On-Chip Secondary PCI IDE [En abl ed]
IDE Secondary Master PIO [Auto]
IDE Secondary Slave PIO [Auto]
IDE Secondary Master UDMA [Auto]
IDE Secondary Slave UDMA [Auto]
USB Controller [Enabled]
USB Keyboard Support [Disabled]
USB Mouse Support [Disabled]
AC97 Audio [Auto]
AC97 Modem [Auto]
Init Display First [PCI Slot]
IDE HDD Block M ode [Enabled]
POWER ON Function [ Hot KEY]

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level

On-Chip Primary/Secondary PCI IDE (Enabled)

Use these items to enable or disable the PCI IDE channels
that are integrated on the mainboard.

IDE Primary/Secondary Master/Slave PIO (Auto)

Each IDE channel supports a master device and a slave de­vice. These four items let you assign which kind of PIO
(Programmed Input/Output) is used by IDE devices. Choose
Auto to let the system auto detect which PIO mode is best , or
select a PIO mode from 0-4.

Item Help

IDE Primary/Secondary Master/Slave UDMA (Auto)

Each IDE channel supports a master device and a slave de­vice. This mainboard supports UltraDMA technology, which
provides faste r access to IDE devices.

If you install a device that sup ports UltraDMA, cha nge the ap­propriate item on this list to Auto. You may have to install the
UltraDMA driver suppli ed with this mainboard in order to us e
an UltraDMA device.

51

USB Controller (Enabled)

Enable this item if you plan to use the Universal Serial Bus
ports on this mainboard.

USB Keyboard Support (Disabled)

Enable this item if you plan to use a keyboard connected
through the USB port in a legacy operating system (s uch as
DOS) that does not support Plug and Play.

USB Mouse Support (Disabled)

Enable this item if you plan to use a USB mouse.

AC97 Audio (Auto)

Enables and disables the onboard audio chip. Disable this
item if you are going to install a PCI audio add-on card.

AC97 Modem (Auto)

Enables and disables the onboard modem . Disable this item if
you are going to install an external modem.

Init Display First (PCI Slot)

Use this item to specify whether your gr aphics adapter is in­stalled in one of the PCI slots or is integrated on the
mainboard.

IDE HDD Block Mode (Enabled)

Enable this field if your IDE hard drive supports block mode.
Block mode enables BIOS to automatically detec t the optimal
number of block read and writes per sector that the drive c an
support and improves the speed of access to IDE devices.

52

POWER ON Function (Hot KEY)

Enables you to set po wer on parameters. The def ault setting
enables you to use a hot key to turn on the system.

KB Power ON Password (Enter)

When the POW ER ON Function is set to Pass word, use this
item to set the password.

Hot Key Power ON (Ctrl-F12)

When the POWER ON Function is set to Hot KEY, use this
item to set the hot key combination that turns on the system.

Onboard FDC Controller (Enabled)

This option enables the onboard floppy disk drive controller.

Onboard Serial Port 1 (3F8/IRQ4)

This option is used to ass ign the I/O addres s and interrupt re­quest (IRQ) for the onboard serial port 1 (COM1).

Onboard Serial Port 2 (2F8/IRQ3)

This option is used to ass ign the I/O addres s and interrupt re­quest (IRQ) for the onboard serial port 2 (COM2).

UART Mode Select (Normal)

This field is ava ilabl e if the Onboard Seri al Por t 2 f iel d is s et to
any option but Disabled. UART Mode Select enables you to
select the infrared communication protocol-Normal (default),
IrDA, or ASKIR. IrDA is an infrared communication protocol
with a maximum baud r ate up to 115.2K bps. ASKIR is Shar ­p's infrared communication protocol with a maximum baud
rate up to 57.6K bps.

53

UR2 Duplex Mode (Half)

This field is available when UART 2 Mode is set to either
ASKIR or IrDA. This item enables you to determ ine the infra­red function of the onb oard infrar ed chip. The op tions are Ful l
and Half (default).

Full-duplex means that you can trans mit and send inform ation
simultaneously. Half-duplex is the tra nsm ission of data in both
directions, but only one direction at a time.

Onboard Parallel Port (378/IRQ7)

This option is used to ass ign the I/O addres s and interrupt re­quest (IRQ) for the onboard parallel port.

Parallel Port Mode (ECP)

Enables you to set the da ta transfer protocol for your parallel
port. There are four options: SPP (Standard Parallel Port),
EPP (Enhanced Parallel Port), ECP (Extended Capabilities
Port), and ECP+EPP.

SPP allows data output only. Extended Capabilities Port (ECP)
and Enhanced Parallel Port (EPP) are bi-directional modes, al­lowing both data input and outp ut . ECP a nd EPP mode s are only
supported with EPP - an d E C P-awa re pe ri p h erals.

ECP Mode Use DMA (3)

When the onboard paral lel port is set to ECP mode, the p ar­allel port can use DMA 3 or DMA 1.

Game Port Address (201)

This item sets the I/O address for the game port.

Midi Port Address (330)

This item sets the I/O address for the Midi function.

Midi Port IRQ (10)

This item sets the interrupt request for the Midi function.

54

Power Management Setup Option

This option lets you control system power m anagement. The
system has various power-saving modes including powering
down the hard disk, tur ning off the video, suspendin g to RAM,
and software power down that a llows the system to be auto­matically resumed by certain events.

The power-saving m odes can be c ontrolled by tim eouts. If the
system is inactive for a time, the timeouts begin counting. If
the inactivity continues so that th e timeout per iod ela pses, the
system enters a power- saving mode. If any item in the list of
Reload Global Timer Events is Enabled, then any activit y on
that item will reset the timeout counters to zero.

If the system is suspended or has been powered down by
software, it can be resum ed b y a wake up call t hat is gen erat­ed by incoming traffic to a m odem, a LAN card, a PCI c ard, or
a fixed alarm on the system realtime clock,

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Power Management Setup

ACPI Function [Enabled]
ACPI Suspend Type [S1(POS)]
Power Management [User Define]
Video Off Method [DPMS]
Video Off In Suspend [Yes]
Suspend Type [Stop Gra nt]
MODEM Use IRQ [3]
Suspend Mode [Disable]
HDD Power Down [Disable]
Soft-Off by PWR-BTTN [Instant-Off]
Wake-Up by PCI card [Enable]
Power On by Ring [Enable]
Wake Up On LAN [Enabled]

x USB KB Wake-Up From S3 Disabled

Resume by Alarm [Disabled]

x Date (of Month) Alarm 0
x Time (hh:mm:ss) Alarm 0 0 0

** Reload Global Timer Events **

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level

55

Item Help

ACPI Function (Enabled)

This mainboard supports ACPI (Advanced Configuration and
Power management In terface) . Use this item to enable or dis ­able the ACPI feature.

ACPI is a power management specification that

Note:

makes hardware status information available to the
operating system. ACPI enables a PC to turn its
peripherals on and off for improved power man­agement. It also allows the PC to be turned on and
off by external devices, so that mouse or keyboard
activity wakes up the co mp ute r.

ACPI Suspend Type (S1(POS))

Use this item to define how your s ystem suspends. In the de­fault, S1(POS), the s uspend mode is equivalent to a software
power down. If you select S3 (STR), the suspend mode is a
suspend to RAM, i.e., the s ystem shuts do wn with the excep­tion of a refresh current to the system memory.

Power Management (User Define)

This item acts like a master switch for the power-saving
modes and hard dis k timeouts. If this item is s et to Max Sav­ing, power-saving modes occur after a short timeout. If this
item is set to Min Saving, po wer-saving modes occur after a
longer timeout. If the item is set to User Def ine, you can insert
your own timeouts for the power-saving modes.

Video Off Method (DPMS)

This item defines how the video is powered down to save
power. This item is set to DPMS (D ispla y Power Ma nagement
Software) by default.

56

Video Off In Suspend (Yes)

This option defines if the video is powered down when the
system is put into suspend mode.

Suspend Type (Stop Grant)

If this item is set to the default Stop Gran t, the CPU will go
into Idle Mode during power saving mode.

MODEM Use IRQ (3)

If you want an incoming call on a modem to automatic ally re­sume the system from a power-s aving mode, use this item to
specify the interrupt request li ne (IRQ) that is used by the m o­dem. You might have to connect the fax/modem to the
mainboard Wake On Modem connector for this feature to work.

Suspend Mode (Disable)

The CPU clock will be stopped and the video signal will be
suspended if no Power Management events occur for a
specified length of tim e. Full power f unction will retur n when a
Power Management eve nt is detected. Options ar e f r om 1 Min
to 1 Hour and Disable.

HDD Power Down (Disable)

The IDE hard drive will spin do wn if it is not acc essed within a
specified length of tim e. Options ar e f rom 1 Min t o 15 Mi n and
Disable.

Soft-Off by PWR-BTTN (Instant-Off)

Under ACPI (Advanced Configuration and Power manage­ment Interface) you can create a s oftware power down. In a
software power down, the s ystem can be resum ed by Wake
Up Alarms. This item lets you install a software power down
that is controlled b y the power button o n your system . If the
item is set to Instant-Off, then the power button causes a
software power down . If the item is set to Dela y 4 Sec. then
you have to hold the po wer button down for four seconds to
cause a software power down.

57

Wake-Up by PCI Card (Enable)

When this item is enabled, the system power will be turned on
if there is any PCI card activity.

Power On by Ring (Enable)

If this item is enable d, it allows the system to resume from a
software power down or a power-saving mode whenever
there is an incom ing call to an instal led fax/m odem. You have
to connect the fax/modem to the mainboard.

Wake Up On LAN (Enabled)

When set to Enabled, th e system power will be turned on if
the LAN port receives an incoming signal. You have to con­nect the fax/modem to the mainboard Wake On LAN
connector for this feature to work. Refer to page 31.

USB KB Wake-Up S3 (Disabled)

If you are using a USB ke yboard, and the ACPI s uspend t ype
is set to S3, you c an enable this item to allow a k eystroke to
wake up the system from power saving mode.

Resume by Alarm (Disabled)

When set to Enabled, a dditional fields become ava ilable and
you can set the date (day of the month), hour, minute and
second to turn on your system. When set to 0 ( zero) for the
day of the month, t he alarm will po wer on your system every
day at the specified time.

** Reload Global Timer Events **

Global Timer (power management) events are I/O events
whose occurrence can prevent the system from entering a
power saving mode or can awaken the system from such a
mode. In effect, the system rem ains alert for anything tha t oc­curs to a device that is co nfigured as Enabled , even when the
system is in a power-down mode.

58

Primary/Secondary IDE 1/0 (Disabled)

When these items are enabled, the system will restart the
power-saving timeout cou nters when any activity is detected
on any of the drives or devices on the primary or seco ndary
IDE channels.

FDD, COM, LPT Port (Disabled)

When this item is enabled, the system will r estart the power­saving timeout count ers when any activity is detect ed on the
floppy disk drive, serial ports, or the parallel port.

PCI PIRQ[A-D]# (Disabled)

When disabled, any PCI device set as the Master will not
power on the system.

PWRON After PWR-Fail (Off)

This item enables your computer to automatically restart or
return to its last operating status after power returns from a
power failure.

59

PNP/PCI Configuration Option

This option configur es how PnP (Plug an d Play) and PCI ex ­pansion cards operate i n your system. Both the ISA and PCI
buses on the Mainboard use system IRQs (Interrupt Re­Quests) and DMAs (Dir ect Memory Acces s). You must set up
the IRQ and DMA ass ignm ents correc tly through the Pn P/PCI
Configurations Setup utility for the mainboard to work properly.
Selecting PnP/PCI Configurations on the main program
screen displays this menu:

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

PnP/PCI Confi gurations

Reset Configuration Data [Disabled]
Resources Contr oll e d by [Auto(ESCD)]

x IRQ Resources Press Enter

PCI/VGA Palette Sno op [Disabled]
Assign IRQ For USB [Enabled]
INT Pin 1 Assignment [Auto]
INT Pin 2 Assignment [Auto]
INT Pin 3 Assignment [Auto]
INT Pin 4 Assignment [Auto]
INT Pin 5 Assignment [Auto]
INT Pin 6 Assignment [Auto]
INT Pin 7 Assignment [Auto]
INT Pin 8 Assignment [Auto]

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level
Default is Disabled. Select

Enabled to reset Extended
System Configuration
Data (ESCD) when you
exit Setup if you have
installed a new add-o n
and the system reconfigu­ration has caused su ch a
serious conflict that the
OS cannot boot.

Reset Configuration Data (Disabled)

If you enable this item and restart the system, an y Plug and
Play configuration data stored in the BIOS Setup is cleared
from memory.

Item Help

60

Resources Controlled By (Auto(ESCD))

Yo u should leave this item at the default Auto( ESCD). Under
this setting, the system dynamically allocates resources to
Plug and Play devices as they are required.

If you cannot get a legacy ISA (Industry Standard Architecture)
expansion card to work properly, you might be ab le to solve
the problem by changin g this item to Manual, and then open­ing up the IRQ Resources and Memory Resources submenus.

In the IRQ Resources submenu, if you assign an IRQ to
Legacy ISA, then that Interr upt Request Line is reserved for a
legacy ISA expansion c ard. Pres s <Esc > to clos e the IRQ Re­sources submenu.

In the Memory Resources submenu, use the first item Re­served Memory Base to set the s tart address of the memor y
you want to reserve for th e ISA expansion card . Use the sec­ond item Reserved Memory Length to set the amount of
reserved memory. Press <Esc> to close the Memory Re­sources submenu.

PCI/VGA Palette Snoop (Disabled)

This item is designed to overcome problems that can be
caused by some non-standard VGA cards. This board in­cludes a built-in VGA system that does not require palette
snooping so you must leave this item disabled.

Assign IRQ For USB (Enabled)

Names the interrupt request (IRQ) line assigned to the USB
on your system. Activity of the se lected IRQ alwa ys awakens
the system.

INT Pin1~8 Assignment (Auto)

Names the interrupt request (IRQ) line assigned to a device
connected to the PCI interface on your system.

61

PCI Health Status Option

On mainboards that support hardware monitoring, this item
lets you monitor the parameters for critical voltages, critical
temperatures, and fan speeds.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

PC Health Stat us

70°

Shutdown Temperature [

CPU Vcore

1.80 V

3.30 V

5.00 V

12.0 V
(-)12.0 V
(-)5.00 V
Voltage Batt ery
Current System Temp
Current CPU Temp
CPU FAN Speed
Chassis FAN Spee d
Power FAN Speed

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Saf e Defaults F7:Optimized Defaults

C/158°F]

Shutdown Temper atur e

Enables you to set the m aximum tem perature the s ystem can
reach before powering down.

System Component Characteristics

These fields provid e you with information about the systems
current operating status . You cannot m ake changes to these
fields.

• CPU Vcore (CPU core voltage)

• Voltage Battery (battery voltage)

• Current System Temp (degrees Fahrenheit and Cel-

sius)

• Current CPU Temp (degrees Fahrenheit and Celsius)

• CPU fan speed (in RPMs)

• Chassis FAN Speed (in RPMs)

• Power FAN Speed (in RPMs)

Item Help

Menu Level

62

Frequency/Voltage Control

This item enables you to set the clock s peed and system bus
for your system. The clock speed and system bus are deter­mined by the kind of processor you have installed in your
system.

CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software

Frequency/Voltage Control

CPU Voltage [By Auto]
CPU Clock Ratio [X 8]
Auto Detect PCI Clk [Enabled]
Spread Spectrum [Enabled]
CPU Host/3V66/PCI Clock [Default]

↑↑↑↑ ↓↓↓↓ →→→→ ←←←←

: Move Enter : Select +/-/PU/PD:Value: F10: Save ESC: Exit F1:General Help

F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Menu Level

CPU Voltage (By Auto)

If you are manually configuring the CPU clock, use this item to
set the CPU voltage for more stability.

CPU Clock Ratio (Default)

Enables you to set the C PU clock. The CPU clock ratio times
the CPU Host/PCI Clock s hould equal the core speed of the
installed processor.

Example:

CPU Clock Ratio
CPU Host/PCI Clock
Installed CPU clock speed

x 100

800 MHz

Item Help

8

Auto Detect PCI Clk (Enabled)

When this item is enabled, BIOS will disa ble the clock signa l
of free DIMM and PCI slots.

Spread Spectrum (Enabled)

If you enable spread s pectrum, it can signif icantly reduce the
EMI (Electro-Magnetic Interference) generated by the system.

63

CPU Host/3V66/PCI Clock (Default)

Use the CPU Host Clock to s et the f r ontsi de bus f requency for
the installed processor (usually 133 MHz, 100 MHz or 66
MHz).

64

Load Fail-Safe Defaults Option

This option opens a dialog box that lets you install fail-safe
defaults for all appropriate items in the Setup Utility:

Press <Y> and then <Enter> to ins tall the def aults. Press < N>
and then <Enter> to not ins tall the defaults. The fail-safe de­faults place no great demands on the system and are
generally stable. If your s ystem is not functioni ng correctl y, try
installing the fail-safe defaults as a first step in getting your
system working proper ly again. If you only want to ins tall fail­safe defaults for a s pecific option, s elect and display tha t op­tion, and then press <F6>.

Load Optimized Defaults Option

This option opens a dialog box that lets you install optim ized
defaults for all appropriate items in the Setup Utility. Press
<Y> and then <Enter> t o install the defaults. Press <N> and
then <Enter> to no t i ns tal l th e d ef aults . T he optimized defau lts
place demands on the system that may be greater than the
performance level of the com ponents, such as the CPU and
the memory. You can cause f atal errors or ins tability if you in­stall the optimized defaults when your hardware does not
support them. If you only want to install setup defaults f or a
specific option, se lect and displa y that option, and then pres s
<F7>.

Set Supervisor and User Passwords Options

These items can be used t o install a password. A Supervisor
password takes precedence over a User password, and the
Supervisor can lim it the activities of a Us er. To install a pas s­word, follow these steps:

1. Highlight the item Set Supervisor/User Passw ord on
the main menu and press <Enter>.

2. The password dialog box appears.

Enter Password:

3. If you are installing a new password, type in the pass­word. You cannot use more than eight characters or
numbers. The Set Supervisor/User Password item
differentiates between upper and lower case charac­ters.

65

4. Press <Enter> after you have typed in the password. If
you are deleting a password that is already installed,
press <Enter> when the password dialog box appears.
You see a message that indicates that the password
has been disabled.

PASSWORD DISABLED !!!
Press any key to continue . . .

5. Press any key. You are prompted to confirm the pass­word:

Confirm Password:

6. Type the password aga in and pr ess <Enter >, or pres s
<Enter> if you are deleting a password that is already
installed.

7. If you typed the password correctly, the password will
be installed.

Save & Exit Setup Option

Highlight this item and press <Enter> to save the changes tha t
you have made in the Setup Utility and exit the Setup Ut ility.
When the Save and Exit dialog box appears, press <Y> to
save and exit, or press <N> to return to the main menu:

Exit Without Saving

Highlight this item and press <Enter> to discard any c hanges
that you have made in the Setup Utility and exit the Setup
Utility. When the Exit Without Saving dialog box appears,
press <Y> to disc ard c hanges an d exit , or pr ess <N> to r etur n
to the main menu.

If you ha ve made settin gs that you do not want to

Note:

save, use the "Exit Without Saving" item and press
<Y> to disca rd any changes you have made.

This concludes Chapter 3. Refer to the next chapt er for infor­mation on the software supplied with the mainboard.

66

CChhaapptteerr 4

Using the Mainboard Software

4

AAbboouutt tthhee SSooffttwwaarree CCDD--RROOM

The software for this mainboard is supplied on a CD-ROM. The
disk has some folders that can be used by many different main-

and

folder.

UTILITY

VIA

folders. Some folders can only

folders. In add ition, software that is

boards, for example the
be used by ma inboards which have c ertain bran ds of c hipsets, for
example the
specifically inte nded f or one kind of m ainboard is s tor ed in a folder
with the name of that board. The software for this mainboard is
stored in the

Note: Never try to install software from a folder that is not
specified for use with your mainboard.

INTEL

MS9007C

M

Folders for this Mainboard

For this board, you can install software from the following folders:

Utility Folder

You can use the software in the following sub-folders:

AWDFLASH

!

syst em BIOS

: Software to erase and install new revisions of the

PC-CILLIN:

!

SUPER VIOCE:

!

PageABC:

!

MediaRing Talk :

!

ware

Sunny Mail :

!

Anti-virus software

Fax/Modem application software

HomePage programming tool

PC to PC base Internet phone applic ation soft-

Voice mail Program

MS9007C Folder

You can use the software in the following sub-folders:

AUDIO and IDE:

a short README file giving directions to alternate folders for the ap­propriate software.

Most of the sub-folders in this folder are empty, with

Running the Support CD-ROM

1. Place the disk in your CD-ROM drive. If you are running Windows
with Autoplay enabled, the opening screen of the CD appears
automatically. Click on READ ME to read the latest instructions.

2. Before installing the software, look for a file named README.TXT,
or something similar. This file may contain important information to
help you install the software correc t l y.

3. Some software is installed in separate folders for different operat­ing systems, such as DOS, WIN NT, WIN95/98, and so on.
Always log on to the correct folder for the kind of OS you are us­ing.

4. To install the software, you usually execute a file named
SETUP.EXE or INSTALL.EXE by double clicking on the filename.

Utility Folder Installation Notes

Award Flash Memory Utility

This utility lets you eras e the system BIOS store d on a Flash
Memory chip on the mainbo ard, a nd lets you cop y an update d
BIOS to the chip. Take care how you use this program. If you
erase the current BIOS and fa il to wri te a ne w BIOS, or write a
new BIOS that is incorrect, your system will malfunction.

For this mainboard, you can use
version number). To use the utility, you must be in real-mode
DOS (not the DOS box that is available in Windows 95/98/NT). If
you are us ing W INDOWS 95/98, s hut down your com puter and
select the option Restart in DOS in the s hutdown dialog box. If
you are running Windows NT, shut down your computer and boot

A WD8XX.EXE

68

(where xx is the

from a DOS diskette temporarily in order to run the flash memory
utility.

PC-cillin Software

The PC-cillin sof tware program provides anti-v irus protection
for your system. This program is available for:

! WinNT – \UTILITY\PC-CILLIN\WINNT\SETUP.EXE
! Win9x – \UTILITY\PC-CILLIN\WIN98\SETUP.EXE

Anti-virus software is provided for WINNT/2000 and WIN95/98.

MediaRing Talk

To install the MediaRing Talk voice modem software for the built-in
modem, go to the directory \UTILITY\MEDIARING TALK; then run
MRTALK-SETUP72.EXE to install th e a ppli ca tion softw a re.

Super Voice

To install the Super Voice voice, fax, data communication ap­plication for use with the built-in fax/modem, go the directory
\UTILITY\SUPERVOICE; then run PICSHELL.EXE to install
the application software.

69

Mainboard (MS9007C) Installation Notes

Most of the sub-folders in this folder are empty, with a short README
file giving direction s to alternate folders for the approp riate softw are.

70

Jumper Settings

AAppppeennddiixx A

A

Setting Jumpers

Jumper Type Description Setting (

JP1 3-pin Clear CMOS

JP2 2-pin BIOS Protect

JP1

– Enables you to clear the BIO S. Refer to the following instr uc-

tions:

1. Turn the system off.

2. Remove all ATX power connectors.

3. Short pins 2 and 3 on JP1.

4. Return the jumper to the normal setting.

5. Plug in all ATX power connectors.

JP5

– Enables and disables the BIO S from being update d (flashed).

Set the jumper to enab led if you are going to u pdate your BIO S. After
updating the BIOS, re turn it t o the d isabled set ting. For instr uctions o n
updating the BIOS refer to Chapter 3.

1-2: Normal

2-3: Clear

Open: Disable

Short: Enable

default

1

JP2

)

JP1

The PANEL1 and LPANEL1 Connectors

The panel connector provides a set of switch and LED con­nectors comm only found on ATX or Mic ro ATX cases . Select
one from the two t ypes of panel connector supported by this
mainboard.

PANEL1

Device Pins

Empty 10

N/C 9

Power ON/OFF 6, 8

Reset Switch 5, 7

Green LED

2, 4

Indicator

HDD LED +1, -3

HDD LED
(Pins 1, 3)

Reset Switch
(Pins 5, 7)

1 2

Green LED
(Pins 2, 4)

Power Switch
(Pins 6, 8)

LPANEL1

Device Pins

Reset Switch 13, 14

Case Speaker 9 ~ 12

Power Switch 5, 6

Power LED +4

Green Power

LED

Yellow Power

LED

HDD LED +1, -8

The plus sign (+ ) indicates a pin which must be con-

Note:

nected to a positive voltage.

-3

-2

N/C
(Pin 9)

Reset Switch
(Pins 13, 14)

Case Speaker
(Pins 9 ~ 12)

9 10

14 7

8 1

Empty
(Pin 10)

Empty
(Pin 7)

Power Switch
(Pin 5, 6)

Power LED
(Pin 4)

Green Power LED
(Pin 3)

Yellow Power LED
(Pin 2)

HDD LED
(Pins 1, 8)

72
