Matsonic MS7112C user guide
Important Information
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved.
Neither this manual, nor any of the material contained herein, may be
reproduced without the express written consent of the manufacturer.
Disclaimer
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the
contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Further, the
manufacturer reserves the right to revise this publication and to make
changes from time to time in the content hereof without obligation of the
manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft
Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered
trademarks of Intel Corporation.
VGA, OS/2, PS/2 are registered trademarks of International Business
Machines.
AMD, K5, K6 are registered trademarks of Advanced Micro Devices Inc.
Cyrix, M1 are registered trademarks of Cyrix Corporation.
Other product names used in this manual are the properties of their
respective owners and are acknowledged.
Version 3.0
Contents
Chapter 1: Introduction
Welcome ..................................................................1
About the Manual...................................................... 2
Checklist.................................................................. 2
Features...................................................................3
Chapter 2: Installation
Before You Begin...................................................... 6

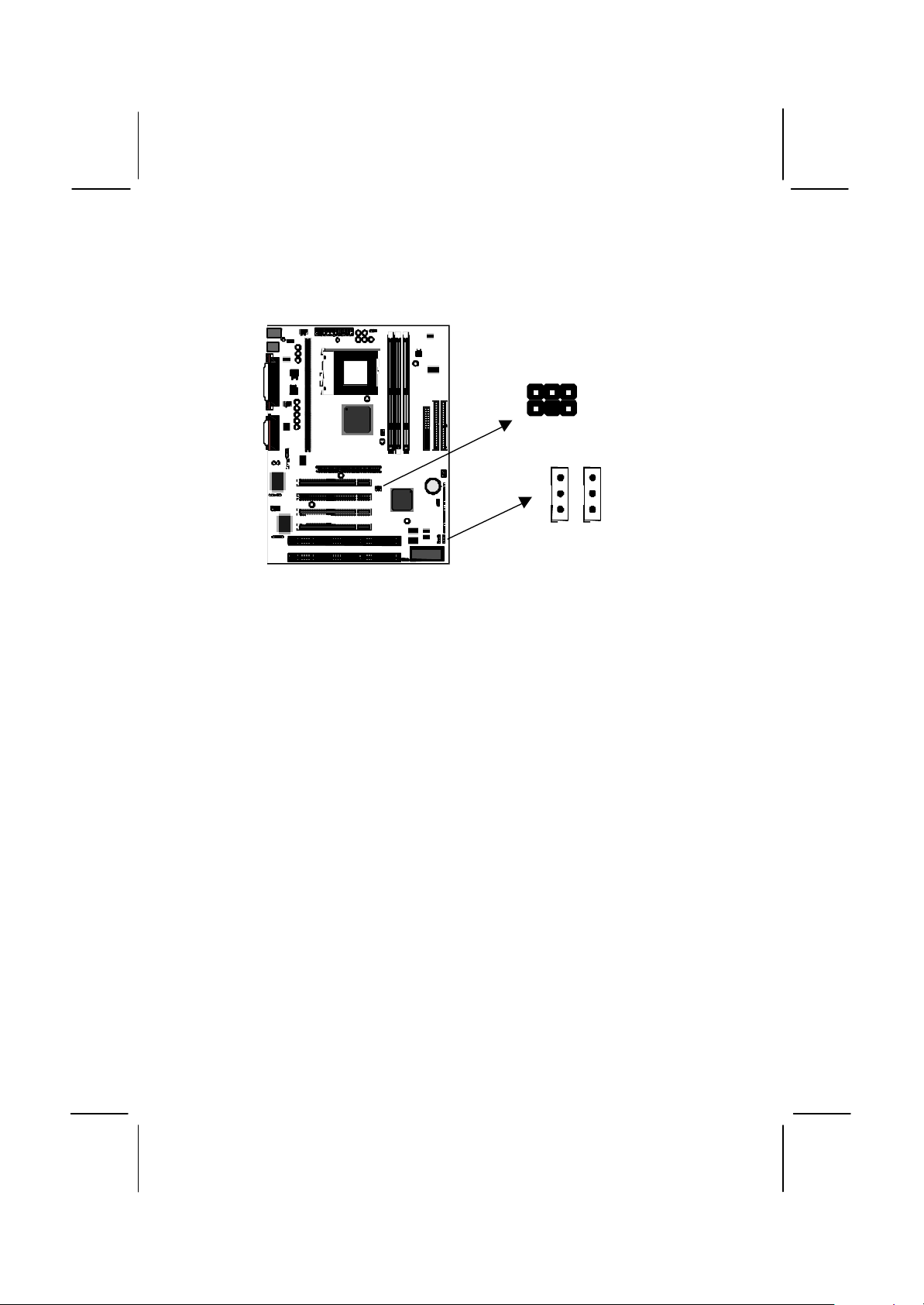

Mainboard Guide ...................................................... 7
I/O Ports Side View................................................... 8
Preparing the Mainboard ...........................................9
Install the Mainboard in the System Case ...................17
Make the External Connections ................................. 22
Chapter 3: Setup
About the Setup Utility............................................... 23
Standard CMOS Setup Option................................... 25
BIOS Feature Setup Option....................................... 26

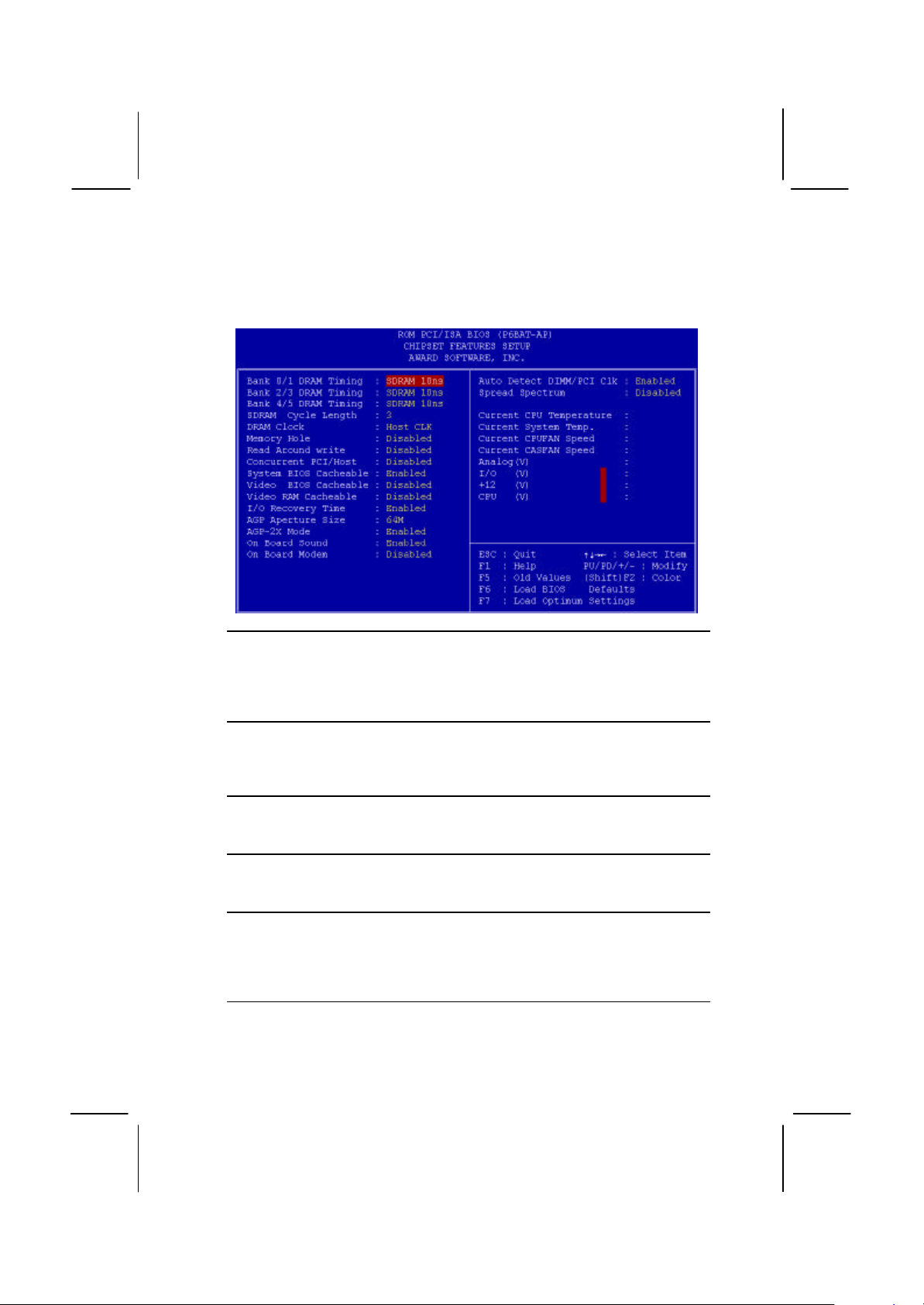

Chipset Features Option............................................ 29
Power Management Setup Option.............................. 31
PNP/PCI Configuration Option................................... 34
Load BIOS Defaults Option........................................ 36
Load Setup Defaults Option ...................................... 36
Integrated Peripherals Option .................................... 36
Supervisor and User Password Settings..................... 39
IDE HDD Auto Detection Option................................. 40
Save And Exit Setup Option....................................... 40
Exit Without Saving Option ........................................40
Chapter 4: Software
About the Software.................................................... 41
Running the Support CD-ROM................................... 43
Utility Folder Insatllation Note..................................... 43
CMI8338 Audio Folder Installation Note...................... 44
VIA Folder Installation Note....................................... 45
Mainboard Installation Notes ...................................... 47
Appendix 1: Quick Jumper Setting Reference .............48
1
CChhaapptteerr 11:: IInnttrroodduuccttiioon
n
Welcome
Congratulations on your purchase of the MS7112C mainboard. This
mainboard features the latest VIR ET82C693A/596B chipset. This is a
very special mainboard which allows you to install almost any kind of
Intel Pentium-II/III processor. The MS7112C is a full-sized ATX board
measuring 305x220mm and using 4-layer printed circuit board.
The MS7112C has a special design feature so that it includes a PentiumII Slot-1 processor slot and a PPGA (Plastic Pin Grid Array) Celeron
Socket-PGA370 processor socket. This feature means that you can
install the mainboard with either a Pentium-III cartridge, a PentiumII cartridge, the SEPP (Single Edge Processor Package) Celeron
cartridge, or one of the new generation PPGA Celeron cartridges.
In addition, the mainboard supports 66 MHz ,100MHz memory bus, or a
133 MHz memory bus, so you can use 66MHz or 100MHz memory chips,
or higher-performance PC-133 memory chips. The board is installed with
an integrated PCI-3D sound system and has a full suite of I/O ports.
Seven expansion slots are available for system development and
hardware monitoring is supported.
This board allows complete flexibility. System integrators can choose the
high-performance Pentium-II processor cartridge or the inexpensive
PPGA Celeron processor according to the system requirements and the
price/performance comparison of the two kinds of processor.
This chapter contains the following information:
q About the Manual explains how the information in this manual is
organized
q Checklist comprises a list of the standard and optional components
that are shipped with this mainboard,
q Features highlights the functions and components that make this
one of the best value mainboards on the market
2
About the Manual
The manual consists of the following chapters:
Introduction
Use the Introduction Chapter to learn about the features of the
mainboard, and the checklist of items that are shipped with the package.
Installation
Use the Installation Chapter to learn how to install the mainboard and
get your system up and running.
Setup
Use the Setup Chapter to configure the mainboard for optimum
performance.
Software
Use the Software Chapter to learn how to use the software drivers and
support programs that are provided with this mainboard.
Checklist
Compare the contents of your mainboard package with the standard
checklist below. If any item is missing or appears damaged, please
contact the vendor of your mainboard package.
Standard Items
ü
1 x MS7112C Mainboard
ü
1 x Cable/Bracket Pack
Diskette drive ribbon cable
IDE drive ribbon cable
ü
This User’s Manual
ü
Software Support CD-ROM Disc
Optional Items
1 x V 9.0 Fax/Modem Card
3
Features
The key feature of this mainboard is the dual processor sockets which
allow you to install any of the Pentium-III and Pentium-II processors
including Slot1 cartridges SEPP Celerons and PPGA Celerons. In
addition, this is a full-sized ATX mainboard with a full set of expansion
slots for maximum development potential.
Support for Pentium-III/Pentium-II Cartridges or PPGA Celeron
The principal feature of this mainboard is that it can support three kinds
of processors: Pentium-III cartridges, Pentium-II cartridges and SEPP or
PPGA Celerons. Pentium-III cartridges feature 512K of level-2 cache
memory with improved instructions to handle 3D audio and video.
Speech recognition, MPEG2 motion picture encoding/decoding, and
TCP/IP internet connections. The Pentium-III runs over a 100 MHz
system bus and operate at clock speeds from 450 MHz up to 550 MHz
or more.
The Pentium-II cartridges are very powerful processors which include
32K of internal level-1 cache memory and 512K of external level-2 cache
memory. The first generation of Pentium-II cartridges ran over a 66 MHz
system bus, but current Pentium-II cartridges run over a 100 MHz
system bus and operate at clock speeds from 350 MHz up to 450 MHz
or more. The slot-1 processor can also be used by the SEPP Celeron
processors which can operate over a 66/100 MHz system bus and
operate at clock speeds up to 466 MHz.
The new generation PPGA Celeron processors ship in the familiar
square plastic package, and they install in a Zero Insertion Force (ZIF)
socket called a Socket-370. The new Celeron processors are close to
Pentium-II performance because they include a level-2 cache memory of
128K. However, they operate at a 66/100 MHz system bus and they
currently ship a clock speeds of 466 MHz.
System assemblers can install either a Pentium-III or Pentium-II
cartridge or the SEPP Celeron in the slot-1 processor slot. Alternatively,
they can install a second generation PPGA Celeron in the Socket-370
processor socket. Assemblers can choose the processor they need to
meet performance or price targets. You can configure the system for any
of the supported processor clock speeds using the BIOS setup utility. It
is not necessary to set switches or jumpers.
Choice of Memory Options
The board has three DIMM slots for the installation of 168-pin, 3.3V
standard or registered SDRAM (Synchronous Dynamic Random Access
Memory) memory modules. The system supports memory that has built-
4
in error correction (EC), error correction code (ECC), or has no error
correction.
If you are using a Pentium-III/ PentiumII processor cartridge that operates
over a 100 MHz system bus, you must install PC-100 compliant memory
modules (memory that operates at 100 MHz). If you install the PPGA
Celeron processor, you can install memory that operates at 66 MHz (you
can install PC-100 memory if you wish, but the system will run the
memory at 66 MHz).
You can install one, two or three modules. Each memory module can
hold a maximum capacity of 128 MB of standard SDRAM chips, or 256
MB of registered SDRAM chips so maximum memory capacity is 384
MB of standard SDRAM memory or 768 MB registered SDRAM memory.
Highly Integrated Design
This board uses the VIR ET82C693A/596B chipset. The ET82C693A
forms the north bridge and supports system buses of 66 , 100 and
133MHz. It is AGP Rev. 1 compliant and supports 3.3v AGP devices
operating over a 66/133 MHz bus. The memory bus supports the fastest
access (X-1-1-1) for 66 MHz ,100MHz and 133MHz operation. The
board is compliant with PCI Rev.2.1 operating at 33 MHz Four PCI Bus
masters are supported.
The south bridge is provided by the 596B. This chip supports ACPI
(Advanced Configuration and Power Interface) Rev 1.0, onboard PCI
IDE channels(DMA66), USB ports, and a System Management Bus for
OS control and configuration of devices.
Built-in PCI 3D Sound
The PCI Audio CMI 8738 is a single chip solution for PCI-bus 3D audio.
The chip provides Sound Blaster 16-bit-compatible audio, plus support
for Microsoft’s DirectSound 3D specification and Aureal A3D interface.
The sound ports include jacks for speakers, microphone and stereo in,
and a game/MIDI port. The audio system supports full duplex operation
and drivers are available for WIN 95/98 and WIN NT 4.0. The audio
system can output sound to 4 loudspeakers and also supports SPDIF
24-bit digital sound input and output.
Optional Built-in Communications
The mainboard has an integrated fax/modem connector. As an option,
you can purchase a fax/modem extension bracket which connects the
line and telephone RJII sockets to the board. The fax/modem supports
the V.90 protocol that allows transmissions at up to 56Kbps and is fully
5
compatible with earlier transmission and error correction standards. It
supports automatic fall back and caller ID.
Maximum Expansion Options
This is a full-sized ATX mainboard that offers the maximum in system
expansion. The board has a total of 7 expansion slots. The AGP slot can
be used by an AGP graphics adapter. The four 32-bit PCI slots can be
used by PCI expansion cards, and the two 8/16-bit ISA slots can be used
by legacy ISA expansion cards. One of the PCI slots is shared with one
of the ISA slots. This means that you can use either one of these slots
but not both at the same time. With six usable slots, this mainboard can
be installed with a full set of optional expansion cards.
Integrated I/O
Using the Winbond W83977EF-AW I/O chip and the Intel BX chipset, the
board has a comprehensive set of integrated I/O ports. The I/O port
array features PS/2 keyboard and mouse ports, a parallel port, two USB
ports, two serial ports, a monitor port, a game/MIDI port, and three audio
jacks. Optionally, you can use the built-in mainboard header to add in an
infrared port. The mainboard has two PCI-IDE channels and a floppy
disk drive interface.
Hardware Monitoring
The mainboard is installed with the GL520SM hardware monitoring chip.
Using this chip and the monitoring software supplied with the system,
users and system administrators can monitor critical parameters such as
the CPU temperature, the fan speeds and so on. Hardware monitoring
helps maintain the system and reduce maintenance costs and downtime.
Keyboard Power On Feature
Using the system BIOS setup program, you can configure the system to
turn on using a keyboard-typed password or hot key. A green keyboard
is not required.
Programmable Firmware
The mainboard includes Award BIOS that allows BIOS setting of CPU
parameters. The fully programmable firmware enhances the system
features and allows users to set power management, CPU and memory
timing, LAN and modem wake-up alarms, and so on. The firmware can
also be used to set parameters for different processor clock speeds so
that you don’t need to change mainboard jumpers and switches.
6
CChhaapptteerr 22:: IInnssttaallllaattiioon
n
Before You Begin
Before you begin to install your MS7112C mainboard, take some
precautions to ensure that you avoid the possibility of damage to the
product from static electricity. Ensure too that you are installing the
mainboard into a suitable case.
Static Electricity
In adverse conditions, static electricity can accumulate and discharge
through the integrated circuits and silicon chips on this product. These
circuits and chips are sensitive and can be permanently damaged by
static discharge.
♦ If possible wear a grounding wrist strap clipped to a safely
grounded device during the installation.
♦ If you don’t have a wrist strap, discharge any static by touching
the metal case of a safely grounded device before beginning the
installation.
♦ Leave all components inside their static-proof bags until they are
required for the installation procedure.
♦ Handle all circuit boards and electronic components carefully.
Hold boards by the edges only. Do not flex or stress circuit
boards.
Choosing a Case
The MS7112C mainboard complies with the specifications for a full-sized
ATX board. Make sure that your system case supports a full-size ATX
board and has a power supply unit for all the expansion potential of the
system.
Some features on the mainboard are implemented by cabling connectors
on the mainboard to indicators and switches on the system case. Ensure
that your case supports all the features required. The MS7112C
mainboard can support one or two floppy diskette drives and four
7
enhanced IDE drives. Ensure that your case has sufficient power and
space for all the drives that you intend to install.
The mainboard has a set of I/O ports on the rear edge. Ensure that your
case has an I/O template that supports the I/O ports and expansion slots.
Mainboard Guide
Use the following illustration and key to identify the components on your
mainboard.
JP2
CD1
CD2
J1
SPDIF1
SIR1
ATX1
SLOT1
PCI1
PCI3
ISA1
JP4
DIMM1
JP9
SOCKET
PGA370
CPUFAN1
AGP1
PCI2
PCI4
ISA2
DIMM2
DIMM3
SIDEBAND1
LED1
JP1
FDD1
IDE2
IDE1
CASEFAN1
PANEL
J2
WOM1
WOL1
8
Key to Mainboard Components
Component
ISA1,2
AGP1
PCI 1,2,3,4
SOCKET PGA370
SLOT1
Slot for Pentium-II/III processor or SEPP Celeron processor
DIMM1,2,3
FDD1
IDE1, IDE2
ATX1
SIR1
PANEL
CPUFAN1
CASEFAN1
WOM1
WOL1
SPDIF1
SIDEBAND1
CD1
CD2
J1
JP1
JP2
JP4
JP7
LED1
Description
2 x 8/16-bit ISA expansion slots
AGP graphics adapter slot
4 x 32-bit PCI expansion slots
Processor socket for PPGA Celeron processor
Slots for 168-pin memory modules
Connector for floppy disk drives
Primary and secondary IDE channels
Connector for ATX power supply
Connector for optional IR port
Panel connector for switches and indicators
Power connector for CPU cooling fan
Power connector for case cooling fan
Connector for modem wake up
Connector for LAN wake up
SPDIF In/out connector (24-bit digital audio interface)
SB-Link connector for Sound Blaster audio card
Audio connector for optional CD-ROM drive
Auxiliary audio connector for optional CD-ROM drive
Connector for fax/modem Adapter Card
Clear CMOS memory jumper
Keyboard power on jumper
System Bus Frequency Selector
Flash BIOS enable/disable jumper
Suspension indicator
9
I/O Ports Side View
KBMPS2
USB1
COM1
COM2
LPT1
JS1
JS1
Component
KBMPS2
LPT1
JS1 (Upper)
JS1 (Lower)
COM2
COM1
USB1
SLOT1
Pin-1 corner
Socket-370
Key to I/O Ports
Description
PS/2 port for pointing device (upper port)
PS/2 port for keyboard (lower port)
External parallel port
External game/MIDI port
Audio jacks for (left to right) line out, line in, microphone
External monitor port
External serial port 1/3
Two stacked Universal Serial Bus ports
Preparing the Mainboard
Prepare the main board by carrying out the following steps ;
♦ Install the processor
♦ Install the memory module(s)
♦ Check the jumper settings
Install the Processor
This board has a Slot1 for a processor cartridge and a socket-370 for a
PPGA Celeron processor. You can install one processor cartridge or one
PPGA Celeron. You cannot install both a slot-1 cartridge and a PPGA
Celeron.
Locate SLOT1, Socket-370 and CPUFAN1
Locking lever
CPUFAN1
10
Installing a SLOT1 Cartridge Holder and Cartridge
mat
in the mainboard.
The SLOT1 on the mainboard must be installed with a retention
mechanism to support the cartridge. The illustrations below show how to
install several different kinds of Slot1 cartridge holders.
Captive nut
Cartridge holder
Slot1
Locking
screw
Cartridge holder
This cartridge holder is in one
piece. Place the mainboard
on a plastic mat and then
secure the holder in place by
pushing the plastic pins
through the holder and
through the holes in the
mainboard.
Cartridge holders
Captive pin
Slot1
Foam
plastic
mat
This cartridge holder is in one
piece. The two upright posts may
be folded down for shipping.
Screw the captive nuts onto the
locking screws inserted in the
mainboard. Don’t overtighten the
nuts as this will stress the
mainboard.
Pins
Slot1
Foam
plastic
This cartridge holder is in two
pieces. Place the mainboard
on a plastic mat and then
secure the cartridge holders
in place by pushing the
captive pins through the holes
11
Some cartridge holders also include a support bar for the processor heat
sink. This bar installs to the side of the cartridge holder. Some processor
cartridges have support struts for the heat sink which lock into the
support bar. The documentation supplied with the processor shows hot
to do this.
After you have installed the cartridge holder, follow the instructions
supplied with the processor cartridge to insert the cartridge into the
holder. If the processor has a cooling fan, connect the power cable of the
fan to the power supply connector on the mainboard CPUFAN1.
Installing a PPGA Celeron in the Socket-370
This mainboard is installed with a PGA370 ZIF processor socket. This
socket will only support the PPGA Celeron processor. Do not try to insert
a socket-7 processor such as a Pentium or Pentium-compatible
processor. The PPGA Celeron processors all run over a 66 MHz system
bus and have internal clock speeds ranging from 300 to 433 MHz.
Configuration of the processor is made automatically using the
mainboard BIOS (see the Setup chapter).
1. Locate the zero insertion force (ZIF) PGA370 socket for the
processor.
2. On the socket and on the processor, identify the pin 1 corner. On the
socket, the pin-1 corner is opposite the hinge of the locking lever,
and it has one hole missing from the corner. On the processor, the
pin-1 corner has a slight bevel.
Locking lever
Celeron processor
Socket-370
Pin-1 corner
Pin-1 corner
3. Push the socket locking lever away from the socket to unhook it.
Swing the lever into the upright position.
4. Insert the processor into the socket taking care that you have
matched the pin 1 corners. No force is required, and the processor
should seat smoothly into the socket.
12
5. Swing the locking lever down and hook it under the latch on the side
of the socket to lock it in place.
6. Locate the power connector for the processor cooling fan CPU FAN1.
If your processer has a cooling fan installed, connect the cable from
the cooling fan to CPU FAN1.
Install the Memory Modules
For this mainboard, you must use 168-pin 3.3V non-buffered Dual In-line
Memory Modules (DIMMs). The memory chips must be standard or
registered SDRAM (Synchronous Dynamic Random Access Memory).
The memory bus can run at 66 MHz , 100 MHz or 133MHz. If your
processor operates over a 100 MHz system bus, you must install PC100 or PC133 memory that also operates over a 100 MHz bus. If you
install a processor that operates over a 66 MHz bus, you can install
memory chips that operate at 66 MHz.
You must install at least one memory module and the first memory
module should be installed in slot DIMM1, the second in slot DIMM2 and
the third in slot DIMM3. If the modules use standard SDRAM, the
maximum capacity of each module is 128K. if the modules use
registered SDRAM, the maximum capacity is 256K.
The mainboard supports memory chips that have EC (Error Correction)
or ECC (Error Correction Code). If you install more than one module, the
modules should can have different capacities, but the memory chips
should all be the same type.
1. Locate the DIMM slots on the mainboard.
DIMM1
DIMM2
DIMM3
13
2. The DIMM slots are keyed with notches and the DIMMs are keyed
with cut-outs so that they can only be installed correctly. Check that
the cut-outs on the DIMM module edge connector match the notches
in the DIMM slot.
3. Push the latches on each side of the DIMM slot down.
4. Install the DIMM module into the slot and press it carefully but firmly
down so that it seats correctly. The latches at either side of the slot
will be levered upwards and latch on to the edges of the DIMM when
it is installed correctly.
Check all the Jumper Settings
Check all the mainboard jumpers to ensure that the board is configured
correctly.
A Note on Jumpers
A jumper consists of two or more pins mounted
on the mainboard. Some jumpers might be
arranged in a series with each pair of pins
numbered differently. Jumpers are used to
change the electronic circuits on the mainboard.
When a jumper cap is placed on two jumper
pins, the pins are SHORT. If the jumper cap is
removed (or placed on just a single pin) the
pins are OPEN.
Jumper cap
2-pin jumper
14
3
JP2
JP4
JP9
JP1
J1
JP7
JP1: Clear CMOS Memory Jumper
This jumper lets you erase the system setup settings that are stored in
CMOS memory. You might need to erase this data if incorrect settings
are preventing your system from operating. To clear the CMOS memory,
turn off the system, disconnect the power cable from the mainboard, and
short the appropriate pins for a few seconds.
JP1
Function Jumper Cap
Normal Operation Short pins 1-2
2
Clear CMOS Short pins 2-3
1
JP2: Keyboard Power On Jumper
This jumper lets you use a typed-in password as a power switch to turn
your system on. If you enable this property, you need to define the
password or the hot keys using the setup utility. See Chapter 3 for more
information.
Function Jumper Cap
Disable keyboard power on Short pins 1-2
Enable keyboard power on Short pins 2-3
1 2 3
JP2
Loading...
