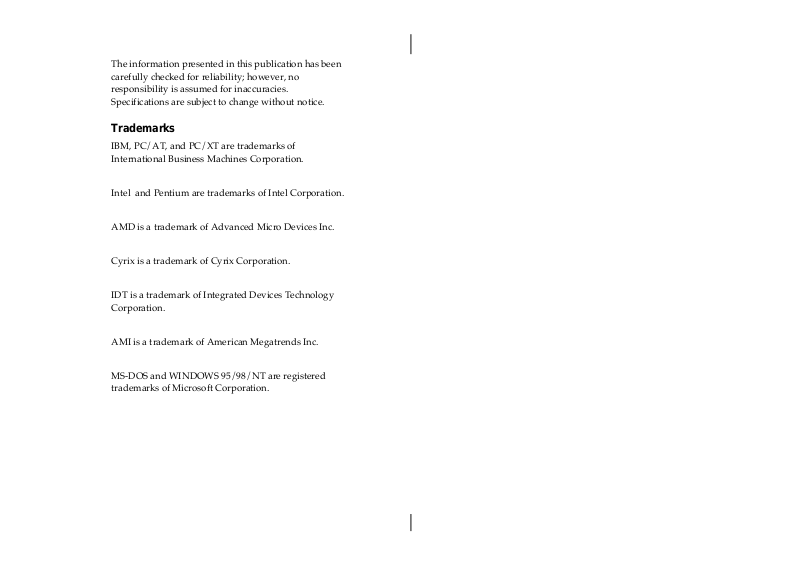

The information presented in this publication has been
carefully checked for reliability; however, no
responsibility is assumed for inaccuracies.
Specifications are subject to change without notice.
Trademarks
IBM, PC/AT, and PC/XT are trademarks of
International Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
AMD is a trademark of Advanced Micro Devices Inc.
Cyrix is a trademark of Cyrix Corporation.
IDT is a trademark of Integrated Devices Technology
Corporation.
AMI is a trademark of American Megatrends Inc.
MS-DOS and WINDOWS 95/98/NT are registered
trademarks of Microsoft Corporation.
ii
Contents
Chapter 1: Introduction ...................................................................... 2
Key Features ................................................................................... 3
Unpacking the Mainboard & Static Electricity Precautions..... 5
Chapter 2: Hardware Configuration................................................ 6
Mainboard Component Locations ............................................... 7
Connectors....................................................................................... 8
PWR2 Ð AT Power Supply Connectors ............................... 8
COM1/2 Ð Serial Port #1/#2................................................. 8
PRN1 Ð Parallel Port ............................................................... 8
FDC1 Ð Floppy Disk Port ....................................................... 8
IDE1/IDE2 Ð Primary/Secondary IDE Ports...................... 8
KBD1 Ð Keyboard Connector ................................................ 8
FAN1 Ð FAN Power Connector ............................................ 8
J1 Ð ATX Form Card Connector ............................................ 8
JP11 (2, 4, 6, 8, 10) (KEYLOCK) Ð Keylock & Power LED
Connector ................................................................................. 9
JP11 (1, 3, 5, 7) (SPK) Ð Speaker Connector ......................... 9
JP11 (13, 14) (SUSLED) Ð Suspend LED Connector ........... 9
JP11 (15, 16) (HDDLED) Ð HDD LED Connector ............... 9
JP11 (17, 18) (RST) Ð Reset Switch Connector ................... 10
JP11 (21, 22)(PWB) Ð ATX Power Button ........................... 10
Sound Pro Connectors.......................................................... 10
CD1/CD2 Ð Analog Audio for Sony/Panasonic ............. 10
J2 Ð Sound and Game ........................................................... 10
JP7 Ð Digital Audio IN ......................................................... 10
JP8 Ð Digital Audio OUT ..................................................... 11
Memory Installation..................................................................... 11
Jumper Settings ............................................................................ 12
JP6 Ð CMOS RAM Clear Selector........................................ 12
JP3 Ð DIMM Voltage Selectors ............................................ 12
JP4 Ð Microphone Type Selector ......................................... 12
JP12 Ð CPU Frequency Selectors ......................................... 12
JP14 Ð CPU Core Voltage Selectors..................................... 13
JP13 Ð CPU Multiplier Selectors.......................................... 13
JP9 Ð CPU Type Selectors..................................................... 13
Chapter 3: ACPI Functions & Connectors with ATX Power..... 14
PWR1 Ð ATX Power Connector .......................................... 14
Software Power-Off .............................................................. 15
Modem Ring Power-On ....................................................... 15
Alarm Wake Up .................................................................... 15
JP11 (21, 22) (PWB) Ð ATX Power Button and Suspend
Switch Connector .................................................................. 16
Chapter 4: BIOS Setup ..................................................................... 17
Entering BIOS Setup .................................................................... 18
Default ........................................................................................... 19
Load Optimal Settings ......................................................... 19
Load Best Performance Settings ......................................... 19
Setup Items.................................................................................... 19
Standard CMOS Setup ......................................................... 19
Advanced CMOS Setup ....................................................... 20
Advanced Chipset Setup ..................................................... 22
Power Management Setup................................................... 24
PCI/Plug and Play Setup..................................................... 25
Peripheral Setup.................................................................... 27
Change Supervisor Password ............................................. 28
Auto-Detect Hard Disks....................................................... 28
Save Settings and Exit .......................................................... 29
Exit Without Saving.............................................................. 29
iii
Chapter 1
Introduction
This mainboard is a high-performance mainboard
based on the advanced Pentiumª microprocessor,
100MHz CPU external clock speed capability feature,
and PCI Local Bus and the high-end AGP chipset. The
mainboard offers a high degree of flexibility in
configuration and is fully IBM PC/AT compatible.
Introduction 3
Key Features
The advanced features of this mainboard include:
¥ Supports P54C/P55C Pentiumª (MMX) CPUs and
Cyrix/IBM 6x86L/6x86MX/MII, AMD K6/K6-2
(3.2V & 2.2V), IDT C6 133~500MHz CPUs with
Frequency at 66/75/83/95/100 MHz;
¥ Provides three DIMMs for SDRAM/EDO/FPM
memory modules, memory expandable up to
768MB, however, it is not recommended to use
EDO/FPM DRAM when 83 ~ 100MHz CPU
frequency is being used and SDRAM has to meet
the requirement of PC-100 if using 100MHz;
¥ Supports 64M-bit (8Mx8, 4Mx16) EDO DRAM/
SDRAM;
¥ Onboard 1MB Pipeline Burst synchronous L2
cache;
¥ Provides both ATX/AT power connector, and
supports various ATX power functions, such as:
Modem Ring On, ATX Power Button, Suspend
Switch, and Alarm Wake Up;
¥ Supports ACPI and Legacy PMU, and the Ultra
DMA/33, fully compliant to PC97 & PC98;
¥ Provides Accelerated Graphics Port (AGP), 3 PCI
Bus slots, 2 ISA Bus slots and PCI Bus Master IDE
interface with 2 connectors which supports 4 IDE
devices in 2 channels;
¥ Super Multi-I/O chip supports 2 serial ports with
16550 compatible fast UART, 1 parallel port with
EPP and ECP capabilities, and one floppy disk
drive interface with 1Mb/s transfer rate;
4 Chapter 1
¥ Provides ATX Form Card containing PS/2 Mouse,
2 USB interface, and Infrared connectors;
¥ Onboard 3D Sound Pro meets PC98' SPEC and
supports HRTF Positional Audio, Direct Sound 3D
with Aureal 3D driver, Software Wave-table
Synthesizer, and Digital Audio Interface (SPDIF)
IN/OUT;
¥ Bundled PC-cillin (OEM) provides automatic virus
protection for Window95/98 and the Internet;
¥ System BIOS supports TrendÕs ChipAway Virus
function to ensure the entire boot process is
virusfree, no installation and configuration worries.
Introduction 5
Unpacking the Mainboard & Static
Electricity Precautions
This Mainboard package contains the following items:
1. This Mainboard and a Device Driver
2. This UserÕs Guide and AT cable set
3. Sound & Game ribbon cables/bracket and
SPDIF/IN cable
4. ATX Form Card
The mainboard is easily damaged by static electricity.
Follow the precautions below while unpacking or
installing the mainboard.
1. Do not remove the mainboard from its original
package until you are ready to install it.
2. Frequently ground yourself to discharge any static
electric charge that may build up in your body
while working on installation and/or
configuration. For example, you may ground
yourself by grasping an unpainted portion of the
systemÕs metal chassis.
3. Remove the mainboard from its anti-static
packaging and place it on a grounded surface,
component side up.
4. Handle the mainboard by its edges or by the
mounting bracket to avoid touching its
components.
5. Check the mainboard for damage. If any integrated
circuit appears loose, press carefully to seat it
firmly in its socket.
6. Do not apply power if the mainboard appears
damaged. If there is damage to the board contact
your dealer immediately.
Chapter 2
Hardware Configuration
Before you install this mainboard into the system
chassis, you may find it convenient to first configure
the mainboardÕs hardware. This chapter describes how
to set jumpers and install memory modules, and where
to attach components.
Hardware Configuration 7
Mainboard Component Locations
J1
21
18 17
AGP1
12 12
COM1 COM2
IDE2
1
IDE1
1
PRN1
1
KBD1
1
PWR2
PWR1
Chipset
PCI3 PCI2 PCI1
12
J2
FAN1
JP14
CBAD
Keylock
2
1
SPK RST
1
SUSLED
JP4
CD1
CD2
Sound
Pro
1
JP6
+
Battery
Chipset
BIOS
JP8
ACB
JP7
JP13
Socket 7
P54C
P55C
HDDLED
JP9
PWB
22
JP11
21
Cache
Cache
Figure 2Ð1. Mainboard Component Locations
A
B
C
D
JP12
DIMM3DIMM2DIMM1
FDC1
5V
3V
JP3
8 Chapter 2
Connectors
Attach system components and case devices to the
mainboard via the mainboard connectors. A description
of each connector follows. See Figure 2Ð1 for the
location of the connectors on the mainboard.
Note: Make sure that the power is turned off before
making any connection to the board.
PWR2 – AT Power Supply Connectors
COM1/2 – Serial Port #1/#2
PRN1 – Parallel Port
FDC1 – Floppy Disk Port
IDE1/IDE2 – Primary/Secondary IDE Ports
KBD1 – Keyboard Connector
FAN1 – FAN Power Connector
J1 – ATX Form Card Connector
This connector contains 2 sets of USB interface, PS/2
Mouse, and Infrared connectors. Connect the ATX
Form Card cable to this connector.
Hardware Configuration 9
JP11 (2, 4, 6, 8, 10) (KEYLOCK) – Keylock &
Power LED Connector
Pin Description
2 LED Output
4 N.C.
6 Ground
8 Keylock
10 Ground
JP11 (1, 3, 5, 7) (SPK) – Speaker Connector
Pin Description
1 Data Out
3 N.C.
5 Ground
7 +5V
JP11 (13, 14) (SUSLED) – Suspend LED
Connector
Pin Description
13 (+) +5V
14 (Ð) Active Low
JP11 (15, 16) (HDDLED) – HDD LED
Connector
Pin Description
+ +5V
Ð Active Low
10 Chapter 2
JP11 (17, 18) (RST) – Reset Switch
Connector
Setting Description
Open Normal Mode
Close Reset System
JP11 (21, 22)(PWB) – ATX Power Button
Refer to Chapter 3.
Sound Pro Connectors
CD1/CD2 – Analog Audio for
Sony/Panasonic
Connect to ÒAUDIOÓ on the CD-ROM drive, and the
signal for Panasonic jack is G-S-G-S and S-G-G-S for
Sony.

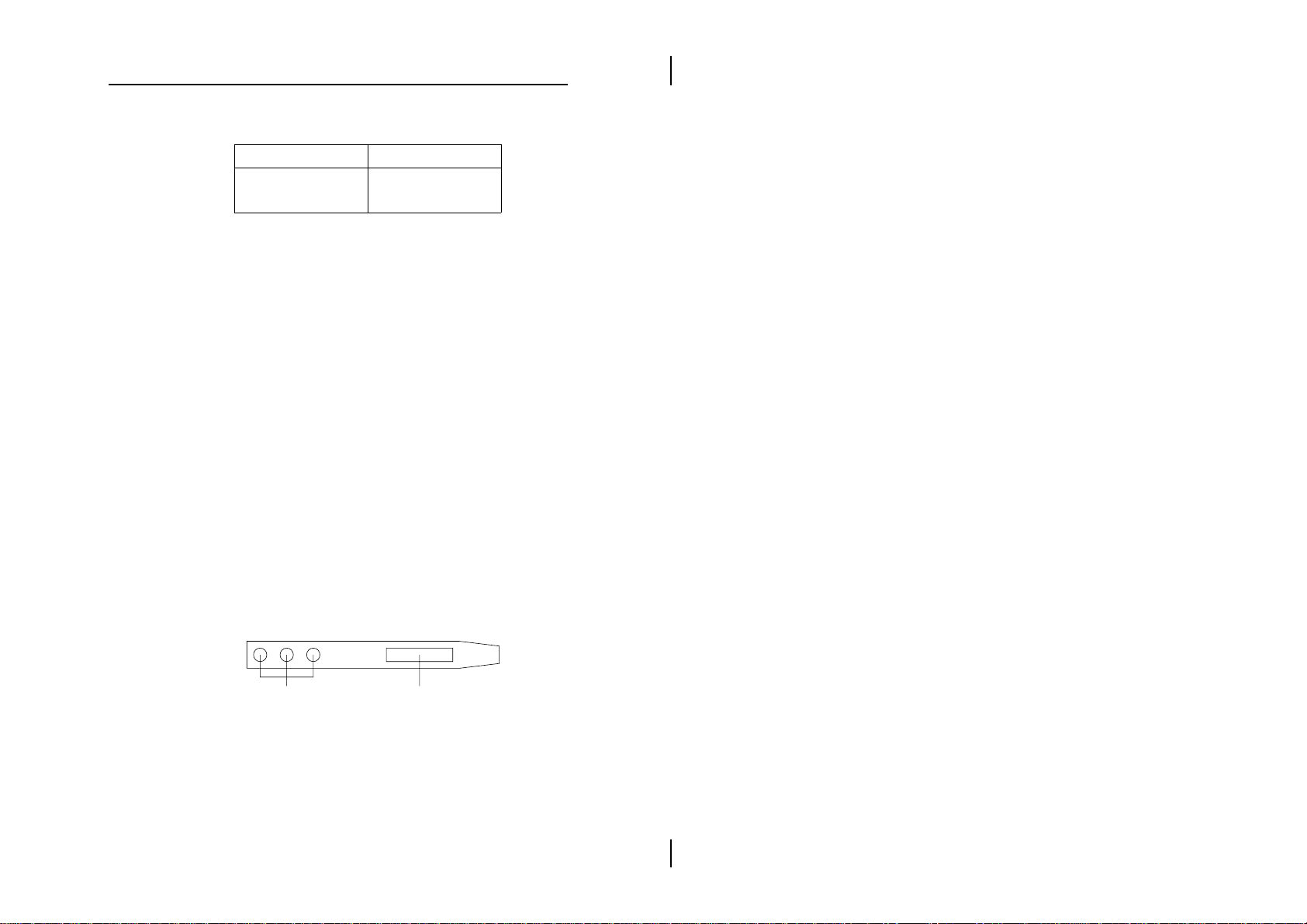

J2 – Sound and Game
Sound contains Line-in/MIC (Microphone), and Lineout (Speaker). Game connector is also the Joystic
connector. Connect this connector to the Sound &
Game ribbon cable/bracket as the following drawing:
Line-In MIC Line-Out Game
J2 J2
JP7 – Digital Audio IN
Depending on the type of your CD-ROM drive to
connect this connector to ÒDIGITAL AUDIOÓ on the
CD-ROM drive by using SPDIF/IN cable.
Hardware Configuration 11
JP8 – Digital Audio OUT
Connect to the Digital Audio device (the Audio
Amplifier or Minidisk) by using optional SPDIF/OUT
cable/bracket.
Memory Installation
The mainboard lets you add up to 768MB of system
memory through three DIMM sockets on the board,
and system memory are divided into three banks: Bank
0, Bank 1, and Bank 2. The mainboard supports the
following memory configurations.
Bank Memory Module
Bank 0
DIMM1
Bank 1
DIMM2
Bank 2
DIMM3
Total System Memory = Bank 0 + Bank 1 + Bank 2
Notes: 1. The speed of SDRAM DIMM modules have to be faster than
12ns (ÒÐ12Ó parts). When 100MHz clock speed is being
used, then the speed of SDRAM DIMM should meet the
PC100 SDRAM specification (8ns or ÒÐ8Ó SDRAM at
least).
2. The speed of EDO/FPM DRAM have to be faster than 70ns,
but it is not recommended for the performance purpose of the
system.
4MB, 8MB, 16MB, 32MB, 64MB, 128MB, 256MB
4MB, 8MB, 16MB, 32MB, 64MB, 128MB, 256MB
4MB, 8MB, 16MB, 32MB, 64MB, 128MB, 256MB
12 Chapter 2
Jumper Settings
JP6 – CMOS RAM Clear Selector
Description Setting
1
Normal Mode
(default)
Clear CMOS
Note: 1. Make sure that this jumper is set to Normal Mode before
installing the mainboard and the power is off before clearing
the CMOS.
2. If using the ATX power, you need to unplug the power cable
and then plug the cable back on after clearing the CMOS.
3
1
3
JP3 – DIMM Voltage
Selectors
Voltage
5V
3.3V
(default)
Setting
5V
3V
5V
3V
JP12 – CPU Frequency Selectors
Fre. Setting
66MHz
(default)
95MHz
ABC
ABC
JP4 – Microphone Type
Selector
Description
Special Mode
Normal Mode
(default)
Fre. Setting
75MHz
ABC
100MHz
ABC
Fre. Setting
83MHz
Setting
ABC
Hardware Configuration 13
JP14 – CPU Core Voltage Selectors
Vcc Setting
Vcc Setting
Vcc Setting
Vcc Setting
2.0V
2.1V
2.2V
2.3V
2.8V
(default)
2.9V
3.0V
3.1V
ABCD
ABCD
ABCD
ABCD
ABCD
ABCD
ABCD
ABCD
2.4V
ABCD
2.5V
ABCD
2.6V
ABCD
2.7V
ABCD
JP13 – CPU Multiplier Selectors
Mul. Setting
2.0X
(default)
ABC
2.5X
ABC
3.0X
Mul. Setting
3.5X
ABC
4.0X
ABC
4.5X
ABCABC
3.2V
ABCD
3.3V
ABCD
3.4V
ABCD
3.5V
ABCD
Mul. Setting
5.0X
ABC
5.5X
ABC
JP9 – CPU Type Selectors
CPU Setting
P55C
(Dual Voltage)
(default)
P54C
(Single Voltage)
P54C
P55C
P54C
P55C
Example
Intel MMX, AMD
K6/K6-2, IBM/Cyrix
6x86L/6x86MX (MII)
Intel P54C, IDT C6,
AMD K5, IBM/Cyrix
6x86
Chapter 3
ACPI Functions & Connectors
with ATX Power
PWR1 – ATX Power Connector
The ATX power supply provides a single 20-pin
connector and supports the ACPI specification.
Pin Description Pin Description
1 3.3V 11 3.3V
2 3.3V 12 Ð12V
3 Ground 13 Ground
4 +5V 14 PS-ON
5 Ground 15 Ground
6 +5V 16 Ground
7 Ground 17 Ground
8 Power OK 18 Ð5V
9 5VSB 19 +5V
10 +12V 20 +5V
ATX Functions & Connectors 15
The functions and connectors described below work
with the ATX power supply.
Software Power-Off
Follow the steps below to use the ÒSoftware Power-Off
ControlÓ function in Windows 95 with ATX power
supply.
1. Click the START button on the Windows 95 task
bar.
2. Select Shut Down The Computer to turn off the
computer. The message ÒIt is now safe to turn off
your computer.Ó will not be shown when using this
function.
Modem Ring Power-On
While in Soft-off/Suspend state, if an external modem
ring-up signal occurs, the system wakes up and can be
remotely accessed. Make sure that the Ring Resume
From Soft Off option is set to Enabled in the BIOS setup
section (Refer to the Power Management section in
Chapter 4.)
Alarm Wake Up
If you want to autoboot the system at a certain time, set
the function of RTC Alarm time properly and the
function of RTC Alarm Resume From Soft Off option in
the BIOS Setup section will be set to Enabled.
16 Chapter 3
JP11 (21, 22) (PWB) – ATX Power Button and Suspend
Switch Connector
Attach the ATX Power Button or Suspend Switch cable
to this connector.
In the AT power system, this connector will act as a
suspend switch; and in the ATX power system, this
connector will be not only an ATX power button but a
Suspend switch as well. Details are described below:
When the system is off, push the power button to turn
the system on. When the system is on, push the power
button rapidly to switch the system to the Suspend
mode, and, by pushing and holding the button for
more than 4 seconds, it will turn the system completely
off. When the system is in the Suspend mode, push the
power button rapidly to turn the system on.
Chapter 4
BIOS Setup
This chapter explains how to configure the mainboardÕs
BIOS setup program. The setup program provided
with the mainboard is the BIOS from AMI.
After you have configured the mainboard and have
assembled the components, turn on the computer and
run the software setup to ensure that the system
information is correct.
The software setup of the system board is achieved
through Basic Input-Output System (BIOS)
programming. You use the BIOS setup program to tell
the operating system what type of devices are
connected to your system board.
The system setup is also called CMOS setup. Normally,
you need to run system setup if either the hardware is
not identical with information contained in the CMOS
RAM, or if the CMOS RAM has lost power.
Note: When installing newer BIOS into this
mainboard, you need to clear CMOS for a
moment then set back to Normal Mode or hold
down the <End> key then power on to reboot
the system.
18 Chapter 3
Entering BIOS Setup
To enter the BIOS Setup program:
1. Turn on or reboot the system. A screen appears
with a series of diagnostic checks.
2. When ÒHit <DEL> if you want to run SETUPÓ
appears, press the <DEL> key to enter the BIOS
setup program. The following screen appears:
AMIBIOS SIMPLE SETUP UTILITY - VERSION 1.1X
(C)1998 American megatrends, Inc. All Rights Reserved
Standard CMOS Setup
Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup
PCI/Plug and Play Setup
Load Optimal Settings
Load Best Performance Settings
Esc: Quit ↑ ↓ → ←: Select Item (Shift) F2: Change Color F5: Old Values
F6: Optimal values F7: Best performance values F10 : Save&Exit
Standard CMOS setup for changing time, date, hard disk type, etc.
Peripheral Setup
Change Supervisor Password
Auto-Detect Hard Disks
Save Settings and Exit
Exit Without Saving
3. Use your keyboard to choose options. Modify
system parameters to reflect system options. Press
Alt-H for Help.
BIOS Setup 19
Default
Every option in the BIOS Setup contains two default
values: Best default and the Optimal default value.
Load Optimal Settings
The Optimal default values provide optimum system
settings for all devices and system features.
Load Best Performance Settings
The Best default values provide best performance
settings for all devices and system features, however
depending on the devices used, these settings are not
recommend for long hours of work load.
Setup Items
Standard CMOS Setup
Choosing the item from the BIOS Setup main menu.
All Standard Setup options are described in this
section.
Date/Time Select the Date/Time option to change the date
or time. The current date and time are
displayed. Enter new values through the
displayed window.
20 Chapter 3
Pri Master
Pri Slave
Sec Master
Sec Slave
Floppy Drive
A, B
Choose these options to configure the hard
disk drive named in the option. When you
click on an icon, the following parameters are
listed: Type, LBA/Large Mode, Block Mode,
32Bit Mode, and PIO Mode. All parameters
relate to IDE drives except Type.
Choose the Floppy Drive A or B option to
specify the floppy drive type. The settings are
360KB 51/4", 1.2MB 51/4", 720KB 31/2", 1.44MB
31/2", or 2.88MB 31/2".
Advanced CMOS Setup
Choose the Advanced item from the BIOS Setup main
menu. All Advanced Setup options are described in
this section.
1st Boot Device
2nd Boot Device
3rd Boot Device
4th Boot Device
Set these options to select the boot
sequence from different booting devices.
S.M.A.R.T for Hard
Disks
Quick Boot Set this option to Enabled to permit BIOS to
Boot Up Num-Lock When this option is set to On, BIOS turns
Floppy Drive Swap Set this option to Enabled to specify that
Select this option to enable or disable the
S.M.A.R.T. function of HDDs.
boot within 5 seconds.
off the Num Lock key when the system is
powered on so the end user can use the
arrow keys on both the numeric keypad
and the keyboard.
floppy drives A: and B: are swapped.
BIOS Setup 21
Floppy Drive Seek Set this option Disabled to provide a faster
boot and reduce the possibility of
damaging the heads.
PS/2 Mouse
Support
Primary Display This option configures the primary display
Password Check This option specifies the type of BIOS
Boot to OS/2 Over
64MB
Internal Cache Select this option to enable the internal
When this option is set to Enabled, BIOS
supports a PS/2-type mouse.
subsystem in the computer.
password protection that is implemented.
The settings are:
Setup: The password prompt appears
only when an end user attempts
to run BIOS Setup.
Always: A password prompt appears
every time the computer is
powered on or rebooted.
The BIOS password does not have to be
enabled. The end user sets the password
by choosing the Password icon on the
BIOS Setup screen.
Select this option to boot to OS/2 system
and memory over 64MB.
cache.
External Cache Select this option to enable External Cache.
System BIOS
Cacheable
BIOS always copies the system BIOS from
ROM to RAM for faster execution. Set this
option to Enabled to permit the contents of
the F0000h RAM memory segment to be
written to and read from cache memory.
22 Chapter 3
Video BIOS
Shadow;
C800, 16K Shadow;
CC00, 16K Shadow;
D000, 16K Shadow;
D400, 16K Shadow;
D800, 16K Shadow;
DC00, 16K Shadow
Disabled: The specified ROM is not
Enabled: The contents of the ROM area
Cached: The contents of the ROM area
Advanced Chipset Setup
Choose the Chipset item from the BIOS Setup main
menu. All Chipset Setup options are then displayed
and are described in the following section:
Trend ChipAway
Virus
SDRAM CAS
Latency
Set this option to enable TrendÕs virusfunction in BIOS.
This option is used to select a proper
SDRAM CAS Latency.
copied to RAM.
are not only copied from ROM
to RAM for faster execution, the
contents of the RAM area can
be written to or read from cache
memory.
are copied from ROM to RAM
for faster execution.
SDRAM Burst
Function
DRAM Timing Set this option to select the proper DRAM
Pipe Function Set this option to enable Pipe cache
Gated Clock Set this option to enable Gated clock.
Graphic Aperture
Size
Set this option to enable the SDRAM Burst
function.
timing.
function.
This option is used to select a proper
Graphic Aperture size.
BIOS Setup 23
Primary Frame
Buffer
VGA Frame BufferSet this option to enable frame buffer for the
Data Merge Set this option to enable Data Merge for the
Passive Release Set this option to enable the Passive Release
ISA Line Buffer Set this option to enable the Line buffer for
Delay TransactionSet this option to enable Delay Transaction
AT Bus Clock Set this option to select the proper ISA bus
OnBoard USB
Function
Set this option to enable frame buffer for the
primary display.
VGA.
VGA frame buffer.
function.
ISA bus.
function.
clock.
Set this option to Enabled to enable the
system BIOS USB (Universal Serial Bus)
functions.
USB function for
DOS
Set this option to Enabled to enable passive
release on the universal serial bus.
24 Chapter 3
Power Management Setup
The BIOS Setup options described in this section are
selected by choosing the Power Management Setup
from the BIOS Setup main menu.
Power
Management/
APM
Green Monitor
Power State
Video Power
Down Mode
Hard Disk Power
Down Mode
Standby Time out This option specified the length of system
Set this option to enable power management
features and APM (Advanced Power
Management).
This option specifies the power state that the
green PC-compliant video monitor enters
when BIOS places it in a power savings state
after the specified period of display inactivity
has expired.
This option specifies the power conserving
state that the VESA VGA video subsystem
enters after the specified period of display
inactivity has expired.
This option specifies the power conserving
state that the hard disk drive enters after the
specified period of hard drive inactivity has
expired.
inactivity while in Full power on state. When
this length of time expires, the computer
enters Standby power state.
Suspend Time out This option specified the length of a period of
system inactivity while in Standby state.
When this length of time expires, the
computer enters Suspend power state.
BIOS Setup 25
Monitor Parallel
Port, Serial Port,
Floppy, VGA,
Audio, Pri-HDD,
Sec-HDD
Power Button
Function
Ring Resume
From Soft Off
RTC Alarm
Resume
RTC Alarm Date;
RTC Alarm Hour;
RTC Alarm
Minute;
RTC Alarm
Second
When set to Yes, these options enable event
monitoring on the specified hardware
interrupt request line and the computer is in a
power saving state, BIOS watches for activity
on the specified IRQ line. The system enters
the full power on state if any activity occurs.
This option specifies the operation of Soft-Off
by the Power Button. Select ÒSuspendÓ
function to enter ÒOn-Suspend-OffÓ or select
ÒSoft OffÓ function to enter ÒOn-OffÓ
operation cycle.
Set this option to enable the modem ring to
wake up the system which is Soft Off.
Set this option to enable the RTC Alarm to
wake up the system which is Soft Off.
Set these options to specify the RTC Alarm
time on Month/Date/Hour/Minute/Second.
PCI/Plug and Play Setup
Choose the PCI/PnP item from the BIOS Setup main
menu.
Plug and Play
Aware OS
Primary Graphic
Adapter
Set this option to Yes if the operation system
in this computer is aware of and follows the
Plug and Play specification. Currently, only
Windows 95 is PnP-aware.
Set this option to select AGP or PCI VGA for
primary graphic adapter.
26 Chapter 3
PCI VGA Palette
Snoop
OffBoard PCI IDE
Card
Pri. OffBoard PCI
IDE IRQ;
Sec. OffBoard PCI
IDE IRQ
When this option is set to Enabled, multiple
VGA devices operating on different buses can
handle data from the CPU on each set of
palette registers on every video device. Bit 5
of the command register in the PCI device
configuration space is the VGA Palette Snoop
bit (0 is disabled).
This option specifies if an offboard PCI IDE
controller adapter card is installed in the
computer. You must specify the PCI
expansion slot on the motherboard where the
offboard PCI IDE controller is installed. If an
offboard PCI IDE controller is used, the
onboard IDE controller is automatically
disabled. If an offboard PCI IDE controller
adapter card is installed in the computer, you
must also set the Offboard PCI IDE Primary
IRQ and Offboard PCI IDE Secondary IRQ
options.
These options specify the PCI interrupt used
by the Primary (or secondary) IDE channel on
the offboard PCI IDE controller.
Assign IRQ to PCI
VGA
PCI Slot 1/2/3 IRQ
Priority
DMA Channel 0,
1, 3, 5, 6, 7
Set this option to Enabled to assign IRQ to PCI
VGA Card.
These options specify the priority IRQ to be
used for any PCI devices installed in PCI
expansion slots 1 through 4.
These options specify the bus that the
specified DMA channel is used on.
BIOS Setup 27
IRQ3, 4, 5, 7, 9, 10,
11, 12, 14, 15
These options specify the bus that the
specified IRQ line is used on. These options
allow you to reserve IRQs for legacy ISA
adapter cards.
Peripheral Setup
Choose the Peripheral item from the BIOS Setup main
menu.
OnBoard FDC This option enables the FDC (Floppy Drive
Controller) on the motherboard.
OnBoard Serial
Port1
OnBoard Serial
Por2
Serial Port2 Mode This option specifies the serial port2 mode.
This option specifies the base I/O port
address of serial port 1.
This option specifies the base I/O port
address of serial port 2.
Normal: The normal serial port mode is
being used.
IrDA/ASKIR: The serial port2 will be
redirected to support IR function
when this option is set to IrDA or
ASKIR.
IR Half-Duplex
Timeout
OnBoard Parallel
Port
Parallel Port Mode Depends on the type of your external device
Set this option to enable the IR Half-Duplex
timeout for IR port.
Set this option to specify the base IO address
for parallel port.
which connects to parallel port to choose
Normal, EPP, or ECP mode.
28 Chapter 3
EPP Version Set this option to select EPP specification
version.
Parallel Port IRQ This option specifies IRQ to parallel port.
Parallel Port DMA This option is only available if the setting of
the Parallel Port Mode is ECP.
OnBoard IDE This option specifies the channel used by the
IDE controller on the motherboard.
OnBoard Sound
PRO
Set this option to enable the Sound Pro
functions.
Change Supervisor Password
This item lets you configure the system password
which is required every time when the system boots up
or an attempt is made to enter the Setup program. The
password cannot be longer than six characters.
Note: Keep a safe record of the new password. If you
forget or lose the password, the only way to
access the system is to clear CMOS memory .
Auto-Detect Hard Disks
If your system has an IDE hard drive, you can use this
utility to detect its parameters and automatically enter
them into the Standard CMOS Setup. This utility will
autodetect up to four IDE devices.
BIOS Setup 29
Save Settings and Exit
Select this item to save the values entered during the
current session and then exit the BIOS setup program.
Exit Without Saving
Select this item to exit the BIOS setup program without
saving the values which has been entered during the
current session.
Loading...
