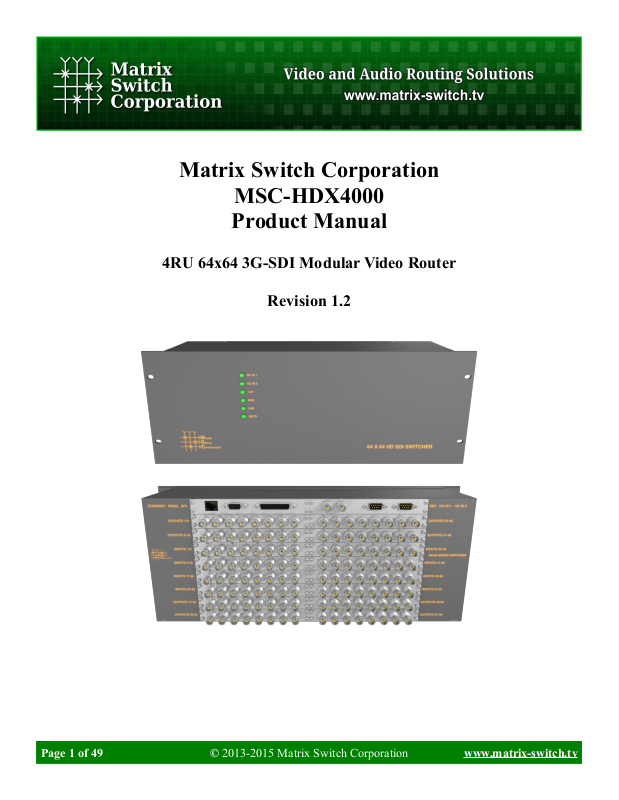

Matrix Switch Corporation

MSC-HDX4000

Product Manual

4RU 64x64 3G-SDI Modular Video Router

Revision 1.2

MSC-HDX4000 Product Manual

Legal Disclaimers

All material in this document is the legal property of Matrix Switch Corporation.

Information contained in this publication regarding device applications and the like is provided for your convenience only and may be superseded by updates. It is your responsibility to ensure that your application meets with your specications. MATRIX SWITCH CORPORATION MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Matrix Switch Corporation disclaims all liability arising from this information and its use. Use of Matrix Switch Corporation devices in life support and/or safety applications is entirely at the buyer’s risk, and the buyer agrees to defend, indemnify and hold harmless Matrix Switch Corporation from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Matrix Switch Corporation intellectual property rights.

Contacting Matrix Switch Corporation

Website http://www.matrix-switch.tv

Phone (530) 477-9122

Email info@matrix-switch.tv

MSC-HDX4000 Product Manual

Publication History

Revision & Date Changes

Revision 1.2

2015-08-20

Revision 1.1

2014-06-24

2014-03-17 • Fixed some document cross references.

2013-11-29 • MSC-4HDX6464 manual released.

Revision 1.0

2013-04-15

• Added protocol commands: MtxGroup, PanelDis, PanelExtEn, and Sierra.

• Updated Mascot protocol information to version 2.4.

• New manuals for MSC-V1616(LS)(+DC), MSC-1HD1616(LS)(+DC)

• Updated External Button Control Pinout section.

• Added External Button Control information for MSC-HD42L.

• Minor text content and gure position changes.

• Updated Mascot protocol information to version 2.3.

• Added Vars Mascot command description.

• Initial release of modular product manual.

MSC-HDX4000 Product Manual

Table of Contents

1 Getting Started....................................................................................................................................................6

1.1 Device Connections......................................................................................................................................6

1.2 Powering Up The Device..............................................................................................................................6

1.3 Front Status Panel.........................................................................................................................................7

1.4 Web Page Interface........................................................................................................................................7

1.4.1 Accessing The Web Page Interface........................................................................................................7

1.4.2 Network Settings...................................................................................................................................8

1.4.3 Matrix Routing......................................................................................................................................8

1.4.4 Labels....................................................................................................................................................8

1.4.5 Presets....................................................................................................................................................8

1.5 Network Planning..........................................................................................................................................9

1.5.1 Installation Example............................................................................................................................10

1.6 3D Video Configuration..............................................................................................................................10

2 Web page interface............................................................................................................................................12

2.1 Overview.....................................................................................................................................................12

2.2 Routing Tab.................................................................................................................................................12

2.2.1 Changing a connection........................................................................................................................13

2.2.2 Loading a preset..................................................................................................................................13

2.3 Presets Tab...................................................................................................................................................13

2.3.1 Loading Work Matrix from a source target.........................................................................................14

2.3.2 Saving Work Matrix to a target...........................................................................................................14

2.3.3 Usage scenarios...................................................................................................................................14

2.4 Labels Tab...................................................................................................................................................14

2.5 Config Tab...................................................................................................................................................15

2.5.1 System Settings...................................................................................................................................16

2.5.2 Network Settings.................................................................................................................................16

2.5.3 Button Panel Settings..........................................................................................................................17

2.6 Command Tab.............................................................................................................................................18

3 Mascot Control Protocol..................................................................................................................................19

3.1 Protocol changes.........................................................................................................................................19

3.2 Telnet access................................................................................................................................................20

3.3 Serial access................................................................................................................................................20

3.4 Command format........................................................................................................................................20

3.4.1 Command names.................................................................................................................................21

3.4.2 Command arguments...........................................................................................................................21

3.5 Response format..........................................................................................................................................21

3.6 Command argument values.........................................................................................................................21

3.7 Error codes..................................................................................................................................................22

3.8 Basic command reference...........................................................................................................................23

3.9 Advanced command reference....................................................................................................................23

3.10 C Command..............................................................................................................................................24

3.11 DestNames Command...............................................................................................................................25

3.12 DHCP Command.......................................................................................................................................25

MSC-HDX4000 Product Manual

3.13 E Command...............................................................................................................................................26

3.14 Firmware Command..................................................................................................................................26

3.15 FrameIP Command...................................................................................................................................27

3.16 Gateway Command...................................................................................................................................27

3.17 Help Command.........................................................................................................................................27

3.18 IP Command..............................................................................................................................................27

3.19 LockStatus Command...............................................................................................................................28

3.20 MAC Command........................................................................................................................................28

3.21 MascotVer Command................................................................................................................................28

3.22 MtxCfg Command....................................................................................................................................29

3.23 MtxGroup Command................................................................................................................................31

3.24 NetMask Command..................................................................................................................................32

3.25 P Command...............................................................................................................................................32

3.26 PAdd Command........................................................................................................................................32

3.27 PairIO Command......................................................................................................................................33

3.28 PanelOfs Command..................................................................................................................................33

3.29 PanelDis Command...................................................................................................................................34

3.30 PanelExtEn Command..............................................................................................................................34

3.31 PanelRate Command.................................................................................................................................35

3.32 PClr Command..........................................................................................................................................35

3.33 PsetNames Command...............................................................................................................................36

3.34 PSub Command.........................................................................................................................................36

3.35 PView Command......................................................................................................................................37

3.36 Reboot Command......................................................................................................................................37

3.37 ReclkDis Command..................................................................................................................................37

3.38 RemoteSync Command.............................................................................................................................38

3.39 S Command...............................................................................................................................................38

3.40 Sierra Command........................................................................................................................................39

3.41 SrcNames Command.................................................................................................................................39

3.42 SysName Command..................................................................................................................................40

3.43 SysType Command...................................................................................................................................40

3.44 Vars Command..........................................................................................................................................41

3.45 W Command.............................................................................................................................................42

3.46 WebPass Command...................................................................................................................................42

3.47 X Command..............................................................................................................................................42

4 Software Updates..............................................................................................................................................44

4.1 Software Update on Hydra Series Devices.................................................................................................44

4.1.1 Power On Software Update Reset Switch...........................................................................................44

5 Troubleshooting.................................................................................................................................................45

5.1 Unknown IP address....................................................................................................................................45

5.2 Unexpected reboots.....................................................................................................................................45

6 Reference...........................................................................................................................................................46

6.1 Specifications..............................................................................................................................................46

6.2 Glossary.......................................................................................................................................................48

7 Matrix Switch Corporation Warranty............................................................................................................49

MSC-HDX4000 Product Manual

1 Getting Started

Congratulations on your purchase of a quality Matrix Switch Corporation product. This section contains a general overview of device functionality and provides information to get you up and running quickly. Additional sections in this manual can be consulted for more detailed information on the subsystems and features of this product.

1.1 Device Connections

The MSC-HDX4000 comes with a power supply adapter, a redundant power supply and a documentation CD. Additional cables and hardware are not usually provided.

• Power supply adapter – A 12 Volt 10 Amp power supply adapter is provided which is connected to the DE-9 male connector on the device and plugged into a 100-240V 50/60Hz AC power source.

• Redundant power supply (Optional) – The additional redundant power supply can be connected via the second power supply connector, to provide an additional power source in the event that one of the

supplies fails or is disconnected from the power source.

• Ethernet connector (Optional) – Connect to a network switch with an Ethernet cable. Required for accessing the web page interface, TCP/IP Mascot interface or for interfacing with remote control panels.

A crossover cable can also be utilized for connecting directly to a computer or remote panel.

• SDI Video Inputs – Connect SDI sources to input connectors using 75 Ohm Coax cable with BNC connectors designed for high speed SDI video applications. Unused inputs can be left unconnected.

Inputs with supported standard rate (3G, HD or SD) SDI signals will be auto re-clocked for reduced jitter. Other non standard rates between 125 Mbit/s and 2.97 Gbit/s will be passed through without reclocking or jitter reduction. Adaptive cable equalization on each input can equalize input signals from Belden type 1694A cables up to lengths of 120m (@3G), 140m (@HD) and 400m (@SD).

• SDI Video Outputs – Connect SDI destinations to output connectors using 75 Ohm Coax cable with BNC connectors designed for high speed SDI video applications. Unused outputs can be left

unconnected. Outputs utilize standard SMPTE levels of 800mV peak-to-peak.

• External Audio Router (Optional) – An additional Matrix Switch Corporation audio router can be utilized with this router by connecting it to the D9 connector with 9 pin male to male straight through

cable, adding an additional audio level independent of SDI embedded audio. When also utilizing the RS-232 serial control interface, a D9 splitter can be used.

• Sync Reference (Optional) – If switching on vertical sync pulse is desired, connect one of the Sync Reference connectors to a sync pulse signal (NTSC, PAL or tri-level) using 75 Ohm Coax with BNC

connectors and the other Sync Reference connector can be used as a pass-through to additional properly 75 Ohm terminated equipment or a 75 Ohm terminator should be installed. If the sync reference functionality is not used, both connectors can be left unconnected.

• RS-232 Serial (Optional) – If serial control is desired, using the Mascot P rotocol, connect a D9 female to male straight through cable to a control system, such as a computer. Use 115200 bps 8N1 as the serial

configuration and enable local echo to see typed characters.

• General Purpose I/O – A D25 connector provides up to 24 input or output 3.3V logic lines for control and status with external equipment. Direction of I/O lines (input or output) is selectable in blocks of 8.

1.2 Powering Up The Device

MSC-HDX4000 Product Manual

This device is not equipped with a power switch and is simply connected to the power supply adapter which is plugged into a suitable AC power source, to power it up.

Once the device is powered it goes through the following startup sequence:

• Reset switch is checked and if it is pressed then the Power On Software Update Reset Switch Procedure is entered.

• Routing matrix is initialized to Preset 0 state (defaults to source 1 connected to all destinations).

• The status panel RUN/SYS LED will flash at regular intervals once the system has booted up.

1.3 Front Status Panel

The MSC-HDX4000 has a status front panel with 4 LED indicators, described in the following table.

LED Label Description

PWR Active when power is supplied to the device.

SYS Flashes at regular intervals to indicate the system is running.

LAN Active when the Ethernet port is physically connected.

TX/RX Flashes on Ethernet transmit or receive activity.

This model is not equipped with a built-in button control panel, however several options are available for controlling the device, including the web page interface, telnet, RS-232 serial and remote control panels.

1.4 Web Page Interface

All Matrix Switch Corporation router and panel devices come with a built-in web page interface.

This is the recommended interface for configuration and is also a convenient way to control the matrix routing of the device.

Devices come factory configured with default settings, unless a pre-configuration request is made during purchase, an example being a multi device application.

1.4.1 Accessing The Web Page Interface

The default network IP address for this device is 192.168.2.60. Refer to the table below for the default IP addresses for other types of Matrix Switch Corporation devices.

Device Type Default IP Address

Video/Audio Routers 192.168.2.60

Remote Button Panels 192.168.2.64

Remote LCD Screen Panels 192.168.2.80

To access the web page interface of the device:

1. Connect the Ethernet port of a computer either directly to the device using a crossover cable or to the

MSC-HDX4000 Product Manual

same Ethernet network through a network switch or other LAN infrastructure.

2. Manually configure the computer's IP address to be a unique address on the same IP subnet as the device. For example 192.168.2.10. The Netmask should be 255.255.255.0. The Gateway doesn't matter for this purpose, but could be set to 192.168.2.1.

3. Make sure the device is powered on.

4. Using a web browser on the computer, enter the device's IP address into the Location bar and press ENTER. The web page interface should load. If the web page interface fails to load, double check the computer's network settings and physical Ethernet connections. In the event that the IP address of the device is unknown, refer to the Unknown IP Address troubleshooting section.

1.4.2 Network Settings

Network settings can be changed on the Config tab of the Web Page Interface. This includes DHCP enable, IP address, Netmask and Gateway settings. DHCP should only be used for assigning specific network settings from a central DHCP server or when assigned IP addresses can be determined, otherwise configuring the device via its IP address would be prevented if the IP address is unknown. After changing network settings, click the Save button and then click the Reboot button to restart the device. Refer to the Config Tab - Network Settings section for more details.

In the event that the device's IP address is unknown, refer to the Unknown IP Address troubleshooting section.

Refer to the Network Planning section for assistance with developing a network plan for multi-device applications.

1.4.3 Matrix Routing

The Routing tab of the Web Page Interface provides a convenient way to view and change the matrix routing state and is the default page shown.

A preset can also be recalled from this interface, by selecting one from the Load Preset drop down control.

Refer to the Routing Tab section for more details.

1.4.4 Labels

Labels can be assigned to video (and audio if applicable) sources and destinations. Labels can also be assigned to presets. Labels can be up to 8 characters in length. The default source labels use “Src” as a prefix, and the destination labels use “Dest” as a prefix (example: Src1). The presets are labeled “Startup” for Preset 0 and “PresetN”, where N is a number from 1 to 9, for the remaining presets.

The Labels Tab on the Web Page Interface can be used for modifying labels. Click the Save button to store any changes that are made. Refer the Labels Tab section for more details.

1.4.5 Presets

There are 10 stored matrix routing presets. Preset 0 is recalled on power up and by default routes source 1 to all destinations. All other presets default to “No Change” for all destinations, which when recalled will have no effect. Presets can assign a partial subset of destinations or all destinations as desired.

Presets can be modified on the Presets Tab of the Web Page Interface. Refer to the Presets Tab section for more details.

MSC-HDX4000 Product Manual

1.5 Network Planning

The default device settings can be used without change in applications with a single router and optionally one remote panel on the same Ethernet network. Larger installations or integration with existing IP LAN networks require some network planning.

NOTE: Matrix Switch Corporation can assist in planning and pre-configuring devices for specific application requirements at purchase time. Just ask a sales or customer service representative.

Manual IP address management is recommended, although a DHCP server can be a convenient option for centrally managing IP addresses by device MAC address, the net effect still being a fixed IP for each device. Consult your DHCP server documentation for information on assigning IP addresses by MAC address, if this option is chosen.

All devices which need to communicate with one another (routers, remote panels and computers) need to be physically connected to the same LAN or allow IP packet routing between networks if on separate LANs.

SECURITY WARNING: Matrix Switch Corporation devices are meant for installation in trusted LAN environments. In the event that remote device configuration or control is desired over public networks or the Internet, it is strongly recommended that some form of inter-network security is utilized, such as firewalls and encrypted VLAN or secure data tunnels. This is necessary to prevent undesired access to devices.

Devices on the same LAN need to be assigned unique IP addresses in the same IP subnet. Matrix Switch Corporation devices are configured by default to use IP addresses in the class C IP subnet 192.168.2.x. When integrating devices into an existing LAN network, unique IP addresses should be assigned from the applicable network and the Netmask setting of the devices should be set to reflect the class (size) of the IP network (the default of 255.255.255.0 is for class C, which accommodates up to 254 addresses).

The Gateway setting is required to be set to the IP address of the network gateway on remote panels which will be accessing routers across network subnets, but this setting is otherwise not needed.

After assigning device network settings, including unique IP addresses, remote panels need to be assigned the correct IP addresses to their Remote Router IP setting of the router they will control.

Additional configuration changes may be required, depending on the application and are described in subsequent sections.

MSC-HDX4000 Product Manual

1.5.1 Installation Example

The following diagram is of a simple installation example consisting of a 32x32 SDI Video Router, with a secondary level 32x32 Analog Audio router connected via the AFV DB-25 interface, a 32x32 Remote Button Panel, a 2RU LCD Remote Panel and a Computer system.

1.6 3D Video Configuration

Matrix Switch Corporation video routers offer two software based solutions for dual channel 3D support. This is usually only used with SDI video, but is not limited to that video type.

3D support options

1. Paired I/O using a single router device. Resulting 3D matrix size is half of the devices original size, for example an 8x8 router would yield a 4x4 3D router. Not available with devices with less than 2 destinations or sources. I/O pairs are consecutive, for example output 1 and 2 would be for the first 3D channel, 3 and 4 would be for the 2nd, etc.

2. Dual linked router devices. Uses 2 devices connected via TCP/IP over their Ethernet ports, one acting as a master, to provide 3D support. Devices must have the same matrix size. Resulting 3D matrix is equal to the matrix size of a single device, for example two 8x8 routers would result in one 8x8 3D router. One router controls one half of the 3D channels (right eye) and the other controls the other half (left eye).

Option 1 is enabled through the 3D I/O Pairing setting and Option 2 is enabled by setting the Control Mode to

MSC-HDX4000 Product Manual

Remote Sync (3D) and assigning the secondary router's IP address to the Remote Router IP setting. All of

these settings can be found on the Config Tab of the Web Page Interface. Refer to the Config Tab - System

Settings and Config Tab - Button Panel Settings sections for additional details.

2 Web page interface

2.1 Overview

MSC-HDX4000 Product Manual

Figure 1: Routing Tab

All Matrix Switch Corporation Router and Remote Panel systems include a built in web page that can be used with standards compliant Javascript enabled web browsers, including but not limited to Firefox, Chrome, Safari and recent versions of Internet Explorer.

Figure 1 shows the Routing tab of a 16x16 switcher with 2 levels with numbered outlines to aid in further description below. The web page interface for other router systems is sized appropriately. Remote Panels show only the Config and Command tabs.

Numbered sections in Figure 1

1. System name (can be assigned on the Config tab)

2. System firmware series and version

3. Tab navigation

4. Preset load drop down selection

5. Source connect buttons

6. Mute button (may not be available on all switchers and levels)

7. Currently selected destination (destination name followed by currently connected source names for both levels).

2.2 Routing Tab

MSC-HDX4000 Product Manual

The right side of the Routing tab interface under the title “Connections” displays the current state of the routing matrix. Each destination is depicted as a box containing the destination number/label followed by one or more source numbers/labels of the currently connected sources for each level of the destination. The currently selected destination is highlighted in red (#7 in Figure 1). For multi-level systems either the destination or one of the levels can be individually selected for changing all levels or a single level.

The left side of the Routing tab under the title “Connect Source” (#5 in Figure 1) displays all the available sources and Mute (if available) to connect from.

2.2.1 Changing a connection

To change a routing connection, select the desired destination by clicking on the Destination label or an individual level source label (multi-level systems only). Then click on a Source button or Mute (if available) from the “Connect Source” section. The clicked source will be connected to the selected Destination for one or more levels (depending on if the Destination or a single level is selected).

2.2.2 Loading a preset

Presets store connection states for one or more Destinations. Loading a Preset on the Routing tab consists of simply clicking on the “Load preset” drop down selector (#4 in Figure 1) and selecting the desired preset, which is then loaded and applied to the current routing matrix. More information on Presets is contained in the following Presets tab section.

2.3 Presets Tab

Figure 2: Presets Tab

Figure 2 depicts the Presets Tab which can be used to edit presets or perform batch matrix connection operations. Under the “Connections” title is shown the Work Matrix, which is a temporary area for working with matrix routing and loading to/saving from stored Presets and the current Active Routing state. For each Destination the Destination number and label is displayed followed by one or more drop down selection lists for each source level. The selection lists contain all available sources (listed by source number and label) and the special values No Change and Mute (the latter only if available for the given level). The No Change option indicates that the Destination for the given Level should not be changed from its current value, when the preset

MSC-HDX4000 Product Manual

is recalled, which allows for a subset of the routing matrix to be changed. Mute will output blank Video or silent Audio for the given Destination level and is not supported on all routers/levels.

2.3.1 Loading Work Matrix from a source target

The Work Matrix can be loaded from the current Active Routing matrix or a Preset. Simply select the desired source target from the “Select target” drop down list and click the Load button.

2.3.2 Saving Work Matrix to a target

The Work Matrix can be saved to one or more targets including the Active Routing matrix or a Preset. Simply select the desired destination target from the “Select target” drop down list and click the Save button. When saving to the Active Routing matrix, the connections defined in the Work Matrix will become immediately active for the current routing state, allowing for batch routing operations to be performed and executed simultaneously. Saving to a Preset will store the Work Matrix state to non volatile memory, which persists through device power cycles and can be recalled at a later time.

2.3.3 Usage scenarios

The flexibility of the Presets Tab interface allows for several useful scenarios, some of which are described below:

• Batch connection operations – To perform several connection operations all at the same time: make the desired connection changes to the Work Matrix, leaving all others as “No Change”, and then apply the

changes to the Active Routing target by selecting it from the “Select target” drop down and clicking the Save button.

• Store Active Routing matrix state to a Preset – The entire Active Routing matrix state can be stored to a Preset by first loading it to the Work Matrix, followed by selecting the desired target Preset and

clicking the Save button.

• Editing an existing Preset – Editing a Preset is done by loading it to the Work Matrix, making the desired changes and saving it back to the same Preset. All this is accomplished without changing the

Active Routing matrix state.

2.4 Labels Tab

MSC-HDX4000 Product Manual

Figure 3: Labels Tab

Figure 3 shows the Labels Tab. Click on a field or use the tab key to step between fields. Label names are limited to 8 characters including spaces. Multi-level routers will have columns for Video and Audio Sources and Destinations. Single level routers will have a column for Source labels and one for Destination labels. On multi-level routers, secondary levels can be left blank to use the same label as the first level. Presets can also be assigned label names. Click the Save button to save changes that have been made.

2.5 Config Tab

MSC-HDX4000 Product Manual

Figure 4: Config Tab

Figure 4 depicts the Config Tab as seen on a Router system beginning with Carina Series Firmware 5.3.0. Configuration fields vary depending on router features, firmware version and if the device is a Remote Panel.

NOTE: After changing any configuration settings click the Save button. All Network Settings changes require a Reboot of the device in order to take effect. After clicking Save, click the Reboot button to restart the device. Remember to enter a new IP address into your Web browser's Location bar, if the device's IP address has changed.

2.5.1 System Settings

• System Name – A descriptive name of the system (up to 15 characters), displayed at the top of the Web Page interface which is helpful when managing multiple systems.

• Disable Reclockers – Disable SDI reclockers (not supported by all Routers, added with Carina Series Firmware 5.3.0).

• 3D I/O Pairing – Enable pairing of destinations/sources for two channel 3D support (only supported by Routers with 2 or more destinations, added with Carina Series Firmware 5.3.0).

2.5.2 Network Settings

WARNING: DHCP should only be enabled or the IP Address or Netmask changed if one has an understanding of TCP/IP network configuration. Once the save button is pressed and the system is rebooted any changes to DHCP enable, the IP Address or the Netmask shall result in having to access the web page with the

MSC-HDX4000 Product Manual

new settings. If there are Matrix Switch Corporation remote control panels which access the system which has been changed, they must also be reconfigured to use the new router IP address as well. See the Network

Planning section for more helpful information on planning your network.

• Enable DHCP – Check this box to enable DHCP. Disables IP Address, Netmask and Gateway fields as these settings are obtained from the DHCP server.

◦ WARNING: A DHCP server must be present on your network for this to function properly. Using

DHCP allows for dynamic IP or fixed IP assignment from a central location (the DHCP server). Using this option is only recommended if using fixed IP assignment based on the device's MAC address or if there is a way to determine what IPs the devices get assigned. Otherwise it may become difficult to determine what IP address to use when accessing the Web Page or utilizing other Ethernet control interfaces.

• IP Address – The IP address of the system.

• Netmask – The system network mask.

• Gateway – The IP address of your network's Gateway, if applicable. Only necessary on systems which

access other systems outside of your network (a remote panel which accesses a router on a different network for example).

2.5.3 Button Panel Settings

These settings control the operation of the device's button control panel interface (if applicable).

Four fields are provided for specifying what portion of a router is controlled by the button panel interface. This provides added flexibility in defining what destinations and sources a panel controls. Some examples of use include, using multiple 16x1 Remote Panels (16 source, 1 destination) to control individual destinations of a 16x4 Router (16 source, 4 destination). Another usage scenario would be to have 2 separate panels control different levels of a Video/Audio Router.

• Control Mode – Set the matrix control mode (only present on Routers, added with Carina Series Firmware 5.3.0). Available options include:

◦ Local - Button panel controls the router itself. ◦ Remote - Button panel controls a remote router at the IP address set by the Remote Router IP field. ◦ Remote Sync - Synchronize matrix crosspoint changes to another router at the IP address specified

by the Remote Router IP field. Used for dual system 3D support.

• Remote Router IP – The IP address of the remote Router to control.

• Dest Offset – This setting determines what destination the button panel starts on. Defaults to 0 which

means the control panel starts on destination 1. Setting this value to 8 for example would cause the first destination of the button panel to control destination 9.

• Source Offset – This setting determines what source the button panel starts on. Defaults to 0 which means the control panel starts on source 1. Setting this value to 8 for example would cause the first

source of the button panel to control source 9. NOTE: If the currently active source cannot be represented on the control panel, no source button LED will light.

• Level1 Override – This setting determines the primary control level of the button interface. It defaults to 0 which is equivalent to level 1, usually a Video level. Setting this value to 2 for example would set

the primary level to be level 2 (usually Audio).

• Level2 Override – This setting determines the secondary control level of the button interface. It defaults to 0, which if the Level1 Override is also 0 is equivalent to level 2, but if the Level1 Override is

MSC-HDX4000 Product Manual

a value other than 0, the secondary level control is disabled. Can only be assigned a non-zero value if Level1 Override is also non-zero. If set to 3 for example, the secondary level would be level 3.

2.6 Command Tab

Figure 5: Command Tab

The Command Tab (Figure 5) provides access to the Mascot protocol interface. Commands are typed on the Command text entry line followed by pressing the Enter key to execute them. The results will be displayed in the text area below the command line. Clicking the Clear Output button will clear all command output in the lower area.

See the section Mascot Control Protocol for more information.

MSC-HDX4000 Product Manual

3 Mascot Control Protocol

MASCOT (MAtrix Switch COrporation ProTocol) provides an ASCII text based command interface via several different transports to control and get status from Matrix Switch Corporation devices. This command protocol can be utilized for manual control or for integration with automation control systems.

Mascot command interface options

• Web Page Command Tab – The most convenient user command interface, which can be accessed using a

Web Browser on a Computer by the device's IP address.

• TCP/IP port 40 – A TCP/IP command interface is provided on port 40 which uses the device's Ethernet connector as a physical transport and can be accessed via a telnet application.

• RS-232 Serial Port – Serial can also be used with the configuration parameters: 115200 bps 8N1.

3rd Party support

The MASCOT protocol contains a subset of the basic ISIS Protocol command set and therefore some 3rd party equipment may work without modification using this protocol. For information about other third party control system manufacturers who support MASCOT, contact Matrix Switch Corporation.

3.1 Protocol changes

As new commands are added or other changes occur, the MASCOT protocol version is incremented. The protocol revision can be obtained using the MascotVer command.

Protocol revision history

Mascot version 2.4 (Carina Series Firmware 5.6.3)

• Added .MtxGroup, PanelDis, PanelExtEn, and Sierra commands.

Mascot version 2.3 (Carina Series Firmware 5.5.1)

• Added Quit Command, SysType Command and Vars Command which have previously been supported on the MSC-GCP2U32 only.

Mascot version 2.2 (Carina Series Firmware 5.5.0)

• The X Command now accepts a 0 valued wild card destination to switch all destinations to a given source.

Mascot version 2.1 (Carina Series Firmware 5.3.0)

• New commands: PairIO – for paired I/O 3D support, PanelOfs – for defining remote panel I/O regions to control, PanelRate – to set remote panel refresh rate, ReclkDis – for disabling SDI reclockers and

RemoteSync – for synchronizing two video router systems for 3D use.

• Added E12 “Unsupported command” error which is returned when a command is not supported by the current system or settings.

• Added support for Line Feed character as a command terminator (to be compatible with older firmware). Carriage Return should normally be used.

• Added “lock” (0x02) and “reclk” (0x04) to MtxCfg Command “flags” field.

MSC-HDX4000 Product Manual

3.2 Telnet access

A telnet client can be used to access the command interface on TCP/IP port 40. Many operating systems come with a Telnet client or one can be easily obtained. To control a device using Telnet the IP address and TCP/IP port number will need to be supplied. This is typically added as arguments when executing the “telnet” command via your operating system's command prompt or run dialog. Here is an example for a device on the IP address 192.168.2.60:

telnet 192.168.2.60 40

Press the Enter key which should display the command “>” prompt character, confirming that the device is connected.

3.3 Serial access

Matrix Switch router systems and LCD remote panels come equipped with a serial port which can be used as another means of sending Mascot commands. Connect a Computer system to the device using a 9 pin RS-232 serial cable. Using this interface requires a serial terminal program, such as HyperTerminal on Windows. Configure the terminal software for 115200 bps 8N1. In addition Local Echo should be on in order to see what is typed. Pressing the Enter key once connected should yield the “>” prompt character.

3.4 Command format

Commands consist of a command name, zero or more arguments separated by commas and a carriage return (CR, ASCII 13 - the Enter key on a keyboard). Optionally multiple commands can be combined by separating them with a '#' character and the command chain is terminated with a CR character. Spaces are not required between arguments, but can be optionally supplied for readability. A space is also not required between command names and their first argument, if the argument is numeric.

Special command characters

# Multiple command separator, for chaining commands.

<CR> Carriage Return (ASCII 13), indicates the end of a command or chain of commands, Enter key.

<BS> Backspace character (ASCII 11), can be used to backspace characters in interactive command shells.

“ Used for double quoting string arguments.

' Used for single quoting string arguments.

Command example

X1,1#X2,2#S<CR>

Connects Source 1 to Destination1 and Source 2 to Destination 2, followed by displaying the Active Routing matrix status. The <CR> is the Carriage Return character.

MSC-HDX4000 Product Manual

3.4.1 Command names

Command names consist of one or more alphabetical characters and are case insensitive. For convenience with manual command entry they can also be matched using partial names. The first matching alphabetically sorted command is used (for example: 'H', 'He', 'hEL' or 'Help' can be used to execute the Help command). However, this feature should not be relied on with 3rd party integration, since a given partial command may execute a different command as new ones are added to the protocol.

3.4.2 Command arguments

Command arguments are separated into two categories: numeric and string arguments. These are further explained in the table below:

Command argument types

Numeric String

Decimal (123) 1 to 3 decimal digits Unquoted Commands with string arguments

automatically interpret argument as string (spaces and commas not allowed).

Hex (0x3D) 0xNN where NN are 2 hex digits

from 0-9, A-F or a-f

Double quoted One or more characters surrounded

by double quotes (“An Argument”).

Single quoted One or more characters surrounded

by single quotes ('An Argument').

3.5 Response format

Most command responses consist of one or more values separated by newlines and ending with the ‘>’ prompt character. Newlines consist of a Carriage Return/New Line (CR LF) pair of characters (ASCII 13 followed by ASCII 10).

The Prompt ‘>’

A prompt character ‘>’ is displayed each time a command or chain of commands is entered, to indicate readiness to receive additional commands. If an error occurs in response to a command, an error will be displayed prior to the prompt with the following format:

E00: Error message >

00 will contain a 2 digit decimal error code.

3.6 Command argument values

Command arguments are shown in the Help command output surrounded by square brackets '[ARG]' or parenthesis '(ARG)'. Square brackets indicate an optional argument and parenthesis indicate a required

MSC-HDX4000 Product Manual

argument. Any optional argument specified requires that all prior optional arguments are also specified.

Argument Valid Range Meaning DEST 1-N Destination number (N = Count of destinations) SRC 1-N or 0 Source number (N = Count of sources), 0 acts as

mute (if supported). LEVEL 1-N Level number (N = Count of system levels) PRESET 0-9 Preset number (preset 0 is special Startup preset) IP D.D.D.D IP address string argument, specified as 4 decimal

digits from 0 to 255 separated by periods. NETMASK D.D.D.D Network mask string argument, specified as 4

decimal digits from 0 to 255. Must be a valid

IPv4 netmask. JSON string JSON formatted string, the structure of which

depends on the command. The JSON string

should be quoted in single quote characters when

specifying a JSON value in a command. LABEL string A string label argument, max of 8 characters. STR string A generic string argument (max length depends

on the command).

3.7 Error codes

This following table shows possible error codes which may be returned in response to commands.

Error # Message Description E01 Token too long A command name or string argument was too long. E02 Invalid command Invalid command name. E03 Invalid argument One or more invalid argument values. E04 Invalid destination Invalid matrix destination number. E05 Invalid source Invalid matrix source number. E06 Invalid level Invalid matrix level number. E07 Invalid preset Invalid preset number. E08 Unterminated string Double or single quoted string not terminated. E09 Backspace limit

reached

E10 HTTP buffer overflow Only applicable to the web page command interface.

E11 Serial receive overrun One or more characters were lost on the serial

E12 Unsupported command Command is not supported by the system or current

Devices have a limited backspace buffer size, if too many characters are backspaced and then more characters are appended, this error will occur.

Unlimited command input or output can be handled, but not both.

interface.

configuration. Firmware 5.3.0 and newer.

MSC-HDX4000 Product Manual

3.8 Basic command reference

Basic commands consist of those commands which are used for modifying routing and other simple commands.

Mascot version where a command was added is indicated in parenthesis, (2.3) for example.

Command Arguments Description

Help Display command help reference. P * [PRESET] Recall a preset. PAdd * (PRESET)(DEST)(SRC)

[LEVEL] PClr * (PRESET) Clear a preset to “No Change” values. PSub * (PRESET)(DEST)

[LEVEL] PView * [PRESET] View preset contents. Quit (2.3) Quit TCP/IP telnet session. S * [1] Matrix routing status (supplying 1 will

SysType (2.3) Query system hardware series. Vars (2.3) Query all system configuration variables. W * [PRESET] Store current matrix routing to a preset. X * [DEST][SRC][LEVEL] Perform a matrix connect operation.

* Router systems and MSC-GCP2U32 LCD panel only

Add a connection to a preset.

Subtract a connection from a preset.

display labels).

3.9 Advanced command reference

These additional commands consist of those which are not as commonly used as the basic commands, such as system configuration commands.

Mascot protocol versions where a command was added is indicated in parenthesis, (2.3) for example.

Command Arguments Description

C * Query system matrix info, which is

displayed in the format DESTS,SRCS,LEVELS,FLAGS1,FLAGS2.

MtxCfg command supersedes this command.

DestNames * [DEST][LEVEL]

[LABEL] DHCP [0 | 1] Query or assign DHCP enable. E * [0 | 1] Query or assign matrix connection echo

Firmware Query system firmware version. FrameIP [IP] Remote router IP address the panel will

Gateway [IP] Query or assign network gateway IP

Query or assign destination names.

enable.

control.

address.

MSC-HDX4000 Product Manual

IP [IP] Query or assign device system IP address. LockStatus + Get video lock status and rate detection

information (not all HD router systems are

supported). MAC Query system MAC address MascotVer Query Mascot protocol version. MtxCfg * (2.0) [0-7] Query current matrix config. MtxGroup + (2.4) [LVL1][LVL2] Query or assign I/O grouping. NetMask [NETMASK] Query or assign network mask. PairIO + (2.1) [0 | 1] Query or assign I/O pairing enable (3D

support). MtxGroup supersedes this

command.

PanelDis (2.4) [0 | 1] Query or assign internal panel button

interface disable. PanelExtEn (2.4) [0 | 1] Query or assign external panel interface

enable (if available). PanelOfs (2.1) [DEST][SRC]

[LVL1][LVL2]

PanelRate (2.1) [RATE] Set remote panel refresh rate in seconds. PsetNames * [PRESET][LABEL] Query or assign preset names. Reboot Reboot the system. ReclkDis + (2.1) [0 | 1] Disable SDI reclockers (not all SDI router

RemoteSync + (2.1) [0 | 1] Query or assign remote router syncing.

Sierra + (2.4) [0 | 1] Query or assign Sierra Video Systems

SrcNames * [SRC][LEVEL]

[LABEL] SysName [STR] Query or assign system name. WebPass (STR) Assign web password.

* Router systems and MSC-GCP2U32 LCD panel only. + Router systems only.

Query or assign button panel destination/source offsets and levels to control. Useful for configuring multiple panels to control different I/O regions of a router.

systems are supported).

Useful for creating a 3D system out of 2 routers.

protocol enable on serial port interface. Query or assign source names.

3.10 C Command

Routers and MSC-GCP2U32 only

NOTE: Superseded by the MtxCfg Command.

The C command queries the matrix size. The response is in the format “Dests,Srcs,Levels,Flags1,Flags2”. Where “Dests” is the count of system destinations, “Srcs” is the count of sources and “Levels” is the number of system levels. The Flags1 and Flags2 fields are currently unused and will be 0.

MSC-HDX4000 Product Manual

Example for a 16x16 system with 2 levels

16,16,2,0,0 >

3.11 DestNames Command

Routers and MSC-GCP2U32 only

Query or assign destination names. This command has 4 variations, described by the following table. Destination names are saved and recalled on power up.

Command Description

DestNames Query all destination names.

DestNames DEST Query destination names for all levels of a given destination.

DestNames DEST, LEVEL Query the name of a specific destination and level.

DestNames DEST, LEVEL, LABEL Assign a label to a destination.

When querying names, labels are surrounded by double quotes and each level is separated by commas ',' (multilevel systems only) and each destination is separated by newlines. Secondary levels use empty strings to indicate that the label of the first level should be used.

Examples

>DestNames

“Dest1”,”AudDest1” “Dest2”,”” “Dest3”,”” “Dest4”,””

>DestNames 1

“Dest1”,”AudDest1”

>DestNames 1,2

“AudDest1”

>DestNames 1,2,””

The first 3 example commands are query commands. The last assigns an empty string to the second level of the first destination (thereby indicating that the first level label should be used).

3.12 DHCP Command

Query or assign DHCP enable. A value of 0 disables DHCP client support and will therefore use the manual values assigned via the IP, Netmask and Gateway commands. A value of 1 enables DHCP and will obtain the values for the IP address, Netmask and Gateway from your DHCP server. This value is saved and recalled on power up.

WARNING: A DHCP server must be present on your network for this to function properly. Using DHCP allows for dynamic IP or fixed IP assignment from a central location (the DHCP server). Using this option is

MSC-HDX4000 Product Manual

only recommended if using fixed IP assignment by MAC address or if there is a way to determine what IPs the Matrix Switch Corporation systems get assigned. Otherwise it may become difficult to determine what IP address to use when accessing the Web Page or other control interfaces. In the event that the IP address or Netmask of a system is unknown, consult the Unknown IP Address section for this device.

Command Description

DHCP Query DHCP enable.

DHCP 0 | 1 Set DHCP enable (0 to disable, 1 to enable)

Examples to query and then enable DHCP

>DHCP

>DHCP 1

3.13 E Command

Routers and MSC-GCP2U32 only

Query or assign matrix routing changes echo. A value of 0 disables this feature. A value of 1 will cause all matrix routing changes to be echoed in the form of an X command: “Xd,s[,l]”. Where 'd' is the destination number, 's' is the source number and 'l' is the optional level number. This is useful for diagnostic purposes or automation software which would like to receive synchronous matrix routing state updates.

NOTE: Enabling this feature may slow down the system significantly during excessive matrix routing changes (especially when enabled on the serial port). Also of note is that this option takes effect only while the system remains powered (serial port) or for the duration of the connection (TCP/IP telnet sessions). This command is not supported by the HTTP web command interface.

Command Description

E Query matrix echo enable.

E 0 | 1 Set matrix echo enable (0 to disable, 1 to enable).

Examples to query and then enable matrix echo

>E 1

3.14 Firmware Command

Query the system firmware version.

Example

>Firmware

5.0.6

MSC-HDX4000 Product Manual

3.15 FrameIP Command

Query or assign the remote router IP address. Usually only used on Remote Panel devices or in conjunction with the RemoteSync Command to create a dual router 3D system. Sets the IP address of the Router system which the button panel will connect to and control (or which the router will synchronize to when using the RemoteSync command). This can also be enabled on Router systems with a local button panel to configure the Router's panel to control a different Router (set to 0.0.0.0 by default to disable remote control and control the Router device itself). This setting is saved and recalled on power up.

Command Description

FrameIP Query IP address of remote Router system to control.

FrameIP IP Set IP address of remote Router system to control (use 0.0.0.0 on Router systems to disable

remote control).

Example to query and assign the remote Router IP

>FrameIP

192.168.2.60

>FrameIP 192.168.2.61

3.16 Gateway Command

Query or assign the network Gateway IP address. This is usually only needed on Remote Panel systems which control a Router device on a different network. This setting is saved and recalled on power up.

Command Description

Gateway Query IP address of network Gateway.

Gateway IP Set IP address of network Gateway.

3.17 Help Command

Display command reference information.

3.18 IP Command

Query or assign the system IP address. This setting is saved and recalled on power up.

WARNING: The system IP address should only be changed if one has an understanding of TCP/IP network configuration. Maintaining the ability to access a device's web page and for Remote Panel devices to be able to communicate with Routers requires that the IP address is known, valid and systems are configured to be on the same IP network. In the event that the IP address of a system is unknown refer to the Unknown IP Address section for this device.

Command Description

MSC-HDX4000 Product Manual

Ip Query IP address of the system.

Ip IP Set IP address of the system.

Example querying and assigning the IP address

>IP

192.168.2.60

>IP 192.168.2.61

3.19 LockStatus Command

Routers only

Query the video lock status and video rate of a Video Router's outputs. This command is only supported on some Router systems. Unsupported systems will return an “Unsupported command” error on version 2.1 and newer protocol versions and blank output on older versions.

Command Description

LockStatus Displays Video lock status and rate detection for outputs. Format is one decimal number

per output (0: Unlocked, 1: SD, 2: HD).

Example for a 16x4 system (SD, HD, Unlocked, Unlocked)

>LockStatus

1,2,0,0 >

3.20 MAC Command

Query system Ethernet MAC address.

Command Description

MAC System Ethernet MAC address in hh:hh:hh:hh:hh:hh where each hh is a pair of hex digits.

Example

>MAC

00:50:C2:8B:DF:FE >

3.21 MascotVer Command

Query Mascot protocol version. This is useful for software which interacts with a device using the Mascot protocol and wants to discover what protocol version is in use. The returned value is either an integer such as "2" or major and minor version numbers separated by a period, such as "2.3".

Example

>MascotVer

MSC-HDX4000 Product Manual

2.3 >

3.22 MtxCfg Command

Routers and MSC-GCP2U32 only - Protocol Version: 2.0

Query matrix configuration. This command replaces the C command and provides the ability to query the matrix dimensions, labels, current matrix state and preset data. The information to return is specified by the sum of the flags values listed in the following table:

Flag Information Fields in JSON data

1 Return names (Destination, Source and

Preset).

destNames, srcNames and psetNames

2 Return matrix routing state. state

4 Return preset routing data. psetData

The returned data is JSON formatted data (see www.json.org for details).

If no arguments are specified then a simple format is returned consisting of an array of arrays (one per level) with 3 integer numbers specifying the destination count, source count and flags of the level. The flags value is the sum of one or more values from the Flags table below.

Flags

Name Value Description

mute 1 Mute support.

lock 2 Video lock status query support

reclk 4 Reclocker disable support.

Example

>MtxCfg

[[8,8,3][4,8,0]]

The example above is simple output (no arguments) for a matrix with 2 levels, the first has 8 destinations, 8 sources and supports mute and lock status query (1 + 2 = 3). The second level has 4 destinations, 8 sources and does not support mute, lock status query or reclocker disable.

If an argument is specified (0-7), then a more descriptive JSON structure is returned, of the following form (newlines and spaces added as a visual aid, but are not necessarily part of the response):

{ “version” : 1, “status” : “STATUS”, “levels” :

MSC-HDX4000 Product Manual

[ { “name” : “NAME”, “type” : “TYPE”, “destCount” : DEST_COUNT, “srcCount” : SRC_COUNT, “flags” : “FLAGS”, “destNames” : [ “NAME”, ”NAME”, ... ], “srcNames” : [ “NAME”, ”NAME”, ... ], “state” : [ SRC, SRC, ... ], “psetData” : [ [ SRC, ... ], [ SRC, ... ], ... ] }, ... ], “psetNames” : [ “NAME”, ”NAME”, ... ] }

Table of information on values in capital letters above:

Label Description

STATUS Matrix status: OK, UPDATING, DISCONNECT or ERROR. Returned if the matrix is

OK, updating (from a remote router for example), one or more remote routers disconnected or a general error (remote router in error status for example) respectively.

NAME Descriptive name of a level, destination, source or preset (8 chars or less).

TYPE Level type: VIDEO, AUDIO, HD, VGA, 3G, ANALOG or AES. Used for general video,

general audio, HD video, VGA video, 3G HD video, analog audio or AES digital audio respectively.

DEST_COUNT Count of destinations for the level.

SRC_COUNT Count of sources for the level.

FLAGS A space separated list of flag keywords indicating support for various features, as defined

by the Name column in the Flags table above.

SRC Source values for matrix state and preset data. Values start from 1, 0 represents mute and

-1 represents “No Change” (for preset data only).

Example - Newlines and spaces added to response as a visual aid.

>MtxCfg7

{ “version” : 1, “status” : “OK”, “levels” : [ { “name” : “Level1”, “type” : “VIDEO”, “destCount” : 4, “srcCount” : 4, “flags” : “mute”,

MSC-HDX4000 Product Manual

“destNames” : [ “Dest1”, ”Dest2”, “Dest3”, “Dest4” ], “srcNames” : [ “Src1”, ”Src2”, “Src3”, “Src4” ], “state” : [ 1, 2, 3, 4 ], “psetData” : [ [1,2,3,4], [1,1,1,1], [-1,-1,-1,-1], [-1,-1,-1,-1], [-1,-1,-1,-1], [-1,-1,-1,-1], [-1,-1,-1,-1], [-1,-1,-1,-1], [-1,-1,-1,-1], [-1,-1,-1,-1] ] }, ], “psetNames” : [ “Startup”,”Preset1”,”Preset2”,”Preset3”,”Preset4”, ”Preset5”,“Preset6”,”Preset7”,”Preset8”,”Preset9” ] }

The example output above is a typical response for a 4x4 Video router. Current matrix routing is “straight through”, 10 presets are defined (1st is straight through, 2nd is mapped all to source 1, and all other presets have not been assigned (No Change). Note that future protocol versions may support more than 10 presets and therefore may return information for more or less than 10 presets for the psetData and psetNames arrays.

3.23 MtxGroup Command

Carina Series routers only - Protocol Version: 2.4

Query or assign I/O grouping. This setting is saved and recalled on power up.

The I/O grouping feature is used to combine multiple inputs and outputs. Combined grouped inputs and outputs then behave as if they were a single I/O, which changes the size of the router matrix accordingly (matrix size divided by group count), and matrix routing changes update the grouped I/Os simultanously. Group counts are assigned on a per level basis, allowing for different I/O grouping for separate levels (for example separate video and audio levels). Real world examples of I/O grouping include: dual channel 3D video and combining multiple audio channels (4 AES digital audio streams for example).

Command Description

MtxGroup Query current I/O grouping.

MtxGroup LEVEL1 Set level 1 I/O grouping (0 or 1 disables grouping).

MtxGroup LEVEL1, LEVEL2 Set level 1 and level 2 I/O grouping (0 or 1 disables grouping).

Example querying and assigning I/O grouping

>MtxGroup

1,1

>MtxGroup 2,4 >MtxGroup

2,4

MSC-HDX4000 Product Manual

The first example MtxGroup command shows that I/O grouping is disabled on both levels of a 2 level system. The second command configures the system for dual I/O grouping on level 1 and quad I/O grouping on level 2. On an example 16x16 two level router this would result in an 8x8 matrix on level 1 and a 4x4 matrix on level 2.

3.24 NetMask Command

Query or assign the system network mask value. This value is related to the IP address of the system and is used for IP communications over the Ethernet network. This setting is saved and recalled on power up.

WARNING: The system netmask should only be changed if one has an understanding of TCP/IP network configuration. Maintaining the ability to access a device's web page and for Remote Panel devices to be able to communicate with Routers requires that the IP address is known, valid and systems are configured to be on the same IP network. In the event that the IP address or Netmask of a system is unknown, consult the Unknown IP

Address section for this device.

Command Description

NetMask Query network mask value.

NetMask NETMASK Set network mask value.

Example querying and assigning netmask

>NetMask

255.255.255.0

>NetMask 255.255.255.192

3.25 P Command

Routers and MSC-GCP2U32 only

Recalls a preset. Each Router system contains 10 presets numbered 0 through 9 which can store the entire matrix routing state or one or more single destination connections. Preset 0 is recalled on system power up.

Command Description

P PRESET Recall a preset.

Example to recall preset 1

>P 1

3.26 PAdd Command

Routers and MSC-GCP2U32 only

Preset add command. Adds a connection to a preset. This can be used to incrementally create a preset without changing the active matrix routing. 0 can be used for SRC for Mute (if supported). This command stores preset information which is retained and available through system power cycles.

Command Description

MSC-HDX4000 Product Manual

PAdd PRESET, DEST, SRC Add a connection of SRC to DEST on PRESET for all levels.

PAdd PRESET, DEST, SRC, LEVEL Add a connection of SRC to DEST/LEVEL on PRESET.

Example

>PAdd 1,2,3 >PAdd 1,3,0,2

The first command adds a connection from Source 3 to Destination 2 on Preset 1. The second command Mutes Destination 3/Level 2 on Preset 1.

3.27 PairIO Command

Routers only - Protocol Version: 2.1

NOTE: Superseded by MtxGroup command.

I/O pairing is used for pairing destinations/sources for 3D support. When activated a router will appear to have half the number of physical destinations and sources. A given matrix crosspoint change will cause 2 destinations to be changed. Each odd destination/source is paired with the next highest even number destination/source. This option is stored and recalled on power on. When enabling this feature on a 4x4 video router for example, it would appear as a 2x2 3D router where destination 1 & 2 are paired and 3 & 4 are paired, likewise for sources. This setting is stored and recalled on power up.

Command Description

PairIO Query current value of I/O pairing configuration.

PairIO 0 | 1 Enable or disable I/O pairing (0: disable, 1: enable)

Example

>PairIO

>PairIO 1

The first command queries the current state of I/O pairing, the second enables it.

3.28 PanelOfs Command

Carina series only - Protocol Version: 2.1

Define destination/source regions or assign media levels which a remote panel controls. This is typically used to configure multiple remote panels to control portions of a video/audio router. For example, two 8x8 remote panels could be used to control separate halves of an 8x16 router, the first would control the default destination 1-8 and the second would be configured using this command to control destination 9-16 (a destination offset of

9). Another useful configuration would be to configure one remote panel to control video only and another to control audio only of a video/audio router by assigning primary level values of 1 and 2 respectively using this command. This setting is stored and recalled on power up.

MSC-HDX4000 Product Manual

Command Description

PanelOfs Query current panel offset settings, 4 values are returned

separated by commas, corresponding to the same values which are assigned.

PanelOfs DESTOFS, SRCOFS, LVL1, LVL2 Assign panel destination/source offsets and level control

values.

The DESTOFS parameter assigns a destination offset that determines which destination the button panel starts on, 0 is used for no offset (default). The SRCOFS parameter is used likewise to assign a source offset. The LVL1 and LVL2 parameters are used for modifying what levels the panel will control. The default is 0 for both values which uses the default levels of 1 and 2 for the primary and secondary levels respectively. If LVL1 is assigned a value other than 0 and LVL2 is 0 then the secondary level control will be disabled.

Examples

>PanelOfs

0,0,0,0

>PanelOfs 1,0,0,0 >PanelOfs 0,0,2,0

The first command just queries the current panel offset values, which returns all 0s (the default). The second command assigns 1,0,0,0 which sets a destination offset of 1, which will set the first destination of the button panel to destination 2. The third command sets up a button panel to control the 2nd level of a router.

3.29 PanelDis Command

Carina series only - Protocol Version: 2.4

Query or assign internal button interface panel disable setting. This setting is stored and recalled on power up.

Command Description

PanelDis Query internal panel disable setting.

PanelDis 0 | 1 Assign internal panel disable setting (0: enable, 1: disable)

Examples

>PanelDis

>PanelDis 1

The first command queries the current panel disable setting (0: enabled). The second command disables the internal panel interface.

3.30 PanelExtEn Command

MSC-HDX4000 Product Manual

Carina series only - Protocol Version: 2.4

Query or assign external button interface panel enable setting (if applicable – not all router devices have an external panel interface). This setting is stored and recalled on power up.

Command Description

PanelExtEn Query external panel interface enable setting.

PanelExtEn 0 | 1 Assign external panel interface enable setting (0: disable, 0: enable)

Examples

>PanelExtEn

>PanelExtEn 1

The first command queries the current external panel interface setting (0: disabled). The second command enables the external panel interface.

3.31 PanelRate Command

Protocol Version: 2.1

For changing remote button panel refresh rate. When a button panel is configured to control a remote router the current connection status is refreshed at regular intervals. This command can be used to increase or decrease the rate, which is saved and recalled on system power up. The default refresh rate is 5 seconds. This value is stored and recalled on power up.

Command Description

PanelRate Query current panel refresh rate (in seconds).

PanelRate RATE Set remote panel refresh rate in seconds.

Examples

>PanelRate

>PanelRate 1

The first command queries the current panel refresh rate, which returns 5 (default). The second command sets the refresh rate to be 1 second.

3.32 PClr Command

Routers and MSC-GCP2U32 only

Clear a preset. For Preset 0 this sets all Destinations to Source 0. Other Presets are assigned “No Change” to all Destinations. This command stores preset information which is available through system power cycles.

MSC-HDX4000 Product Manual

Command Description

PClr PRESET Clear a preset.

Example to clear preset 1

>PClr 1

3.33 PsetNames Command

Routers and MSC-GCP2U32 only

Query or assign preset names. Preset names are stored and recalled on power up.

Command Description

PsetNames Query all preset names.

PsetNames PRESET Query a single preset name.

PsetNames PRESET, LABEL Assign a preset label.

When querying names, labels are surrounded by double quotes and separated by newlines.

Examples

>PsetNames

“Startup” “Preset1” “Preset2” “Preset3” “Preset4” “Preset5” “Preset6” “Preset7” “Preset8” “Preset9”

>PsetNames 1

“Preset1”

>PsetNames 1,”MyPreset”

The first 2 example commands are query commands. The last assigns “MyPreset” to Preset 1.

3.34 PSub Command

Routers and MSC-GCP2U32 only

Preset subtract command. Removes a connection in a preset by setting a Destination or Destination/Level to “No Change”. This can be used to incrementally create a preset without changing the active matrix routing. This command changes preset data which is stored and persists through power cycles.

MSC-HDX4000 Product Manual

Command Description

PSub PRESET, DEST Remove any existing connection to DEST in PRESET for any level.

PSub PRESET, DEST, LEVEL Remove any existing connection to DEST/LEVEL in PRESET.

Example

>PSub 1,2 >PSub 1,3,2

The first command removes any connection to Destination 2 in Preset 1. The second command removes any connection to Destination 3/Level 2 on Preset 1.

3.35 PView Command

Routers and MSC-GCP2U32 only

View presets. Displays the content of one or all presets. The format of the returned output is “1:S1[,S2] 2:S1[,S2] ...” where the 1: and 2: are incrementing destination values, followed by one or more source values (depending on the number of system levels).

Special source values

• '-' indicates “No Change”, which causes no changes to the given Destination/Level.

• 0 indicates “Mute”

Command Description

PView Display all presets.

PView PRESET Display a single PRESET.

Example on a 16x4 system with 2 levels

>PView 1

1:1,1 2:2,2 3:6,7 4:0,>

The above example shows that Preset 1 would cause Destination 1 to be connected to Source 1 for both levels, Destination 2 to be connected to Source 2 for both levels, Destination 3 to be connected to Source 6 for Level 1 and Source 7 for Level 2 (break away) and Destination 4 to be Muted for Level 1 and “No Change” would be made for Level 2.

3.36 Reboot Command

Instructs the system to reboot, which is done after a brief delay.

3.37 ReclkDis Command

Routers only - Protocol Version: 2.1

MSC-HDX4000 Product Manual

Command for disabling or enabling SDI reclockers. Not all router systems support this option. Value is saved and recalled on power up.

Command Description

ReclkDis Query current value of reclocker disable.

ReclkDis 0 | 1 Enable or disable reclockers (0 or 1 respectively).

Examples

>ReclkDis

>ReclkDis 1

The first command above queries the current reclocker disable value which returns 0 (the default, reclockers enabled). The second command disables the reclockers.

3.38 RemoteSync Command

Routers only - Protocol Version: 2.1

Command to enable syncing matrices of two router systems. Usually used for creating a 3D matrix from two router systems, which will result in one router controlling the left 3D channels and the other router controlling the right channels. When enabled, this option synchronizes matrix crosspoint changes to the router IP address assigned with the FrameIP Command. This command should only be enabled with one of the two routers (the primary router). This value is stored and recalled on power up.

Command Description

RemoteSync Query current value of remote router syncing.

RemoteSync 0 | 1 Enable or disable remote router syncing (1 or 0 respectively).

Examples

>RemoteSync

>RemoteSync 1 >FrameIP 192.168.2.61

The first command in the above examples queries the current value of the remote sync option, which returns 0 (disabled, the default). The second command enables remote syncing and the final command sets the IP address of the router to sync (secondary router).

3.39 S Command

Routers and MSC-GCP2U32 only

Query the current matrix routing state. Source values for all levels of every destination are shown. This

MSC-HDX4000 Product Manual

command without an argument is equivalent to the X Command with no arguments. If an argument value of '1' is supplied, then the matrix state is displayed with labels. The state of each destination is displayed, one per line, in the format: “DestNLvl1”:”SrcLvl1”,”DestNLvl2”:”SrcLvl2”,...

Example

>S1

“Dest1”:”Src4”,”Dest1”:”Src4” “Dest2”:”Src3”,”Dest2”:”Src3” “Dest3”:”Src2”,”Dest3”:”Src2” “Dest4”:”Src1”,”Dest4”:”Src4”

The example above is output from a two level (Video and Audio for example) 4x4 matrix with sources routed in reverse order, except destination 4, which has a 2nd level break away which is routed from source 4.

3.40 Sierra Command

Carina Series routers only - Protocol Version: 2.4

Queries or assigns Sierra Video Systems protocol on serial port. This setting is stored and recalled on power up.

Command Description

Sierra Query Sierra Video Systems protocol enable on serial port.

Sierra 0 | 1 Assign Sierra Video Systems protocol enable (0: Disable – use

MASCOT protocol, 1: Enable)

Examples

>Sierra

>Sierra 1

The first command above queries the current value of the Sierra Video Systems protocol enable (0 = disabled, using MASCOT protocol). The second command enables the Sierra Video Systems protocol on the serial port.

3.41 SrcNames Command

Routers and MSC-GCP2U32 only

Query or assign source names. This command has 4 variations, described by the following table. Source names are stored and recalled on power up.

Command Description

SrcNames Query all source names.

SrcNames SRC Query source names for all levels of a given source.

SrcNames SRC, LEVEL Query the name of a specific source and level.

MSC-HDX4000 Product Manual

SrcNames SRC, LEVEL, LABEL Assign a label to a source.

When querying names, labels are surrounded by double quotes and each level is separated by commas ',' (multilevel systems only) and each source is separated by newlines. Secondary levels use empty strings to indicate that the label of the first level should be used.

Examples

>SrcNames

“Src1”,”AudSrc1” “Src2”,”” “Src3”,”” “Src4”,””

>SrcNames 1

“Src1”,”AudSrc1”

>SrcNames 1,2

“AudSrc1”

>SrcNames 1,2,””

The first 3 example commands are query commands. The last assigns an empty string to the second level of the first source (thereby indicating that the first level label should be used).

3.42 SysName Command

Query or assign system name. The system name is provided for convenience when managing multiple Matrix Switch Corporation systems. This value is stored and recalled on power up.

Command Description

SysName Query system name.

SysName STR Set system name (up to 15 characters).

Example for querying and assigning system name

>SysName

MSC-Router

>SysName “MyRouter”

3.43 SysType Command

Protocol Version: 2.3

Query the system series type, which is currently defined as one of the following values:

Value Series name

0 Carina

1 Lupus

MSC-HDX4000 Product Manual

2 Lynx

3 Hydra

NOTE: This command was not added until version 2.3 of the Mascot protocol. On previous versions, this command is available on the MSC-GCP2U32 LCD panel but not other Matrix Switch Corporation systems. When determining the system type, if executing the command returns an Invalid Command error, the system series can be assumed to be Carina.

Command Description

SysType Query the system hardware series.

Examples

>SysType

E01: Invalid command

>SysType

2 >

The first example command shows the response that would be received on a Carina series system with older firmware not supporting the SysType command, the second example is what might be returned by an MSCGCP2U32 LCD panel.

3.44 Vars Command

Protocol Version: 2.3

Display all system configuration variables. Useful in serial terminal or telnet sessions to view all configuration values.

Command Description

Vars Display all system configuration parameters. Note that variables

consisting of JSON data simply show the string JSON, to keep the output concise. The output consists of one line per variable, with the variable name followed by an equals '=' and then the value (not quoted).

Examples

>Vars

DefaultProfile=1 DHCP=1 DNSPri=0.0.0.0 DNSSec=0.0.0.0 Firmware=1.5.1 Gateway=192.168.2.1 IP=192.168.2.80 Mac=00:00:00:00:00:00 MascotVer=2

MSC-HDX4000 Product Manual

MtxProfiles=JSON Netmask=255.255.255.0 Profile=1 SerBaud=115200 SerProto=Mascot SysName=MSC-Panel SysType=2 >

The example above shows a typical output of the Vars command for an MSC-GCP2U32 LCD panel.

3.45 W Command

Routers and MSC-GCP2U32 only

Write current matrix routing state to a preset. Recalling the preset later will restore the routing matrix to the same state. This command modifies preset data which persists through power cycles.

Command Description

W PRESET Write current matrix routing state to PRESET.

Example to save state to preset 1

>W 1

3.46 WebPass Command

Assign a web password to password protect the web page interface. The serial and TCP/IP port Mascot protocol control is not protected by this password. This value is stored and recalled on power up.

Command Description

WebPass STR Set web page password (blank to disable)

Examples of setting and clearing web page password

>WebPass SeCr3t >WebPass “”

3.47 X Command

Routers and MSC-GCP2U32 only

Query or make changes to the matrix routing state. This command comes in several variations described by the following table.

Command Description

X Query complete routing state (equivalent to S Command).

MSC-HDX4000 Product Manual

X DEST Query connected sources for DEST for all levels.

X DEST, SRC Connect SRC to DEST for all levels.

X DEST, SRC, LEVEL Connect SRC to DEST/LEVEL.

When querying connection state, sources for each level are separated by commas (multi-level systems only) and are displayed for each destination and separated by newlines.

The value 0 can be used for DEST to switch all destinations to a given source. A level may also be specified to isolate switching a single level of all destinations. (Protocol Version 2.2)

The value 0 can be used for SRC to Mute a destination (if supported for a given level).

Examples

1,1 2,2 3,8 0,4

>X 3

3,8

>X 3,4 >X 4,0,2

In the above examples the first command queries the matrix routing state (typical of a 16x4 system for example), the second command queries destination 3 only, the third command connects source 4 to destination 3 on all levels and the fourth command mutes destination 4 level 2.

Command stacking

Command stacking is especially useful for the X command, since it allows for several connections to be performed at the same time.

Example

>X1,4#X2,3#X3,2#X4,1

The above would connect source 4 to destination 1, source 3 to destination 2, source 2 to destination 3 and source 1 to destination 4 for all levels.

MSC-HDX4000 Product Manual

4 Software Updates

The procedure for updating software (also called firmware) on Matrix Switch Corporation devices is determined by the hardware series. It is recommended that software updates are only performed in order to resolve an issue or gain a desired feature. While the software update procedures have been designed to be resistant to failure, there is still a risk of a device becoming inoperable in the event that an update is interrupted.

4.1 Software Update on Hydra Series Devices

Once a valid software update image is obtained from Matrix Switch Corporation for Hydra series devices, the following procedure can be used to perform a software update.

1. Connect to the device's web page interface using a web browser on a computer connected to the same Ethernet network and with an IP address on the same subnet as the device.

2. Navigate to the Software Update section of the web page.

3. Click the Browse button and locate and select the desired firmware image.

4. Click the Update button and wait for up to 30 seconds for a success message to be displayed, at which point the update image has been transferred to the device's FLASH storage area.

5. The device will automatically reboot to perform the remainder of the software update, during which the web page interface may display a connection error, which can be ignored.

6. The software update may take an additional minute to complete and power should not be disconnected during this time.

7. The front panel RUN LED will flash once the system is up and running.

4.1.1 Power On Software Update Reset Switch

The pinhole reset switch is located to the left of the Ethernet port. If the reset switch is held during power up, a software update will be triggered. If held for at least 2 seconds and less than 10 seconds and then released, an update will be attempted using the latest update image in FLASH (if any), falling back to the TFTP network update procedure. If held for longer than 10 seconds and then released the TFTP network procedure will be activated, which will wait for a TFTP update.

MSC-HDX4000 Product Manual

5 Troubleshooting

This section contains information on frequent issues and ways to troubleshoot them.

5.1 Unknown IP address

In the event that the IP address of a device is unknown, the following procedure can be used to retrieve it:

The IP address can be temporarily set to the default IP address of 192.168.2.60 and netmask 255.255.255.0 by pushing the pinhole reset switch (to the left of the Ethernet connector) while the device is running (RUN LED flashing). A computer system can then be configured with an IP address on the same IP subnet and the webpage configuration can be loaded for viewing and changing the IP address as described in the section Accessing The

Web Page Interface. The device will remain at the default IP address until rebooted, at which point it will revert

to the assigned network settings.

5.2 Unexpected reboots

If the device is rebooting unexpectedly (detectable on routers when the routing state gets reset to preset 0), make sure the correct power supply is being used with the device (12 Volt 10 Amp).

6 Reference

6.1 Specifications

MSC-HDX4000 Product Manual

Physical

Size 19"W x 7"H x 6"D

Rack Size 4RU

Weight 20 lbs

Power 12 VDC 10A

Power Connector DE-9 male

Storage Temp -10 Through +50 Deg C

Operating Temp 0 Through +40 Deg C

Humidity 0 Through 90% Non-Condensing

Warranty 2 Years Parts & Labor

SDI Video

Connector type BNC

Data Types SMPTE 259/292/424

Data Rates 19 Mbit/s through 3.0 Gbit/s

Re-clocking Data Rates 270 Mbit/s, 1.485 Gbit/s, 2.97

Gbit/s

Input/Output Return Loss > 15dB @ HD, > 12dB @ 3G

Input Level 800 mV P-P +/- 20%

Input Impedance 75 Ohms +/- 1%

Cable equalization (1694A coax) 400m @ SD, 140m @ HD, 120m

@ 3G

Output Level 800 mV P-P +/- 5%

Output Impedance 75 Ohms +/- 1%

Output Jitter < 0.2 UI

Control Specifications

Serial RS232 115200 bps 8N1

Ethernet 100 BaseT TCP/IP

Local Panel Interface Status Only

Remote Panel Support Yes

Reference Signal

Connector Type Analog BNC with pass-through

Format NTSC, PAL and Tri-level sync

MSC-HDX4000 Product Manual

6.2 Glossary

• Active Routing – The current routing state of a Router's Matrix.

• Destination – A Video or Audio destination (output from a Router device). Numbered starting from 1.

• Input – Synonymous with Source.

• IP – Stands for Internet Protocol. Base protocol of the Internet which can also be used on LANs. This

protocol uses 4 byte addresses (IPv4) written in "quad dot" format, which is four decimal numbers separated by periods (192.168.2.60 for example).

• LAN – Stands for Local Area Network. Refers to a single local Ethernet network, usually consisting of a single IP subnet.

• Level – Router devices may contain multiple Video and Audio levels. Level numbers start from 1.

• Mascot Protocol – An abbreviation of MAtrix Switch COrporation proTocol. An ASCII text based

protocol for interfacing to Matrix Switch Corporation devices.

• Matrix – Used when referring to a Router's entire routing state.

• Mute – When supported, a destination can be muted, which for video means the output is turned off and

for audio means it is silenced.

• Output – Synonymous with Destination.

• Preset – Matrix Switch Corporation Router devices provide 10 presets which store matrix Routing

connections. When a preset is “recalled” zero or more matrix connections are changed based on the content of the Preset. Numbered starting from 0. Preset 0 is special in that it is recalled on system startup.

• Remote Panel – Matrix Switch Corporation Remote Panels connect to Router devices for remote control with touch buttons.

• Router – A Video/Audio Routing device routes one or more sources to one or more destinations (not to be confused with a Network router, which is referred to as a Network Switch in this manual).

• Simple Panel – A Matrix Switch Corporation Remote Panel which has buttons only.

• Smart Panel – A Matrix Switch Corporation Remote Panel which comes equipped with an LCD screen

interface.

• Source – A Video or Audio source (input to a Router device). Numbered starting from 1.

• TCP – Stands for Transport Control Protocol. This protocol is used by Matrix Switch Corporation

devices for remote panel control, the MASCOT network interface and the web page interface.

MSC-HDX4000 Product Manual

7 Matrix Switch Corporation Warranty

MSC provides the following limited warranty with its products:

1. MSC warrants that the equipment it manufactures is free from defects in material and workmanship.

2. This warranty begins on the day the product is shipped from MSC and shall be in effect for two years.

3. If the product is found to be defective, MSC shall at its option: a) Provide free replacement parts. b) Repair the unit at MSC's facilities. c) Repair the unit at the customer's location. d) Exchange the product for a product of the same type.

MSC shall make every reasonable effort to support critical emergencies by supplying no-cost loan equipment while the defective unit is being repaired.

4. Customer bears the cost of shipping products returned to MSC under this warranty; however, MSC shall bear the cost

of shipping repaired products or replacement parts to the customer.

5. Any customer returning a product for repair shall first obtain from MSC a Return Material Authorization (RMA)

number which shall be placed on the outside of the shipping package.

6. This warranty does not apply if the product has been damaged by accident, abuse, misuse, misapplication or

modification.

EXCEPT AS SET FORTH ABOVE, NO OTHER WARRANTIES ARE EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. MSC EXPRESSLY DISCLAIMS ALL EXPRESS OR IMPLIED WARRANTIES NOT STATED HEREIN. IN THE EVENT THE PRODUCT IS NOT FREE FROM DEFECTS AS WARRANTED ABOVE, THE PURCHASER'S SOLE REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. UNDER NO CIRCUMSTANCES WILL MSC BE LIABLE TO THE PURCHASER OR ANY USER FOR ANY DAMAGES INCLUDING INCIDENTAL OR CONSEQUENTIAL DAMAGES, EXPENSE, LOST PROFITS, LOST SAVINGS OR OTHER DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO USE THE PRODUCT, EVEN IF MSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

To the extent this warranty conflicts with local law, local law shall only apply to such conflict.

Matrix Switch Corporation

www.matrix-switch.tv

Phone: (530) 477-9122 Toll free: (800) 764-4084

Matrix Switch MSC-XDM4000 Users Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Getting Started

1.1 Device Connections

1.2 Powering Up The Device

1.3 Front Status Panel

1.4 Web Page Interface

1.4.1 Accessing The Web Page Interface

1.4.2 Network Settings

1.4.3 Matrix Routing

1.4.4 Labels

1.4.5 Presets

1.5 Network Planning

1.5.1 Installation Example

1.6 3D Video Configuration

2 Web page interface

2.1 Overview

2.2 Routing Tab

2.2.1 Changing a connection

2.2.2 Loading a preset

2.3 Presets Tab

2.3.1 Loading Work Matrix from a source target

2.3.2 Saving Work Matrix to a target

2.3.3 Usage scenarios

2.4 Labels Tab

2.5 Config Tab

2.5.1 System Settings

2.5.2 Network Settings

2.5.3 Button Panel Settings

2.6 Command Tab

3 Mascot Control Protocol

3.1 Protocol changes

3.2 Telnet access

3.3 Serial access

3.4 Command format

3.4.1 Command names

3.4.2 Command arguments

3.5 Response format

3.6 Command argument values

3.7 Error codes

3.8 Basic command reference

3.9 Advanced command reference

3.10 C Command

3.11 DestNames Command

3.12 DHCP Command

3.13 E Command

3.14 Firmware Command

3.15 FrameIP Command

3.16 Gateway Command

3.17 Help Command

3.18 IP Command

3.19 LockStatus Command

3.20 MAC Command

3.21 MascotVer Command

3.22 MtxCfg Command

3.23 MtxGroup Command

3.24 NetMask Command

3.25 P Command

3.26 PAdd Command

3.27 PairIO Command

3.28 PanelOfs Command

3.29 PanelDis Command

3.30 PanelExtEn Command

3.31 PanelRate Command

3.32 PClr Command

3.33 PsetNames Command

3.34 PSub Command

3.35 PView Command

3.36 Reboot Command

3.37 ReclkDis Command

3.38 RemoteSync Command

3.39 S Command

3.40 Sierra Command

3.41 SrcNames Command

3.42 SysName Command

3.43 SysType Command

3.44 Vars Command

3.45 W Command
