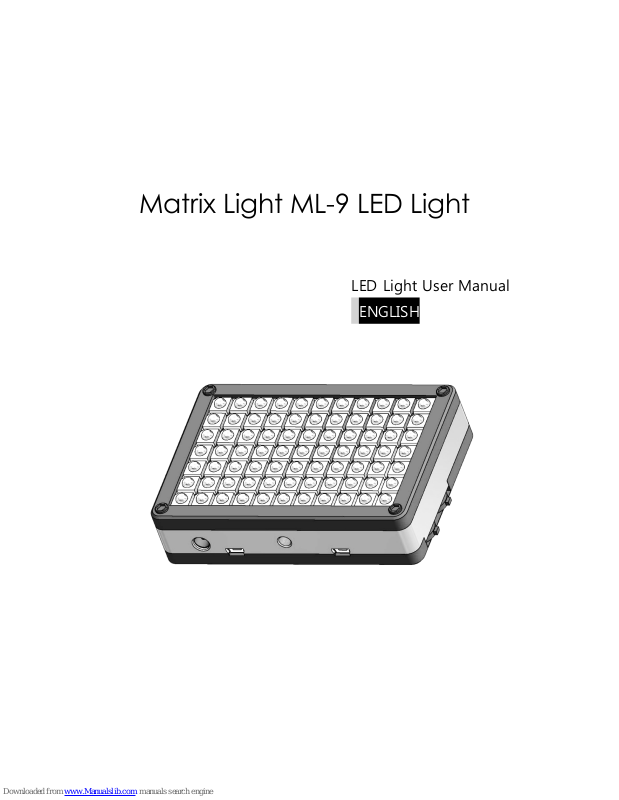

Matrix Light ML-9 User Manual
Matrix Light ML-9 LED Light
LED Light User Manual
ENGLISH
Matrix Light ML-9 LED Ring Light ••• 2
••• Contents •••
ABOUT PRODUCT
Advantages of product ·············································· 4
Safety and Warnings ················································· 5
Product Features

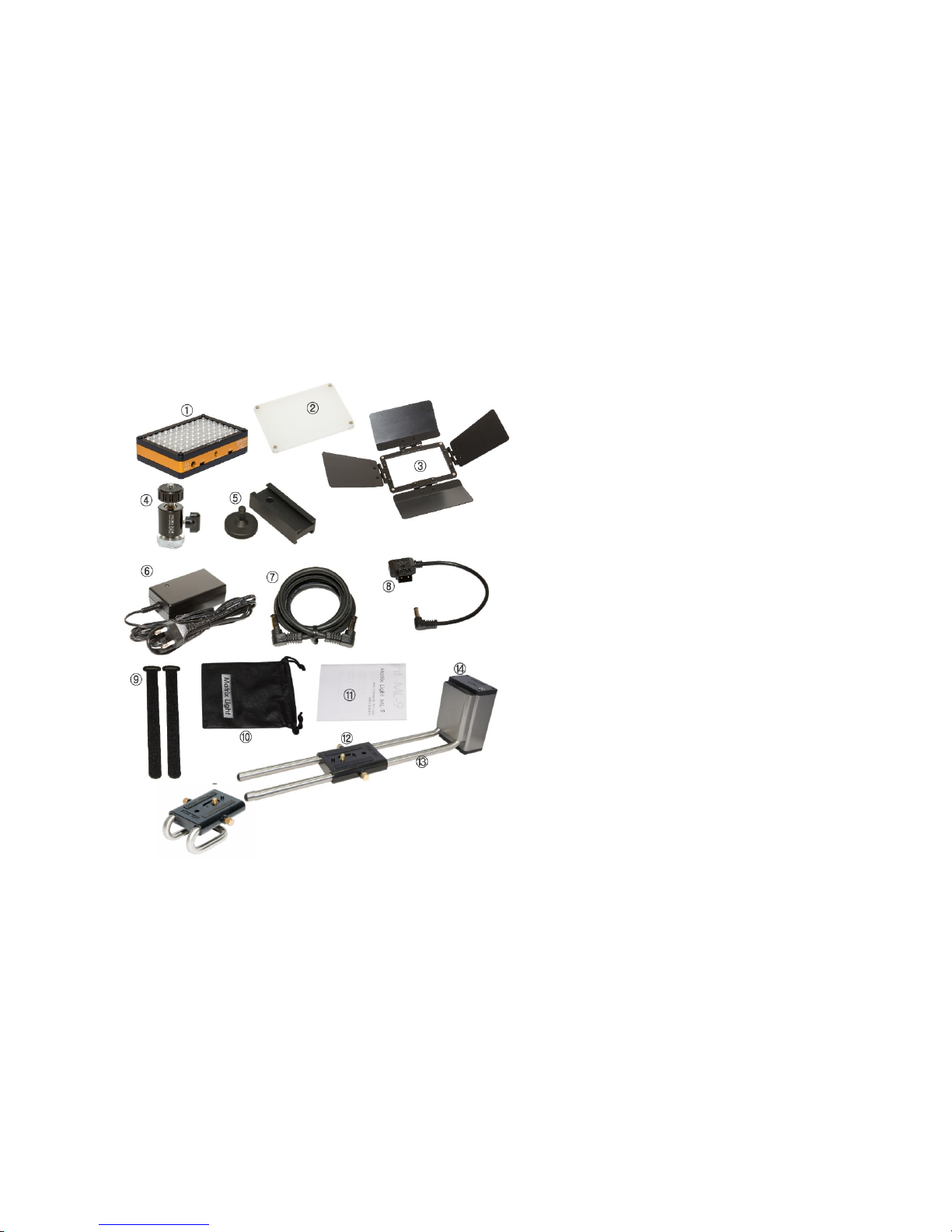

Checking product and accessories ······························ 10
THE NAME AND FUNCTION OF EACH PART
LED Light ······························································· 11

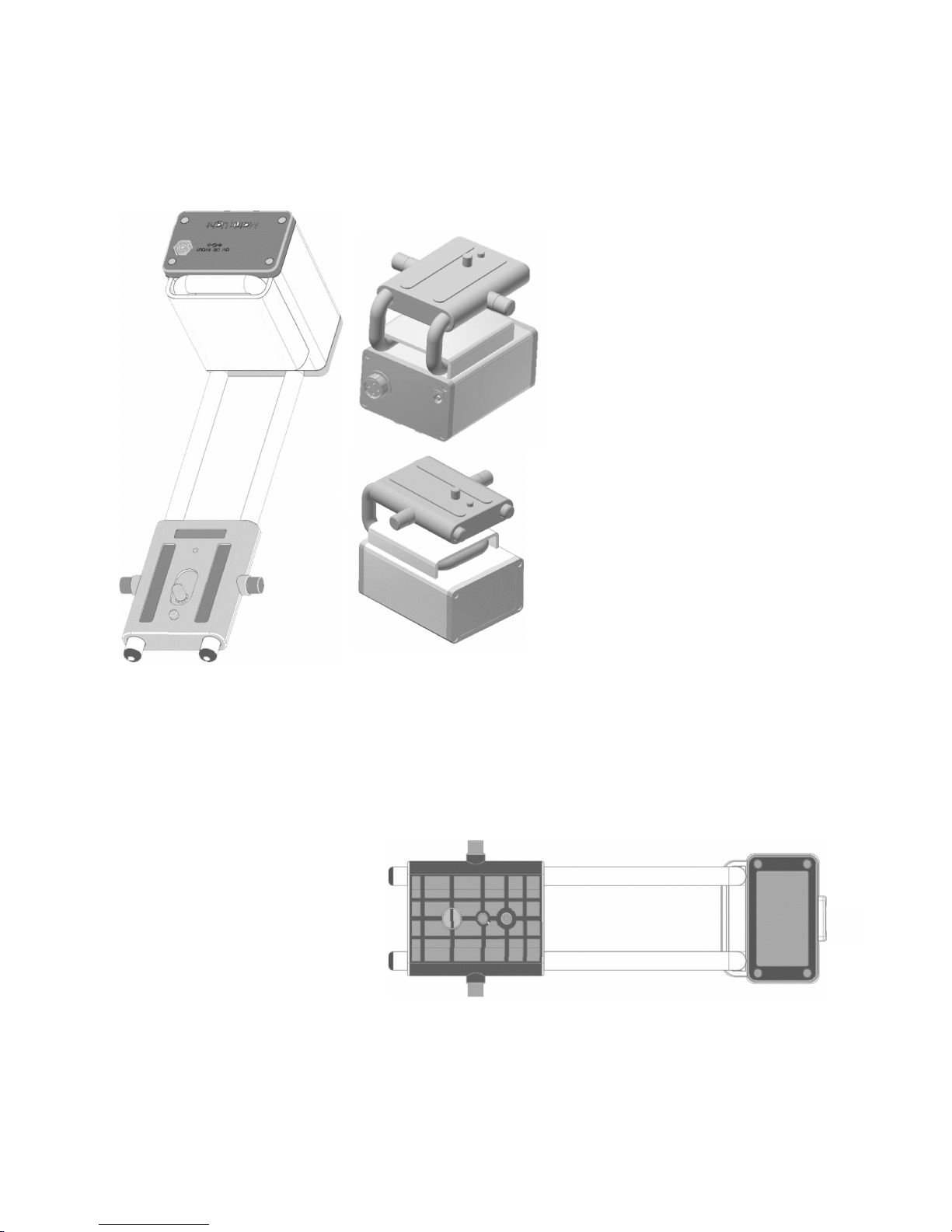

Battery, L type Slide and Camera-Tripod Attachment ····· 12
INSTALLATION AND USE OF LIGHT
Light Installation and usage ······································· 13

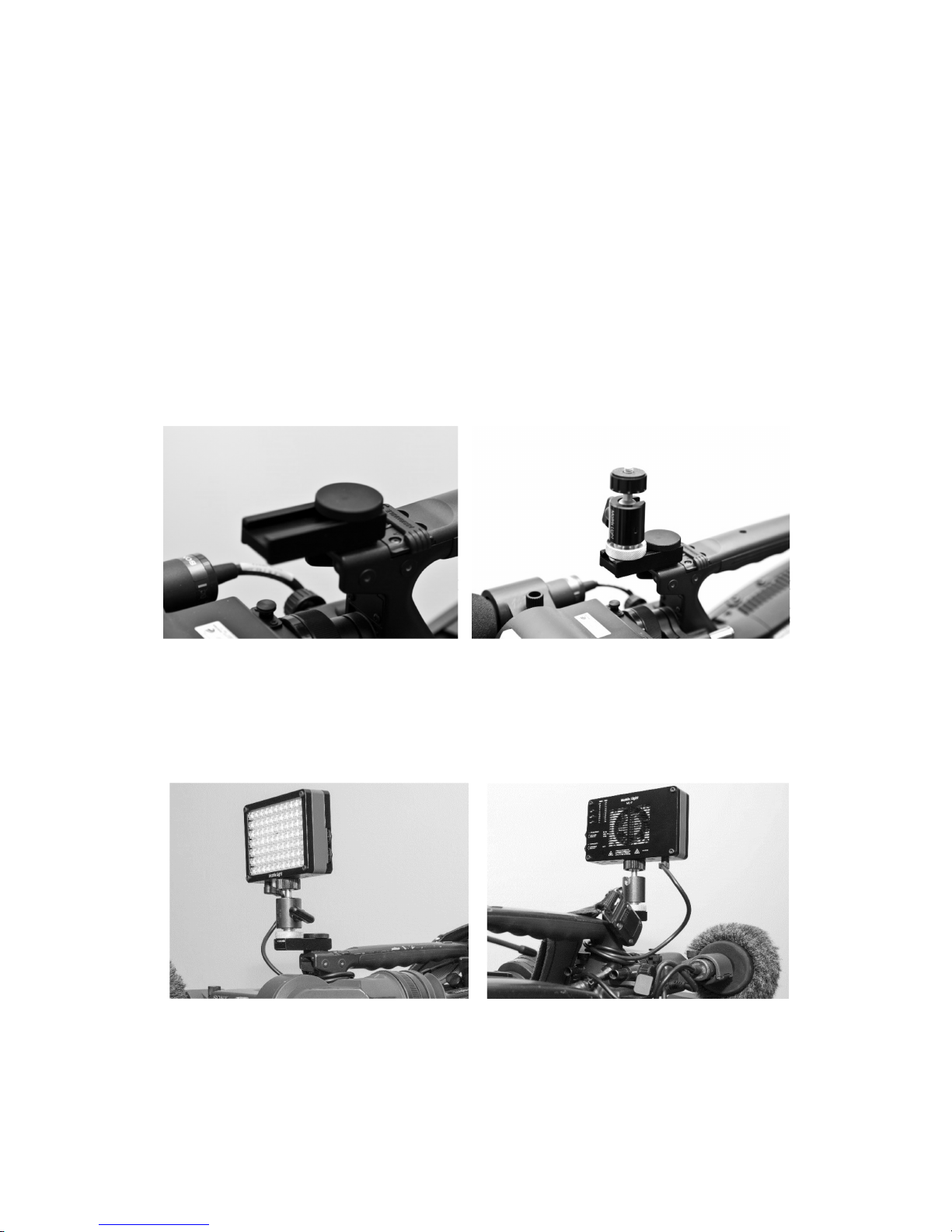

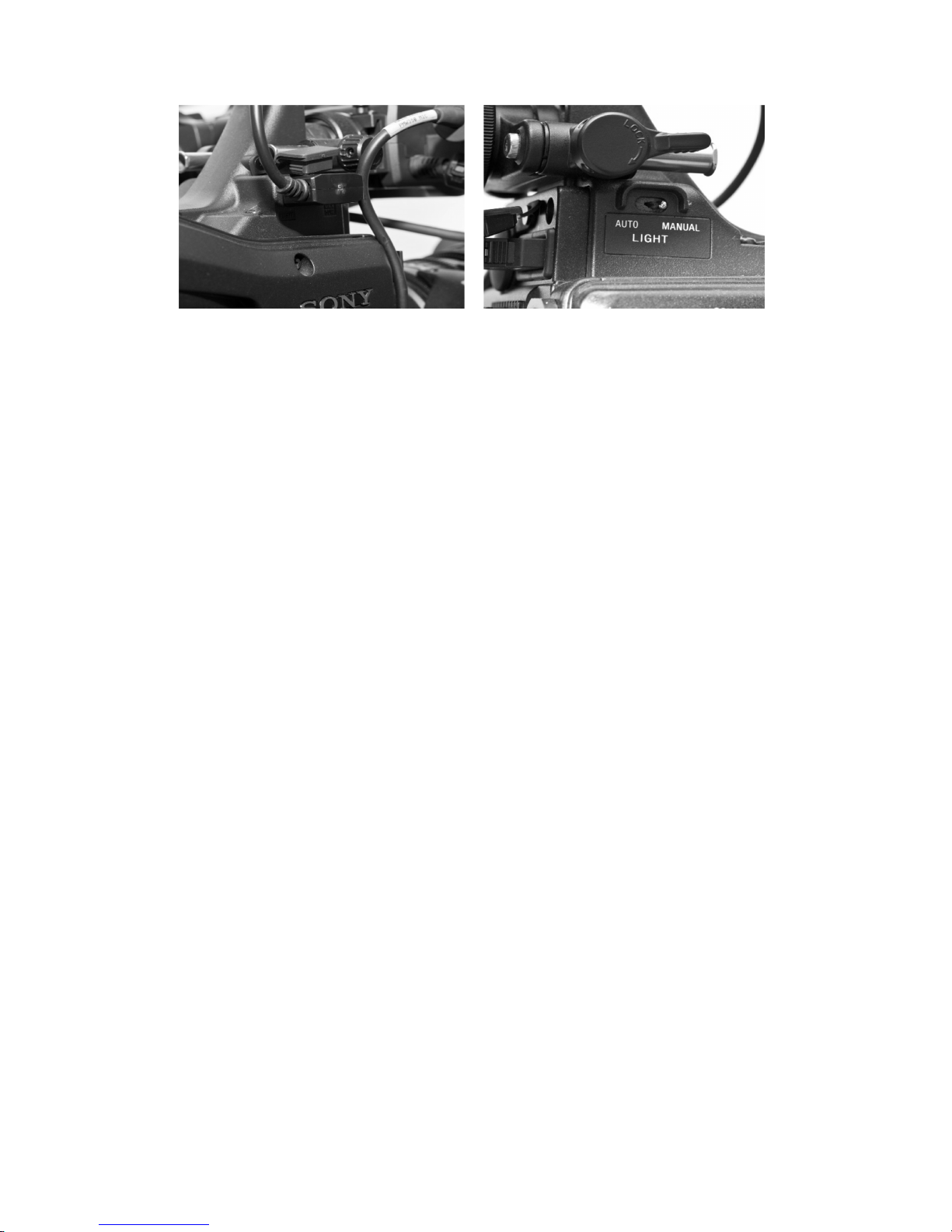

Installation on an ENG Camera ·································· 17

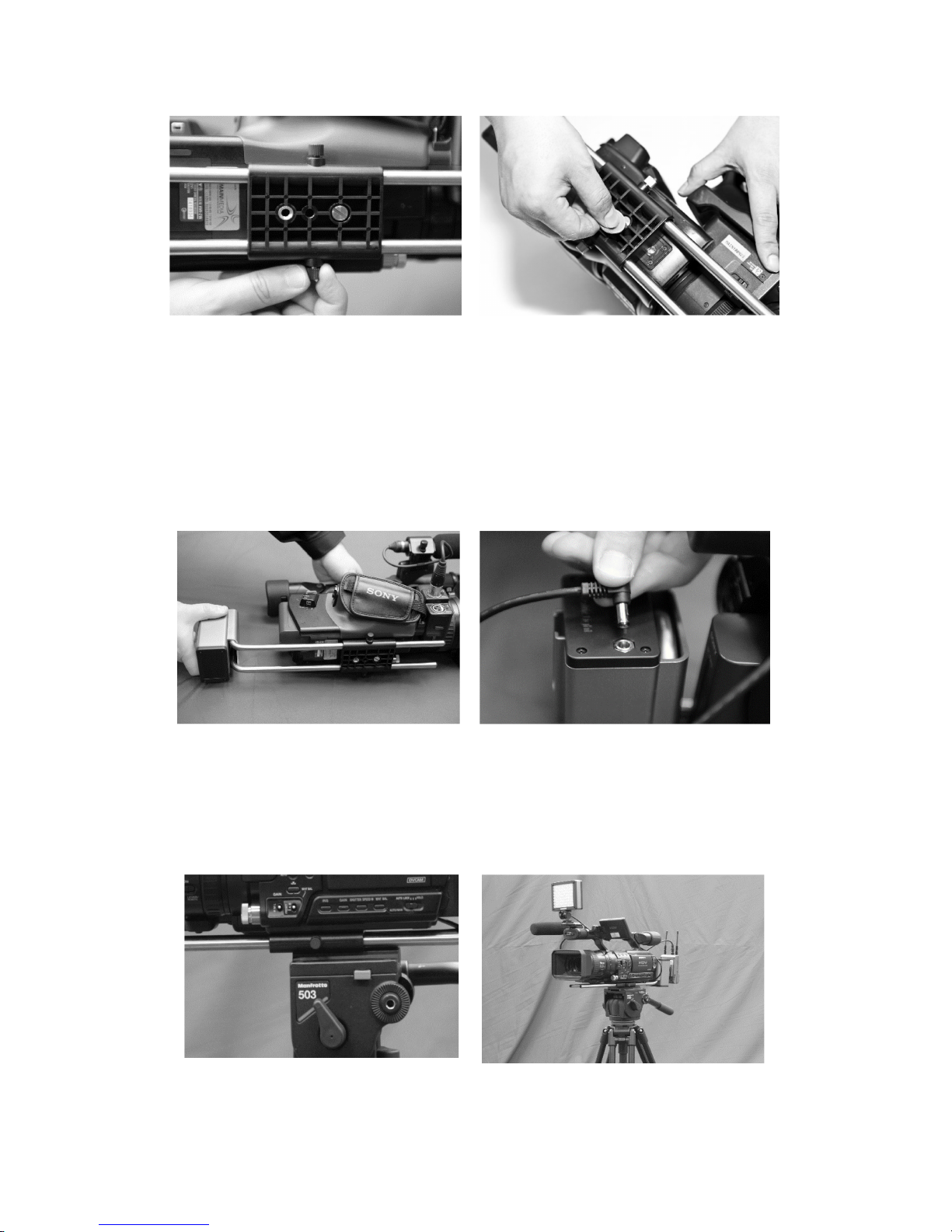

Installation on a Camera using supplied Battery ············ 18
HOW TO USE ACCESSORIES
Using the Tripod Adapter (ML-AT1) &
L type Slide (ML-SL30) ··········································· 20
Matrix Light ML-9 LED Ring Light ••• 3
USING AND CHARGING THE BATTERY

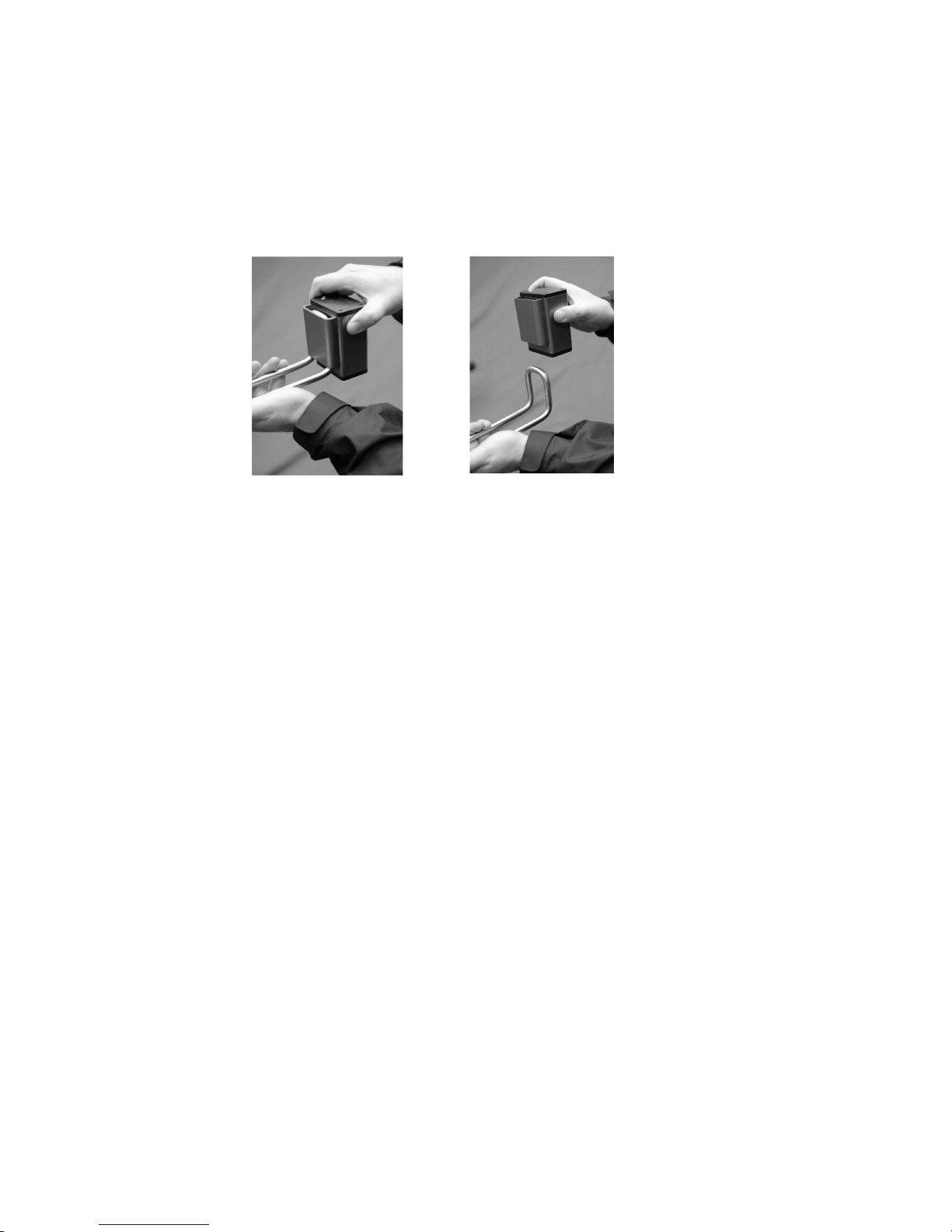

How to use and charge the battery ···························· 21
TROUBLESHOOTING
Points to check ························································ 22
WARRANTY, STORAGE INSTRUCTIONS & SPECIFICATIONS
Warranty ································································ 24
Storage Instructions ················································· 24
Specifications ·························································· 25
••• Before using this product carefully read this manual.
••• This product is subject to change without notice in advance for improved
performance.
ⓒ2016 Matrix Light
Matrix Light, All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the
written consent of Matrix Light.
Matrix Light ML-9 LED Ring Light ••• 4
••• ABOUT PRODUCT
Advantages of product •••

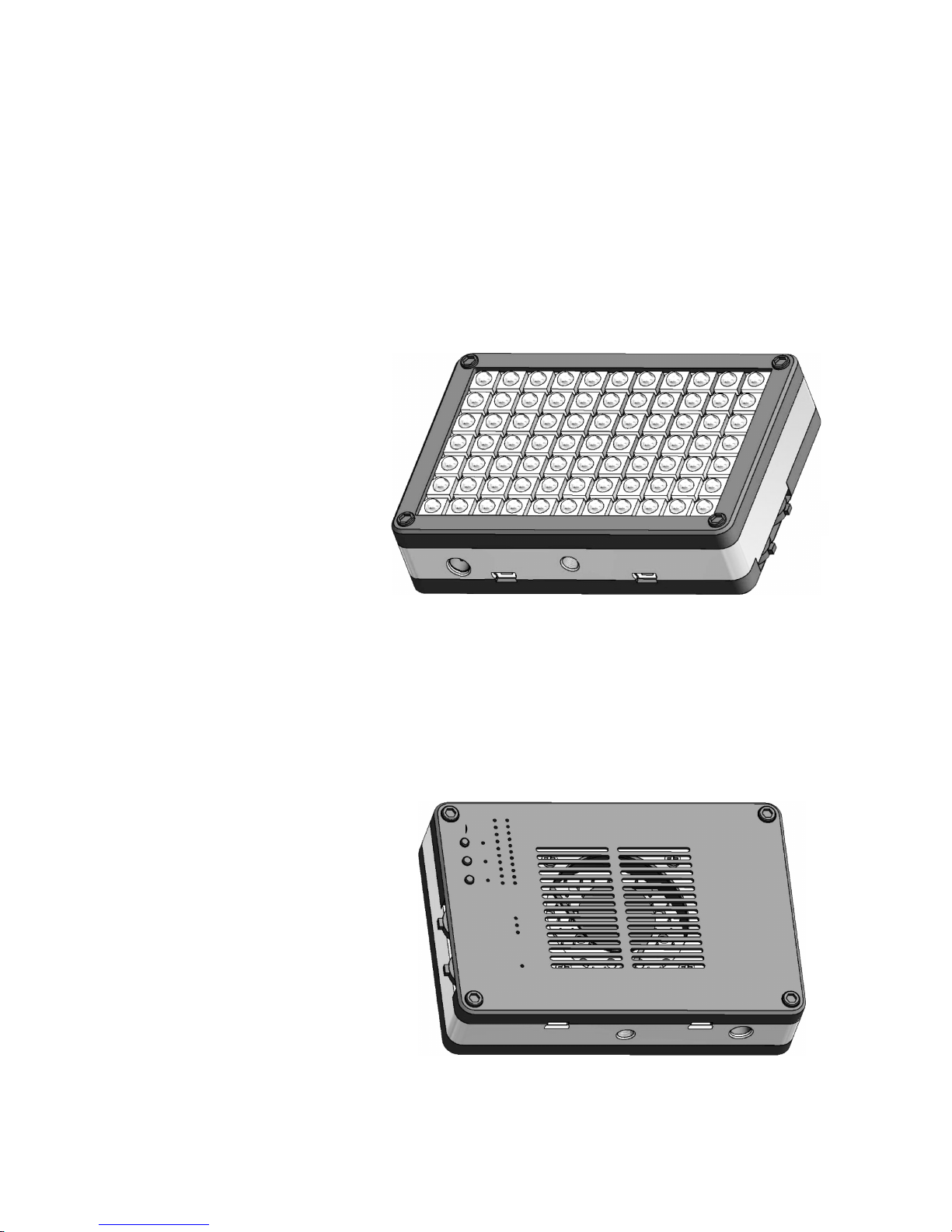

New Matrix Light ML-9 LED Light
Matrix Light has been providing broadcasting stations and professional
broadcasters with the best quality products since the release of the ML-80
LED light. Long term customers such as KBS, MBC, and NHK, and Fuji TV
have demonstrated the reliability and superiority of the Matrix Light products.
Accepting various inputs from professional broadcasters, the new Matrix Light
ML-9 will be the ultimate light in the field.

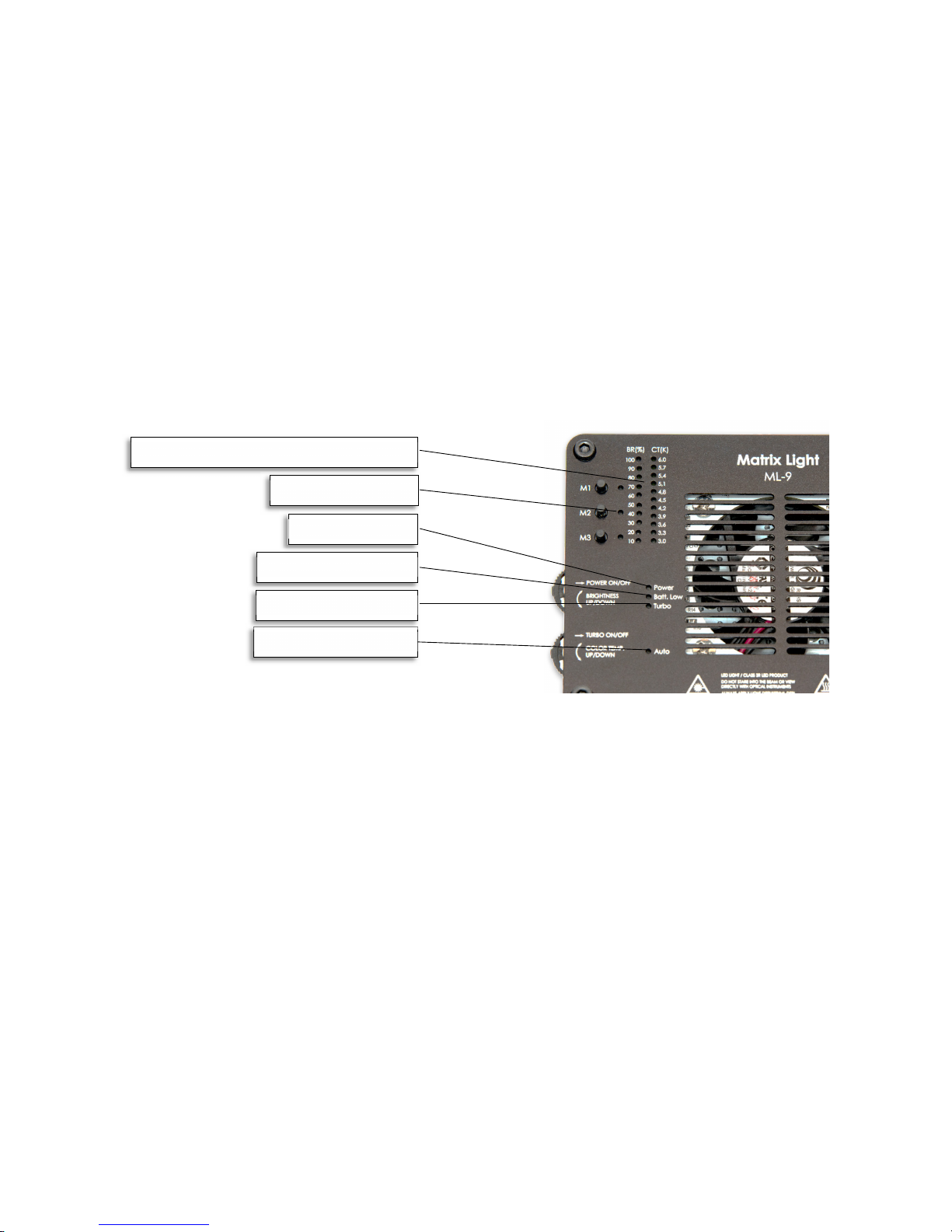

Precision light control system
Precision dimming and coloring controllers on the ML-9 allows the user to
achieve the ideal brightness and color temperature for every occasion.
▣ Brightness range: 150lm to 2,400lm in 240lm increments
▣ Color temperature range: 3,200K to 5,800K in 230K increments
The Turbo mode supports up to 2,400lm of brightness, equivalent to a 240W
light bulb, for situations requiring more bright lighting.
Memory Buttons
ML-9 LED Light includes three built-in memory buttons that could restore
most frequently used brightness and color temperature. This convenient
feature allows the user to get the light ready efficiently.
Matrix Light ML-9 LED Ring Light ••• 5
One Source Multi Use
The highly adaptable Matrix Light ML-9 is suitable for ENG cameras to
handheld cameras. Also, it is very effective for general studio lighting as well.

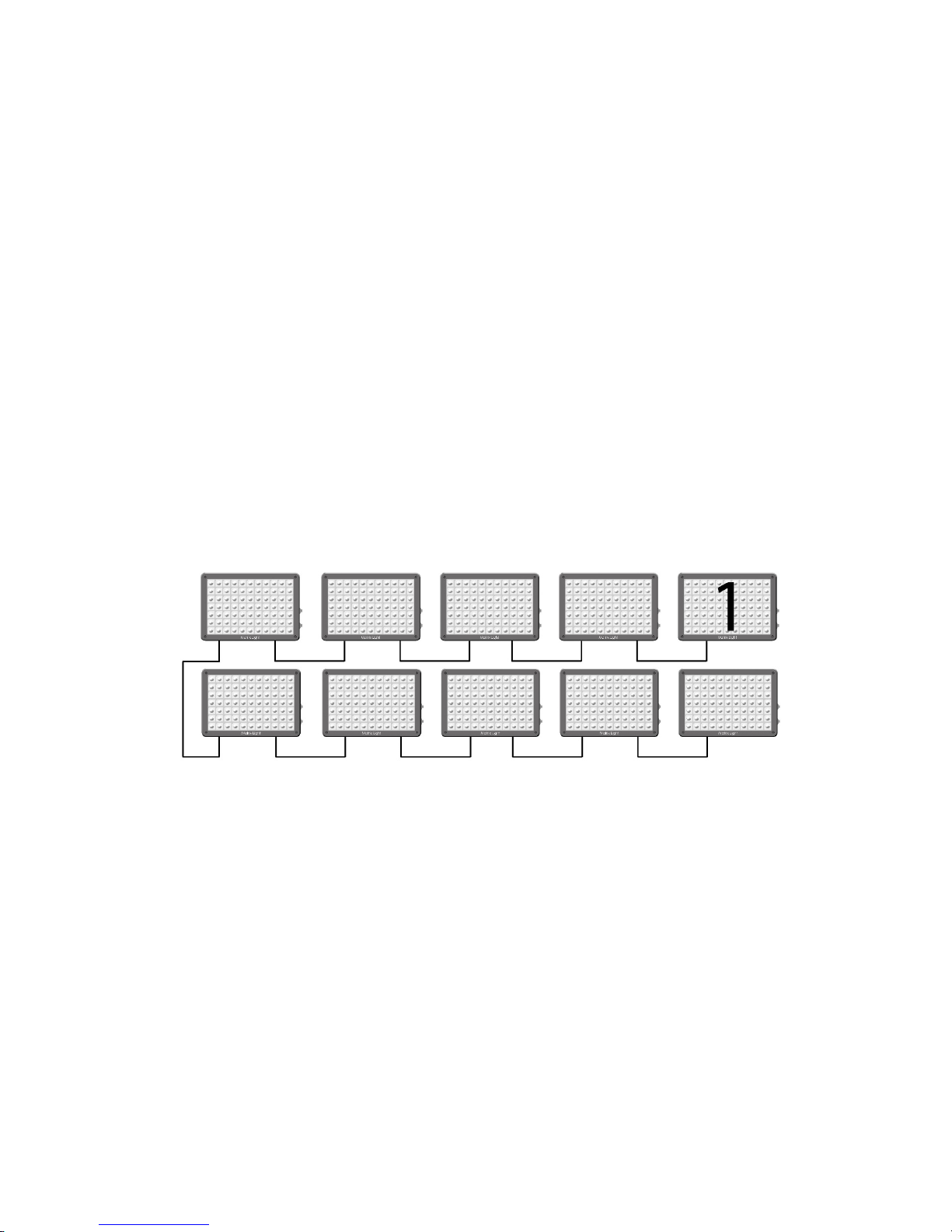

The on-board USB connectivity port allows simultaneous control of multiple
ML-9 units, maximizing its flexibility.
Solid body and precise micom control
ML-9 LED Light’s aluminum body is lightweight, durable, and acts as an
excellent heat sink, maximizing durability and lifetime. Also, the sophisticated
micom controller promises the ML-9 LED Light to be the most advanced LED
light, providing users precise light control and the best quality.
Safety and Warnings •••
Before you read the manual, check the details below.
Safety Icons
Icon Name Function
⚠ Warning
This symbol indicates potentially hazardous actions
and situations, which, if not avoided, could result
in death or serious injury.
Caution
This symbol indicates potentially hazardous actions
and situations, which, if not avoided, could result
in personal injury or property damage.
Matrix Light ML-9 LED Ring Light ••• 6
Safety tips
Please read carefully safety tips before using the product. ▶ Page 5~9
Product drawings on this manual and the actual product may differ
slightly.
Please refer to 'Check point before asking for service,' before requesting
for service. ▶ side 23~24
Service charges are applicable for a non-defective product received by us,
even within the warranty period.
Injury or damage caused by violating instructions of this manual is solely
the responsibility of the user.
Please check the performance of your light before use.
To maintain the performance and maximize the lifetime of your battery
and light, we recommend using them at least once a month.
Safety and Warnings about battery charger
⚠ Avoid bending or pulling on the power cord of the charger unnecessarily,
or placing heavy objects on the cord. It can cause electric shock and fire.
⚠ Plug the charger into the power outlet firmly. Incomplete connection can
cause an electrical fire.
⚠ Never use a damaged power cord, a damaged plug, or a loose electrical
outlet. Using them can cause an electric shock or a fire.
⚠ Never handle power plug with wet hands. It can cause an electric shock.
⚠ Do not place power cord near a heat source. Heat can damage insulation
on the wires and may cause fire and electric shock.
⚠ Do not use multiple power plugs in one outlet at the same time. Doing
Matrix Light ML-9 LED Ring Light ••• 7
so may lead to overheating and may cause fire.
Safety and Warnings about battery
⚠ Never dismantle or short out the battery. Do not mix with other batteries.
Do not charge battery improperly. Doing any of the above may cause fire
and explosion.
⚠ When battery warning lamp is blinking, charge the battery immediately.
Excessive charging and discharging can shorten the life of battery and can
cause mechanical malfunctions.
⚠ Avoid shock and impact on the battery. It may cause breakdown leading
to fire and/or explosion.
⚠ Do not place battery in areas with high-temperatures and/or high humidity
area. It may cause mechanical malfunctions, fires and/or explosions.
⚠ Please use only the included charger and power connector when charging
and lighting. Using non-standard parts may cause mechanical malfunctions,
fire and/or explosions.
⚠ If you detect strange noises, burning smells or smoke during charging,
unplug the power immediately and contact a service center.
⚠ Never put battery into fire or expose to high temperature. It may cause
overheating, fire and/or explosion.
⚠ Please use the included charger only. Using other chargers can cause
overheating, fires and/or explosions.
⚠ Do not store or carry a battery together with metal products such as
necklaces or hairpins. Doing so may create a short and lead to overheating
and/or explosion.
⚠ If your eyes come in contact with chemicals leaked out of the battery,
wash them immediately with clean water and seek medical attention. If left
Matrix Light ML-9 LED Ring Light ••• 8
unwashed it will cause damage to the eyes.
⚠ If your skin or clothing comes in contact with chemicals leaked out of the
battery, wash it immediately with clean water. If left unwashed it will cause
damage to the skin or clothing.
⚠ Do not dismantle the battery case or damage any parts. Do not use the
battery without case or in a broken case. It may cause overheating and/or
explosion.
⚠ If the battery fails to completely charge after a prolonged period of time,
please stop charging it immediately. If left continuing to charge, the battery
may overheat and/or explode.
⚠ Do not wet the battery. Doing so may cause overheating and/or an
explosion.
⚠ Separate the battery from the device after use. Neglecting to do so may
result in overheating or battery fluid leakage.
Please discard batteries in accordance with the regulations of the local
government after covering the electrical contacts with tape, etc.
Safety and Warnings about Light Installation / Maintenance
⚠ Do not install in places with excess oil, smoke, dampness, dust, or rainwater.
⚠ If the inside of the device is exposed to oil or dampness, it may cause an
electrical shock and/or fire.
⚠ Do not switch on the light close to the eyes of people or animals. Doing so
can damage their vision. When filming infants, do so with caution not to point
the light directly at their eyes and keep the light at least 2 meters away and
always apply the diffuser(ML-DF2).
⚠ Do not switch on the light towards vehicle operators. Doing so may distract
them and may cause an accident.
