Matrix Hairstyles Cell Phone User Manual
Matrix User Manual
Thank you for choosing the Pantech Matrix, our latest 3G mobile
phone.
The Pantech Matrix has many features designed to enhance your
mobile experience. From its sleek, stylish design and QWERTY
keypad, we know you will enjoy the entire Matrix experience.
This User Guide contains important and useful information that will
maximize your familiarity with all that the Pantech Matrix has to offer.
Specifications
Design
Dual slider with QWERTY keypad
Displays
• 260k colors TFT LCD with 2.2" internal display
• 176x220 resolution
• 7 lines for text in basic mode with 16-point font
• Two soft keys and four-way scroll and selection OK keys
Melodies
MP3, MIDI, iMelody, MMF, WAV, SMAF, AAC+
Camera
Integrated 1.3M CMOS Camera
• Resolution up to 1280 x 960 (1,228,800 pixels)
• Mpeg4 Video recording/playing up to 15f/s(QCIF size)
• Self-timer function (5 seconds or 10 seconds)
• Photo album and video album
2
Dimensions & Weight
• Weight: 132g/4.66oz (with standard battery)
• Dimensions: 102 mm x 50 mm x 19.9 mm
4.02" x 1.97" x 0.78"
Power Management (Performance)
Battery Type Capacity Standby Time Talk Time
Standard
Lithium-Ion
(Li-ion)
Up to
920 mAh
Up to
250 hours
Up to
3 hours
Operating Frequency
• GSM 850Mhz, GSM 900Mhz, DCS 1800Mhz, and PCS
1900Mhz networks in North America, South America, Europe,
Africa, and Asia-Pacific where these networks are supported.
• Automatic band switching.
Phone overview
Number pad view
Earpiece
Display
Charger slot/Ear mic
microSD slot
Camera
Side key
Navigation
key
Scroll through
the menu
options
Music key
Send key
Voicemail
Vibrate mode
Microphone
Left/Right Soft key
Perform the functions shown
at the bottom line of the display
OK key
or access
Press to enter menu system
Clear key
Returns to previous screen or
deletes characters in text mode.
Power on&off/Menu exit
key/End key
Turns phone on/off, ends calls,
exits menus
International call prefix key
MEdia Net
Camera key
note:
Holding the device by the internal
antenna area might affect the quality of
all calls.
Menu features
AT&T Music Messaging Yellowpages.com
MEdia Net AT&T Mall AT&T GPS
My Stuff Address Book Settings
Internal antenna
3
QWERTY keyboard view
Left/Right Soft key
Perform the functions
shown at the bottom line of
To type a single uppercase
letter, press this key then
To enter a number or a
function key, and press
the corresponding key
note: To use the QWERTY keyboard, ensure that the Number pad is closed, then hold the phone horizontally and slide the screen up.
4
the display.
CAPS/Shift key
a letter.
Function key
symbol, press the
Space key
Press to enter a space.
Delete key
Press to delete a number or
letter.
Enter key
Press to create new line while
writing a message.
Clear/Back key
Return to previous screen or
delete characters in text mode.
Using shortcuts Menu overview
Numbered menu items, such as menus, sub-menus, and
options can be quickly accessed by using their shortcut
numbers. In Menu mode, Main Menus can be accessed by
pressing the number keys (1 to 9) corresponding to their
location on the screen.
Example: Accessing the Language menu.
1. Press the Menu
2. Press the 9 for Settings.
3. Press the 4 for Phone.
4. Press the 1 for Language.
5. Press Select for Screen Text.
6. Press the U or D scroll key to display the list of available
languages.
.
AT&T Music
Music Player
Shop Music
MusicID
XM Radio
Music Videos
The Buzz
Community
Music Apps
Messaging
Create Message
Inbox
Mobile Email
IM
Sent
Drafts
Outbox
Voice Mail
Settings
Templates
Memory Info
5
Yellowpages.com MEdia Net
MEdia Net Home
Bookmarks
Enter Address
History
Manage
6
MEdia Mall
Shop Tones
Shop Games
Shop Graphics
Shop Multimedia
Shop Applications
Shop Videos
MEdia Net
AT&T GPS
AT&T Navigator
My Stuff
Audio
Games
Applications
Graphics
Video
Tools & Utilities
Other Files
Memory Info
Address Book
Contacts
Add Contact
Speed Dial
Groups
My Business Card
Memory in Use
My Phone Number
Memory Info
Service Numbers
FDN List
S
SIM dependent N Network dependent
S
S
Settings
Profiles
Display
Call
Phone
Network Connections
n
Network
Connectivity
S
Security
Software
Reset
TTY
7
Quick & easy
Keys Functions
< >
@
B
C
8
Perform the functions shown at the bottom line of the display by using these soft keys.
Scroll through the menu options in Menu mode. In standby mode,
Left: Access Mobile Email menu
Right: Access IM menu
Up: Access Create Message menu
Down: Access Contacts menu
Work in Word search mode if pressed in the Predictive text input mode.
Select a menu function or store user-input information, such as names. Also use this key for confirmation as the
[OK] key.
Launch the MEdia Net directly if pressed in standby mode.
Access AT&T Music menu.
Delete characters from the display, or return to previous menu.
Keys Functions
Send or receive a call. Show the recent call list in standby mode.
S
Complete the current call. Turn on/off the phone if pressed and held.
E
Cancel user input and return to main screen while in Menu mode.
1
0~9
*
0
#
Q
Quickly connect to the voice mail server if pressed and held in standby mode.
Enter numbers, letters or special characters. Go to the dial screen if pressed in standby mode.
Enter or exit from vibrate mode if pressed and held in standby mode.
Show the symbol input screen if pressed in text input mode.
Enter an international dialing prefix if pressed and held in standby mode.
Enter the space character in text input mode.
Change various text input modes if pressed at the text-editing screen.
Adjust the earpiece volume while making a call.
Control the Ringtone volume, vibrate mode and silent all mode in standby.
Mute the ringtone of an incoming call.
Turn camera capture mode on.
Work as a camera shutter in capture mode.
9
Contents
Contents
Specifications................................2
Phone overview .............................3
Using shortcuts .............................5
Menu overview ..............................5
Quick & easy ..................................8
1. Getting Starte
SIM card and battery .....................14
Turn phone on/off .........................15
Keypad lock ...................................15
Essential display indications ..........15
Memory card ................................16
Assigning the menu .......................17
Updating software .........................17
Using the QWERTY key pad .........18
MEdia Mall ....................................19
d
2. Calls and address book
Making, receiving and ending
a call ..............................................22
Using video share ..........................23
Options during a call ......................24
Call settings ..................................26
Settings for video share .................26
Checking all calls ...........................27
Speed dialing .................................28
Using the address book .................29
Caller identification........................30
Using your headset .......................30
Service numbers and fixed
dialing ............................................30
3. Messaging
Entering text ..................................34
Messaging .....................................35
Receiving messages ....................36
Creating and sending text
messages ......................................36
Creating a multimedia messages ..37
Message templates .......................38
Message settings .........................39
Voice message setting ..................40
Email ..............................................40
Using instant messenger ...............40
4. Multimedi
Camera ..........................................44
Photo album ..................................46
a
Video album ..................................47
Audio album ..................................48
Music Player ..................................49
Music player settings .....................52
Media player ..................................53
Other files......................................54
Managing memory .........................54
Playing games ..............................54
5. Useful Feature
Alarm .............................................58
Calendar ........................................58
Notepad and voice memo .............59
Calculator, converter and stop
watch .............................................59
Business card ................................60
Memory information .......................61
s
6. Connectivity
Bluetooth .......................................64
Using the browser .........................65
Profile settings ..............................66
7. Setting
Language ......................................70
Time and date ...............................70
Mode transition time ......................70
Ringtones .....................................70
Decorating the display ...................70
Locks .............................................71
To enable fixed dialing .................72
Reset .............................................72
TTY ................................................72
s
8. Appendi
Alert message ...............................76
Troubleshooting checklist ..............76
Safety information .........................77
Safety precautions .........................77
About the battery usage ................78
FCC Hearing-Aid Compatibility
(HAC) Regulations for Wireless
Devices ..........................................79
FCC Regulatory Compliance ........80
Warranty ........................................81
x
ContentsContents
Matrix
1
Getting Started
Calls and address book
Messaging
Multimedia
Useful Features
Connectivity
Settings
Appendix
Getting Started
SIM card and battery
Turn phone on/off
Keypad lock
Essential display indications
Memory card
Assigning the menu
Updating software
Using the QWERTY key pad
MEdia Mall
01
02
03
04
05
06
07
08
SIM card and battery
About your SIM card
When you subscribe to your network operator, you receive
a SIM (Subscriber Identity Module) card containing your
registration information, PIN code, etc.
Like a credit card, it should be kept secure and handled
carefully. Do not bend, scratch or expose it to moisture. Avoid
static electricity.
To avoid corrupting your SIM card’s memory, always switch off
your phone before removing or inserting your SIM card.
About your battery
Your phone uses a Li-Ion battery. Make sure to use an
authorized battery and charger only. For more details, please
inquire at your nearest dealer.
note
:
Your phone is powered by a Lithium Ion (Li-Ion)
battery. Unlike other forms of battery technology, you can
recharge your battery while some charge remains without
reducing your phone’s autonomy due to the “battery memory
effect” inherent in those technologies.
14
Installing/removing SIM card and battery
1. Remove the battery cover from the unit.
To fit the battery cover, put it on the
guide rail and push up.
2. Insert the SIM card into the slot. The
gold contacts of the SIM card should go
against the metal contacts of the phone.
Put the contacts of the battery into the
hole located at the bottom of the unit
insert and press the upper side of the
battery until you hear the “click”.
3. To remove the battery push the bottom
of the battery to upwards (1) and
remove (2) the battery. Push the SIM
card in the direction of the arrow as
shown.
To charge your battery
1. To charge, open the protective cover
on the top right side and connect the
charger adapter.
2. To remove the adapter connection press
the adapter’s side buttons (1) and pull
the adapter away (2).
Turn phone on/off
To turn on
1. Press and hold E.
To turn off
1. Press and hold E.
Keypad lock
Locking the keypad
1. Press Menu > press * to lock.
Unlocking the keypad
1. Press Unlock > * to unlock.
Essential display indications
Signal strength. The greater the number of bars, the stronger
the signal. When network is in searching mode is displayed.
A call is being made. When you are in no service area
displayed
Call forwarding
Incoming calls set to ring only (Normal)
Incoming calls set to Vibrate and Ring
Incoming calls set to Vibrate Only
Incoming calls set to Silent
Flight Mode is active
Received one or more text messages
Received one or more multimedia messages
Received one or more WAP push messages
Received one or more configuration messages
Received one or more voice messages
A message is being sent
A message is being received
An alarm is set
Bluetooth is active
N
is active
Getting Started
01
02
03
is
04
05
06
07
08
15
Headset is connected
USB is connected
TTY is active
A GPRS signal is available. It is displayed when there is an
active GPRS session
An EDGE signal is available. It is displayed when there is an
active EDGE session
A 3G signal is available. It is displayed when there is an
active 3G session
WAP is connected. When the security is set is displayed.
When the contents download is in progress, is displayed.
Battery strength. When the battery charge is low, is
displayed
Available, Away, Invisible Status of AIM
Online, Away, Busy, Offline Status of MSN
Available, Busy, Invisible Status of YAHOO
You have received one or more IM messages
16
N
Network dependent
Memory card
You can use microSD card as a memory card.
It gives you more space to save pictures,
videos, music, etc.
Inserting and removing the memory
card
1. Open the memory card slot.
2. Insert the card. The icon will be display.
3. Press the card to remove.
Using memory card
You can save, move and delete the files between your phone
and external memory card. You can also move and copy the
files to computer from your phone.
Resetting the card
1. Press Menu > Settings > Reset.
2. Enter the password > External Memory Reset.
note:
The default password is ‘1234’.
To copy the file to the card
1. Select the file > Options > Copy to External Memory.
2. To copy the file back to phone, press Options > Copy to
Phone.
To move the file to the card
1. Select the file > Options > Move to External Memory.
2. To move the file back to phone, press Options > Move to
Phone.
To delete the file from the card
1. Select the file from the card > Options > Delete.
To move the file from the card to the computer
1. Connect the data cable with mobile and the computer.
2. Press Menu > Settings > Connectivity.
3. Press Select USB Mode.
4. Select Mass Storage or Ask on Connection.
5. Follow the instruction on your computer screen.
note:
Select Music Player when you want to add music
to the playlist in your device. When you select Ask on
Connection, it will ask you to select either the Music Player
or Mass Storage every time you connect your device with
your computer.
Assigning the menu
You can set the most commonly used menu in Options in
standby mode.
1. Press Options in standby mode > select Unassigned.
2. Press Edit.
3. Select the menu and sub menu.
note:
User can change Options menu except CV.
Updating software
You can update your software without visiting your nearest
dealer.
To update the software
1. Press Menu > Settings > Software > Software Update.
2. Press Check for Update > Yes to check whether or not
you need to update the software.
note:
After downloading the software, the device will
ask you whether to update the software now or later. If
you choose to update the software now, it will restart the
handset. If you postpone updating the software, you can
select between 30 mins, 1 hour or 4 hours in the Options.
01
02
03
04
05
06
07
08
Getting Started
17
After selecting the updating time, you will be sent back to
standby mode. If you go to Software Update while you are
in postponing, press Continue Update.
To view the version of software
1. Press Menu > Settings > Software.
2. Press Phone Information and scroll down to Software
Version.
Using the QWERTY key pad
Your phone has QWERTY keypad which provides a
superior typing experience on a small handheld for easy and
comfortable text writing. You can use all of the phone functions
with the QWERTY keypad opened.
note:
QWERTY keypad can be used when the number pad
is closed. With the number pad is opened, the QWERTY
keypad can not be opened.
18
Key Function
Perform the functions shown at the bottom line of the
/
display by using these soft keys.
Press to change ab Ab AB at the text editing screen.
Multi-tap
dbc
all caps)
Press to change type to alphabet, special character and
number, special character and number on lock, at the
applicable key pad.
Press + to type a special character that is
not placed on the keypad.
Enter the space character in text input mode.
Insert a carriage return in text input mode.
Delete a character to the left of the text cursor in text
editing screen.
Return to previous menu.
Delete a character to the left of the text cursor in text
editing screen.
Enter characters, symbols or numbers.
~
Press and hold to enter special symbols or numbers.
(all small caps / first letter caps /
MEdia Mall
Shopping tones
1. Press Menu > MEdia Mall > Shop Tones.
Shopping Games
1. Press Menu > MEdia Mall > Shop Games.
Shopping Graphics
1. Press Menu > MEdia Mall > Shop Graphics.
Shopping Multimedia
1. Press Menu > MEdia Mall > Shop Multimedia.
Shopping Applications
1. Press Menu > MEdia Mall > Shop Applications.
Shopping Videos
1. Press Menu > MEdia Mall > Shop Videos.
MEdia Net home
1. Press Menu > MEdia Mall > MEdia Net.
01
02
03
04
05
06
07
08
Getting Started
19
Matrix
2
Getting Started
Calls and address book
Messaging
Multimedia
Useful Features
Connectivity
Settings
Appendix
Calls and address book
Making, receiving and ending a call
Using video share
Options during a call
Call settings
Settings for video share
Checking all calls
Speed dialing
Using the address book
Caller identification
Using your headset
Service numbers and fixed dialing
01
02
03
04
05
06
07
08
Making, receiving and ending
a call
Making a call
1. Enter the area code and phone number.
2. Press S key.
Answering a call
1. Press S.
Ending a call
1. Press E.
Once the call is complete, a call summary is displayed.
Rejecting a call
1. Press E or Ignore.
Making a call using call list
Your phone logs up to 20 dialed, received and missed call
numbers.
1. Press S to display the Recent Calls list.
2. Select All Calls, Missed Calls, Received Calls, or Dialed
22
Calls pressing the
3. Select a number.
4. Press S to dial the selected number.
note:
To redial the last number in the Recent Calls list,
press S.
L/R
.
Making a call during a call
1. Enter the phone number or look it up in Address Book.
2. Press S to dial the second call. The first call is
automatically put on hold.
Switching between two calls
1. Press Swap.
Making an international call
1. Press and hold 0 key for the international prefix until
the ‘+’ character appears.
2. Type the country code, area code, and phone number.
3. Press S.
Making an emergency call
You can make emergency calls even if your phone does not
have a SIM card.
1. Press Emergency Number, or press SOS if your phone
does not have a SIM card.
2. Press S.
Replying to a missed call
1. Press View to display the list of missed calls.
2. Select a number to call by pressing the
3. Press S.
Answering a second call
1. Press S. The first call is automatically put on hold.
2. Press E to end the second call.
The call on hold is automatically reconnected.
N
U/D
key.
Using video share
You can share live or recorded video while on a call. You can
send or receive video.
note:
Video Share is not available in all markets. Both
parties must be in a 3G service area – a 3G icon must appear
by the signal bars prior to a call being placed, and both
parties must remain in the 3G coverage area for the duration
of the Video Share.

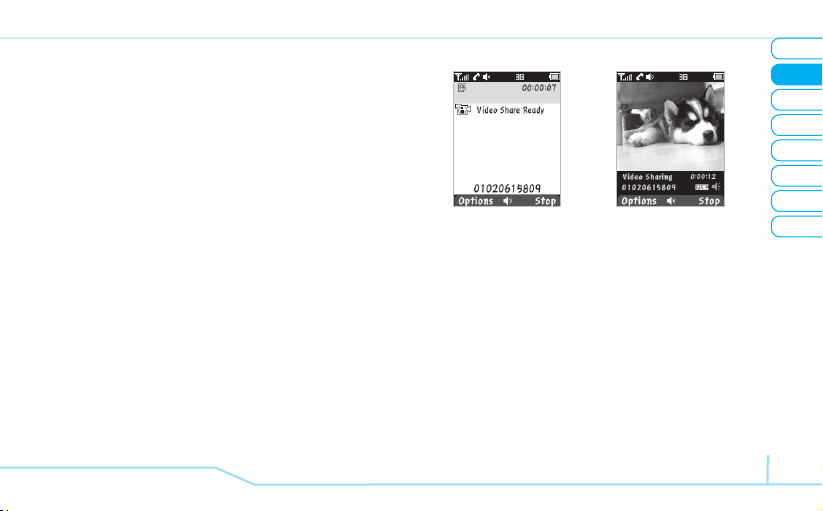

<Call mode> <Video Share Mode>
Making video share call
1. Enter the area code and phone number > S.
2. Press Options > Video Share.
3. Select Live or Recorded.
note:
To use video share in the Recent Calls, press Options
> Video Share.
Turning off the speakerphone
1. Press OK or press Options > Speakerphone Off during
video share mode.
2. Press Options > Mute to mute the sound.
01
02
03
04
05
06
07
08
Calls & address book
23
Stopping video share
1. Press Stop to end.
2. To end a call press E.
Increasing or decreasing the brightness
1. Press Options > Brightness.
2. Adjust the brightness by pressing
L/R
.
Zoom in and out
1. Press Options > Zoom. It ranges from x1 to x3.
Stopping the recording
1. Press Options > Stop Record.
For details on setting for automatic recording, see page 27.
Ending video share
1. Press Stop to end the video share.
2. It will ask you whether you will stop video share > Yes to
stop.
note:
Even you end video share, the call will not be ended.
Press E to end the call. The recorded video will be saved in
My Stuff > Video.
24
Receiving video share
1. After receiving video share, it will ask you whether to
accept or reject the video share > Yes to accept and No for
reject.
2. Press Options > Landscape to landscape the screen.
Options during a call
Microphone off and on
Switching your phone’s microphone off
1. Press Options > Mute [ ].
Switching your phone’s microphone back on
1. Press Options > Unmute.
Talking on speaker
1. Press Speaker Phone [ ].
Putting a call on hold and returning
Putting a call on hold
1. Press Options > Hold or press S.
N
Returning to a held call
1. Press Options > Unhold or press S again.
Multi-party calls
You can talk with more than one person or have conference
call.
N
Making a multi-party call
1. Call the first participant.
2. Call the second participant. The first call is automatically
put on hold.
3. Press Options > Join.
Having a private conversation with one participant
1. Press Options > Split.
2. Press OK.
3. Select the participant and press OK.
All of the multi-party call participants can now hear each other.
Removing one participant from a multi-party call
1. Press Options > End.
2. Select the participant and press OK.
The call ends with that participant, but you can continue to talk
to the other participants.
Searching for a number in the address book during
a call
1. Press D or press Options > View Contacts > Contacts.
2. Select a number > S.
Searching for a name or group in the address book
Enter the first letters of the name for Name Search. The entries
are displayed starting with the first entry matching your input.
Finding a name manually in the address book
1. Press the
U/D
key.
Viewing the details of the highlighted entry in the
address book
1. Press OK.
For details on address book, see page 29.
Reading a message during a call
1. Press Options > View Message.
2. Select a message > OK.
01
02
03
04
05
06
07
08
Calls & address book
25
Writing a message during a call
1. Press Options > Create Message.
For details on creating a text message, see page 36.
Viewing calendar during a call
1. Press Options > View Calendar
Writing a notepad during a call
1. Press Options > Notepad
Voice recording
1. Press Options > Voice Recording
Setting DTMF
1. Press Option > DTMF On or Off
Call settings
Setting auto redial
1. Press Menu > Settings > Call > Auto Redial.
2. Select On or Off.
26
Answering by pressing any key
1. Press Menu > Settings > Call > Any Key Answer.
2. Select Answer with Any Key.
note:
You can answer with any key except E and Ignore.
Limiting incoming calls
2. Press Menu > Settings > Security > Phone Barring.
3. Press Incoming.
4. Select On or Off.
Limiting outgoing calls
1. Press Menu > Settings > Security > Phone Barring.
2. Press Outgoing.
3. Select Bar All, Bar Prefixed or Off.
• Bar All: Barring all outgoing calls.
• Bar Prefixed: Barring prefixed numbers.
• Off: Cancel all the barring including the bar prefixed.
Settings for video share
Turning the alert on/ off
1. Press Menu > Settings > Call > Video Share.
2. Press Alerts.
Loading...
