Matrix Decor Screens MDRS1032 Owner Manual

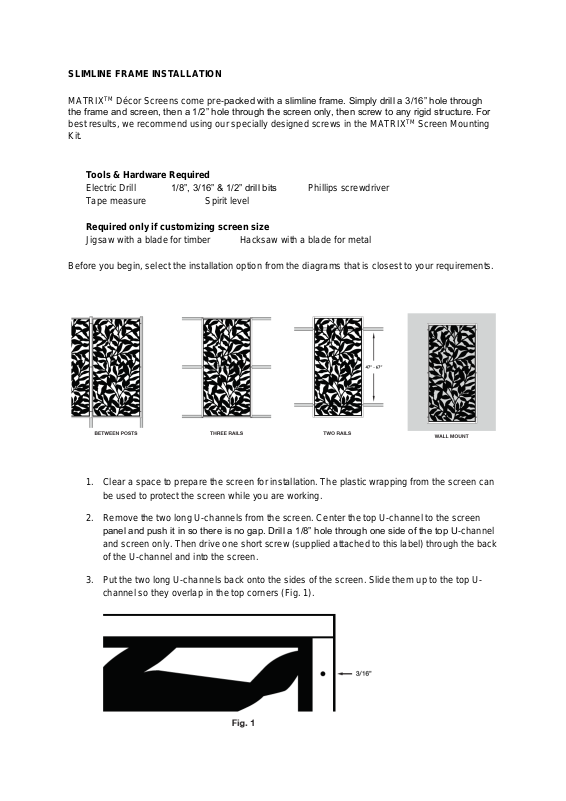

SLIMLINE FRAME INSTALLATION
MATRIXTM Décor Screens come pre-packed with a slimline frame. Simply drill a 3/16” hole through the frame and screen, then a 1/2” hole through the screen only, then screw to any rigid structure. For
best results, we recommend using our specially designed screws in the MATRIX
Screen Mounting
Kit.
Tools & Hardware Required
Electric Drill 1/8”, 3/16” & 1/2” drill bits Phillips screwdriver Tape measure Spirit level
Required only if customizing screen size
Jigsaw with a blade for timber Hacksaw with a blade for metal
Before you begin, select the installation option from the diagrams that is closest to your requirements.
1. Clear a space to prepare the screen for installation. The plastic wrapping from the screen can be used to protect the screen while you are working.
2. Remove the two long U-channels from the screen. Center the top U-channel to the screen panel and push it in so there is no gap. Drill a 1/8” hole through one side of the top U-channel and screen only. Then drive one short screw (supplied attached to this label) through the back of the U-channel and into the screen.
3. Put the two long U-channels back onto the sides of the screen. Slide them up to the top U­channel so they overlap in the top corners (Fig. 1).
4. Measure each position for the mounting holes and mark on the U-channels as per the selected installation option.
5. Drill 3/16” holes through the U-channel and screen where marked (Fig. 1).
6.
Remove the long U-channels from the screen and drill out the 3/16” holes in the screen ONLY with a 1/2” drill bit (Fig. 2).
IMPORTANT: These oversized holes are crucial as they allow
the screen to expand and contract with temperature changes.
7. Peel off the protective film from all the U-channels, then replace the side U-channels back onto the screen and match up the mounting holes in the channels and the screen (Fig. 3). Push them up to the top U-channel, ensuring that both sides are overlapped the same way.
8. Fit the bottom U-channel to the screen so it overlaps the bottom ends of the side U-channels the same way on both sides. Drill a 1/8” hole through the back of the bottom U-channel and the screen only. Then drive one short screw (supplied attached to this label) through the back of the U-channel and into the screen.
9.
To install the screen, drive the two top screws through the holes in the screen and U-channel first, so the screen will hang from these two points. Then insert the other screws and drive them into the support structure.
IMPORTANT: Release each screw by half a turn after
tightening.
10. To test whether the screen is installed correctly, lift the screen up; there should be vertical movement of approximately 5/16”. If not, release each screw by another half turn until there is enough movement. Otherwise, re-drill the mounting holes in the screen if required.
15 Year Manufacturer's Warranty
Design Flow Pty Ltd warrants to the original purchaser that Matrix screening, fencing and flooring products will be free of structural faults due to defects in manufacturing for a period not exceeding 15 years from the date of purchase.
Whilst the colour formulation of the materials has been designed to withstand many years of exposure to the sun and weather, the warranty does not cover natural fading or a reduction of material properties over time.
This warranty is only valid where the product has been installed according to the manufacturer's installation instructions.
All warranty matters are to be referred through the original place of purchase. Valid warranty claims will be settled by either full replacement or satisfactory repair of the faulty product.
Warranties and remedies including compensation for consequential or direct losses, other than those set out above are hereby excluded, except to the extent where to so exclude would contravene any law (including the Trade Practices Act (Cth. 1974) or cause any part of this warranty to be void.
