S E R V I C E M A N U A L
U 3 X - 0 2 B I K E
TABLE OF CONTENTS
CHAPTER 1: SERIAL NUMBER LOCATION ................................................................... 1
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.1 Read and Save These Instructions ........................................................................... 3
2.2 Electrical Requirements ............................................................................................ 4
CHAPTER 3: PREVENTATIVE MAINTENANCE
3.1 Recommended Cleaning Tips ................................................................................... 5
3.2 Check for Damaged Parts ......................................................................................... 5
3.3 Care and Maintenance Instructions .......................................................................... 6
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 Console Description .................................................................................................. 7
4.2 Workout Setup Steps - Manual .................................................................................. 8
4.3 Workout Setup Steps - Fat Burn ................................................................................ 8
4.4 Workout Setup Steps - Level Based .......................................................................... 8
4.5 Workout Setup Steps - Fitness Test ........................................................................... 9
4.6 Workout Setup Steps - Target Heart Rate ................................................................. 10
4.7 Workout Setup Steps - Constant Watts ..................................................................... 10
CHAPTER 5: MANAGER MODE

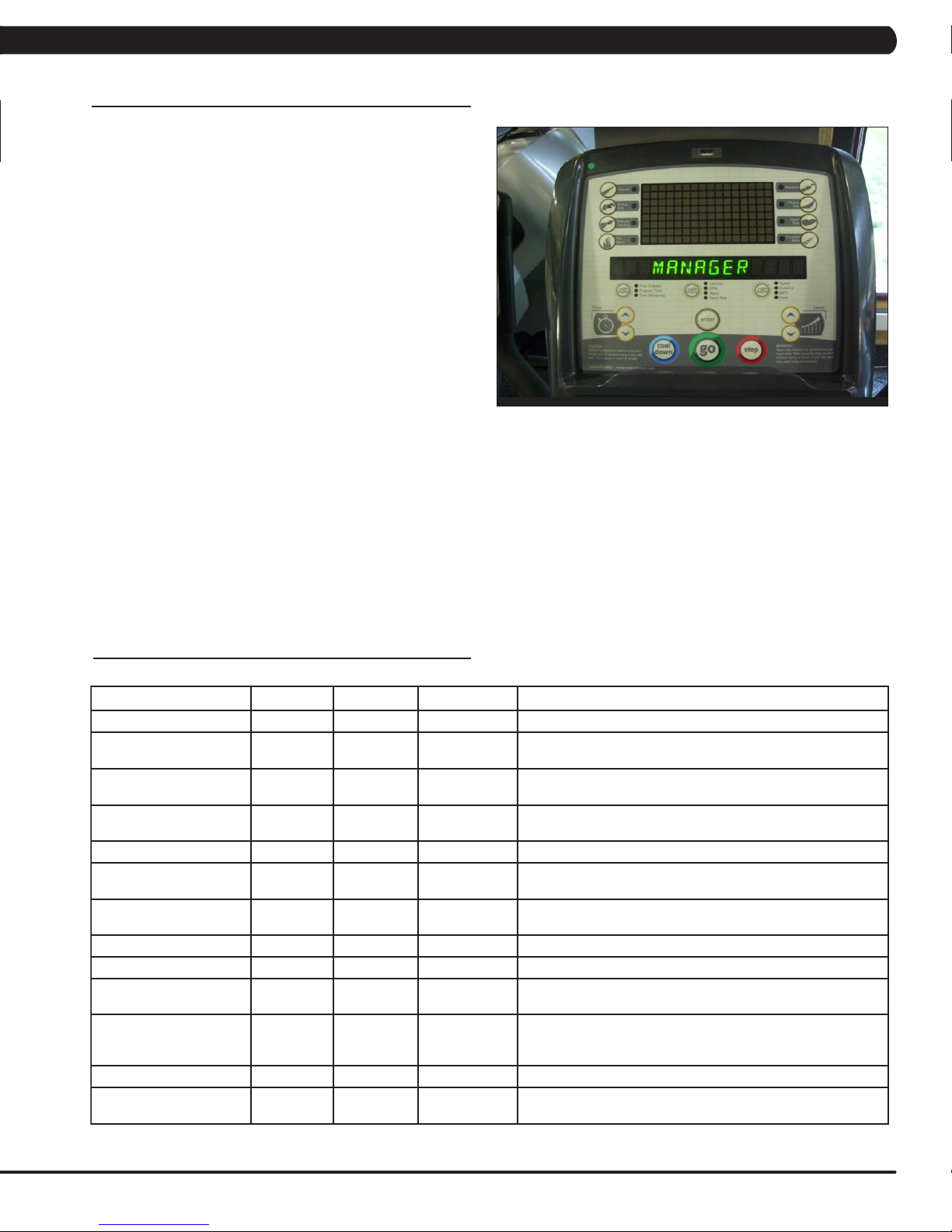

5.1 Using Manager Mode ................................................................................................ 11
5.2 Manager Mode Overview ........................................................................................... 11
CHAPTER 6: ENGINEERING MODE
6.1 Using Engineering Mode ............................................................................................ 12
CHAPTER 7: SERVICE MODE
7.1 Using Service Mode ................................................................................................... 13
CHAPTER 8: TROUBLESHOOTING
8.1 Electrical Diagram ..................................................................................................... 14
8.2 Error Codes on the Console ...................................................................................... 15

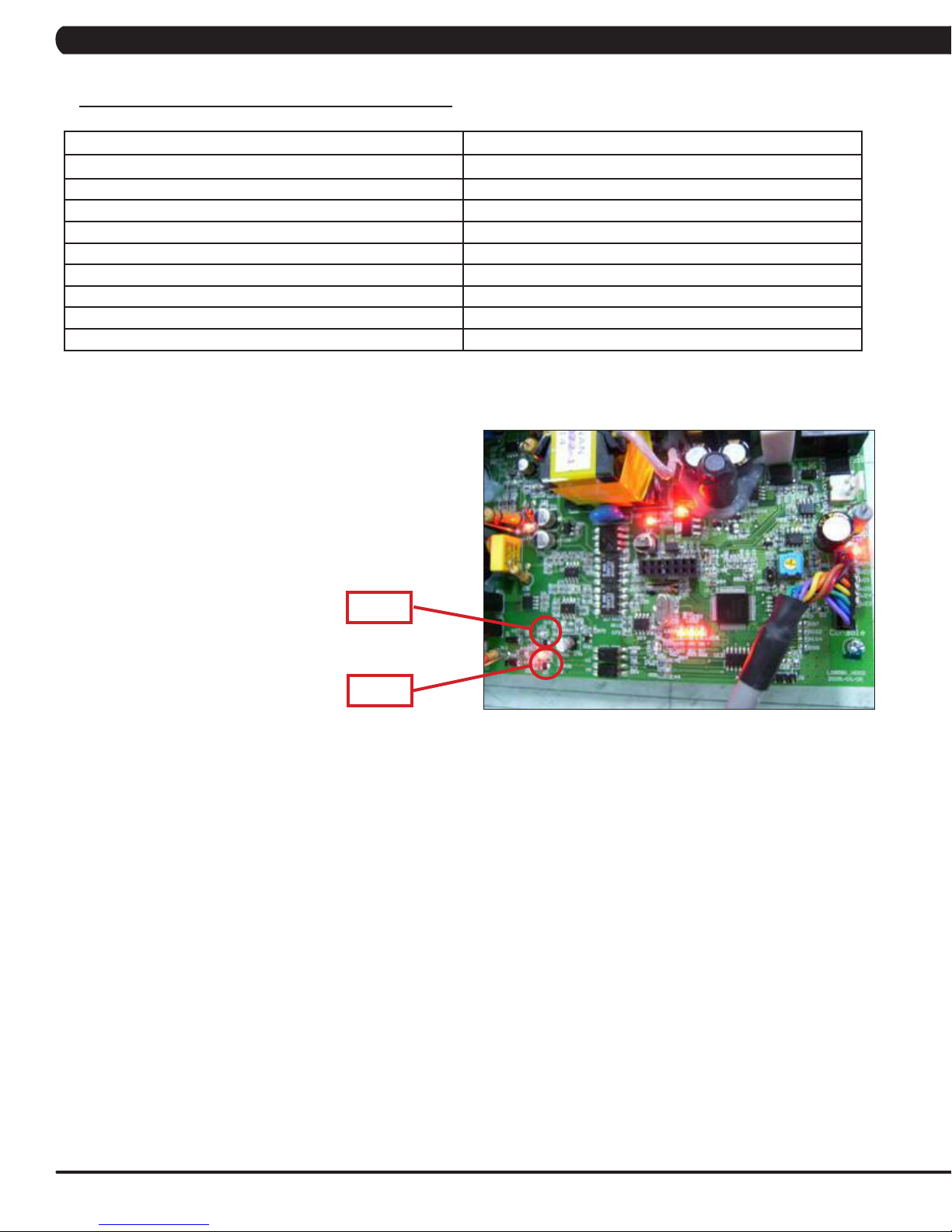

8.3 LCB LED Instructions ................................................................................................. 16
8.4 Troubleshooting - Display Issues ............................................................................... 17
8.5 Troubleshooting - Error Ox04A0 ................................................................................ 18
8.6 Troubleshooting - Keypad Issues ............................................................................... 19
8.7 Troubleshooting - Resistance Issues ......................................................................... 20
8.8 Troubleshooting - Pedal Slipping ............................................................................... 21
8.9 Troubleshooting - Noise Issues .................................................................................. 21
8.10 Troubleshooting - Heart Rate Issues ......................................................................... 22
CHAPTER 9: PART REPLACEMENT GUIDE
9.1 Console Replacement ................................................................................................ 23
9.2 Heart Rate Handlebar Replacement ......................................................................... 24
9.3 Heart Rate Grip Replacement ................................................................................... 25
9.4 Cup Holder Replacement ........................................................................................... 26

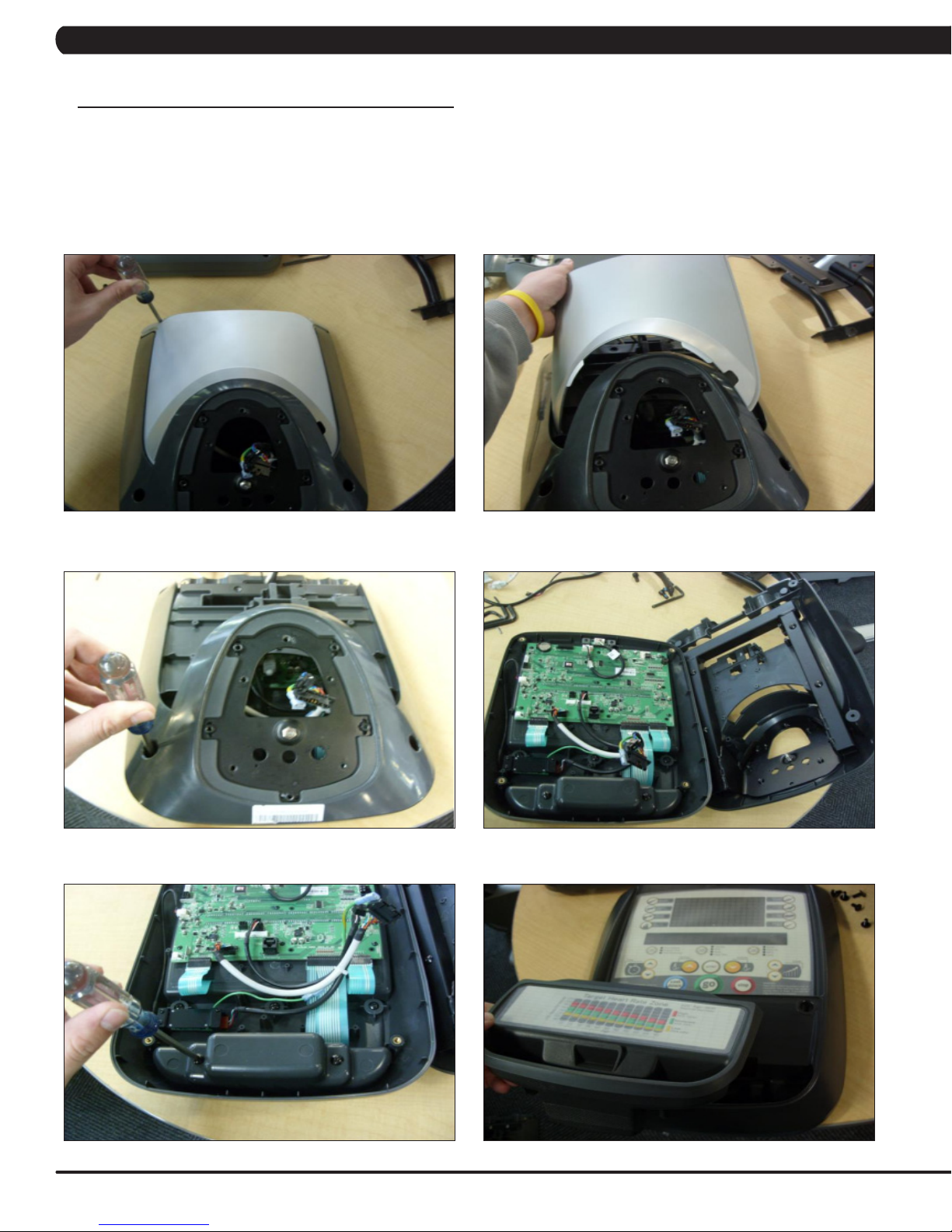

9.5 Console Keypad / Overlay Replacement ................................................................... 27
9.6 Console Mast Removal .............................................................................................. 29
9.7 Seat Pad Replacement .............................................................................................. 30
9.8 Seat Post Replacement ............................................................................................. 31
9.9 Seat Post Insert Replacement .................................................................................. 32
TABLE OF CONTENTS
9.10 Pedal Replacement .................................................................................................... 33

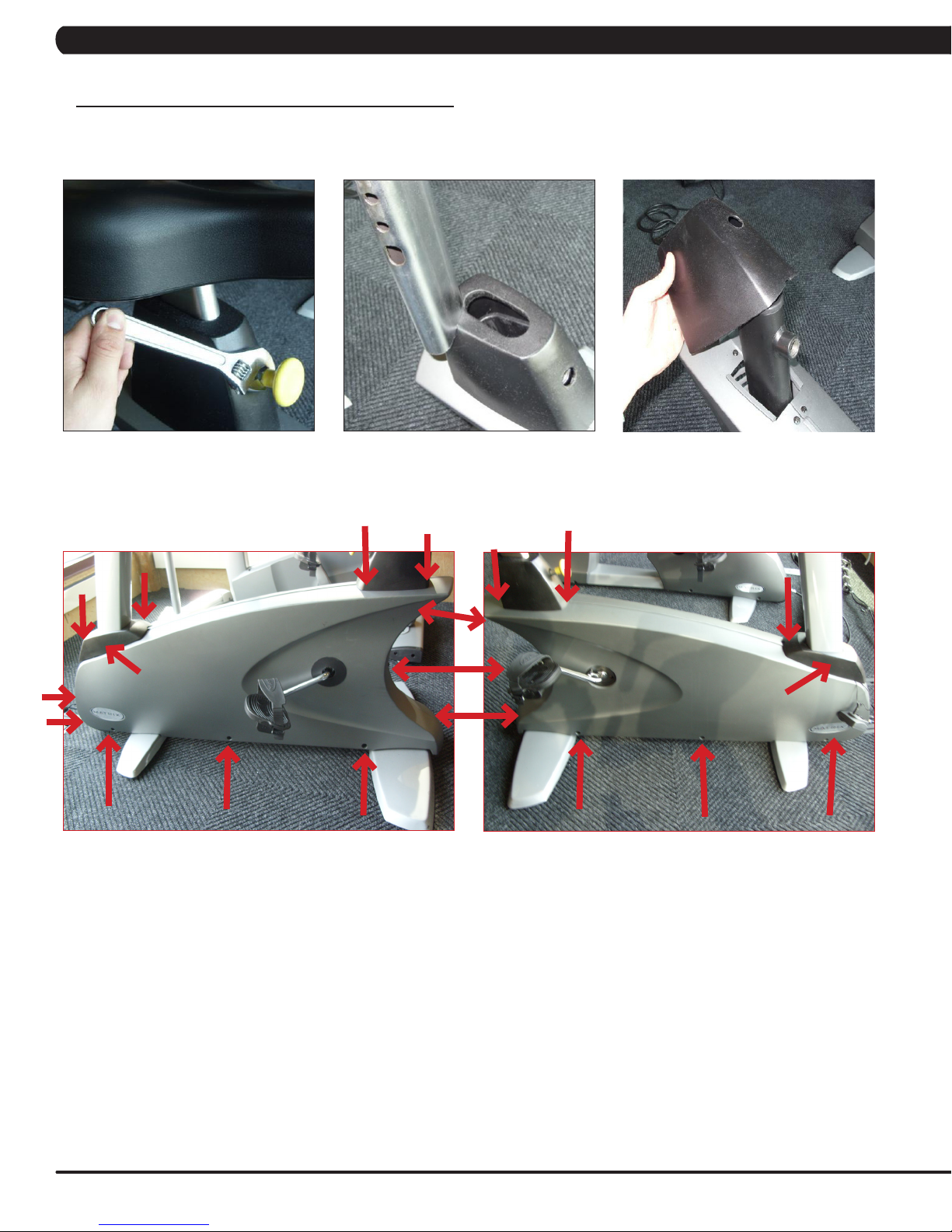

9.11 Shrouds Removal ....................................................................................................... 34
9.12 Lower Control Board Replacement ........................................................................... 35
9.13 Battery Replacement .................................................................................................. 36
9.14 Drive Belt Replacement ............................................................................................. 37
9.15 Generator Belt Replacement...................................................................................... 38
9.16 Generator Replacement ............................................................................................. 39
9.17 Pulley Axle Set Replacement.......................................................................................... 40
9.18 Crank Axle Set Replacement .......................................................................................... 42
9.19 Rear Stabilizer Replacement .......................................................................................... 43
9.20 Front Stabilizer Replacement ......................................................................................... 44
9.21 Testing the Bike ............................................................................................................... 45
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.1 U3x-02 Bike Specifications ........................................................................................ 46
10.2 Fasteners and Assembly Tools .................................................................................. 47
10.3 Assembly Instructions ............................................................................................... 48
10.4 Adjusting the Pedal Straps and Seat ......................................................................... 52
10.5 Leveling the Bike ........................................................................................................ 53
CHAPTER 11: SOFTWARE UPGRADE GUIDE
11.1 Software Upgrade Instructions ................................................................................... 54
III
1.1 SERIAL NUMBER LOCATION
CHAPTER 1: SERIAL NUMBER LOCATION
A serial number plate is located below the bottom of the console mast beneath a rubber boot. There is also a serial number tag on the middle
of the main frame pointed towards the floor.
1
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.1 READ AND SAVE THESE INSTRUCTIONS
To ensure your safety and protect the equipment, read all
instructions before operating the MATRIX U3x-02 Bike.
To ensure proper use of the Matrix U3x-02 Bike, make sure that all
users read this manual. Remind the users that before undertaking
any fitness program, they should obtain complete physical
examinations from their physicians. If, at any time while exercising,
the user experiences dizziness, pain, or shortness of breath,
nausea or feels faint, he or she must stop immediately.
* This bike is only to be used for its intended purpose described
in this manual. Do not use attachments that have not been recommended by Matrix.
* Never drop or insert objects into any opening. Keep hands away
from moving parts. If the item cannot be reached, contact a Matrix
authorized dealer for assistance.
* Never operate the unit if it is damaged, not working properly, when
it has been dropped, or has been dropped in water.
* Keep hands and feet clear at all times from moving parts to avoid
injury.
* Do not use this product outdoors, near swimming pools or in areas
of high humidity.
* Do not operate where aerosol (spray) products are being used or
when oxygen is being administered.
* Do not use this product in bare feet. Do not wear shoes with heels,
leather soles, cleats, or spikes while exercising.
CAUTION! If you experience chest pains, nausea, dizziness,
or shortness of breath, stop exercising immediately and consult your physician before continuing.
CAUTION! Any changes or modifications to this equipment
could void the product warranty.
* Do not remove the side covers. Service should only be done by an
authorized service technician.
* Close supervision is necessary when used near children, invalids,
or disabled people.
* When the bike is in use, young children and pets should be kept at
least 3 meters / 10 feet away.
* Assemble and operate the bike on a solid, level surface.
* Never face backward while using the Matrix U3x-02 Bike.
* Use the stationary handlebars when mounting or dismounting the
bike.
* Do not wear clothing that might catch on any moving parts of this
bike.
2
CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS
2.2 ELECTRICAL REQUIREMENTS
The Matrix 3x Series Upright Bike is designed to be self powered. NOTE: If an add on TV (using a bracket) is added to the unit, it must be
plugged in, or the TV will not operate correctly. If the Bike will be plugged in, follow the requirements below.
MATRIX DEDICATED CIRCUIT/ELECTRICAL REQUIREMENT INFO
All Matrix Bikes require the use of a 15 amp or 20 amp “dedicated circuit,” with a non-looped (isolated) neutral/ground, for the power requirement.
Quite simply this means that each outlet you plug Bikes into should not have anything else running on that same circuit besides other Bikes (up to
3 per 15 amp circuit and 4 per 20 amp circuit). The easiest way to verify this is to locate the main circuit breaker box, and turn off the breaker(s)
one at a time. Once a breaker has been turned off, the only thing that should not have power to it are the Bikes in question. No lamps, vending
machines, fans, sound systems, or any other item should lose power when you perform this test.
Non-looped (isolated) neutral/grounding means that each circuit must have an individual neutral/ground connection coming from it, and terminating
at an approved earth ground. You cannot “jumper” a single neutral/ground from one circuit to the next.
In addition to the dedicated circuit requirement, the proper gauge wire must be used from the circuit breaker box, to each outlet that will have the
maximum number of units running off of it. If the distance from the circuit breaker box, to each outlet, is 100 ft or less, then 12 gauge wire may be
used. For any distance greater than 100 ft from the circuit breaker box to the outlet, 10 gauge wire must be used.
For your safety and Bike performance, the ground on this circuit must be non-looped. Please refer to NEC article 210-21 and 210-23. Your Bike is
provided with a power cord with a plug listed below and requires the listed outlet. Any alterations of this power cord could void all warranties for
this product. Multiple Bikes can be powered on one dedicated circuit. (3 units per 15 Amp and 4 units per 20 Amp dedicated circuit.)
GROUNDING INSTRUCTIONS:
The Matrix U3x-02 Upright Bike must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. The Bike is equipped with a cord having an equipment grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances. If the user does not follow these grounding instructions, the user could void the Matrix limited warranty.
DANGER: Improper connection of the equipment grounding conductor can result in the risk of electric shock. Check with a qualified electrician
if the user is in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product if it will not fit the outlet,
have a proper outlet installed by an electrician.
3
CHAPTER 3: PREVENTATIVE MAINTENANCE
3.1 RECOMMENDED CLEANING TIPS
Preventative maintenance and daily cleaning will prolong the life and look
of your MATRIX U3x-02 Bike
Please read and follow these tips.
* Position the equipment away from direct sunlight. The intense UV
light can cause discoloration on plastics.
* Locate your equipment in an area with cool temperatures and low
humidity.
* Clean with a soft 100% cotton cloth.
* Clean with soap and water or other non-ammonia based all purpose
cleaners.
* Wipe seats, pedals, console, heart rate grips, and the handlebar clean
after each use.
* Do not pour liquids directly onto your equipment. This can cause dam-
age to the equipment and in some cases electrocution.
* Check pedal straps weekly for wear.
* Adjust leveling feet when equipment wobbles or rocks.
* Maintain a clean area around the equipment, free from dust and dirt.
3.2 CHECK FOR DAMAGED PARTS
DO NOT use any equipment that is damaged or has worn or
broken parts. Use only replacement parts supplied by Matrix
Fitness Systems.
MAINTAIN LABELS AND NAMEPLATES. Do not remove labels
for any reason. They contain important information. If unreadable
or missing, contact Matrix Fitness Systems for a replacement at
866-693-4863 or www.matrixfitness.com.
MAINTAIN ALL EQUIPMENT. Preventative maintenance is the
key to smoothly operating equipment. Equipment needs to be
inspected at regular intervals. Defective components must be
kept out of use until they are repaired. Ensure that any person(s)
making adjustments or performing maintenance or repair of any
kind is qualified to do so. Matrix Fitness Systems will provide
service and maintenance training at our corporate facility upon
request or in the field if proper arrangements are made.
4
CHAPTER 3: PREVENTATIVE MAINTENANCE
3.3 CARE AND MAINTENANCE INSTRUCTIONS
In order to maximize life span, and minimize down time, all MATRIX equipment requires regular cleaning, and maintenance items performed on
a scheduled basis. This section contains detailed instructions on how to perform these items and the frequency of which they should be done.
Some basic tools and supplies will be necessary to perform these tasks which include (but may not be limited to):
* Metric Allen wrenches
* #2 Phillips head screwdriver
* Adjustable wrench
* Torque wrench (capability to read foot lbs and inch lbs)
* Lint free cleaning cloths
* Teflon based spray lubricant such as "Super Lube" or other Matrix approved products.
* Mild water soluble detergent such as "Simple Green" or other Matrix approved products
* Vacuum cleaner with an extendable hose and crevasse tool attachment.
You may periodically see addendums to this document, as the Matrix Technical Support Team identifies items that require specific attention, the
latest version will always be available on the Matrix web site at www.matrixfitness.com.
DAILY MAINTENANCE ITEMS
1) Look and listen for loose fasteners, unusual noises, and any other indications that the equipment may be in need of service.
2) Clean the bike before and after each use, including:
a. Use a damp, soft cloth with water or mild liquid detergent to clean all exposed surfaces. DO NOT use ammonia, chlorine, or any acid
based cleaners. NOTE: Spray cleaner onto a cloth before using, never spray cleaner directly onto the equipment.

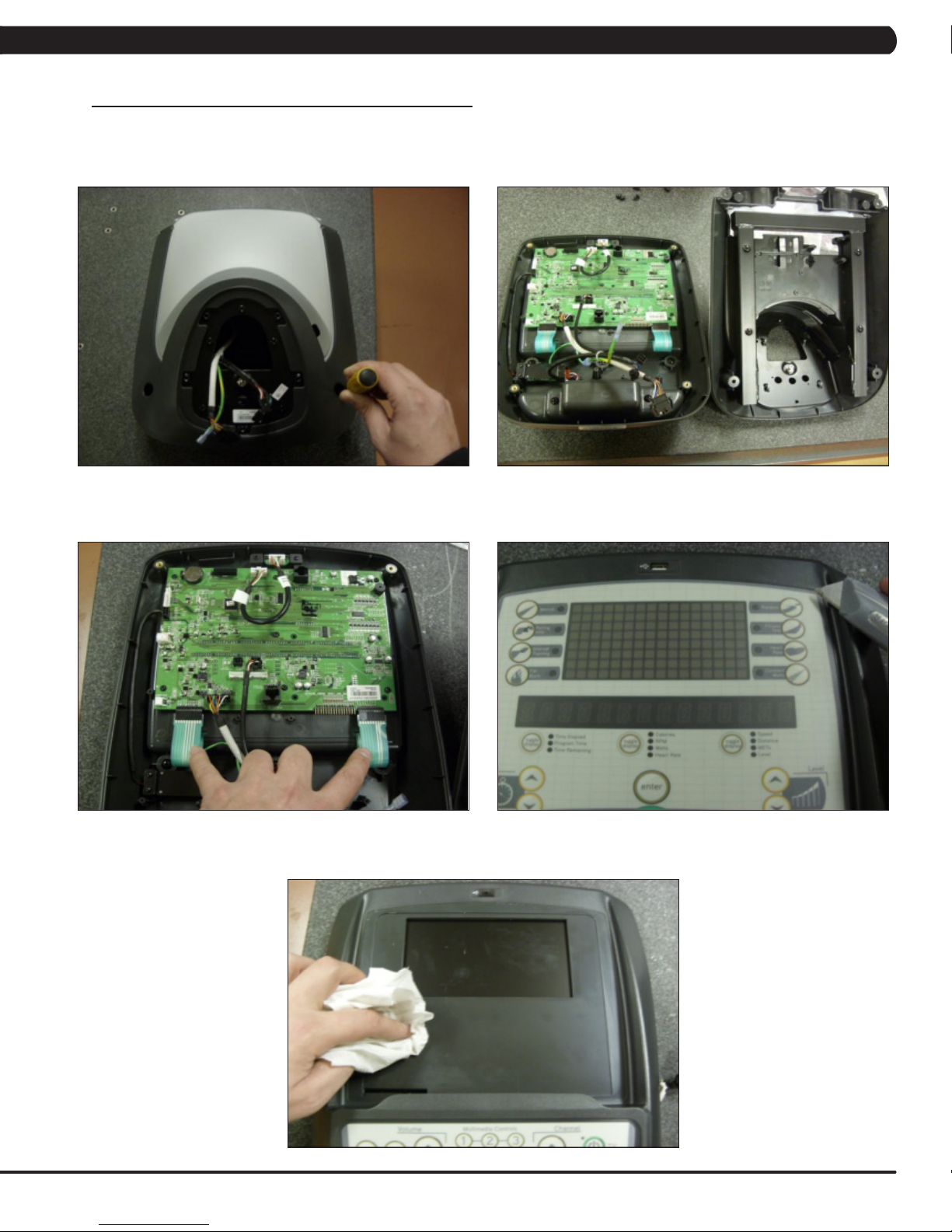

b. Keep the console display free of fingerprints and salt build up caused by sweat.
3) Attempt to wobble the unit from side to side and front to back. Level if needed (see Section 10.5).
WEEKLY MAINTENANCE ITEMS
1) Frequently vacuum the floor beneath the unit to prevent the accumulation of dust and dirt which can affect the smooth operation of the unit.
2) Check the pedal straps for damage.
3) Clean the grooves on the foot pedals.
MONTHLY MAINTENANCE ITEMS
1) Inspect the console, seat, pedals, and shrouds for damage.
2) Tighten the pedals onto their respective cranks using a 15 mm wrench.
3) Adjust the leveling feet if equipment rocks or wobbles.
4) Clean the seat post track with a 100% cotton cloth.
YEARLY MAINTENANCE ITEMS
1) Remove the front shrouds and check the belt for damage, alignment, and proper tension.
5
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.1 CONSOLE DESCRIPTION
WORKOUT KEYS Simple program view and selection buttons.
GO: One touch Start.
ENTER: To confirm each program setting.
UP / DOWN LEVEL: Easy information and level selection.
UP / DOWN TIME: Easy information and time adjustment.
STOP: Ends workout and shows workout summary data.
COOL DOWN: Puts the Bike into Cool Down Mode.
TOGGLE DISPLAY: Allows the user to select what information is displayed on each of the 3 windows on the console. Press and hold to enable /
disable scrolling.
6
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.2 WORKOUT SETUP STEPS - MANUAL
GO - Press to immediately begin a workout. Workout, resistance level, and time will automatically go to default settings. Pressing GO will not
prompt user for age, weight, or level settings.
1) Start pedaling and press the GO key to begin your workout. 2) The display will read 3, 2, 1, Begin and then the program will start.
MANUAL - Manual allows the user to input more information while defining their own workout. Calorie expenditure will be more accurate when
inputting information in Manual than by pressing GO.
1) Start pedaling, press the MANUAL key.
2) Select Level by using the UP or DOWN LEVEL keys and press ENTER.
3) Select Time by using the UP or DOWN LEVEL keys and press ENTER.
4) Select Weight by using the UP or DOWN LEVEL keys and press ENTER.
5) The display will read 3, 2, 1, Begin and then the program will start.
4.3 WORKOUT SETUP STEPS - LEVEL BASED PROGRAMS
FAT BURN - Fat burn is a level based program that is designed to help users burn fat through various resistance level changes.
ROLLING HILLS - The Rolling Hills program is a level based program that automatically adjusts the resistance level to simulate real
terrain.
INTERVAL TRAINING - The Intervals Training program is a level based program that automatically adjusts the resistance of the machine
from low to high intensity settings at regular intervals.
1) Start pedaling, press the workout button of choice.
2) Select Time by using the UP or DOWN LEVEL keys and press ENTER.
3) Select Weight by using the UP or DOWN LEVEL keys and press ENTER.
4) Select Level by using the UP or DOWN LEVEL keys and press ENTER.
5) The display will read 3, 2, 1, Begin and the program will start.
4.4 WORKOUT SETUP STEPS - USER DEFINED PROGRAMS
RANDOM - There are 20 workout profiles in Random Mode. The profile will change every time random is pressed. Choose the random
workout desire, then start similar to a level based program.
FIT TEST - The Fitness Test measures cardiovascular fitness and provides an estimated sub-maximal VO2 result. It based on power output
according the ACSM standards and was developed by the Cooper Institute (www.cooperinstitute.com).
User RPMs must remain between 60-80 RPM during the test. The test will end when the user can no longer maintain this speed. Use of a
heart rate strap is optional, but provides more data. The test starts at a low intensity level and gradually increases in intensity (difficulty) every
2 minutes. As it increases, the user must maintain 60-80 RPM to advance to the next level. The test could take upwards of 30 minutes for very
fit individuals. Once the test ends a recovery period (Cool Down) will begin, and the user's results are calculated and displayed. Results are
based on the number of stages complete.
Stage Complete:
1 Well Below Average
2 Well Below Average
3 Below Average
4 Below Average
5 Average
6 Average
7 Above Average
8 Above Average
9+ Well Above Average
7
CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION
4.5 WORKOUT SETUP STEPS - HEART RATE CONTROL
TARGET HEART RATE - The Matrix Bike comes with standard digital contact heart rate sensors and are POLAR telemetry compatible.
The heart rate control workout mode allows the user to program their desired heart rate zone, and the Bike will automatically adjust the level
based upon the user's heart rate. The heart rate zone is calculated using the following equation: (220-Age)8%=target heart rate zone. The user
must wear a POLAR telemetric strap or continually hold onto the contact heart rate grips for this workout.
Locate the metal sensors on the handlebars of the Bike. Notice that there are two separate pieces of metal on each grip. You must be making
contact with both pieces of each grip to get an accurate heart rate reading. You can grab these sensors in any program to view your current
heart rate.
1) Start pedaling and press the TARGET HEART RATE key.
2) Select Age by using the UP or DOWN LEVEL keys and press ENTER.
3) Select Target HR Percentage by using the UP or DOWN LEVEL keys and press ENTER.
4) Select Time by using the UP or DOWN LEVEL keys and press ENTER.
5) Select Weight by using the UP or DOWN LEVEL keys and press ENTER.
6) The display will read 3, 2, 1, Begin and the program will start.
Heart Rate Protocols:
- Heart rate is within 10 BPM (beats per minute) of target, upper LED display will show a heart.
- Heart rate is greater or less than 10 BPM of target, resistance level will increase or decrease every 10 seconds.
- Heart rate is greater than 14 BPM of target, resistance level will drop to 30%.
- Heart rate is greater than 10 BPM of target, lower LED will display "WARNING HR ABOVE TARGET".
- Heart rate is greater than 20 BPM of target, the program will immediately end.
4.6 WORKOUT SETUP STEPS - CONSTANT WATTS
CONSTANT WATTS - Constant Watts is a unique program that allows you to vary your cadence or RPM and the machine's resistance will
adjust accordingly to your selected goal. The quicker you stride, the less resistance for the goal selected. The braking system is adjustable in
normal programs except for Constant Watts. For the Constant Watts program, the braking is not adjustable.
1) Start pedaling and press the CONSTANT WATTS key.
2) Select desired Watts by using the UP or DOWN LEVEL keys and press ENTER.
3) Select Time by using the UP or DOWN LEVEL keys and press ENTER.
4) Select Weight by using the UP or DOWN LEVEL keys and press ENTER.
5) The display will read 3, 2, 1, Begin and the program will start.
8
CHAPTER 5: MANAGER MODE
5.1 USING MANAGER MODE
The Manager's Custom Mode allows the club owner to customize
the bike for the club.
1) To enter Manager Mode, press and hold down the UP and
DOWN LEVEL keys. Continue to hold down these two keys until the
display reads Manager Mode and hit ENTER (Figure A).
2) To scroll through the list of options in Manager Mode, use the
UP and DOWN LEVEL keys. Each of the custom settings will show
on the display.
3) To select a custom setting, press the ENTER key when the
desired setting is shown.
4) To change the value of the setting, use the UP and DOWN
LEVEL keys.
5) To confirm and save the value of the setting, press the ENTER
key.
6) To exit the setting without saving, press the BACK key.
7) Press and hold the STOP key for 3-5 seconds to return to normal
operation.
FIGURE A
5.2 MANAGER MODE OVERVIEW
CUSTOM SETTING DEFAULT MINIMUM MAXIMUM DESCRIPTION
Maximum Time 60 min 5 min 99 min Sets the total run time of any program.
Default Time 30 min 5 min Maximum Time
Default Age 30 10 100 Starting age when GO is pressed or when no age is selected
Default User Weight 150 lbs /
68 kg
Accumulated Distance N/A 0 99,999 Miles Total distance for all programs.
Accumulated Time N/A 0 999,999 hours Total time for all programs displayed in hours.
Software Version N/A N/A N/A Current version of console software. Also able to check LCB
Sound Mode On On Off Turns the chime on / off when a button is pressed.
Out of Order Off On Off Locks the machine when out of order.
Gender Male Male Female Determines the gender of the user when not selected during
Language English English English Sets the language for the console. Select between English,
Speed / Distance Mode Mile Mile Kilometer Displays distance in miles or kilometers.
Default Level 1 1 20 Starting resistance when GO is pressed or when no resistance
60 lbs / 27 kg400 lbs / 182 kgWeight used for program calorie expenditure calculations.
Setting
Workout time when GO is pressed or when no time is selected
during program set up.
during program set up.
and radio versions if needed.
program set up.
Spanish, German, French, Italian, Portuguese, Finnish,
Japanese, Swedish, and Dutch.
is selected during program set up.
9
CHAPTER 6: ENGINEERING MODE
6.1 USING ENGINEERING MODE
To enter Engineering Mode, hold the LEVEL UP and DOWN keys for 3-5 seconds until Manager appears on the middle LED display. Press the
LEVEL UP or DOWN key to scroll to Engineering. Press ENTER to go into Engineering Mode.
CUSTOM SETTING DEFAULT OPTIONS DESCRIPTION
Machine Type U3x H3x, U3x, R3x, E3x, S3x, A3x The machine type should be the
Power Save Time 30 Seconds 30-60 Seconds Power saving time for the self
Pause Time 30 Seconds 15 - 120 Seconds For non self powered frames
Serial Number N/A N/A Serial Number input is available
Sleep Time Off Off or On (1-30 Minutes) If there is no use of the machine
Audio Source Off Off / TV / PC TV / Remote TV Manual setting that sets which
Disable Errors No Yes or No No - Shows A-C class error
Speed Units Mile Mile or Kilometer Set for Mile or Kilometer.
U3x for the Bike.
powered frame.
only. Not used on this model.
for both the Console and Frame.
Use the number keys and UP
/ DOWN LEVEL keys to enter
Engineering Mode. Due to the
limited LED characters, 2 layers
are used to enter the serial
number. First Layer:
- PPPPP V
- PPPPP is the product name.
- V is the version. If the
version is A, just leave this blank.
Second Layer
- YY MM nnnnn.
- YY is the year (11, 12).
- MM is the month (e.g. 08,
09, 10).
- nnnnn is the actual serial
number.
Use the UP / DOWN LEVEL keys
to navigate the layers and the
number keys to input the serial
number. The product name is
dependent on the Machine Type
setting.
For example, the console is
EP603 with ver. A and the
manufactured date is 2011.08
with 98765. The frame is CB75
with ver. A and the manufactured
date is 2011.06 with 12345. Their
serial numbers are:
Console SN: EP603 1rst layer,
110898765 2nd layer.
Frame SN: CB75 1rst layer,
110612345 2nd layer.
over a period of time, the console
LEDs will turn off (go into sleep
mode). This is for AC powered
units only.
outside TV will have audio
through the console audio ports.
codes. Yes - Shows only C class
error codes.
10
CHAPTER 7: SERVICE MODE
7.1 USING SERVICE MODE
To enter Service Mode, hold the LEVEL UP and DOWN keys for 3-5 seconds until Manager Mode appears on the middle LED display. Press
the LEVEL UP or DOWN key to scroll to Service Mode. Press ENTER to go into Service Mode.
CODE DEFAULT OPTIONS DESCRIPTION
Service 1 Display Test Press the ENTER key repeatedly
Service 2 Keypad Test Press any key and the display
Service 3 Distance / Time Distance:
Mile 0 - 99999
Kilometer 0 - 160898
Time:
0 - 999999
Service 4 CSafe / RF Test Press the ENTER key to test
Service 5 Error Log Shows the last 10 errors. Press
Service 6 Set Date / Time Press the LEVEL keys to move
Service 7 Export and Import Parameter Export Parameter - Export all
to check each set of LEDs on the
display sequentially.
should show the corresponding
message.
Manually sets the Accumulated
Distance and Time.
CSAFE. Press the ENTER key
again to test the RF.
and LEVEL UP and DOWN for 3
seconds to clear the errors.
cursor, the number keys to set
date / time, and the ENTER key
to save.
parameters to a USB device.
Import Parameter 1 - Imports the
engineer parameters to a USB
device except serial number,
accumulated distance and time.
Import Parameter 2 - Imports the
engineer parameters to a USB
device including serial number,
accumulated distance and time.
11
8.1 ELECTRICAL DIAGRAM
CHAPTER 8: TROUBLESHOOTING
12
CHAPTER 8: TROUBLESHOOTING
8.2 ERROR CODES ON THE CONSOLE
CODE CLASS DESCRIPTION SOLUTION
0x02AB C Machine type error. Set the correct machine type in
0x02B3 C Resistance type error. Set the correct machine type in
0x0201 A Low voltage on the battery
(voltage under 11.2V).
0x0247 B LCB failed (memory write error /
feedback ADC error).
0x0248 B Battery failure or disconnection
(Voltage under 8V or over 15V).
0x0441 B When the UCB implements
a command, the LCB is not
receiving this command.
0x04A0 C Digital Communication Failure.
LCB has no return message for
the UCB for 3 seconds.
0x04B0 C UCB No Response. Check the console cable
Engineering Mode.
Engineering Mode.
Charge by running or by plugging
in the AC adapter.
Replace the LCB.
Check the wire connections at
the battery. Replace the battery.
Check the machine type in
Engineering Mode. Check the
connections at the UCB and LCB.
Check the console cable
connections at the UCB and
LCB. Replace the UCB or LCB
as needed.
connections at the UCB and
LCB. Replace the UCB or LCB
as needed.
CLASS C ERRORS WILL DISPLAY ON THE CONSOLE.
CLASS A OR B ERRORS WILL ONLY DISPLAY IN SERVICE MODE 5.
13
CHAPTER 8: TROUBLESHOOTING
8.3 LCB LED INSTRUCTIONS
LED INDICATOR DESCRIPTION
LED 1 RPM (AC Plug In).
LED 2 +5V
LED 3 +15V
LED 4 Bus Voltage
LED 5 RPM (Generator).
LED 6 Status 1 (Program operation).
LED 7 Status 2 (Resistance value in middle 1/2 VCC).
LED 8 Status 3 (Digital Communication).
LED 9 +12V (Console Power).
WITHOUT AC PLUG - NORMAL
LED 2 - LED 9 - On.
LED 1 - Off (No AC plug detected).
LED 5 - On (Generator power detected),
WITH AC PLUG - NORMAL
LED 2 - LED 9 - On.
LED 1 - On (AC plug detected).
LED 5 - Off (No Generator power detected).
LED 1
LED 5
14
CHAPTER 8: TROUBLESHOOTING
8.4 TROUBLESHOOTING - DISPLAY ISSUES
NO DISPLAY ON THE CONSOLE OR THE DISPLAY IS DIM WHEN RUNNING
LED 1
LED 9
LED 8
LED 5
SYMPTOM: The console will not power up or the display is dim.
CHECK POINT POSSIBLE ISSUE SOLUTION
LEDs 2, 3, 4, 6, and 7 should be ON. If they are OFF, the LCB is damaged. Replace the LCB.
If LED 1 is OFF. No AC power cord plugged in. Normal for an non-powered unit.
If LED 5 is OFF. Generator has no RPM output. Normal for a powered unit. If non-powered
If LED 8 is OFF. Bad communication between UCB and LCB. Reconnect the console cable at the LCB and
If LED 9 is OFF. LCB is not providing 12V power to the UCB. Replace the LCB.
and issue is still present, replace the
generator.
UCB and check for kinks.
SOLUTION IF LEDS ARE NORMAL:
1) If the LEDs are lit normally, replace the UCB and console cable.
2) if the issue is still present after the UCB and console cable are replaced, replace the LCB.
15
CHAPTER 8: TROUBLESHOOTING
8.5 TROUBLESHOOTING - ERROR 0x04A0
ERROR 0x04A0 (DIGITAL COMMUNICATION FAILURE)
LED 1
LED 8
SYMPTOM: Error code 0x04A0 is displayed on the console.
CHECK POINT POSSIBLE ISSUE SOLUTION
LEDs 2, 3, 4, 6, and 7 should be ON. If they are OFF, the LCB is damaged. Replace the LCB.
If LED1 is OFF. No AC power cord plugged in. Normal for an non-powered unit.
If LED 8 is OFF. Bad communication between UCB and LCB. Reconnect the console cable at the LCB and
UCB and check for kinks.
SOLUTION IF LEDS ARE NORMAL:
1) If the LEDs are lit normally, replace the UCB and console cable.
2) if the issue is still present after the UCB and console cable are replaced, replace the LCB.
16
CHAPTER 8: TROUBLESHOOTING
8.6 TROUBLESHOOTING - KEYPAD ISSUES
ALL OR SOME OF THE FUNCTION KEYS DO NOT RESPOND
POSSIBLE CAUSES:
1) The keypad connection ribbon cable has not been plugged in correctly.
2) The keypad is damaged.
3) The UCB is damaged.
SOLUTION:
1) Perform a keypad test in Service Mode:
a. Press and hold both the UP and DOWN LEVEL keys until Manager Mode appears on the display.
b. Use the UP and DOWN LEVEL keys to scroll to Service Mode 5 and press ENTER.
c. Test the affected keypad. If the keypad works in the keypad test it may not be a functioning key in the program used for testing it.
2) Check the connections of the keypad at the UCB.
a. Remove the console from the console mast.
b. Remove the 6 screws holding the back of the console to the front (Figure A).
c. Inspect the keypad ribbon cable connection at the UCB (Figure B).
d. Even if the keypad ribbon cable appears to be connected correctly, unplug and re-seat the cable, then retest.
3) Replace the affected keypad.
4) Replace the UCB.
FIGURE A FIGURE B
17
CHAPTER 8: TROUBLESHOOTING
8.7 TROUBLESHOOTING - RESISTANCE ISSUES
HIGH OR NO RESISTANCE
POSSIBLE CAUSES:
1) The console cable is damaged or not properly plugged in.
2) The UCB is damaged.
3) The Generator is damaged.
4) The LCB is damaged.
SOLUTION:
1) Check the console cable connections at the UCB and LCB.
2) Check if the generator is outputting variable power:
a. Insert the probes from a multi-meter into the 1 & 2, 2 & 3, and 1 & 3 wires on the generator wire harness connector (Figure A).
b. When pedaling, the output voltage from the generator should vary depending on the RPM. The generator should output 120 VAC at 94
RPM.
3) If the generator does not have variable power, replace the generator.
4) If the generator does have variable power, replace the LCB.
18
FIGURE A
CHAPTER 8: TROUBLESHOOTING
8.8 TROUBLESHOOTING - PEDALS SLIPPING
PEDALS SLIPPING
POSSIBLE CAUSES:
1) The belt tension is not enough.
2) The one way bearing is damaged.
SOLUTION:
1) Remove the covers and check the belt tension.
a. Tighten the drive belt tension if needed by moving the spring tension clip to another hole.
b. The generator belt should be tightened to 85 lbf.
2) If the belts are tensioned correctly, the one way bearing is damaged, replace the drive assembly.
8.9 TROUBLESHOOTING - NOISE ISSUES
KNOCKING OR CREAKING NOISE
POSSIBLE CAUSES:
1) The pedal is on the crank too loosely.
2) The crank or axle is worn out.
3) The belt tension is not enough, or the belts are too dirty.
SOLUTION:
1) Retighten the pedal on the crank.
2) Replace the crank or axle as needed.
3) Remove the covers and check the belt tension.
a. Tighten the drive belt tension if needed by moving the spring tension clip to another hole (see Section 8.13).
b. The generator belt should be tightened to 85 lbf.
4) Clean the belts. If they are worn or will not clean, replace the belts.
19
CHAPTER 8: TROUBLESHOOTING
8.10 TROUBLESHOOTING - HEART RATE ISSUES
HEART RATE FUNCTION DOES NOT WORK OR IS READING INCORRECTLY
POSSIBLE CAUSES:
1) The HR grips are not hooked up correctly.
2) The HR grip wiring is damaged.
3) The console or HR board is not properly grounded.
4) The console, HR board, or wiring between are bad.
SOLUTION:
1) Perform a DC Voltage test on the HR grips.
a. With one prong of a multi meter on each of the plates on one side of the HR grip set (Figure A), a voltage reading of between .5 and 2.0
should be seen. If the reading is correct, the issue is not with the HR grips or grip wiring.
b. If the reading is not correct, remove the screws holding the halves of the HR grip together and check the connection of the wiring to the
grips (Figure B).
2) Remove the console from the unit and verify continuity of the HR grip wiring. With a multi meter set for ohms, place one prong on the HR grip
wiring coming up the console mast (Figure C), and the other on the appropriate plate (match red with red and white with white).
a. An ohm reading of less than 1 should be received. If it is higher, replace the HR grip wiring.
3) Perform a continuity check on the console (See Service Bulletin - Continuity Test on Matrix Bikes).
a. Once the console continuity is confirmed, perform a continuity check on the HR board ground wire. With a multi meter set for ohms, place
one prong on the HR board ground wire (Figure D), and the other on the console ground wire. An ohm reading of less than 1 should be received.
If it is higher, replace the HR board.
4) If all the troubleshooting listed above has been performed, and the unit still has HR issues, replace the HR board.
a. If the HR board does not resolve the issue, replace the console.
FIGURE A
FIGURE B
FIGURE C
20
FIGURE D
CHAPTER 8: TROUBLESHOOTING
8.11 ENTERTAINMENT TROUBLESHOOTING - OVERVIEW
1. Sections 8.11 - 8.14 will help with diagnosing problems with TV and entertainment related equipment that is produced by Matrix Fitness Systems.
2. The U3x-02 Bike has the capability of adding an external 15" TV with a bracket. A Matrix brand external TV will look similar to the TV in Figure A.
Your control keypad should look similar to Figure B. If your equipment looks different contact Matrix or the manufacturer of your TV equipment if
known.
FIGURE A FIGURE B
3. Verify how your TV is mounted, compare your machine to Figure C which shows an external 15" TV directly mounted to a unit with a 3x console.
FIGURE C
4. For Matrix produced and mounted equipment you can use the information outlined in this section to help with any connection and power
issues you may have. If you have questions that are specic to the TV alone (settings, programming, menu options, etc) please see the
entertainment owner’s manual.
21
CHAPTER 8: TROUBLESHOOTING

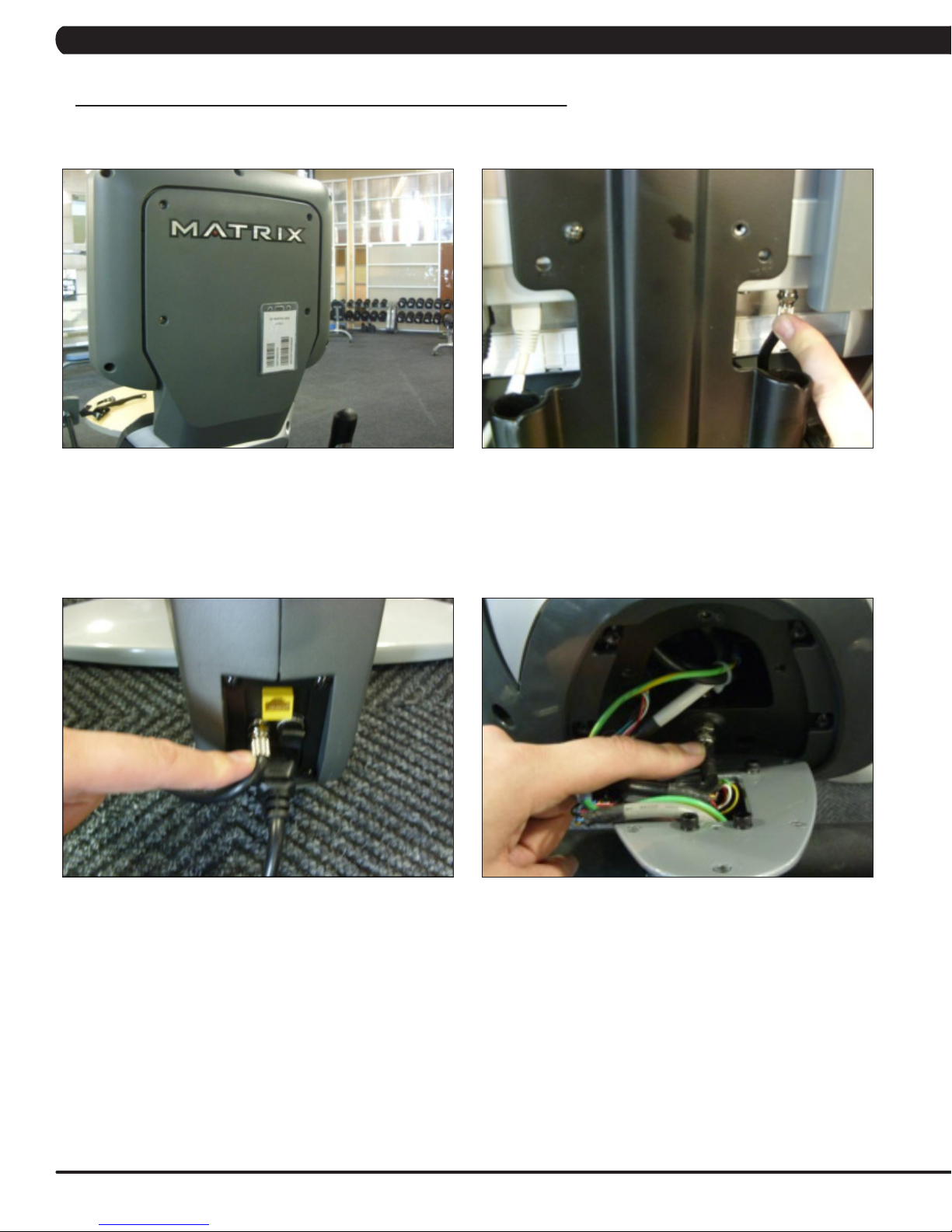

8.12 ENTERTAINMENT TROUBLESHOOTING – PICTURE FUZZY OR UNCLEAR
1. Remove the TV back cover (Figure A) Using a veried good piece of coax cable, hook the coax directly to the TV jack. This bypasses internal
connections for your machine or TV stand (Figure B).
FIGURE A FIGURE B
2. If this does not clear your picture the issue is with the club's signal. Make sure that the coax has a signal strength of at least 10db.
3. If Step 1 does clear your picture, check the internal cables and ttings inside your machine. Make sure you have no damage (kinks, cuts etc)
and no stray wires or poor ttings on the ends of the cables anywhere that the coax cable is connected (Figures C & D). Fittings should have a
clean ush connector and no stray aluminum strands touching the center conductor. Replace or repair any suspect cables.
FIGURE C FIGURE D
4. If nothing is visibly wrong with any of the cables, ttings, or connectors replace the internal coax cables and connectors with known good
parts.
22
CHAPTER 8: TROUBLESHOOTING
8.13 ENTERTAINMENT TROUBLESHOOTING -TV WILL NOT TURN ON
1. If you have no picture at all check to see if you have any status lights on your entertainment keypad or TV. Status lights should be red when
off or in standby mode, and green when the TV is powered on. If you have lights of any color skip to Section 8.14.
2. Remove the TV back cover (Figure A) and check the connection of the TV power wire at the TV (Figure B). Also check the TV power wire
connection at the console (Figure C).
FIGURE A
FIGURE B
FIGURE C
3. After you have veried all connections are secure and a problem still exists verify power at the outlet (Figure D). If the outlet is not outputting
120 Volts, check tness room power.
4. If internal TV power wire connections are good, verify 12 Volts power at the TV power wire where it plugs into the TV (wire in Figure B, shown
with multi - meter in Figure E). If 12 Volts are present, the issue is likely with the TV itself, contact Matrix Customer Service.
FIGURE D
FIGURE E
23
CHAPTER 8: TROUBLESHOOTING
8.14 ENTERTAINMENT TROUBLESHOOTING - CONTROLLER ISSUES
1. If you have status lights on the TV, but the On / Off button gives no response, disconnect and then re-connect the power to the treadmill from
the wall. Attempt to turn on the TV again using the On / Off button.
2. If the TV does not power on check the TV keypad connection at the console (Figure A).
3. Also check the connection of the TV controller wire at the TV (Figure B) and the console (Figure C).
4. If the TV does not power on with the TV keypad, attempt to power on the TV using the small handheld remote that came with the TV (Figure D)
(Used for changing menu and other settings). If the TV will function with the handheld remote, replace the TV keypad. If the TV will not function
with handheld remote it is likely an issue with the TV itself, contact Matrix Customer Technical Support.
FIGURE A FIGURE B
FIGURE DFIGURE C
24
CHAPTER 9: PART REPLACEMENT GUIDE

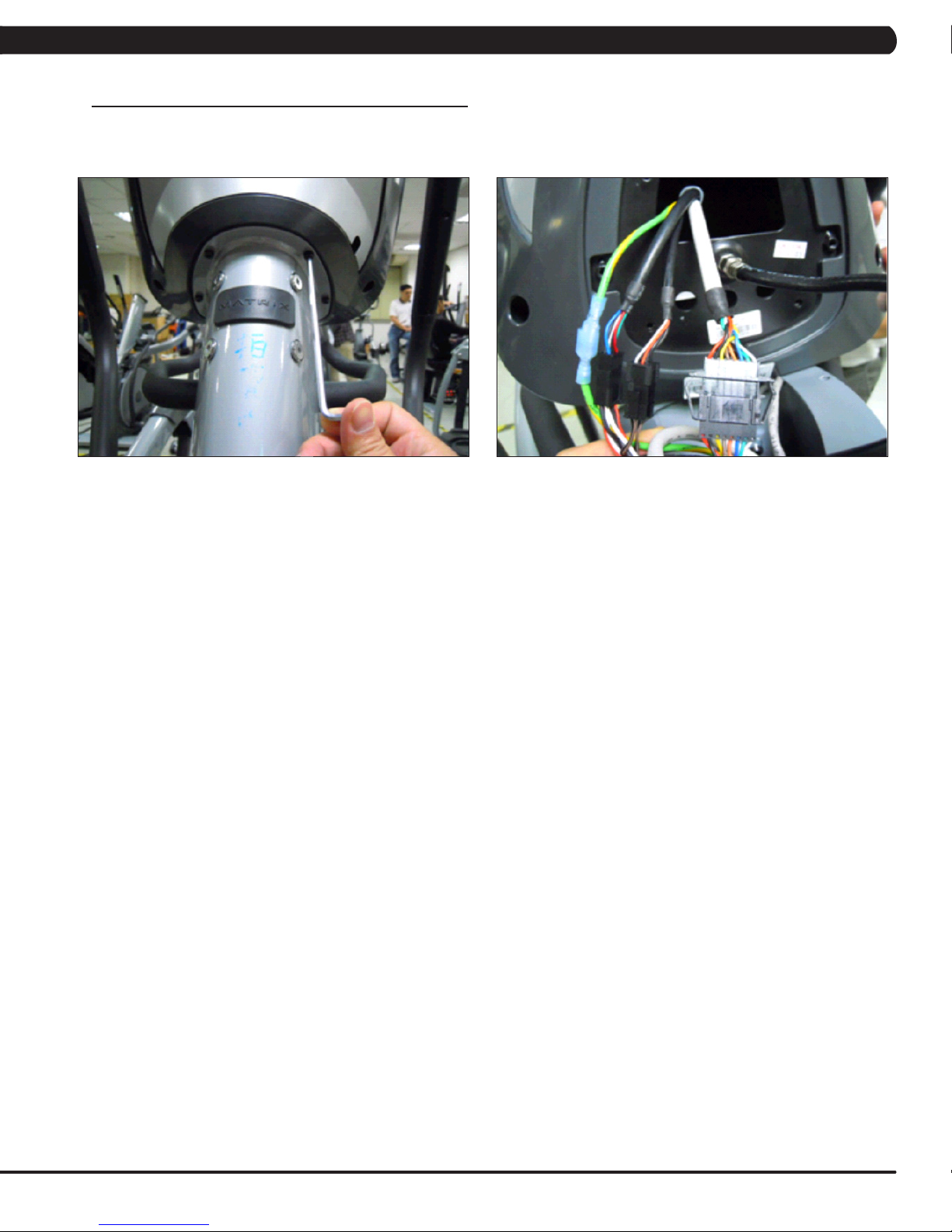

9.1 CONSOLE REPLACEMENT
1) Turn off the power and disconnect the cord from the machine.
2) Remove the 5 screws that hold the console to the top of the console mast (Figure A).
3) Disconnect the console cable and other wiring and remove the console (Figure B).
FIGURE A FIGURE B
4) Connect the wire connections to the new console.
5) Carefully push the wires into the console and mast until they are clear of the console / mast connection and attach the console to the mast
using the 5 screws removed in Step 2.
6) Test the bike for function as outlined in Section 9.21.
25
CHAPTER 9: PART REPLACEMENT GUIDE
9.2 HEART RATE HANDLEBAR REPLACEMENT
1) Remove the 2 screws holding on the handlebar cover (Figures A & B).
FIGURE A FIGURE B
2) Remove the 4 screws holding the heart rate handlebar to the console mast being careful to support the handlebar (Figure C).
3) Carefully pull the wires from the console mast until the connectors are showing, and then disconnect the wires from the handlebar and
remove the defective handlebar (Figure D).
FIGURE C FIGURE D
4) Reverse Steps 1-3 to install a new handlebar.
5) Test the bike for function as outlined in Section 9.21.
26
CHAPTER 9: PART REPLACEMENT GUIDE
9.3 HEART RATE GRIPS REPLACEMENT
1) Remove the 3 screws holding the 2 halves of the HR grip together (Figure A).
2) Split the HR grip in half (Figure B).
FIGURE A FIGURE B
3) Disconnect the level key and HR plate wiring (Figure C) and remove the HR grip.
4) Reverse Steps 1-3 to install a new HR grip. NOTE: When plugging in the HR plate wiring, the red wire should go to the top plate, the white
wire to the bottom HR plate (Figure D).
FIGURE C
5) Test the Bike for function as outlined in Section 9.21.
FIGURE D
27
CHAPTER 9: PART REPLACEMENT GUIDE
9.4 CUP HOLDER REPLACEMENT
1) Remove the 2 screws holding the cup holder to the console mast (Figure A).
FIGURE A
2) Remove the cup holder (Figure B).
3) Reverse Steps 1-2 to install a new cup holder.
FIGURE B
28
CHAPTER 9: PART REPLACEMENT GUIDE

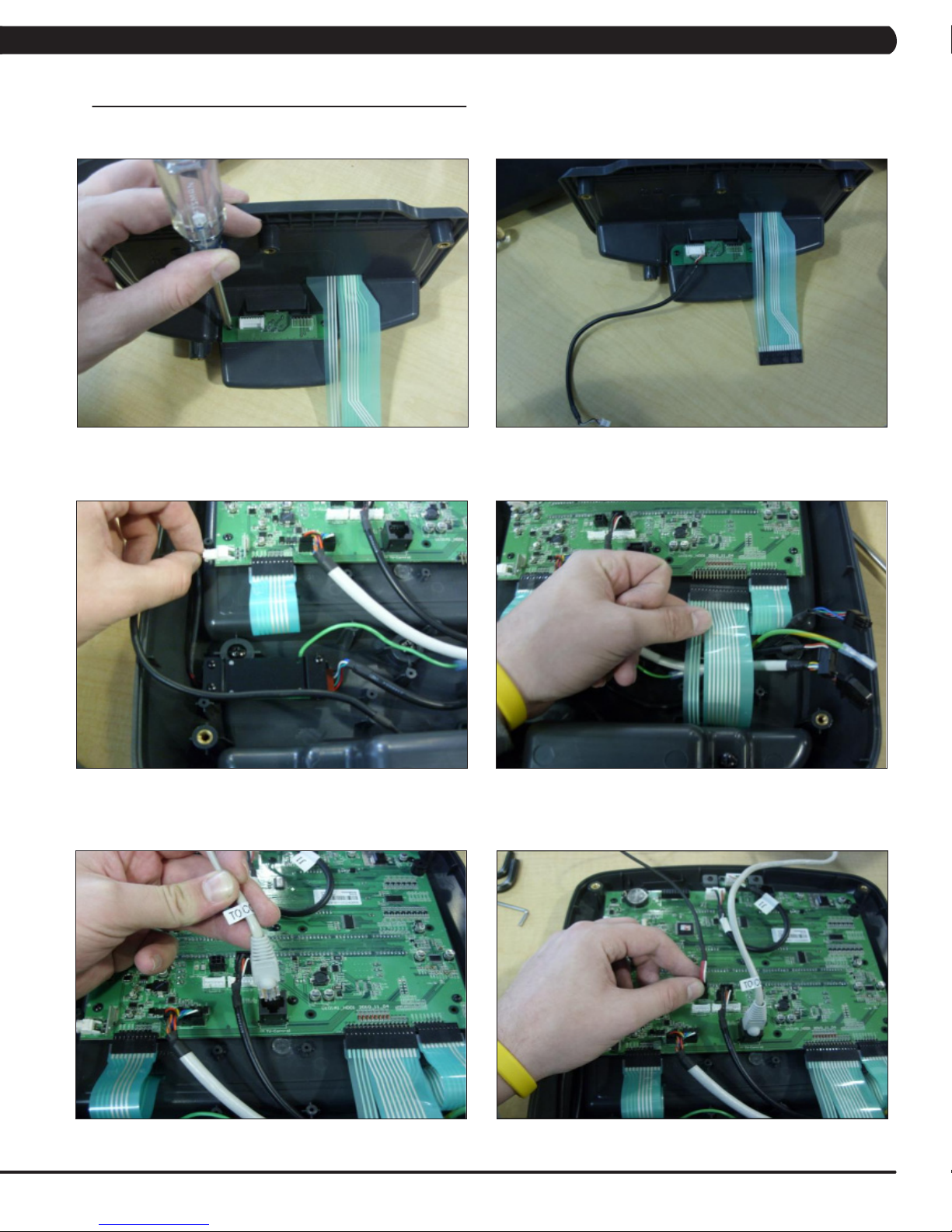

9.5 CONSOLE KEYPAD / OVERLAY REPLACEMENT
NOTE: The instructions below are for console overlays / keypads, but the procedure is the same regardless of where the overlay / keypad is.
1) Remove the console as outlined in Section 9.1.
2) Remove the 2 screws holding on the back cover of the console and remove it (Figure A).
3) Remove the 4 screws holding the front of the console to the back and split the 2 halves (Figure B).
FIGURE A
3) Unplug the faulty keypad from the UCB - 2 ribbon cables (Figure C).
4) Use a razor to remove the faulty keypad / overlay from the console faceplate (Figure D).
FIGURE C FIGURE D
5) Clean the console area with alcohol to remove any left over adhesive (Figure E).
FIGURE B
FIGURE E
29
CHAPTER 9: PART REPLACEMENT GUIDE
9.5 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED
6) Peel the backing off of the new keypad and slide the ribbon cables through the slots in the console faceplate (Figures F & G).
FIGURE F
7) Plug the ribbon cables into the UCB (Figure H).
8) Carefully line up the new keypad to the outline in the console faceplate. Once it is in place, press down on the keypad so that the adhesive
on the keypad bonds to the console (Figure I).
FIGURE G
FIGURE IFIGURE H
9) Peel the backing off of the new overlay (Figure J).
10) Carefully line up the new overlay to the outline in the console faceplate. Once it is in place, press down on the overlay so that the adhesive
on the overlay bonds to the keypad (Figure K).
11) Reverse Steps 1-3 to re-assemble the console.
12) Test the bike for function as outlined in Section 9.21.
30
FIGURE KFIGURE J
CHAPTER 9: PART REPLACEMENT GUIDE
9.6 CONSOLE MAST REMOVAL
1) Remove the console as outlined in Section 9.1.
2) Remove the HR handlebars as outlined in Section 9.2.
3) Lift up the rubber boot at the bottom of the console mast (Figure A), and remove the 4 screws holding the console mast to the frame (Figure
B).
FIGURE A
4) Pull the wires out the bottom of the console mast and remove the mast (Figure C).
FIGURE B
FIGURE C
5) When installing a new console mast, be sure to pull the console wires up through the new mast prior to installing the 4 screws into the frame.
6) Test the bike for function as outlined in Section 9.21.
31
CHAPTER 9: PART REPLACEMENT GUIDE
9.7 SEAT PAD REPLACEMENT
1) Remove the 4 screws holding the seat pad to the seat post (Figure A).
FIGURE A
2) Lift the seat pad away from the seat post (Figure B).
3) Reverse Steps 1-2 to install a new seat pad.
32
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
9.8 SEAT POST REPLACEMENT
1) Remove the seat adjustment pin (Figure A).
2) Pull the seat post upward until the stem comes away from the frame (Figure B).
FIGURE A
3) Remove the 4 nuts holding the seat pad to the seat post and remove the seat pad (Figure C).
FIGURE C
4) Reverse Steps 1-3 to install a new seat post.
FIGURE B
33
CHAPTER 9: PART REPLACEMENT GUIDE
9.9 SEAT POST INSERT REPLACEMENT
1) Remove the seat adjustment pin (Figure A).
2) Pull the seat post upward until the stem comes away from the frame and set it aside (Figure B).
FIGURE A
3) Remove the rubber boot that rests at the bottom of the seat post (Figure C).
4) Grab the lip of the seat post insert and remove it from the seat post (Figure D).
FIGURE C
5) Reverse Steps 1-4 to install a new seat post insert.
FIGURE B
FIGURE D
34
CHAPTER 9: PART REPLACEMENT GUIDE
9.10 PEDAL REPLACEMENT
1) Use a 15 mm wrench to remove the pedal from the crank (Figure A). NOTE: For the right side pedal, the threads are normal. For the left
side pedal, the threads are reversed (the pedal turns off counterclockwise).
FIGURE A
2) Remove the pedal (Figure B).
3) Reverse Steps 1-2 to install a new pedal.
FIGURE B
35
CHAPTER 9: PART REPLACEMENT GUIDE
9.11 SHROUDS REMOVAL
1) Remove the pedals as outlined in Section 9.10.
2) Remove the seat adjustment pin (Figure A).
3) Remove the seat post and seat post boot (Figures B & C).
FIGURE A
4) Remove the 13 screws holding the left shroud in place (Figure D).
5) Remove the 13 screws holding the right shroud in place (Figure E).
FIGURE B
FIGURE D FIGURE E
FIGURE C
6) Once the screws are removed from both side shrouds, lift the shrouds away from the frame. NOTE: You will need to angle the shroud so
that the crank passes through the hole in the shroud.
36
CHAPTER 9: PART REPLACEMENT GUIDE
9.12 LOWER CONTROL BOARD REPLACEMENT
1) Remove the shrouds as outlined in Section 9.11.
2) Remove the 3 screws holding the cover onto the lower board and remove the cover.
3) Disconnect the 5 wire connections to the lower board (Figure A).
4) Remove the 2 screws holding the lower board to the frame (Figure B), and remove the lower board.
FIGURE A FIGURE B
5) Reverse Steps 1-4 to install a new lower board. Figure C shows the connections at the board.
7 Pin Connector
from the Console
2 Pin Connector
from the Battery
FIGURE C
6) Test the bike for function as outlined in Section 9.21.
3 Pin Connector from
the Generator
2 Pin Connector from
the AC power source
2 Pin Connector
from the Resistor
37
CHAPTER 9: PART REPLACEMENT GUIDE

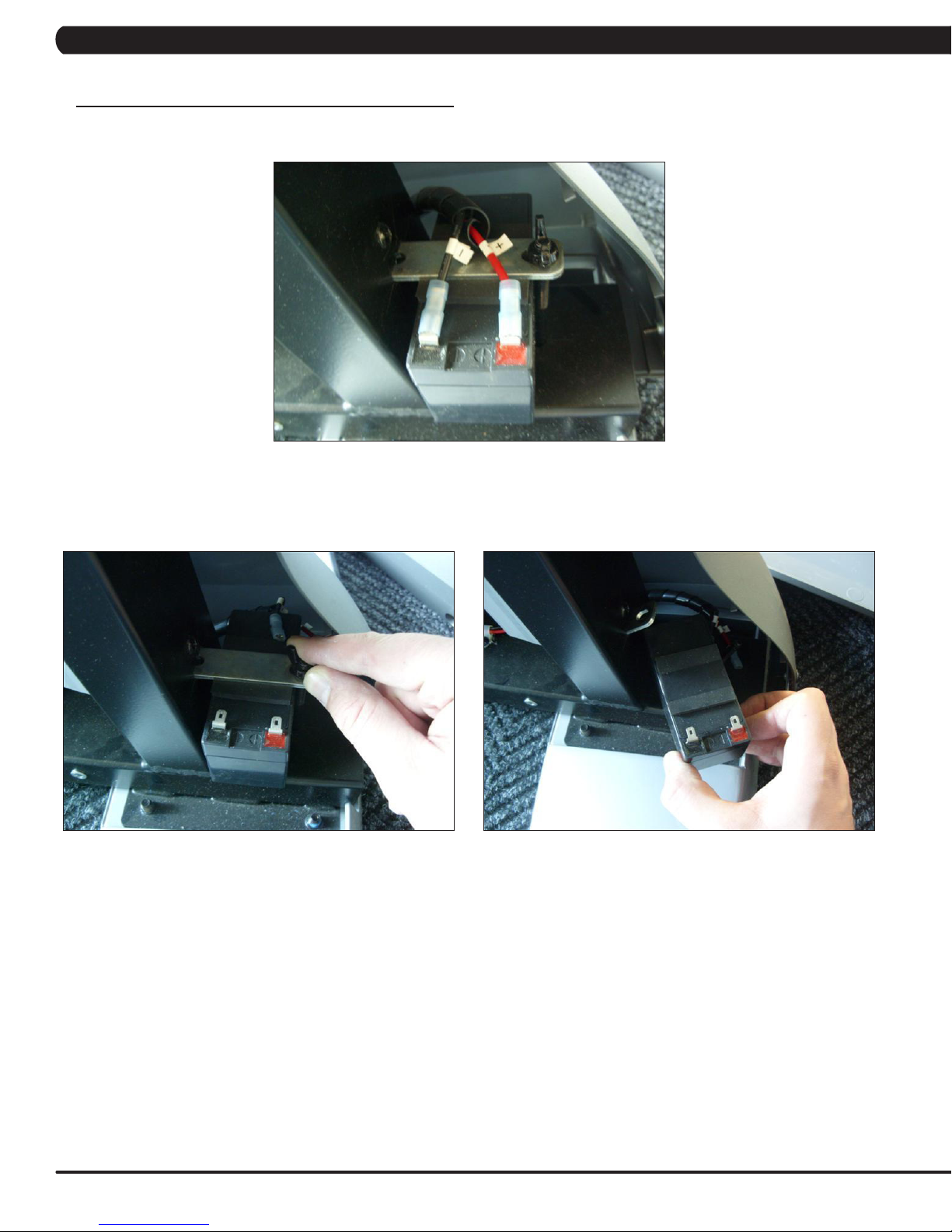

9.13 BATTERY REPLACEMENT
1) Remove the right side shroud as outlined in Section 9.11.
2) Disconnect the 2 wires from the battery (Figure A).
FIGURE A
3) Remove the 2 wing nuts on the battery bracket (Figure B).
4) Swivel the battery bracket out of the way and remove the battery (Figure C).
5) Reverse Steps 1-4 to install a new battery.
FIGURE CFIGURE B
38
CHAPTER 9: PART REPLACEMENT GUIDE
9.14 DRIVE BELT REPLACEMENT
1) Remove the right side shroud as outlined in Section 9.11.
2) Pull up on the tension assembly and walk the belt off of the pulley (Figure A).
3) Remove the belt (Figure B).
FIGURE A FIGURE B
4) Reverse Steps 1-3 to install a new drive belt. NOTE: Be sure to reattach the tension spring (Figure C). If more tension is needed on the
drive belt, multiple holes are available for the lower spring attachment (Figure D).
FIGURE C
5) Test the bike for function as outlined in Section 9.21.
FIGURE D
39
CHAPTER 9: PART REPLACEMENT GUIDE
9.15 GENERATOR BELT REPLACEMENT
1) Remove the shrouds as outlined in Section 9.11.
2) Loosen the nuts holding the generator to the frame (Figure A), and remove the nuts putting tension on the generator belt (Figure B).
FIGURE A FIGURE B
3) Once the tension has been removed, the generator belt can be walked off of the pulley (Figure C).
4) Pull the generator out of the frame towards the front of the unit, and remove the generator belt (Figure D).
FIGURE C FIGURE D
5) Reverse Steps 1-4 to install a new generator belt. NOTE: Be sure to re-tension the new generator belt to 80 lbf of torque.
6) Test the bike for function as outlined in Section 9.21.
40
CHAPTER 9: PART REPLACEMENT GUIDE
9.16 GENERATOR REPLACEMENT
1) Remove the shrouds as outlined in Section 9.11.
2) Remove the nuts holding the generator to the frame (Figure A), and remove the nuts putting tension on the generator belt (Figure B).
FIGURE A FIGURE B
3) Once the tension has been removed, the generator belt can be walked off of the pulley (Figure C).
4) Pull the generator out of the frame towards the front of the unit, and remove the generator belt (Figure D).
FIGURE C FIGURE D
5) Reverse Steps 1-4 to install a new generator.
6) Test the bike for function as outlined in Section 9.21.
41
CHAPTER 9: PART REPLACEMENT GUIDE

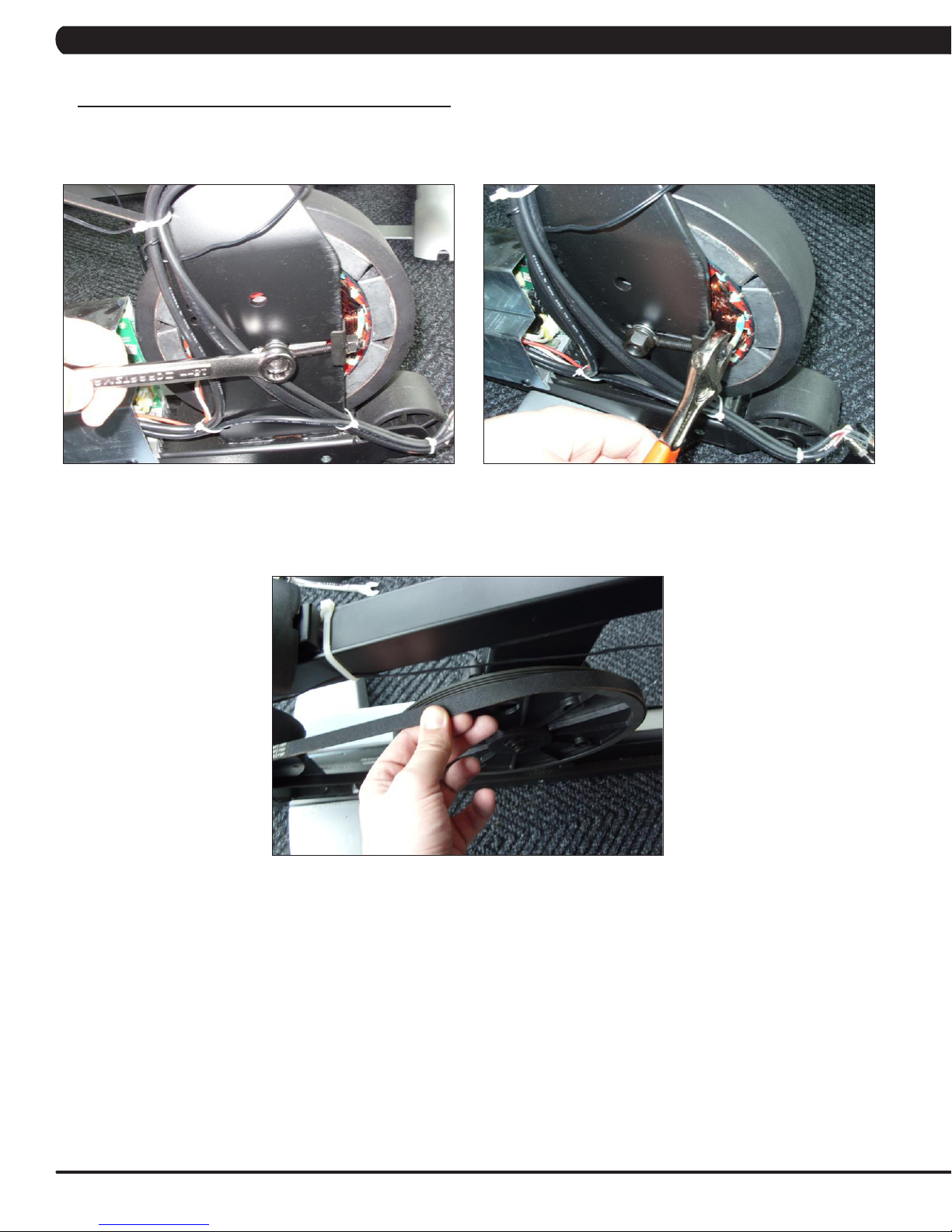

9.17 PULLEY AXLE SET REPLACEMENT
1) Remove the shrouds as outlined in Section 9.11.
2) Remove the drive belt as outlined in Section 9.14.
3) Loosen the nuts holding the generator to the frame (Figure A), and remove the nuts putting tension on the generator belt (Figure B).
FIGURE A FIGURE B
4) Once the tension has been removed, walk the generator belt off of the pulley (Figure C).
FIGURE C
42
CHAPTER 9: PART REPLACEMENT GUIDE

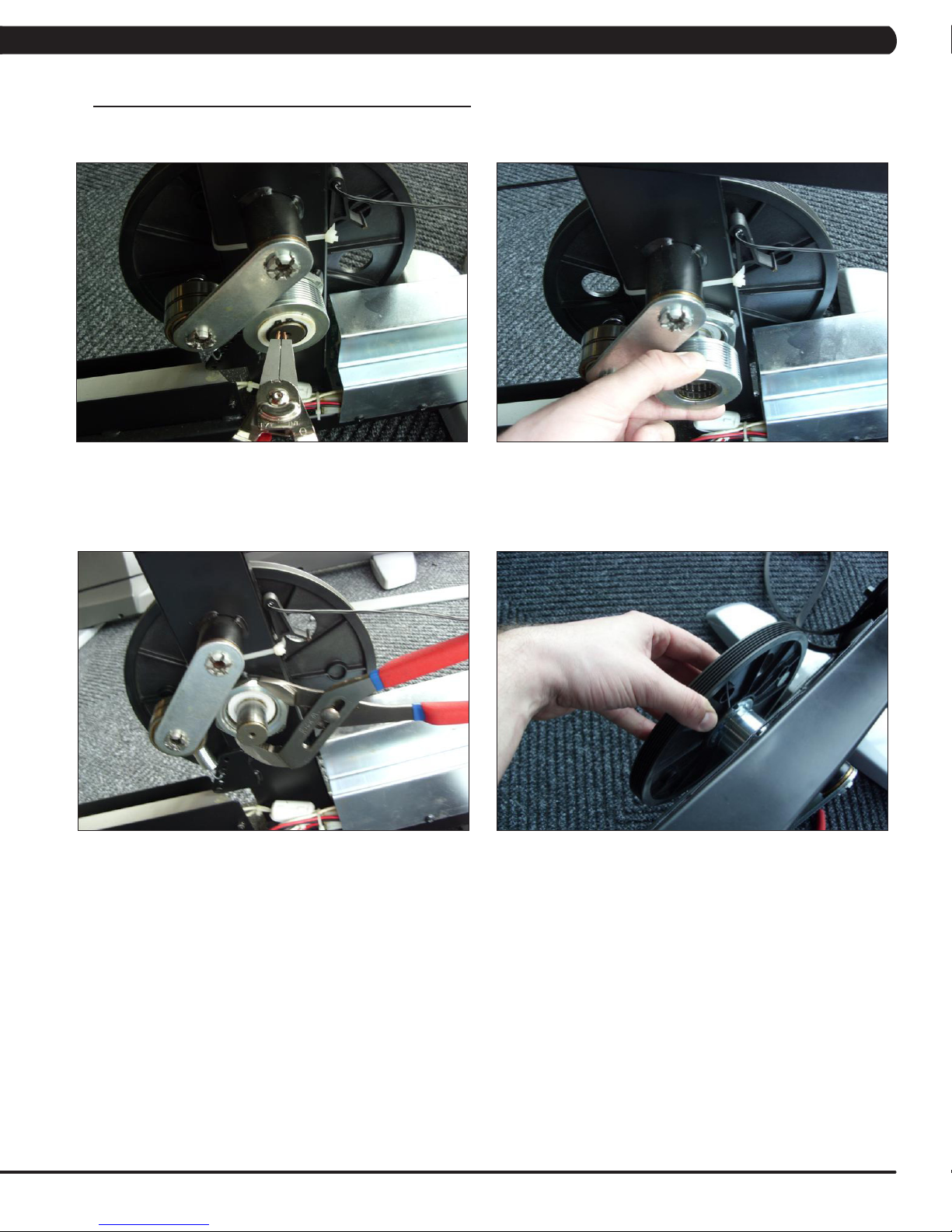

9.17 PULLEY AXLE SET REPLACEMENT - CONTINUED
5) Remove the C-clip holding the bearing in place on the right side of the frame (Figure D).
6) Remove the bearing (Figure E).
FIGURE D
7) Remove the 60 mm nut holding in the pulley axle assembly with a large channel lock pliers or a pipe wrench (Figure F).
8) Once the 60 mm nut is removed, the pulley axle set can be removed from the left side of the frame (Figure G).
FIGURE E
FIGURE F FIGURE G
9) Reverse Steps 1-8 to install a new pulley axle set.
10) Test the bike for function as outlined in Section 9.21.
43
CHAPTER 9: PART REPLACEMENT GUIDE
9.18 CRANK AXLE SET REPLACEMENT
1) Remove the shrouds as outlined in Section 9.11.
2) Pull up on the tension assembly and walk the drive belt off of the pulley (Figure A).
3) Remove the drive belt (Figure B).
4) Remove the 3 screws holding the crank axle bearings in place on both sides (Figure C).
FIGURE A FIGURE B FIGURE C
5) Bend the tabs of the nut on the left side of the frame so that this nut will turn (Figure D).
6) Use a 32 mm wrench to remove the crank axle nuts (Figure E). NOTE: This nut is reverse threaded.
FIGURE D FIGURE E
7) Once the nuts are removed, the crank axle can be removed from the frame from the right side.
8) Reverse Steps 1-7 to install a new crank axle set.
9) Test the bike as outlined in Section 9.21.
44
CHAPTER 9: PART REPLACEMENT GUIDE
9.19 REAR STABILIZER REPLACEMENT
1) Lean the bike to one side and remove the 4 screws holding the rear stabilizer to the frame (Figure A).
FIGURE A
2) Remove the rear stabilizer (Figure B).
3) Reverse Steps 1-2 to install a rear stabilizer.
FIGURE B
45
CHAPTER 9: PART REPLACEMENT GUIDE

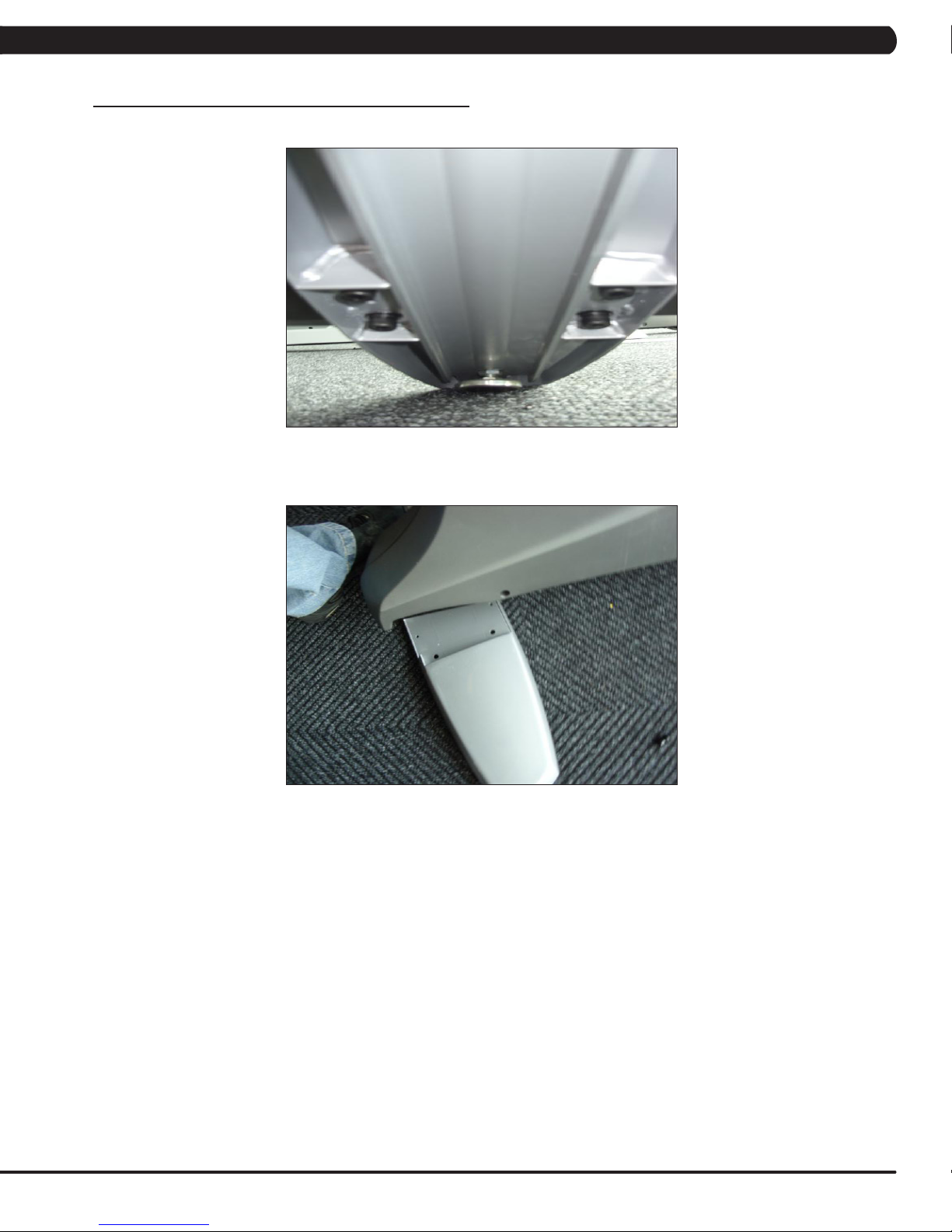

9.20 FRONT STABILIZER REPLACEMENT
1) Lean the bike to one side and remove the 4 screws holding the front stabilizer to the frame (Figure A).
FIGURE A
2) Remove the front stabilizer (Figure B).
3) Reverse Steps 1-2 to install a new front stabilizer.
46
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
9.21 TESTING THE BIKE
ONCE THE UNIT OR REPLACEMENT PART IS FULLY INSTALLED AND ASSEMBLED AND
PROPERLY PLACED ON THE FLOOR, USE THE FOLLOWING INSTRUCTIONS TO SETUP
AND TEST THE MACHINE:
1) Check that the console is set for upright bike.
a. Press and hold both LEVEL keys until Manager Mode appears on the display.
b. Press the UP or DOWN LEVEL keys until Engineering Mode appears on the display.
c. Use the UP or DOWN LEVEL keys to scroll to Machine Type.
d. Press ENTER on Machine Type and make sure it is set for U3x.
e. If Machine Type is not set for U3x, change to U3x using the UP or DOWN LEVEL key and press ENTER to save.
f. Press and hold the STOP key for 3-5 seconds to return to normal function.
2) If the unit has an add on TV, program the channels (see Entertainment Owner's Manual).
3) Without hitting start or entering any program modes, sit on the bike and hold the handlebars while pedaling to simulate exercising. While
moving, listen for any odd noises or squeaks.
4) After stopping movement, press the green GO key and begin pedaling.
5) Grasp the hand grips to check for proper heart rate response.
6) Press the level up and down buttons on the console and hand grips to make sure resistance is fully functional.
7) If everything functions properly, stop pedaling and the unit will reset to normal operation within 30 seconds.
47
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.1 U3x-02 BIKE SPECIFICATIONS
CONSOLE
Display Type 14 Seg Alphanumeric 8x16" LED Graphic Display
Display Feedback Time, Distance, Calories, Calories per Hour, Speed, Heart Rate,
Programs Manual, Rolling, Intervals, Fat Burn, Random, Fitness Test, Target
Resistance Levels 25
CSafe, FitLinxx Ready Yes
Fitconnexion Ready Yes
Wireless Data Transmitter No
iPod Compatible No
Nike + iPod Compatible No
Personal Fan No
Virtual Active Ready No
Asset Management Ready No
TECHNICAL DATA
Resistance Technology JID Brushless Generator
Power Requirements Self Powered or Optional 120V / 60Hz AC
Minimum Watts 10 powered / 25 self powered
Overall Dimensions (L x W x H) 47.8" x 28.8" x 59" / 121.5 x 73.2 x 149.8 cm
Maximum User Weight 400 lbs / 181.4 kg
Unit Weight 138 lbs / 63 kg
Shipping Weight 160 lbs / 72.6 kg
Transport Wheel Yes
USER DATA
Contact Heart Rate Sensors Yes
Telemetric Heart Rate Receiver Yes
Handle Bar Design Full racing style with elbow support.
Thumb Switch Controls Yes
METs, Watts, Level, RPM
HR, Constant Watts
48
CHAPTER 10: BIKE SPECIFICATION AND ASSEMBLY GUIDE
10.2 FASTENERS AND ASSEMBLY TOOLS
QUANTITY PART # SKETCH DESCRIPTION NOTES
1 Z04 4 MM ALLEN WRENCH PURPLE
1 Z03 See sketch of part Z04 5MM ALLEN WRENCH PURPLE
1 Z01 See sketch of part Z04 6 MM ALLEN WRENCH PURPLE
1 Z05 OPEN END WRENCH (15 & 17MM) PURPLE
1 Z02 #2 PHILLIPS SCREWDRIVER PURPLE
4 Z11 HEX HEAD SCREW (M8 X 25L) WHITE
4 Z12 SPRING WASHER WHITE
2 Z13 BUTTON HEAD SCREW (M5 X 10L) WHITE
8 Z21 HEX HEAD SCREW (M8 X 20L) BLACK
8 Z22 FLAT WASHER BLACK
8 Z23 SPRING WASHER BLACK
4 Z31 BUTTON HEAD SCREW (M8 X 20L) YELLOW
4 Z32 SPRING WASHER YELLOW
4 Z33 FLAT WASHER YELLOW
2 Z34 HEX HEAD SCREW (M8 X 25L) YELLOW
4 Z41 BUTTON HEAD SCREW (M8 X 20L) RED
4 Z42 FLAT WASHER RED
4 Z43 SPRING WASHER RED
4 Z51 HEX HEAD SCREW (M5 X 12L) GREEN
49
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.3 ASSEMBLY INSTRUCTIONS
AFTER THESE ASSEMBLY STEPS ARE COMPLETE, BE SURE TO SETUP AND TEST THE UNIT AS OUTLINED
IN SECTION 9.21.
STEP 1 STEP 2
50
CHAPTER 10: BIKE SPECIFICATION AND ASSEMBLY GUIDE
10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
STEP 3 STEP 4
51
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
STEP 5
52
CHAPTER 10: BIKE SPECIFICATION AND ASSEMBLY GUIDE
10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
FINAL ASSEMBLY
53
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.4 ADJUSTING THE PEDAL STRAPS AND SEAT
ADJUSTING THE PEDAL STRAPS
The straps are designed to fit your individual foot size and should be adjusted tight enough to keep your foot from slipping. The pedals include
spring loaded clips for easy adjustment. To tighten the strap, pull down the open end of the strap. To loosen the strap, push down on the top of
the clip and pull the strap up. Release the clip to lock the strap in place.
ADJUSTING THE U3x-02 SEAT
To determine whether or not the seat requires adjustment, sit on it
and place your feet on the pedals. The user's knees should bend
slightly when the pedal is at the lowest point of its rotation. It should
be possible to pedal without locking the knees or shifting in the seat.
The Matrix U3x-02 Bike features a vertical ratchet seat adjustment
system, which makes it easy and safe to change the height of the
seat quickly.
To raise the seat, pull the seat upward to the desired height, and let
it lock into place. Test and re-adjust the seat height as necessary.
To lower the seat, first get off the bike. Holding the seat, pull out the
yellow seat post knob. Let the seat slide down to the desired height
and release the yellow seat post knob. Test and re-adjust the seat
height as necessary.
54
CHAPTER 10: BIKE SPECIFICATION AND ASSEMBLY GUIDE
10.5 LEVELING THE BIKE
STABILIZING THE MATRIX U3X-02 BIKE
After positioning the bike in its intended location, check its stability by attempting to shake it side to side. Shaking or wobbling indicates that
your bike needs to be leveled. Determine which leveler is not resting completely on the floor. Loosen the nut with one hand to allow the leveler
to rotate. Rotate the left or right leveler, and repeat the adjustment as necessary until the bike is stable. Lock the adjustment by tightening the
nut against the rear foot support.
55
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.6 TV BRACKET INSTALLATION
The Matrix U3x-02 Bike is capable of accepting a 15" TV via a bracket. Follow the instructions below to
install the TV and bracket. Use the instructions in the Entertainment Owner's Manual to program the TV
after installation.
1) Turn off power and disconnect the power cord.
2) Remove the console from the bike.
3) Remove the 2 screws holding the small silver back cover to the console and remove the back cover (Figures A & B).
FIGURE BFIGURE A
4) Remove the 4 screws holding the rear half of the console to the front half and split the console (Figures C & D).
FIGURE DFIGURE C
5) Remove the 5 screws holding the lower keypad plastic to the front of the console and remove the lower keypad plastic (Figures E & F).
56
FIGURE FFIGURE E
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.6 TV BRACKET INSTALLATION - CONTINUED
6) Install a head phone jack to the new lower keypad plastic with the Entertainment keypad (Figure G).
7) Plug the head phone jack wire into the head phone jack (Figure H).
FIGURE HFIGURE G
8) Install the new lower keypad plastic to the frame using the 5 screws removed in Step 5.
9) Plug the head phone jack wire and entertainment keypad ribbon cable into the UCB (Figures I & J).
10) Plug the TV controller wire into the UCB (Figure K).
11) Plug the TV power wire into the UCB (Figure L).
FIGURE JFIGURE I
FIGURE LFIGURE K
57
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.6 TV BRACKET INSTALLATION - CONTINUED
12) Plug the coax cable into the coax adaptor attached to the back half of the console (Figure M).
13) Use the 4 screws removed in Step 4 to re-attach the 2 halves of the console. NOTE: Route the TV power, coax, and controller wiring
through the hole in top of the console. Also make sure that the console cable wires are protruding so that they are accessible (Figure N).
FIGURE NFIGURE M
14) Install the bracket to the console using 4 screws (Figure O).
15) Install the console back onto the console mast and secure it with 5 screws (Figure P). NOTE: Make sure to tuck all the wiring into the
console or mast to prevent any pinching.
16) Install the TV onto the bracket making sure that the tabs on the TV lower plastic shield fit into the slots in back of the console (Figure Q),
and secure the TV to the bracket with 4 screws (Figure R).
58
FIGURE PFIGURE O
FIGURE RFIGURE Q
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
10.6 TV BRACKET INSTALLATION - CONTINUED
17) Route the TV power, controller, and console cables out the back of the console and plug into the back of the TV (Figures S & T).
18) The new TV should now be programmed and thoroughly tested before installing the covers. See Sections 8.11 - 8.14 for TV
troubleshooting help if needed.
FIGURE TFIGURE S
19) Install the console back cover onto the console. NOTE: You will need to push the top end of the back cover beneath the TV lower plastic
cover and route the wiring through the hole in the back cover (Figure U). Once you have the top of the back cover in position, push the lower
part of the back cover into position. It should snap into place (Figure V).
20) Install the TV back cover onto the unit. NOTE: You will need to line up the tabs at the bottom of the TV back cover to the slots in the
console back cover (Figure W). Secure the TV back cover with 4 screws (Figure X).
FIGURE VFIGURE U
FIGURE XFIGURE W
59
CHAPTER 11: SOFTWARE UPGRADE GUIDE
11.1 SOFTWARE UPGRADE INSTRUCTIONS
1) Turn on the power to the Bike, wait until the standard display picture has come up.
2) Enter Manager Mode by pressing and holding the LEVEL UP and DOWN keys simultaneously.
3) Record the Accumulated Mileage, Accumulated Distance, and Serial Number. NOTE: This information can be lost during the update
procedure and should be recorded so that the information can be re-entered into the console once it is updated.
4) Build a path of folders on the USB drive that will be used. The path should be MATRIX\FW\UCB (create a folder called MATRIX, then a
folder within MATRIX called FW, then a folder within FW called UCB).
5) Copy the software files into the UCB folder on the USB drive (the path should read \MATRIX\FW\UCB - Figure A).
6) Insert the USB drive into the USB port on the console (Figure B).
7) Follow the sequence below to get to the software wanted. Press TOGGLE DISPLAY 1, TOGGLE DISPLAY 3, TOGGLE DISPLAY 2,
RANDOM in sequence (Figure C).
8) Wait until the display shows the message "Please select update name", then press the LEVEL UP or DOWN keys to choose the correct
software (if more than one version is on the USB drive). Once the correct software is show, press ENTER and the upgrade procedure will run.
9) When the console beeps and the standard display picture comes back up (Figure B), the upgrade is complete. Remove the USB drive.
10) Enter into Manager Mode (see Section 5.1) and make sure the software version is correct.
11) Enter into Service Mode (See Section 7.1). Enter the values recorded in Step 3 (if needed).
12) Enter into Engineering Mode (See Section 6.1). Check that the Machine Type is correct.
13) Test the Bike for function as outlined in Section 9.21.
FIGURE A
FIGURE CFIGURE B
