Matrix T7, T5, T5x-03, T7x, T7x-01 User Manual
...
T7-T5_Treadmills_r1.5.indd 1 2/8/10 1:21 PM
1
CHAPTER 1: IMPORTANT SAFETY INSTRUCTIONS PAGES
1.1 Before Getting Started ....................................................................................................
1.2 Proper Usage .................................................................................................................
1.3 Read and Save These Instructions ...................................................................................
1.4 Electrical Requirements ..................................................................................................
1.5 Grounding Instructions ...................................................................................................
CHAPTER 2: PREVENTATIVE MAINTENANCE
2.1 Recommended Cleaning Tips ..........................................................................................
2.2 Deck and Belt Replacement ...........................................................................................
2.3 Check for Damaged Parts ...............................................................................................
2.4 Adjusting the Belt ..........................................................................................................
CHAPTER 3: SERIAL NUMBER LOCATION
3.1 T5x, T7x, T7xe Treadmill .........................................................................................................
CHAPTER 4: T5x, T7x, T7xe OVERLAY AND WORKOUT DESCRIPTION
4.1 T5x, T7x, T7xe Console Description ...........................................................................................
4.2 Manual Workout Operation.........................................................................................................
4.3 Operating Level Based Programs ...............................................................................................
4.4 Heart Rate Control ...................................................................................................................
4.5 Fit Test ...................................................................................................................................
CHAPTER 5: T5x, T7x, T7xe TREADMILL SPECIFICATIONS, PARTS & ASSEMBLY GUIDES
5.1 Model Specifications .................................................................................................................
5.2 Fasteners and Assembly Tools ....................................................................................................

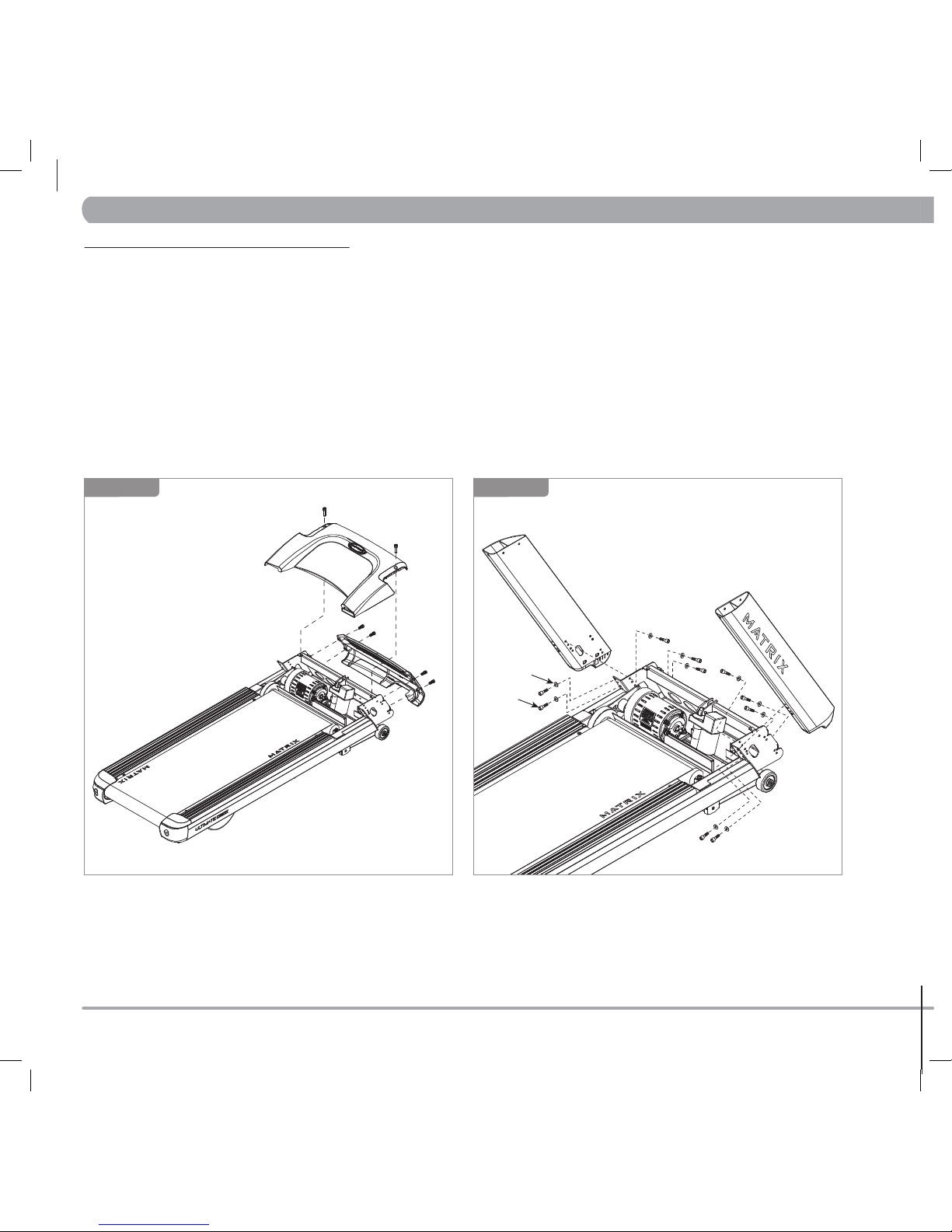

5.3 Assembly Steps .......................................................................................................................
5.4 Optional Leveling Assembly Techniques ......................................................................................
02
02
02
03
03
03
03
03
04
04
05
08
08
08
09
11
12
13
17
T
ABLE OFCONTENTS
T7-T5_Treadmills_r1.5.indd 1 2/8/10 1:21 PM
CHAPTER 1: I
mportant Safety Instructions
1.1 BEFORE GETTING STARTED
It is the sole responsibility of the purchaser of Matrix Fitness Systems
products to instruct all individuals, whether they are the end user or
supervising personnel, on proper usage of the equipment.
It is recommended that all users of Matrix Fitness Systems exercise
equipment be informed of the following information prior to its use.
1.2 PROPER USAGE
• Do not use the equipment in any way other than designed or intended by
the manufacturer. It is imperative that all Matrix Fitness Systems
equipment is used properly to avoid injury.
• Keep hands and feet clear of moving parts at all times to avoid injury.
• Unsupervised children must be kept away from this equipment.
• Do not wear loose clothing while on equipment.
1.3 BEFORE GETTING STARTED
This Treadmill is intended for commercial use. To ensure your safety and
protect the equipment, read all instructions before operating the
MATRIX treadmill.
Please leave a 78.75” (2000 mm) x 39.50” (1000 mm) landing zone
behind the treadmill. This zone is to allow easy access to the treadmill and
gives the user an easy exit path from the machine. In case of an emergency,
place both hands on the side arm rests to hold yourself up and place your
feet onto the side rails.
When using an electrical product, basic precautions should always be
followed including the following:
DANGER: To reduce the risk of electric shock: Always unplug this
equipment from the electrical outlet immediately after using and
before cleaning.
WARNING: To reduce the risk of burns, fire, electrical shock or injury
to persons that may be associated with using this product:
• An appliance should never be left unattended when plugged in. Unplug from
outlet when not in use and before putting on or taking off parts
• This product must be used for its intended purpose described in this
owner’s manual. Do not use other attachments that are not recommend by
the manufacturer. Attachments may cause injury
• To prevent electrical shock, never drop or insert any object into any opening
• Do not remove the console covers. Service should only be done by an
authorized service technician
• Never operate the treadmill with the air opening blocked. Keep the air
opening clean, free of lint and hair
• Never operate product if it has a damaged cord or plug, if it is working
improperly, if it has been damaged, or immersed in water. Return the unit
to a service center for examination and repair
• Do not carry this unit by it’s supply cord or use the cord as a handle
• Keep any power cord away from heated surfaces
• Close supervision is necessary when treadmill is used by or near children or
disable persons
• Do not use outdoors
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered
• To disconnect, turn all controls to the off position, then remove the plug
from outlet
• Connect this treadmill to a properly grounded outlet only
• This appliance is not intended for use by persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• If the supply cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
CAUTION: If you experience chest pain, nausea, dizziness or shortness of
breath, STOP exercising immediately and consult a physician before continuing.
SAVE THESE INSTRUCTIONS
2
3’ (914 mm)
6’ 7” (1,981 mm)
3’ (914 mm)
1’ (305 mm)
T7-T5_Treadmills_r1.5.indd 2 2/8/10 1:21 PM
3
CHAPTER 1: I
mportant Safety Instructions
1.4 ELECTRICAL REQUIREMENTS
For your safety and to ensure good treadmill performance, the ground on
this circuit must be non-looped. Please refer to NEC article 210-21 and
210-23. Your Treadmill is provided with a power cord with a plug listed
below and requires the listed outlet. Any alterations of this power cord
could void all warranties of this product.
120 NEMA 5-20R
120 NEMA 5-20R
220 NEMA 6-20R 220 NEMA 6-20R
120V UNITS
The Matrix T5x, T7x and T7xe 120 treadmill is for use on a nominal
120-volt circuit and has a non-looped grounding plug. Make sure that the
110-volt treadmill is connected to an outlet, NEMA 5-20R, having the same
configuration as the plug. No adapter should be used with this product.
220V UNITS
The Matrix T5x, T7x and T7xe 220 treadmill is for use on a nominal 220-volt
circuit and has a non-looped grounding plug. Make sure that the 220-volt
treadmill is connected to an outlet, NEMA 6-20R, having the same
configuration as the plug. No adapter should be used with this product.
1.5 GROUNDING INSTRUCTIONS
The treadmill must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. The treadmill is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances. If the user does not follow
these grounding Instructions, the user could void the Matrix
limited warranty.
DANGER: Improper connection of the equipment-grounding conductor
can result in the risk of electric shock. Check with a qualified electrician
or serviceman if the user is in doubt as to whether the product is properly
grounded. Do not modify the plug provided with the product if it will not fit
the outlet; have a proper outlet installed by a qualified technician.
2.1 RECOMMENDED CLEANING TIPS
1. Use a soft, clean cotton cloth. DO NOT use paper towels to clean
surfaces on the treadmill. Paper towels are abrasive and can
damage surfaces.
2. Use a mild soap and damp cloth. DO NOT use ammonia based cleaner.
This will cause discoloring of the aluminum and plastics it comes into
contact with.
3. Do not pour water or cleaning solutions on any surface. This could
cause electrocution.
4. Wipe the console and side rails after every use.
5. Brush away any wax deposits from the deck and belt area. This is a
common occurrence until the wax is worked into the belt material.
6. Be sure to remove any obstructions from the path of the elevation
wheels including power cords.
7. Monthly, unplug the treadmill and remove the motor cover. Check for
debris and clean with a dry cloth or small vacuum nozzle. a
WARNING: Do not plug the treadmill in until the motor cover has
been reinstalled.
CAUTION: Be sure to have proper assistance to install and move the unit in
order to avoid injury or damage to the treadmill.
2.2 DECK AND BELT REPLACEMENT
One of the most common wear and tear items on a treadmill is the deck and
belt combination. If these two items are not properly maintained they can
cause damage to other components. This product has been provided with
the most advanced maintenance free lubricating system on the market. The
Matrix Ultimate Deck™ does not require any maintenance, other than
cleaning and belt tightening, for up to 25,000 miles.
WARNING: Do not run the treadmill while cleaning the belt and deck. This
can cause serious injury and can damage the machine.
Maintain the belt and deck by wiping the sides of the belt and deck with a
clean cloth. The user can also wipe under the belt 2 inches on both sides
removing any dust or debris.
The deck can be flipped and reinstalled or replaced by an authorized service
technician. Please contact Matrix Fitness Systems for more information.
2.3 CHECK FOR DAMAGED PARTS
DO NOT use any equipment that is damaged or has worn or broken parts.
Use only replacement parts supplied by Matrix Fitness Systems.
MAINTAIN LABELS AND NAMEPLATES. Do not remove labels for any
reason. They contain important information. If unreadable or missing,
contact Matrix Fitness Systems for a replacement or an authorized
service provider.
MAINTAIN ALL EQUIPMENT Preventative maintenance is the key to
smooth operating equipment, as well as keeping the users liability to a
minimum. Equipment needs to be inspected at regular intervals. Defective
components must be replaced immediately. Improperly working equipment
must be kept out of use until it is repaired. Ensure that any person(s)
making adjustments or performing maintenance or repair of any kind is
qualified to do so. Matrix Fitness Systems will provide service and
maintenance training at our corporate facility upon request or in the field if
proper arrangements are made.
CHAPTER 2: P
reventative maintenance
NOTE: North American plugs shown.
T7-T5_Treadmills_r1.5.indd 3 2/8/10 1:21 PM
4
2.4 ADJUSTING THE BELT
After placing the treadmill in the position it will be used, the belt must be
checked for proper tension and centering. The belt might need to be
adjusted after the first two hours of use. Temperature, humidity, and use
cause the belt to stretch at different rates. If the belt starts to slip when a
user is on it, be sure to follow the directions below.
Locate the two hex head bolts on the rear of the treadmill.
The bolts are located at each end of the frame at the back of
the treadmill. These bolts adjust the rear belt roller. Do not
adjust until the treadmill is on. This will prevent over
tightening of one side.
The belt should have equal distance on either side between
the frame. If the belt is touching one side, do not start the
treadmill. Turn the bolts counter clockwise approximately one
full turn on each side. Manually center the belt by pushing
the belt from side to side. Tighten the bolts the same amount
as when the user loosened them, approximately one full turn.
Inspect the belt for damage.
While the treadmill is running at 3 mph, observe the belt
position. If it is moving to the right, tighten the right bolt by
turning it clockwise ¼ turn, and loosen the left bolt ¼ turn.
If it is moving to the left, tighten the left bolt by turning it
clockwise ¼ turn and loosen the right ¼ turn. Repeat Step 3
until the belt remains centered for several minutes.
Check the tension of the belt. The belt should be very snug.
When a person walks or runs on the belt, it should not
hesitate or slip. If this occurs, tighten the belt by turning
both bolts clockwise ¼ turn. Repeat if necessary.
STEP 1
STEP 2
STEP 3
STEP 4
CHAPTER 2: P
reventative maintenance
CHAPTER 3: S
erial number location
T5x, T7x, T7xe TREADMILL
SERIAL #
PLACEMENT
CONSOLE SERIAL #
PLACEMENT
T7-T5_Treadmills_r1.5.indd 4 2/8/10 1:21 PM
5
CHAPTER 4:
t5x overlay and Workout description
4.1 T5x CONSOLE DESCRIPTION
The MATRIX treadmill is inspected before it is packaged. It is shipped in four pieces: the base, the upright console supports, the handlebar and the
console. Carefully unpack the unit and dispose of the
box material.
WORKOUT KEYS: Simple program view and selection buttons. Press Fitness Test button to cycle through available tests.
QUICK START/GO: One touch Start and Quick Start.
ENTER: To confirm each program setting.
UP/DOWN INCLINE: Easy information and incline selection.
UP/DOWN SPEED: Easy information and speed selection.
UP/DOWN TIME: Easy information and time adjustment.
EMERGENCY STOP / IMMOBILIZATION: To stop all functions and immobilize the unit. The emergency stop on this treadmill must be returned to its original
position in order to allow normal operation of the unit.
STOP: Ends workout and shows workout summary data.
PAUSE: Pauses workout. Pause duration can be set in manager mode.
NUMBER KEYPAD: Workout data input for workout setup. Speed adjustment during workout.
COOL DOWN: Puts treadmill into Cool Down mode. Cool Down time is dependent on the length of the workout. Workouts 19 minutes and shorter will have a
cool down length of 2 minutes. Workouts 20 minutes and longer will have a cool down length of 5 minutes.
FAN: Allows for fan speed selection (fan has three operating speeds.)
T7-T5_Treadmills_r1.5.indd 5 2/8/10 1:21 PM
Loading...
