Matrix MX-T5x, MX-T4x Owner's Manual

TREADMILL

OWNER’S MANUAL

1.0 IMPORTANT SAFETY INSTRUCTIONS

Proper Usage
Check for Damaged Parts

1.1 Important Safety Instructions

1.2 Electrical Requirements

1.3 Grounding Instructions

2.0 SETTING UP THE TREADMILL

2.1 Unpacking Treadmill

2.2 Contents

2.3 Optional Equipment

3.0 OVERLAY DESCRIPTION AND CUSTOM SETTING

3.1 The Console

3.2 Manager Club Settings

3.3 Manager Screen Description

3.4 Manager Screens Exceptions/Details

3.5 USING CSAFE

4.0 MAINTENANCE

4.1 Recommended Cleaning Tips

4.2 Deck and Belt Replacment

4.3 Adjusting the Belt

5.0 USING THE PROGRAMS

5.1 Introduction to the Programs

5.2 Run Time Program Screens Descriptions

6.0 OPERATING THE PROGRAMS

6.1 Manual Operation

6.2 Operating Level Based Programs

6.3 Heart Rate Controlled Programs

7.0 EQUIPMENT SPECIFICATIONS

8.0 ASSEMBLY

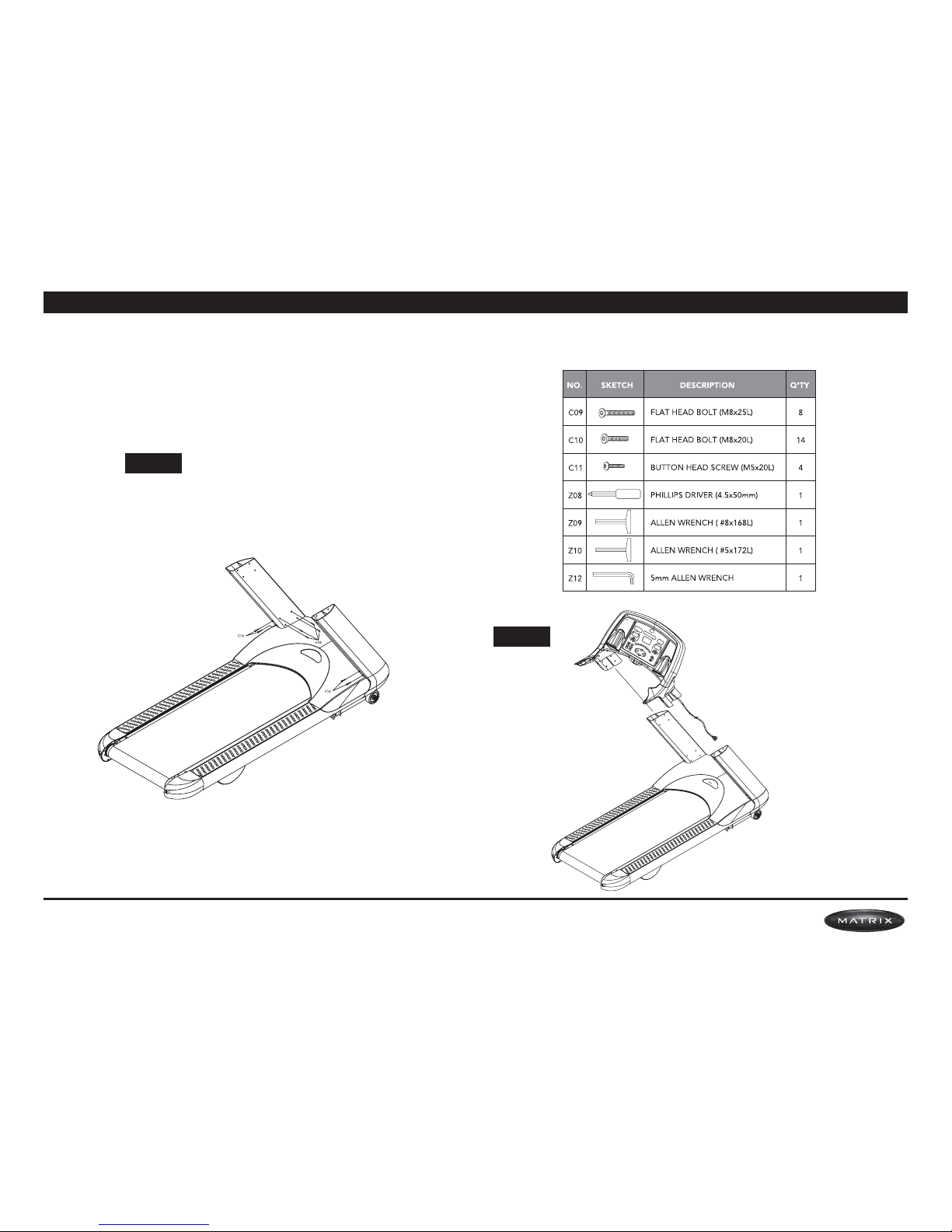

8.1 Assembly Instructions

1
1
1
2
2

3
3
3
3

4
4
4
4
5
6

7
7
7
7

8
8
8

10
10
10
10

11

12
12

TABLE OF CONTENTS

It is the sole responsibility of the purchaser of Matrix Fitness Systems products to instruct
all individuals, whether they are the end user or supervising personnel on proper usage of
the equipment.

It is the recommended that all users of Matrix Ftiness Systems exercise equipment be
informed of the following information prior to its use.

PROPER USAGE

Do not use any equipment in any way other than designed or intended by the manufac­turer. It is imperative that all Matrix Fitness Systems equipment are used properly to
avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
Unsupervised children must be kept away from this equipment.
Do not wear dangling loose clothing while on equipment.

CHECK FOR DAMAGED PARTS

DO NOT use any equipment that is damaged and or has worn or broken parts. Use only
replacement parts supplied by Matrix Fitness Systems.
MAINTAIN LABELS AND NAMEPLATES. Do not remove labels for any reason. They con­tain important infromation. If unreadable or missing, contact Matrix Ftiness Systems for
a replacement.
MAINTAIN ALL EQUIPMENT Preventative maintenance is the key to smooth operating
equipment as well as keeping the users liability to a minimum. Equipment needs to be
inspected at regular intervals. Defective components must be replaced immediately.
Improperly working equipment must be kept out of use until it is repaired.
Ensure that any person making adjustments or performing maintenance or repair of any
kind is qualified to do so. Matrix Fitness Systems will provide service and maintenance
training at our corporate facility upon request or in the field if proper arrangements are
made.

1.1 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCIONS

This Treadmill is intended for commercial use
To insure your safety and protect the equipment, read all instructions before operating the
MATRIX treadmill.

When using an electrical product, basic precautions should always be followed, including
the following:

DANGER To reduce the risk of electric shock:
Always unplug this equipment from the electrical outlet immediately after using and before
cleaning.

WARNING To reduce the risk of burns, fire, electrical shock or injury to persons that may
be associated with using this product:

An appliance should never be left unattended when plugged in. Unplug from outlet when
not in use and before putting on or taking off parts.
This product must be used for its intended purpose described in this Owner’s Guide. Do
not use other attachments that are not recommended by the manufacturer. Attachments
may cause injury.
To prevent electrical shock, never drop or insert any object into any opening.
Do not remove the side covers. Service should only be done by an authorized service tech­nician.
Never operate the Treadmill with the air opening blocked, Keep the air opening clean, free
of lint, hair and the like.
Never operate product if it has damaged cord or plug, if it is not working properly, if it
has been damaged, or immersed in water. Return the unit to a service center for exami­nation and repair.
Do not carry this unit by supply cord or used cord as handle.
Keep any power cord away from heated surfaces.
Keep hands and loose clothing away from moving parts.
Close supervision is necessary when Treadmill is used by or near children, invalids, or dis­abled persons.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
To disconnect, turn all controls to the off position, then remove plug from outlet.
Comment this Treadmill to a properly grounded outlet only.

CAUTION If you experience chest pain, nausea, dizziness or shortness of breath, STOP exer­cising immediately and consult a physician before continuing.

1.0 IMPORTANT SAFETY INSTRUCTIONS

..

..

..

..

..

..

..
..

..
..

..
..

..
..
..

1

..

..
..

..
..

..

..

1.2 ELECTRICAL REQUIREMENTS

For your safety and treadmill performance, Matrix Fitness Systems’ treadmill require a ded­icated 20 amp circuit. The ground on this circuit must be non-looped. Please refer to NEC
article 210-21 and 210-23. Your Treadmill is provided with a power cord with a plug list­ed below and requires the listed outlet. Any alterations of this power cord could void all war­ranties of this product.

DANGER Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if the user are in doubt as
to whether the product is properly grounded. Do not modify the plug provided with the prod­uct if it will not fit the outlet; have a proper outlet installed by a qualified technician.

120V UNITS DESIGNATED FOR U.S. MARKETS

The Matrix T5x Treadmill is for use on a nominal 120-volt circuit and has a non looped
grounding plug. Make sure that the 110V treadmill is connected to an outlet, NEMA 5-20R,
having the same configuration as the plug. No adapter should be used with this product.

220V UNITS DESIGNATED FOR U.S. MARKETS OR OTHER COUNTRIES

The Matrix T5x/T4x Treadmill is for use on a nominal 220-volt circuit and has a non looped
grounding plug. Make sure that the 220V treadmill is connected to an outlet, NEMA 6-20R,
having the same configuration as the plug. No adapter should be used with this product.

( * ) MATRIX T4x IS ONLY FOR THE INTERNATIONAL MARKET.

1.0 IMPORTANT SAFETY INSTRUCTIONS

2

120 20A OUTLET NEMA 5-20R

120 20A OUTLET NEMA 6-20R

120 20amp Plug NEMA 5-20R

120 20amp Plug NEMA 6-20R

The above electrical requirements are only for the U.S. market.

1.3 GROUNDING INSTRUCTIONS

The Matrix T5x/T4x* Treadmill must be grounded. If it should malfunction or breakdown,
grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. The treadmill is equipped with a cord having an equipment-grounding conduc­tor and a grounding plug. The plug must be plugged into an appropriate outlet that is prop­erly installed and grounded in accordance with all local codes and ordinances. If the user
do not follow these Grounding Instructions, the user could void the Matrix limited warran­ty.

2.1 UNPACKING THE TREADMILL

The MATRIX tradmill is inspected before it is packaged. It is shipped in two separate pack­ages: the frame and the console. Carefully unpack the unit and dispose of the box materi­al.

CAUTION This unit weights 450 lbs / 204 kgs pounds. Be sure to have proper assistance
to remove and move the unit, to avoid injury to the user and the unit.

2.2 CONTENTS

Frame

1. Treadmill Base

2. Console Supports

3. Hardware Fasteners and Washer Bag

Console

1. Handle Bar Set

2. Console

If and items are missing please contact MATRIX FITNESS SYSTEMS customer service at
1-866-MXFITNESS. For the international market, please contact your local authorized deal­ers.

2.3 OPTIONAL EQUIPMENT

Optional equipment may be available for the users of MATRIX product. Please visit our web
site at www.matrixfitness.com for more information.

2 .0 SETTING UP THE TREADMILL

3

3.1 CONSOLE DESCRIPTION

PROGRAMS Simple program view and selection buttons. Six programs to choose from.
START/QUICK START One touch Start and Quick Start
ENTER Quick entry of information and level selection.
STOP/HOLD TO RESET Stop/Pause and hold for 3 seconds to reset.
CLEAR Clears number keypad entry.
NUMBER KEYPAD (T5x) Allows quick information and level selection.
UP/DOWN ELEVATION Easy information and elevation selection.
UP/DOWN SPEED Easy information and speed selection.
DISPLAY VIEW (T5x) These three buttons allow the user to customize the way the unit’s

information and lights are displayed.
*ENTERTAINMENT (T5x) Control the CHANNEL and VOLUME of your attached TV or enter-

tainment system.

(*) THIS SPECITICATION IS ONLY FOR THE INTERNATIONAL MARKETS.

3.2 MANAGER CLUB SETTING

There are two levels of access to manager screens. The first level of access is obtained by
holding the elevation down, speed up keys. This level only allows access to the Managers
Screen.

3.3 MANAGER SCREEN DESCRIPTION

Manager screens allow the viewing and editing of variables that would be necessary for a
club operator/manager to customize. Unless otherwise noted manager screens consist of the
initial screen, the editing or action screen and the saving screen. The initial screen displays
the variable type and in most cases the current value. Edit or actions screens are where the
editing of the variable take place. The saving screen indicates the variable is being saved.

To access the Manager Settings press and hold the ELEVATION DOWN and SPEED UP bot-
tons for three seconds.

Use the ELEVATION or SPEED UP and DOWN arrows to scroll through the different manag­er setting.

Press ENTER to edit the selected manager setting.

Use the ELEVATION or SPEED UP and DOWN arrows to set the variable.

Press START to save the selected variable.

NOTE: SAVING all appear in the 7 segment window when the variavle is being saved to
memeory

3.0 OVERLAY DESCRIPTION AND CUSTOM SETTINGS

4

U.S Market

International Markets

3.0 OVERLAY DESCRIPTION AND CUSTOM SETTINGS

5

3.4 MANAGER SCREENS EXCEPTIONS/DETAILS

Below is a list of functions for each manager setting. Exceptions will be noted in the
description for each manager setting:

MAXIMUM TIME (EDIT)

This variable controls the program maximum time.
Active variable displayed in the time seven segment display.
Numeric entry is active.

DEFAULT TIME (EDIT)

This variable controls the default program time.
Active variable displayed in the time seven segment display.
Numeric entry is active.

DEFAULT LEVEL (EDIT)

This variable controls the default program level (may be eliminated in final product).
Active variable displayed in the time seven segment display.
Numeric entry is active.

DEFAULT AGE (EDIT)

This variable controls the default users age used in the goal heart rate calculations.
Active variable displayed in the time seven segment display.
Numeric entry is active.

DEFAULT WEIGHT (EDIT)

This variable controls the default weight used in the calorie calculations.
Active variable displayed in the time seven segment display.
Sets to default on unit change.
Displayed in native unites (kilorgram or pounds)
Numeric entry is active.

ACCUMULATED DISTANCE

Active variable displayed in the time seven segment display.
Accumulated distance is not editable, for display only.
Displayed in native units (miles or kilometers).
Holding the start key resets the accumulated distance.

P0

P1

P2

ACCUMULATED TIME

Active variable displayed in the time seven segment display.
Accumulated time is not editable, for display only.
Holding the start key resets the accumulated distance.

SOFTWARE VERSION

Active variable displayed in the time seven segment display.
Accumulated distance is not editable, for display only.

START SPEED (EDIT)

Controls the starting speed for all programs (minimum speed not affected).
Active variable displayed in the time seven segment display.
Displayed in native units (miles per hour or kilometers per hour).
Reverts to default value on unit change.
Numeric entry is active.

MAXIMUM SPEED (EDIT)

Controls the maximum speed for all programs.
Active variable displayed in the time seven segment display.
Displayed in native units (miles per hour or kilometers per hour).
Reverts to default value on unit change.
Numeric entry is active.

DEFAULT CHANNEL (EDIT)

Controls the default channel for enterainment CSAFE compativle devices.
This variable is editable.
Numeric entry is active.

DEFAULT CHANNEL (EDIT)

Controls the default channel for enterainment CSAFE compativle devices.
This variable is editable.
Numeric entry is active.

SPEED MODE (EDIT)

Changes from Standard (Miles) to Metric (Kilometers).
Unit change will force unit dependent variables to revert to their default values.

P3

P4

P5

P6

P7

P8

P9

P10

P11

P12

VARIABLE

Maximum Time
Default Time
Default Level
Default Weight
Default Age
Start Speed
Maximum Speed
Machine Type
IR On/Off
Default Channel
Default Volume

MINIMUM

DEFAULT

5
5

1
80
15

0.5
2

T4

OFF

1
1

MAXIMUM

95

NV max time

20
400
100

2
12
T5
ON
30
30

STEP SIZE

5
5
1
5
1

0.1

0.1
1
1
1
1

UNITS

minutes
minutes

pounds

years
mph
mph

Unit
Unit

FACTORY

20
20

1

150

30

1
12
T4
ON

1
16

3.5 USING CSAFE

Matrix is the leader in entertainment availability. On the back of the console are three RJ45
receptacles. They are marked CSAFE IN, CSAFE OUT, and ENTERTAINMENT.

Use the csafe in to plug in an csafe device using the RJ45 connector csafe out allows csafe
products to be daisy chained together from one unit to the next. The connection is as fol­lows;

CPU

CSAFE IN

CSAFE OUT

CSAFE IN

CSAFE OUT

CSAFE IN

UNIT 1

UNIT 2

UNIT 3

3.0 OVERLAY DESCRIPTION AND CUSTOM SETTINGS

6

4.1 RECOMMENDED CLEANING TIPS

Use a soft, clean cotton cloth. DO NOT use paper towels to clean surfaces on the tread­mill. Paper towels are abrasive and can surfaces.
Use a mild soap and damp cloth. DO NOT use ammonia based cleaner. This will cause
discoloring of the aluminum and plastics it comes into contact with.
Do not pour water or cleaning solutions on any surface. This could cause electrocution.
Wipe the console and side rails after every use.
Brush away any wax deposits from the deck and belt area. This is a common occurrence
until the wax is worked into the belt material.
Be sure to remove any obstructions from the path of the elevation wheels including
power cords.
Monthly, unplug the treadmill and remove the motor cover. Check for debris and clean
with a dry cloth or small vacuum nozzle. WARNING Do not plug the treadmill in until
the motor cover has been reinstalled.

CAUTION This unit weighs 450 lbs / 204 kgs. Be sure to have proper assistance to install
and move the unit in order to avoid injury to you or the unit.

4.2 DECK AND BELT REPLACEMENT

One of the most common wear and tear items on a treadmill is the Deck and Belt combina­tion. If these two items are not properly maintained they can cause damage to other com­ponents. This product has been provided with the most advanced maintenance free lubri­cating system on the market.

WARNING Do not run the treadmill while cleaning the belt and deck. This can cause seri­ous injury and can damage the machine.

Maintain the belt and deck by wiping the sides of the belt and deck with a clean cloth. The
user can also wipe under the belt 2 inches on both sides removing any dust or debris.

The deck can be flipped and reinstalled with a new only by an authorized service techni­cian. Please contact Matrix Fitness Systems for more information.

4.3 ADJUSTING THE BELT

After locating the treadmill in the position it will be used, the belt must be checked for prop­er tension and centering. The belt might need to be adjusted after the first two hours of
use. Temperature, humidity, and use cause the belt to stretch at different rates. If the belt
starts to slip when a user is on it, be sure to follow the directions below.

4.0 MAINTENANCE

7

Locate the two hex head bolts on the rear of the treadmill. The bolts are located
at each end of the frame at the back of the treadmill. These bolts adjust the rear
belt roller. Do not adjust until the treadmill is on. This will prevent over tighten­ing of one side.
The belt should have equal distance on either side between the frame. If the belt
is touching one side, do not start the treadmill. Turn the bolts counter clockwise
approximately one full turn on each side. Manually center the belt by pushing the
belt from side to side. Tighten the bolts the same amount as when the user loos­ened them approximately one full turn. Inspect the belt for damage.
While the treadmill is running at 3 mph, observe the belt position. If it is moving
to the right, tighten the right bolt by turning it clockwise ⁄ turn, and loosen the left
bolt ⁄ turn. If it is moving to the left, tighten the left bolt by turning it clockwise
⁄ turn and loosen the right ⁄ turn. Repeat Step 3 until the belt remains centered
for several minutes.
Check the tension of the belt. The belt should be very snug. When a person walks
or runs on the belt it should not hesitate or slip. If this occurs, tighten the belt
by turning both bolts clockwise ⁄ turn. Repeat if necessary.

1.

2.

3.

4.

5.

6.

STEP 1

STEP 2

STEP 3

STEP 4

5.0 USING THE PROGRAMS

8

5.1 INTRODUCTION TO THE PROGRAMS

The Matrix treadmill the user has selected comes with 6 preprogrammed workouts. Quick
Start allows the user to get to the workout with the touch of one button. Manual allows the
user to input the correct information for accurate calorie calculations and easy program
switching on the fly. Intervals, Rolling, and Fat Burn use selected levels to challenge any
user. Press Random for more program profiles. Target Heart Rate uses the inputted target
heart rate to adjust for the duration of the workout and includes a 5 minute 2 level reduc­tion cool down.

5.2 RUN TIME PROGRAM SCREENS DESCRIPTIONS

STARTING 3.2.1 SCREEN

This screen is the countdown screen for starting a program.

DOT MATRIX Countdown text STARTING "3…2…1" is displayed in the dot matrix. A beep
is produced for every change in count. The belt will start moving a few seconds after the
"1" appears.

RUN TIME SCREEN-MANUAL PROGRAM

This screen is the manual program running screen. The user controls all functions. There
is an oval track set to the total time of the program. A distance motivational message will
appear every _mile and an amber dot will remain at that point of time on the track.

DOT MATRIX A manual track with the_mile indicators. The spent time is displayed in green,
the un-used in red and the current segment blinks in amber. Every _mile the current
mileage is displayed on the dot matrix and the segment that the_mile change took place
remains solid amber.

RUN TIME SCREEN-LEVEL BASED PROGRAMS

(INTERVAL, ROLLING INTERVAL, FAT BURN AND RANDOM)

Level based programs have similar functions except for the program in use. Level based
programs take the number of LED's illuminated in a column of the current graphic and
translate them to an elevation based upon current level. When changing between programs,
the elevation will change to the current programs elevation after five seconds or when the
segment changes, whichever is first.

DOT MATRIX Level based graphics consist of expired columns (green), current column
(flashing amber), and pending columns (red). Each column height corresponds to a poten­tial change in elevation depending upon the level setting.

ALPHA NUMERIC

NORMAL Calories and Pace
HR PRESENT Calories and Current HR (HR symbol flashes in response to heart rate).
LEVEL CHANGES Temporary display of text "LEVEL XX" with XX being the current level.

KEYS

ELEVATION UP/DOWN Increases/decreases level. Value displayed in the elevation win-

dow will change when change in level for given LED's displayed change the elevation.

SPEED UP/DOWN KEYS Increases/decreases speed.
PROGRAM KEYS Change to selected program (except HR), displays "reset for HR" mes-

sage if HR key.

STOP KEY (PRESSED) Jumps to pause screen.
ENTERTAINMENT KEYS Entertainment key functions are active.
NUMERIC ENTRY KEYS Edits the current speed after a selection is made and enter is

pressed.

WARM-UP SCREEN

(HEART RATE PROGRAM ONLY)

This screen operates as a manual program for the warm up period. Initial warm up will be
2 minutes and any pause in program will be 1 minute (or until heart rate is within 10 BPM
of goal heart rate). During the warm-up the user will be prompted to increase the active
variable (speed or elevation). If the active variable is greater than_the maximum value set
in the pre-program section the user will be prompted to increase the alternate variable. A
prompt will indicate the user is approaching the target heart rate.

DOT MATRIX A manual track without the _mile amber dot indicators.

IMPORTANT MESSAGES

Starting Warm up message at the beginning of the warm-up.
Increase elevation or speed message depending upon the level of the active variable.
Approaching Target Heart Rate message, as the heart rate stabilizes within 10 BPM of
the target.
Reset for programs message (change from heart rate to other programs not allowed using
program keys).

KEYS

ELEVATION UP/DOWN Increases/decreases current elevation
SPEED UP/DOWN KEYS Increases/decreases current speed
STOP KEY (PRESSED) Jumps to pause screen
ENTERTAINMENT KEYS Entertainment key functions are active

After warm up program ends (1 or 2 minutes see warm-up screen) changes to program run
time screen.

.
.

.
.

5.0 USING THE PROGRAMS

9

RUN TIME SCREEN - HEART RATE PROGRAMS

Heart rate program alters the "active variable" (either speed or elevation) in to maintain the
goal heart rate. The active variable can be altered from its minimum value to the maximum
value specified by the user during the pre-programs. If the active variable is at a limit and
additional change to the workout is required the useris prompted to increase/decrease the
alternate variable.

IMPORTANT SAFETY FEATURES

Safety - When the user hart reate exceeds the target heart rate by the below values, the fol­lowing prompts/actions will take place:
10 BPM - Warning in alpha numeric indicating active variable will be reduced (if above min­imum) or alternate variable will be reduced.
12 BPM - Active variable (if above minimum) or alternate variable reduced by 30%.
15 BPM - Warning indicating heart rate over maximum and program will end.
20 BPM - Program ends.

DOT MATRIX A graphic displaying a heart with its position relative to the relationship
between the measureed heart rate vs. goal heart rate (goal heart rate in center of the screen
in green). Two vertical bears indicated the lower and upper limits Heart graphic portions
located between the upper and lower limit are green. Portions below the lower limit are illu­minated amber and portions above are illuminated red.

KEYS

ELEVATION UP/DOWN If active variable is elevation, jumps to HR manual screen, if

active variable speed increased or decreases current elevation.
SPEED UP/DOWN KEYS If active variable is speed, jumps to HR manual screen, if active
variable elevation, increases or decreases speed.
PROGRAM KEYS If pressed displays :reset for programs” this programs does not change
on the fly.

STOP KEY (PRESSED) Jumps to pause screen.
NUMERIC ENTRY KEYS If elevation based program, edits speed (see numeric edit

description), if speed based program seys inactive because the treadmill will control the
speed.

PAUSE SCREEN

The pause screen maintains existing accumulated variables (time, distance, calories, etc.)
allowing the program to be restarted where it left off. Paused hart rate programs restart with
a short warm up (1 minute). Speed is returned to the default value during a pause. Elevation
is left at its current setting.

Treadmill will not restart until it comes to a compete stop.

ALPHA NUMERIC

Displays message “Select Start to Resume”.

KEYS

STOP KEY (held, 3 seconds) Jumps to the safety startup screen.
START KEY Jumps to starting “3...2...1” screen for curretn program (restarts current

program).

AUTO ENTRY/TIME OUT

Cool down screen sets the elevation to the minimum and redures the current speed to 30%
of current value or 4 mph whichever is lower to the default start speed. Cool down effective­ly functions as a manual program and has a set time of 2 minutes. Calories and distance
accumulated during the cool down screen.

KEYS

ELEVATION UP/DOWN Increases/decreases current elevation.
SPEED UP/DOWN KEYS Increases/decreases current speed.
STOP KEY (PRESSED) Jumps to program end screen.
NUMERIC ENTRY KEYS Edits the current speed (see numeric edit description).

PROGRAM END (PROGRAM REVIEW) SCREEN

The program end screen stops belt movement and returns elevation to zero at the end of a
workout. During the program end screen workout totals are displayed allowing the user to
review their workout.

ALPHA NUMERIC

Displays message “WORKOUT COMPLETE END WORKOUT” followed by message “WORK­OUT SUMMARY, PACE, DIST, CALS”.

SEVEN SEGMENTS

TIME Displays text “end”.
DISTANCE Displays workout distance.
ELEVATION Displays elevation.
SPEED Displays speed

KEYS
STOP KEY (PRESSED) Jumps to program end screen.

AUTO ENTRY/TIME OUT

Timeout after 25 seconds jumps to the safety startup screen. Pressing any key will extend
the tomeout time.

6.0 OPERATING THE PROGRAMS

10

Select Weight by using the UP or DOWN arrow keys.

Press START or ENTER to begin workout.
Display, TIME, Starting 3, Starting 2, Starting 1

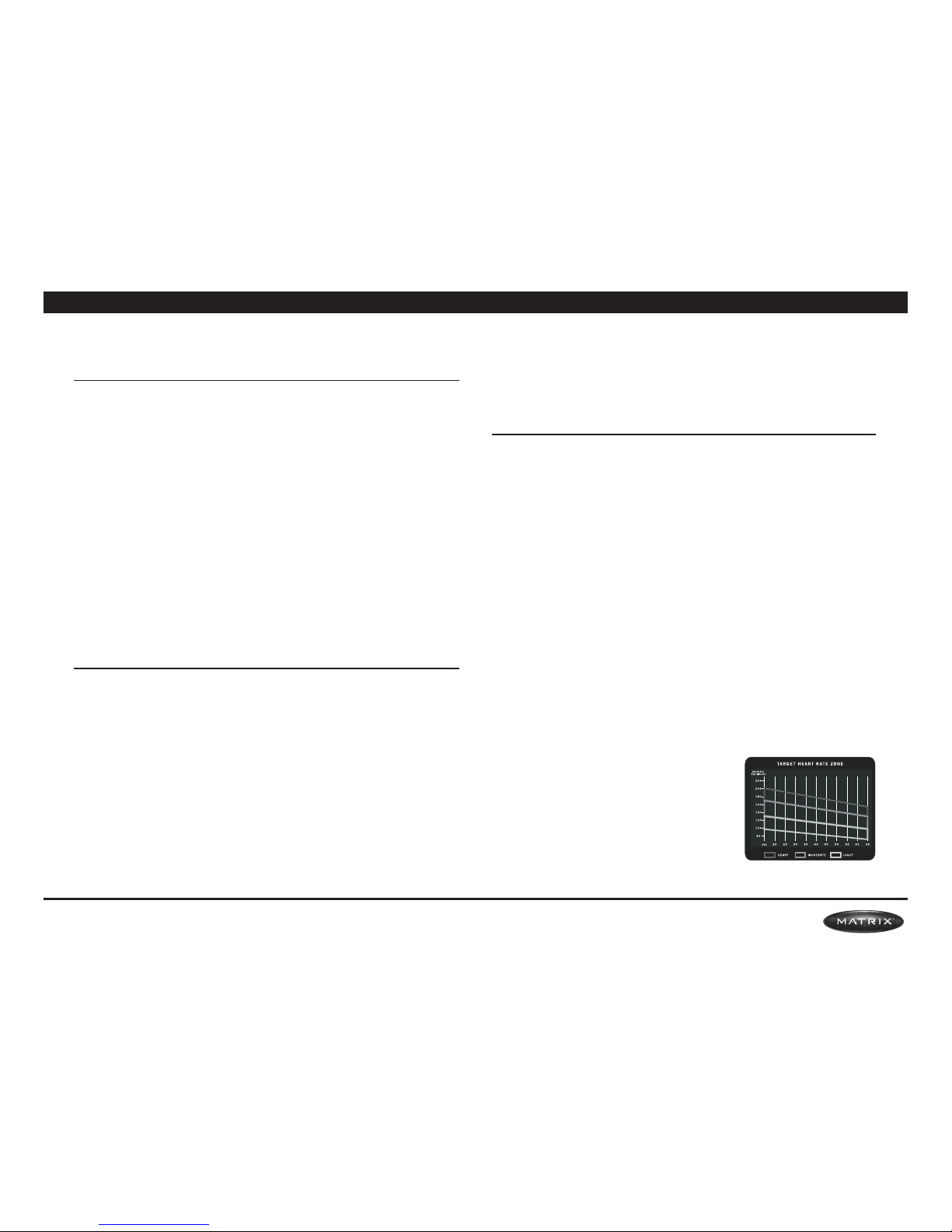

6.3 HEART RATE CONTROL

For your convenience, MATRIX FITNESS Treadmills come standard with digital contact
heart rate sensors and telemetry compatible.

Locate the metal sensors on the handrail of the Treadmill. Notice there are two separate
pieces of metal on each grip. You must be making contact on both pieces of each grip to
get an accurate heart rate reading. You can grab these sensors in any program to view your
current heart rate located in the lower left hand window marked HEART RATE.

Heart Rate Program
Follow these easy Steps to enter into the Heart Rate Program.

Select the TARGET HR program button.
Select TIME by using the UP or DOWN arrow keys. When finished press enter or
wait 5 seconds.
Select AGE by using the UP or DOWN arrow keys. When finished press enter or
wait 5 seconds.
Select PERCENTAGE OF MAXIMUM HEART RATE by using the up or down arrow.
Percentage of maximum heart rate is determined by the following formula.
(220 Beats Per Minute - Age) Selected precentage.
Example (220 - 30)65% = 123 Beats Per Minute.
Select from 50% - 80% in 5% increments.
Select hr program type by using the up or down arrow keys select the active vari­able Speed or Elevation that will be used to control the users heart rate. Press
enter or weight 5 seconds.
Select MAXIMUM SPEED/ELEVATION by using the UP or DOWN arrow keys select
the active variable Maximum Speed or Elevation that will be used to control the
users heart rate.

HEART RATE SAFETY PROTOCALS

When the users heart rate exceeds the target heart rate by
the values, the following prompts will take place:
10BPM Warning in alpha numeric indicating active vari­able will be reduced (if above min.) or alternate variable
will be reduced.
12BPM Active variable (if above min.) or alternate vari­able, if active variable is at zero, reduced by 30%.
15BPM Warning indicating heart rate over maximum and
program will end.

20BPM Program ends.

STEP 1

6.1 MANUAL OPERATION

MATRIX design makes using tghe programs as easy as one touch of a button.
QUICK START Start pedaling and press QUICK START to begin workout.

MANUAL MODE allows you to enter desired time, level and weight.

Select MANUAL program button on left of panel.
Press Enter or wait 5 seconds.
Selecting START will start program.

Select TIME by using the UP or DOWN arrow keys.
Press ENTER or wait 5 seconds.
Select START will start program.

Select LEVEL by using UP or DOWN arrow keys. You can change the level at any
time during workout.
Press ENTER or Wait 5 seconds.
Select START will start program.

Select Weight by using the UP or DOWN arrow keys.
Press START or ENTER to begin workout.
Display, TIME, Starting 3, Starting 2, Starting 1

6.2 OPERATING LEVEL BASED PROGRAMS

Your MATRIX Treadmill offers versatile programs to keep the user motivated. The following
instructions will guide you through simple steps to select INTERVALS, ROLLING, FAT BURN
and RANDOM programs.

Select the PROGRAM button on left of panel.
Press ENTER or wait 5 seconds.
Selecting START will start program.

Select TIME by using the UP or DOWN arrow keys.
Press ENTER or wait 5 seconds.
Select START will start program.

Select LEVEL by using UP or DOWN arrow keys. You can change the level at any
time during workout.
Press ENTER or Wait 5 seconds.
Select START will start program.

STEP 1

STEP 2

STEP 3

STEP 4

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

STEP 2

STEP 3

STEP 4

STEP 5

STEP 6

HEART RATE

Telemetry Yes
Contact Heart Rate Yes

ENTERTAINMENT READY

Coaxial Cable Connection Yes
AC TV Power Connection Yes
Monitor Mount Yes
CSAFE Port 3

MANAGER MODE

Maximum Time 5-95
Default Time 5-95
Default Level L1
Default Weight 60-400
Accumulated Distance
Accumulated Time
Start Speed .5-2.0

7.0 EQUIPMENT SPECIFICATIONS

11

> TREADMILL

MX-T5x / T4x

SPECIFICATIONS

Product Name T5x / T4x
Foot Print inches = 85” x 35” x 62”

cm = 215.9 x 88.7 x 157.5

Weight 450 lbs

204 kg
Max User Weight 400 lbs = 181 kg
Belt Type Habisat
Frame Construction Aluminum/Steel
Running Area 22” x 60”
Incline Range 15%
Speed Min. 0.5
Speed Max. 12
Motor Type AC
Motor Size 3hp 4pole
Controller Cooling Fan Yes
Electrical Receptacle 110 NEMA 5-20R
Electrical Plug 110 NEMA 5-20P
Electrical Receptacle 220 NEMA 6-20R
Electrical Plug 220 NEMA 6-20P
Electrical Amps 110v 20 Amps
Electrical Amps 220v 20 Amps
Deck 1” Reversible
Wax No Maintenance

VARIABLE COMPRESSION TECHNOLOGY

Absorber Rubber Damperners
Number of Cushions 8
Cushion = Stride Impact Yes

SAFETY

Shut off w/Tether Yes
Large Safety Stop Yes

PROGRAMS

Number Key Pad Yes
One Button Quick Start Yes
Ramdom (20 profile) Yes
Target Heart Rate Yes
Fat Burn Yes
Intervals Yes
Rolling Yes

8.0 ASSEMBLY

12

8.1) TREADMILL FASTENERS & ASSEMBLY TOOLS

MX-T5x / T4x

STEP 2

STEP 1

8.0 ASSEMBLY

13

STEP 3 STEP 4
