Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu
MD720 Built-Under
Double Oven
MD920 Built-In Double Oven
Manual for Installation, Use and Maintenance
2
Important
This appliance must only be used for the purpose for which it is intended,
i.e. domestic cooking. Any other use could be dangerous and may lead to
premature failure of the appliance.
The CDA Group Ltd cannot be held responsible for injuries or losses caused
by incorrect use or installation of this product. Please note that CDA
reserve the right to invalidate the guarantee supplied with this product
following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including children)
with reduced physical, sensorial or mental capacity, or who lack experience
or knowledge about it, unless they have had supervision or instructions on
how to use the appliance by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information:
• Ovens become hot during and immediately after use.
• The oven door can become hot during operation.
• After use, please ensure that the oven switches are in the ‘Off’ position.
• Keep children away from the appliance when in use, and immediately
after use.
• Keep the oven door closed when the applaince is in use.
3
Appliance information:
Please enter the details on the appliance rating plate below for reference, to
assist CDA Customer Care in the event of a fault with your appliance and to
register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This oven has been designed, constructed and marketed in compliance
with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and
requirements of EMC Directive 2004/108/EEC.
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety (LVD) and
Electromagnetic interference compatibility (EMC). Parts intended to come
into contact with food conform to EEC/89/109.4
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must not be disposed of as urban
waste. It must be taken to a special local authority differentiated waste
collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative
consequences for the environment and health deriving from inappropriate
4
disposal and enables the constituent materials to be recovered to obtain
significant savings in energy and resources. As a reminder of the need to
dispose of household appliances separately, the product is marked with a
crossed-out wheeled dustbin.
Important
• Read the user instructions carefully before using the oven for the first
time.
• Follow the instructions for first use of the oven.
• Clean the oven regularly.
• Steam cleaners must not be used when cleaning this appliance.
• Remove spills as soon as they occur.
• Always use oven gloves when removing shelves and trays from the ovens.
• Do not allow children near the oven when in use.
• Do not allow fat or oils to build up on the oven shelves, grill pan or oven
base.
• Do not place any cooking utensils or plates directly on the oven base.
• Keep the oven door closed when the oven is in use.
• Do not grill food containing fat without using the grill pan grid.
• Do not cover the grill pan grid or the oven walls with aluminium foil.
• Do not use the oven tray for roasting.
• Do not perform maintenance or cleaning of the oven without first
switching off the electricity supply. If the oven has recently been used,
allow to cool.
• Do not place hot enamel parts in water. Leave them to cool first.
• Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to
remain in contact with enamel parts.
5
• Do not use abrasive cleaners or powders that will scratch the surface of
the enamel.
• Do not attempt to repair the internal workings of your oven.
• The oven is equipped with a safety thermostat which will switch off the
oven in the event of the oven overheating. If the safety thermostat
should switch off the power, you must wait for the oven to cool down
before using it again.
First Use of the Oven
Before using the oven for the first time we recommend that you clean both
oven cavities with soapy water, rinse carefully and then heat on each of
the below programmes at maximum temperature for the specified time. A
slightly unpleasant smell may be produced, caused by grease remaining on
the oven elements from the production process.
Top oven
15 minutes full grill
60 minutes conventional
Lower oven
60 minutes fan oven
Please note:
• This oven has been fitted with a
cooling fan to achieve maximum
efficiency and to maintain low
surface temperatures.
• The cooling fan will switch on
automatically when the oven is
switched on and runs for a while
after the oven has been switched
off - the length of time can vary
and will be increased by poor
ventilation.
6
Oven controls and use
Cooking function knob
To set the function, turn the cooking function knob for the required oven
clockwise to the required function.
Each of the oven functions uses different elements within the oven to offer
you the best choice of cooking every time. These are explained below:
Conventional oven
This function uses the top and bottom heating elements only with a
temperature between 50ºC and 250ºC.
Natural convection creates a perfect cooking zone in the centre of
the oven, ideal for dark fruit cakes and pastries.
Warming oven
This function uses the bottom heating element only with a
temperature set between 50ºC and 250ºC. This natural heat is
perfect for dough proving and blind-baking.
Grill
This function radiates the heat from the grill element and the top
element.
This fully temperature variable grill is ideal for grilling a full family
meal. It can be set between 50ºC and 250ºC.
7
When grilling, please note:
• Always grill with the oven door closed.
• Put the grill pan as close to the grill as possible.
• Do not grill for more than 30 minutes at a time.
• Preheat the grill for approximately five minutes with the oven door closed.
Oven Lamp
This function switches on the oven light in the cavity.
Please note: the oven light will operate on all cooking functions
Defrost
Using the fan only this oven function circulates the air around the
oven cavity, speeding up the natural defrost process (1kg takes
approximately one hour, depending on the type of food).
Fan Oven
Using the circular element and the fan with a temperature between
50ºC and 250ºC, this cooking function blows the air into and around
the oven cavity. Temperatures are achieved quicker, reducing or even
removing the need for preheating. Both cooking temperatures and
cooking times can be reduced for a more energy efficient cooking
programme.
This function is perfect for cooking various food types simultaneously as
foods are sealed quickly to prevent flavour transfer.
8
Temperature knob
• To set the temperature, turn the temperature knob for the required oven
clockwise to the required temperature.
• | Once the oven has reached the required temperature, the temperature
indicator lamp on the control panel will switch off.
• The temperature indicator lamp will light up when the oven elements are
working.
Programming the oven
IMPORTANT: THE CLOCK MUST BE SET TO ENABLE THE OVEN TO
WORK.
The alert beep will cut off after seven minutes if it is not switched
off manually.
Setting the clock
The clock is preset to 00:00, and will revert to this after a power failure.

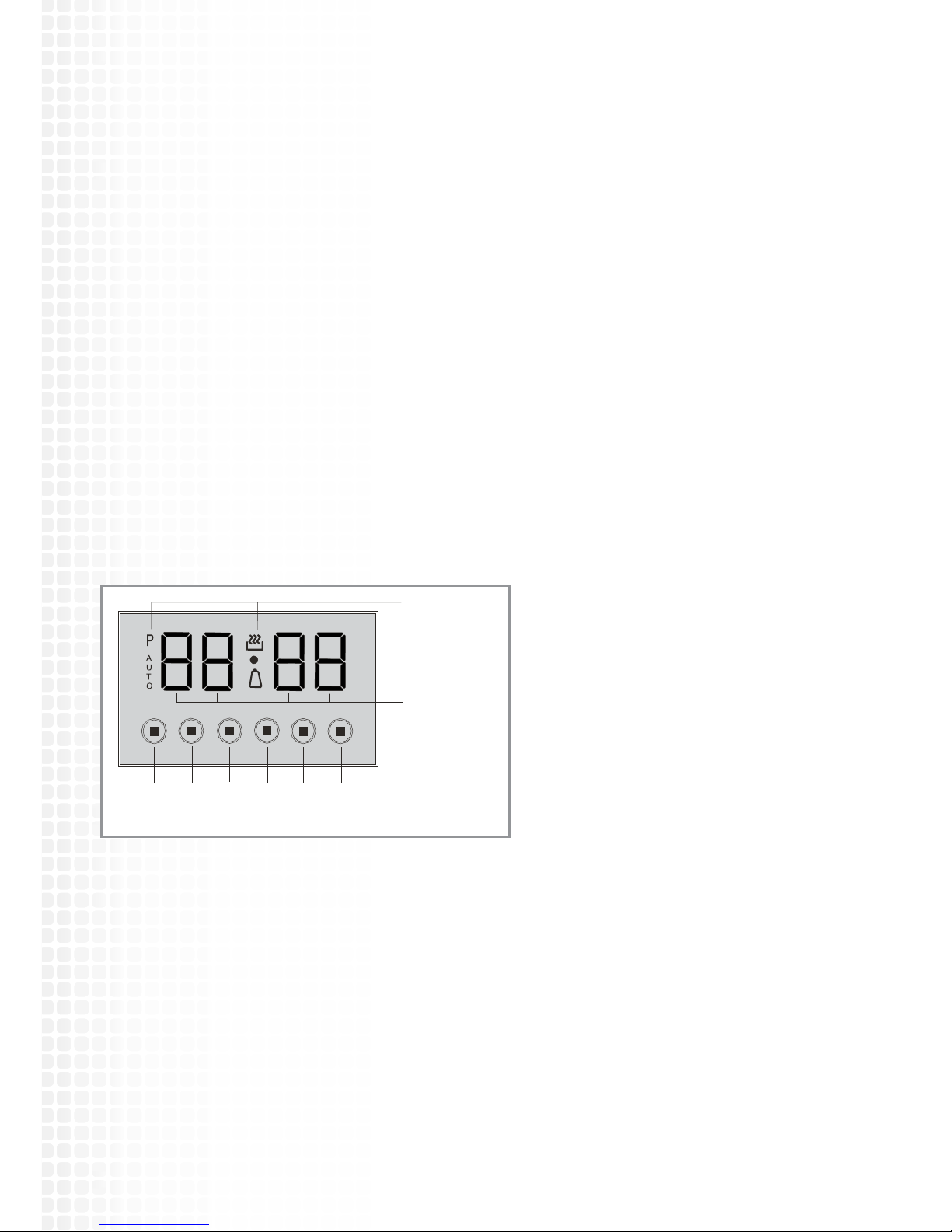

• With the oven switched off, press buttons 2 and 3 at the same time.
• Select the correct time by pressing the increase and decrease buttons.
1
2
3456
buttons
functions
display
field
fig. 1
To confirm a selection when
programming the clock/timer,
once the display shows the
preferred selection simply do
not touch any further keys for
approximately five seconds. The
oven will automatically confirm
the selection.
9
When the correct time is shown on the display, the clock will set after
approximately five seconds’ delay.
Setting the volume of the beep
• When the current time is shown on the clock display, press and hold
button 5. The beep will sound three times.
• Continue to press button 5 until the volume is at the correct level. Each
press of the button will cycle through the options.
The minute minder
The minute minder can be used when the oven is switched on or off. It can
be set for up to 23 hours and 59 minutes.
To set the minute minder:
• Press button 1.
• Then press buttons 5 and 6 to select the required duration for the
minute minder. When the correct duration shows on the display, the
minute minder will set after approximately five seconds delay.
• A bell symbol will show in the clock display to indicate the minute
minder is on.
• When the countdown is complete, there will be a beep which will
continue for seven minutes. To switch off the beep, press any button.
• To cancel the timer, press button 1 and then buttons 5 and 6
simultaneously.
Please note :
At the end of the countdown, the minute minder will not switch off the
oven. Remember to turn off the oven manually.
10
Programming the oven
The oven can be set for semi-automatic cooking, where the oven is
programmed to switch off at a specific time, and for automatic cooking,
where the oven is set to switch on and off at specific times.
To use the oven, first press button 4
To set a semi-automatic programme
1. Select the required function and temperature (the oven will
switch on).
2. Press button 2 and then press button 5 or 6 to select the required
duration of cooking (maximum of 10 hours). The auto symbol
will show on the clock display to indicate a programme has been
set.
To set a fully automatic cooking programme, follow step 1 and 2
above, and then:
3. Press button 3. The clock will show the predicted end time (i.e.
the programmed cooking time added on to the current time).
4. Press button 5 or 6 to select the required end time for cooking.
The programme symbol will no longer show on the clock display,
but auto will still show. When the cooking programme beings,
the programme symbol will show in the clock display.
To check on the time remaining on the programme, press button 2.
To check on the specified end time, press button 3.
11
When the cooking time is completed, the programme symbol will no longer
be shown, auto will flash and the timer will beep. To switch off the beep,
press any button. Then switch off the oven by turning the control knobs to
the off position and pressing button 4 to set the programmer to manual.
To cancel a programme
Press buttons 2 and 3 simultaneously, or button 4.
Please note :
At the end of a programme, the timer will not switch off the oven.
Remember to turn off the oven manually.
12
Care and Maintenance
IMPORTANT
Before any maintenance is started involving electrical parts, the
appliance must be disconnected from the power supply.
If the oven has been in use, let the oven cavity and the heating
elements cool down before attempting any maintenance.
The oven exterior
As the oven has a stainless steel or enamel surface, you should use a
nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the
surface and could erase the control panel markings. Stainless steel can
be effectively cleaned by simply using a dilute solution of water and mild
detergent and drying to a shine with a clean cloth.
Proprietary stainless steel cleaners are available. We recommend the CDA
E-Cloth available from the CDA Sales Team for cleaning stainless steel
surfaces as this has been designed to prolong the finish of your appliance.
Inside of Oven
The oven should always be cleaned after use when it has cooled down.
The cavity should be cleaned using a mild detergent solution and warm
water.
Suitable proprietary chemical cleaners may be used after first consulting
with the manufacturers recommendations and testing a sample on a small
area of the oven cavity. Abrasive cleaning agents or scouring pads/cloths
should not be used on the cavity surface.
13
IMPORTANT:
• Steam cleaners must not be used when cleaning this appliance.
• Once care and maintenance is complete, ensure that all parts are
correctly replaced before using the oven.
Changing the Oven
Lamp
Before any maintenance is started
involving electrical parts, the appliance
must be disconnected from the power
supply.
If the oven has been in use, let the
oven cavity and the heating elements
cool down before attempting any
maintenance.
Changing the bulb (fig. 2)
Unscrew the protective cover. We
recommend that you wash and dry the glass
cover at this point.
Carefully remove the old bulb and insert
the new bulb suitable for high temperatures
(300ºC) having the following specifications:
230-240V, 50Hz, 25W, G9 fitting.
fig. 2
14
Refit the protective cover.
IMPORTANT
Never use screwdrivers or other utensils to remove the
light cover. This could damage the enamel of the oven or the lamp
holder. Remove only by hand.
IMPORTANT
Never replace the bulb with bare hands as contamination from your
fingers can cause premature failure. Always use a clean cloth or
gloves.
Please note:
The bulb replacement is not covered by your guarantee.
15
Cleaning and
Maintenance Removing the Oven
Door
The oven doors can easily be removed
as follows:
• Open the door to the full extent (fig. 3.1).
• Open the lever A completely on the left
and right hinges (fig. 3.2).
• Hold the door as shown in fig. 3.
• Gently close the door (fig. 3.3) until left
and right hinge levers A are hooked to
part B of the door (fig. 3.2).
• Withdraw the hinge hooks from their
location following arrow C (fig. 3.4).
• Rest the door on a soft surface.
• To replace the door, repeat the above steps
in reverse order.
fig. 3.1
fig. 3.4
B
A
A
B
fig. 3.2
C
C
fig. 3.3
fig. 3
16
Mains Electricity
Connection
Warning! This appliance must be
earthed
To connect this appliance to a UK standard
mains supply, connect the bridging links
between 1-2-3 for the live feed and 4-5 for
the neutral feed
We recommend that the appliance is
connected by a qualified electrician, who is
a member of the N.I.C.E.I.C. and who will
comply with the I.E.E. and local regulations.
This appliance is intended to be connected to fixed wiring and is
not suitable for connection to a 13A plug or 13A supply.
This appliance is intended to be connected to fixed wiring by a double pole
switch, having a contact separation of at least 3mm in all poles. The switch
must be positioned no further than 2m from the appliance.
Release the two locks located at either side of the connector cover at the rear
of the appliance.
Feed the mains lead through the cable clamp to prevent accidental
disconnection.
Tighten the cable clamp securely and close the connector cover.
fig. 4
1
2 3
4
17
Fig.5
Green/yellow
Blue
Brown
Green and Yellow = Earth (PE)
Blue = Neutral
Brown = Live
Please note:
•The mains cable must only be replaced by a
qualified electrician or service engineer and
must be of equivalent or better rating (i.e.
2.5mm2, HO5RR-F).
•This appliance is intended to be connected
to the mains supply with a cable of cross
section area 2.5 mm2. A larger cable will
not fit the terminal connections.
•The marking of the current rating of the
fuse or circuit breaker protecting this
appliance should be marked on the socket
outlet.
•Assembly and electrical connection should
be carried out by specialised personnel.
•When installing this product we
recommend you seek the help of another
individual.
18
Installation
Important
Failure to allow adequate ventilation to the appliance may result in
overheating or damage to adjacent units and could invalidate the warranty.
The diagram below shows the minimum required.
This appliance is type X installation. The walls of the kitchen units must be
able to withstand temperatures of 75oC above ambient (typically this is
between 90oC and 100oC).
When correctly installed ensure that there is a gap of 4mm minimum
between the sides of the oven and adjacent furniture doors.
Lift the oven carefully into position on the shelf, taking care NOT to lift it
by the door handles. If you lower the oven door, you will see 4 screw holes,
2 on each side of the oven. The oven should then be secured to the housing
by fitting screws into these holes. Remember the housing should not be free
standing but be secured to the wall and/or adjacent fittings.
How to install your oven
You will need the following housing area fit your oven correctly.
MD720 only: We recommend that you fit end support panels onto the
adjacent units to allow the oven to be secured in place (as shown in fig. 6)
19
fig. 6
Dimensions Oven Housing
Height (mm) 890 877
Width (mm) 595 560
Depth (mm) 540 560 (min)
MD920
Dimensions Oven Housing
Height (mm) 718 720
Width (mm) 595 560
Depth (mm) 540 560 (min)
MD720
MD920MD720
24
595
540
560
556
718
720 min
560
end support
panels
= airow
595
888
24
540
877
30-50
560
556
868
850
105
560
= airow
20
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu
To contact our Customer Care Department, or for Service,
please contact us on the details below.
Serviced by
Loading...
