Matrix IC7, IC-MXIC7B-01 User Manual
MANUFACTURED BY:
Indoorcycling Group GmbH
Happurger Str. 86
90482 Nuremberg | Germany
info@indoorcycling.com
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM
IC7
MODEL NO:IC-MXIC7B-01
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
ENGESP
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
WEIGHT OF BIKE: 54 KG
MAX USER WEIGHT: 150 KG
USER HEIGHT: SUITABLE FOR USERS BETWEEN APPROX. 155 AND 215 CM
REQUIRED FOOT PRINT: APPROX. 132 X 52 CM
MAX SADDLE & HANDLEBAR HEIGHT: APPROX. 120 CM
TECHNICAL SPECIFICATIONS:
The Matrix IC7 indoor cycle is, according to EN ISO 20957 (1 & 10), a Class S product for
use in a controlled environment such as sports or tness facilities
under the supervision of a trainer.
WARNING!
The performance data shown on the display exceeds the requirements according to DIN EN
957-5 for Class A ergometers. The average achieved accuracy of < +/- 1% relates to a rotational
speed range of 40 - 120 RPM and a braking eciency of between 50 - 900 watts.
Electronic components adhere to the EMV Directive 204/108/EC, EMV Directive 99/519/EC,
and DIN EN 60335-1 for electrical safety.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS P.3
GETTING STARTED P.4
HOW TO ASSEMBLE THE INDOOR CYCLE P.5-9
INSTALLATION AND DISPOSING OF BATTERIES P.10-11
HOW TO ADJUST THE INDOOR CYCLE P.12-14
HOW TO OPERATE THE INDOOR CYCLE P.15
PREVENTIVE MAINTENANCE P.16-19
MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE P.20-21

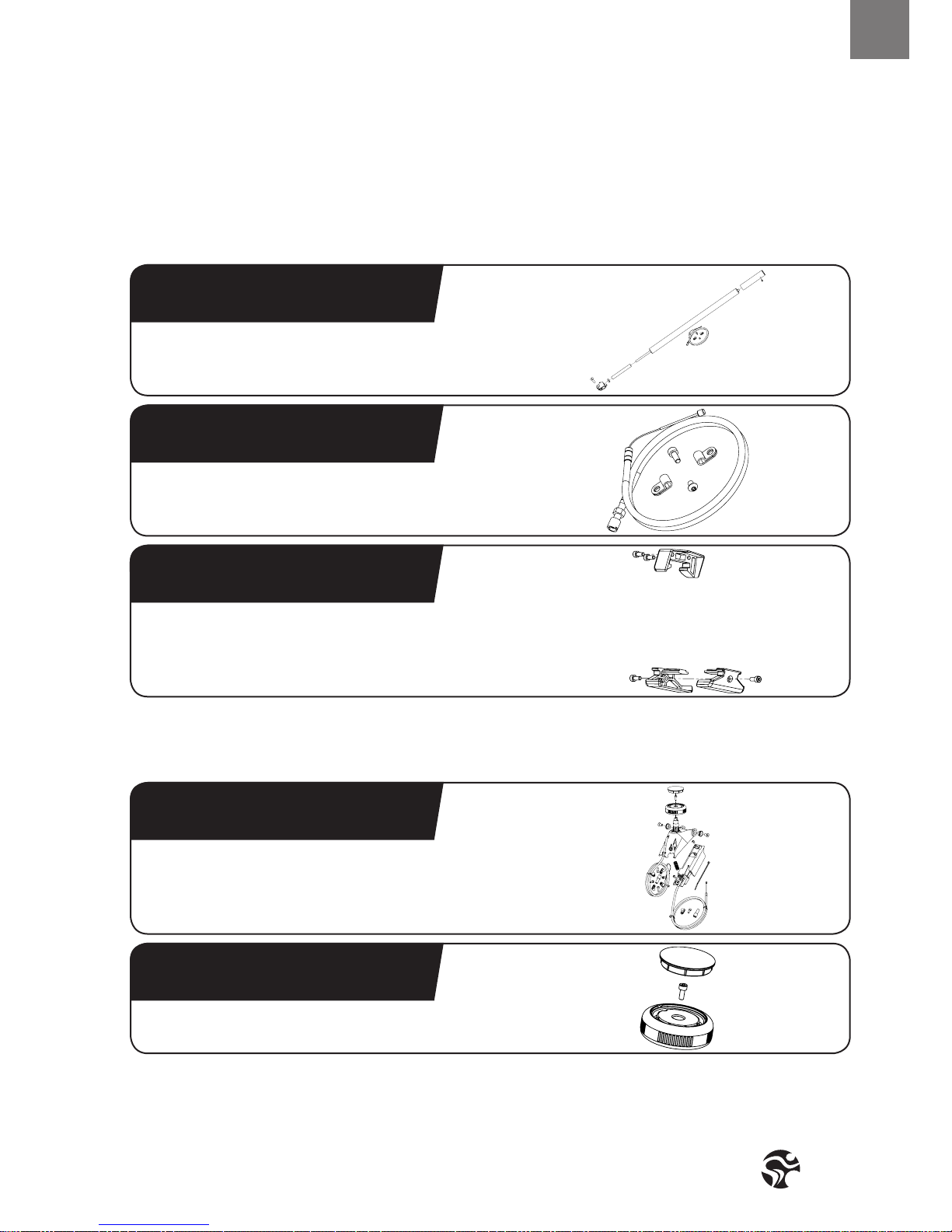

SPARE PARTS P.22-34
WARRANTY P.35
3
ENG
1. It is the responsibility of the owner to ensure
that all users are informed of all warnings
and precautions for proper use, and are only
authorized to use the bike independently after
being successfully briefed by a qualied trainer or
instructor.
2. Do not operate the bike until it has been properly
assembled and inspected as described in this
manual.
3. Keep the indoor cycle indoors, away from moisture
and dust. Do not place the indoor cycle outdoors in
a garage or covered patio or near water or pools.
Operating temperature of the indoor cycle has to
be between 15°C~ 40°C Celsius (59°~104°F) at max.
humidity of 65%.
4. Always place the bike on a stable, level surface.
If the bike is to be placed on a hardwood oor or
carpet, it is recommended to place a oor mat
beneath the bike, to protect the oor
from becoming damaged.
5. The level of safety of the indoor cycle can only
be guaranteed if it is regularly checked for possible
damage as well as wear and tear (e.g. xing
points, E-Brake, Pedals, toe straps, etc.). Consult an
authorized service provider or the manufacturer
direct to ensure the regular inspections are properly
carried out.
6. Carry out all maintenance, care and service
procedures as described in this manual on a regular
basis. Defective parts must be replaced immediately,
and the device must not be used until the repairs
have been carried out.
Only use original parts from the manufacturer.
Repairs must only be carried out by from
manufacturer authorized service technicians.
7. Unsupervised children should be kept away from
the training device at all times.
8. Children under the age of 14 shall only be allowed
to use the indoor cycle with parental approval and
supervision of a qualied Trainer or Instructor. Use of
the bike by persons over the age of 14 only after they
are briefed by a qualied trainer or instructor.
9. The indoor cycle must not be used by persons
exceeding weight of 330 lbs/150 kg.
10. Always wear appropriate tight-tting cycling
or athletic attire and sturdy shoes, preferably
cycling shoes, while operating the bike. Unfastened
shoelaces may become caught in the drive system
and lead to injury.
11. The indoor cycle does not have an
independently-moving ywheel. The pedals will
continue to move with the ywheel until the ywheel
stops. The movement can only be stopped by using
the emergency brake or by reducing the pedaling
frequency in a controlled manner. Always ride with
resistance load to ensure that your pedaling motion
is controlled. Do not adjust handlebar or saddle
during workout.
Do not pedal backwards.
12. If you feel pain or dizziness while exercising, stop
immediately. It is recommended that you consult
a doctor if the pain does not subside for an
extended period of time.
13. All data shown on the display, especially
the Watt values generated by the integrated
power sensor serve merely as information
and to help guide training. Only exercise
within your physical limitations.
IMPORTANT
PRECAUTIONS
WARNING!
To reduce the risk of serious injury due to improper
use of the equipment, carefully read and adhere
to the following important precautions and
information before operating the indoor cycle!
WARNING!
If you have pre-existing health problems or a disability,
it is recommended that you consult your physician, in
order to find the training method which is best suited
to you. Incorrect or extensive training can result
in serious health injuries.
The manufacturer expressly assumes no responsibility for health
risks, personal injury, property damage or consequential damages
sustained by or through the use of this device, unless it is a case of
consequential damage which can be traced back to faulty material
and/or manufacturing, and which come under the responsibility of
the manufacturer.
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
FLIP LEVER FOR
VERTICAL SADDLE ADJUSTMENT
DEAR CUSTOMER,
We would like to thank you for your condence and purchase. With the Matrix indoor cycle,
you have chosen a high-quality product, which is designed according to the latest technical
developments and thus fulls the highest standards in quality and reliability.
This high level of reliability can however only be ensured with regular care and maintenance.
Adhering to the maintenance procedures outlined in this manual will ensure a maximised
stability and prolonged lifespan in return for minimal maintenance eort. This will guarantee
long-standing, interruption-free operation.
Instructions on operation and managing training for the Coach-by-Color® computer can be
found in the computer user manual also included with delivery.
GETTING STARTED
SADDLE
FLIP LEVER FOR
HORIZONTAL SADDLE ADJUSTMENT
FLYWHEEL
SHROUD
COMBI SPD PEDAL
FLIP LEVER FOR
HORIZONTAL
HANDLEBAR
ADJUSTMENT
FLIP LEVER FOR VERTICAL
HANDLEBAR ADJUSTMENT
HANDLEBAR
RESISTANCE KNOB/
EMERGENCY BRAKE
TRANSPORT WHEELS
LEVELING FEET
WARNING!
You will nd the production code for the Matrix IC7 indoor cycle on the tag plate which is located on the lower left side of
the frame tube of the Indoor Bike. Please enter this production code into care and maintenance lists.
It is a strict requirement to provide the production code in all warranty claims.
5
ENG
HOW TO ASSEMBLE THE
INDOOR CYCLE
TORQUE WRENCH 17MM 2
PEOPLE
WARNING!
Avoid high uctuations in temperature whilst transporting the bike from the store to the installation site.
If there are nevertheless large uctuations in temperature, please allow the bike to acclimatise to the surrounding
temperature before proceeding with assembly.
WARNING!
Please ensure that bolts are tightened with signicant force to minimize loosening
during use. If bolts are loosened after initial assembly, we recommend using
medium-strength LOCTITE® 243 when reassembling.
1. 2.
50 NM
50 NM
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
HOW TO ASSEMBLE THE
INDOOR CYCLE
2
PEOPLE
1. 2.
SET THE VERTICAL ADJUSTMENT OF THE HANDLEBAR
STEM TO THE HIGHEST POSITION BEFORE BEGINNING
WITH ASSEMBLY.
DO NOT REMOVE WARNING TAPE FROM THE SLIDERS
PRIOR TO THE HANDLEBAR BEING ASSEMBLED.
MAKE SURE THAT THE CONNECTING BRIDGES OF
THE HANDLEBARS ARE LOCATED UNDERNEATH THE
MOUNTING BRACKET FOR THE COMPUTER.
7
ENG
HOW TO ASSEMBLE THE
INDOOR CYCLE
3. 4.
IN ORDER TO AVOID DAMAGING THE INTERIOR
CABLING, THE HANDLEBARS MUST NOT BE ADJUSTED
HORIZONTALLY BEFORE THIS STEP.
ENSURE THAT BOLTS ARE TIGHTENED WITH
SUFFICIENT FORCE (30 NM) WHEN MOUNTING
THE HANDLEBARS.
THE FASTENING COUNTER SUNK BOLTS ARE COATED
WITH TUFLOK® AT THE FACTORY TO PREVENT THEM
FROM BECOMING LOOSE DURING USE.
IF BOLTS ARE LOOSENED AFTER INITIAL ASSEMBLY,
WE RECOMMEND USING HIGH-STRENGTH LOCTITE®
2701 WHEN REASSEMBLING.
AFTER ASSEMBLY, REMOVE THE WARNING TAPE.
DO NOT MOVE HORIZONTAL SLIDER BACKWARDS.
TORQUE WRENCH 6MM 2
PEOPLE
30 NM
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
HOW TO ASSEMBLE THE
INDOOR CYCLE
2
PEOPLE
5.
7.
OPEN THE FLIP LEVER FOR THE HORIZONTAL
ADJUSTMENT AND SLIDE THE HANDLEBARS
TO ITS MOST FORWARD POSITION.
ASSEMBLE THE BOTTOM END CAP.
CHECK THE HORIZONTAL ADJUSTMENT OF THE HANDLEBARS, WITH THE FLIP LEVER OPENED, FOR EASE OF MOTION
WHEN ADJUSTING.
CHECK THE CLAMPING FORCE OF THE HORIZONTAL ADJUSTMENT WITH THE FLIP LEVER CLOSED. MAKE SURE THE
HORIZONTAL ADJUSTMENT PERFORMS SUFFICIENTLY.
3MM
HAND TIGHT
6.
9
ENG
HOW TO ASSEMBLE THE
INDOOR CYCLE
2
PEOPLE
3MM
HAND TIGHT
8. 9.
WARNING!
The user manual for the IC7 Coach By Color® computer is enclosed separately and contains all the necessary information
for setting up and operating the computer.
WARNING!
Attach the pedal marked R on the right
crank and tighten by turning clockwise (standard righthand thread). Attach the pedal marked L on the left crank
and tighten by turning counter-clockwise (left-hand
thread). Please make sure that both pedals are fastened
with sucient force (55 NM), to ensure that the bolt does
not become loose during use.
The threads are provided with TufLok® at the factory
to prevent them from becoming loose during use.
If bolts are loosened after initial assembly, we
recommend using medium-strength LOCTITE® 243
when reassembling.
10.
R
L
INSERT THE BIKE COMPUTER
INTO THE COMPUTER BRACKET.
FASTEN THE BIKE COMPUTER INTO PLACE FROM
THE UNDERSIDE OF THE HANDLEBARS WITH
THE BOLT AND PLASTIC SLEEVE PROVIDED.
OBSERVE ASSEMBLY
INSTRUCTIONS!
15 MM
PEDAL WRENCH
1X
55 NM
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
INSTALLATION AND
DISPOSING OF BATTERIES
Instructions stated in this manual must be performed during initial installation of the Matrix
indoor cycle in order to ensure optimal performance and a long lifespan. Please read and
follow the following instructions carefully. If the indoor cycles are not installed and congured
as described, the components may be subjected to excessive wear and tear and the bike may
become damaged. If you have any questions regarding installation,
please contact service@indoorcycling.com.
Please note: Lubricants are required for some maintenance procedures. Please only use an
acid- and solvent-free spray lubricant (e.g. Brunox) and white lithium grease.
1. Make sure the bike is level. If bike rocks on the oor, turn the levelling feet underneath the
front and/or rear stabilizer until the rocking motion is eliminated. Make sure that the levelling
feet are not screwed out further than 10 mm.
2. Verify emergency brake function to make sure that it is working properly.
3. Check that both crank arm Allen bolts, with which the cranks (on the right and left side of the
bottom bracket) are fastened, are secure (tightening torque 60 NM). These bolts are provided
with TufLok® at the factory to prevent them from becoming loose during use.
If the bolts become lose, we recommend applying medium-strength LOCTITE® 243 and then
reattaching the crank xing bolts with a tightening torque of 60 NM.
4. Wipe down bike frame with a rag moistened with solvent-free spray lubricant.
5. Some parts of the bike may become loose during shipment. Check crank arms and all exposed
screws, bolts and nuts, and make sure that they are all secure and properly tightened.
11
ENG
INSTALLATION AND
DISPOSING OF BATTERIES
CUSTOMER SERVICE
1. Provide the customer with basic maintenance instructions, and direct them to detailed
maintenance instructions.
2. Have the sign-o sheet for the manual, explanation of maintenance procedures and
verication of impeccable condition of the bikes conrmed by the customer when handing over
the goods. A copy of this conrmation counter-signed by yourself is withheld by the customer.
3. Repairs must only be carried out by manufacturer authorised service technicians.
BATTERIES MAY NOT:
• come into contact with re
• come into contact with coins or other metallic objects
If the device remains unused for an extended period of time, remove the battery in order to
avoid damage due to leakage or corrosion. If the battery leaks, remove all residues immediately
and insert a new battery. If you make contact with any residues, carefully remove them.
Products or batteries labelled with this symbol may not be disposed of along with normal
household refuse. For proper disposal, please nd out about the applicable laws or guidelines
on disposing of electrical devices and batteries in your local area and adhere to them.
Loading...
