Matrix GFX11, GFX11E User Manual

SIMADO GFX11/GFX11E
System Manual

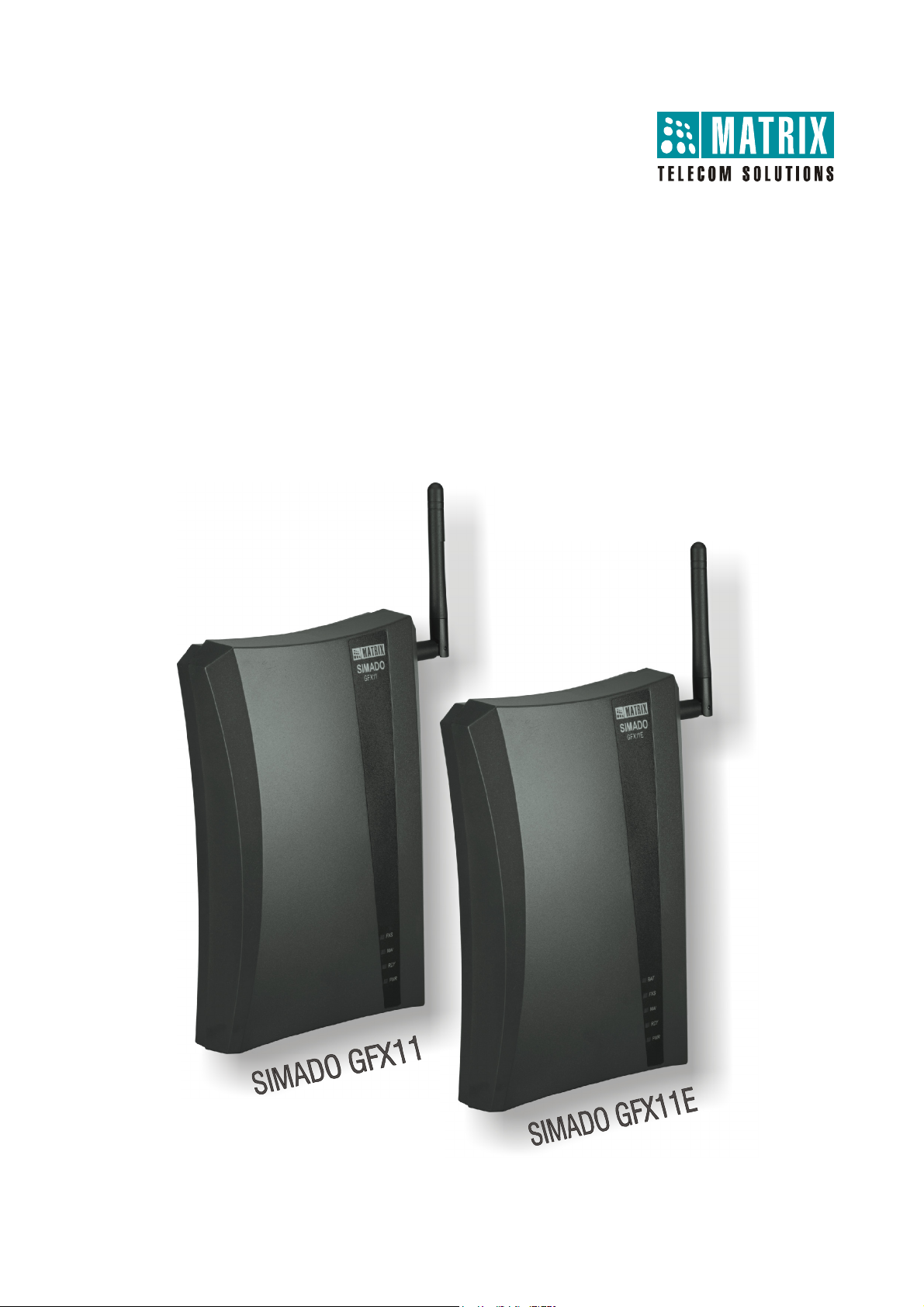

SIMADO GFX11

GSM/3G Fixed Cellular Terminal for Voice Applications

SIMADO GFX11E

GSM/3G Fixed Cellular Terminal for Emergency Applications

System Manual

Documentation Disclaimer

Matrix Comsec reserves the right to make changes in the design or components of the product as engineering and
manufacturing may warrant. Specifications are subject to change without notice.

This is a general documentation for all models of the product. The product may not support all the features and
facilities described in the documentation.

Information in this documentation may change from time to time. Matrix Comsec reserves the right to revise
information in this publication for any reason without prior notice. Matrix Comsec makes no warranties with respect
to this documentation and disclaims any implied warranties. While every precaution has been taken in the
preparation of this system manual, Matrix Comsec assumes no responsibility for errors or omissions. Neither is any
liability assumed for damages resulting from the use of the information contained herein.

Neither Matrix Comsec nor its affiliates shall be liable to the purchaser of this product or third parties for damages,
losses, costs or expenses incurred by the purchaser or third parties as a result of: accident, misuse or abuse of this
product or unauthorized modifications, repairs or alterations to this product or failure to strictly comply with Matrix
Comsec's operating and maintenance instructions.

Copyright

All rights reserved. No part of this system manual may be copied or reproduced in any form or by any means
without the prior written consent of Matrix Comsec.

Version 6
Release date: November 12, 2013

Contents

Introduction..................................................................................................................................................... 1

Welcome ............................................................................................................................................................. 1

About this System Manual .................................................................................................................................. 1

How to Read this System Manual ....................................................................................................................... 2

Know Your SIMADO GFX11/GFX11E............................................................................................................. 5

Overview ............................................................................................................................................................. 5

Applications of SIMADO GFX11/GFX11E .......................................................................................................... 8

Installing SIMADO GFX11/GFX11E.............................................................................................................. 11

Before You Start ................................................................................................................................................ 11

Protect SIMADO GFX11/GFX11E and Yourself ............................................................................................... 11

Getting Started .................................................................................................................................................. 12

Connecting SIMADO GFX11/GFX11E .............................................................................................................. 13

Powering ON SIMADO GFX11/GFX11E .......................................................................................................... 15

Configuring SIMADO GFX11/GFX11E ......................................................................................................... 17

FXS Port Parameters ........................................................................................................................................ 19

Mobile Port Parameters .................................................................................................................................... 23

Mobile Network Selection .................................................................................................................................. 27

Signal Strength .................................................................................................................................................. 30

Passwords ......................................................................................................................................................... 31

Reinstate the Default Settings ........................................................................................................................... 33

Restart the System ............................................................................................................................................ 34

Software Version and Revision Display ............................................................................................................ 35

Features of SIMADO GFX11/GFX11E .......................................................................................................... 37

Allowed-Denied Numbers ................................................................................................................................. 37

Automatic Number Translation ......................................................................................................................... 39

Battery Back-up during Power Failure .............................................................................................................. 42

Call Divert .......................................................................................................................................................... 44

Call Duration Display ......................................................................................................................................... 46

Call Progress Tones .......................................................................................................................................... 48

Calling Line Identification Restriction (CLIR) ..................................................................................................... 51

Emergency Number Dialing .............................................................................................................................. 52

Hotline ............................................................................................................................................................... 55

International Mobile Equipment Identity (IMEI) ................................................................................................. 56

Location Information Indication ......................................................................................................................... 57

Multi-Stage Dialing ............................................................................................................................................ 58

Table of Contents i

Ring Type .......................................................................................................................................................... 64

Security Code .................................................................................................................................................... 65

Service Provider Lock ....................................................................................................................................... 66

Short Messaging Services (SMS) ..................................................................................................................... 67

Appendix ....................................................................................................................................................... 69

Acronyms .......................................................................................................................................................... 69

Features at Glance ............................................................................................................................................ 70

Product Specifications of SIMADO GFX11/GFX11E ........................................................................................ 71

System Commands ........................................................................................................................................... 74

Warranty Statement .......................................................................................................................................... 76

Regulatory Information ...................................................................................................................................... 77

Index ............................................................................................................................................................. 79

ii Table of Contents

CHAPTER 1

Introduction

Welcome

Thank You for choosing SIMADO GFX11/GFX11E.

This product is designed to give you the highest performance, combined with real ease of use. We hope you will
make optimum use of this intelligent, intuitive, feature-packed GSM/3G Fixed Cellular Terminal. Please read this
document carefully before installing your system.

About this System Manual

This System Manual contains detailed information and instructions for installing, configuring and using SIMADO
GFX11/GFX11E. It also contains information on protecting and maintaining the system.

Intended Audience

This System Manual is aimed at:

Network and System Engineers (SE): Persons who install, configure and maintain SIMADO GFX11/
GFX11E. It is assumed that they have some experience in installing and configuring GSM Fixed Cellular
Terminals (FCT). System Engineer has full access to the system.

System Administrators (SA): Persons who operate the system and perform administrative functions.
System Administrator has limited access to the system.

Users: Persons who actually uses SIMADO GFX11/GFX11E to make and receive calls and use its features.

Organization of this Document

This System Manual contains the following chapters:

Introduction: Gives an overview of this document, its purpose, intended audience, terms and conventions
used to present information and instructions.

Know Your SIMADO GFX11/GFX11E: Provides an overview of SIMADO GFX11/GFX11E.

Installing SIMADO GFX11/GFX11E: Contains information on how to install SIMADO GFX11/GFX11E.

Matrix SIMADO GFX11 System Manual 1

Configuring SIMADO GFX11/GFX11E: Provides instructions for configuring the basic parameters of
SIMADO GFX11/GFX11E.

Features of SIMADO GFX11/GFX11E: Describes in detail the various features of SIMADO GFX11/GFX11E
such as Allowed-Denied Numbers, Automatic Number Translation, Battery Back-up during Power Failure, Call
Progress Tones, Location Information Indication, Hotline, and provides instructions for configuring and using
them.

How to Read this System Manual

This System Manual is organized in such a way that you will find all the information you need quickly and easily.

You may use the table of contents and the Index in this document to reach the relevant topic or information you
want to look up.

Cross-references are provided in blue font with hyperlinks. You can look up the source by clicking the links.

Conventions used in this System Manual

Instructions

Instructions are provided in this document in step-by-step format. Command strings to be dialed for configuring the
port parameters and features are presented in the following format:

• To configure Answer Signaling on the FXS Port, dial:

221-Answer Signal-#*

Where,
Answer Signal is
0 for None
1 for Polarity Reversal

Default: Polarity Reversal

This is an instruction to configure Answer Signaling on the FXS Port, along with the default value. You must dial the
digits and characters in the command string in a continuous sequence.

In the above example, by default, Polarity Reversal is set as Answer Signal on the FXS Port. If you do not want
Answer Signaling on the FXS Port, you must dial ‘0’ (the code for None) in the command string. Thus, to remove
Answer Signaling on the FXS Port, you must dial the command string in a continuous sequence as: 2210#*

Notices

The following symbols have been used to draw your attention to important things:

Note: It indicates something that requires your special attention or it reminds you of something you need to
do when you are using SIMADO GFX11/GFX11E.

Caution: It indicates an action or condition that is likely to result in malfunction or damage to SIMADO
GFX11/GFX11E or your property.

Warning: It indicates a hazard or an action that will cause damage to SIMADO GFX11/GFX11E and/or
cause bodily harm to the user.

2 Matrix SIMADO GFX11 System Manual

Tip: It indicates a helpful hint giving you an alternative way to operate the system or carry out a procedure,
or use a feature more efficiently.

Terminology

Throughout this System Manual, both the models—SIMADO GFX11 and SIMADO GFX11E—have been referred
to as SIMADO GFX11, unless otherwise specified. The words SIMADO GFX11 and System are used
synonymously.

Some of the terms used in this System Manual are defined below:

System Engineers (SE): Persons who install, configure and maintain SIMADO GFX11/GFX11E.

System Administrators (SA): Persons who operate the system and perform administrative functions.

Users: Persons who uses SIMADO GFX11/GFX11E.

Caller/ Calling party: The person who make calls.

Called party: The person to whom the call is made.

Using this System Manual, we hope you will be able to install, operate and make optimum use of your SIMADO
GFX11/GFX11E. However, if you encounter any technical problems, please contact your dealer/reseller or the
Matrix Customer Care.

Matrix SIMADO GFX11 System Manual 3

4 Matrix SIMADO GFX11 System Manual

CHAPTER 2

FXS Port

Antenna

Know Your SIMADO GFX11/
GFX11E

Overview

SIMADO GFX11/GFX11E finds its application in the corporate offices, factories, call centers, hotels, residences and
such other establishments. In an Organization, when SIMADO GFX11 is interfaced with the PBX, all the incoming
calls on the Mobile Port of SIMADO GFX11 can be routed to the desired extension of the PBX. Similarly, all the
outgoing calls made to the mobile phones can be routed through the Mobile Port of SIMADO GFX11, reducing the
telecommunication cost of the organization.

SIMADO GFX11 is available in two configurations:

• SIMADO GFX11 (2G/3G)

• SIMADO GFX11E (2G/3G)

SIMADO GFX11

SIM Card Slot

DC Power Jack

Matrix SIMADO GFX11 System Manual 5

Ports and Connectors

PWR (Power)

RDY (SIM)

)

NW (Network)

FXS Port

Antenna

Port Name Connector Description

ANTENNA SMA (Female) To connect the Antenna for the Mobile Ports.

SIM Card Slot To insert a SIM Card for mobile connectivity.

12VDC-1.25A(Max) DC Jack To connect a Power Adapter.

FXS RJ11 To connect a standard telephone instrument or a PBX.

LEDs

SIMADO GFX11 has 4 LEDs, labeled as FXS, NW, RDY and PWR as shown in the figure below. These LEDs
indicate the status of the ports and various events occurring on the ports, including errors.

FXS (FXS Port

SIMADO GFX11E

SIM Card Slot

DC Power Jack

ON-OFF Button

6 Matrix SIMADO GFX11 System Manual

Ports and Connectors

RDY (SIM)

NW (Network)

Port Name Connector Description

ANTENNA SMA (Female) To connect the Antenna for the Mobile Ports.

SIM Card Slot To insert a SIM Card for mobile connectivity.

12VDC-1.25A(Max) DC Jack To connect a Power Adapter.

ON-OFF Button --- To switch on or switch off the SIMADO GFX11E.

FXS RJ11 To connect a standard telephone instrument or a PBX.

LEDs

SIMADO GFX11E has 5 LEDs, labeled as BAT, FXS, NW, RDY and PWR as shown in the figure below. These
LEDs indicate the status of the ports and various events occurring on the ports, including errors.

BAT (Battery)

FXS (FXS Port)

PWR (Power)

Matrix SIMADO GFX11 System Manual 7

Applications of SIMADO GFX11/GFX11E

SIMADO

GFX11

G

S

M

/

3

G

SIMADO

GFX11

G

S

M

/

3

G

Case 1: Standalone

Case 2: SIMADO GFX11 interfaced with a PBX

PBX

8 Matrix SIMADO GFX11 System Manual

Case 3: SIMADO GFX11E in Elevator (Emergency Application)

Center

please help
I am stuck

SIMADO
GFX11E

12

3

4

56

G

S

M

/

3

G

Service

Matrix SIMADO GFX11 System Manual 9

10 Matrix SIMADO GFX11 System Manual

CHAPTER 3

Installing SIMADO GFX11/
GFX11E

Before You Start

Before you begin to install and set up the hardware of SIMADO GFX11/GFX11E, make sure you have the following
ready:

• A standard, good quality, twisted pair telephone cable with 0.5 mm conductor diameter and RJ11 plugs for
the FXS Port.

• A standard telephone instrument to connect to the FXS Port. You can also connect the FXS Port of
SIMADO GFX11/GFX11E to a PBX.

• A SIM Card to test Mobile connectivity.

Protect SIMADO GFX11/GFX11E and Yourself

For safe and efficient operation of this product, read and observe the safety guidelines given in this document.
When installing and using this product, take every safety precaution to reduce the risk of fire, electric shock and
injury to yourself and others.

• Do not install the system at any of the locations listed below:

• in any area where it is directly exposed to sunlight, excessive cold, humidity, corrosive fumes.

• at the place where shocks or vibrations are frequent or strong.

• at the place where it comes in contact with dust and oil.

• near any water source or water body like a wash bowl, kitchen sink, bath tub or near a swimming pool,

sprinkler.

• on movable or unstable surfaces, which may cause the product to fall and get damaged.

• Always wear an electrostatic discharge preventive wrist strap or belt and use a grounding mat when
handling the system with its cover open.

• Unplug the system from the power outlet before cleaning. Do not use liquid cleaners, use only a dry and
soft cloth.

• Do not turn on the power supply until the installation is complete.

• Never open the system in power ON condition.

• Operate the system within the recommended power supply voltage range.

Matrix SIMADO GFX11 System Manual 11

• Do not overload wall outlets and extension cords to prevent electric shock and fire.

• Take the system to a qualified technician for service and repair.

• Unplug the system from the power outlet and contact a qualified technician under the following conditions:

• If liquid has been spilled on it.

• If it has been exposed to rain or water.

• If it was dropped or the cabinet is damaged.

• If it does not operate normally.

Warning for RF Safety

This product complies with the RF exposure guidelines as per standard FCC 47 CFR part 2. We recommend that
you take the following safety measures:

• Keep the RF Antenna at least 20cm away from other electronic and radio transmission devices.

• Keep the RF antenna at a place at least 20cm away from people's vicinity.

• Do not place the magnetic storage media near the system.

• People carrying medical implants like cardiac pacemakers are advised to maintain appropriate distance
from the system. They are also advised to avoid being in the vicinity of the product for a long time.

Battery

SIMADO GFX11E has a NI-MH AAA 7.2V/800mA battery. Do not disassemble, weld, burn or throw the battery into
waste. This battery may explode and cause serious injuries.

If required, the battery should be replaced only by authorized dealers of Matrix. End Users must not attempt to
replace it.

1

Dispose-off the used batteries according to the local regulations.

There is risk of explosion, if the Battery is replaced in an incorrect manner.

Getting Started

• Select an appropriate site to install SIMADO GFX11/GFX11E, considering the safety precautions listed
earlier in this chapter.

• Unpack SIMADO GFX11/GFX11E and verify the package contents. Make sure the package contains the
items listed in the table below. In case any of these is missing or damaged, contact the dealer/distributor

from whom you have purchased it.

Sr. No. Item Name Quantity

01 SIMADO GFX11/GFX11E unit 1

02 GSM Antenna with SMA Male Connector 1

1. Applicable for SIMADO GFX11E only.

12 Matrix SIMADO GFX11 System Manual

Sr. No. Item Name Quantity

Antenna

Adapter

Standard
Telephone

03 Power Adapter (12V - 2A) 1

04 Line Cord (RJ11) 1

05 Wall Mounting Template 1

06 M7/30 Screw 2

07 Screw Grip 2

08 Warranty Card Set 1

09 SIMADO GFX11/GFX11E CD (System Manual, Quick Start) 1

10 SIMADO GFX11/GFX11E Quick Start (printed copy) 1

• Place the system at the selected location.

If you want to mount the system on a wall, use the mounting template for drilling the holes on the wall.

Connecting SIMADO GFX11/GFX11E

SIMADO GFX11

S
I

M

SIM Card

DC Power

Select an appropriate site to install SIMADO GFX11. Make sure that the site you select has proper power supply
source and sufficient network signal strength.

• To the FXS Port, connect a standard single line telephone using a standard telephone cable with RJ11
plugs.

You may also connect the FXS Port of SIMADO GFX11 to a PBX.

• Insert SIM Card of the service provider in the SIM Card Slot of SIMADO GFX11.

Matrix SIMADO GFX11 System Manual 13

To enable SIM PIN protection,

A

Adapter

Standard
Telephone

ON/OFF

Button

• Get a mobile handset. Insert the SIM Card into the mobile handset.

• From the mobile handset, enable PIN Protection on the SIM.

• Change the SIM PIN to 1234. This is the default SIM PIN of SIMADO GFX11.

• If your SIMADO GFX11 has a 3G module, you must also disable Call Waiting on the SIM Card. This
will prevent current calls from being disconnected whenever there is a waiting call on the Mobile
Port.

• Remove the SIM Card from the mobile handset and insert it in the SIM Card Slot of SIMADO
GFX11.

• If you do not want to use PIN Protection, insert the SIM Card in the mobile handset and disable PIN
protection. Remove the SIM Card from the mobile handset and insert it in the Mobile Port’s SIM holder.

• You can change the SIM PIN to the desired value while configuring the system. For instructions on
changing the SIM PIN, refer “Mobile Port Parameters”.

• Screw the antenna on to the Antenna Connector of SIMADO GFX11.

SIMADO GFX11E

S
I

M

ntenna

SIM Card

DC Power

Select an appropriate site to install SIMADO GFX11E. Make sure that the site you select has proper power supply
source and sufficient network signal strength.

• To the FXS Port, connect a standard single line telephone using a standard telephone cable with RJ11
plugs.

You may also connect the FXS Port of SIMADO GFX11E to a PBX.

14 Matrix SIMADO GFX11 System Manual

• Insert SIM Card of the service provider in the SIM Card Slot of SIMADO GFX11E.

To enable SIM PIN protection,

• Get a mobile handset. Insert the SIM Card into the mobile handset.

• From the mobile handset, enable PIN Protection on the SIM.

• Change the SIM PIN to 1234. This is the default SIM PIN of SIMADO GFX11E.

• If your SIMADO GFX11E has a 3G module, you must also disable Call Waiting on the SIM Card.
This will prevent current calls from being disconnected whenever there is a waiting call on the
Mobile Port.

• Remove the SIM from the mobile handset and insert it in the SIM Card Slot of SIMADO GFX11E.

• If you do not want to use PIN Protection, insert the SIM in the mobile handset and disable PIN
protection. Remove the SIM Card from the mobile handset and insert it in the Mobile Port’s SIM holder.

• You can change the SIM PIN to the desired value while configuring the system. For instructions on
changing the SIM PIN, refer “Mobile Port Parameters”.

• Screw the antenna on to the Antenna Connector of SIMADO GFX11E.

Powering ON SIMADO GFX11/GFX11E

• Connect the Power Adapter into the Power Jack, and plug it into a power outlet.

2

• Switch ON the power supply. Also, press the ON-OFF button

As soon as SIMADO GFX11E is powered on, the battery will also start charging. See “Battery Back-up

during Power Failure” for more details.

At first power on, keep SIMADO GFX11E connected to the power supply for atleast 24 hours to enable
correct and complete battery charging.

• Observe the reset cycle.

LED Indication at Power ON

• LED labeled as BAT3 will start blinking (RED) after few seconds of Power On. It indicates the charging of
the battery.

• LED labeled as PWR will glow green continuously.

• LED labeled as FXS and RDY will blink (RED) four times (500ms On, 500ms Off) and then turns Off.

• LED labeled as NW will start blinking (RED) after few seconds of Power On. It indicates the network
availability.

to switch on your SIMADO GFX11E.

2. ON-OFF button is available only in SIMADO GFX11E.

3. Battery (BAT) LED is available only in SIMADO GFX11E.

Matrix SIMADO GFX11 System Manual 15

• LED labeled as RDY will start blinking (RED) slowly (1 sec On- 1 sec Off) till successful network
registration. After that, it will glow RED continuously.

• LED labeled as RDY will blink (RED) fast (100 ms On- 100 ms Off) when SIM Card is absent or
deactivated or SIM PIN is faulty or SIM PUK is required.

LED Indication during Normal Functioning

LED Activity Indication

PWR

RDY

NW

(controlled

by Module)

FXS

BAT

ON SIMADO GFX11 is power On.

Off SIMADO GFX11 is power Off.

ON SIM Card is present and active.

Off SIMADO GFX11 is powered On but SIM Card is not detected.

Blinking

Off GSM module is Off.

Blinking

ON FXS Port is Off-Hook.

Off FXS Port is On-Hook.

Blinking FXS Port is ringing.

ON Battery is fully charged.

Off Battery is absent.

a

Blinking

Fast SIM Card is absent or de-activated or SIM PIN is faulty or SIM PUK is required.

Slow SIM Card is detected but is not registered with the network.

Fast GSM module is On but is not registered with the network. (Network not

available)

Slow GSM module is On and is registered with the network. (Network is available)

Fast Battery is low.

Slow Battery is charging.

a. Battery (BAT) LED indication is applicable only for SIMADO GFX11E.

Test Calls

Making a Call

• Lift the receiver of the telephone connected to the FXS Port of SIMADO GFX11/GFX11E. You will get the
dial tone.

• Dial the desired number. You will hear the Ring Back Tone.

• Talk when the called party answers the call.

• Replace the receiver to disconnect the call.

Receiving a Call

• Ask someone to dial the number of the SIM Card inserted in the Mobile Port of SIMADO GFX11/GFX11E.

• When the telephone connected to the FXS Port of SIMADO GFX11/GFX11E rings, lift the receiver to talk.

• You will be in speech with the caller.

• Replace the receiver to disconnect the call.

SIMADO GFX11/GFX11E is supplied with factory default settings. You can use the system with these settings or
configure it according to your requirement. See “Configuring SIMADO GFX11/GFX11E” for instructions.

16 Matrix SIMADO GFX11 System Manual

CHAPTER 4

Configuring SIMADO
GFX11/GFX11E

You can configure SIMADO GFX11/GFX11E by dialing command strings from the telephone connected to the FXS
Port of SIMADO GFX11/GFX11E. You can configure the system from two modes namely: System Engineer Mode
and System Administrator Mode.

Throughout this System Manual, both the models—SIMADO GFX11 and SIMADO GFX11E—have been
referred to as SIMADO GFX11, unless otherwise specified. The words SIMADO GFX11 and System are
used synonymously.

System Engineer (SE) Mode

In System Engineer (SE) mode, you have full access to the system and you can configure and use all the features
of the system.

The System Engineer mode is protected by a password referred to as SE password.

To configure SIMADO GFX11 from SE mode:

• Lift the receiver of the telephone connected to SIMADO GFX11.

• To enter SE mode, dial #*-19-SE Password. The default SE Password is 1234.

• Dial the command string.

• To exit SE mode, dial 00-#*

• Replace the receiver of the telephone.

While dialing command strings, you must dial the digits and characters in a continuous sequence. For
example, to enter SE Mode you must dial the command string as #*191234

System Administrator (SA) Mode

In System Administrator (SA) mode, you have limited access to the system.

You can configure and access only following features:

• SA Password Change

• Software Version-Revision Display

• Call Duration Display

Matrix SIMADO GFX11 System Manual 17

• Call Divert

The System Administrator mode is also protected by a password referred to as SA password.

To configure SIMADO GFX11 from SA mode:

• Lift the receiver of the telephone connected to SIMADO GFX11.

• To enter SA mode, dial #*-18-SA Password. The default SA Password is 1111.

• Dial the command string.

• To exit SA mode, dial 00-#*

• Replace the receiver of the telephone.

While dialing command strings, you must dial the digits and characters in a continuous sequence. For
example, to enter SA Mode you must dial the command string as #*181111

While configuring the system, if there is an incoming call on the FXS Port, you will get an error tone.

18 Matrix SIMADO GFX11 System Manual

FXS Port Parameters

To configure the FXS Port Parameters, enter the SE Mode.

CLI Type

Configure the appropriate CLI Type, according to the CLI Type supported by the telephone instrument/PBX
connected to the FXS Port.

• To configure the CLI Type, dial:

222-CLI Type-#*

Where,
CLI Type is
1 for None
2 for DTMF (Number, Ring)
3 for FSK V.23
4 for FSK BellCore
5 for DTMF (‘D’, Number, ‘C’, Ring)

Default: FSK V.23

You may select 'None' as CLI Type, if the telephone instrument connected to the FXS Port does not have a
display.

Gain for CLI Generation

You may configure the gain for CLI generation, if you have configured the CLI Type as FSK and need to adjust the
gain for generating CLI.

• To configure the gain for CLI generation, dial:

223-Gain-#*

Where,
Gain is
1 for 0dB
2 for -1.5dB
3 for -3.0dB
4 for -4.5dB
5 for -6.0dB
6 for -7.5dB
7 for -9.0dB
8 for -10.5dB

Default: -10.5dB

First Digit Wait Timer

The First Digit Wait Timer is the time for which the system will wait for the user to dial the destination number.

• To configure the First Digit Wait Timer, dial:

225-First Digit Wait Timer-#*

Where,

Matrix SIMADO GFX11 System Manual 19

First Digit Wait Timer is from 01 to 99 seconds.

Default: 15 seconds

Inter Digit Wait Timer

The Inter Digit Wait Timer is the time for which the system will wait while receiving the digits dialed by the user, to
consider it as end of dialing.

• To configure the Inter Digit Wait Timer, dial:

226-Inter Digit Wait Timer-#*

Where,
Inter Digit Wait Timer is from 01 to 99 seconds.

Default: 05 seconds

End of Dialing

End of Dialing is a single digit on receipt of which, the system interprets end of the dialed string and the received
digits are further processed to reach the dialed destination number. SIMADO GFX11 supports only # as end of
dialing digit.

• To configure # as End of Dialing digit, dial:

110-1-#*

• To remove # as End of Dialing digit, dial:

110-0-#*

Default: # is used as end of dialing digit

Replacing + by DTMF digits in CLI

The GSM network presents the calling party number with the prefix '+' to the called party. However, not all
equipments can present the calling party number containing '+'. SIMADO GFX11 enables you to remove the prefix
'+' and replace it with an appropriate number string, if required.

• To configure the replacement digit for the ‘+’ sign in the CLI, dial:

301-Number String-#*

Where,
Number string can be of maximum four digits.

Default: 00

• To clear the replacement digit configured for the ‘+’ sign in the CLI, dial:

301-#*

Remove Country Code from CLIP

You may remove Country Code from the CLI received on the Mobile Port before presenting it on the FXS Port, if
required.

• To enable or disable the flag to remove the Country Code from the CLI received on the Mobile Port, dial:

102-Flag-#*

20 Matrix SIMADO GFX11 System Manual

Where,
Flag is
0 for Disable
1 for Enable

Default: Disabled

SIMADO GFX11 will Remove Country Code from CLIP only after Replacing + by DTMF digits in CLI, if
configured.

Country Code

If you enable the flag to remove the Country Code from the CLI received on the Mobile Port, you must configure the
Country Code you want to remove from the CLI.

• To configure the Country Code, dial:

101-Country Code-#*

Where,
Country Code can be of maximum four digits. Allowed digits are from 0 to 9.

Default: Blank

• To clear the Country Code, dial:

101-#*

Answer Signaling on FXS Port

Answer Signaling is a signal generated on the FXS Port to indicate that the called party has answered the call (call
maturity). You can configure either None or Polarity Reversal as Answer Signal on the FXS Port. ‘None’ is
configured when no answer signaling is to be generated and ‘Polarity Reversal’ is configured when it is to be
generated in the form of Polarity Reversal.

• To configure answer signaling on FXS Port, dial:

221-Answer Signal-#*

Where,
Answer Signal is
0 for None
1 for Polarity Reversal

Default: Polarity Reversal

Disconnect Signaling on FXS Port

Disconnect Signaling is a signal generated on the FXS Port to indicate that the other party has disconnected the
call. When the called party disconnects the call, SIMADO GFX11 will play error tone to the user. You can configure
one of the following options as Disconnect Signal on the FXS Port:

• None: This option is used when no disconnect signaling is to be generated on the FXS Port.

• Polarity Reversal: This option is used when disconnect signaling is to be generated in the form of Polarity
Reversal.

Matrix SIMADO GFX11 System Manual 21
