Matricom G-Tab Quantum User Manual

Matricom G-Tab Quantum

G-Tab User Manual

This manual contains important safety precautions and information of correct use.
Please be sure to read this manual carefully before use so as to avoid any accidents.

Do not place the product in hot, wet or dusty environments, especially during summer. Do not leave
the product inside a car with all windows closed.
Avoid dropping, impacting or shaking the product violently; otherwise it may cause damages or
malfunctions. Select a proper volume to avoid hearing damage when using earphones.
Do not operate automobiles or heavy machinery while wearing headphones to avoid accidents.
Be wary of your surroundings while wearing headphones and do not wear headphones while crossing
the street.
Be sure to use the provided chargers and accessories in the package.
Be sure to charge the product when the followin g situations take place:

- The battery icon shows lower or empty.

-System automatically shut down and it turns off soon after restart..

- Operation keys do not respond properly.

- The device shows on the top right corner.

Page 1

Specifications

Hardware

10.1” IPS High Definition LCD
Capacitive multi-touch (10 touch) point function

CPU: ARM cortex A31s processor
RAM: 1GB DDR3 High Capacity

Wi-Fi (IEEE802.11 b/g/n) for internet
connection

USB host for OTG function
G-Sensor for Landscape/Portrait/3D Gaming
Micro SD card slot, up to 32GB
Built-in speaker & Built-in MI C
5V DC Power Adapter Charger

Software

Andriod 4.2
Google browser
Wi-Fi connection

e-Book Function

4k HD file playback
VoIP phone function with Wi-Fi connection

Possible to view/edit MS office files by application
Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2
etc.

Audio: MP3, WMA, AAC, WAV etc.
Photo: JPEG, BMP, GIF, PNG, TIFF

Page 2

G-Tab Quantum Reset Procedure

Important Notice

- If the device is frozen or stuck, press
the reset button(a small hole) or long
press power butt on for 7 seconds.

- When the performance is slow after us ing

some applications, it is recommended to
close running applications in the settings
menu.

Caution

- For charging, be sure to use the power

adapte r(DC5V) that is provided in the pac kage,
otherwise, the device may be damaged

and will not work.

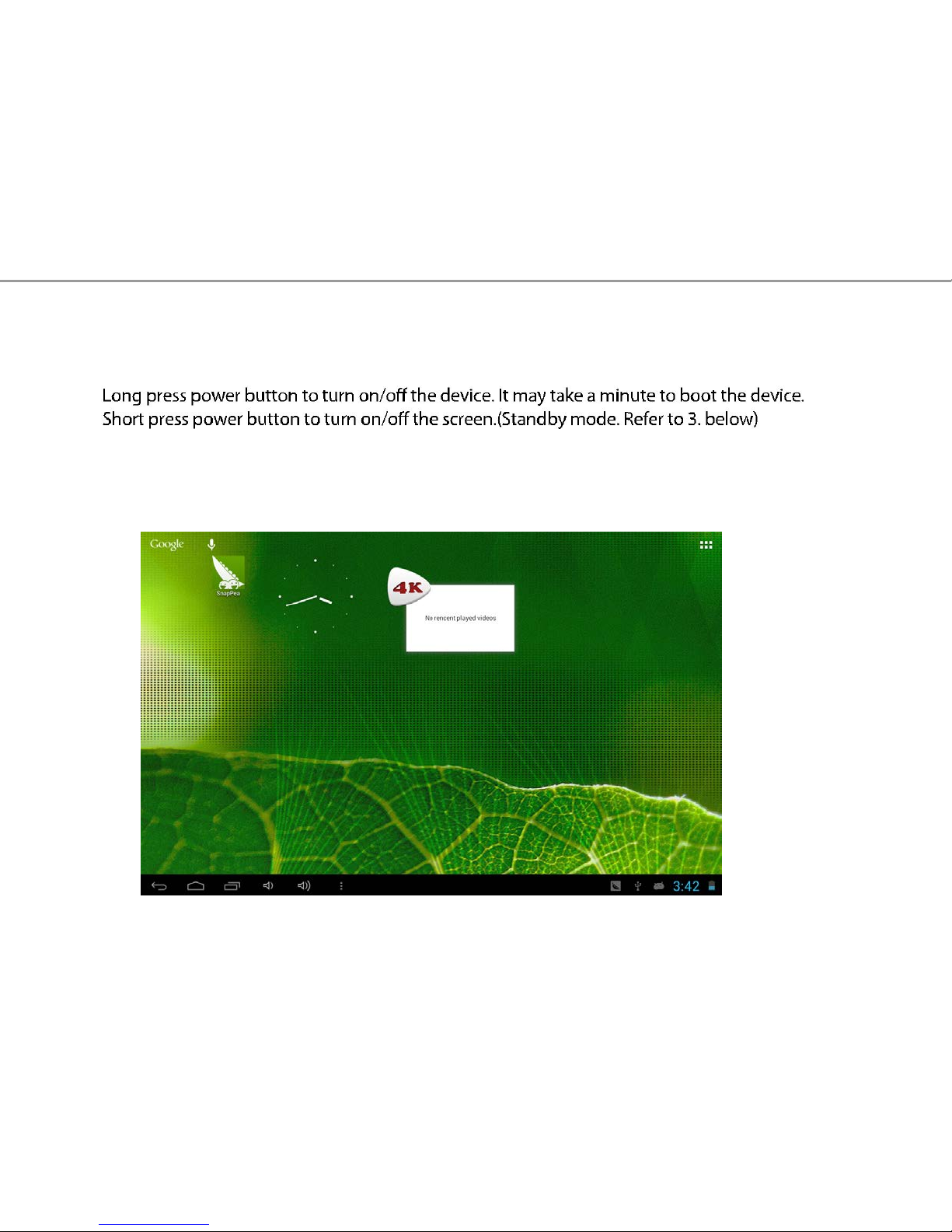

1. Power On/Off

2. Desktop

After turning on the dev ic e, desktop displays with shortcut icons and arrow panel at the right side

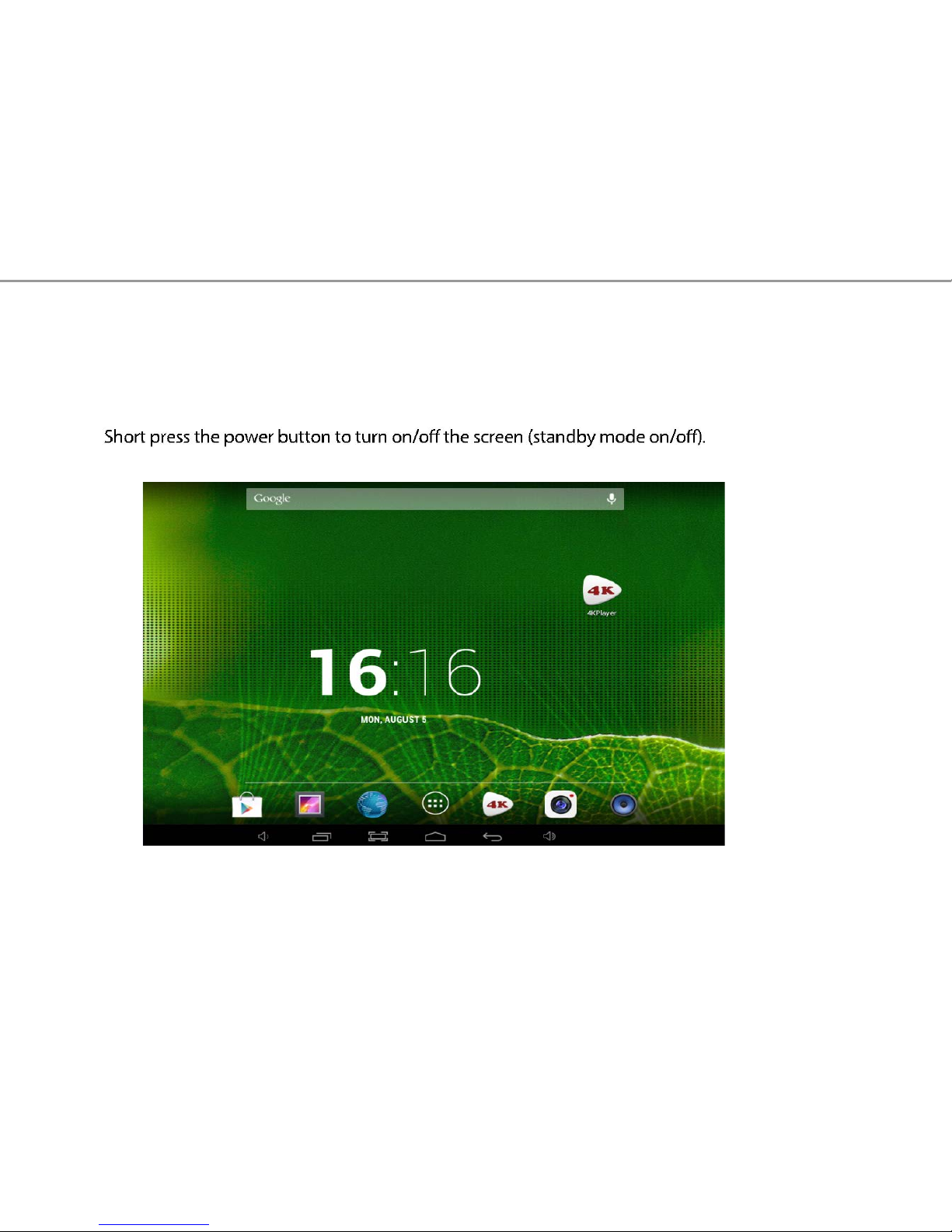

3. Standby mode(Screen off mode) /

Unlock the screen

After standby mode, slide the lock icon in order to unlock the screen.

e 5

4. System settings

On the desktop, press me nu but t on and select system settings.

Page 6

Press System Settings

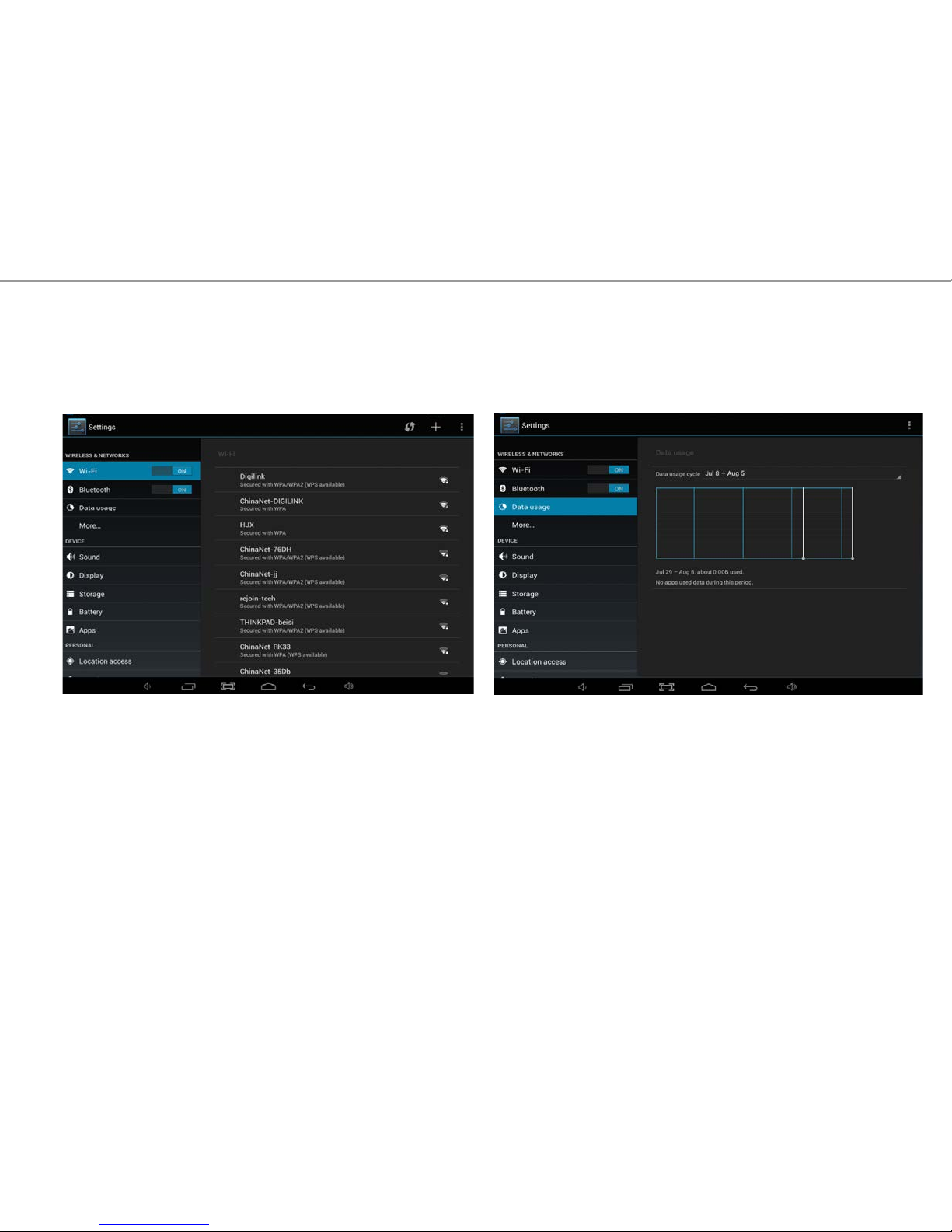

1.Wireless & networks

2. Data usage

Wi-Fi

Press the Wi-Fi Toggle to toggle Wi-Fi on and off. The tablet will
automatically search th e available Wi-Fi signals. Select the network you
would like to connect to.

Page 7

3.Bluetooth

Bluetooth is a short-range w ireless communications technology. Use Bluetooth to establish a wireless connection
with another Bluetooth-enabled device over a distance of about 10 m (32.8 ft), such as a Bluetooth keyboard or
headset.

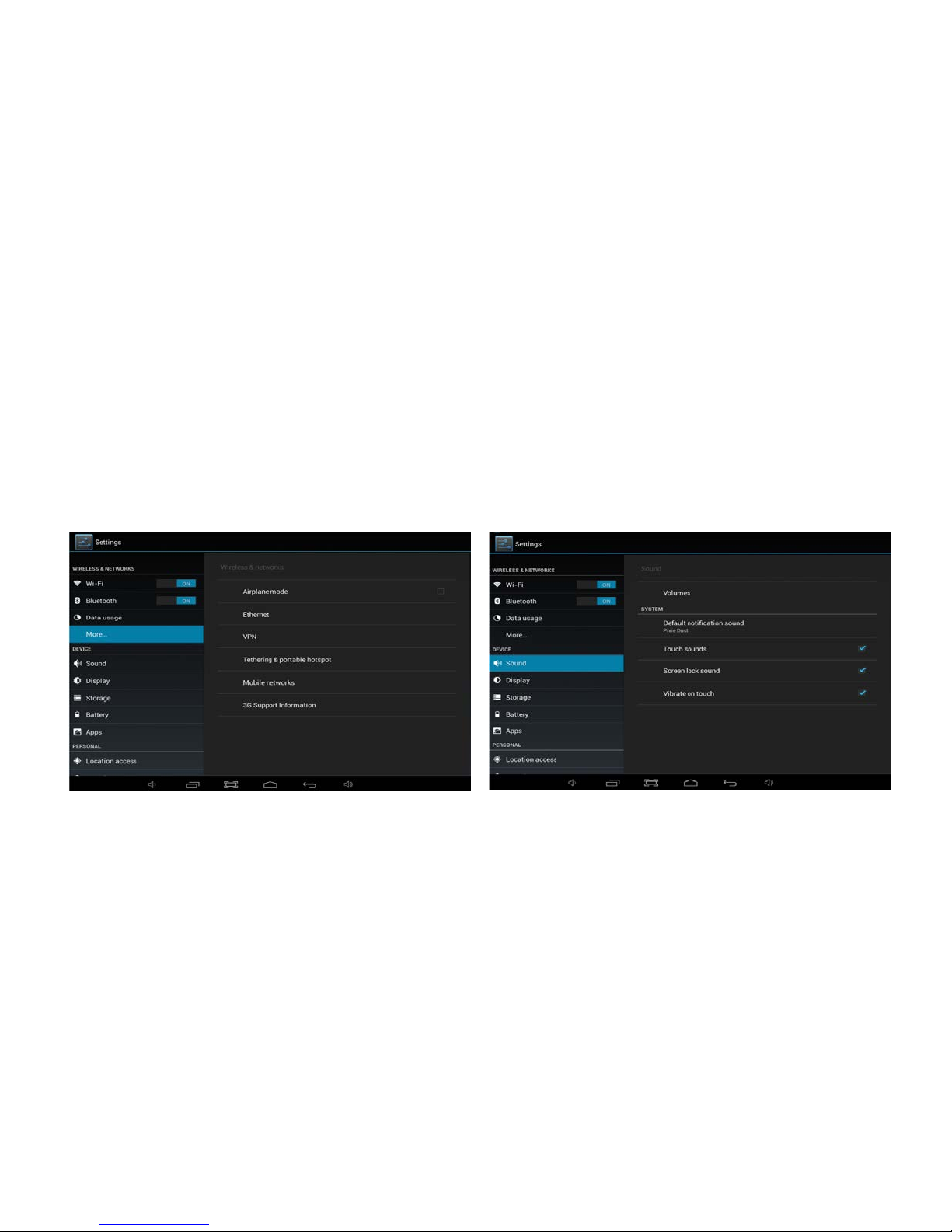

4. More… 5. Sound

Page

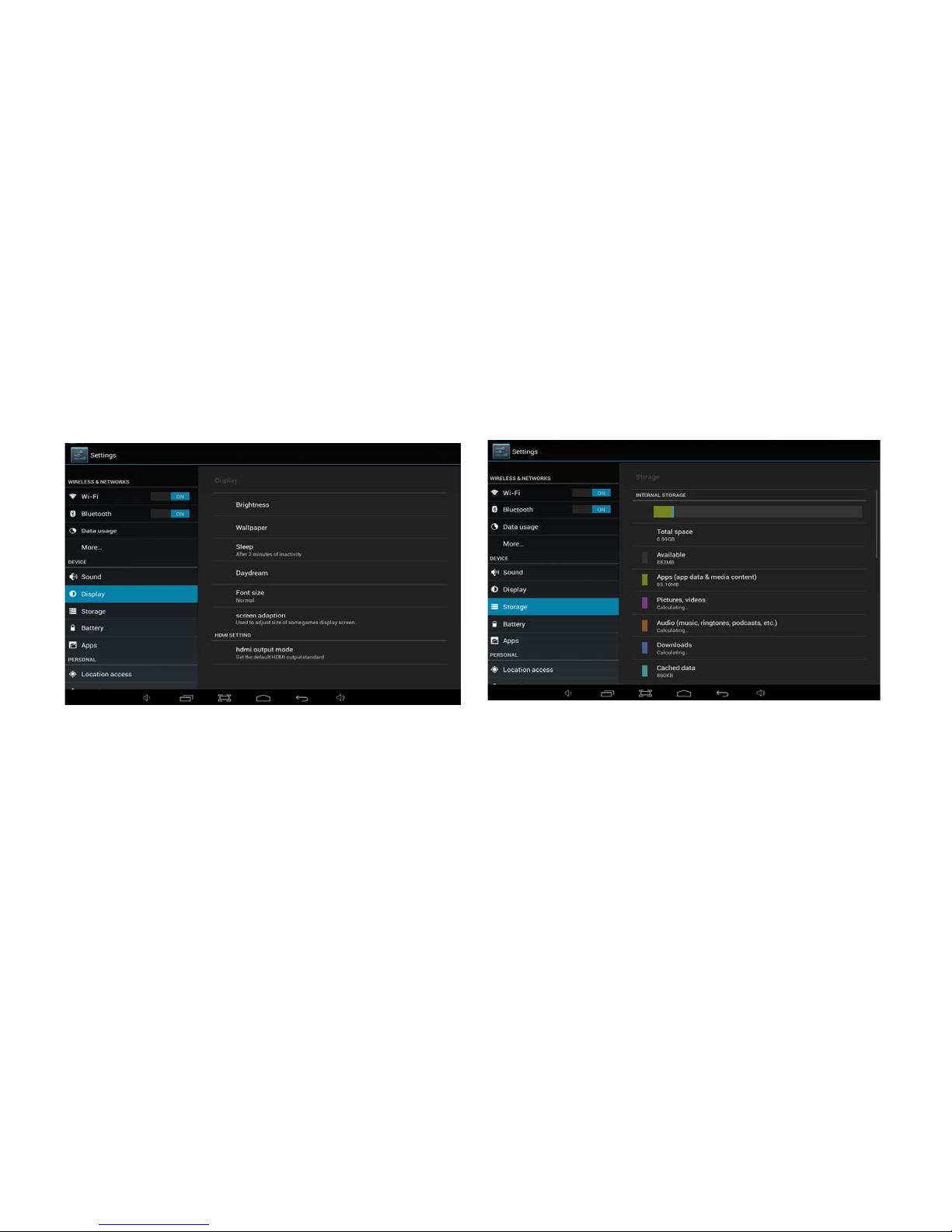

6. Display 7. Storage

Adjust each setting as you like

Check device memory and microSD card stat us .
Unmount SD card – Unmount the SD card for safe
removal.

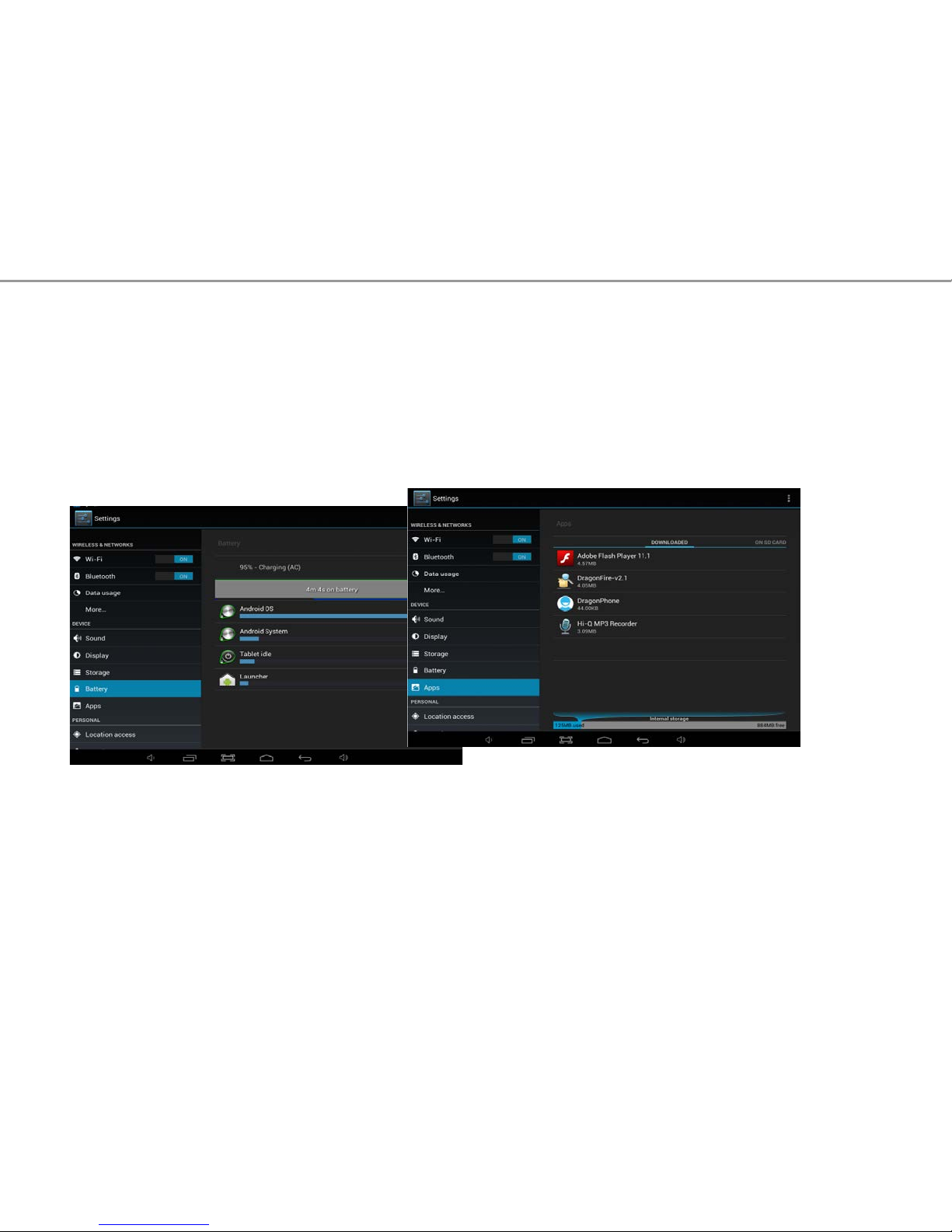

8. Battery

Check
battery
usage
status.

.

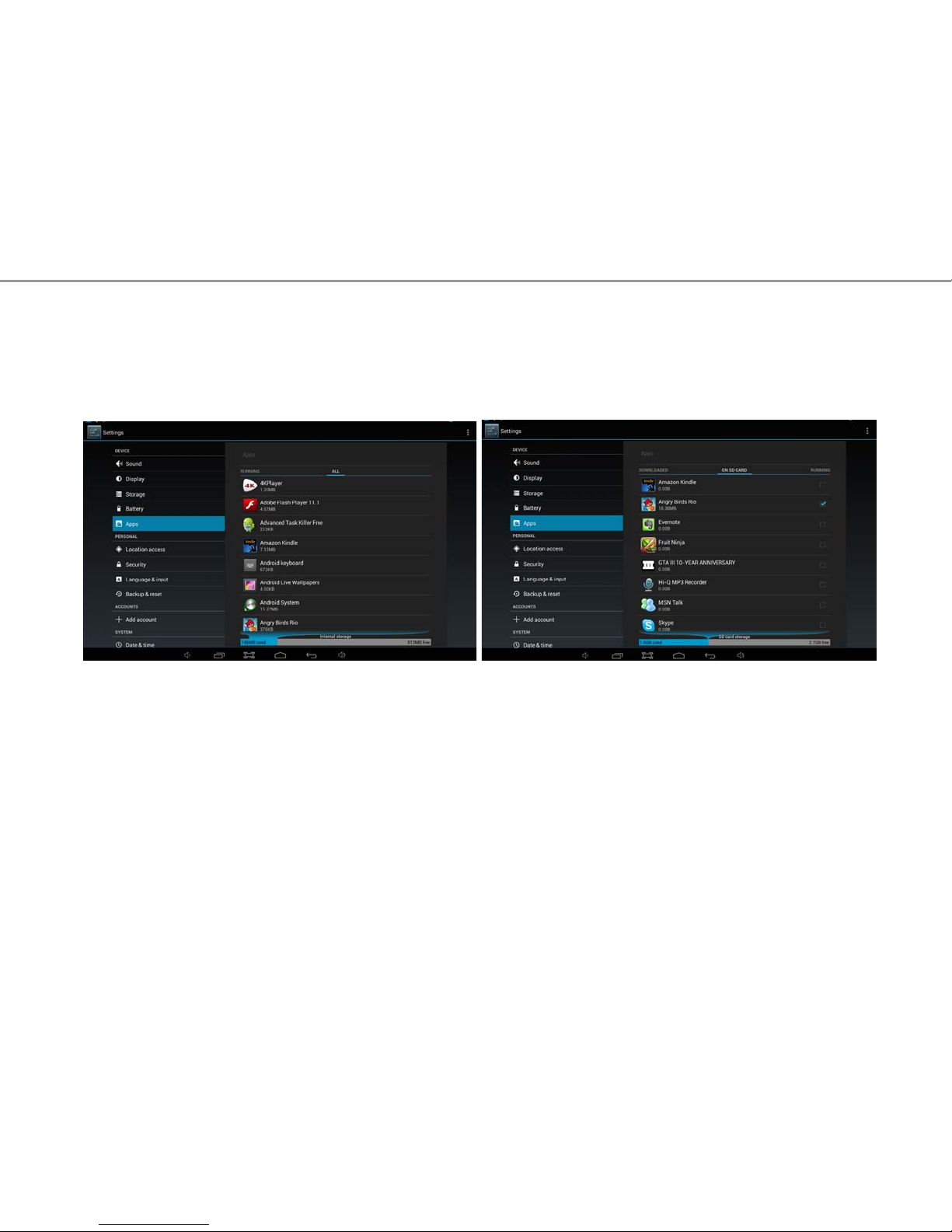

9.Apps

Manage downloaded or
running applications.

Downloaded.
All in

stalled applicati on are listed.

Keep pressing an application to manage. Running services

Press Uninstall to uninstall the selected application. View and control currently running services.

10. Account & sync

Create your account. After connecting Wi-Fi network, the e-mailing system synchronizes
your account with the device. Emails are automatically downloaded into the device.

11. Location services

Google’s location service - Let apps use data fro m sour c es s uch as WiFi and mobile networks
to determine your approximate location

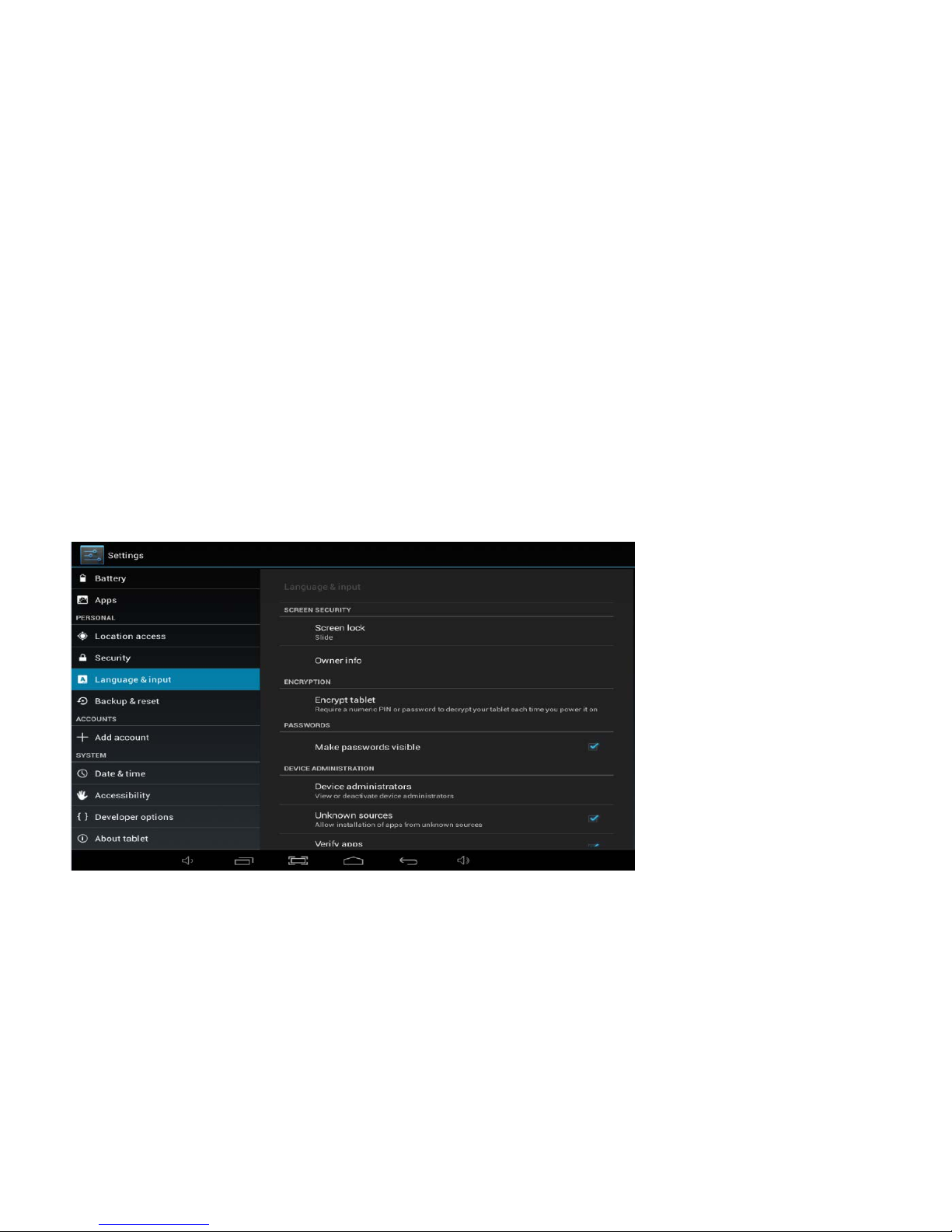

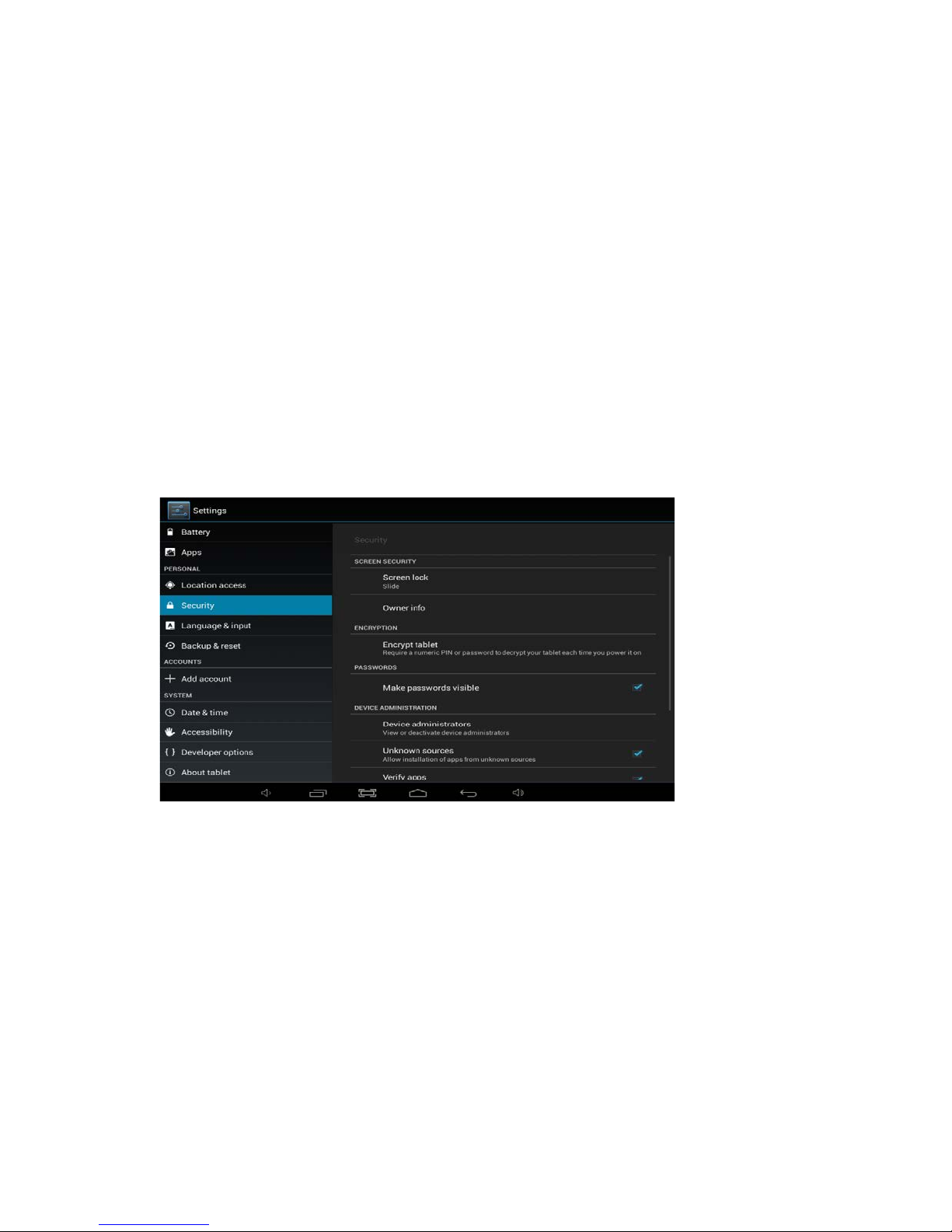

12. Security

Screen lock – Protect your device from unauthorized use by creating a personal screen
unlock pattern. Make passwords visible – Show password as you type.

Unknown sources - If you want to allow installation of non-Market

Applications, Press Unknown sources and presses OK.

Install from SD card – Instal l enc r ypted certificates fro m SD card.

13. Language & input

Language – Choose y our pr ef erred language.
Keyboard & input method – Change keyboard & keyboar d sett ings.
On Language & input settings , i f you need other languages besi des English on keyboard,
press the relevant keyboard and enter the chosen Keyboard settings, select K eyboards,
press the language you need.

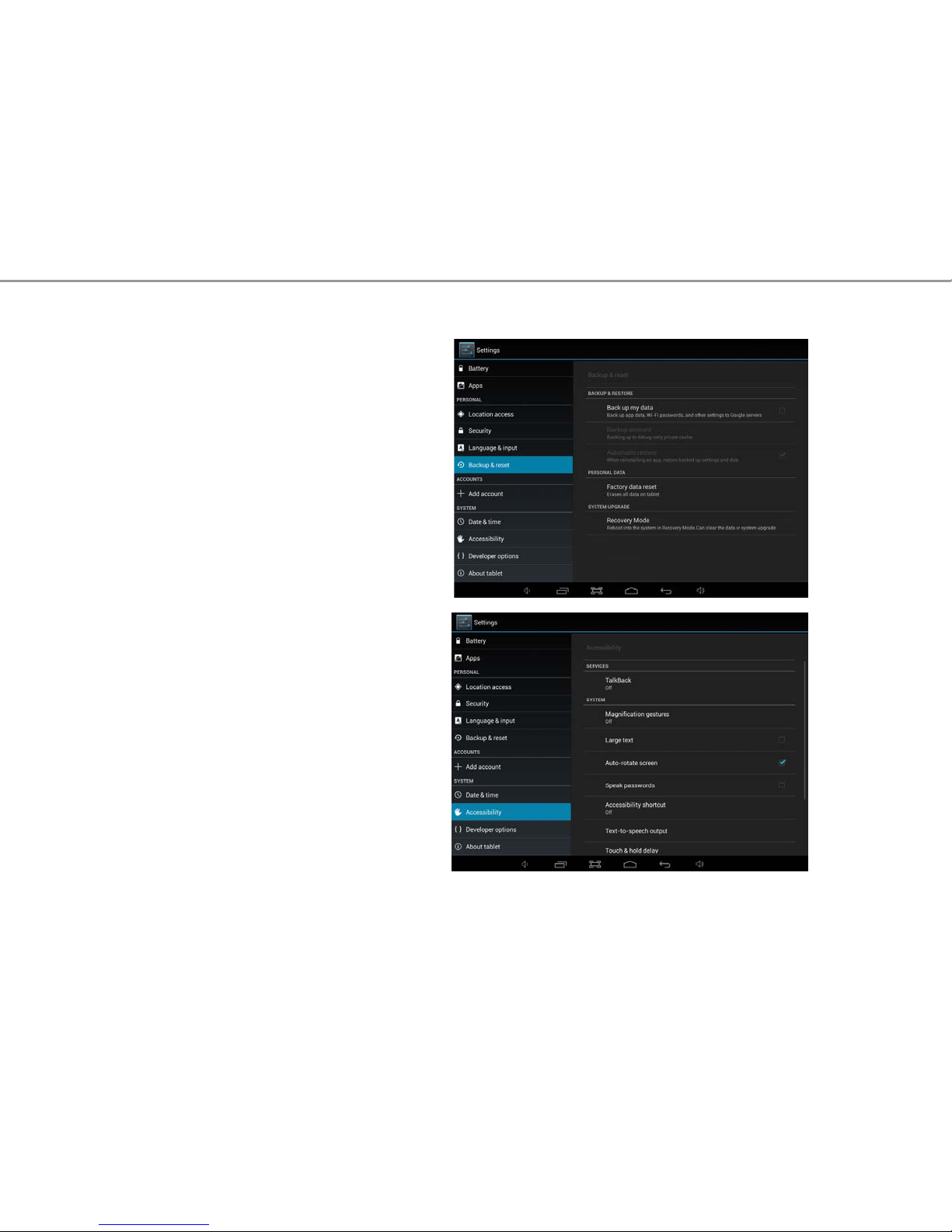

14. Backup &Reset

15. Date&time

Set date & time and format

16. Accessibility

Set date & time and format

17. Developer options

Set options for application development

18. About tablet

See status, legal information, ETC

Page 16

How to connect/disconnect the device
with/from the computer

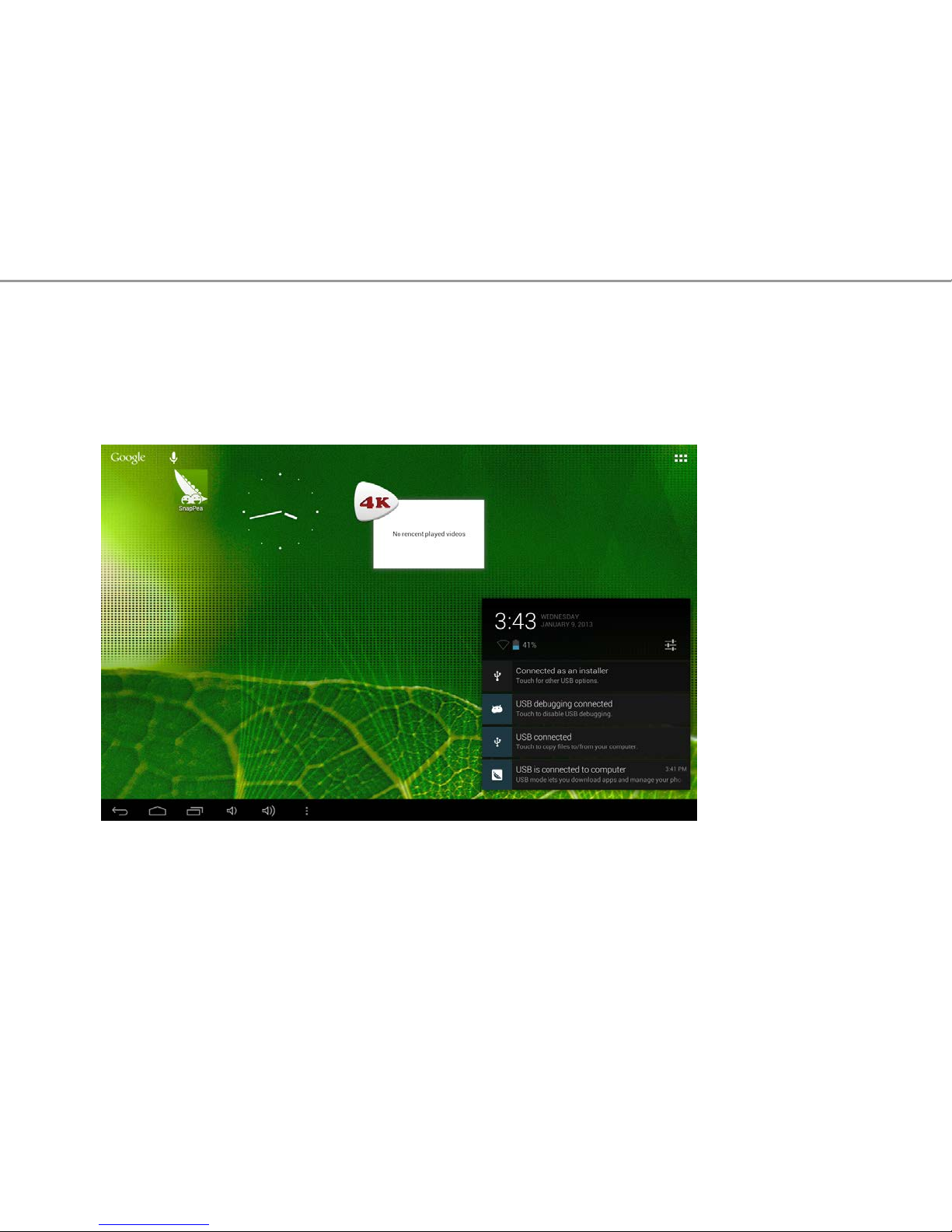

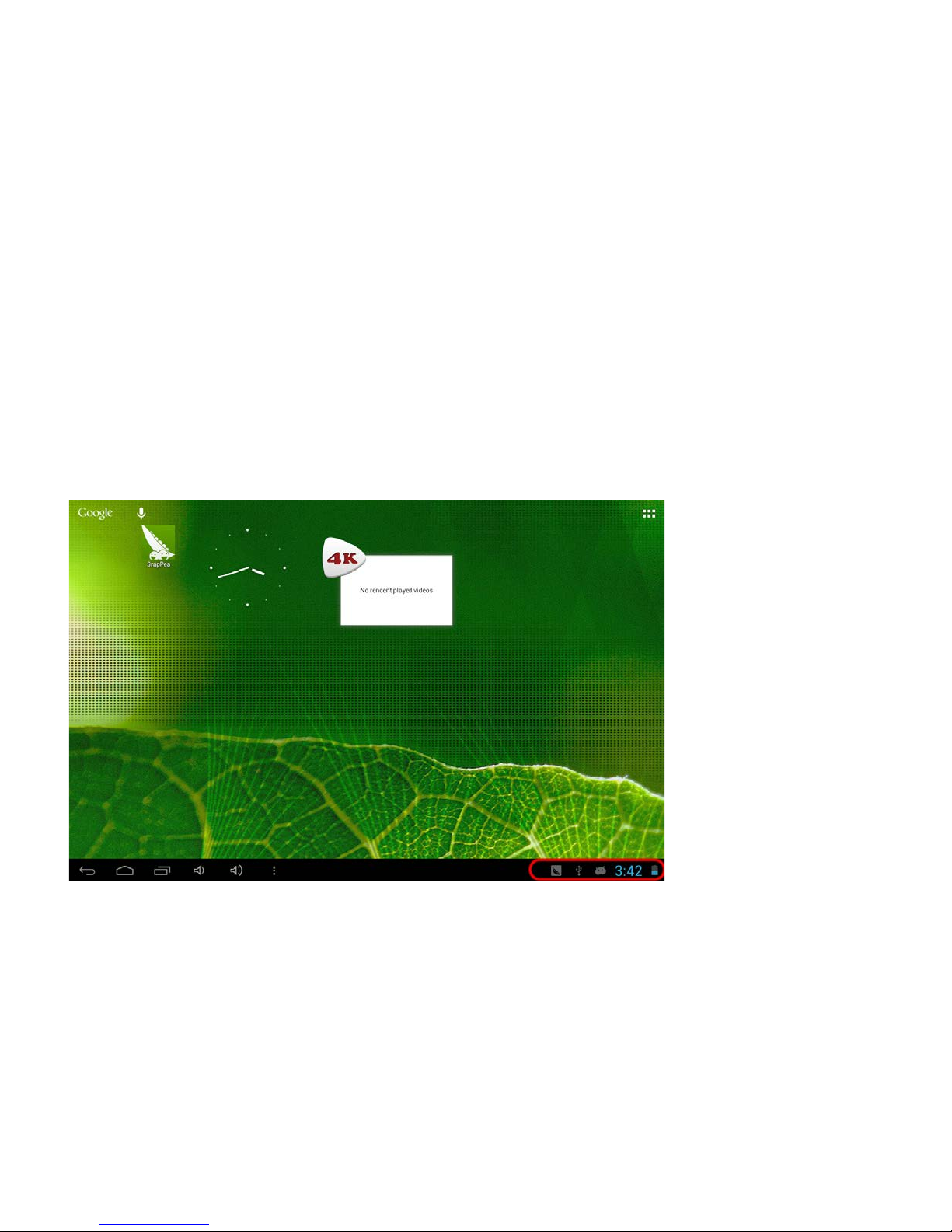

On main desktop, connect the device with the PC,
touch right side of the status bar on the bottom of desktop

Page 17

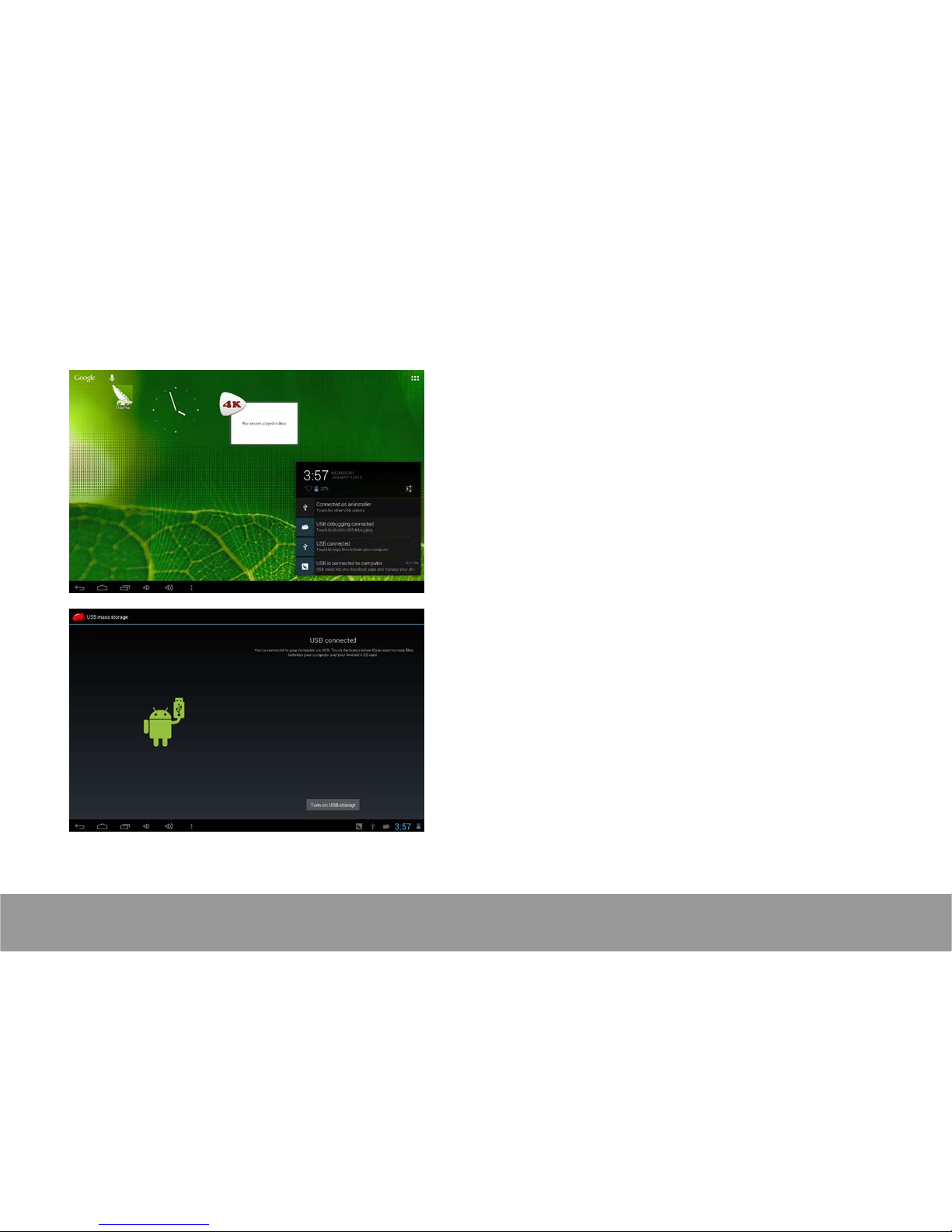

Press “USB connected”, select “Turn on USB storage”.
The device is recognized at Explorer of the computer.
Now you can use it as an external storage.

A
r
t
e
r

After finishing your work,
Pres

s “Turn on USB storage”to unmount it.

Page 18

How to install Applications(.apk file) into the device

Method 1.

1. Connect the device to t he internet. See above [1.Wireless & networks] in order to connect internet.

2. Run “Getjar” and search the applications you want to install.

3. Follow the instruction on the screen for instal lat ion.

Method 2.

3. Connect the device with your computer.
See above [How to connect/disconnect the device with/from the computer.]

5. Run “File browser” and navigat e to the .apk file that was copied into the device.

Note

You may only download adult applications if you are at least 18 years of age, or at least the age of majority in t he jurisdiction where you reside or from which
you download adult applications. If you do not m eet these requirements, then you do not have permission to download adult applications.

In case of any problem s including legal issues from the breach by end-user’s own decision, the manufacturer shall not be res ponsible.

Page 17

Page 19

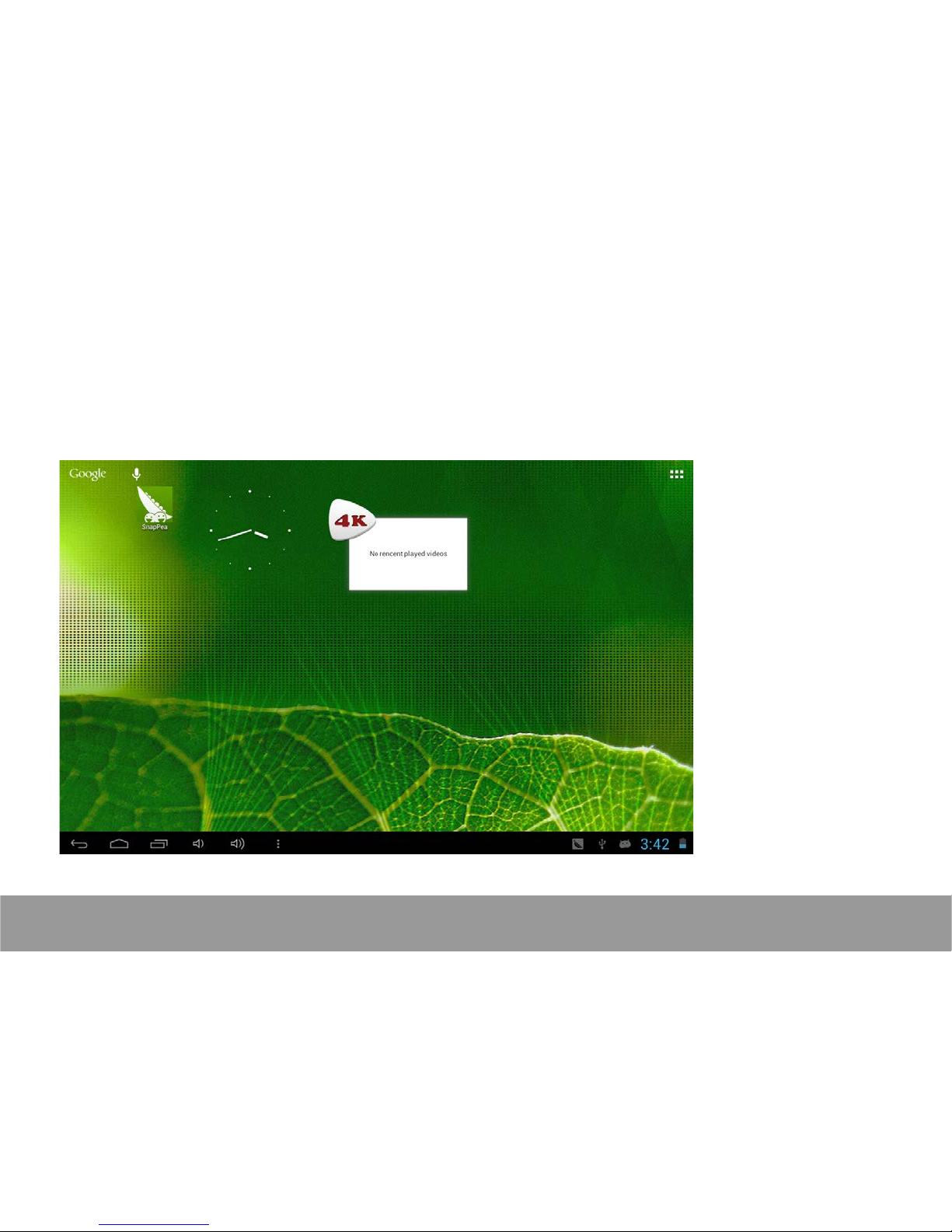

How to make desktop icons

Press the upper right side icon of desktop, the pop-up displays.

Page 20

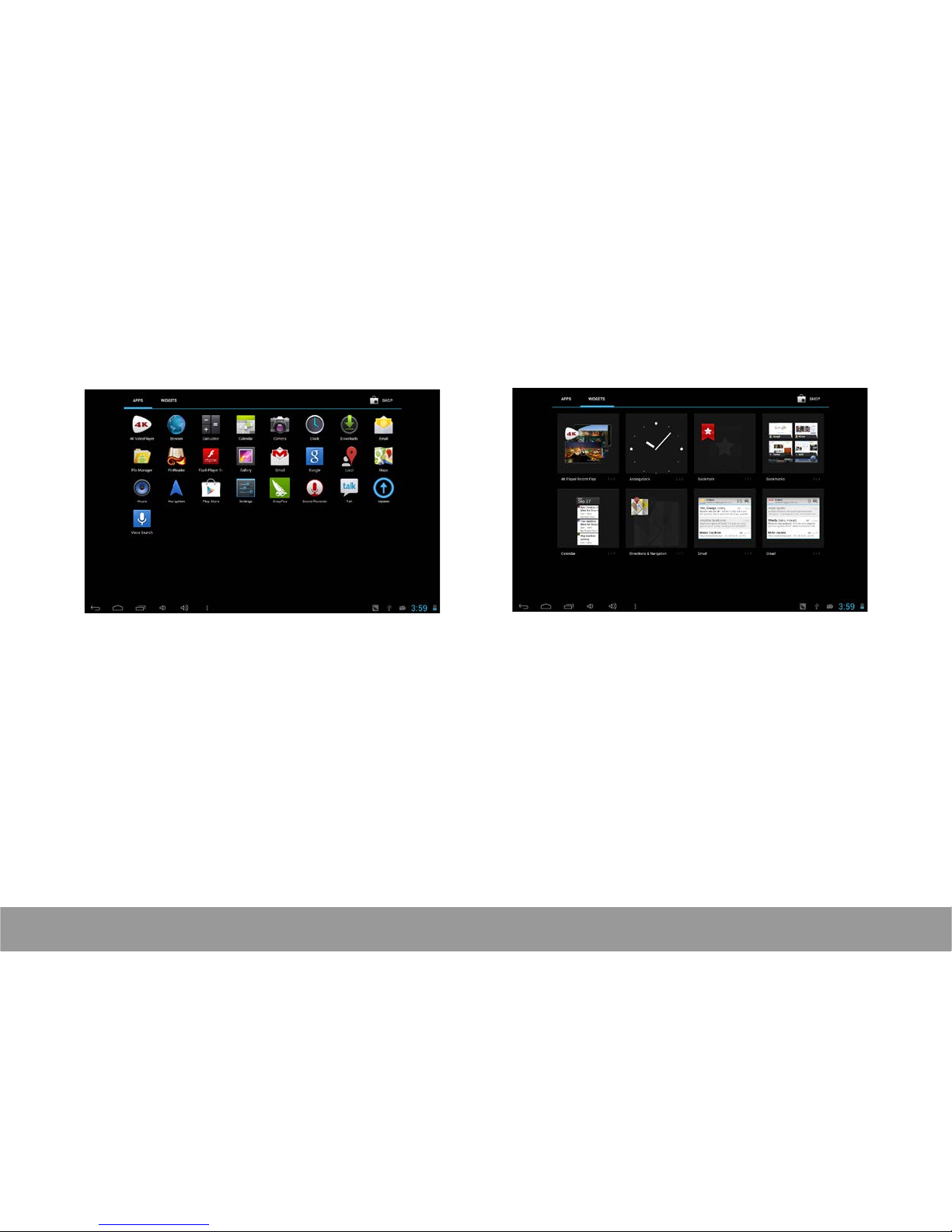

Shortcuts
Long press your desired APK icon and
put it on the desktop.

Widgets
Press Widgets and press your desired icon to

put it on the desktop.

Wallpaper
Long press the desktop, press Wallpapers and
select one of categories of wallpaper.

Select one you desire and pres s Set wallpaper.

Page 21

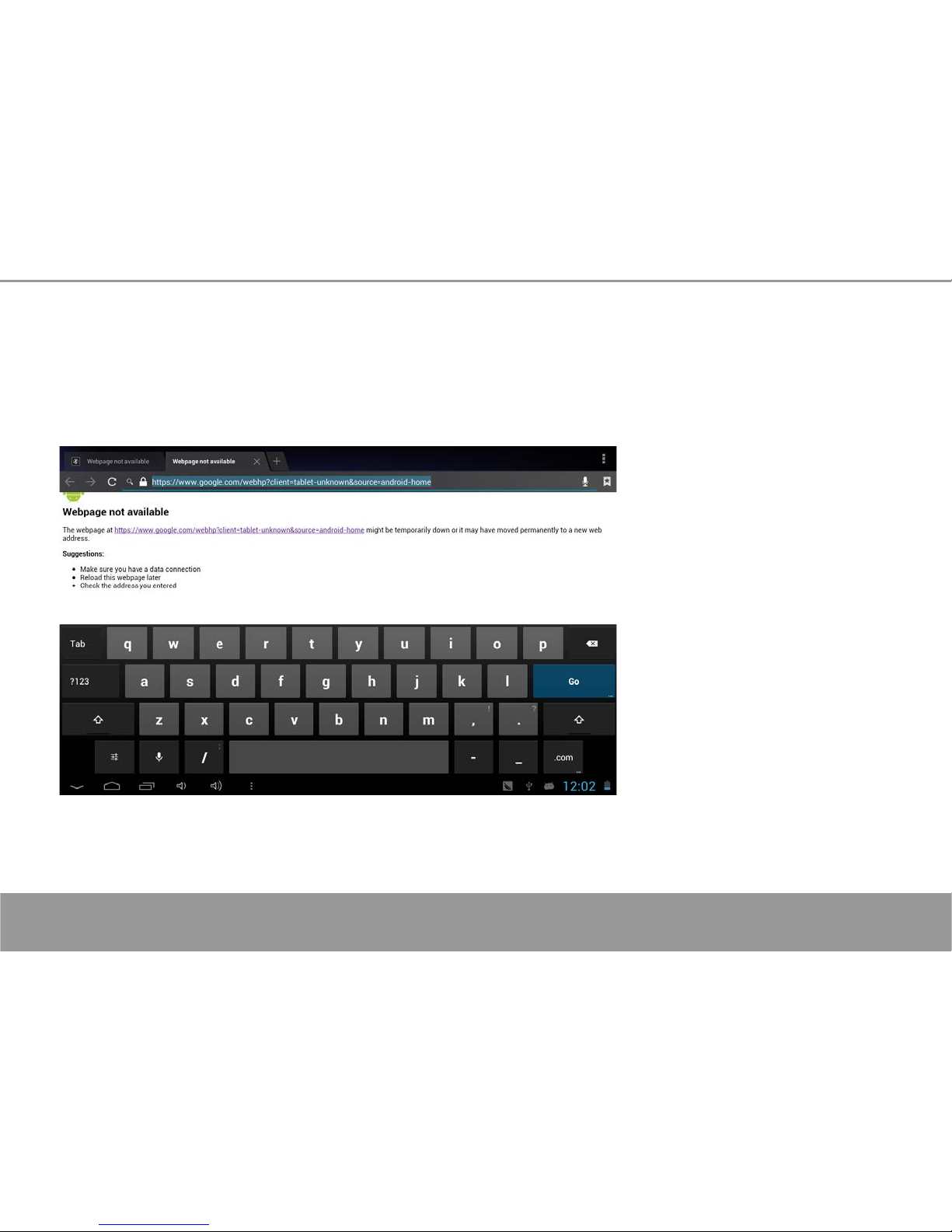

Change Input Method

If your device was installed with other more input method, long press setting icon of
keyboard, and the pop-up displays.

Select the installed keyboard, then the keyboard will appear with your desired language you
installed.

Page 22

Specification

OS Android 4.2

CPU

ARM cortex A31S processor

SDRAM

DDR3

1GB

(3D accelerator possible for 4D games)

Display

10.1" IPS TFT 1280*800 Capacitive touch panel

Multi-touch screen

Yes : 10 point Multi-Touch

(Model Dependent)

Audio port

3.5ø earphones

USB port

1 x 5pin micro USB port (support USB host and OTG)

IO PORTS

DC port

5V, 2.5A

Micro SD

Micro SD card

OTG port

Same with USB port

Button

Power, VOL-, VOL+, reset,

Speaker

1.5W, Frequency response : 20Hz – 20k Hz, N/S : >85%

G-sensor

Yes

Camera

0.3M pixel (front) + 2M pixel(back)

Wi-Fi

802.11b/g/n

Power

Adapter 5V -2.5A

Battery

3.7V Li-Polymer

Dimension

251 x 177 x 9.6 mm

Charging time

by charger

Approx. 3~4hours

Page 24

For more information please visit our website:
www.matricom.net
