IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety should always be
followed, including the following:
(110-120V area) or 15 watts (220-240V area).
16.The sound pressure level under normal operating conditions is
75dB(A).
17.Please turn off the machine or unplug when the machine is not
operating properly.
18.Never place anything on the foot controller.
19.If the supply cord that fixed with foot controller is damaged, it
must be replaced by the manufacturer or its service agent or a
similar qualified person in order to avoid a hazard.
20.This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
21.Children should be supervised to ensure that they do not play
with the appliance.
1. An appliance should never be left unattended when plugged in.
2. Always unplug this appliance from the electric outlet immediately
after using and before cleaning.
3. Always unplug before re-lamping. Replace bulb with same type
rated 10 watts
1. Do not allow to be used as a toy. Close attention is necessary
when this appliance is used by or near children.
2. Use this appliance only for its intended use as described in this
manual. Use only attachments recommended by the manufacturer
as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or
dropped into water. Return the appliance to the nearest authorized
dealer or service center for examination, repair, electrical or
mechanical adjustment.
4. Never operate the appliance with any air openings block. Keep
ventilation openings of the sewing machine and foot controller
free from accumulation of lint, dust, and loose cloth.
5. Keep fingers away from all moving parts. Special care is
required around the sewing machine needle.
6. Always use the proper needle plate. The wrong plate can cause
the needle to break.
7. Do not use bent needles.
8. Do not pull or push fabric while stitching. It may deflect the
needle causing it to break.
9. Switch the sewing machine off ("O") when making any adjustments
in the needle area, such as threading needle, changing needle,
threading bobbin, or changing presser foot, and the like.
10.Always unplug sewing machine from the electrical outlet when
removing covers, lubricating, or when making any other user
servicing adjustments mentioned in the instruction manual.
11.Never drop or insert any object into any opening.
12.Do not use outdoors.
13.Do not operate where aerosol spray products are being used or
where oxygen is being administered.
14.To disconnect, turn all controls to the off ("O") position, then
remove plug from outlet.
15.Do not unplug by pulling on cord. To unplug, grasp the plug, not
the cord.
Read all instructions before using this sewing machine.
This sewing machine is intended for household use only.
DANGER
SAVE THESE INSTRUCTIONS
- To reduce the risk of electric shock:
WARNING - To reduce the risk of burns, fire, electric
shock, or injury to persons:
Page 3
Congratulations!
As the owner of a new sewing machine, you will enjoy precision quality
stitching on all types of fabrics, from multiple layers of denim to delicate silks.
Your sewing machine offers the ultimate in simplicity and ease of operation.
For your safety and to fully enjoy the many advantages and ease of
operation of your sewing machine, we recommend that you read all the
important safeguards and use and care instructions in this instruction book.
May we suggest that before you start to use your sewing machine, you
discover the many features and advantages by going through this instruction
book, step by step, while seated at your sewing machine.
Page 4
List of contents
Details of the machine.............................................................2-3
Accessories ................................................................................4
Fitting the snap-in sewing table..................................................5
Connecting machine to power source ........................................6
Changing the bulb ......................................................................7
Two-step presser foot lifter/ ..........8
Attaching the presser foot holder ...............................................9
Winding the bobbin...................................................................10
Inserting the bobbin..................................................................11
Inserting the needle..................................................................12
Threading the upper thread......................................................13
Automatic needle threader (optional) .......................................14
Thread tension .........................................................................15
Bringing up the lower thread ....................................................16
Reverse sewing/ Remove the work/ Cutting the thread ...........17
Matching needle/ fabric/ thread ................................................18
Straight stitching.......................................................................21
Blind hem/ lingerie stitch ..........................................................23
Overlock stitches ......................................................................24
Sewing on buttons....................................................................25
How to sew buttonholes ...........................................................26
Zippers and piping....................................................................27
Sewing with hemmer foot .........................................................28
3-step zig-zag...........................................................................29Adjust presser foot pressure
How to choose your pattern .....................................................20
Zigzag stitching ........................................................................22
Stitch selection .........................................................................30
Smocking stitch ........................................................................31
Sewing with the cording foot ....................................................32
Darning.....................................................................................33
Practical stitches ......................................................................34
Quilting .....................................................................................35
Gathering..................................................................................36
Patch work................................................................................37
Applique ...................................................................................38
Twin needle ..............................................................................39
Monogramming and embroidering with embroidery hoop* ...40-41
The walking foot accessory ......................................................42
Maintenance.............................................................................43
Trouble shooting guide.............................................................44
Page 5

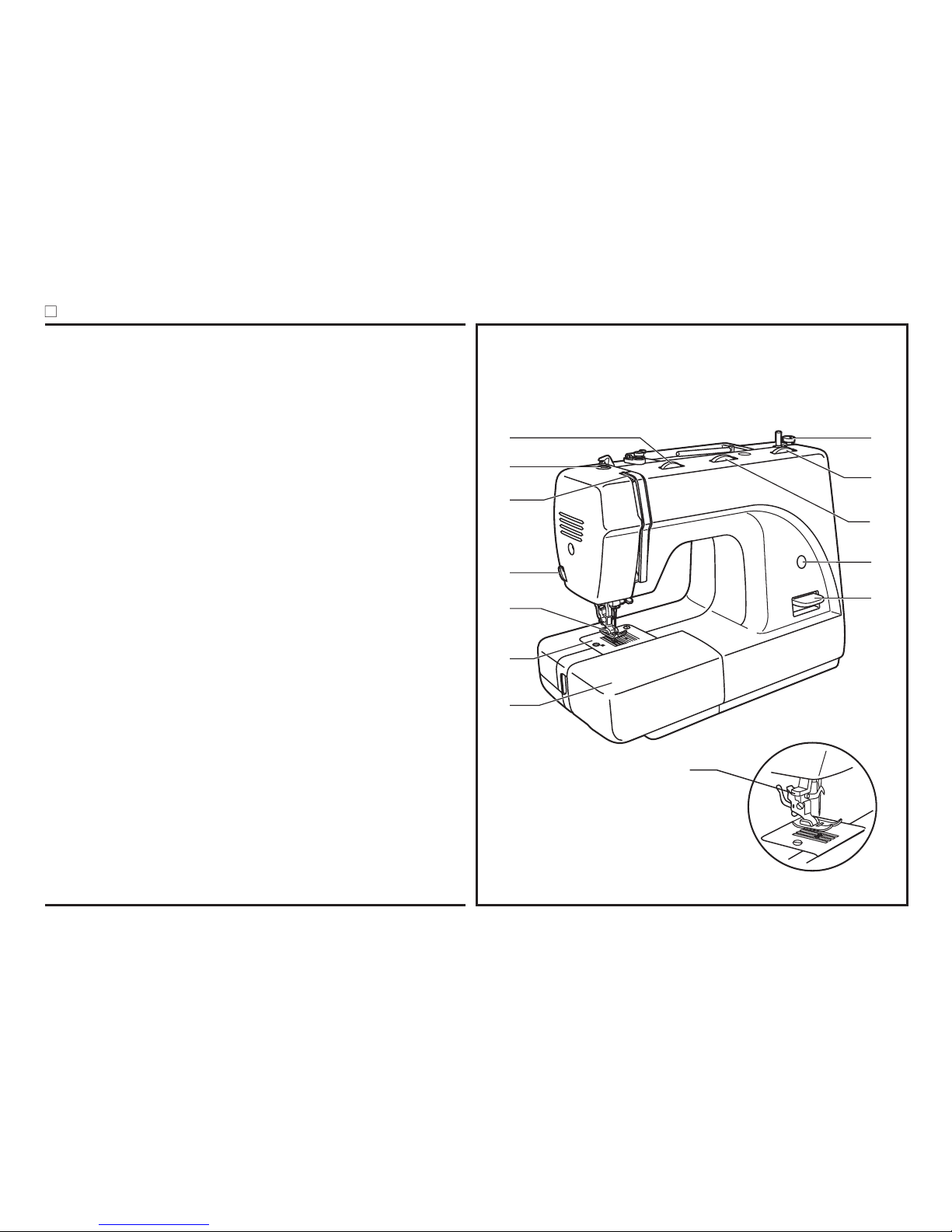

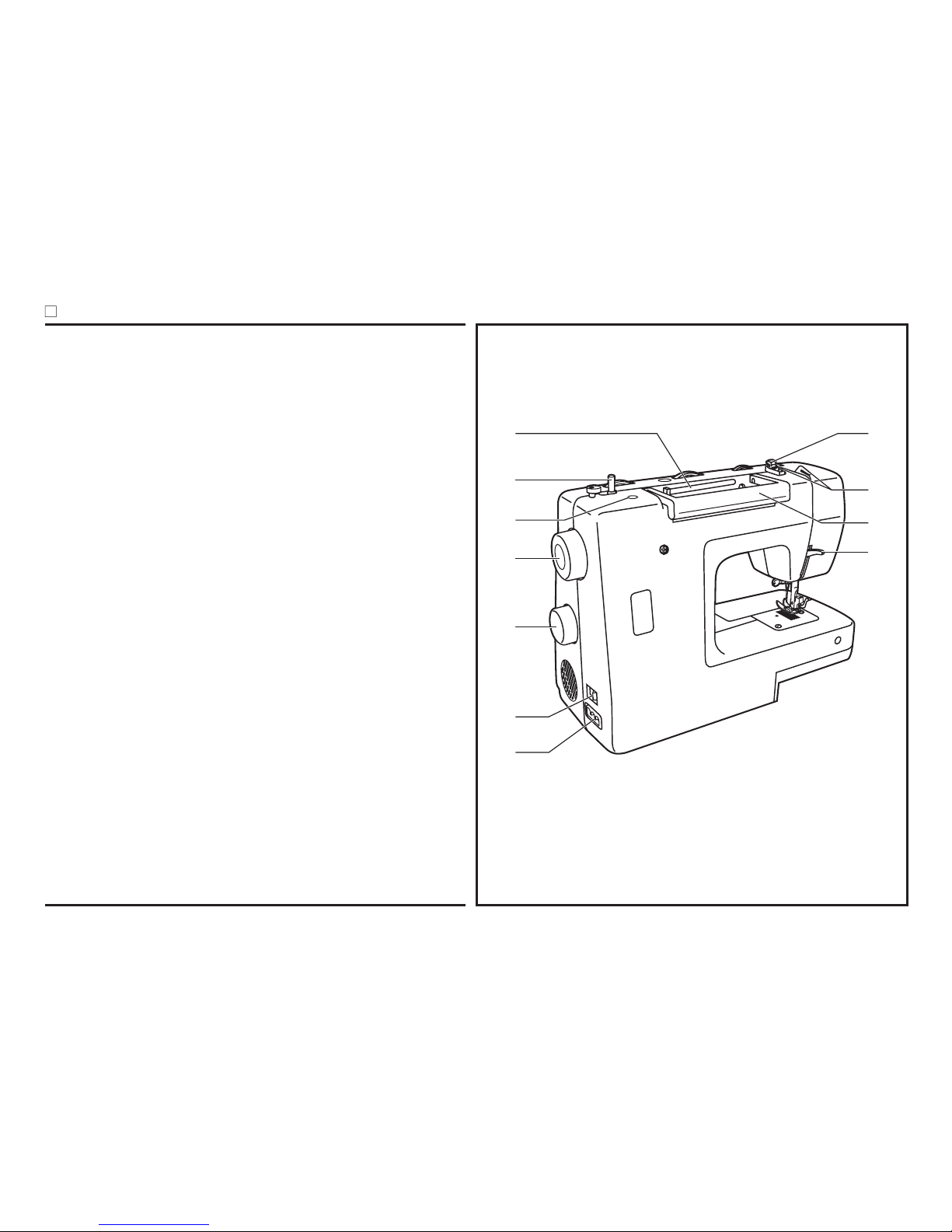

Details of the machine
2
10
2
4
5
6
7
9
8
11
13
12
1
3
1.
2.
3. Thread take-up lever
4.
5.
6.
7.
8.
9.
10.
11.
12. Reverse sewing lever
Thread tension dial
Presser foot pressure
Thread cutting
Presser foot
Needle plate
Sewing table/ Accessories box
Bobbin winder stopper
Stitch length dial
Stitch width dial
Stitch display
13. Automatic needle threader (optional)
(not on all models)
(not on all models)
(not on all models)
Page 6
14. Spool pin
15. Bobbin winder spindle
16. Hole for second spool pin
17. Hand wheel
18. Pattern selector dial
19. Power switch
20. Main plug socket
21. Bobbin thread guide
22. Upper thread guide
23. Handle
24. Presser foot lifter
Details of the machine
3
21
23
24
16
15
17
18
19
20
22
14
Page 7

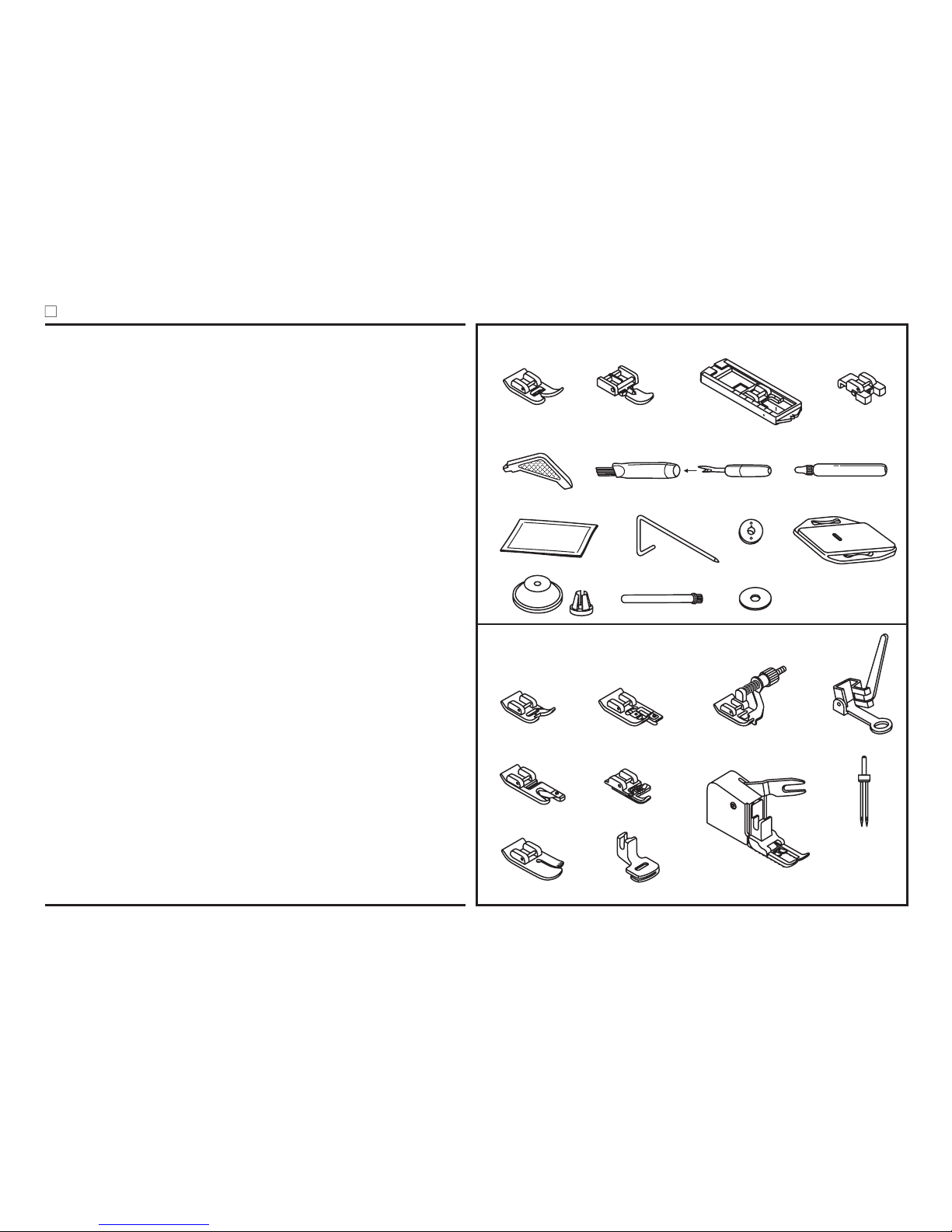

Accessories
4
Standard accessories
Extra accessories (optional)
a. All purpose foot
b. Zipper foot
c. Buttonhole foot
d. Button sewing foot
h.
i.
j.
k.
l.
m.
n.
o. Satin stitch foot
p. Overcasting foot
q. Blind hem foot
r. Darning/ Embroidery foot
s. Hemmer foot
t. Cording foot
v. Gathering foot
w. Walking foot
e. L-screwdriver
f. Seam ripper/ brush
g. Oil bottle
Pack of needles (3x)
Bobbin (3x)
Darning plate
Spool holder (large&small)
Second spool pin
Spool pin felt
u. Quilting foot
x. Twin needle
Edge/ quilting guide
006804008 006803008
q
006800008
r
006810008
p
006016008
t
006917008
s
006916008
o
006812008
v
006815008
Standard accessories
Extra accessories (optional)
u
w
a
b
c
d
g
i
j
m
l
006806008 006905008 006909008 006914008
e
h
k
f
n
x
Page 8
1
2

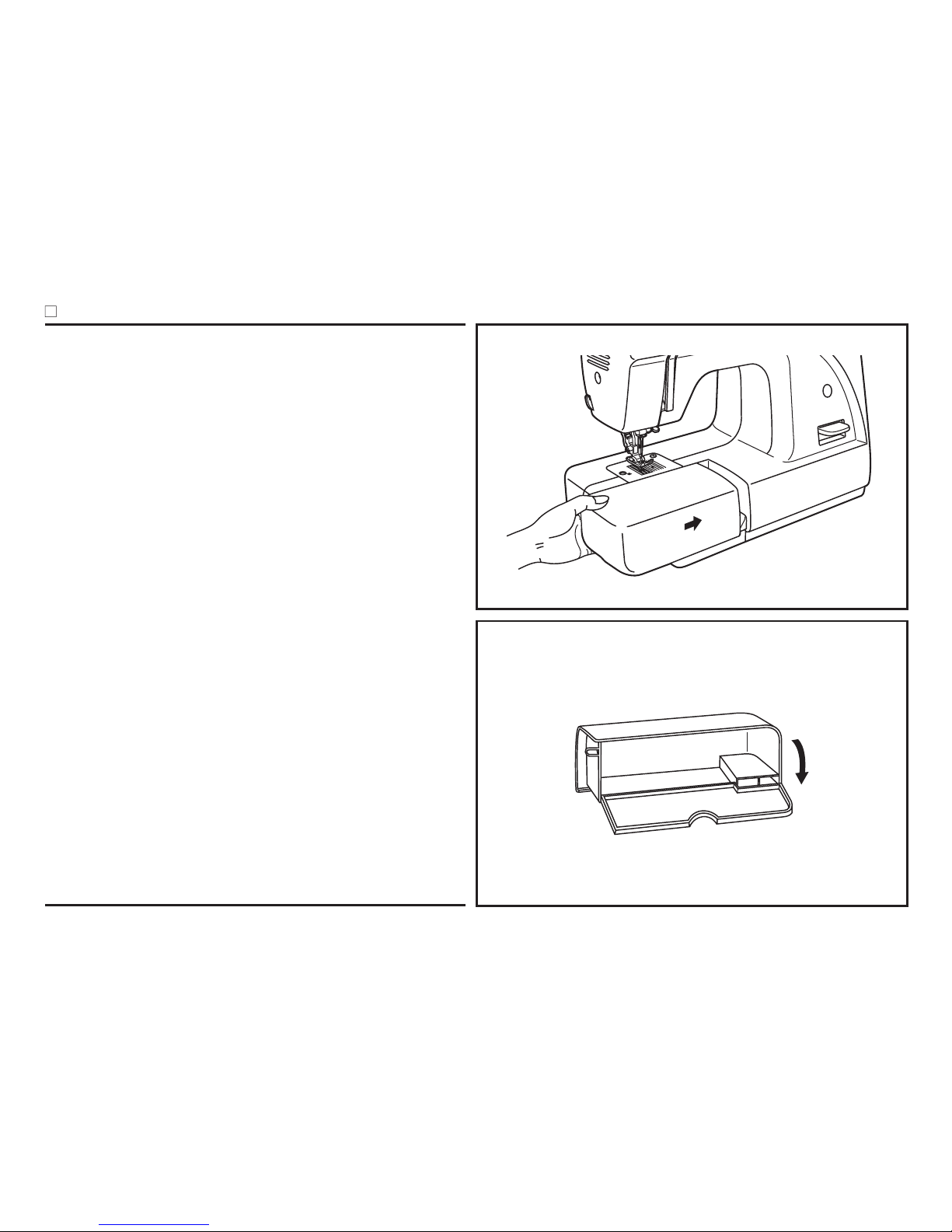

Keep the snap-in sewing table horizontal, and push it in the
direction of the arrow. (1)
The inside of the snap-in sewing table can be utilized as an
accessory box.
To open, flip cover down as shown. (2)
Fitting the snap-in sewing table
5
Page 9
3
Connecting machine to power source
Polarized
attachment plug
Conductor intended
to be grounded
Foot control regulates
the sewing speed.
6
A

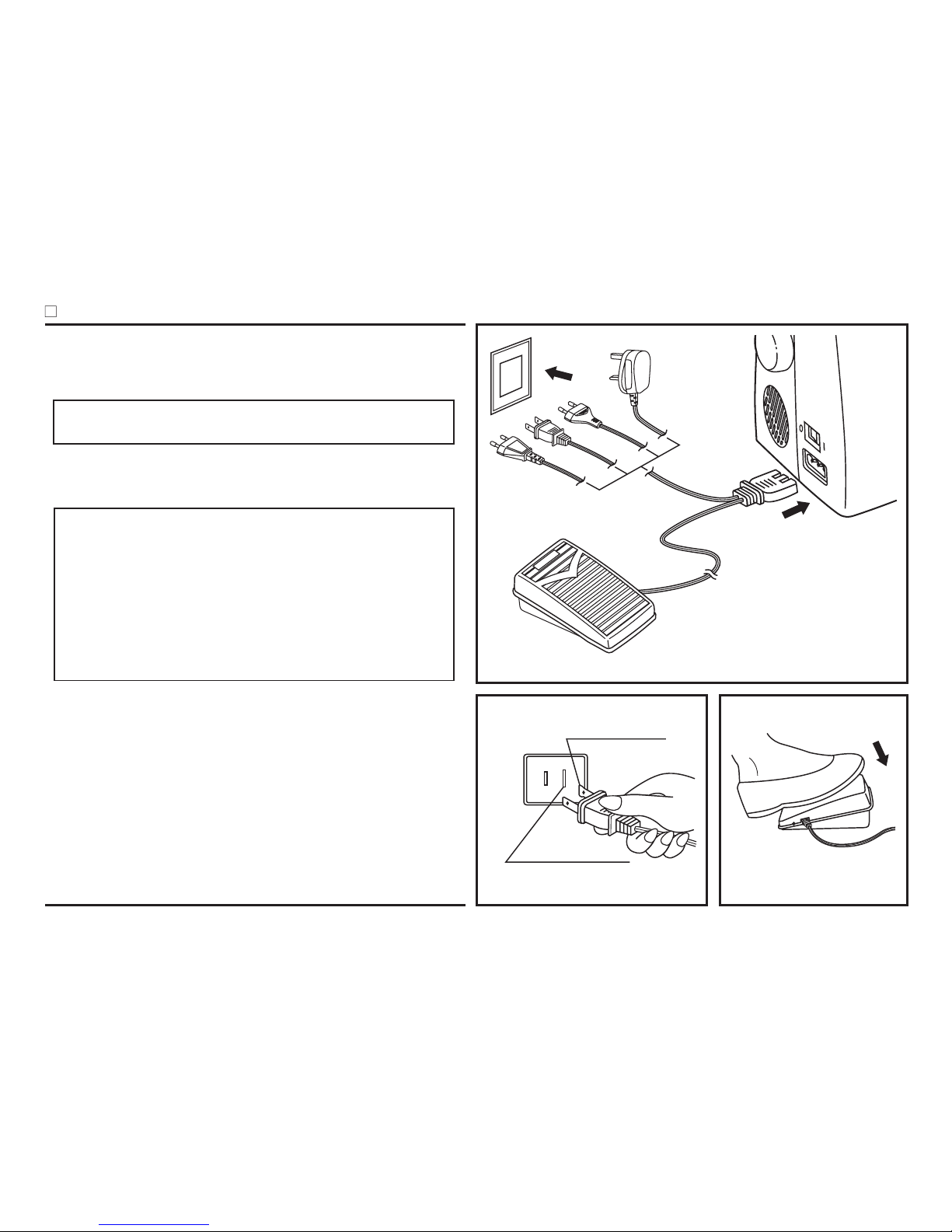

Connect the machine to a power source as illustrated. (1)
For appliance is equipped with a polarized plug which must be
used with the appropriate polarized outlet. (2)
Unplug power cord when machine is not in use.
Foot control regulates the sewing speed. (3)
Consult a qualified electrician if in doubt as to connect
machine to power source.
Press main switch (A) for power and light on. (" l ")
Attention:
Foot control
Attention:
Sewing light
Unplug power cord when machine is not in use. The foot
control must be used with the appliance by 4C-316B (110120V area)/ 4C-326G (230V area)/ 4C-316C, 4C-326C
(220-240V area) manufactured by Panasonic Co., Ltd.(TW)
or KD-1902 (110-120V area)/ KD-2902 (220-240V area)
manufactured by ZHEJIANG FOUNDER MOTOR
CORPORATION Ltd.
For appliance with a polarized plug (one blade is wider than
the other).
To reduce the risk of electric shock, this plug is intended to fit
in a polarized outlet only one way. If it does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not modify the plug in
any way. (2)
IMPORTANT NOTICE
1
2
Page 10
C
A
B
1
2
Disconnect the machine from the power supply by removing the
plug from the main socket!

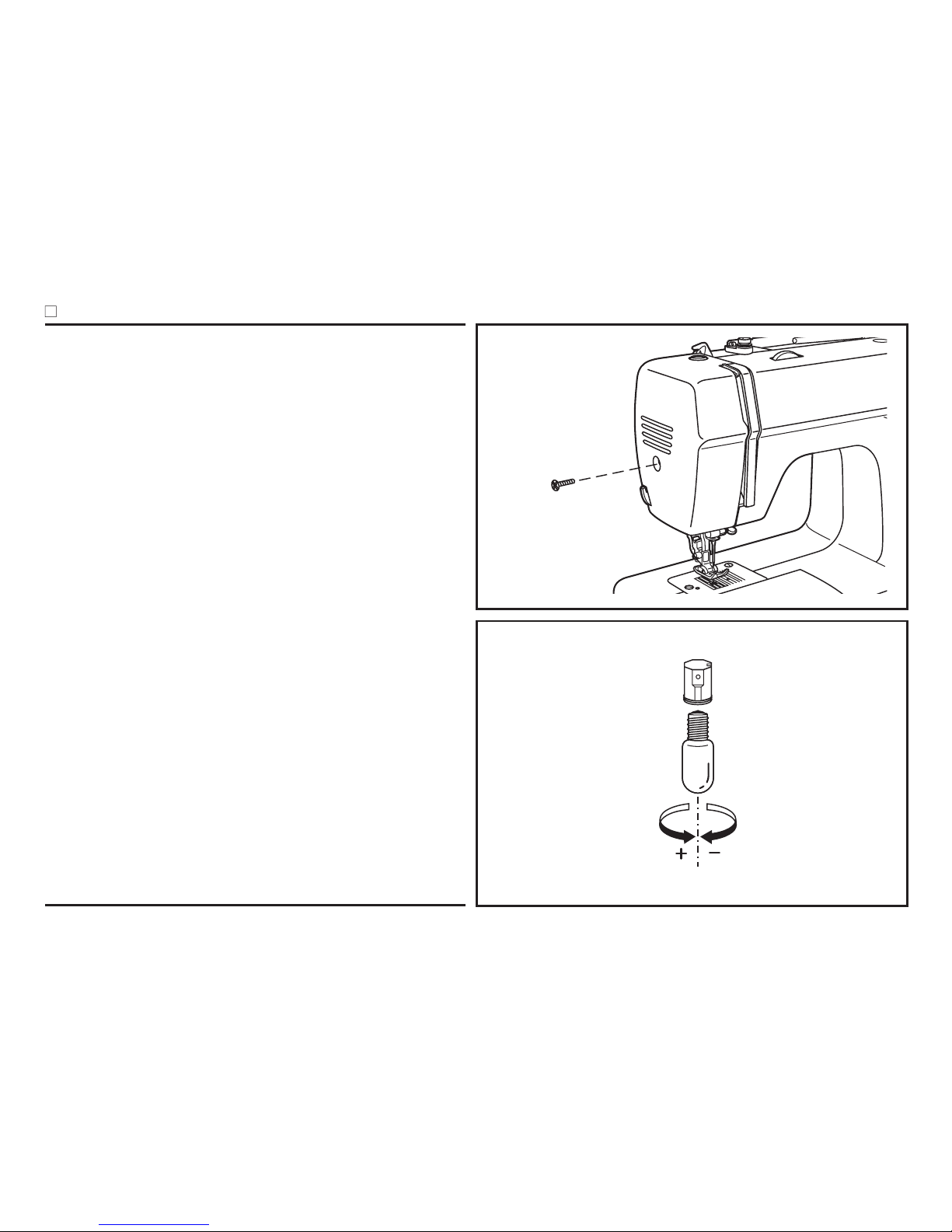

- Loosen screw (A) as illustrated. (1)
- Remove the cover (B).
- Unscrew the bulb and fit new one (C). (2)
- Replace the cover and tighten screw.
Should there be any problem. Ask your local dealer for advice.
Changing the bulb
7
Page 11
The presser foot pressure of the machine has ben pre-set and
requires no particular readjustment according to the type of
fabric (light-or-heavy weight).
However, if you need to adjust the presser foot pressure, turn
the presser adjusting screw with a coin.
For sewing very thin fabric, loosen the pressure by turning the
screw counter clockwise, and for heavy fabric, tighten by turning
it clockwise.

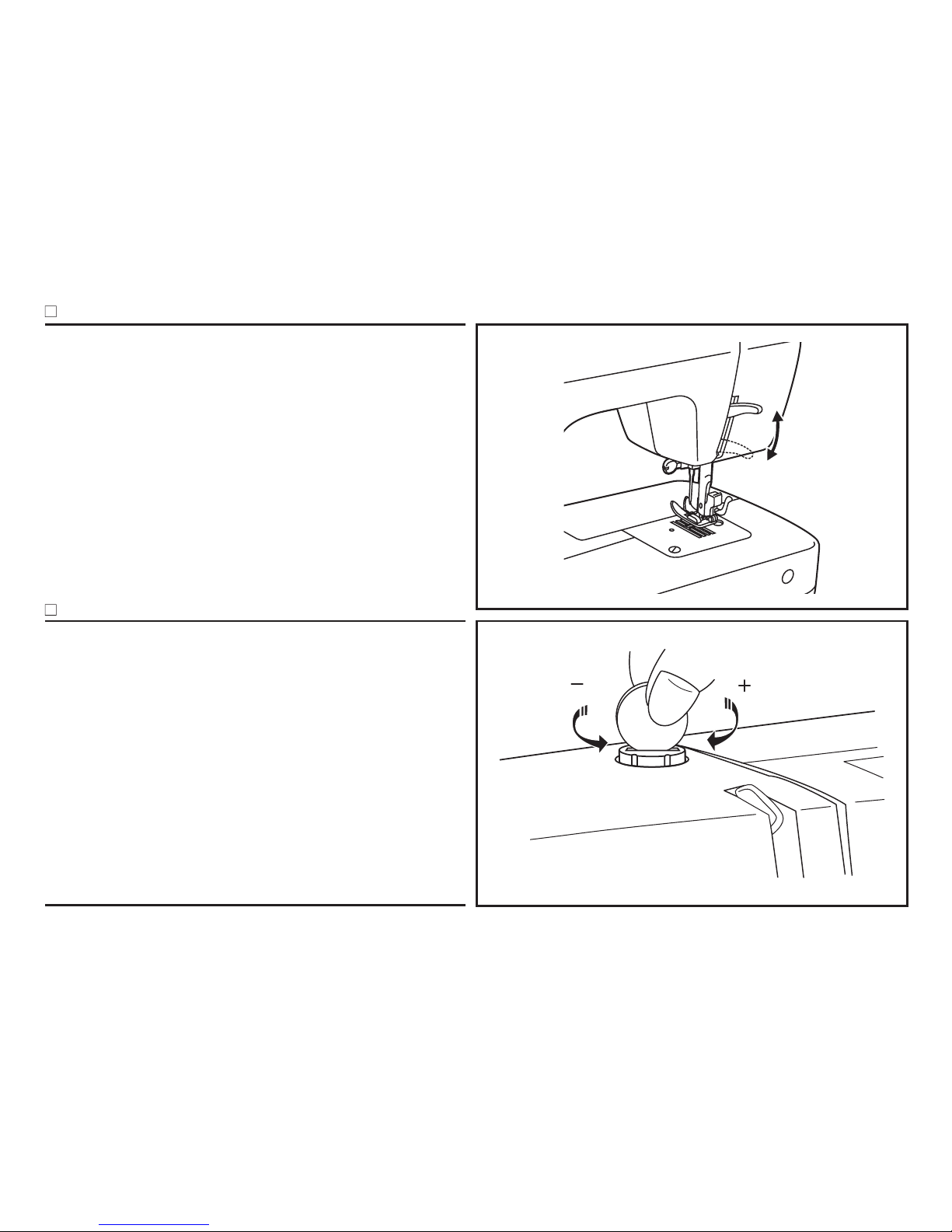

Two-step presser foot lifter
Adjust presser foot pressure
When sewing several layers or thick fabrics, the presser foot can
be raised a second stage for easy positioning of the work. (A)
8
A
Page 12
2
4
a
c
d
e
f
b
b
a
e
g
1
3

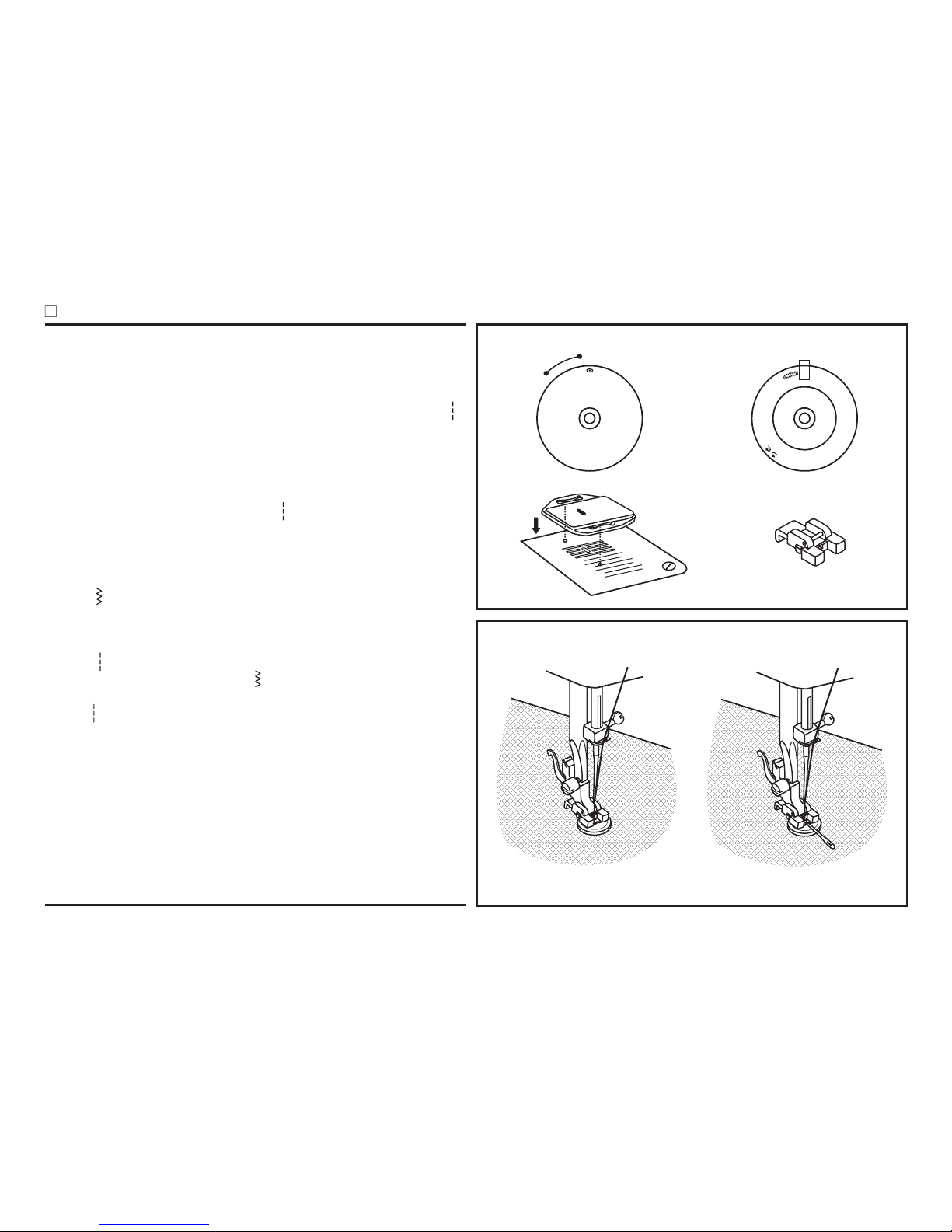

Attaching the presser foot holder
9
Raise the presser foot bar (a). (1)
Attach the presser foot holder (b) as illustrated.
Lower the presser foot holder until the cut-out (c) is directly
above the pin (d). (2)
Raise the lever (e)
Lower the presser foot holder (b) and the presser foot (f) will
engage automatically.
Raise the presser foot. (3)
Raise the lever (e) and the foot disengages.
Attach the (g) in the slot as illustrated.
Adjust according to need for hems, pleats, etc. (4)
Turn power switch to off ("O") when carrying out any of the
above operations!
Attaching the presser foot
Removing the presser foot
Attaching the
Attention:
(b)
e
edge/ quilting guide
dge/ quilting guide
Page 13
3
4
5
6
78
9
1
2
10
- Place thread and spool holder onto spool pin (1).
- For smaller spools of thread place spool holder with small side
next to spool (2).
- Wind thread clockwise around bobbin winder tension discs (3).
- Thread bobbin as illustrated and place on spindle (4).
- Push bobbin to right (5).
- Hold thread end (6).
- Step on foot control pedal (7).
- Cut thread (8).
- Press bobbin to left (9) and remove.
Please Note:
When the bobbin winder spindle is in "bobbin winding" position,
the machine will not sew and the hand wheel will not turn.
To start sewing, push the bobbin winder spindle to the left
(sewing position).

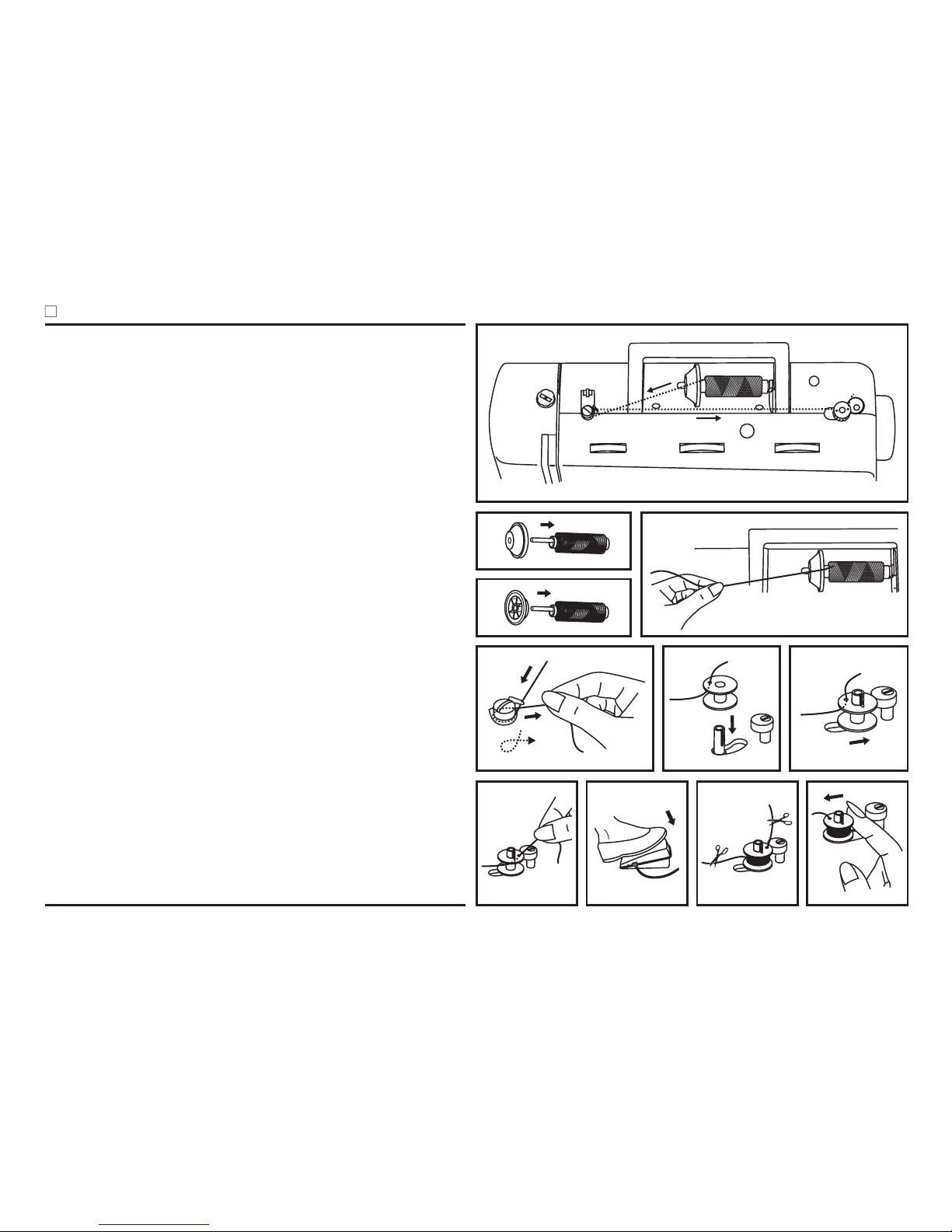

Winding the bobbin
Page 14
11
12
3
4
5

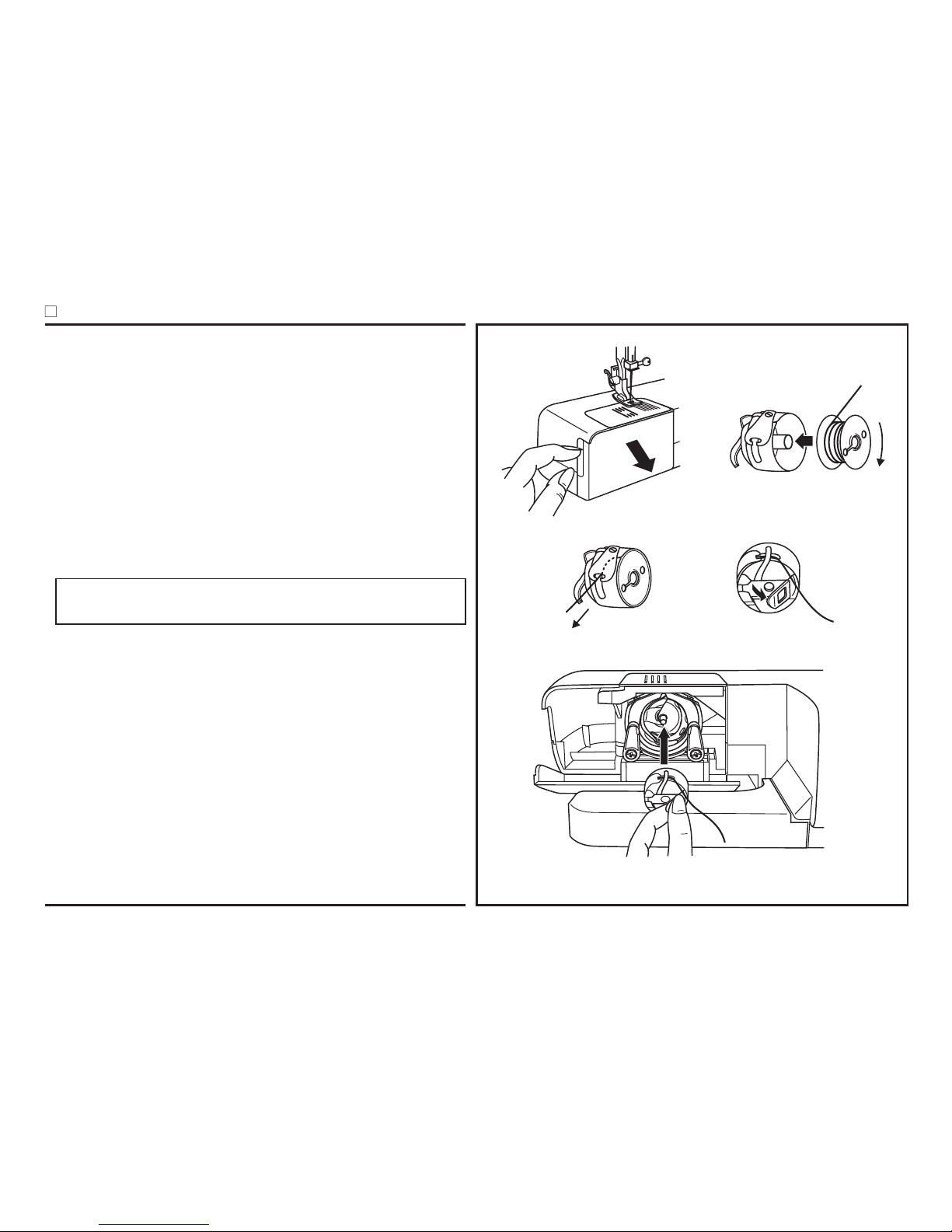

When inserting or removing the bobbin, the needle must be fully
raised.
1.Open the hinged cover.
2.Hold the bobbin case with one hand. Insert the bobbin so that
the thread runs in a clockwise direction (arrow).
3.Put the thread under the tension spring.
4.Hold the bobbin case by the hinged latch.
5.Insert it into the shuttle.
Turn power switch to off .
Attention:
("O")
Inserting the bobbin
Page 15
A
B
C
D
12
A CB
1
2

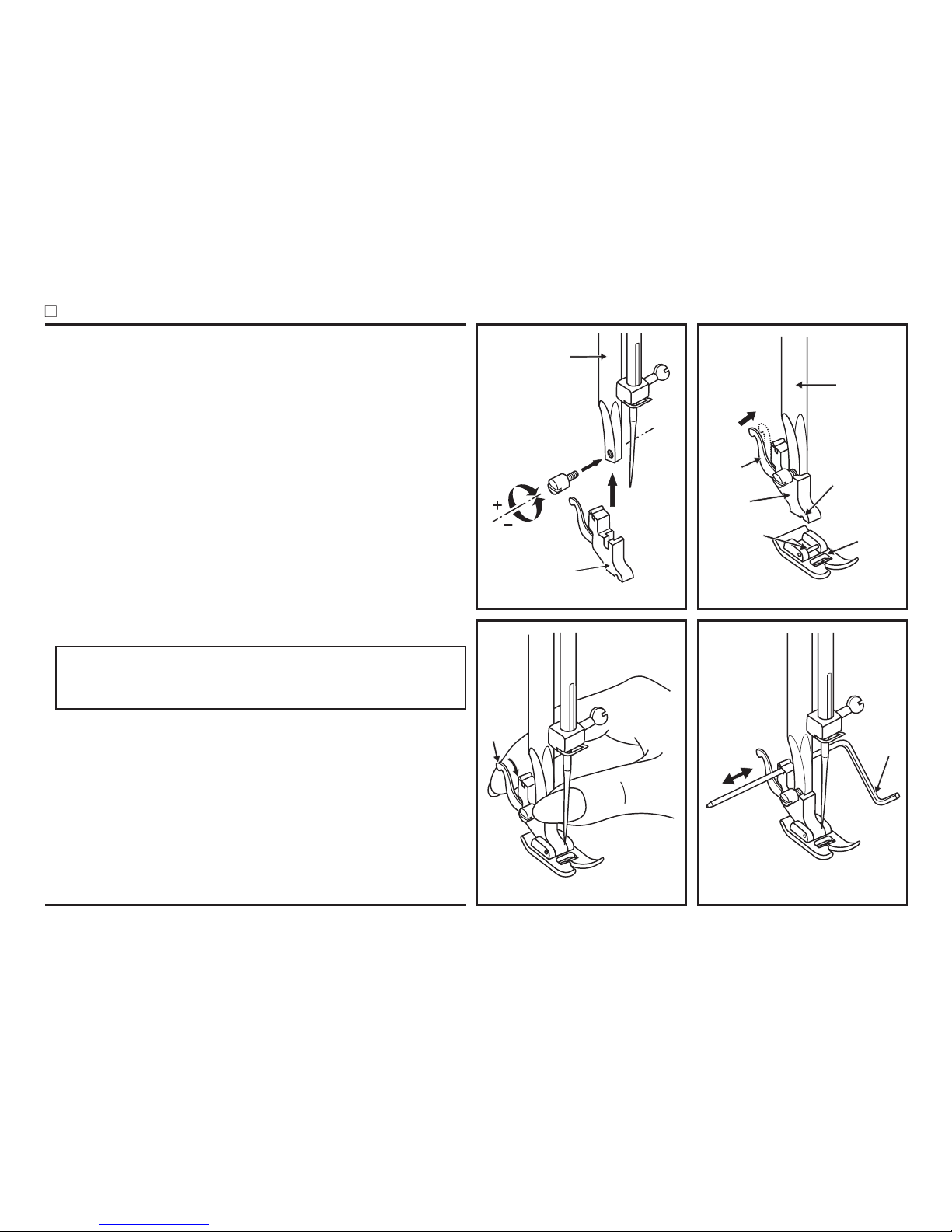

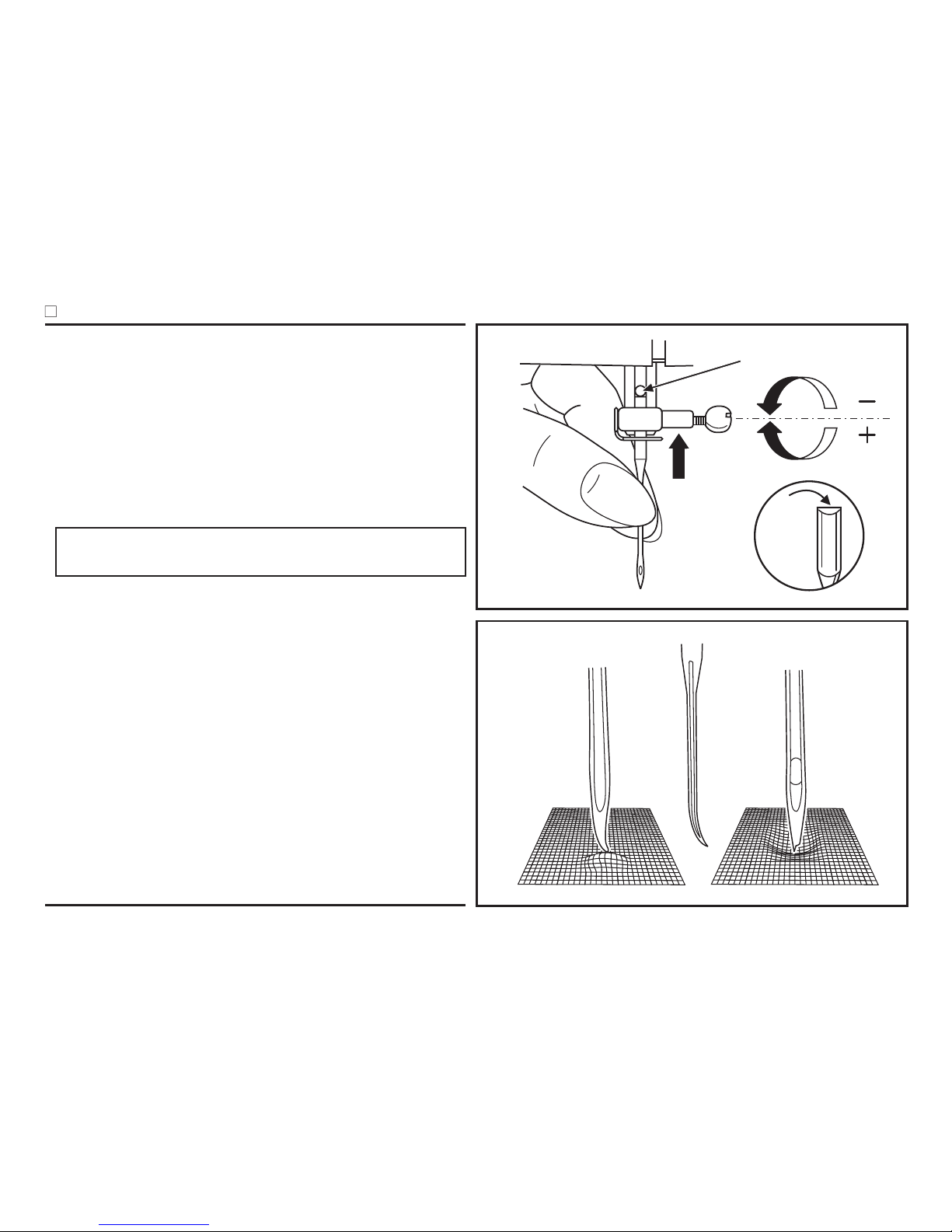

Change the needle regularly, especially if it is showing signs of
wear and causing problems.
Insert the needle following the illustrated instructions.
A. Loosen the needle clamp screw and tighten again after
inserting the new needle. (1)
B. The flat side of the shaft should be towards the back.
C/D. Insert the needle as far up as it will go.
Turn power switch to off .
Needles must be in perfect condition. (2)
Problems can occur with:
A. Bent needles
B. Blunt needles
C. Damaged points
Attention:
("O")
Inserting the needle
Page 16
3
4
5
2
13
6
78 9
1
3
4
5
2
6
8
9

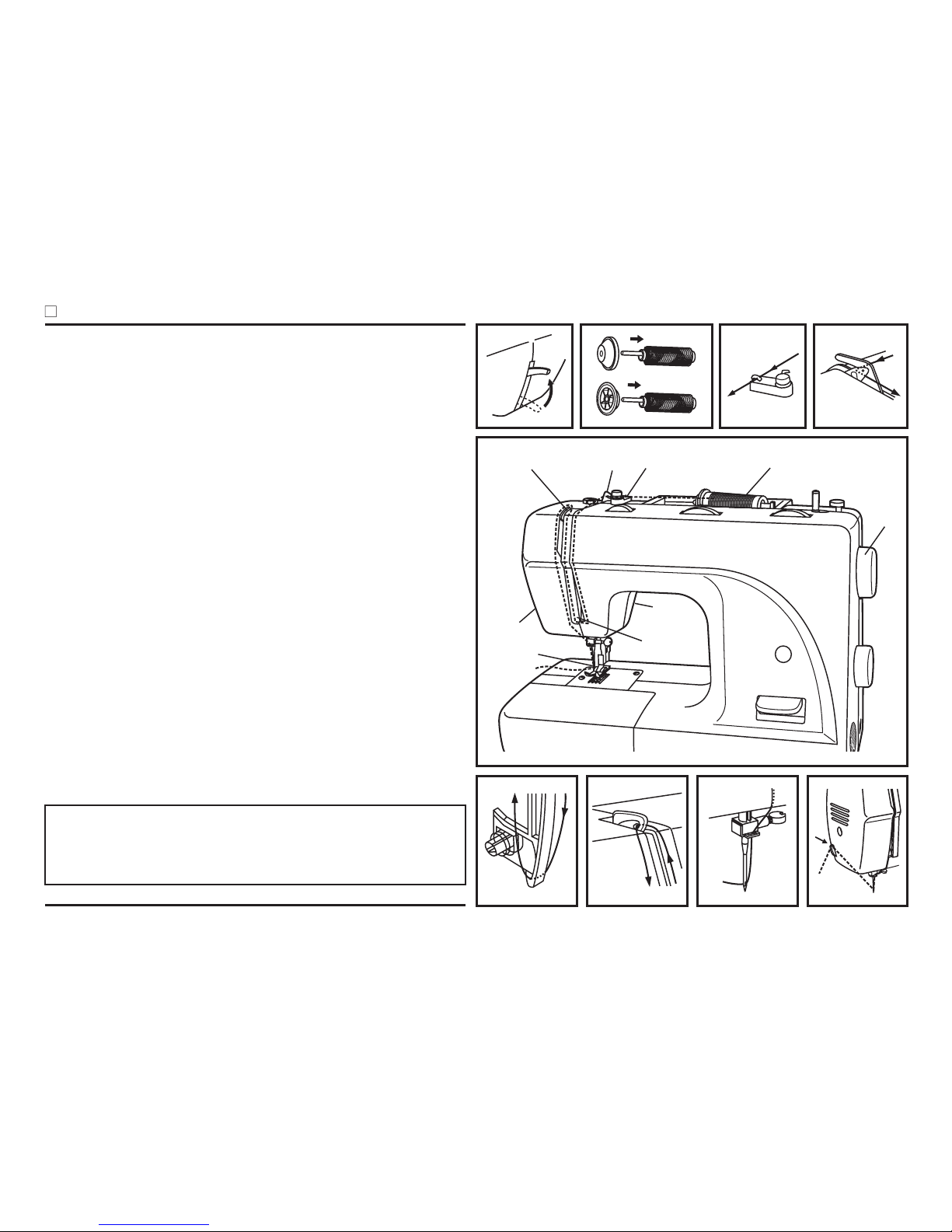

This is a simple operation but it is important to carry out correctly
as by not doing so several sewing problems could result.
- Start by raising the needle to its highest point (1), and also raise
the presser foot to release the tension discs. (2)
For safety, it is strongly suggested you turn off the power
before threading.
- Lift up the spool pin. Place the spool of thread on the holder
with the thread coming off the spool as shown. For small thread
spools, place small side of spool holder next to spool. (3)
- Draw thread from spool through the upper thread guide. (4)
- Guide thread around thread guide (5) pulling thread through
pre-tension spring as illustrated.
- Thread tension module by leading thread down right channel
and up left channel (6). During this process it is helpful to hold
the thread between the spool and thread guide (4).
- At the top of this movement pass thread from right to left through
the slotted eye of the take-up lever and then downwards again. (7)
-
(9)
If your sewing machine is equipped with the factory installed
optional automatic needle threader, instructions for use can
be found on page 14.
Note:
Note:
Now pass thread behind the thin wire needle clamp guide (8)
and then down to the needle which should be threaded from
front to back.
- Pull about 6-8 inches of thread to the rear beyond the needle eye.
Trim thread to length with built in thread cutter.

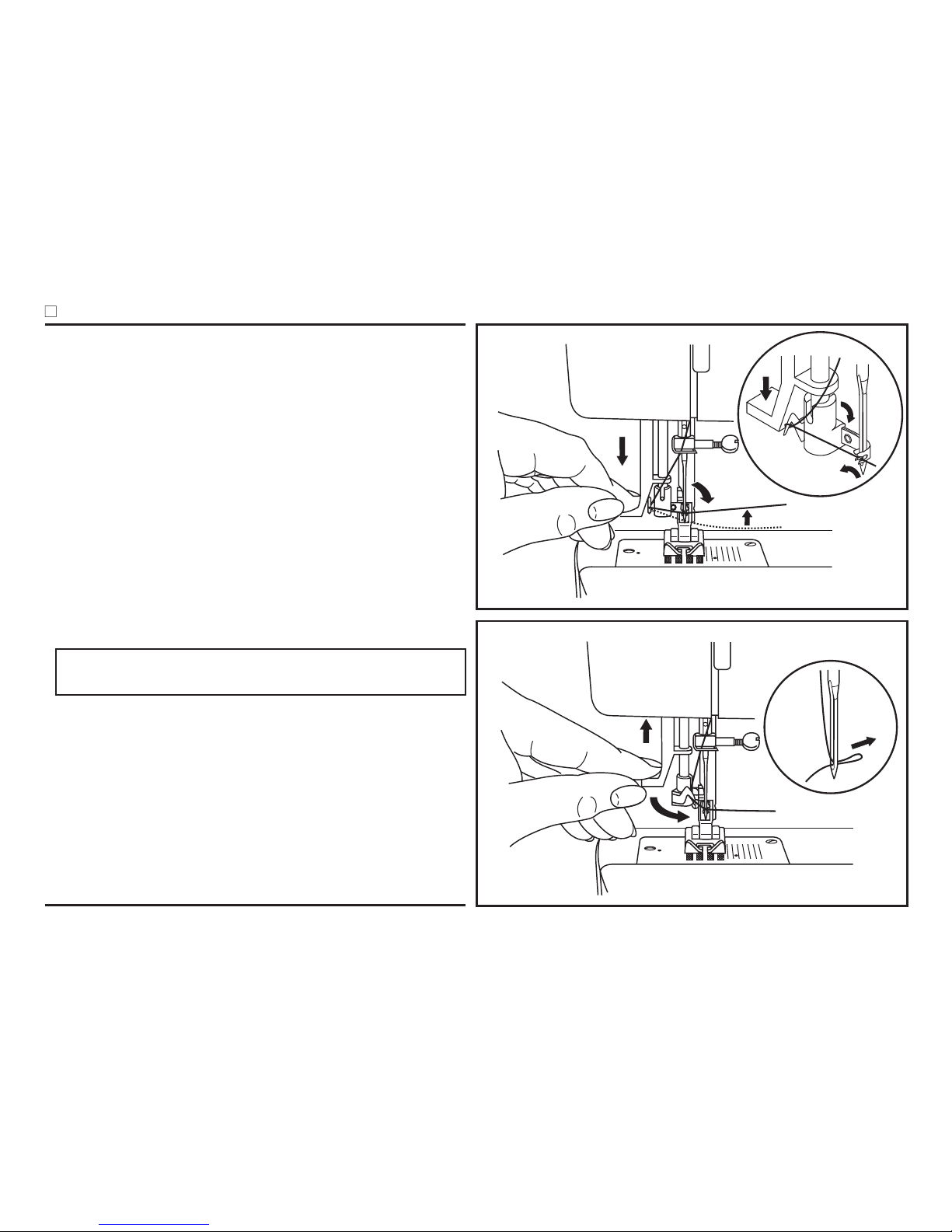

Threading the upper thread
7
Page 17
A
B
D
C
B
A
C
D
A
14
1
2
* The automatic needle threader is a factory installed option.
If your machine has this option use the following instructions:
- Raise the needle to its highest position.
- Press lever (A) right down.
- The threader automatically swings to the threading position (B).
- Take the thread round the hook (C).
- Take the thread in front of the needle round the hook (D) from
bottom to top.
- Release lever (A).
- Pull the thread through the needle eye.
Turn power switch to off ("O")!
Attention:
Automatic needle threader (optional)
Page 18
A
B
C
15
21

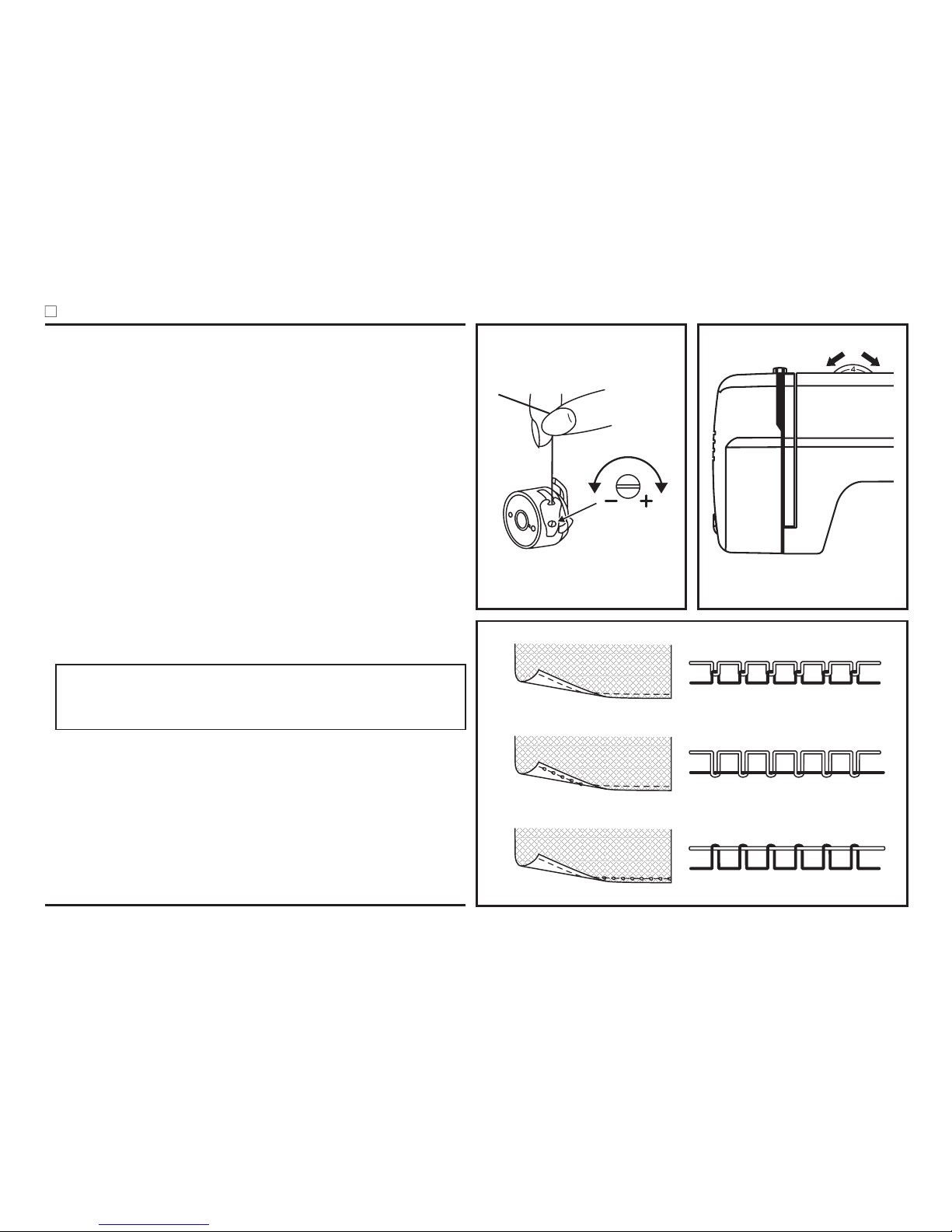

Lower thread tension (1)
Upper thread tension
Note:
To test the bobbin thread tension, remove the bobbin case and
bobbin and hold it by suspending it by the thread. Jerk it once or
twice. If the tension is correct, the thread will unwind by about
an inch or two.
If the tension is too tight, it does not unwind at all. If the tension
is too loose, it will drop too much. To adjust, turn the small
screw on the side of the bobbin case.
Basic thread tension setting: "4" (2)
To increase the tension, turn the dial to the next number up.
To reduce the tension, turn the dial to the next number down.
A. Normal thread tension
B. U hread tension too loose
C.U hread tension too tight
The bobbin thread tension does not normally have to be
adjusted.
pper t
pper t
Thread tension
Page 19
16
1
2

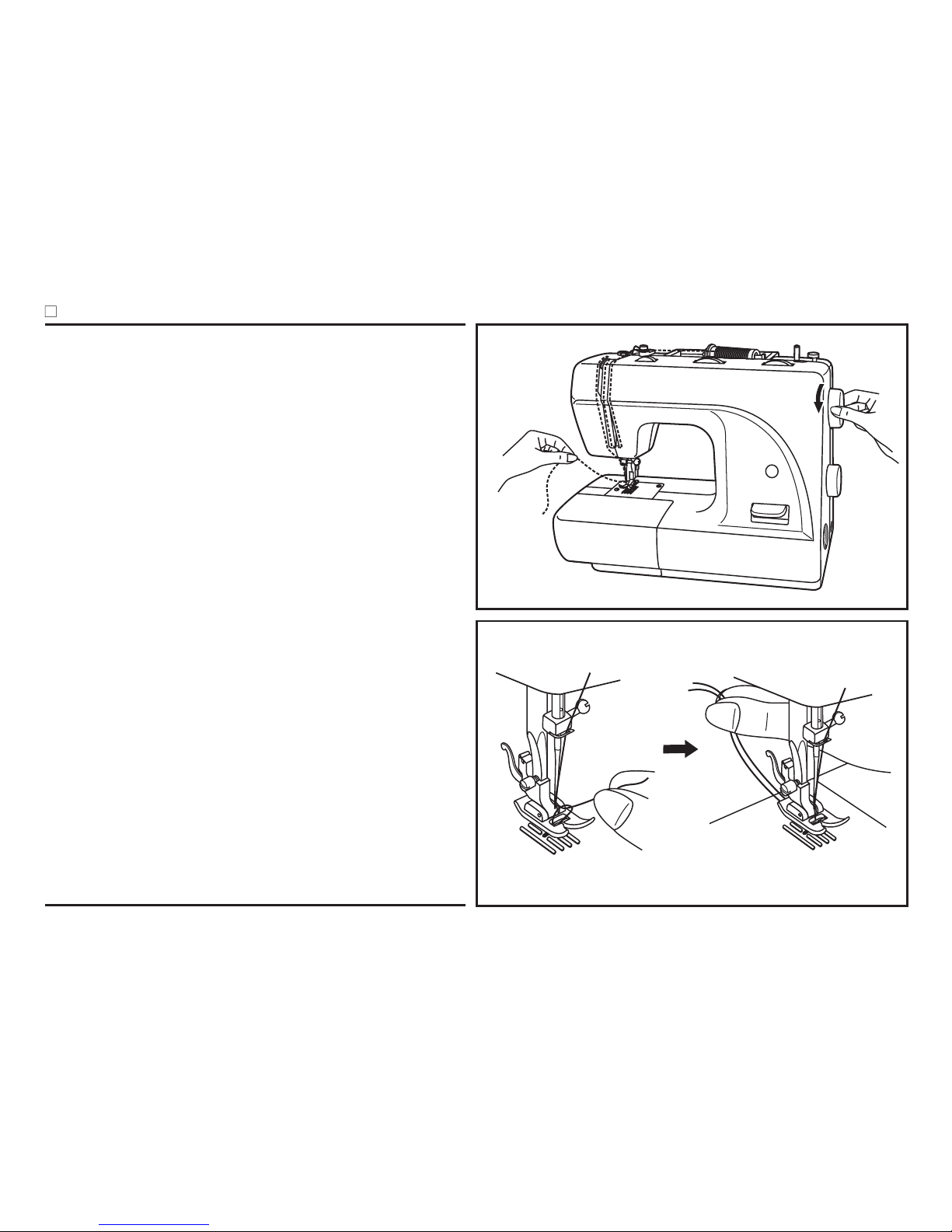

Hold the upper thread with the left hand. Turn the handwheel
forwards until the needle is raised. (1)
Pull on the upper thread to bring the lower thread up through
the stitch plate hole.
Lay both threads to the back under the presser foot. (2)
Bringing up the lower thread
Page 20
A
17
21
3

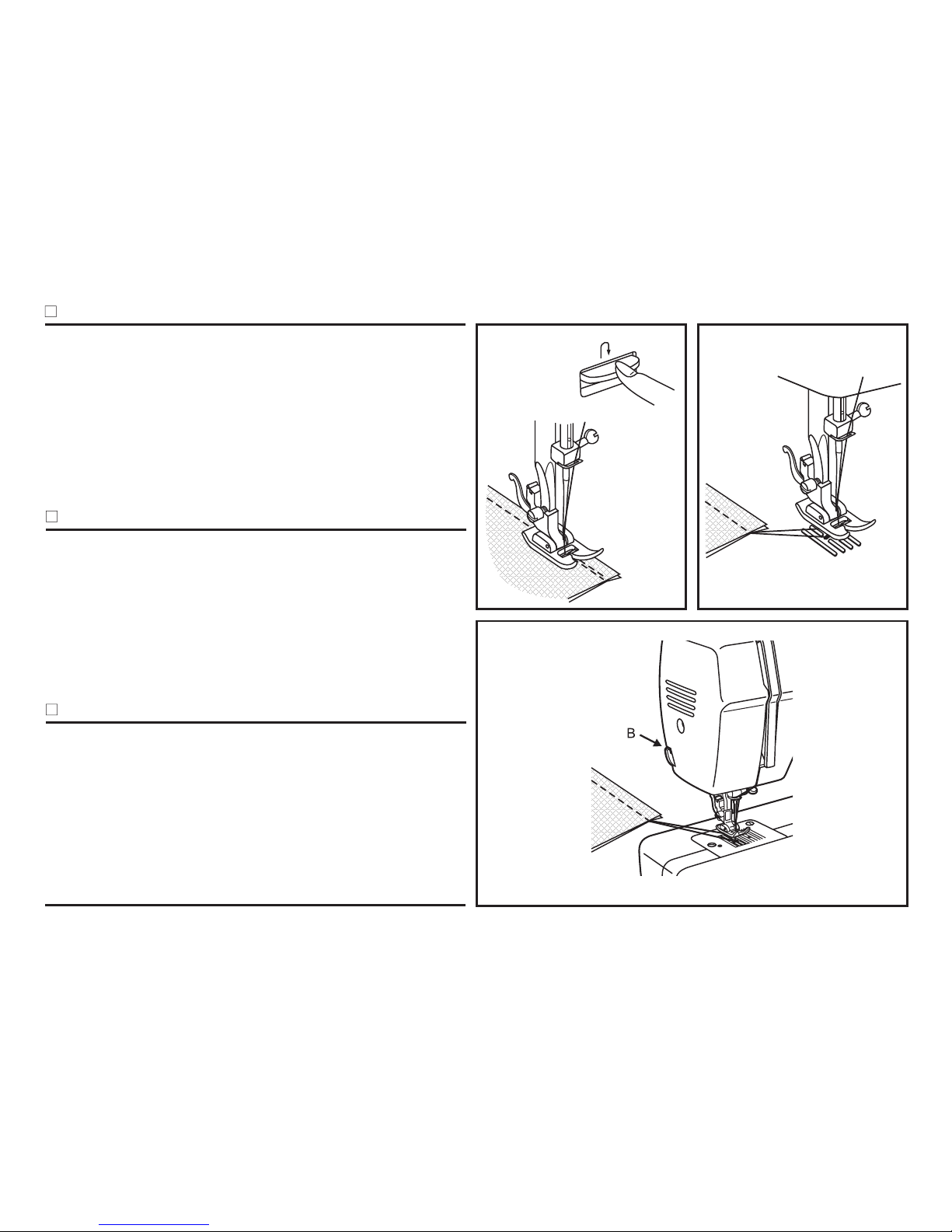

At the end of seam, press down the reverse sewing lever. Sew
a few reverse stitches.
Release the lever and the machine will sew forwards again. (1/A)
Turn the handwheel towards to bring the thread take up lever to
its highest position, raise the presser foot and remove work
towards the back. (2)
Hold the threads behind the presser foot with both hands, guide
them to the slit (B) and press down. (3)
Reverse sewing
Removing the work
Cutting the thread
Page 21
18
Matching needle/ fabric/ thread
NEEDLE, FABRIC, THREAD SELECTION GUIDE
NEEDLE SIZE FABRICS THREAD
9-11(65-75)
12(80)
Lightweight fabrics-thin cottons, voile, serge, silk, muslin, Qiana, interlocks,
cotton knits, tricot, jerseys, crepes, woven polyester, shirt & blouse fabrics.
Medium weight fabrics-cotton, satin, kettleclote, sailcloth, double knits,
lightweight woollens.
Medium weight fabrics-cotton duck, woolen, heavier knits, terrycloth, denims.
Heavyweight fabrics-canvas, woolens, outdoor tent and quilted fabrics,
denims, upholstery material (light to medium).
Heavy woollens, overcoat fabrics, upholstery fabrics, some leathers and
vinyls.
Standard sharp needles. Sizes range thin to large.
9 (65) to 18(110)
Semi-ball point needle, scarfed. 9(65) to 18(110)
Full ball point needle 9(65) to 18(110)
Leather needles. 12(80) to 18(110)
IMPORTANT: Match needle size to thread size and weight of fabric
NEEDLE, FABRIC SELECTION
Note: 1. Twin needles, can be purchased for utility and decorative work.
2. When sewing with twin needles, the stitch width dial should be set at less than "3".
3. European needles show sizes 65, 70, 80 etc. American and Japanese needles show size 9, 11, 12 etc.
4. Replace needle often (approximately every other garment ) and / or at first thread breakage or skipped stitches.
Natural woven fabrics-wool, cotton, silk, etc. Qiana.
Not recommended for double knits.
Natural and synthetic woven fabrics, polyester blends.
Knits-polyesters, interlocks, tricot, single and double knits.
Can be used instead of 15 1 for sewing all fabrics.
14(90)
16(100)
18(110)
Light-duty thread in cotton, nylon or
polyester.
Most threads sold are medium size and
suitable for these fabrics and needle
sizes. Use polyester threads on synthetic
materials and cotton on natural woven
fabrics for best results. Always use the
same thread on top and bottom.
Heavy duty thread, carpet thread.
(Use heavy foot pressure-large numbers.)
NEEDLES EXPLANATION TYPE OF FABRIC
Sweater knits, Lycra, swimsuit fabric, elastic.
Leather, vinyl, upholstery.
(Leaves smaller hole than standard large needle.)
HA 1
15 1
15 1/705H(SUK)
15 1/705H(SUK)
130 PCL
Page 22
19
Page 23
20
a
d
c
b
e

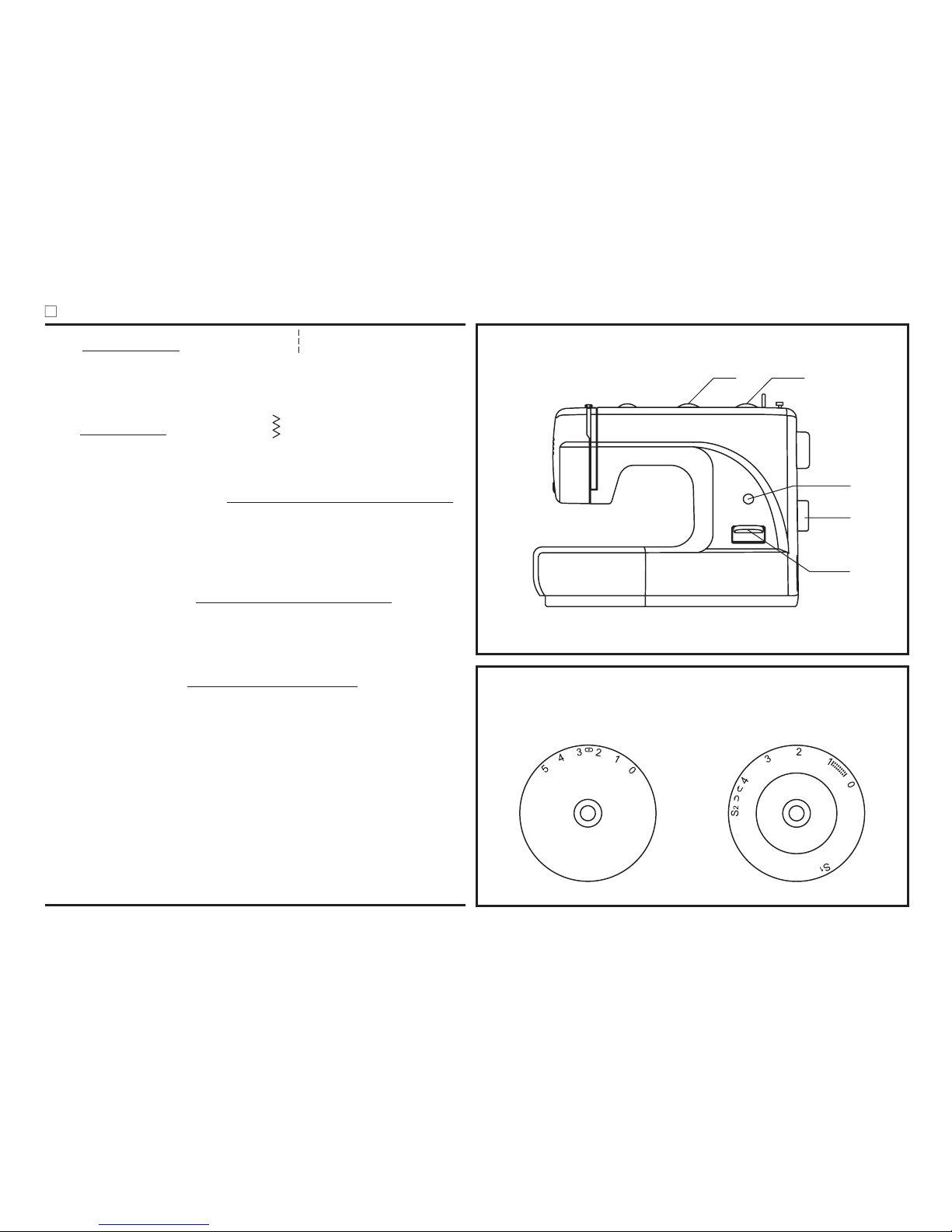

How to choose your pattern
For , select pattern " " with pattern selector
dial. Adjust the stitch length with the stitch length dial.
You may choose any needle position, by turning the stitch
width dial (for 3-dial model).
For , select pattern " " with pattern selector dial.
Adjust the stitch length and stitch width according to the fabric
being used.
To obtain any of the other
on the stitch selection panel, select the letter above the stitch
with the stitch selector dial. Adjust the stitch length and the
stitch width with the control dials according to the result
desired.
To obtain any of the , turn the
stitch length dial to "S1", select the pattern desired with
pattern selector dial, and adjust the stitch width with the stitch
width dial.
To obtain any of the , turn the stitch
length dial to "S2", select the pattern desired with the pattern
selector dial and adjust the stitch width with the stitch width
dial.
a. Stitch width dial
b. Stitch length dial S1-S2
c. Stitch display
d. Pattern selector dial
e. Reverse sewing lever
straight stitch
zigzag stitch
patterns shown in the upper row
patterns on the second row
patterns on the third row
Stitch width dial
Stitch length dial
Page 24
21

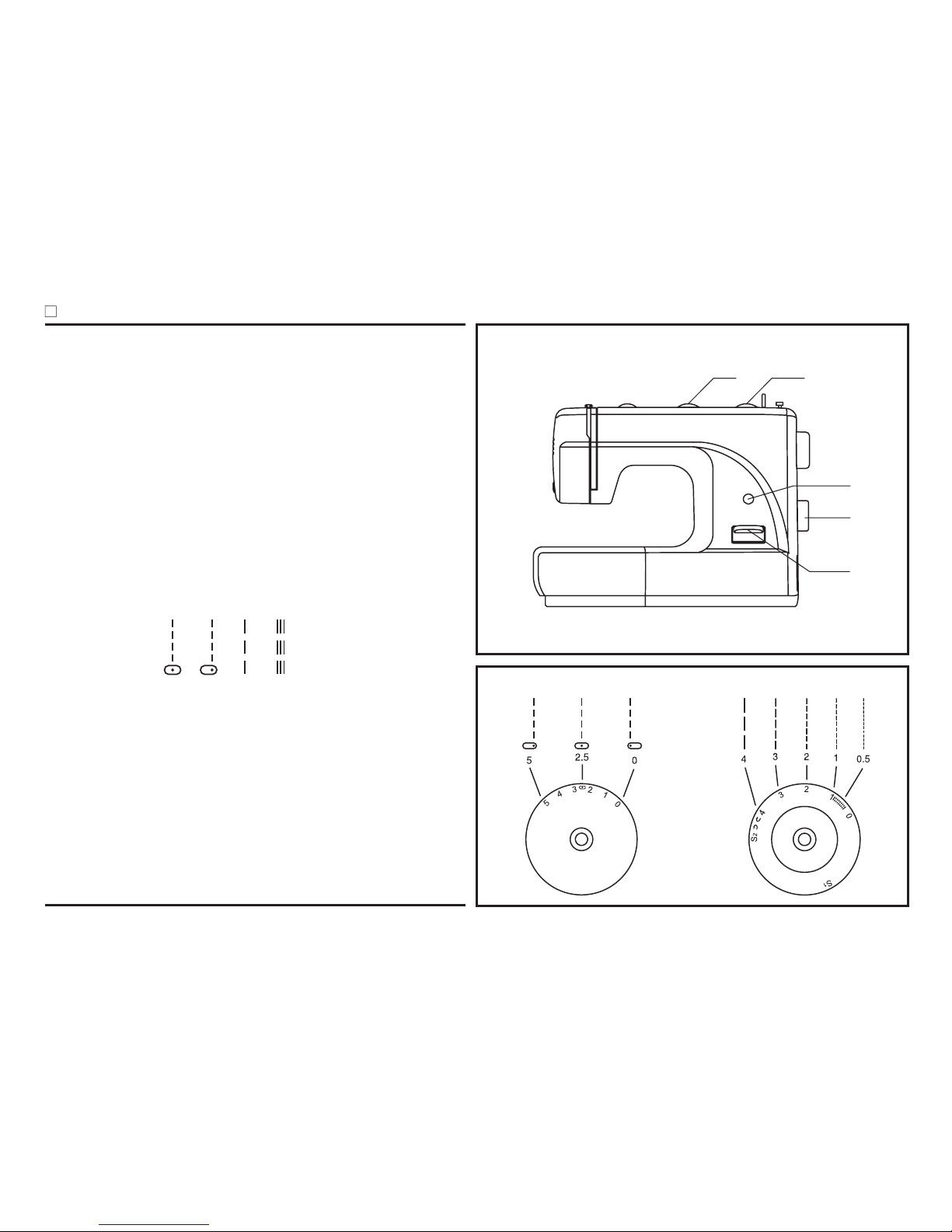

Turn the stitch selection dial so that the pointer is set to the
straight stitch position.
Generally speaking, the thicker the fabric, thread and needle,
the longer the stitch should be.
a. Stitch width dial
b. Stitch length dial S1-S2
c. Stitch display
d. Pattern selector dial
e. Reverse sewing lever
a
d
c
b
e

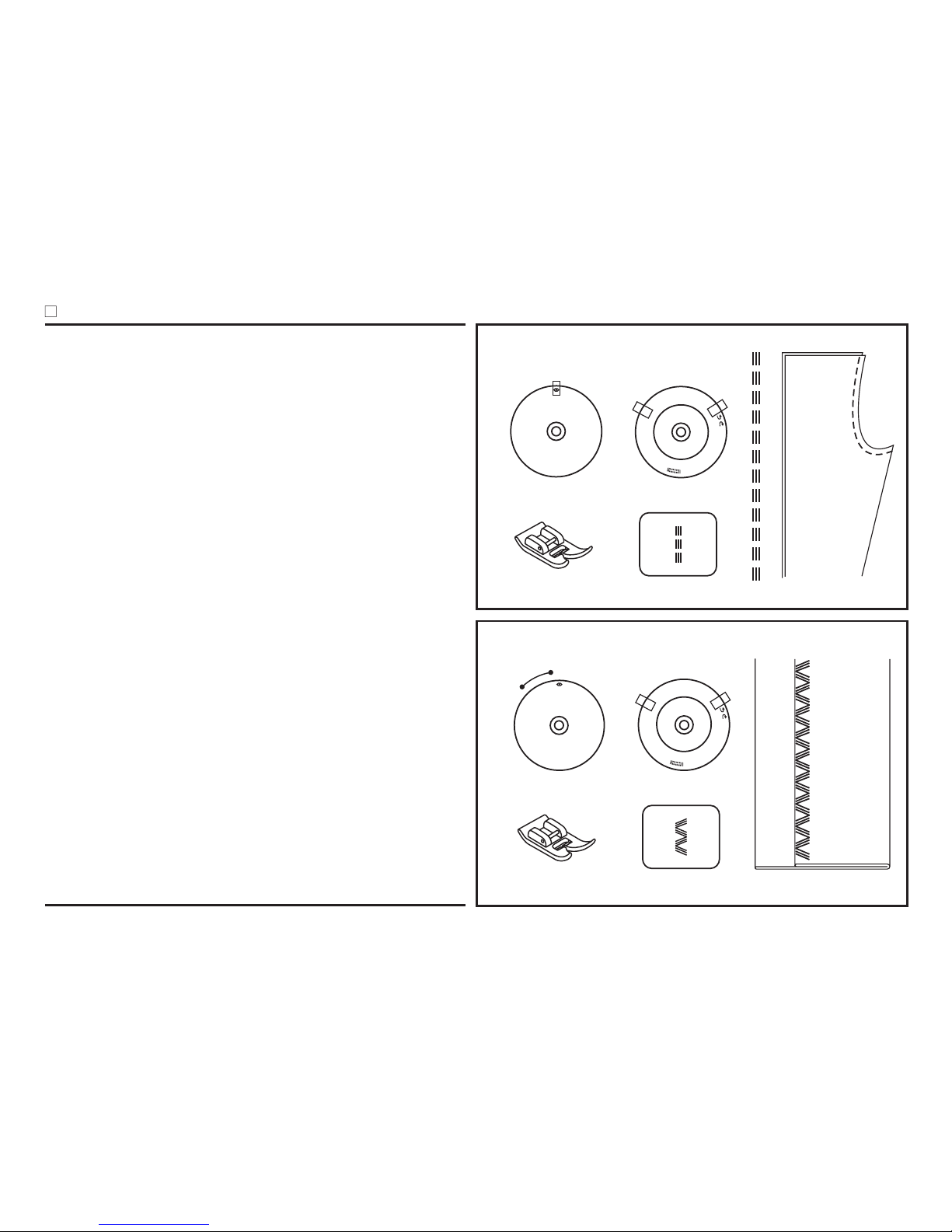

Straight stitching
Stitch width dial
Stitch length dial
Straight stitches
S1
Page 25
22

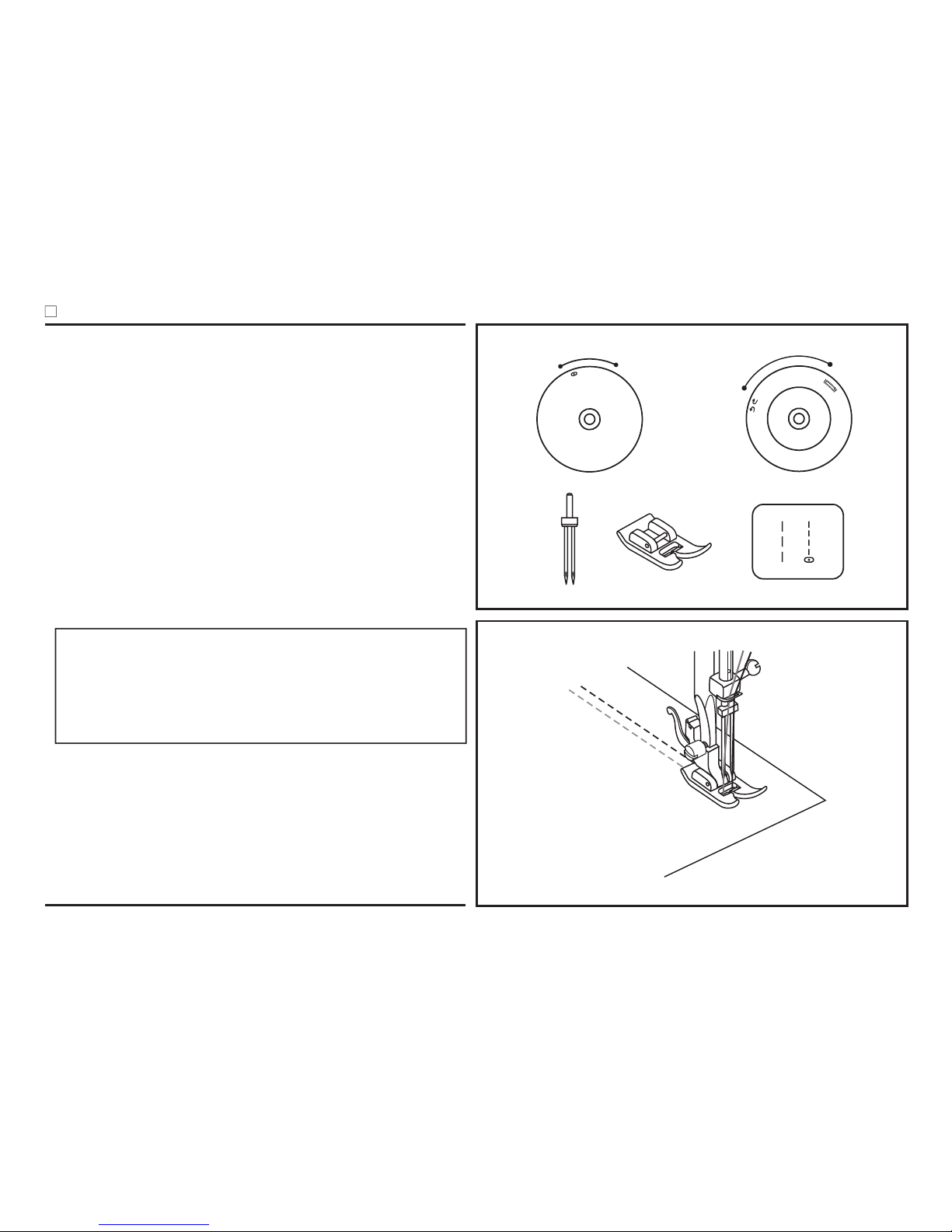

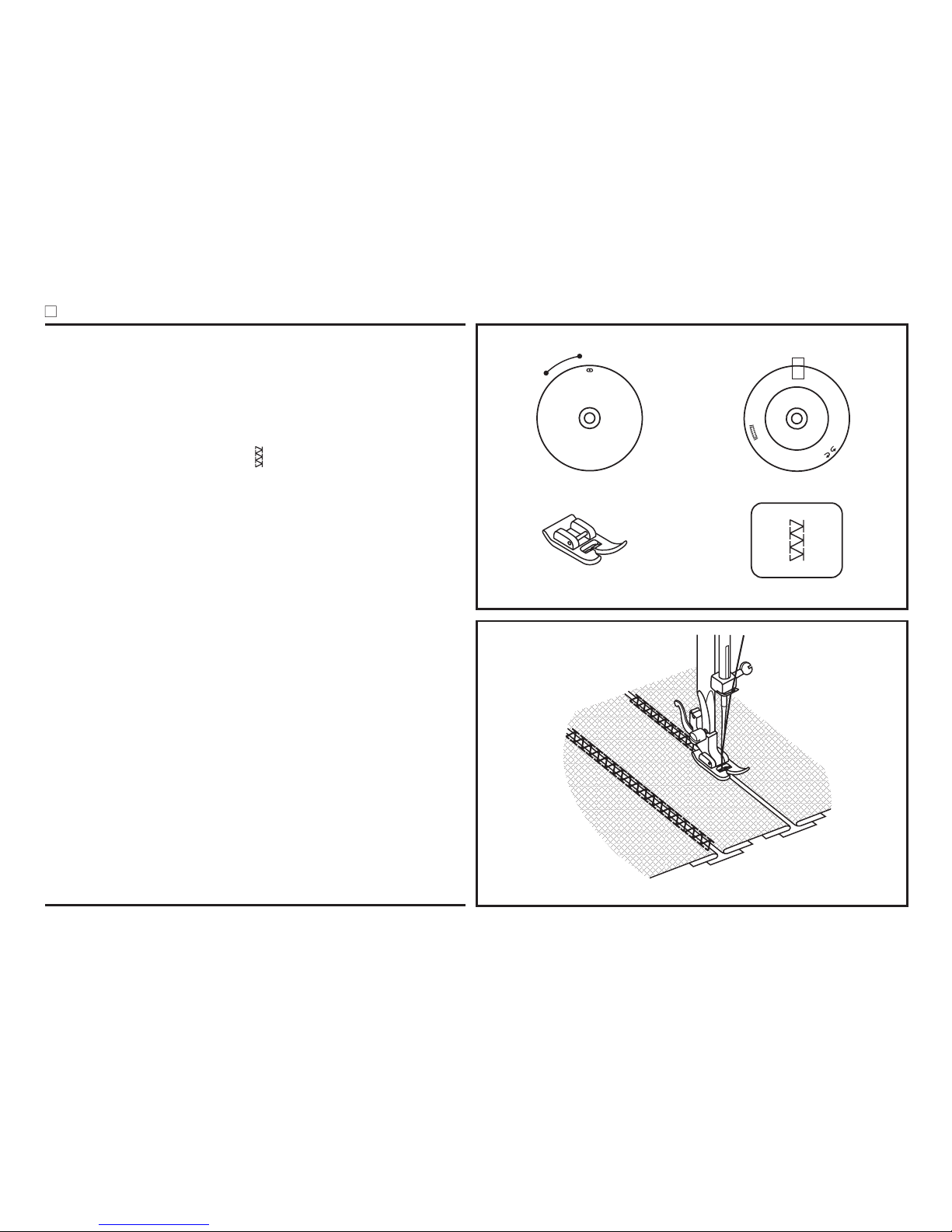

Zigzag stitching
Turn the stitch selection dial to " "
The maximum zigzag stitch width for zigzag stitching is "5",
however, the width can be reduced on any patterns. The width
increases as you move zigzag dial from "0" to "5". For twin
needle sewing, never set the width wider than "3" (for 3-dial
model). (1)
The density of zigzag stitches increase as the setting of stitch
length dial approaches "0".
Neat zigzag stitches are usually achieved at "2.5" or below. (2)
When the stitch length is set between "0" - "1", the stitches are
very close together producing the "satin stitch" which is used for
making buttonholes and decorative stitches.
When sewing on very fine fabric, place a piece of thin paper
under the fabric. It is easy to tear the paper and remove the
paper after you have finish your seam.

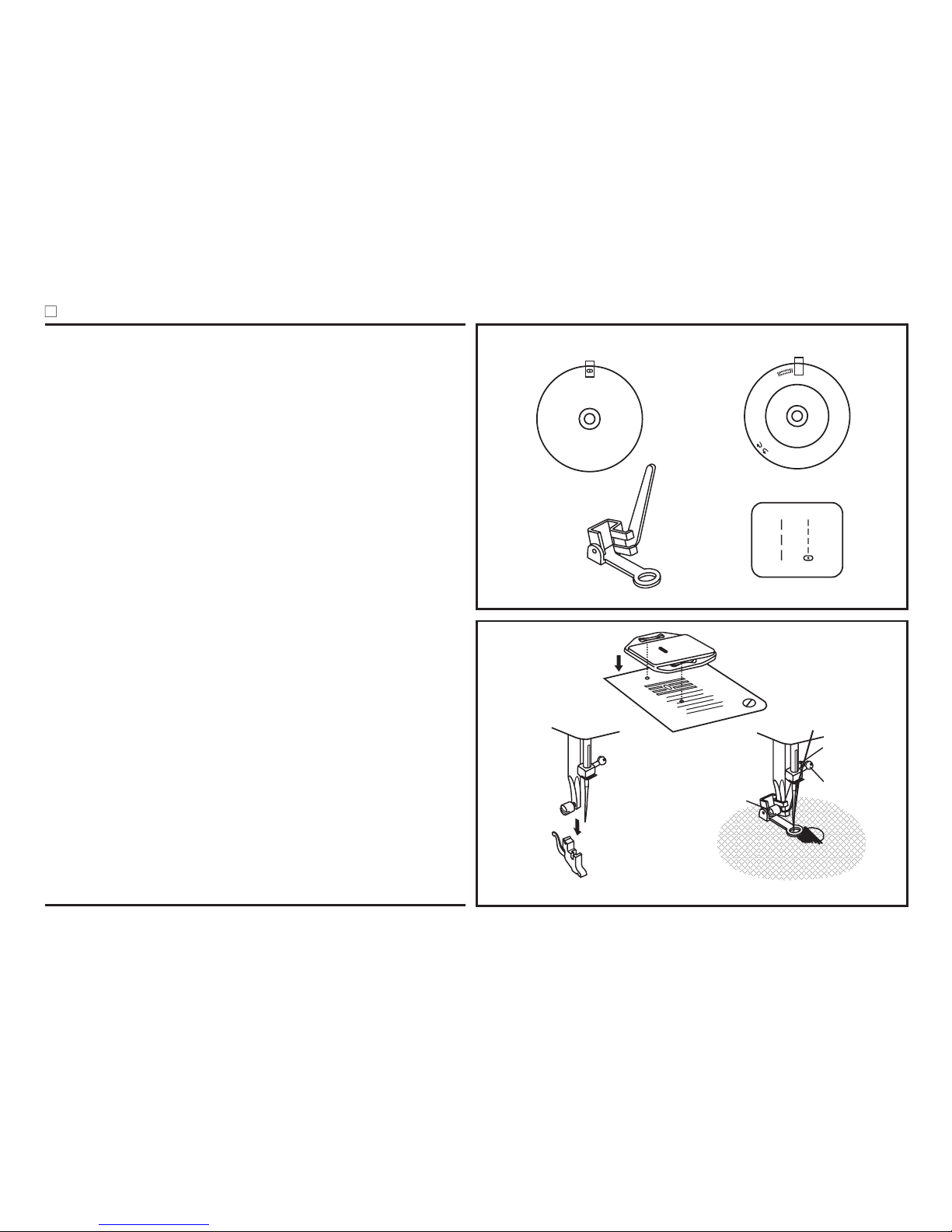

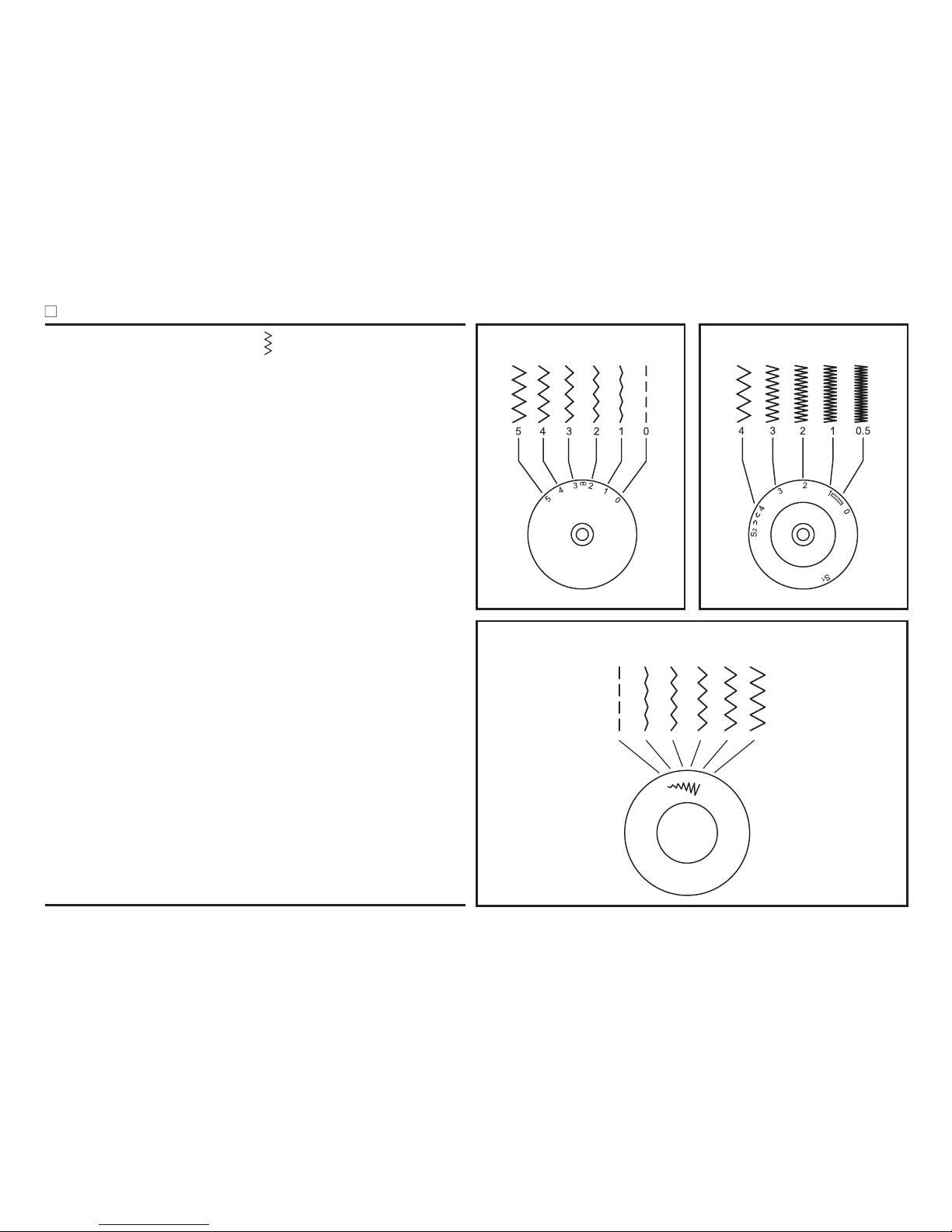

Function of zigzag dial
Function of stitch length dial while zigzaging
Satin stitch
Fine fabric
Stitch width dial
Stitch length dial
For 2-dial model
1
2
Page 26
23
* The blind hem foot is an optional accessory not supplied with
your machine.
r
If it does not, adjust the stitch width
accordingly.
For hems, curtains, trousers, skirts, etc.
Blind hem for stretch fabrics.
Blind hem/ lingerie for firm fabrics.
Change presser foot to Blind hem foot.
It takes practice to sew blind hems.
Always make a sewing test first.
Fold the fabric as illustrated with the wrong side uppermost. (1)
Place the fabric under the foot. Tu n the handwheel forwards by
hand until the needle swings fully to the left. It should just pierce
the fold of the fabric.
(2)
Adjust the guide (3) by turning the knob (4) so that the guide
just rests against the fold.
Sew slowly, by pressing the foot control lightly guiding the fabric
along the edge of the guide.
Note:
Blind hem/ lingerie stitch
1
4
3
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
2
Page 27
24
Overlock stitches
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
12 3

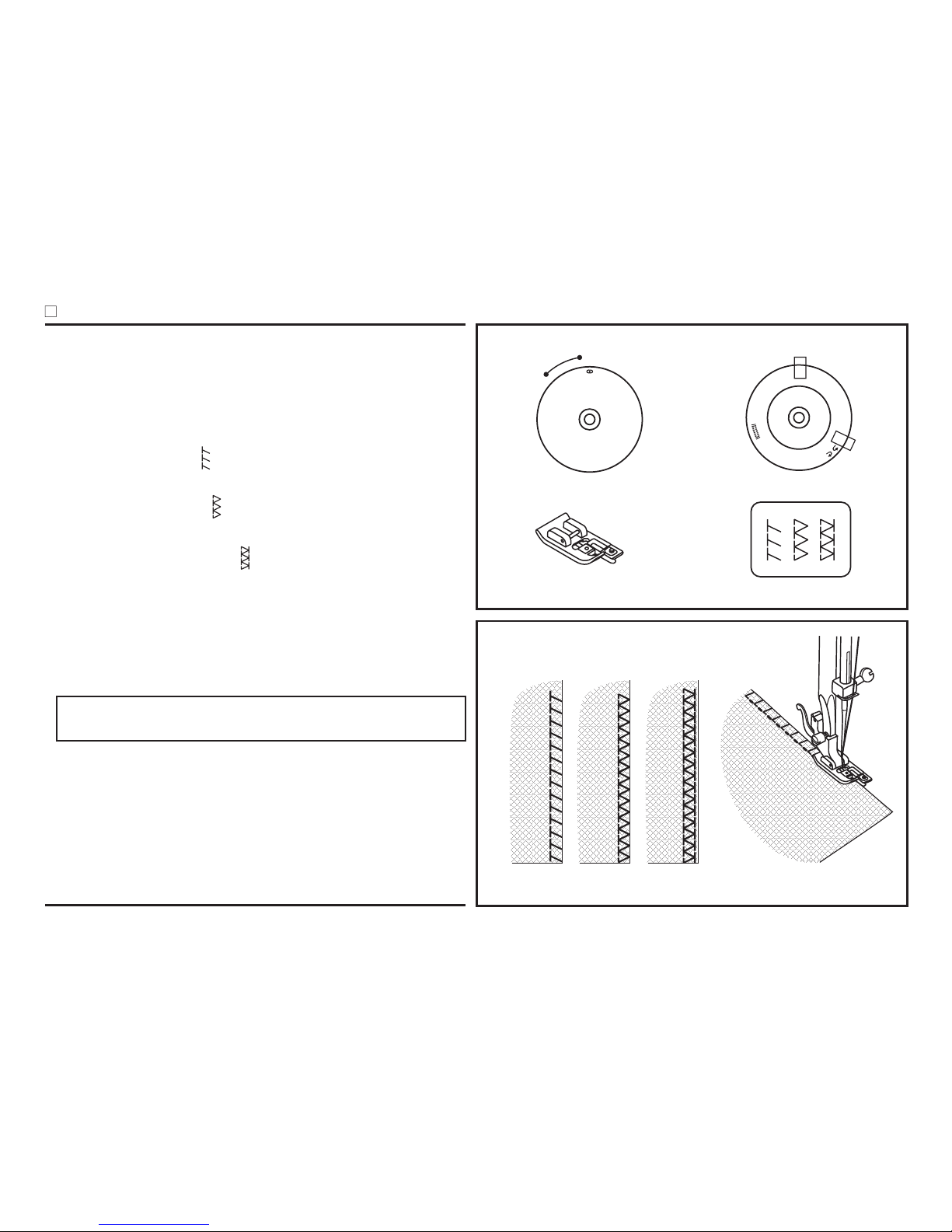

* The overcasting foot is an optional accessory not supplied with
your machine.
Seams, neatening, visible hems.
Turn stitch length dial to "S1" or "S2", The stitch width can be
adjusted to suit the fabric.
For fine knits, jerseys, neck edges, ribbing.
For fine knits, jerseys, neck edges, ribbing.
For fine knits, handknits, seams.
All overlock stitches are suitable for sewing and neatening
edges and visible seams in one operation.
When neatening, the needle should just go over the edge of the
fabric.
Use new needles or ball point needles or stretch needle!
Stretch overlock (1):
Standard overlock (2):
Double overlock stitch (3):
Attention:
Page 28
25
Sewing on buttons
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
1
2
3
Install the darning plate. (1)
Change presser foot to button sewing foot.
Position the work under the foot. Place the button on the marked
position and lower the foot. Set the pattern selector knob on " "
and sew a few securing stitches. Select the zig-zag stitch width
according to the distance between the two holes of the button.
Turn the handwheel to check if the needle goes into the right and
the left hole of the button without any obstruction (adjust the stitch
width according to the button). Slowly sew on the button with
about 10 stitches. Select pattern " " and sew a few securing
stitches. (2) (for 2-dial model)
Position the work under the foot. Place the button in the desired
position, lower the foot. Set the pattern selector knob on zig zag
stitch " ". Adjust the stitch width to "3" - "5" according to the
distance between the two holes of the button. Turn the
handwheel to check that the needle goes cleanly into the left and
right holes of the button. Set the pattern selector knob on straight
stitch " ", and sew a few securing stitches. Set the pattern
selector knob on zig zag stitch " ", and slowly sew on the button
with about 10 stitches. Set the pattern selector knob on straight
stitch " ", and sew a few securing stitches. (2) (for 3-dial model)
If a shank is required, place a darning needle on top of the button
and sew. (3) For buttons with 4 holes, sew through the front two
holes first (2), push work forward and then sew through the back
two holes as described. (3)
Page 29
Preparation:
Note:
To prepare the fabric:
Tips:

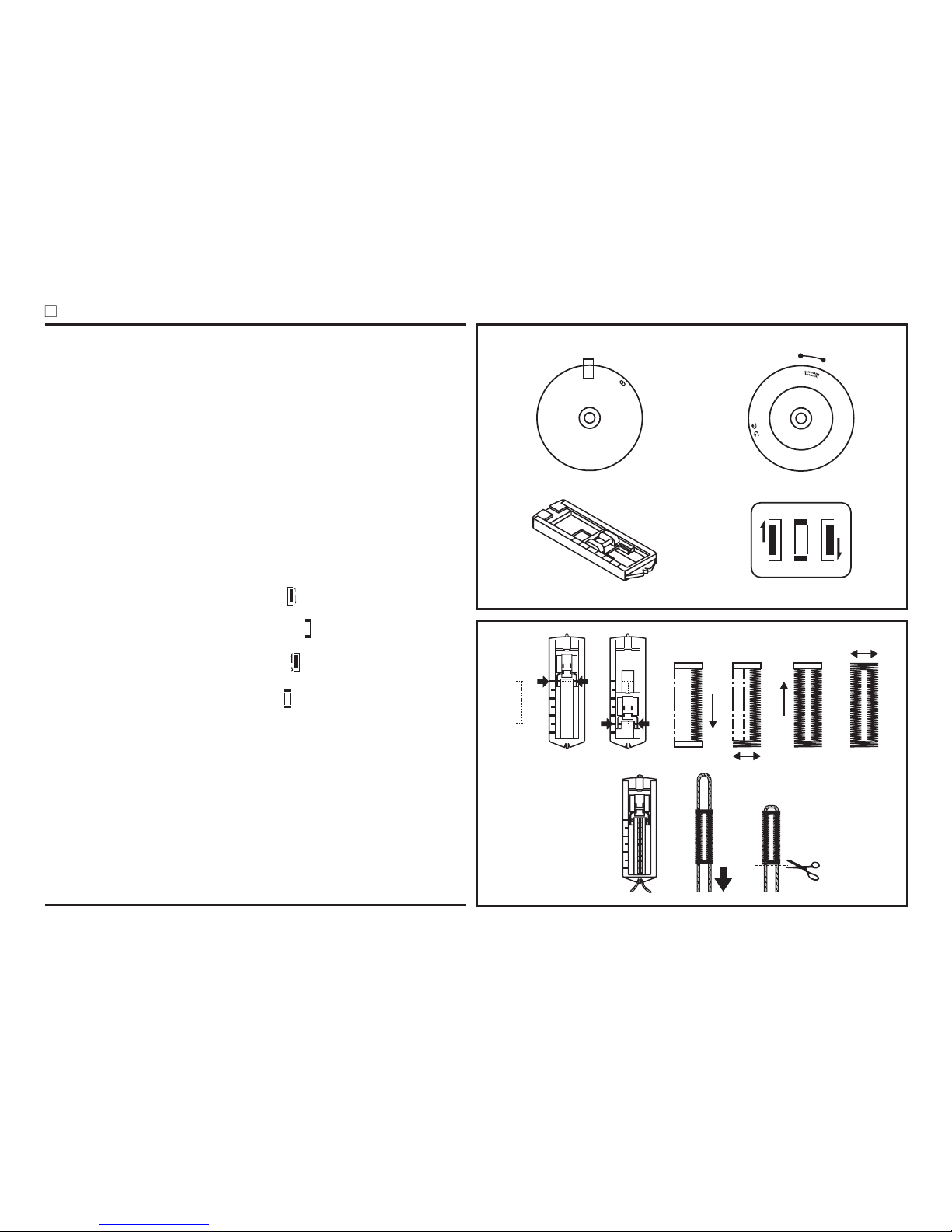

Remove the zigzag foot and attach the buttonhole foot.
Adjust the stitch length dial between "0.5" - "1".
The density of the stitch depends on thickness of the fabric.
Always test sew a buttonhole.
Measure the diameter of the button and add 0.3 cm (1/8") for the
bartacks. If you have a very thick button, add more to the diameter
measurement. Mark the position and length of the buttonhole on
the fabric.
Position the fabric so that the needle is on the mark that is furthest
from you.
Pull the buttonhole foot towards you as far as it will go.
Lower the foot.
a. Turn the pattern selector dial to " ". Sew at moderate speed
until you reach the end mark.
b. Turn the pattern selector dial to " " and sew 5-6 bartack
stitches.
c. Turn the pattern selector dial to " " and sew the left side of
the buttonhole to the mark at the end which is further from you.
d. Turn the pattern selector dial to " " and sew bar tack stitches.
Remove the fabric from under the foot. Draw the upper thread
through the backside of the fabric and knot upper and lower
threads. Cut the center of the buttonhole with the seam ripper,
being careful not to cut the stitches on either side.
- Slightly reduce upper thread tension to produce better results.
- Use backing material for fine and stretchy fabrics.
- It is advisable to use a gimp cord for stretch or knit fabrics. The
zigzag should sew over the gimp. (e)
26
4
2
4
2
How to sew buttonholes
14
2
3
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
ab cd
e
Page 30
27

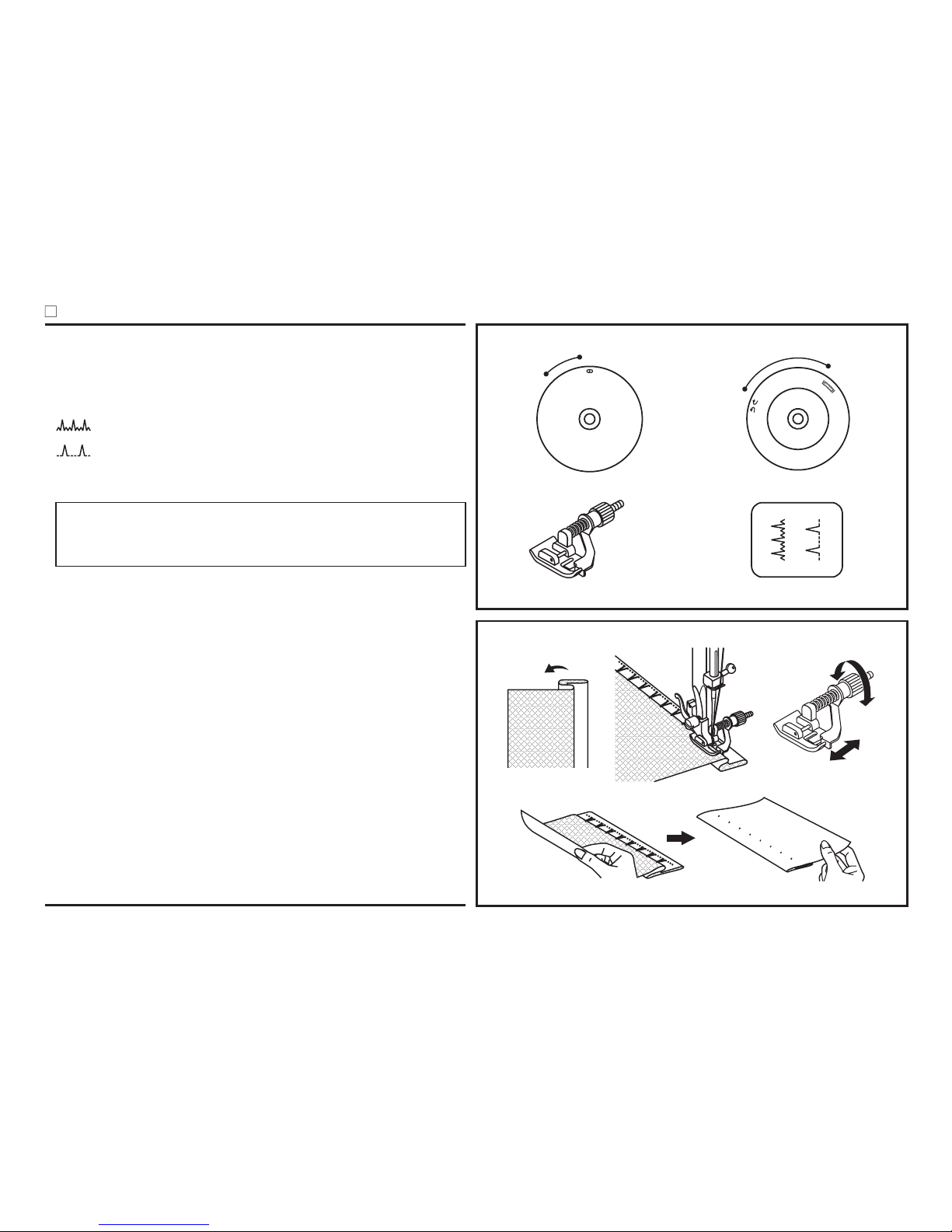

Set the machine as illustrated.
The zipper foot can be inserted right or left, depending on which
side of the foot you are going to sew. (1)
To sew past the zipper pull, lower the needle into the fabric,
raise the presser foot and push the zipper pull behind the
presser foot. Lower the foot and continue to sew.
It is also possible to sew in a length of cord, into a bias strip to
form a "welt". (2)
Set stitch length control between "1" - "4" (according to
thickness of fabric).
Zippers and piping
0
1
2
3
4
S
1
S
2
5
0
1
2
3
4
1
2
Page 31
28
* The hemmer foot is an optional accessory not supplied with
your machine.
For hems in fine or sheer fabrics.
Set the machine as illustrated.
Neaten the edge of the fabric. At the beginning of the hem, turn
under the edge twice by about 3 mm (1/8") and sew 4-5 stitches
to secure. Pull the thread slightly towards the back. Insert the
needle into the fabric, raise the presser foot and guide the fold
into the scroll on the foot. (1)
Gently pull the fabric edge towards you and lower the presser
foot. Begin sewing, guiding the fabric into the scroll by holding it
upright and slightly to the left. (2)
Sewing with the hemmer foot
12
0
1
2
3
4
S
1
S
2
5
0
1
2
3
4
Page 32
29
Sewing on lace and elastic, darning, mending, reinforcing edges.
Set the machine as illustrated.
Place patch in position.
The stitch length can be shortened to produce very close
stitches. (1)
When mending tears, it is advisable to use a piece of backing
fabric to reinforce. The stitch density can be varied by adjusting
the stitch length. First sew over the center and then overlap on
both sides. Depending on the type of fabric and damage, sew
between 3 and 5 rows. (2)

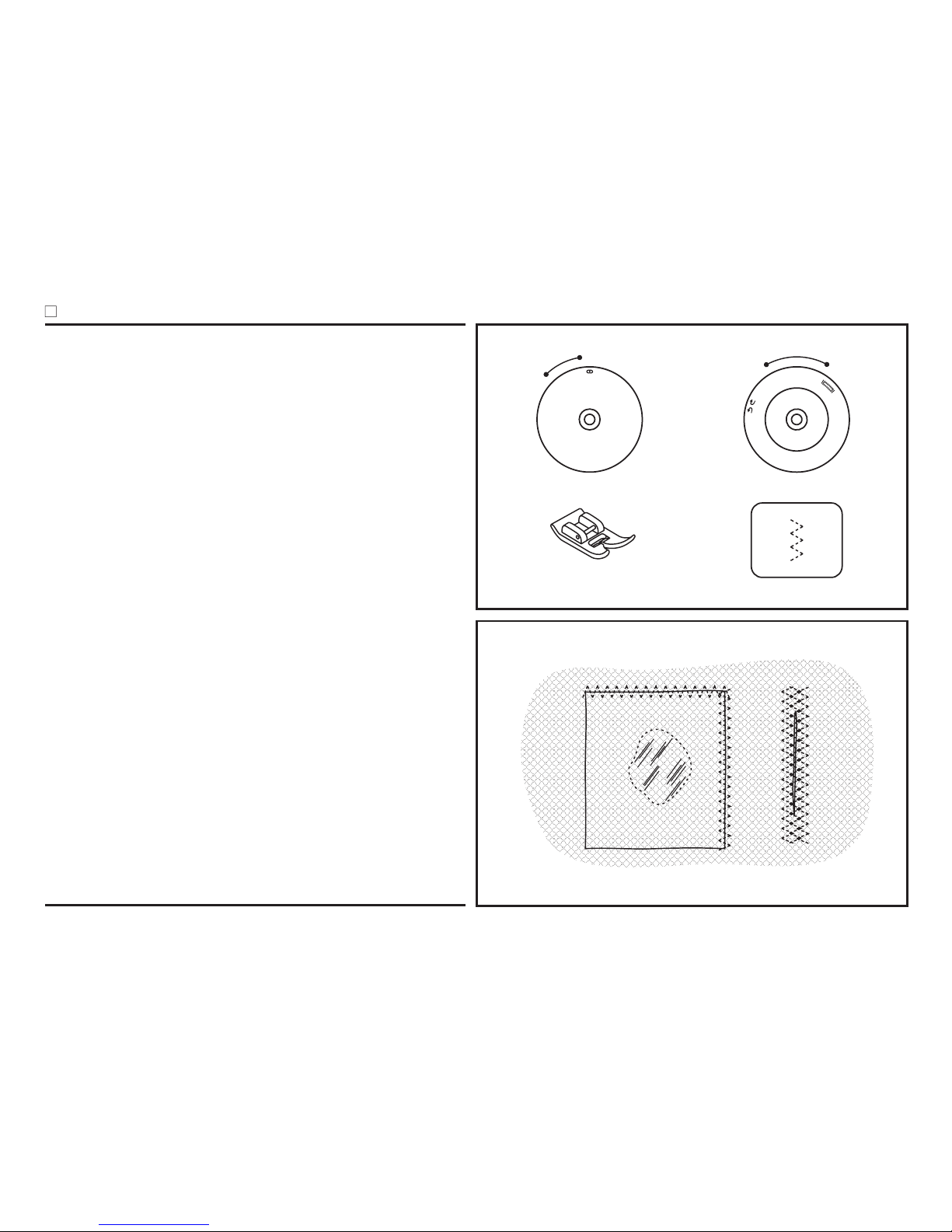

3-step zig-zag
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
12
Page 33
30
1
2
Stitch selection
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
0
1
2
3
4
S
1
S
2
5
0
1
2
3
4
Triple straight stitch: (1)
Triple zig-zag: (2)
For hardwearing seams.
Turn the stitch length dial to "S1" or "S2".
The machine sews two stitches forwards and one stitch
backwards. This gives triple reinforcement.
For hardwearing seams, hems and decorative seams.
Turn the stitch length dial to "S1" or "S2".
Adjust the stitch width dial to between "3" and "5".
Triple zig-zag is suitable for firm fabrics like denim, corduroy, etc.
Page 34
31
1
2
Smocking stitch
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2

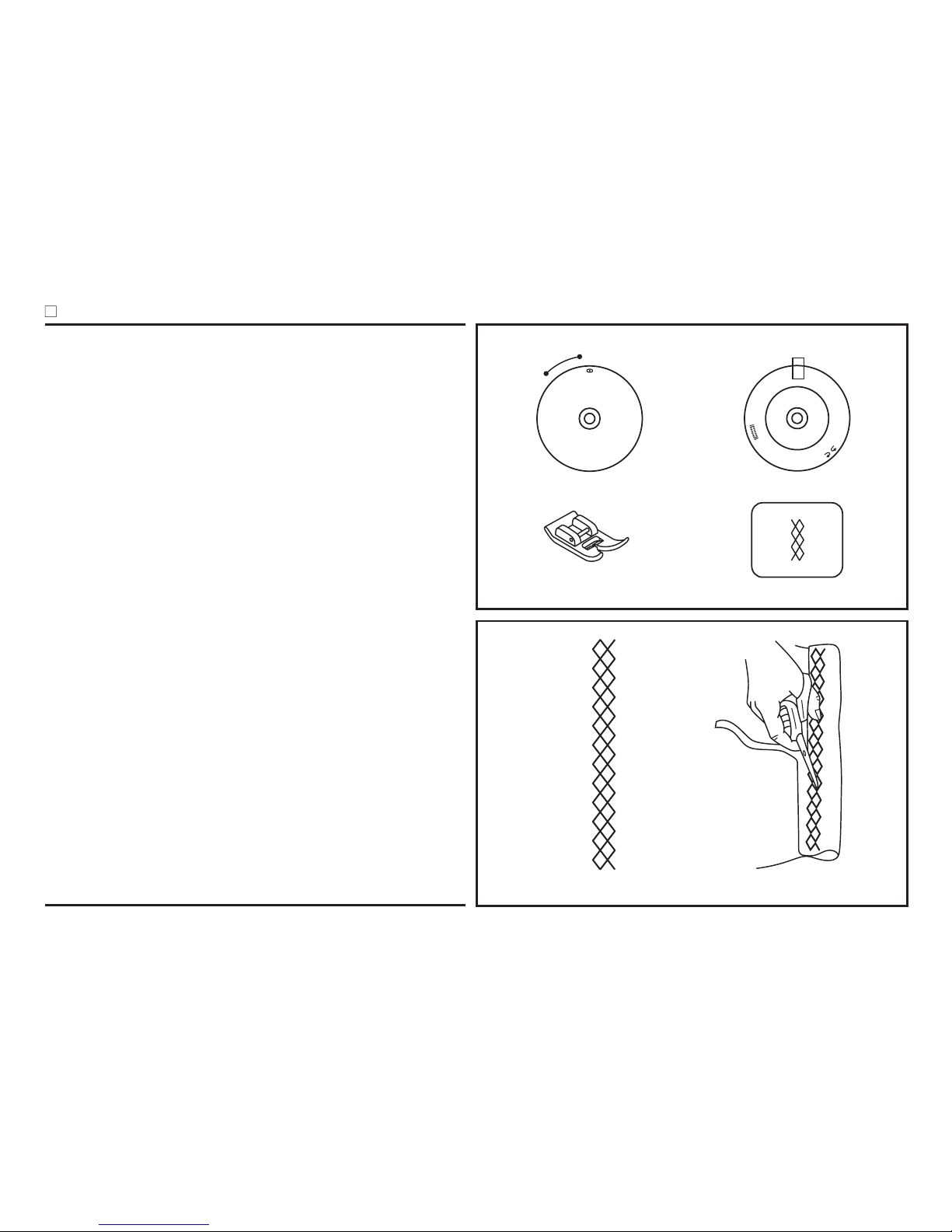

Seams, hems, T-shirts, underwear, etc.
Set the machine as illustrated.
This stitch can be used for all types of jersey as well as for woven
fabrics. (1)
Sew at 1cm (1/4") from the fabric edge and trim the surplus
fabric. (2)
Page 35
32
Sewing with the cording foot
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2

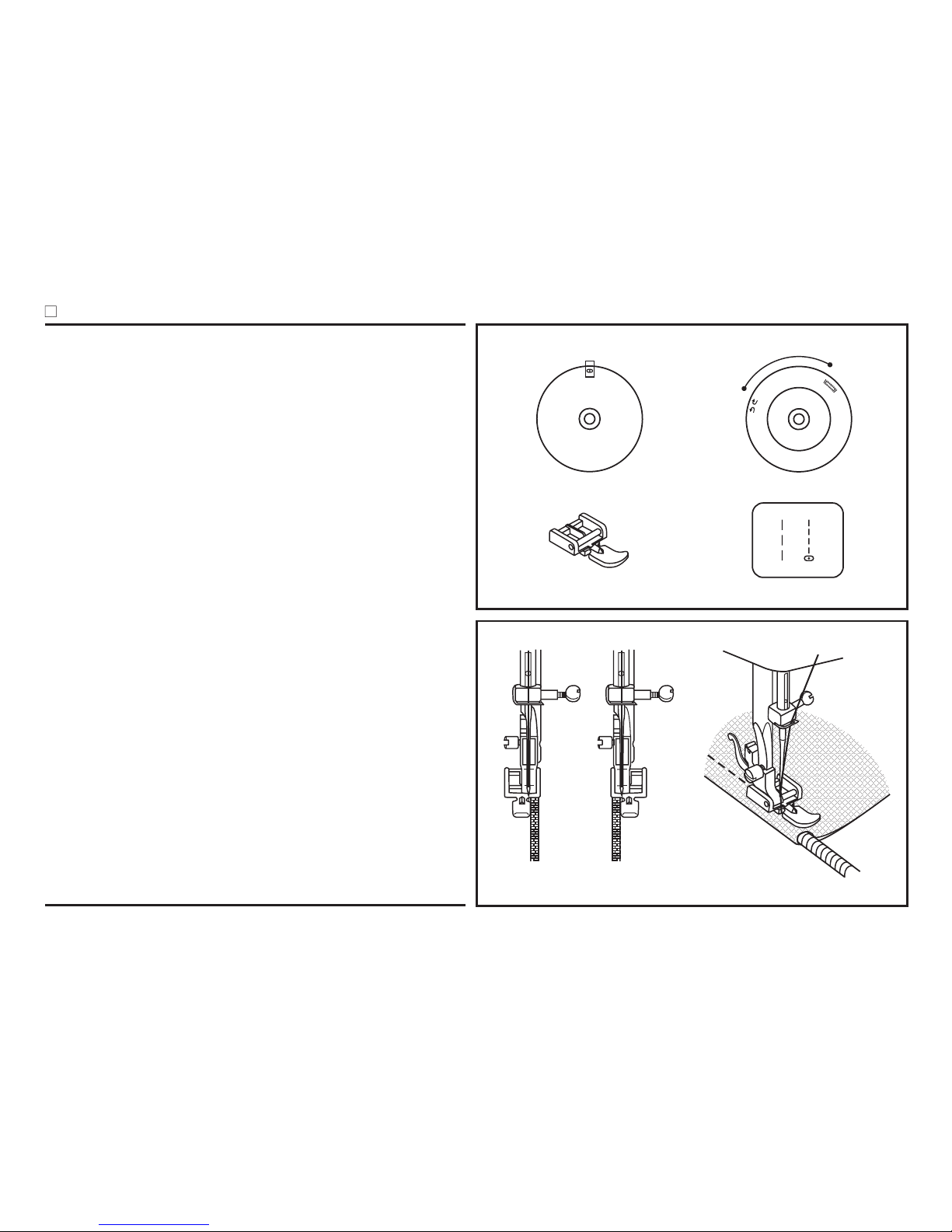

* The cording foot is an optional accessory not supplied with
your machine.
Decorative effects, cushions, tablecloths, etc.
Set the machine as illustrated.

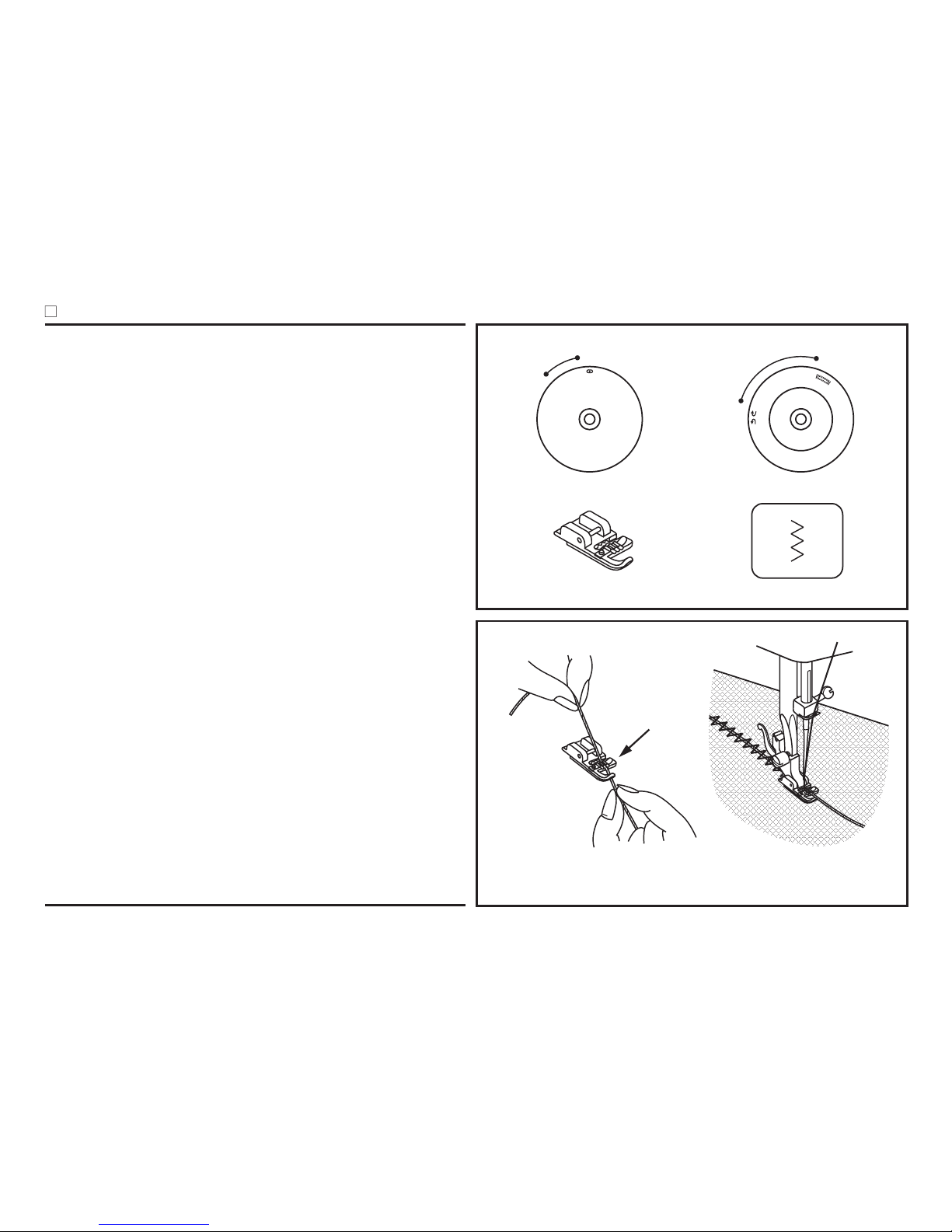

Various stitches are suitable for sewing on cord, e.g. Zig-zag,
Triple zig-zag, decorative stitches.
Insert the cord between the spring covering the cord groove and
the foot. The cord should run in the groove. One, two or three
cords can be sewn on. The stitch width is adjusted according to
the number of cords and the stitch selected. (1/2)
1
2
Page 36
33
Darning
* The darning/ embroidery foot is an optional accessory not
supplied with your machine.

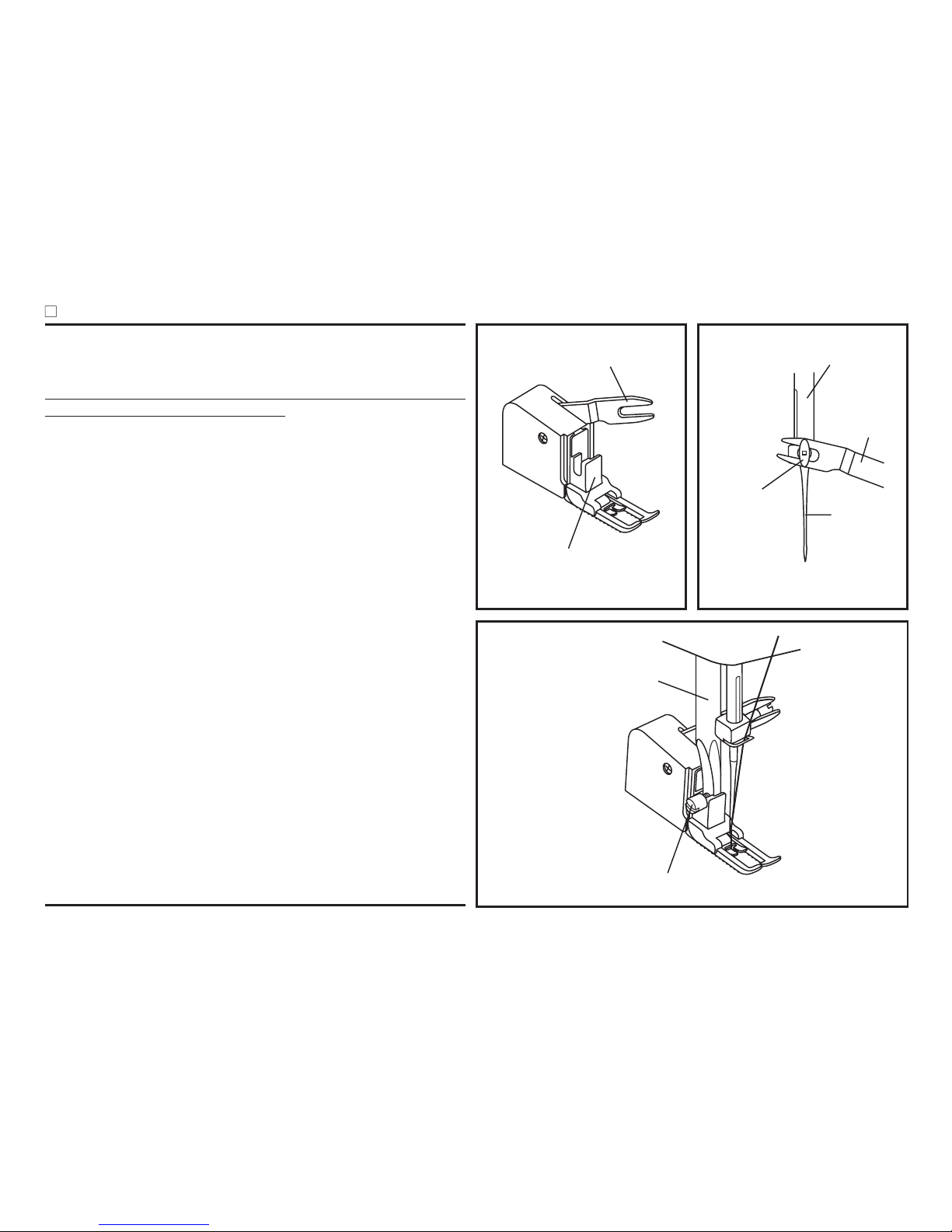

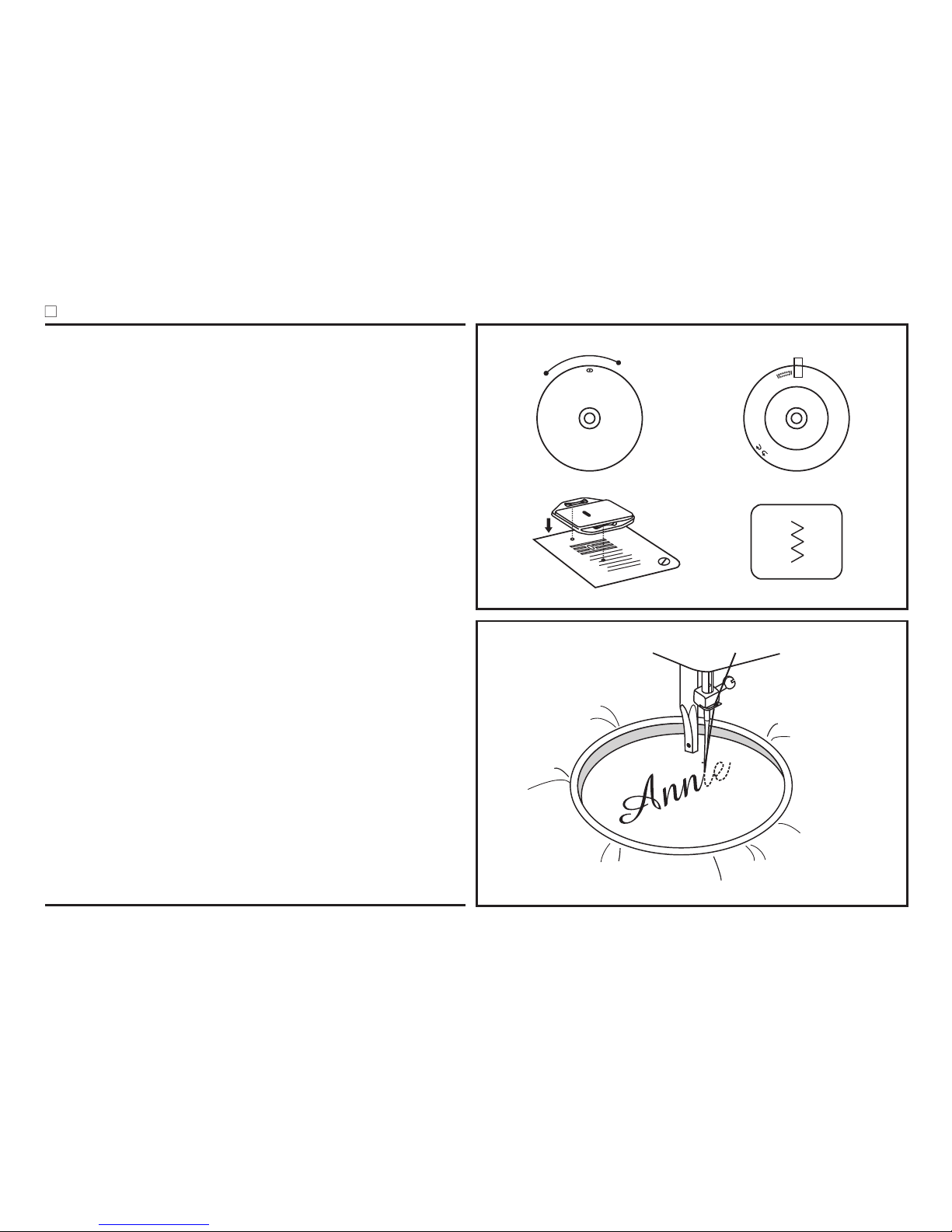

Set the machine as illustrated.
Install the darning plate. (1)
Remove the presser foot holder. (2)
Attach the darning/ embroidery foot to the presser foot bar. The
lever (a) should be behind the needle clamp screw (b). Press the
darning/ embroidery foot on firmly from behind with your index
finger and tighten the screw (c). (3)
First sew round the edge of the hole (to secure the threads). (4)
First row: Always work from left to right. Turn work by 1/4 and
oversew.
A darning ring is recommended for easier sewing and better
results.
0
1
2
3
4
S
1
S
2
1
2
3
a
b
c
4
5
0
1
2
3
4
Page 37
34
Set the machine as illustrated.
For decorative edges.
Suitable for edges on sheer, fine and stretch fabrics. The larger
stitch should go just over the edge of the fabric to create the
shell effect.
For flat joining seams, sewing on elastic, visible hems.
This stitch can be used for firm, thicker fabrics.
For seams, place mats, tablecloths.
Decorative joining seam for a fagoted effect. Gathering with
cord or shirring elastic.

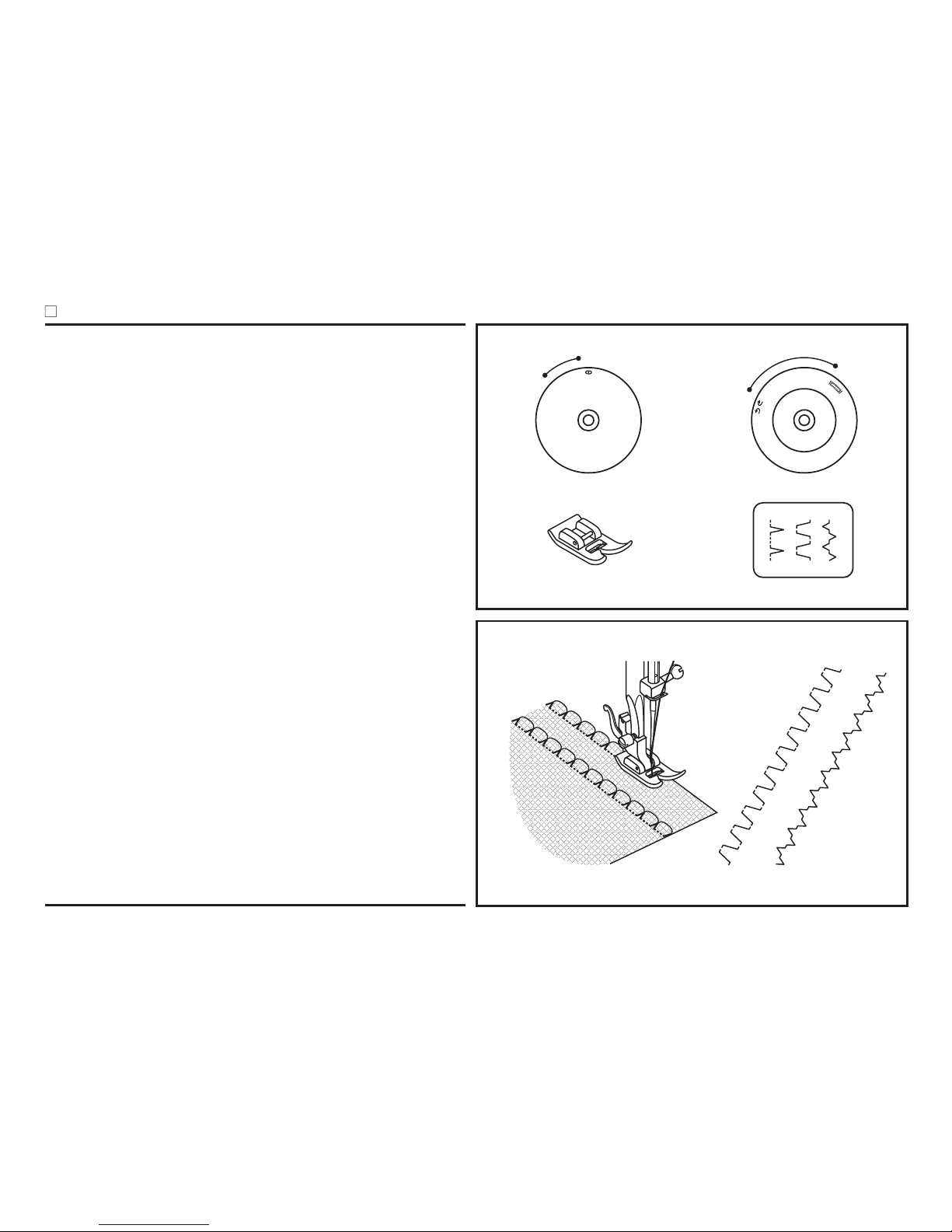

Shell hem (1)
Rampart (2)
Bridging (3)
Practical stitches
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
123
Page 38
35

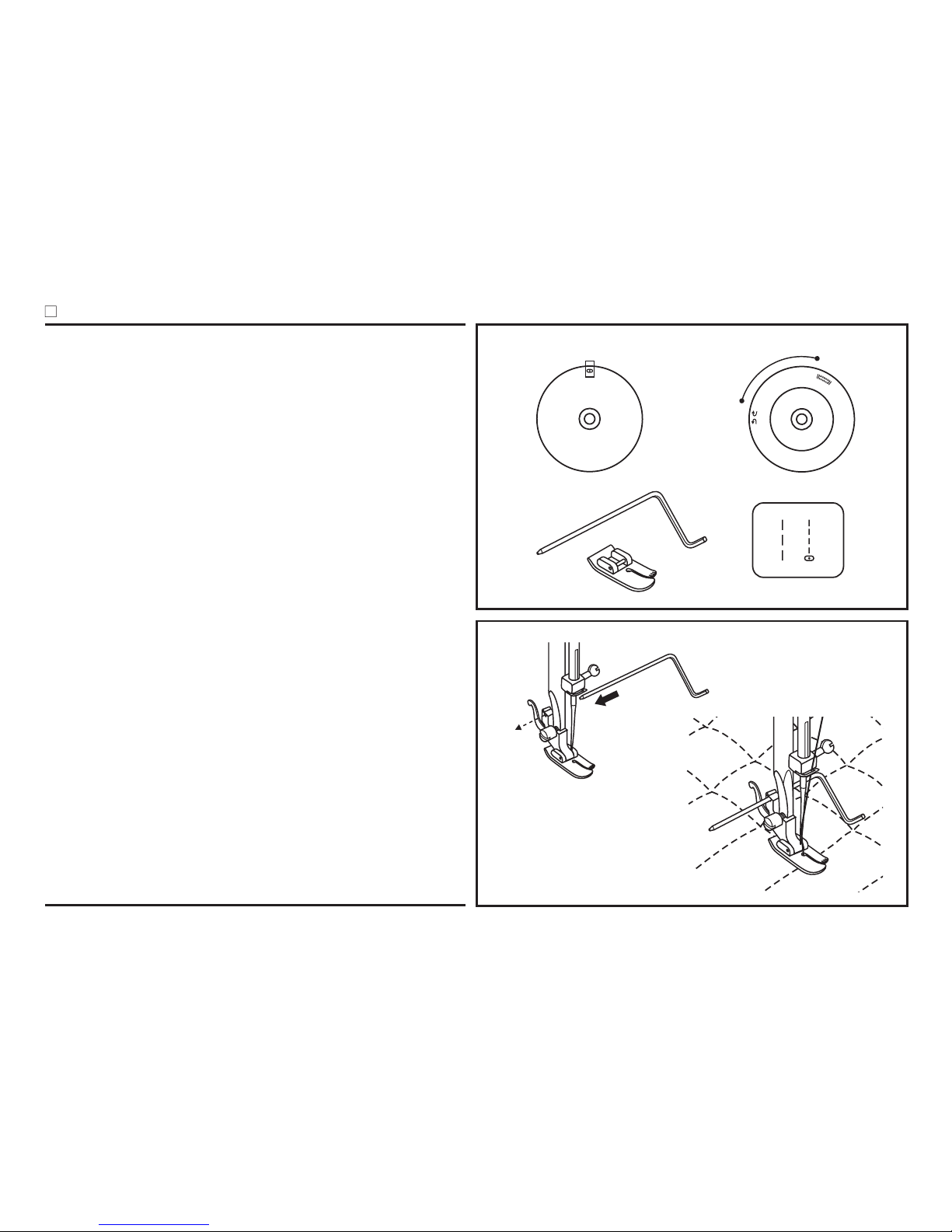

* The quilting foot is an optional accessory not supplied with this
machine.
e
Set pattern selector as illustrated.
Move the fabric over and sew successive rows with the guide
riding along on the previous row of stitching.
Insert the dge/ quilting guide in presser foot holder and set the
space as you desired.
Quilting
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
Page 39
36
Gathering
0
1
2
3
4
S
1
S
2
5
0
1
2
3
4

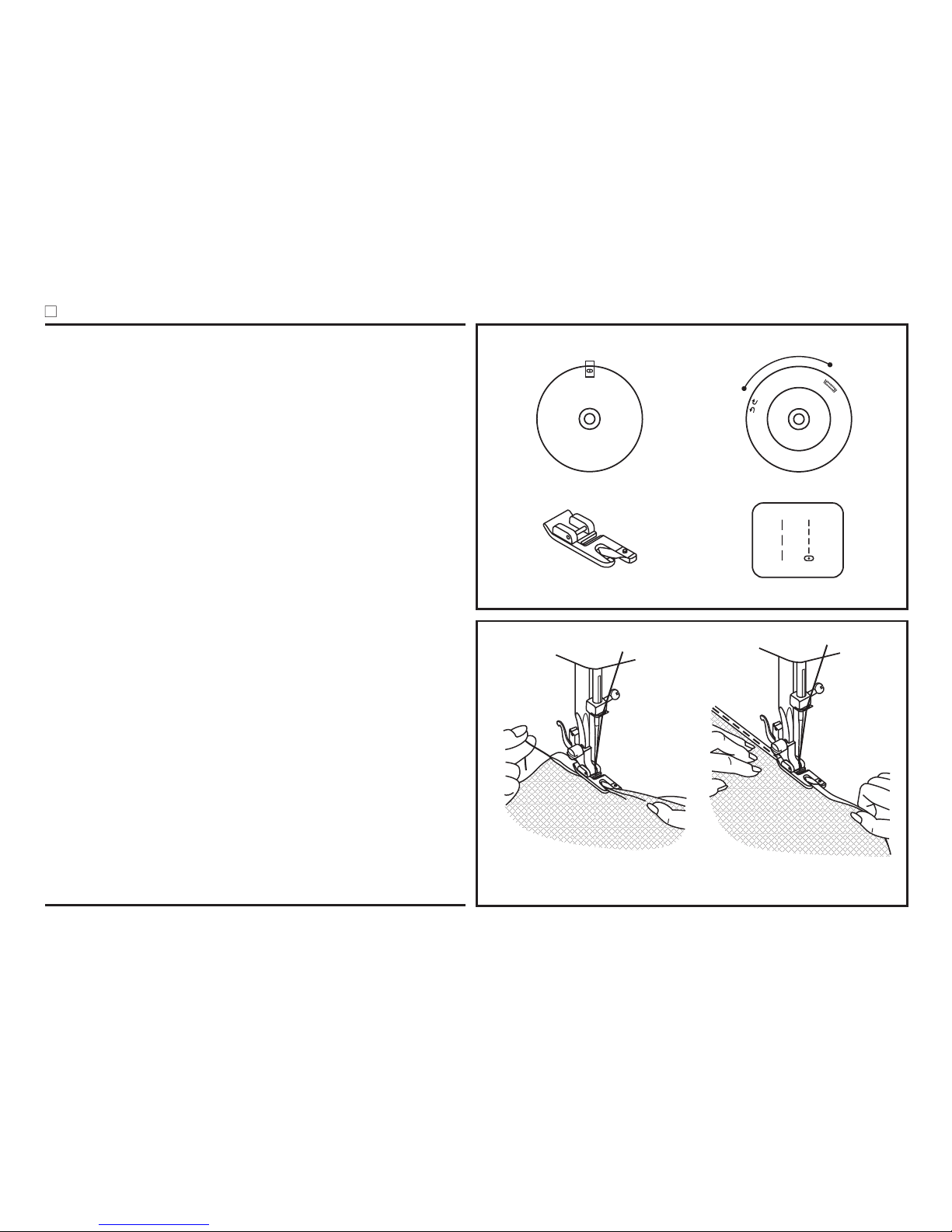

* The gathering foot is an optional accessory not supplied with
this machine.

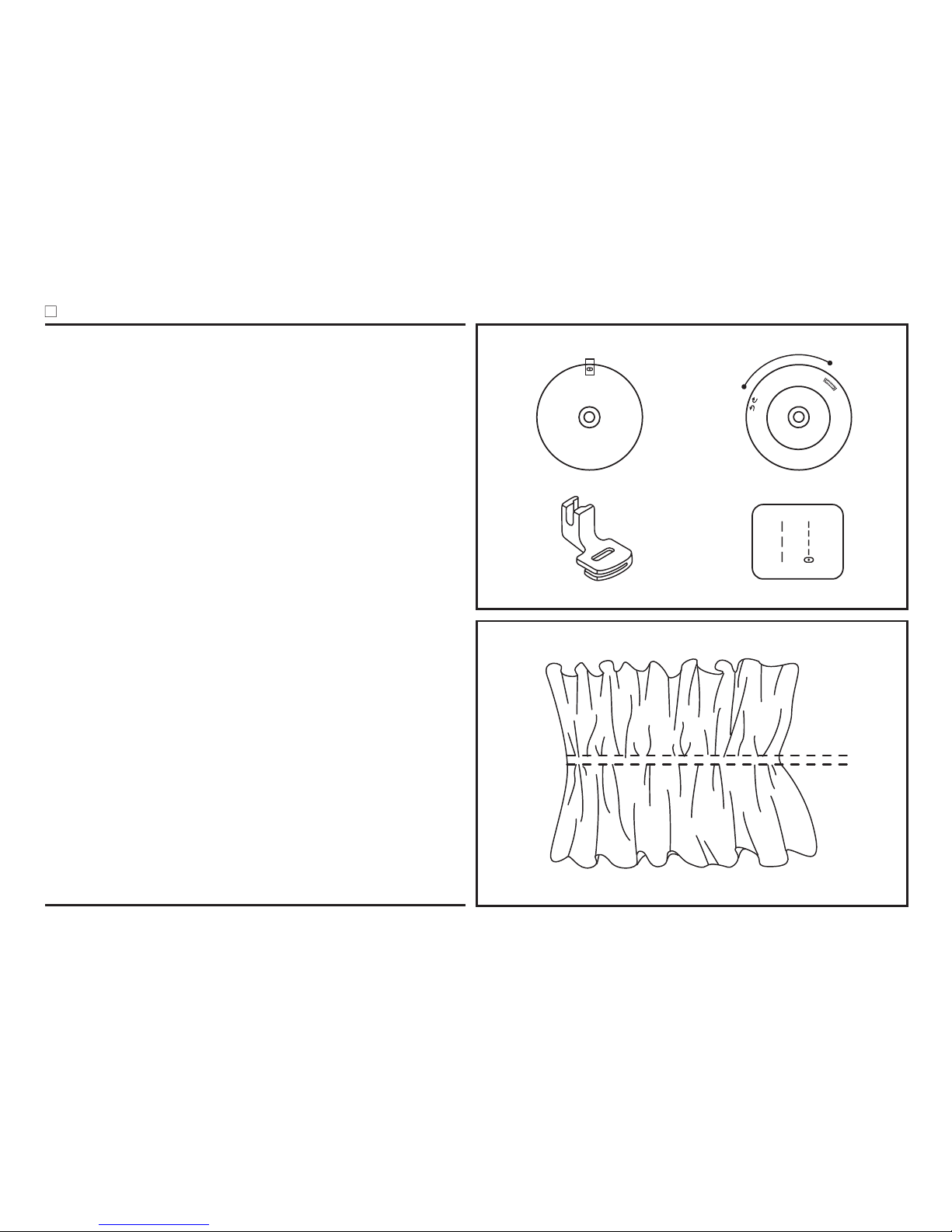

Set the machine as illustrated.
1. Attach the gathering foot.
2. Sew a single row or multiple rows of straight stitches. Pull the
lower thread to gather more of the material.
3. If more gathering in required, loosen the upper thread (to
about 2) so that the lower thread lies on the under side of the
material.
4. Pull the lower thread to gather more of the material.
Page 40
37
These stitches are used to join two pieces of fabric while leaving
a space between their edges.
1. Fold over the edges of the two pieces of fabric for the hem
and baste the edges to a thin piece of paper leaving a small
space between them.
2. Set the pattern selector on " ".
Turn the stitch length dial to "S1".
3. Stitch along the edge, pulling both threads slightly when
beginning to sew.
* Use thicker than normal threads for sewing.
4. After sewing, remove the basting and the paper. Finish by
tying knots on the reverse side at the beginning and the end
of the seams.
Patch work
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
Page 41
38
Applique
0
1
2
3
4
S
1
S
2
5
0
1
2
3
4

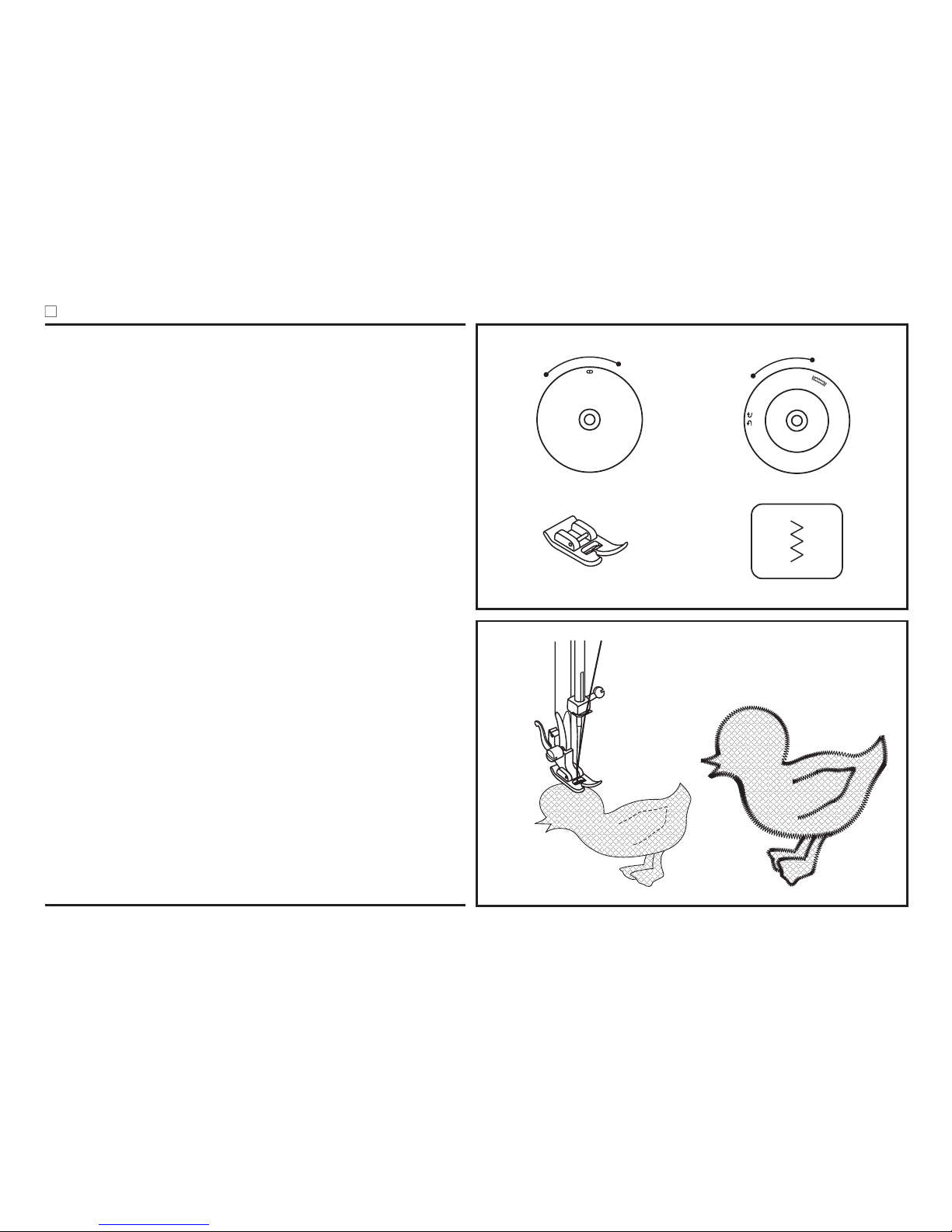

- Turn pattern selector dial to small zig zag width.
- Cut out the applique design and baste it to the fabric.
- Sew slowly around the edge of the design.
- Trim excess material outside the stitching. Make sure not to
cut any stitches.
- Remove the basting thread.
- Tie top and bottom thread under the applique to avoid
unraveling.
Page 42
39
* The t accessory is optional. It is not included with
this machine.
- Turn stitch selector to straight stitch, center needle position.
- For twin needle sewing, insert the extra spool pin into the hole
on top of the machine.
- Make sure that the two threads used to thread the twin needle
are of the same weight. You can use one or two colors.
- Insert the twin needle in the same way as single needle. Flat
side of needle should face away from you.
- Follow instructions for single needle threading. Thread each
needle separately.
When sewing with twin needle, always proceed slowly, and
make sure to maintain a low speed to insure quality stitching.
When using twin needle on zig-zag make sure the stitch
width dial is set between "0" and "3.0". Do not use twin
needle at setting above "3.0" (for 3-dial model).
Please note:
win needle
Twin needle
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
Page 43
40
- Set the machine as illustrated above.
- Remove the presser foot and the presser foot holder.
- Attach the darning plate.
- Lower presser foot lever before starting to sew.
- Draw the desired lettering or design on the right side of the
fabric.
- Stretch the fabric between embroidery hoop as firmly as
possible.
- Place the fabric under the needle. Make sure the presser foot
bar is down in its lowest position.
- Turn the balance wheel towards you to bring up the lower
thread through the fabric. Sew a few securing stitches at the
starting point.
- Hold the hoop with thumb and forefingers of both hands while
pressing the material with the middle and third fingers and
supporting the outside of hoop with smaller finger.
Preparation for Monogramming and Embroidering
- Adjust the stitch width according to the size of lettering or
design.
* Embroidery hoop not included with machine.
Monogramming and embroidering with embroidery hoop*
5
0
1
2
3
4
0
1
2
3
4
S
1
S
2
Page 44
41
2
4
1
3
Monogramming
Embroidering

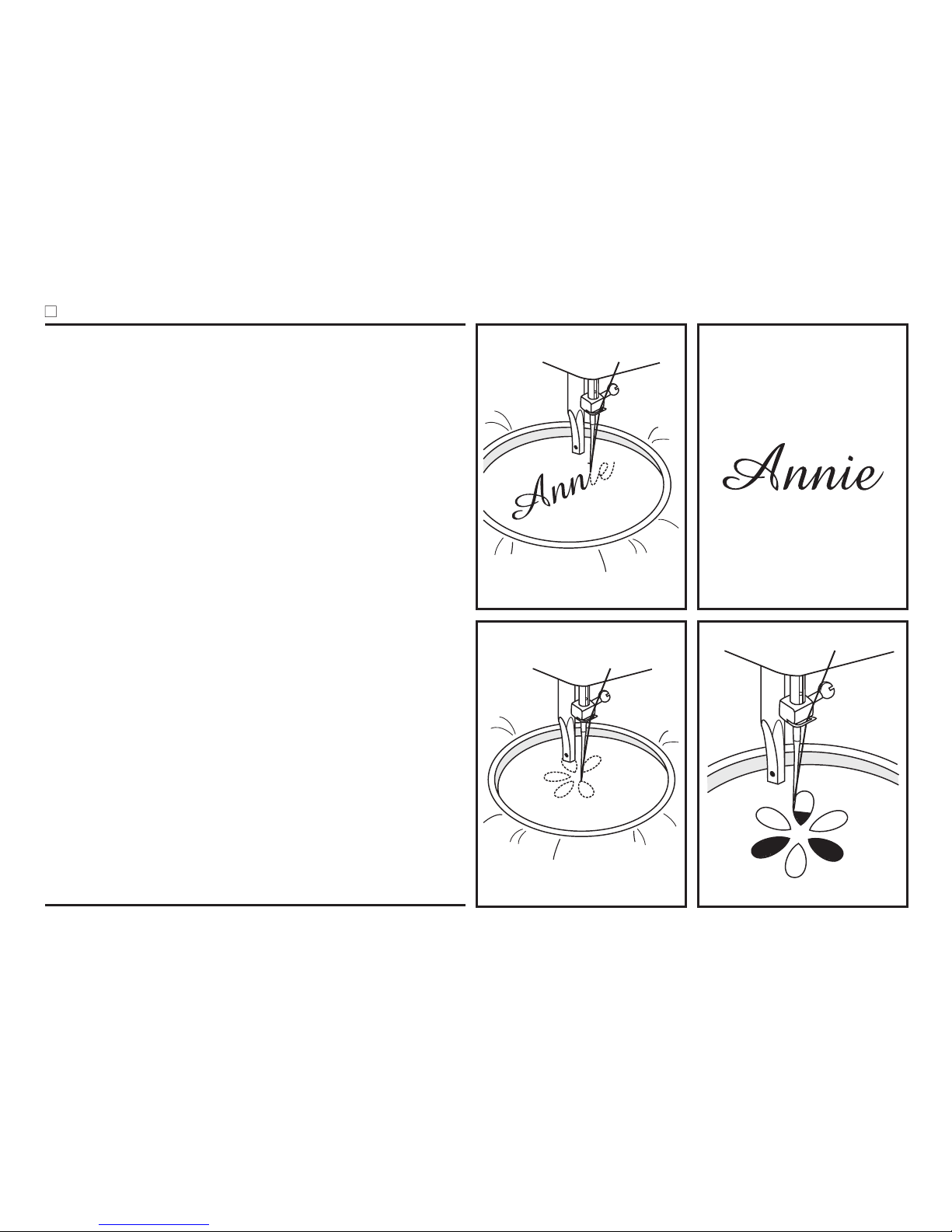

1. Sew, moving the hoop slowly along the lettering at a constant
speed.
2. Secure with a few straight stitches at the end of the last letter.
1. Stitch the outline of the design by moving the embroidery
hoop.
2. Fill in the design working from the outline of the design to the
inside and from the inside to the edge of the outline until the
design is completely filled in. Keep the stitching close
together.
* A long stitch is made by moving the hoop rapidly and a
short stitch is made by moving it slowly.
3. Secure with a few straight stitches at the end of the design.
Monogramming and embroidering with embroidery hoop*
Page 45
42
Fork arm
Attaching head
Presser bar attaching screw
Needle
Needle
screw & clamp
Needle bar
Presser foot bar
Fork arm
* The walking foot accessory is optional. It is not included with
this machine.
It is easier to guide the fabric and you have a better view of the
seam when using the standard, regular foot on your machine.
Your sewing machine offers excellent stitch quality on a wide
range of fabrics from delicate chiffons to multiple layers of denim.
The "Walking foot" accessory equalizes the feeding of the upper
and lower layers of fabric and improves the matching of plaids,
stripes and patterns. This foot helps to prevent uneven feeding of
very difficult fabrics.
1. Lift the presser foot bar.
2. Remove the "foot holder" by opening counter clockwise the
presser bar attaching screw. (3)
3. Attach the "walking foot" to the machine in the following way.
i) The fork arm should fit into the needle screw and clamp. (2)
ii) Slide the plastic "attaching head" from your left to right so
that it is fitted into the "presser foot bar".
iii) Lower the "presser foot bar".
iv) Replace and tighten clockwise the "presser bar attaching
screw"
4. Make sure both the "needle screw" and the "presser bar
attaching screw" are tightly secured.
5. Draw the bobbin thread up and place both the bobbin thread
and the needle thread behind the walking foot attachment.
Always try to sew first without the walking foot accessory which
should be used only when necessary.
The walking foot accessory
12
3
Page 46
12
3
43
b
c
d
e
a
Maintenance
Attention:

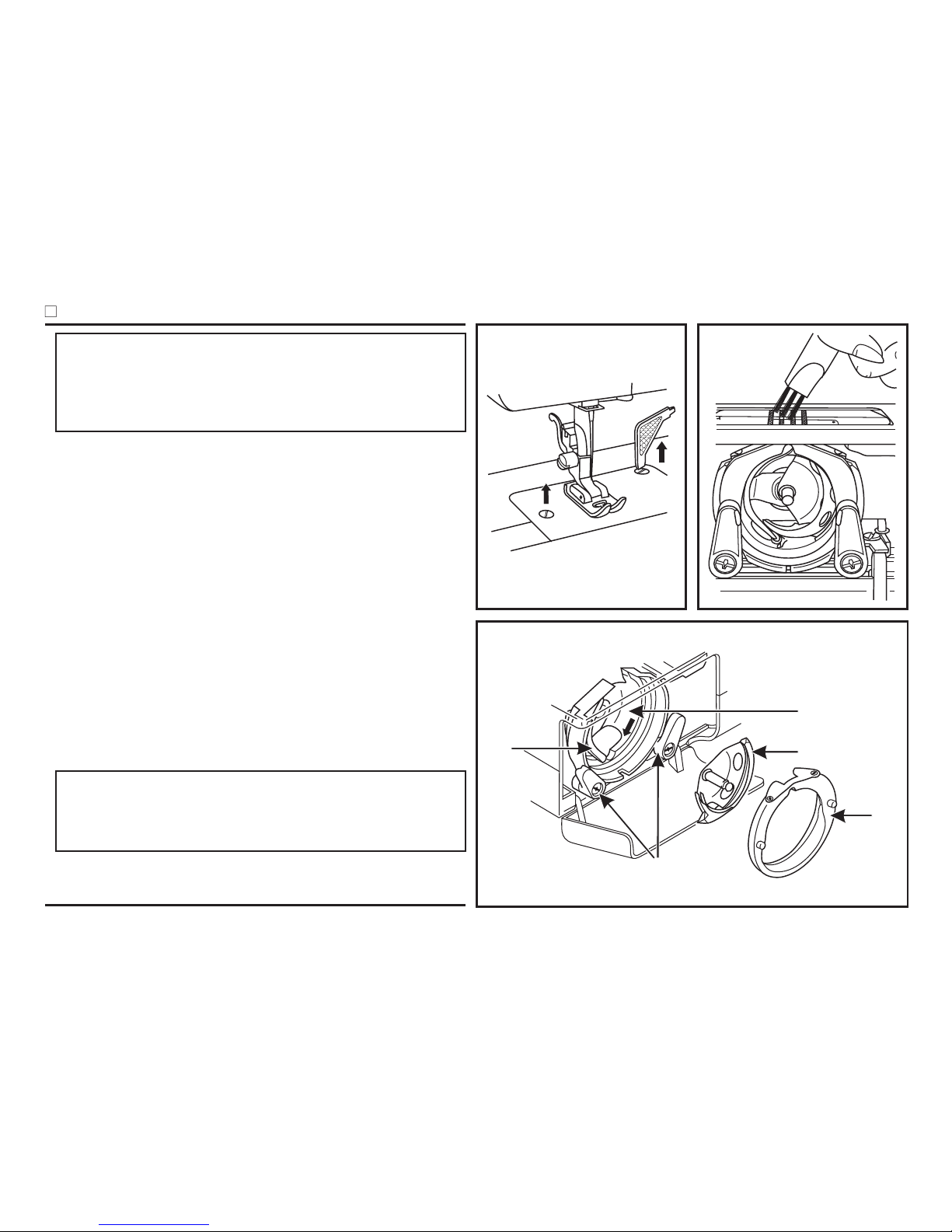

Remove the needle plate (1):
Cleaning the feed dog (2):
Cleaning and lubricating the hook (3):
Important:
Disconnect the machine from the electricity supply by
removing the plug from the mains socket. When cleaning the
machine, it must always be disconnected from the electricity
supply.
Turn the handwheel until the needle is fully raised. Open the
hinged front cover and unscrew the needle plate screw withe
the screw driver.
Remove the bobbin case and use the brush supplied to clean
the whole area.
Remove the bobbin case. Snap the two hook retaining arms (a)
outwards. Remove the hook race cover (b) and the hook (c) and
clean withe a soft cloth. Lubricate at the points (d) (1-2 drops)
with sewing machine oil. Turn the handwheel until the hook race
(e) is in the left position. Replace the hook (c). Replace the hook
race cover and snap back the two hook retaining arms. Insert
he bobbin case and bobbin and replace the stitch plate.
Fabric fluff and threads must be removed regularly.
Your machine should be serviced at regular intervals at one
of our service agencies.
Page 47
44
Problem Cause Correction
Upper thread breaks
Lower thread breaks
Skipped stitches
Needle breaks
Loose stitches
Seams gather
or pucker
Uneven stitches,
uneven feed
The machine
is noisy
The machine jams
1.The machine is not threaded correctly
2.The thread tension is too tight
3.The thread is too thick for the needle
4.The needle is not inserted correctly
5.The thread is round wound the spool holder pin
6.The needle is damaged
1.The bobbin case is not inserted correctly
2.The bobbin case is threaded wrongly
3.The lower thread tension is too tight
1.The needle is not inserted correctly
2.The needle is damaged
3.The wrong size needle has been used
4.The foot is not attached correctly
1.The needle is damaged
2.The needle is not correctly inserted
3.Wrong needle size for the fabric
4.The wrong foot is attached
1.The machine is not correctly threaded
2.The bobbin case is not correctly threaded
3.Needle/fabric/thread combination is wrong
4.Thread tension wrong
1.The needle is too thick for the fabric
2.The stitch length is wrongly adjusted
3.The thread tension is too tight
1.Poor quality thread
2.The bobbin case is wrongly threaded
3.Fabric has been pulled
1.The machine must be lubricated
2.Fluff or oil have collected on the hook or needle bar
3.Poor quality oil has been used
4.The needle is damaged
Thread is caught in the hook
1.Rethread the machine
2.Reduce the thread tension (lower number)
3.Select a larger needle
4.Remove and reinsert the needle (flat side towards the back)
5.Remove the reel and wind thread onto reel
6.Replace the needle
1.Remove and reinsert the bobbin case and pull on the thread.
The thread should pull easily
2.Check both bobbin and bobbin case
3.Loosen lower thread tension as described
1.Remove and reinsert needle(flat side towards the back)
2.Insert a new needle
3.Choose a needle to suit the thread and fabric
4.Check and attach correctly
1.Insert a new needle
2.Insert the needle correctly (flat side towards the back)
3.Choose a needle to suit the thread and fabric
4.Select the correct foot
1.Check the threading
2.Thread the bobbin case as illustrated
3.The needle size must suit the fabric and thread
4.Correct the thread tension
1.Select a finer needle
2.Readjust the stitch length
3.Loosen the thread tension
1.Select a better quality thread
2.Remove bobbin case and retread and insert correctly
3.Do not pull on the fabric while sewing, let it be taken up by the machine
1.Lubricate as described
2.Clean the hook and feed dog as described
3.Only use good quality sewing machine oil
4.Replace the needle
Remove the upper thread and bobbin case, turn the handwheel backwards
and forwards by hand and remove the thread remands.
Lubricate as described
Trouble shooting guide
Page 48
021V490103( ) Jul/09
8000-9
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities.
Contact your local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new once, the retailer is legally obligated to take back your old
appliance for disposal at least for free of charge.
Loading...
