Target Support Pac
Reference Guide
kage™ 4
For Use with T
exas Instruments C5000™
How to Contact The MathWorks
www.mathworks.
comp.soft-sys.matlab Newsgroup
www.mathworks.com/contact_TS.html Technical Support
suggest@mathworks.com Product enhancement suggestions
bugs@mathwo
doc@mathworks.com Documentation error reports
service@mathworks.com Order status, license renewals, passcodes
info@mathwo
com
rks.com
rks.com
Web
Bug reports
Sales, prici
ng, and general information
508-647-7000 (Phone)
508-647-7001 (Fax)
The MathWorks, Inc.
3 Apple Hill Drive
Natick, MA 01760-2098
For contact information about worldwide offices, see the MathWorks Web site.
Target Support Package™ Reference G uide
© COPYRIGHT 2009–2010 by The MathWorks, Inc.
The software described in this document is furnished under a license agreement. The software may be used
or copied only under the terms of the license agreement. No part of this manual may be photocopied or
reproduced in any form without prior written consent from The MathW orks, Inc.
FEDERAL ACQUISITION: This provision applies to all acquisitions of the Program and Documentation
by, for, or through the federal government of the United States. By accepting delivery of the Program
or Documentation, the government hereby agrees that this software or documentation qualifies as
commercial computer software or commercial computer software documentation as such terms are used
or defined in FAR 12.212, DFARS Part 227.72, and DFARS 252.227-7014. Accordingly, the term s and
conditions of this Agreement and only those rights specified in this Agreement, shall pertain to and govern
theuse,modification,reproduction,release,performance,display,anddisclosureoftheProgramand
Documentation by the federal government (or other enti ty acquiring for or through the federal government)
and shall supersede any conflicting contractual terms or conditions. If this License fails to meet the
government’s needs o r is inconsistent in any respect with federal procurement law, the government agrees
to return the Program and Docu mentation, unused, to The MathWorks, Inc.
Trademarks
MATLAB and Simulink are registered trademarks of The MathWorks, Inc. See
www.mathworks.com/trademarks for a list of additional trademarks. Other product or brand
names may be trademarks or registered trademarks of their respective holders.
Patents
The MathWorks products are protected by one or more U.S. patents. Please see
www.mathworks.com/patents for more information.
Revision History
September 2009 Online only New for Version 4.0 (Release 2009b)
March 2010 Online only Revised for Version 4.1 (Release 2010a)
System Requirements
1
Block Reference
2
C5510 DSK (c5510dsk) .............................. 2-2
Blocks — Alphabetical List
3
Contents
Index
iii
iv Contents
System Requirements
For detailed information about the software and hardware required to use
Target Support Package™ software, refer to the Target Support Package
system requirements areas on the MathWorks Web site:
• Requirements for Target Support Package:
www.mathworks.com/products/target-package/requirements.html
• Requirements for use with TI’s C5000™:
www.mathworks.com/products/target-package/ti-adaptor/
1
1 System Requirements
1-2
Block Reference
C5510 DSK (c5510dsk) (p. 2-2) Blocks for TMS320VC5510 DSP
2
Starter Kit (DSK) (c5510dsk)
2 Block Reference
C5510 DSK (c5510dsk)
C5510 DSK ADC Configure AIC23 and peripherals to
C5510 DSK DAC Configure AIC23 codec and
collect data from analog jacks and
output digital data
peripherals to send data stream to
output jack
2-2
3
Blocks — Alphabetical List
C5510 DSK ADC
Purpose Configure AIC23 and peripherals to collect data from analog jacks and
output digital data
Library TMS320VC5510 DSP Starter Kit (DSK) (c5510dsk)
Description Configures the AIC23 codec and the TMS320C5510 peripherals to
output a stream of digital data. The block collects this data from the
analog jacks on the C5510 DSP Starter Kit board.

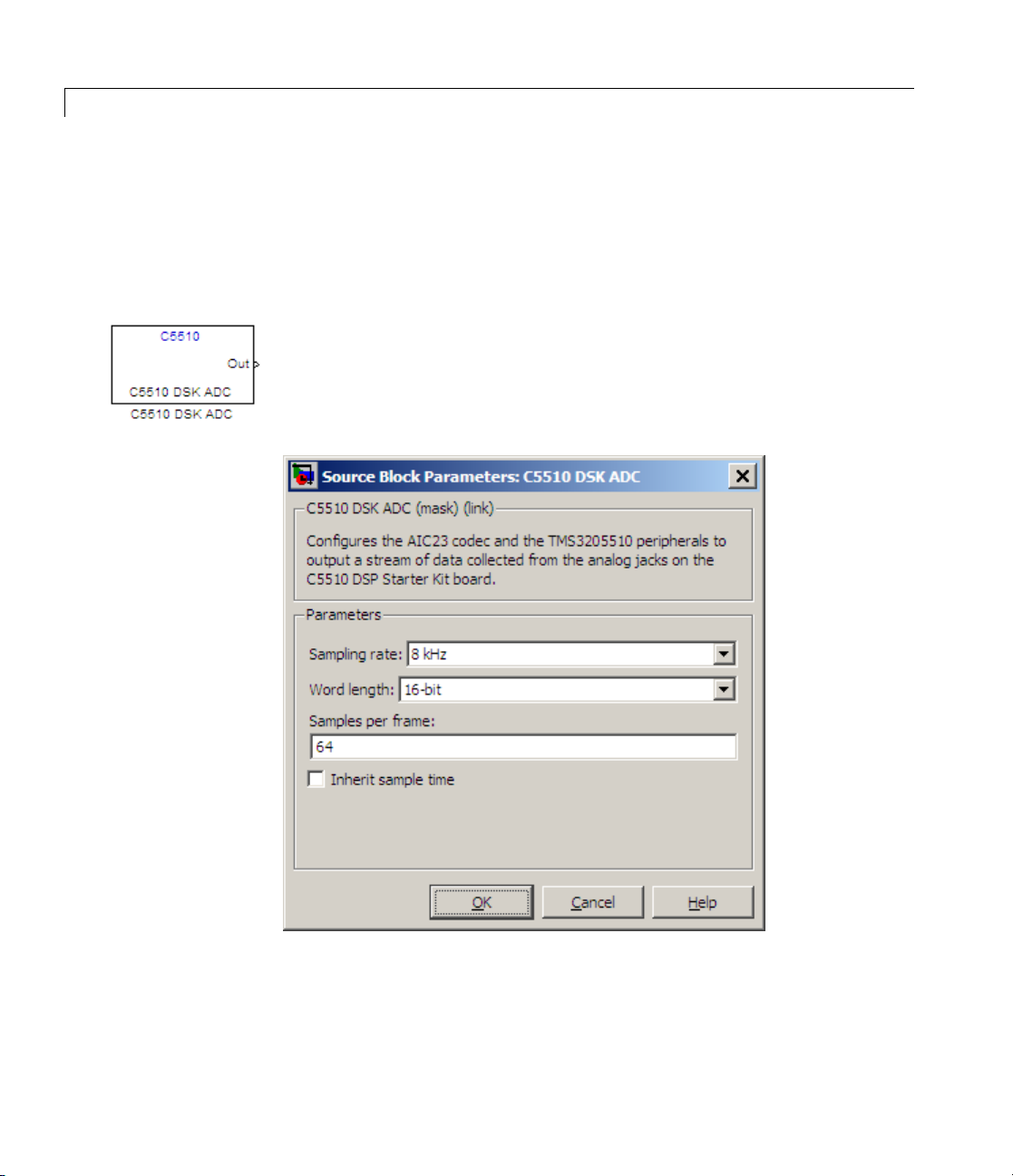

Dialog
Box
3-2
C5510 DSK ADC
Sampling rate
Set the rate at which the analog-to-digital converter samples the
analog input. A higher rate increases the resolution of the data
the ADC outputs.
Word length
Set the number of data bits the ADC creates for each sample.
Increasing the word length increases the accuracy of the data in
each sample. If your model also contains a DAC block, set the
word length in the DAC block to match that of the ADC block.
Samples per frame
Set the number of samples the ADC buffers internally before it
sends the digitized signals, as a frame vector, to the next block
in the model. This value defaults to
frameratedependsonthesamplerateandframesize. Thus,if
you set Sampling Rate to 8 kHz, and Samples per frame to 32,
the resulting frame rate is 250 frames per second (8000/32 = 250).
Inherit sample time
Select whether the block inherits the sample time from the
model base rate or from the Simulink base rate. You can locate
the Simulink base rate in the Solver options in Configuration
Parameters. Selecting Inherit sample time directs the block to use
the specified rate in model configuration. Entering -1 configures
the block to accept the sample rate from the upstream HWI, Task,
or Triggered Task blocks.
64 samples per frame. The
See Also C5510 DSK DAC
3-3
C5510 DSK DAC
Purpose Configure AIC23 codec and peripherals to send data stream to output
jack
Library TMS320VC5510 DSP Starter Kit (DSK) (c5510dsk)
Description Configures the AIC23 codec and the TMS3205510 peripherals to send a
stream of data to the output jack on the C5510 DSP Starter Kit board.

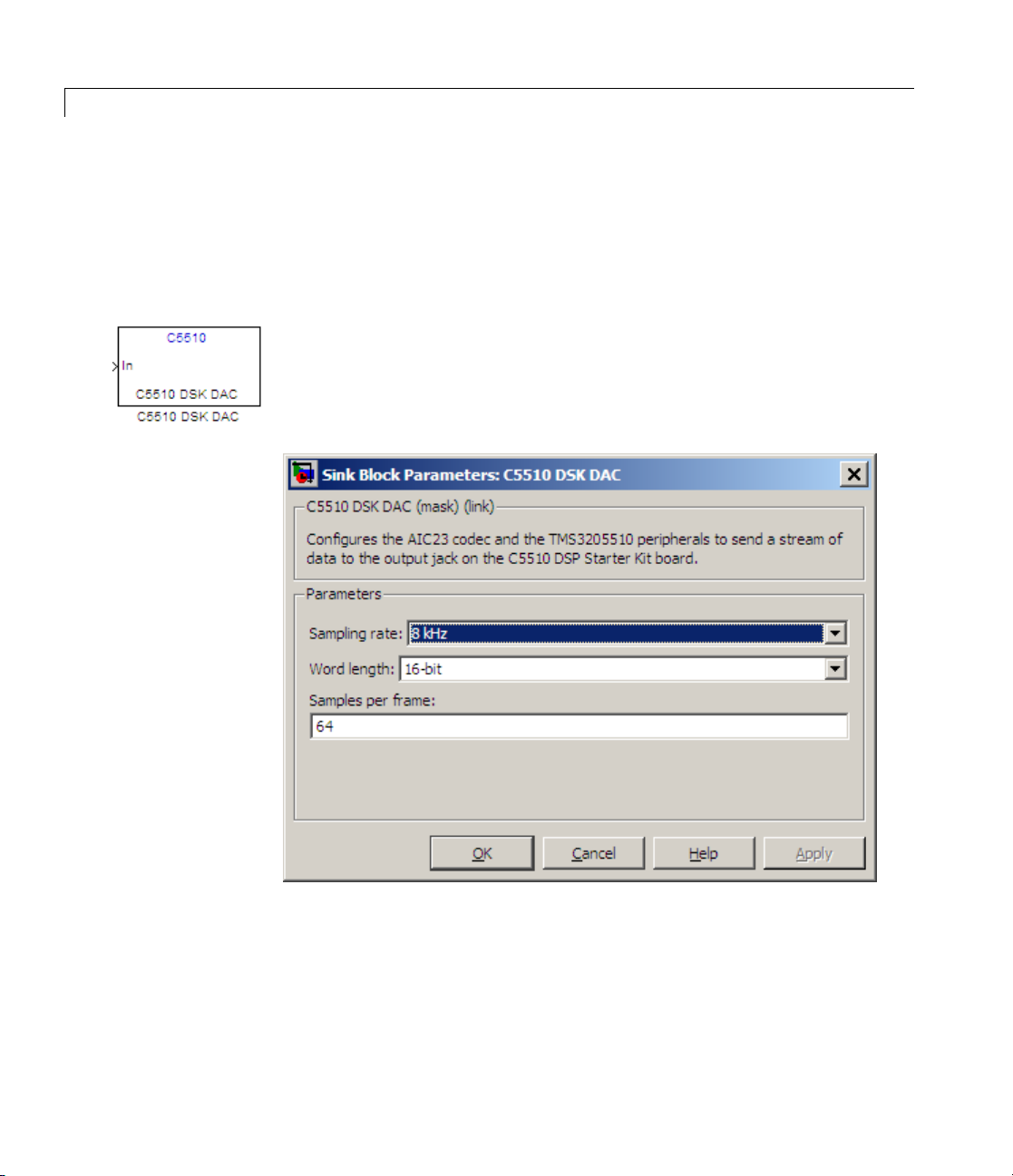

Dialog
Box
3-4
Sampling Rate
Set the rate at which the digital-to-analog converter receives each
data sample. If your model contains an ADC block, set this value
to match the sampling rate of the ADC block.
Word length
Set the number of bits in each data input sample the DAC. If your
model also contains an ADC block, set the word length in the
DAC block to match that of the ADC block. If you do not use an
accurate setting, the DAC cannot convert the data correctly.
Samples per frame
Set the number of samples per data input frame. M atch this value
with the value of the block creating the data frames. This value
defaults to
See Also C5510 DSK ADC
C5510 DSK DAC
64 samples per frame.
3-5
C5510 DSK DAC
3-6
Index
IndexC
C5510 DSK ADC 3-2
C5510 DSK DAC 3-4
Index-1
