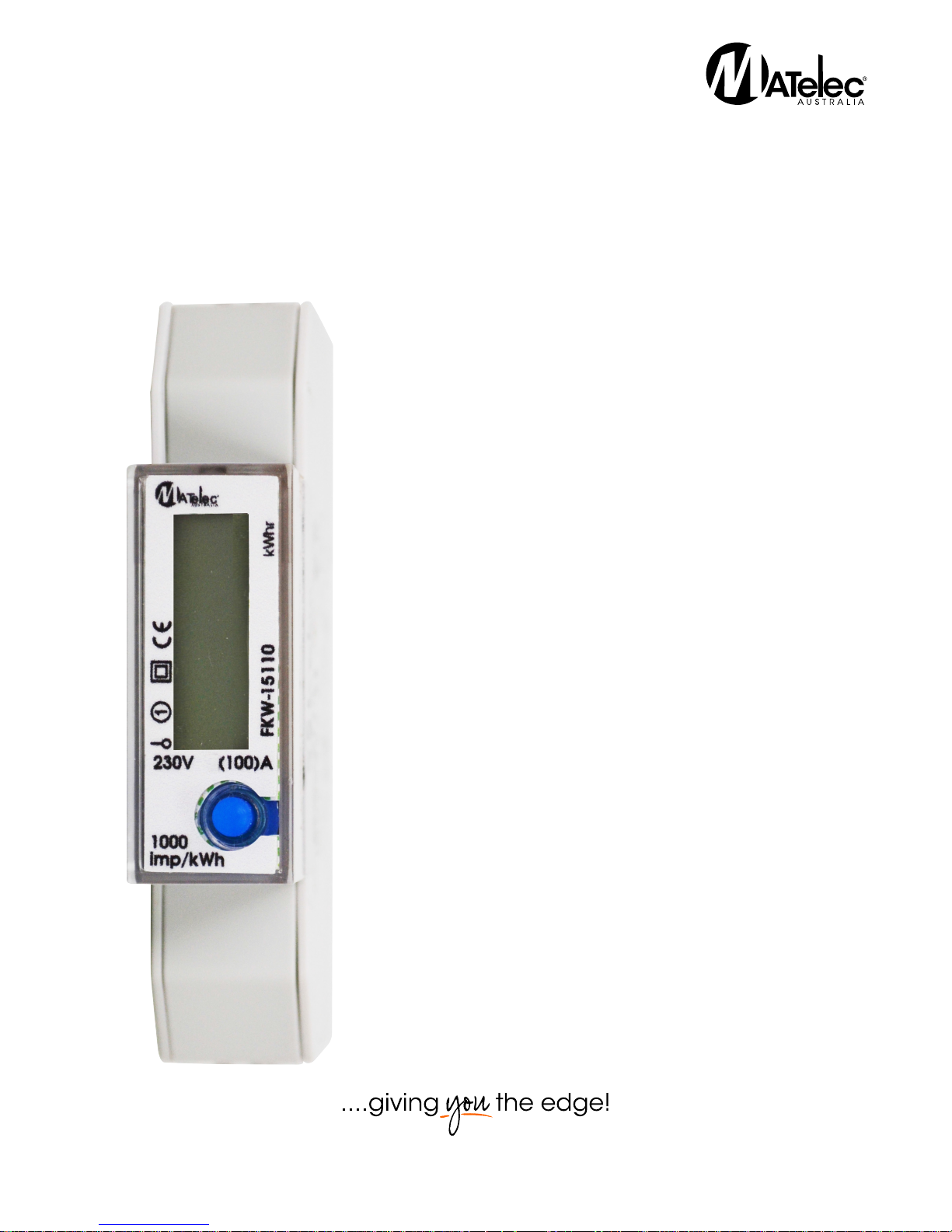

Single Phase KWH Meter – Din Rail Mount
• U s e r M a n u a l f o r F K W 1 5 1 1 0
www.matelecaustralia.com.au
1
Features and Technical Parameters1.
.
.
.
1.1.Features
● DIN RAIL standard installation size.
● Only 18mm wide, can
● Meter has backup 3.6V Lithium battery.
● Blue LCD backlight allows the meter to be read in low light conditions.
● Displays Current and Voltage.
www.matelecaustralia.com.au
2
● Reactive energy can be measured.
● Material of Meter housing: ABS fire resistant.
● Degree of Protection: IP51 (Indoor meter).
1.2 Technical Parameters
handle up to 100A.
Voltage: 230V
Current: 0.25 – 100A
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz
Impulse constant: 1000imp/kWh
Display: LCD 5+1 = 99999.9kW
Power consumption: ≤8VA ≤0.4Wh
Starting current: 0.004Ib
Temperature range:
-20 〜 55℃
Flashing red: Impulse indication, width=90ms
Average humidity value of year: 75%
Maximal value: 95%
2.
A Impulse indication
B Turn Page Button
C L-Out
D L-In
E Neutral Wire
F LCD Display
Case: ABS、PC、Alloy m aterial
Hook: ABS material
B
A
F
E
D
C
www.matelecaustralia.com.au
3
Description
Materials
Height 95.3mm
Width 18.2mm
Depth 72mm
Weight 0.10kg(Net)
3. Display
3.1
3.2
.
4. Connection Diagram
Note:
The Neutral wire can be connecte d to one of N ports or both.
www.matelecaustralia.com.au
4
Dimensions of LCD Screen
Parameters show on the LCD screen
Apparent Power
N N
4.
Warning
Means that failure to observe the instruction can result in death, serious injury or considerable
material damage.
Means hazard of electric shock and failure to take the necessary safety precautions will result in
death, serious injury or considerable material damage.
Qualified personel
Use for the intend purpose
www.matelecaustralia.com.au
5
Safety Instructions
Caution
Exclusion of liability
Subject to technical modifications without notice.
We have checked the contents of this publication and every effort has been made to ensure that the
descriptions are as accurate as possible. However, deviations from the description cannot be
completely ruled out, so that no liability can be accepted for any errors or omissions in the
information given.
The equipment (device, module) may only be used for the application cases specified in the catalog
and the user manual and only in connection with devices and components recommended and
approved by MATelec Australia.
Installation and operation of this equipment described in this manual may only be performed by
suitably qualified person.
General Warning
After removing the packaging make sure the integrity of the unit. If in doubt don't use the
equipment and contact the supplier where the product was purchased.
Mounting of electric appliances must be carried out only by suitably qualified electricians.
It is imperative to observe the generally applicable safety measures.
In case of failure and /or malfunctioning of the device, turn off it. For any repair please contact
the supplier where the product was purchased. Failure to comply with the above may compromise
the device safety.
The manufacturer will repair or exchange the products where the lead seal is still intact, within 12
months, If the product is found to have a manufacturing defect.
Technical support
For any problems of our products please contact:
8 Telford Drive
Shepparton 3630
VICTORIA, AUSTRALIA
www.matelecaustralia.com.au
www.matelecaustralia.com.au
Warranty
