Page 1
PUMPCONTROL
OWNER’S
OPERATION
MANUAL
Econo Recirculating Controller Installation
and Operating Instructions
MODEL: FPC-30002
AUTO
PUMP 1
MAN
PUMP 2
MAN
DUAL HOT WATER
CIRCULATOR
-DANGER-
HIGH VOLTAGE
DO NOT OPEN COVER
AUTHORISED
PERSONS ONLY
FPC-SERIES
DOC: FPC-30002 VER 1.0
Page 2
PUMP 1

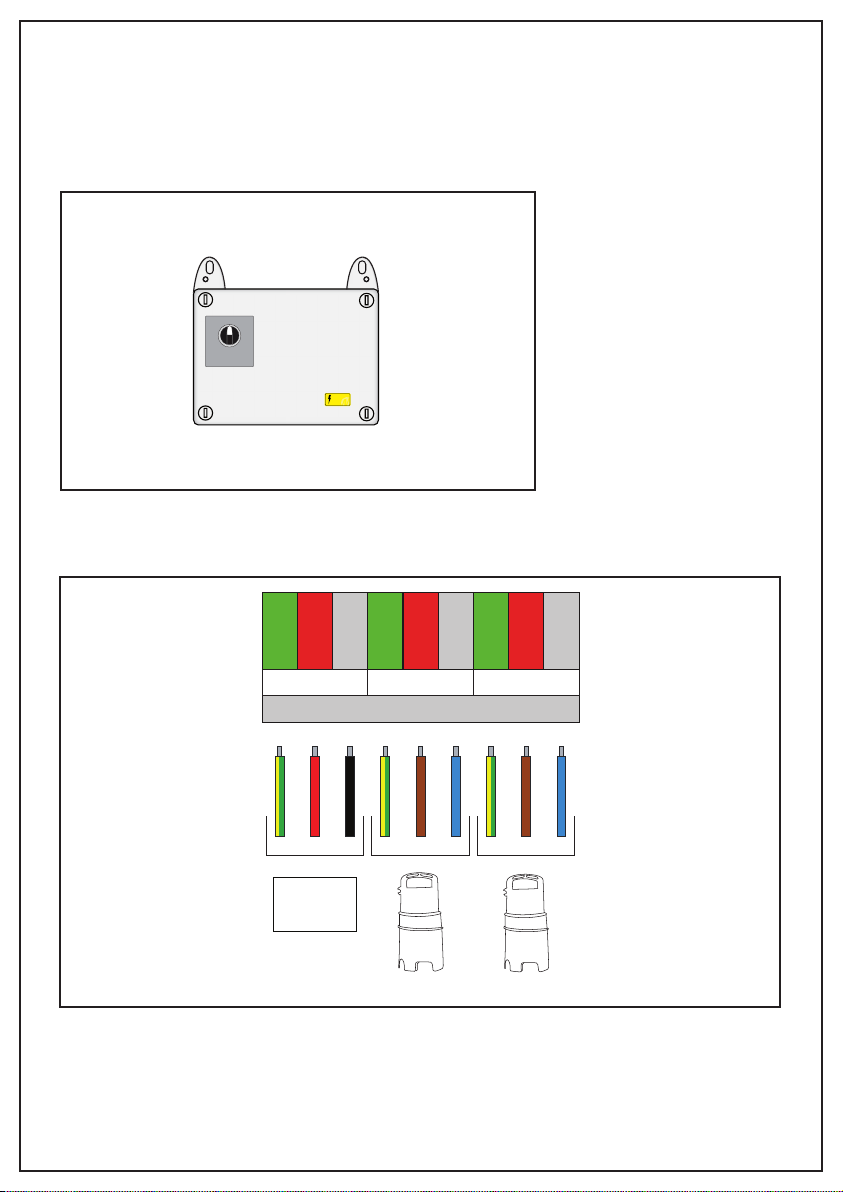

INSTALLATION
MOUNTING
AUTO
PUMP 1
PUMP 2
MAN
MAN
DUAL HOT WATER
CIRCULATOR
CONNECTION
FRONT
Top
Bottom
EARTH
-DANGER-
HIGH VOLTAGE
DO NOT OPEN COVER
AUTHORISED
PERSONS ONLY
FPC-SERIES
ACTIVE
EARTH
NEUTRAL
ACTIVE
PUMP 1 PUMP 2SUPPLY
24 0V a c C on ne ct io n s
1. Controller enclosure must be
mounted in a vertical position.
2. Ensure mounting method does
not compromise enclosure
weather proof rating.
3. Ensure cables/conduits entering
the panel have mechanical
protection and that the
penetrations are sealed and do
not compromise the weather
proof rating of the enclosure.
EARTH
NEUTRAL
ACTIVE
NEUTRAL
240Vac
SUPPLY
PUMP 2
2
Page 3

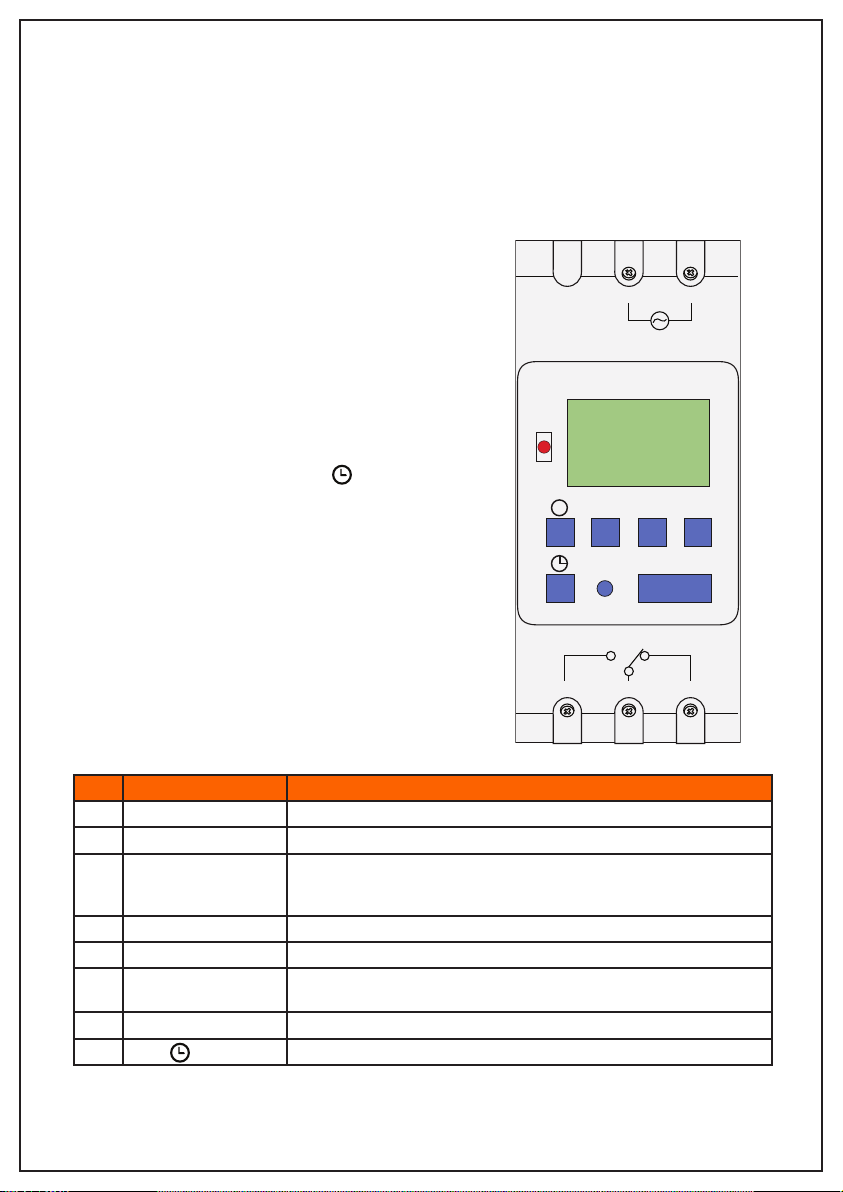

SETTING UP
MATELEC TIME CLOCK
COM- 30314
1. To start switch, press Reset key
2. To adjust the present time, please press
key, then press D+, H+, M+ to adjust the Days, Hours and Minutes.
3. Programming steps as follows:
Step Key Programming
1 Press P Setting 1 ON time (display 1 on)
2 Press H+/M+ Setting hours and minutes
3 Press D+ Select same everyday, different day, MO-FR, MO-SA,
SA-SU, MO WE FR, TU THU SA, MO-WE,
TH-SA. (if same everyday, no need to press this key)
4 Press P Setting 1 OFF time (display 1 off)
5 Press H+/M+ Setting hours and minutes of the turn off time
6 Press D+ If you want the same setting every day, there is no
need to press this key
7 Repeat steps 2~6 Set 2-17 ON/OFF times
8 Press End
D+P H+ M+
5
1
2
FRI
23:36
AUT O
MAN UA LRES ET
4 3
3
Page 4
OPERA TION
A
N
• Weatherproof Poly Enclosure
• Pump - 240Vac 6Amp (MAX)
• Auto/Manual Selection
• Mounting Brackets Included

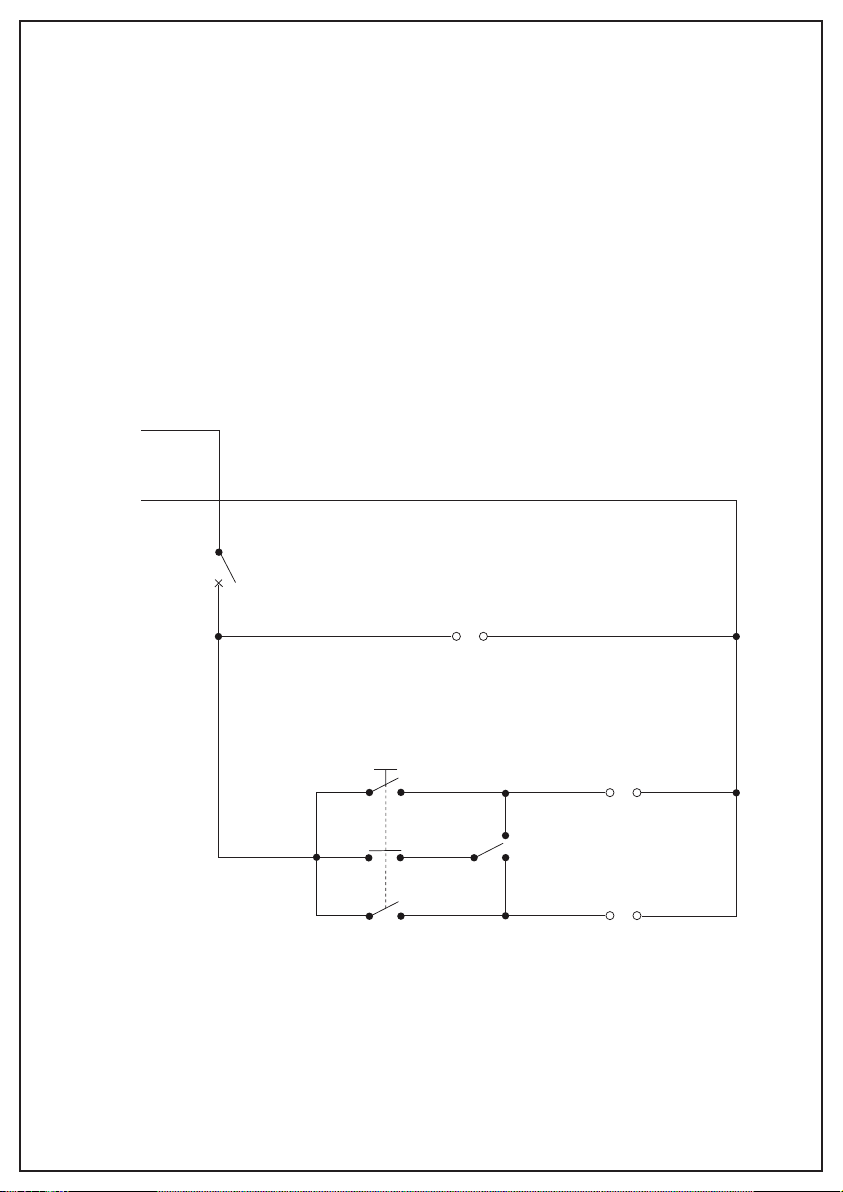

CIRCU IT DIA GRAM
10AMP
C/B
PROGRAMMABLE
TIMER
SUPPLY
1 2
R1/2
PUMP 1
MAN
AUTO
PUMP 2
MAN
4
PUMP 1
3
TIME
4
CLOCK
5
PUMP 2
