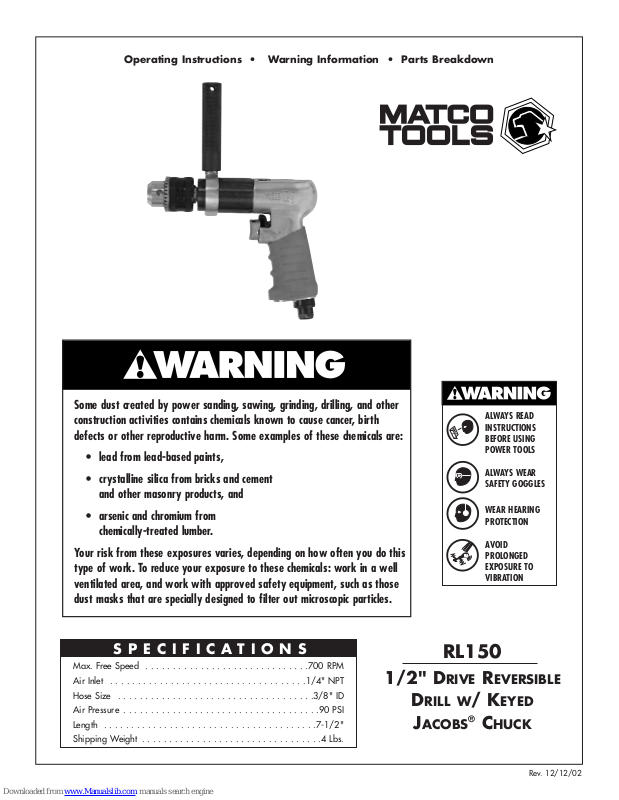

Matco Tools RL150 Instruction Manual

Rev. 12/12/02

Operating Instructions • Warning Information • Parts Breakdown

RL150

1/2" DRIVE REVERSIBLE

DRILL W/ KEYED

J

ACOBS

®

C

HUCK

SPECIFICATIONS

Max. Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .700 RPM

Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT

Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3/8" ID

Air Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 PSI

Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1/2"

Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Lbs.

Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:

•lead from lead-based paints,

•crystalline silica from bricks and cement
and other masonry products, and

• arsenic and chromium from
chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.

ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS

ALWAYS WEAR
SAFETY GOGGLES

WEAR HEARING
PROTECTION

AVOID
PROLONGED
EXPOSURE TO
VIBRATION

FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.

This Instruction Manual Contains Important Safety
Information.

Read THIS INSTRUCTION MANUAL Carefully and

understand ALL INFORMATION Before
Operating THIS Tool.

• Always operate, inspect and maintain
this tool in accordance with American

National Standards Institute Safety Code
of Portable Air Tools (ANSI B186.1) and any other
applicable safety codes and regulations.

• For safety, top performance and maximum durability
of parts, operate this tool at 90 psig 6.2 bar max air
pressure with 3/8" diameter air supply hose.

•Always wear impact-resistant eye and

face protection when operating or

performing maintenance on this tool.

Always wear hearing protection when

using this tool.

•High sound levels can cause permanent

hearing loss. Use hearing protection

as recommended by your employer or

OSHA regulation.

•Keep the tool in efficient operating condition.

• Operators and maintenance personnel must be
physically able to handle the bulk, weight and power of
this tool.

• Air under pressure can cause severe

injury. Never direct air at yourself or others.

Always turn off the air supply, drain hose of

air pressure and detach tool from air supply

before installing, removing or adjusting any

accessory on this tool, or before performing

any maintenance on this tool. Failure to do

so could result in injury. Whip hoses can

cause serious injury. Always check for

damaged, frayed or loose hoses and

fittings, and replace immediately. Do not

use quick detach couplings at tool. See

instructions for correct set-up.

• Air powered tools can vibrate in use. Vibration,
repetitive motions or uncomfortable positions over
extended periods of time may be harmful to your hands

and arms. Discontinue use of tool if discomfort, tingling
feeling or pain occurs. Seek medical advice before
resuming use.

•Place the tool on the work before starting the tool. Do
not point or indulge in any horseplay with this tool.

• Slipping, tripping and/or falling while
operating air tools can be a major cause of
serious injury or death. Be aware of excess
hose left on the walking or work surface.

• Keep body working stance balanced

and firm. Do not overreach when operating the tool.

• Anticipate and be alert for sudden changes in motion
during start up and operation of any power tool.

• Do not carry tool by the hose. Protect the hose from
sharp objects and heat.

•Tool shaft may continue to rotate briefly after throttle is
released. Avoid direct contact with accessories during
and after use. Gloves will reduce the risk of cuts or burns.

• Keep away from rotating end of tool. Do
not wear jewelry or loose clothing. Secure
long hair. Scalping can occur if hair is not
kept away from tool and accessories.
Choking can occur if neckwear is not kept
away from tool and accessories.

• Drill bits can bind suddenly and cause
rotation of the work piece or tool, causing
injury to arms and/or shoulders. Enough
torque is generated to cause falls. Always
use sharp bits. Use less downward pressure
at breakthrough.

• Do not lubricate tools with flammable or volatile liquids
such as kerosene, diesel or jet fuel.

• Don’t force tool beyond its rated capacity.

• Do not remove any labels. Replace any damaged labels.

• Use accessories recommended by Matco Tools.

Rev. 12/12/02

2

Operating Instructions • Warning Information • Parts Breakdown

Locate center of new hole by using a center punch.
Place drill bit tip in punch mark. Hold drill square with
work and start motor. Apply steady, even pressure. Do
not force. Too much pressure can cause bit to break or
overheat. Too little pressure will keep bit from cutting
and cause it to overheat. Reduce pressure just before
bit cuts through the work. When bit has penetrated
work and is spinning freely, take it from the work
while the motor is running, then turn off drill. If the
drill jams in the work, release throttle immediately.
Disconnect the drill before removing bit and determin­ing cause of trouble. Do not attempt to free the bit by
starting and stopping the motor.

Operation...

Air Supply...

Tools of this class operate on a wide range of air pres­sures. It is recommended that air pressure of these tools
measure 90 PSI at the tool while running free. Higher
pressure (over 90 psig; 6.2 bar) raises performance
beyond the rated capacity of the tool which will short­en the tool’s life because of faster wear and could
cause injury.
Always use clean, dry air. Dust, corrosive fumes
and/or water in the air line will cause damage to the
tool. Drain the air tank daily. Clean the air inlet filter
screen on at least a weekly schedule. The recommend­ed hookup procedure can be viewed in the above fig­ure.

The air inlet used for connecting air supply, has stan­dard 1/4" NPT . Line pressure should be increased to
compensate for unusually long air hoses (over 25 feet).
Minimum hose diameter should be 3/8" I.D. and fit­tings should have the same inside dimensions and be
tightly secured.

Lubrication...

Lubricate the air motor daily with quality air tool oil. If
no air line oiler is used, run a teaspoon of oil through
the tool. The oil can be squirted into the tool air inlet
or into the hose at the nearest connection to the air
supply, then run the tool. The amount of oil to be used
is 1 ounce. Overfilling will cause a reduction in the
power of the tool.

Trigger

Forward &
Reverse Lever

Air Inlet

Rev. 12/12/02

3

Nipple

4

Rev. 12/12/02

RL150

1/2" Drive Reversible Drill

w/ Keyed Jacobs

®

Chuck

DESCRIPTION

Internal Gear
Planet Gear w/ bushing
Work Spindle w/pins
Reduction Spindle w/ pins
Ball Bearing
Chuck Spacer
Chuck Screw
O-Ring
Exhaust Diffuser
Screw
Clamp Nut
Jacobs

®

Keyed Chuck
Set Screw
Retainer
Handle
Matco Rubber Grip

PART

NO.

79422N
79423N
79426N
79427N

21118
79429N
79430N
79409N

76232

76233
79436N

SM8K61

79438N
79439N
79440N
82252M

REF.

NO.

22
23
26
27
28
29
30
31
32
33
36
37
38
39
40
41

DESCRIPTION

Matco Motor Housing
Spring Pin
Air Inlet
Trigger
Valve Stem Set
Reverse Bushing
Valve Spring
O-Ring
Reverse Lever
Motor Gasket
Reverse Retainer
Ball Bearing
End Plate
Rotor
Rotor Blades
Spring Pin
Cylinder
Spacer
Pinion Gear
Center Gear

PART

NO.

82201M
79402N
79403N
79404N
79405N
79406N
79408N
79431N
79410N

79411N

79412N

21114

79414N

80215

78816
79417N
79418N
79419N
70420N
79421N

REF.

NO.

1
2
3
4
5
6
8

9
10
11
12
13
14
15
16
17
18
19
20
21

QTY.

1
1
1
1
1
1
1
1
1
1
1
2
2
1
5
2
1
1
1
1

QTY.

2
6
1
1
2
1
1
1
1
2
1
1
1
1
1
1

40

39

30

37

29

36

28

22

1

2

13

19

20

23

27

23

21

26

15

14

16

17

18

17

14

13 11

41

32

3

33

31

6

9

12

10

5

8

38

4

MATCO TOOLS™ 1 YEAR LIMITED WARRANTY FOR AIR TOOLS

Matco warrants its air tools for a period of 1 year to the consumer. We will repair any air tool cov­ered under this warranty which proves to be defective in material or workmanship during the war­ranty period. In order to have your tool repaired, return the tool to any Matco Authorized Warranty
Center, freight prepaid. Please include a copy of your proof of purchase and a brief description of
the problem. The tool will be inspected and if any part or parts are found to be defective in material
or workmanship, they will be repaired free of charge and the repaired tool will be returned to you
freight prepaid.

This warranty gives you specific rights. You may also have other rights which vary from state to
state.

The foregoing obligation is Matco's sole liability under this or any implied warranty and under no
circumstances shall Matco be liable for any incidental or consequential damages.

Note: Some states do not allow the exclusion or limitation of incidental or consequential damages so
the above limitation or exclusion may not apply to you.

Rev. 12/12/02

RL150

1/2" Drive Reversible Drill w/ Keyed Jacobs®Chuck
