Matco Tools MD95, MD100 Instruction Manual

Download

Table of Contents

SAFETY PRECAUTIONS

SAFETY FIRST! .......................................................................................... 1

SCAN TOOL CONTROLS

CONTROLS AND INDICATORS ................................................................. 3

DISPLAY FUNCTIONS ................................................................................ 4

BATTERY REPLACEMENT ........................................................................ 6

USING THE SCAN TOOL

CODE RETRIEVAL PROCEDURE .............................................................. 7

THE SYSTEM MENU ................................................................................... 12

VIEWING OEM ENHANCED DTCs (except Ford/Mazda) ........................... 12

VIEWING OEM ENHANCED DTCs (Ford/Mazda only) ............................... 13

VIEWING ABS DTCs ................................................................................... 15

VIEWING SRS DTCs ................................................................................... 16

NETWORK TEST ........................................................................................ 17

ERASING DIAGNOSTIC TROUBLE CODES (DTCs) .................................. 20

LIVE DATA MODE

VIEWING LIVE DATA .................................................................................. 22

CUSTOMIZING LIVE DATA (PIDs) .............................................................. 23

RECORDING (CAPTURING) LIVE DATA .................................................... 24

LIVE DATA PLAYBACK .............................................................................. 28

ADDITIONAL TESTS

SYSTEM TEST MENU ................................................................................ 30

VIEWING VEHICLE INFORMATION ........................................................... 33

RESETTING THE OIL MAINTENANCE LIGHT ........................................... 35

USING THE DLC LOCATOR ....................................................................... 36

BATTERY RESET ....................................................................................... 36

BATTERY/ALTERNATOR MONITOR ......................................................... 38

VIEWING TRIP CYCLE PROCEDURES ..................................................... 41

VIEWING THE FIRMWARE VERSION ........................................................ 42

THE TOOL LIBRARY .................................................................................. 42

ADJUSTMENTS AND SETTINGS ............................................................... 45

USING SCAN TOOL MEMORY

VIEWING DATA IN MEMORY ..................................................................... 48

WARRANTY AND SERVICING

LIMITED TWO YEAR WARRANTY .............................................................. 49

SERVICE PROCEDURES ........................................................................... 49

Safety Precautions

SAFETY FIRST!

This manual describes common test procedures used by experienced service technicians. Many test procedures require precautions to avoid accidents that can result in personal injury, and/or damage to your vehicle or test equipment. Always read your vehicle's service manual and follow its safety precautions before and during any test or service procedure. ALWAYS observe the following general safety precautions:

When an engine is running, it produces carbon monoxide, a toxic and poisonous gas. To prevent serious injury or death from carbon monoxide poisoning, operate the vehicle ONLY in a well-ventilated area.

To protect your eyes from propelled objects as well as hot or caustic liquids, always wear approved safety eye protection.

When an engine is running, many parts (such as the coolant fan, pulleys, fan belt etc.) turn at high speed. To avoid serious injury, always be aware of moving parts. Keep a safe distance from these parts as well as other potentially moving objects.

Engine parts become very hot when the engine is running. To prevent severe burns, avoid contact with hot engine parts.

Before starting an engine for testing or troubleshooting, make sure the parking brake is engaged. Put the transmission in park (for automatic transmission) or neutral (for manual transmission). Block the drive wheels with suitable blocks.

Connecting or disconnecting test equipment when the ignition is ON can damage test equipment and the vehicle's electronic components. Turn the ignition OFF before connecting the Scan Tool to or disconnecting the Scan Tool from the vehicle’s Data Link Connector (DLC).

To avoid personal injury, instrument damage and/or

damage to your vehicle; do not use the Scan Tool

before

reading this manual.

Safety Precautions

SAFETY FIRST!

To prevent damage to the on-board computer when taking vehicle electrical measurements, always use a digital multimeter with at least 10 megOhms of impedance.

Fuel and battery vapors are highly flammable. To prevent an explosion, keep all sparks, heated items and open flames away from the battery and fuel / fuel vapors. DO NOT SMOKE NEAR THE VEHICLE DURING TESTING.

Don't wear loose clothing or jewelry when working on an engine. Loose clothing can become caught in the fan, pulleys, belts, etc. Jewelry is highly conductive, and can cause a severe burn if it makes contact between a power source and ground.

Scan Tool Controls

CONTROLS AND INDICATORS

Figure 1. Controls and Indicators

See Figure 1 for the locations of items 1 through 14, below.

ERASE button - Erases Diagnostic Trouble Codes (DTCs), and “Freeze Frame” data from the vehicle’s computer, and resets Monitor status.

SYSTEM MENU button – When pressed, displays the System

Menu.

3. DTC/FF button - Displays the DTC View screen and/or scrolls the LCD display to view DTCs and Freeze Frame data.

POWER/LINK button - When not connected to a vehicle, turns the Scan Tool “On” and “Off”. When connected to a vehicle, links the Scan Tool to the vehicle’s PCM.

5. M button – When pressed, displays the Main Menu.

6. LD button – When pressed while linked to a vehicle, places the

Scan Tool in Live Data mode.

UP button – When in MENU mode, scrolls UP through the menu options. When LINKED to a vehicle, scrolls UP through the current display screen to display additional data.

ENTER button - When in MENU mode, confirms the selected

option or value.

Scan Tool Controls

DISPLAY FUNCTIONS

9. DOWN button - When in MENU mode, scrolls DOWN through the menu options. When LINKED to a vehicle, scrolls DOWN through the current display screen to display additional data.

10. GREEN LED - Indicates that all engine systems are running normally (all Monitors on the vehicle are active and performing their diagnostic testing, and no DTCs are present).

11. YELLOW LED - Indicates there is a possible problem. A “Pending” DTC is present and/or some of the vehicle’s emission monitors have not run their diagnostic testing.

12. RED LED - Indicates there is a problem in one or more of the vehicle’s systems. The red LED is also used to show that DTC(s) are present. DTCs are shown on the Scan Tool’s display. In this case, the Malfunction Indicator (“Check Engine”) lamp on the vehicle’s instrument panel will light steady on.

13. Display - Color LCD display shows menu and submenus, test results, Scan Tool functions and Monitor status information. See

DISPLAY FUNCTIONS (page 9) for more details.

14. CABLE - Connects the Scan Tool to the vehicle’s Data Link

Connector (DLC).

DISPLAY FUNCTIONS

Figure 2. Display Functions

See Figure 2 for the locations of items 1 through 14, below.

1. I/M MONITOR STATUS field - Identifies the I/M Monitor status area.

2. Monitor icons - Indicate which Monitors are supported by the

vehicle under test, and whether or not the associated Monitor has run its diagnostic testing (Monitor status). A solid green icon indicates the associated Monitor has completed its diagnostic testing. A flashing red icon indicates that the vehicle supports the associated Monitor, but the Monitor has not yet run its diagnostic testing.

114

11 12

Scan Tool Controls

DISPLAY FUNCTIONS

3. Vehicle icon – When visible, indicates Scan Tool is being powered through the vehicle’s Data Link Connector (DLC).

Link icon – When visible, indicates the Scan Tool is

communicating with the vehicle’s computer.

Computer icon - When visible, indicates the Scan Tool is linked

to a personal computer.

Scan Tool Internal Battery icon - When visible, indicates the Scan Tool batteries are “low” and should be replaced. If the batteries are not replaced when the battery symbol

is "on", all 3 LEDs will light to warn that the batteries need replacement. No data is displayed on screen when all 3 LEDs are lit.

7. DTC Display Area - Displays the Diagnostic Trouble Code (DTC) number. Each fault is assigned a code number that is specific to that fault. The DTC number is color-coded as follows:

 RED - Indicates the currently displayed DTC is a PERMANENT

DTC.

 YELLOW - Indicates the currently displayed DTC is a PENDING

DTC.

 GREEN - In cases where no codes are retrieved, a “No DTCs

are presently stored in the vehicle’s computer” message is shown in green.

8. Code Number Sequence - The Scan Tool assigns a sequence number to each DTC that is present in the computer’s memory, starting with “1.” This number indicates which code is currently displayed. Code number “1” is always the highest priority code, and the one for which “Freeze Frame” data has been stored.

If “1” is a “Pending” code, there may or may not be “Freeze Frame” data stored in memory.

9. Code Enumerator - Indicates the total number of codes retrieved from the vehicle’s computer.

10. Test Data Display Area - Displays DTC definitions, Freeze Frame data and other pertinent test information messages.

11. SYSTEM icon - Indicates the system with which the code is associated:

MIL icon ABS icon

12. FREEZE FRAME icon - Indicates that there is Freeze Frame data from “Priority Code” (Code #1) stored in the vehicle’s computer memory.

13. Code type - Indicates the type of code being displayed; Generic Stored, Generic Pending, Generic permanent, etc.

Scan Tool Controls

BATTERY REPLACEMENT

14. Bluetooth icon – Indicates communication status with a compatible Innova mobile application. A solid blue icon indicates an active Bluetooth connection has been established.

BATTERY REPLACEMENT

Replace batteries when the battery symbol is visible on display and/or the 3 LEDS are all lit and no other data is visible on screen.

1. Locate the battery cover on the back of the Scan Tool.

2. Slide the battery cover off (use your fingers).

3. Replace batteries with three AA-size batteries (for longer life, use

Alkaline-type batteries).

4. Reinstall the battery cover on the back of the Scan Tool.

Adjustments After Battery Installation

The first time the Scan Tool is turned on, you must select the desired display language (English, French or Spanish) and unit of measurement (Standard or metric) as follows:

1. Press POWER/LINK

to turn the Scan Tool “ON.”

 The Select Language screen displays.

2. Select the desired display language, then the ENTER

 The Select Unit screen displays.

3. Select the desired unit of measurement, then press ENTER

 The Firmware Version screen displays.

After the initial language and unit of measurement selections are performed, these, as well as other settings, can be changed as desired. Proceed to “ADJUSTMENTS AND SETTINGS” on page 45 for further instructions.

Using the Scan Tool

CODE RETRIEVAL PROCEDURE

Retrieving and using Diagnostic Trouble Codes (DTCs) for

troubleshooting vehicle operation is only one part of an

overall diagnostic strategy.

CODE RETRIEVAL PROCEDURE

Never replace a part based only on the DTC definition.

Each DTC has a set of testing procedures, instructions and flow charts that must be followed to confirm the location of the problem. Always refer to the vehicle's service manual for detailed testing instructions.

Check your vehicle thoroughly before performing any test.

ALWAYS observe safety precautions whenever working on a vehicle.

1. Turn the ignition off.

2. Locate the vehicle's 16-pin Data Link

Connector (DLC).

Some DLCs have a plastic cover that must be removed before connecting the Scan Tool.

If the Scan Tool is ON, turn it OFF BEFORE connecting the Scan Tool to the DLC.

3. Connect the Scan Tool to the vehicle’s DLC. The cable connector is keyed and will only fit one way.

 If you have problems connecting the cable connector to the DLC,

rotate the connector 180°.

 If you still have problems, check the DLC on the vehicle and on

the Scan Tool.

4. Turn the ignition on. DO NOT start the engine.

5. When the Scan Tool is properly connected to the vehicle’s DLC, the

unit automatically turns ON.

 If the unit does not power on automatically, it may indicate there

is no power present at the vehicle’s DLC connector. Check your fuse panel and replace any burned-out fuses.

 If replacing the fuse(s) does not correct the problem, consult the

vehicle’s repair manual to identify the proper computer (PCM) fuse/circuit, and perform any necessary repairs before proceeding.

6. The Scan Tool automatically starts a check of the vehicle’s computer to determine which communication protocol it is using.

Using the Scan Tool

CODE RETRIEVAL PROCEDURE

When the Scan Tool identifies the computer’s communication protocol, a communication link is established.

A PROTOCOL is a set of rules and procedures for regulating data transmission between computers, and between testing equipment and computers. As of this writing, five different types of protocols (ISO 9141, Keyword 2000, J1850 PWM, J1850 VPW and CAN) are in use by vehicle manufacturers.

 If the Scan Tool fails to link to the vehicle’s computer, a

“Communication Error” message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

 If the Scan Tool cannot link to the vehicle’s computer after three

attempts, the message “Contact Technical Support” displays.

- Press SYSTEM MENU

to return to the System Menu.

- Turn the ignition off, and disconnect the Scan Tool.

- Contact Technical Support for assistance.

7. If the Scan Tool can decode the Vehicle Identification Number (VIN) for the vehicle under test, the Confirm Vehicle screen displays.

 If the information shown is correct

for the vehicle under test, select Yes, then press ENTER

Proceed to step 10.

 If the information shown is not correct for the vehicle under test,

or if you wish to manually select the vehicle, select No, then press ENTER

. Proceed to step 8.

 If the Scan Tool cannot decode the Vehicle Identification

Number (VIN) for the vehicle under test, the Select Vehicle screen displays. Proceed to step 8.

8. When No is selected from the Vehicle information screen, the Select Vehicle screen displays. The Select Vehicle screen lists the three most recently tested vehicles.

 To use a previously tested vehicle,

select the desired vehicle, then press ENTER

. Proceed to step

10.

Using the Scan Tool

CODE RETRIEVAL PROCEDURE

 To select a new vehicle, select New Vehicle, then press ENTER

. Proceed to step 9.

9. When New Vehicle is chosen from the Select Vehicle screen, the Select Year screen displays.

 Select the desired vehicle model year, then press ENTER .

- The Select Make screen displays.

 Select the desired vehicle make, then press ENTER .

- The Select Model screen displays.

 Select the desired vehicle model, then press ENTER .

- The Select Engine screen displays.

 Select the desired vehicle engine size, then press ENTER .

- The Select transmission screen displays.

 Select the desired vehicle transmission type, then press ENTER

- The Vehicle Information screen displays.

 If the information shown is correct for the vehicle under test,

select Yes, then press ENTER

. Proceed to step 10.

 If the information shown is not correct for the vehicle under test,

or if you wish to reselect the vehicle, select No, then press ENTER

to return to the Select Year screen.

10. After approximately 10~60 seconds, the Scan Tool will retrieve and display any Diagnostic Trouble Codes, Monitor Status and Freeze

Frame Data retrieved from the vehicle’s computer memory.

 The Scan Tool will display a code only if codes are present. If no

codes are present, the message “No Powertrain DTCs or Freeze Frame Data presently stored in the vehicle’s computer” displays.

 The Scan Tool is capable of retrieving and storing up to 32

codes in memory, for immediate or later viewing.

11. Refer to DISPLAY FUNCTIONS on page 4 for a description of display elements.

 If a recommended solution for the

"priority" DTC is available, the FixAssist

screen for the DTC displays. The screen shows recommended inspection and repair actions to correct the malfunction that caused the DTC to be set.

 If a recommended solution for the “priority” DTC is not available,

an advisory message displays. Press DTC/FF to scroll to the next DTC.

Using the Scan Tool

CODE RETRIEVAL PROCEDURE

In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the Scan Tool display area to indicate the presence of additional information.

If a definition for the currently displayed code is not available, an advisory message shows.

12. Read and interpret Diagnostic Trouble Codes/system condition using the display and the green, yellow and red LEDs.

The green, yellow and red LEDs are used (with the display) as visual aids to make it easier to determine engine system conditions.

 Green LED – Indicates that all

engine systems are “OK” and operating normally. All monitors supported by the vehicle have run and performed their diagnostic testing, and no trouble codes are present. All Monitor icons will be solid.

 Yellow LED – Indicates one of the

following conditions:

A. A PENDING CODE IS PRESENT – If

the yellow LED is illuminated, it may indicate a Pending code is present. Check the display for confirmation. A Pending code is confirmed by the presence of a numeric code and the word PENDING.

B. MONITOR NOT RUN STATUS – If

the display shows a zero (indicating there are no DTC’s present in the vehicle’s computer memory), but the yellow LED is illuminated, it may be an indication that some of the Monitors supported by the vehicle have not yet run and completed their diagnostic testing. Check the display for confirmation. All Monitor icons that are blinking have not yet run and completed their diagnostic testing; all Monitor icons that are solid have run and completed their diagnostic testing.

 Red LED – Indicates there is a

problem with one or more of the vehicle’s systems. The red LED is also used to indicate that DTC(s) are present. In this case, the Malfunction Indicator (Check Engine) lamp on the vehicle’s instrument panel will be illuminated.

Using the Scan Tool

CODE RETRIEVAL PROCEDURE

 DTC’s that start with “P0”, “P2” and some “P3” are considered

Generic (Universal). All Generic DTC definitions are the same on all OBD2 equipped vehicles. The Scan Tool automatically displays the code definitions (if available) for Generic DTC’s.

 DTC’s that start with “P1” and some “P3” are Manufacturer specific

codes and their code definitions vary with each vehicle manufacturer.

13. If more than one DTC was retrieved, and to view Freeze Frame Data, press and release DTC/FF, as necessary.

 Each time DTC/FF is pressed and released, the Scan Tool will

scroll and display the next DTC in sequence until all DTCs in its memory have displayed.

 Freeze Frame Data (if available) will display after DTC #1.  In OBD2 systems, when an

emissions-related engine malfunction occurs that causes a DTC to set, a record or snapshot of engine conditions at the time that the malfunction occurred is also saved in the vehicle’s computer memory. The record saved is called Freeze Frame data. Saved engine conditions include, but are not limited to: engine speed, open or closed loop operation, fuel system commands, coolant temperature, calculated load value, fuel pressure, vehicle speed, air flow rate, and intake manifold pressure.

If more than one malfunction is present that causes more than one DTC to be set, only the code with the highest priority will contain Freeze Frame data. The code designated “01” on the Scan Tool display is referred to as the PRIORITY code, and Freeze Frame data always refers to this code. The priority code is also the one that has commanded the MIL on.

Retrieved information can be uploaded to a Personal Computer (PC) with the use of optional software (see instructions included with the software for more information).

14. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the “Priority” Code.

15. Determine engine system(s) condition by viewing the display for any retrieved Diagnostic Trouble Codes, code definitions and Freeze Frame data, interpreting the green, yellow and red LEDs.

 If DTC’s were retrieved and you are going to perform the repairs

yourself, proceed by consulting the Vehicle’s Service Repair Manual for testing instructions, testing procedures, and flow charts related to retrieved code(s).

 To prolong battery life, the Scan Tool automatically shuts “Off”

approximately three minutes after it is disconnected from the vehicle. The DTCs retrieved, Monitor Status and Freeze Frame data (if any) will remain in the Scan Tool’s memory, and may be viewed at any time by turning the unit “On”. If the Scan Tool’s batteries are removed, or if the Scan Tool is re-linked to a vehicle to retrieve codes/data, any prior codes/data in its memory are automatically cleared.

Using the Scan Tool

THE SYSTEM MENU - VIEWING OEM ENHANCED DTCs (except Ford/Mazda)

THE SYSTEM MENU

The System Menu provides the ability to retrieve “enhanced” DTCs, AntiLock Brake System (ABS) and Supplemental Restraint System (SRS) DTCs for most BMW, Chrysler/Jeep, Ford/Mazda, GM/Isuzu, Honda/Acura, Hyundai, Mercedes Benz, Nissan, Toyota/Lexus, Volkswagen and Volvo vehicles. The types of enhanced data available depends on the vehicle make. You can also return to the Global OBD2 mode.

Depending on the vehicle under test, some features and functions may not be available.

 To access the System Menu, press

SYSTEM MENU

. Select the desired

option, then press ENTER

to view

the selected information.

To view ABS DTCs: Select ABS. Refer to VIEWING ABS DTCs on page 15 to view ABS DTCs for your vehicle.

To view SRS DTCs: Select SRS. Refer to VIEWING SRS DTCs on page 16 to view SRS DTCs for your vehicle.

To view OEM enhanced DTCs: Select OEM Enhanced. Refer to VIEWING OEM ENHANCED DTCs (except Ford/Mazda) on page 12 or VIEWING OEM ENHANCED DTCs (Ford/Mazda only) on page 13 to view OEM enhanced DTCs for your vehicle.

To perform a Network Test: Select All Module Scan or Select Modules, as desired. Refer to NETWORK TEST on page 17 to view

DTCs for other modules.

VIEWING OEM ENHANCED DTCs (except Ford/Mazda)

When (make) OEM Enhanced is chosen from the System Menu, the Scan Tool retrieves OEM enhanced DTCs from the vehicle’s computer.

1. A “One moment please” message displays while the Scan Tool retrieves the selected DTCs.

 If the Scan Tool fails to link to the vehicle’s computer, a

“Communication Error” message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

 If the Scan Tool cannot link to the vehicle’s computer after three

attempts, the message “Contact Technical Support” displays.

- Press SYSTEM MENU

to return to the System Menu.

- Turn the ignition off, and disconnect the Scan Tool.

Using the Scan Tool

VIEWING OEM ENHANCED DTCs (Ford/Mazda only)

- Contact Technical Support for assistance.

2. Refer to DISPLAY FUNCTIONS on page 4 for a description of LCD display elements.

If the definition for the currently displayed code is not available, an advisory message shows.

I/M MONITOR STATUS icons are not displayed when viewing enhanced DTCs.

In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the code display area to indicate the presence of additional information.

 The Scan Tool will display a code only if codes are present in the

vehicle’s computer memory. If no codes are present, a “No OEM Enhanced DTC’s are presently stored in the vehicle’s computer” is

displayed. Press SYSTEM MENU

to return to the System Menu.

3. If more than one code was retrieved press DTC/FF, as necessary, to display additional codes one at a time.

 Whenever the Scroll function is used to view additional codes,

the Scan Tool’s communication link with the vehicle’s computer disconnects. To re-establish communication, press POWER/

LINK

again.

4. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the “Priority” Code.

 To view additional enhanced DTCs, repeat steps 1 through 4,

above.

 To exit the enhanced mode, press SYSTEM MENU to return

to the System Menu. Select Global OBD, then press ENTER

to return to the Global OBD2 mode.

VIEWING OEM ENHANCED DTCs (Ford/Mazda only)

Mazda Enhanced DTCs are available for Mazda-branded Ford vehicles only.

When Ford OEM Enhanced is chosen from the System Menu, the Ford Enhanced menu displays. You may view DTCs for either the “Continuous Memory Test”, “KOEO (Key On Engine Off) Test” or “KOER (Key On Engine Running) Test.”

1. Select the desired option, then press ENTER

 If KOER is selected, an advisory message shows.

Vacuum reservoir control circuit open

P1250

(1/2) Engine

Chrysler OEM Enhanced

Press any Hotkey

Using the Scan Tool

VIEWING OEM ENHANCED DTCs (Ford/Mazda only)

- Start and warm the engine to normal operating temperature, then press ENTER

. Proceed to step 3.

2. If KOEO or Continuous Memory is selected, an “instructional” message shows.

 Turn the ignition OFF, then back ON. Press ENTER .

Proceed to step 3.

3. A “One moment please” message displays while the test is in progress.

 If the Scan Tool fails to link to the vehicle’s computer, a

“Communication Error” message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

 If the Scan Tool cannot link to the vehicle’s computer after three

attempts, the message “Contact Technical Support” displays.

- Press SYSTEM MENU

to return to the System Menu.

- Turn the ignition off, and disconnect the Scan Tool.

- Contact Technical Support for assistance.

 If the KOER Test was selected, and the vehicle’s engine is not

running, an advisory message shows.

- Press SYSTEM MENU

to return to the System Menu.

 If the KOEO Test was selected, and the vehicle’s engine is

running, an advisory message shows.

- Press SYSTEM MENU

to return to the System Menu.

4. If the KOER test was selected, an “instructional” message shows.

 Turn the steering wheel to the right, then release.

 Press and release the brake pedal.

 Cycle the overdrive switch (if equipped).

 A “One moment please” message displays while the test is in

progress.

5. Refer to DISPLAY FUNCTIONS on page 4 for a description of LCD display elements.

If the definition for the currently displayed code is not available, an advisory message shows.

I/M MONITOR STATUS icons are not displayed when viewing enhanced DTCs.

Using the Scan Tool

VIEWING ABS DTCs

In the case of long code definitions, a small arrow is shown in the upper/ lower right-hand corner of the code display area to indicate the presence of additional information.

 If no codes are present, a “System

Pass” message is displayed. Press SYSTEM MENU

to return to the

System Menu.

6. If more than one code was retrieved press DTC/FF, as necessary, to display additional codes one at a time.

 Whenever the Scroll function is used to view additional codes,

the Scan Tool’s communication link with the vehicle’s computer disconnects. To re-establish communication, press POWER/

LINK

again.

7. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the “Priority” Code.

 To view additional enhanced DTCs, repeat steps 1 through 5,

above.

 To exit the enhanced mode, press SYSTEM MENU to return

to the System Menu. Select Global OBD, then press ENTER

to return to the Global OBD2 mode.

VIEWING ABS DTCs

Refer to the manufacturer’s website for vehicle makes covered.

Reading ABS DTCs

1. When ABS is chosen from the System Menu, a "One moment

please" message displays while the Scan Tool retrieves the selected DTCs.

 If ABS functionality is not supported by the vehicle under test, an

advisory message shows. Press SYSTEM MENU

to return to

the System Menu.

 If the Scan Tool fails to link to the vehicle’s computer, a

"Communication Error" message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

Using the Scan Tool

VIEWING SRS DTCs

 If the Scan Tool cannot link to the vehicle’s computer after three

attempts, the message “Contact Technical Support” displays.

- Press SYSTEM MENU

to return to the System Menu.

- Turn the ignition off, and disconnect the Scan Tool.

- Contact Technical Support for assistance.

2. Refer to DISPLAY FUNCTIONS on page 4 for a description of LCD display elements.

If the definition for the currently displayed code is not available, an advisory message shows.

I/M MONITOR STATUS icons are not displayed when viewing ABS DTCs.

In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the code display area to indicate the presence of additional information.

 If no codes are present, a "No ABS DTC’s are presently stored

in the vehicle’s computer" shows. Press SYSTEM MENU

return to the System Menu.

3. If more than one code was retrieved press DTC/FF, as necessary, to display additional codes one at a time.

 Whenever the Scroll function is used to view additional codes,

the Scan Tool’s communication link with the vehicle’s computer disconnects. To re-establish communication, press POWER/ LINK

again.

4. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the “Priority” Code.

 To exit the enhanced mode, press SYSTEM MENU to return

to the System Menu. Select Global OBD, then press ENTER

to return to the Global OBD2 mode.

VIEWING SRS DTCs

Refer to the manufacturer’s website for vehicle makes covered.

Reading SRS DTCs

1. When SRS is chosen from the System Menu, a "One moment

please" message displays while the Scan Tool retrieves the selected DTCs.

 If SRS functionality is not supported by the vehicle under test, an

advisory message shows. Press SYSTEM MENU

to return to

the System Menu.

Using the Scan Tool

NETWORK TEST

 If the Scan Tool fails to link to the vehicle’s computer, a

"Communication Error" message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

 If the Scan Tool cannot link to the vehicle’s computer after three

attempts, the message “Contact Technical Support” displays.

- Press SYSTEM MENU

to return to the System Menu.

- Turn the ignition off, and disconnect the Scan Tool.

- Contact Technical Support for assistance.

2. Refer to DISPLAY FUNCTIONS on page 4 for a description of LCD display elements.

If the definition for the currently displayed code is not available, an advisory message shows.

I/M MONITOR STATUS icons are not displayed when viewing SRS DTCs.

In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the code display area to indicate the presence of additional information.

 If no codes are present, a "No SRS DTC’s are presently stored

in the vehicle’s computer" shows. Press SYSTEM MENU

return to the System Menu.

3. If more than one code was retrieved press DTC/FF, as necessary, to display additional codes one at a time.

 Whenever the Scroll function is used to view additional codes,

the Scan Tool’s communication link with the vehicle’s computer disconnects. To re-establish communication, press POWER/LINK

again.

4. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the “Priority” Code.

 To exit the enhanced mode, press SYSTEM MENU to return

to the System Menu. Select Global OBD, then press ENTER

to return to the Global OBD2 mode.

NETWORK TEST

The Network Test lets you perform a scan of all vehicle modules, or of a single selected module, to retrieve DTCs associated with the module(s).

Using the Scan Tool

NETWORK TEST

To scan all modules:

1. Select All Module Scan from the System Menu, then press ENTER

 A “One moment please” message displays while the Scan Tool

scans all available modules.

 When the scan is complete, the

Available Systems screen displays. The screen shows the number of DTCs recorded for each available module.

2. Select the module for which you wish to view DTCs, then press ENTER

. A “One moment please” message displays while the requested DTCs are retrieved.

 If the Scan Tool fails to link to the selected module, a

“Communication Error” message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue, or, press System

to return to the System Menu.

 If the selected module does not support the “Read DTC” function,

an advisory message displays. Press System Menu

to return to the System Menu, or, press M to access the Main Menu.

3. Refer to DISPLAY FUNCTIONS on page 4 for a description of LCD display elements.

If the definition for the currently displayed code is not available, an advisory message shows.

I/M MONITOR STATUS icons are not displayed when using the Network Test function.

In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the code display area to indicate the presence of additional information.

 If no codes are present, the message "No (system name) DTC’s are

presently stored in the vehicle’s computer" shows. Press System

to return to the System Menu.

Using the Scan Tool

NETWORK TEST

4. If more than one code was retrieved press DTC/FF to display additional codes one at a time.

 Whenever the Scroll function is used, the Scan Tool’s

communication link with the vehicle’s computer disconnects. To re-establish communication, press POWER/LINK

again.

5. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the first code.

 To exit the enhanced mode, Press System Menu to return

to the System Menu. Select Global OBD, then press ENTER

to return to the Global OBD2 mode.

To scan a selected module:

1. Choose Select Modules from the System Menu, then press ENTER

 If the Select Group screen displays, select the group (Drive,

Chassis, Body, etc.) containing the module you wish to scan,

then press ENTER

. Proceed to step 2.

 If the Select Group screen does not display, proceed to step 2.

2. The Available Systems screen displays. Select the desired module, then press ENTER

 A “One moment please” message

displays while the requested DTCs are retrieved.

3. Select the module for which you wish to view DTCs, then press ENTER

. A “One moment please” message displays while the requested DTCs are retrieved.

 If the Scan Tool fails to link to the selected module, a

“Communication Error” message shows.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue, or, press System

to return to the System Menu.

 If the selected module does not

support the “Read DTC” function, an advisory message displays. Press

System Menu

to return to the System Menu, or, press M to access the Main Menu.

4. Refer to DISPLAY FUNCTIONS on page 4 for a description of LCD display elements.

Using the Scan Tool

ERASING DIAGNOSTIC TROUBLE CODES (DTCs)

If the definition for the currently displayed code is not available, an advisory message shows.

I/M MONITOR STATUS icons are not displayed when using the Network Test function.

In the case of long code definitions, a small arrow is shown in the upper/lower right-hand corner of the code display area to indicate the presence of additional information.

 If no codes are present, the message "No (system name) DTC’s are

presently stored in the vehicle’s computer" shows. Press System

to return to the System Menu.

5. If more than one code was retrieved press DTC/FF to display additional codes one at a time.

 Whenever the Scroll function is used, the Scan Tool’s

communication link with the vehicle’s computer disconnects. To re-establish communication, press POWER/LINK

again.

6. When the last retrieved DTC has been displayed and DTC/FF is pressed, the Scan Tool returns to the first code.

 To exit the enhanced mode, press System Menu

to return

to the System Menu. Select Global OBD, then press ENTER

to return to the Global OBD2 mode.

ERASING DIAGNOSTIC TROUBLE CODES (DTCs)

When the Scan Tool’s ERASE function is used to erase DTCs from the vehicle's on-board computer, "Freeze Frame" data and manufacturer-specific-enhanced data are also erased. "Permanent" DTCs ARE NOT erased by the ERASE function.

If you plan to take the vehicle to a Service Center for repair, DO NOT erase the codes from the vehicle's computer. If the codes are erased, valuable information that might help the technician troubleshoot the problem will also be erased.

Erase DTCs from the computer's memory as follows:

When DTCs are erased from the vehicle's computer memory, the I/M Readiness Monitor Status program resets the status of all Monitors to a not run "flashing" condition. To set all of the Monitors to a DONE status, an OBD2 Drive Cycle must be performed.

1. If not connected already, connect the Scan Tool to the vehicle's DLC, and turn the ignition "On.” (If the Scan Tool is already connected and linked to the vehicle's computer, proceed directly to step 3. If not, continue to step 2.)

2. Perform the Code Retrieval procedure as described on page 7.

 To erase OBD2 DTCs: Wait until

the codes are displayed and then proceed to step 3.

Using the Scan Tool

ERASING DIAGNOSTIC TROUBLE CODES (DTCs)

 To erase enhanced, ABS, SRS or Network DTCs: Press

SYSTEM MENU

to display the System Menu. Select the

desired option, then press ENTER

. Perform the appropriate

Code Retrieval procedure and then proceed to step 3.

3. Press and release ERASE

. A confirmation message shows.

 If you are sure you want to proceed,

select Yes, then press ENTER to continue.

 If you do not want to proceed, select

No, then press ENTER

button to

cancel the erase procedure.

4. If you chose to erase DTCs, a “One moment please…” message displays while the erase function is in progress.

If the vehicle’s engine is running, an advisory message shows. Turn the engine OFF, then turn the ignition back to ON. DO NOT start the engine. Press ENTER

to continue.

 If the erase was successful, a

confirmation message shows. Press SYSTEM MENU

to return to the

System Menu.

If the erase was not successful and ECU error code $22 is present, an advisory message displays. Start the engine and maintain vehicle speed at 0, then

press ERASE

to try again.

 If the erase was not successful, an advisory message shows

indicating the erase request was sent to the vehicle’s computer. Press SYSTEM MENU

to return to the System Menu.

Live Data Mode

VIEWING LIVE DATA

The Scan Tool lets you view and/or record "real-time" Live Data. This information includes values (volts, rpm, temperature, speed etc.) and system status information (open loop, closed loop, fuel system status, etc.) generated by the various vehicle sensors, switches and actuators. These are the same signal values generated by the sensors, actuators, switches and/or vehicle system status information used by the vehicle's computer when calculating and conducting system adjustments and corrections.

The real time (Live Data) vehicle operating information (values/status) that the computer supplies to the Scan Tool for each sensor, actuator, switch, etc. is called Parameter Identification (PID) Data.

Each PID (sensor, actuator switch, status, etc.) has a set of operating characteristics and features (parameters) that serve to identify it. The Scan Tool displays this information for each sensor, actuator, switch or status that is supported by the vehicle under test.

WARNING: If the vehicle must be driven in order to perform a troubleshooting procedure, ALWAYS have a second person help you. One person should drive the vehicle while the other person observes the Scan Tool data. Trying to drive and operate the Scan Tool at the same time is dangerous, and could cause a serious traffic accident.

VIEWING LIVE DATA

1. While linked to the vehicle, start the engine, then press LD.

2. A “One moment please . . .” message displays while the Scan Tool

establishes communication with the vehicle.

 If the Scan Tool fails to establish communication with the vehicle,

a “Communication Error” message displays.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press ENTER

to continue.

3. Real-time Live Data (PID) information supported by the vehicle under test displays.

 If Live Data is not supported by the

vehicle under test, an advisory message displays. Press SYSTEM MENU

to return to the System

Menu.

The values for the various PIDS displayed may change as the vehicle's operating conditions change.

4. Only a limited amount of PID data can be displayed on the screen at one time. If additional PID data is available, a small arrow is shown on the display. Press UP

and DOWN , as necessary, to view

all available PID data.

Live Data Mode

CUSTOMIZING LIVE DATA (PIDs)

 If communication with the vehicle is lost while viewing Live Data,

an “advisory” message displays.

5. Press and release ENTER

to view the currently selected PID in

“graph” mode. Press and release ENTER

again to return to the PID

list.

 You can display a maximum of two

PIDs in "graph" mode at any given time.

 With two PID shown in "graph"

mode, press and hold LD to superimpose one graph on the other. Release LD to separate the graphs.

6. Press and hold ENTER

to view the “expanded” definition for the

currently selected PID. Release ENTER

to return to the PID list.

7. If you experience vehicle problems, view and/or compare the Live Data (PID) information displayed on the Scan Tool to specifications in the vehicle's repair manual.

If desired, you can "customize" the Live Data display to show only those PIDs you are interested in viewing. See Customizing Live Data (PIDs) below for details. You may also choose to "capture" (record) Live Data for later viewing. See RECORDING (CAPTURING) LIVE DATA on page 24 for details.

CUSTOMIZING LIVE DATA (PIDs)

You can customize the Live Data display by placing the Scan Tool in "Custom Live Data" mode and selecting only the PIDs that you wish to display.

1. With the Scan Tool in Live Data mode (see VIEWING LIVE DATA on page 22), press and hold LD to access the Live Data Menu, then release.

2. Select Custom Live Data, then press ENTER

 If the Scan Tool fails to establish

communication with the vehicle, a “Communication Error” message displays.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

Live Data Mode

RECORDING (CAPTURING) LIVE DATA

 If Live Data is not supported by the vehicle under test, an

advisory message displays. Press SYSTEM MENU

to return

to the System Menu.

 If custom Live Data was previously configured, the Select PIDs

to Use screen displays.

- To use the existing custom Live Data selections, select Use existing PIDs, then press ENTER

. Proceed to step 5.

- To configure new custom Live Data, select Select new PIDs, then press ENTER . The Custom Live Data menu displays. Proceed to step 3.

 If custom Live Data was not

previously selected, the Custom Live Data menu displays. Proceed to step 3.

3. Press UP

and DOWN to scroll through the available PIDs. When the PID you wish to display is highlighted, press ENTER

(a "checkmark" shows to confirm your selection). Repeat until only the PIDs you want to display are selected.

 To deselect a PID, highlight the PID, then press ENTER .

The checkmark is removed.

4. When you are finished making your selection(s), press LD to continue.

 If no PIDs have been selected, an advisory message displays.

Press ENTER

to return to the Custom Live Data menu.

5. The Scan Tool is now in "Custom Live Data" mode. Only the PIDs you selected are shown.

 To change the current custom Live

Data selections, select Reselect PIDs, then press ENTER

to return to the Custom Live Data menu. Repeat step 3.

6. To exit the "Custom Live Data" mode, press LD to return to the Live Data Menu.

RECORDING (CAPTURING) LIVE DATA

You can record and save several frames of Live Data information for each PID supported by the vehicle in the Scan Tool's memory.

There are two ways the Scan Tool can "record" Live Data:

 Record by DTC Trigger

Live Data Mode

RECORDING (CAPTURING) LIVE DATA

 Record by Manual Trigger

If POWER/LINK

is pressed at any time while in Live Data mode, any recorded Live Data will be erased from the Scan Tool’s memory.

Record by DTC Trigger

This function automatically records Live Data information when a DTC sets and saves it in the Scan Tool’s memory. The recorded data can be a valuable troubleshooting aid, particularly if you are experiencing a fault that is causing a DTC to set. The Scan Tool can record approximately 100 frames of Live Data.

1. With the Scan Tool in Live Data mode (see VIEWING LIVE DATA on page 22), press and hold LD to access the Live Data Menu, then release.

2. Select Record Live Data, then press ENTER

 The Record Live Data Menu displays.

 If the Scan Tool fails to establish communication with the vehicle,

a “Communication Error” displays.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

3. Select Record by DTC Trigger, then press ENTER

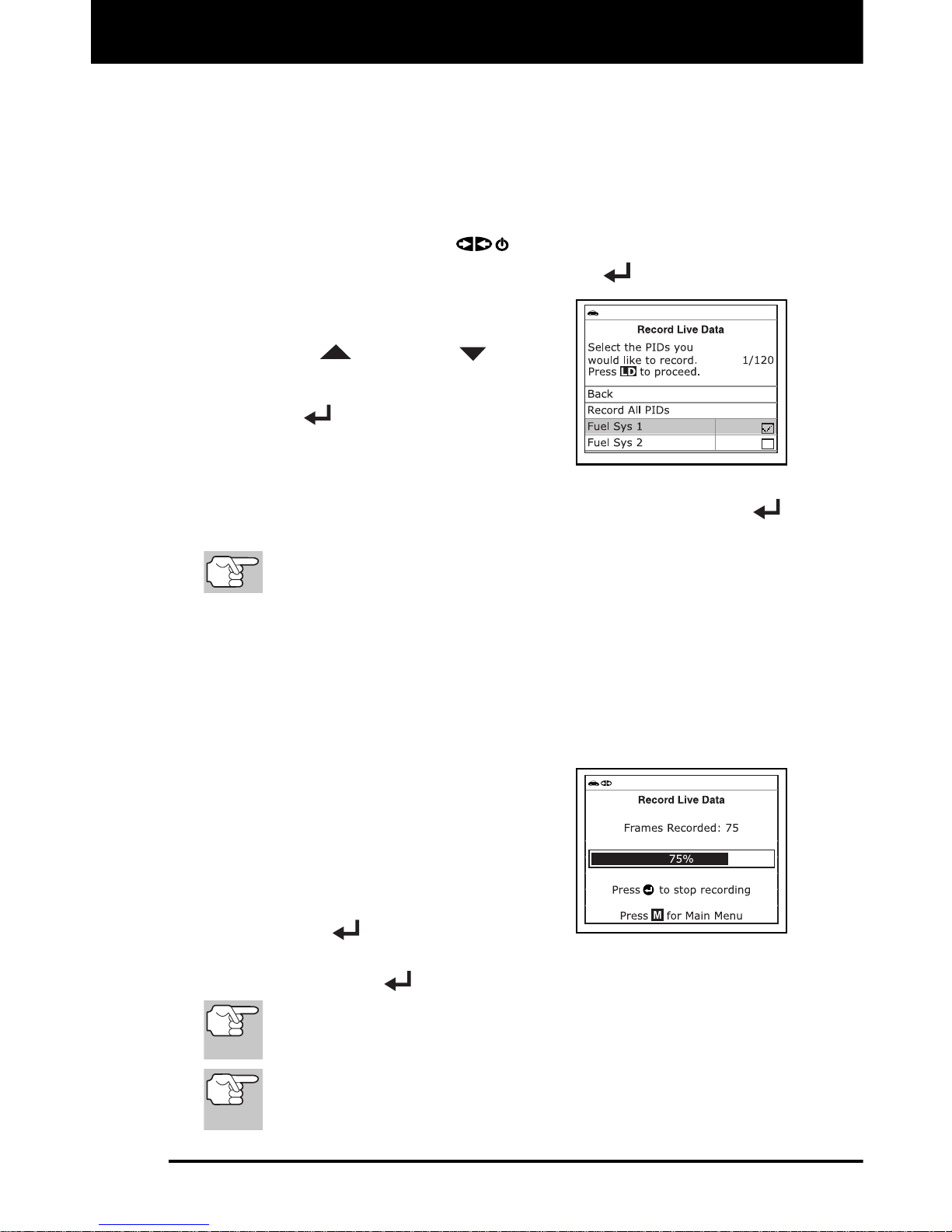

 The Select PIDs to Record screen

displays.

4. Press UP

and DOWN to scroll through the available PIDs. When a PID you wish to record is highlighted, press ENTER

(a “checkmark” shows to confirm your selection). Repeat until only the PIDs you want to record have all been selected.

 To deselect a PID, highlight the PID, then press ENTER .

The checkmark is removed.

To record all PIDs, select Record All PIDs, then press LD to continue.

5. When you are finished making your selections, press LD to continue.

 If DTCs are presently stored in the vehicle’s computer, an

advisory message displays.

Live Data Mode

RECORDING (CAPTURING) LIVE DATA

- Select Erase DTCs, then press ENTER . A “One moment please…” message displays while DTCs are erased from the vehicle’s computer.

 If the erase is not successful, an advisory message displays.

- To retry the erase process, verify that the Scan Tool is properly connected to the vehicle’s DLC and that the ignition is on. Select

Erase, then press ENTER

 When the Erase process is complete, the Record Live Data

screen displays the message “Ready to record Waiting for DTCs.”

6. Put the engine in the operating condition that causes the DTC to set.

 If necessary, drive the vehicle until

you reach the vehicle speed at which the problem occurs.

7. When the Scan Tool detects a fault that causes a DTC to set, it automatically records and saves approximately 100 frames of Live Data information in its memory for each PID selected.

 A progress message shows on the display.

- You can stop and save recorded Live Data at any time by pressing ENTER

 When recording is complete, a confirmation screen displays.

Select Yes or No, as desired, then press ENTER

 If recording was not successful, an advisory message displays.

Press ENTER

to return to the Record Live Data menu.

If Yes is selected, the Scan Tool enters "Playback" mode (see LIVE DATA PLAYBACK on page 28 for details). If No is selected, the display returns to the Live Data Menu.

If desired, you can transfer the recorded Live Data information to a personal computer with the use of optional software (see instructions included with the software for more information).

Record by Manual Trigger

This option lets you select the precise time at which the Live Data recording will occur. Record by Manual Trigger can be a very valuable tool when troubleshooting intermittent problems that do not meet the requirements for a DTC to set. The Scan Tool is capable of recording approximately 100 frames of Live Data.

1. With the Scan Tool in Live Data mode (see VIEWING LIVE DATA on page 22), press and hold LD to access the Live Data Menu, then release.

2. Select Record Live Data, then press ENTER

 The Record Live Data Menu displays.

Live Data Mode

RECORDING (CAPTURING) LIVE DATA

 If the Scan Tool fails to establish communication with the vehicle,

a “Communication Error” message displays.

- Ensure your vehicle is OBD2 compliant.

- Verify the connection at the DLC, and verify the ignition is ON.

- Turn the ignition OFF, wait 5 seconds, then back ON to reset the computer.

- Press POWER/LINK

to continue.

3. Select Record Manually, then press ENTER

 The Select PIDs to Record screen

displays.

4. Press UP

and DOWN to scroll through the available PIDs. When a PID you wish to record is highlighted, press ENTER

(a “checkmark” shows to confirm your selection). Repeat until only the PIDs you want to record have all been selected.

 To deselect a PID, highlight the PID, then press ENTER .

The checkmark is removed.

To record all PIDs, select Record All PIDs, then press LD to continue.

5. When you are finished making your selections, press LD to continue.

 The Record Live Data screen displays.

 Highlight Start Recording. Put the engine in the operating con-

dition where the problem manifests itself.

- If necessary, drive the vehicle until you reach the vehicle speed at which the problem occurs.

6. When the problem occurs, press and release LD.

 A progress message shows on the

display.

 When recording is complete, a

confirmation screen displays. Select

Yes or No, as desired, then press ENTER

 If recording was not successful, an advisory message displays.

Press ENTER

to return to the Record Live Data menu.

If Yes is selected, the Scan Tool enters "Playback" mode (see LIVE DATA PLAYBACK on page 28 for details). If No is selected, the display returns to the Live Data Menu.

If desired, you can transfer the recorded Live Data information to a personal computer with the use of optional software (see instructions included with the software for more information).

Live Data Mode

LIVE DATA PLAYBACK

Once Live Data has been recorded, it is saved in the Scan Tool's memory. You can view recorded Live Data immediately after recording by selecting Yes from the Record Live Data confirmation screen (see RECORDING (CAPTURING) LIVE DATA on page 24 for more information), or you can view it later using the "Playback" function.

1. With the Scan Tool not connected to a vehicle, press POWER/LINK

 The "To Link" screen displays.

2. Press and hold LD until the Live Data Menu displays.

3. Select Playback Live Data, then press ENTER

 The Playback Live Data menu displays.

When you select Yes from the Record Live Data confirmation screen, the Scan Tool enters the "Live Data Playback" mode, and the Playback Live Data menu displays.

4. Select Continuous Playback or Frame by Frame, as desired, then press ENTER

 Only a limited amount of PID data

can be displayed on the screen at one time. If additional PID data is available, a small arrow is shown on the display. Press UP

and

DOWN

, as necessary, to view

all available PID data.

 When viewing recorded Live Data, look for any irregularities in any

of the PID values/signal information (LTFT %, RPM, MAP, TEMP, etc.). If any PIDs are not within specification, or irregularities are detected, follow the procedures in the vehicle's service repair manual to perform additional troubleshooting and repair.

5. When you select Continuous Playback, the Scan Tool plays recorded data at a rate of one frame / 15 seconds. When playback is finished, a Playback Complete message displays.

 To play the data back again, select Continuous Playback or

Frame by Frame, as desired, then press ENTER

 To exit Live Data Playback mode, select Exit Playback, then

press ENTER

6. When Frame by Frame is selected, you must scroll the individual frames manually.

 When you have viewed all PID information for the current frame

of Live Data, select Next Frame or Previous Frame, as desired, then press ENTER

Live Data Mode

LIVE DATA PLAYBACK

 To exit Live Data Playback mode, select Exit Playback, then

press ENTER

If there is no Live Data currently stored in the Scan Tool's memory, an advisory message shows on the display. Press LD to exit the "Live Data Playback" mode.

Additional Tests

SYSTEM TEST MENU

THE MAIN MENU

You can use the Scan Tool to perform additional diagnostic tests, view diagnostic and vehicle information stored in your vehicle's on-board computer, and to configure the Scan Tool for your particular needs. These functions are accessed through the Main Menu. The following functions are available:

 System Tests – Displays the System

Test menu, which lets your view results for the O2 Sensor Test and OBD Monitor Test, and initiate a test of the vehicle’s EVAP system.

 Vehicle Information – Displays the

Vehicle Info menu, which lets you retrieve and view reference information for the vehicle under test.

 Oil Reset – Lets you reset the Oil Maintenance Light.

 DLC Locator – Lets you find the location of the Data Link

Connector (DLC) for a specified vehicle.

 Battery Reset – Lets you reset the battery monitor system after

battery replacement.

 Battery/Alternator Monitor – Performs a check of the vehicle’s

battery and alternator system to ensure the system is operating within acceptable limits.

 Trip Cycle Procedure – Lets you view trip cycle procedures for a

selected vehicle monitor.

 Firmware Version – Displays the Scan Tool’s firmware version.

 Tool Library – Displays the Tool Library menu, which provides

access to OBD1 and OBD2 DTC libraries and to definitions for Monitor icons and LED indicators.

 Tool Settings – Displays the Tool Settings menu, which lets you

make adjustments and settings to configure the Scan Tool to your particular needs.

The System Tests and Vehicle Information options are shown only when the Scan Tool is in Global OBD2 mode.

SYSTEM TEST MENU

Additional tests are accessed through the System Test menu. The following functions are available:

 O2 Sensor Test - Retrieves and displays O2 sensor monitor test

results from your vehicle's on-board computer.

 OBD Monitor Test - Retrieves and displays test results for

emission-related powertrain components and systems that are not continuously monitored.

 EVAP Test - Performs a leak test for the vehicle's EVAP system.

Additional Tests

SYSTEM TEST MENU

1. While linked to the vehicle, press M.

 The Main Menu displays.

2. Select System Tests, then press ENTER

 The System Test menu displays.

If System Tests is not shown on the Main Menu, the Systems Tests functions are not available for your vehicle.

O2 Sensor Test

OBD2 regulations require that applicable vehicles monitor and test operation of the oxygen (O2) sensors to identify problems that can affect fuel efficiency and vehicle emissions. These tests are performed automatically when engine operating conditions are within predefined limits. Results of these tests are stored in the on-board computer's memory.

The O2 Sensor Test function lets you retrieve and view O2 sensor monitor test results for the most recently completed tests from the vehicle's on-board computer.

The Scan Tool does not perform O2 sensor tests, but retrieves results from the most recently performed O2 sensor tests from the on-board computer's memory. You may retrieve O2 sensor test results for only one test of one sensor at any given time.

1. From the System Test menu, select O2 Sensor Test, then press ENTER

2. A "One moment please..." message displays, followed by the Select Sensor screen.

If O2 sensor test data is not presently stored in the vehicle’s computer, an advisory message displays. Press M to return to the Main Menu.

If O2 sensor tests are not supported by the vehicle under test, an advisory message displays. Select Back, then press ENTER

to return to the Main Menu.

3. Select the O2 sensor for which you wish to view test results, then press ENTER

to display the test results.

4. When you have finished viewing the retrieved test data, select Next to view test results for the next sensor, or select Back to return to the Select Sensor screen, then press ENTER

Additional Tests

SYSTEM TEST MENU

5. When you have finished viewing test data for all desired sensors, select Back to return to the Select Sensor screen, then press ENTER

or,

press M to return to the Main Menu.

OBD Monitor Test

The OBD Monitor Test function retrieves and displays test results for emission-related powertrain components and systems that are not continuously monitored. The tests available are determined by the vehicle manufacturer.

The Scan Tool does not perform the OBD monitor test, but retrieves results from the most recently performed tests from the on-board computer’s memory. You may retrieve OBD monitor test results for only one test at any given time.

1. From the System Test menu, select OBD Monitor Test, then press ENTER

 A “One moment please. . .”

message displays, followed by the Select Test screen. (Refer to the vehicle’s service repair manual for information related to noncontinuous tests.)

If OBD monitor test data is not presently stored in the vehicle’s computer, an advisory message displays. Press M to return to the Main Menu.

If OBD monitor tests are not supported by the vehicle under test, an advisory message displays. Press M to return to the Main Menu.

2. Select the desired test, then press ENTER

to display the test results. The display shows the following information:

 Test ID number

 Module ID number

 Component ID number

 Min or Max test limit (Only one test limit, either Min or Max, is

shown for any given test)

 Test Value and status

Status is calculated by the Scan Tool by comparing the Test Value against the displayed test limit (either Min or Max). Status is shown as either Low, High or OK.

3. When you have finished viewing the retrieved test data, select Back on the test results screen, then press ENTER

to return to the

System Test menu.

Additional Tests

VIEWING VEHICLE INFORMATION

EVAP Test

The EVAP Test function lets you initiate a leak test for the vehicle's EVAP system.

The Scan Tool does not perform the leak test, but signals the vehicle's on-board computer to initiate the test. The vehicle manufacturer determines the criteria and method for stopping the test once it has been started. Refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

1. From the System Test menu, select EVAP Test, then press the ENTER

button.

2. A "One moment please..." message displays.

3. When the EVAP leak test has been initiated by the vehicle's on-board computer, a confirmation message displays. Press M to return to the Main Menu.

Some vehicle manufacturers do not allow Scan Tools or other external devices to control vehicle systems. If the EVAP Test is not supported by the vehicle under test, an advisory message displays. Select Back, then press ENTER

to return to the

System Test menu.

VIEWING VEHICLE INFORMATION

The Vehicle Information function offers three options for retrieving reference information for the vehicle under test; Vehicle ID, Available Modules and IPT (In-Use Performance Tracking).

Retrieving Vehicle ID Information

The Vehicle ID function is applicable to model year 2000 and newer OBD2-compliant vehicles.

The Scan Tool can retrieve a list of information (provided by the vehicle manufacturer), unique to the vehicle under test, from the vehicle's onboard computer. This information may include:

 The vehicle's VIN number

 The control module identification number

 The vehicle's calibration ID(s). These IDs uniquely identify the

software version(s) for the vehicle's control module(s).

 The Vehicle's Calibration Verification Number(s) (CVNs) required by

ODB2 regulations. CVNs are used to determine if emission-related calibrations for the vehicle under test have been changed. One or more CVNs may be returned by the vehicle's computer.

Additional Tests

VIEWING VEHICLE INFORMATION

1. With the Scan Tool in OBD2 mode, press M.

 The Main Menu displays.

2. Select Vehicle Information, then press ENTER

 The Vehicle Information menu displays.

3. Select Vehicle ID, then press ENTER

The first time the Vehicle ID function is used, it may take several minutes to retrieve the information from the vehicle's computer.

4. When the retrieval process is completed, the vehicle ID information displays.

5. When you have finished viewing the retrieved vehicle ID information, press

ENTER

to return to the Vehicle Information menu, or, press M to return to the Main Menu.

Viewing Available Modules

The Scan Tool can retrieve a list of modules supported by the vehicle under test.

1. With the Scan Tool in OBD2 mode, press M.

 The Main Menu displays.

2. Select Vehicle Information, then press ENTER

 The Vehicle Information menu displays.

3. Select Available Modules, then press ENTER

4. When the retrieval process is completed, a complete list of modules supported by the vehicle under test displays.

5. When you have finished viewing the list of available modules, press ENTER to return to the Vehicle Information menu, or, press M to return to the Main Menu.

Viewing In-use Performance Tracking (IPT)

The Scan Tool can retrieve In-use Performance Tracking (IPT) statistics for monitors supported by the vehicle under test. Two values are returned for each monitor; the number of times that all conditions necessary for a specific monitor to detect a malfunction have been encountered (XXXCOND), and the number of times that the vehicle has been operated under the specific conditions for the monitor (XXXCOMP). Statistics are also provided for the number of times the vehicle has been operated in OBD monitoring conditions (OBDCOND), and the number of times the vehicle’s engine has been started (IGNCNTR).

1. With the Scan Tool in OBD2 mode, press M.

Additional Tests

RESETTING THE OIL MAINTENANCE LIGHT

 The Main Menu displays.

2. Select Vehicle Information, then press ENTER

 The Vehicle Information menu displays.

3. Select IPT, then press ENTER

4. When the retrieval process is completed, the In-use Performance Tracking statistics for the vehicle under test display.

 If In-use Performance Tracking is

not available for your vehicle, an advisory message displays. Press

M to return to the Main Menu.

5. When you have finished viewing the

statistics, press ENTER

to return to

the Vehicle Information menu, or, press

M to return to the Main Menu.

RESETTING THE OIL MAINTENANCE LIGHT

Refer to the manufacturer’s website for vehicle makes covered.

1. While linked to the vehicle, press M.

 The Main Menu displays.

2. Select Oil Reset, then press ENTER

 The Oil Reset screen displays.

 If the vehicle under test is equipped with a navigation system, select

Yes, then press ENTER

to continue.

 If the vehicle under test is not equipped with a navigation system,

select No, then press ENTER

to continue.

If the Scan Tool cannot reset the Oil Maintenance Light, an “instructional” dialog displays, showing the manual procedures for resetting the indicator light. When finished viewing the procedures, press M to return to the Main Menu.

3. The Reset Oil Maintenance Indicator screen displays.

 If you do not wish to proceed with the reset process, select No,

then press ENTER

to return to the System Menu.

 If you wish to proceed with the reset process, select Yes, then

press ENTER

to continue.

Additional Tests

USING THE DLC LOCATOR - BATTERY RESET

4. When the reset process has competed, a confirmation message displays. Press M to return to the Main Menu.

 If the oil reset was not successful,

an advisory message displays.

 To perform the oil reset by

procedure, select Yes, then press ENTER

. An “instructional” message displays, showing the

manual procedures for resetting the indicator light.

 If you do not wish to perform the oil reset by procedure, select

No, then press ENTER

to return to the Main Menu.

USING THE DLC LOCATOR

1. Select DLC Locator in the Main Menu, then press ENTER .

 The Select Vehicle Model Year screen displays.

2. Select the desired vehicle model year, then press ENTER

 The Select Vehicle Manufacturer screen displays.

3. Select the desired vehicle manufacturer, then press ENTER

 The Select Vehicle Model screen displays.

4. Select the desired model, then press ENTER

 The DLC Location screen for the

selected vehicle displays.

 The DLC Location screen shows the

selected vehicle make and model, a description of the DLC location and whether the DLC is “covered” or “uncovered,” and includes a picture of the DLC location.

5. When you have finished viewing the DLC location, press any hotkey to exit the DLC Locator.

BATTERY RESET

You can use the Scan Tool to view the procedures for resetting the battery monitor system following battery replacement or perform battery reset OBD service (for BMW, Ford and Volvo models only).

To view battery reset procedures:

1. While linked to a vehicle, press M.

 The Main Menu displays.

2. Select Battery Reset, then press ENTER

Additional Tests

BATTERY RESET

 The Battery Reset menu displays.

3. Select Battery Reset Procedures, then press ENTER

 The Battery Reset Procedures

menu displays. The menu provides access to General Information, and procedures to be followed

Before Battery Disconnection, Before Battery Connection, and After Battery Connection.

If battery reset procedures are not available, an advisory message shows. Press M to return to the Main Menu.

4. Select the procedure you wish to view, then press ENTER

 The selected procedure displays.

5. When you have finished viewing the retrieved information, press M to return to the Main Menu. Repeat steps 2 through 4 to view additional procedures.

To perform battery reset OBD service (BMW/Ford/Volvo):

1. While linked to a vehicle, press M.

 The Main Menu displays.

2. Select Battery Reset, then press ENTER

 The Battery Reset menu displays.

3. Select Battery Reset OBD Service, then press ENTER

 An “instructional” message displays.

4. Follow the instructions provided to prepare the vehicle for battery reset OBD service. When all necessary procedures have been performed, select Next, then press ENTER

 A “Live Data” screen displays, if

applicable.

5. Select Next, then press ENTER

 A “One moment please…” message

displays while battery reset is in process.

6. If the battery reset process is successful, a “Reset Complete” message displays. Press M to return to the Main Menu.

Additional Tests

BATTERY/ALTERNATOR MONITOR

 If the battery reset process is not successful, a “Reset Fail”

message displays. Press M to return to the Main Menu.

To perform battery reset OBD service (Audi/Volkswagen):

1. While linked to a vehicle, press M.

 The Main Menu displays.

2. Select Battery Reset, then press ENTER

 The Battery Reset menu displays.

3. Select Battery Reset OBD Service, then press ENTER

 An “informational” screen displays.

4. Select Next, then press ENTER

to continue.

 A series of “instructional” screens display, directing you to enter

reference information for the battery (part number, manufacturer, serial number).

5. Select Next as necessary, and press ENTER

to scroll the

screen and enter the necessary information.

 A “confirmation” screen displays.

 The screen shows the previously

entered Battery part number, Battery manufacturer and Battery serial number.

6. Select the desired option:

 To proceed with coding, select

Carry out coding and press ENTER

. Proceed to step 7.

 To re-enter battery reference information, select Repeat input

and press ENTER

. Repeat steps 4 an 5.

 To cancel the battery reset process,

select Cancel and press ENTER

to return to the Main Menu.

7. If battery coding was successful, a “confirmation” screen displays. Press M to return to the Main Menu.

 If battery coding was not successful,

an “advisory” screen displays. Press

M to return to the Main Menu.

BATTERY/ALTERNATOR MONITOR

The Scan Tool can perform a check of the vehicle’s battery and alternator system to ensure the system is operating within acceptable limits. You can perform a battery check only, or an alternator system (battery and alternator) check.

Additional Tests

BATTERY/ALTERNATOR MONITOR

To perform a battery check ONLY:

1. Press and release M.

 The Main Menu displays.

2. Select Battery/ Alternator Monitor, then press ENTER

 The Battery/Alternator Monitor Menu

displays.

3. Select Battery Monitor, then press ENTER

 An “instructional” message displays, showing the procedures to

prepare the vehicle for the battery check.

4. Prepare the vehicle for the battery check:

 Turn the engine off.

 Place the transmission in PARK or NEUTRAL, and set the

parking brake.

 Make a visual check of the battery’s condition. If the battery

terminals are corroded or other damage is present, clean or replace the battery as appropriate.

 For “unsealed” batteries, make sure the water level in each cell

is above the battery plates.

 Turn the ignition on. DO NOT start the engine.

5. Press ENTER

to begin the battery check.

If the engine is running, an advisory message shows. Turn the engine off, then turn the ignition on. DO NOT start the engine. Press ENTER

to continue.

 An “instructional” message displays.

6. Turn the vehicle’s headlights on, the press ENTER

to continue.

 A “countdown” message shows while the battery check is in

process.

 If battery voltage is less than 12.1 volts, an advisory message

displays. Press M to return to the Main Menu. Turn the ignition off and disconnect the Scan Tool from the vehicle. Fully charge the battery, then repeat the battery check.

 If battery voltage is greater than 12.1 volts, an “instructional”

message displays.

7. Turn the vehicle’s headlights off, then press ENTER

to continue.

 An “instructional” message displays.

8. Start the vehicle’s engine. Allow the engine to run for several seconds, then turn the engine off. Repeat for a total of three “start/stop” cycles.

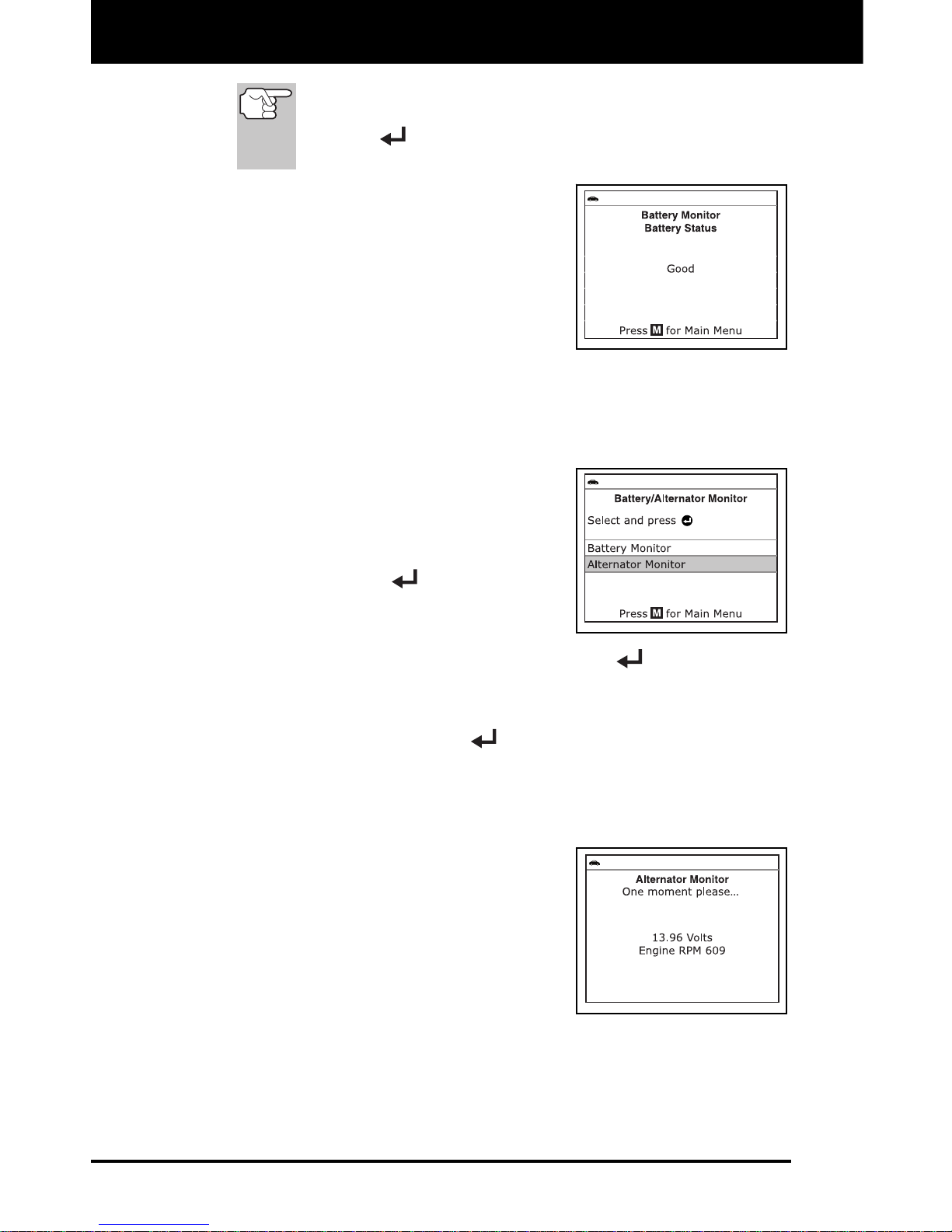

Additional Tests

BATTERY/ALTERNATOR MONITOR

If the Scan Tool did not detect “cranking status” for the vehicle’s engine, an advisory message shows. Press ENTER

to repeat the battery check, or, press M to

return to the Main Menu.

9. When the battery check is complete, a results screen displays the battery status. The System Status LEDs provide a PASS/FAIL indication, as follows:

 Green = Good

 Yellow = Normal

 Red = Warning/Bad

10. Press M to return to the Main Menu.

To perform a charging system check:

1. With the Scan Tool on the Code Retrieval screen, press and release M.

 The Main Menu displays.

2. Select Battery/Alternator Monitor, then press ENTER

 The Battery/Alternator Monitor Menu

displays.

3. Select Alternator Monitor, then press ENTER

 An “instructional” message shows.

4. Start and warm the engine to normal operating temperature. Turn on the headlights. Press ENTER

to continue.

 An “instructional” message shows.

5. Press the accelerator pedal to raise engine speed to 2000 RPM, and maintain the engine speed.

 When engine speed is within the

required range, the alternator test begins. A progress screen shows.

 When the “countdown” timer expires,

an “instructional” message shows.

6. Turn the vehicle’s headlights off, and return the engine to idle speed.

 A “One moment please…” message

displays while the test results are retrieved.

Additional Tests

VIEWING TRIP CYCLE PROCEDURES

7. When the alternator check is complete, a results screen shows charging system voltage and indicates whether or not the charging system is within acceptable limits. The System Status LEDs provide a PASS/FAIL indication, as follows:

 Green = System within limits

 Yellow = Over charging or under

charging

 Red = Excessive over charging or under charging

 If the alternator voltage is less than 9 V, the red, yellow and

green SYSTEM STATUS LEDs will flash on and off.

8. Press M to return to the Main Menu.

VIEWING TRIP CYCLE PROCEDURES

A Trip Cycle for a Monitor requires that the vehicle is driven in such a way that all the required “Enabling Criteria” for the Monitor to run and complete its diagnostic testing are met. You can use the Scan Tool to view the Trip Cycle procedures for a selected Monitor.

1. While linked to a vehicle, press M.

 The Main Menu displays.

2. Select Trip Cycle Procedures, then press ENTER

 A “One moment please…” message

displays while the Scan Tool retrieves Monitor status.

3. When Monitor status has been retrieved, the Trip Cycle Procedures menu displays. Depending on Monitor status, you can view Trip Cycle procedures for

Monitors Incomplete or Monitors Complete.

If Trip Cycle Procedures are not available for the vehicle, an advisory message shows. Select Back, then press ENTER

to return to the Main Menu.

4. Select Monitors Incomplete or Monitors Complete, as desired, then press ENTER

 A list of the available Monitors for

the selected status displays.

If no Monitors for the selected status are detected, an advisory message shows. Select Back, then press ENTER

to return

to the Main Menu.

Additional Tests

VIEWING THE FIRMWARE VERSION - THE TOOL LIBRARY

5. Select the Monitor for which you wish to view Trip Cycle Procedures, then press ENTER

 A “One moment please…” message displays while the Scan

Tool retrieves the requested Trip Cycle Procedure. The Trip Cycle Procedures screen for the Monitor displays when the procedure has been retrieved.

If a Trip Cycle Procedure for the selected Monitor is not available, an advisory message shows. Select Back, then press ENTER

to return to the Main Menu.

6. The Trip Cycle Procedure screen shows the specific set of operating procedures that ensure the vehicle is driven in such a way that all the required “Enabling Criteria” for the Monitor to run and complete its diagnostic testing are met.

7. When you are finished viewing the Trip Cycle Procedures, press ENTER

to return to the Trip Cycle Procedures menu, or, press M to return to the Main Menu.

VIEWING THE FIRMWARE VERSION

1. Select Firmware Version in the Main

Menu, then press ENTER

 The Firmware Version screen

displays.

 The screen shows the Scan Tool’s

current firmware version, bootloader version and database version.

2. Press M to return to the Main Menu.

THE TOOL LIBRARY

The Tool Library contains valuable reference information for the Scan Tool. The following functions are available:

 Tool Icons – Shows the full names for

the I/M MONITOR STATUS icons shown and descriptions of informational icons on the Scan Tool’s display.

 DTC Library – Provides access to libraries of OBD1 and OBD2

DTC definitions.

 LED Definitions – Provides descriptions of the meaning of the Scan

Tool SYSTEM STATUS LEDs.

Additional Tests

THE TOOL LIBRARY

1. While linked to the vehicle, press M.

 The Main Menu displays.

2. Select Tool Library, then press ENTER

 The Tool Library menu displays.

Viewing Tool Icon Descriptions

The I/M MONITOR STATUS icons on the Scan Tool’s LCD display provide an indication of the “Completed / Not Complete” status for all I/M Monitors supported by the vehicle under test. The Tool Icons function displays the full name for each Monitor icon, as well as descriptions of the meanings of other informational icons shown on the Scan Tool’s display.

1. From the Tool Library menu, select Tool Icons, then press ENTER .

 The Tool Icons screen displays.

 The screen shows a list of the 15

Monitor icons, along with the full name for each icon, as well as descriptions of the meanings of other informational icons.

2. When you have finished viewing the

tool icon descriptions, press M to return to the Main Menu.

Using the DTC Library (OBD1)

1. From the Tool Library menu, select

DTC Library, then press ENTER

 The Select Library screen displays.

2. Select OBD1 Library, then press

ENTER

 The Select Manufacturer screen displays.

3. Select the desired vehicle manufacturer, then press ENTER

 A confirmation message shows.

- If the correct manufacturer is not shown, select No, then press ENTER

to return to the list of vehicle manufacturers.

- If the correct manufacturer is shown, select Yes, then press

ENTER .

4. The Enter DTC screen displays.

Additional Tests

THE TOOL LIBRARY

 The screen shows the code “001,”

with the first “0” highlighted. Press UP

or DOWN , as necessary, to scroll to the first digit of the DTC, then press DTC/FF.

 The selected character displays solid,

and the next character is highlighted.

5. Select the remaining digits in the DTC in the same way. When you have selected all the DTC digits, press

ENTER

to view the DTC definition.

6. When you have finished viewing the DTC definition, select Back, then press ENTER

to return to the Enter DTC screen, or, press M to return to the Main Menu.

If a definition for the DTC you entered is not available, an advisory message shows. Select Back, then press ENTER

to return to the Enter DTC screen and enter additional DTCs, or, press M to return to the Main Menu.

Using the DTC Library (OBD2)

1. From the Tool Library menu, select DTC Library, then press ENTER

 The Select Library screen displays.

2. Select OBD2 Library, then press ENTER

 The Select Manufacturer screen

displays.

3. Select the desired vehicle manufacturer, then press ENTER

 A confirmation message shows.

- If the correct manufacturer is not shown, select No, then press ENTER

to return to the list of vehicle manufacturers.

- If the correct manufacturer is shown, select Yes, then press

ENTER .

4. The Enter DTC screen displays.

 The screen shows the code “P0001,” with the “P” highlighted.

Press UP

or DOWN buttons, as necessary, to scroll to the desired DTC type (P=Powertrain, U=Network, B=Body, C=Chassis), then press DTC/FF.

 The selected character displays solid, and the next character is

highlighted.

Additional Tests

ADJUSTMENTS AND SETTINGS

5. Select the remaining digits in the DTC in the same way. When you have selected all the DTC digits, press ENTER

to view the DTC definition.

6. When you have finished viewing the DTC definition, select Back, then press ENTER

to return to the Enter DTC screen and enter additional DTCs, or, press M to return to the Main Menu.

If a definition for the DTC you entered is not available, an advisory message shows. Select Back, then press ENTER

to return to the Enter DTC screen and enter additional DTCs, or, press M button to return to the Main Menu.

Viewing LED Definitions

The SYSTEM STATUS LEDs on the Scan Tool provide a visual indication of the I/M Readiness status of the vehicle under test. The LED Definitions function provides a description of the meanings of the green, yellow and red SYSTEM STATUS LEDs.

1. From the Tool Library menu, select LED Definitions, then press ENTER

 The LED Definitions screen displays.

 The screen provides a description of

the meanings of the green, yellow and red SYSTEM STATUS LEDs.

2. When you have finished viewing the LED meanings, press M to return to the Main Menu.

ADJUSTMENTS AND SETTINGS

The Scan Tool lets you make several adjustments and settings to configure the tool to your particular needs. The following functions can be performed:

 Adjust Brightness: Adjusts the brightness of the display screen.

 Audible Tone: Turns the Scan Tool’s audible tone “on” and “off.”

When turned “on,” a tone sounds each time a button is pressed.

 Footer Messages: Turns the navigational “footers” at the bottom of

most display screens “on” and “off.”

 Hotkey Legend: Shows functional descriptions for the Scan Tool’s

hotkeys.

Additional Tests

ADJUSTMENTS AND SETTINGS

 Language Selection: Sets the display language for the Scan Tool

to English, French or Spanish.

 Unit of Measurement: Sets the Unit of Measurement for the Scan

Tool’s display to USA or metric.

To enter the Tool Settings mode:

1. While linked to the vehicle, press and release M.

 The Main Menu displays.

2. Select Tool Settings, then press ENTER

 The Tool Settings menu displays.

3. Make adjustments and settings as follows.

Adjusting Display Brightness

1. Select Adjust Brightness in the Tool

Settings menu, then press ENTER

 The Adjust Brightness screen displays.

2. Press UP

and DOWN

to make the display lighter or darker, then press ENTER

to save your changes and

return to the Tool Settings menu.

To return to the Tool Settings menu without making changes, press M.

Enabling/Disabling the Audible Tone

1. Select Audible Tone in the Tool

Settings menu, then press ENTER

 The Audible Tone screen displays.

2. Select On or Off, as desired, then press ENTER

to save your changes.

To return to the Tool Settings menu without making changes, press M.

Enabling/Disabling Navigational Footers

Navigational “footers” show which hotkey to press to return to the topmost menu for the current function.

1. Select Footer Messages in the Tool Settings menu, then press ENTER

Additional Tests

ADJUSTMENTS AND SETTINGS

 The Footer Messages screen dis-

plays.

2. Select On or Off, as desired, then press ENTER

to save your changes.

To return to the Tool Settings menu without making changes, press M.

Viewing the Hotkey Legend

1. Select Hotkey Legend in the Tool Settings menu, then press ENTER

 The Hotkey Legend screen displays.

 The screen shows a functional

description of each of the Scan Tool’s hotkeys.

2. When you have finished viewing the Hotkey Legend, press M to return to the Tool Settings menu.

Selecting the Display Language

1. Select Language Selection in the Tool

Settings menu, then press ENTER

 The Language Selection screen

displays.

2. Select the desired display language, then press ENTER

to save your

changes.

To return to the Tool Settings menu without making changes, press M.

Setting the Unit of Measurement

1. Select Unit of Measurement in the

Tool Settings menu, then press ENTER

 The Unit of Measurement screen

displays.

2. Select the desired unit of measurement, then press ENTER

to save your

changes.

To return to the Tool Settings menu without making changes, press M.

Exiting the MENU Mode

 Press M to return to the Main Menu.

Using Scan Tool Memory

VIEWING DATA IN MEMORY

When you retrieve DTCs from a vehicle, the data is saved to the Scan Tool’s memory.

Each time you retrieve DTCs, existing data in the Scan Tool's memory is overwritten with the new data.

VIEWING DATA IN MEMORY

When you turn the Scan Tool on while NOT connected to a vehicle, and data is currently saved in memory, the Scan Tool enters Memory mode. You can view DTCs and Live Data stored in the Scan Tool’s memory.

1. With the Scan Tool NOT connected to a vehicle, press and release POWER/LINK

to turn the Scan Tool on.

 If the batteries are low, a warning message displays. Replace

the batteries before continuing.

2. If more than one vehicle is stored in memory, the Vehicle Selection menu displays. Select the desired vehicle, then press ENTER

If there are no vehicles currently stored in memory, an advisory message displays. Press M to return to the Main Menu.

 The Memory System Menu displays.

3. Select the DTCs you wish to view, then press ENTER

 The Scan Tool displays the "priority"

DTC.

If there are no DTCs currently stored in memory, an advisory message shows.

 Press DTC/FF

to scroll through all stored DTCs and to view Freeze Frame data for the priority DTC.

 When all DTCs have been displayed

and DTC/FF is pressed, the Scan Tool displays the first enhanced DTC stored in memory. Press DTC/FF to scroll through all stored enhanced DTCs.

4. When you have finished viewing data in the Scan Tool's memory, press and release POWER/LINK

to turn the Scan Tool off.

Warranty and Servicing

LIMITED TWO YEAR WARRANTY

SERVICE PROCEDURES

If you have any questions, require technical support or information on UPDATES and OPTIONAL ACCESSORIES, please contact your local store, distributor or the Service Center.

(877) 336-2826 (33-MATCO) (6:00 AM-6:00 PM, Monday-Saturday PST)

Web: http://matco.carscan.com

The Manufacturer warrants to the original purchaser that this unit is free of defects in materials and workmanship under normal use and maintenance for a period of two (2) years from the date of original purchase.

If the unit fails within the two (2) year period, it will be repaired or replaced, at the Manufacturer’s option, at no charge, when returned prepaid to the Service Center with Proof of Purchase. The sales receipt may be used for this purpose. Installation labor is not covered under this warranty. All replacement parts, whether new or remanufactured, assume as their warranty period only the remaining time of this warranty.

This warranty does not apply to damage caused by improper use, accident, abuse, improper voltage, service, fire, flood, lightning, or other acts of God, or if the product was altered or repaired by anyone other than the Manufacturer’s Service Center.

The Manufacturer, under no circumstances shall be liable for any consequential damages for breach of any written warranty of this unit. This warranty gives you specific legal rights, and you may also have rights, which vary from state to state. This manual is copyrighted with all rights reserved. No portion of this document may be copied or reproduced by any means without the express written permission of the Manufacturer. THIS WARRANTY IS NOT TRANSFERABLE. For service, send via U.P.S. (if possible) prepaid to Manufacturer. Allow 3-4 weeks for service/repair.

0435

Matco Tools MD95, MD100 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
