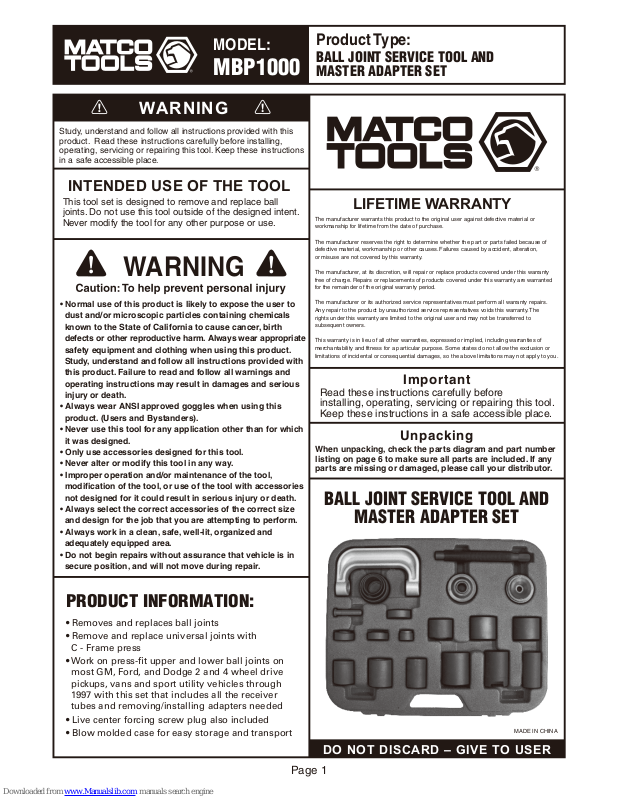

Matco Tools MBP1000 Instruction Manual

PRODUCT INFORMATION:

Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe accessible place.

Important

DO NOT DISCARD – GIVE TO USER

WARNING

MADE IN CHINA

Study, understand and follow all instructions provided with this product. Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe accessible place.

INTENDED USE OF THE TOOL

This tool set is designed to remove and replace ball joints. Do not use this tool outside of the designed intent. Never modify the tool for any other purpose or use.

• Normal use of this product is likely to expose the user to dust and/or microscopic particles containing chemicals

known to the State of California to cause cancer, birth defects or other reproductive harm. Always wear appropriate safety equipment and clothing when using this product. Study, understand and follow all instructions provided with this product. Failure to read and follow all warnings and operating instructions may result in damages and serious injury or death.

• Always wear ANSI approved goggles when using this product. (Users and Bystanders).

• Never use this tool for any application other than for which it was designed.

• Only use accessories designed for this tool.

• Never alter or modify this tool in any way.

• Improper operation and/or maintenance of the tool,

modification of the tool, or use of the tool with accessories not designed for it could result in serious injury or death.

• Always select the correct accessories of the correct size and design for the job that you are attempting to perform.

• Always work in a clean, safe, well-lit, organized and

adequately equipped area.

• Do not begin repairs without assurance that vehicle is in secure position, and will not move during repair.

LIFETIME WARRANTY

The manufacturer warrants this product to the original user against defective material or workmanship for lifetime from the date of purchase.

The manufacturer reserves the right to determine whether the part or parts failed because of defective material, workmanship or other causes. Failures caused by accident, alteration, or misuse are not covered by this warranty.

The manufacturer, at its discretion, will repair or replace products covered under this warranty free of charge. Repairs or replacements of products covered under this warranty are warranted for the remainder of the original warranty period.

The manufacturer or its authorized service representatives must perform all warranty repairs. Any repair to the product by unauthorized service representatives voids this warranty. The rights under this warranty are limited to the original user and may not be transferred to subsequent owners.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose. Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitations may not apply to you.

Unpacking

When unpacking, check the parts diagram and part number listing on page 6 to make sure all parts are included. If any parts are missing or damaged, please call your distributor.

• Removes and replaces ball joints

• Remove and replace universal joints with C - Frame press

• Work on press-ﬁt upper and lower ball joints on most GM, Ford, and Dodge 2 and 4 wheel drive pickups, vans and sport utility vehicles through 1997 with this set that includes all the receiver tubes and removing/installing adapters needed

• Live center forcing screw plug also included

• Blow molded case for easy storage and transport

BALL JOINT SERVICE TOOL AND

MASTER ADAPTER SET

Page 1

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

Control Arm

Ball Joint

Installing Adaper

Receiving Tube

Removing Adapter

Installing Adapter

Ball Joint

Receiving Tube

Control Arm

Removing Adapter

OPERATING INSTRUCTIONS

Brake Anchor Pin Removal and Installation

1. Remove all lock ring retainers from the brake anchor pins.

2. Position the C - Frame press over the brake spider as shown in Figure 1.

3. Tighten the forcing screw until the anchor pin is removed.

"U" Joint Assembly and Disassembly

The basic C - Frame press is used to service the "U" joints on most cars and light trucks. The "U" joints can be serviced either on or off the vehicle.

Disassembly

1. Remove any external and/or internal lock rings.

2. Position the C - Frame press around the drive shaft yoke, and tighten the forcing screw until the first bearing is removed.

3. Reposition the C - Frame and remove the second bearing.

Assembly

1. Clean all dirt and oil from the yoke area.

2. Align the replacement bearing the C - Frame press as straight as possible over the yoke. Press the replacement bearing into the yoke, and reassemble the external/internal lock ring.

3. Reposition the C - Frame press and second replacement bearing as straight as possible over the yoke, and press the bearing into the yoke. Reassemble external/internal lock ring.

Ball Joint Removal and Installation

This tool set is designed for use on all cars and light trucks that have press-fit type ball joints. It will help the user remove and install ball joints without the need to remove the control arm from the vehicle.

NOTE: Some cars and light trucks may have the upper ball joint spot-welded to the control arm. The weld must be cut before attempting to remove the ball joint.

Removal (Item numbers refer to the parts list on page 6)

1. Assemble the ball joint press over the control arm as shown in Figure 3. Select the correct size receiving tube, and position it under the vehicle ball joint as shown.

2. Tighten the forcing screw until the receiving tube contacts the control arm. Check the alignment of all tooling and components, and continue tightening the forcing screw until the ball joint is removed.

Installation

1. Clean the control arm and coat the I.D. with a suitable lubricant.

2. Insert the replacement ball joint as straight as possible into the vehicle control arm.

3. Assemble the ball joint press components as shown in Figure 4. Position the receiving tube, and tighten the forcing screw. Check the alignment of all tooling and components, and continue tightening the forcing screw until the ball joint is firmly seated.

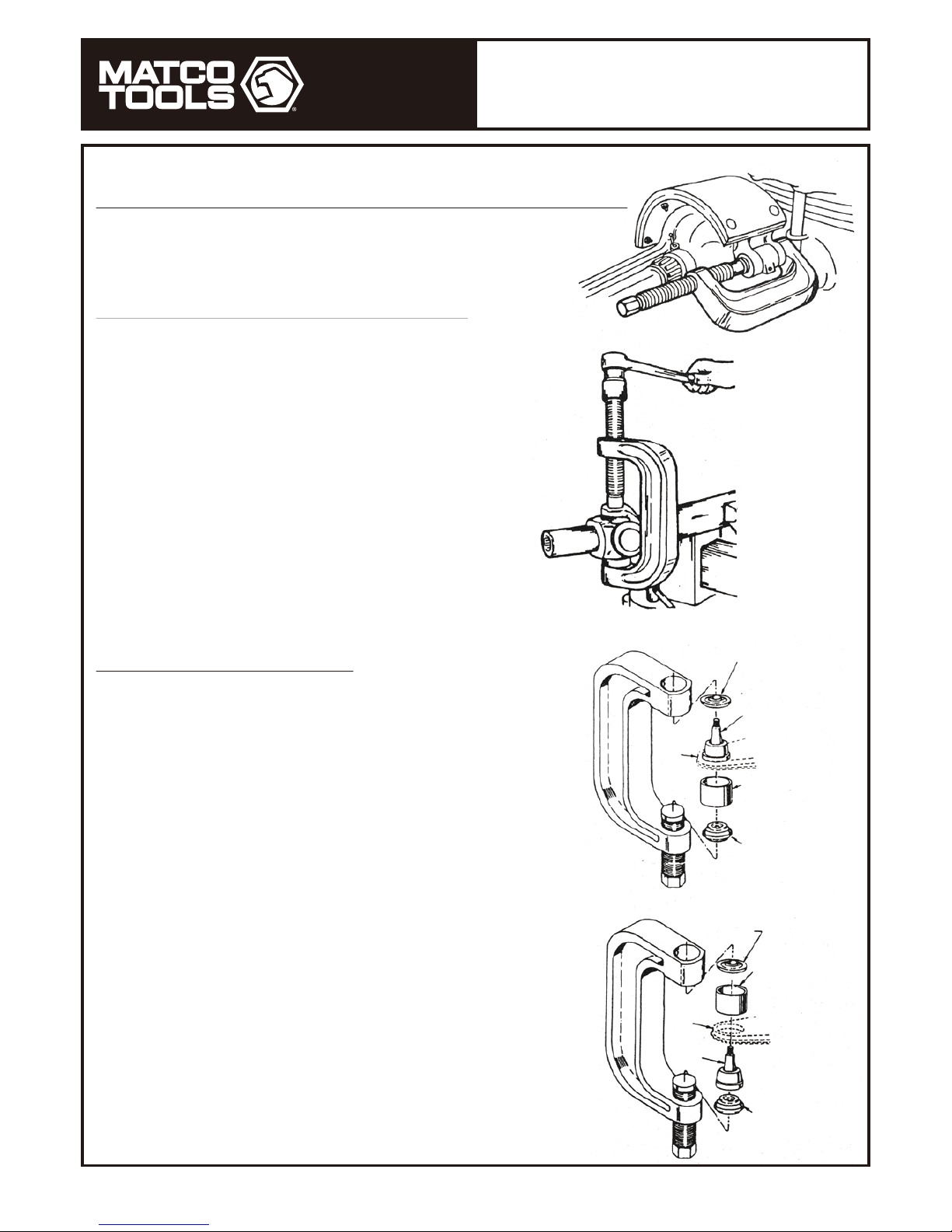

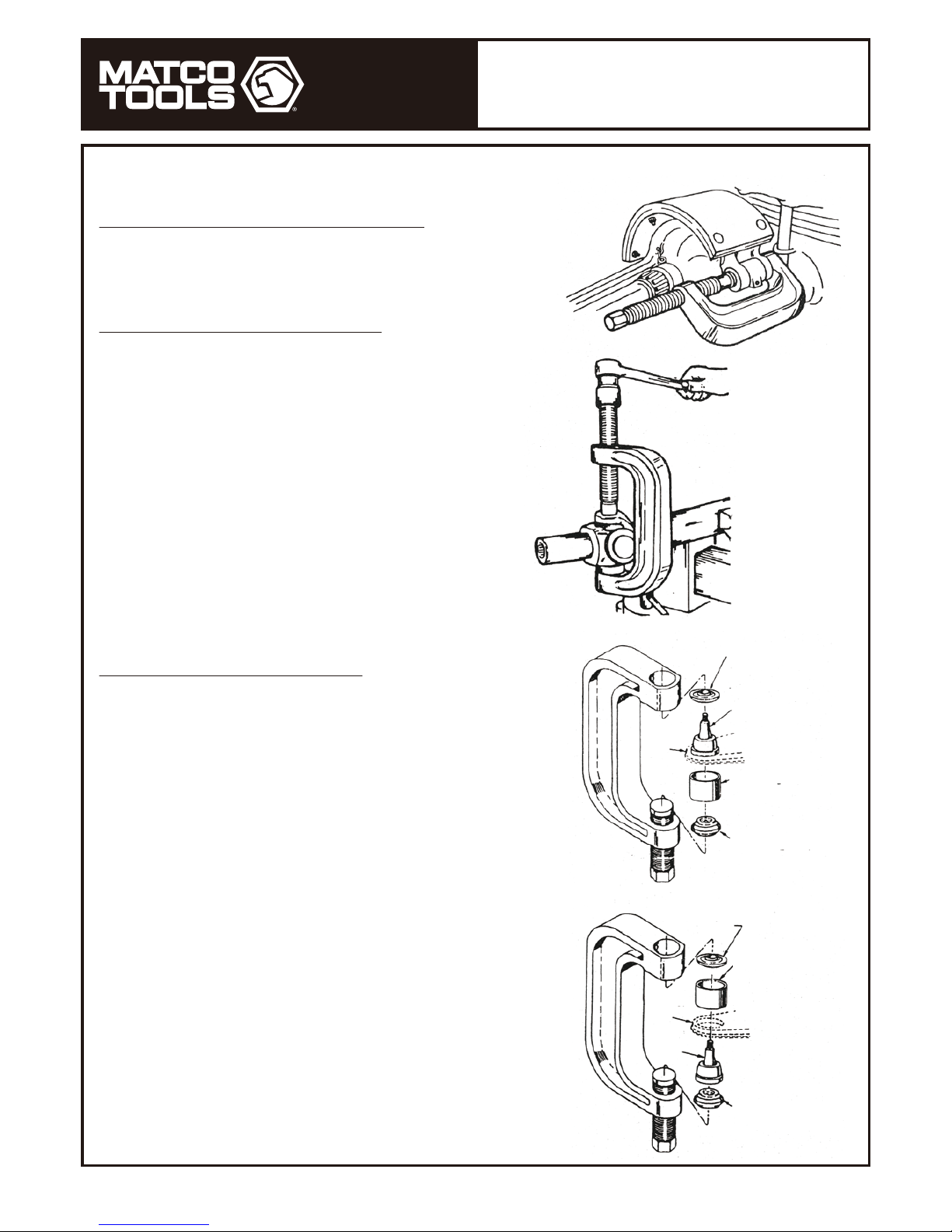

Figure 1

Figure 2

Figure 3

Figure 4

Page 2

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

CONJUNTO MAESTRO DE

ADAPTADORES DE SERVICIO

Page 3

Este conjunto de herramientas está diseñado para extraer y sustituir junturas o articulaciones de las rotulas. No utilice esta herramienta para otra cosa que no sea el propósito para lo que ha sido diseñada. Nunca modifique la herramienta para cualquier otro propósito o uso.

• Quita y reemplaza las articulaciones de las rótulas

• Retire y vuelva a colocar las junturas o articulaciones con la prensa en forma de "C"

• Trabaja en encaje de presión superior y rótulas inferiores en la mayoría de GM, Ford y Dodge de 2 y 4 ruedas motrices en camionetas, y vehículos utilitarios deportivos hasta 1997 el conjunto incluye todos los tubos receptores y adaptadores para la extracción o instalación necesarios

•Tornillo central de fuerza de presión incluido

• Estuche plástico moldeado para facilitar el almacenamiento y transporte

ADVERTENCIA

Estudie, entienda y siga todas las instrucciones que se proveen con este producto. Lea las instrucciones detenidamente antes de instalar, operar, dar servicio o reparar esta herramienta. Guarde estas instrucciones en un lugar seguro y accesible.

APLICACIÓN DE LA HERRAMIENTA

Precaución: Para ayudar a evitar lesiones a las personas

ADVERTENCIA

• El uso normal de esta herramienta puede exponer al

usuario al polvo o a partículas microscópicas que contienen sustancias químicas que se conocen en el estado de California por causar cáncer, defectos del nacimiento u otros daños reproductivos. Siempre use equipo y ropa de seguridad adecuados para trabajar con esta herramienta. Lea, comprenda y siga todas las instrucciones incluidas con esta herramienta. Omitir la lectura y el no seguir todas las advertencias e instrucciones de operación puede traer como consecuencia daños y lesiones graves o hasta la muerte.

• Siempre use guantes del tipo aprobado por la ANSI para

trabajar con esta herramienta. (tanto usuarios como espectadores).

• Nunca utilice esta herramienta para cualquier otra cosa

que no sean las aplicaciones para lo que fue diseñada.

• Sólo utilice los accesorios diseñados para esta herramienta.

• No modifique o altere esta herramienta de ninguna manera.

• El funcionamiento y/o mantenimiento inadecuado de la

herramienta, la modificación, o la utilización de la herramienta con accesorios inadecuados podrían causar lesiones graves o la muerte.

• Siempre usar los correctos accesorios para el trabajo que

Ud. está realizando.

• Trabaje siempre en un área limpia, segura, bien iluminada,

organizada y equipada adecuadamente.

• NUNCA empiece reparaciones sin estar seguro de que el

vehículo esté en posición segura y que no se mueva durante la reparación.

El fabricante garantiza que este producto el usuario original contra cualquier defecto de material o mano de obra de por vida desde la fecha de compra.

El fabricante se reserva el derecho a determinar si una pieza o piezas fallaron debido a material defectuoso, mano de obra, o por otras causas. Esta garantía no cubre fallas causadas por accidentes, alteraciones o uso indebido.

El fabricante, a su entera discreción, reparará o reemplazará los productos cubiertos por esta garantía sin costo alguno. Las reparaciones o reemplazos de productos cubiertos por esta garantía quedan garantizados durante el resto del periodo original de garantía.

El fabricante o sus representantes autorizados de servicio deben llevar a cabo todas las reparaciones de garantía. Toda reparación hecha al producto por representantes de servicio no autorizados invalida la presente garantía. Los derechos que ampara esta garantía están limitados al usuario original y no se pueden transferir a dueños posteriores.

Esta garantía reemplaza a todas las demás garantías expresas o implícitas, incluyendo garantías de comercialización e idoneidad para un propósito particular. Algunos estados no permiten la exclusión o limitaciones de daños incidentales o imprevistos, de manera que las limitaciones mencionadas anteriormente pueden no ser aplicables en su caso.

GARANTÍA DE POR VIDA

INFORMACIÓN DEL PRODUCTO:

Desempacado

Cuando desempaque el producto, revise el diagrama y la lista de piezas en la página 6 para verificar que se hayan enviado todas las piezas. En caso de que falten piezas o que estén dañadas, comuníquese con su distribuidor.

Importante

Lea las instrucciones detenidamente antes de instalar, operar, dar servicio o reparar esta herramienta. Guarde estas instrucciones en un lugar seguro y accesible.

NO LO DESCARTE O DESECHE, ENTREGESELO AL USUARIO

HECHO A CHINA

CONJUNTO MAESTRO DE ADAPTADORES DE SERVICIO

MODELO:

Tipo de producto:

MBP1000

Instalación del adaptador

Junta esférica

Recepción de tubo

Brazo de control

Extracción del

adaptador

Brazo de control

Junta esférica

Instalación del adaptador

Recepción de tubo

Extracción del

adaptador

Page 4

MANUAL DE INSTRUCCIONES

Desmontaje e instalación de pasadores de anclaje en el sistema de frenos

1. Retire todos los retenes del anillo de fijación de los pernos de anclaje de freno.

2. Coloque la prensa en forma de "C" sobre la araña de freno como se muestra en la Figura 1.

3. Apriete el tornillo de fuerza hasta que se retire el perno de anclaje.

Ensamblado y desmontaje de las junturas en "U"

La prensa básica en forma de "C" se utiliza para dar servicio a las junturas en "U" en la mayoría de los automóviles y camiones ligeros. Las junturas en "U" pueden ser atendidos ya sea dentro o fuera del vehículo.

Desmontaje

1. Retire los anillos de bloqueo externo y/o interno.

2. Coloque la prensa "C" alrededor del yugo del eje de transmisión y apriete el tornillo de fuerza hasta que retire el primer cojinete.

3. Reposicione la prensa en C y retire el segundo cojinete.

Ensamblado

1. Limpie toda la suciedad y el aceite de la zona del yugo.

2. Alinee el nuevo cojinete con la prensa "C" tan recto como sea posible sobre el yugo. Presione el cojinete de repuesto en el yugo y vuelva a montar el anillo de seguridad externo/interno.

3. Reposicione la prensa "C" y el segundo cojinete de repuesto repitiendo toda la maniobra como con el primer cojinete.

Instalación y remoción de rotulas

Este conjunto de herramientas está diseñado para uso en automóviles y camionetas que tienen rótulas tipo ajuste a presión. Esto ayudará al usuario a desmontar e instalar junturas de rótula sin la necesidad de retirar el brazo de control del vehículo.

NOTA : Algunos coches y camiones ligeros pueden tener la rótula superior soldada por puntos al brazo de control. La soldadura se debe cortar antes de intentar quitar la rótula.

Remoción (Diferentes piezas se describen en la lista de la hoja 6)

1. Montar la prensa "C" en el brazo de control como se muestra en la Figura 3. Seleccione el tubo receptor del tamaño correcto, y colóquelo bajo la rótula del vehículo como se muestra.

2. Apriete el tornillo de presión hasta que el tubo receptor haga contacto con el brazo de control. Compruebe la alineación de todas las herramientas y componentes y continúe apretando el tornillo de fuerza hasta que se retire la rótula.

Instalación

1. Limpie el brazo de control y cubra el I.D. con un lubricante adecuado.

2. Inserte la rótula de reemplazo lo más recta posible en el brazo de control del vehículo.

3. Ensamble todos los componentes de la rotula en la prensa "C", como se muestra en la Figura 4. Coloque el tubo receptor y apriete el tornillo de fuerza. Compruebe la alineación de todas las herramientas y componentes y continúe apretando el tornillo de fuerza hasta que la rótula este firmemente asentada.

Figura 1.

Figura 2

Figura 3

Figura 4

MBP1000

MODEL:

Product Type:

CONJUNTO MAESTRO DE ADAPTADORES DE SERVICIO

Page 5

WARNING

ADVERTENCIA

Precaución: Para ayudar a evitar lesiones a las personas

Caution: To help prevent personal injury

• Normal use of this product is likely to expose the user to dust and/or microscopic particles containing chemicals

known to the State of California to cause cancer, birth defects or other reproductive harm. Always wear appropriate safety equipment and clothing when using this product. Study, understand and follow all instructions provided with this product. Failure to read and follow all warnings and operating instructions may result in damages and serious injury or death.

• Always wear ANSI approved goggles when using this product. (Users and Bystanders).

• Never use this tool for any application other than for which it was designed.

• Only use accessories designed for this tool.

• Never alter or modify this tool in any way.

• Improper operation and/or maintenance of the tool, modification of the tool, or use of the tool with accessories not

designed for it could result in serious injury or death.

• Always select the correct accessories of the correct size and design for the job that you are attempting to perform.

• Always work in a clean, safe, well-lit, organized and adequately equipped area.

• Do not begin repairs without assurance that vehicle is in secure position, and will not move during repair.

• El uso normal de esta herramienta puede exponer al usuario al polvo o a partículas microscópicas que contienen

sustancias químicas que se conocen en el estado de California por causar cáncer, defectos del nacimiento u otros daños reproductivos. Siempre use equipo y ropa de seguridad adecuados para trabajar con esta herramienta.

Lea, comprenda y siga todas las instrucciones incluidas con esta herramienta. Omitir la lectura y el no seguir todas las

advertencias e instrucciones de operación puede traer como consecuencia daños y lesiones graves o hasta la muerte.

• Siempre use guantes del tipo aprobado por la ANSI para trabajar con esta herramienta. (tanto usuarios como

espectadores).

• Nunca utilice esta herramienta para cualquier otra cosa que no sean las aplicaciones para lo que fue diseñada.

• Sólo utilice los accesorios diseñados para esta herramienta.

• No modifique o altere esta herramienta de ninguna manera.

• El funcionamiento y/o mantenimiento inadecuado de la herramienta, la modificación, o la utilización de la herramienta

con accesorios inadecuados podrían causar lesiones graves o la muerte.

• Siempre usar los correctos accesorios para el trabajo que Ud. está realizando.

• Trabaje siempre en un área limpia, segura, bien iluminada, organizada y equipada adecuadamente.

• NUNCA empiece reparaciones sin estar seguro de que el vehículo esté en posición segura y que no se mueva durante

la reparación.

Mise en garde: Pour aider à prévenir les blessures

AVERTISSEMENT

• L’utilisation normale de ce produit pourrait exposer l’utilisateur à de la poussière et/ou des particules microscopiques contenant des produits chimiques que l’État de la Californie a reconnu comme étant une cause de cancer, de déficience congénitale et d’autres effets nocifs sur le système reproductif.

Toujours porter un équipement et des vêtements sécuritaires appropriés en utilisant ce produit. Étudier, comprendre et

suivre toutes les instructions fournies avec ce produit. Echec de lire et suivre des avertissements et le mode d’emploi devrait causer des endommages et des blessures sévères ou la mort.

• Toujours porter des lunettes à coques approuvées par l’ANSI lorsque vous utilisez ce produit. (Utilisateurs et

Spectateurs).

• Ne jamais utiliser cet outil pour aucune application qui n’est pas conçue.

• Seulement utiliser les accessoires conçus pour cet outil.

• Ne jamais modifier cet outil.

• Le fonctionnement et/ou l’entretien incorrect de cet outil, la modification de cet outil, ou l’utilisation de cet outil avec les accessoires non conçus pour lui devrait causer des blessures graves ou la mort.

• Toujours utiliser les accessoires adéquats pour le travail que vous effectuez.

• Toujours travailler dans un environnement propre, sécuritaire, bien éclairé, organisé et suffisamment équipé.

• NE JAMAIS commencer les réparations sans d’abord vous être assuré que le véhicule est en position sécurisée et ne

bougera pas lors de la réparation.

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

MBP1000

MODEL:

Product Type:

Page 6

PARTS BREAKDOWN

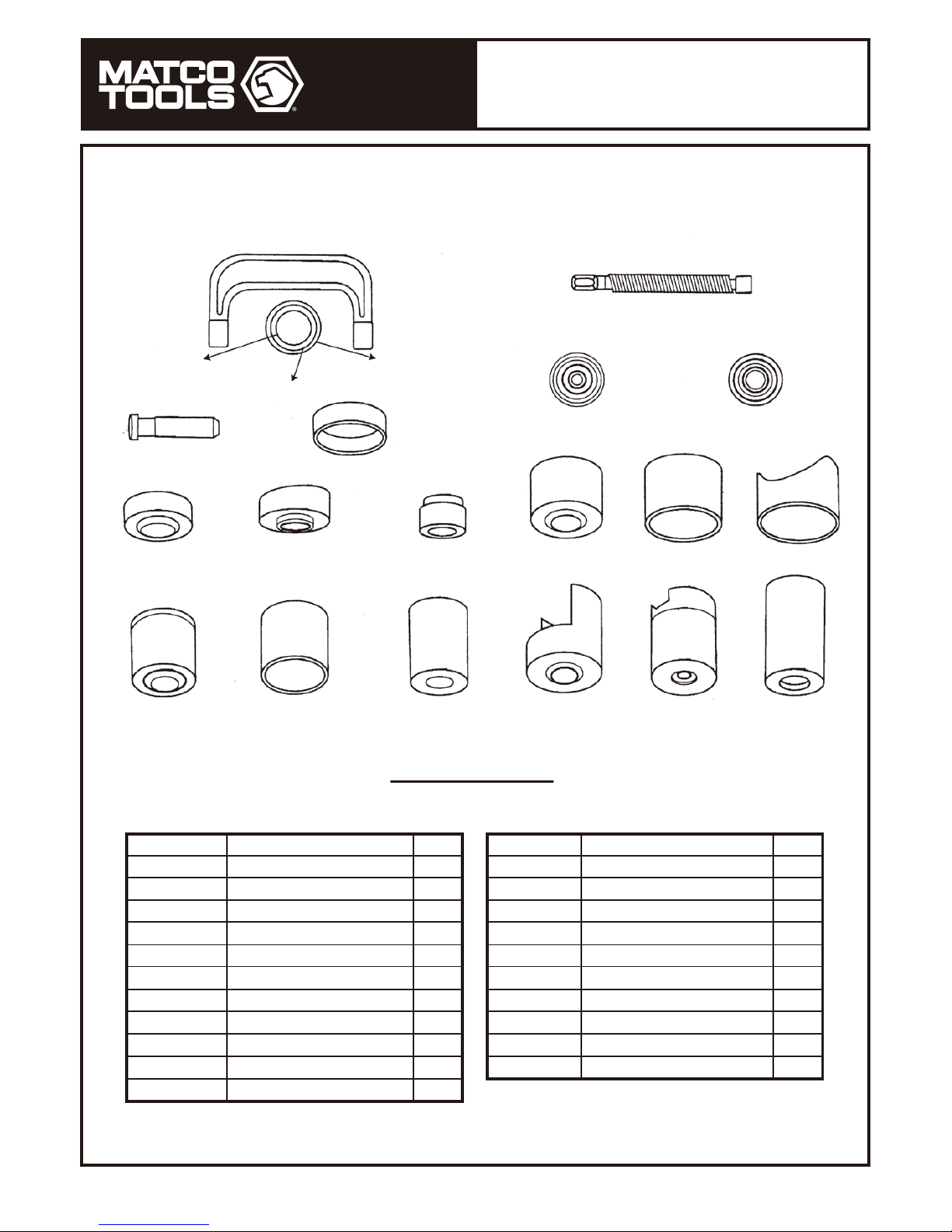

806

Parts List

MBP1000-01A

MBP1000-02

MBP1000-03

MBP1000-04

MBP1000-05

MBP1000-06

MBP1000-07

MBP1000-08

MBP1000-09

MBP1000-10

MBP1000-11

PART NO. DESCRIPTION QTY.

C-Frame

1-3/4" x 2" Receiving Tube

1-3/4" x 2-1/2" Receiving Tube

2-1/4" x 3" Receiving Tube

Screw

Center Rod

Sleeve

Removal Adapter

Install Adapter

Install Cup Adapter

Adapter

1

MBP1000-12

MBP1000-13

MBP1000-14

MBP1000-15

MBP1000-16

MBP1000-17

MBP1000-18

MBP1000-19

MBP1000-20

MBP1000-21

PART NO. DESCRIPTION QTY.

Adapter

Receiving Cup

Adapter

Install Cup

1

MBP1000-01A

MBP1000-02

MBP1000-03

MBP1000-04

MBP1000-05

MBP1000-08

MBP1000-07

MBP1000-06

MBP1000-10

MBP1000-16 MBP1000-17 MBP1000-18 MBP1000-19 MBP1000-20 MBP1000-21

MBP1000-11 MBP1000-12 MBP1000-13 MBP1000-14 MBP1000-15

MBP1000-09

Page 7

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

MBP1000 does not have all of the recommended adapters, but modification of adapters may or may not work. This tool not needed. Application requires bolt in ball joint, replacing control arm (RCA) or replacing steering knuckle (RSK), see Application description. MBP1000 may not work on your application.

BLANK:

NA:

Not Listed:

BALL JOINT APPLICATION MASTER

AcuraAudi

Make Model Year Application Removal

Installation

CL 2.2L

CL 2.3L

CL 3.0L

CL 3.2L ILX Integra MDX NSX

RDX RL 3.5L SLX TL 2.5L TL 3.2L

TL 3.5L

TLX A3 A4

A4 Quattro A5 Quattro A6

A6 Quattro

A8

A8 Quattro

Allroad

Cabriolet Q7

R8 Quattro

RS4 RS6 S4

1997

(98-99)

(97-99)

(99-03) 2017 (94-01) (07-13) (91-05)

(07-12) (96-12) (96-99) (95-99) (99-03) (96-08) (07-08)

2018 (06-08) (96-04) (96-08)

(96-05) (96-04) (96-08) 2008

(96-04)

(96-08)

(96-04) (96-05) (96-08)

(97-99)

(97-02) (00-08) (99-05) 2005 (01-04) (96-98) (07-08) (07-15) (06-08) (03-04) (00-02)

(00-08)

Fr. Upper NA (Bolt in) Fr. Lower applicable in Spindle Fr. Upper NA (Bolt in) Fr. Lower applicable in Spindle Fr. Upper NA (Bolt in) Fr. Lower applicable in Spindle Fr. Lower applicable in Spindle NA application Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RSK Rear Upper NA RCA Fr. Lower NA RCA Fr. Upper NA Bolt in Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable in Spindle Fr. Upper NA Bolt in NA application Fr. Upper NA RCA NA application Fr. Lower NA (Bolt in) Rear Lower NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Rear Upper NA RCA Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Rear Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Rear Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower NA RCA Rear Lower NA RCA Rear Upper NA RCA Rear Lower NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Rear Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA

NA

NA NA NA NA NA NA NA NA NA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

NA

21, 06

NA

21, 06

NA 21, 06 21, 06

NA

NA 21, 06

NA

AudiBMW

Make Model Year Application Removal

Installation

S4 Avant

S4 Cabriolet

S5 S6

S6 Avant

S8

TT

TT Quattro 128i 135I 323ci 323i 325ci 325i 325xi 328ci

328i

328xi 330ci 330i 330xi 335i 335xi 525 525i

525xi 528i

528xi 530 530i

530xi 535i 535xi 540i 545 550i 645ci

645i

650i

740i

(04-05) (04-05) (07-12) (99-03)

(06-11) (99-03)

(01-03) (07-09) (00-06) (06-14) (98-06) (06-14) (08-11) (07-10) (98-00) (98-00) (01-06) (01-06) (01-06) (98-00) (07-13) (98-00) (07-13) (07-08) (01-06) (01-06) (01-06) (07-15) (07-15) (04-05) (06-07)

(06-07) (97-00) (08-16) (08-09) (04-05) (01-03) (06-07) (06-07) (08-16) 2008 (96-03) (04-05) (06-16) (04-05)

(04-05)

(06-17)

(95-01)

Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper & Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Upper & Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Na application (Bolt in) Fr. Lower NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

Page 8

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

BMWBuickCadillac

Cadillac

740IL 745i

745Li 750i

750iL 750Li

760i

760Li

840Ci 850Ci Alpina B7 M3

M5

M6

X3 X5

X6 Z3 Z4 Z8 Allure Centruy Enclave LaCrosse LeSabre Lucerne

Park Avenue

Rainier

Regal

Rendezvous

Riviera

Roadmaster

Skylark Terraza

Catera Concours CTS DeVille

(HD Suspension, Limo Commercial Chassis)

DeVille DHS DTS Eldorado

(95-01) (02-05)

(02-05) (06-17)

(90-01) (06-15)

(05-08)

(03-08)

(92-99) (92-99) (01-08) (01-06) (07-13) (99-03)

(05-10)

(06-10)

(04-10) (00-06) (07-13)

(08-14) (96-02) (02-16) (00-03) (05-09) (82-05) (08-17) (05-09) (86-05) (06-11) (91-05) (04-07)

(88-04) (02-07)

(86-99) (91-96) (86-98) (05-07)

(97-01) (97-99) (03-13) (96-99)

(00-05) 2004 (06-11) (86-02)

Fr. Lower NA RCA Fr.& Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Rear Lower & Upper NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Upper NA RCA Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA NA application Fr. Lower NA RCA Fr. Lower NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. & Rear Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper applicable Fr. Lower NA (Bolt in) Fr. Lower NA RCA Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Lower applicable

Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in)

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

15, 08

NA NA NA NA NA NA NA NA NA NA

04, 03, 08, 09

NA NA NA NA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

16, 10

12, 18, 06

NA NA NA NA NA NA NA NA NA NA

03, 08, 10, 06

03, 09

NA NA NA NA

Make Model Year Application Removal

Installation

Chevrolet

(99-00)

(02-07) (07-14) (91-96) (86-04) (04-09)

(05-11) (06-09) (05-09) (04-09) (91-00) (96-99) (95-99) (91-99) (91-92) (91-92) (91-00) (96-99) (95-99) (95-00) (98-00)

(73-97)

(73-97) (73-97)

(73-97) (91-92) (91-00) (96-99) (95-00) (85-05)

(90-05)

(02-13) (02-06) (07-13)

(02-11) (87-96) (82-05) (82-05)

(93-02) (91-96) 1996 (82-05) (05-10) (04-12) (87-96) (84-96)

(02-13) (05-13)

Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper and Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Upper NA Rear Upper NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA Fr. Upper NA (Bolt in) Fr. Lower NA Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower NA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Upper NA RSK

15, 08

NA

NA NA NA NA NA NA NA NA NA NA NA

15, 08

NA NA

08, 03, 04, 09, 06

NA

15, 08

NA NA NA NA NA NA NA NA NA NA

08, 03, 04, 09, 06

NA

15, 08

NA

NA NA NA

15, 08

NA NA NA NA NA NA NA NA NA NA NA NA NA NA

09, 03, 04, 08

NA NA NA

09, 03, 13

NA

NA NA NA NA NA NA NA NA NA NA NA

09, 03,13

NA NA

NA

09, 03, 13

NA NA NA NA NA NA NA NA NA NA

NA

09, 03, 13

NA

13, 03 or 07, 09

NA NA NA

10, 13 or 03, 08

NA NA NA NA NA NA NA NA NA NA NA NA NA NA

NA NA NA

10 or 09, 07, 13 or 03, 08

Escalade

Fleetwood

Seville SRX

STS

STS-V (DX)

STS-V8 (DC)

XLR

C/K 1500 2WD

C/K 1500 4WD

C/K 2500 2WD

C/K 2500 4WD

30 Comm

30 Motor Home

30 Step Van

3500 4WD

Astro 2WD

Astro 4WD

Avalanche

2WD/ 4WD

Aveo Beretta

Blazer 2WD

Blazer 4WD

Camaro Caprice

Cavalier Cobalt

Corsica Corvette

C/K 2500 2WD w/ 7200 lbs GVW

C/K 2500 2WD w/ 8600 lbs GVW

C/K 2500 4WD w/ 7200 lbs GVW

C/K 2500 4WD w/ 8600 lbs GVW

30 Motor Home w/ IFS

30 Step Van w/ IFS

3500 2WD w/ IFS (5th VIN digit "C")

10 or 09, 07,

13 or 03, 08

Avalanche 1500 2WD/4WD Avalanche 2500 2WD/4WD

Colorado 2WD/4WD

Page 9

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

Chevrolet

ChevroletChryslerDodge

Daewoo

(05-09) (03-15) (96-02) (03-14) (96-02) (96-02) (03-14) (96-14) (71-95) (73-95) (73-95) (06-11) (00-13) (94-96) (90-01) (90-96) (97-05) (06-08)

(04-05 & 08)

(98-01) (95-07) (98-02) (82-05) (82-05) (99-06) 2007 2007

(99-06) 2007 (01-07) 1999 (99-00) (01-07) (08-11)

2000 (01-11) (01-11) (03-06)

1992 (92-99) (00-06) (07-14)

(96-99) (95-99) 1992 2000 (92-99) (01-13) (96-99) 2000 (95-99) (96-97) (95-99) 2000 2000

Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Lower NA Fr. Upper NA Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in)

NA

NA NA 19 19 NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

15, 08 15, 08

NA

15, 08

NA

NA 15, 08 15, 08 15, 08 15, 08

NA

NA 15, 08

NA

NA 15, 08 15, 08 15, 08

NA

Make Model Year Application Removal

Installation

10 or 09, 07, 13 or 03, 08

10 or 09, 07,

13, 03, 08

10, 09 or 07, 13 or 03, 08

NA

NA NA

10, 03, 08, 13

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

10, 13, 03, 08

NA

10, 13 or 03, 08

NA NA

10, 13 or 03, 08

16, 10

12, 18, 06

NA

09, 03, 13

NA

NA NA

10, 13 or 03, 08

09, 03, 13

10, 13 or 03, 08

NA NA NA

NA

08, 03, 04,

09, 06

08, 03, 04,

09, 06

09, 07, 08,

03, 06

Express 2500 w/7300 lbs GVW

Equinox

Express 1500

Express 3500

G10 G20 G30 HHR Impala

Lumina

Lumina APV

Malibu

Malibu Classic

Metro

Monte Carlo

Prizm S-10 2WD S-10 4WD

SSR

Tahoe 2WD

Express 2500 w/7700 & 8600 lbs GVW

Express 2500 w/8500 lbs GVW

Silverado 1500 2WD

Silverado 1500 2WD (Old Style)

Silverado 1500 2WD/4WD (New Style)

Silverado 1500 4WD

Silverado 1500 4WD (Old Style)

Silverado 1500 HD 2WD / 4WD

Silverado 2500 & 2500 HD 4WD

Silverado 2500 2WD

Silverado 2500 2WD/4WD

Silverado 2500 4WD

Silverado 2500 HD 2WD / 4WD

Silverado 3500 2WD /4WD

Suburban 1500 2WD

Suburban 1500 2WD/4WD

Suburban 1500 4WD

Suburban 2500 2WD

Suburban 2500 2WD/4WD

Suburban 2500 4WD

Suburban 4WD

Tahoe 2WD New Style (Exc. Limited)

Tahoe 2WD Old Style Limited

Tahoe 2WD/4WD

Tahoe 4WD

Tracker

Uplander

Venture

300C AWD

300C RWD

300M

Aspen

2WD/4WD

Cirrus Concorde Crossfire

Grand Voyager

LHS

New Yorker

Pacifica

Prowler

Sebring Sedan

Town & Country

Voyager Lanos Leganza Nubira Avenger

Caravan

Challenger

Charger AWD

Charger RWD

Colt Colt Vista

Dakota 2WD

Tahoe 4WD New Style (Exc. Z71)

Tahoe 4WD Old Style Z71

Tracker 2WD/4WD

Trailblazer EXT 2WD/4WD

Trailblazer 2WD/4WD

Venture 2WD/4WD

(01-06) (07-14)

(96-00) (95-00) 2000 2000 (99-04) 1998 (02-09)

(03-07)

(05-08)

(97-05) (02-05) (02-05) (05-10) (05-10)

(99-04) (07-09)

(95-00) (93-04) (04-08)

2000 (94-01) (94-96) 2004 (05-08) (97-02)

(96-06) (95-00)

(01-06) (90-00) (01-16) (00-03) (97-02) (99-02) (97-02) (95-00)

(07-12) (84-00) (01-06) (07-17) (08-10) (06-10) (06-10)

(84-94) 1996 (87-96) (97-99)

Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper and Lower NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Upper & Lower NA RCA Rear Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Lower applicable Fr. Upper & Lower NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Lower NA RCA Fr. Upper NA (Screw in) Fr. Lower NA (Bolt in)

NA

15, 08

NA

NA NA NA

15, 08 15, 08

NA NA NA NA NA NA

NA NA

NA NA NA NA NA

12, 18 or 02, 09

NA NA NA

12, 18

NA NA NA NA NA NA

12, 18 or 02, 09

12, 18

12, 18 or 02, 09

NA NA NA NA NA

12, 18

12, 18 or 02, 09

12, 18

NA

12, 18

NA NA NA

09, 07, 08, 03, 06

NA

09, 03, 13

NA

NA NA NA

12, 18, 06

16, 10 16, 10

12, 18, 06

NA NA NA NA NA NA

16, 10

NA NA

NA NA NA NA NA

NA NA NA

NA NA NA NA NA NA

21, 08

NA NA NA NA NA

21 , 08

NA

16, 10

NA

16, 10

NA

16 NA NA NA

10 or 09, 07, 13 or 03, 08

08, 03 or 13,

07 ,09, 06

Pacifica FWD/AWD

Sebring Convertible

Sebring Coupe

Caliber FWD/AWD

Page 10

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

Dodge

DodgeEagle

Ford

Make Model Year Application Removal

Installation

Dakota 2WD

Dakota 2WD/4WD

Dakota 4WD

Durango 2WD

Durango 2WD/4WD

Durango 4WD

Grand Caravan

Intrepid

Magnum AWD

Magnum RWD

Nitro 2WD/4WD Ram 1500 2WD

Ram 1500 2WD HD

Ram 1500 2WD/4WD Ram 1500 4WD

Ram 2500 2WD

Ram 2500 4WD

Ram 3500 2WD

Ram 3500 2WD w/IFS

Ram 1500 2WD Light Duty w/IFS

Ram 1500 4WD HD

Ram 1500 4WD Light Duty w/IFS

Ram 1500 4WD w/248 FBI Axle

Ram 1500 4WD w/216 FBI Axle

Ram 2500 4WD w/ Dana 44 Axle

Ram 2500 4WD w/ Dana 60 (4500 lb axle)

Ram 3500 2WD w/IFS

Ram 3500 2WD w/ Solid Fr. Axle

(00-04)

(97-99) (05-11)

(97-04)

(87-96) (99-03) (04-09)

(98-03)

(88-00) (01-07) (08-10) (93-04) (05-08)

(05-08)

(07-12)

(94-96) (97-99) (00-01)

2006 2008 (07-09) (02-05)

(94-99)

2006 (07-08) (07-08) (00-01)

(00-01)

(94-99) (00-02) (03-08) (00-02) (03-05) (06-08) (00-08) (96-99) (94-99) (94-99)

(03-08) (03-05) (06-08) (94-99) (00-02) (00-02)

Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Screw in) Fr. Upper & Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA Fr. Upper NA Fr. Upper & Lower NA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower NA Fr. Lower NA Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA RCA Fr. Upper NA Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA Fr. Upper NA Fr. Lower applicable Fr. Upper applicable Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in)

NA NA NA

NA

08, 03 or 13

NA NA NA

NA

08, 03 or 13

NA

12, 18 or 02, 09

12, 18

NA NA NA NA

NA

NA 04, 08 04, 08

NA

12, 20 or 21

20, 12

NA

NA 20, 12

12, 20 or 21

20, 12

12, 20 or 21

04, 08

NA

19 NA NA NA

09, 03

12, 20 or 21

20, 12

03 or 08, 17

08, 17

19 NA NA

04, 08 09, 03

NA NA

NA NA NA

10, 13

NA

16, 07, 09

NA NA NA

NA

16, 07, 09

NA

NA NA NA NA

16, 10

NA

10, 13

NA 09, 07, 16 09, 07, 16

NA

NA 10, 03, 08

NA

18, 11 18, 11

10, 03, 08

NA

18, 11 18, 11 18, 11 18, 11

09, 07, 16

NA

10, 03, 08, 13

NA

18, 11 18, 11

08, 02, 10

16, 10 or 07, 09

10, 03, 08, 13

NA

NA 09, 07, 16

NA

08, 03 or 13,

07, 09, 06

Ram 3500 4WD

Ram SRT-10

Ram Van 1500

Ram Van 2500

Sprinter 2500

Sprinter 3500

Stealth Stratus

Stratus Sedan

Viper

Summit Talon

Vision Aerostar 2WD Aerostar 4WD Aspire Bronco

Contour

Ram 3500 4WD w/ Solid Fr. Axle

Ram Van 3500 w/3600 lbs Axle

Ram Van 3500 w/4000 lbs Axle

Ram Van B100 (Standard Suspension)

Ram Van B100 (HD Suspension)

Ram Van B150 (Standard Suspension)

Ram Van B150 (HD Suspension)

Ram Van B200 (Standard Suspension)

Ram Van B200 (HD Suspension)

Ram Van B250 (Standard Suspension)

Ram Van B250 (HD Suspension)

Ram Van B300 (Standard Suspension)

Ram Van B350 (Standard Suspension)

Ram Wagon 1500

Ram Wagon 3500

Ram Wagon 2500

2000 GTX (Canada Only)

(96-99)

(00-08)

(94-99)

(04-06)

(95-03)

(95-03) (71-80) (72-80) (81-94)

(81-94) (71-80)

(72-80) (81-94)

(81-94) (71-80)

(81-94)

(99-03) (99-03) (99-03) (03-10) (03-10) 1996 (95-00) (07-08) (01-06) (97-17) 1996 (91-93) (91-96) (90-94) (95-98)

(93-97) (86-97)

(86-97)

(96-97) (80-96)

(84-90)

1990

(95-00)

Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Upper NA Fr. Upper NA Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Upper NA Fr. Lower applicable Fr. Upper NA Fr. Lower applicable NA application NA application NA application Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower NA (Bolt in)

03 or 08, 17

08, 17

08, 03

03 or 08, 17

08, 17

NA NA

NA

NA NA NA NA

NA NA

NA

NA NA NA

14, 08

14, -08

NA NA NA NA NA

NA 12, 18 12, 18 12, 18

NA

08, 03 or 13

NA

16

16 08, 03 08, 03 08, 03 08, 03

NA

08, 02, 10

16, 10 or 07, 09

08, 02, 10

16, 10 or 07, 09

10, 03, 08

NA NA

08, 03, 10

NA

08, 03, 10

NA

08, 03, 10

NA NA NA NA

08, 03, 10

NA NA

08, 03, 10

NA NA

08, 03, 10

NA NA

08, 03, 10

NA

08, 03, 10

NA NA NA

10, 03, 08, 13

NA NA NA NA NA NA

16 16

16 NA NA NA NA

08, 03

10, 08, 02

NA NA

21, 10

21 or 08, 02, 10

NA

Bronco ll 4WD w/ Dana 28 Axle

Bronco ll 4WD w/ Dana 35 Axle

08, 02, 10 or 07, 09 08, 02, 10 or 07, 09 08, 02, 10 or 07, 09 08, 02, 10 or 07, 09

Page 11

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Crown Victoria

E-150

E-250, E-350, E-450

E-550 Edge Escort

Excursion 2WD

Excursion 4WD

EXP Expedition 2WD/4WD

Explorer 2WD/4WD

Explorer 4WD

w/ Dana 28 Axle

Explorer 4WD

w/ Dana 35 Axle

Explorer Sport

Trac 2WD/4WD

Explorer Sport/

Sport Trac

2WD/4WD

F-150 2WD

F-150

2WD/4WD

F-150 4WD

F-150 Heritage

& Lightning

F250 2WD

F250 2WD HD

w/ Twin I-Beam

Make Model Year Application Removal

Installation

Ford

Ford GeoGMC

Make Model Year Application Removal

Installation

F-150 2WD/ 4WD (Base)

F-150 2WD/ 4WD (HD)

(03-08) (95-02)

(92-04) (03-08) (96-02) (03-08) (96-04) (05-08) (96-04) (05-08) (02-03) (07-17) (84-90) (91-02) (00-05)

(00-05)

(82-88) (97-02) (03-17) (97-17) (96-05) (02-05) (06-10) (95-00) 2006 (91-94)

(91-93) (93-94) (91-93) (93-94) (02-05) (04-05) (07-10) (04-05) 2001 (02-03) 2001 (02-03) (87-96) (87-97) (97-03) (97-03) (04-08) (97-03) 2008 2008 (80-96)

(97-03) 2004 2004 (87-96)

1997

Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable No Ball Joint applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Rear Lower NA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Upper NA RCA Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable Rear Lower NA Fr. Lower applicable Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Upper NA RCA Fr. Lower applicable Fr. Upper applicable in Spindle Fr. Upper NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Upper applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable in Spindle Fr. Upper applicable in Spindle Fr. Lower applicable in Spindle Fr. Upper applicable in Spindle

19

NA

13 or 08, 03

08, 14 08, 17

08, 03 or 13

19

08, 04 or 19

08, 17

08, 03 or 13

NA NA NA NA

16

08, 17

16 or 13

08, 17

NA

19 or 04, 08

7897-19

NA

19 or 04, 08

NA NA NA

NA 08, 03 08, 03 08, 03 08, 03 08, 03 08, 03

NA

19 or 04, 08

NA

19 or 04, 08 19 or 04, 08

NA

NA 08, 03

16

NA

19 or 04, 08

19 NA NA NA

16

16 NA

19 or 04, 08

NA

08, 03

16

08, 03

16

20, 10, 06

NA 08, 02, 10 08, 02, 10 08, 02, 10 08, 02, 10

16, 10 or 07, 09

08, 02, 10 08, 02, 10

NA

21 or 08, 02, 10

16, 10 21, 10 16, 10

NA 10, 03, 08

10, 03, 08 or 13

NA

10, 03, 08 or 13

NA

NA 10, 03, 08

NA

NA 10, 03, 08 10, 03, 08

NA

NA 08, 02, 10 08, 02, 10

NA 10, 03, 08

10, 03, 08 or 13

NA

21, 10

21 or 08, 02, 10

NA

10, 03, 08 or 13

NA

16, 10 or 07, 09

08, 02, 10

16, 10 or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

F-350 2WD

F-350 4WD

(Monobeam Axle)

F53

Five Hundred

Focus Freestar Freestyle Fusion Mustang

Probe

Ranger 2WD

Taurus

Taurus X Tempo

Thunderbird

Windstar ZX2 Metro Prizm

1500 2WD

1500 4WD

F250 4WD (Under 8500 lbs. GVW)

F250 4WD w/ 3850 lbs. Axle

VF250 4WD w/ 4600 lbs. Axle

F250 4WD HD w/ Twin I-Beam

F250 4WD w/ 4600 lbs. Axle w/ Twin I-Beam

F-250 Super Duty 2WD w/ Twin I-Beam Axle

F-250 Super Duty 2W/4WD (Monobeam Axle)

F-350 SD 2WD w/ Twin I-Beam Axle

F-350 SD 2WD/4WD (Monobeam Axle)

F-450 SD 2WD/4WD

F-550 SD 2WD/4WD (Monobeam Axle)

F-550 SD 2WD/4WD

Ranger 2WD w/ Coil Spring Suspension

Ranger 2WD/4WD w/ Torsion Bar Suspension

Ranger 4WD w/ Dana 28 Axle

Ranger 4WD w/ Dana 35 Axle

Tracker 2WD/4WD

2500 2WD w/ 7200 lbs GVW

(97-99)

(80-96) (80-96) (80-96) 1997

(99-08) (99-08)

(87-97)

(92-97)

(99-08) (99-08)

(05-08) (96-97) (99-08)

(05-08) (05-07) (98-11) (04-07) (05-07) (06-12) (94-04) (05-14) (89-97) (89-97)

(98-11) (98-07) (08-11) (98-11)

(83-97)

(90-97)

(86-95) (08-09) (08-09) (84-94) (02-05) (89-97) (94-03) (97-03) (89-97) (93-97) (89-98) (91-92) (91-99) (96-99) (95-99) (91-92)

Fr. Lower applicable Fr. Upper NA RCA

Fr. Lower applicable (NA on 4.10 Ratio)

Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable in Spindle Fr. Lower applicable in Spindle Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable NA application Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA NA application Fr. Lower NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable

19 or 04, 08

NA

16

08, 17 or 13

16 16

08, 17 or 13

16

08, 17

16 or 13

16

08, 03

16 or 13

08, 17

16

16 or 13

08, 17

16 or 13

08, 17

08, 14, 06

NA

16 or 13

08, 17

08, 14, 06

NA NA NA NA NA

12, 03, 09

08, 03 08, 03

19 NA NA

19 or 04, 08

NA

08, 03 08, 03 08, 03 08, 03

NA NA NA NA NA NA NA NA NA NA NA

NA

15, 08

NA

08, 03, 04,

09, 06

08, 03, 04,

09, 06

10, 03, 08 or 13

NA 21, 10 16, 10

21 or 08, 02, 10

16, 10

21 or 08, 02, 10

16, 10 21, 10

08, 02, 10

16, 10 or 07, 09

21, 10 16, 10

21 or 08, 02, 10

21, 10 16, 10 21, 10 16, 10

16, 07, 09, 06

NA 21, 10 16, 10

16, 07, 09, 06

NA

NA 20, 10

16, 10 21, 10

08, 02, 10

10, 03, 08 or 13

NA

10, 03, 08

NA

08, 02, 10

NA

09, 03, 13

NA

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

Page 12

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

GMC

Honda

Hyundai

Infiniti

Hummer

Make Model Year Application Removal

Installation

2500 4WD

3500 4WD

Acadia

Envoy

2WD/4WD

G1500 G2500 G3500

Jimmy 2WD

Jimmy 4WD

Safari 2WD

Safari 4WD

Savana 1500

Savana 3500

Sierra Denali

Suburban 1500 2WD Suburban 1500 4WD Suburban 2500 2WD Suburban 2500 4WD Syclone Typhoon

2500 2WD w/ 7200 lbs GVW

2500 2WD w/ 8600 lbs GVW

2500 4WD w/ 7200 lbs GVW

2500 4WD w/ 8600 lbs GVW

3500 2WD w/ IFS (5th VIN digit "C")

3500 Motor Home w/IFS

3500 Motor Home

3500 Step Van

3500 Step Van w/ IFS

Canyon 2WD/4WD

S-15 Sonoma 2WD

S-15 Sonoma 4WD

Savana 2500 w/7300 lbs. GVW

Savana 2500 w/7700 & 8600 lbs. GVW

Savana 2500 w/8500 & 8600 lbs. GVW

Sierra 1500 2WD

Sierra 1500 4WD

Sierra 2500 4WD

Sierra 1500 HD 2WD/4WD

Sierra 2500 HD 2WD/4WD

Sierra 3500 2WD/4WD

Sierra 2500 2WD/4WD

(91-00) (91-92) (91-00) (96-00) 2000 (95-00) (95-00) (91-92) (91-00) (96-00) (95-00) (73-97)

(73-97) (73-97)

(73-97) (07-17) (04-12) (98-00) (02-09)

(71-95) (73-95) (73-96) (82-02) (82-02) (82-04) (82-04) (85-05)

(90-05) (96-02) (03-15) (03-17) (96-02) (96-02) (03-17) (03-17) (96-02) (99-07) (99-07) (00-07) (01-04) (99-00)

(01-11) (01-11) (02-07) 1992 (92-99) (96-99) (95-99) 1992 (92-99) (96-99) (95-99) 1991 (91-93)

Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in)

NA

15, 08

NA NA NA

NA

15, 08

NA NA NA NA NA NA NA NA NA NA

15, 08

NA NA NA NA NA NA NA

NA NA NA

NA NA

19

19 NA NA

15, 08 15, 08 15, 08

NA

15, 08 15, 08

NA

15, 08

NA

15, 08

NA NA NA

08, 03, 04

09, 06

08, 03, 04

09, 06

08, 03, 04

09, 06

08, 03, 04

09, 06

NA

09, 03, 13

NA NA NA

NA

09, 03, 13

NA NA NA NA NA NA NA NA NA NA

12, 18, 06

16, 10

NA NA NA NA NA NA NA

13, 03 or 07, 09

NA NA NA

NA NA

10, 03, 08 or 13

NA NA

10, 13 or 03, 08

NA

10, 13 or 03, 08

NA

09, 03, 13

NA

09, 03, 13

NA NA NA

10 or 09, 07, 13 or 03, 08

Yukon 2WD/4WD

Yukon Denali & Denali XL

Yukon exc.

5.7L

Yukon XL 2500

(01-07) (95-99) (96-99) 2000 2000 (99-00) (01-05) 2000 (00-07) (00-08) (90-93) (90-97)

(98-02) (06-11) (92-00) (96-00) (07-11) (01-08) (00-06) (95-98) (99-06) (07-10) (94-02) (07-08) (00-01) (92-96) (92-99) 1996 (97-01) (97-01) (06-14) (00-09)

(92-06) (03-09) (06-10) (06-11) (06-11) (07-10) (06-10) 2017 (01-06) (99-10) (05-10) (07-12) 2001 (02-05) (07-12)

(03-12)

(03-08)

(09-13)

(91-96) (99-02)

Yukon 4WD w/ 5.7L

Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable in Spindle Rear Upper NA RCA Fr. Lower applicable in Spindle Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Rear Lower NA RSK Fr. & Rear Upper NA RCA NA application Fr. Lower applicable NA application Fr. Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) NA application Rear Lower NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. & Rear Upper NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower applicable Rear Upper NA RCA

NA 15, 08 15, 08

NA

15, 08

NA

12, 18

NA

NA 15, 08

NA

NA 12, 18

NA

NA 09, 03, 13 09, 03, 13

NA

10, 13 or 03, 08

NA

21, 06

NA

21, 06

NA

21, 06

NA

21, 06

NA

10, 13 or 03, 08

NA

Yukon

Yukon 4WD

Yukon Denali

Accord

Civic

CR-V Fit Insight Odyssey

Pilot Prelude

Prelude exc. SH

Prelude SH

Ridgeline S2000

H1 H2 H3 Accent Azera Elantra Entourage Ioniq Santa Fe Sonata Tucson Veracruz XG300 XG350 EX35

FX35

FX45

FX50

G20

Yukon XL 1500

Accord Sedan & Coupe

Passport 2WD/4WD

Page 13

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

InfinitiIsuzu

Make Model Year Application Removal

Installation

G20t G35 G37 I30I I30t J30 J30t M35 M37 M45 Q40 Q45 Q45t QX4 QX56

Amigo

Ascender

2WD / 4WD

Axiom

Hombre 2WD

Hombre 4WD

I-290 I-370 Oasis

Rodeo

Trooper

VehiCROSS

S-Type

Vanden Plas XJ

XJ12 XJ6 XJ8 XJR

XJS XK XK8

XKR X-Type Cherokee

Cherokee RHD

(99-02) (03-08) (08-13) 1997 (97-01) (93-97) 1997 (06-10) (11-13) (03-10) 2015 (96-06) (97-01) (97-03) (07-13) (04-13)

(98-00) (03-08)

(02-04) (96-00) (96-00) (06-08) (06-08) (96-99)

(88-95) (91-04) (96-04) (95-02) (92-02) (99-01) (00-08)

(94-97) (98-04) (03-16) 2003 (04-16) (94-96) (92-97) (98-05) (95-97) (98-06) (92-96) (03-14) (98-03) (05-14) (97-14) (00-14) (01-09) (90-01)

(96-98)

(06-10) (07-16)

Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA Fr. Lower NA RCA Rear Lower NA RCA Rear Upper NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Upper & Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower applicable Fr. Upper & Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower NA in spindle Fr. & Rear Upper NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA RCA Fr. Lower NA RSK Fr. Upper NA Fr. Upper NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA RCA Fr. Upper applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

15, 08

NA NA NA NA NA NA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

20, 12

12, 20 or 21

20, 12

12, 20 or 21

12, 18

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

12, 18, 06

16, 10

NA NA NA NA NA NA

21, 06

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

NA 18, 11 18, 11 18, 11 18, 11 10, 13

Pickup 2WD/4WD

JaguarJeep

JeepKiaLand RoverLexus

Commander 2WD/4WD

Compass 2WD/4WD

Grand Cherokee

Wrangler

Amanti (GH)

Optima (MG)

Optima (MS)

Rio (DC) Rio (JB)

Rondo (UN)

Sedona

Sephia

Sorento

Spectra (SD)

Sportage

Defender 90

Discovery

Discovery II

Freelander

LR3

Range Rover

ES 300

ES 350 GS 300 GS 350 GS 400 GS 430 GS 450h GX 470

IS 250 IS 300 IS 350 IS-F LS 400 LS 430

LS 460 LX 450 LX 470

RX 300 RX 330 RX 350 RX 400h

Grand Cherokee 2WD/4WD

Grand Wagoneer

Liberty 2WD/4WD

Patriot 2WD/4WD

(96-04) (93-04) (05-10) (93-94) (08-12) (02-12) (07-10) (87-17)

(07-10) (04-10) (06-10) (01-06) (01-05) (06-11) (07-10) (02-05) (06-14) (94-97) (98-03) (02-09)

(00-04) (95-02)

(05-09) (94-95) 1997 (94-99) (00-04) (02-05) 2005 (95-05) (92-01) (02-03) (04-06) (07-12) (93-11) (05-08) (98-00) (01-07) (07-17) (03-09)

(06-13) (01-05) (06-13) (08-14) (96-00) (01-06) (04-06) (07-17) (96-97) (98-07)

(99-03) (04-06) (07-17) (06-08)

Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Upper applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) NA application NA application NA application NA application NA application NA application NA application Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in)

NA application Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in)

20, 12

12, 20 or 21

NA NA

20, 12

12, 20 or 21

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

18, 11 18, 11 10, 13 18, 11 10, 13

NA

NA 18, 11 18, 11

NA

Page 14

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

LexusLincolnMazda

MazdaMercedes-Benz

Make Model Year Application Removal

Installation

SC 300 SC 400 SC 430

Blackwood

Continental

LS Mark LT

Mark LT (Base)

Mark LT (HD)

Mark VIII MKX MKZ

Navigator

2WD / 4WD

Town Car

Zephyr 626

B-2300 2WD

B-2300 4WD

B-2600 4WD

B-3000 2WD

B-3000 4WD

B-4000 2WD

(96-00) (96-00) (02-10) (03-05) 2002

(88-94) (00-06) (06-07) 2008 2008 (93-98) (07-15) (07-12) (98-02) (98-06) (03-14) (07-14) (95-02)

(03-11) 2006 (83-97) (98-02) (91-93) (94-97)

(01-04)

2001 (05-09)

(01-04)

(95-97)

(98-01)

(98-01) (98-01) (98-01) (91-93) (94-96)

(98-04)

(98-01) (05-09)

(02-04) (98-04) (94-96)

(98-01) (94-97)

(98-04)

(98-01)

Fr. Upper & Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) NA application Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Rear Lower applicable Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower NA RCA Fr. Lower applicable Fr. Lower NA RCA Fr. Upper & Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper & Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Lower applicable

NA NA NA NA

19 or 04, 08

NA NA NA NA NA NA NA NA NA

19 or 04, 08

NA

19 19

NA

19

NA

NA 08, 03 08, 03

19

NA

19 or 04, 08

19

NA

19

NA 08, 03 08, 03

19

NA

19 or 04, 08

NA

19

NA 08, 03 08, 03

19

NA

19 or 04, 08

19

NA

19

NA 08, 03 08, 03

19 08, 03 08, 03

19

NA

19 or 04, 08

NA NA NA NA

10, 03, 08

NA NA NA NA NA NA NA NA NA

10, 03, 08

NA

10, 03, 08 or 13

20, 10, 06

NA

16, 10

NA NA

21, 10

08, 02, 10

10, 03, 08 or 13

NA

10, 03, 08

10, 03, 08 or 13

NA

10, 03, 08 or 13

NA

10, 03, 08 or 13

NA

10, 03, 08

NA

10, 03, 08 or 13

NA

21, 10

08, 02, 10

10, 03, 08 or 13

NA

10, 03, 08

10, 03, 08 or 13

NA

10, 03, 08 or 13

NA

10, 03, 08 or 13

21, 10

08, 02, 10

10, 03, 08 or 13

NA

10, 03, 08

Aviator 2WD / 4WD

B series Truck 2WD / 4WD

B-2300 2WD w/ Coil Spring suspension

B-2500 2WD w/ Coil Spring suspension

B-2300 2WD w/

Torsion bar suspension

B-2500 2WD w/

Torsion bar suspension

B-2300 2WD/4WD w/Torsion bar suspension

B-2300 2WD/4WD

B-2500 2WD/4WD w/Torsion bar suspension

B-2500 4WD w/

Torsion bar suspension

B-3000 2WD w/ Coil Spring Suspension

B-3000 2WD w/

Torsion Bar Suspension

B-3000 2WD/4WD

B-3000 2WD/4WD w/Torsion bar suspension

B-3000 4WD w/

Torsion bar suspension

B-4000 2WD w/ Coil Spring Suspension

B-4000 2WD w/

Torsion bar suspension

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

08, 02, 10

or 07, 09

B-4000 4WD

CX-7 CX-9 Mazda3 Mazda5 Mazda6

Miata

MX-5 Miata

Millenia MPV MPV 2WD MPV 4WD MX-6 Navajo 2WD

Protégé

Protégé5 RX7 RX8 C220

C230

C240

C280

C32 AMG C320

C350 C36 AMG C43 AMG

C55 AMG CL500

CL55 AMG CL600

CL65 AMG CLK320

B-4000 2WD/4WD w/Torsion bar suspension

B-4000 2WD / 4WD

B-4000 4WD w/

Torsion bar suspension

Mazda Speed 3

Navajo 4WD w/Dana 35 Axle

(05-09)

(02-04) (98-04) (94-97)

(98-01) (07-12) (06-15) (04-09) (06-15) (02-09)

(07-13) (90-05) (06-15) (95-02) (99-06) (89-98) (96-98) (88-97) (92-94)

(91-93) (93-94) (91-94) (93-98) (99-03) (02-03) (86-95) (03-12) (94-97)

(97-00)

(02-07) (01-05)

(94-00)

(06-07) (02-04) (01-05)

(06-15) (95-97) (97-00)

(05-06) (98-99)

(00-06) (01-06) (98-99)

(01-06) (05-14) (98-03)

Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Upper NA RCA Fr. Upper applicable Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper applicable Fr. Lower applicable

Fr. Lower applicable (Uses Pinch Bolt)

Fr. Lower applicable

Fr. Upper Applicable (uses Pinch Bolt)

Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA NA application Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA NA application Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA

19 19 19

NA 08, 03 08, 03

19 NA NA NA NA NA NA NA NA NA NA NA NA NA

08, 03 08, 03 08, 03 08, 03 08, 03

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

10, 03, 08 or 13

NA

10, 03, 08 or 13

NA NA NA NA NA NA NA NA NA NA NA NA

NA 16, 10 21, 10

08, 02, 10

NA

Page 15

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

Mercedes-Benz

Make Model Year Application Removal

Installation

CLK320 CLK350

CLK430

CLK500

CLK55 AMG

CLK550

CLK63 AMG

CLS550

CLS63 AMG

E300

E320

E350 E420

E430

E500 E55 AMG

E550 E63 AMG G500 G55 AMG G55K GL320 GL450

GLC63 AMG

GT C AMG

ML320

ML350 ML430 ML500

ML55 AMG

ML63 AMG

S320

S350 S420

S430

S500

(03-05) (06-09)

(99-03)

(03-06)

(01-03)

(03-06)

(07-09)

(06-10) (06-10) (06-14) (95-99)

(96-01)

2002

2003

(03-06) (06-16) (94-97)

(98-02)

(03-06) (99-03)

(03-06) (07-14) (07-16) (02-05) (03-11) 2005 (07-08) (07-16) 2018 2018 (97-01) (05-08) (03-15) (99-01) (02-08) (00-03) (07-11) (94-99)

2006 (94-99)

(00-06)

(94-99)

Fr. & Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA NA application NA application NA application Fr. Lower NA RCA Fr. Lower NA RCA NA application NA application Fr. Upper & Lower NA RCA Fr. Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

S500

S550 S55 AMG S600

S63 AMG S65 AMG SL320 SL500

SL55 AMG SL600

SL65 AMG SLK230

SLK280

SLK32 AMG

SLK320

SLK350

SLK55 AMG

Cougar

Grand Marquis

Lynx Marauder

Montego Monterey

Mountaineer

Mystique Sable

Topaz Tracer Villager Clubman

Countryman

Cooper 3000GT Diamante Eclipse

(00-06)

(07-14) (00-06) (94-99)

(01-06) (07-13) (07-10) (06-14) (94-97) (94-02) (03-06) (03-08) (94-02) (04-09) (04-12) (96-04)

(06-08)

(01-04)

(00-04)

(04-11)

(04-11) (89-97) (96-97) (99-02) (95-02)

(03-11)

(84-87) (03-04)

(05-07) (04-07) (97-05) (97-01) (02-05) (06-10) (95-00) (86-95) (08-09) (84-94) (91-99) (93-02) (08-14) (11-18) (01-13) (91-99) (96-04) (90-94) (95-01) (06-12) (95-99)

Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA NA application NA application Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA NA application Fr. Upper & Lower NA RCA Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Upper & Lower NA RCA Rear Lower NA RCA Fr. & Rear Lower NA RCA Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Upper NA RCA Rear Lower NA applicable Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) NA application Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Lower NA RCA Fr. Lower NA RCA Fr. Upper NA (Bolt in)

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

NA

19 NA NA

19 NA NA NA

19 or 04, 08

NA NA NA NA NA NA NA NA NA NA NA NA NA NA

12, 18

NA NA NA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

06, 10, 06

NA

NA NA

NA NA NA

10, 03, 08

NA NA NA NA NA NA NA NA NA NA NA NA NA NA

16 NA NA NA

MercuryMiniMitsubishi

Page 16

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

MitsubishiNissanOldsmobilePlymouth

Plymouth

Make Model Year Application Removal

Installation

Eclipse Cross

Endeavor Galant

Lancer Mighty Max Mirage

Montero

Montero Sport

Outlander Raider 200SX 350Z

370Z Altima

Armada

Frontier Maxima Murano

Pathfinder

Quest

Rogue Sentra

Versa Xterra 88 98 Archieva Alero Aurora Bravada

Cutlass

Cutlass Ciera

Cutlass Supreme

Intrigue LSS Regency Silhouette

Silhouette APV

Breeze

Grand Voyager

Laser Prowler

2018 (04-11) (85-93) (94-99) (94-98) (02-12) (83-96) (96-02) (12-17) (92-06) (97-04) (03-17) (06-09) (95-98) (03-09)

(09-18) (93-97) (98-01) (02-18) (04-15) (91-97) (91-97) (98-04) (03-14) (03-14)

(91-04) (91-95) (93-02) (04-09)

(08-13) (91-99) (07-12) (07-12) (00-04) (85-99) (85-96) (92-98) (99-04) (95-03) (91-01) (02-04)

(97-99) (82-96) (88-97) (98-02) (96-99) (97-98) (99-01) (02-04) (02-04) (90-98) (96-00) (88-00) (90-94) (97-01)

NA application Fr. Lower NA RCA Fr. Lower applicable Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Lower NA RCA NA application Fr. Upper & Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RSK Fr. Upper NA RCA NA application Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA Rear Upper & Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper applicable Fr. Lower NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA RCA Fr. Lower applicable Fr. Lower NA RCA Fr. Lower applicable Fr. Upper applicable Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper & Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower applicable Fr. Lower applicable Fr. Lower NA RCA

NA NA

12, 18

NA NA

12, 18

NA NA NA NA NA NA

12, 21

NA NA

NA 12, 18 12, 18

NA

NA 12, 21

NA 12, 18

NA

15, 08

NA

12, 18 or 02, 09

12, 18

NA

NA NA

16 NA NA

02, 08

NA NA NA NA NA NA

10, 13

NA NA NA

02, 08

NA NA NA NA

10, 17, 09, 06

NA NA NA NA NA NA NA NA NA

NA

10, 17, 09, 06

NA NA NA NA NA NA

12, 18, 06

16, 10

NA NA NA NA NA NA NA NA NA NA NA

21 , 08

16 NA

D21 Pickup 2WD/4WD

D21 Pickup 2WD

Silhouette 2WD/4WD

Bravada 2WD / 4WD

Voyager

Aztek

Bonneville

Bonneville SSEi

Firebird G3

G5 Soft Ride

G5 Sport Ride

G6 G8 Grand Am Grand Prix GTO Montana

Montana SV6

Pursuit Solstice Sunfire Torrent

Trans Sport

Vibe 911 Boxster Cayenne Cayman Macan Panamera 900 9000 9--2 9--3 9--5 9-7x

Astra Aura Ion L100 L200 L300 LS LS1 LS2 LW1 LW2 LW200 LW300 Outlook Relay

SC1 SC2 SKY SL SL1 SL2

(84-00) (01-03) (01-05)

(87-05) 2003 (93-02) (07-09) (07-09) (07-09) (05-10) (08-09) (91-05) (88-08) (04-06) (99-06) (02-06) 2005 (05-06) (06-10) (95-05) (06-09) (90-98) (03-08) (96-17) (97-17) (03-17) (06-17) (15-17) (10-16) (94-98) (86-98) (05-06) (99-12) (99-11) (05-08)

(08-09) (07-10) (03-07) (01-02) (01-03) (01-05) 2000 2000 2000 2000 2000 (01-03) (01-03) (07-10) (05-07)

(96-02) (96-02) (07-10) (96-02) (96-02) (96-02)

Fr. Lower applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) NA application NA application NA application NA application NA application NA application Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Upper applicable Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Rear Upper & Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA

12, 18 or 02, 09

12, 18

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

15, 08

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

21, 08

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

12, 18, 06

16, 10

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

PontiacPorscheSaabSaturn

Page 17

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

Make Model Year Application Removal

Installation

SaturnScionSubaru

Make Model Year Application Removal

Installation

SW1 SW2 Vue FR-S Im tC xA Xb xD B9 Tribeca Baja BRZ Crosstrek Esteem Forester Impreza Legacy Outback SVX Aerio Forenza

Grand Vitara

Reno

Sidekick Sport

Swift SX4 Verona Vitara X-90 XL-7 4Runner

Avalon Camry Celica Corolla Echo FJ Cruiser Highlander

Land Cruiser

Mirai Matrix

MR2 Spyder

Paseo Previa Prius Rav4 Sequoia

Sienna Solara Supra T-100

Tacoma

Tacoma 2WD

(96-01) (96-01) (02-10) (13-16) 2016 (05-10) (04-06) (04-15) (08-14) (06-14) (03-06) (13-17) (13-15) (96-02) (97-08) (93-11) (90-09) (00-09) (92-97) (02-07) (04-08) (99-13) (05-08) (89-98) (96-98) (96-01) (07-14) (04-06) (99-06) (96-98) (02-08) (96-02)

(03-09)

(95-10) (92-11) (94-05) (96-08) (00-05) (07-14) (01-08) (96-08) (15-17) (03-08) (00-05) (92-97) (91-97) (01-09) (96-09) (01-08)

(98-10) (99-08) (96-98) (93-98)

(95-04) (95-04)

Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) NA application NA application Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) NA application NA application Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Upper applicable Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Upper & Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA NA application Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper applicable Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Upper NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA (Bolt in)

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

NA NA NA NA NA NA NA

12, 21

NA NA NA NA NA NA NA NA NA NA

NA NA NA NA NA NA NA NA

NA

21, 12, 06

NA

21, 12, 06

NA

SuzukiToyota

Toyota

Sidekick 2WD/4WD

Tacoma 4WD

Tacoma Tercel Tundra

Venza Yaris Atlas Cabrio CC EOS Eurovan

GLI Golf

Golf (exc. VR6)

Golf GEN IV

Golf GEN V

Golf VR6 GTI

GTI GEN IV

GTI GEN V

Jetta

Jetta (exc. VR6)

Jetta VR6

New Beetle

Passat

Passat VR6 Phaeton

R32 Rabbit Tiguan Touareg

Touareg 2

850 960 C30 C70 S40

S60 S70 S80 S90 V40 V50

Tacoma Prerunner 2WD

(95-04) (95-04) (95-04) (05-15) (91-98) (00-06) (07-13) (00-13) (09-15) (05-13) 2018 (95-02) (08-17) (07-15) (93-03)

(08-11) (99-05) (96-98) 2006 2006 (96-98) (07-08) (06-07) 2006 (99-11) (88-98) 1999 (94-98) 1999 (98-11) (96-05) (98-05)

(06-15) (90-97) (93-97) (04-06)

2008 (06-09) (08-18) (03-07)

(08-10)

(96-97) (92-98) (08-13) (98-13) (00-12) (04-12) (01-09) (98-00) (99-16) 1998 (00-04) (05-12)

Fr. Upper applicable Fr. Upper applicable Fr. Lower NA (Bolt in) Fr. Lower applicable Fr. Lower NA (Bolt in) Fr. Upper applicable Fr. Upper NA RCA Fr. Lower NA (Bolt in) NA application Fr. Lower NA RCA NA application Fr. Lower NA (Bolt in) NA application Fr. Lower NA (Bolt in) Fr. Upper NA application Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Rear Lower NA RCA Fr. Upper NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) NA application Fr. Upper NA RCA Fr. Lower NA RCA Fr. Upper NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA Fr. Lower NA RCA Rear Upper NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA RCA

NA

14, 08

NA

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

21, 12, 06 21, 12, 06

NA

10, 03, 08

NA

21, 12, 06

NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA

VolkswagenVolvo

Jetta (exc. VR6) Old Style

Jetta VR6 Old Style

Passat (exc. VR6)

Page 18

MBP1000

MODEL:

Product Type:

BALL JOINT SERVICE TOOL AND MASTER ADAPTER SET

BALL JOINT APPLICATION MASTER

* RCA = Replace Control Arm * RSK = Replace Steering Knuckle

Make Model Year Application Removal

Installation

Volvo

V50 V60 V70

V90

(05-12) (15-18) (98-00) (01-11) 1998

Rear Upper NA RCA NA application Fr. Lower NA RCA Fr. Lower NA (Bolt in) Fr. Lower NA (Bolt in)

NA NA NA NA NA

Make Model Year Application Removal

Installation

Volvo

XC60 XC70

XC90

(10-18) (03-07) (08-16) (03-15)

NA application Fr. Lower NA (Bolt in) Fr. Lower NA RCA Fr. Lower NA (Bolt in)

NA NA NA NA

Matco Tools MBP1000 Instruction Manual [en, es, fr]
