Page 1

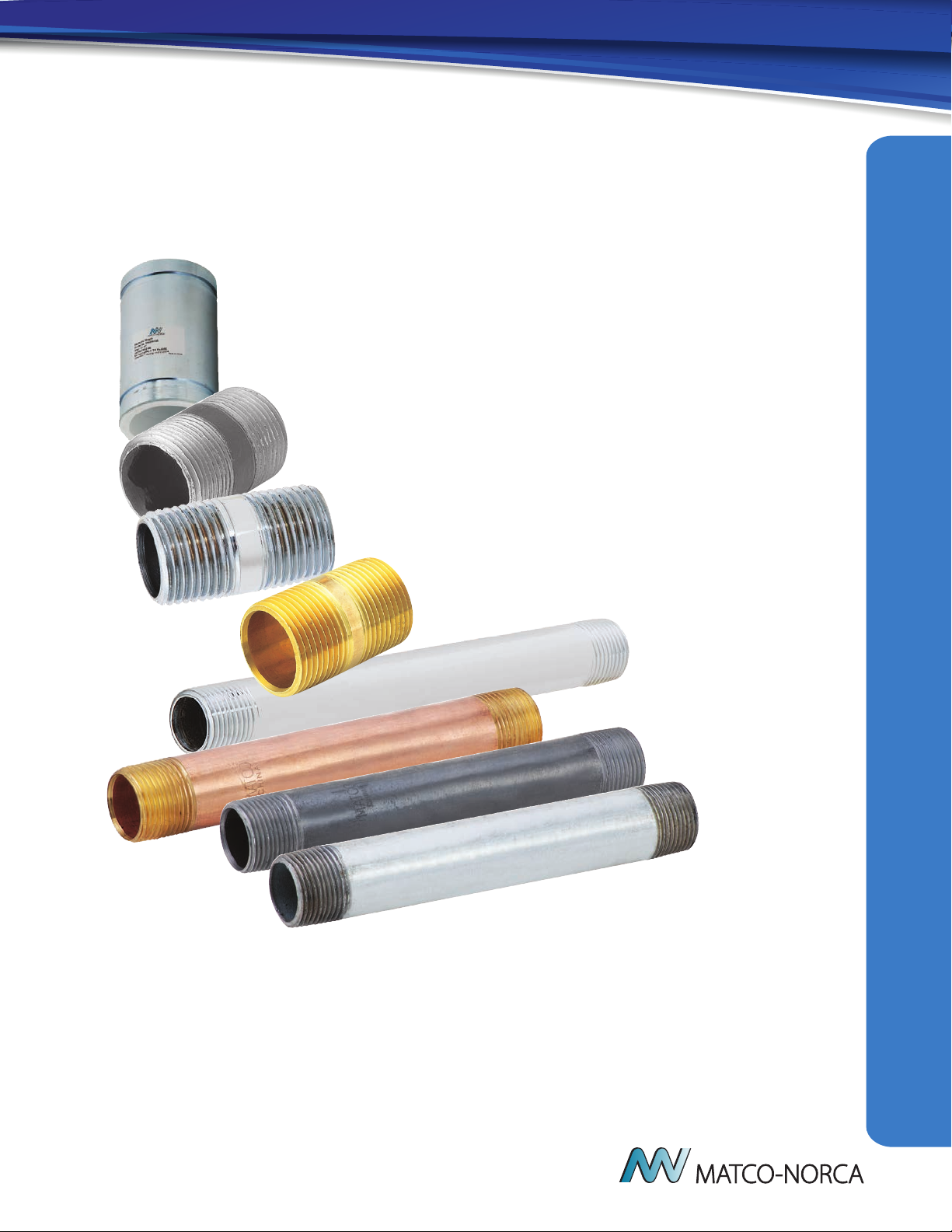

Pipe Nipples
Welded Steel - Schedule 40 - Black & Galvanized
Pre-Cut - Welded Steel - Schedule 40
Welded Steel - Schedule 80
Seamless Steel - Schedule 80
PVC - Schedule 80
Brass
304 Stainless Steel - Schedule 40
316 Stainless Steel - Schedule 40
Swage - Schedule 40 & 80
Chrome Plated Brass
Grooved
Dielectric
Pipe Nipples
Fittings & Nipples
Global sourcing. National compliance. Local service.
89
Page 2
Steel Nipple Part # Breakdown
ZNB036PREFIX
Prex
ZN
Chinese Standar
Chinese P
N
Part Group
B Black
G
G
Steel Nipple
Part # Breakdown
alvanized
Pipe Size
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
re-Cut
1/8
1/4
3/8
1/2
3/4
1
1-1/4
1-1/2
2
2-1/2
3
4
5
6
8
d
Sample Part # is:
ZNB036 - Standard Black, 1/2” x 6”
NB0318 - Pre-Cut Black, 1/2” x 18”
(Z)
Z N B 03 6
N B 03 18
Length Size
Standard Pre-Cut
1-1/2
2
2-1/2
3
3-1/2
4
4-1/2
5
5 1/2
6
6 1/2
7
8
9
10
11
12
18
24
30
48
60
72
90
Global sourcing. National compliance. Local service.
Fittings & Nipples
Page 3
Nipples - Welded Steel
Schedule 40 - Black
• Meets or Exceeds All Applicable
ASTM & ANSI Standards
• Stocked 1/8” - 8” Diameter
•
Specialty Items Such as
Toe Nipples are Available
• ISO 9001: 2000
• Available in Long Lengths up to 10 Ft.
• Various Assortments in Stock
• Lead Free
Steel Nipples
Schedule 40 Black
MATCONORCA
MODEL NUMBER
CARTON QUANTITIES
INNER MASTER
Black Steel Nipples - Schedule 40
ZNB05CL 1” x CLOSE 25 200
ZNB052 1” x 2” 25 200
ZNB05212 1” x 2-1/2” 25 150
ZNB053 1” x 3” 25 150
ZNB05312 1” x 3-1/2” 25 150
ZNB054 1” x 4” 25 100
ZNB05412 1” x 4-1/2” 25 100
ZNB055 1” x 5” 25 100
ZNB05512 1” x 5-1/2” 25 100
ZNB056 1” x 6” 25 100
ZNB05612 1” x 6-1/2” 25 80
ZNB057 1” x 7” 10 60
ZNB05712 1” x 7-1/2” 25 60
ZNB058 1” x 8” 6 60
ZNB05812 1” x 8-1/2” 25 60
ZNB059 1” x 9” 10 40
ZNB05912 1” x 9-1/2” 25 25
ZNB0510 1” x 10” 10 40
ZNB0511 1” x 11” 10 40
ZNB0512 1” x 12” 10 40
ZNB06CL 1-1/4” x Close 5 90
ZNB062 1-1/4” x 2” 5 90
ZNB06212 1-1/4” x 2-1/2” 5 90
ZNB063 1-1/4” x 3” 5 90
ZNB06312 1-1/4” x 3-1/2” 5 90
ZNB064 1-1/4” x 4” 5 90
ZNB06412 1-1/4” x 4-1/2” 5 60
ZNB065 1-1/4” x 5” 5 60
ZNB06512 1-1/4” x 5-1/2” 5 60
ZNB066 1-1/4” x 6” 5 60
ZNB06612 1-1/4” x 6-1/2” 5 30
ZNB067 1-1/4” x 7” 5 30
ZNB068 1-1/4” x 8” 5 30
ZNB069 1-1/4” x 9” 5 20
ZNB0610 1-1/4” x 10” 5 20
ZNB0611 1-1/4” x 11” 5 20
ZNB0612 1-1/4” x 12” 5 20
ZNB07CL 1-1/2” x Close 5 90
ZNB072 1-1/2” x 2” 5 90
ZNB07212 1-1/2” x 2-1/2” 5 60
ZNB073 1-1/2” x 3” 5 60
ZNB07312 1-1/2” x 3-1/2” 5 60
ZNB074 1-1/2” x 4” 5 60
ZNB07412 1-1/2” x 4-1/2” 5 40
ZNB075 1-1/2” x 5” 5 40
ZNB07512 1-1/2” x 5-1/2” 5 40
MATCONORCA
MODEL NUMBERSIZE SIZE
CARTON QUANTITIES
INNER MASTER
Black Steel Nipples - Schedule 40
ZNB076 1-1/2” x 6” 5 40
ZNB077 1-1/2” x 7” 5 30
ZNB078 1-1/2” x 8” 5 30
ZNB079 1-1/2” x 9” 5 20
ZNB0710 1-1/2” x 10” 5 20
ZNB0711 1-1/2” x 11” 5 20
ZNB0712 1-1/2” x 12” 5 20
ZNB08CL 2” x CLOSE 5 60
ZNB08212 2” x 2-1/2” 5 40
ZNB083 2” x 3” 5 40
ZNB08312 2” x 3-1/2” 5 40
ZNB084 2” x 4” 5 40
ZNB08412 2” x 4-1/2” 5 30
ZNB085 2” x 5” 5 30
ZNB08512 2” x 5-1/2” 5 30
ZNB086 2” x 6” 5 30
ZNB08612 2” x 6-1/2” 5 20
ZNB087 2” x 7” 5 20
ZNB088 2” x 8” 5 20
ZNB089 2” x 9” 5 20
ZNB0810 2” x 10” 5 20
ZNB0811 2” x 11” 5 20
ZNB0812 2” x 12” 5 20
ZNB09CL 2-1/2” x Close 1 35
ZNB093 2-1/2” x 3” 1 35
ZNB09312 2-1/2” x 3-1/2” 1 25
ZNB094 2-1/2” x 4” 1 25
ZNB09412 2-1/2” x 4-1/2” 1 25
ZNB095 2-1/2” x 5” 1 20
ZNB09512 2-1/2” x 5-1/2” 1 20
ZNB096 2-1/2” x 6” 1 20
ZNB09612 2-1/2” x 6-1/2” 1 15
ZNB097 2-1/2” x 7” 1 15
ZNB098 2-1/2” x 8” 1 15
ZNB099 2-1/2” x 9” 1 10
ZNB0910 2-1/2” x 10” 1 10
ZNB0911 2-1/2” x 11” 1 10
ZNB0912 2-1/2” x 12” 1 10
ZNB10CL 3” x Close 1 25
ZNB103 3” x 3” 1 25
ZNB10312 3” x 3-1/2” 1 20
ZNB104 3” x 4” 1 20
ZNB10412 3” x 4-1/2” 1 15
ZNB105 3” x 5” 1 15
ZNB10512 3” x 5-1/2” 1 15
ZNB106 3” x 6” 1 15
ZNB107 3” x 7” 1 10
92
