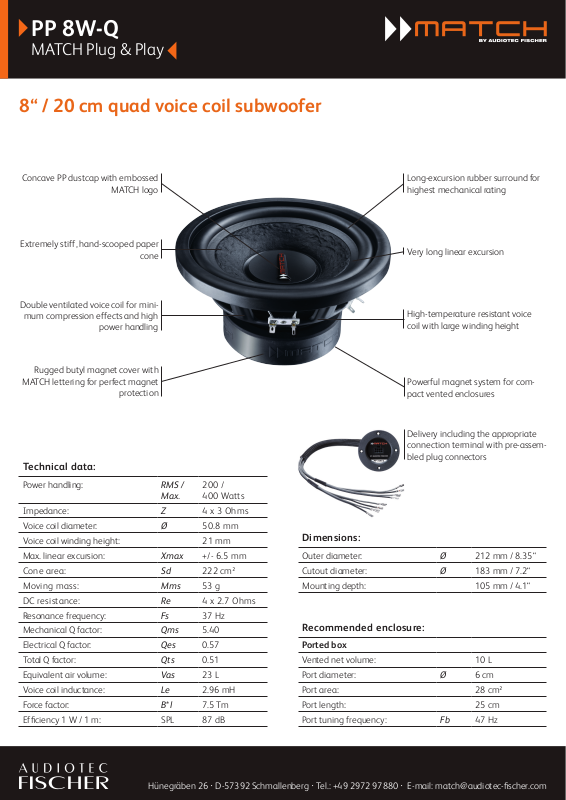

PP 8W-Q
MATCH Plug & Play
8“ / 20 cm quad voice coil subwoofer
Concave PP dustcap with embossed
MATCH logo
Extremely stiff, hand-scooped paper
cone
Double ventilated voice coil for mini-
mum compression effects and high
power handling
Rugged butyl magnet cover with
MATCH lettering for perfect magnet
protection
Technical data:
Long-excursion rubber surround for
highest mechanical rating
Very long linear excursion
High-temperature resistant voice
coil with large winding height
Powerful magnet system for compact vented enclosures
Delivery including the appropriate
connection terminal with pre-assembled plug connectors
Power handling: RMS /
Max.
Impedance: Z 4 x 3 Ohms
Voice coil diameter: Ø 50.8 mm
Voice coil winding height: 21 mm
Max. linear excursion: Xmax +/- 6.5 mm
Cone area: Sd 222 cm²
Moving mass: Mms 53 g
DC resistance: Re 4 x 2.7 Ohms
Resonance frequency: Fs 37 Hz
Mechanical Q factor: Qms 5.40
Electrical Q factor: Qes 0.57
Total Q factor: Qts 0.51
Equivalent air volume: Vas 23 L
Voice coil inductance: Le 2.96 mH
Force factor: B*l 7.5 Tm
Effi ciency 1 W / 1 m: SPL 87 dB
200 /
400 Watts
Dimensions:
Outer diameter: Ø 212 mm / 8.35“
Cutout diameter: Ø 183 mm / 7.2“
Mounting depth: 105 mm / 4.1“
Recommended enclosure:
Ported box
Vented net volume: 10 L
Port diameter: Ø 6 cm
Port area: 28 cm²
Port length: 25 cm
Port tuning frequency: Fb 47 Hz
