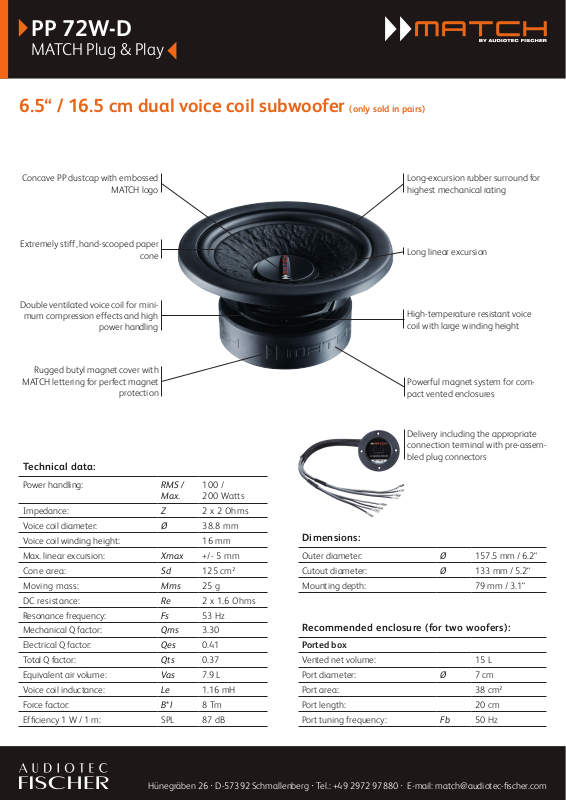

PP 72W-D
MATCH Plug & Play
6.5“ / 16.5 cm dual voice coil subwoofer (only sold in pairs)
Concave PP dustcap with embossed
MATCH logo
Extremely stiff, hand-scooped paper
cone
Double ventilated voice coil for mini-
mum compression effects and high
power handling
Rugged butyl magnet cover with
MATCH lettering for perfect magnet
protection
Technical data:
Long-excursion rubber surround for
highest mechanical rating
Long linear excursion
High-temperature resistant voice
coil with large winding height
Powerful magnet system for compact vented enclosures
Delivery including the appropriate
connection terminal with pre-assembled plug connectors
Power handling: RMS /
Max.
Impedance: Z 2 x 2 Ohms
Voice coil diameter: Ø 38.8 mm
Voice coil winding height: 16 mm
Max. linear excursion: Xmax +/- 5 mm
Cone area: Sd 125 cm²
Moving mass: Mms 25 g
DC resistance: Re 2 x 1.6 Ohms
Resonance frequency: Fs 53 Hz
Mechanical Q factor: Qms 3.30
Electrical Q factor: Qes 0.41
Total Q factor: Qts 0.37
Equivalent air volume: Vas 7.9 L
Voice coil inductance: Le 1.16 mH
Force factor: B*l 8 Tm
Effi ciency 1 W / 1 m: SPL 87 dB
100 /
200 Watts
Dimensions:
Outer diameter: Ø 157.5 mm / 6.2“
Cutout diameter: Ø 133 mm / 5.2“
Mounting depth: 79 mm / 3.1“
Recommended enclosure (for two woofers):
Ported box
Vented net volume: 15 L
Port diameter: Ø 7 cm
Port area: 38 cm²
Port length: 20 cm
Port tuning frequency: Fb 50 Hz
Hünegräben 26 · D-57392 Schmallenberg · Tel.: +49 2972 97880 · E-mail: match@audiotec-fi scher.com
